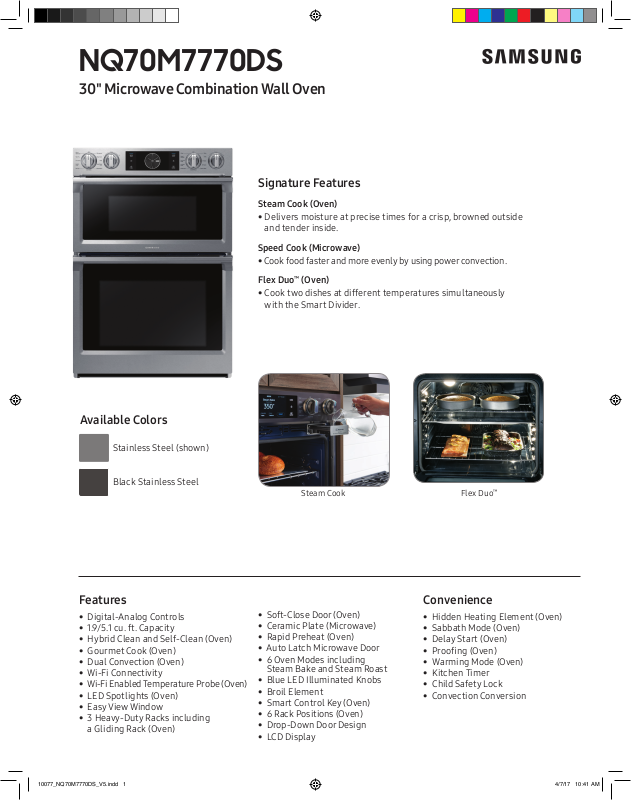

Page 1
NQ70M7770DS
30" Microwave Combination Wall Oven
Signature Features
Steam Cook (Oven)
• Delivers moisture at precise times for a crisp, browned outside
and tender inside.
Speed Cook (Microwave)
• Cook food faster and more evenly by using power convection.
Flex Duo™ (Oven)
• Cook two dishes at different temperatures simultaneously
with the Smart Divider.
Available Colors
Stainless Steel (shown)
Black Stainless Steel
Features
• Digital-Analog Controls
• 1.9/5.1 cu. ft. Capacity
• Hybrid Clean and Self-Clean (Oven)
• Gourmet Cook (Oven)
• Dual Convection (Oven)
• Wi-Fi Connectivity
• Wi-Fi Enabled Temperature Probe (Oven)
• LED Spotlights (Oven)
• Easy View Window
• 3 Heavy-Duty Racks including
a Gliding Rack (Oven)
Steam Cook
• Soft-Close Door (Oven)
• Ceramic Plate (Microwave)
• Rapid Preheat (Oven)
• Auto Latch Microwave Door
• 6 Oven Modes including
Steam Bake and Steam Roast
• Blue LED Illuminated Knobs
• Broil Element
• Smart Control Key (Oven)
• 6 Rack Positions (Oven)
• Drop-Down Door Design
• LCD Display
Flex Duo
™
Convenience
• Hidden Heating Element (Oven)
• Sabbath Mode (Oven)
• Delay Start (Oven)
• Proong (Oven)
• Warming Mode (Oven)
• Kitchen Timer
• Child Safety Lock
• Convection Conversion
Page 2
NQ70M7770DS
30"
1
3
/
16
23
1
/
2
"
42
1
/
4
"
30
1
/
2
"
12
"
9
1
/
2
"
02
1" - 1
1
/
4
"
"
*
22"**
28
1
/
2
"
-
28
5
/
8
"
11
/
16
"
Min.
Min.
Min.
Max.
Min.
30" Microwave Combination Wall Oven
Cabinet Dimensions
Combination Oven Installed in Cabinet
*Junction Box
** Allow a minimum of 22" for clearance
to adjacent corners, drawers, walls, etc.
when door is open.
3
"
16
1
/
Min.
1
"
4
/
42
1
"
4
1" - 1
/
02
Product Dimensions
28
28
1
/
5
/
"
2
-
"
8
22"**
281/
Total Capacity: 1.9/5.1 cu. ft.
• Microwave: 1.9 cu. ft.
• Wall Oven: 5.1 cu. ft. total, 2.8/2.2 cu. ft.
• Hidden Bake Element
• Bake: 175°F–550°F
30"
*
1
"
2
Max.
9
/
• Convection Bake: 175°F–550°F
• Convection Roast: 175°F–550°F
• Broil: Low-High
• Steam Bake: 230°F–550°F
• Steam Roast: 230°F–550°F
• Proofing
• Sabbath Mode
Warranty
1
"
Min.
2
30
/
11
"
16
/
Min.
1
"
Min.
2
23
/
"
12
One (1) Year All Parts and Labor
Ten (10) Years Parts Warranty for Magnetron
Product Dimensions & Weight (WxHxD)
Outside (Max) Combination Oven Dimensions:
297/8" x 431/4" x 2511/16"
Combination Oven Cut-Out Dimensions:
281/2" x 421/4" x 231/2"
Weight: 119 lbs.
Shipping Dimensions & Weight (WxHxD)
Dimensions:
335/8" x 483/16" x 2951/64"
Preparation
2
"
67"
Weight: 132.5 lbs.
Color Model # UPC Code
Stainless Steel NQ70M7770DS 887276195186
Black Stainless Steel NQ70M7770DG 887276195162
431/
"
8
"
4
297/
29/
"
16
42
"
RATING
240V 9.5 kW
208V 7.2 kW
297/
"
8
BREAKER SIZE
240V 40 Amps
208V 40 Amps
"
4
293/
Actual color may vary. Design, specifications, and color availability are subject to change without notice. Non-metric weights and measurements are approximate.
©2017 Samsung Electronics America, Inc. 85 Challenger Road, Ridgeeld Park, NJ 07660. Tel: 800-SAMSUNG. samsung.com. Samsung is a registered trademark of Samsung Electronics Co. Ltd.
231/
"
8
