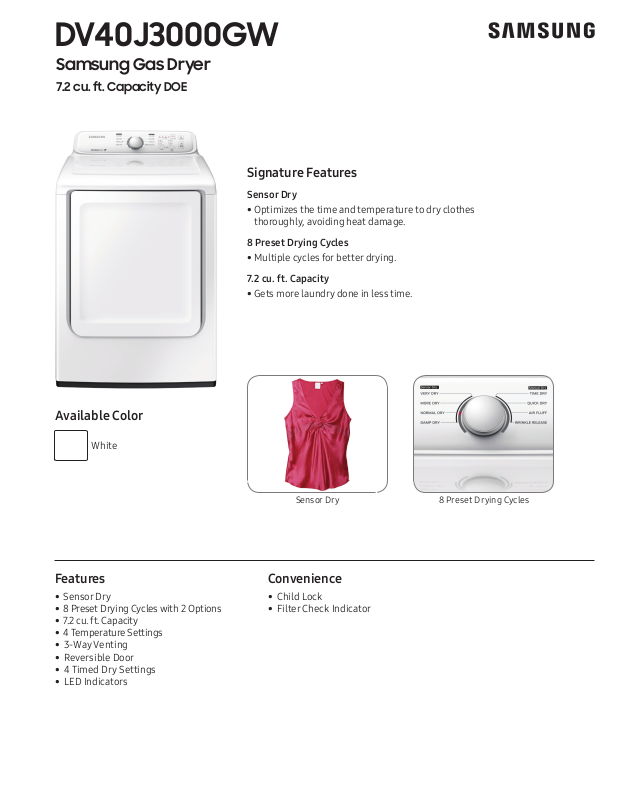

Page 1

DV40J3000GW

Samsung Gas Dryer

7.2 cu. ft. Capacity DOE

Signature Features

Sensor Dry

• Optimizes the time and temperature to dry clothes thoroughly, avoiding heat damage.

8 Preset Drying Cycles

• Multiple cycles for better drying.

7.2 cu. ft. Capacity

• Gets more laundry done in less time.

Available Color

White

Features

• Sensor Dry

• 8 Preset Drying Cycles with 2 Options

• 7.2 cu. ft. Capacity

• 4 Temperature Settings

• 3-Way Venting

• Reversible Door

• 4 Timed Dry Settings

• LED Indicators

Sensor Dry

Convenience

• Child Lock

• Filter Check Indicator

8 Preset Drying Cycles

Page 2

DV40J3000GW

DV400EWHDWR

Recessed Area Side View Conﬁned

Samsung Gas Dryer

7.2 cu. ft. Capacity DOE

Installation Specifications

Alcove or closet installation

27" 27" 1"1"

2" 6"

Minimum clearances for closets and alcoves:

Area: 48 in.

Sides – 1"

Top – 21" Rear – 6" Closet Front – 2"

If the washer and dryer are installed together, the closet front must have at least a 72-inch

Your washer alone does not require a speciﬁc air opening.

*Required spacing (External exhaust elbow may require additional space.)

unobstructed air opening.

21"

30"

3-Way Venting

8 Preset Dry Cycles:

Very Dry, More Dry, Normal Dry, Damp Dry, Time Dry, Air Fluff, Quick Dry, Wrinkle Release

2 Options:

Wrinkle Prevent, Child Lock

4 Temperature Settings:

High, Medium, Low, Extra Low

Warranty

One (1) Year Parts and Labor

Product Dimensions & Weight (WxHxD)

Dimensions: 27" x 44" x 30" Weight: 114.7 lbs

Shipping Dimensions & Weight (WxHxD)

Dimensions: 299/16" x 469/16" x 313/16" Weight: 123.5 lbs

Gas Model # UPC Code

White DV40J3000GW 887276086958

Electric

White DV40J3000EW 887276086972

Matching Washer

White WA40J3000AW 887276086989

Area:

24 in.

Closet or Door

Dimensions

44"

30"27"

Actual color may vary. Design, specifications, and color availability are subject to change without notice. Non-metric weights and measurements are approximate.
