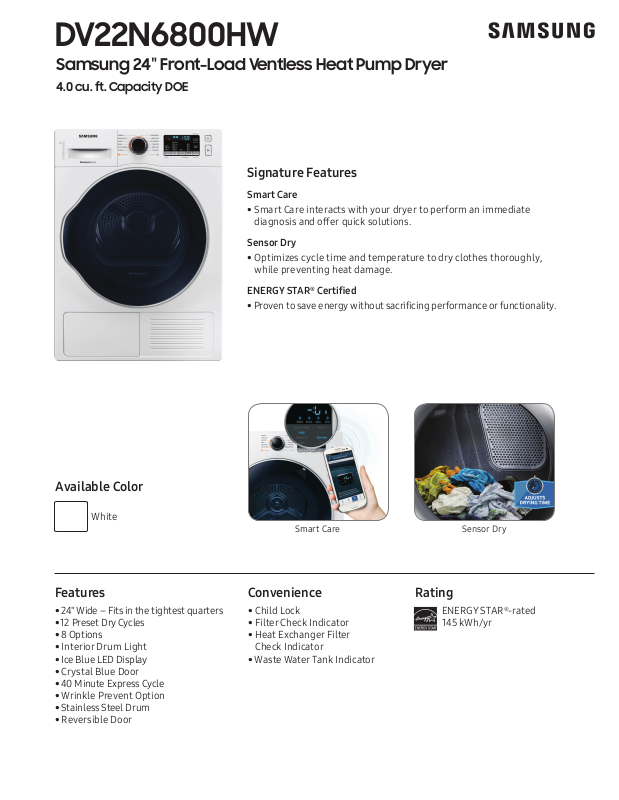

Page 1
DV22N6800HW
Samsung 24" Front-Load Ventless Heat Pump Dryer
4.0 cu. ft. Capacity DOE
Signature Features
Smart Care
• Smart Care interacts with your dryer to perform an immediate
diagnosis and offer quick solutions.
Sensor Dry
• Optimizes cycle time and temperature to dry clothes thoroughly,
while preventing heat damage.
ENERGY STAR® Certied
• Proven to save energy without sacrificing performance or functionality.
Available Color
White
Features
• 24" Wide – Fits in the tightest quarters
• 12 Preset Dry Cycles
• 8 Options
• Interior Drum Light
• Ice Blue LED Display
• Crystal Blue Door
• 40 Minute Express Cycle
• Wrinkle Prevent Option
• Stainless Steel Drum
• Reversible Door
Smart Care Sensor Dry
Convenience
• Child Lock
• Filter Check Indicator
• Heat Exchanger Filter
Check Indicator
• Waste Water Tank Indicator
Rating
ENERGY STAR®-rated
145 kWh/yr
Page 2
25
3
/5"
Depth including washer clearance
1" 2"
DV22N6800HW
Samsung 24" Front-Load Ventless Heat Pump Dryer
4.0 cu. ft. Capacity DOE
Installation Specifications
If the washer and dryer are installed together or the dryer alone, the closet front must have two
unobstructed air openings for a combined minimum total area of 72-inch
Your washer alone does not require a specific air opening.
1. Alcove or closet installation
Minimum Clearance for Closet and Alcove Installations:
Depth including washer clearance
1
/8"
27
1" 2"
235/8"
1"1"
5
/8"
23
1"1"
2. With stacked washer and dryer
"
6
Area:
48 in.
"
3
2
2
(see stacked build below).
4.0 cu. ft. Capacity DOE
12 Preset Dry Cycles:
Normal, Heavy Duty, Towels, Permanent Press,
Active Wear, Delicates, Wool, Shirts, Time Dry,
Air Fluff, 40’ Express, Refresh
8 Options:
Mixed Load Bell, Wrinkle Prevent, My Cycle,
Adjust Time, Sound Off, Child Lock, Smart Care,
Drum Light
3 Dry Levels:
More Dry, Normal Dry, Less Dry
Warranty
One (1) Year Parts and Labor
Product Dimensions & Weight (WxHxD)
Dimensions: 235/8" x 331/2" x 255/8"
Weight: 110 lbs
Shipping Dimensions & Weight (WxHxD)
Dimensions: 261/4" x 35" x 273/8"
Weight: 121 lbs
"
67
Area:
2
24 in.
"
Closet or Door
3
"
1
Dimensions
Required Dimensions for Installation with Pedestal:
5
23
/8" 255/8" 445/16"
331/2"
5
"
8
23
/
"
1
1
"
8
27
/
Depth with door open 90°
Electric Model # UPC Code
White DV22N6800HW 887276292458
Matching Washer
White WW22K6800AW 887276126876
Optional Stacking Kit
Sold separately SK-DH 887276151052
"
2
Actual color may vary. Design, specifications, and color availability are subject to change without notice. Non-metric weights and measurements are approximate.
©2019 Samsung Electronics America, Inc. 85 Challenger Road, Ridgeeld Park, NJ 07660. Tel: 800-SAMSUNG. samsung.com. Samsung is a registered trademark of Samsung Electronics Co., Ltd.
