YOUR DEVICE
FRONT AND BACK FEATURES

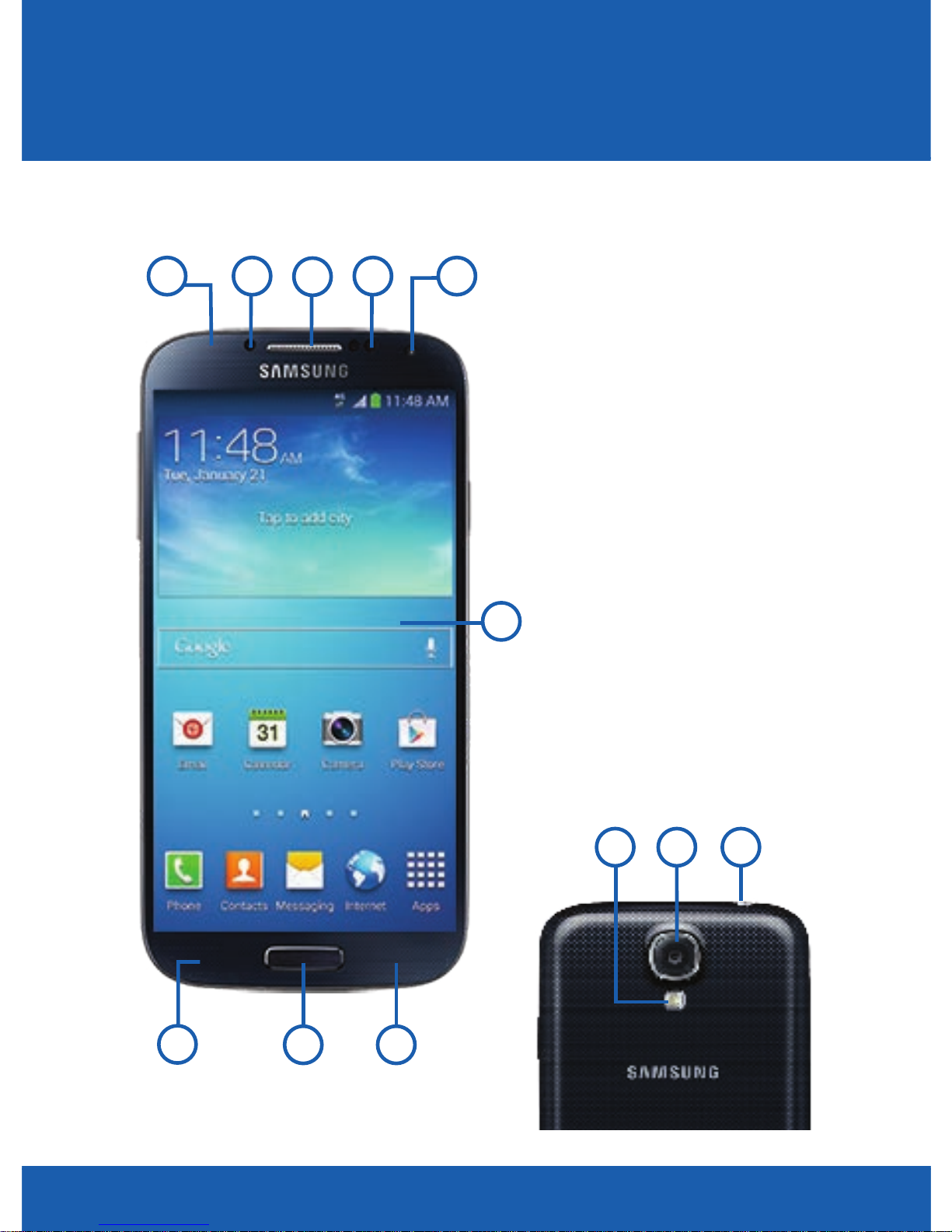

1. INDICATOR LIGHT
2. MENU KEY
3. HOME KEY
4. BACK KEY
5. DISPLAY
6. FRONT-FACING
CAMERA
7. SENSORS
8. RECEIVER
9. FLASH
10. CAMERA LENS
11. HEADSET CONNECTOR
YOUR DEVICE
Page 5
4
6
5
3
2
2 1
YOUR DEVICE
4
SIDE FEATURES

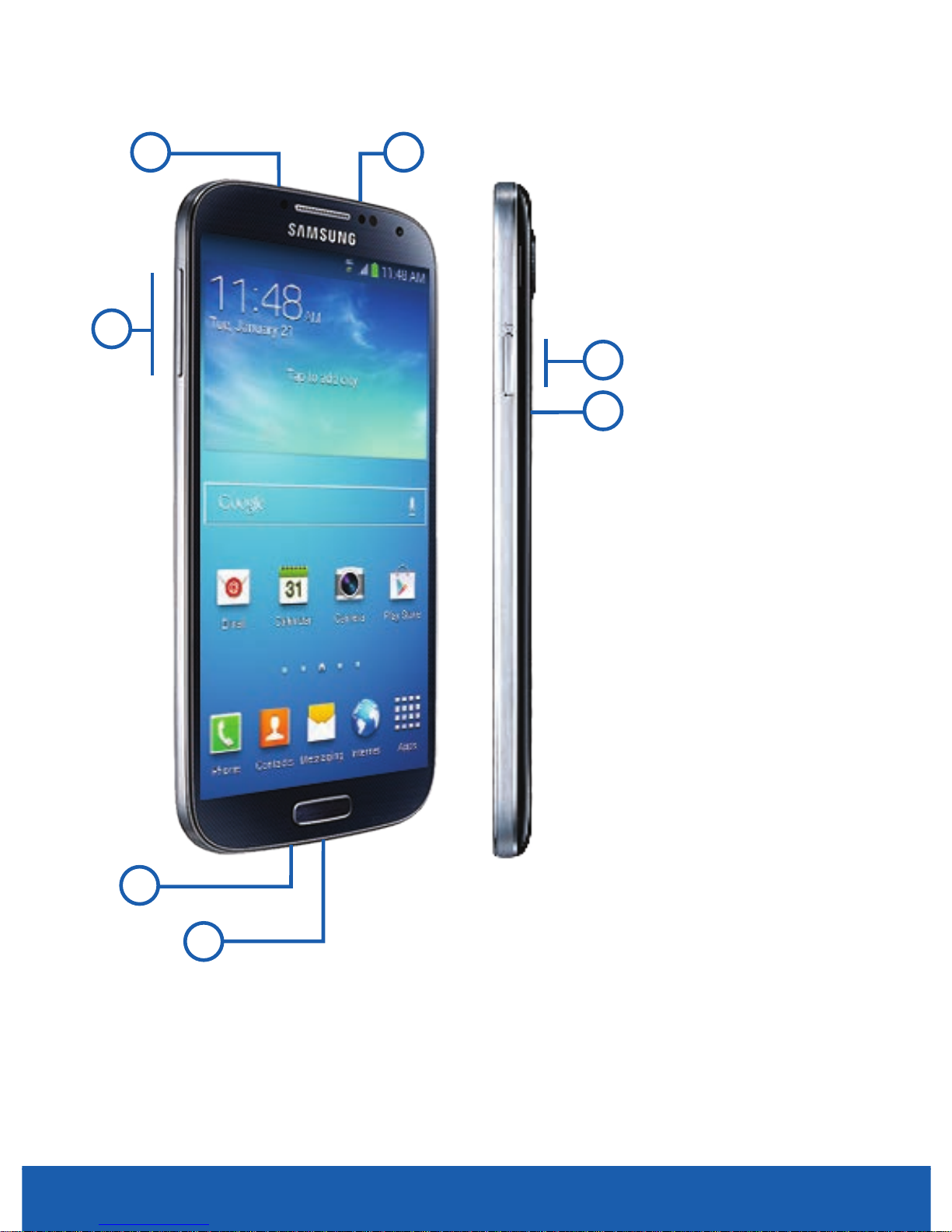

1. IR TRANSMITTER
2. MICROPHONE
3. VOLUME KEY
4. CHARGER/ACCESSORY
JACK
5. MEMORY CARD SLOT*
NOTE: *The memory card slot is
located under the battery
cover.
6. POWER/LOCK KEY
Page 6
5
YOUR DEVICE
CHARGING HEAD
CHARGING YOUR BATTERY

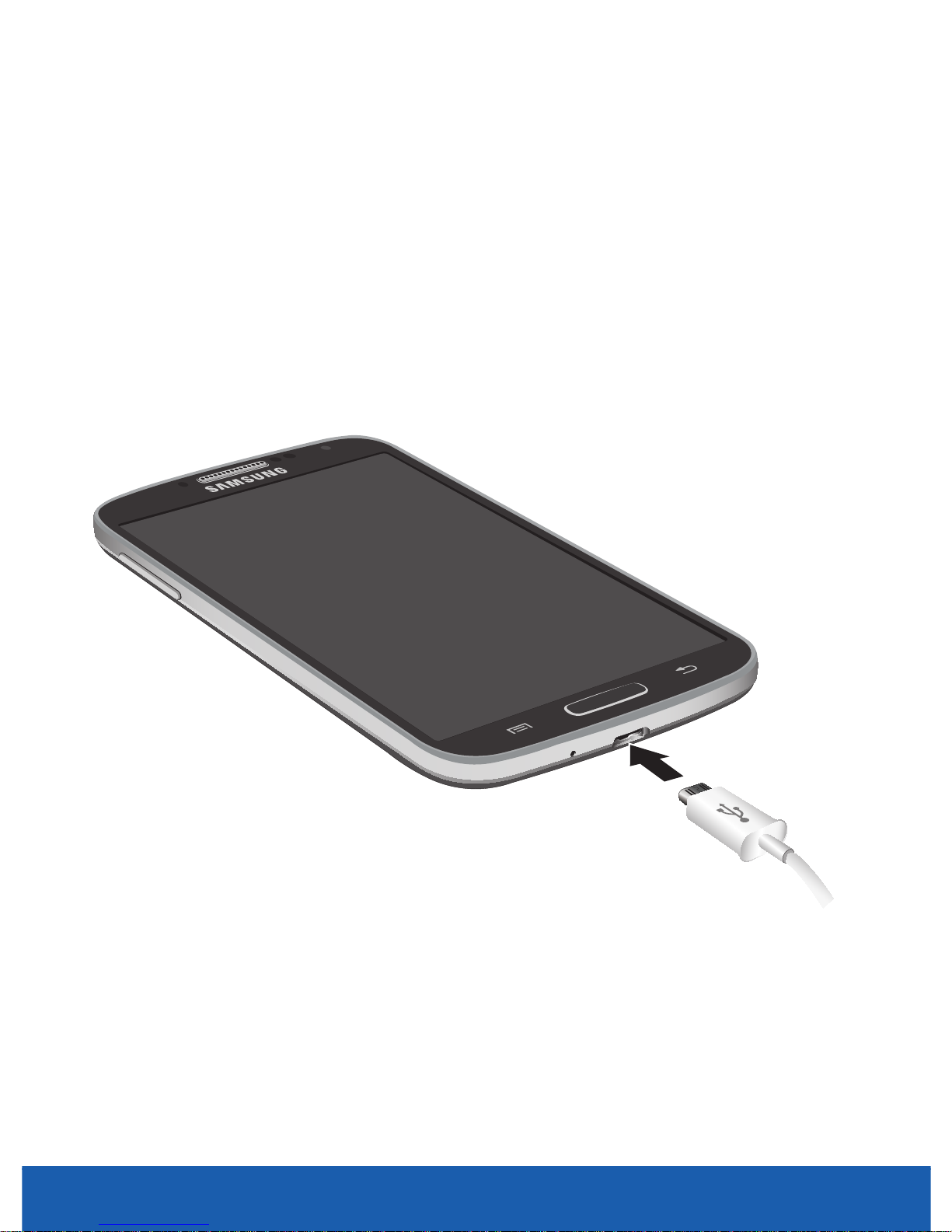

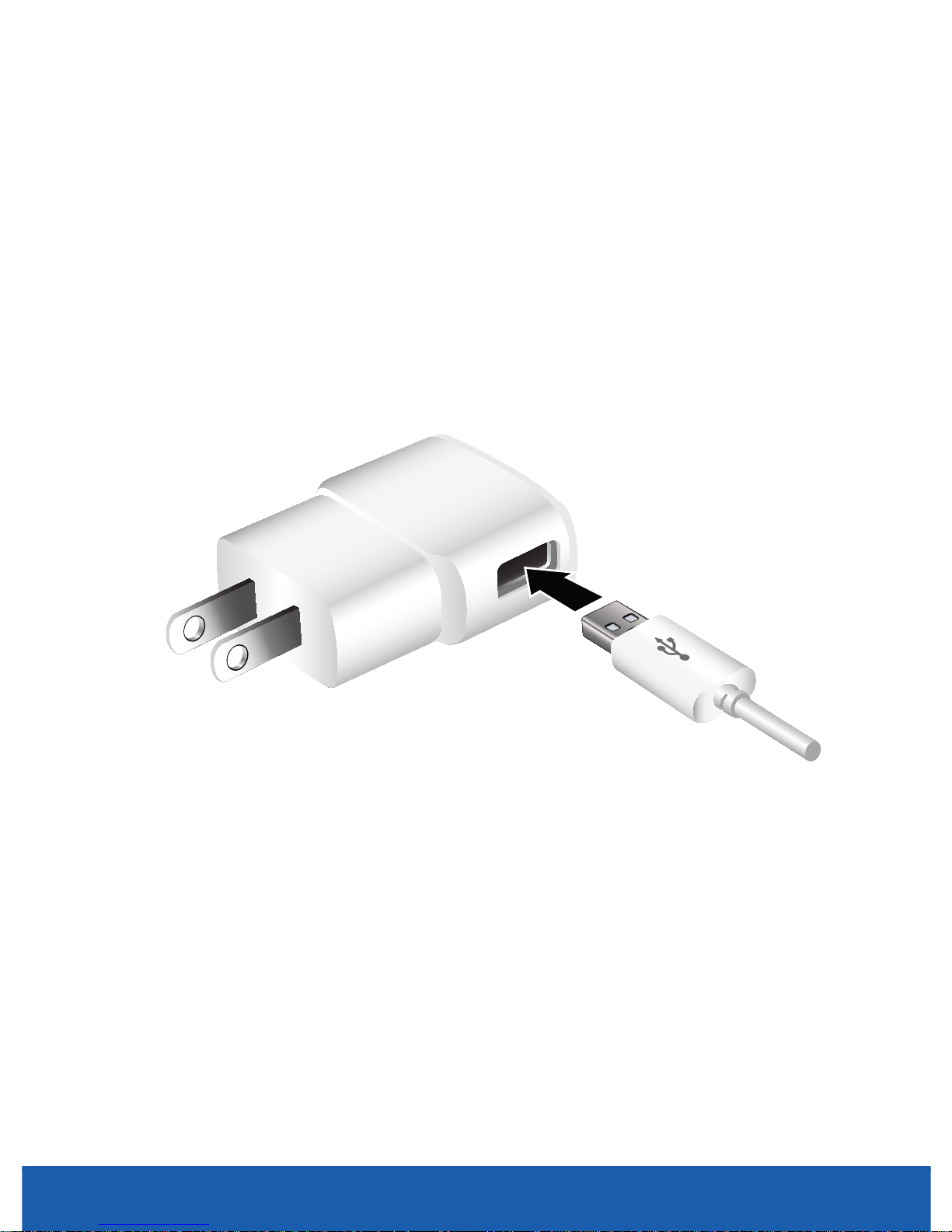

Your device comes with a USB cable and charging head to rapidly
charge your phone from any 120/220 VAC outlet.
NOTE: Although the battery comes partially charged, you must fully charge this battery
before using your phone for the first time.
1. Connect the USB cable to the charging head.
2. Plug the charging head into a standard AC power outlet.
Page 7
YOUR DEVICE
6
IMPORTANT: Verify that the battery is installed prior to connecting the wall charger. If
both the wall charger is connected and the battery is not installed, the
handset will power cycle continuously and prevent proper operation. Failure
to unplug the wall charger before you remove the battery, can cause the
device to become damaged.
3. Insert the USB cable into the device’s Power/USB connector.
The device turns on with the screen locked and indicates
both its charge state and percent of charge.
4. Once complete, unplug the charging head from the power
outlet and remove the USB cable from the device.
Page 8
7
YOUR DEVICE
TURNING YOUR DEVICE ON OR OFF
IMPORTANT: Before removing or replacing the battery, make sure the device is switched
off.
To power on your device:
X Press and hold (Power/Lock) until the device
turns on. It searches for your network and after finding it,
you can make or receive calls.
To power off your device:
1. Press and hold the (Power/Lock) until the Device
options screen appears.
2. Tap (Power off) g OK.
To restart your device:
1. Press and hold the (Power/Lock) until the Device
options screen appears.
2. Tap (Restart) g OK.
Page 9
YOUR DEVICE
8
LOCKING AND UNLOCKING YOUR DEVICE
By default, the device screen locks when the backlight turns off.
To unlock your device from the lock screen:
X With your device turned on, press (Power/Lock)
to wake the display and sliding your finger across the
screen in any direction.
To lock your device screen:
X Press (Power/Lock). The screen goes black.
Page 10
9
YOUR DEVICE
HOME SCREEN
Swipe your fingers left or right to view various Home screens.
You can customize the screen with widgets and shortcuts to your
favorite applications.

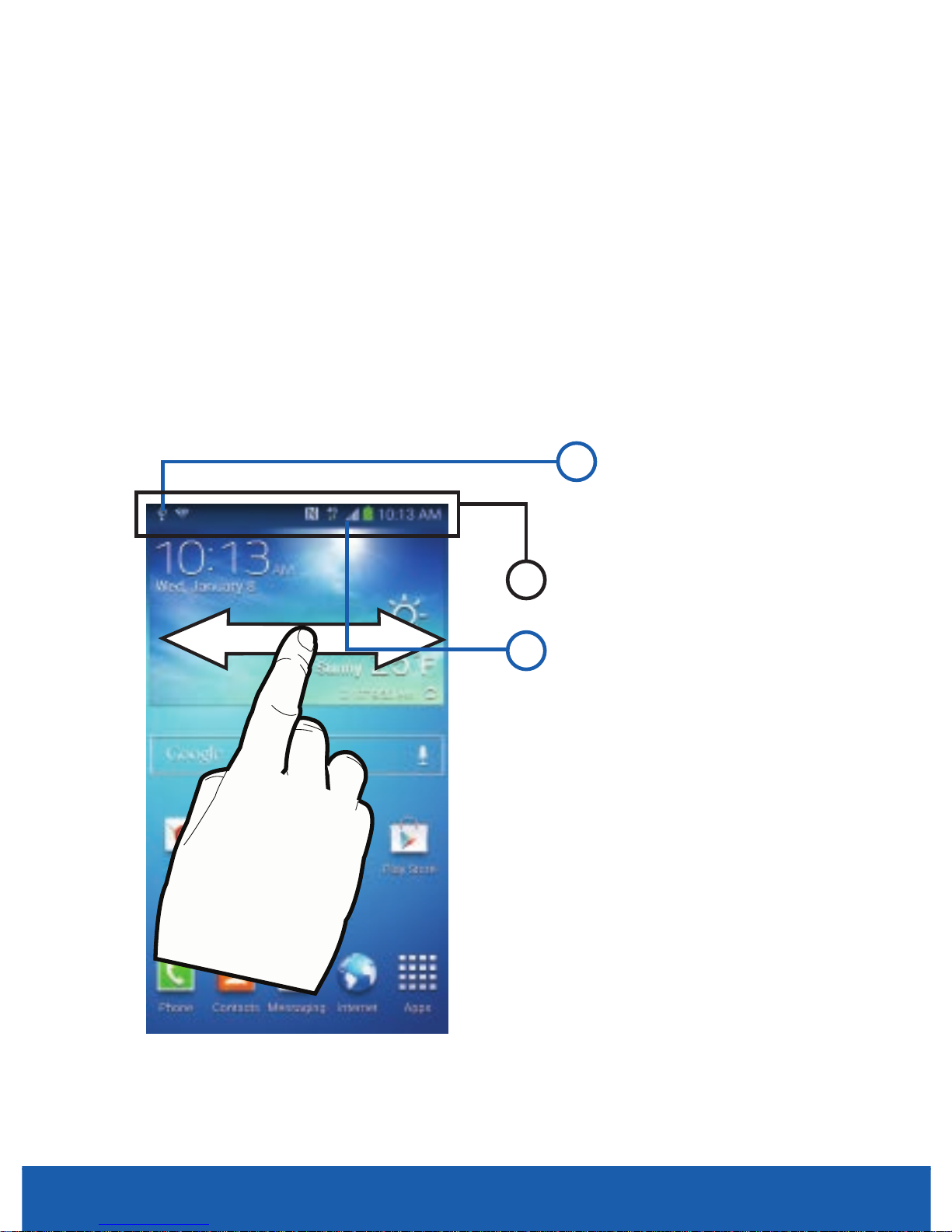

Status Bar
The Status bar appears at the top of your Home screen. Icons
indicating your device’s status and new notification alerts appear
on the Status bar.
1
2
3
1. NOTIFICATIONS AREA
2. STATUS BAR
3. STATUS AREA
Page 11
YOUR DEVICE
10
Notification Screen
The Notification area indicates new message events (data sync
status, new messages, calendar events, call status, etc). You can
expand this area to reveal the Notification screen that provides
more detailed information about the current on-screen notification
icons.
Opening the Notification Screen

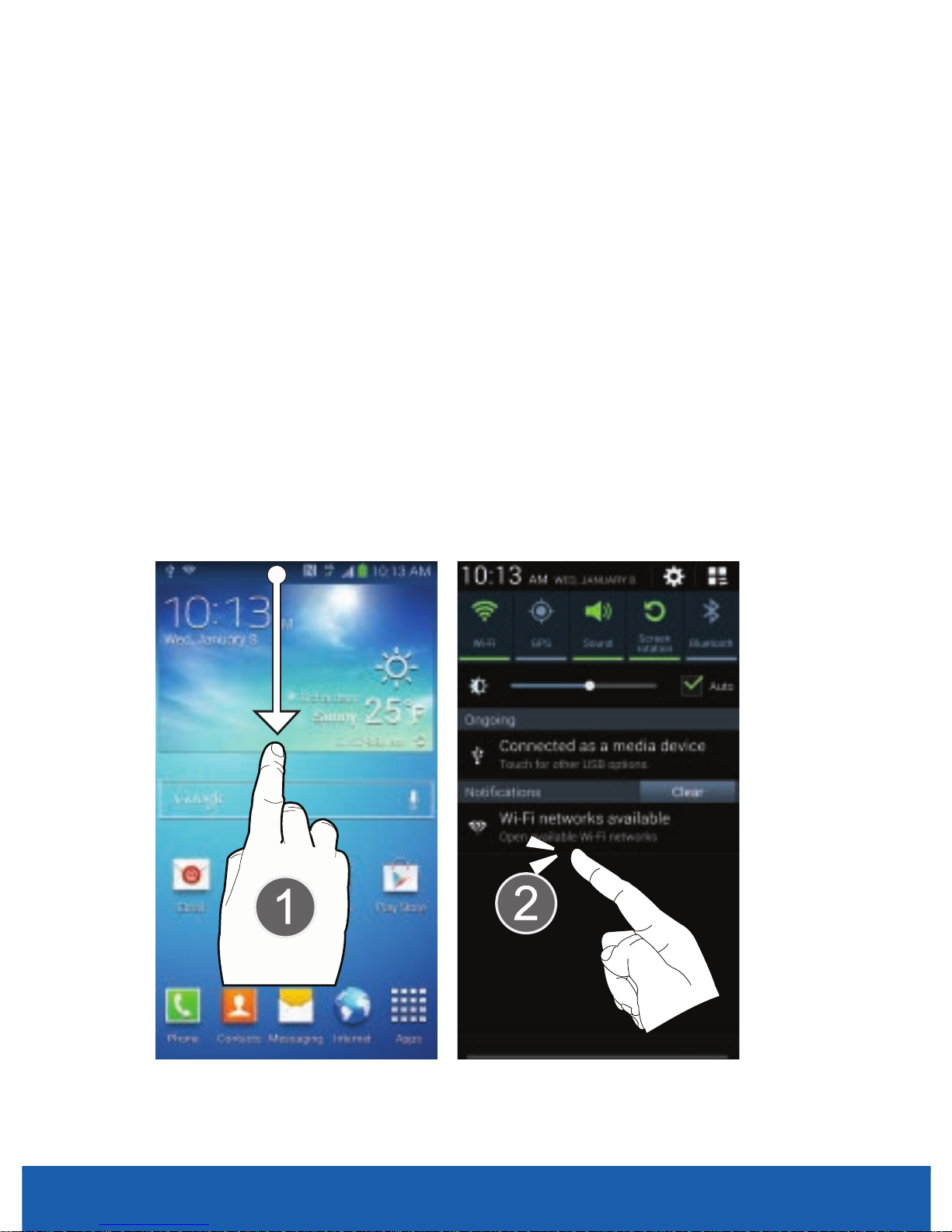

1. In a single motion, touch and drag the Status bar down to
the bottom of the screen to open the Notification screen (1).
2. Tap a notification entry to open the associated application
(2).
Page 12
11
YOUR DEVICE
Accessing Additional Functions
In addition to notifications, this screen also provides quick and
ready access to device functions. These can be quickly activated
or deactivated. Scrolling across a horizontal list of functions has
been enhanced with an accessible Grid view.
NOTE: You can select the function buttons you see at the top of the Notifications panel.
Only 5 buttons are shown at any one time.
To activate the Grid view:
X From the Notification panel, tap (Open Grid view) to
display additional functions.
To minimize the Grid view:
X From the Notification panel, tap (Close Grid view) to
show only your primary functions.

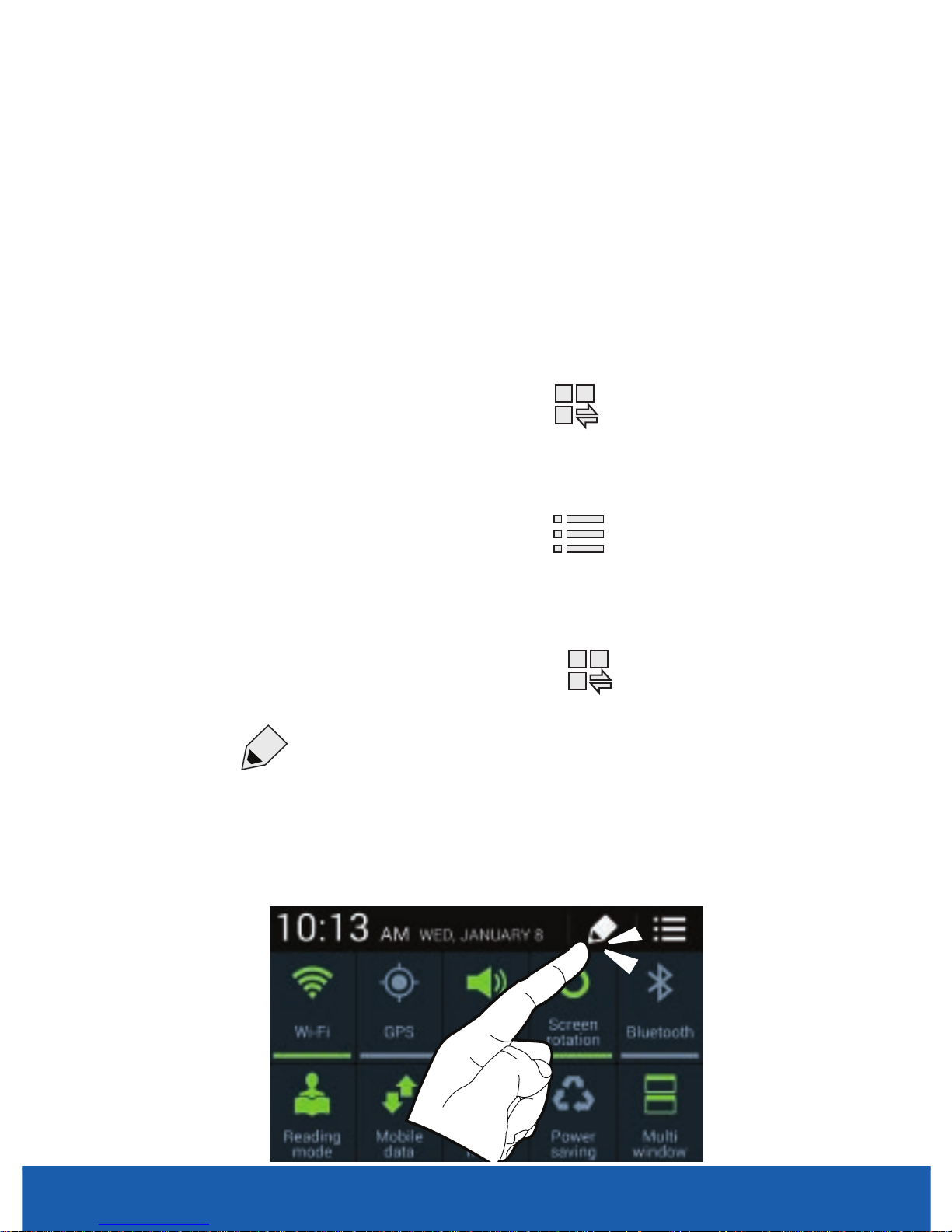

To customize the functions displayed:
1. From the Notification screen, tap (Open Grid view) to
display additional functions.
2. Tap (Edit) then locate the Notifications panel area
located at the bottom of the Notifications panel screen.
3. In a single motion, touch and hold a desired function then
drag it to the top row.
Page 13
DEVICE FUNCTIONS
12
EXTENDING YOUR BATTERY LIFE
Active applications, light levels, Bluetooth usage, and GPS
functionality all drain your battery. The following is a list of helpful
tips that can help conserve your battery power:
● Reduce the time your backlight stays on.
● Turn Bluetooth® off when not in use.
● Turn Wi-Fi® off when not in use.
● Deactivate the GPS when not needed. Most applications using
this function will periodically query the GPS satellites for your
current location; each query drains your battery.
● Do not wait until your battery is completely depleted before
charging your device. Repeating this process of a complete
discharge and recharge can over time reduce the storage
capacity of any battery.
● Turn off Automatic application sync.
● Check the Battery use screen to review what features or
functions have been consuming your battery resources.
● Check the Running Services and close any unnecessary
applications.
● Use the Task Manager feature to end/shutdown background
applications that are still running. These minimized applications
can, over time, cause your device to “slow down”.
DEVICE FUNCTIONS
Page 14
13
DEVICE FUNCTIONS
● Animated wallpapers use processing power, memory, and more
battery power. Change your Live Wallpaper to a non-animated
Wallpaper gallery or Gallery image.
CREATING A NEW GOOGLE ACCOUNT
You should create a Google™ account when you first use your
device in order to fully utilize available functionality. This account
provides access to several device features such as Gmail™,
Google+™, Hangouts™, and Google Play™ Store applications.
Before you can access Google applications, you must enter your
account information. These applications sync between your device
and your online Google account.
To create a new Google account from your device:
1. From the Home screen, tap (Apps) g
(Play Store).
2. Read the introduction and tap New to begin.
3. Follow the on-screen instructions to create a Google
account.
– or–
If this is not the first time you are starting the device,
tap (Apps) g (Gmail).
Page 15
DEVICE FUNCTIONS
14
SIGNING INTO YOUR GOOGLE ACCOUNT
1. Launch an application that requires a Google account (such
as Play Store or Gmail).
2. Tap Existing.
3. Tap the Email and Password fields and enter your
information.
4. Tap (Sign in). Your device communicates with the
Google servers to confirm your information.
5. If prompted, create a new Gmail username by entering a
prefix for your @gmail.com email address.
Page 16
15
DEVICE FUNCTIONS
VOICEMAIL
Voicemail allows callers to leave voice messages, which can
be retrieved any time. Your device automatically transfers all
unanswered calls to voicemail, even if your device is in use or
turned off.
IMPORTANT: Always use a password to protect against unauthorized access.
Setting Up Voicemail
1. From the Home screen, tap (Phone) and then touch
and hold until the device dials voicemail. You may be
prompted to enter a password.
2. Follow the prompts in the new user tutorial to setup your
mail box.
Listening to Your Voicemail
1. From the Home screen, tap (Phone) and then touch
and hold until the device dials voice mail. After
connection, you will hear your voice greeting.
2. When connected, follow the voice prompts from the voicemail
center.
Page 17
DEVICE FUNCTIONS
16
Accessing Your Voicemail From Another Phone
1. Dial your wireless phone number.
2. When you hear your voicemail greeting, press the asterisk key
(*) on the dialpad you are using.
3. Enter your passcode.
CALLING FEATURES
Making a Call
1. From the Home screen, tap (Phone).
2. Enter the number you wish to call (using the keypad) and
tap (Send) to place a call.
If you make a mistake while dialing, tap to clear the last
digit. Touch and hold to clear the entire sequence.
Ending a Call
X From within an active call, tap (End call).
Answering a Call
X Touch and slide (Answer) in any direction to
answer an incoming call.
Page 18
17
DEVICE FUNCTIONS
Reject a Call
X Touch and slide (Reject) in any direction. This
action routes the incoming call to your voicemail system.
Reject a Call with a Message
1. At the incoming call screen, touch and drag the Reject call
with message tab upward.
2. Tap a predefined rejection message or tap Create new
message to create a new custom outgoing response.
Using the Speakerphone
While on a call, you can use your Speakerphone by following these
steps:
X Tap
Speaker
(Speakerphone off) to toggle the speakerphone
on.
X Tap
Speaker
(Speakerphone on) to toggle the speakerphone
off.
Call Waiting
Call Waiting notifies you of incoming calls during a call. You have
the option of answering or ignoring an additional incoming call.
1. Make your initial call.
2. Touch and slide (Answer) in any direction to answer
the new incoming call and place the previous caller on hold.
Page 19
DEVICE FUNCTIONS
18
To return to your original call:
X Tap
Swap
Swap
(Swap) to switch to the original call. This
places the new caller on hold and activates the previous
call.
To alternate between calls:
X Tap
Swap
Swap
(Swap) to alternate between the two calls.
IMPORTANT: The currently active call is displayed on top and shows an adjacent call
length indicator.
Making a Three-way Call
Three-way calling is similar to a conference call with a total of
three people (including yourself). Make a call to two numbers and
connect them together on your device using three-way calling.
1. From the Home screen, tap (Phone).
2. Enter the number you wish to call (using the dialpad) and
tap (Send).
3. Once connected to the first caller tap
Add call
(Add call) to
place the first caller on hold and begin your second call.
4. Enter the second party’s phone number and tap
(Send).
5. Once the second party answers, tap
Merge
(Merge) to
connect all three parties.
Page 20
19
DEVICE FUNCTIONS
CONTACTS
Creating a New Contact
1. From the Home screen, tap (Phone).
2. Enter the number using the on-screen dialpad.
3. Tap Add to contacts g Create contact.
4. Tap a destination type (Device, SIM, Samsung account,
Google, or Microsoft Exchange ActiveSync) (depending on
where you want to save the new contact information).
5. Enter the desired information into the appropriate fields.
6. Tap Save to store the new entry.
Adding a Number to an Existing Contact
1. From the Home screen, tap (Apps) g
(Contacts).
2. Tap a contact name from the list and tap (Edit).
– or–
Touch and hold a Contacts entry then tap Edit.
3. Tap within the Phone number area and enter a new
phone number.
If you make a mistake while entering the number, tap
to clear the last digit. Touch and hold to clear the entire
sequence.
4. Tap Save to complete and store the new entry.
Page 21
DEVICE FUNCTIONS
20
Copying a Contact to the Memory Card
This procedure allows you to copy entry information saved on the
device’s memory, onto an installed microSD™ card.
NOTE: The option to Export to SD is only available if you already have a microSD card
installed before beginning the process. Without the card, you will not be shown
this option.
1. From the Home screen, tap (Apps) g
(Contacts).
2. Press (Menu) and then tap Import/Export g
Export to SD card.
3. Tap OK to choose all current phone contact entries.
Sharing a Contact Entry
This procedure allows you to share a selected Contact entry card
with an external recipient.
1. From the Home screen, tap (Apps) g
(Contacts).
2. Touch and hold an on-screen entry from the on-screen list.
3. Tap Share via.
4. Select either Bluetooth, ChatON, Drive, Email, Gmail,
Messaging, or Wi-Fi Direct and follow the on-screen
instructions to choose the destination and recipient.
Page 22
21
DEVICE FUNCTIONS
Deleting a Contact
1. From the Home screen, tap (Apps) g
(Contacts).
2. Touch and hold an entry and from the on-screen contextmenu, select Delete g OK.
BLUETOOTH
Bluetooth® is a short-range communications technology that
allows you to connect wirelessly to a number of Bluetooth devices,
such as headsets and hands-free car kits, and Bluetooth-enabled
handhelds, computers, printers, and wireless devices.
Turn Bluetooth On and Off
To turn Bluetooth on:
1. From the Home screen, press (Menu) and then tap
Settings g (Connections tab).
2. In a single motion touch and slide the Bluetooth slider to
the right
ON
ON
to turn it on. The slider color indicates the
activation status.
● When active, displays in the Status area.
● When the Bluetooth device is connected (paired) and
communicating, displays.
Page 23
DEVICE FUNCTIONS
22
To turn Bluetooth off:
1. From the Home screen, press (Menu) and then tap
Settings g (Connections tab).
2. In a single motion touch and slide the Bluetooth slider to
the left
OFF
OFF
to turn it off. The slider color indicates the
activation status.
Pairing Bluetooth Devices
1. Verify Bluetooth is active.
2. Place the other Bluetooth device in discoverable mode. (See
the device user manual for more information.)
3. From the Bluetooth settings page, tap the Visibility
checkbox (shown by the device name). Your device must be
visible to successfully pair with an external device. This is
shown by a green check mark.
4. From the Bluetooth settings page, press (Menu) and
then tap Visibility timeout and set your value. Your device
must be visible to successfully pair with an external device.
5. Tap Scan. Your device displays a list of discovered in-range
Bluetooth devices.
6. Tap a device from the list to initiate pairing.
7. If required, enter a passkey or PIN code, and tap OK.
8. The external device must accept the connection and enter
your device’s PIN code.
9. Once successfully paired to a headset, displays in the
Status area.
Page 24
23
DEVICE FUNCTIONS
WI-FI
Your device can connect to the Internet using Wi-Fi. Wi-Fi
communication requires access to an existing and accessible
Wireless Access Point (WAP). These WAPs can either be Open
(unsecured) as within most HotSpots, or Secured (requiring
knowledge of the Router name and password).
Turn on Wi-Fi:
1. In a single motion, touch and drag the Status bar down to
the bottom of the screen.
2. Tap Wi-Fi networks available.
– or–
1. From the Home screen, press (Menu) and then tap
Settings g (Connections tab).
2. In a single motion touch and slide the Wi-Fi slider to the
right
ON
ON
to turn it on. The slider color indicates the
activation status.
● When active and there is an available open wireless
network, displays in the Status area.
● When active and communicating, displays in the
Status area.
Page 25
DEVICE FUNCTIONS
24
To turn Wi-Fi off:
1. From the Home screen, press (Menu) and then tap
Settings g (Connections tab).
2. In a single motion touch and slide the Wi-Fi slider to the
left
OFF
OFF
to turn it off. The slider color indicates the
activation status.
Connect to a Wi-Fi Network
1. From the Home screen, press (Menu) and then tap
Settings g (Connections tab) g Wi-Fi.
2. Tap the desired network.
3. Enter the password, if necessary,
4. Tap Connect.
NEAR FIELD COMMUNICATION
1. From the Home screen, press (Menu) and then tap
Settings g (Connections tab).
2. Tap NFC and make sure the feature is turned on.
3. If not already active, in a single motion touch and slide the
NFC slider to the right
ON
ON
to turn it on.
Page 26
25
DEVICE FUNCTIONS
S BEAM
This feature (when activated via NFC) allows you to beam large
files directly to another compatible device that is in direct contact.
These files can be larger, such as Videos, HD pictures, and other
large files. You can beam images and videos from your gallery,
music files from your music player, and more.
1. From the Home screen, press (Menu) and then tap
Settings g (Connections tab).
2. Verify the NFC feature is active.
3. Tap S Beam and make sure the feature is turned on.
4. If not already active, in a single motion touch and slide the
S Beam slider to the right
ON
ON
to turn it on.
5. Complete the transfer process between the two
NFC-enabled devices by placing them back to back. This
feature can come in very handy to quickly share pictures
between users with compatible S Beam devices.
WEB BROWSING
Your device is equipped with a Google browser to navigate the
Web.
To open the Browser screen:
X From the Home screen, tap (Apps) g
(Internet).
Page 27
DEVICE FUNCTIONS
26
Entering a URL
You can access a website quickly by entering the URL. Websites
are optimized for viewing on your device.
X Tap the URL field at the top of the screen, enter the URL and
tap .
Adding and Deleting Windows
You can have up to eight Internet windows open at one time.
To add a new window:
1. From your browser window, tap (Window) g
(New window). A new browser window displays.
NOTE: The number of currently open windows is displayed at the bottom of the Windows
screen.
2. Scroll across the screen to view the currently active
windows and tap an entry to launch the selected Internet
window.
To delete an existing window:
1. From your browser window, tap (Windows).
2. Scroll across the available windows and locate your target
window.
3. Tap next to the listing to delete the window.
Page 28
27
DEVICE FUNCTIONS
SETTING UP EMAIL
In addition to Gmail, your device supports the following account
types: POP3, IMAP, and Exchange.
Set Up Gmail
1. From the Home screen, tap (Apps) g (Gmail).
2. Tap Existing if you have a Google account. The Inbox loads
conversations and email.
– or–
Tap New if you do not have a Google account.
Internet Email Account Set Up
1. From the Home screen, tap (Apps) g (Email).
If you already have email accounts, your accounts screen is
displayed.
2. If you already have email accounts:
● If have an existing email account, press and then
tap Settings g (Add new account).
– or–
Enter your email address in the Email address field and
enter your password in the Password field and tap Next.
3. At the Account options screen, select the frequency which
the device should check for new email on the server and
tap Next.
Page 29
DEVICE FUNCTIONS
28
● Tap the Notify me when email arrives field to receive
new email notifications.
4. At the Set up email screen, name the account and enter a
screen name to identify yourself on this account.
5. Tap Done to store the new account.
Microsoft Exchange Email Set Up
Your device also provides access to your company’s Outlook
Exchange server. If your company uses either Microsoft®
Exchange Server 2003 or 2007, you can use this email application
to wirelessly synchronize your email, Contacts, and Calendar
information directly with your company’s Exchange server.
1. From the Home screen, tap (Apps) g (Email).
● If have an existing email account, press and then
tap Settings g (Add new account).
2. Enter your Email address and Password information.
3. Tap Show password to display the password as you enter
it in the associated field.
NOTE: If selected, the Manual setup button changes to read Microsoft Exchange
ActiveSync®. If activated, skip to step 5. Consult your Network or IT Administrator
for further details and support.
Page 30
29
DEVICE FUNCTIONS
4. Tap Next g Microsoft Exchange ActiveSync.
IMPORTANT: If you receive a message that your “Setup could not finish”, tap Edit
details to manually configure any remaining exchange account information
that could not be automatically retrieved by the device.
5. If prompted, tap Edit details and edit the account
information as necessary and tap Next.
NOTE: If you are experiencing difficulty setting up your corporate email account, contact
your company’s IT department for further information.
6. Follow the on-screen prompts to complete.
Page 31
DEVICE FUNCTIONS
30
MESSAGING
Create and Send a Multimedia Message
NOTE: Multimedia messages are text messages that contain file attachments like a voice
memo, ringtone, image, video, or downloaded melody. You can send a Picture
message to up to ten recipients at the same time. Enter each recipient’s address
or phone number in a separate To field of the Picture message composer.
1. From the Home screen, tap (Apps) g
(Messaging) g (Tap to compose new message).
2. Enter either the recipient’s phone number or e-mail
address.
– or–
Tap (Add recipient) to select from among Groups,
Favorites, Contacts, or Logs.
3. If adding a recipient from among these categories, tap the
contact to place a checkmark alongside the entry and tap
Done. The contact will be placed in the recipient field.
4. Tap the Enter message field and use the on-screen keypad
to enter a message.
5. Add more recipients by tapping the Enter recipient field.
Page 32
31
DEVICE FUNCTIONS
6. Tap (Attach) to insert various file types to your
message (such as Images, Videos, or Audio).
Select the file and complete the on-screen instructions to insert it
to the current message.
7. Review your message and tap (Send).
USING THE PLAY STORE
The Play Store (also known as Google Play Store) provides
access to downloadable applications and games to install on
your phone. This application might be updated after your initial
setup and connection. Please note that this document describes
this application as it appears by default. If prompted, follow the
on-screen instructions to update the related application icon and
features.
Accessing the Play Store
1. From the Home screen, tap (Apps) g
(Play Store).
2. If not already logged in to your Google account,
tap Existing.
3. Enter your Google account information.
4. Tap Sign in and follow the on-screen instructions to
agree to the Store’s terms of service and complete your
connection.
Page 33
DEVICE FUNCTIONS
32
Downloading a New Google Application
To download a new application, you will need to use your Google
account to sign in to the Play Store.
1. From the Home screen, tap (Apps) g
(Play Store).
2. Browse through the categories, find an application you’re
interested in, and tap the name.
3. Read the application descriptions.
4. Tap INSTALL g ACCEPT.
CUSTOMIZING YOUR PHONE
You can customize the Home screens (panels) to display the
Widgets, Shortcuts, Folders, or Wallpapers.
Manage Shortcuts
NOTE: To move a shortcut from one screen to another, you must carefully touch and hold
the shortcut and slowly drag it to the edge of the screen. As the shortcut turns
light blue, you can begin to move it to the adjacent screen.
If this does not work, delete it from its current screen. Activate the new screen
and then add the selected shortcut.
To add a shortcut from the Applications screen:
1. From the Home screen, select a location (screen) for your
new shortcut by scrolling across your available screens until
you reach the desired one.
2. Tap (Apps) to reveal all your current available
applications.
Page 34
33
DEVICE FUNCTIONS
3. Touch and hold the on-screen icon. The new shortcut then
appears to hover over the current screen.
4. While still holding the on-screen icon, position it on the
current screen. Once complete, release the screen to lock
the shortcut into its new position.
Setting a Home Wallpaper
1. From the Home screen, touch and hold an empty area of
the screen.
2. Tap Set wallpaper g Home screen and then select a
source for images:
Gallery: Access the Gallery to choose a picture from an installed
memory card. Tap a picture to select it, then use the crop tool
to resize the picture, if desired. Tap Done to save the picture as
wallpaper.
Live wallpapers: Choose from pre-loaded interactive animated
wallpapers. Tap a wallpaper to see an example, then tap
Set wallpaper.
Wallpapers: Choose from pre-loaded wallpaper images. Tap a
wallpaper, then tap Set wallpaper.
Page 35
DEVICE FUNCTIONS
34
CAMERA & CAMCORDER
Use your device’s built-in Camera to take pictures and record
video.
Camera
1. From the Home screen, tap (Apps) g
(Camera).
2. Using the display as a viewfinder, compose your shot by
aiming the lens at the subject.
3. Tap to take a picture.
4. After taking your picture, tap (Image Viewer) to view
the image.
Camcorder
1. From the Home screen, tap (Apps) g
(Camera).
2. From the current screen, tap (Video key) to begin
shooting video. The red light will blink while recording.
3. Using the display as a viewfinder, compose your shot by
aiming the lens at the subject.
4. Tap to stop the recording and save the video file to
your Camera folder.
5. After recording, tap (Image Viewer) and tap to
view the video.
Page 36
35
NOTES
Loading...
