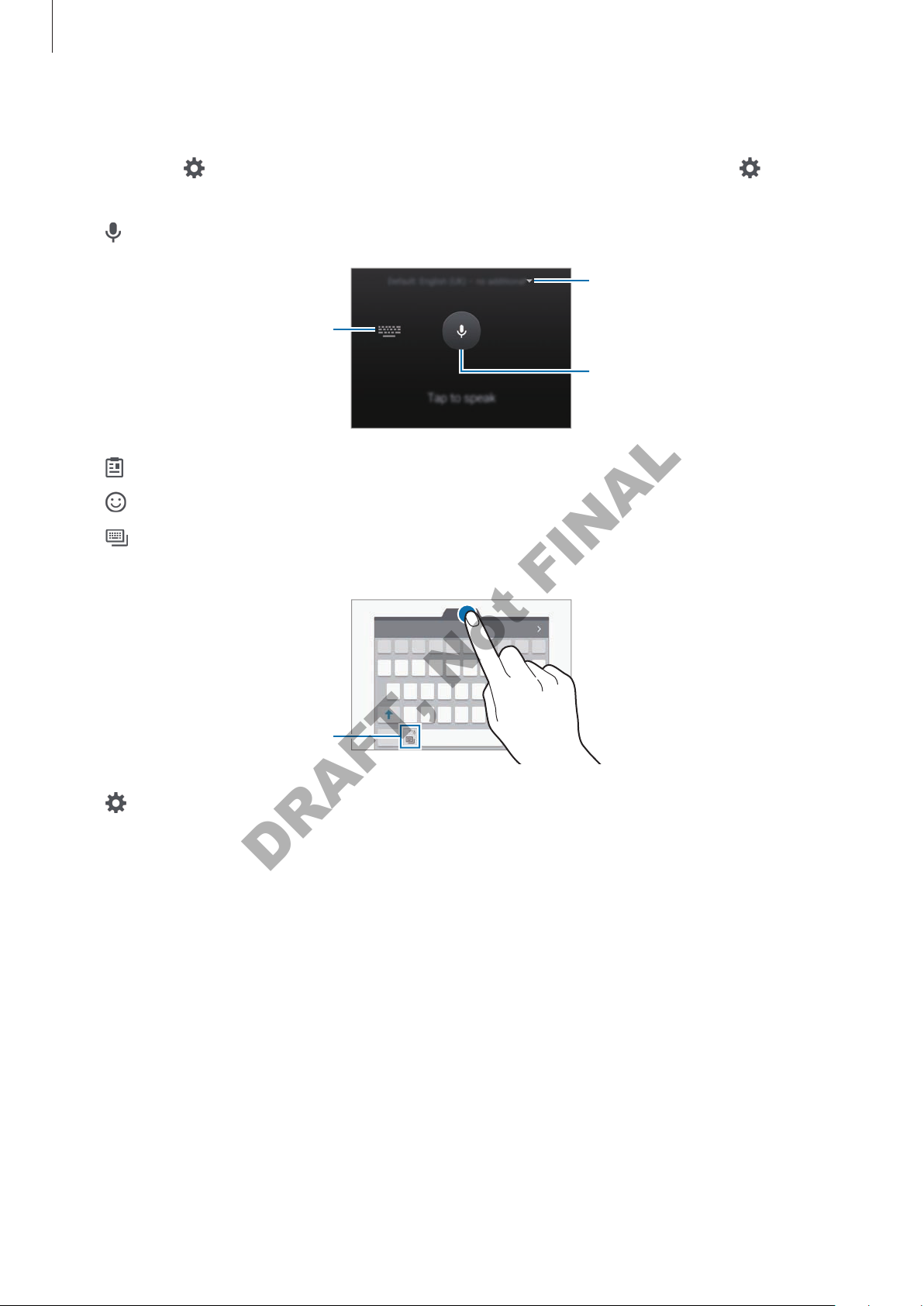

30 Entering text

33Screen capture

33Opening apps

34Multi window

38	DRAFT,
	Device and data management
44	Connecting to a TV

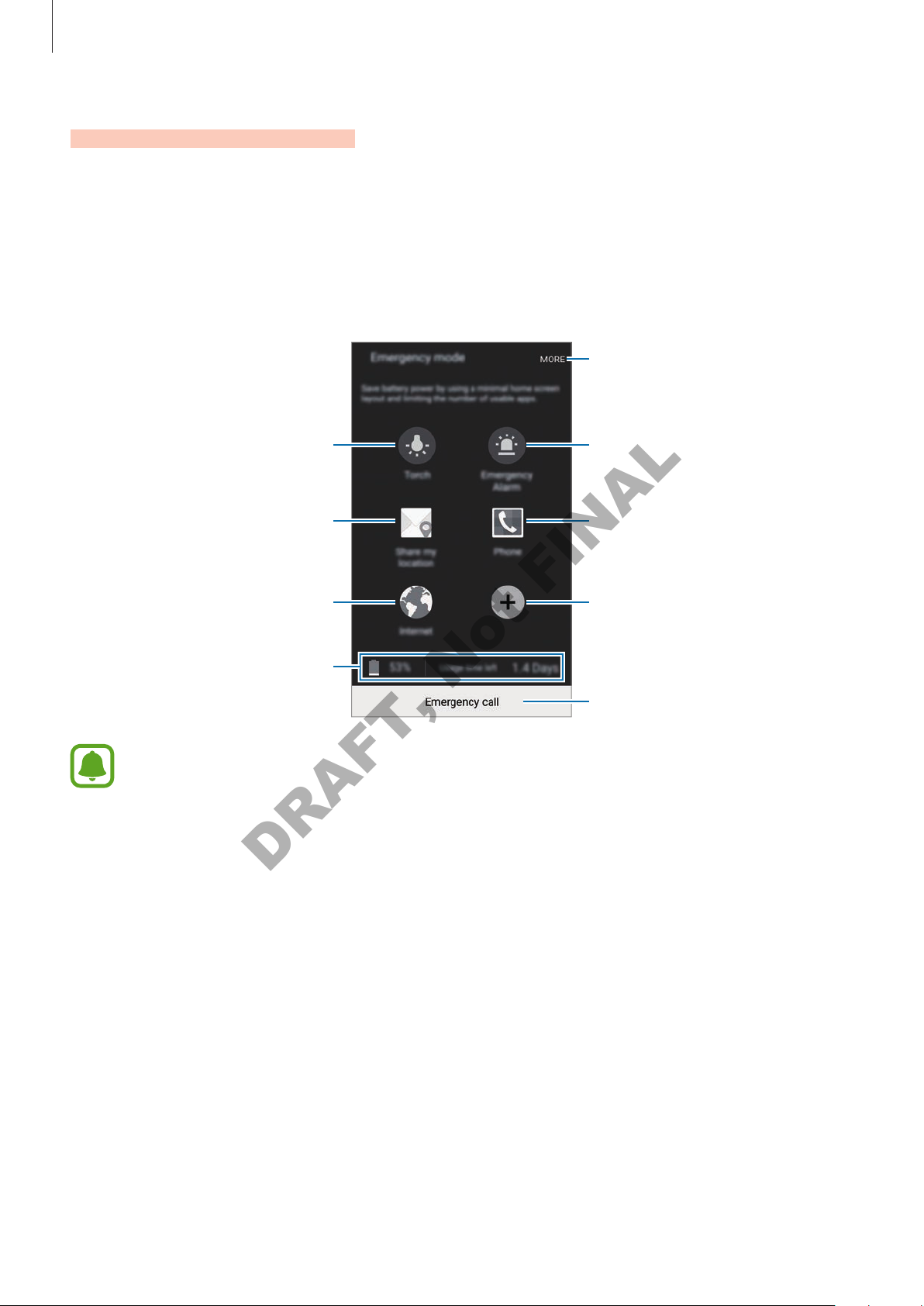

46	Emergency mode

	53	More
	58	Sound and notification
	58	Display
	59	Motions & gestures
	59	Applications
68		EasyFINALmode
	60	Wallpaper
	60	Themes
	60	Lock screen & security
	65	Privacy & safety
	68	Accessibility
	69	Accounts
NOT
	70	Backup and reset
	70	Language and input
	71	Battery
	71	Storage
	72	Date and time
	72	User manual
	72	About device

Settings

Applications

47 Introduction

73 Installing or uninstalling apps

47 Wi-Fi

74 Phone

49 Bluetooth

77 Contacts

51 Tethering and Mobile hotspot

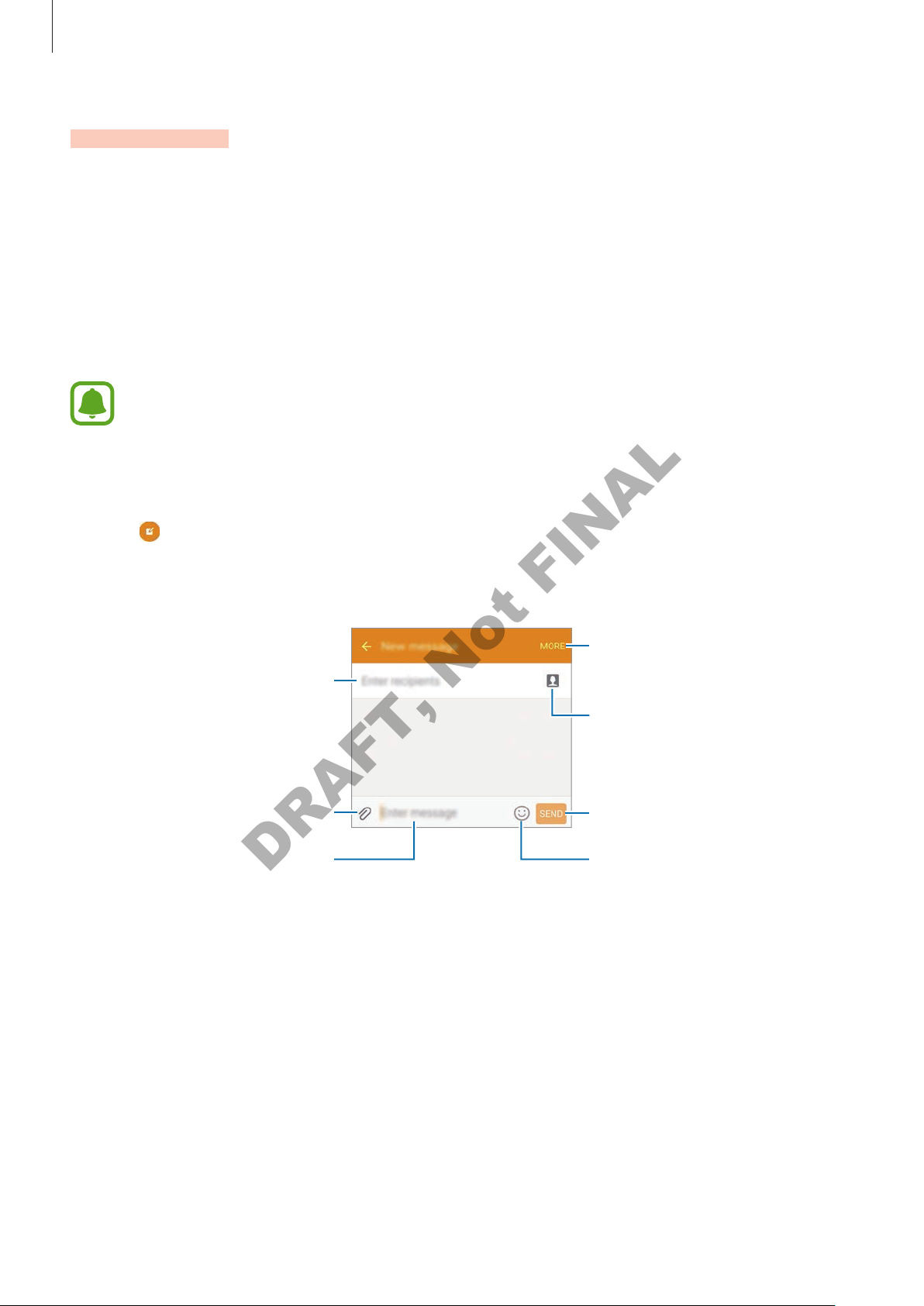

79 Messages

52 Flight mode

80 Internet

52 Data usage

81 Email

53 Mobile networks

2

Table of Contents

82 Camera

98Gallery

99Smart Manager

100S Planner

102 S Health

105S Voice

106Music

107Video

	107	Voice Recorder
	110	My Files
	110	Memo								FINAL
	111	Clock
	112	Calculator
113		Google apps
115		Microsoft apps							NOT
Appendix
	116	Accessibility						DRAFT,
131
		Troubleshooting
136		Removing the battery (non-removable
		type)

3

Basics

Read me first

Please read this manual before using the device to ensure safe and proper use.

•Descriptions are based on the device’s default settings.

•Some content may differ from your device depending on the region, service provider, model specifications, or device’s software.

•Content (high quality content) that requires high CPU and RAM usage will affect the overall performance of the device. Apps related to the content may not work properly depending on the device’s specifications and the environment that it is used in.

•Samsung is not liable for performance issues causedFINALby apps supplied by providers other than Samsung.

•Samsung is not liable for performance issues or incompatibilities caused by edited registry settings or modified operating system software. Attempting to customise the operating system may cause the device or apps to work improperly.

•Software, sound sources, wallpapers, images,NOTand other media provided with this device are licensed for limited use. Extracting and using these materials for commercial or other

purposes is an infringement of copyright laws. Users are entirely responsible for illegal

•use of media. DRAFT,

You may incur additional charges for data services, such as messaging, uploading and downloading, auto-syncing, or using location services depending on your data plan. For large data transfers, it is recommended to use the Wi-Fi feature.

•Default apps that come with the device are subject to updates and may no longer be supported without prior notice. If you have questions about an app provided with the device, contact a Samsung Service Centre. For user-installed apps, contact service providers.

•Modifying the device’s operating system or installing softwares from unofficial sources may result in device malfunctions and data corruption or loss. These actions are violations of your Samsung licence agreement and will void your warranty.

•Depending on the region or model, some devices are required to receive approval from the Federal Communications Commission (FCC). If your device is approved by the FCC, you can view the FCC ID of the device. To view the FCC ID, tap Apps →Settings →

About device.

•Supprted features may differ or labelled differently depending on whether your device is a single or dual SIM Model.

4

Basics

•Depending on the region or model, some devices are required to receive approval from

the Federal Communications Commission (FCC). If your device is approved by the FCC, you can view the FCC ID of the device. To view the FCC ID, tap Apps → Settings →

About device.

Instructional icons

Warning: situations that could cause injury to yourself or others

Caution: situations that could cause damage to your device or other equipment

Notice: notes, usage tips, or additional information

Package contents

FINAL

•Device NOT

•Quick start guide

•The items suppliedDRAFT,with the device and any available accessories may vary depending on the region or service provider.

•The supplied items are designed only for this device and may not be compatible with other devices.

•Appearances and specifications are subject to change without prior notice.

•You can purchase additional accessories from your local Samsung retailer. Make sure they are compatible with the device before purchase.

•Use only Samsung-approved accessories. Using unapproved accessories may cause the performance problems and malfunctions that are not covered by the warranty.

•Availability of all accessories is subject to change depending entirely on

manufacturing companies. For more information about available accessories, refer

to the Samsung website.Check

5

Basics

Device layout

SIM card tray	Speaker

LED indicator

Proximity/Light sensor

Touchscreen

Recents key

Headset jack

Microphone

Multipurpose jack MicrophoneDRAFT, Infrared port

Rear camera

Front camera

Power key

		FINAL
		Home key (Fingerprint
		recognition sensor)
	NOT	Back key
		Loud speaker
		Microphone

GPS antenna

Volume key

Flash

NFC antenna/Wireless charging coil

Main antenna

6

Basics

• Do not cover the antenna area with your hands or other objects. This may cause connectivity problems or drain the battery.

•Using a Samsung-approved screen protector is recommended. Unapproved screen protectors may cause the sensors to malfunction.

•Do not allow water to contact the touchscreen. The touchscreen may malfunction in humid conditions or when exposed to water.

Keys

Key		Function
Power		•	Press and hold to turn the device on or off.
		•			FINAL
			Press to turn on or lock the screen.
Recents		•	Tap to open the list of recent apps.
		•	Tap and hold to launch the split screen view.
		•	Press to turn on the screen while the screen is locked.
Home		•	Press to return to the Home screen.
		•		NOT
			Press and hold to launch Google.
Back		•	Tap to return to the previous screen.
Volume	DRAFT,
		•	Press to adjust the device volume.

7

Only nano-SIM cards work with the device.

Some LTE services may not be available depending on the service provider. For more information about service availability, contact your service provider.

Basics

SIM or USIM card

Installing the SIM or USIM card

Insert the SIM or USIM card provided by the mobile telephone service provider.

•

•

1 Insert the ejection pin into the hole on the SIM card tray to loosen the tray.

				NOT	FINAL
		be damaged.
		Ensure that the ejection pin is perpendicular to the hole. Otherwise, the device may
			DRAFT,
2
		Pull out the SIM card tray gently from the SIM card tray slot.

8

Basics

3 Place the SIM or USIM card on the SIM card tray with the gold-coloured contacts facing downwards.

Use caution not to lose or let others use the SIM or USIM card. Samsung is not responsible for any damages or inconveniences caused by lost or stolen cards.

4			FINAL
	Insert the SIM card tray back into the SIM card tray slot.
	DRAFT,	NOT

9

Basics

Removing the SIM or USIM card

1

2

3

4

Insert the ejection pin into the hole on the SIM card tray to loosen the tray. Pull out the SIM card tray gently from the SIM card tray slot.

Remove the SIM or USIM card.

		FINAL
Insert the SIM card tray back into the SIM card tray slot.
DRAFT,	NOT

10

Basics

Battery

Charging the battery

Charge the battery before using it for the first time or when it has been unused for extended periods.

Use only Samsung-approved chargers, batteries, and cables. Unapproved chargers or cables can cause the battery to explode or damage the device.

•	When the battery power is low, the battery icon appears empty.
•	If the battery is completely discharged, the device cannot be turned on
	immediately when the charger is connected. Allow a depleted battery to charge for
	a few minutes before turning on the device.		FINAL
•	If you use multiple apps at once, network apps, or apps that need a connection
	to another device, the battery will drain quickly. To avoid disconnecting from the
	network or losing power during a data transfer, always use these apps after fully
	charging the battery.	NOT
•
	Using a power source other than the USB power adaptor, such as a computer, may
	result in a slower charging speed due to a lower electric current.
	DRAFT,

Connect the USB cable to the USB power adaptor, and then plug the end of the USB cable into the multipurpose jack.

11

Basics

Connecting the charger improperly may cause serious damage to the device. Any damage caused by misuse is not covered by the warranty.

• The device can be used while it is charging, but it may take longer to fully charge the battery.

•If the device receives an unstable power supply while charging, the touchscreen may not function. If this happens, unplug the charger from the device.

•While charging, the device and the charger may heat up. This is normal and should not affect the device’s lifespan or performance. If the battery gets hotter than usual, the charger may stop charging.

•If the device is not charging properly, take the device and the charger to a Samsung Service Centre.

After fully charging, disconnect the device from the charger. First unplug the charger from the device, and then unplug it from the electric socket.

To save energy, unplug the charger when not in use. The charger does not have a power switch, so you must unplug the charger from the electric socket when not in

FINAL

use to avoid wasting power. The charger should remain close to the electric socket and easily accessible while charging.NOT

Reducing the battery consumption

•Optimise the deviceDRAFT,using the Smart manager.

•When you are not using the device, switch to sleep mode by pressing the Power key.

•Activate power saving mode.

•Close unnecessary apps.

•Deactivate the Bluetooth feature when not in use.

•Deactivate the Wi-Fi feature when not in use.

•Deactivate auto-syncing of apps.

•Decrease the backlight time.

•Decrease the screen brightness.Your

12

Basics

Fast charging

The device has a built-in fast charging feature. You can use this feature to charge the battery more quickly while the device or its screen is turned off.

About Fast charging

•Fast charging uses battery charging technology that charges the battery faster by increasing the charging power. The device supports Samsung’s Adaptive fast charging feature and Qualcomm Quick Charge 2.0.

•To use Fast charging on your device, connect it to a battery charger that supports Adaptive fast charging or Quick Charge 2.0.

•	You cannot use the fast charging feature when he FINALscreen is turned on. Turn off the
Increasing
To
•	While charging the battery when the device is turned off, the icon appears on the
	screen.		NOT
	screen to increase the charging speed.
	•	You cannot use the built-in fast charging feature when you charge the battery
		using a standard battery charger.
	•	DRAFT,
		If the device heats up or the ambient air temperature rises, the charging speed may

decrease automatically. This is a normal operating condition to prevent damage to the device.

13

Basics

Wireless charging

The device has a built-in wireless charging coil. You can charge the battery using a wireless charging pad (sold separately).

1 Place the centre of the device’s back on the centre of the charging pad.

You can check the remaining charge time on the screen. The actual remaining time may vary depending on the charging conditions.

			FINAL
2 After fully charging, disconnect the device from the charging pad.
•		NOT
	You can check the battery’s charging sta us from the battery icon on the screen.
•	When there are foreign materials between the device and the wireless charging
	pad, the device may not charge properly.
•	DRAFT,
	If you use the wireless charging pad in areas with weak signals, you may lose

reception.

Power saving mode

Save the battery power by limiting the device’s functions.

On the Home screen, tap Apps → Settings → Battery → Power saving mode, and then tap the switch to activate it.

To automatically activate power saving mode when the remaining battery power reaches the preset level, tap Enable Power saving mode when and select an option.

To set the device to disable sync in the background while using a mobile network, tap the

Restrict background data switch to activate it.

14

Basics

Ultra power saving mode

Use this mode to extend the device’s battery power. In ultra power saving mode, the device performs the following:

•Displays colours on the screen as grey tones.

•Restricts the available apps to essential and selected apps only.

•Deactivates the mobile data connection when the screen turns off.

•Deactivates the Wi-Fi and Bluetooth features.

On the Home screen, tap Apps → Settings → Battery → Ultra power saving mode, and
then tap the switch to activate it.
To deactivate ultra power saving mode, tap MORE → Disable ultra power saving mode.
					FINAL
	The usage time left shows the time remaining before the battery power runs
	out. Usage time left may vary depending on your device settings and operating
	conditions.			NOT
Turning the device on and off
Press and hold the Power key for a few seconds to turn on the device.
When	you		DRAFT,			on-
screen	instructions
To turn off
	•	If your device is frozen and unresponsive, press and hold the Power key and the
		Volume key down simultaneously for more than 7 seconds to restart it.
	•	Follow all posted warnings and directions from authorised personnel in areas
		where the use of wireless devices is restricted, such as aeroplanes and hospitals.

15

Basics

Touchscreen

• Do not allow the touchscreen to come into contact with other electrical devices. Electrostatic discharges can cause the touchscreen to malfunction.

•To avoid damaging the touchscreen, do not tap it with anything sharp or apply excessive pressure to it with your fingertips.

•The device may not recognise touch inputs close to the edges of the screen, which

are outside of the touch input area.

• Leaving the touchscreen idle for extended periods may result in afterimages (screen burn-in) or ghosting. Turn off the touchscreen when you do not use the device.

Tapping

• It is recommended to use fingers when you useFINALthe touchscreen. using the keyboard on the screen, tap it with your finger.

To open an app, to select a menu item, to press an on-screen button, or to enter a character

DRAFT,	NOT

16

Basics

Tapping and holding

Tap and hold an item or the screen for more than 2 seconds to access available options.

Dragging					FINAL
To move an item, tap and hold it and drag it to the target position.
	DRAFT,	NOT
Double-tapping

Double-tap on a webpage or image to zoom in. Double-tap again to return.

17

Basics

Swiping

Swipe to the left or right on the Home screen or the Apps screen to view other panels. Swipe upwards or downwards to scroll through a webpage or a list of items, such as contacts.

Spreading and pinching

Spread two fingers apart on a webpage, map, or image

DRAFT,	NOT

FINALto zoom in a part. Pinch to zoom out.

18

Basics

Home screen

Home screen

The Home screen is the starting point for accessing all of the device’s features. It displays widgets, shortcuts to apps, and more.

To view other panels, swipe to the left or right, or tap one of the screen indicators at the bottom of the screen.

A widget

An app

FavouriteDRAFT,apps

NOT

FINAL

A folder

Screen indicators

Apps screen icon

19

Basics

Home screen options

On the Home screen, tap and hold an empty area, or pinch your fingers together to access the available options. Customise the Home screen by adding, deleting, or rearranging Home screen panels. You can also set the Home screen wallpaper, add widgets to the Home screen, and more.

•Wallpapers: Change the wallpaper settings for the Home screen and the locked screen.

•Widgets: Add widgets to the Home screen. Widgets are small apps that launch specific app functions to provide information and convenient access on your Home screen.

•Themes: Change the device’s theme. Visual elements of interface, such as colours, icons, and wallpapers, will change depending on the selected theme.

•Screen grid: Change the size of the grid to display more or less items on the Home screen. FINAL

DRAFT,	NOT

20

Basics

Flipboard Briefing

View the latest articles in various categories. You can get up to date on news that interests you using this feature.

On the Home screen, tap or swipe to the right to open Flipboard Briefing. Swipe upwards or downwards to browse articles in each news category.

To deactivate Flipboard Briefing, tap and hold an empty area on the Home screen. Then, swipe to the right and deselect the tick box at the top of the Flipboard Briefing panel.

NOT	FINAL

Adding items

Tap and hold an app orDRAFT,a folder from the Apps screen, and then drag it to the Home screen.

To add widgets, tap and hold an empty area on the Home screen, tap Widgets, tap and hold a widget, and then drag it to the Home screen.

Moving and removing an item

Tap and hold an item on the Home screen, and then drag it to a new location.

To move the item to another panel, drag it to the side of the screen.

You can also move frequently used apps to the shortcuts area at the bottom of the Home screen.

To remove an item, tap and hold the item. Then, drag it to Remove at the top of the screen.

21

Basics

Creating folders

1

2

On the Home screen, tap and hold an app, and then drag it over another app.

Drop the app when a folder frame appears around the apps. A new folder containing the selected apps will be created.

				NOT	FINAL
		DRAFT,
3
	Tap the area above the horizontal line and enter a folder name.

To change the folder colour, tap .

To add more apps to the folder, tap and hold another app, and then drag it to the folder.

Managing panels

On the Home screen, tap and hold an empty area to add, move, or remove a panel. To add a panel, swipe to the left, and then tap .

To move a panel, tap and hold a panel preview, and then drag it to a new location.

To remove a panel, tap and hold a panel preview, and then drag it to Remove at the top of the screen.

To set a panel as the main Home screen, tap .

22

Basics

Apps screen

The Apps screen displays icons for all apps, including newly installed apps.

On the Home screen, tap Apps to open the Apps screen. To view other panels, swipe to the left or right, or select a screen indicator at the bottom of the screen.

Moving items

On the Apps screen, tap EDIT. Tap and hold an item and drag it to a new location.

To move the item to another panel, drag it to the side of the screen.

Creating folders

1

2

3

On the Apps screen, tap EDIT.
Tap and hold an app, and then drag it over another app.
Drop the app when a folder frame appears around the apps.
				FINAL
A new folder containing the selected apps will be created.
DRAFT,			NOT

23

Basics

4 Tap the area above the horizontal line and enter a folder name. To change the folder colour, tap .

To add more apps to the folder, tap and hold another app, and then drag it to the folder.

Indicator icons

Indicator icons appear on the status bar at the top of the screen. The icons listed in the table below are most common.

The status bar may not appear at the top of the screen in some apps. To display the status bar, drag down from the top of the screen.

Icon	Meaning		FINAL
	No signal
	Signal strength
	Roaming (outside of normal service area)
	GPRS network connected	NOT
	EDGE network connected
	UMTS network connected
	DRAFT,
	HSDPA network connected
	HSPA+ network connected
/	LTE network connected (LTE-enabled models)
	Wi-Fi connected
	Bluetooth feature activated

GPS activated

Call in progress

Missed call

New text or multimedia message

Alarm activated

Mute mode activated

Vibration mode activated

24

Basics

Icon Meaning

Flight mode activated

Error occurred or caution required

Battery power level

Lock screen

Locking and unlocking the screen

			FINAL
Pressing the Power key turns off the screen and locks it. Also, the screen turns off and
automatically locks if the device is not used for a specified period.
To unlock the screen, press the Power key or the Home key and swipe in any direction.
		NOT

You can change the wayDRAFT,that you lock the screen to prevent others from accessing your personal information.

On the Apps screen, tap Settings → Lock screen & security → Screen lock type, and then

select a screen lock method. The device requires an unlock code whenever unlocking it.

If the unlock code is forgotten, take the device to a Samsung Service Centre to reset it.

25

Basics

Pattern

Draw a pattern by connecting four dots or more, and then draw the pattern again to verify it. Set a backup PIN to unlock the screen when you forget the pattern.

PIN

A PIN consists of numbers only. Enter at least four numbers, and then enter the password again to verify it.

Password

A password consists of characters and numbers. Enter at least four characters including
numbers and symbols, and then enter the password again to verify it.
	FINAL
Fingerprint

Register your fingerprints to unlock the screen. Refer to Fingerprint recognition for more information.

Dynamic lock screen

Set the locked screen’s wallpaper to change automatically based on your settings, your
location and weather, and your interests.			NOT
1		DRAFT,
	On the Home screen, tap and hold an empty area, and then tap Wallpapers.
	Alternatively, on the Apps screen, tap Settings → Wallpaper.
2	Tap	→ Lock screen.
3	Select a wallpaper option.

•From Gallery: Select images from Gallery. The device will display the images on the locked screen at the interval you set.

•Live weather: The device will display high quality images on the locked screen based on the time, weather, and your location information.

•My interests: Select categories that interest you. The device will display high quality images on the locked screen based on your interests.

•You may incur additional charges when using this feature.

•This feature may not work properly depending on your region.

26

Basics

Notification panel

Using the notification panel

When you receive new notifications, such as messages or missed calls, indicator icons appear on the status bar. To see more information about the icons, open the notification panel and view the details.

To open the notification panel, drag the status bar downwards. To close the notification panel, swipe upwards on the screen.

	NOT
You can use the following functions on the notificati
DRAFT,

Activate or deactivate options. Tap and hold a button to view more detailed settings.

Launch S Finder.

Tap a notification and perform various actions.

FINAL n panel.

Rearrange quick setting buttons.

Launch Settings.

Adjust the brightness.

Launch Quick Connect.

Clear all notifications.

Rearranging quick setting buttons

To rearrange quick setting buttons on the notification panel, tap EDIT, tap and hold an item, and then drag the item to another location.

27

Basics

S Finder

Search for a wide variety of content with a keyword.

Searching for content on the device

Open the notification panel and tap S Finder.

Enter a keyword in the search field or tap and say a keyword.

To get more refined results, tap the filter buttons under the search field, and then select filter details.

Setting search categories

You can set search categories to search for content in specific search fields. Tap MORE → Select search locations and select categories.

Connecting

					FINAL
	Quick Connect
Automatically
			search for nearby devices and quickly connect to them.
		•	When connecting to a device that d es n t support the Quick connect feature,
			ensure that Wi-Fi Direct or the Bluetooth feature is activated.
		•	Connection methods may vary dependingNOTon the type of connected devices or the
			shared content.
1		When	the panel opens,DRAFT,the Wi-Fi and the Bluetooth features are activated automatically

Open

and the device searches for nearby devices.

The list of devices registered to your Samsung account appears at the top of the screen.

28

Basics

2 Select a device from the list and connect to it by following the on-screen instructions.

The next steps may vary depending on the connected device.

To allow nearby devices to search for your device and connect to it, tap MORE → Set device visibility → Device visibility, and then select an option.

Re-searching for devices

If the desired device does not appear in the list, search for the device.

Tap REFRESH and select the device from the list of detected devices.

Deactivating the Quick connect feature

1			FINAL
To deactivate the Quick connect feature, tap .
Sharing content
Share content with the connected devices.
	Open the notification panel and tap Quick Connect.
2		NOT
	Select a device from the list of detected devices.
3	DRAFT,
	Tap Send content and select a media category.
4	Follow the on-screen instructions to send content to the connected device.
	The next steps may vary depending on the selected media category.

29

Basics

Entering text

Keyboard layout

A keyboard appears automatically when you enter text to send messages, create memos, and more.

Text entry is not supported in some languages. To enter text, you must change the input language to one of the supported languages.

Enter uppercase. For all caps, tap						Delete a preceding character.
it twice.
Enter punctuation marks.						Break to the next line.
Change the keyboard settings.						Enter a space.
				FINAL
Changing the input language
Tap → Select input languages, and then select the languages to use. When you select
			NOT

Changing the keyboard layout

Tap , select a language under Input languages, and then select a keyboard layout to use.

two or more languages,DRAFT,you can switch between the input languages by swiping to the left or right on the space key.

On 3x4 keyboard a key has three or four characters. To enter a character, tap the corresponding key repeatedly until the desired character appears.

30
