Samsung SM-N910F, SM-N910C, SM-N910H User Manual

SM-N910C SM-N910CQ SM-N910F SM-N910H

User Manual

English (EU). 09/2014. Rev.1.0

www.samsung.com

Table of Contents

Read me first

Getting started

7 Package contents

8 Device layout

10 S Pen

13 Using the SIM or USIM card and

battery

19 Using a memory card

21 Turning the device on and off

21 Locking and unlocking the screen

Basics

S Pen features

38 Air command

39 Action memo

41 Smart select

42 Image clip

43 Screen write

44 S Note

51 Scrapbook

51 Using the S Pen

Motions & usability features

55 Motions and gestures

58 Multi window

63 One-handed operation 22 Using the touchscreen

25 Home screen layout

28 Notification and quick settings panels

30 Opening apps

30 Installing or uninstalling apps

32 Entering text

34 Screen capture

34 Using the dictionary

35 My Files

36 Power saving feature

37 Viewing help information

64 Increasing touchscreen sensitivity

Personalising

65 Managing the Home and All apps

screens

67 Setting wallpaper and ringtones

68 Changing the screen lock method

69 My Places

72 Finger Scanner

77 Private mode

Table of Contents

78 Easy mode

79 Transferring data from your previous

device

80 Setting up accounts

Phone & contacts

82 Phone

85 Contacts

Messages & email

87 Messages

88 Email

113 Music

115 Video

117 Internet

118 Voice Recorder

120 Clock

121 Calculator

122 Dropbox

122 Flipboard

123 Smart Remote

125 Evernote

126 PEN.UP

126 Google apps

Connecting with other

Camera & gallery

90 Camera

99 Gallery

Safety assistance

102 Emergency mode

103 Send help messages

Useful apps

104 Car mode

106 S Finder

107 S Planner

109 S Health

devices

129 Quick Connect

131 Bluetooth

133 Wi-Fi Direct

134 NFC

137 Screen Mirroring

139 MirrorLink

140 Mobile printing

Device & data manager

141 Updating the device

142 Transferring files between the device

and a computer

143 Backing up and restoring data

143 Performing a data reset

111 S Voice

Table of Contents

Settings

144 An introduction

144 Configuring settings

144 QUICK SETTINGS

145 NETWORK CONNECTIONS

149 DEVICE

154 PERSONALISATION

156 SYSTEM

160 APPLICATIONS

Accessibility

161 About Accessibility

161 Using the Home key to open

accessibility menus

161 Voice feedback (TalkBack)

167 Vision

169 Hearing

171 Dexterity and interaction

174 Answering or ending calls

174 Using single tap mode

174 Managing accessibility settings

Troubleshooting

Read me first

Please read this manual before using the device to ensure safe and proper use.

•

Descriptions are based on the device’s default settings.

•

Some content may differ from your device depending on the region, service provider, or device’s software.

•

Content (high quality content) that requires high CPU and RAM usage will affect the overall performance of the device. Apps related to the content may not work properly depending on the device’s specifications and the environment that it is used in.

•

Samsung is not liable for performance issues caused by apps supplied by providers other than Samsung.

•

Samsung is not liable for performance issues or incompatibilities caused by edited registry settings or modified operating system software. Attempting to customise the operating system may cause the device or apps to work improperly.

•

Software, sound sources, wallpapers, images, and other media provided with this device are licensed for limited use. Extracting and using these materials for commercial or other purposes is an infringement of copyright laws. Users are entirely responsible for illegal use of media.

•

You may incur additional charges for data services, such as messaging, uploading and downloading, auto-syncing, or using location services depending on your data plan. For large data transfers, it is recommended to use the Wi-Fi feature.

•

Default apps that come with the device are subject to updates and may no longer be supported without prior notice. If you have questions about an app provided with the device, contact a Samsung Service Centre. For user-installed apps, contact service providers.

•

Modifying the device’s operating system or installing softwares from unofficial sources may result in device malfunctions and data corruption or loss. These actions are violations of your Samsung licence agreement and will void your warranty.

Read me first

Instructional icons

Warning: situations that could cause injury to yourself or others

Caution: situations that could cause damage to your device or other equipment

Notice: essential information for using the device, functional limitations of using the

device, usage charge information, or legal notices

Note: notes, usage tips, or additional information

Getting started

Package contents

Check the product box for the following items:

•

Device

•

Battery

•

Quick start guide

•

The items supplied with the device and any available accessories may vary depending on the region or service provider.

•

The supplied items are designed only for this device and may not be compatible with other devices.

•

Appearances and specifications are subject to change without prior notice.

•

You can purchase additional accessories from your local Samsung retailer. Make sure they are compatible with the device before purchase.

•

Use only Samsung-approved accessories. Using unapproved accessories may cause the performance problems and malfunctions that are not covered by the warranty.

•

Availability of all accessories is subject to change depending entirely on manufacturing companies. For more information about available accessories, refer to the Samsung website.

Getting started

Headset jack

Infrared port

Device layout

LED indicator

Speaker

Touchscreen

Recents key

Microphone

Multipurpose jack

Proximity/Light/Gesture sensor

Front camera

Power key

Home key (Fingerprint recognition sensor)

Back key

Microphone

Rear camera

Flash

Back cover

Loud speaker

S Pen

Microphone

GPS antenna

Volume key

NFC antenna (on the battery)

Main antenna

Getting started

•

Do not cover the antenna area with your hands or other objects. This may cause connectivity problems or drain the battery.

•

Using a Samsung-approved screen protector is recommended. Unapproved screen protectors may cause the sensors to malfunction.

•

Do not allow water to contact the touchscreen. The touchscreen may malfunction in humid conditions or when exposed to water.

Keys

Key Function

•

Press and hold to turn the device on or off.

Power

•

Press to turn on or lock the screen.

Recents

Home

Back

Volume

•

Tap to open the list of recent apps.

•

Tap and hold to access additional options for the current screen.

•

Press to turn on the screen while the screen is locked.

•

Press to return to the Home screen.

•

Press twice to launch

•

Press and hold to launch

•

Tap to return to the previous screen.

•

Press to adjust the device volume.

S Voice

Google

Getting started

S Pen

S Pen button

S Pen nib

Name Functions

•

Use the S Pen to write, draw, or perform touch actions on the screen.

S Pen nib

•

Hover the S Pen over items on the screen to access additional

Tweezers

S Pen button

Tweezers

S Pen features, such as Air Button and the air view feature.

•

Hover the S Pen over the screen and press the S Pen button to display the air command features.

•

While pressing and holding the S Pen button, drag the S Pen over items to select them.

•

Remove the S Pen nib with the tweezers when replacing the nib.

Getting started

Removing the S Pen

When you remove the S Pen from the slot, the device launches air command features depending on the S Pen detachment option setting.

To change the setting, open the All apps screen and tap

options

Settings

Action memo

→

S Pen

Replacing the S Pen nib

If the nib is dull, replace it with a new one.

Firmly hold the nib with the tweezers and remove it.

or displays the

→

Detachment

Getting started

Insert a new nib into the S Pen.

Be careful not to pinch your fingers with the tweezers.

•

Do not reuse old nibs. Doing so may cause the S Pen to malfunction.

•

Do not press the nib excessively when inserting the nib into the S Pen.

•

Do not insert the round end of the nib into the S Pen. Doing so may cause damage to the S Pen or your device.

•

If the S Pen is not working properly, take it to a Samsung Service Centre.

•

If you use the S Pen at sharp angles on the screen, the device may not recognise the S Pen actions. Do not bend or apply excessive pressure with the S Pen while using it.

•

The Recents key and the Back key can be used with the S Pen.

•

For more information about the S Pen, visit the Samsung website.

Getting started

Using the SIM or USIM card and battery

Installing the SIM or USIM card and battery

Insert the SIM or USIM card provided by the mobile telephone service provider, and the included battery.

•

Only microSIM cards work with the device.

•

Some LTE services may not be available depending on the service provider. For more information about service availability, contact your service provider.

Remove the back cover.

Be careful not to damage your fingernails when you remove the back cover.

Do not bend or twist the back cover excessively. Doing so may damage the cover.

Getting started

Insert the SIM or USIM card with the gold-coloured contacts facing downwards.

•

Do not insert a memory card into the SIM card slot. If a memory card happens to be lodged in the SIM card slot, take the device to a Samsung Service Centre to remove the memory card.

•

Use caution not to lose or let others use the SIM or USIM card. Samsung is not responsible for any damages or inconveniences caused by lost or stolen cards.

Insert the battery with the battery’s gold-coloured contacts properly aligned with the

device’s contacts.

Getting started

Replace the back cover.

Removing the SIM or USIM card and battery

Remove the back cover.

Pull out the battery.

Press the SIM or USIM card with your finger, and then pull it out.

Getting started

Charging the battery

Use the charger to charge the battery before using it for the first time. A computer can be also used to charge the battery by connecting them via the USB cable.

Use only Samsung-approved chargers, batteries, and cables. Unapproved chargers or cables can cause the battery to explode or damage the device.

If the battery is completely discharged, the device cannot be turned on immediately when the charger is connected. Allow a depleted battery to charge for a few minutes before turning on the device.

Connect the USB cable to the USB power adaptor, and then plug the end of the USB cable into the multipurpose jack.

Connecting the charger improperly may cause serious damage to the device. Any damage caused by misuse is not covered by the warranty.

•

If the device receives an unstable power supply while charging, the touchscreen may not function. If this happens, unplug the charger from the device.

•

While charging, the device and the charger may heat up. This is normal and should not affect the device’s lifespan or performance. If the battery gets hotter than usual, the charger may stop charging.

•

If the device is not charging properly, take the device and the charger to a Samsung Service Centre.

Getting started

After fully charging, disconnect the device from the charger. First unplug the charger from the device, and then unplug it from the electric socket.

Do not remove the battery before removing the charger. This may damage the device.

To save energy, unplug the charger when not in use. The charger does not have a power switch, so you must unplug the charger from the electric socket when not in use to avoid wasting power. The charger should remain close to the electric socket and easily accessible while charging.

Reducing the battery consumption

Your device provides various options that help you conserve battery power.

•

When you are not using the device, switch to sleep mode by pressing the Power key.

•

Activate power saving mode.

•

Close unnecessary apps using the task manager.

•

Deactivate the Bluetooth feature when not in use.

•

Deactivate the Wi-Fi feature when not in use.

•

Deactivate auto-syncing of apps.

•

Decrease the backlight time.

•

Decrease the screen brightness.

•

When the battery power is low, the battery icon appears empty.

•

If you use multiple apps at once, network apps, or apps that need a connection to another device, the battery will drain quickly. To avoid disconnecting from the network or losing power during a data transfer, always use these apps after fully charging the battery.

•

The device can be used while it is charging, but it may take longer to fully charge the battery.

Getting started

Fast charging

The device has a built-in fast charging feature. You can use this feature to charge the battery more quickly while the device or its screen is turned off.

About Fast charging

•

Fast charging uses battery charging technology that charges the battery faster by increasing the charging power. The device supports Samsung’s Adaptive fast charging feature and Qualcomm Quick Charge 2.0.

•

To use Fast charging on your device, connect it to a battery charger that supports Adaptive fast charging or Quick Charge 2.0.

Increasing the charging speed

To increase the charging speed, turn the device or its screen off when you charge the battery.

•

While charging the battery when the device is turned off, the icon appears on the screen.

•

While charging the battery when the device’s screen is turned on, a pop-up window appears requesting you to turn the screen off. Turn off the screen to increase the charging speed.

•

You cannot use the built-in fast charging feature when you charge the battery using a standard battery charger.

•

If the device heats up or the ambient air temperature rises, the charging speed may decrease automatically. This is a normal operating condition to prevent damage to the device.

Getting started

Using a memory card

Installing a memory card

Your device accepts memory cards with maximum capacities of 128 GB. Depending on the memory card manufacturer and type, some memory cards may not be compatible with your device.

•

Some memory cards may not be fully compatible with the device. Using an incompatible card may damage the device or the memory card, or corrupt the data stored in it.

•

Use caution to insert the memory card right-side up.

The device supports the FAT and the exFAT file systems for memory cards. When inserting a card formatted in a different file system, the device asks to reformat the memory card.

Remove the back cover.

Insert a memory card with the gold-coloured contacts facing downwards.

Replace the back cover.

•

Frequent writing and erasing of data shortens the lifespan of memory cards.

•

When inserting a memory card into the device, the memory card’s file directory appears in the

My Files

→

SD card

folder.

Getting started

Removing the memory card

Before removing the memory card, first unmount it for safe removal.

On the Home screen, tap

Remove the back cover.

Pull out the memory card.

Replace the back cover.

Do not remove the memory card while the device is transferring or accessing information. Doing so can cause data to be lost or corrupted or damage to the memory card or device. Samsung is not responsible for losses that result from the misuse of damaged memory cards, including the loss of data.

Apps

→

Settings

→

Storage

→

Unmount SD card

Formatting the memory card

A memory card formatted on a computer may not be compatible with the device. Format the memory card on the device.

On the Home screen, tap

→

card

Erase everything

Before formatting the memory card, remember to make backup copies of all important data stored in the memory card. The manufacturer’s warranty does not cover loss of data resulting from user actions.

Apps

→

Settings

→

Storage

→

Format SD card

→

Format SD

Getting started

Turning the device on and off

Press and hold the Power key for a few seconds to turn on the device.

When you turn on your device for the first time or after performing a data reset, follow the onscreen instructions to set up your device.

To turn off the device, press and hold the Power key, and then tap

Follow all posted warnings and directions from authorised personnel in areas where the use of wireless devices is restricted, such as aeroplanes and hospitals.

Locking and unlocking the screen

Power off

Pressing the Power key turns off the screen and locks it. Also, the screen turns off and automatically locks if the device is not used for a specified period.

To unlock the screen, press the Power key or the Home key and swipe in any direction.

You can change the screen lock method and utilise additional security features. Refer to

Changing the screen lock method for more information.

Basics

Using the touchscreen

•

Do not allow the touchscreen to come into contact with other electrical devices. Electrostatic discharges can cause the touchscreen to malfunction.

•

To avoid damaging the touchscreen, do not tap it with anything sharp or apply excessive pressure to it with your fingertips.

•

The device may not recognise touch inputs close to the edges of the screen, which are outside of the touch input area.

•

Leaving the touchscreen idle for extended periods may result in afterimages (screen burn-in) or ghosting. Turn off the touchscreen when you do not use the device.

Tapping

To open an app, to select a menu item, to press an on-screen button, or to enter a character using the keyboard on the screen, tap it with your finger or the S Pen.

Basics

Tapping and holding

Tap and hold an item or the screen for more than 2 seconds to access available options.

Dragging

To move an item, tap and hold it and drag it to the target position.

Double-tapping

Double-tap on a webpage or image to zoom in. Double-tap again to return.

Basics

Swiping

Swipe to the left or right on the Home screen or the All apps screen to view other panels. Swipe upwards or downwards to scroll through a webpage or a list of items, such as contacts.

Spreading and pinching

Spread two fingers apart on a webpage, map, or image to zoom in a part. Pinch to zoom out.

Basics

Home screen layout

Home screen

The Home screen is the starting point for accessing all of the device’s features. It displays widgets, shortcuts to apps, and more. Widgets are small apps that launch specific app functions to provide information and convenient access on your Home screen.

To view other panels, swipe to the left or right, or tap one of the screen indicators at the bottom of the screen.

To customise the Home screen, refer to Managing the Home screen.

A widget

An app

Favourite apps

A folder

Screen indicators

All apps screen icon

Basics

Home screen options

On the Home screen, tap and hold an empty area, or pinch your fingers together to access the available options. Customise the Home screen by adding, deleting, or rearranging Home screen panels. You can also set the Home screen wallpaper, add widgets to the Home screen, and more.

Flipboard Briefing

Use this feature to view the latest articles in various categories. You can get up to date on news that interests you using this feature.

On the Home screen, tap or swipe to the right to open

Tap

GET STARTED

Swipe upwards to browse articles in each news category.

To deactivate Then, tap

when launching this feature for the first time.

Flipboard Briefing

Home screen settings

, tap and hold an empty area on the Home screen.

and deselect

Flipboard Briefing

Basics

All apps screen

The All apps screen displays icons for all apps, including newly installed apps.

On the Home screen, tap left or right, or select a screen indicator at the bottom of the screen.

To customise the All apps screen, refer to Managing the All apps screen.

Apps

to open the All apps screen. To view other panels, swipe to the

Indicator icons

Indicator icons appear on the status bar at the top of the screen. The icons listed in the table below are most common.

Icon Meaning

No signal

Signal strength

Roaming (outside of normal service area)

GPRS network connected

EDGE network connected

UMTS network connected

HSDPA network connected

HSPA+ network connected

LTE network connected (for models that support LTE service)

Wi-Fi connected

Bluetooth feature activated

GPS activated

Call in progress

Missed call

Smart stay feature activated

Connected to computer

No SIM or USIM card

Basics

Icon Meaning

New text or multimedia message

Alarm activated

S Pen detached

Mute mode activated

Vibration mode activated

Flight mode activated

Error occurred or caution required

Battery power level

The status bar may not appear at the top of the screen in some apps. To display the status bar, drag down from the top of the screen.

Notification and quick settings panels

Using the notification panel

When you receive new notifications, such as messages or missed calls, indicator icons appear on the status bar. To see more information about the icons, open the notification panel and view the details.

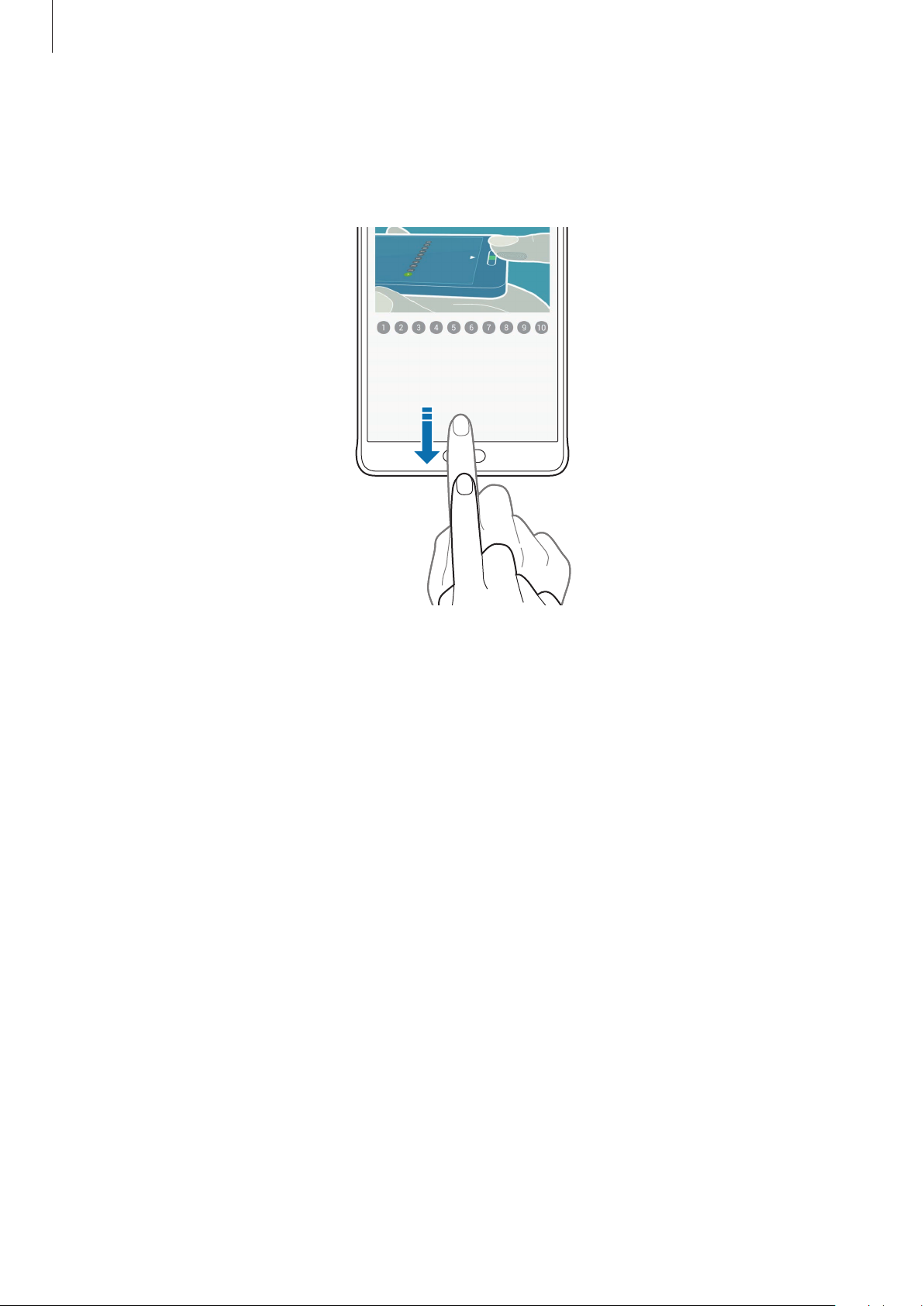

To open the notification panel, drag the status bar downwards. To close the notification panel, drag the bar from the bottom of the screen upwards.

Basics

Launch Settings.

You can use the following functions on the notification panel.

Activate or deactivate options.

Tap and hold a button to view

more detailed settings.

Adjust the brightness.

Launch S Finder.

Tap a notification and perform

various actions.

View all quick setting buttons.

Launch Quick Connect.

Clear all notifications.

Rearranging quick setting buttons

To rearrange quick setting buttons on the notification panel, tap → , tap and hold an item, and then drag the item to another location.

Using the quick settings panel

You can activate or deactivate some features on the notification panel. To activate or deactivate more features, open the quick settings panel.

To open the quick settings panel, drag the status bar downwards using two fingers. Alternatively, tap from the bottom of the screen upwards.

on the notification panel. To close the quick settings panel, drag the bar

Tap the buttons on the quick settings panel to activate or deactivate features. You can access more detailed setting options when you tap and hold a button.

Basics

Opening apps

On the Home screen or the All apps screen, select an app icon to open it.

To open the list of recently used apps, tap

and select an app window to open it.

Closing an app

Tap → , and then tap

. Alternatively, tap → .

all

End

next to an app to close it. To close all running apps, tap

Installing or uninstalling apps

Samsung GALAXY Apps

Use this app to purchase and download apps.

Tap

GALAXY Apps

This app may not be available depending on the region or service provider.

on the All apps screen.

End

Installing apps

Browse apps by category or tap to search for a keyword.

Select an app to view information about it. To download free apps, tap download apps where charges apply, tap the button that shows the app’s price.

To change the auto update settings, tap → then select an option.

Settings

→

Free

. To purchase and

Auto update apps

Play Store

Use this app to purchase and download apps.

Tap

Play Store

on the All apps screen.

, and

+ 151 hidden pages
