Page 1
SMH1713S - Microwaves
Convenient Sensor Cook / Reheat
This function detects food moisture and automatically
calculates the optimal time for cooking / reheat. So it makes
one simple press of a button to achieve amazing cooking
results.
Large Capacity
With 1.7 cu. ft. of space, there is plenty of interior space to
create full meals that you previously never thought would fit.
And its built-in turntable ensures that every dish is heated
evenly.
Powerful 300 CFM Ventilation System
The SMH1713 features a powerful turbo ventilation exhaust
that rapidly removes steam and odours with absolutely quiet
operation.
Two-Stage Programmable Cooking
Vital time-saving function, that allows you to easily program
initial defrost plus a corresponding two step recipe for food
simultaneously.
Eco Mode
Save up to 80% of standby energy by pressing the convenient
Eco button located on the display.

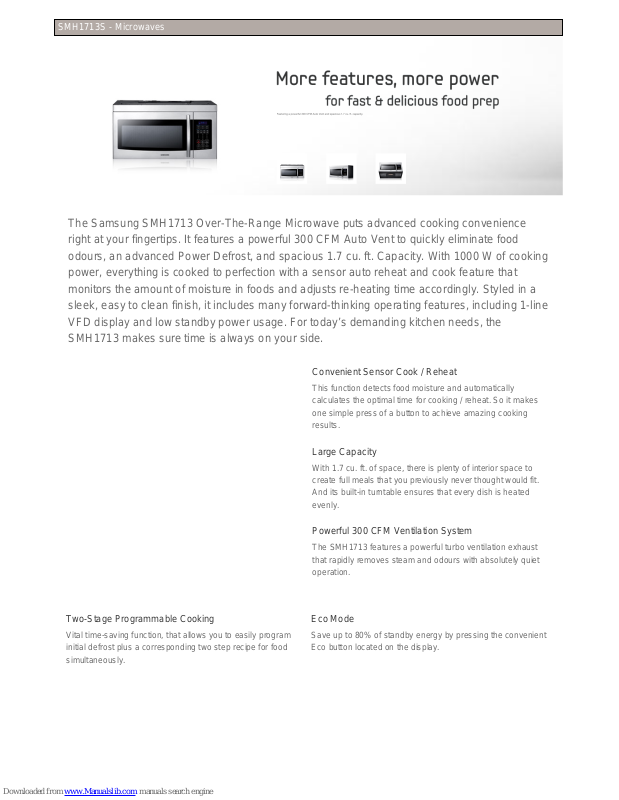

The Samsung SMH1713 Over-The-Range Microwave puts advanced cooking convenience
right at your fingertips. It features a powerful 300 CFM Auto Vent to quickly eliminate food
odours, an advanced Power Defrost, and spacious 1.7 cu. ft. Capacity. With 1000 W of cooking
power, everything is cooked to perfection with a sensor auto reheat and cook feature that
monitors the amount of moisture in foods and adjusts re-heating time accordingly. Styled in a
sleek, easy to clean finish, it includes many forward-thinking operating features, including 1-line
VFD display and low standby power usage. For today’s demanding kitchen needs, the
SMH1713 makes sure time is always on your side.
Page 2
Electronic Touch Control
Lets you easily program the desired cooking time and power
level, at the gentle press of a button, for error-free results
every time.
Model type Model type Over The Range Microwave Oven
General Heat Source Microwave
Power Source 120 V / 60 HZ
Capacity (cu. ft.) 1.7
Power consumption
(W)
1500 W / 13.5 A
Control method Membrane Touch
Output Power (Watts) 1000 W Max Output/Cooking Power (MWO)
Door opening type Handle, Side Swing
Display Type 1 Line VFD
Microwave distributionStirrer + Turntable
Exhaust Vent Capacity
(CFM-Cu.Ft./min)
300
Colour Stainless Steel
Dimensions Oven Cavity (W*H*D) 20.7" x 9.6" x 14.4"
Installation (W*H*D) 29.9" x 16.5" x 15.1"
Gross (W*H*D) 33.4" x 19.9" x 19.4" (shipping)
Features Clock Yes (12 / 24 Hr)
Max Cooking time 99 min 99 sec.
More/Less Yes
Power Level 10
Cooking stages 2
One Minute/30 sec
plus
Add 30 Sec.
Defrost
(Auto/Power/Sensor)
Yes (0.1 ~ 6.0 Lbs)
Auto cook Yes
Sensor Cook Yes
Turntable On/Off Yes
Sound option Yes
Reminder end signal Yes
Clock system
option(12H/24H)
Yes (12 / 24 H)
Page 3
Child Lock Yes
Cavity interior Epoxy
Daylight Savings Time
Adjustment
Yes
Custom Cook Yes
Eco Mode(Low
standby power 1W)
Yes
Weight Net (Kg) 21.3 kg / 46.9 lbs
Gross (kg) 24.7 kg / 54.5 lbs
Features and specifications are subject to change without prior notification.
Copyright@ 2007 SAMSUNG. ALL rights reserved
