Samsung SmartThings Quick Start Manual

Leviton / Samsung SmartThings Kit

4.432

2

11

/

16

BLANCO/ALMENDRA CLARA

No. DZ6HD

Características:

• Universal - Use con focos atenuables
LED y LFC. También atenúa focos
incandescentes/halógenos

Dimmer with Z-Wave® Technology

La placa se vende separada
Instrucciones de instalación incluídas

Capacidad:
300W LED y LFC
600 W Incandescente
120VCA, 60Hz

Aplicación de 3-Vías o más con
atenuador remoto DD00R-DLZ

Unipolar

Controla la luz(ces)
desde un lugar

Controla la luz(ces)
desde dos lugares

3-Vías

O

Atenuador con Tecnología Z-Wave

®

Wallplate sold separately

WHITE

Schedule or
dim lights from
anywhere using
a compatible
Z-Wave

®

controller

Z-Wave y Z-Wave Plus son marcas registradas de Sigma Designs Inc., y
sus subsidiarias en los EE. UU. y otros países.

Requiere conexión neutra

4.432

2

11

/

16

BLANCO/ALMENDRA CLARA

No. DZ15S

Características:

• Universal - Use con focos LED, LFC e incandescentes/
halógenos. También use con cargas fluorescentes,
resistivas o inductivas y motores de 1/2 HP.

Switch with Z-Wave® Technology

La placa se vende separada
Instrucciones de instalación incluídas

Capacidad:

600W LED y LFC

1800W Resistiva
1800W Incandescente/
Halógeno
1800VA Fluorescente
1800VA Inductiva
1/2 HP 9.8A Motor
120VCA, 60 Hz
8A 277VCA

Aplicación de 3-Vías o ubicaciones múltiples
con interruptor remoto DD0SR-DLZ

Unipolar

Controla la luz(ces)
desde un lugar

Controla la luz(ces)
desde dos lugares

3-Vías

O

Interruptor con Tecnología Z-Wave

®

Wallplate sold separately

WHITE

Turn lights or motor
loads on/off from
anywhere using a
compatible Z-Wave®
controller

600W

600W

1800W

Z-Wave y Z-Wave Plus son marcas registradas de Sigma Designs Inc., y
sus subsidiarias en los EE. UU. y otros países.

Requiere conexión neutra

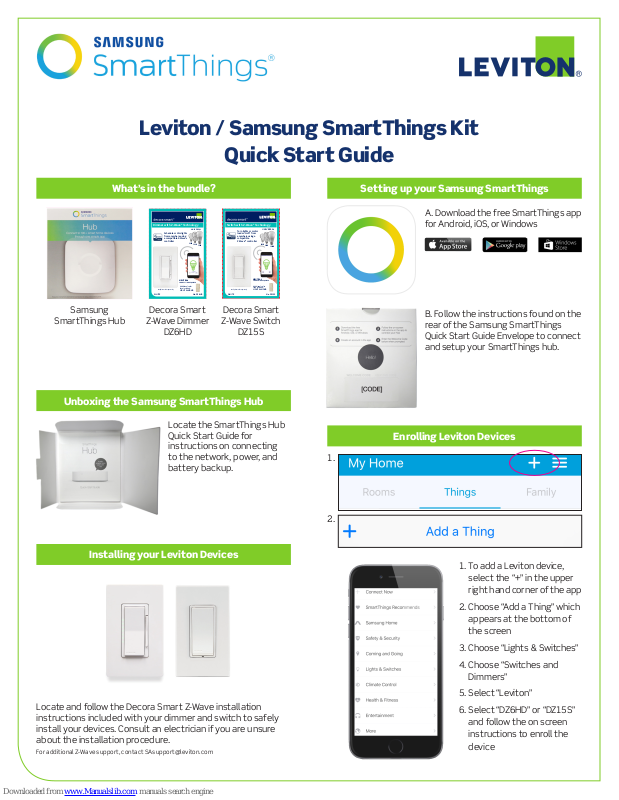

Quick Start Guide

What’s in the bundle?

300W

Decora Smart

Z-Wave Switch

Switch with Z-Wave® Technology

Wallplate sold separately

WHITE

Samsung

SmartThings Hub

Dimmer with Z-Wave® Technology

Wallplate sold separately

WHITE

Schedule or dim lights
from anywhere using
a compatible Z-Wave®
controller

NEUTRAL

CONNECTION REQUIRED

Additional color
face included:

LIGHT ALMOND

UNIVERSAL

600W

300W

No. DZ6HD

Decora Smart

Z-Wave Dimmer

DZ6HD

Unboxing the Samsung SmartThings Hub

Locate the SmartThings Hub
Quick Start Guide for
instructions on connecting
to the network, power, and
battery backup.

Turn lights or motor
loads on/off from
anywhere using a
compatible
Z-Wave® controller

NEUTRAL

CONNECTION REQUIRED

Additional color
face included:

LIGHT ALMOND

DZ15S

UNIVERSAL

600W

600W

Setting up your Samsung SmartThings

A. Download the free SmartThings app
for Android, iOS, or Windows

1800W

No. DZ15S

B. Follow the instructions found on the
rear of the Samsung SmartThings
Quick Start Guide Envelope to connect
and setup your SmartThings hub.

Enrolling Leviton Devices

1.

Installing your Leviton Devices

Locate and follow the Decora Smart Z-Wave installation
instructions included with your dimmer and switch to safely
install your devices. Consult an electrician if you are unsure
about the installation procedure.

For additional Z-Wave support, contact [e-mail]

2.

1. To add a Leviton device,
select the “+” in the upper
right hand corner of the app

2. Choose “Add a Thing” which
appears at the bottom of
the screen

3. Choose “Lights & Switches”

4. Choose “Switches and
Dimmers”

5. Select “Leviton”

6. Select “DZ6HD” or “DZ15S”
and follow the on screen
instructions to enroll the
device

Compatible Leviton Z-Wave and Lumina RF Devices

for Samsung SmartThings Hub

In-Wall Dimmers

• DZ6HD – 600W Universal, Z-Wave Plus

• DZ1KD – 1000W Universal, Z-Wave Plus

• DL6HD - 600W Universal, Lumina RF

• DL1KD - 1000W Universal, Lumina RF

• VRMX1 – Universal, Z-Wave

• VRI06 – 600W Incandescent, Z-Wave

• VRI10 – 1000W Incandescent, Z-Wave

Sensors

• LURDW – Door/Window Contact, Lumina RF

• LURMD – Motion Detector, Lumina RF

In-Wall Switches

• DZ15S – Z-Wave Plus

• VRS15 – Z-Wave

• VRF01 – Fan Control, Z-Wave

• ZSS10 – Lumina RF

• DL15S - Lumina RF

Thermostats

• RC-1000WHZB, Lumina RF

• RC-2000WHZB, Lumina RF

Receptacles and Plug-ins

• DZPA1 – Plug-in Outlet, Z-Wave Plus

• DZPD3 – Plug-in Dimmer, Z-Wave Plus

• DL15A - Plug-in Outlet, Lumina RF

• DL3HL - Plug-in Dimmer, Lumina RF

• VRR15 – Split Duplex Receptacle, Z-Wave

Heavy-Duty Load Control

• 73A00-3ZB – 30AMP LCM, Lumina RF

leviton.com/smartthings
