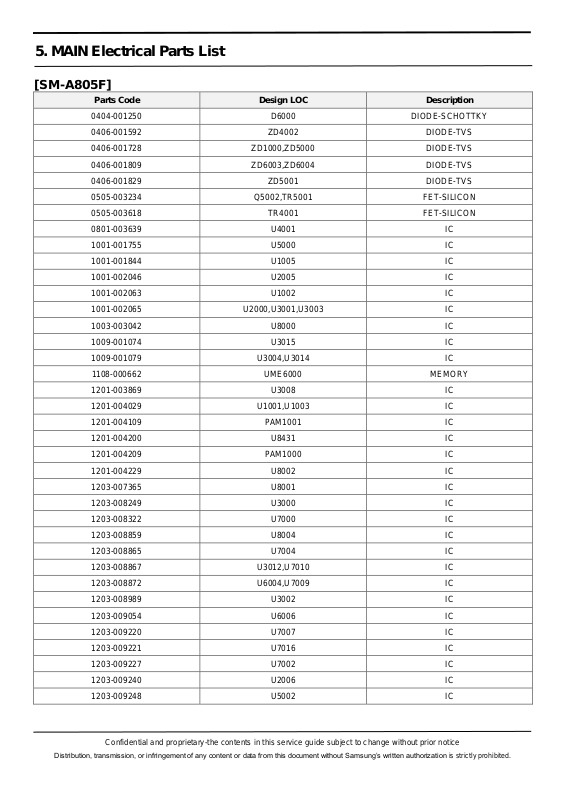

5. MAIN Electrical Parts List
Parts Code
Design LOC
Description
0404-001250
D6000
DIODE-SCHOTTKY
0406-001592
ZD4002
DIODE-TVS
0406-001728
ZD1000,ZD5000
DIODE-TVS
0406-001809
ZD6003,ZD6004
DIODE-TVS
0406-001829
ZD5001
DIODE-TVS
0505-003234
Q5002,TR5001
FET-SILICON
0505-003618
TR4001
FET-SILICON
0801-003639
U4001
IC
1001-001755
U5000
IC
1001-001844
U1005
IC
1001-002046
U2005
IC
1001-002063
U1002
IC
1001-002065
U2000,U3001,U3003
IC
1003-003042
U8000
IC
1009-001074
U3015
IC
1009-001079
U3004,U3014
IC
1108-000662
UME6000
MEMORY
1201-003869
U3008
IC
1201-004029
U1001,U1003
IC
1201-004109
PAM1001
IC
1201-004200
U8431
IC
1201-004209
PAM1000
IC
1201-004229
U8002
IC
1203-007365
U8001
IC
1203-008249
U3000
IC
1203-008322
U7000
IC
1203-008859
U8004
IC
1203-008865
U7004
IC
1203-008867
U3012,U7010
IC
1203-008872
U6004,U7009
IC
1203-008989
U3002
IC
1203-009054
U6006
IC
1203-009220
U7007
IC
1203-009221
U7016
IC
1203-009227
U7002
IC
1203-009240
U2006
IC
1203-009248
U5002
IC
