Page 1
2

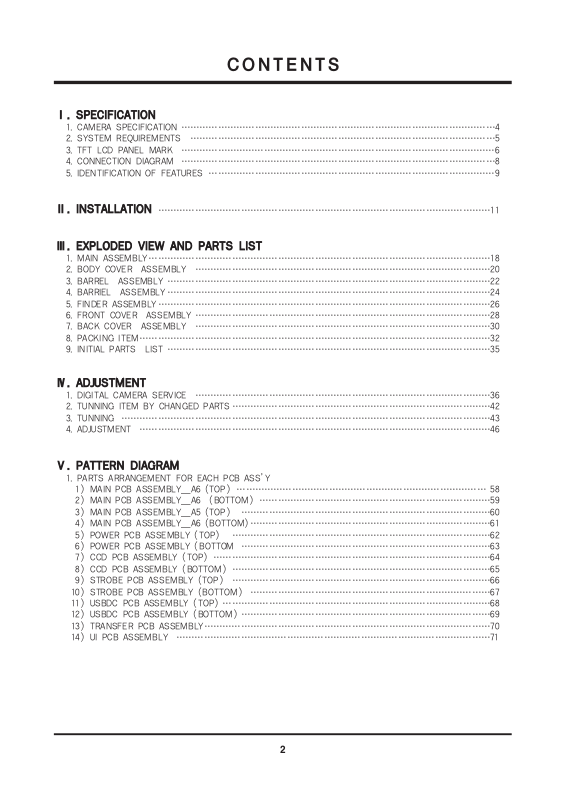

CONTENTS
ⅠⅠ.. SSPPEECCIIFFIICCAATTIIOONN
1. CAMERA SPECIFICATION …………………………………………………………………………………………4
2. SYSTEM REQUIREMENTS ………………………………………………………………………………………5
3. TFT LCD PANEL MARK …………………………………………………………………………………………6
4. CONNECTION DIAGRAM …………………………………………………………………………………………8
5. IDENTIFICATION OF FEATURES …………………………………………………………………………………9
ⅡⅡ.. IINNSSTTAALLLLAATTIIOONN
………………………………………………………………………………………………11
ⅢⅢ.. EEXXPPLLOODDEEDD VVIIEEWW AANNDD PPAARRTTSS LLIISSTT

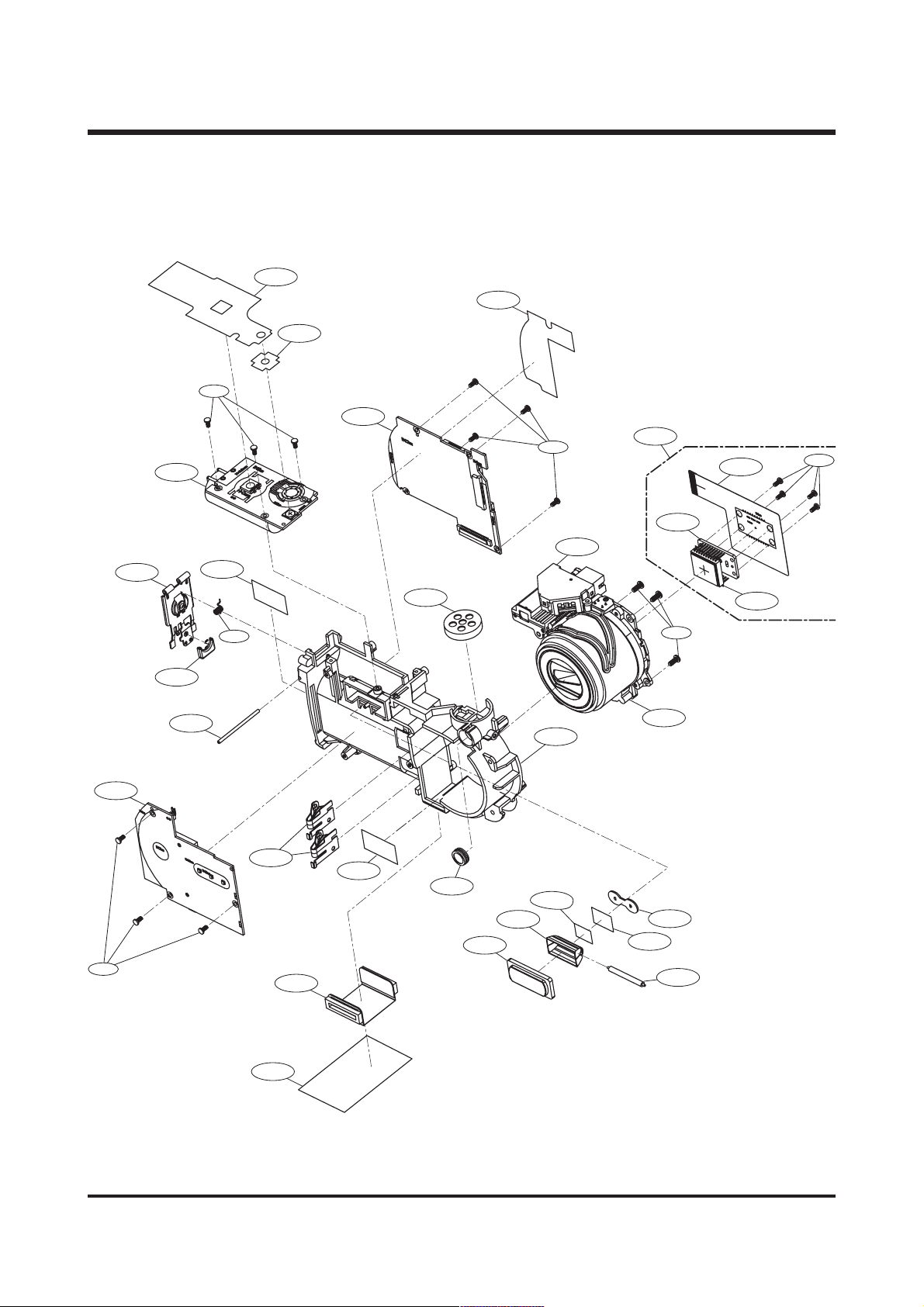

1. MAIN ASSEMBLY…………………………………………………………………………………………………18
2. BODY COVER ASSEMBLY ……………………………………………………………………………………20

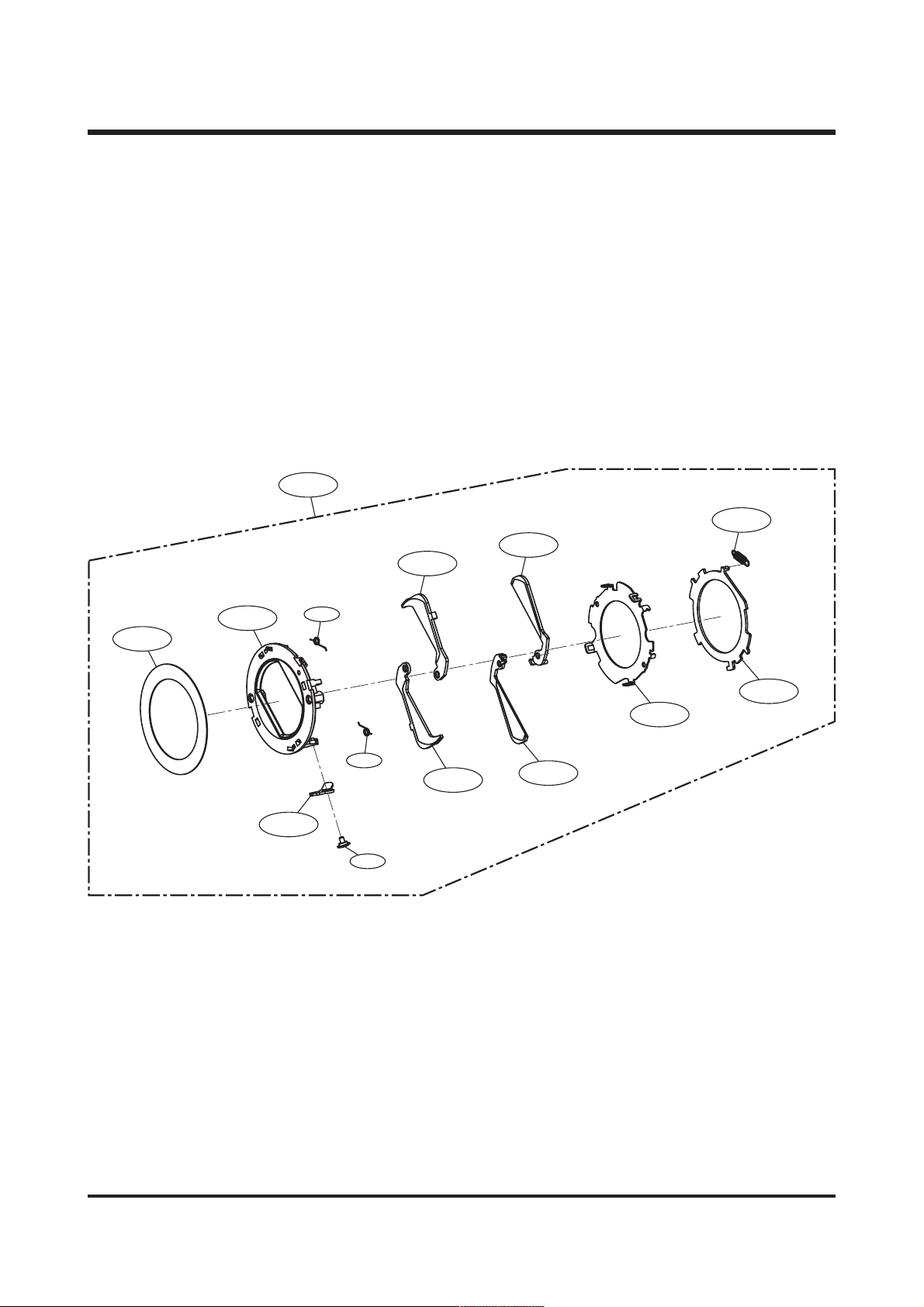

3. BARREL ASSEMBLY ……………………………………………………………………………………………22
4. BARRIEL ASSEMBLY ……………………………………………………………………………………………24

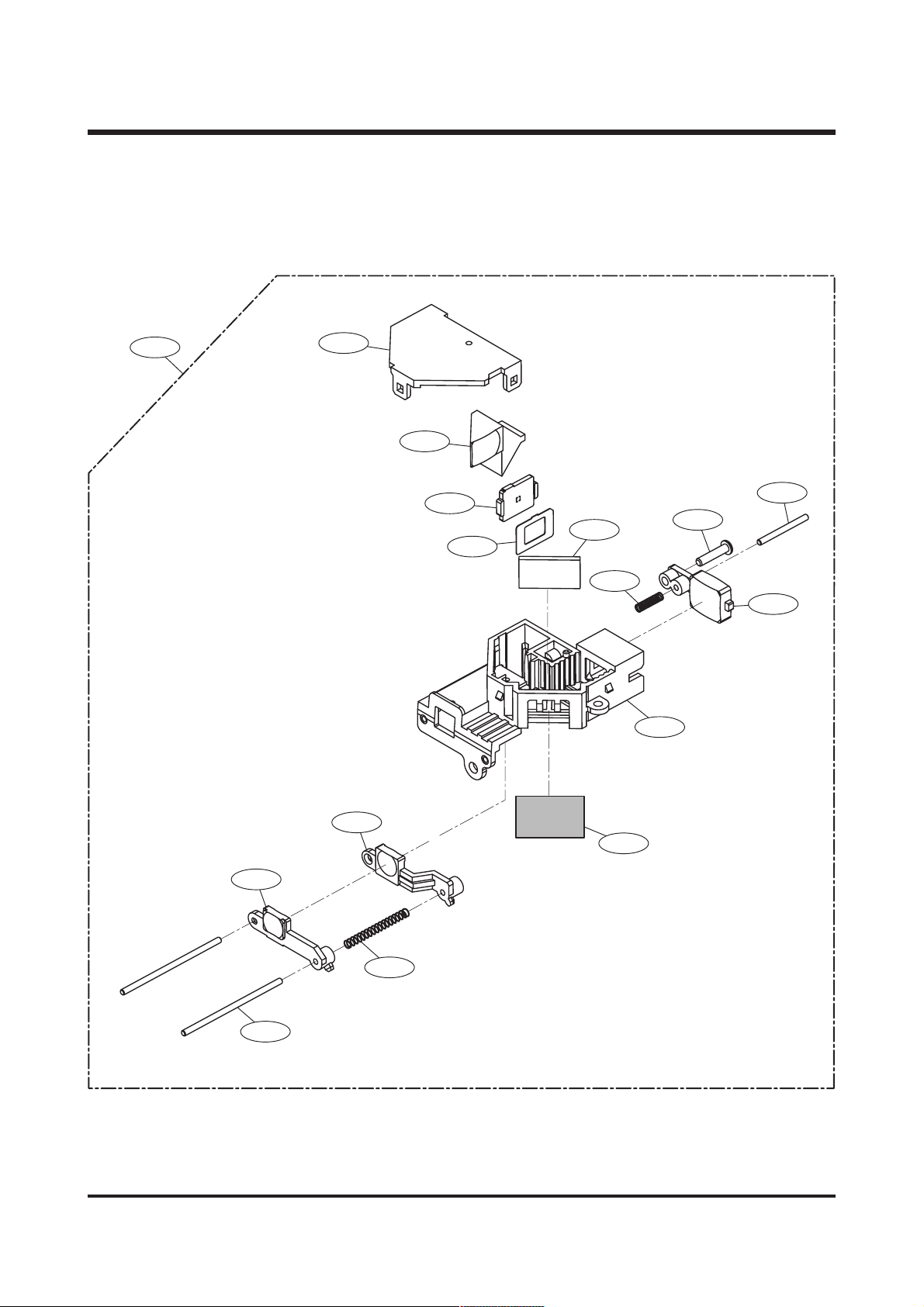

5. FINDER ASSEMBLY………………………………………………………………………………………………26

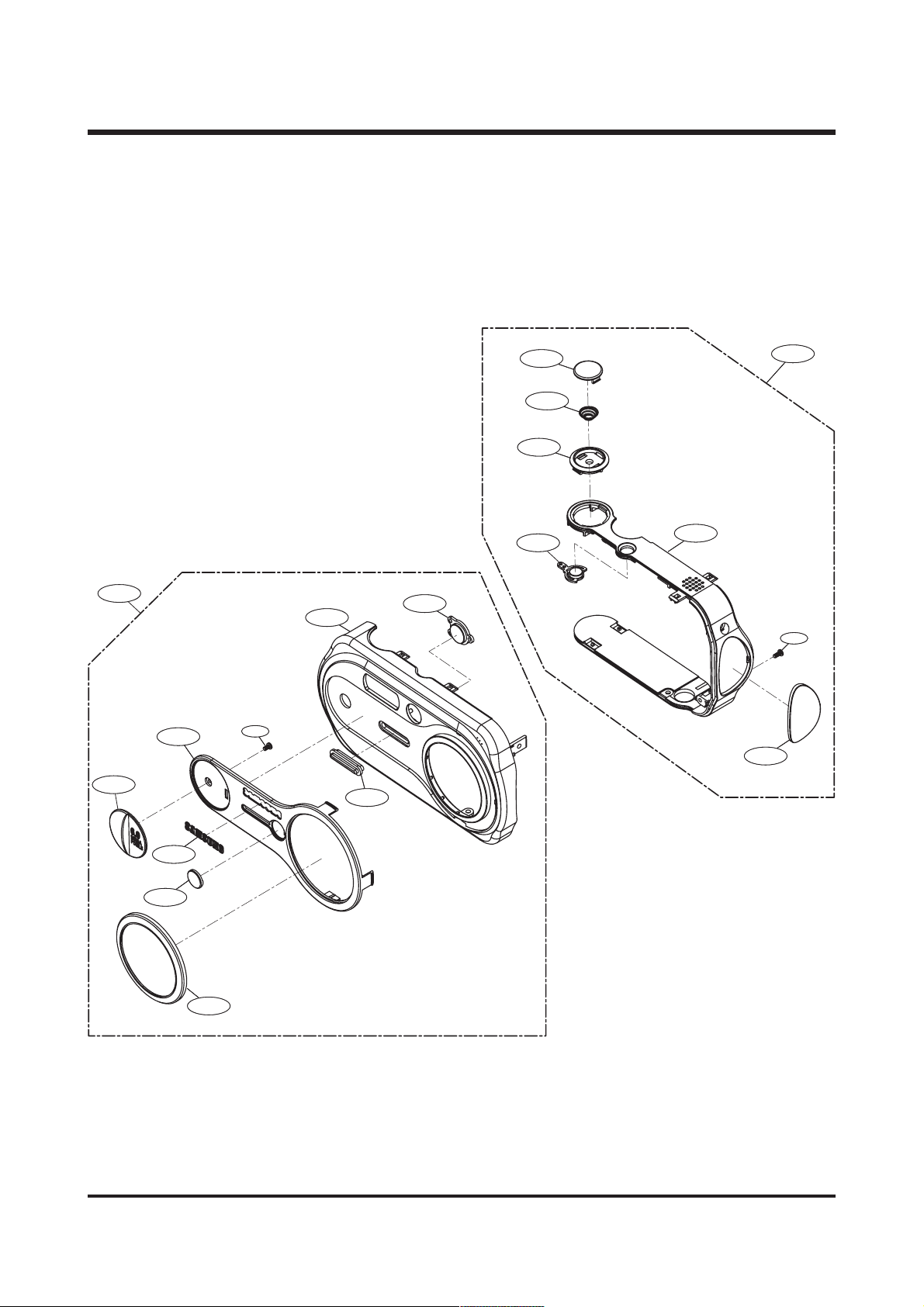

6. FRONT COVER ASSEMBLY ……………………………………………………………………………………28

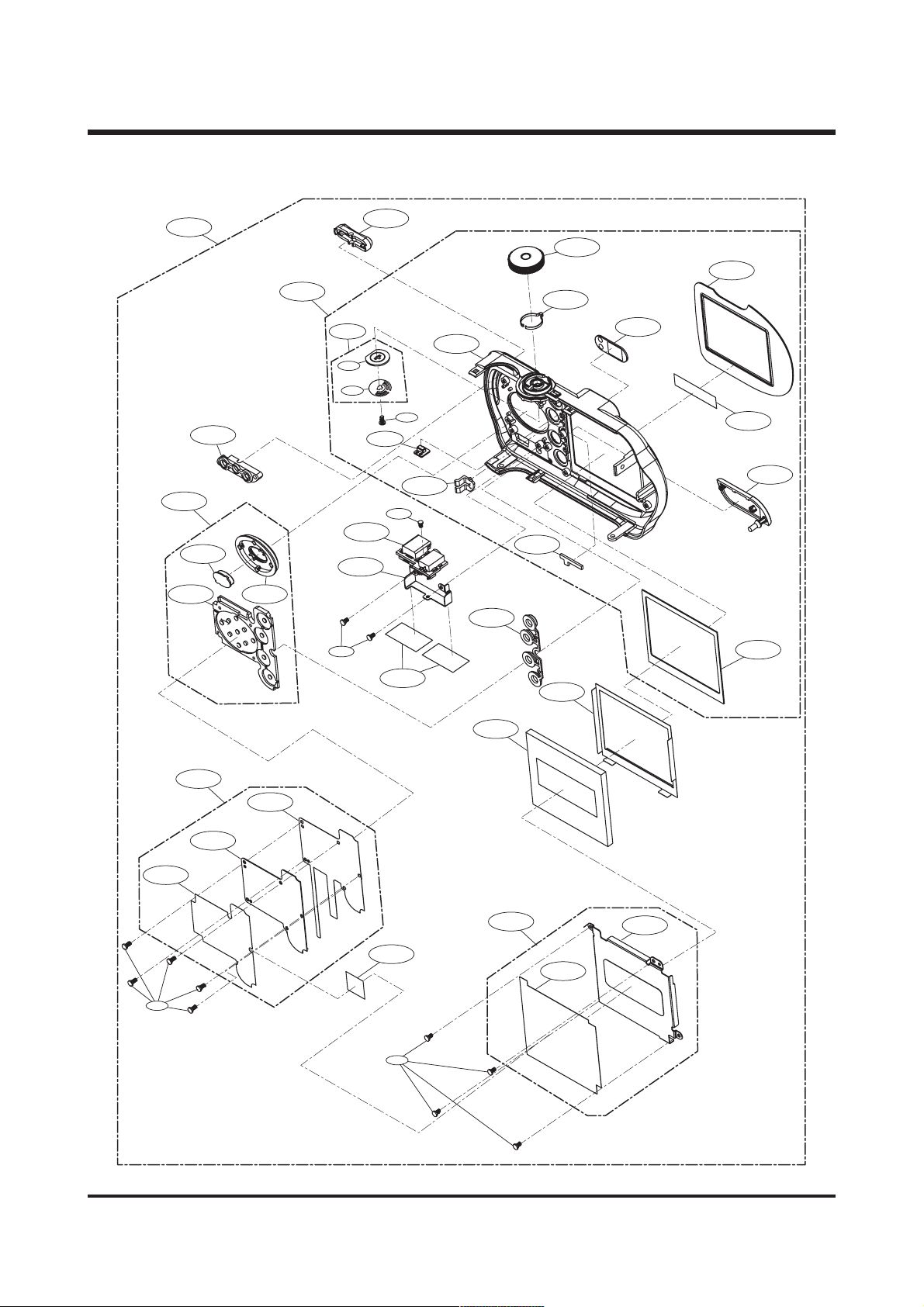

7. BACK COVER ASSEMBLY ……………………………………………………………………………………30

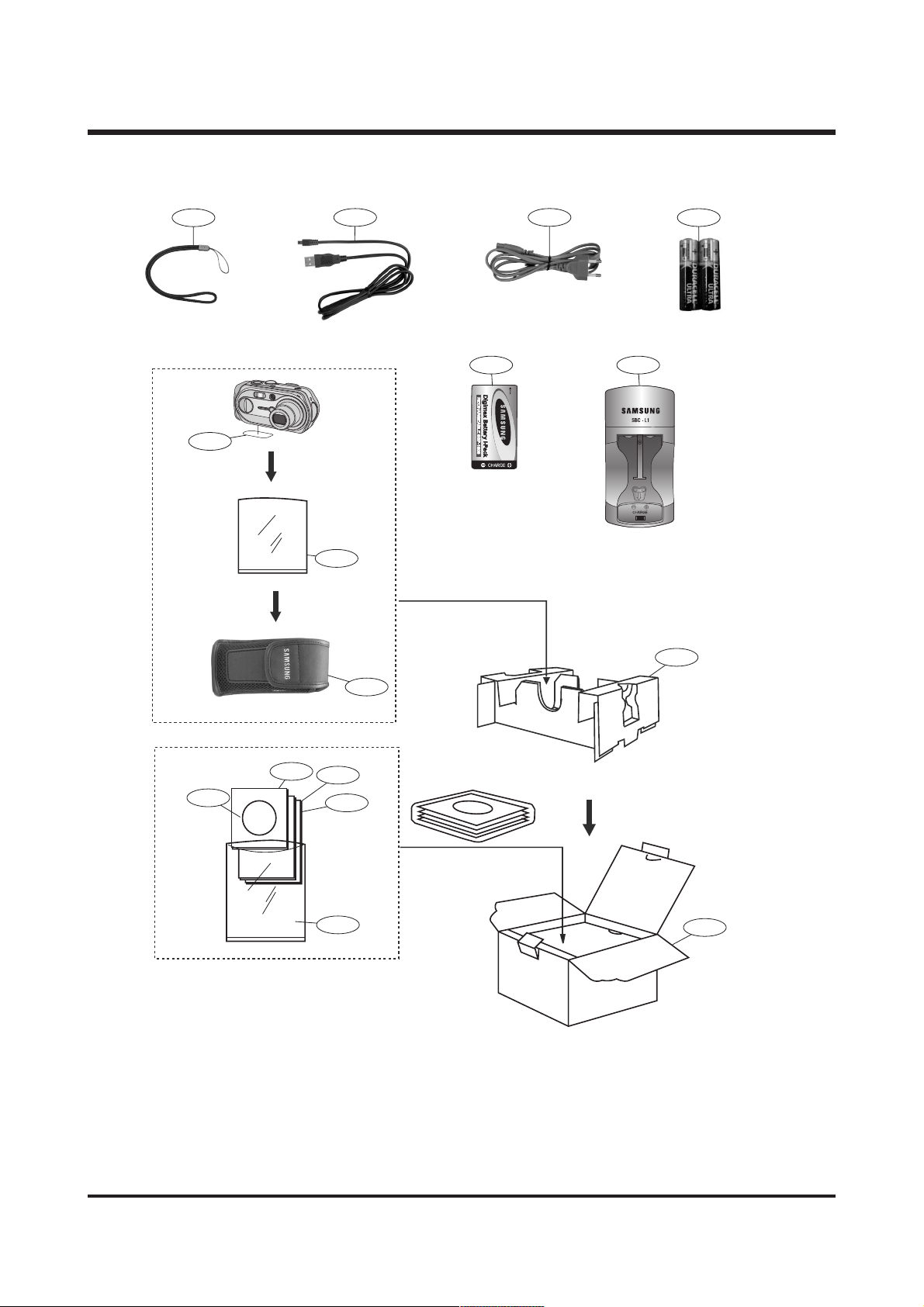

8. PACKING ITEM……………………………………………………………………………………………………32
9. INITIAL PARTS LIST ……………………………………………………………………………………………35
ⅣⅣ.. AADDJJUUSSTTMMEENNTT

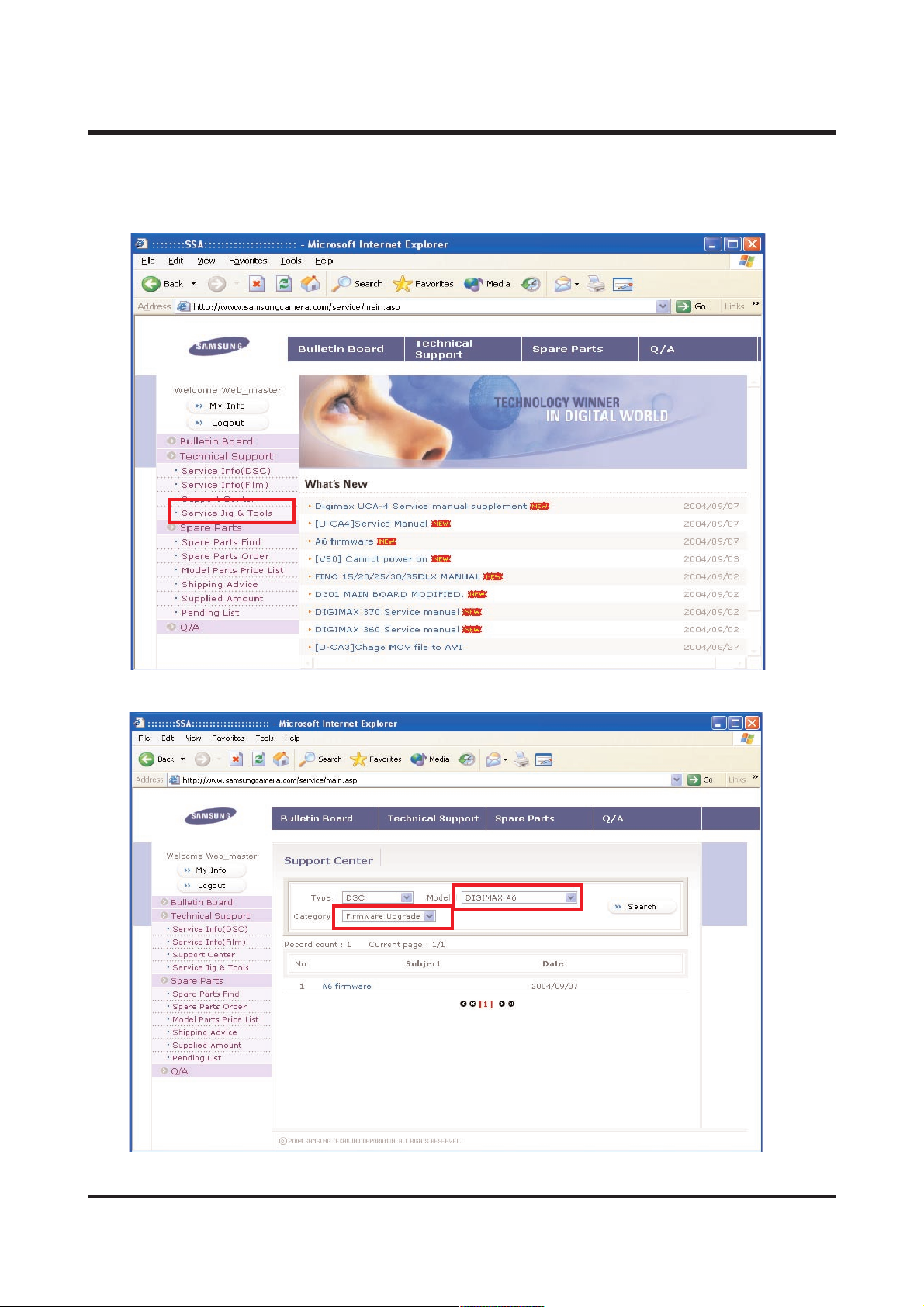

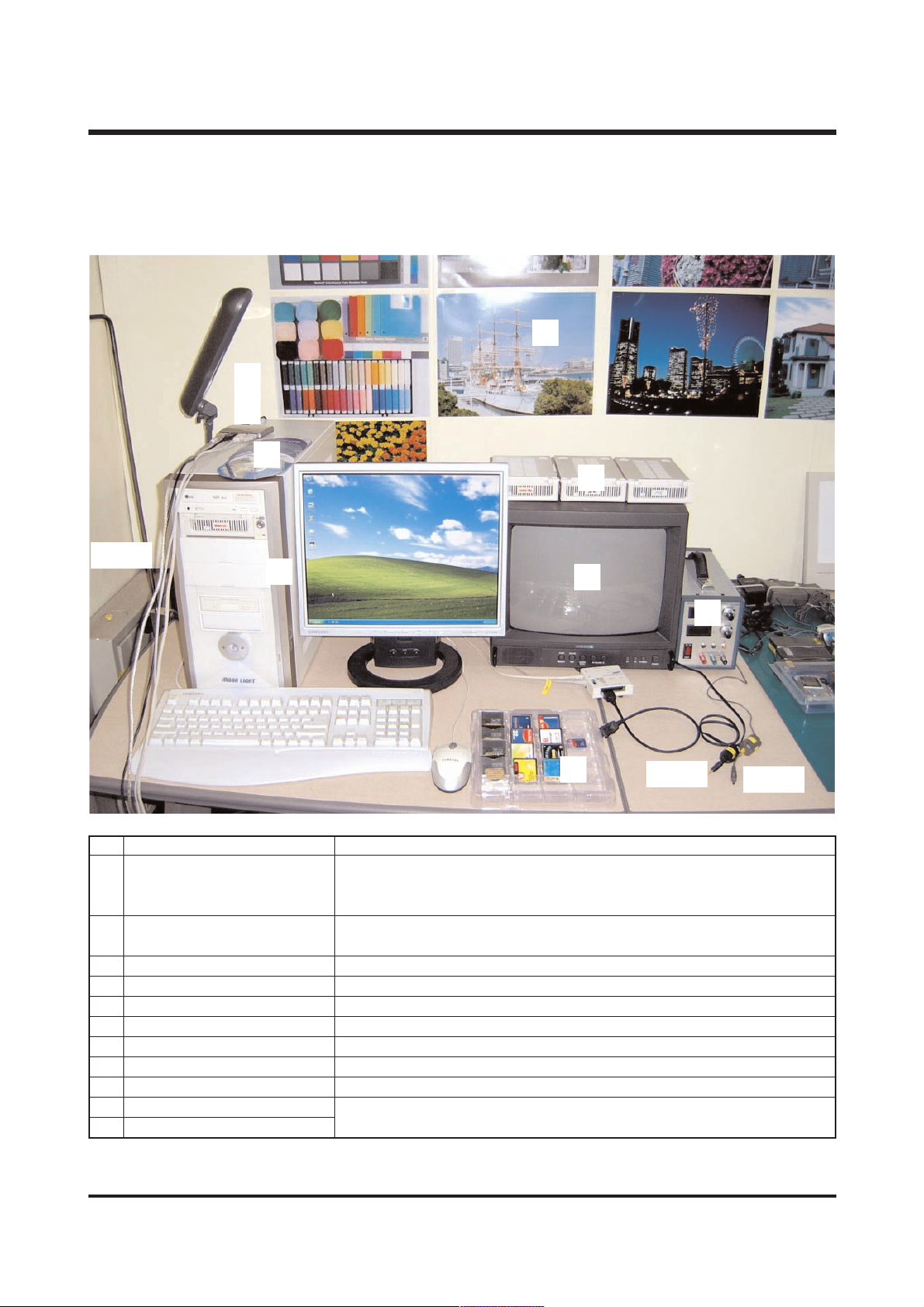

1. DIGITAL CAMERA SERVICE ……………………………………………………………………………………36
2. TUNNING ITEM BY CHANGED PARTS …………………………………………………………………………42

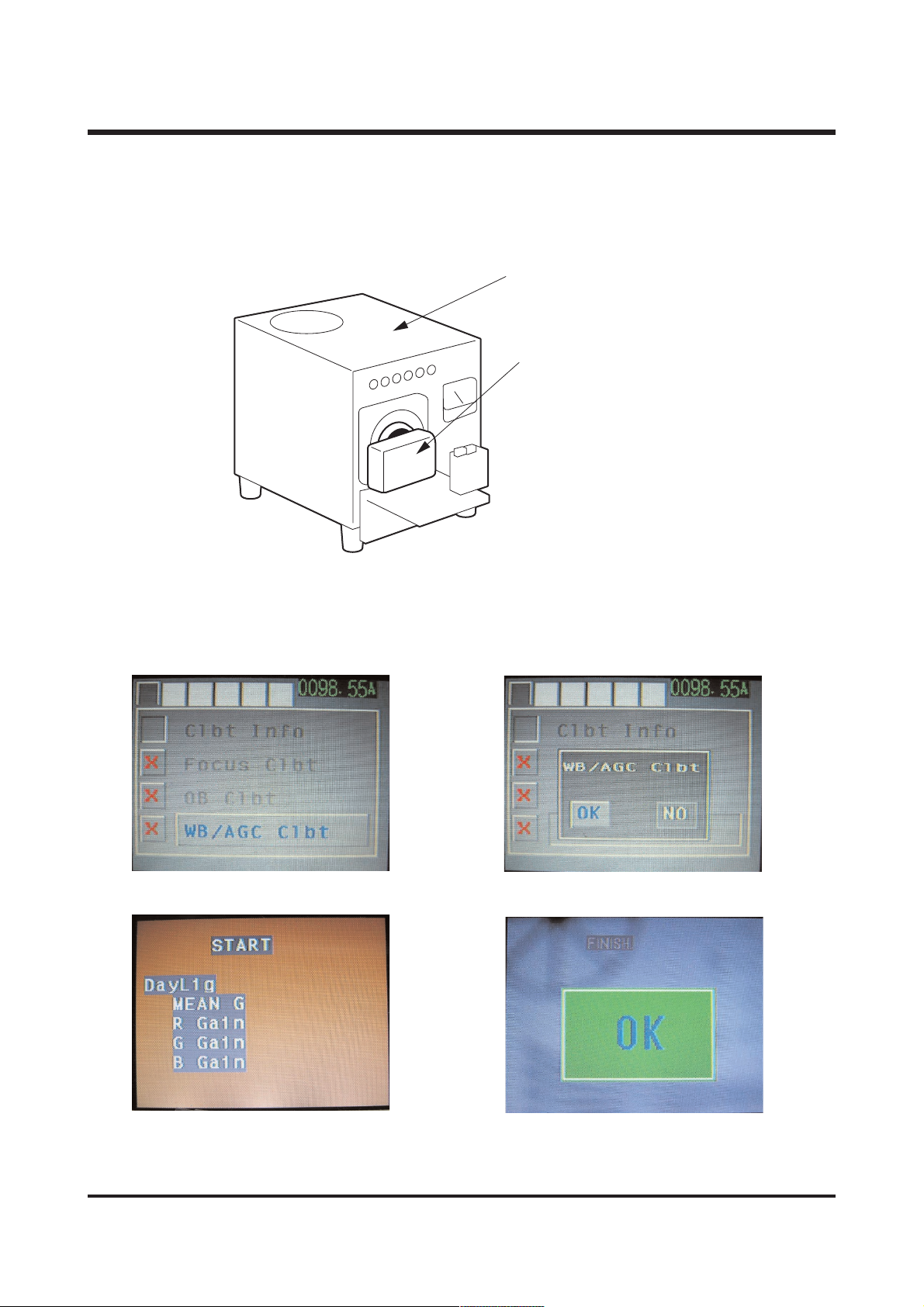

3. TUNNING …………………………………………………………………………………………………………43
4. ADJUSTMENT ……………………………………………………………………………………………………46
ⅤⅤ.. PPAATTTTEERRNN DDIIAAGGRRAAMM

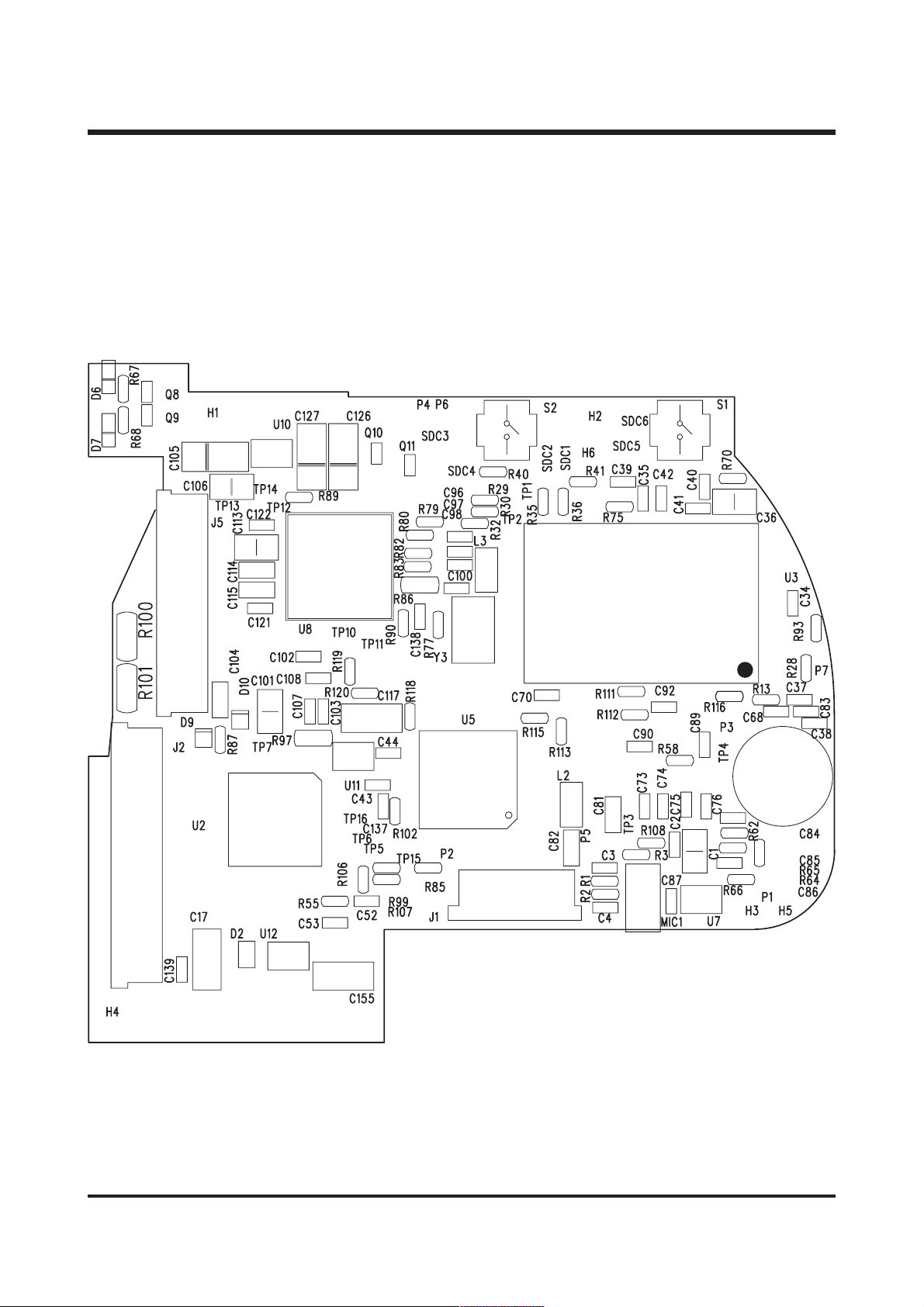

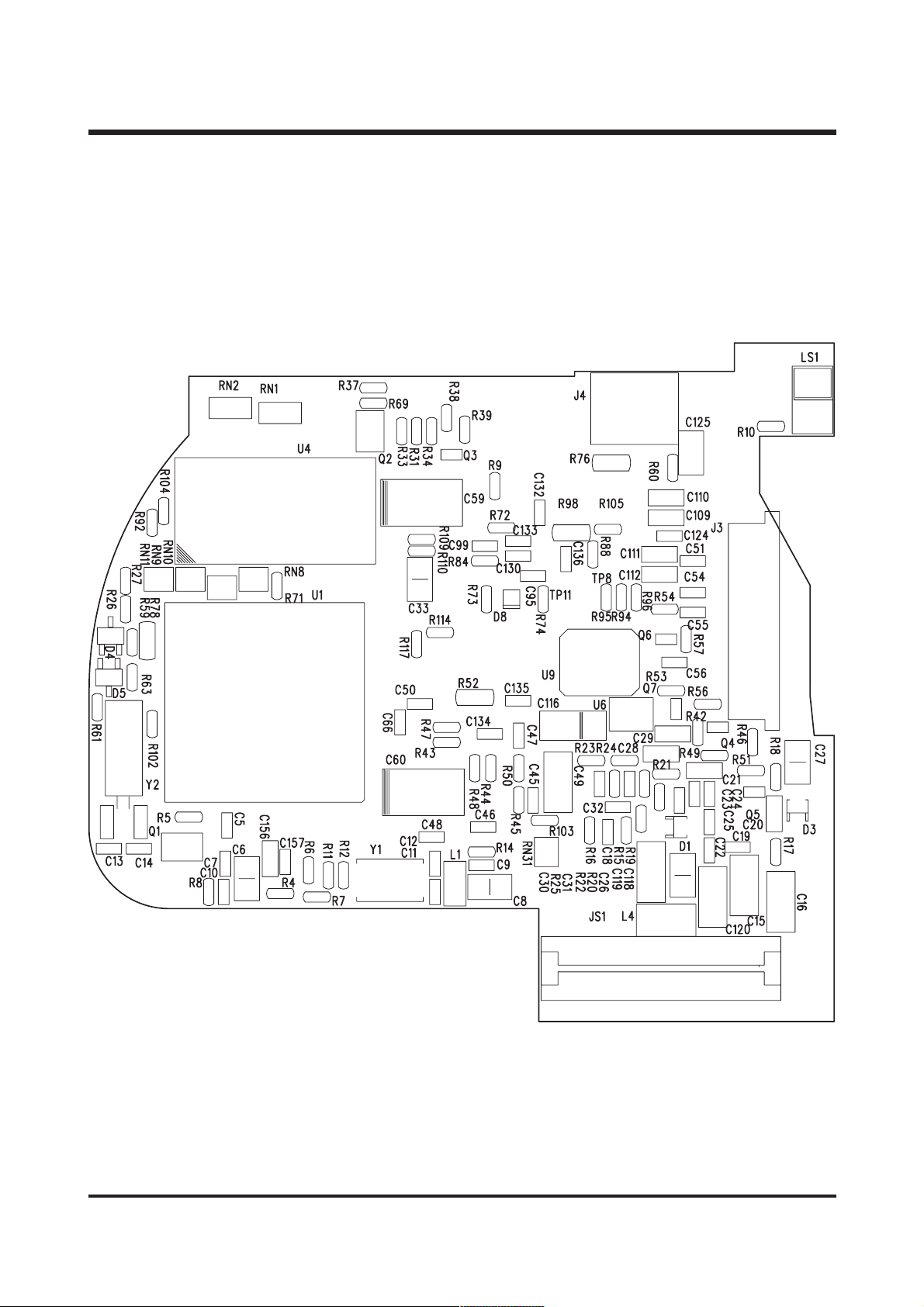

1. PARTS ARRANGEMENT FOR EACH PCB ASS’Y

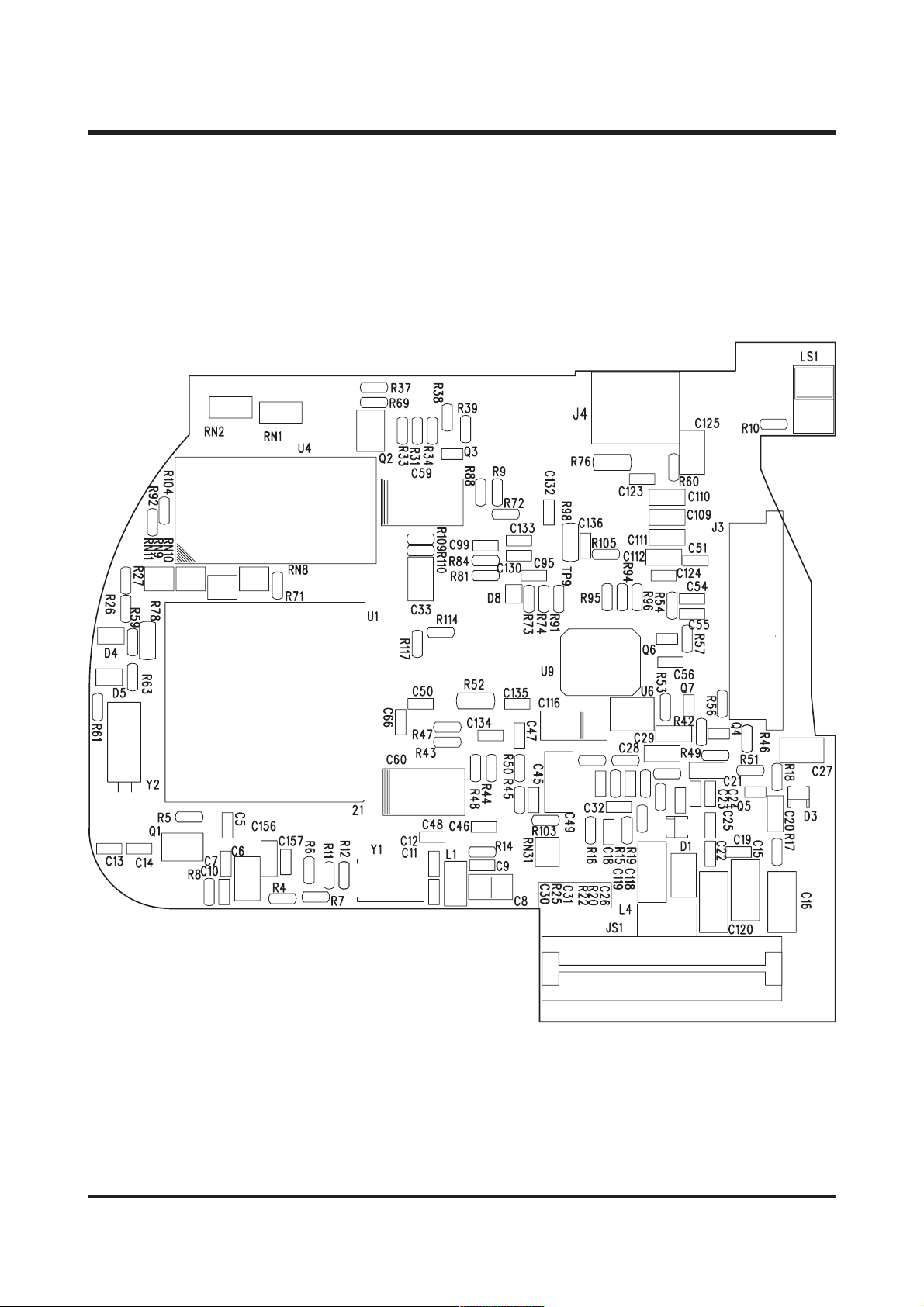

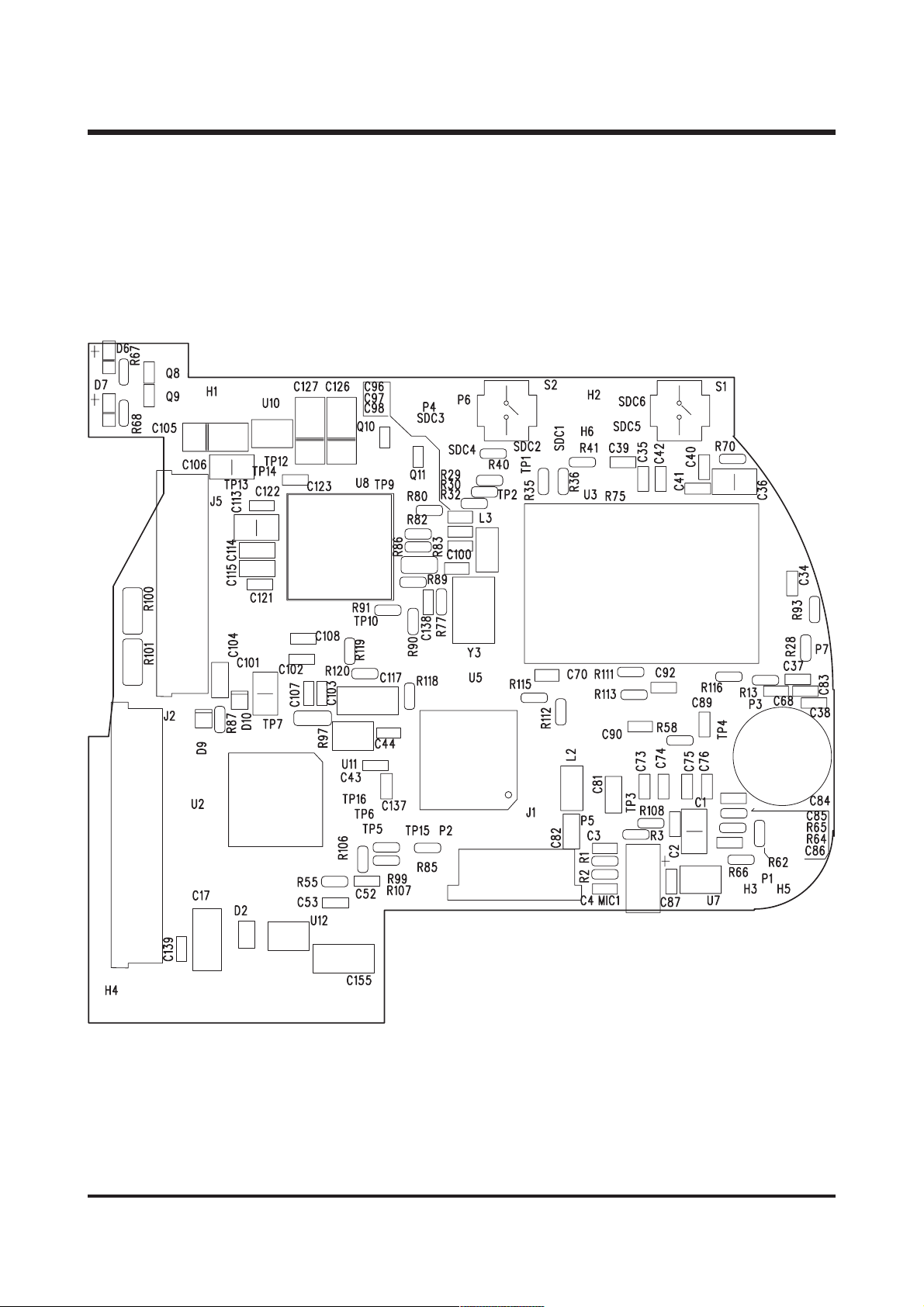

1) MAIN PCB ASSEMBLY_A6 (TOP) ……………………………………………………………………… 58
2) MAIN PCB ASSEMBLY_A6 (BOTTOM) …………………………………………………………………59
3) MAIN PCB ASSEMBLY_A5 (TOP) ………………………………………………………………………60
4) MAIN PCB ASSEMBLY_A6 (BOTTOM) ……………………………………………………………………61
5) POWER PCB ASSEMBLY (TOP) …………………………………………………………………………62
6) POWER PCB ASSEMBLY (BOTTOM ………………………………………………………………………63
7) CCD PCB ASSEMBLY (TOP) ………………………………………………………………………………64
8) CCD PCB ASSEMBLY (BOTTOM) …………………………………………………………………………65

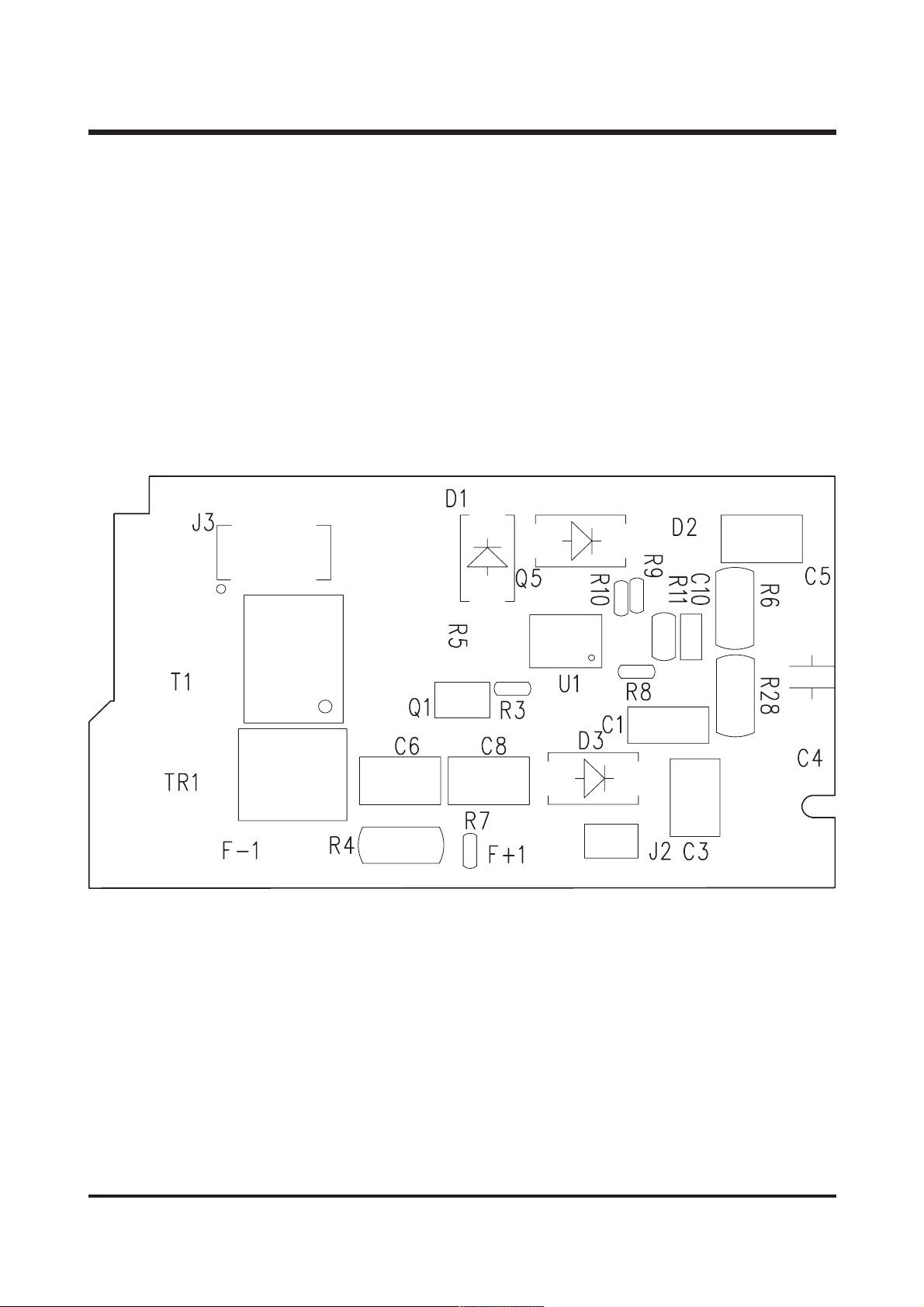

9) STROBE PCB ASSEMBLY (TOP) …………………………………………………………………………66
10) STROBE PCB ASSEMBLY (BOTTOM) ……………………………………………………………………67
11) USBDC PCB ASSEMBLY (TOP) ……………………………………………………………………………68
12) USBDC PCB ASSEMBLY (BOTTOM) ………………………………………………………………………69

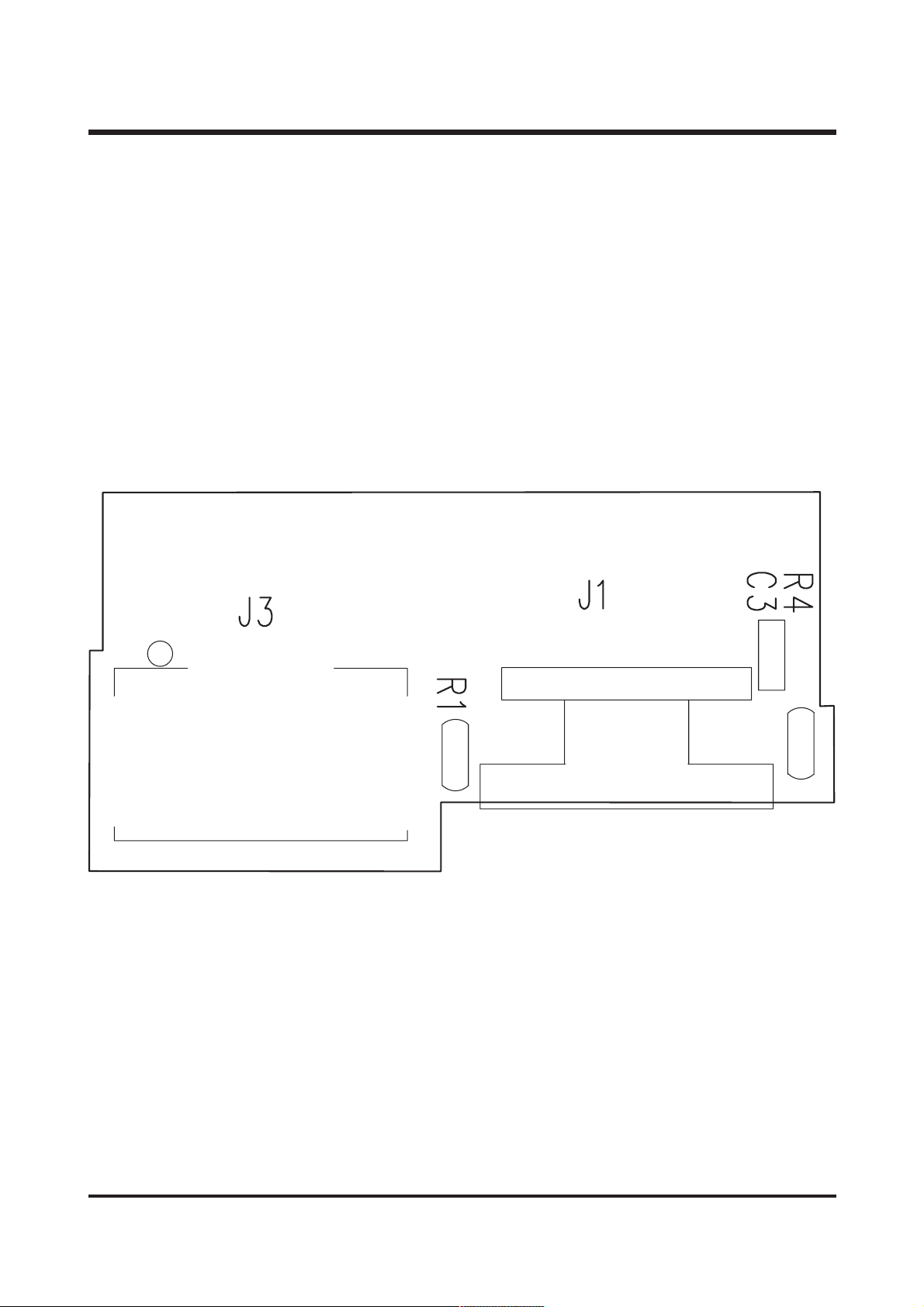

13) TRANSFER PCB ASSEMBLY…………………………………………………………………………………70

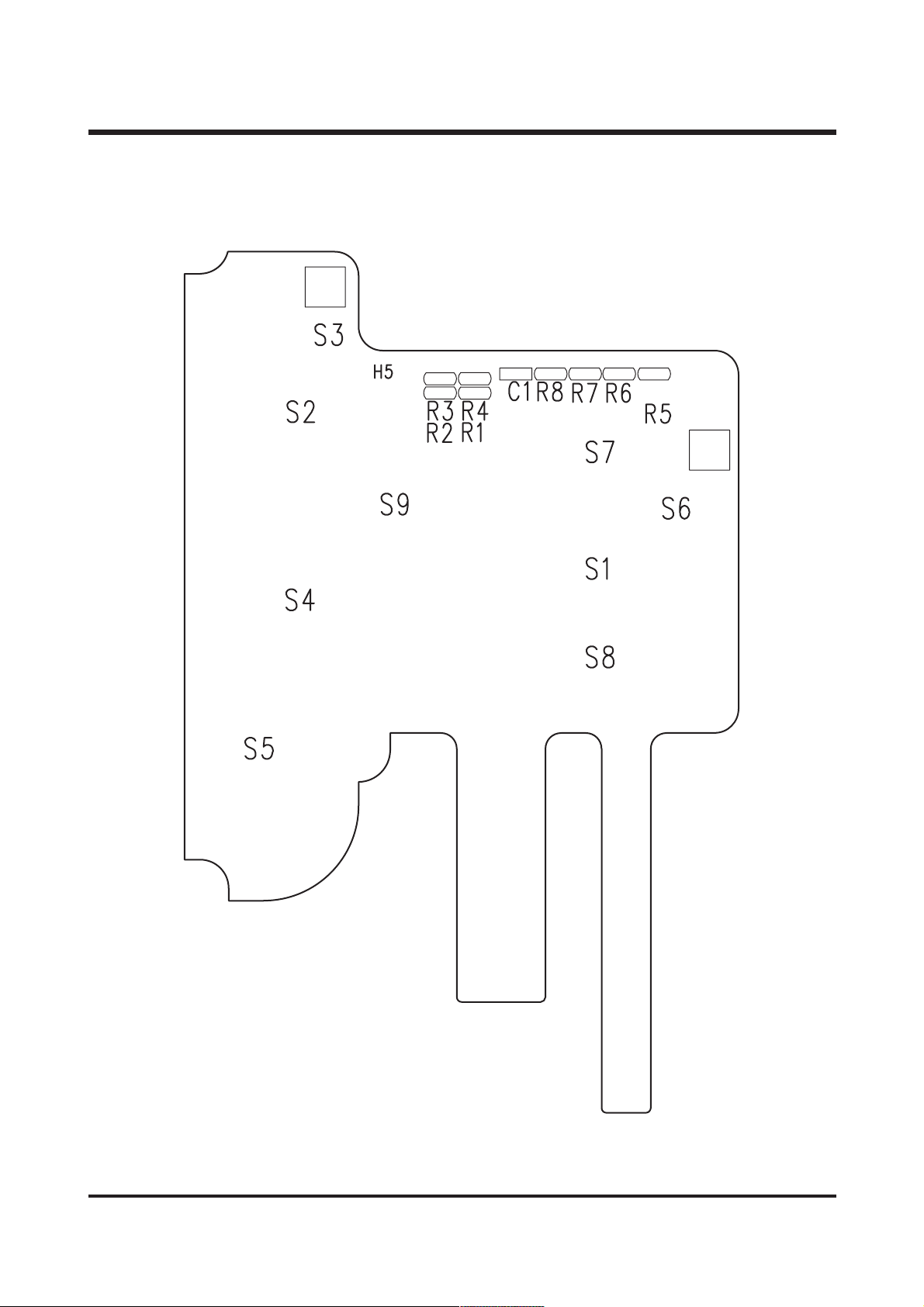

14) UI PCB ASSEMBLY …………………………………………………………………………………………71
Page 2
3
ⅥⅥ.. CCUURRCCUUIITT DDIIAAGGRRAAMM

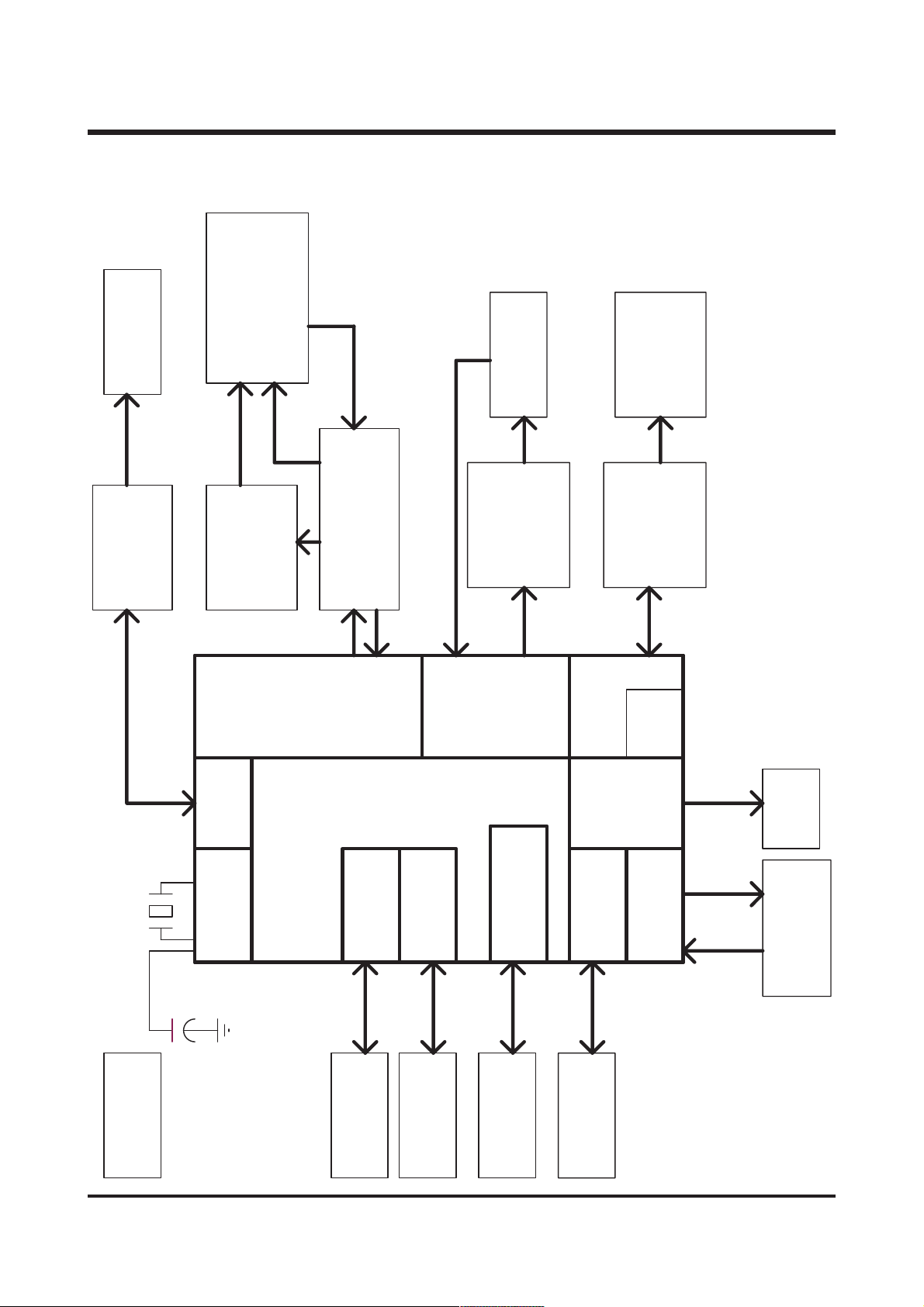

1. BLOCK DIAGRAM…………………………………………………………………………………………………72

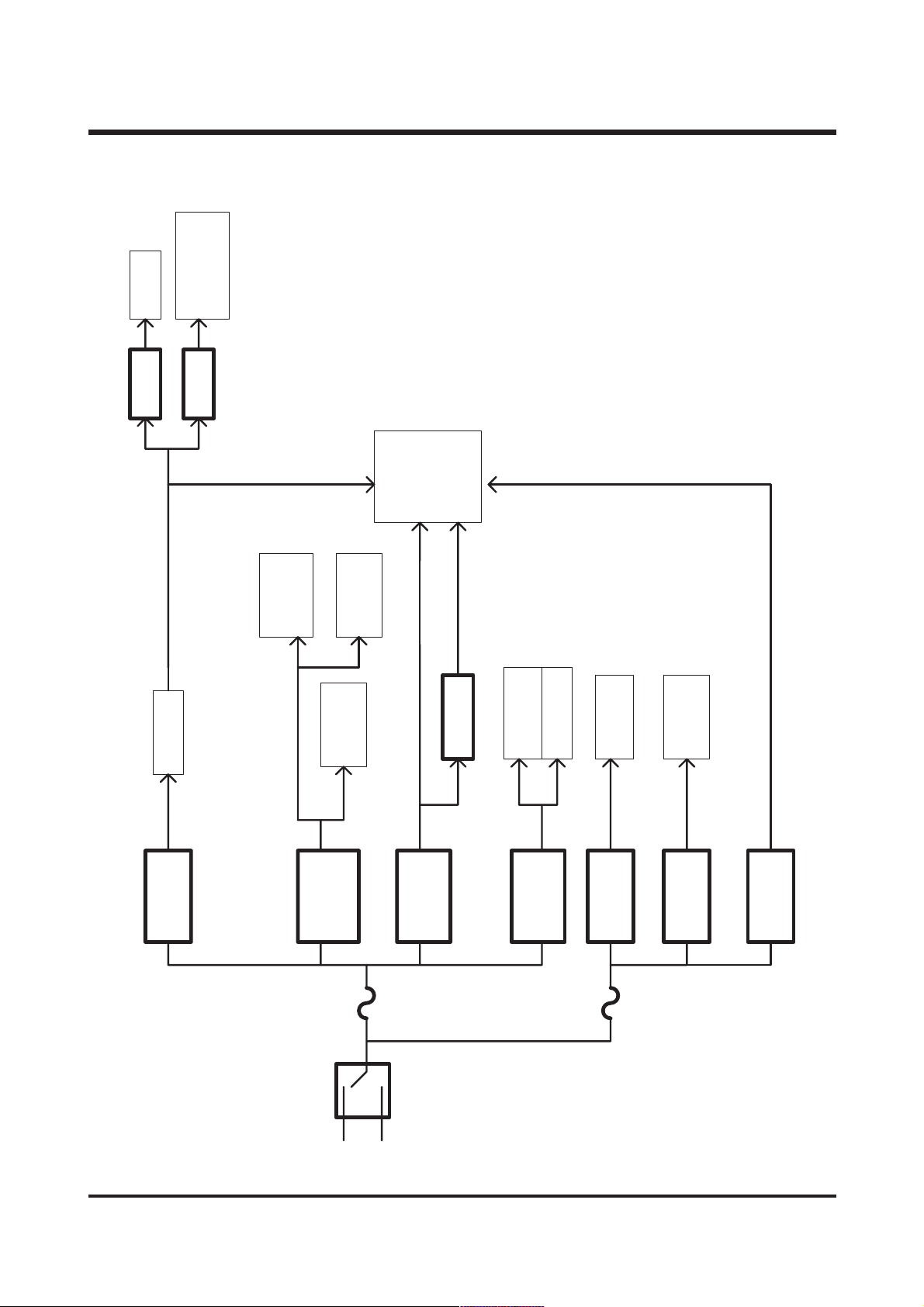

2. BLOCK DIAGRAM (POWER) ……………………………………………………………………………………73

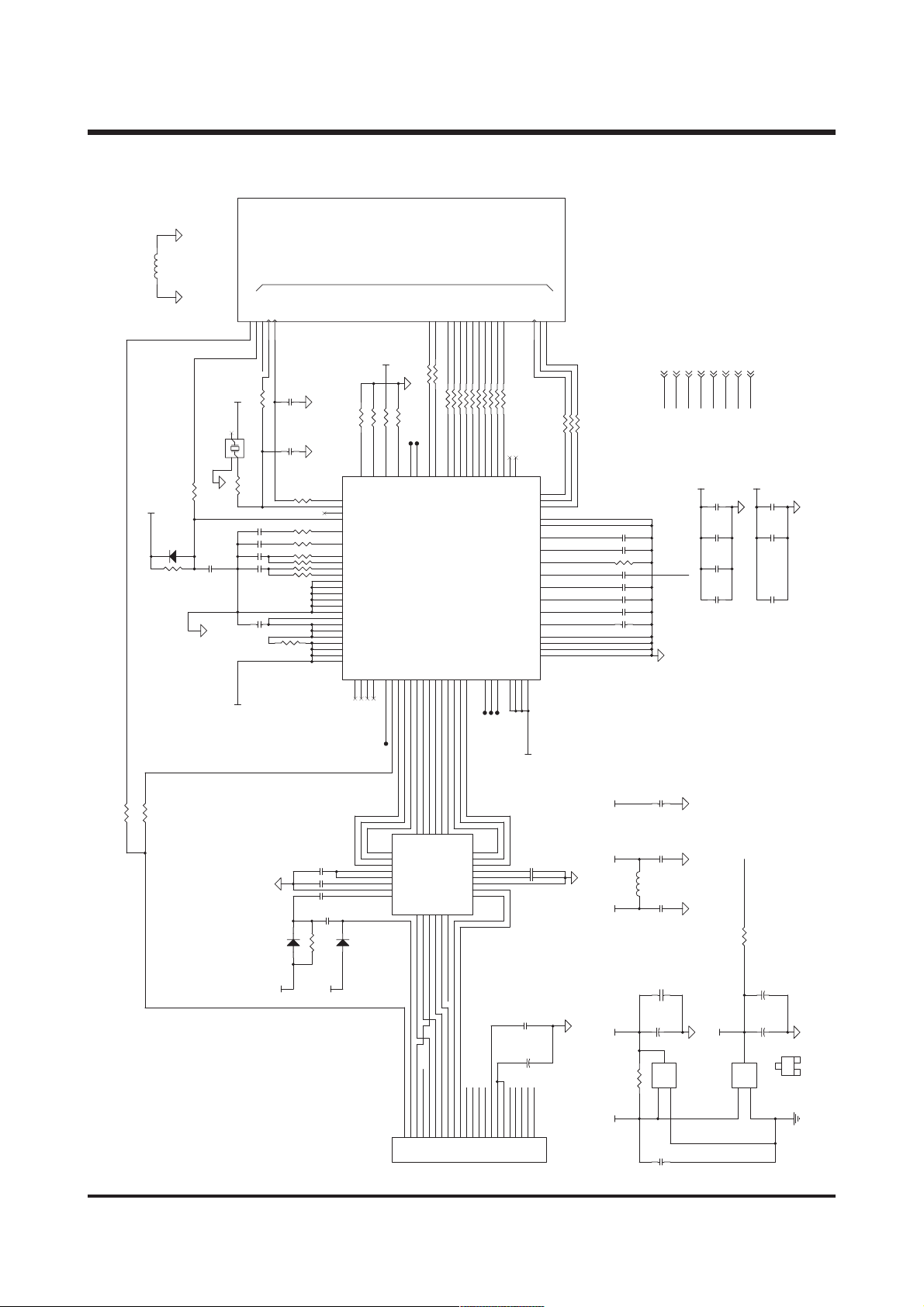

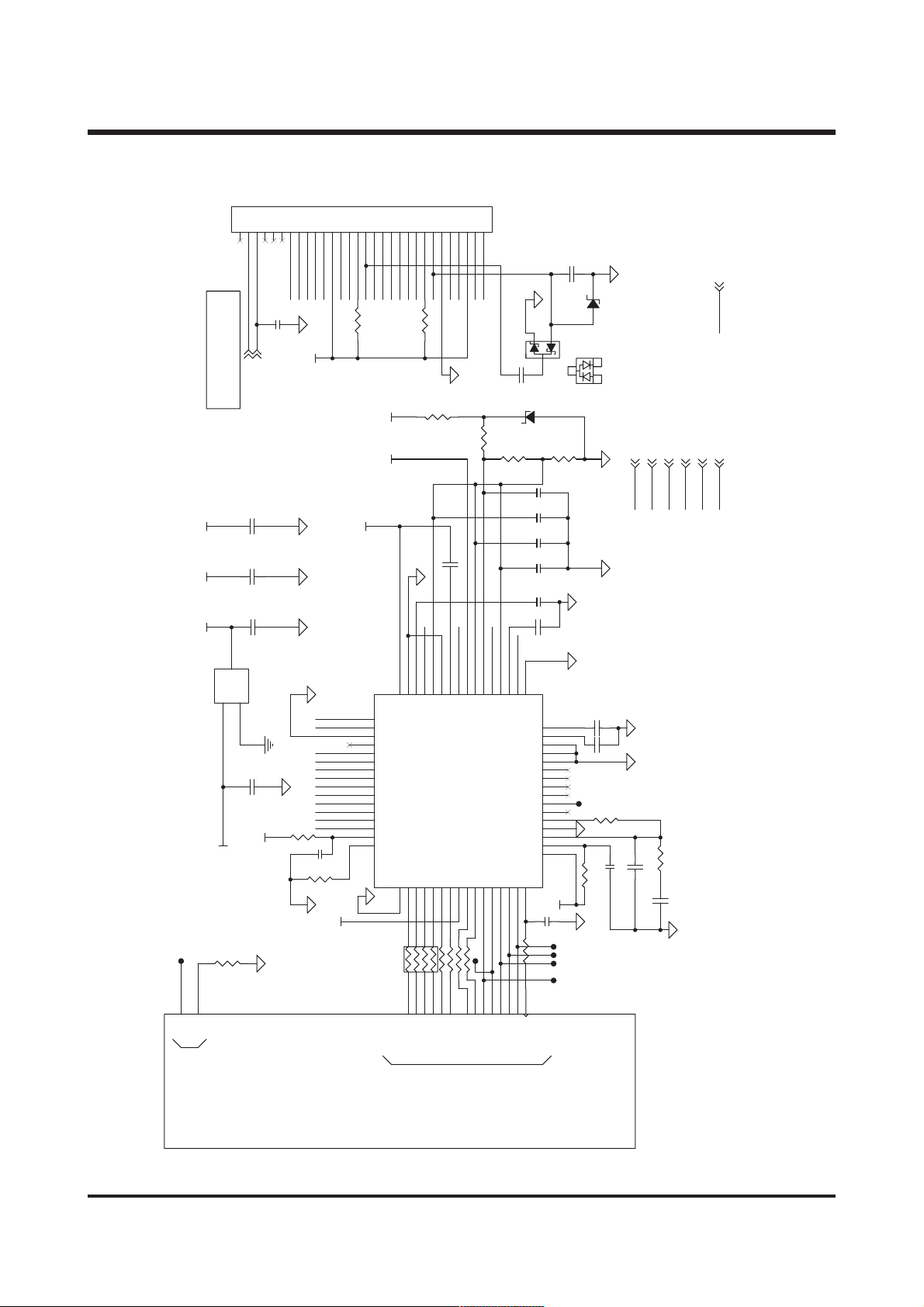

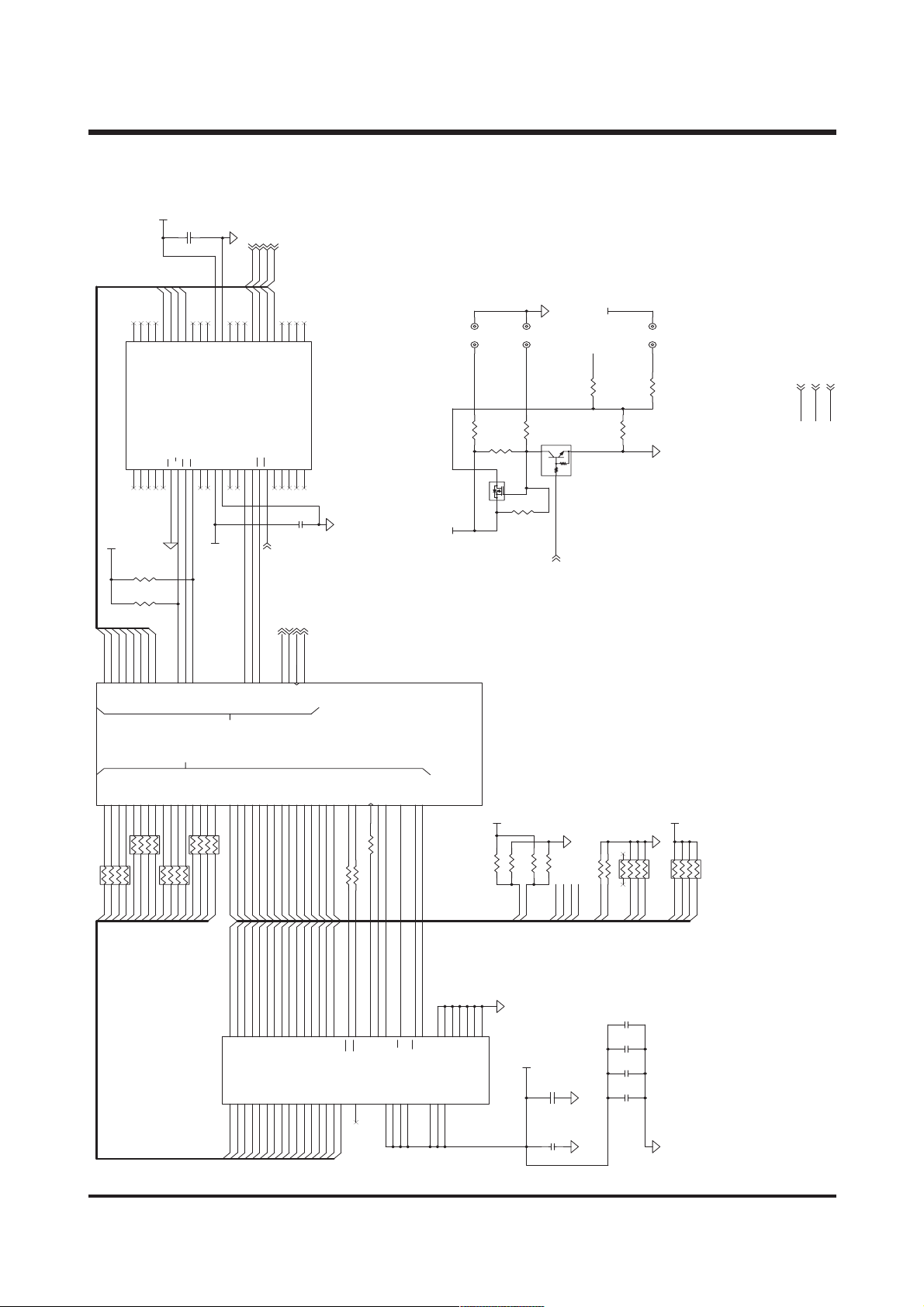

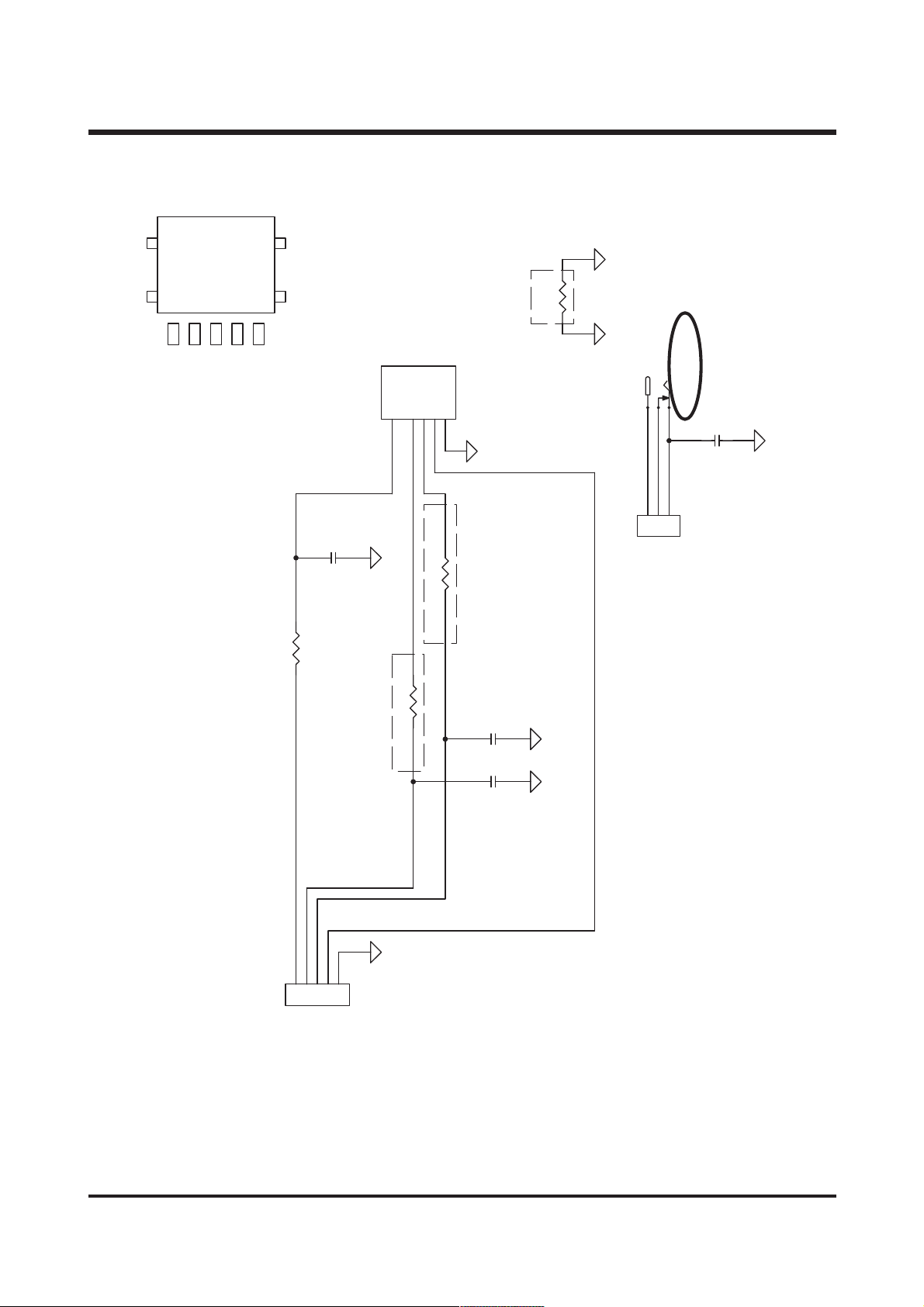

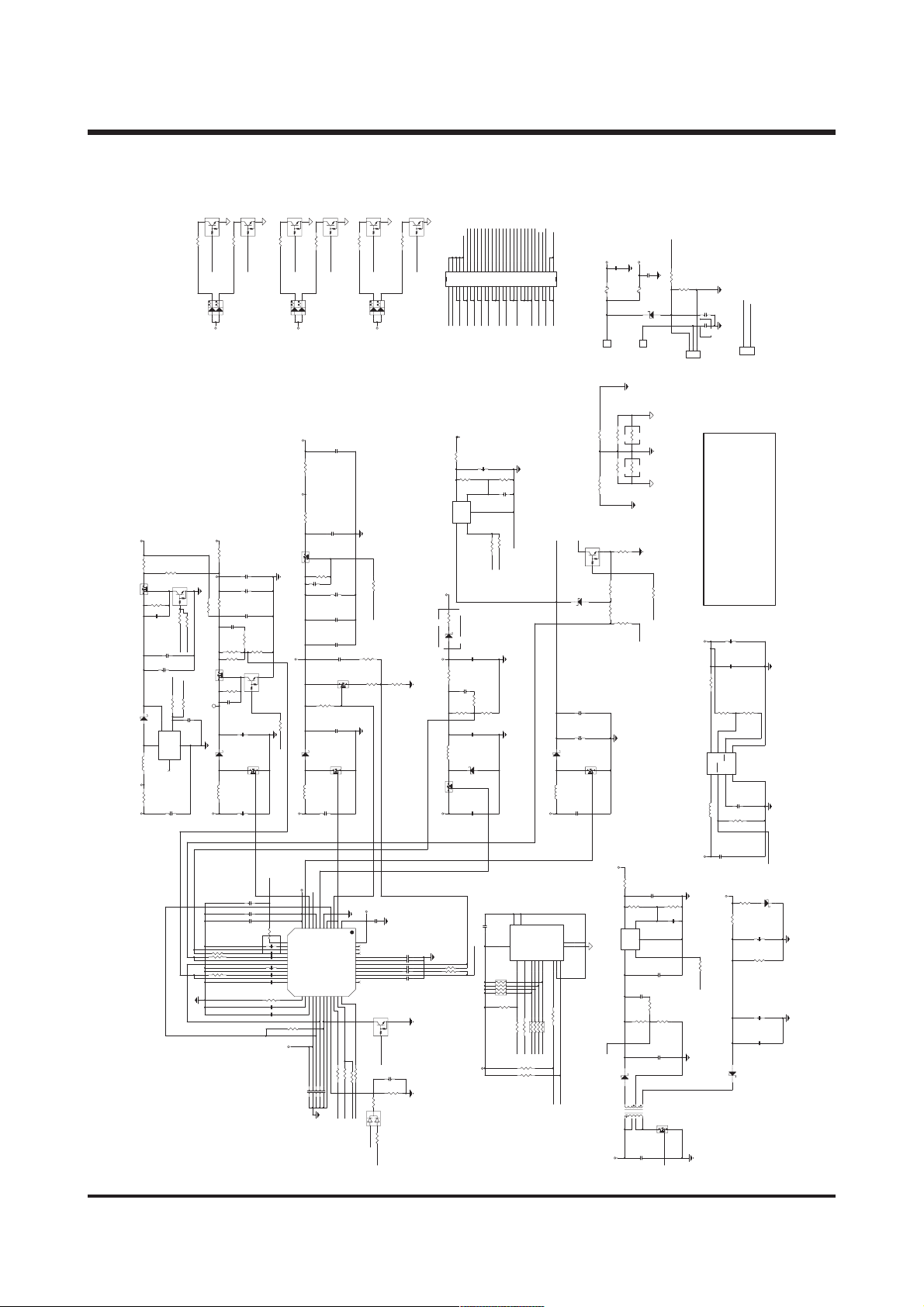

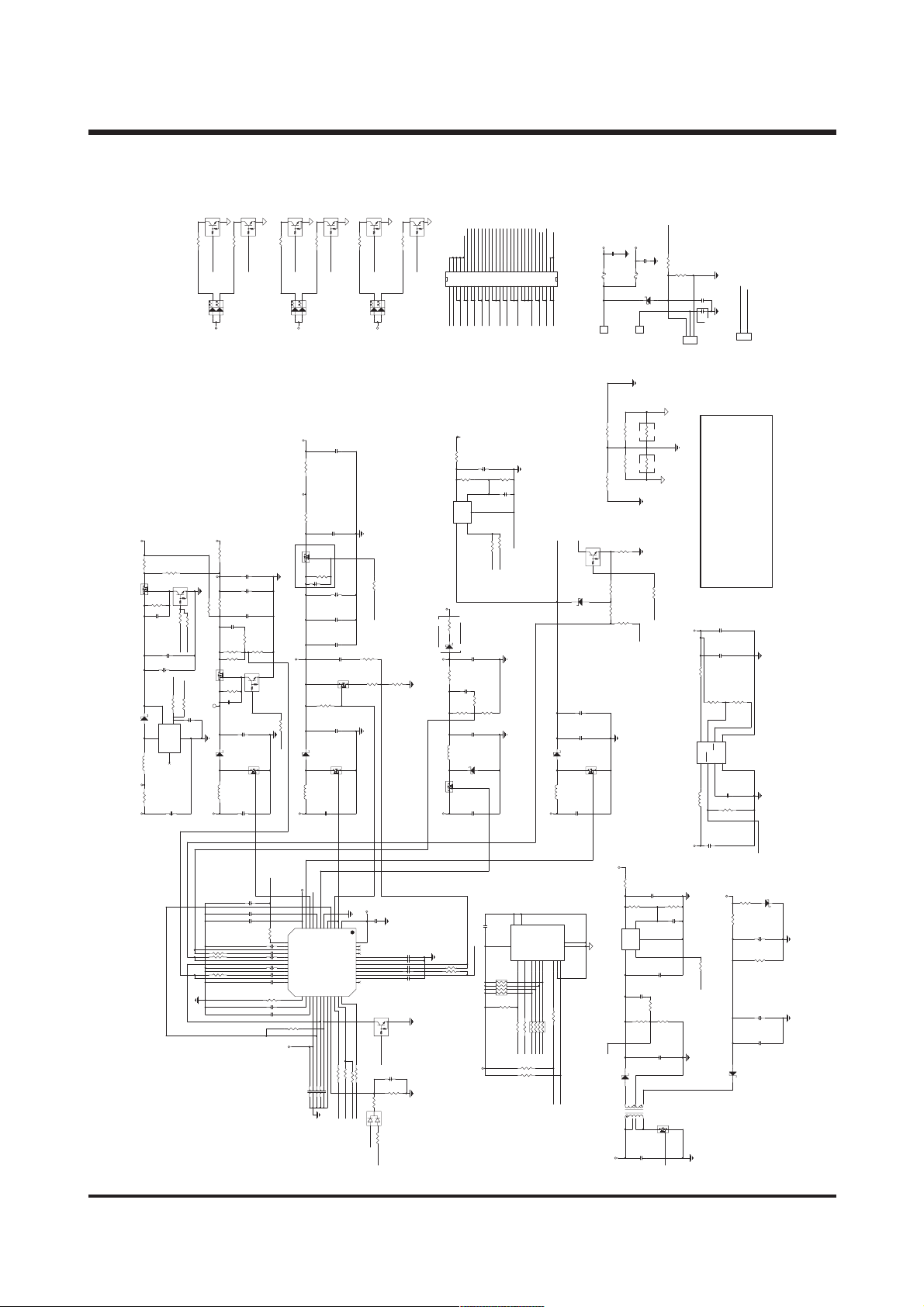

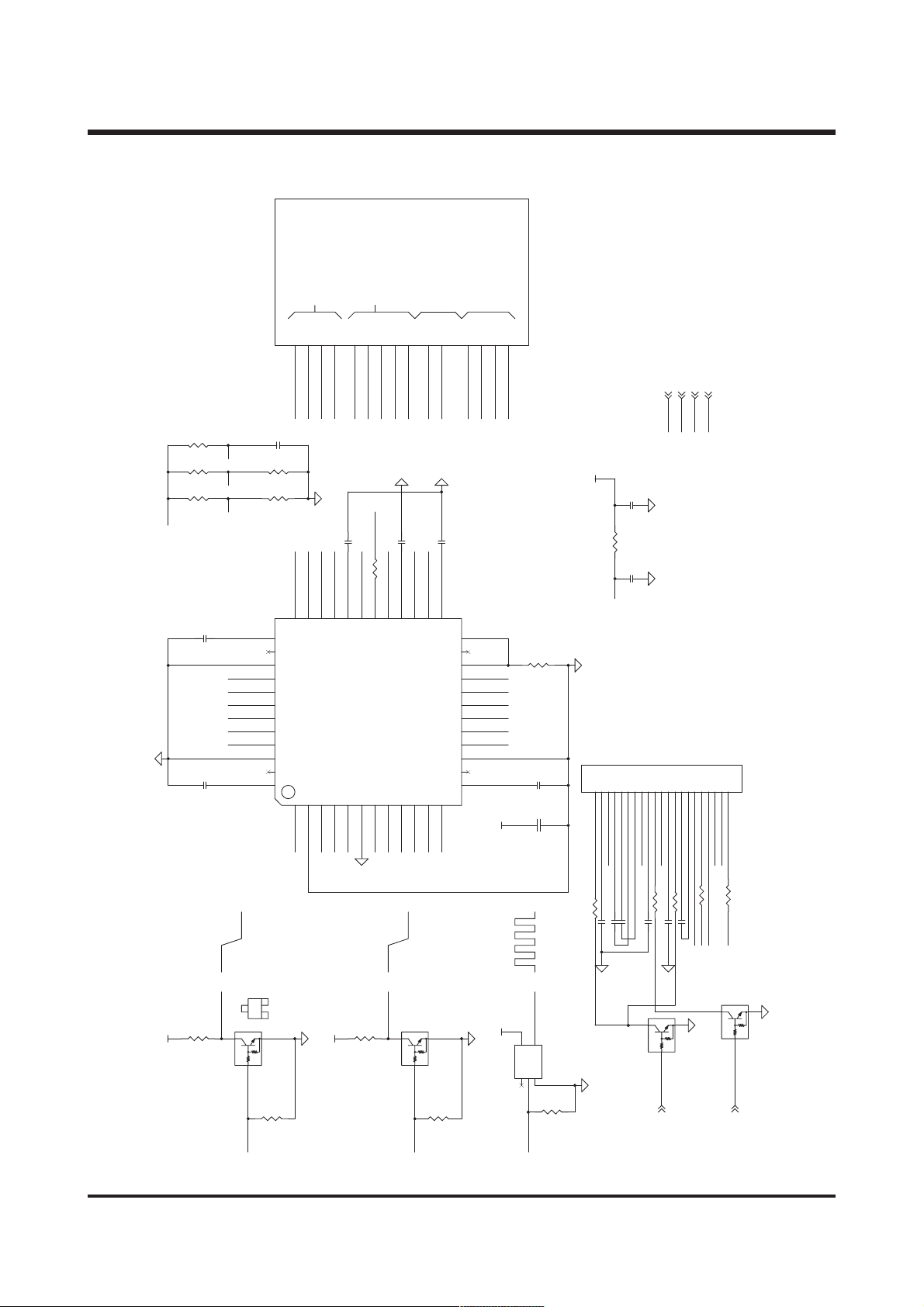

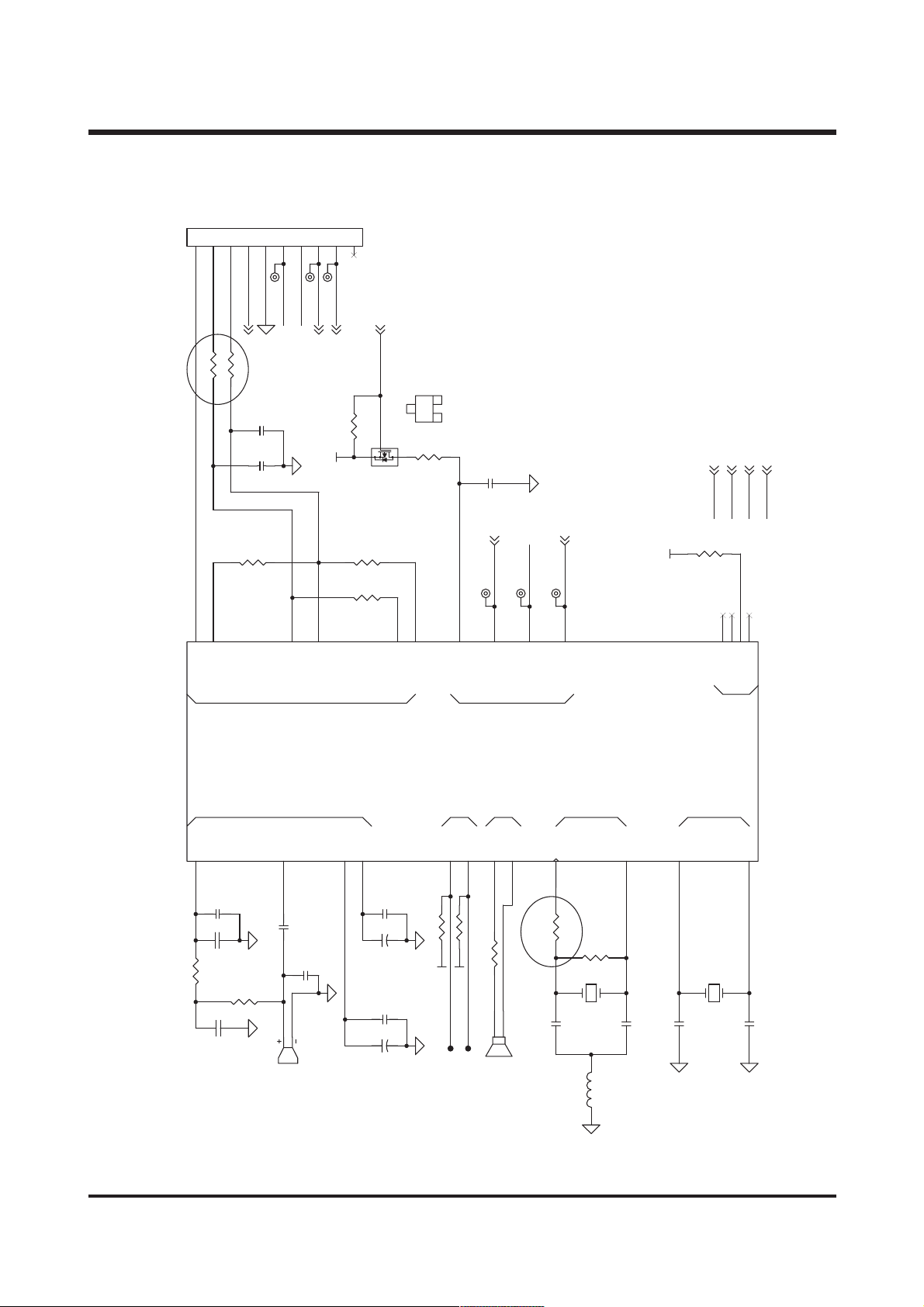

3. CIRCUIT DIAGRAM
1) MAIN_A6 (BUTTON INTERFACE,AUDIO,USB,UART,SPK,X'TAL,ADC AND EJTAG) ……………………74
2) MAIN_A5 (BUTTON INTERFACE,AUDIO,USB,UART,SPK,X'TAL,ADC AND EJTAG) ……………………75
3) POWER_A6 …………………………………………………………………………………………………76
4) POWER_A5……………………………………………………………………………………………………77
5) MAIN_A6 (SENSOR INTERFACE) …………………………………………………………………………78
6) MAIN_A5 (SENSOR INTERFACE) …………………………………………………………………………79
7) MAIN (LCD INTERFACE & VIDEO OUT) …………………………………………………………………80
8) MAIN (DRAM, NAND, SD INTERFACE & CONFIGURATION RESISTORS) ……………………………81
9) MAIN ( MOTOR INTERFACE) ………………………………………………………………………………82
10) MAIN (POWER & RESET) …………………………………………………………………………………83
11) STORBE, GPIO & PWM ……………………………………………………………………………………84
12) TRANSFER ……………………………………………………………………………………………………85
13) USBDC_A6 …………………………………………………………………………………………………86
14) USBDC_A5 …………………………………………………………………………………………………87

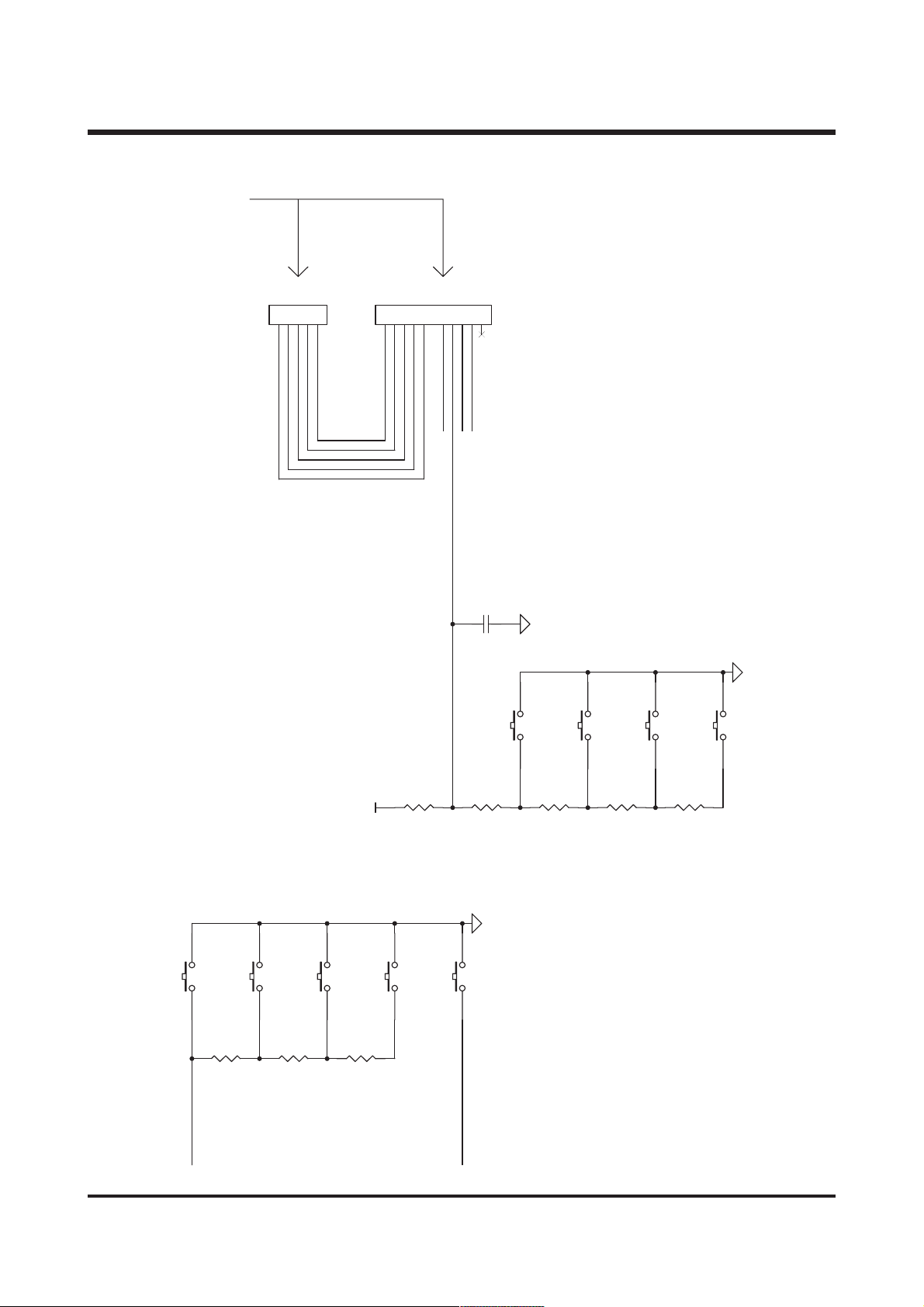

15) UI………………………………………………………………………………………………………………88
16) STROBE_A6 …………………………………………………………………………………………………89
17) CCDFPC_A6 …………………………………………………………………………………………………90
ⅦⅦ.. TTRROOUUBBLLEESSHHOOOOTTIINNGG
1. CHECK LIST FOR REPAIRING …………………………………………………………………………………91
2. MAIN TROUBLESHOOTING
1) POWER ON DEFECT …………………………………………………………………………………………92
2) FLASH DEFECT ………………………………………………………………………………………………96
3) STROBE DEFECT ……………………………………………………………………………………………98
4) Defect related with CCD …………………………………………………………………………………100
5) Defect related to LCD ……………………………………………………………………………………102
6) Defect related to ZOOM……………………………………………………………………………………103
7) Defect related to the AUDIO ……………………………………………………………………………104
8) Defect related to card ……………………………………………………………………………………105
3. HOW TO DISASSEMBLY ………………………………………………………………………………………106
ⅧⅧ.. SSEERRVVIICCEE IINNFFOORRMMAATTIIOONN
………………………………………………………………………………112
Page 3
4
ⅠⅠ..SSPPEECCIIFFIICCAATTIIOONN
11.. CCAAMMEERRAA SSPPEECCIIFFIICCAATTIIOONN
Type 1/1.8" CCD
Effective Pixel Approx. 6.0 Mega-pixel
Total Pixel Approx. 6.2 Mega-pixel
SHD Lens f = 7.7 ~ 23.1mm
(35mm film equivalent : 38~114mm)
F No. F2.7 ~ F4.9
Still Image mode : 1.1X ~ 4.0X
Play mode : 1.0X ~ 5.0X (depends on image size)
Optical Viewfinder Real image optical viewfinder
LCD Monitor 1.8" color TFT LCD
Type TTL auto focus
Normal : 80cm ~ infinity
Macro : 4~80 cm(Wide), 25~80cm(Tele)
Type Mechanical and Electronic shutter
Speed 15 ~ 1/2,000 sec
Program AE, Aperture priority AE, Shutter Speed priority AE, Manual AE,
Metering: Multi, Spot
Compensation ±2.0EV (0.5EV steps)
ISO Equivalent Auto, 100, 200, 400
Shutter Speed : 15 ~ 1/2000 sec. selectable
F No. : F2.7 ~ F4.9 selectable
Modes Auto, Auto & Red-eye reduction, Fill-in flash, Slow sync, Flash off
Range 0.25~3.0m(Wide), 0.25~2.0m(Tele)
Recharging Time About 6.0sec
Sharpness Soft, Normal, Vivid
Effect Normal, B&W, Sepia, RGB
White Balance Auto,Daylight,Cloudy,Sunset,Fluorescent_H,Fluorescent_LTungsten,Custom
Voice Recording (Max. 1hour)
Voice Memo in Still Image (max. 10 sec.)
Date Imprinting Date&Time, Date, Off (user selectable)
Modes : Program, Auto, Scene, AS priority, Manual, Voice Recording,
Night
Continuous : Single, Continuous, AEB
Self-timer : 2 sec., 10 sec., Double self timer (10sec. & 2sec)
With audio (recording time : memory capacity dependent)
Size : 640x480, 320x240, 160x120
Frame rate : 30 fps, 15 fps
Pause Function in Movie Clip
Internal : 32MB flash memory
External Memory Slot : SD Card/MMC
(Up to 512MB guaranteed)
Image Sensor
Lens
Digital Zoom
Focal Rength
Range
Still Image
Movie Clip
Media
Manual
Focusing
Shutter
Exposure
Flash
Control
Shooting
Voice Recording
Storage
View finder
Page 4
5
Ⅰ. SPECIFICATION
PC with processor better than MMX Pentium 233MHz (XP : Pentium II 300MHz)
Windows 98/98SE/2000/ME/XP
For Windows Minimum 32MB RAM (XP : 128MB)
140MB of available hard-disk space, USB port, CD-ROM drive,
800×600 pixels, 16-bit colour display compatible monitor
(24-bit color display recommended)
Power Mac G3 or later
Mac OS 9.0 ~ 10.2
For Macintosh Minimum 64MB RAM
110MB of available hard-disk space, USB port, CD-ROM drive,
QuickTime 4.0 or later for Movie Clip
22.. SSYYSSTTEEMM RREEQQUUIIRREEMMEENNTTSS
Still Image : JPEG (DCF), EXIF 2.2, DPOF 1.1, PictBridge 1.0
Movie Clip : AVI (MJPEG) Audio : WAV
2816 : 2816x2112 pixels, 2272 : 2272x1704 pixels,
2048 : 2048x1536 pixels, 1600 : 1600x1200 pixels,
1024 : 1024x768 pixels, 640 : 640x480 pixels
2816: Superfine 8, Fine 16, Normal 25
2272: Superfine 13, Fine 26, Normal 39
2048: Superfine 16, Fine 32, Normal 48
1600: Superfine 26, Fine 52, Normal 78
1024: Superfine 64, Fine 127, Normal 191
640 : Superfine 162, Fine 322, Normal 488
* These figures are measured under Samsung’s standard conditions and
may vary depending on shooting conditions and camera settings.
Type Single image, Thumbnails, Slide show, Movie Clip
Editing Trimming, Rotating, Resizing
Digital output connector : USB 1.1
Audio : Mono
DC power input connector : 3.3V
Primary Batteries: 2 x AA alkaline, or CR-V3(Lithium) battery
Secondary Batteries: 2 x Ni-MH(Samsung SNB-2312 recommended),
Samsung SBP-1303(Lithium Ion)
AC Adapter(optional): SAC-32 (DC 3.3V, 2A)
* Included battery may vary depending on sales region.
Dimensions (WxHxD) 109.8 x 56.8x 34.1 mm
Weight 166g (without batteries and card)
Operating Temperature 0 ~40 °C
Operating Humidity 5 ~ 85%
Camera Driver Storage Driver (Windows98/98SE)
Application Arcsoft PhotoImpression, Digimax Viewer, Digimax Reader
Power Movie Clip(Pause Function in Movie Clip & VGA 30fps),
One touch Manual Function(A/S/M Button), 4cm Macro,
Bright Pilot Lamp(Communication with user), Various Scene Modes,
RGB Color Effect, Voice Recording, Samsung High Definition(SHD) Lens,
Self Photo Mirror, Pictbridge Printing, 32MB Internal Memory
Capacity
(32MB0
File Format
File Format
Storage
Power Source
Image Play
Interface
Software
Special Features
Page 5
6
Ⅰ. SPECIFICATION
No. Description Icons
1 Battery
3 Continuous shot AEB
4 Flash
5 Self-timer
6 Macro
7 Metering
8 Memory card inserted indicator
9 Auto focus frame
10 Camera shake warning
11 Date/Time 2004.08.01 01:00 PM
12 Exposure compensation
13 White Balane
14 ISO
15 Sharpness
16 Image quality
17 Image size 2816, 2272, 2048, 1600, 1024, 640
Number of abailable shots remaining 16
Remaining time(Movie clip/Voice recording) 00:00:44/00:59:00
19 Voice memo
20 Optical zoom/Digital zoom rate

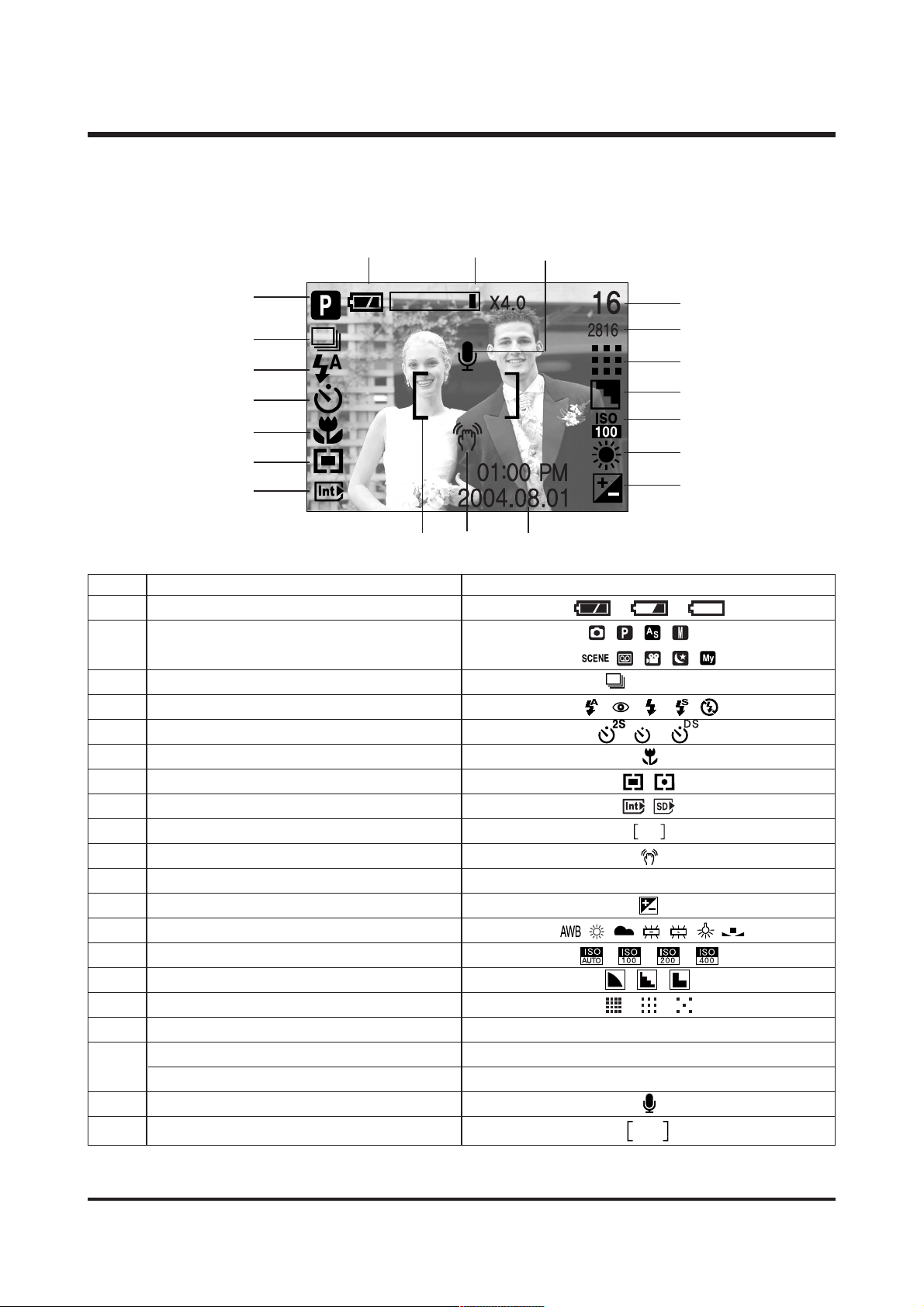

33.. TTFFTT LLCCDD PPAANNEELL MMAARRKK
■ Recording mode
②
③
④
⑤
⑥
⑦
⑧
⑫
⑬
⑭
⒃
⑮
⒔
⒕
⑨
⑩
⑪
⒗
⒖
①
Recording mode
2
18
Page 6
7
Ⅰ. SPECIFICATION

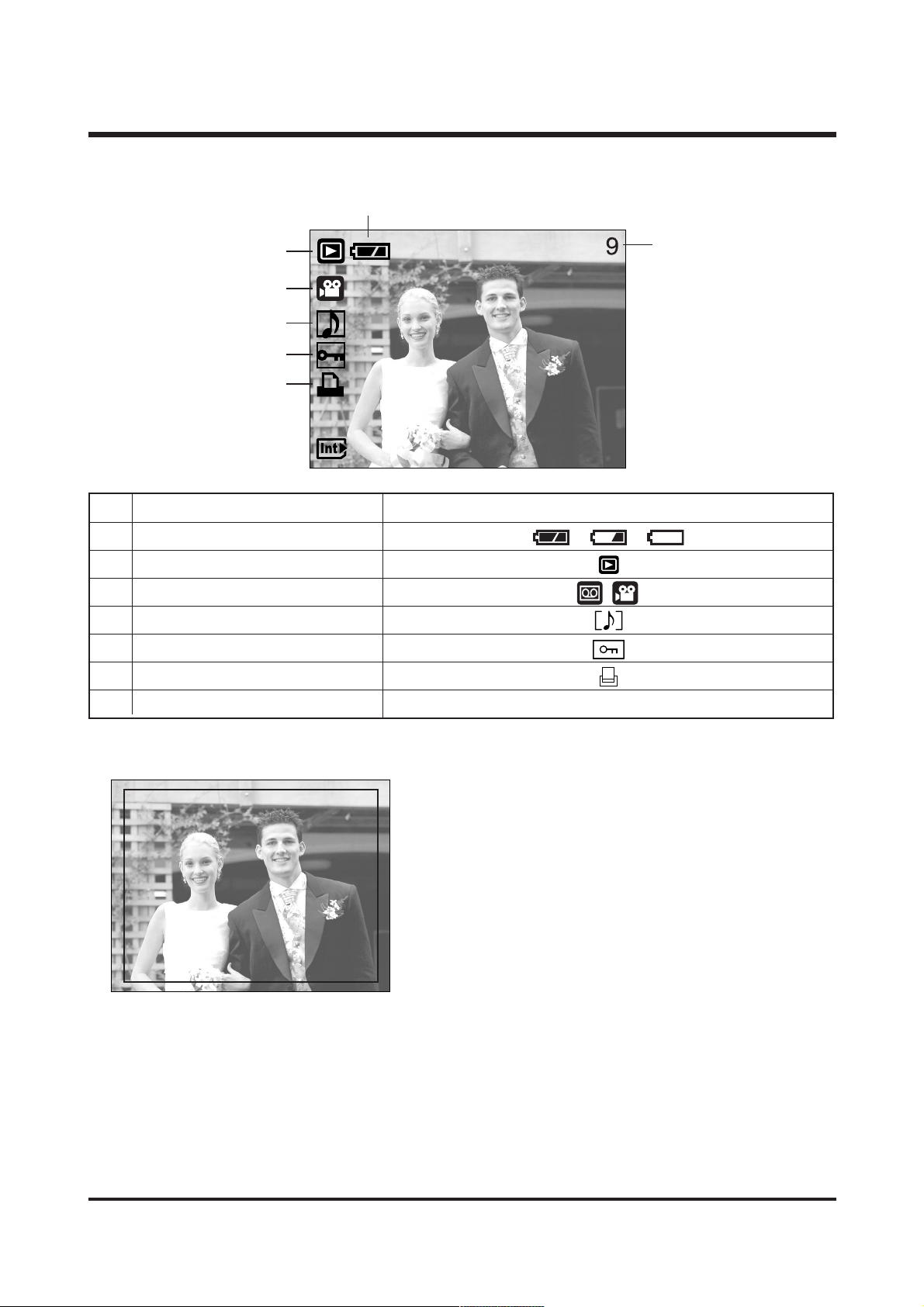

■ play mode
No. Description Icons
1 Battery
2 Play mode
3 File Type
4 Voice memo
5 Protect indicator
6 DPOF indicator
8 Storde image number
①
⑥
⑦
②
③
④
⑤
SIZE : 2816X2112 Size
AV : F 2.7 Aperture value
TV : 1/30 Shutter speed
ISO : 100 ISO sensitivity
FLASH : OFF Whether or not the
flash is used.
DATE : 2004/08/01 Recording date
9
SSIIZZEE :: 22881166XX22111122
AAVV :: FF22..77
TTVV :: 11//3300
IISSOO :: 110000
FFLLAASSHH :: OOFFFF
DDAATTEE :: 22000044//0088//0011
Page 7
8
Ⅰ. SPECIFICATION

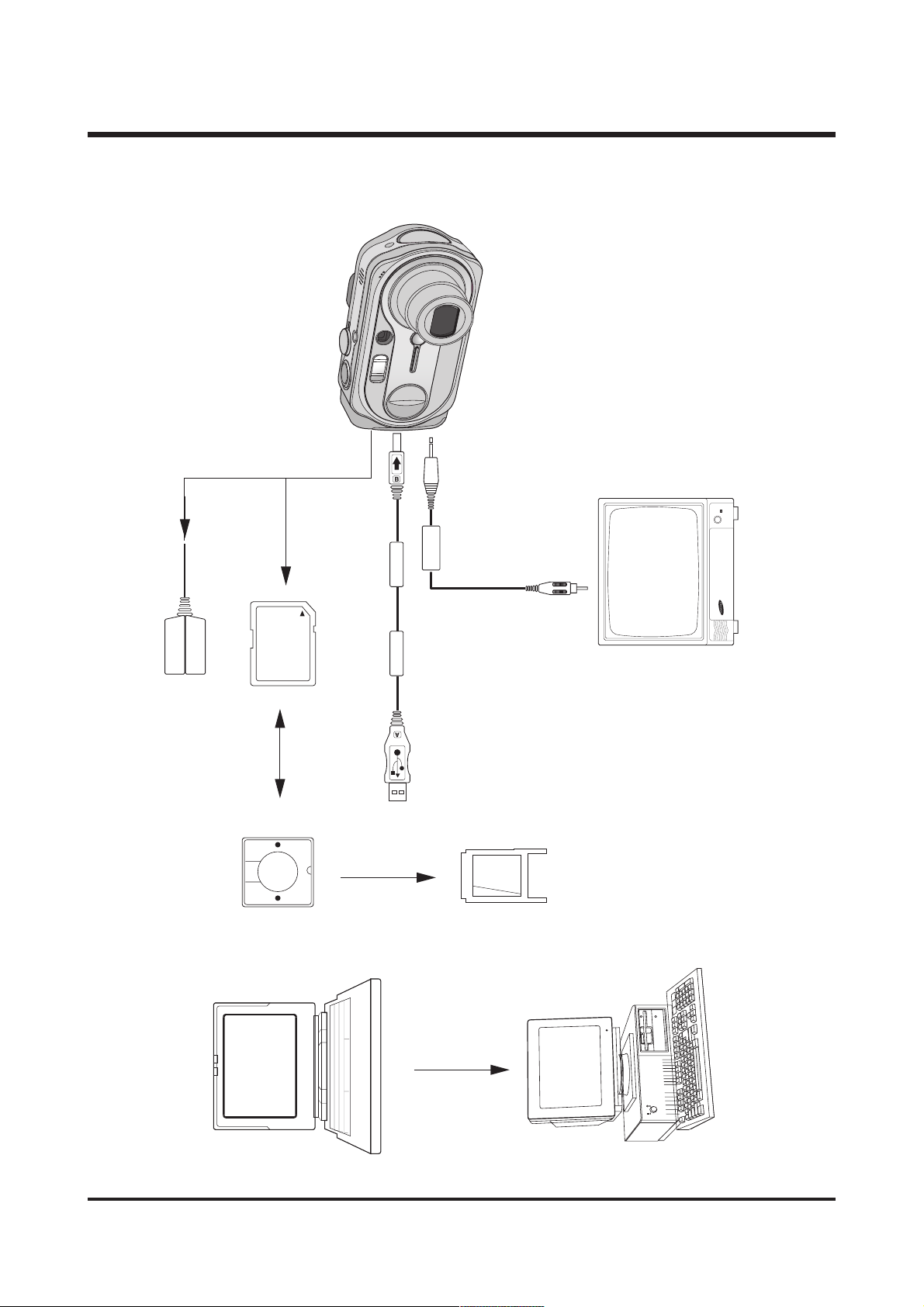

44.. CCOONNNNEECCTTIIOONN DDIIAAGGRRAAMM
Video Cable
AC Adaptor
SD Card
Card Reader
TV Monitor
USB Cable
PC Card Adaptor
Lap top
IBM / MAC
Page 8
9
Ⅰ. SPECIFICATION
55..

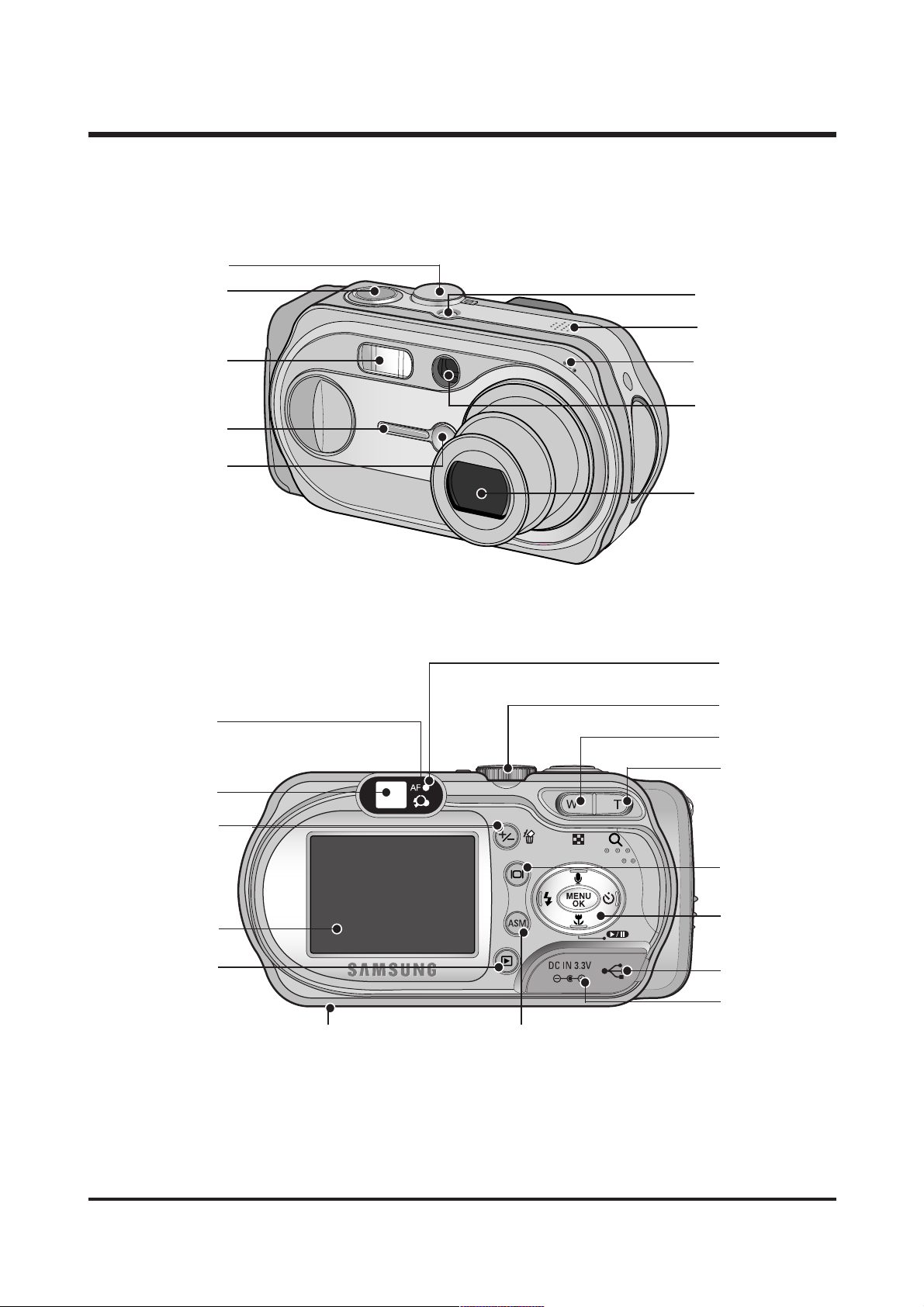

IIDDEENNTTIIFFIICCAATTIIOONN OOFF FFEEAATTUURREESS
View finder
Autofocus indicato
lamp(Green)
Flash indicator
lamp(Red)
Zoom W button
(Thumbnail)
Mode dial)
Zoom T button
(Digital zoom)
LCD button
5 function button
USB connection
port
DC input connection
port
LCD monitor
+,-/DELETE
button
Plasy mode button
Tripod socket
ASM(Manual &Scene mode)button
Shutter button
Power button
Microphone
Mirror for serlf
portrait
Function lamp
Speaker
Lens
Mode dial
Viewfinder
Flash
Page 9
10
Ⅰ. SPECIFICATION

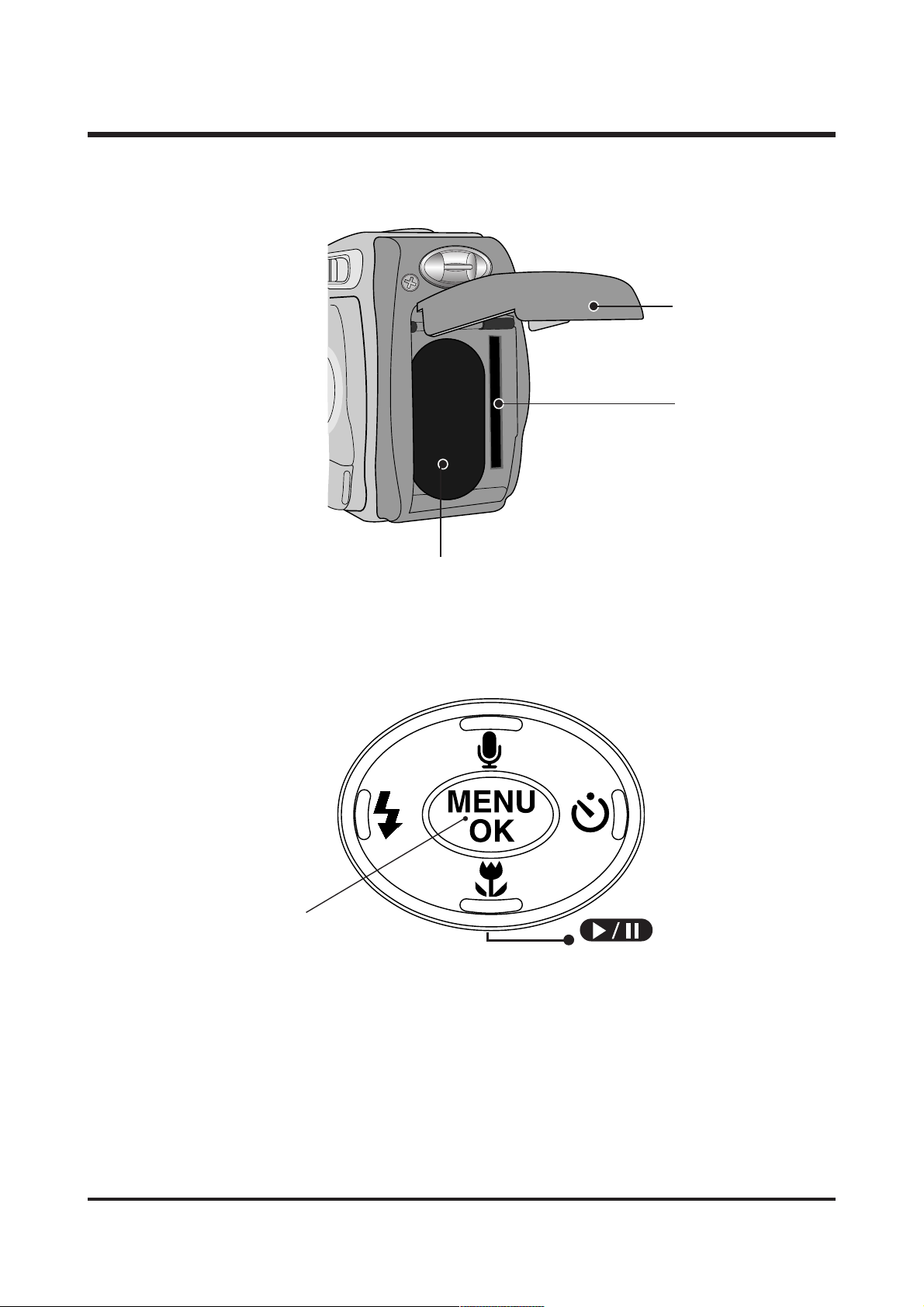

FLASH/
LEFT button
MENU/OK button
MACRO/DOWN button
SELF-TIMER/
RIGHT button
Voice memo/UP button
Battery chamber
Battery chamber cover
Memory card slot
Page 10
ⅡⅡ.. IINNSSTTAALLLLAATTIIOONN
11

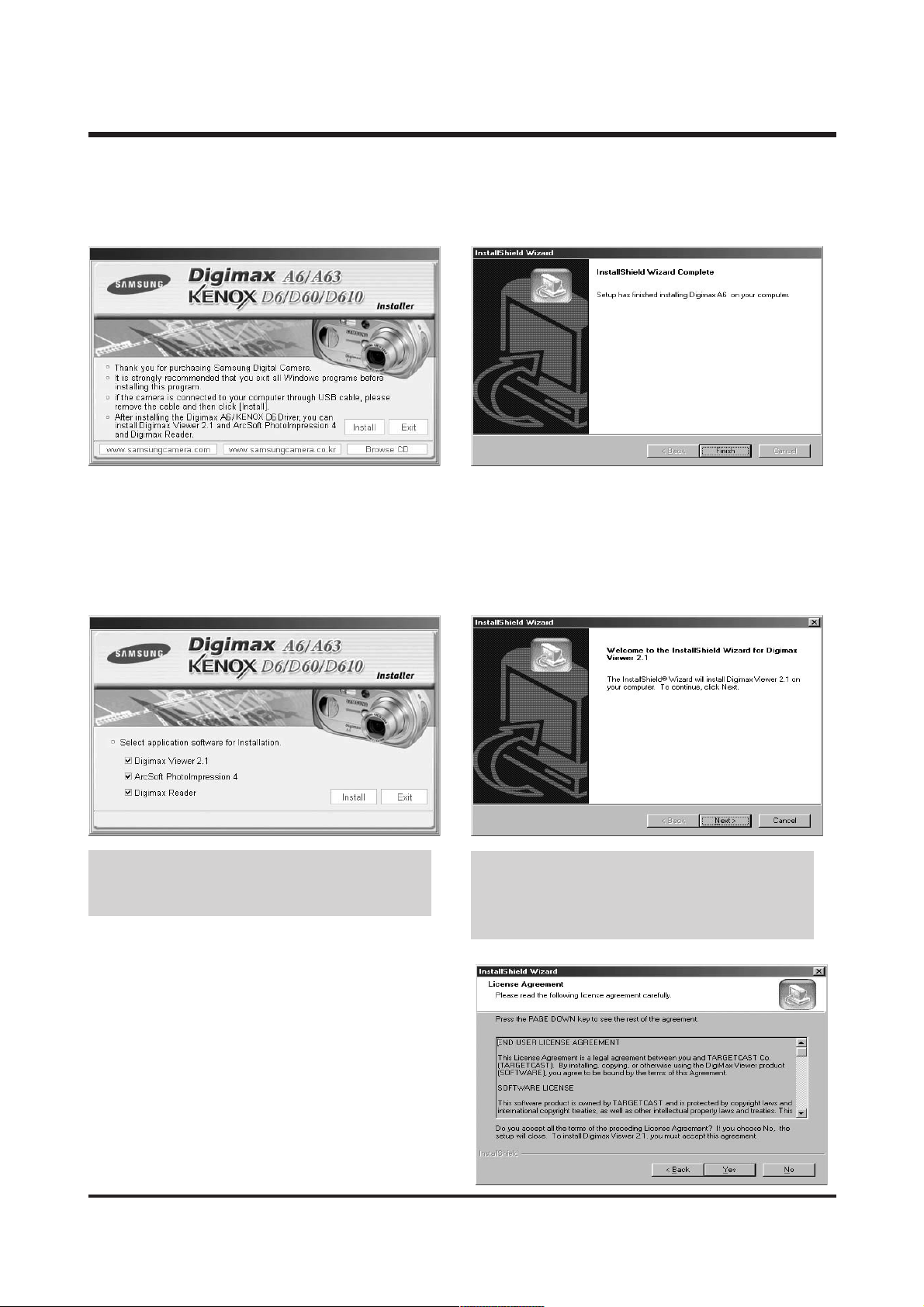

1. Click the [Install] menu in the Autorun frame.
The camera driver is installed automatically.
2. Camera driver installation is complete.
Click the [Finish] button.
3. A window for which you can select application
software will be displayed. Select the application
program and click the [Install] button.
Refer to page 96 for more information about the
application program.
4. Install Digimax Viewer.
Click [Next >] button.
5. The Software License Agreement window will
be displayed. If you agree to this, click [Yes],
the window will then move to the next step.
If you disagree, click [No] and the installation
program will be canceled.
● If you select [Exit] at the step 3, the appli-
cation program installation will be cancelled.
● If you select [Cancel] at step 4, a window
for installing PhotoImpression will be displayed.
Page 11
12
Ⅱ. INSTALLATION

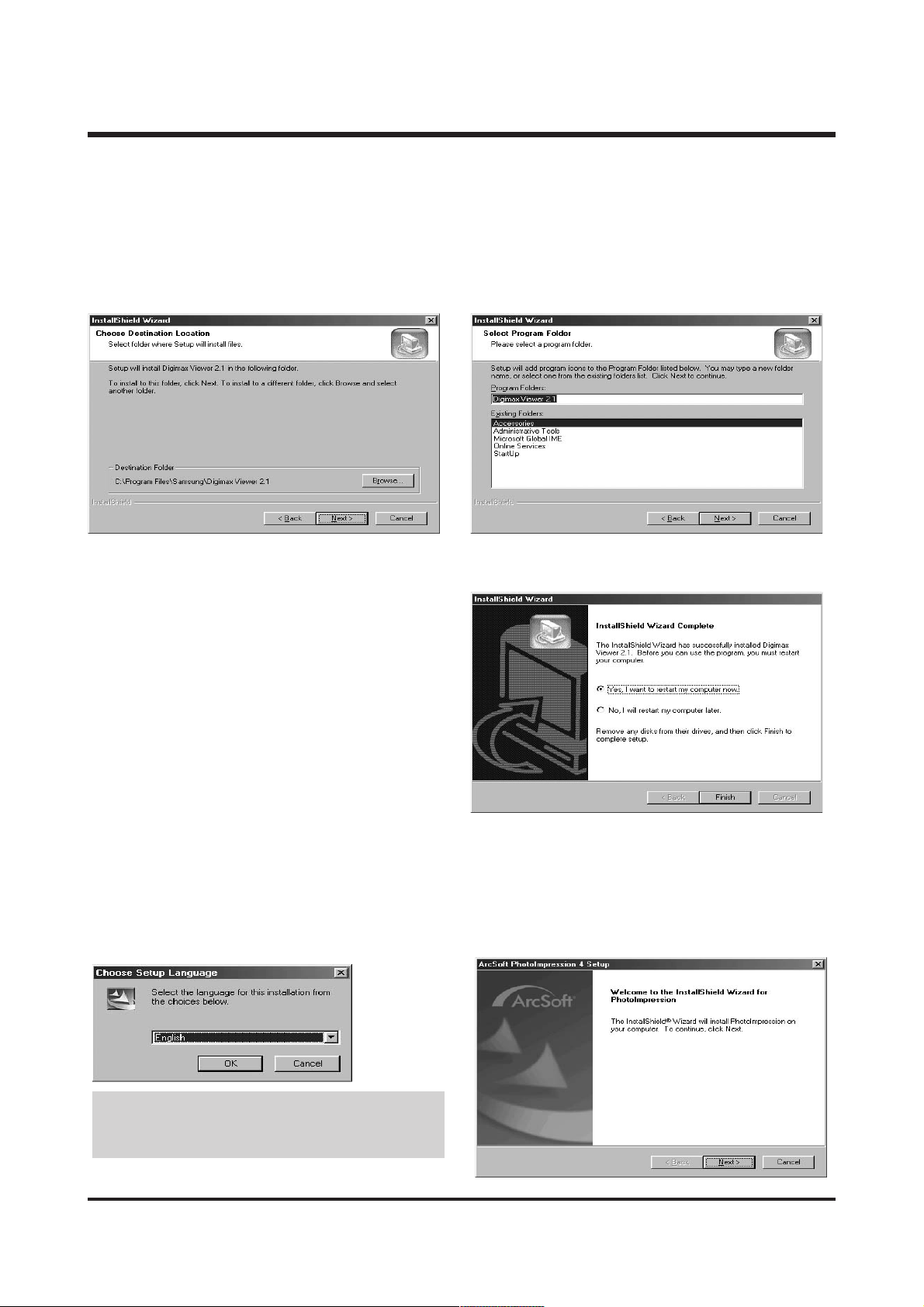

6. A destination selection window will open.
Click [Next >]. To copy to the files to another
folder, click [Browse..] and choose a folder you
want.
7. A window will open, asking you to choose a
folder to which program icons will be added.
Click [Next >] button. If you want to add the
program icons to a different folder, choose
another folder, and then click [Next >] button.
8. Digimax Viewer installation is successfully completed. Click the [Finish] button to install
PhotoImpression. The system will not reboot
even the [Yes, I want to restart the computer
now] option is selected.
* The frame 8 may not appear according to
the system requirements.
9. The PhotoImpression installation window will be
displayed as shown alongside. Click the [OK]
button.
● If you select [Cancel] at step 9, a window for
installing Digimax Reader will be displayed.
10. A Welcome window will be displayed.
Click the [Next >] button.
Page 12
13
Ⅱ. INSTALLATION

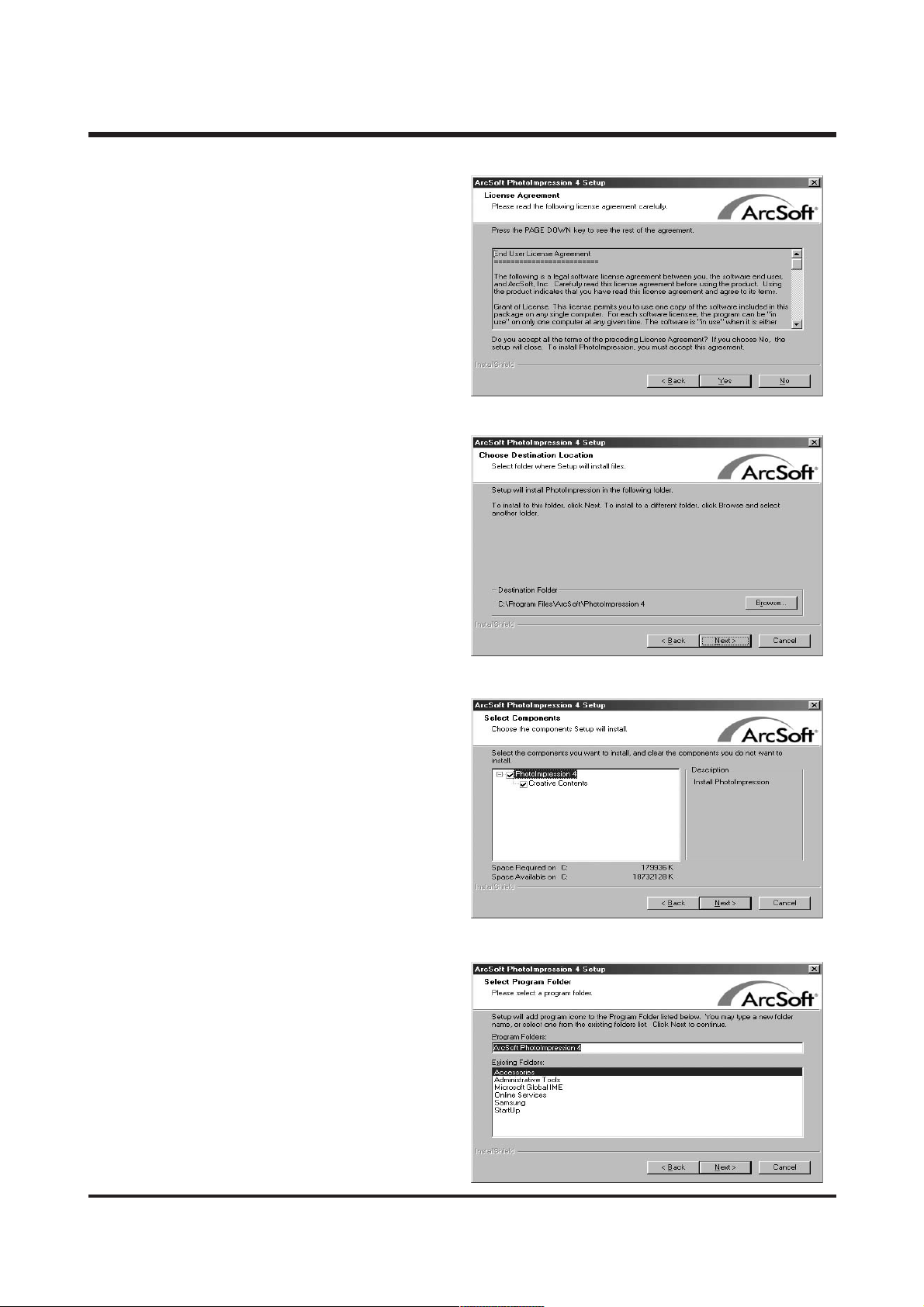

11. The Software License Agreement window will
be displayed. If you agree to this, click [Yes],
the window will then move to the next step.
If you disagree, click [No] and the installation
program will be canceled.
12. A destination selection window will open. Click
[Next >]. To copy to the files to another
folder, click [Browse...] and choose a folder
you want.
13. The [Select Components] window will appear.
Click [Next >] button.
14. A window will open, asking you to choose a
folder to which program icons will be added.
Click [Next >] button. If you want to add the
program icons to a different folder, choose
another folder, and then click [Next >] button.
Page 13
14
Ⅱ. INSTALLATION

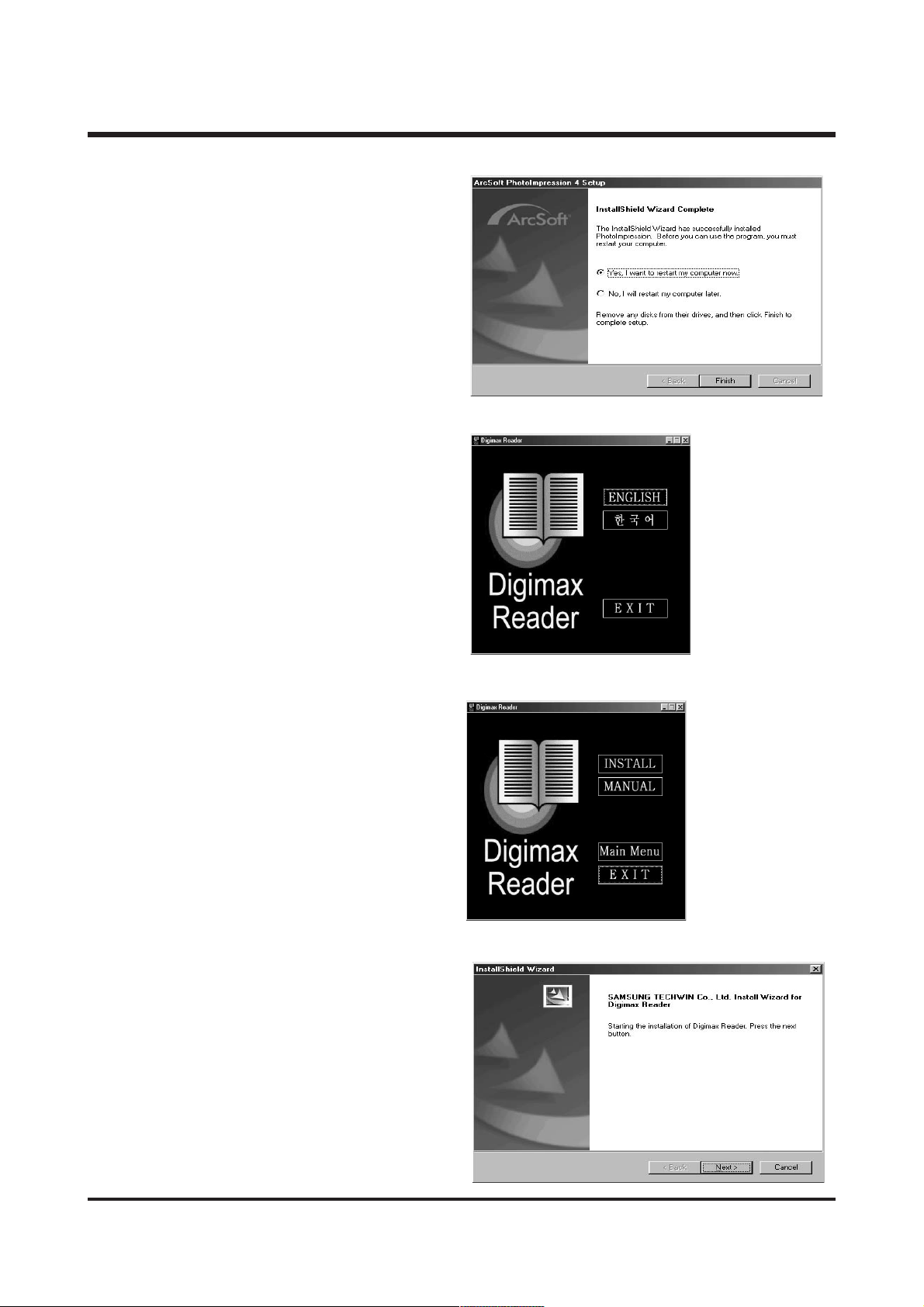

15. PhotoImpression installation is successfully
completed. Click the [Finish] button to install
Digimax Reader.
* The system will not reboot even the [Yes, I
want to restart the computer now] option is
selected.
* The frame 15 may not appear according to
the system requirements.
16. Digimax Reader installation window will be
displayed as shown alongside. Click the
[ENGLISH] button.
17. A window will be displayed as shown alongside. Click the [INSTALL] button.
- Check the [MANUAL] button. Instructions
for using Digimax reader will be displayed.
- Click the [Main Menu] button and No.16
window will display.
- Click the [EXIT] button and Digimax reader
installation will be canceled and the Restart
window will appear.
18. A window will open. Click the [Next(N)>]
button.
Page 14
15
Ⅱ. INSTALLATION

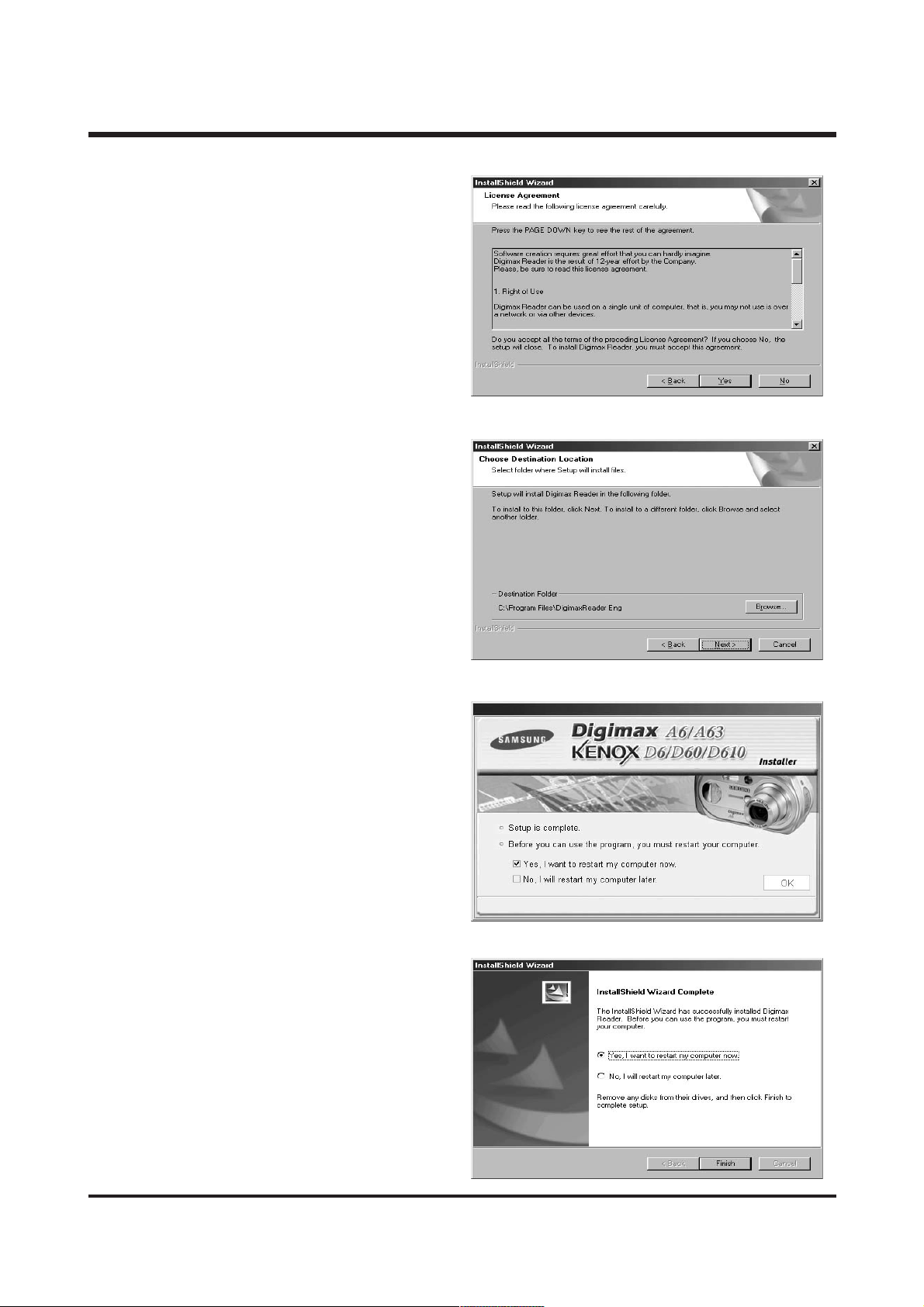

19. The Software License Agreement window will
be displayed. If you agree to this, click
[Yes], the window will then move to the next
step.
If you disagree, click [No] and the installation program will be canceled.
20. A destination selection window will open.
Click [Next >]. To copy to the files to
another folder, click [Browse...] and choose
a folder you want.
21. Installation is complete. To apply changes,
you must restart the computer. Select [Yes,
I want to restart my computer now], and
then click [OK].
* The frame 21 may be displayed according to
the system requirements. Click the [Finish]
button to restart the computer.
Page 15
16
Ⅱ. INSTALLATION

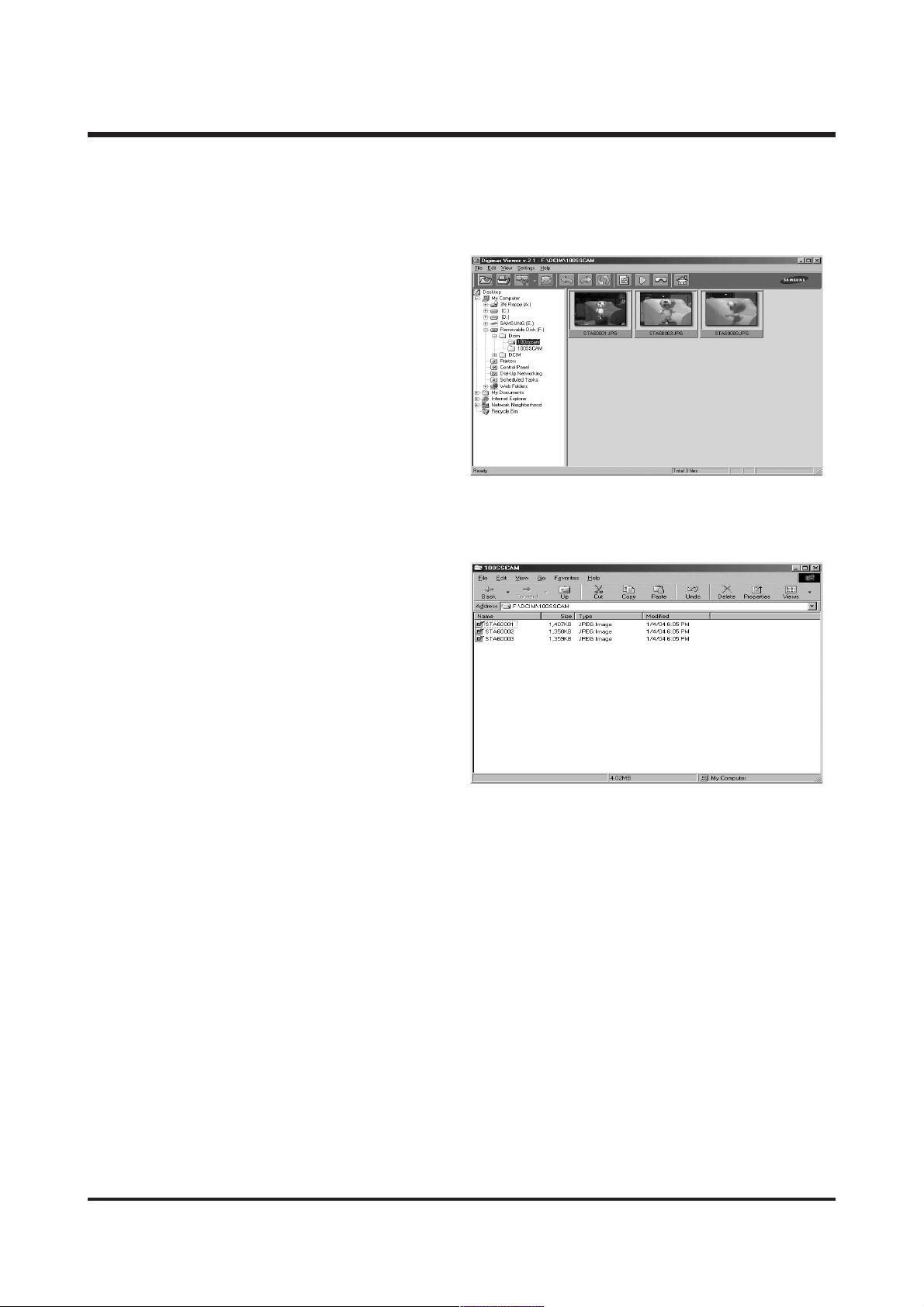

22. After restarting the computer, connect the PC to the camera with the USB cable.
23. Turn the camera power on. [Found New
Hardware Wizard] will open and the computer will recognize the camera.
* If you have ever installed an image viewer
program or your OS is Windows XP, an
image viewer program will open. If the
image viewer program opens, the camera
driver was setup successfully.

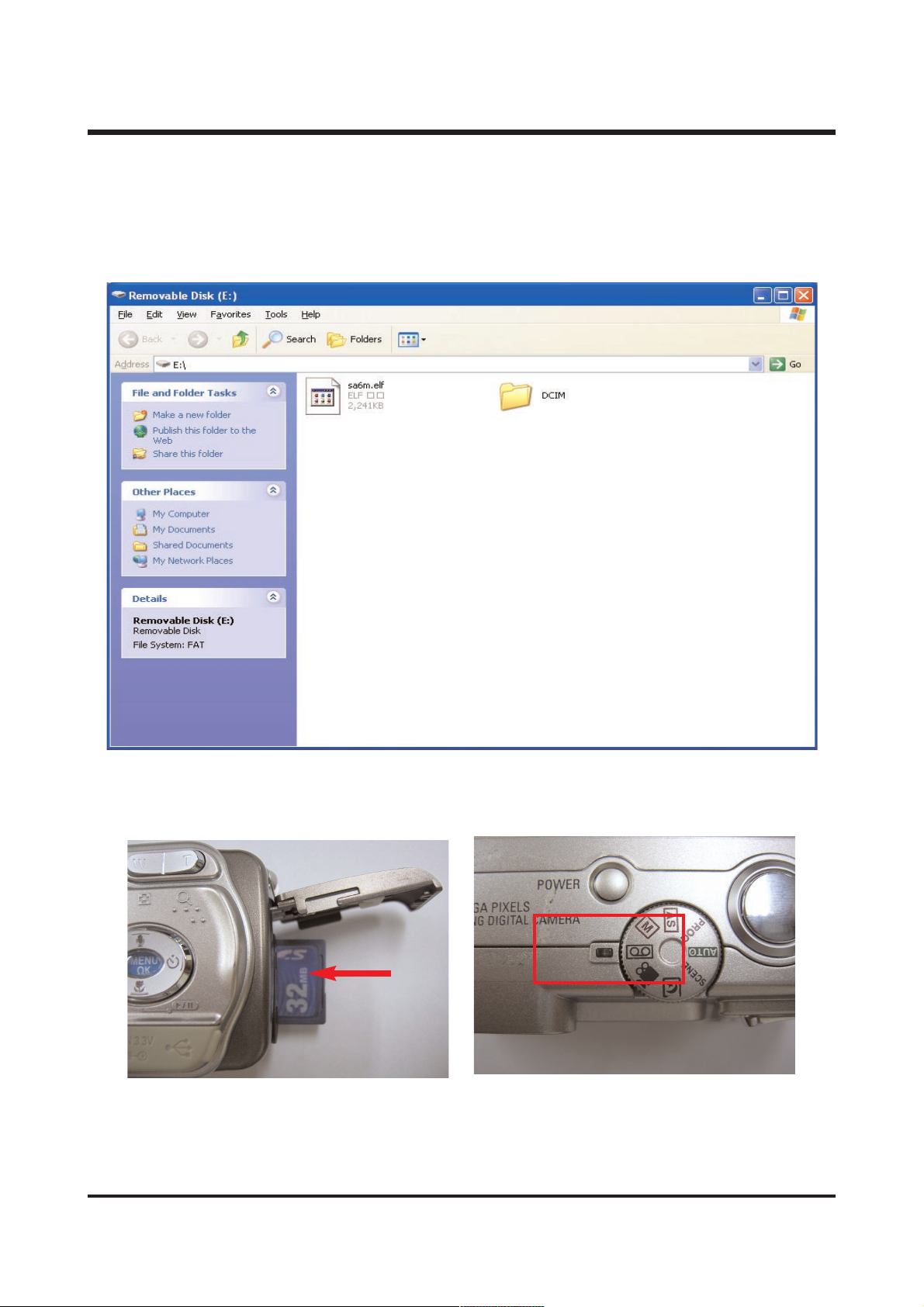

24. If you can see [Removable Disk] under
[My computer], the camera driver installation was successful. Now you can transfer
image files from the camera to PC via the
USB cable.
Page 16
17
Ⅱ. INSTALLATION
● If you have installed the camera driver, [Found New Hardware Wizard] may not open.
● On a Windows 98 or 98 SE system, the Found New Hardware Wizard dialog box opens and a window
asking you to select a driver file may appear. In this case, specify "USB Driver" in the CD supplied.
● When connecting the camera to your PC, it is recommended that you use an AC power adapter.
● Before connecting the camera to the PC, You should first install the camera driver.
● After installing the camera driver, you have to restart your PC.
● If you connect the camera to the PC before installing the camera driver, the [Found New Hardware
Wizard] will open.
In this case, cancel the [Found New Hardware Wizard] and disconnect the camera. Install the camera
driver and connect the camera to the PC again.
● Should the computer not find the camera driver after installation, please try one or more of the fol-
lowing measures.
1. Delete the camera driver, and re-install the driver.
2. Refer to FAQ to check for a possible solution to the problem.
3. If your PC’s central processing unit is VIA chip (This is shown in the USB Host Controller), download
the patch file from the Samsung Camera web page. (http://www.samsungcamera.com)
Page 17
18
ⅢⅢ.. EEXXPPLLOODDEEDD VVIIEEWWSS AANNDD PPAARRTTSS LLIISSTT

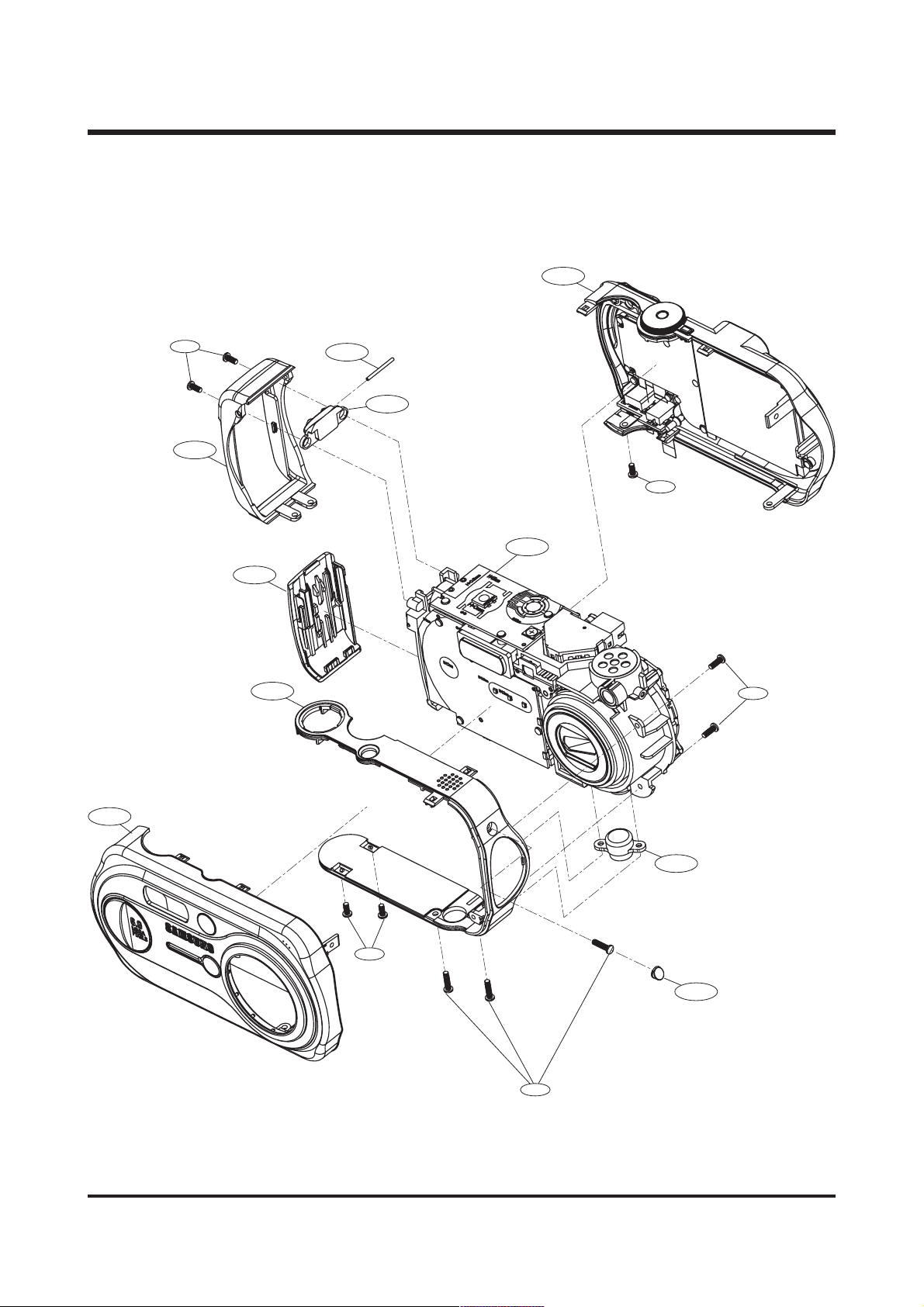

1. MAIN ASSEMBLY
1-9
1-2
1-4
1-7
1-3
1-6
1-5
1-8
1-11
1-10
1-1
1-13
1-15
1-13
1-14
Page 18
19
Ⅲ. EXPLODED VIEWS AND PARTS LIST
FFiigg..NNoo.. PPaarrttss NNoo.. PPaarrttss NNaammee QQ''ttyy RReemmaarrkkss
1-1 Q9007217901A FRONT COVER SUB ASM-(TITAN SLIVER A6) 1
Q9007218001A FRONT COVER SUB ASM-(PURE SLIVER A63) 1
Q9007218101A FRONT COVER SUB ASM-(TITAN SLIVER D6) 1
Q9007218201A FRONT COVER SUB ASM-(PURE SLIVER D60) 1
Q9007218301A FRONT COVER SUB ASM-(BLUE SLIVER D610) 1
Q9007218401A FRONT COVER SUB ASM-(PURE SLIVER A5) 1
Q9007218501A FRONT COVER SUB ASM-(TITAN SLIVER A53) 1
Q9007218601A FRONT COVER SUB ASM-(PURE SLIVER D5) 1
Q9007218701A FRONT COVER SUB ASM-(TITAN SLIVER D50) 1
Q9007218801A FRONT COVER SUB ASM-(BLUE SLIVER D510) 1
1-2 Q6003044801A SCREW-T-PLAT-M1.7x4-NI-03T 1
1-3 Q9007218901A MIDDLE COVER ASM(TITAN SLIVER A6, D6) 1
Q9007219001A MIDDLE COVER ASM(PURE SLIVER A63, D60) 1
Q9007219101A MIDDLE COVER ASM(BLUE SLIVER D610) 1
Q9007219201A MIDDLE COVER ASM(PURE SLIVER A5, D5) 1
Q9007219301A MIDDLE COVER ASM(TITAN SLIVER A53, D50) 1
Q9007219401A MIDDLE COVER ASM(BLUE SLIVER D510) 1
1-4 Q7217331601A D2_COVER_SIDE TITAN GOLD(A6,D6,A53,D50) 1
Q7217331701A D2_COVER_SIDE MERCURY SLIVER(A63,D60,A5,D5) 1
Q7217331801A D2_COVER_SIDE DARK BLUE(D610,D510) 1
1-5 Q7212184101A D2_RING_STRAP TITAN GOLD(A6,D6, A53,D50) 2
Q7212184201A D2_RING_STRAP MERCURY SLIVER(A63,D60,A5,D5) 1
Q7212184301A D2_RING_STRAP DARK BLUE(D610,D510) 1
1-6 Q7411115301A D2_RING_STRAP_PIN 1
1-7 Q9007219501A D2_COVER_BATTERY TITAN GOLD(A6,D6,A53,D50) 2
Q9007219601A D2_COVER_BATTERY MERCURY SLIVER(A63,D60,A5,D5) 1
Q9007219701A D2_COVER_BATTERY DARK BLUE(D610,D510) 1
1-8 Q6002004501A TAPPING_SCREW M1.7X5WHI 1
1-9 Q9007219801A COVER_REAR- ASM(TITAN SLIVER A6, D6, A53, D50) 1
Q9007219901A COVER_REAR- ASM(PURE SLIVER A63, D60, A5, D5) 1
Q9007220001A COVER_REAR- ASM(BLUE SLIVER D610, D510) 1
1-10 Q6002004501A TAPPING_SCREW M1.7X5WHI 1
1-11 Q9001100901A FRAME ASSY SM5000Z 1
Q9001101001A FRAME ASSY SM6000Z 1
1-12 Q6009002801A D2_TRIPOT_SCREW 1
1-13 Q7211077401A D2_COVER_CENTER-RUBBER 1
1-14 Q6002004701A SCREW-T-PLAT-M1.7x7-NI 3
1-15 Q6002004501A TAPPING_SCREW M1.7X5WHI 2
▶▶
PARTS LIST
Page 19
20
Ⅲ. EXPLODED VIEWS AND PARTS LIST
2. BODY COVER ASSEMBLY
2-18
2-2
2-29
2-28
2-27
2-33
2-9
2-13
2-34
2-14
2-15
2-17
2-20
2-21
2-22
2-25
2-19
2-24
2-23
2-26
2-6
2-32
2-31
2-11
2-7
2-6
2-4
2-12
2-1
2-8
2-16
2-10
2-5
2-3
2-30
Page 20
21
Ⅲ. EXPLODED VIEWS AND PARTS LIST
FFiigg..NNoo.. PPaarrttss NNoo.. PPaarrttss NNaammee QQ''ttyy RReemmaarrkkss
2-1 Q6002004601A SCREW-T-PLAT-M1.4x3-NI 3
2-2 Q7211077501A D2_COVER_BATTERY_PIN 1
2-3 Q7217331901A BAT-GUIDE 1
2-4 Q6107060301A BAT-DOOR-SPRING 1
2-5 Q7011049501A D2_DOOR_SIDE_BTCN 1
2-6 Q7409172201A D2_CHASSIS-MYLAR 1
2-7 Q9008078701A STROBE BD ASSY SM6000Z/5000Z 1
2-8 Q6002004601A SCREW-T-PLAT-M1.4x3-NI 3
2-9 Q9008078801A MAIN BOARD ASSY SM6000Z 1 A6
Q9008078901A MAIN BOARD ASSY SM5000Z 1 A5
2-10 Q6002004601A SCREW-T-PLAT-M1.4x3-NI 4
2-11 Q9003020801A FINDER ASS'Y 1
2-12 Q6002004601A SCREW-T-PLAT-M1.4x3-NI 4
2-13 Q9008079001A CCD-FPC BD ASSY SM6000Z 1 A6
Q9008079101A CCD-FPC BD ASSY SM5000Z 1 A5
2-14 Q7012049601A CCD_PLATE 1
2-15 Q0604004501A CCD SENSOR MN39593 DIP20(PANSONIC)_5M 1 A5
Q0604004601A CCD SENSOR MN39595 DIP20(PANSONIC)_6M 1 A6
2-16 Q6002004901A TAPPING_SCREW M1.7X4WHI 3
2-17 Q9002130001A LENS ASSY SM6000Z 1 A6
2-17 Q9002130001A LENS ASSY SM5000Z 1 A5
2-18 Q7011049701A SPEAKER DS-152 1
2-19 Q0902008601A MICROPHONE_KEC-2240WBJ-G9A 1
2-20 Q7308015201A FLASH-BAND 1
2-21 Q7409172101A INSULATING TAPE 1
2-22 Q0102016001A COPPER FOIL VQ3310Z 1
2-23 Q0611003801A BGAC-D-2011BF 1
2-24 Q7014004701A FLASH REFLECTOR 1
2-25 Q7217332001A D2_PANEL_FLASH 1
2-26 Q7409172001A D2_CHASSIS 1
2-27 Q9008079401A PCB CCD-FPC BD SM6000Z(REV0.1) 1
2-28 Q7011049801A D2_CHASSIS_SIDE_BTCN 2
2-29 Q9001101101A POWER BOARD ASSY SM6000Z 1 A6
Q9001101201A POWER BOARD ASSY SM5000Z 1 A5
2-30 Q7409172501A D2_MYLAR_SHUTTER_1 1
2-31 Q7409172601A D2_MYLAR_SHUTTER_2 1
2-32 Q7409172701A D2_CHASSIS_MYLAR_2 1
2-33 Q7409172801A D2_CHASSIS_MYLAR_3 1
2-34 Q9008079501A FPC-SENSOR ASM(SM6000Z-ALL) 1 A6
Q9008079601A FPC-SENSOR ASM(SM5000Z-ALL) 1 A5
▶▶
PARTS LIST
Page 21
22
Ⅲ. EXPLODED VIEWS AND PARTS LIST

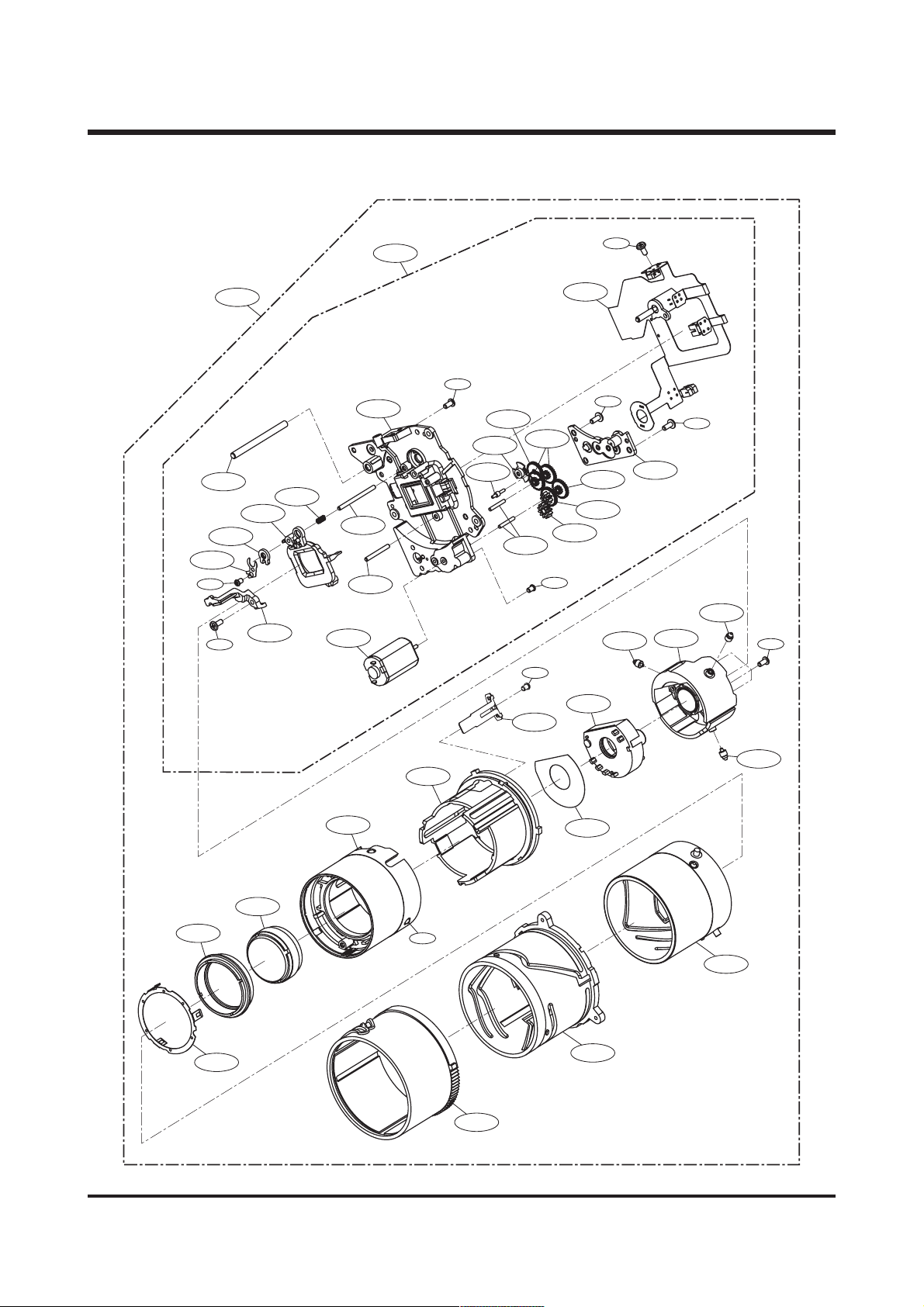

3. BARREL ASSEMBLY
3-23
3-25
3-19
3-5
3-24
3-44
3-22
3-26
3-21
3-8
3-3
3-4
3-2
3-1
3-43
3-10
3-6
3-14
3-7
3-33
3-15
3-9
3-18
3-11
3-13
3-12
3-17
3-20
3-32
3-16
3-28
3-17
3-32
3-30
3-36
3-38
3-37
3-35
3-29
3-34
3-32
3-27
3-31
3-39
3-40
3-41
3-42
Page 22
Fig.No. Parts No. Parts Name Q'ty Remarks
3-1 Q9002125201A LENS BASE ASS'Y 1
3-2 Q7212178705A LENS BASE 1
3-3 Q7411085401A AF GUIDER BAR_A 1
3-4 Q7411100601A AF GUIDE BAR 1
3-5 Q7411101001A FINDER GUIDE BAR 1
3-6 Q7411085902A ZOOM GEAR_A SHAFT 1
3-7 Q7411090001B ZOOM GEAR_C SHAFT 2
3-8 Q3107001701A ZOOM MOTOR 1
3-9 Q9611142007 SCREW 2
3-10 Q7212160001B ZOOM MOTOR GEAR 1
3-11 Q7411085802A ZOOM GEAR_D 1
3-12 Q7411085702A ZOOM GEAR_C 1
3-13 Q7411085601B ZOOM GEAR_B 1
3-14 Q7212160101A ZOOM GEAR_A 1
3-15 Q7212160602B ZOOM GEAR_E 2
3-16 Q7212178801A ZOOM COVER 1
3-17 Q0961900301A SCREW 3
3-18 Q9008068201A MAIN PCB ASS'Y 1
3-19 Q6003019201A SCREW 2
3-20 Q0994913101A SCREW 1
3-21 Q6107048305A 3RD LENS BARREL SPRING 1
3-22 Q9002124701A 3rd LENS ASS'Y 1
3-23 Q7012069406C AF LIMIT SPRING 1
3-24 Q7012069301A AF CLIP 1
3-25 Q6001014001A SCREW 1
3-26 Q7212178906A AF HOLDER 1
3-27 Q7212159302A GUIDE PLATE 1
3-28 Q9002124601A 2nd LENS ASS'Y 1
3-29 Q9005016301A SHUTTER ASS'Y 1
3-30 Q9761142507 SCREW 2
3-31 Q7409123201A SHUTTER PROTECT SHEET 1
3-32 Q7411085305A 2ND MOVE PIN 3
3-33 Q6001014001A SCREW 1
3-34 Q7012069202A F-PCB GUIDER 1
3-35 Q7212171301A ZOOM RING 1
3-36 Q7212158903A 1ST GUIDE BARREL 1
3-37 Q9002109201A 1st LENS ASSY 1
3-38 Q7012069004B 1ST PUSH PLATE 1
3-39 Q7411097502A 1st MOVE PIN 2
3-40 Q7212171201A CAM BARREL 1
3-41 Q7212178501A OUTER CAM BARREL 1
3-42 Q9002125101A OUTER GUIDE BARREL ASS'Y 1
3-43 Q0961900301A SCREW 5
3-44 Q9002130001A BARREL SUB ASS'Y 1
23
Ⅲ. EXPLODED VIEWS AND PARTS LIST
▶▶
PARTS LIST
Page 23
24
Ⅲ. EXPLODED VIEWS AND PARTS LIST
4. BARRIEL ASSEMBLY
4-1
4-11
4-5
4-4
4-12
4-2
4-10
4-3
4-3
4-9
4-4
4-8
4-7
4-6
Page 24
25
Ⅲ. EXPLODED VIEWS AND PARTS LIST
FFiigg..NNoo.. PPaarrttss NNoo.. PPaarrttss NNaammee QQ''ttyy RReemmaarrkkss
4-1 Q9002113901A BARRIER ASS'Y 1
4-2 Q7212167704A NEW FRONT PANEL 1
4-3 Q6107051702A NEW CLOSE SPRING 2
4-4 Q7212160403B BARRIER_C 2
4-5 Q7212167804A NEW BARRIER_A 1
4-6 Q7212167902A NEW BARRIER_B 1
4-7 Q7012073502A NEW BARRIER BASE 1
4-8 Q7012073403A NEW LEVER_B 1
4-9 Q7411095501A NEW LEVER PIN 1
4-10 Q7012073301A NEW LEVER_A 1
4-11 Q6107051802A NEW OPEN SPRING 1
4-12 Q7409120802B FORNT PANEL TAPE 2
▶▶
PARTS LIST
Page 25
26
Ⅲ. EXPLODED VIEWS AND PARTS LIST
5. FINDER ASSEMBLY
5-1
5-15
5-11
5-13
5-14
5-12
5-7
5-10
5-8
5-9
5-2
5-4
5-6
5-16
5-5
5-3
Page 26
27
Ⅲ. EXPLODED VIEWS AND PARTS LIST
FFiigg..NNoo.. PPaarrttss NNoo.. PPaarrttss NNaammee QQ''ttyy RReemmaarrkkss
5-1 Q9003020801A FINDER ASS'Y 1
5-2 Q7213034004A FINDER BASE 1
5-3 Q7411100801A FINDER SHAFT 2
5-4 Q6721009002A CO LENS 1
5-5 Q6107055002A FINDER SPRING 1
5-6 Q9003021101A VA LENS ASS'Y 1
5-7 Q7411100901A EP SHAFT 1
5-8 Q6107055101A EP SPRING 1
5-9 Q6721009302A EP LENS 1
5-10 Q6003040801A SCREW 1
5-11 Q6726002401A PORRO PRISM 1
5-12 Q6725001001B MIRROR 1
5-13 Q6721009202A TARGET LENS 1
5-14 Q7013015203A FINDER MASK 1
5-15 Q7213034104A FINDER COVER 1
5-16 Q7409144002A SHIELD_A 1
▶▶
PARTS LIST
Page 27
28
Ⅲ. EXPLODED VIEWS AND PARTS LIST
6. FRONT COVER ASSEMBLY
6-
6-3
6-6-17
6-
6-5
6-18
6-
6-14
6-
6-9
6-10
6-
6-11
6-6-13
6-
6-
6-12
6-6-8
6-
6-15
6-
6-6
6-16
6-
6-
6-7
6-
6-4
6-
6-2
6-
6-1
Page 28
29
Ⅲ. EXPLODED VIEWS AND PARTS LIST
FFiigg..NNoo.. PPaarrttss NNoo.. PPaarrttss NNaammee QQ''ttyy RReemmaarrkkss
6-1 Q7411115401A D2_LENS_RING 1
6-2 Q7217334601A SAMSUNG-BADGE 1
6-3 Q7217332201A D2_GRIP_FR0NT_6M 1
Q7217332301A D2_GRIP_FR0NT_5M 1
6-4 Q7218007401A D2_MIRROR 1
6-5 Q7217332401A D2_COVER_FRONT_DECORATION LIGHT SLIVER(D510,610) 1
Q7217332501A
D2_COVER_FRONT_DECORATION MERCURY SLIVER(A5,D5,A63,D60 1
Q7217332601A
D2_COVER_FRONT_DECORATION YELLOW SLIVER(A6,D6,A53,D50) 1
6-6 Q6002005501A SCREW-T-PLAT-M1.4x2.5-NI 1
6-7 Q7217332701A D2_GUIDE_SELFTIMER 1
6-8 Q7217332801A D2_COVER_FRONT BLUE SLIVER(D510) 1
Q7217332901A D2_COVER_FRONT TITAN SLIVER(D53) 1
Q7217333001A D2_COVER_FRONT PURE SLIVER(D5) 1
Q7217333101A D2_COVER_FRONT TITAN SLIVER(A53) 1
Q7217333201A D2_COVER_FRONT PURE SLIVER(A5) 1
Q7217333301A D2_COVER_FRONT BLUE SLIVER(D610) 1
Q7217333401A D2_COVER_FRONT_D60 PURE SLIVER(D60) 1
Q7217333501A D2_COVER_FRONT TITAN SLIVER(D6) 1
Q7217333601A D2_COVER_FRONT PURE SLIVER(A63) 1
Q7217333701A D2_COVER_FRONT TITAN SLIVER(A6) 1
6-9 Q7217333801A D2_KNOB_SHUTTER 1
6-10 Q6107060401A D2_SPRING_SHUTTER 1
6-11 Q7215059201A D2_SHUTTER_DECORATE_RING 1
6-12 Q7211077601A D2_COVER_CENTER LIGHT SLIVER(D510) 1
Q7211077701A D2_COVER_CENTER YELLOW SLIVER(A53,D50) 1
Q7211077801A D2_COVER_CENTER_ MERCURY SLIVER(A5,D5) 1
Q7211077901A D2_COVER_CENTER_ LIGHT SLIVER(D610) 1
Q7211078001A D2_COVER_CENTER MERCURY SLIVER(A63,D60) 1
Q7211078101A D2_COVER_CENTER YELLOW SLIVER(A6,D6) 1
6-13 Q7217333901A D2_KNOB POWER LIGHT SLIVER(D510,610) 1
Q7217334001A D2_KNOB POWER MERCURY SLIVER(A5,D5,A63,D60) 1
Q7217334101A D2_KNOB POWER YELLOW SLIVER(A6,D6,A53,D50) 1
6-14 Q7217334201A D2_VF_WINDOW 1
6-15 Q6002005601A SCRW-T-PLAT-M1_4-3-NI 1
6-16 Q7217334301A D2_SIDE_DECORATE BLUE SLVIER (D510,D610) 1
Q7217334401A D2_SIDE_DECORATE PURE SLIVER (A5,D5,A63,D60) 1
Q7217334501A D2_SIDE_DECORATE TITAN SLIVER(A6,D6,A53,D50) 1
6-17 Q9007217901A FRONT COVER SUB ASM-(TITAN SLIVER A6) 1
Q9007218001A FRONT COVER SUB ASM-(PURE SLIVER A63) 1
Q9007218101A FRONT COVER SUB ASM-(TITAN SLIVER D6) 1
Q9007218201A FRONT COVER SUB ASM-(PURE SLIVER D60) 1
Q9007218301A FRONT COVER SUB ASM-(BLUE SLIVER D610) 1
Q9007218401A FRONT COVER SUB ASM-(PURE SLIVER A5) 1
Q9007218501A FRONT COVER SUB ASM-(TITAN SLIVER A53) 1
Q9007218601A FRONT COVER SUB ASM-(PURE SLIVER D5) 1
Q9007218701A FRONT COVER SUB ASM-(TITAN SLIVER D50) 1
Q9007218801A FRONT COVER SUB ASM-(BLUE SLIVER D510) 1
6-18 Q9007218901A MIDDLE COVER ASM(TITAN SLIVER A6, D6) 1
Q9007219001A MIDDLE COVER ASM(PURE SLIVER A63, D60) 1
Q9007219101A MIDDLE COVER ASM(BLUE SLIVER D610) 1
Q9007219201A MIDDLE COVER ASM(PURE SLIVER A5, D5) 1
Q9007219301A MIDDLE COVER ASM(TITAN SLIVER A53, D50) 1
Q9007219401A MIDDLE COVER ASM(BLUE SLIVER D510) 1
▶▶
PARTS LIST
Page 29
30
Ⅲ. EXPLODED VIEWS AND PARTS LIST
7. BACK COVER ASSEMBLY
7-41
7-36
7-5
7-6
7-11
7-7
7-38
7-37
7-29
7-14
7-13
7-28
7-27
7-15
7-10
7-30
7-12
7-9
7-16
7-19
7-17
7-18
7-21
7-34
7-20
7-31
7-8
7-22
7-1
7-2
7-39
7-3
7-4
7-33
7-35
7-26
7-23
7-40
7-32
7-24
7-25
Page 30
31
Ⅲ. EXPLODED VIEWS AND PARTS LIST
FFiigg..NNoo.. PPaarrttss NNoo.. PPaarrttss NNaammee QQ''ttyy RReemmaarrkkss
7-1 Q6002005701A SCREW-T-PLAT-M1.4x2.5-NI 5
7-2 Q7409172901A D2_PLATE_PCB_UI-MYLAR 1
7-3 Q4104021401A D2_PLATE_PCB_UI 1
7-4 Q9008079701A UI BOARD ASSY SM6000Z 1
7-5 Q7309043901A D2_KNOB_5WAY_RUBBER 1
7-6 Q7211078201A D2_KNOB_5WAY_ENTER 1
7-7 Q7211078301A D2_KNOB_5WY 1
7-8 Q7217334701A D2_KNOB_FUNCTION TITAN SLIVER(A6,D6,A53,D50) 1
Q7217334801A D2_KNOB_FUNCTION BLUE SLIVER(D510,610) 1
7-9 Q7212184401A D2_GUIDE_VF_LED 1
7-10 Q7212184501A D2_GUIDE_MODE_DIAL_LED 1
7-11 Q7309044001A D2_KNOB_ZOOM_RUBBER 1
7-12 Q6002005801A SCREW-T-PLAT-M1.4x2.5-NI 1
7-13 Q7017043101A D2_MODE_DIAL_PLATE 1
7-14 Q7217334901A D2_MODE_DIAL_SPACER 1
7-15 Q7212184601A D2_KNOB_ZOOM 1
Q7212184701A D2_KNOB_MODE_DIAL TITAN SLIVER(A6,D6,A53,D50) 1
Q7212184801A D2_KNOB_MODE_DIAL PURE SLIVER(A5.D5.A63.D60) 1
Q7212184901A D2_KNOB_MODE_DIAL BLUE SLIVER(D510,610) 1
7-17 Q6107060501A D2_MODE_DIAL_SPRING 1
7-18 Q7213035501A D2_VIEW_FINDER_LENS 1
7-19 Q7217335001A
D2_LCD_WINDOW MERCURY SLIVER(A6.D6.A53.D50,D610,D510)
1
Q7217335101A D2_LCD_WINDOW LIGHT BLUE SLIVER(A5,D5,A63,D60) 1
7-20 Q7217335201A D2_COVER_USB TITAN-SLIVER-WARM(A6,D6,A53,D50) 1
7-20 Q7217335301A D2_COVER_USB PURE SLIVER-428U(A5,D5,A63,D60) 1
7-20 Q7217335401A D2_COVER_USB BLUE-SLIVER-5435U(D510,610) 1
7-21 Q7217335501A D2_COVER_REAR TITAN SLIVER(A6,D6,A53,D50) 1
7-21 Q7217335601A D2_COVER_REAR PURE SLIVER(A5,D5,A63,D60) 1
Q7217335701A D2_COVER_REAR BLUE SLIVER(D510,D610) 1
7-22 Q7409173001A D2_SPONGE_LCD 1
7-23 Q0704010401A LCD_TOPPOLY-TC018 1
7-24 Q7017043201A D2_LCD_PLATE 1
7-25 Q7409173101A D2_LCD_PLATE-MYLAR 1
7-26 Q6002005901A SCREW-T-PLAT-M1.4x2.5-NI 4
7-27 Q9010050001A USB/DC BD ASSY SM6000Z 1
7-28 Q7011049901A D2_PCB_USB_FIX_PLATE 1
7-29 Q6002005101A SCREW-T-PLAT-M1.4x2.5-NI 2
7-30 Q6002005001A SCREW-M-PLAT-M1.4x2-NI_HD2 1
7-31 Q7409172401A D2_SPONGE_VF_LED_GUIDE 1
7-32 Q7409172301A D2_LCD_SHIELD 1
7-33 Q7409172201A D2_CHASSIS_MYLAR 2
7-34 Q0809002001A D2_ESD_AL_1 1
7-35 Q0809001901A D2_ESD_AL_2 1
7-36 Q9002132901A FUNCTION ASM(All TYPE) 1
7-37 Q9007220401A MOLD DIAL ASM (All TYPE) 1
7-38 Q9007220301A REAR COVER SUB ASM(TITAN SLIVER A6, D6, A53, D50) 1
Q9007220201A REAR COVER SUB ASM(PURE SLIVER A63, D60, A5, D5) 1
Q9007220101A REAR COVER SUB ASM(BLUE SLIVER D610, D510) 1
7-39 Q9008079301A UI BOARD ASM (ALL TYPE) 1
7-40 Q9008079201A LCD ASM (ALL TYPE) 1
7-41 Q9007219801A COVER_REAR- ASM(TITAN SLIVER A6, D6, A53, D50) 1
Q9007219901A COVER_REAR- ASM(PURE SLIVER A63, D60, A5, D5) 1
Q9007220001A COVER_REAR- ASM(BLUE SLIVER D610, D510) 1
▶▶
PARTS LIST
Page 31
32
Ⅲ. EXPLODED VIEWS AND PARTS LIST
8. PACKING ITEM
8-10
8-13
8-1
8-11
8-14
8-9
8-168-15
8-3
8-12
8-5
8-6
8-2
8-4
8-7
8-8
Page 32
33
Ⅲ. EXPLODED VIEWS AND PARTS LIST
FFiigg..NNoo.. PPaarrttss NNoo.. PPaarrttss NNaammee QQ''ttyy RReemmaarrkkss
8-1 QP960210101A PE BAG (FOR CAMERA) 1
8-2 Q6909011601A PE BAG (FOR ACCESSORY) 1
8-3 Q6901176801A INNER PAD 1
8-4 Q6904025601A POUCH 1
8-5 Q6806228101A Q/GUIDE_Digimax A5_DUT 1
Q6806228201A Q/GUIDE_Digimax A5_POR 1
Q6806228301A Q/GUIDE_Digimax A5_SWE 1
Q6806228401A Q/GUIDE_Digimax A5_DEN 1
Q6806228501A Q/GUIDE_Digimax A5_FIN 1
Q6806228601A Q/GUIDE_Digimax A5_RUS 1
Q6806228701A Q/GUIDE_Digimax A5_CHI(S) 1
Q6806228801A Q/GUIDE_Digimax A5_CHI(T) 1
Q6806223401A Q/GUIDE_Digimax A6_ENG 1
Q6806223501A Q/GUIDE_Digimax A6_GER 1
Q6806223601A Q/GUIDE_Digimax A6_FRA 1
Q6806223701A Q/GUIDE_Digimax A6_SPA 1
Q6806223801A Q/GUIDE_Digimax A6_ITA 1
Q6806223901A Q/GUIDE_Digimax A6_TUR 1
Q6806224001A Q/GUIDE_Digimax A6_DUT 1
Q6806224101A Q/GUIDE_Digimax A6_POR 1
Q6806224201A Q/GUIDE_Digimax A6_SWE 1
Q6806224301A Q/GUIDE_Digimax A6_DEN 1
Q6806224401A Q/GUIDE_Digimax A6_FIN 1
Q6806224501A Q/GUIDE_Digimax A6_RUS 1
Q6806224601A Q/GUIDE_Digimax A6_CHI(S) 1
Q6806224701A Q/GUIDE_Digimax A6_CHI(T) 1
8-6 Q6806229001A U/MANUAL_Digimax A5_ENG 1
Q6806229101A U/MANUAL_Digimax A5_GER 1
Q6806229201A U/MANUAL_Digimax A5_FRA 1
Q6806229301A U/MANUAL_Digimax A5_SPA 1
Q6806229401A U/MANUAL_Digimax A5_ITA 1
Q6806229501A U/MANUAL_Digimax A5_TUR 1
Q6806229601A U/MANUAL_Digimax A5_DUT 1
Q6806229701A U/MANUAL_Digimax A5_POR 1
Q6806229801A U/MANUAL_Digimax A5_SWE 1
Q6806229901A U/MANUAL_Digimax A5_DEN 1
Q6806230001A U/MANUAL_Digimax A5_FIN 1
Q6806230101A U/MANUAL_Digimax A5_RUS 1
Q6806230201A U/MANUAL_Digimax A5_CHI(S) 1
Q6806230301A U/MANUAL_Digimax A5_CHI(T) 1
▶▶
PARTS LIST
Page 33
34
Ⅲ. EXPLODED VIEWS AND PARTS LIST
3434
▶▶
PARTS LIST
FFiigg..NNoo.. PPaarrttss NNoo.. PPaarrttss NNaammee QQ''ttyy RReemmaarrkkss
8-6 Q6806224901A U/MANUAL_Digimax A6_ENG 1
Q6806225001A U/MANUAL_Digimax A6_GER 1
Q6806225101A U/MANUAL_Digimax A6_FRA 1
Q6806225201A U/MANUAL_Digimax A6_SPA 1
Q6806225301A U/MANUAL_Digimax A6_ITA 1
Q6806225401A U/MANUAL_Digimax A6_TUR 1
Q6806225501A U/MANUAL_Digimax A6_DUT 1
Q6806225601A U/MANUAL_Digimax A6_POR 1
Q6806225701A U/MANUAL_Digimax A6_SWE 1
Q6806225801A U/MANUAL_Digimax A6_DEN 1
Q6806225901A U/MANUAL_Digimax A6_FIN 1
Q6806226001A U/MANUAL_Digimax A6_RUS 1
Q6806226101A U/MANUAL_Digimax A6_CHI(S) 1
Q6806226201A U/MANUAL_Digimax A6_CHI(T) 1
8-7 Q6807003003U WARRANTY CARD_EXP 1
Q6807010902B WARRANTY CARD_RUS 1
Q6807011301B WARRANTY CARD_TSOE 1
8-8 Q6901200501A G/T BOX_Digimax A5_EXP/AUS 1
Q6901200601A G/T BOX_Digimax A5_USA/CAN1
Q6901199801A G/T BOX_Digimax A6_EXP/AUS 1
Q6901199901A G/T BOX_Digimax A6_USA/CAN 1
8-9 Q4301001801A ALKALINE (1.5V, AA) 2EA - DURACEL ULTRA 1
8-10 Q7409145001A STRAP 1
8-11 Q3802003001A USB CABLE_A5_A6 1
8-12 Q4609009001A
DRIVER + Digimax Viewer 2.1+ Arcsoft PI 4.0 + Digimax Reader 1 A6
Q4609009101A
DRIVER + Digimax Viewer 2.1+ Arcsoft PI 3.0(Walmart) + Digimax Reader 1 A6
Q4609009201A
DRIVER + Digimax Viewer 2.1+ Arcsoft PI 4.0 + Digimax Reader 1 A5
Q4609009301A
DRIVER + Digimax Viewer 2.1+ Arcsoft PI 3.0(Walmart) + Digimax Reader 1 A5
8-13 Q7409167601A FCC LABEL_Digimax A6_EXP (MADE IN CHINA) 1
Q7409167701A FCC LABEL_Digimax A6_EXP (MADE BY SAMSUNG) 1
Q7409167901A FCC LABEL_Digimax A5_EXP (MADE IN CHINA) 1
Q7409168001A FCC LABEL_Digimax A5_EXP (MADE BY SAMSUNG) 1
8-14 Q3801003201A AC CODE CABLE_EXP 1
Q3801003101A AC CODE CABLE_USA 1
Q3801001001A AC CODE CABLE_UK 1
Q3801003401A AC CODE CABLE_AUS 1
8-15 Q4301002801A LI-ION BATTERY SBP-1303(CR-V3 Li-ion Type) 1
8-16 Q4301002901A LI-ION CHARGER SBC-L1 1
Page 34
35
Ⅲ. EXPLODED VIEWS AND PARTS LIST
3535
PAGE PARTS NO. PARTS NAME SPEC SYMBOL
9. INITIAL PARTS LIST
18
Q9007217901A FRONT COVER SUB ASM-(TITAN SLIVER A6)
18
Q9007218001A FRONT COVER SUB ASM-(PURE SLIVER A63)
18
Q9007218101A FRONT COVER SUB ASM-(TITAN SLIVER D6)
18
Q9007218201A FRONT COVER SUB ASM-(PURE SLIVER D60)
18
Q9007218301A FRONT COVER SUB ASM-(BLUE SLIVER D610)
18
Q9007218401A FRONT COVER SUB ASM-(PURE SLIVER A5)1
18
Q9007218501A FRONT COVER SUB ASM-(TITAN SLIVER A53)
18
Q9007218601A FRONT COVER SUB ASM-(PURE SLIVER D5)
18
Q9007218701A FRONT COVER SUB ASM-(TITAN SLIVER D50)
18
Q9007218801A FRONT COVER SUB ASM-(BLUE SLIVER D510)
18
Q9007218901A MIDDLE COVER ASM(TITAN SLIVER A6, D6)
18
Q9007219001A MIDDLE COVER ASM(PURE SLIVER A63, D60)
18
Q9007219101A MIDDLE COVER ASM(BLUE SLIVER D610)
18
Q9007219201A MIDDLE COVER ASM(PURE SLIVER A5, D5)
18
Q9007219301A MIDDLE COVER ASM(TITAN SLIVER A53, D50)
18
Q9007219401A MIDDLE COVER ASM(BLUE SLIVER D510)
18
Q7217331601A D2_COVER_SIDE TITAN GOLD(A6,D6,A53,D50)
18
Q7217331701A D2_COVER_SIDE MERCURY SLIVER(A63,D60,A5,D5)
18
Q7217331801A D2_COVER_SIDE DARK BLUE(D610,D510)
18
Q9007219501A D2_COVER_BATTERY TITAN GOLD(A6,D6,A53,D50)
18
Q9007219601A D2_COVER_BATTERY MERCURY SLIVER(A63,D60,A5,D5)
18
Q9007219701A D2_COVER_BATTERY DARK BLUE(D610,D510)
18
Q9007219801A COVER_REAR- ASM(TITAN SLIVER A6, D6, A53, D50)
18
Q9007219901A COVER_REAR- ASM(PURE SLIVER A63, D60, A5, D5)
18
Q9007220001A COVER_REAR- ASM(BLUE SLIVER D610, D510)
20 Q9008078701A STROBE BD ASSY SM6000Z/5000Z
20 Q9008078801A MAIN BOARD ASSY SM6000Z
20 Q9008078901A MAIN BOARD ASSY SM5000Z
20 Q9008079001A CCD-FPC BD ASSY SM6000Z A6
20 Q9008079101A CCD-FPC BD ASSY SM5000Z A5
20 Q9002130001A LENS ASSY SM6000Z A6
20 Q9002130001A LENS ASSY SM5000Z A5
20 Q9001101101A POWER BOARD ASSY SM6000Z A6
20 Q9001101201A POWER BOARD ASSY SM5000Z A5
20 Q9008079501A FPC-SENSOR ASM(SM6000Z-ALL) A6
20 Q9008079601A FPC-SENSOR ASM(SM5000Z-ALL) A5
Page 35
ⅣⅣ.. AADDJJUUSSTTMMEENNTT
363636

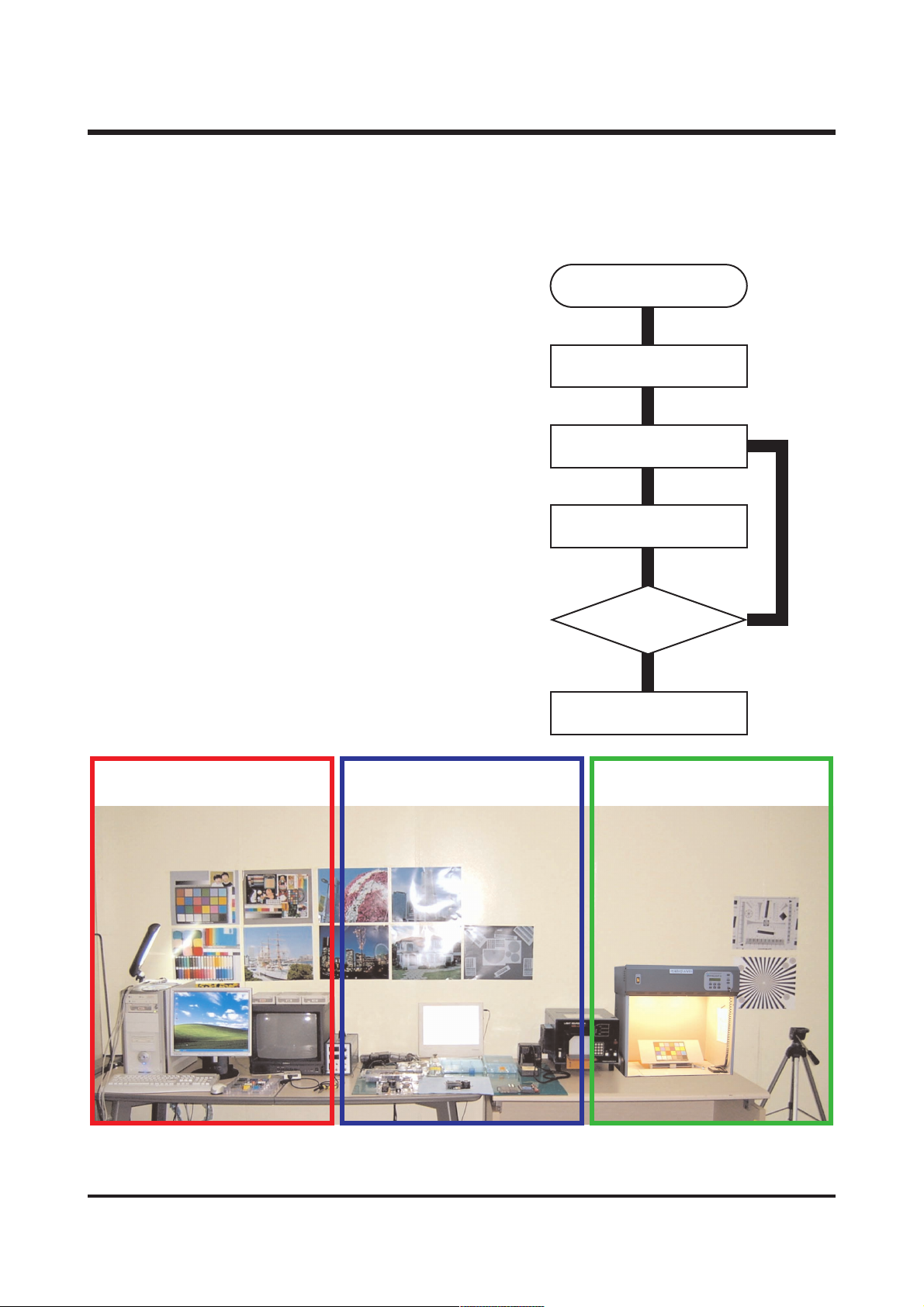

11.. DDiiggiittaall ccaammeerraa sseerrvviiccee
To take a digital camera service(Repair, Tuning and Checking), the following equipments have to be
arranged.
The sequences for the camera service are as shown
alongside.
1. Receiving the camera
When receiving a camera, check whether the accessories
are included or not and ask the customer exact problems.
2. Checking the camera
Checking the camera with priority given to the exact
problems to find overall malfunctions.
3. Repairing the camera
Repair the camera malfunctions found at the step 2.
4. Inspection
After repairing the camera, inspect all of the camera
functions.(See p.56)
※ The illustrations may be different from the real display in accordance with the camera model.
11.. CChheecckkiinngg tthhee ccaammeerraa aanndd
IInnssppeeccttiioonn
22.. RReeppaaiirriinngg tthhee ccaammeerraa 33.. TTuunniinngg
Receiving the camera
Checking the camera
Repairing the camera
Tuning
Inspection
Finish
Page 36
37
Ⅳ. ADJUSTMENT
3737
11)) EEqquuiippmmeennttss ffoorr cchheecckkiinngg aanndd iinnssppeeccttiioonn
To check and inspect the camera malfunction, the following equipments have to be arranged.
①①
②②
③③
⑤⑤
⑥⑥
⑦⑦
⑧⑧
⑪⑪
⑨⑨
⑩⑩
④④
No. Device Description
1 PC for inspection - Installing a digital camera driver or Checking the removable device
- Checking the file transference(upload and download)
- Playing back the still image or movie clip
2 HARD RACK, For the compatibility test.
by Operating System by the O/S(WIN 98SE, ME, 2000, XP)
3 Driver CD, by camera models S/W CDs for installing a camera driver
4 USB HUB For using all kinds of USB cable at a time
5 USB cable, by camera models For checking file transference(upload and download) by camera models
6 Chart for checking colors For checking color and image resolution before or after camera repair
7 TV MONITOR For checking video output and whether NTSC/PAL can be selected
8 Memory card by types For checking card recognition by brands and sizes
9 A/V CABLE For checking whether the image can be displayed on a external monitor
10 POWER SUPPLY For checking camera power by camera models
11 Power cable by camera models
Page 37
38
Ⅳ. ADJUSTMENT
3838

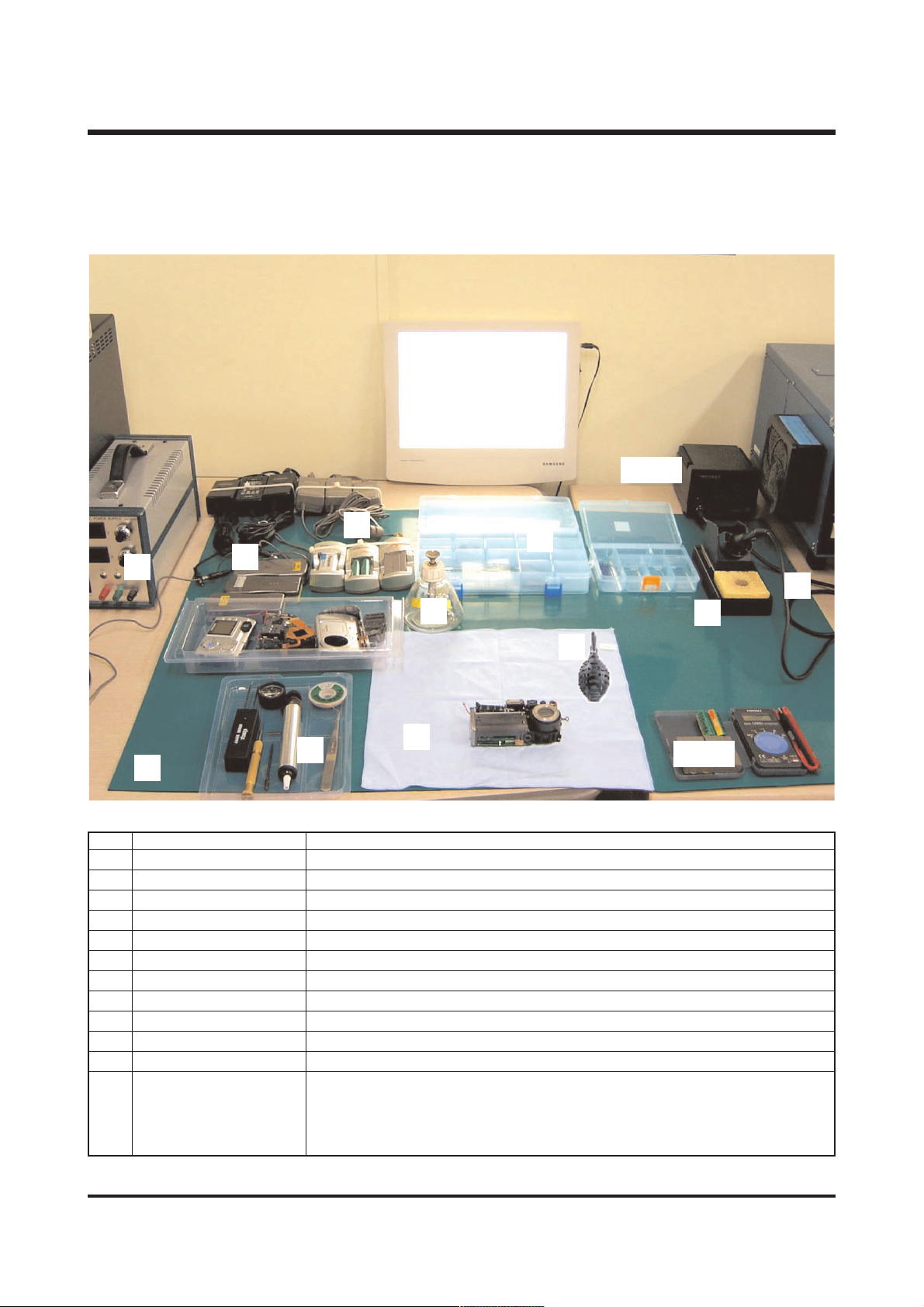

22)) EEqquuiippmmeennttss ffoorr ccaammeerraa rreeppaaiirr
To repair the camera, the following equipments have to be arranged.
①①
②②
③③
⑤⑤
⑥⑥
⑪⑪
⑨⑨
④④
⑩⑩
⑧⑧
⑪⑪
⑫⑫
⑬⑬
⑦⑦
No. Device Description
1 A set of tools Pincette/ Screwdriver/ Discharger etc.
2 Cleaning paper For cleaning camera lens and camera parts
3 Detergent container For containing detergent
4 Parts case For keeping various camera parts and disassembled camera parts
5 Anti-electricity mat For repairing table made from anti-electricity material
6 Soldering sponge For removing solder
7 Air pump For removing various kinds of dust
8 LIGHT BOX Color temperature 5100
9 POWER SUPPLY 7.5V 2.0A
10 Soldering iron Soldering iron that can select temperature
11 Tester Portable tester that can test AC/DC, Ω,♪ ect.
12 BATTERY & AC ADAPTOR & Rechargeable battery by camera models
AC ADAPTOR - SBP3603/ SBP3605/ SBP3606
- SLB 1437
- SBP 1103
Page 38
39
Ⅳ. ADJUSTMENT
3939

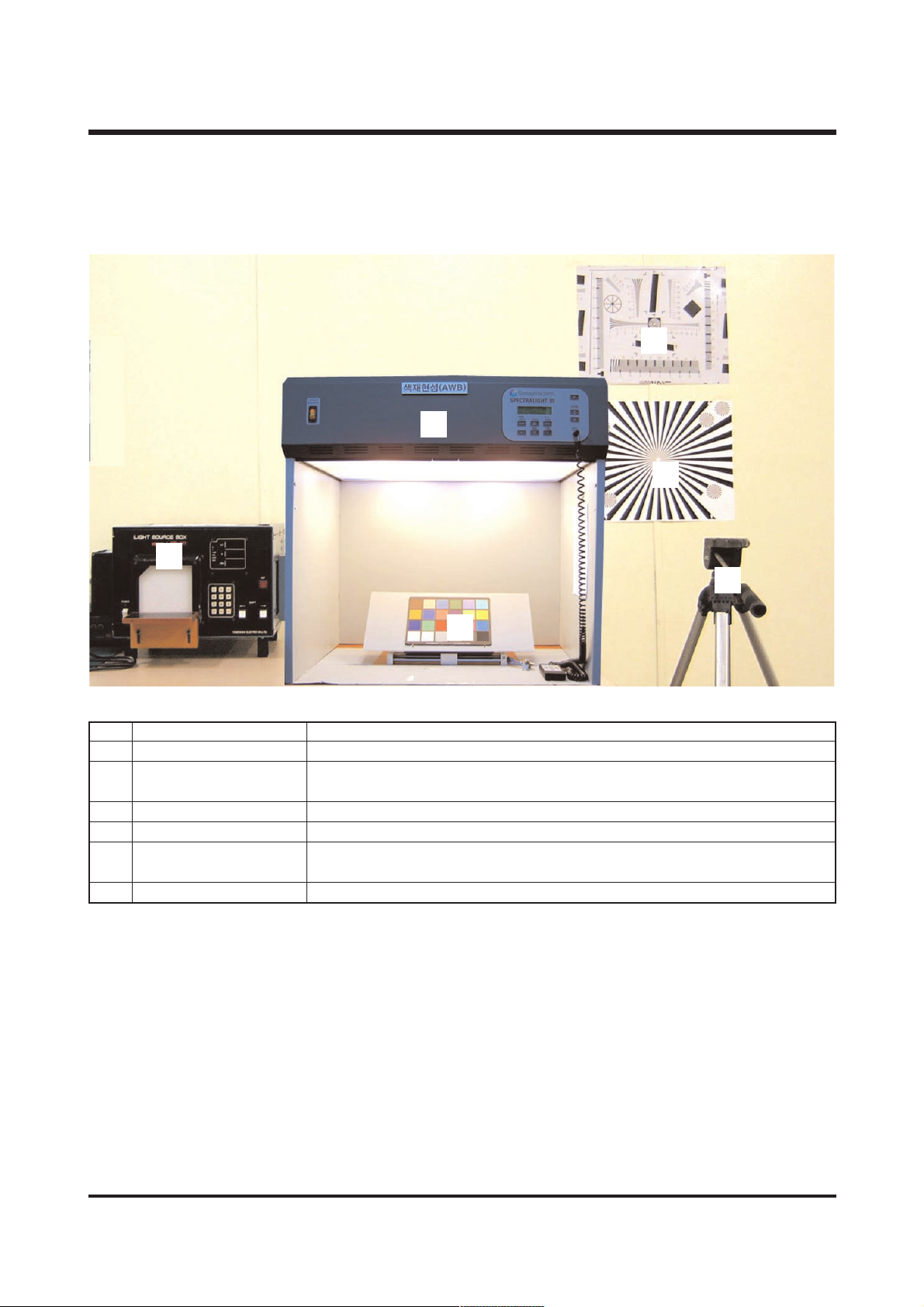

33)) EEqquuiippmmeennttss ffoorr ccaammeerraa ttuunniinngg
To tune the camera, the following equipments have to be arranged.
①①
②②
③③
⑤⑤
⑥⑥
④④
No. Device Description
1 AE TESTER For tuning AE and STROBE
2 AWB LIGHT For checking and tuning AWB
SOURCE BOX
3 COLOR chart For checking AWB and color of images
4 AF chart For tuning AF
5 Chart for checking For checking image resolution
resolution
6 TRIPOD
Page 39
40
Ⅳ. ADJUSTMENT
4040
44)) CChheecckk lliisstt ffoorr DDiiggiittaall ccaammeerraa rreeppaaiirr
To check the digital camera functions before/after repairing, refer to the check list.
NNoo.. CChheecckkiinngg iitteemm CChheecckk ppooiinntt
1 - Check the scratch, stain, misprint.
- Check whether the screws are turned firmly.
- Check the corrosion of terminal, bad exterior.
- Do chemical and glue test to the printing/ painting parts.
2 - Check the connecting and contact condition.
3 - Insert the batteries with the correct polarity and check the
contact condition.
- Check whether the cover is opened easily after closing.
4 - The card can be inserted or removed easily and cover is
closed firmly.
- Do inserting and removing card(SD/MMC) test two times.
→ The card must be inserted firmly and has not to spring out.
- Insert the card/batteries and give a little impact on the
camera. The camera must recognize the card and “CARD
LOCKED”message has not to be displayed.
5 - When the cable is inserted, check whether the images play
back on the external monitor.
6 - Check whether the green LED is blinking, SAMSUNG LOGO is
on and the start-up sound sounds.
- Check the “L”and “FINE”icon on the LCD monitor.
- Check whether the AE function is correct at the low light and
high light condition.
- Check whether the “beep”sounds on the recording and movie
clip mode.
→ The “beep”can be sounded in the microphone part. Check
that in a quiet room.
7 - Press the zoom W/T button with the viewfinder.
→ Check dust and percentage of the frame seen, zoom rate.
- Press the zoom W/T button with the TFT-LCD monitor.
→ Check the zoom rate and whether the zoom bar moves
smoothly.
8 - Check whether the Macro icon(Flower) is displayed on the
LCD monitor.
- Check the AF in the Macro focus with the TFT-LCD monitor.
9 - Check whether the subject captured from 2M has over or
under exposure and the fucus is clear.
Check the exterior of a camera.
Insert the adapter.
Check the battery cover.
Check the card condition after
inserting the card.
Insert the Video cable.
Turn on the camera.
Press the zoom W/T button.
Macro focus.
Normal focus.
Page 40
41
Ⅳ. ADJUSTMENT
4141
NNoo.. CChheecckk iitteemm CChheecckk ppooiinntt
10 - Check whether the icon and counter are displayed on the
LCD monitor.
11 - Check whether the recording time is displayed and there
are a noise, dim frame and discontinuous frame in the movie
clip.
12 - Check whether the zoom rate is changed and there are
unclear part, noise and dim part in the image.
- The distance from the subject is 2M and have to use the
FILL IN flash.
13 - Check whether the PLAY mode can be selected without any
problem and there are any noise, frame shaking and
discoutinuous frame.
- Check the voice recorded in the still image and the movie clip.
- Check whether the still image can be enlarged correctly
with the 5 function button.
14 - Select 2 sec. of slide show interval time and check whether
there are any noise, image shaking and discontinuous frame.
15 - Check whether the mode dial is rotated with the equal force.
- Check whether each camera mode can be recognized correctly.
16 - Check whether there are unclear part, dim part, noticeable
flare, noise, ghost image and smear.
17 - Check whether all images are deleted.
18 - Check whether the “NO IMAGE”message is displayed on the
LCD monitor.
- Check whether the LARGE, FINE icon and 0018 number are
displayed.
- Check whether the camera power is turned off without any
problem.
MANUAL focus.
Take a movie clip with
TELE zoom during 10 seconds.
Take a chart with TELE zoom
in a low light condition.
Play back a image with
the TFT LCD monitor.
Start the slide show
in the PLAY mode.
Try to rotate the mode dial.
Download a image from a PC
with USB cable and check the
image quality in a external
monitor.
Format the card in the PLAY
mode.(Delete all images in the
PLAY mode)
Check whether there is no image
and reset the camera. Remove
the card and turn off the camera.
Page 41
42
Ⅳ. ADJUSTMENT
4242

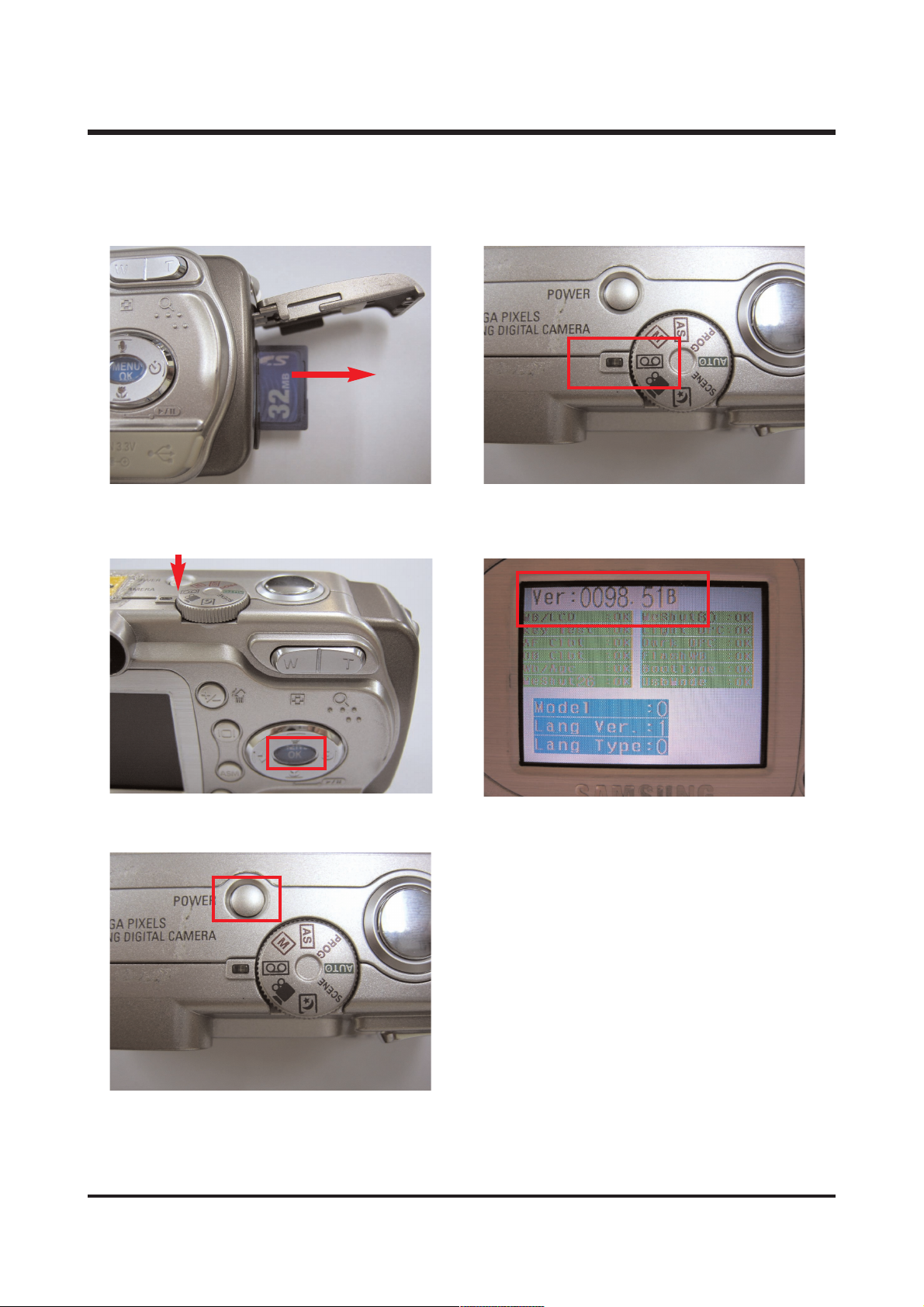

22.. HHooww ttoo cchheecckk tthhee FFIIRRMMWWAARREE VVEERRSSIIOONN
1. Remove the SD card from camera. 2. Change the Mode dial to the Voice record.
3. Press the Power on button while pressing 4. Check the Firmware version
the OK button.
5. To turn ofr the camera, press the Power button.
Page 42
43
Ⅳ. ADJUSTMENT
4343
33.. HHooww ttoo uuppddaattee tthhee FFIIRRMMWWAARREE UUPPGGRRAADDEE
1. Connect the service site ‘www.samsungcamera.com/service’and click the Support center menu on
the left side menu.
2. Select the model and category.
Page 43
44
Ⅳ. ADJUSTMENT
4444
3. Download the sa6m.elf(sa5m.elf for A5) to the windows directory and copy to the removable
disk after connecting the camera. (Do not use card Reader)
Caution ) Format the SD card using the camera
After copying the file, check the file name.
4. Insert the SD card that has the firmware. 5. Change the Mode dial to the Voice record.
Page 44
45
Ⅳ. ADJUSTMENT
4545

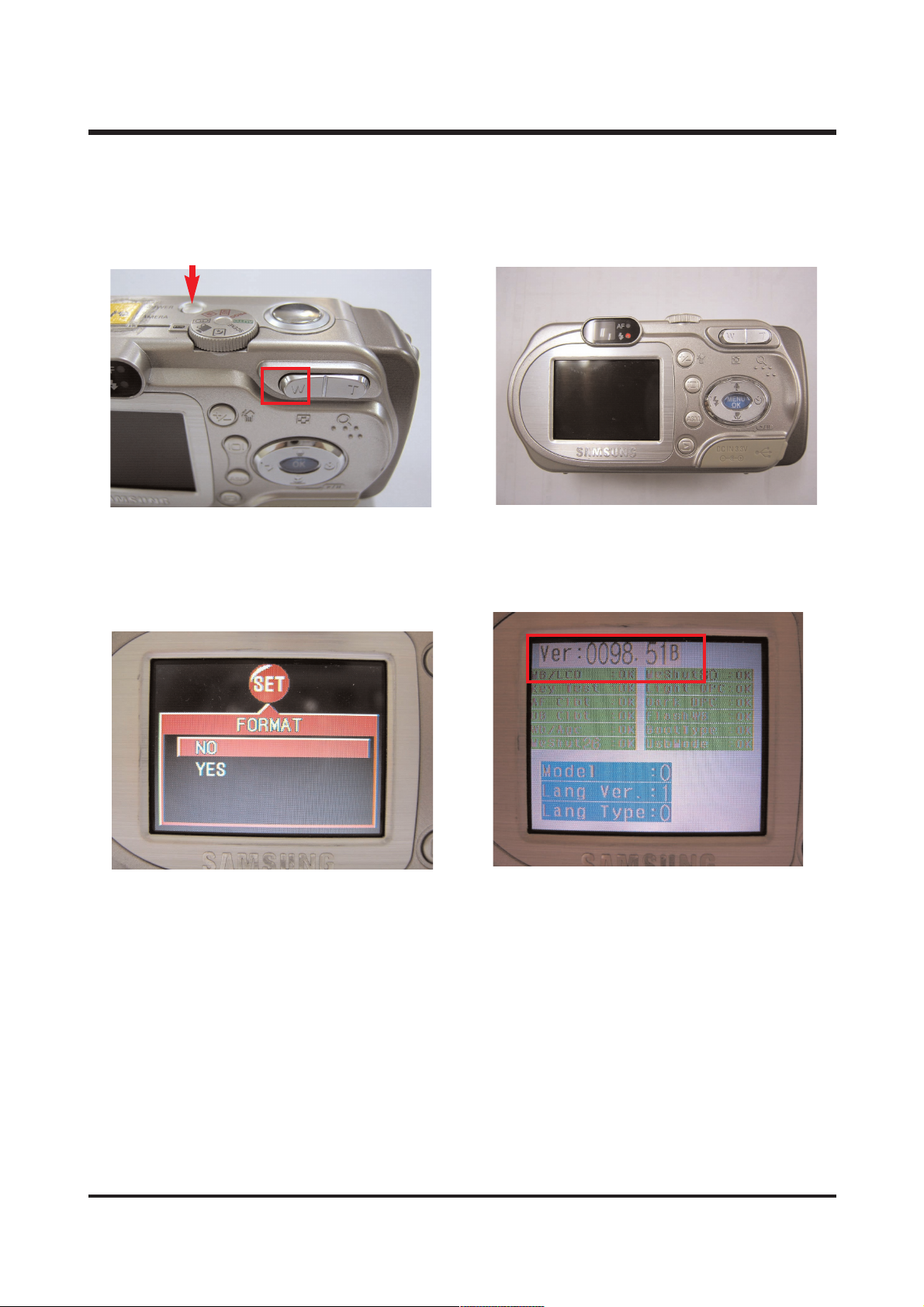

6. When the update is progress, the red light of
5. Turn on the power while preesing the Wide Flash LED is blinking. If the blinking stops
button. after few minutes, the update is done and
remove the battery to power off.
7. If your turn on the camera after removing the
Card, ‘Media error’message and ‘set’is
shown like below image. Select YES then, 9. Check the firmware whether it is updated
‘Format Done’message is shown and the or not.
camera shows the Voice record mode.
※※ WWhheenn yyoouu ddoo tthhee FFiirrmmwwaarree uuppggrraaddee,, yyoouu hhaavvee ttoo uussee tthhee AACC AAddaappttoorr.. IIff tthhee ccaammeerraa ttuurrnnss ooffff
wwhhiillee uuppddaattiinngg,, tthhee ccaammeerraa ccaannnnoott wwoorrkk.. AAfftteerr uuppddaattiinngg ffiirrmmwwaarree,, yyoouu hhaavvee ttoo rreesseett tthhee ccaammeerraa..
Page 45
46
Ⅳ. ADJUSTMENT
464646

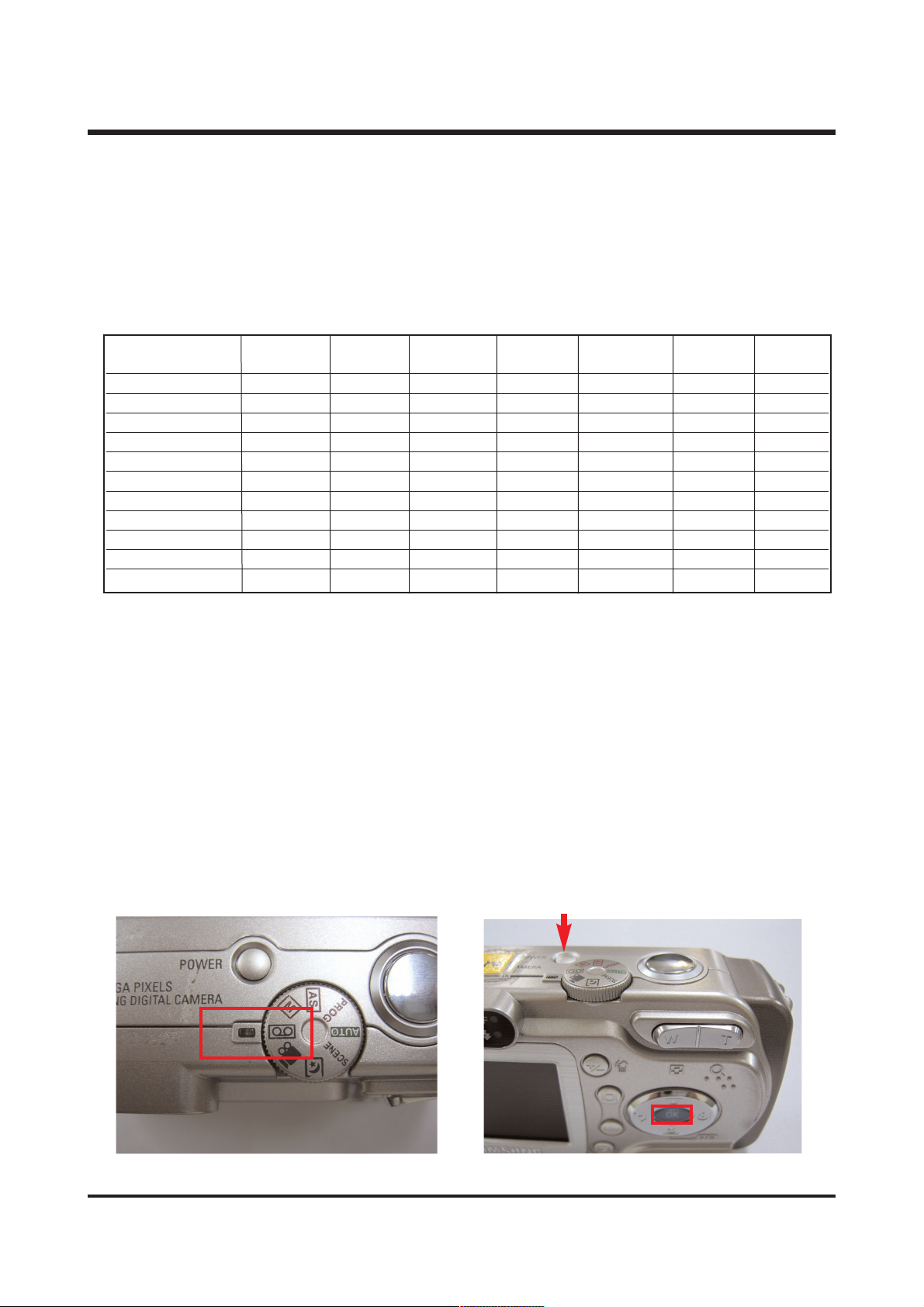

44.. AADDJJUUSSTTMMEENNTT
11)) TTuunniinngg iitteemmss bbyy cchhaannggiinngg ppaarrttss
After changing the electronic parts of Digimax A5/A6the parts have to be tuned in accordnce with the
tuned items. The items listed on the table have to be tuned after change..
22)) EEqquuiippmmeennttss ffoorr aaddjjuussttiinngg
▶ Equipments
- AE TESTER : XENON LAMP - LV 10, 13 and Halogen LAMP : LV 15
- LIGHT BOX : 5500。K
▶ Chart
- Focus chart : “AF CHART.pdf ”
- Gray Chart : 18% Reflector paper
33)) TTEESSTT MMOODDEE
a. Change the Mode dial to Voice record mode. b. Press the POWER ON button while pressing
OK button for about 3 sec. and the TEST
MODE is shown.
MAIN POWER BARREL CCD STROBE UI JACK
PCB PCB ASS’Y F PCB PCB F CPB PCB
FIRMWARE UP ● ● ● ● ●
FOCUS Clbt. ● ● ●
OB Clbt. ● ● ●
WB/AGC Clbt. ● ● ●
MESHUT 26 Clbt. ● ● ●
MESHUT 80 Clbt. ● ● ●
LIGHT/SLOW Clbt. ● ● ● ●
DARK DPC Clbt. ● ● ● ●
FLASH WB Clbt. ● ● ● ●
MB/LCD CHECK ● ● ● ● ● ● ●
KEY TEST ● ● ● ● ● ● ●
Page 46
47
Ⅳ. ADJUSTMENT

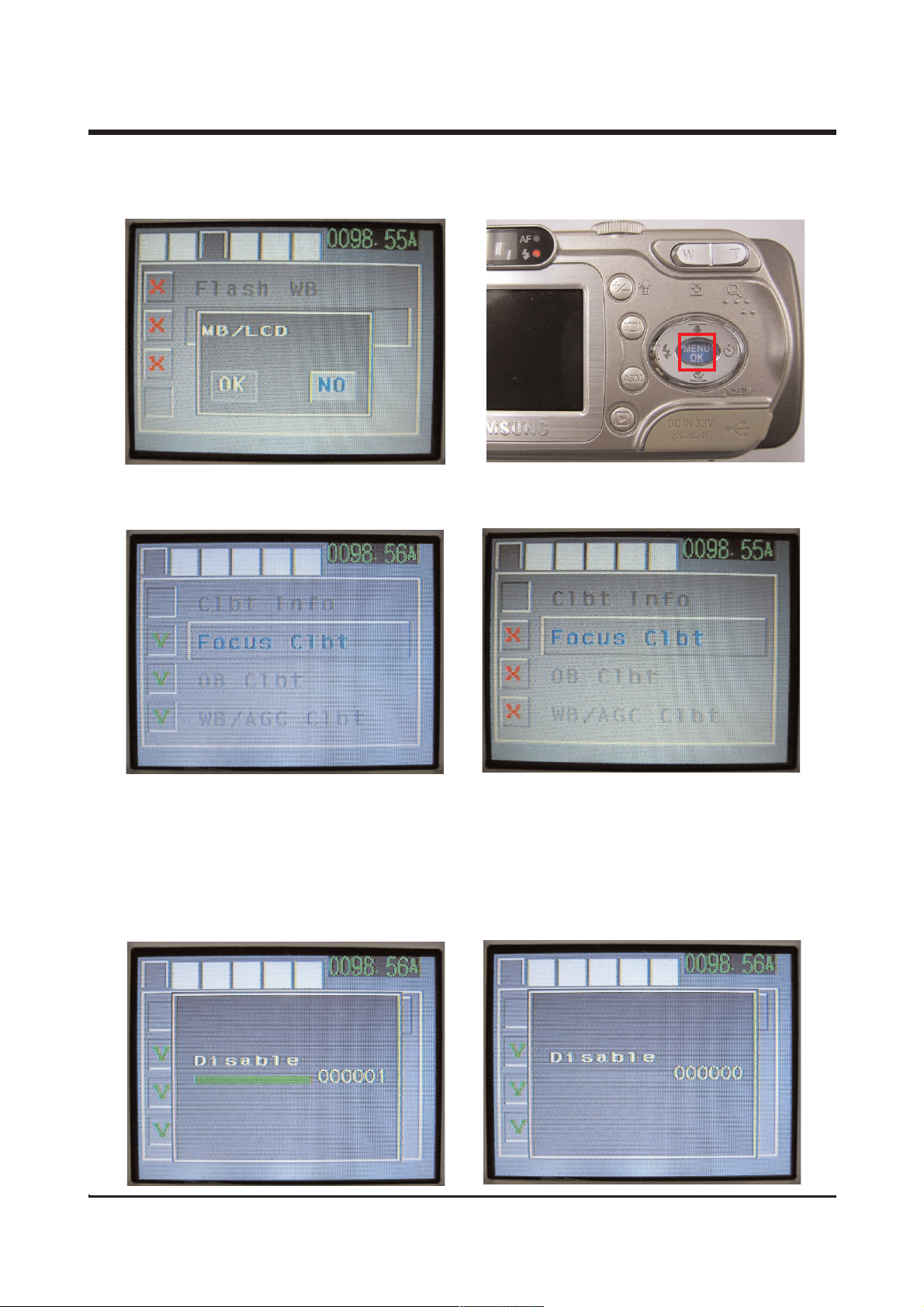

c. When the TEST MODE execute, the adjustment d. Select No (Not OK) and then press OK button
of MB/LCD is shown like below. to change the adjustment page.
e. The adjustment for each step is shown like below.
<The adjustment is completed> <The adjustment is needed>
※ If you want to readjust menus that completed adjustment, select the menu that you wand push the
LCD button then you can see the like below.
a. The menu that is complete the adjustment b. To do the adjustment, press right button for
shows "Disable 001" change to "Disable 000"
474747
Page 47
48
Ⅳ. ADJUSTMENT
484848

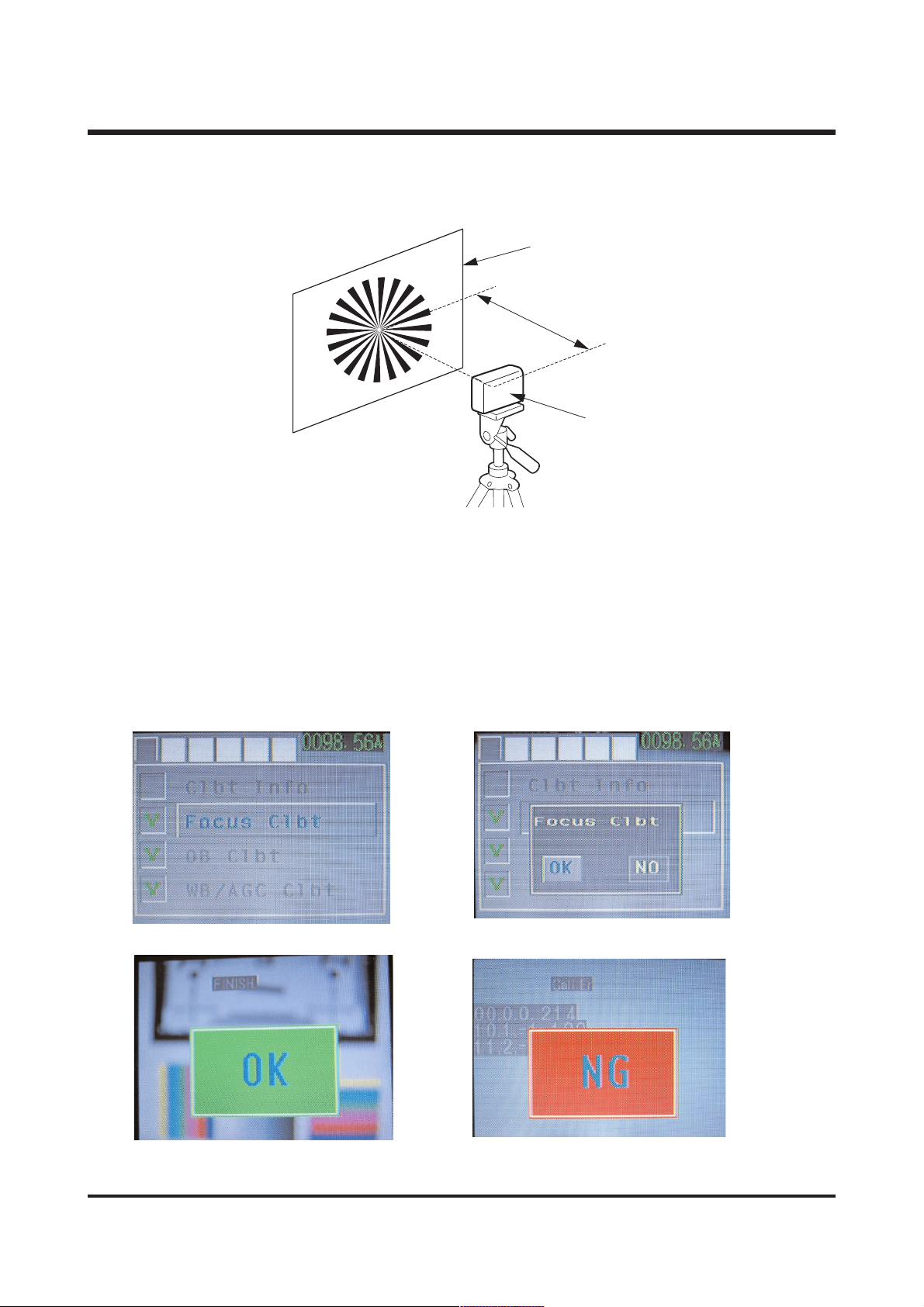

11)) FFOOCCUUSS CCllbbtt..
<How to adjut>
a. Set the SF CHART.
b. Put the camera on tri-pod.
c. Put the camera 2m away from the chart.
d. Choose the FOCUS CLBT. in test mode and press OK button.
e. The adjutment will be automatically done and after adjustment, the camera will be shut off
automatically.
※ If the adjustment is failed and show the NG, please do the adjustment again.
<Select the FOCUS ADJUSTMENT> <Choose the OK and press OK button.>
<The adjustment is completed> <The adjustment is failed.>
AF Chart
2m
Camera
Tripod
Page 48
49
Ⅳ. ADJUSTMENT
494949

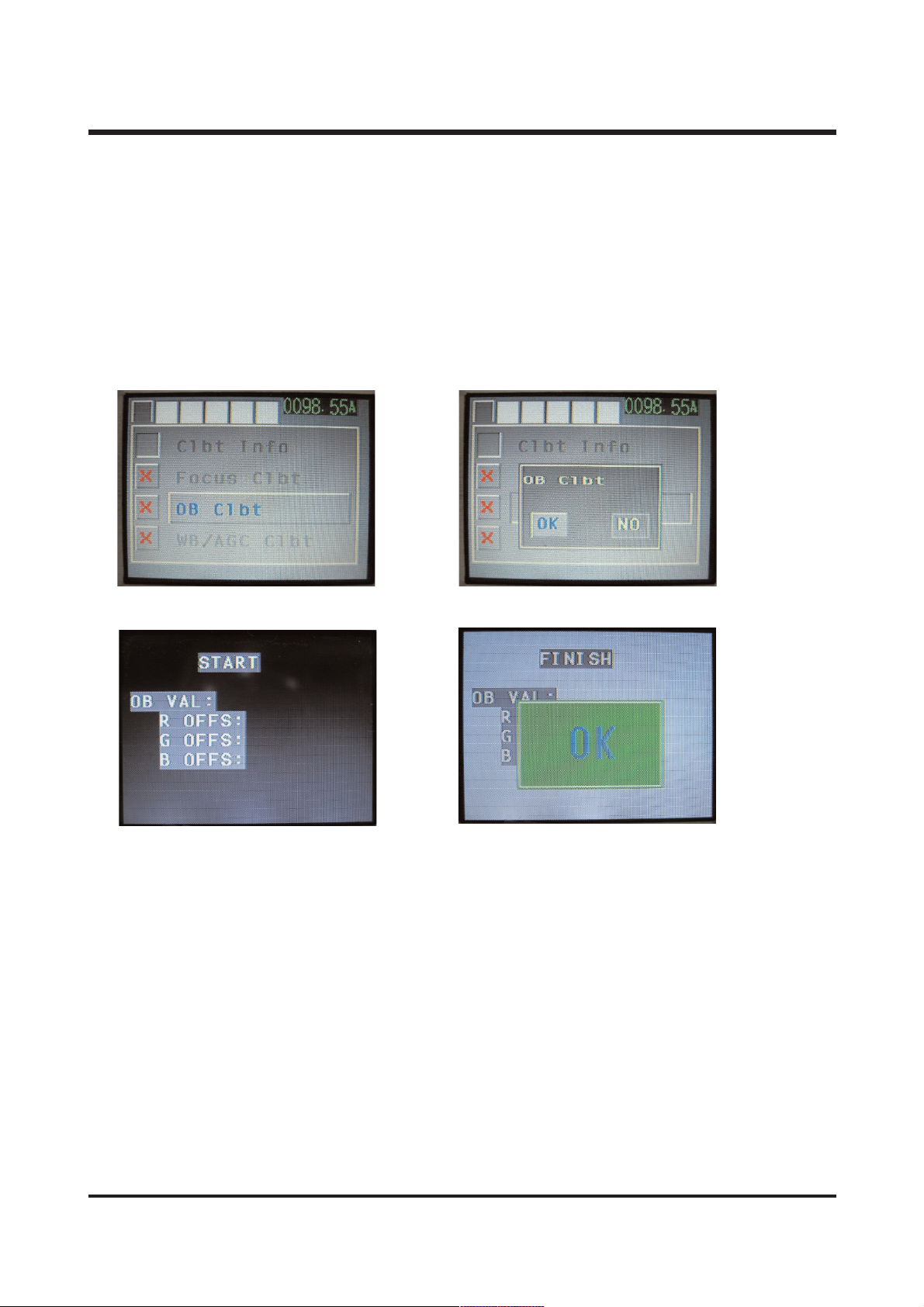

22)) OOBB CCllbbtt..
<How th adjust>
a. Enter the TEST MODE.
b. Block the LENS with black object to shut down the light.
c. Select the OB Clbt. and press the OK button then the adjustment will be done automatically.
※ If you fail the adjustment, the NG is shown and do the adjustment again.
<Select the OB Clbt> <Choose the OK and press OK button>
<Do the adjustment> <The adjustment is completed>
Page 49
50
Ⅳ. ADJUSTMENT
505050
33)) WWBB//AAGGCC CCllbbtt..
Equipment> LV10, K=1.3, COLOR Temperture : 5600。K±150。K (Xenon Short Arc Lamp)
<How to adjus>
a. Enter the TEST MODE.
b. Set the LIGHT SOURCE BOX to LV 10 and K=1.3.
(Xenon Short Arc Lamp, not Halogen Lamp for normal camera adjustment, should be used.)
c. Select the WB/AGC Clbt. d. Select OK and press the OK button.
e. The adjustment is executed. f. The adjustment is completed.
※ If the adjustment is failed, the NG sign will be shown. In this case, readjust the camera again.
Light source box
Camera
Page 50
51
Ⅳ. ADJUSTMENT
515151
44)) MMeeSShhuutt 2266..
Equipment> LV13, K=1.3, COLOR Temperture :5600。K±150。K (Xenon Short Arc Lamp)
<How to adjust>
a. Enter the TEST MODE.
b. Set the LIGHT SOURCE BOX to LV 13 and K=1.3.
(Xenon Short Arc Lamp, not Halogen Lamp for normal camera adjustment, should be used.)
c. Select the MeShut 26 Clbt. d. Select OK and press the OK button.
e. The adjustment is executed. f. The adjustment is completed.
※ If the adjustment is failed, the NG sign will be shown. In this case, readjust the camera again.
Light source box
Camera
Page 51
52
Ⅳ. ADJUSTMENT
525252

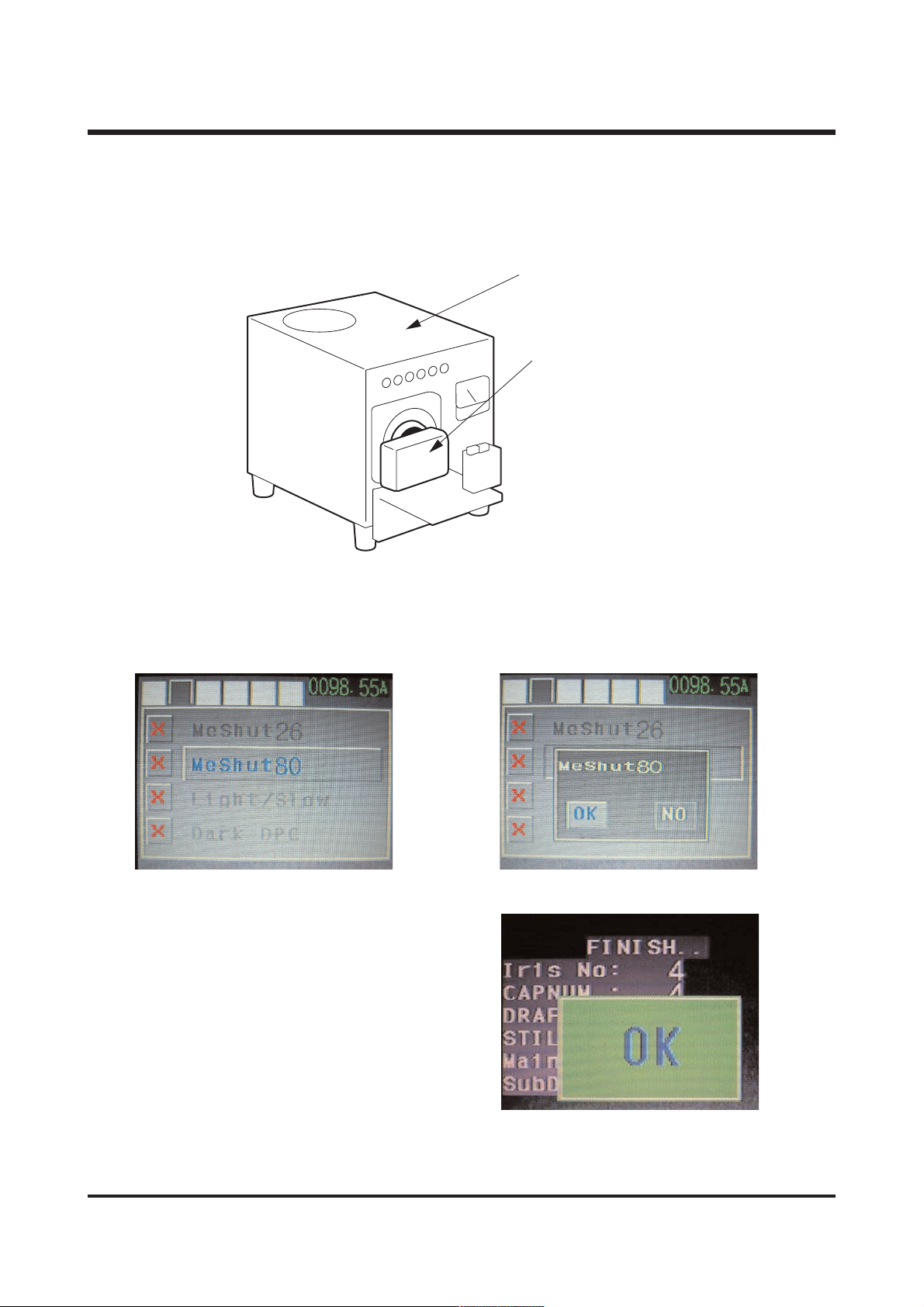

55)) MMeeSShhuutt 8800..
Equipment> LV15, K=1.3, COLOR Temperture : 5600。K±150。K (Xenon Short Arc Lamp)
<How to adjus>
a. Enter the TEST MODE
b. Set the LIGHT SOURCE BOX to LV 15 and K=1.3.
(Xenon Short Arc Lamp, not Halogen Lamp for normal camera adjustment, should be used.)
c. Select the MeShut 80 Clbt. d. Select OK and press the OK button.
e. The adjustment is executed. f. The adjustment is completed.
※ If the adjustment is failed, the NG sign will be shown. In this case, readjust the camera again.
Light source box
Camera
Page 52
53
Ⅳ. ADJUSTMENT
535353

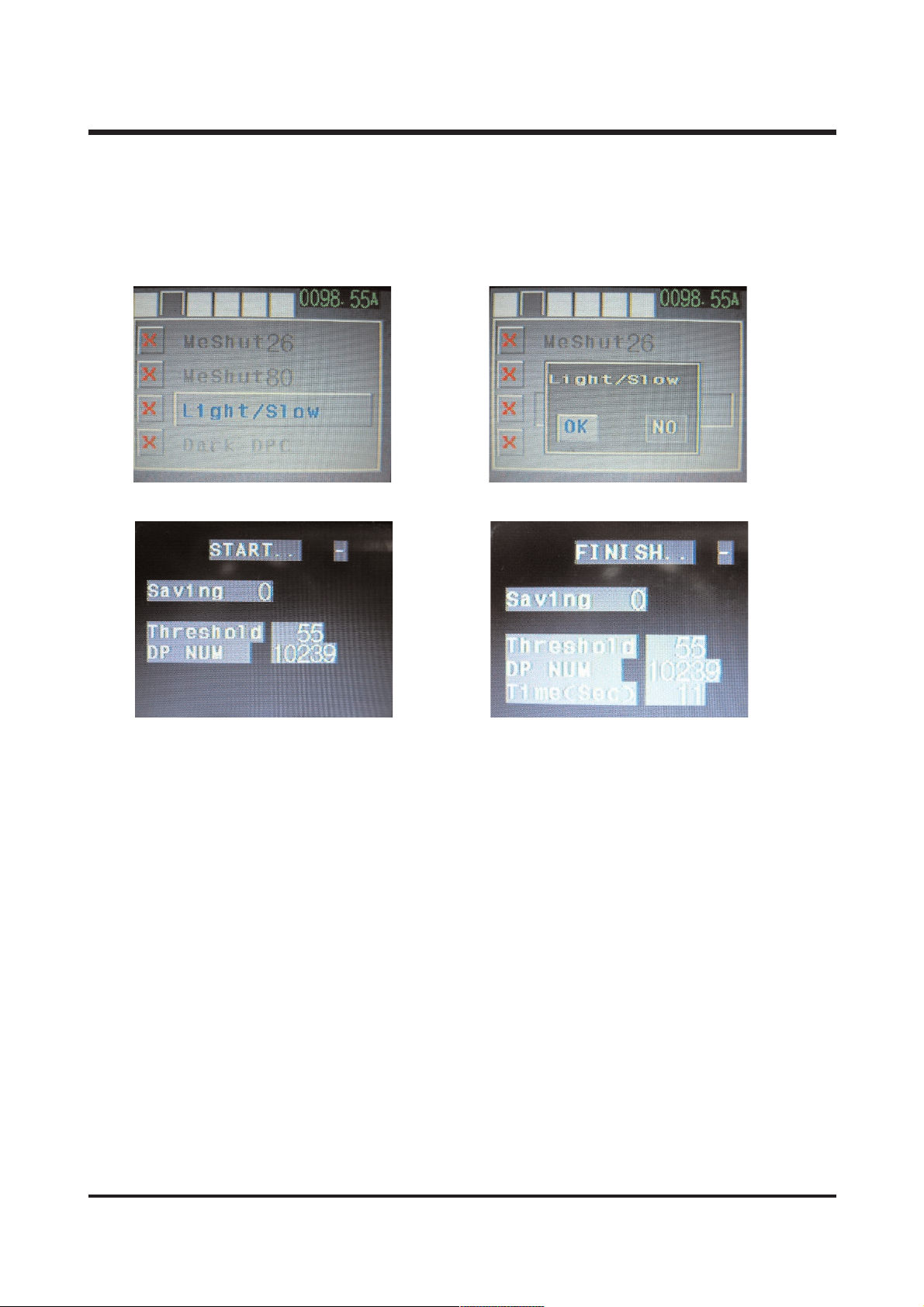

66)) LLiigghhtt//SSllooww((LLiigghhtt DDeeaadd PPiixxeell//SSllooww SShhuutttteerr DDeeaadd ppiixxeell CCaalliibb..))
<How to adjus>
a. Enter the TEST MODE
b. Select the Light/Slow. c. Select OK and press the OK button.
d. The adjustment is executed. e. The adjustment is completed.
f. When the Light/Slow adjustment is completed, the Burring will be executed.
g. When the Burring is completed, OK sign will be shown.. (about 40 Min)
Page 53
54
Ⅳ. ADJUSTMENT
545454

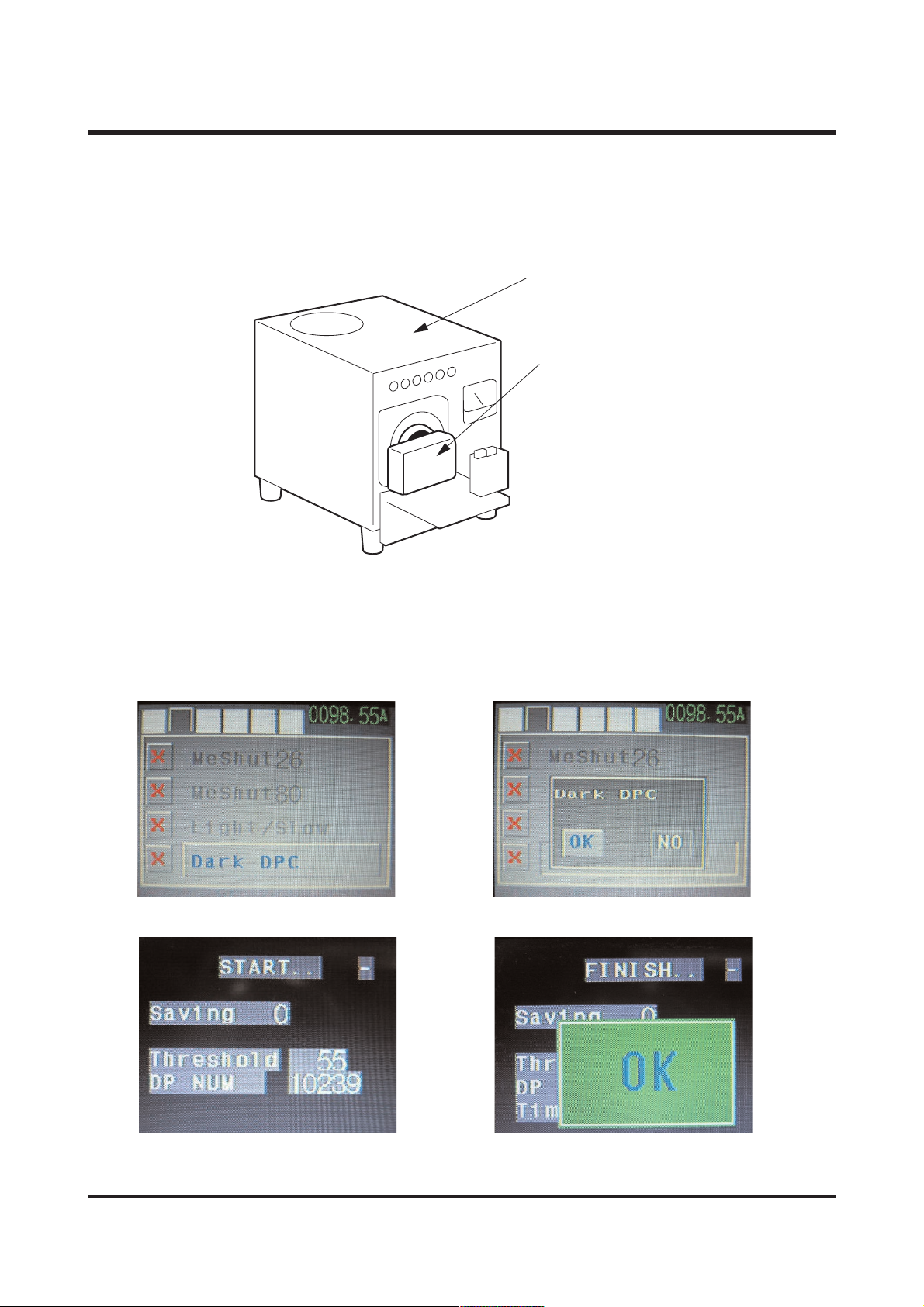

77)) DDaarrkk DDPPCC ((DDaarrkk DDeeaadd PPiixxeell CCaalliibb..))
Equipment> LV10, K=1.3, (Halogen Lamp)
<How to adjus>
a. Enter the TEST MODE.
b. Set the LIGHT SOURCE BOX to LV 10 and K=1.3.
(Halogen Lamp has to be used.)
c. Select the Dark DPC. d. Select OK and press the OK button
e. The adjustment is executed. f. The adjustment is completed.
※ If the adjustment is failed, the NG sign will be shown. In this case, adjust the camera again.
Light source box
Camera
Page 54
55
Ⅳ. ADJUSTMENT
555555

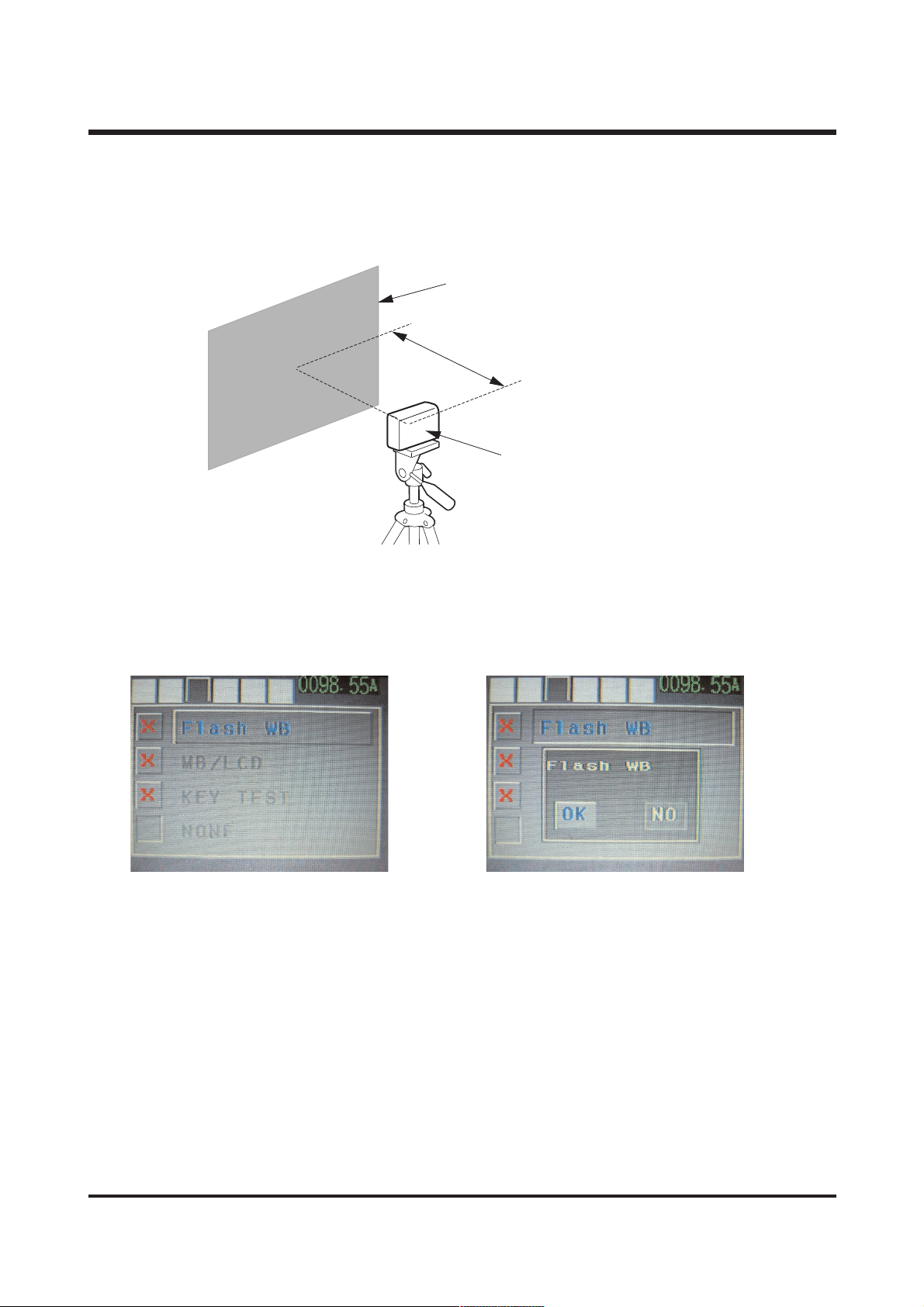

88)) FFllaasshh WWBB
Equipment> Dark room, Gray Chart (18%)
<How to adjus>
a. Enter the TEST MODE.
b. Set the 18% Reflector paper in the dark room and put the camera 1m away from the chart.
c. Select the Flah WB. d. Select OK and press the OK button.
e. The adjustment is executed. f. The adjustment is completed.
※ If the adjustment is failed, the NG sign will be shown. In this case, adjust the camera again.
p
Tri
Reflector paper
1m
Camera
od
Page 55

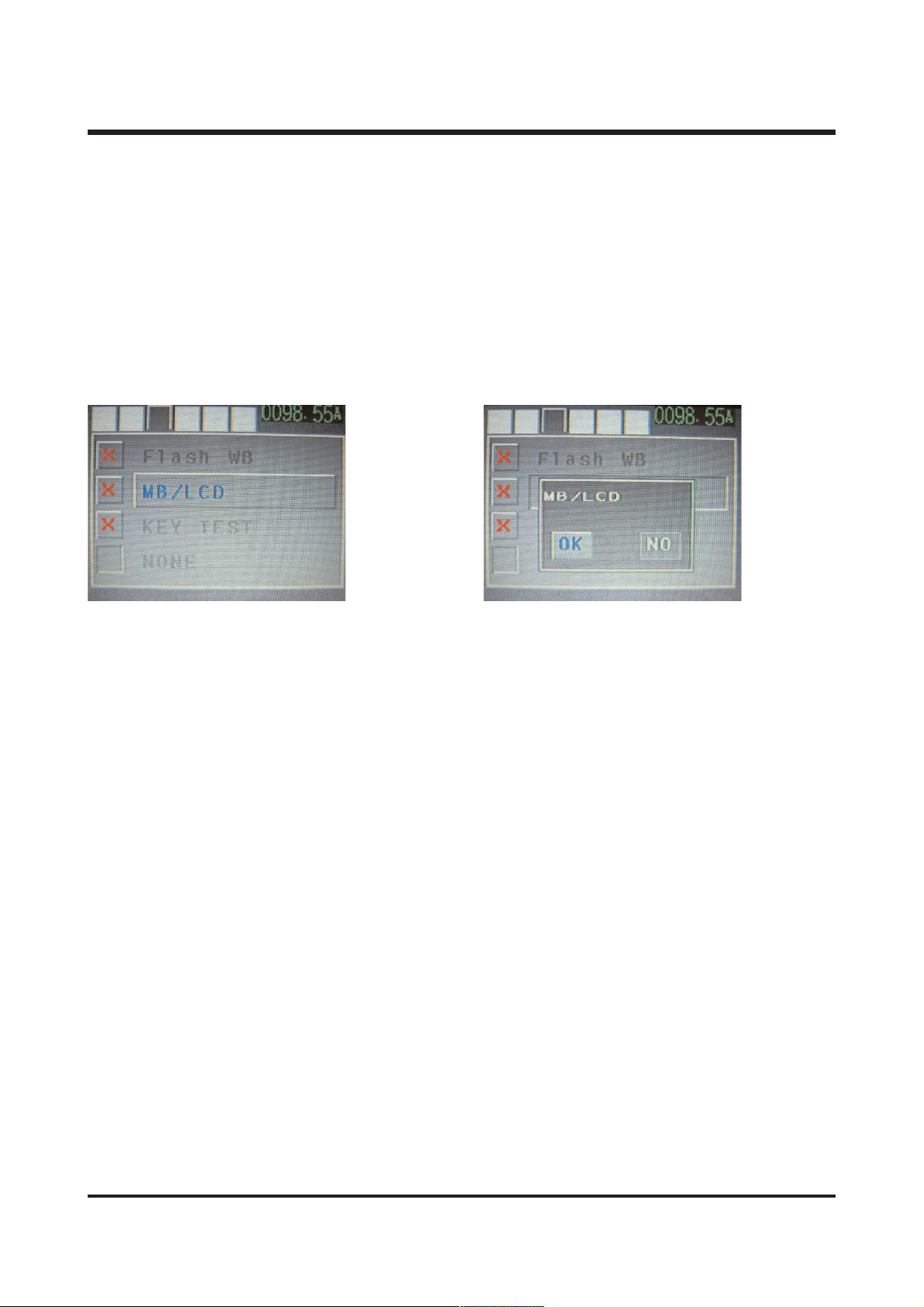

99)) MMBB//LLCCBB
This mode tests the MAIN BOARD like below section..
. FW Version, RTC Check, AGC Check, E-Shutter Check, SD Card Check, Charge/Trigger,
Record/Play Audio, LCD check
a. Enter the TEST MODE.
b. Select the MB/LCD. c. Select OK and press the OK button
d. The adjustment for each section is executed. e. The adjustment is completed..
56
Ⅳ. ADJUSTMENT
56
Page 56
57
Ⅳ. ADJUSTMENT

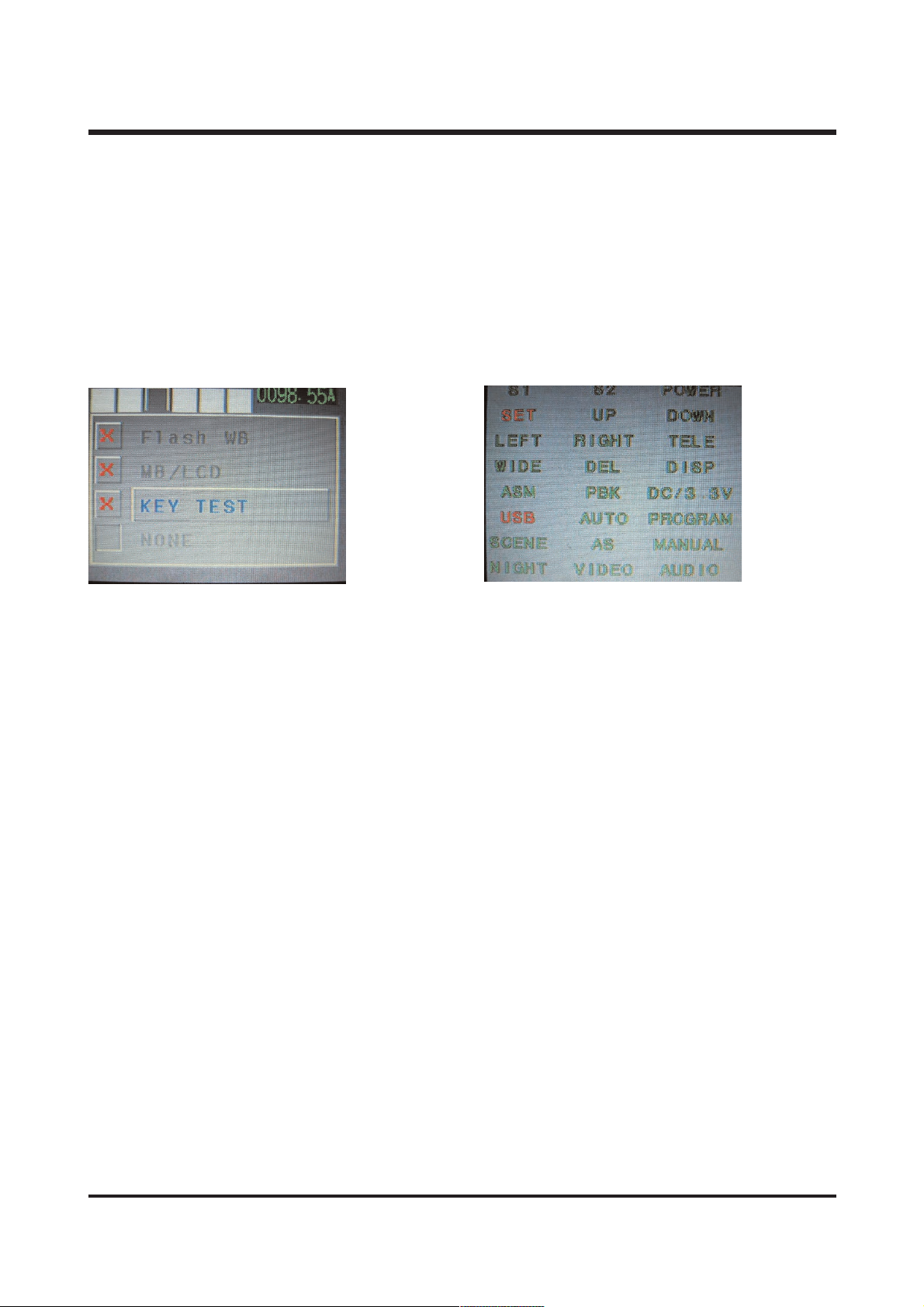

1100)) KKEEYY TTEESSTT
This mode tests the working statement for each KEY.
a. Enter the TEST MODE..
b. Select the KEY TEST. c. Select OK and press the OK then press the
each button or rotate it. The section will be
chaged to green if it acts properly..
Page 57
ⅤⅤ.. PPAATTTTEERRNN DDIIAAGGRRAAMM
585858
11.. PPAARRTTSS AARRRRAANNGGEEMMEENNTT FFOORR EEAACCHH PPCCBB AASSSS''YY
1) MAIN PCB ASSEMBLY_A6 (TOP)
5858
Page 58
59
Ⅴ. PATTERN DIAGRAM
59595959
2) MAIN PCB ASSEMBLY_A6 (BOTTOM)
Page 59
60
Ⅴ. PATTERN DIAGRAM
60606060
3) MAIN PCB ASSEMBLY_A5 (TOP)
Page 60
61
Ⅴ. PATTERN DIAGRAM
61616161
4) MAIN PCB ASSEMBLY_A6 (BOTTOM)
Page 61
62
Ⅴ. PATTERN DIAGRAM
62626262

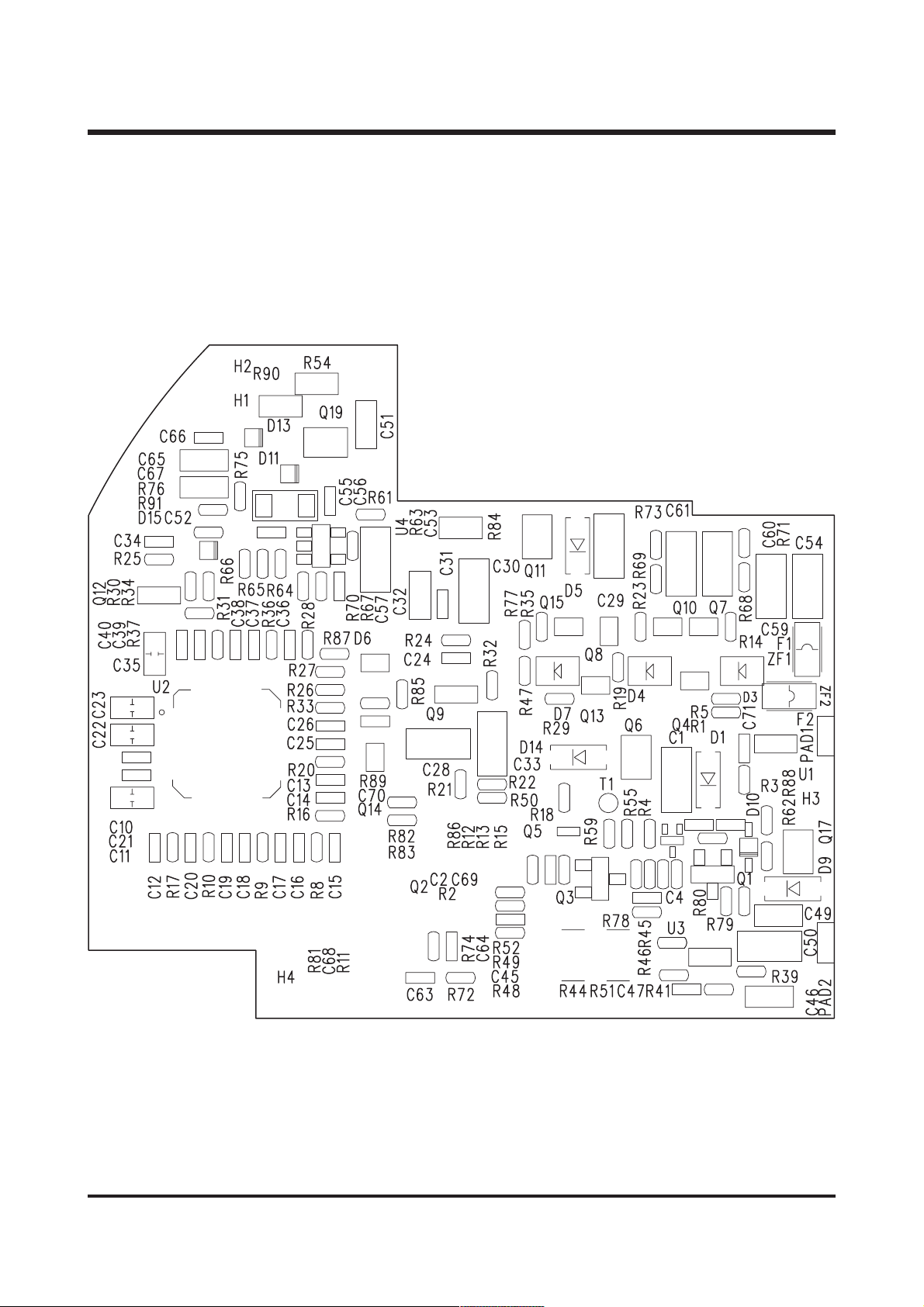

5) POWER PCB ASSEMBLY (TOP)
Page 62
63
Ⅴ. PATTERN DIAGRAM
63636363

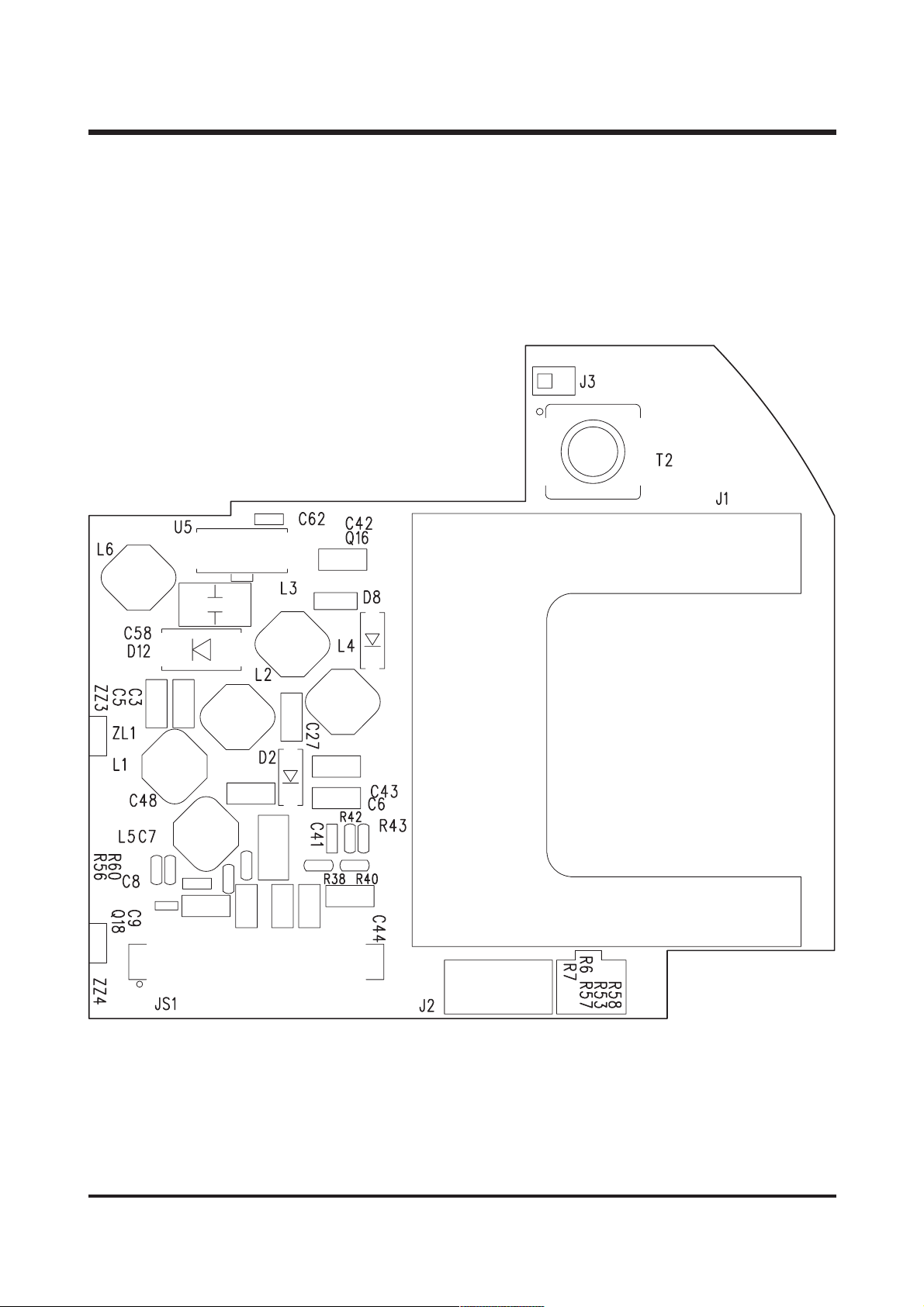

6) POWER PCB ASSEMBLY (BOTTOM)
Page 63
64
Ⅴ. PATTERN DIAGRAM
64646464
7) CCD PCB ASSEMBLY (TOP)
U1
Page 64
65
Ⅴ. PATTERN DIAGRAM
65656565

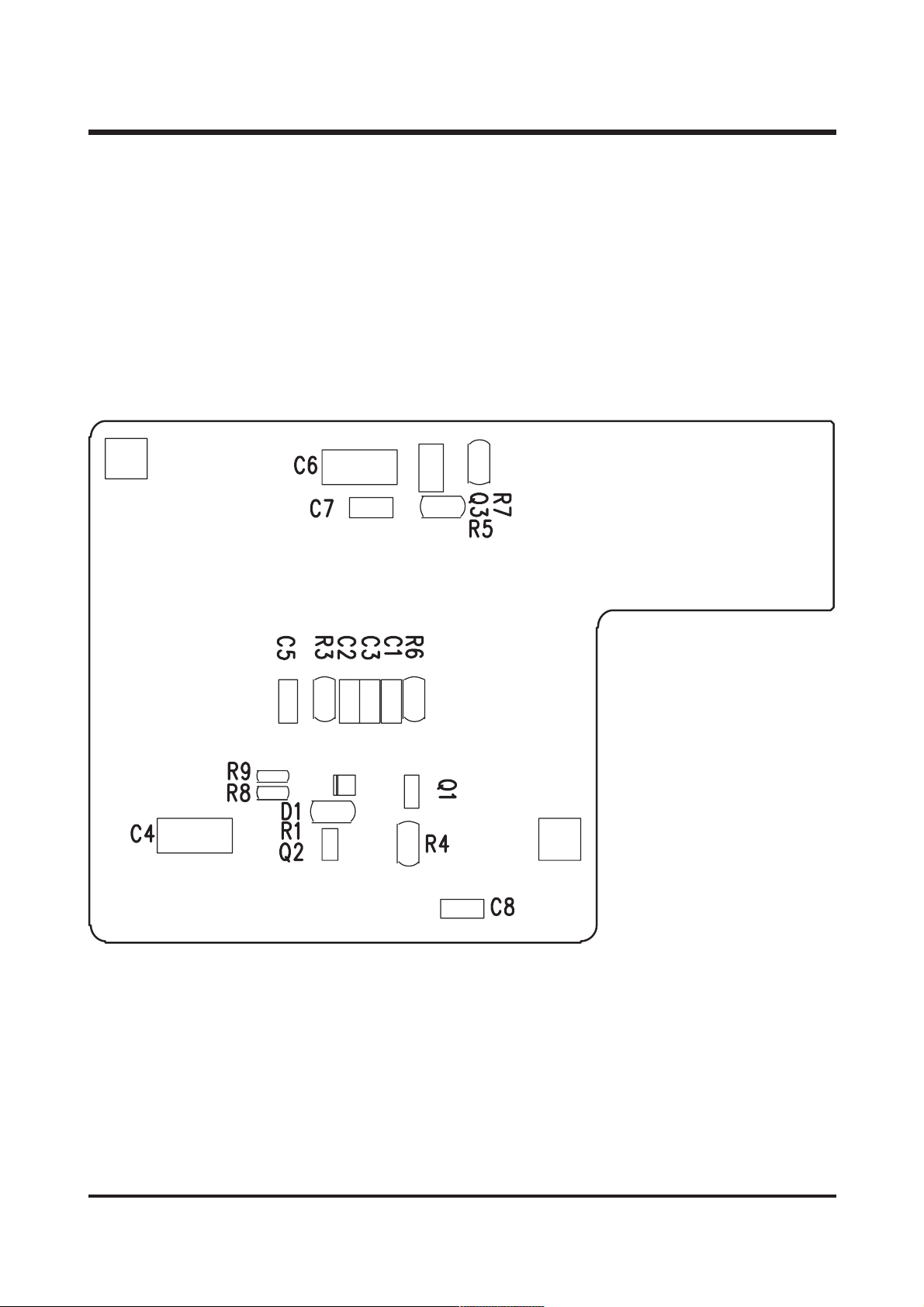

8) CCD PCB ASSEMBLY (BOTTOM)
Page 65
66
Ⅴ. PATTERN DIAGRAM
66666666

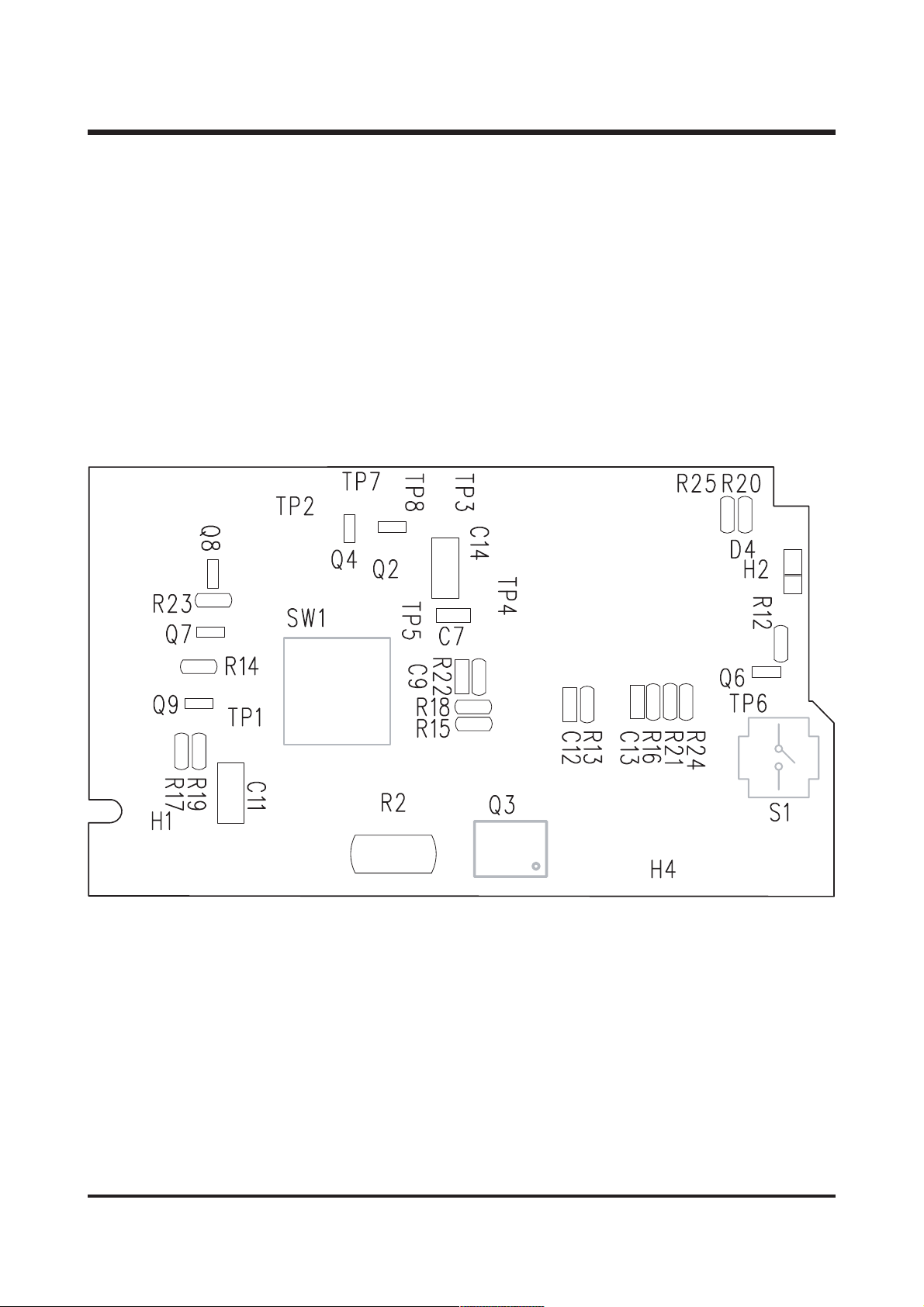

9) STROBE PCB ASSEMBLY (TOP)
Page 66
67
Ⅴ. PATTERN DIAGRAM
67676767
10) STROBE PCB ASSEMBLY (BOTTOM)
Page 67
68
Ⅴ. PATTERN DIAGRAM
68686868

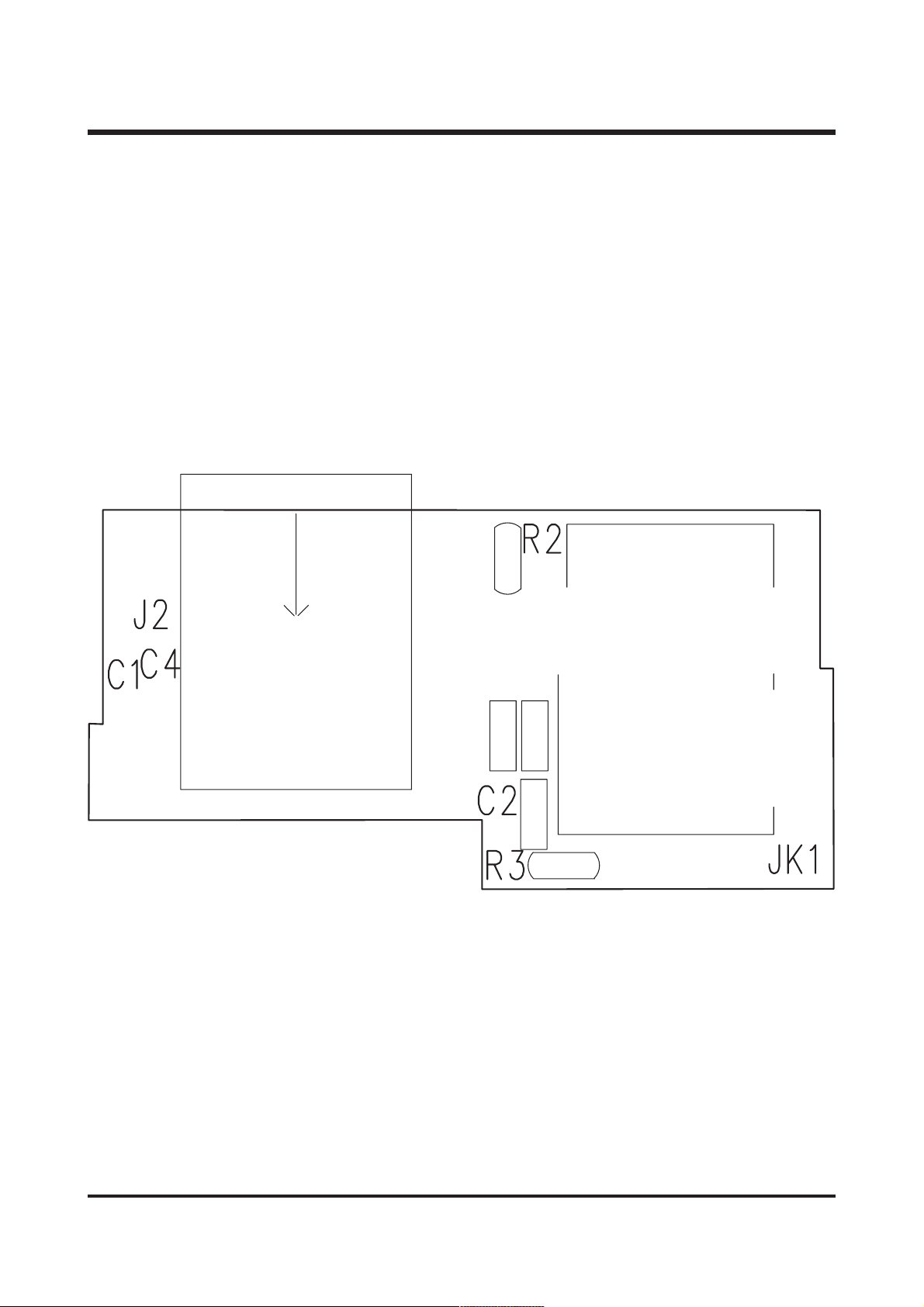

11) USBDC PCB ASSEMBLY (TOP)
Page 68
69
Ⅴ. PATTERN DIAGRAM
69696969
12) USBDC PCB ASSEMBLY (BOTTOM)
Page 69
70
Ⅴ. PATTERN DIAGRAM
70707070

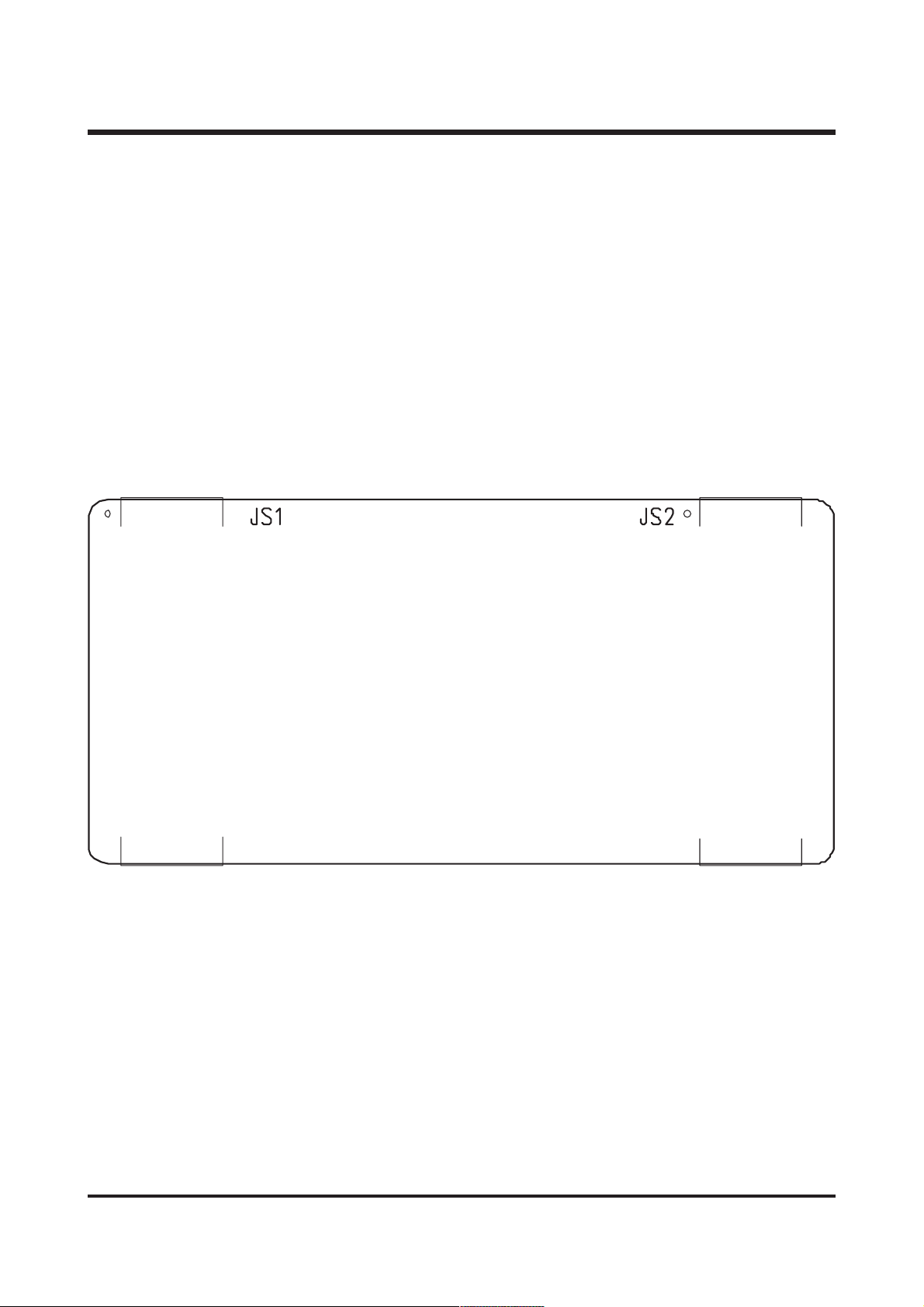

13) TRANSFER PCB ASSEMBLY
Page 70
71
Ⅴ. PATTERN DIAGRAM
71717171
14) UI PCB ASSEMBLY
Page 71
ⅥⅥ.. CCIIRRCCUUIITT DDIIAAGGRRAAMM
7272727272
11.. BBLLOOCCKK DDIIAAGGRRAAMM
CCD
MN39595
STROBE
STROBE
POWER
AT1453
PANASONIC 5M
VERTICAL
AN20101A
DRIVER
AN12055A
TG/CDS/AGC
LENS
DRIVER
LENS
LB8656W
TP018
TOPPOLY
LCD LCD
LC15004
LCD DRIVE
32.768KHz
POWER
IF
GPIO SENSOR
RTC
SDRAM IF
SDRAM 32M
FLASH IF
NAND
FLASH
32M
GPIO
COACH 6
STORAGE IF
SD
DISPLAY
IF
GPIO
USB IF
USB
DAC
UI
IFAUDIO
MIC SPEAKER
Page 72
73
Ⅵ. CIRCUIT DIAGRAM
73737373
22.. BBLLOOCCKK DDIIAAGGRRAAMM ((PPOOWWEERR))
TG
LD0 3.3V
LCD_3V3
CDS/AGC/ADC
Power Down by
Software
LDO 3V
COACH6
+3.3V_ASIC
SDRAM
FLASH ROM
ASIC1V8
BD9733 CH3
LCD
TP018
LCD
LCD_BL
CCD
CCD_12V
CCD
CCD_-8V
LENS
MOTOR
STROBE
(3.3V)
BD9733 CH1
D3V3
+3.3V_ASIC
BD9733 CH2
BAT
DCIN
BD9733 CH4
BATT
LCD_BL
LCD_8V5
CCD_12V
BD9733 CH5
CCD_-8V
L6920
+4.2V
S_BAT
STROBE
AT1453
LCD_5V
FS8801-50CV
Page 73
74
Ⅵ. CIRCUIT DIAGRAM
74747474

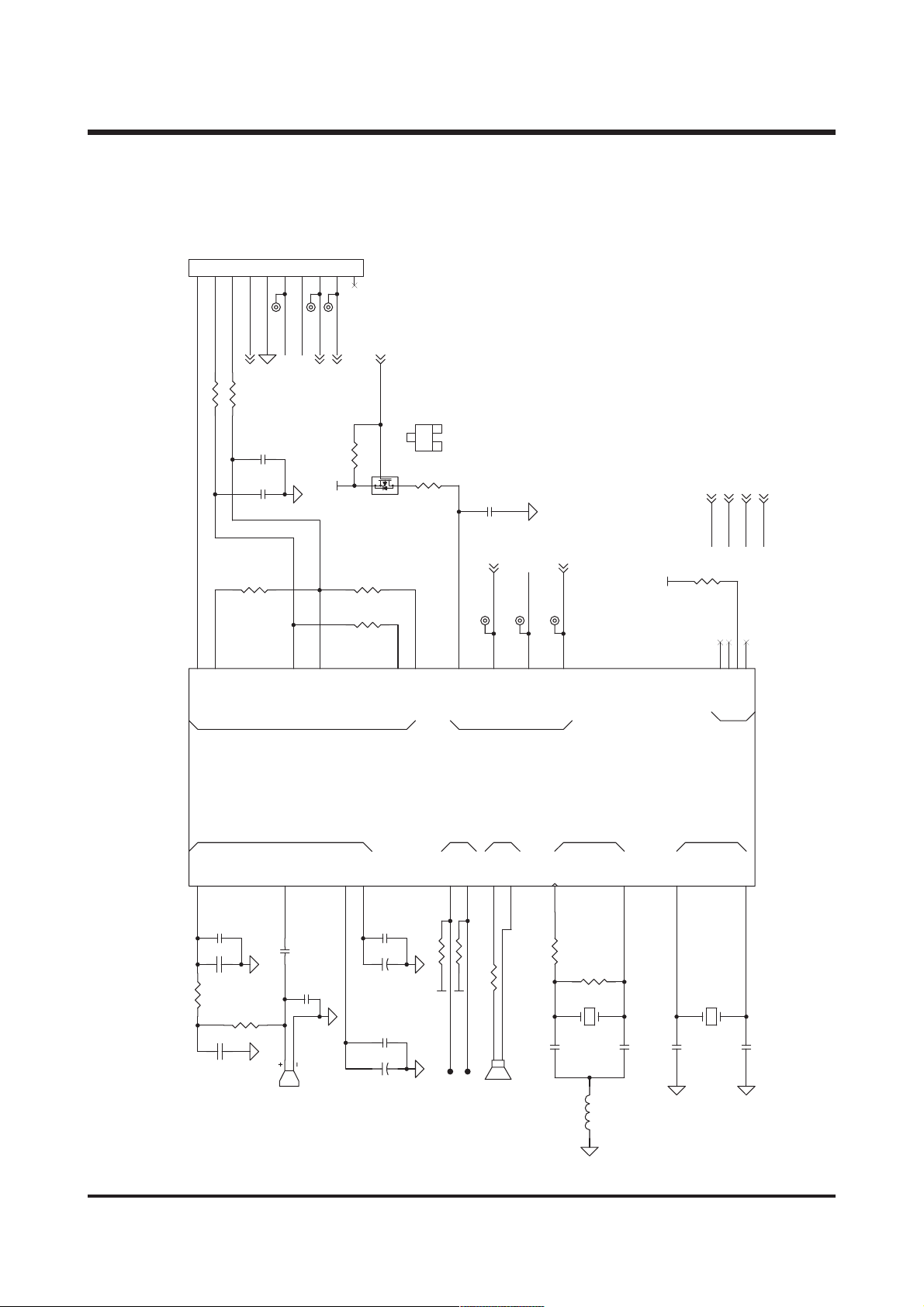

22.. CCIIRRCCUUIITT DDIIAAGGRRAAMM
1) MAIN_A6 (BUTTON INTERFACE,AUDIO,USB,UART,SPK,X'TAL,ADC AND EJTAG)
123456789
USB LINK
CONNECTOR
1
2
3456789
USBIO
22RR222R
R1
R4
C8
C7
USBPUP
USBDETECT
USBIO
3
C4
C3
1.5K
GND_D
NC.
NC.
P1P6P2C157
ADC1
+3.3V_ASIC
GND_D
A6
USBDM
P3
UI_STROBE
PLAYBACK
UI_STROBE
5
6
BAT_PWR
A7
USBDP
M
R5 1
10
10
NC.(15K)
R7
R6
NC.(15K)
G
S
UI LINK
CONNECTOR
6
BAT_LOW_CTRL
BAT_LOW_CTRL
D
G
R8
D S
D
Q1
AO3401
D7
D8
USBID
USBPDWN
SG
0R
6
GND_D
ADC0
ADC0
ADC1
()
()
A9
B9
GPADC1
GPADC0
+3.3V_ASIC
BAT_LOW
A8
GPADC3
6
0.1u
C10
ADC2
ADC2
P4
()
B8
GPADC2
P5
5
BAT_PWR
R13
33K
3,4,5,6
+3.3V_ASIC
R12
R13
P12
EJTDI
EJTMS
2,3,4,5,6,7
GND_D
P13
EJTCK
EJTDO
2,5,7
GND_A
H=1.4mm
U1E
7.5K
R108
MICENB
B13
C2
0.1u
C1
C156
4.7u/6.3V
MIC
C0805
10u/6.3V
R3
1.5K
C0603
USB
INPUT
C5
GND_AGND_A
MIC1
MIC
A13
0.047u
1000p
1
2
KEC-2240WBJ-G9A
AREF
C12
GND_A
D12
VCM
C9
C8
C7
C6
0.1u
+
10u/6.3V
0.1u
+
10u/6.3V
ZORAN
COACH 6 M
UART
RXD
TXD
P2
P1
33K
33K
R110
R109
C0805
+3.3V_ASIC
+3.3V_ASIC
1
1
GND_A GND_A
2
1
TP
C0805
TP
LS1
SPEAKER
SPKRN
A11
0R
R10
ADC
INPUTS
OUT
SPKRP
A12
R11
C11
(8R 75mW)
DS-152(A)
VCLKO
A5
47R
22p/50V
13.5MHZ
XTAL
R12
1M
hz
Y1
13.5M
1 2
C12
22p/50V
3
L10RL060
GND_D
VCLKI
B5
C13
B17
9p/50V
RTCXI
GND_D
EJTAG
32KHZ
XTAL
z
Y2
32.768Kh
1 2
C14
PINS
RTCXO
A17
9p/50V
GND_D
Page 74
75
Ⅵ. CIRCUIT DIAGRAM
75757575
2) MAIN_A5 (BUTTON INTERFACE,AUDIO,USB,UART,SPK,X'TAL,ADC AND EJTAG)
1
2
USB LINK
CONNECTOR
345
12345
678
678
P1
9
10
UI LINK
CONNECTOR
6
9
10
P2
P3
ESD
C8
C7
USBDETECT
0RR10R
R2
USBPUP
USBIO
USBIO
3
C4
C3
R4
1.5K
MIC
INPUT
GND_D
NC.
NC.
USB
ADC1
+3.3V_ASIC
GND_D
A6
USBDM
UI_STROBE
PLAYBACK
UI_STROBE
5
6
BAT_PWR
A7
USBDP
M
R5 1
R7
NC.(15K)
R6
NC.(15K)
G
S
BAT_LOW_CTRL
BAT_LOW_CTRL
D
G
R8
D S
D
Q1
AO3401
D7
D8
USBID
USBPDWN
ZORAN
SG
0R
6
C10
0.1u
ADC2
ADC2
BAT_LOW
P4
P5
()
A8
B8
GPADC3
GPADC2
ADC
COACH 6 M
UART
SPEAKER
OUT
6
GND_D
ADC0
ADC0
ADC1
P6
()
()
A9
B9
GPADC1
GPADC0
INPUTS
13.5MHZ
XTAL
+3.3V_ASIC
5
BAT_PWR
R13
33K
R12
EJTDI
32KHZ
XTAL
3,4,5,6
2,3,4,5,6,7
+3.3V_ASIC
GND_D
R13
P12
P13
EJTCK
EJTMS
EJTDO
PINS
EJTAG
2,5,7
GND_A
H=1.4mm
U1E
7.5K
R108
MICENB
B13
0.1u
C2
C1
C156
4.7u/6.3V
C0805
10u/6.3V
1.5K
R3
C0603
GND_AGND_A
MIC1
MIC
A13
C5
0.047u
C157
1
2
KEC-2240WBJ-G9A
1000p
AREF
C12
GND_A
D12
VCM
C9
C8
C7
C6
+
+
0.1u
10u/6.3V
0.1u
10u/6.3V
C0805
C0805
33K
R109
+3.3V_ASIC
GND_A GND_A
1
TP
RXD
P2
P1
33K
R110
+3.3V_ASIC
1
1
2
TP
TXD
LS1
SPKRN
A11
R10 0R
SPKRP
A12
R11
C11
(8R 75mW)
DS-152(A)
VCLKO
A5
EMI
33R
22p/50V
1M
R12
hz
Y1
13.5M
1 2
C12
22p/50V
3
L10RL060
GND_D
VCLKI
B5
C13
B17
9p/50V
RTCXI
GND_D
Y2
A17
z
32.768Kh
1 2
9p/50V
C14
RTCXO
GND_D
Page 75
76
Ⅵ. CIRCUIT DIAGRAM
76767676

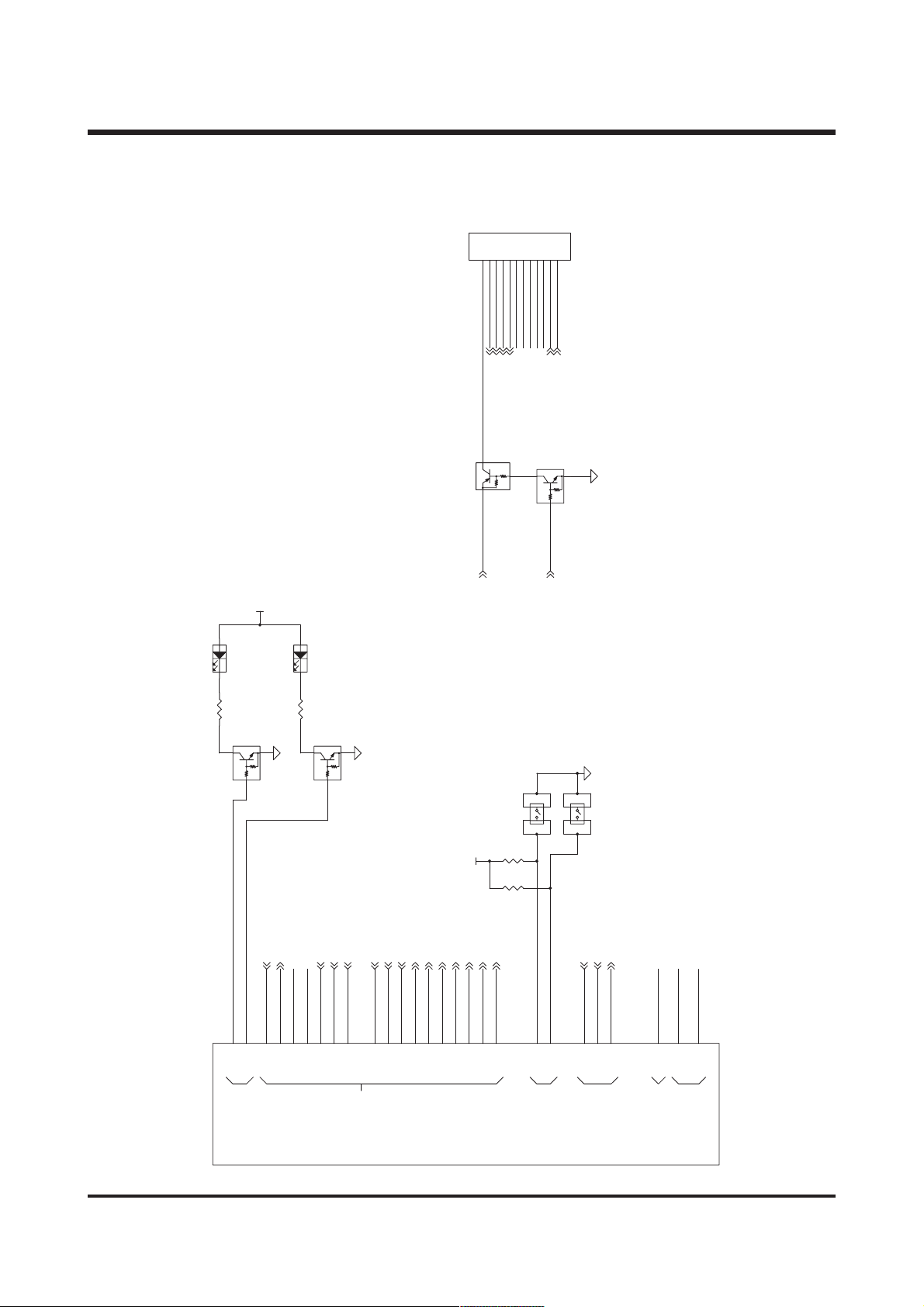

3) POWER_A6
Q4
DTC114YUA
123
GND_D
R0402
R0402
R5 470R
R14 470R
LED_1
V
21
D3
3 4
KPTB-1615SRDGC-PR
D3V3
Q7
DTC114YUA
LED_2
Q8
Q10
DTC114YUA
DTC114YUA
GND_D
123
123
GND_D
R0402
R19 470R
LED_3
D4
123
GND_D
R0402
R0402
R29 470R
R23 470R
LED_4
V
21
3 4
KPTB-1615SRDGC-PR
D3V3
Q15
Q13
DTC114YUA
DTC114YUA
GND_D
123
123
LED_5
21
D7
3 4
D3V3
GND_D
R0402
R35 470R
LED_6
V
KPTB-1615SRDGC-PR
JS1
12345678910
12345678910
BL-
BL+
GND_P
SD_CARD_DETECT
1112
1112
+5V_LCD
+8.5V_LCD
SD_CARD_WP
SD_CS
SDCLK
1314
1516
1718
1314
1516
1718
+3.3V_LCD
FD3
1920
-8V_CCD
FD1
PWR_CCD
PWR_LENS
FD2
PWR_LCD
PWR_AGC
FD0
LED_6
LED_5
PWR_BL
2122
2324
2526
2728
2930
3132
3334
3536
3738
1920
2122
2324
2526
2728
2930
3132
3334
3536
3738
+4.2_MOT
GND_A
GND_MOT
+12V_CCD
J
BAT_ON
LED_3
PWR_3.3V_OFF
LED_2
LED_4
DC_DETECT
BAT
PWR_ENB
LED_1
3940
4142
4344
4546
4748
4950
5152
5354
5556
5758
5960
3940
4142
4344
4546
4748
4950
5152
5354
5556
5758
59
60
D3V3
GND_D
+1.8V_ASIC
+3.3V_ASIC
CONN SOCKET 30x2_AXK6F60345
R1206F2DAITO_KMC20
F1
DAITO_KMC20
DC_JACK_IN
BAT+
PAD1
S_BAT
C54
22uF/16V Y5U-M
1
T
BAT
C1206
DC_DETEC
C1210
C58
47uF/6.3V X7R-K
GND_P
C
R721MR0402
GND_P
R1206
SS32/SMA/DO214A
D12
1
BAT-
PAD2
GND_P
R74
10K
R0402
C64
0.1uF/10V X5R-K
C0402
S_BAT
CON/241-51-02GB
GND_STROBE
GND_P
C63
NC
C0402
1
2
J3
3
1
2
J2
CON/85204-0300
Note : ADD R90 & R84 FOR EMI (Layout 6/24'04)
Note : ADD R81 & D14 FOR SD BOOT (Layout & Bom ,DCN 6/24'04)
Note : ADD R91 & D15 (Layout 6/25'04)
+5V_LCD
0
R79
DS
1
GDS
Q1
AO340
D1
FS1J2E
2 1
L1
47uH
NCDH45T#S470K
+3.3V_LCD_1
R0402
R1 0
BAT
G
R2
C69
470K
R0402
N.C
C2
C1
10uF/10V Y5U-M
U1
0.1uF/16V X7R-K
C1206
2
VDD
R80
N.C
A
Q2
DTC115EE
G O
I
R0402
0
N.C
R4
R83
PWR_LCD
PWR_AGC
PWR_AGC
PWR_LCD
N.C
R0402
R3 0
R82
C71
NC
1
CE
GND LX
45
FS8801-50CV
NC
3
C0805
CH1
C3 10uF/10V Y5U-M
GND_P
GND_P
N.C
R78
1
Q3
AO340
CH1
T1
GND_P
D2
FS1J2E
L2
4.7uH
BAT
0402
47KR
0402
20KR
0402
47KR
+3.3V_LCD_1
R0402
R7 NC
+3.3V_LCD
R0402
R6 0
NC
C4
R12
73.2K-F
R0402
N.C
R86
DS
G
GDS
R11 470K
R0402
1
C68
N.C
C6
2 1
L/CDRH4D28C
C5
0603
R10
R9
R8
POWER_CONTROLLER
C9
10uF/10V Y5U-M
C0805
C8
C0402
0.1uF/10V X5R-K
C7
C1206
R0402
22uF/10V X5R-K
R15
R13 1K
A
Q5
DTC115EE
I
C0805
10uF/10V Y5U-M
Q6
FDN335N
D
DS
G
10uF/10V Y5U-M
C0805
K
0402
33.0K_F
R0402
S
G
R17
R
G O
GND_P
PG4
C12 N.C C0402
C114.7uF/6.3V X5R-MC
C10 0.1uF/10V X5R-KC0402
33K
R0402
0402
D3V3
R22 0
+3.3V_ASIC
R21 0
DS
1
Q9
AO340
GND_P
CH2_3V3
BAT_ON
R0402
R18 0
LCD_AGC
D5
FS1J2E
2 1
L3
4.7uH
L/CDRH4D28C
BAT
CH2
CH2_3V3
12
PG4
PVCC1
13
DTC3
14
C20 0.22uF/10V Y5V-Z C0402
INV3
15
FB3
16
C19 0.1uF/10V X5R-
FB4
17
INV4
18
NON4
19
DTC4
20
C17 0.1uF/10V X5R-KC0402
GND
21
FB1
22
C16 270pF/50V X7R-KC0402
INV1
23
DTC1
24
C15 0.047uF/ 16V X7R-KC0402
RTCTSCP
R16 11K
2526272829303132333435
C14 180pF/50V NPO-J C0402
C13 1uF/10V X5R-MC0402
R20 10K
R
CH2_3V3
R0402
R0402
GDS
C24
OUT5
OUT5
OUT1
OUT4
VCC
C0603
C0402
C21 0.1uF/10V X5R-K
C22 4.7uF/6.3V X5R-M
G
R24
C0402
U2
C23 4.7uF/6.3V X5R-M C0603
100k
0.1uF/16V
PVCC2
BD9733KN
VREGA
C0402
C25 1uF/10V X5R-M
C28NCC1206
R0402
C30NCC1206
R0402
R25
470K
DS
C27
10uF/10V Y5U-M
C0805
OUT3
PGND
OUT2F
RBIAS2
VREF
DELAY
UDSEL2
STB1
C0402
LCD_AGC
C26 0.1uF/10V X5R-K
GND_P
C33
NC
C0805
C32
10uF/10V Y5U-M
C31
0.1uF/10V X5R-K
C34
Q12
S
G
G
C1206
C29
22uF/10V X5R-K
Q11
FDN327N
S
D
G
G
1234567891011
OUT2B
SWOUT
STB23
STB4
36
R0402
R26 0
PWR_ENB
VBAT2
STB5
C1206
P
1000
1
AO341
D
1
R0402
0
R27
PWR_LCD
R87 NC
PWR_BL
D S
GND_P
VBAT
PG1
PG2
PG3
DTC2
SS2
INV2
FB2
FB5
INV5
DTC5
PONCNT
PWR_CCD
GND_STROBE
R0603
R0603
R0603
R84 NC
R54 0
BL-
D10
C1206
C50
22uF/16V Y5U-M
C0805
C49
10uF/16V Y5U-M
DS
C48
10uF/10V Y5U-M
C0805
Q18
I
UDZ12B
Q17
FDN335N
D
G
R0603
R53 0
DTC143ZEA
G O
R0402
R56
100R
R55
82KF
R0402
S
G
+12V_CCD
5
MIC5207BM
GND_D
LCD_CCD_POWER
FB5
T2
BAT
R58 0
R0603
R57 0
R60
R59
GND_P
LAYOUT
U4
D11
8345B
T0
R90 NC
10RF
R0402
82K
R0402
PIN
R0402
R61 0
R63
5
OUT
VIN
1
0
RB500V-4
578
1
2
R0603
10.5K-F
4
3
3
T
GND_MO
+1.8V_ASIC
R0402
ADJ
GND
EN
C52
R64
C51
GND_P
0
R62
PWR_BL
C53
10uF/25V Y5V-Z
2
1000P/50V X7R-K
C0402
10K
R65
R0402
140K-F
R0402
4
10uF/6.3V Y5V-Z
C0805
GND_P GND_DGND_A
R0402
C1206
C56
0.1uF/16V X7R-K
R66
9.76K-F
C55
10uF/25V Y5V-Z
C1206
Q19
FDN335N
D
DS
G
OUT5
C57
C0402
R0402
S
G
LENS_POWER
R67
1000P/50V X7R-K
R0402
91K-F
C0402
6M CCD : +12V_CCD
5M CCD : +13V_CCD
+4.2_MOT
R0402
R68 0
813
FB
OUT
0
U5
L692
LX
SHDN
7
524
L6
2.2uH
C59
S_BAT
GND_PGND_P
-8V_CCD
0
R70
PWR_CCD
GND_P
-8V_CCD
-7.5V_CCD
C1206
C61
22uF/10V Y5U-M
C60
C1206
22uF/10V Y5U-M
R0402
R69
46.4K-F
LBI
LBO
REF
GND
6
C62
R71
22uF/10V Y5U-M
C1206
R0402
R75 0
D13
R64=140K
R66=9.76KF
R64=150K
R66=11.3KF
R73
20K-F
R0402
0.1uF/10V X7R-K
C0402
470K
R0402
R91
0
C66
C65
0
RB500V-4
R63=10.5K
R67=91K
R63=9.76KF
R67=91K
GND_P
GND_P
PWR_LENS
UDZ 8.2B
D15
21
C0805
C67
10uF/10V Y5U-M
R76
47K
R0402
C0402
0.1uF/16V X7R-K
C0805
10uF/10V Y5U-M
GND_P
GND_P
5
+8.5V_LCD
R0402
C46
10uF/10V Y5U-M
V080
R39 0
R0402
R41
16.5K-F
5
4
5
ADJ
OUT
GND
U3
VIN
EN
MIC5207BM
1
GND_P
R0402
R32 0
PG4
R0402
R30
75K
R0402
R31
75K_F
R0402
33.0K_F
GND_P
GND_P
3
+3.3V_ASIC
0
R81
D14
FS1J2E
2 1
C44
R0402
R38 0
+1.8V_ASIC
NC
C41
R42 NC
R40
8.25KF
R0402
C43
10uF/10V Y5U-M
L4
10uH
C0805
L/CDRH4D28C
D8
FS1J2E
DS
1
Q16
G
GDS
AO341
C42
10uF/10V Y5U-M
CH2_3V3
CH3
BAT
GND_P
C35
C0603
48
47
4.7uF/6.3V X5R-M
46
45
44
43
42
41
40
39
38
37
R0402
R28 0
[0603]
R89
0
3
1
PWR_LCD
0402 C18 0.1uF/10V X5R-KC0402
Q14
2
0
PWR_AGC
DTC114YUA
123
PWR_3.3V_OFF
C70
R33 10K
D6
DAN202U
R85
C40
N.C C
C39
0.033uF/16V Y5V C0402
C38 0.1uF/10V X5R-KC0402
C37 0.047uF/16V X7R-KC0402
C36 1uF/10V X5R-MC0402
GND_P
NC R34
GND_P
R0402
FB5
GND_P
R37 20kR
0402
R36 10KR0402
2
10uF/10V Y5U-M
C0805
R43
10K_F
R0402
2 1
C0805
C45 0.1uF/10V X5R-K
D3V3
R88 NC
PWR_BL
R0402
C0402
78
56
34
12
SD
R45 0
PWR_LCD
R44
R77
CONNECT
GND_P
R0402
R46
97.6K-F
C47
C0402
1000P/50V X7R-K
R0402
BACKLIGHT_POWER
18.3mA
BL+
GND_P
GND_P
D9
FS1J2E
2 1
L5
10uH
L/CDRH4D28C
BAT
CH4
SD_4
13
14
CON/CIM-E66
R0402
SD_CS
VSS2
M_HOLD2
VSS VDD
3 4
SCLK
DAT0
DAT1
DAT2
CD1
CD2
WP
CD/DAT3
CMD
1
2
567
8
9
101112
R0402
123456
78
R52 300R
R51
270Rx4
R50 120R
R47 270R
FD3
FD2
FD1
FD0
SDCLK
R49
33K
R0402
R48
33K
R0402
SD_CARD_WP
SD_CARD_DETECT
M_HOLD1
J1
33Kx4
15K
R0402
Page 76
77
Ⅵ. CIRCUIT DIAGRAM
77777777
4) POWER_A5
R5 470R
Note : ADD R90 & R84 FOR EMI (Layout 6/24'04)
Note : ADD R81 & D14 FOR SD BOOT (Layout & Bom ,DCN 6/24'04)
Note : ADD R91 & D15 (Layout 6/25'04)
+5V_LCD
0
R80
N.C
R79
A
DS
Q2
1
Q1
AO340
D1
FS1J2E
L1
47uH
G
GDS
470K
R2
C69
N.C
2 1
U1
NCDH45T#S470K
+3.3V_LCD_1
R0402
R1 0
BAT
R0402
0.1uF/16V X7R-K
C2
C1
10uF/10V Y5U-M
C1206
2
VDD
PWR_LCD
R3 0
1
CE
FS8801-50CV
NC
3
C3 10uF/10V Y5U-M
DTC115EE
G O
I
R0402
0
N.C
R4
R83
PWR_LCD
PWR_AGC
PWR_AGC
N.C
R0402
R82
C71
NC
GND LX
45
C0805
CH1
Q4
R0402
LED_1
D3
3 4
GND_P
N.C
R78
1
Q3
AO340
CH1
T1
GND_P
D2
FS1J2E
L2
4.7uH
BAT
DTC114YUA
123
GND_D
R0402
R14 470R
V
21
KPTB-1615SRDGC-PR
D3V3
+3.3V_LCD_1
R0402
R7 NC
+3.3V_LCD
R0402
R6 0
NC
C4
R12
73.2K-F
R86
N.C
DS
G
GDS
R0402
R11 470K
1
M
C68
1uF/10V X5R-
2 1
L/CDRH4D28C
Q7
LED_2
C9
10uF/10V Y5U-M
C8
C7
R0402
R13 1K
C6
10uF/10V Y5U-M
C0805
DS
C0805
C5
10uF/10V Y5U-M
DTC114YUA
123
C0805
C0402
0.1uF/10V X5R-K
C1206
22uF/10V X5R-K
R0402
R15
33.0K_F
A
Q5
DTC115EE
I
Q6
FDN335N
D
S
G
G
GND_D
R19 470R
G O
R18 0
LCD_AGC
GND_P
Q8
DTC114YUA
GND_D
123
R0402
R23 470R
LED_3
V
21
D4
3 4
KPTB-1615SRDGC-PR
D3V3
D3V3
R0402
R22 0
+3.3V_ASIC
R0402
R21 0
DS
1
G
GDS
Q9
AO340
R24
GND_P
C24
C0402
CH2_3V3
N
BAT_O
R0402
D5
FS1J2E
2 1
L3
4.7uH
L/CDRH4D28C
BAT
CH2
R0402
100K
0.1uF/16V
R0402
R25
C27
Q10
DTC114YUA
LED_4
C33
C28
NC
C1206
C32
10uF/10V Y5U-M
C31
C30NCC1206
470K
R0402
C29
22uF/10V X5R-K
Q11
FDN327N
D
DS
G
C0805
10uF/10V Y5U-M
123
NC
C1206
C0805
0.1uF/10V X5R-K
P
C34
1000
1
Q12
AO341
S
D
G
G
C1206
S
G
Q15
Q13
DTC114YUA
DTC114YUA
GND_D
123
123
GND_D
R0402
R29 470R
LED_5
21
D7
3 4
D3V3
GND_P
R0402
R32 0
PG4
R30
75K
R0402
R31
75K_F
R0402
D S
GND_P
GND_D
R0402
R35 470R
LED_6
V
KPTB-1615SRDGC-PR
33.0K_F
R0402
GND_P
GND_P
SD_CARD_WP
SD_CS
SDCLK
SD_CARD_DETECT
12345678910
1112
1314
1516
1718
12345678910
1112
1314
1516
JS1
+5V_LCD
BL-
+8.5V_LCD
BL+
+3.3V_LCD
+8.5V_LCD
R0402
R39 0
R41
16.5K-F
R0402
5
4
5
ADJ
OUT
GND
2
U3
VIN
EN
MIC5207BM
1
3
+3.3V_ASIC
0
R81
D14
FS1J2E
C44
2 1
10uF/10V Y5U-M
R0402
+1.8V_ASIC
NC
R38 0
C41
R40
8.25KF
R0402
R0402
R42 NC
C43
1OuF/10V Y5U-M
L4
10uH
C0805
L/CDRH4D28C
D8
FS1J2E
DS
1
Q16
G
GDS
AO341
C42
10uF/10V Y5U-M
C0805
CH2_3V3
FD2
FD3
1920
2122
1718
1920
2122
-7.5V_CCD
C46
10uF/10V Y5U-M
C0805
R43
2 1
FD1
2324
2324
+13V_CCD
C0805
10K_F
FD0
2526
R88 NC
PWR_BL
R0402
2526
PWR_LENS
PWR_BL
2728
2930
2728
2930
GND_A
R45 0
PWR_LCD
PWR_CCD
PWR_LCD
3132
3334
3132
+4.2_MOT
R46
97.6K-F
C47
1000P/50V X7R-K
R0402
PWR_AGC
3536
3334
3536
R0402
C0402
GND_P
GND_P
LED_6
3738
3738
CH3
J
BAT_ON
LED_3
PWR_3.3V_OFF
LED_2
LED_4
DC_DETECT
LED_5
BAT
PWR_ENB
LED_1
3940
4142
4344
4546
4748
4950
5152
5354
5556
5758
5960
3940
4142
4344
4546
4748
4950
5152
5354
5556
5758
59
60
D3V3
GND_D
+1.8V_ASIC
GND_MOT
+3.3V_ASIC
GND_P
BACKLIGHT_POWER
BL+
D9
FS1J2E
2 1
L5
L/CDRH4D28C
10uH
BAT
CH4
F1
DAITO_KMC20
R1206F2DAITO_KMC20
CONN SOCKET 30x2_AXK6F60345
DC_JACK_IN
BAT+
PAD1
18.3mA
Q18
DTC143ZEA
BL-
I
R56
100R
UDZ12B
D10
R55
82KF
C1206
C50
22uF/16V Y5U-M
C0805
C49
10uF/16V Y5U-M
Q17
FDN335N
D
S
DS
G
G
C0805
C48
10uF/10V Y5U-M
S_BAT
1
G O
R54 0
R53 0
R0402
R0402
C54
R0603
R0603
22uF/16V Y5U-M
C1206
R0603
R58 0
R0603
R57 0
R60
R0402
10RF
R0402
R59
82K
GND_P
PIN
LAYOUT
BAT
DC_DETECT
C58
47uF/6.3V X7R-K
C1210
GND_P
C
R72
1M
R0402
GND_P
R1206
SS32/SMA/DO214A
D12
1
BAT-
PAD2
E
GND_STROB
GND_D
R0603
R84 0
R0603
R90 0
GND_A
T
GND_MO
GND_P
R0402
R74
10K
C64
0.1uF/10V X5R-K
C0402
S_BAT
CON/241-51-02GB
GND_STROBE
C63
NC
GND_P
C0402
2
CON/85204-0300
J3
-8V_CCD
R64=140K
1
R66=9.76KF
R63=10.5K
R67=91K
1
2
3
J2
GND_P
6M CCD : +12V_CCD
LENS_POWER
-7.5V_CCD
R64=150K
R66=11.3KF
R63=9.76K
+1.8V_ASIC
GND_P
0
R62
R0402
PWR_BL
5M CCD : +13V_CCD
C61
22uF/10V Y5U-M
+4.2_MOT
C60
R0402
R68 0
R69
46.4K-F
R0402
813
FB
LBO
OUT
0
U5
L692
LX
SHDN
REF
7
524
2.2uH
L6
C1206
C59
22uF/10V Y5U-M
S_BAT
C1206
C1206
22uF/10V Y5U-M
LBI
GND
6
C62
0.1uF/10V X7R-K
C0402
R0402
R71
470K
R67=91K
GND_P
R73
20K-F
R0402
GND_P
PWR_LENS
CH2_3V3
PG4
OUT5
0603
47k R0402
20KR0402
47KR
0402
GND_P
POWER_CONTROLLER
C12 NC C0402
C114.7uF/6.3V X5R-M C
C10 0.1uF/10V X5R-K C0402
12
R0402
R17
33K
R10
K
R9
0402
R8
R0402
C17 0.1uF/10V X5R-K C0402
C15 0.047uF/ 16V X7R-K C0402
0402
C20 0.22uF/10V Y5V-Z C0402
C19 0.1uF/10V X5RC18 0.1uF/10V X5R-K C
C16 270pF/16V X7R-K C0402
R16 11K
C14 180pF/50V NPO-J C0402
C13 1uF/10V X5R-M C0402
R
13
14
15
16
17
18
19
20
21
22
23
24
CH2_3V3
PG4
FB3
FB4
FB1
OUT5
OUT1
OUT4
PVCC2
PVCC1
DTC3
INV3
INV4
NON4
DTC4
U2
GND
INV1
DTC1
RTCTSCP
VCC
VREGA
2526272829303132333435
R20 10K
C0603
C0402
C23 4.7uF/6.3V X5R-M C0603
C22 4.7uF/6.3V X5R-M
C21 0.1uF/10V X5R-K
BD9733KN
C0402
C25 1uF/10V X5R-M
OUT3
PGND
OUT2F
RBIAS2
VREF
DELAY
UDSEL2
STB1
C0402
LCD_AGC
C26 0.1uF/10V X5R-K
GND_P
SWOUT
STB23
PWR_ENB
BAT
GND_P
1234567891011
VBAT2
OUT2B
STB4
STB5
36
R0402
R26 0
1
R0402
0
R27
PWR_LCD
R87 NC
PWR_BL
VBAT
PG1
PG2
PG3
DTC2
SS2
INV2
FB2
FB5
INV5
DTC5
PONCNT
PWR_CCD
GND_P
C35
C0603
48
47
4.7uF/6.3V X5R-M
46
45
44
43
42
41
40
39
38
37
R0402
[0603]
R28 0
R89
0
3
1
PWR_LCD
0402
0402
2
PWR_AGC
Q14
DTC114YUA
123
PWR_3.3V_OFF
C70
R33 10K
DAN202U
D6
0
R85
C40
N.C C
C39
0.033uF/16V Y5V C
GND_P
C38 0.1uF/10V X5R-K C0402
0402
C37 0.047uF/16V X7R-KC0402
C36 1uF/10V X5R-M C0402
GND_P
NC R34
GND_P
R0402
C45 0.1uF/10V X5R-K
C0402
FB5
J1
R37 20KR
R36 10KR0402
R44
33Kx4
78
56
34
12
R77
15K
R0402
D3V3
SD
CONNECT
13
M_HOLD1
SD_CS
SD_4
14
VSS2
M_HOLD2
VSS VDD
CD/DAT3
CMD
SCLK
DAT0
DAT1
DAT2
CD1
CD2
WP
1
2
567
8
9
101112
R0402
R0402
123456
78
R52 300R
R51
270Rx4
R50 120R
R47 270R
FD3
FD2
FD1
FD0
SDCLK
R49
33K
R0402
R48
33K
R0402
SD_CARD_WP
SD_CARD_DETECT
CON/CIM-E66
3 4
+13V_CCD
5
MIC5207BM
GND_D
LCD_CCD_POWER
FB5
T2
BAT
R0402
C1206
R61 0
C53
10uF/25V Y5V-Z
GND_PGND_P
R67
91K-F
R0402
R0402
R63
9.76K-F
5
4
C57
ADJ
OUT
GND
2
VIN
1
0
RB500V-4
578
1
2
EN
3
C52
R64
3
C51
C0402
1000P/50V X7R-K
10K
R0402
R65
R0402
150K-F
4
C0805
10uF/6.3V Y5V-Z
C56
0.1uF/16V X7R-K
R66
11.3K-F
C55
C1206
10uF/25V Y5V-Z
Q19
FDN335N
D
DS
OUT5
1000P/50V X7R-K
C0402
R0402
S
G
G
U4
D11
8345B
T0
-7.5V_CCD
C0402
0
R70
PWR_CCD
GND_P
UDZ 7.5B
0
R91
D15
21
R0402
R75 0
C0805
C67
10uF/10V Y5U-M
GND_P
R0402
R76
47K
C0402
C66
0.1uF/16V X7R-K
GND_P
C65
C0805
0
10uF/10V Y5U-M
D13
RB500V-4
Page 77
78
Ⅵ. CIRCUIT DIAGRAM
78787878

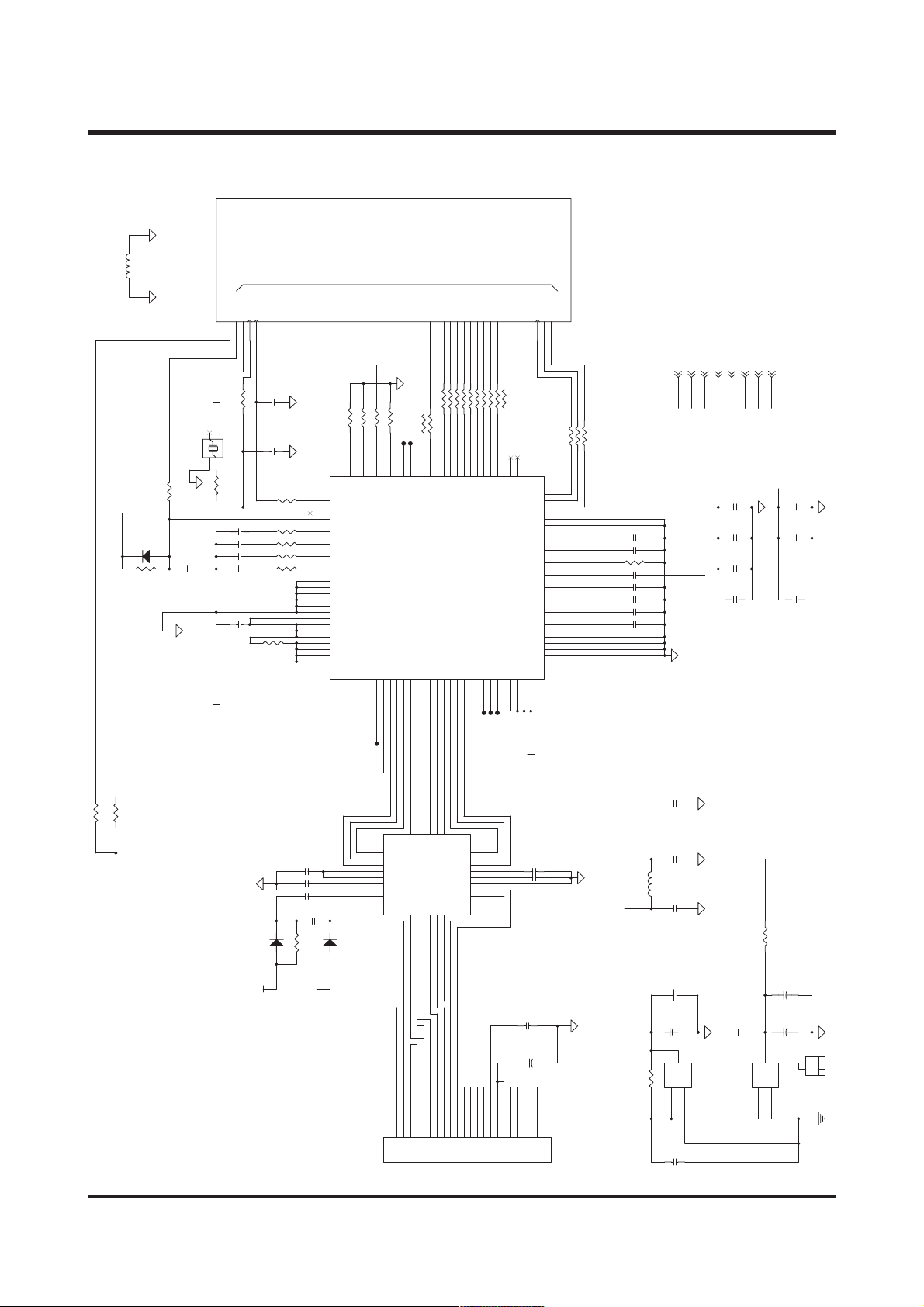

5) MAIN_A6 (SENSOR INTERFACE)
3
L30RL060
L GND_D
R104 NC.(0R)
Layout
R72 0R
+3.3VD_AGC
D8
+3.3VD_AGC
R73
NC.
NC.(1K)
GND_XTA
AFE_RST
R74 NC.(0R)
C95
0.1u
GND_D
Y3
U1C
+3.3VD_AGC
43
2 1
L
Xtal
GND_XTA
R77
+3.3VD_AGC
+3.3VD_AGC
AFEVAL
EXPCNTL
SUBCNTL
N15
M14
M15
TRIG_CNTL
ASIC
NC.(54MHz)
NC.
22p/50V
0.1u
C136
CCLK
CCLKOUT
L16
L17
2xCK
1xCK
R0603
R78 68R
C98 NC
C97
C96 22p/50V
GND_D
+12VD_CCD
RST
RG
HL
H1
H2
5
D9 1SS35
C100
NC
NC
C138
U8
R
R
R)
R
+3.3VD_AGC1
R98 0R R0603
0.1u
0.1u
0805
K
R87 100
+12VD_CCD
GND_D
GND_D
C
R86 47R R0603
R84 0RC99NC
R83 0
R82 0
R81 NC.(0
R80 0
R79 NC.(0R)
26
23
24
25
31
32
36
35
40
39
8
22
50
34
38
42
7
15
29
49
37
30
33
41
+3.3VD_AGC
C103
C102
C101 1u/25V
C104
C0603
0.1u/25V
+3.3VD_AGC
R88 100K
62
CLKO
XI
XO
CLR
R
HL
H1
H3
H2
H4
V5R
5
D10 1SS35
+3.3VD_AGC
SENSOR
K
R89 100
61
TEST1
TEST2
DRVSS
DVSS2
DVSS2
DVSS3
DVSS3
DVSS3
DRVDD
DVDD2
DVDD2
DVDD2
DVDD3
DVDD3
DVDD3
DVDD3
V3R
V5L
V3L
525354
51
SUB
+12VD_CCD
-8VA_CCD
OFD
1K
R90
21
28
SUBCNT
1
9
TP
ZORAN
HIS
M17
M16
+3.3VD_AGC
0R
0R
GND_D
R93
R92
K
ASIC
0
1
TP1
R91 10
TP1
1
1
161718
19
20
HD
STO
SHUT
CCDSW1
CCDSW2
U8
V5
SUB
CH5
VA
V6
CH3
SUBSW
SUBCNT
47
55
60
46
48
58
27
SUBSW1
V6X
V2X
CH3
V4X
CH5
V5X
28
IV4
IV6
IV5
CH4
1
CH5
2
ISUB
3
VH
4
VHH
5
VL
6
VM
U9
AN20101A
7
OSUB
8
VO6
VO8
OV7
9
1011121314
V5BV4V3A
V6
V3A
V5A
V5B
OFD
V6 V5A
OFDC
123456789101112131415161718192120
123456789
J5
COACH 6 M
VIS
VID5
VID4
VID9
VID8
VID7
VID6
J14
L14
L15
K16
K17
K14
K15
0R
0R
ASIC
R111
R1140RR1150RR1120RR1190RR1180RR120
R1130RR1170RR116
6
12
14
91011
13
VD
D6/D4
D7/D5
D8/D6
D9/D7
D10/D8
D11/D9
AN12055A
V1V2V3
CH1
CH2
CH4
434445
565759
65
1
2
TP1
CH1
V1X
V3X
CH2
CH4
2324252627
IV2
CH2
CH3
IV3
H=0.8mm
22
CH1
21
IV1
20
VDC
19
VL
18
VM
17
OV1
QFN028-P
16
OV2
15
OV4
OV5
OV3
V3B
V2 V2
V4
V3B
V1 V1HLH1
H2
1011121314151617181921
VID2
VID3
VID1
J15
J16
5
D5/D3
D3/D1
D4/D2
EXDS2
EXDS1
EXADCLK
67
68
1
1
4
3
TP1
TP1
-8VA_CCD
+12VA_CCD
VID0
J17
0R
1
234
D2/D0
D0/NC
D1/NC
VDD
VDD
74
64
C106
C105
GND_A
+12VA_CCD
CCD_DATARGGND_A
GND_A
SPCLK
N16
DCL
K
DATA
CS
STB
NOE
VRT
VRB
AUX
CDDOUT
DC_DET 4
DC_DET 3
DC_DET 2
DC_DET 1
DVSS1
VSS
VSS
VSS
DVDD1
VDD
80
69
+3VA_AGC
+3VA_AGC
C108
0.1u
+3.3VD_AGC
-8VA_CCD
0.1u
C107
2.2u/16V
C0805
2.2u/25V
TC-A
+
GND_A
22
22
20
SPDATA
TGVAL
N17
N14
H=0.85mm
AFE_SCK
ASIC
R940RR95
DCLK
86
85
84
83
82
78
77
79
72
75
73
71
70
81
76
63
66
BL114-22RL
TG_CSCS
0R
0R
ASIC
R96
DATA AFE_SDATA
0603
0603
0603
GND_D
GND_A
NOTE:
R73 1K===>NC.
-8VA_CCD
+12VD_CCD+12VA_CCD
+3.3VD_AGC
+3.3V_LCD
5
L40RL080
(58mA)
R97 NC.(0R)
R0603
C116
C115 1u/16V/X7RM C0603
C114 1u/16V/X7RM C
R105 0R R0402
C113 0.1u/25V C0805
C112 0.1u/16V/X7RM C0603
C111 1u/16V/X7RM C
C110 1u/16V/X7RM C
C109 1u/16V/X7RM C0603
Layout
C120
C119
C118
47u/6.3V
TC-A
+
U11
C125
2,5
+3.3V_LCD_1
GND_A
22u/16V
C1206
22u/16V
C1206
4.7u/16V
C0805
C117
O
VOUT
VIN
VSS
I
G
6
5
+12VA_CCD
TRIG_CNTL
CCD_DATA
GND_D GND_AGND_A
22u/6.3V
C1206
AIC1734-33CU
C0805
10u/10V/Y5U
5
-8VA_CCD
+3VA_AGC
GND_D
5
2,5
+3.3V_LCD
GND_POWER
C124
0.1u
C123
0.1u
0.1u
C122
C121
0.1u
+3VA_AGC
(42mA)
U10
I
1,2,5
1,2,3,4,5,6
GND_A
GND_D
+3.3VD_AGC
GND_A
+3.3V_LCD_1
R0603
R76 NC.(0R)
C127
4.7u/16V
TC-A
+
C126
22u/6.3V
TC-A
+
O
VOUT
VIN
VSS
G
AIC1734-30CU
C133
C132
C130
GND_D
0.1u
0.1u
0.1u
GND_A
I
GO
Page 78
79
Ⅵ. CIRCUIT DIAGRAM
79797979
6) MAIN_A5 (SENSOR INTERFACE)
3
L30RL060
L GND_D
+3.3VD_AGC
D8
+3.3VD_AGC
R73
GND_XTA
AFE_RST
NC.(1SS355)
NC.(1K)
NC.(0R)
R74
C95
0.1u
GND_D
Y3
U1C
+3.3VD_AGC
43
2 1
L
GND_XTA
R77
+3.3VD_AGC
+3.3VD_AGC
AFEVAL
SUBCNTL
N15
M14
M15
TRIG_CNTL
49.09MHz
82R
C
22p/50V
0.1u
C136
EXPCNTL
CCLK
CCLKOUT
L16
L17
2xCK
1xCK
R0603
R78 NC.
C99 22p
C98 N
C97 22p/50V
C96
NC
C100
K
GND_D
GND_D
R86 47R R0603
R84 0R
R83 0R
R82 0R
R80 0R
+3.3VD_AGC
R88 100
26
CLKO
28
XI
24
XO
25
CLR
27
R
31
HL
32
H1
35
H2
38
14
15
34
37
40
16
29
43
30
33
36
39
NC
C138
RST
RG
HL
H1
H2
+3.3VD_AGC1
R98 0R R0603
SENSOR
R89 100K
23
TEST1
TEST2
DRVSS
DVSS2
DVSS3
DVSS3
DVSS3
DVSS2
DRVDD
DVDD2
DVDD2
DVDD2
DVDD3
DVDD3
DVDD3
DVDD3
+3.3VD_AGC
K
R90 1K
R91 10
21
22
CCDSW1
CCDSW2
SUBSW2
SUBSW
SUB
45
SUBSW1
SUBCNT
1
9
TP
ZORAN
HIS
M17
M16
GND_D
0R
0R
1
0
TP1
TP1
R92
R93
1
1
171819
20
HD
STO
SHUT
U8
V5
CH3V3V4
CH5
V6
41
5051525354
444647
484956
COACH 6 M
VIS
VID5
VID4
VID9
VID8
VID7
VID6
VID3
J14
L14
L15
K16
K17
K14
K15
0R
0R
0R
R116 0R
R111
R1140RR1150RR1120RR1190RR1180RR120
R117
R113
6
12
D5
D6D7D8
D9
VD
D10
D11
AN12052A
CH4
CH1
CH2
V1
V2
EXADCLK
42
55
1
TP12
J15
5789101113
1
3
TP1
VID2
VID1
J16
D4
EXDS2
EXDS1
61
1
TP14
SPDATA
SPCLK
234
585960
1
D1D2D3
VDD
65
D0
VDD
VDD
68
+3VA_AGC
DVDD1
74
N17
N16
DCLK
DATA
CS
STB
NOE
VRT
VRB
AUX
CCDOUT
DC_DET 4
DC_DET 3
DC_DET 2
DC_DET 1
DVSS1
VSS
VSS
VSS
TGVAL
N14
80
79
78
77
76
73
72
71
66
69
67
64
63
75
70
105
57
TG_CS
AFE_SCK
AFE_SDATA
0R
0R
0R
R94
R96
R95
CS
DATA
DCLK
0603
0603
0603
C115 1u/16V/X7RM C0603
C114 1u/16V/X7RM C
R105 0R R0402
C113 0.1u/25V C0805
C112 0.1u/16V/X7RM C0603
C111 1u/16V/X7RM C
C110 1u/16V/X7RM C
C109 1u/16V/X7RM C0603
6
2,5
TRIG_CNTL
+3.3V_LCD_1
CCD_DATA
GND_A
5
5
-7.5VA_CCD
+13VA_CCD
+3VA_AGC
2,5
+3.3V_LCD
C124
0.1u
C123
0.1u
0.1u
C122
C121
0.1u
5
1,2,5
GND_POWER
GND_A
GND_A
1,2,3,4,5,6
GND_D
+3.3VD_AGC
C133
C132
C130
GND_D
0.1u
0.1u
0.1u
VID0
J17
0R
NC.(0R)
R104
+3VA_AGC
CH3
V6X
CH5
CH4
V5X
V3X
V2X
CH1
CH2
V1X
V4X
C120
22u/16V
R72 0R
1
2
3
SUB
VH
4
C103
C102
C101 1u/25V C0805
C0603
+3.3VD_AGC
+13VD_CCD
5
VL
6
-7.5VA_CCD
VM
7
8
OFD
5
D10 1SS35
GND_D
+13VD_CCD
5
D9 1SS35
+13VD_CCD
K
R87 100
0.1u
0.1u
C104
+3.3VD_AGC
0.1u/25V
OFDC
123456789101112131415161718192120
J5
28
IV2
IV4
IV6
IV5
CH3
CH4
CH5
ISUB
VHH
AN20101A
QFN028-P
U9
OSUB
VO6
VO8
OV7
OV4
OV5
9
1011121314
V3A
V6
V3B
V4
V5BV3A
V5A
OFD
V6 V5A
V3B
V4
V5B
123456789
2324252627
CH2
IV3
22
CH1
21
IV1
20
VDC
19
VL
18
VM
17
OV1
16
OV2
15
OV3
V2 V2
-7.5VA_CCD
+13VA_CCD
V1 V1HLH1
H2
1011121314151617181921
+3.3VD_AGC
-7.5VA_CCD
C106
C105
+
GND_A
+13VA_CCD
CCD_DATARGGND_A
GND_A
C108
0.1u
C107
0.1u
2.2u/16V
C0805
2.2u/25V
TC-A
GND_A
20
GND_D
L40RL080
+13VA_CCD +13VD_CCD -7.5VA_CCD
GND_A
+3.3VD_AGC+3.3V_LCD
22
22
BL114-22RL
C1206
5
C1206
C119
22u/16V
GND_A GND_AGND_D
C0805
C118
4.7u/16V
C01206
C117
22u/10V
C116
47u/6.3V
TC-A
+
R0603
R97 NC.
U11
I
C125
O
VOUT
VIN
VSS
G
AIC1734-33CU
10u/10V/Y5U
C0805
GND_D
R76
+3VA_AGC
U10
+3.3V_LCD_1
NC.(0R)
R0603
C127
C126
O
VOUT
VIN
I
G
4.7u/16V
TC-A
+
22u/6.3V
TC-A
+
VSS
AIC1734-30CU
GND_A
Page 79
80
Ⅵ. CIRCUIT DIAGRAM
80808080
7) MAIN (LCD INTERFACE & VIDEO OUT)
1234567891011121314151617181920212223242526272829
J2
12V/20mA
Vfs
Vf
BL-
BL+
Vfs:GND for LED back light
Vf:LED input volta ge
5
5
C17
C1206
10u/10V
+8.5V_LCD
C16
10u/10V
C1206
+5V_LCD
C155
10u/10V
C1206
+3.3V_LCD_1
17 AGND1 <--> 31 A GND2
17 AGND1 <--> 14 D GND1
14 DGND2 < XX > 4 D GND1
C11
U12
O
VOUT
VIN
VSS
I
G
+3.3V_LCD
R14
392RF
AIC1734-30CU
C1206
C15
NC.(10u/10V)
+3.3V_LCD_1
+3.3V_LCD_1 = +3.0V_LCD_1
Note :
AGND & DGND connect or no t
3
TP
1
A10
0.1u
C139
GND_A
COM
CKV1
GND_D
R15
STV
CKV2
XSTV
GND_D
+8.5V_LCD
GND_DGND_D
GND_D
GND_DGND_D
100K
C18
R16
ENB
XENB
DSG
CSV
VBB
R17
5.6K
+3.3V_LCD_1
Gorund 2D Line
U2
33
XDSG
34
DSG
35
36
37
CKH2
38
CKH1
39
XSTH
40
STH
41
XENB
42
ENB
43
CKV2
44
CKV1
45
XSTV
46
STV
47
48
0.1u
0R
+3.3V_LCD_1
RN31
0R
DSD
XDSG
BOUT
+3.3V_LCD_1
+5V_LCD
32
XDSG
DSG
TEST
NC
CKH2
CKH1
XSTH
STH
XENB
ENB
CKV2
CKV1
XSTV
STV
HOUT
495051525354555657595860626364
ASIC
ROUT
GOUT
LAYOUT ( )
VCC2
AGND2
TERST
DGND1
DIN7
DDX6
DDX7
13456
2
F14
F15
CSH
R18
ROUT
IREF
DIN6
DDX5
E17
VVEE
5.6K
R19
GND_D
RO
RREF
DIN5
DIN4
DDX4
78
E16
STH
100R
1u/6.3V
C19
LAYOUT ( )
AGND1
DIN3
DDX3
DDX2
0R
0R
R106
D17
XSTH
GOUT
COMP
018A
TP
DIN2
R990RR107
D16
GND_D
R20
GO
VCC1
VDD1
DIN1
DDX1
0R
R85
C17
CKH1
2.1KF
LAYOUT ( )
GREF
DIN0
DDX0
TP5
1
C16
CKH2
SLOAD
F17
30
BL114-30RL
BOUT
BO
BREF
VREF
SLOAD
SCLK
SDATA
61
SCLK
SDATA
G16
G17
200R
R21
DSD
COM
DSDO
COMO
XVD
XHD
HSYNC
VSYNC
G14
G15
1
D2
C20
0.47u/16V
D1
C26
C25
C24
C23
C22
C21
171819202122232425262728293031
AGND1
MCLK
LDCLK
47R
R102
ASIC
F16
GND_D
2
3
C0603
UDZS2.7B
0.1u
0.1u
0.1u
0.1u
NC.(0.1u)
2.2u/10V
H=1.2mm
COMH
COML
DGND1
SLEW2
SLEW1
NC
HDO
FRP
STBY
REV
PLCKO
PDO
DGND2
VCNT
R
VDD2
C137
NC.
1
1
1
1
10u/10V/Y5U
C27
D3
DAN217U
3
R22
1K
GND_D
C0603
GND_D
16
15
14
13
12
11
10
9
8
7
1
6
5
4
3
2
1
+3.3V_LCD_1
15
TP16
TP
TP6
4
TP
C0805
C29
2.2u/10V
C28
2.2u/10V
TP7
5.6K
R23
GND_D
UDZ5.1B
1
2
GND_DGND_D
C0603
C0603
GND_D
C30
0.1u
GND_D
5,7
+3.3V_LCD_1
GND_D
GND_D
R24 5.6K
C31
0.1u/X7R
5,7
5,6
+5V_LCD
+3.3V_LCD
200R
R25
C32
1u/6.3V
1,3,4,5,6,7
+8.5V_LCD5GND_D
NOTE:
C22 DEL
C21
GND_D
1,5,7
GND_POWER
1,5,7
GND_A
1u/6.3V/C0402===>2.2u/10V/ C0603
0505
ADD R102/0R
R19 0R===>100 R
R20 2.4K===>2.1 K
D1 NC.===>Z2. 7
C27 10u/10v
0519
C18 0.01u===>0.1 u
GND_D
U1D
RSET
CVBS
VIDEO
OUT
ZORAN
COACH 6 M
DVDAT5
DVDAT6
DVDAT7
DVDAT2
DVDAT3
DVDAT4
2
LCD 1/
DVDAT0
DVDAT1
DVCNTL0
DVCNTL1
DVCNTL3
DVCNTL4
DVCLK
DVCNTL2
Page 80
81
Ⅵ. CIRCUIT DIAGRAM
81818181
8) MAIN (DRAM, NAND, SD INTERFACE & CONFIGURATION RESISTORS)
+3.3VD
C0805
C33
10u/6.3V
FD6
FD4
FD5
FD7
441432423414405396387378369351034113312321331143015291628172718261925
454647
FD[7..0]
U3
+3.3VD
48
NC
K
R27
33
K
R26
33
NCNCNC
I/O 7NCI/O 6NCI/O 5NCI/O 4
NCNCNC
SENCR/B
GND_D
NC
VSS
VCC
K9F5608U0B-YCBO(32MB)
RE
CENCNCNCNCNCVCC
VSS
FRESCE_CE
FOE_RE
FRESBSY_RB
+3.3VD
5
5
FD15FD25FD3
FD0
GND_D
FD1
FD3
FD2
FD0
FD0
FD3
FD1
FD2
I/O 3
I/O 2NCI/O 1NCI/O 0
CLENCALENCWENCWPNCNCNCNCNCNC
2024212322
FA1
FWR_WE
FA0
RESET
5
C34
0.1u
5
5
5
5
SD_CS
SD_CARD_WP
SD_CARD_DETECT
SD_CLK
GND_D
SDC2
SDC1
A6
R29
+3.3V_ASIC
Q2
33K
R31
1
AO340
GND_D
SDC4
SDC3
A8
R34
10K
33K
DS
G
K
GDS
R33
470
I
USBIO
USBIO
1
R37
G O
DTC114YEA
Q3
A7
+3.3V_ASIC
K
33
R40
10K
SDC5 SDC6
R41
1,4,5,6
5
1,2,4,5,6,7
A9
+3.3VD
GND_D
K
33
GND_D
+3.3V_ASIC
FD5
FD3
FD7
FD1
FD0
FD6
FD2
FD4
C1D1E1F1G1H1J1K1F2G2H2
FD7
FD6
FD5
FD4
FD3
FD2
FD1
FD0
U1B
RAMDAT15
RAMDAT14
RAMDAT13
RAMDAT12
RAMDAT11
RAMDAT10
RAMDAT9
RAMDAT8
RAMDAT7
T17
T16
T15
T14
T13
T12
DAT14
DAT13
0R
78
DAT12
DAT11
RN8
13456
2
DAT9
DAT10
0R
T11
78
DAT8
U12
2
1
DAT7
RN10
U13
3 4
DAT6
0R
R17
13456
2
DAT15
RN9
DAT[15..0]
FOE
FRESBSY
DRAM
RAMDAT6
RAMDAT5
RAMDAT4
U14
U15
5 6
7 8
DAT3
DAT5
DAT4
RN11
FRESCE
RAMDAT3
RAMDAT2
RAMDAT1
U16
U17
R16
78
DAT2
DAT1
0R
FLASH
RAMDAT0
P17
13456
2
DAT0
z
U4
K4S561633C/133Mh
DAT15
U5
A14
A14
G8
M2M1K2
FA1
FA0
FWR
MEMORY
2/3
RAMADD14
RAMADD13
RAMADD12
RAMADD11
RAMADD10
T7
T6U4T5T4T3T2T1
U6
A11A9A8
A12
A13
A10
A13
A12
A11
A10
A9
G2
G1
G7
A11
BA0
BA1
A10/AP
A12 / NC
D11
D12
D13
D14
D15
B2B1A2
C1
DAT14
DAT11
DAT12
DAT13
DAT10
J2C2E2
FCD
FEXTCE1
RAMADD9
RAMADD8
RAMADD7
RAMADD6
A5
A6
A7
A8
A6
A7
A9
DRAM
D8D0D9
D10
E9
E1
D2D1C2
DAT8
DAT9
DAT6
DAT7
E3
FCLK
FEXTBSY
RAMADD5
RAMADD4
RAMADD3
RAMADD2
RAMADD1
RAMADD0
R2R1U1U2U3U8U9
A1
A3
A2
A0
A4
A0
A3A5A4
A2
A1
H7H8J8J7J3J2H3H2H1G3H9
A0A1A2A3A4A5A6A7A8
D1D2D3D4D5D6D7
B9
B8
C9C8D9
D8
DAT2
DAT5
DAT1
DAT3
DAT0
DAT4
RAMRAS
0R
R75
CAS
RAS
A8
ZORAN
RAMCAS
RAMCLK
RAMDQMH
T9
T10
68R
R28
0R
R71
F2F7F8E8F1
CLK
CAS
UDQM
NC/RFU
E2
RAMDQML
U11U7U10
LDQM
VDDQ
VDDQ
B3
COACH 6 M
RAMCS
RAMWE
RAMCKEN
T8
CS
VDDQ
VDDQ
C7A7D3
F3G9F9
WE
CKE
J1A1D7B7C3
A3A9
E3
VSS
VSS
VSS
VSSQ
VSSQ
VSSQ
VSSQVDD
VDD
VDD
J9
E7
+3.3V_ASIC
NC.
R30
A[14..0]
33K
R32
A3
GND_D
A4
+3.3VD
+3.3V_ASIC
GND_D
33K
NC.
R35
R36
C36
C35
A7
A8
A9
10u/6.3V
C0805
0.1u
A6
GND_DGND_D
33K
33K
R39
R38
A12
A11
GND_D
13456
78
13456
78
RN133
K
2
A1
A5
A2
0.1u
C42
0.1u
C41
0.1u
C40
C39
0.1u
A13
GND_D
RN233K
2
A10
A0
A14
Page 81
82
Ⅵ. CIRCUIT DIAGRAM
82828282

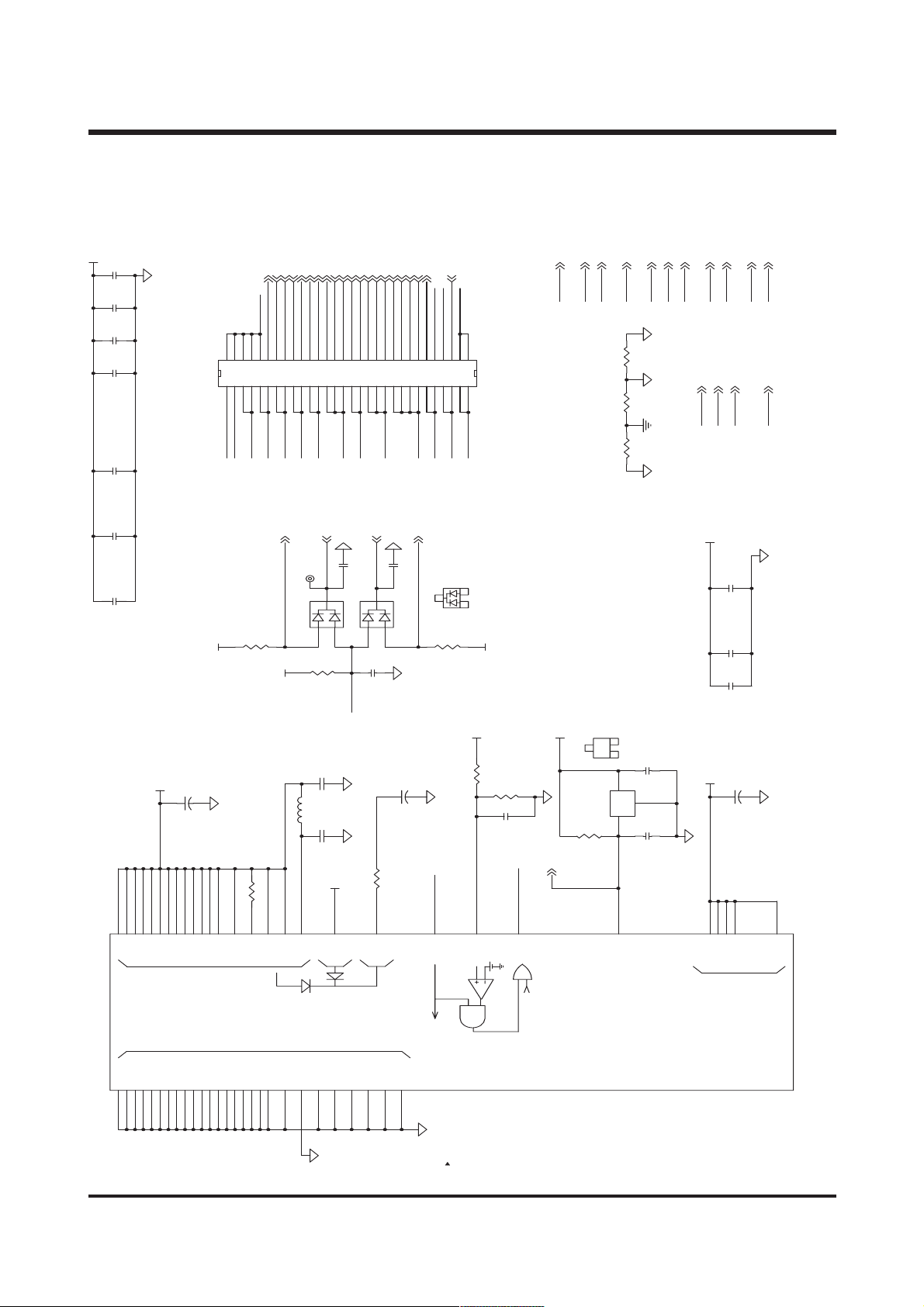

9) MAIN ( MOTOR INTERFACE)
1/3
FLASH
MEMORY
ZORAN
COACH 6 M
1/2
PWM PINS
MOTOR
GPIO PINS 1/3
CONTROL
GND_M
VREF
U1A
R45 1K
ICCVC ICR
R44 7.32KF
R43 10KF
C44
0.1u
C43
0.1u
47KF
+4.2V_MOT
NC
38
39
GND_M
40
FOCUS_A+
41
FOCUS_A-
42
FOCUS_B+
43
FOCUS_B-
44
DCM_CW
45
DCM_CCW
46
GND_M
NC
47
VB4
48
+4.2V_MOT
FA20
FA19
FA18
FA17
E4
D2
IRIS_BN
IRIS_BP
C45 0.1u
R48 2.74KF
R47
FOCUS_BP
FOCUS_BN
3635343332313029282726
IN9
IN10
PGND2
OUT7
OUT8
OUT9
OUT10
OUT11
OUT12
PGND2
VC3
IN13
123456789
VC
D4
D3
IRIS_AP
IRIS_AN
GND_D
FOCUS_AP
FOCUS_AN
IN8
IN7
IN12
IN11
ZOOM_CCW
ZOOM_CW
PWM0
B3
FOCUS_BP
0.1u
C46
+4.2V_MOT
ICC
VCC
U5
VREF
VREF
SGND
ICC
SGND
PWM2
PWM3
PWM1
A3
D5
C5
FOCUS_AP
FOCUS_AN
FOCUS_BN
GND_D
C47 0.01u/25V/X7RK
NC.(18KF)
R50
ICR
FC
ICH ICR
FC
ICH
ICR
LB8656W/SQFP48
IN4
IN3
IN2
IRIS_BN
IRIS_BP
IRIS_AN
GND_D
PWM4
B4
FOCUS_HP
SHUTTER_N
IN6
IN1
101112
IRIS_APVCVC
XLGPIO1
XLGPIO0
P9
P10
ZOOM_HP
ZOOM_CLK
GND_M
0.1u
C48
SHUTTER_P
+4.2V_MOT
25
IN5
VB2
VC2
VC1
M1D
B2B1A2
SHUTTER_P
IMB VB3
NC
IMA
OUT6
OUT5
OUT4
OUT3
OUT2
OUT1
PGND1
NC
VB1
M1C
SHUTTER_N
24 37
23
22
21
20
19
18
17
16
15
14
13
M1B
M1A
A1
ZOOM_CW
ZOOM_CCW
SHUTTER-
SHUTTER+
IRIS_B-
IRIS_B+
IRIS_A-
IRIS_A+
GND_M
+4.2V_MOT
OT
+4.2V_M
R52
1.3RF
R0603
C50
0.1u
C49
10u/10V
C1206
LB8656
LAYOUT
1,3,5,6
+3.3V_ASIC
+3.3V_LENS
0.1u
C53
0.1u
C52
FOCUS_A-
FOCUS_A+
FOCUS_B-
+3.3V_LENS
FOCUS_HP_P
GND_D
GND_D
1011121314151617181921
ZOOM_ENCODER_K
ZOOM_CLK_P
+3.3V_LENS
FOCUS_HP_K
200R
+3.3V_LENS+3.3V_ASIC
0R
R55
GND_M
12345678910111213141516171819
J3
123456789
FOCUS_B+
ZOOM_HP_P
ZOOM_HP_K
+3.3V_LENS
200R
5
+4.2V_MOT
Note:
DCM_CW
DCM_CCW
1,2,3,5,6,7
GND_M5GND_D
R46 75K== =>15K
modify
C134/0.1u/ C0402
IRIS_B
IRIS_B-
SHUTTER+
IRIS_A-
R0805
C135/0.1u/ C0402
R100/6.8R/ R0805
20
21
20
SHUTTER-
IRIS_A
R101/6.8R/ R0805
R0805
0505
R46 15K== =>10K
R51 12K== =>22K
BL114-21RL
+3.3V_LENS
R100 6.8R
0.1u
0.1u
0.1u
C51
C134
R54
GI
O
FOCUS_HP
K
R42
100
G O
I
Q4
DTC114YEA
R46
10K
FOCUS_HP_P
GND_D
+3.3V_LENS
ZOOM_HP
K
R49
100
I
Q5
DTC114YEA
R51
ZOOM_HP_P
G O
GND_D
22K
+3.3V_LENS
U6
ZOOM_CLK
5
VCC
NCAGND Y
123 4
ZOOM_CLK_P
SN74AHC1G14DCK
R53
10K
GND_D
GND_D
0.1u
C54
R57
C55
R56 200R
C135 0.1u
GND_D
I
Q6
PWR_ZOOM
PWR_ZOOM
6
0.1u
C56
IRIS_B+
G O
GND_D
DTC114YEA
R101 6.8R
IRIS_A+
I
PWR_FOCUS
PWR_FOCUS
6
G O
Q7
DTC114YEA
GND_D
Page 82
83
Ⅵ. CIRCUIT DIAGRAM
83838383
10) MAIN (POWER & RESET)
3
3
3
3
3
6
6
3
3
3
6
6
6
6
6
6
6
6
6
6
1
4
3
1,3,4,6
2
2,6
2,7
7
2
2
+3.3V_ASIC
C76
0.1u
C75
0.1u
C74
0.1u
0.1u
C73
C70
0.1u
C68
0.1u
0.1u
C66
R3
VDDP
R4
VDDP
R5
VDDP
R14
VDDP
R15
GND_D
+3.3V_ASIC
12
P3
P5
P4
VDDP
VDDP
VDDP
+
P14
VDDP
C59
D14
VDDP
68u/6.3V
TC-B
C6
D15
VDDP
VDDP
5758
5960
5758
59
60
JS1
BL+
BL-
+3.3V_ASIC
GND_D
C15
B7
VDDP
VDDP
VDDUSB
SD_CARD_DETECT
GND_POWER
SD_CARD_WP
SD_CARD_DETECT
4748
4950
5152
5354
5556
4950
5152
5354
5556
+8.5V_LCD
+5V_LCD
33K
0R R59
R58
D9
D11
VDDDAC
VDDADC
SD_CARD_WP
FD3
FD2
SD_CS
SD_CLK
FD1
FD2
FD3
SD_CS
SD_CLK
3940
4142
4344
4546
3940
4142
4344
4546
4748
+3.3V_LCD
-8VA_CCD
+12VA_CCD
6
PWR_DETECT
P7
PWR_DETECT
R61
BAT_ON
C82
L0603C81
L2
0R
D13
B11
VDDAUD
VDDSPKR
PWR_LENS
FD1
FD0
PWR_BACKLIGHT
PWR_BACKLIGHT
PWR_LENS
FD0
3132
3334
3536
3738
3334
3536
3738
GND_A
6
PWR_ON_P
GND_D
NC.
PWR_ON_P
C37
3
1
2
33K
NC.
C0603
NC.
C0603
BAT_PWR
A15
VDDPWR
PWR_LCD
LED_FRONT4
PWR_CCD
PWR_AGC
LED_FRONT56PWR_3.3V_OFF
LED_FRONT6
LED_FRONT2
LED_FRONT3
LED_FRONT1
LED_FRONT2
LED_FRONT3
LED_FRONT4
LED_FRONT5
LED_FRONT6
PWR_AGC
PWR_CCD
PWR_LCD
1314
1516
1718
1920
2122
2324
2526
2728
2930
2728
2930
3132
+4.2V_MOT
DAN202U
D4
C83
PWR_ON
2324
2526
GND_M
1
PLAYBACK
PLAYBACK
3
1
2
0.1u
1516
1718
1920
2122
GND_D
GND_D
NC.
C38
PLAYBACK_DETECT
D5
DAN202U
GND_D
G_CAP
C84
0.2uF/EECEN0F204R
+
12
GND_A GND_D
22R
R62
B16
VDDRTC
DC_DETECT
LED_FRONT1
BAT_ON
DC_DETECT
PWR_3.3V_OFF
BAT_PWR
PWRENB
12345678910
1112
1314
6
PLAYBACK_DETECT
1112
+3.3V_ASIC
+1.8V_ASIC
3
R63
GND_D
PWR_ON
B14
PWRON
12345678910
+3.3VD
1
2
33K
BAT_PWR
665KF
R64
PDETECT
C14
PDETECT
BAT_PWR
+3.3VD
Header
CONN SOCKET 30x2_AXK6F60345J
CONNECTOR TO
THE POWER
SUPPLY BOARD
Note:
+3.3V_ASIC
+3.3V_ASIC
I
2.71MF
R65
GND_D
3
0.1u
C85
100K
R66
RESET
PWRENB
A16
PWRENB
+3.3V_ASIC
+4.2V_MOT
+8.5V_LCD
+5V_LCD
+3.3V_LCD
0RR60 NC. R9 NC.
R103
GND_DGND_A GND_M
Add C?/0.1u /C0402
C81 GND_D===>GND_A
GNDAUD
GND_D===>GND_A
JS1.20===> GND_D
JS1.59===> GND_P
0408
R62===>100R t o 22R
0505
RESET
U7
XC61CN2702MR
SET FOR X.X VOLTS
IC
G
O
C87
0.1u
I
IN
G
G
OUT
O
C86
0.1u
RESET
A14
RESET
7
GND_POWER
R61===>100K t o 33K
GND_D
H14
+12VA_CCD
-8VA_CCD7BL+
1,2,7
1,2,3,4,6,7
GND_A
GND_D
+1.8V_ASIC
C92
0.1u
C90
0.1u
C89
0.1u
+1.8V_ASIC
C60
68u/6.3V
+
12
F4
P8
D6
VDDCORE
VDDCORE
VDDCORE
VDDCORE
BL-
4
GND_M
GND_D
TC-B
GND_D
D10
VDDPLL
U1G
GNDP
R6
GNDP
R7
R11
ZORAN
COACH 6 M
GNDP
GNDP
GNDP
GNDP
GNDP
GNDP
GNDP
P6
P7
K8
K9
K10
P11
GNDP
E14
GNDP
E15
GNDP
H8
H9
GNDP
GNDP
H10
GNDP
J8
GNDP
J9
GNDP
J10
C3
3.3 V
GND
GNDP
GNDP
C4
GNDSPKR
GNDAUD
B12
C13
POWER
BATTERY
GNDDAC
GNDPWR
C9
B10
B15
GND_A
GNDADC
GNDPLL
C10
RTC CAP
TO COACH CORE
GNDUSB
TESTMODE
B6
R8
PWR
CONTROL
GND_D
1.24V
CORE
R
POWER HOLD SIGNAL
VDDPW
FROM COACH
POWERED
FROM
1.8 V
COACH 6 MAXIMUN CURRENT
VDDP 3.3V = 25 mA
VDDUSB 3.3V = TBD mA
VDDDAC 3.3V = 3.7mA
VDDADC 3.3V = TBD
VDDAUD 3.3V = TBD
VDDSPKR 3.3V = T BD
VDDCORE 1.8V = 87mA
VDDPLL 1.8V = 5 mA
Page 83
84
Ⅵ. CIRCUIT DIAGRAM
84848484
11) STORBE, GPIO & PWM
1234567891011
J4
123456789
FLASH
INTERFACE
PWR_ON_P
ADC2
ADC0
UI_STROBE
ADC21UI_STROBE
ADC0
PWR_ON_P
5
1
1
3
Q10
DTA114YE
1
+5V_LCD
+3.3V_ASIC
T
D6
LTST-S270KGK
330R
T
D7
LTST-S270KRK
LED
2K
+5V_LCD
2,5
101112
GND_D
FLASH_READY
FLASH_CHARGE
SW_CHARGE
FLASH_TRIG
LED_TOP
2
I
DTC114YEA
Q11
12
+3.3V_ASIC
GND_D
+3.3V_ASIC
1,3,4,5
1,2,3,4,5,7
TRIG_CNTL
7
ZIV-12R3-B-0
G O
FLASH STROBE
CONNECTOR
GND_DS2
R67
Q8
U1F
I
DTC114YEA
LED_GREEN
LED_RED
N3
N4
SDA
I2C
SCL
G O
GND_D
1
5
BAT_LOW_CTRL
DC_DETECT
N2
N1
FEXTCE2
FEXTRST
R68
Q9
DTC114YEA
LED_TOP
SW_CHARGE
M4M3L1L2L3
FA3
FA2
G O
GND_D
I
5
LED_FRONT4
LED_FRONT35LED_FRONT25LED_FRONT1
L4
FA4
FA5
FA6
FLASH
MEMORY
3/3
5
K3K4J3
FA7
5
5
5
LED_FRONT6
LED_FRONT5
PWR_AGC
FA8
FA9
FA10
5
5
5
PWR_LCD
PWR_BACKLIGHT
PWR_CCD
J4
H3H4G3G4F3
FA11
FA12
FA13
+3.3V_ASIC
4
5
PWR_FOCUS
PWR_LENS
FA14
FA15
B
E
D
S1
TEL
R70
33K
R69
33K
4
PWR_ZOOM
TELE
WIDE
R10
R9
FA16
XLGPIO2
COACH 6 M
ZORAN
GPIO
PINS
B
A
D
C
XLGPIO3
2/2
GND_D
A
C
WIDE
5
5
5
PWR_DETECT
PWR_3.3V_OFF
PLAYBACK_DETECT
H17
H16
H15
DVCNTL5
DVCNTL6
DVCNTL7
LCD 2/2
FLASH_READY
FLASH_CHARGE
FLASH_TRIG
A4
P16
P15
PWM5
FLSHTRIG
PWM PINS
2/2
FLASH
STROBE
FPDIN
Page 84
85
Ⅵ. CIRCUIT DIAGRAM
85858585
12) TRANSFER
LINK30
LINK29
LINK28
LINK27
LINK26
LINK25
LINK24
LINK23
LINK22
LINK21
LINK20
LINK19
LINK18
LINK17
LINK16
LINK15
LINK14
LINK13
LINK12
LINK11
LINK10
LINK9
LINK8
LINK7
LINK6
LINK5
LINK4
LINK3
LINK2
LINK1
JS1
60
59
5758
5556
5354
5152
4950
4748
4546
4344
4142
3940
3738
3536
3334
3132
2930
2728
2526
2324
2122
1920
1718
1516
1314
1112
910
78
56
34
12
AXK5F60545
JS2
5960
5758
5556
5354
5152
4950
4748
4546
4344
4142
3940
3738
3536
3334
3132
2930
2728
2526
2324
2122
1920
1718
1516
1314
1112
910
78
56
34
12
J
60
AXK5F60545
59
5758
5556
5354
5152
4950
4748
4546
4344
4142
3940
3738
3536
3334
3132
2930
2728
2526
2324
2122
1920
1718
1516
1314
1112
5960
5758
5556
5354
5152
4950
4748
4546
4344
4142
3940
3738
3536
3334
3132
2930
2728
2526
2324
2122
1920
1718
1516
1314
1112
910
910
78
78
56
56
34
34
12
12
J
LINK30
LINK29
LINK28
LINK27
LINK26
LINK25
LINK24
LINK23
LINK22
LINK21
LINK20
LINK19
LINK18
LINK17
LINK16
LINK15
LINK14
LINK13
LINK12
LINK11
LINK10
LINK9
LINK8
LINK7
LINK6
LINK5
LINK4
LINK3
LINK2
LINK1
Page 85
86
Ⅵ. CIRCUIT DIAGRAM
86868686

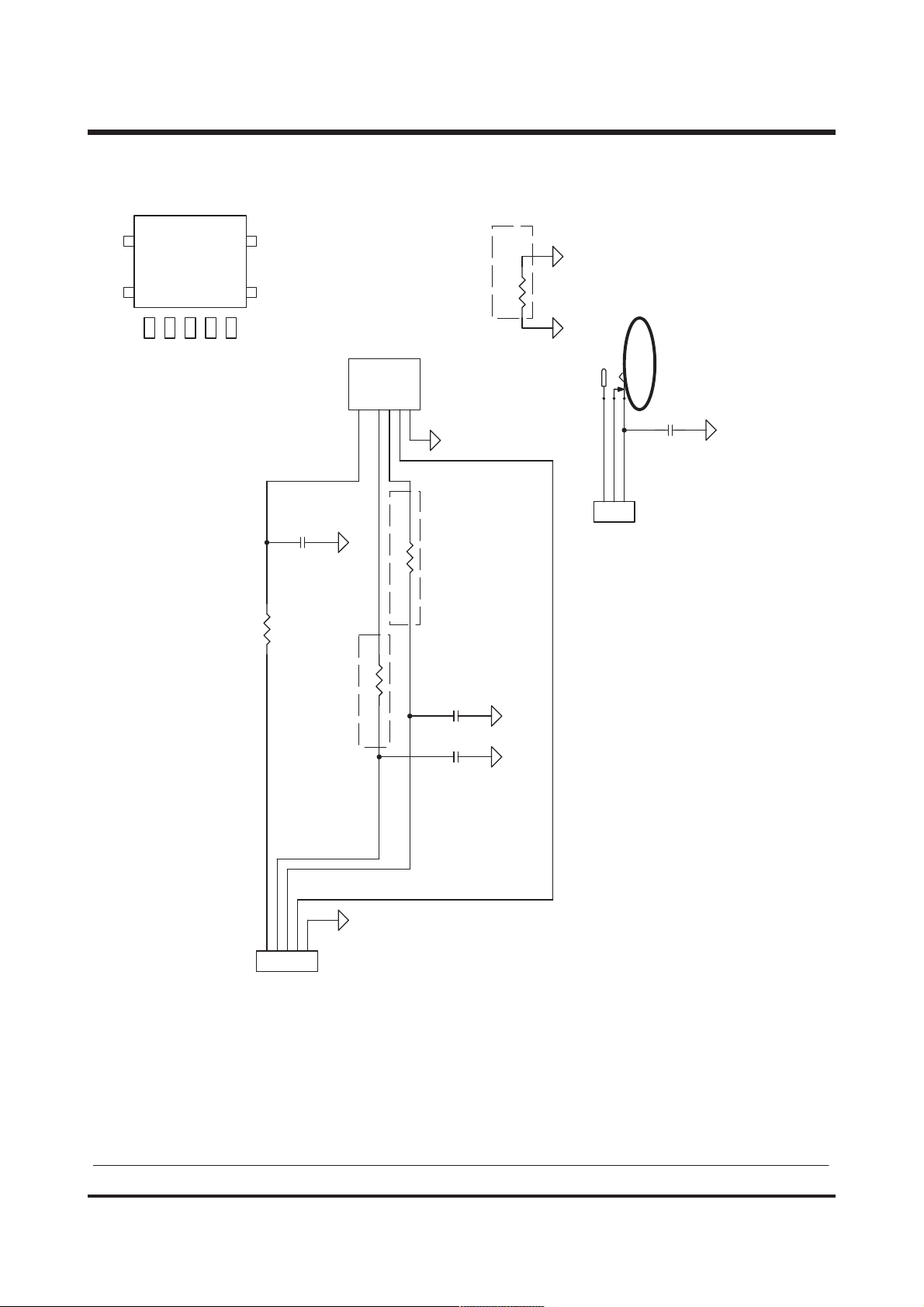

13) USBDC_A6
USB
CONNECTOR
LAYOUT
260T
R2
FBM-10- 100505-
514
3
2
+V_USBD-D+
ID
J2
12345
0.1u
C1
GND_DGND_D
15K
R1
260T
GND
260T
R4 FBM-10-100505-
BL340-5PRRT/F
Mini USB
GND_D
USB
CONNECTOR
GND_D GND_POWER
JK1
GND_POWER
BAT-
123
1
2
J3
DC-IN_Y08-114
123
+3.3V_DC
0300
3
Header
ACES_85204-
C4
0.1uF
GND_D
TO POWER BOARD
C3
NC.(22P/50V)
R3 FBM-10-100505-
C2
GND_D GND_D
NC.(22P/50V)
USBIO
12345
5
123
4
J1
BL114-05RL
TO MAIN BOARD
Page 86
87
Ⅵ. CIRCUIT DIAGRAM
87878787
14) USBDC_A5
USB
CONNECTOR
LAYOUT
NC
R2
514
3
2
+V_USBD-D+
ID
J2
12345
C1
0.1u
GND_DGND_D
15K
R1
22
R3
GND
22
R4
Mini USB
BL340-5PRRT/F
GND_D
NC.(22P/50V)
C3
C2
USB
CONNECTOR
GND_D GND_D
GND_D GND_POWER
JK1
GND_POWER
BAT-
123
1
2
J3
DC-IN_Y08-114
123
+3.3V_DC
3
0.1uF
C4
0300
Header
ACES_85204-
GND_D
TO POWER BOARD
NC.(22P/50V)
USBIO
12345
123
4
5
J1
BL114-05RL
TO MAIN BOARD
Note : change R3,R4 Del R2 FOR EMI (Bom ,DCN 7/26'04)
Page 87
88
Ⅵ. CIRCUIT DIAGRAM
88888888
15) UI
To USB Board
678
9
J1
FPC
12345
123
4
5
10
J2
9
10
USBDETECT
USBDM
USBDP
USBIO
678
GND_D
+3.3V_ASIC
UI_STROBE
PLAYBACK
ADC1
12345
FPC
12345
0.1u
C1
S6
To MAIN Board
GND_D
S7
RIGHT
GND_D
S9
S8
UP
DOWN
LEFT
S1
ENTERUI_STROBE
ENTER
R1
6.2K
S2
DISPLAY
DISPLAY
PLAYBACK R5
2.4K
GND_D
RIGHT
15K
R4
+3.3V_ASIC
S3
EDLETE
DELETE
R2
4.7K
R3
5.6K
ASM
S4
ASM
S5
PLAYBACK
UP
R6
2.7K
DOWN
R7
3.9K
LEFT
R8
6.2K
Page 88
89
Ⅵ. CIRCUIT DIAGRAM
89898989

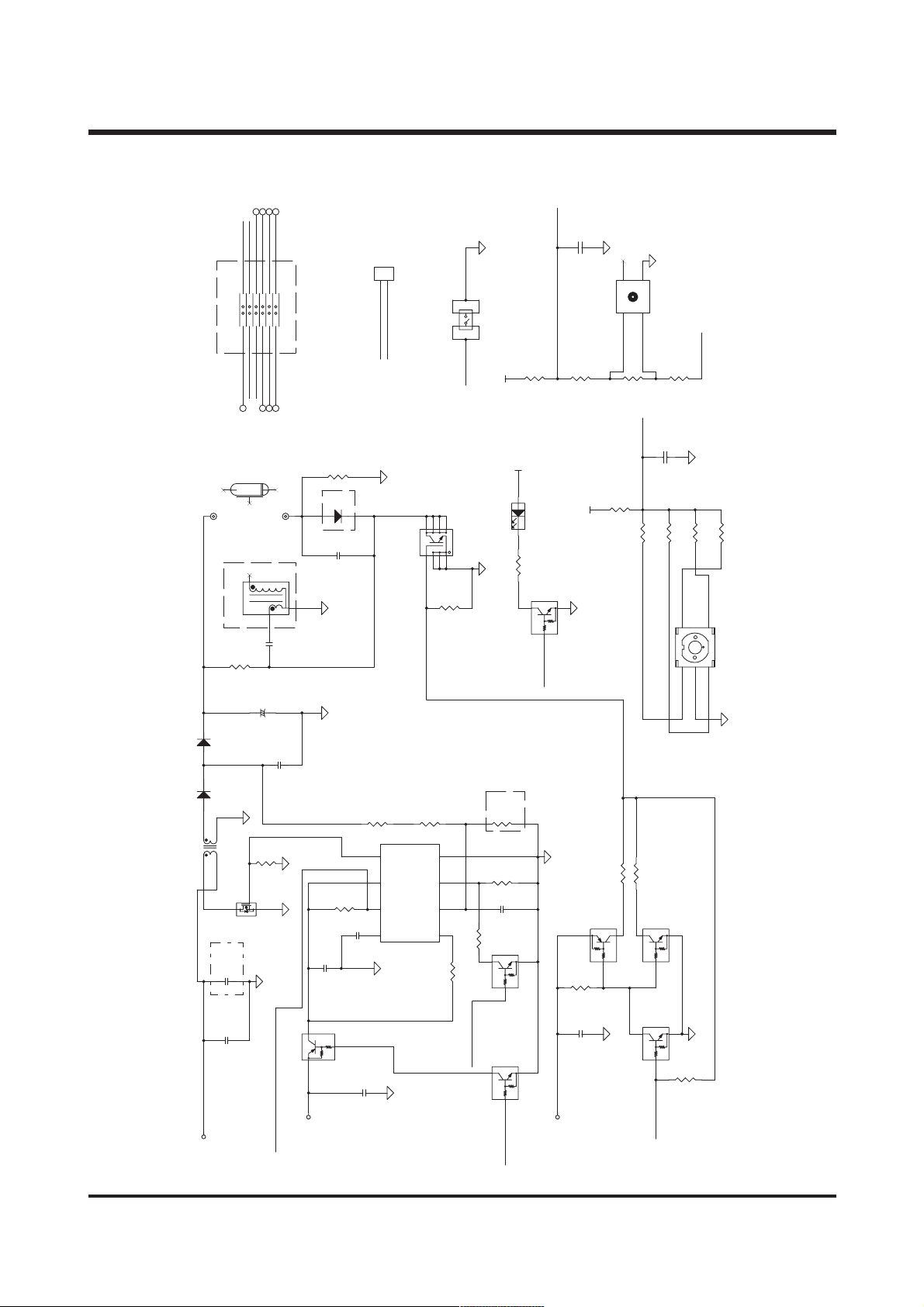

16) STROBE_A6
300V
PWR_ON_P
ADC0
246
J1
13579
1 2
3 4
E
UI_STROBE
+5V_STROB
1
1
TP
TB1
21
3
F+1
3
TR1
TRF/TRIG/TR04103
R1206
1M
US1J
D2
6
4
2
8
TP
TP
TP
TP
1
1
1
1
LED_TOP
FLASH_READY
FLASH_CHARGE
8
12
10
11
5 6
7 8
9 10
11 12
CON/12P/ZIW-12S3-B-0
GND_D
SW_CHARGE
FLASH_TRIG
ADC2
1
1
1
5
3
7
TP
TP
TP
FLASH TUBE
F-1
1
C6
0.033u/630V/X7R
C1210
130u/330VC4CAP/FLASH
+
C5
0.033u/630V/X7R
1
2
J2
S_PWR
GND_S
Note: J1 CON./FPC --> CON./BTB
BOM&LAYOUT 5/13'04
R1206
R4
100K
GND_S
A
D3
QG5395S
C8
0.033u/630V/X7R
C1210
2
GND_S
GND_S
C1210
ST
CON/6210-02-G1-A-A ST/F
123
8
4
2
S1 SOT-152H
4
Q3
6
7
5
K
R7
470
3
1
PWR_ON_P
CY25BAJ
GND_D
GND_S
12
+3.3V_ASIC
+3.3V_ASIC
D4
470R
R12
R13
3
15K
190KGKT
LTST-C
Q6
2
LED_TOP
ADC0
12
DTC114YE
1
C12
R15
GND_D
0.1uF
2.4K
12
+3.3V_ASIC
GND_D
4
D
A
SW1
1
SNAP2
12
R18
15K
R16
2.7K
K
R20 120
32
CB
SNAP1
ADC2
12
GND_D
SW/EVQPRHA09
3.9K
R22
12
C13
0.1uF
12
16K
R24
R21 6.2K
MODE4MODE1
4
1
UI_STROBE
GND_D
12
MODE3
32
+
5
MODE2
12
47K
R25
NC.S2
GND_D
08842
T1 T
18
S_PWR
US1J
D1
4
5
Q1
C3
C1
1:25/4u H
0
AO340
1
D
3
47u/6.3V-X5R
C1206 R2
22uF/10V
C1206
GND_S
R3
2
G
S
K
470
GND_S
FLASH_READY +3.3V_ASIC
GND_S
GND_S
Q2
DTA114YE
C7
1u/10V/X5RM
3
1
+3.3V_ASIC
R5
2
100KF
C9
1u/10V/X5RM
C14
R6
6
7
8
10u/6.3V
C0805
5.1MF
R1206
SS
GND_D
VCC
RDY
GND_D
U1
1453BP
AT
M
R9 1
3
SW_CHARGE
3
R0603
R11
36.5KF
R10
43.2KF
C10
Q5
DTC114YE
1
2
Q4
DTC114YE
1
2
FLASH_CHARGE
GND_D
C0603
100p/6.3V/X7R
E
+5V_STROB
1
R14
1K
C11
C0805
4.7u/10V/X7RK
Q7
DTA114YE
2
24R
R17
3
GND_D
75R
R19
3
3
Q9
DTC114YE
1
2
Q8
DTC114YE
1
2
FLASH_TRIG
GND_D
R23
NC.
R1206
R28
5.1MF
GND OUT
4 5
DUTY
3
FB
2
CHR
1
10K
R8
Page 89
90
Ⅵ. CIRCUIT DIAGRAM
90909090

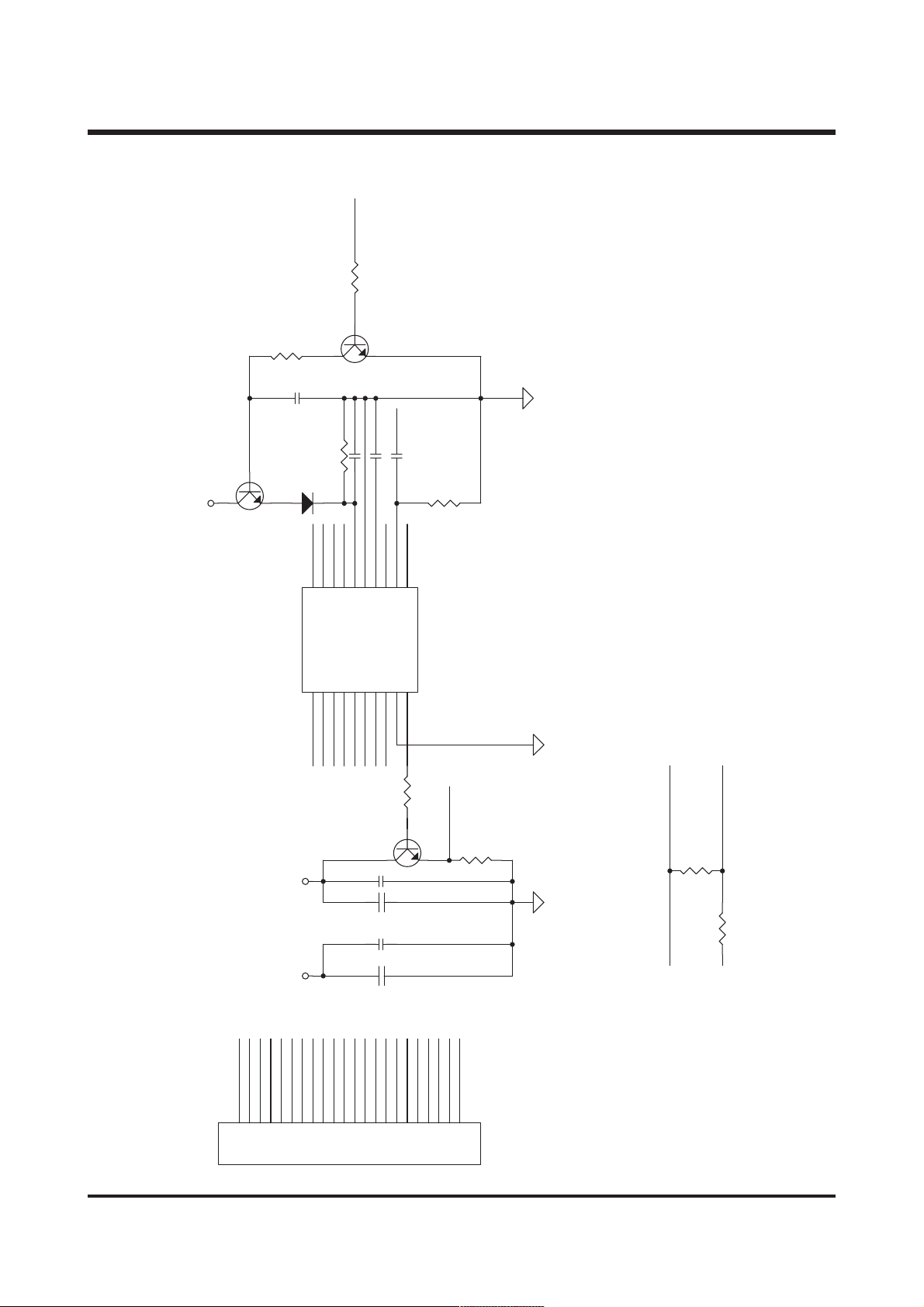

17) CCDFPC_A6
SUBSW
1K
R4
2
R1
12K
Q2
2SC4081
+12V
Q1
2SC4081
3
BSUB
2
C1
5
D1
1SS35
1
H2H1HL
20
H2
V5A
123456789
V5A
+12V-8V
3
1000P/25V
181019
V3AV6V5BV4V3BV2V1
V3AV6V5BV4V3BV2V1-8V
1
10K
1000P/25V
0.047u/25VC80.01u/50V
R3
C3
C2
-8V
BSUB
SUB
131415
16
17
HLVOH1
VPT
PW1
VOG
Vsub
U1
MN39595
Q3
2SC2404
3
C70.1u/25V
C64.7u/16VC1206
C50.1u/25V
C44.7u/16V
RG
12
Bsub
+12V
11
RG
PW0
VOD
R5 47R
1
R6
1M
CCD_DATA
2
C1206
GND_A
GND_A
R7 1.2K
GND_A
H1
HLH_L
R9
NC.
R8 0R
V4
V5B
V3BH1V2
V3A
V5A
V6
SUB
SUBSW
18
192120
22
192120
22
J1
V1
RG
H2
12
13
14
151617
12
13
14
15
161718
+12V
GND_A
GND_A
H_L
+12V
10
11
GND_A
GND_A
CCD_DATA
1234567891011
123456789
CONNECTOR
CON/BL112-22-PIN
Page 90
91
ⅦⅦ.. TTRROOUUBBLLEESSHHOOOOTTIINNGG
11.. CChheecckk LLiisstt ffoorr rreeppaaiirriinngg
11)) WWhheenn rreecceeiivveedd
· Grasp customer's complaints exactely
· Check the product's condition of exterior view(damage by shock)
· Check the condition of battery and all kinds of cables(USB cable, AV cable, AC Adaptor)
· Check working condition with new battery or adaptor
- ON/OFF
- TELE/WIDE
- Check if the image shows correctly with TFT LCD on
(Turn on the TFT LCD and check if the image shows correctly)
- Take a picture by pressing the shutter button
- Turn the dial and check if modes change correctly
· Download from the camera by connecting it with PC and check if correctly
· Check if the image shows correctly with it connected to monitor
22)) WWhheenn rreeppaaiirriinngg
· Check the connectors' condition to each PCB(dirt, short, assembly, lean, etc.)
· Change each doubtful PCB one after another to find out bad PCB
- When doubtful of Main PCB Ass's, check the operating condition by assembling with a good
Main PCB ass'y (Manufacture of checking machine for each bad PCB is in schedule)
· Refer to each page to fix bad items of each PCB
· Check the connections of each PCB before assembling covers and embarkation of the parts
(soldering condition) with the naked eye
· Ateter assembling the camera, insert battery only when condition of the parts' embarkation
and connection is all right (Inserting battery when the camera has inside-short will result in death
or serious injury to the CPU and all parts)
· After setting the mode dial in position assemble the Top Cover and check if the dial nverts
correctly
33)) AAfftteerr rreeppaaiirriinngg
3-1) A/S Check list for each item
To judge inferior goods, begin with doubtful PCBs, replacing one after another to replace bad
parts
ex.) When Main PCB ass'y is in trouble, try replacing it with inferior camera's fair Main PCB ass'y
Page 91
92
Ⅶ. TROUBLESHOOTING
92
11)) PPOOWWEERR OONN DDEEFFEECCTT..
Defect of the MAIN BOARD.
Check the Power source
(Battery, Adapter, etc.)
If the consumption current is 250mA,
the camera doesn't turn on when
using the Power Supply.
Check the spare parts on the MAIN
BOARD.
(C59, C60, Y1, Y2)
1. Check the soldering status of BATTERY CONT.
2. Check the connection between each board.
(MAIN - POWER - STROBO - USB/DC )
3. Check the FUSE(F1, F2) on the POWER BOARD
-> If the both terminals are OΩ, it has no
problem.
4. Update the firmware wiht FULL VERSION
5. When checking the out put voltage
C59 = 1.8V, C60 = 3.3V
6. When checking with oscilloscope
Y1 = 13.5MHZ, Y2 = 32.76MHZ
Check the connection with each
board.
If the consumption of current is OmA,
camera doesn't turn on when using
the Power Supply.
22.. MMaaiinn TTrroouubblleesshhoooottiinngg
Page 92
93
Ⅶ. TROUBLESHOOTING

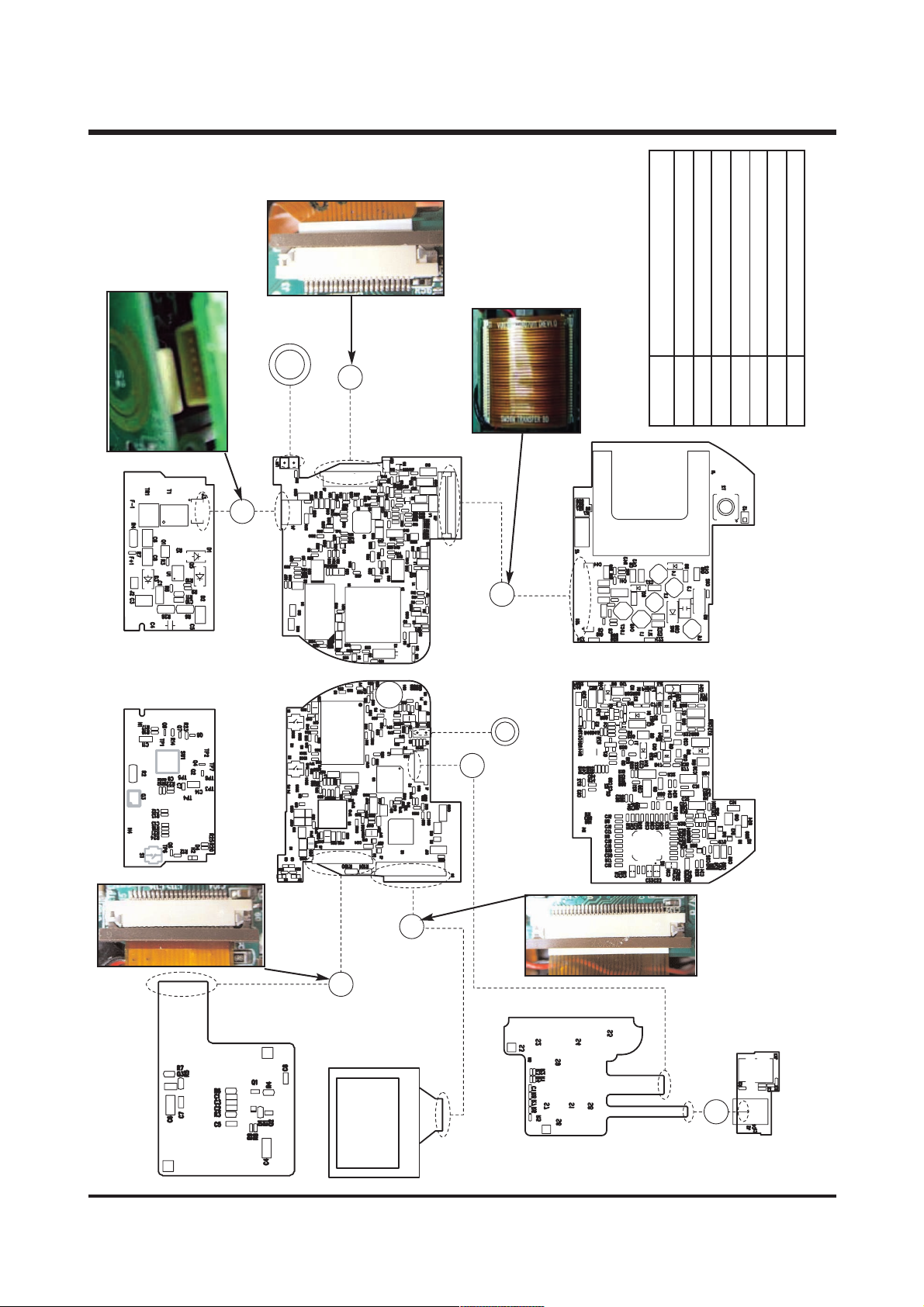

MAIN(JS1) - POWER(JS1)
MAIN(J4) - STROBO(J3)
MAIN(J5) - CCD F PCB
MAIN(J2) - LCD
MAIN(J1) - UI F PCB
MAIN(J3) - BARREL
UI F PCB - USB/DC BD
f
SPEAKER
a
bcd
efg
Symbol Connection
b
STROBO BOARD
a
MAIN BOARD
MIC
POWER BOARD
e
d
c
CCD F PCB
LCD
UI BOARD
g
USB/DC BOARD
Page 93
94
Ⅶ. TROUBLESHOOTING
If the both terminal of FUSE
(F1, F2) are 0Ω, it has no
problem.
Y1 = 13.5MHZ
Y2 = 32.76MHZ

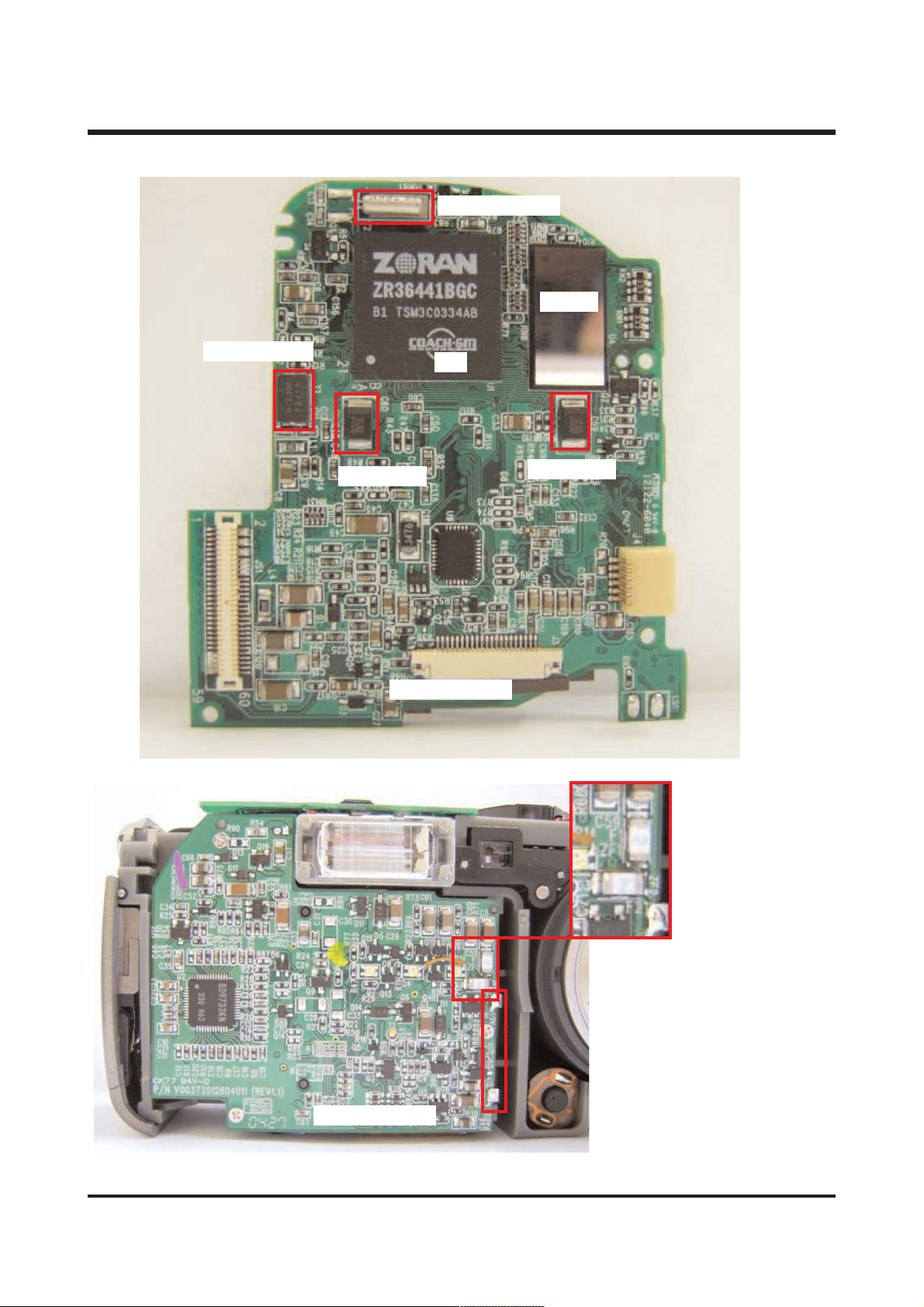

MMAAIINN BBOOAARRDD
PPOOWWEERR BBOOAARRDD
C59 = 1.8V
C60 = 3.3V
DSP
SDRAM
Page 94
95
Ⅶ. TROUBLESHOOTING

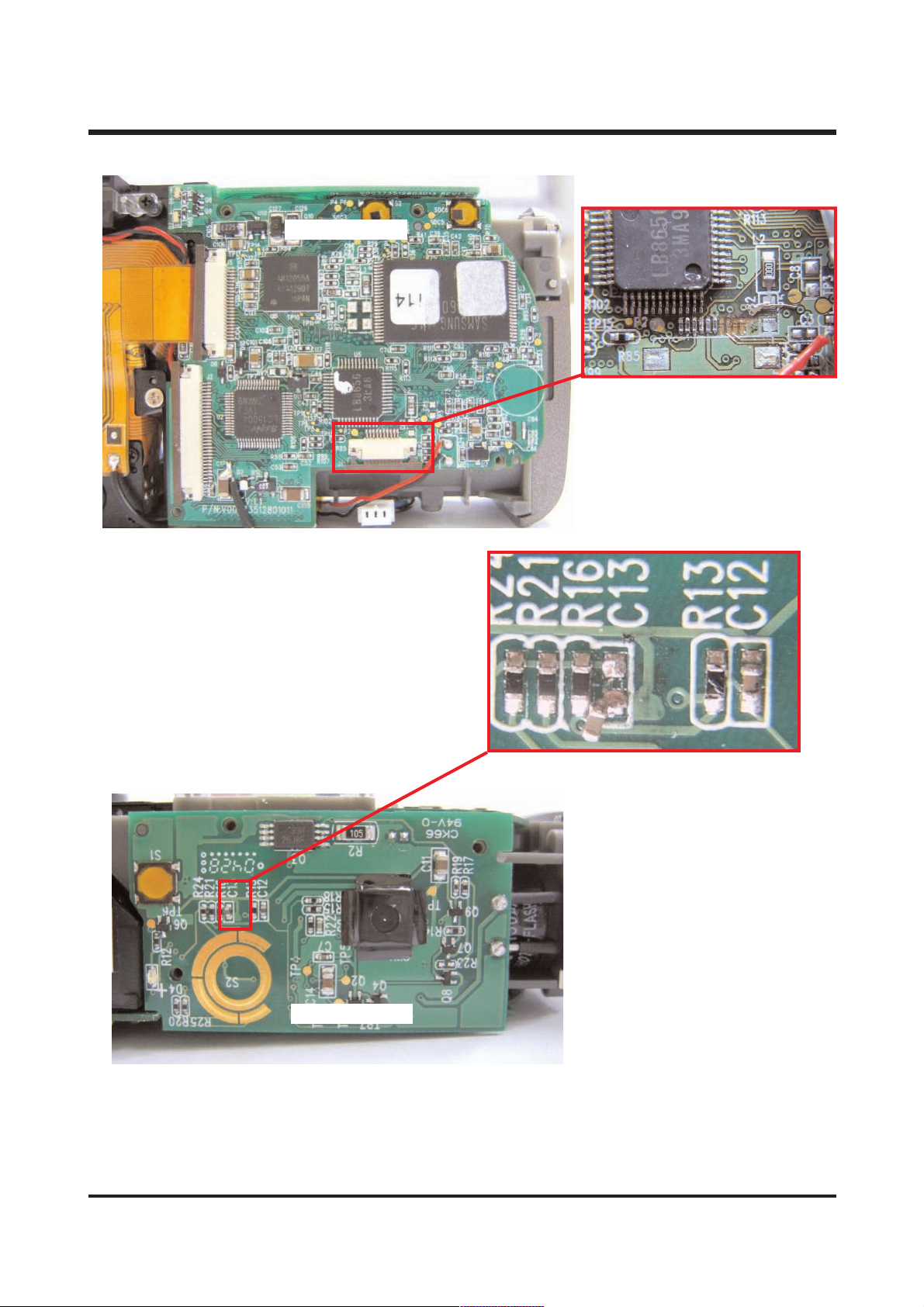

MMAAIINN BBOOAARRDD
SSTTRROOBBEE BBOOAARRDD
DDoonn''tt PPOOWWEERR OONN
J1 CONNECTOR comes out.
CCaammeerraa ddooeessnn''tt wwoorrkk aafftteerr sshhooww--
iinngg SSaammssuunngg LLooggoo
C13 CHIP CON. comes out.
Page 95
96
Ⅶ. TROUBLESHOOTING
96
22)) FFLLAASSHH DDEEFFEECCTT..
Defect of STROBE BOARD
Check the Voltage of the recharge-
able battery of Main condenser
(330V)
Check the TR1.
Check the spare parts on the
STROBE BOARD
1. Check the assembly between the MAIN BOARD
and STROBE BOARD.
Q7, Q8, Q9, R14, R17, R19
Check the connection between each
BOARD.
Check the Q3(IGBT).
Page 96
97
Ⅶ. TROUBLESHOOTING
97

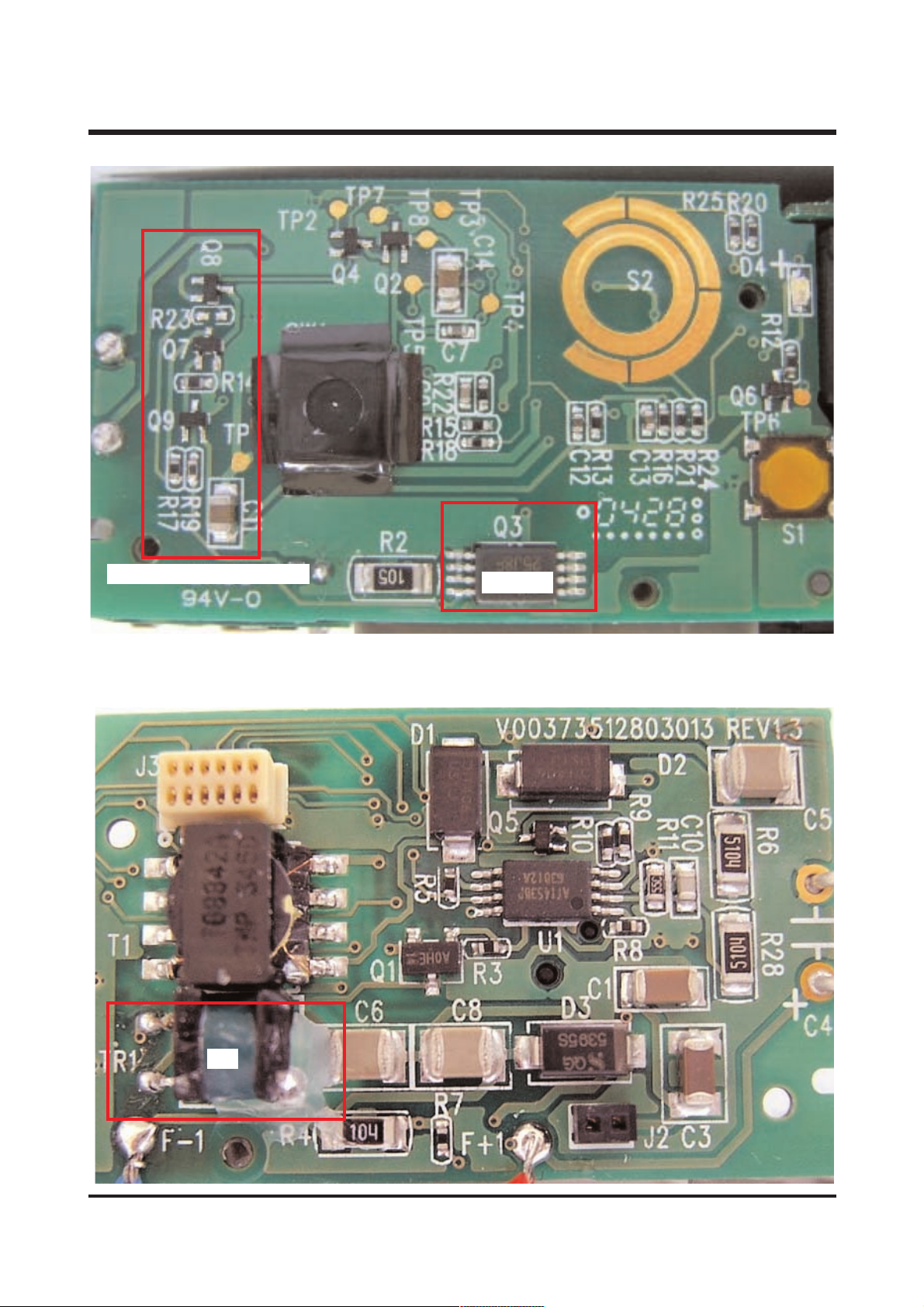

QQ33((IIGGBBTT))
TTRR11
QQ77,, QQ88,, QQ99,, RR1144,, RR1177,, RR1199
Page 97
98
Ⅶ. TROUBLESHOOTING
98
33)) CCHHAARRGGEE DDEEFFEECCTT..
STROBE BOARD defect
Check the voltage of changing Main
condenser(330V)
Check the spare parts on the
STROBE BOARD
Check the spare parts on the
STROBE BOARD
1. Check the assembly between the MAIN BOARD
and STROBE BOARD
U1, Q1, Q2, Q4, Q5
T1, D1, D2
R6, R28, R11
Check the connection between each
BOARD
Check the spare parts on the
STROBE BOARD
Page 98
99
Ⅶ. TROUBLESHOOTING
99

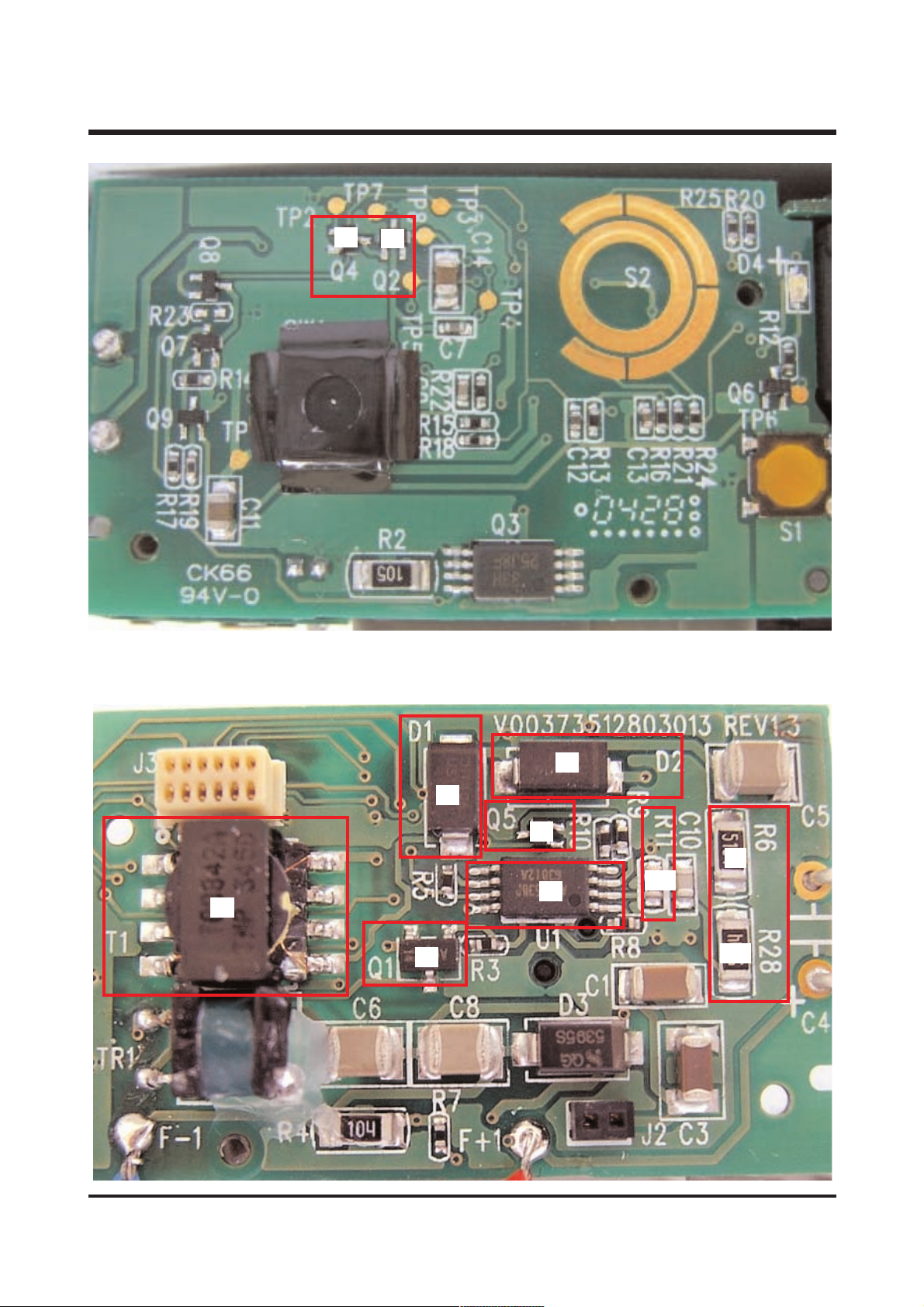

DD11
DD22
UU11
TT11
RR66
RR2288
RR1111
QQ11
QQ55
QQ44
QQ22
Page 99
100
Ⅶ. TROUBLESHOOTING
100100
44)) DDEEFFEECCTT RREELLAATTEEDD WWIITTHH CCCCDD
CCD defect.
Check the output voltage of CON-
NECOTR(J5) on the MAIN BOARD
3. Check the soldering condition of CCD Pin.
(Bad soldering, short...)
3. CCD Pin No.11 : +12V
Pin No.17 : -8V should come out.
5. PIN No.11, No.12 and No.13 output voltage of J5
should be 10V.
Check the soldering condition of the
CCD F PCB.
Check the output voltage of the CCD
F PCB.
1. Check the assembly of the MAIN BOARD and
POWER BOARD.
2. Check the assembly of the MAIN BOARD and
CCD F PCB.
Check the connection with each
board.
Check the U8(TG/CDS/AGC) on the
MAIN BOARD
Page 100
101
Ⅶ. TROUBLESHOOTING
101

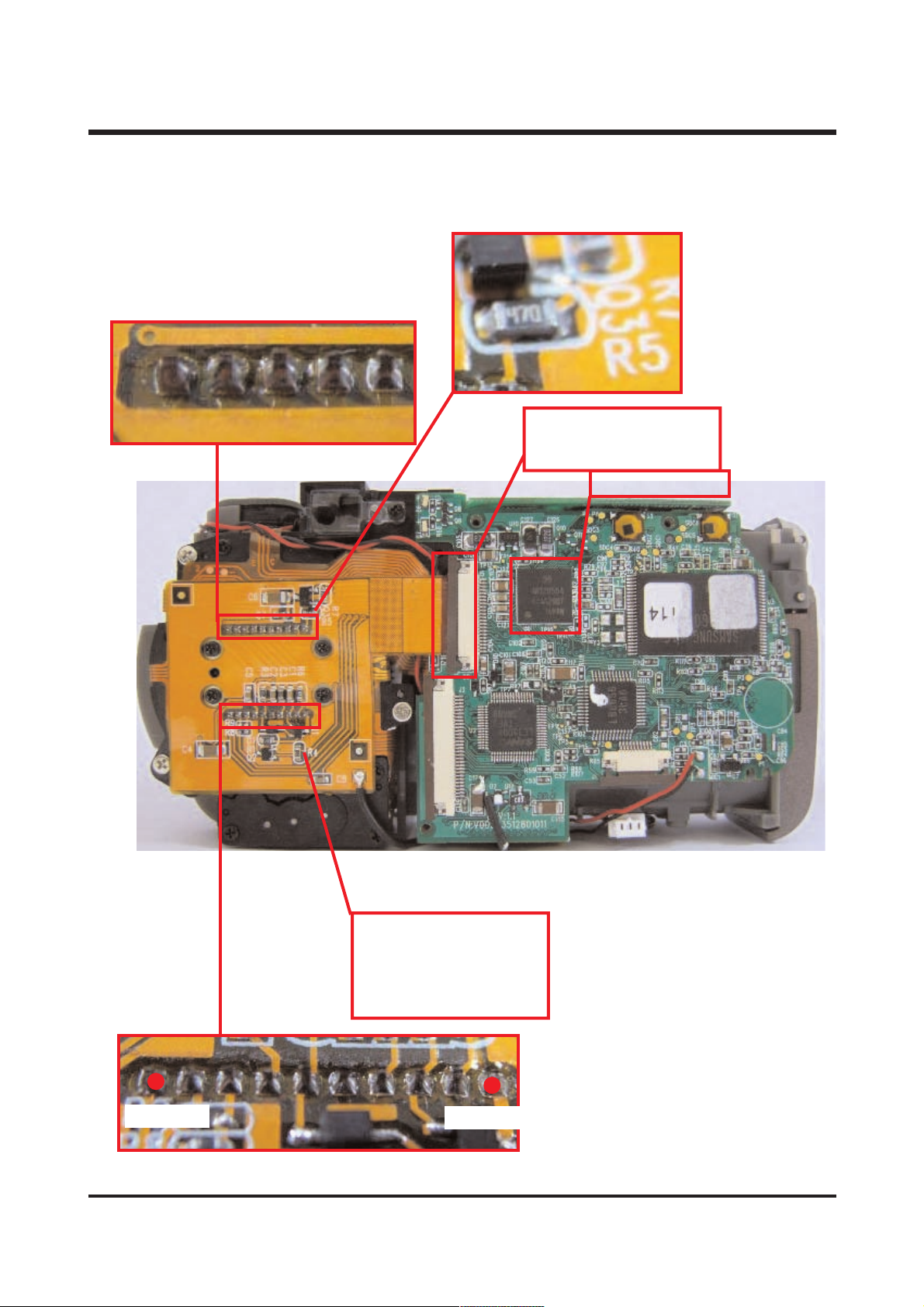

Check the assembly condition of the MAIN BOARD
and CCD F PCB.
Check the soldering condition of the CCD Pin.
U8 (TG/CDS/AGC)
PIN No.11
PIN No.20
NNooiissee((BBllaacckk aanndd wwhhiittee ssppoott,, TTiirree))
ccoommeess oouutt((AA66))
- Chage the register of R5
: 47Ω-> 470Ω
NNooiissee((DDiiaaggoonnaall))((AA55))
-Change the register :
. R1 : 33KΩ -> 12KΩ
. R5 : 470Ω -> 1KΩ
. R7 : 910Ω -> 470Ω
Loading...
