Page 1

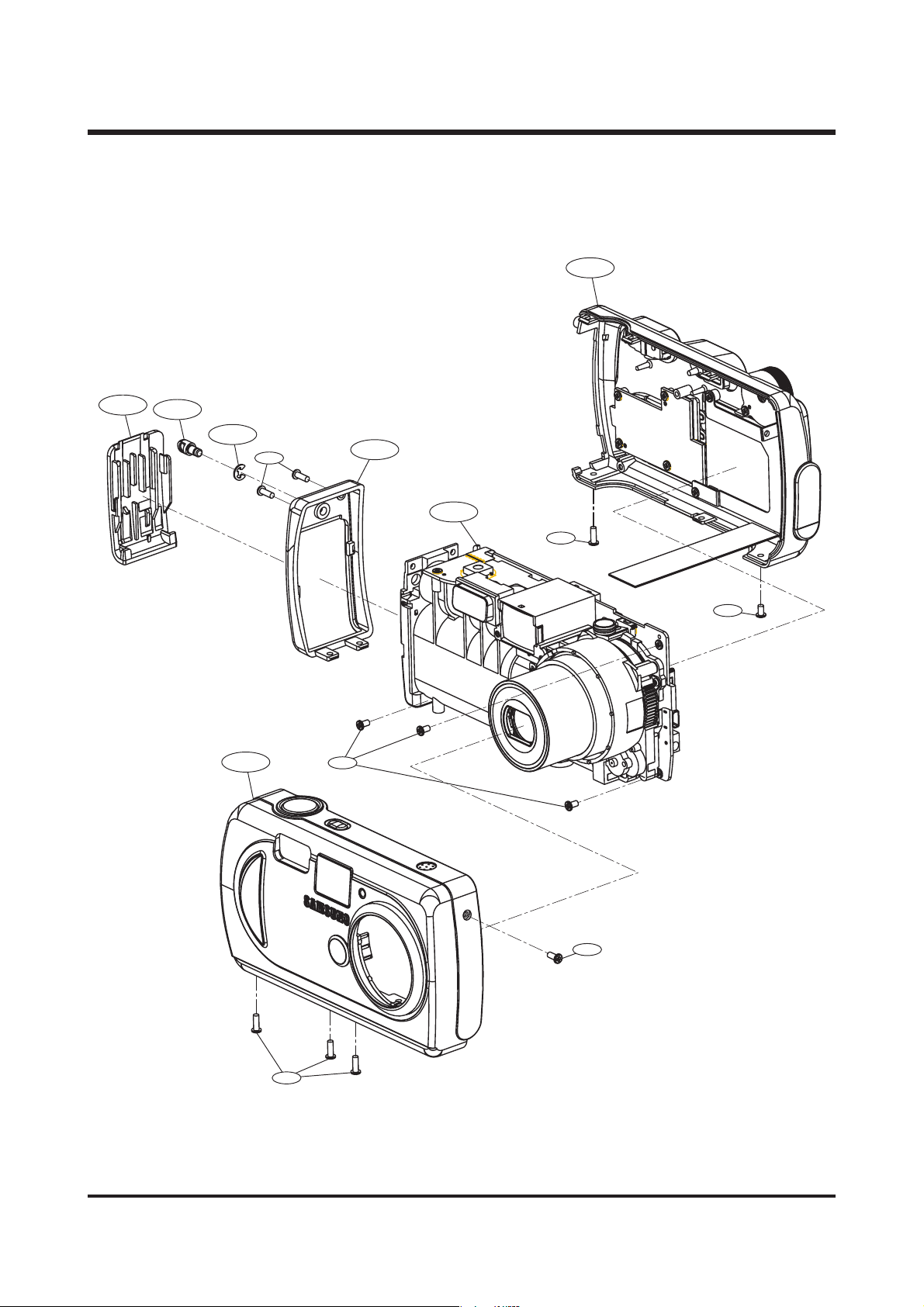

1. MAIN ASSEMBLY

Ⅲ. EXPLODED VIEWS AND PARTS LIST

1-2

1-5

1-6

1-7

1-1

1-8

1-9

1-12

1-10

1-11

1-13

1-4

1-3

Page 2

ⅢⅢ.. EEXXPPLLOODD EEDD VVIIEEWWSS AA NN DD PP AA RRTT SS LLII SS TT

▶▶

PARTS LIST

Fig.No. Parts No. Parts Name Q'ty Remarks

1-1 Q9007203401A FRONT COVER ASS'Y-KENOX DIGIMAX 250 1

Q9007203501A FRONT COVER ASS'Y-DIGIMAX 250 1

1-2 Q9007203601A REAR COVER ASS'Y 1

1-3 Q6002001901A TAPPING_SCREW M1.7x5WHI 3

1-4 Q6002002001A TAPPING_SCREW M1.7x4WHI 1

1-5 Q7211069901A P_BATTERY-DOOR 1

1-6 Q7411107001A M_HOOK 1

1-7 Q7017040601A E-RING 1

1-8 Q6002001901A TAPPING_SCREW M1.7x5WHI 1

1-9 Q7217312701A P_COVER-MID 1

1-10 Q6002001901A TAPPING_SCREW M1.7x5WHI 1

1-11 Q6002002101A TAPPING_SCREW M1.7x3WHI 1

1-12 Q9001095901A FRAME ASS'Y 1

1-13 Q6002002201A TAPPING_SCREW M1.7x3BLOCK 3

Page 3

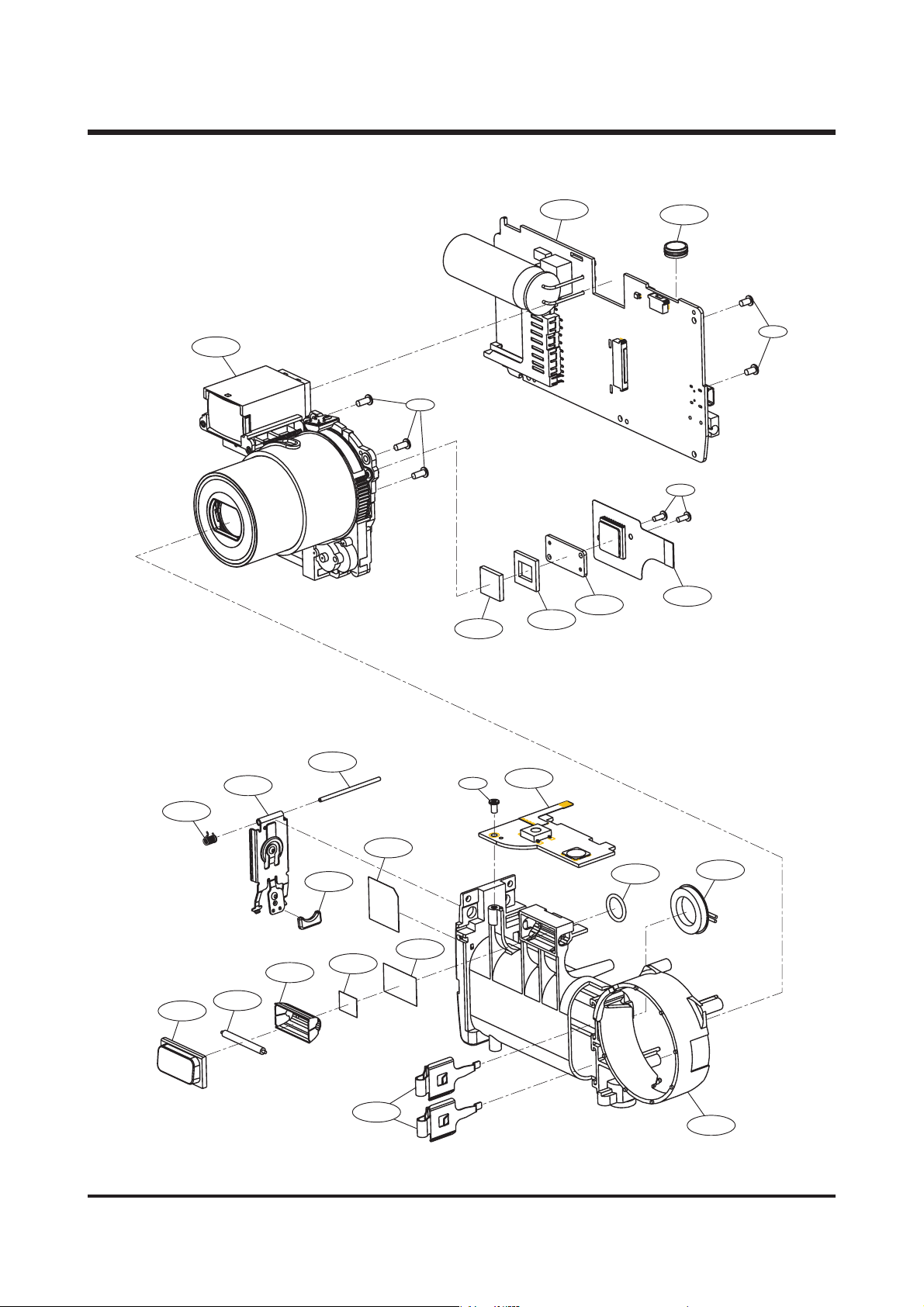

2. BODY ASSEMBLY

ⅢⅢ .. EEXXPPLLOODD EEDD VVIIEEWWSS AA NN DD PP AA RRTT SS LLII SS TT

2-17

2-18

2-24

2-25

2-26

2-23

2-8

2-2

2-3

2-9

2-4

2-11

2-10

2-5

2-12

2-6

2-19

2-13

2-14

2-20

2-21

2-15

2-22

2-16

2-7

2-1

Page 4

▶▶

PARTS LIST

ⅢⅢ.. EEXXPPLLOODD EEDD VVIIEEWWSS AA NN DD PP AA RRTT SS LLII SS TT

Fig.No. Parts No. Parts Name Q'ty Remarks

2-1 Q7211070001A BAT-CELL D250 1

2-2 Q7211070101A P_FLASH 1

2-3 Q0611003601A FLASH_TUBE 1

2-4 Q7011047101A REFLECTOR 1

2-5 Q1009001201A COPPER FOIL VQ3310Z 1

2-6 Q7409156201A INSULATING TAPE 1

2-7 Q6107056501A BAT-SPRING-D250 2

2-8 Q6107056601A BAT-DOOR-SPRING 1

2-9 Q7011047201A BAT-CONTACT1 1

2-10 Q7211070201A BAT-GUIDE 1

2-11 Q7411107101A BAT-AXIS 1

2-12 Q7409156301A BATTERY-SD_LABLE 1

2-13 Q6002002201A TAPPING_SCREW 17x3BLOCK 1

2-14 Q9001096001A SNAP-BOARD ASS'Y 1

2-15 Q7309042501A FLASH-BAND VQ3000Z 1

2-16 Q3002001501A BUZZER-D15 1

2-17 Q9002126101A LENS ASS'Y 1

2-18 Q6002002301A TAPPING_SCREW 17x4BLOCK 3

2-19 Q2904002001A OLPF 1

2-20 Q7309042601A CCD RUBBER 1

2-21 Q7011047301A CCD PLATE 1

2-22 Q9008068501A FPC-SENSOR ASS'Y 1

2-23 Q6002002401A TAPPING_SCREW M1.4x3.5LB 2

2-24 Q9008068601A MAIN-BOARD ASS'Y 1

2-25 Q0902008501A MIC-PHONE 1

2-26 Q6002002201A TAPPING_SCREW 17x3BLOCK 2

Page 5

ⅢⅢ .. EEXXPPLLOODD EEDD VVIIEEWWSS AA NN DD PP AA RRTT SS LLII SS TT

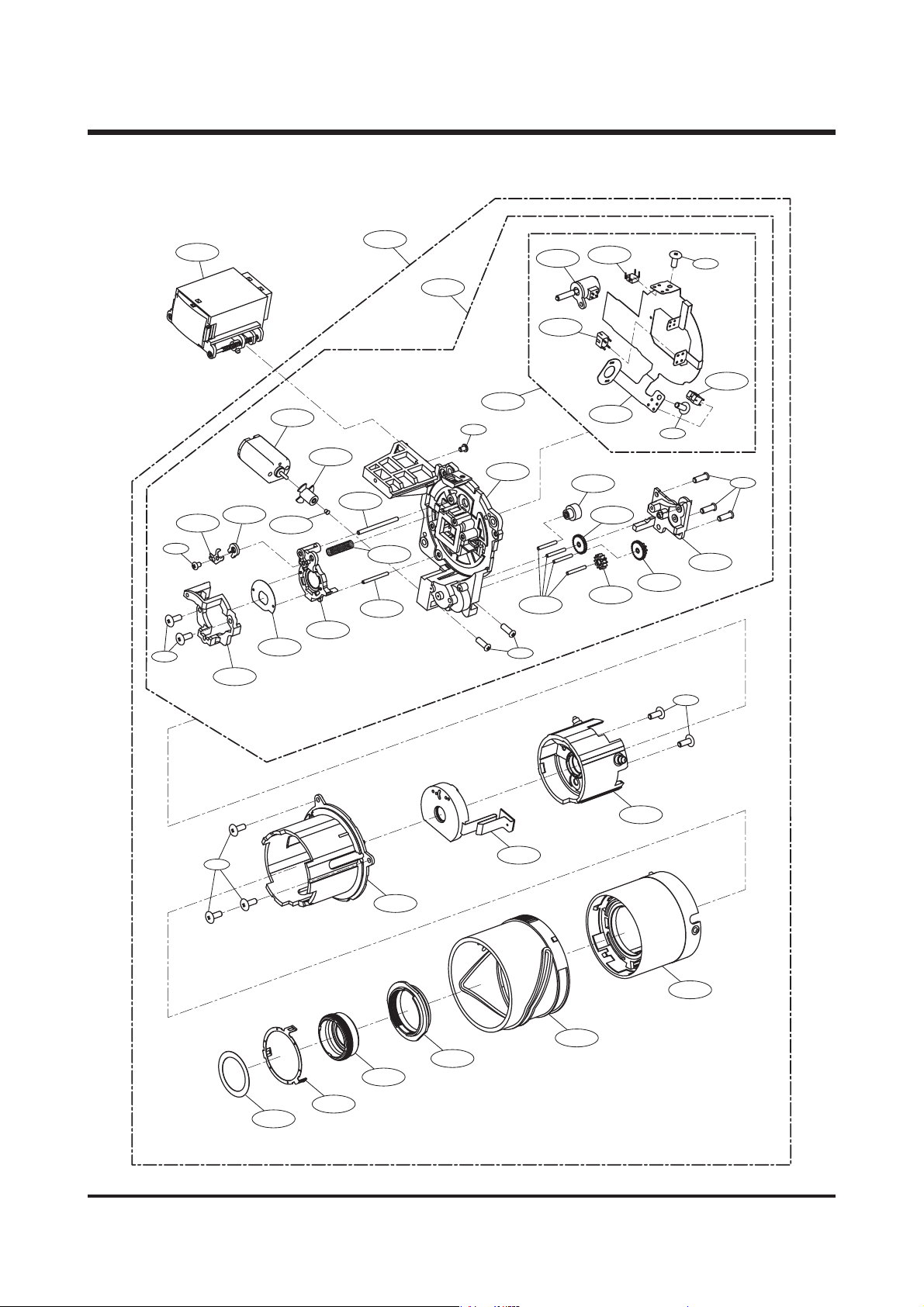

3. LENS BASE ASSEMBLY

3-38

3-37

3-42

3-22

3-21

3-24

3-16

3-18

3-23

3-17

3-20

3-14

3-41

3-19

3-15

3-1

3-40

3-2

3-3

3-36

3-13

3-4

3-6

3-9

3-5

3-7

3-10

3-12

3-34

3-6

3-34

3-35

3-8

3-11

3-39

3-25

3-26

3-27

3-28

3-29

3-30

3-31

3-32

3-33

Page 6

ⅢⅢ.. EEXXPPLLOODD EEDD VVIIEEWWSS AA NN DD PP AA RRTT SS LLII SS TT

▶▶

PARTS LIST

Fig.No. Parts No. Parts Name Q'ty Remarks

3-1 Q9002121301A LENS BASE ASS'Y 1 3-2 Q9008064301A MAIN PCB ASS'Y 1 3-3 Q7212176305A LENS BASE 1 3-4 Q9002104301A AF MOTOR 1 3-5 Q0608000701A PHOTO REFLECTOR 1 3-6 Q0608001001A PHOTO INTERRUPTER 2 3-7 Q4102007301A MAIN F-PCB 1 3-8 Q7212176901A ZOOM GEAR COVER 1

3-9 Q7212177102A ZOOM GEAR - A 1 3-10 Q7212177201B ZOOM GEAR - B 1 3-11 Q7212177301B ZOOM GEAR - C 1 3-12 Q7212178001A ZOOM GEAR - D 1 3-13 Q7411090001B ZOOM GEAR - C SHAFT 4 3-14 Q7411085401A AF GUIDE BAR A 1 3-15 Q7411085501A AF GUIDE BAR B 1 3-16 Q3107001701A ZOOM MOTOR 1 3-17 Q7212177003B ZOOM MOTOR GEAR 1 3-18 Q7411100501A ZOOM MOTOR GEAR PIN 1 3-19 Q6107048305A 3RD LENS BARREL S/P 1 3-20 Q9002121001A 3RD LENS ASS'Y 1 3-21 Q7012069301A AF CLIP 1 3-22 Q7012069406C AF LIMIT SPRING 1 3-23 Q7012080001A 3RD SHIELD 1

Q7409156601A SHIELD TAPE B 2 3-24 Q7212176401A AF HOLDER 1 3-25 Q9002121201A 2ND BARREL ASS'Y 1 3-26 Q9005017501A SHUTTER 1 3-27 Q7212176103A GUIDE BARREL 1 3-28 Q7212176003A ZOOM RING 1 3-29 Q7212176201A CAM BARREL 1 3-30 Q7212176502A SLIP RING 1 3-31 Q9002120801A 1ST LENS ASS'Y 1 3-32 Q7012075502A 1ST PUSH PLATE 1 3-33 Q7409138001A FRONT SHIELD 1

Q7409149701A FRONT TAPE 2 3-34 Q6003042501A SCREW 2 3-35 Q0961900301A SCREW 3 3-36 Q9611142001A SCREW 2 3-37 Q6001014001A SCREW 1 3-38 Q6003019201A SCREW 2 3-39 Q6003000201A SCREW 5 3-40 Q0961143501A SCREW 1 3-41 Q9002121301A LENS BASE ASS'Y(반완) 2 3-42 Q9003020401A FINDER ASS'Y 3

Page 7

ⅢⅢ .. EEXXPPLLOODD EEDD VVIIEEWWSS AA NN DD PP AA RRTT SS LLII SS TT

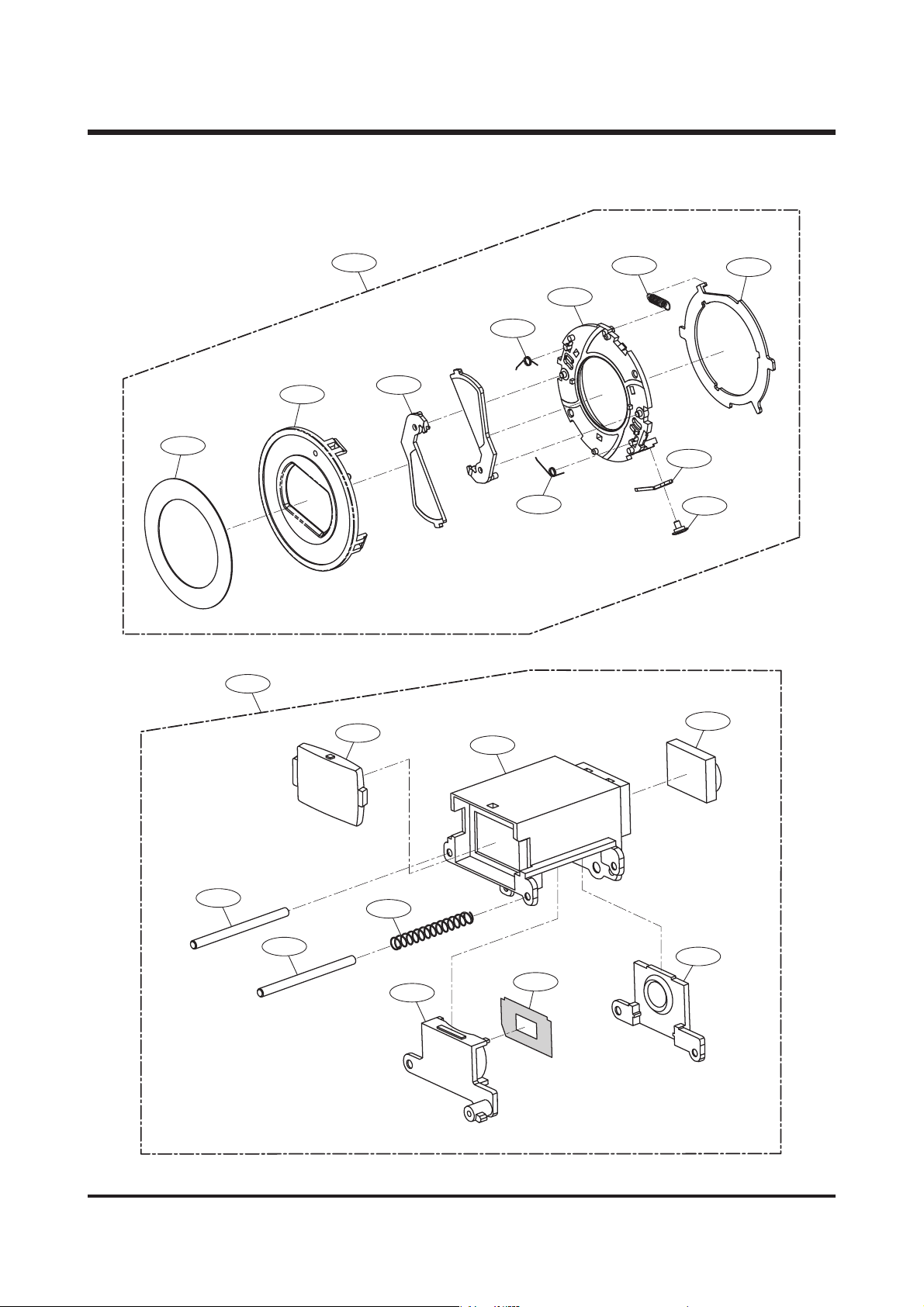

4. BARRIER ASSEMBLY

4-9

4-10

4-3

4-4

4-8

4-7

4-4

4-2

4-1

4-5

4-6

Page 8

ⅢⅢ.. EEXXPPLLOODD EEDD VVIIEEWWSS AA NN DD PP AA RRTT SS LLII SS TT

▶▶

PARTS LIST

Fig.No. Parts No. Parts Name Q'ty Remarks

4-1 LEVER - A 1

4-2 OPEN SPRING 1

4-3 BARRIER BASE 1

4-4 CLOSE SPRING 2

4-5 LEVER - B 1

4-6 LEVER PIN 1

4-7 BARRIER - A 1

4-8 FRONT PANEL 1

4-9 DECORATION RING 1

Page 9

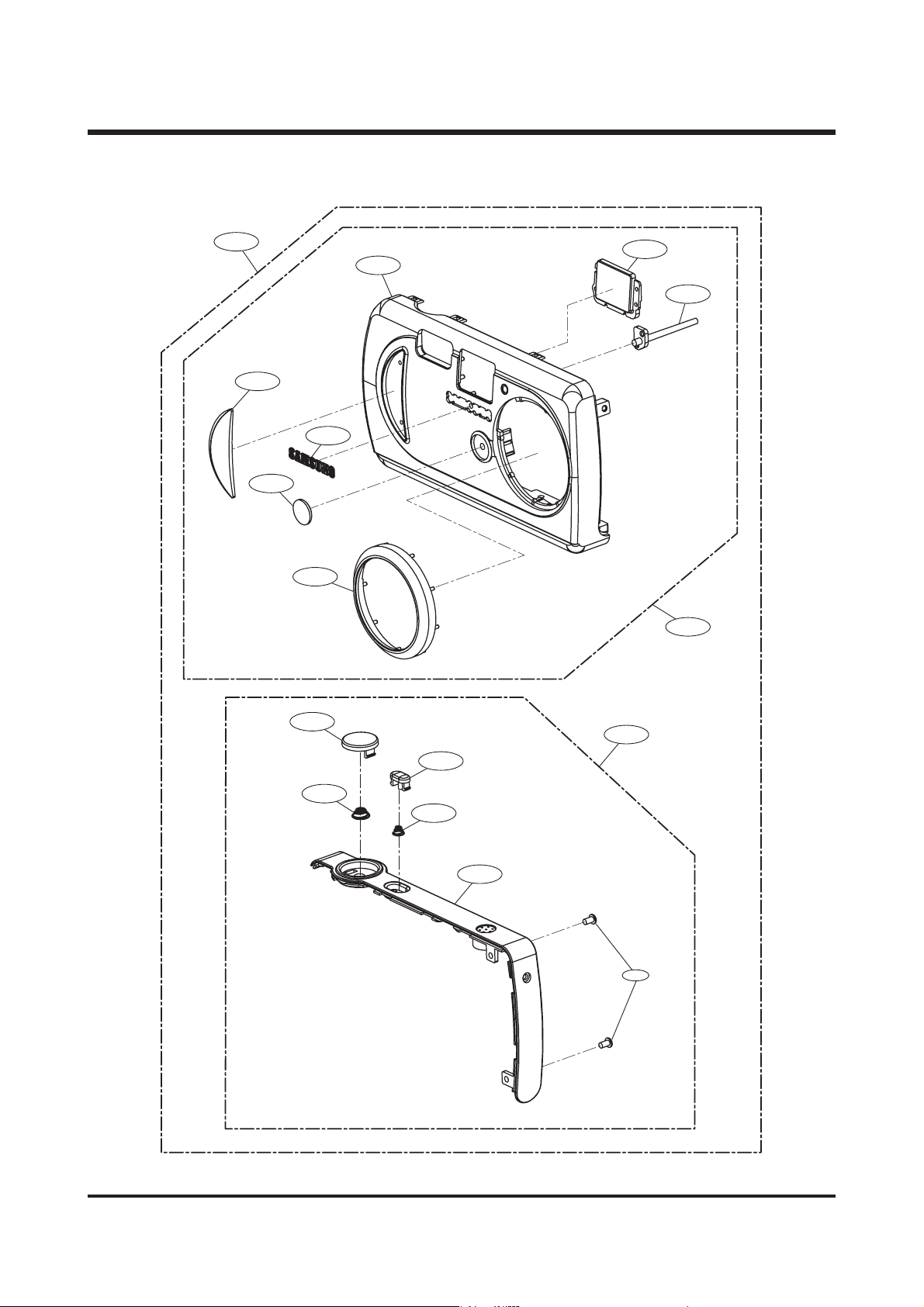

5. FRONT COVER ASSEMBLY

ⅢⅢ.. EEXXPPLLOODD EEDD VVIIEEWWSS AA NN DD PP AA RRTT SS LLII SS TT

5-1

5-9

5-3

5-8

5-7

5-6

5-5

5-4

5-2

5-12

5-13

3-10

5-14

5-15

5-11

5 -16

Page 10

▶▶

PARTS LIST

ⅢⅢ.. EEXXPPLLOODD EEDD VVIIEEWWSS AA NN DD PP AA RRTT SS LLII SS TT

Fig.No. Parts No. Parts Name Q'ty Remarks

5-1 Q9007203401A FRONT COVER ASS'Y-KENOX DIGIMAX 250 1

Q9007203501A FRONT COVER ASS'Y-DIGIMAX 250 1

5-2 Q9007203801A

FRONT COVER SUB ASS'Y-KENOX DIGIMAX 250

Q9007203901A FRONT COVER SUB ASS'Y-DIGIMAX 250 1

5-3 Q7217312801A P_COVER-FRONT 1

5-4 Q7217312901A P_LENS-RING 1

5-5 Q7217313001A P_MIRROR 1

5-6 Q7017040701A LOGO PLATE 1

5-7 Q7217313101A P_GRIP-DEC 1

5-8 Q7217313201A LENS-LED 1

5-9 Q7217313301A P_VIEWFINFER 1

5-10 Q9007204001A MIDDLE COVER ASS'Y 1

5-11 Q7217313001A P_COVER-MID 1

5-12 Q7217313401A P_BUTTON-SHUTTER 1

5-13 Q6107056701A SHUTTER-SPRING 1

5-14 Q6107056801A P_BUTTON-SPRING 1

5-15 Q6107056901A POWER-SPRING 1

5-16 Q6002002201A TAPPING_SCREW 17x3BLOCK 2

Page 11

ⅢⅢ.. EEXXPPLLOODD EEDD VVIIEEWWSS AA NN DD PP AA RRTT SS LLII SS TT

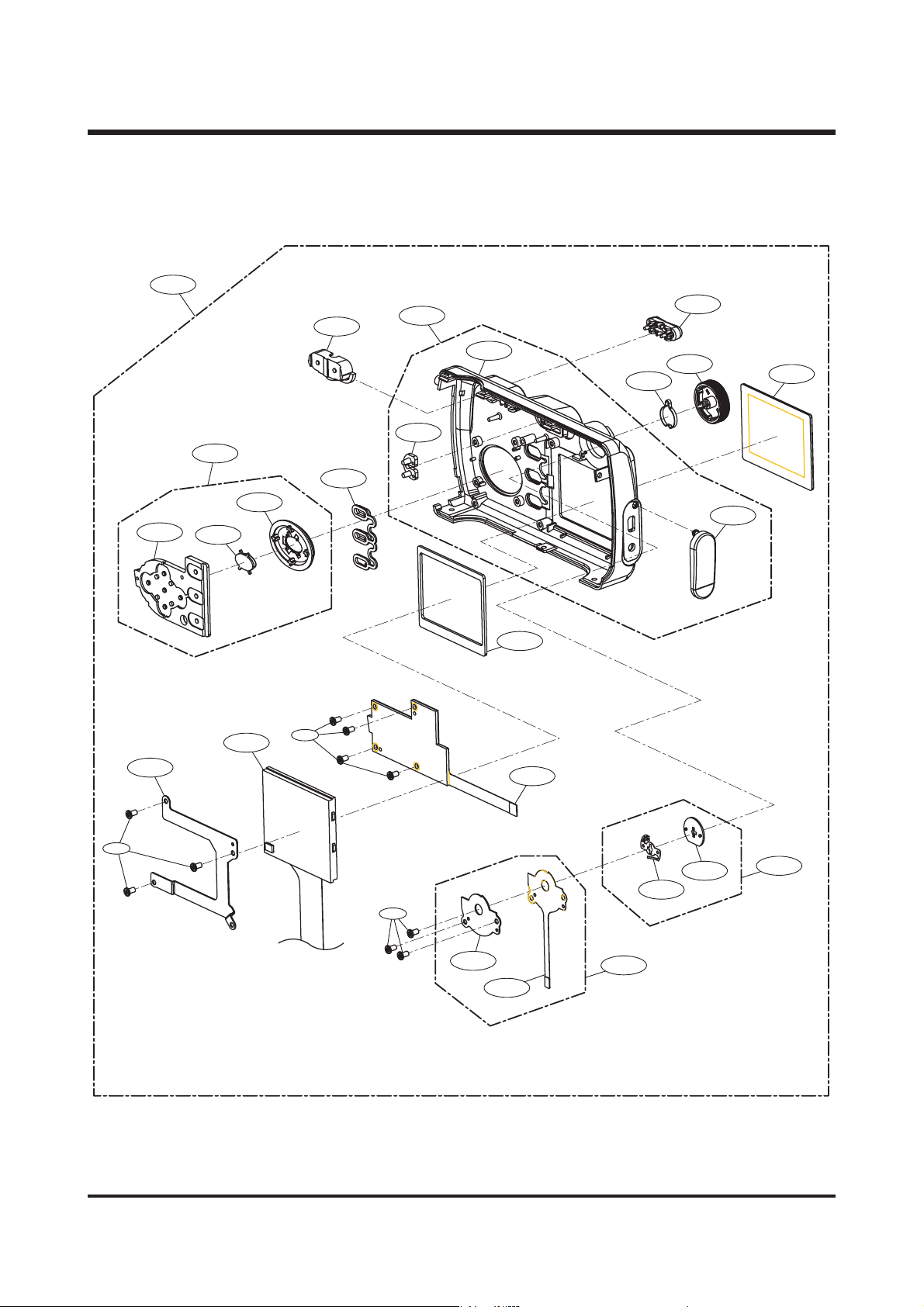

6. BACK COVER ASSEMBLY

6-1

6-2

6-15

6-11

6-16

6-10

6-14

6-13

6-12

6-3

6-25

6-24

6-26

6-27

6-28

6-7

6-6

6-5

6-4

6-8

6-9

6-23

6-21

6-22

6-17

6-19

6-18

6-20

Page 12

ⅢⅢ.. EEXXPPLLOODD EEDD VVIIEEWWSS AA NN DD PP AA RRTT SS LLII SS TT

▶▶

PARTS LIST

Fig.No. Parts No. Parts Name Q'ty Remarks

6-1 Q9007203601A REAR COVER ASS'Y 1

6-2 Q9007204101A REAR COVER SUB ASS'Y 1

6-3 Q7217313501A P_COVER-REAR 1

6-4 Q6002002201A TAPPING_SCREW 17x3BLOCK 3

6-5 Q7017040801A BRACKET-LCD 1

6-6 Q0704009801A LCD PANEL 1

6-7 Q7409156401A SPONGE-LCD 1

6-8 Q6002002201A TAPPING_SCREW 17x3BLOCK 4

6-9 Q9007204201A UI-BOARD ASS'Y 1

6-10 Q9007204301A FUNCTION ASS'Y 1

6-11 Q7309042701A RUBBER-FUNCTION 1

6-12 Q7217313601A P_BUTTON-MID 1

6-13 Q7217313701A P_BUTTON-FUNCTION 1

6-14 Q7217313801A P_BUTTON-3 1

6-15 Q7217313901A LENS REAR-LED 1

6-16 Q7217314001A RUBBER-ZOOM 1

6-17 Q6002002201A TAPPING_SCREW 17x3BLOCK 3

6-18 Q9008068301A MODE F PCB ASS'Y 1

6-19 Q7017040901A MODE-PLATE 1

6-20 Q4102008101A MODE F PCB 1

6-21 Q9008068401A MODE CONTACT ASS'Y 1

6-22 Q6107057001A SPRING-CONTACT-2 1

6-23 Q7017041001A MODE-BASE 1

6-24 Q7217314101A P_BUTTON-ZOOM 1

6-25 Q6107057101A PANEL-SPRING 1

6-26 Q7217314201A P_WHEEL 1

6-27 Q7217314301A P_LCD-LENS 1

6-28 Q7309042801A USB-RUBBER 1

Page 13

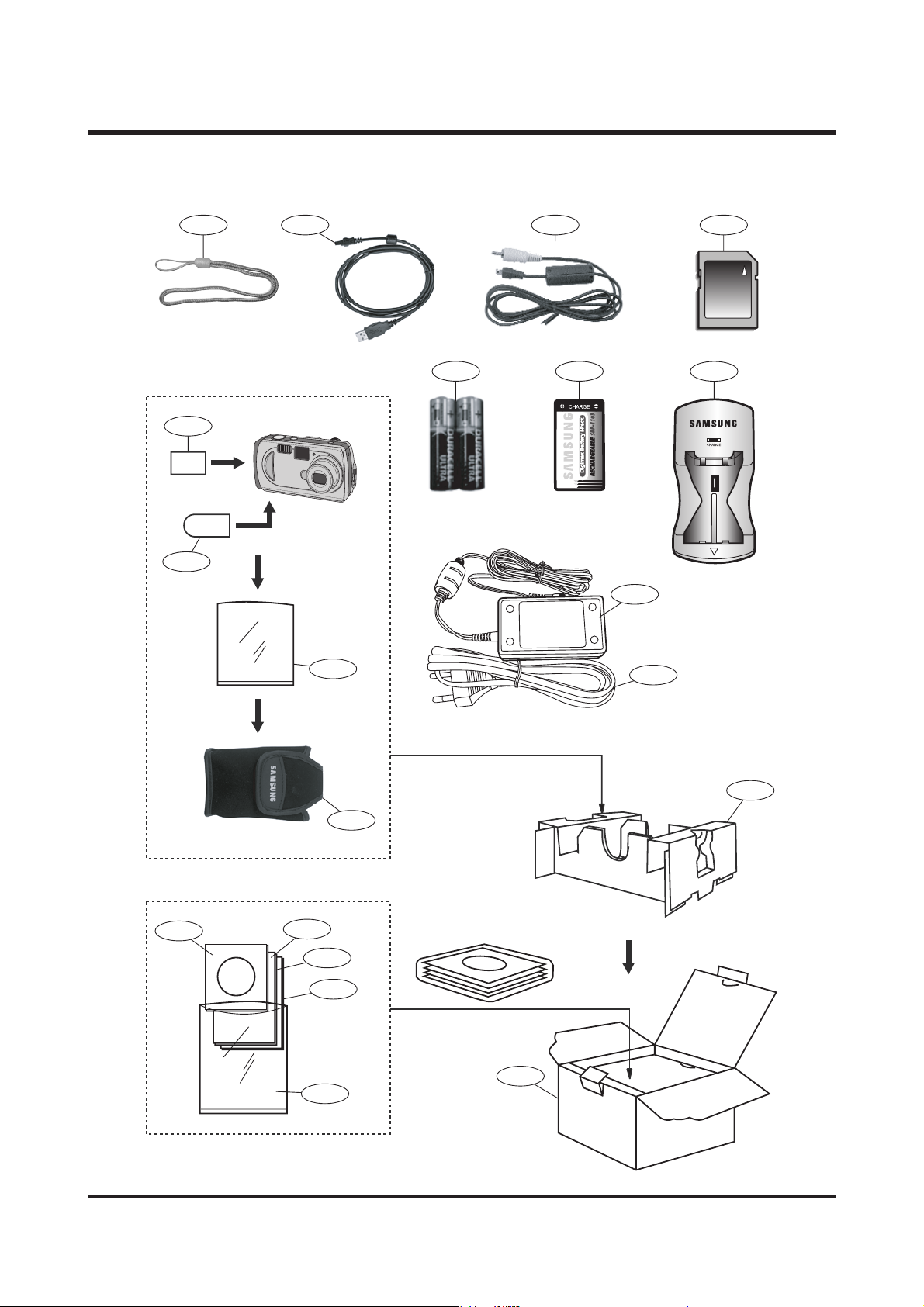

7. PACKING ITEM

ⅢⅢ.. EEXXPPLLOODD EEDD VVIIEEWWSS AA NN DD PP AA RRTT SS LLII SS TT

7-14 7-15

7-20

7-19

7-1

7-9

7-16

7-10

7-17

7-11

7-12

7-13

7-18

7-3

7-4

7-7

7-6

7-5

7-8

7-2

Page 14

Fig.No. Parts No. Parts Name Q'ty Remarks

7-1 P960210101A PE BAG (FOR CAMERA) 1 7-2 Q6909011601A PE BAG (FOR ACCESSORY) 1 7-3 Q6901172401A INNER PAD_D1_EXP 1 7-4 Q6904025401A POUCH_D250(SAMSUNG) 1 7-5 Q6806182001A QUICK GUIDE_D250_KOR 1

Q6806182101A Q/GUIDE_D250_ENG 1 Q6806182201A Q/GUIDE_D250_GER 1 Q6806182301A Q/GUIDE_D250_FRA 1 Q6806182401A Q/GUIDE_D250_SPA 1 Q6806182501A Q/GUIDE_D250_ITA 1 Q6806182601A Q/GUIDE_D250_CHI(T) 1 Q6806182701A Q/GUIDE_D250_DUT 1 Q6806182801A Q/GUIDE_D250_POR 1 Q6806182901A Q/GUIDE_D250_SWE 1 Q6806183001A Q/GUIDE_D250_DEN 1 Q6806183101A Q/GUIDE_D250_FIN 1 Q6806183201A Q/GUIDE_D250_RUS 1 Q6806183301A Q/GUIDE_D250_CHI(S) 1

7-6 Q6806183401A U/MANUAL_KENOX D250_KOR 1

Q6806183501A U/MANUAL_D250_ENG 1 Q6806183601A U/MANUAL_D250_GER 1 Q6806183701A U/MANUAL_D250_FRA 1 Q6806183801A U/MANUAL_D250_SPA 1 Q6806183901A U/MANUAL_D250_ITA 1 Q6806184001A U/MANUAL_D250_CHI(T) 1 Q6806184101A U/MANUAL_D250_DUT 1 Q6806184201A U/MANUAL_D250_POR 1 Q6806184301A U/MANUAL_D250_SWE 1 Q6806184401A U/MANUAL_D250_DEN 1 Q6806184501A U/MANUAL_D250_FIN 1 Q6806184601A U/MANUAL_D250_RUS 1 Q6806184701A U/MANUAL_D250_CHI(S) 1

7-7 Q6807002601F WARRANTY CARD_KOREA 1

Q6807003003R WARRANTY CARD_EXP 1 Q6807003802D WARRANTY CARD_UK 1 Q6807010902B WARRANTY CARD_RUS(3 YEARS) 1 Q6807011301B WARRANTY CARD_TSOE(CHINA) 1 Q6807009502D CARD_PRODUCT MEXICO 1

7-8 Q6901185601A G/T BOX_KENOX D 250_KOR 1

Q6901185701A G/T BOX_D 250_EXP/AUS 1 Q6901185801A G/T BOX_D 250_USA/CAN 1

7-9 Q4301001801A "ALKALINE (1.5V, AA) 2EA - DURACEL ULTRA" 1 7-10 Q4308000201A LI-ION BATTERY SBP-1103(CR-V3 Li-ion Type) 1 7-11 Q4309001001A LI-ION & NI-MH CHARGER SBC-1103MH 1 7-12 Q3801003001A AC CODE CABLE_KOR-D1 1

Q3801003201A AC CODE CABLE_EXP-D1 1 Q3801003101A AC CODE CABLE_USA-D1 1 Q3801001001A AC CODE CABLE_UK-DSC220SE 1

Q3801003401A AC CODE CABLE_AUS-D1 1 7-13 Q3719002301A AC ADAPTOR 7-14 Q7409145001A STRAP_DIGIMAX_UCA 3_KOR/EXP 1 7-15 Q3802002601A USB CABLE_D 250 1 7-16 Q3802002701A VIDEO CABLE_D 250 1 7-17 Q4602000501A SECURE DIGITAL CARD(32MB) 1 7-18 Q4609006701A DRIVER+ArcSoft (Photo) 1

Q4609006801A DRIVER+ArcSoft WalMart (Photo) 1 7-19 Q7409151401A FCC LABEL_D 250_EXP (MADE IN CHINA) 1

Q7409151501A FCC LABEL_D 250_EXP (MADE BY SAMSUNG) 1

Q7409151601A MIC LABEL_KENOX D 250_KOR (MADE IN CHINA) 1 7-20 Q6804053201A PRODUCT STICKER_D 250 1

▶▶

PARTS LIST

ⅢⅢ.. EEXXPPLLOODD EEDD VVIIEEWWSS AA NN DD PP AA RRTT SS LLII SS TT
