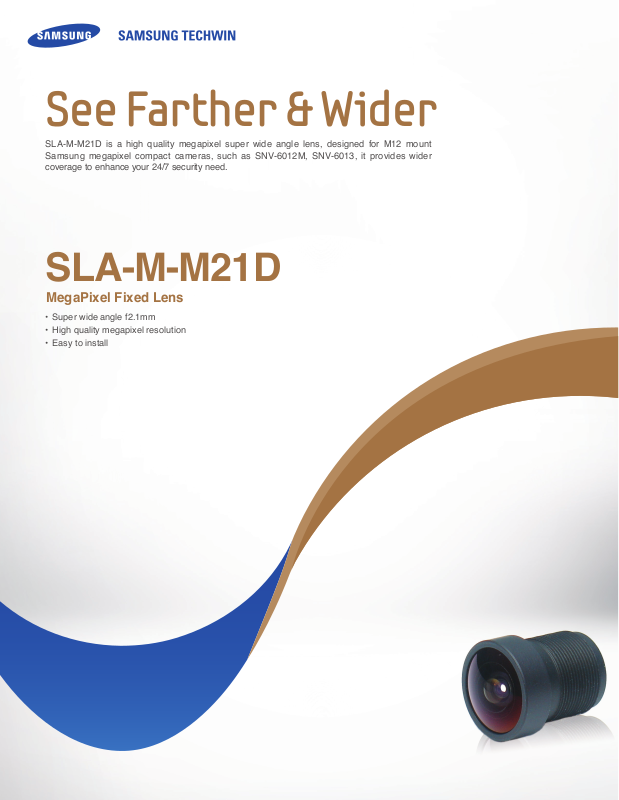

Samsung SLA-M-M21D Specsheet

See Farther & Wider

SLA-M-M21D is a high quality megapixel super wide angle lens, designed for M12 mount
Samsung megapixel compact cameras, such as SNV-6012M, SNV-6013, it provides wider
coverage to enhance your 24/7 security need.

SLA-M-M21D

MegaPixel Fixed Lens

• Super wide angle f2.1mm

• High quality megapixel resolution

• Easy to install

MegaPixel Fixed Lens

17.20

1.00

2.1mm F1.8 CCTV LENS

M12 LENSES INC.

Tharaka G

BLACK ANODIZED

TITLE:

REVISION

DO NOT SCALE DRAWING

DATE

SIGNATURE

NAME

DEBUR AND
BREAK SHARP
EDGES

FINISH:

UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN MILLIMETERS
SURFACE FINISH:
TOLERANCES:
LINEAR:
ANGULAR:

CHK'D

DRAWN

SLA-M-M21D

Dimensions

Unit : mm (inch)

12.40

14

Specifications

SLA-M-M21D

Description 2.1mm, F1.8 Megapixel Wide Angle CCTV Lens

Focal length 2.1mm

Iris Range F/1.8

Operation iris Fixed

Operation zoom Fixed

Operation focus Variable

Angle Of View 145 degree horizontal View Angle (on 1/2.8” sensor)
Minimum object distance

(M.O.D.)
Focusing range
(from front lens)

Mount M12 Mount (M12x0.5)

Mass in Weight 0.0125lbs (0.2 oz)

Package Weight 0.03125lbs (0.5 oz)

Typically 1"

1"

2.30

1.50

1.40

4.50

7.50

11

14

11.20

M12X0.5

The Eco mark represents
Samsung Techwin’s will to create
environment-friendly products,and indicates
that the product satisfies the EU RoHS Directive.

DISTRIBUTED BY

I.E-1309

SAMSUNG TECHWIN AMERICA Inc.

100 Challenger Rd. Suite 700 Ridgefield Park, NJ 07660
Toll Free : [phone] Direct : [phone]
Fax : [phone]

Design and specifications are subject to change without notice.
