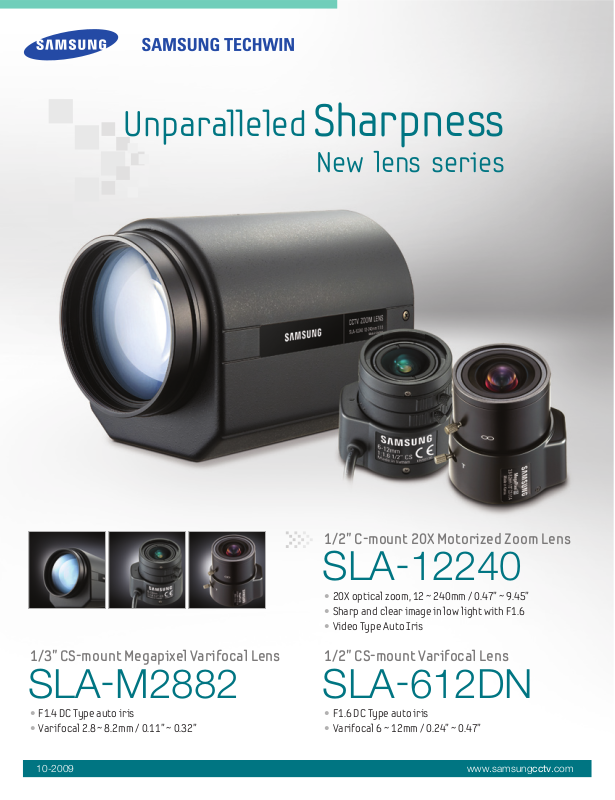

Samsung SLA-612DN, SLA-12240 Specsheet

SLA-12240

• 20X optical zoom, 12 ~ 240mm / 0.47" ~ 9.45"

• Sharp and clear image in low light with F1.6

• Video Type Auto Iris

1/2” C-mount 20X Motorized Zoom Lens

SLA-612DN

• F1.6 DC Type auto iris

• Varifocal 6 ~ 12mm / 0.24" ~ 0.47"

1/2” CS-mount Varifocal Lens

SLA-M2882

• F1.4 DC Type auto iris

• Varifocal 2.8 ~ 8.2mm / 0.11" ~ 0.32"

1/3” CS-mount Megapixel Varifocal Lens

www.samsungcctv.com

Unparalleled

Sharpness

New lens series

10-2009

1/2”, 1/3” C-mount 20X Motorized Zoom Lens/CS-mount Varifocal Lens

SLA-12240/612DN/M2882

Specifications

CCD

Iris Type

Object Distance

Zoom

Mount

Focal Length

Max. Aperture Ratio

Diagonal

Angle of View Horizontal

Vertical

Iris

Operation Focus

Zoom

Iris

Control Focus

Zoom

Back Focal Length

Flange Back Length

Preset

Input Signal

Sensitivity Adjustment

Operating Temperature

Dimensions (WxHxD)

Weight

SLA-12240 SLA-612DN SLA-M2882

1/2" 1/2" 1/3"

Auto Iris (Video) Auto Iris (DC) Auto Iris (DC)

2.8m ~ 0.2m ~ 0.3m ~

20X 2X 3X

C-Mount CS-Mount CS-Mount

12 ~ 240mm / 0.47" ~ 9.45" 6 ~ 12mm / 0.24" ~ 0.47" 2.8 ~ 8.2mm / 0.11" ~ 0.32"

F 1.6 F 1.6 F 1.4

38.9°~ 1.9° 86.4°~ 38.8° 116.5°~ 42.4°

30.8°~ 1.6° 65.3°~ 30.8° 94.2°~ 34.1°

23°~ 1.2° 47.4°~ 23°71° ~ 25.6°

F 1.6 ~ F 720C Auto (F1.6 ~ 300) Auto (F1.4 ~ 360)

2.8m ~ Manual Manual

12 ~ 240mm / 0.47" ~ 9.45" Manual Manual

3.3V DC --

6 ~ 12V DC --

19.82mm / 0.78" 7.55 ~ 12.13mm /

0.3" ~ 0.48" 7.97 ~ 14.12mm / 0.31" ~ 0.56"

17.526mm / 0.69" 12.5mm / 0.49" 12.5mm / 0.49"

Built-in --

Video Signal (V or VS) --

0.5V(p-p) ~ 1.0V(p-p) (Video Signal)

-10°C~ +50°C (+14°F ~ +122°F)-10°C~ +50°C (+14°F ~ +122°F)-10°C~ +50°C (+14°F ~ +122°F)

116 x 135 x 223.5mm (4.57" x 5.31" x 8.8") 40.4 x 45.7 x 43.5mm (1.6" x 1.8" x 1.71") 43.8 x 48.1 x 52mm (1.72" x 1.89" x 2.05")

2.6Kg (5.73 lb) 53g (0.12 lb) 100g (0.22 lb)

Dimensions

Unit : mm (inch)

Design and specifications are subject to change without notice.

I.E-0910

DISTRIBUTED BY

The

Eco mark represents

Samsung Techwin’s will to create environment-friendly products,and indicates that the product satisfies the EU RoHS Directive.

SAMSUNG TECHWIN CO., LTD.

145-3, Sangdaewon 1-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do Korea 462-703

Tel : +82-31-740-8151~8 Fax : +82-31-740-8145

www.samsungcctv.com

SAMSUNG TECHWIN AMERICA Inc.

1480 Charles Willard St, Carson, CA 90746, UNITED STATES Tol Free : +1-877-213-1222 Fax : +1-310-632-2195

www.samsungcctvusa.com

SAMSUNG TECHWIN EUROPE CO., LTD.

Samsung House, 1000 Hillswood Drive, Hillswood Business Park Chertsey, Surrey, UNITED KINGDOM KT16 OPS Tel : +44-1932-45-5300 Fax : +44-1932-45-5325

TIANJIN SAMSUNG TECHWIN OPTO-ELECTRONICS CO., LTD.

No.11 Wei 6 Street. Micro-Electronic Industrial Park Jingang Road, Tianjin, P.R. CHINA 300385 Tel : +86-22-23887788 Fax : +86-22-23887788

35.2 (1.39")

43.5 (1.71")

40.4 (1.6")

45.7 (1.8")

223.5 (8.8") 4 (0.16")

ø100 (3.94")

ø52 (2.05")

ø73.5 (2.89")

116 (4.57")

135 (5.31")

43.8 (1.72")

48.1 (1.89")

39 (1.54")

52 (2.05")

SLA-12240 SLA-612DN SLA-M2882
