Thank you for purchasing a SAMSUNG CCD CAMERA.
Before attempting to connect or operate this product,
please read these instructions carefully and save this manual for future use.

ENGLISH

High Resolution Day & Night Dome Camera SID-45C/46C User’s Manual

Compact

& Clear

This installation should be made by a qualified service person and

should conform to all local codes.

The lightning flash with an arrowhead symbol, within an equilateral triangle is
intended to alert the user to the presence of uninsulated “dangerous voltage”
within the product's enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user
to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.

INFORMATION-This equipment has been tested and found to comply with limits
for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio
communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at
his own expense.

WARNING -Changes or modifications not expressly approved by the manufacturer
could void the user’s authority to operate the equipment.

WARNING : To prevent electric shock and risk of fire hazards:

Do NOT use power sources other than that specified.
Do NOT expose this appliance to rain or moisture.

Before operating the camera, confirm the camera model and proper input power
voltage. In order that you can understand this manual thoroughly, we'll introduce
our model description.

SID-45C/46C Series

• NTSC models • PAL models
SID-45CN SID-45CP
SID-46CN SID-46CP

Model Description

• SID-4XCX

• LENS TYPE
45C: f=3.7mm, F2.0, 92˚
46C: f=8.0mm, F2.0, 40˚

• SIGNAL SYSTEM
N NTSC Model
P PAL Model

Signal system
Lens Type

Features

Horizontal Resolution 530 TV Lines

Clear image quility has been achieved by
employing a CCD with 410,000 pixels(NTSC),
470,000 pixels(PAL) and optimized WINNER3
DSP CHIP which provides a horizontal resolution
of 530 TV lines.

Electronic DAY & NIGHT

This camera has a function that electronically
selects the mode that is appropriate for daytime
or night-time conditions. The COLOR mode
operates in daytime conditions to provide
optimum colors, and BW mode operates in
night-time conditions to enhance the definition
of the image.

PRIVACY Function

The PRIVACY function conceals the areas
you do not wish to appear on the screen.

Pan and Tilt

Pan and tilt are available after installing
camera.

High Sensitivity

The built-in high sensitivity COLOR CCD
enables a clear image even in 0.002Lux
(Sens-up) or lower illumination.

SSNR (Samsung Super Noise
Reduction)

By using built-in SSNR function manufactured
by SAMSUNG TECHWIN, the amount of low
illuminance noise has been significantly
reduced, and the signal-to-noise ratio (S/N)
as well as horizontal resolution have been
improved, resulting in a clear and sharp
image display even in the dark.

Controlled by OSD Menu

The camera can be controlled by selecting
text displayed on the monitor screen.

Additional Functions

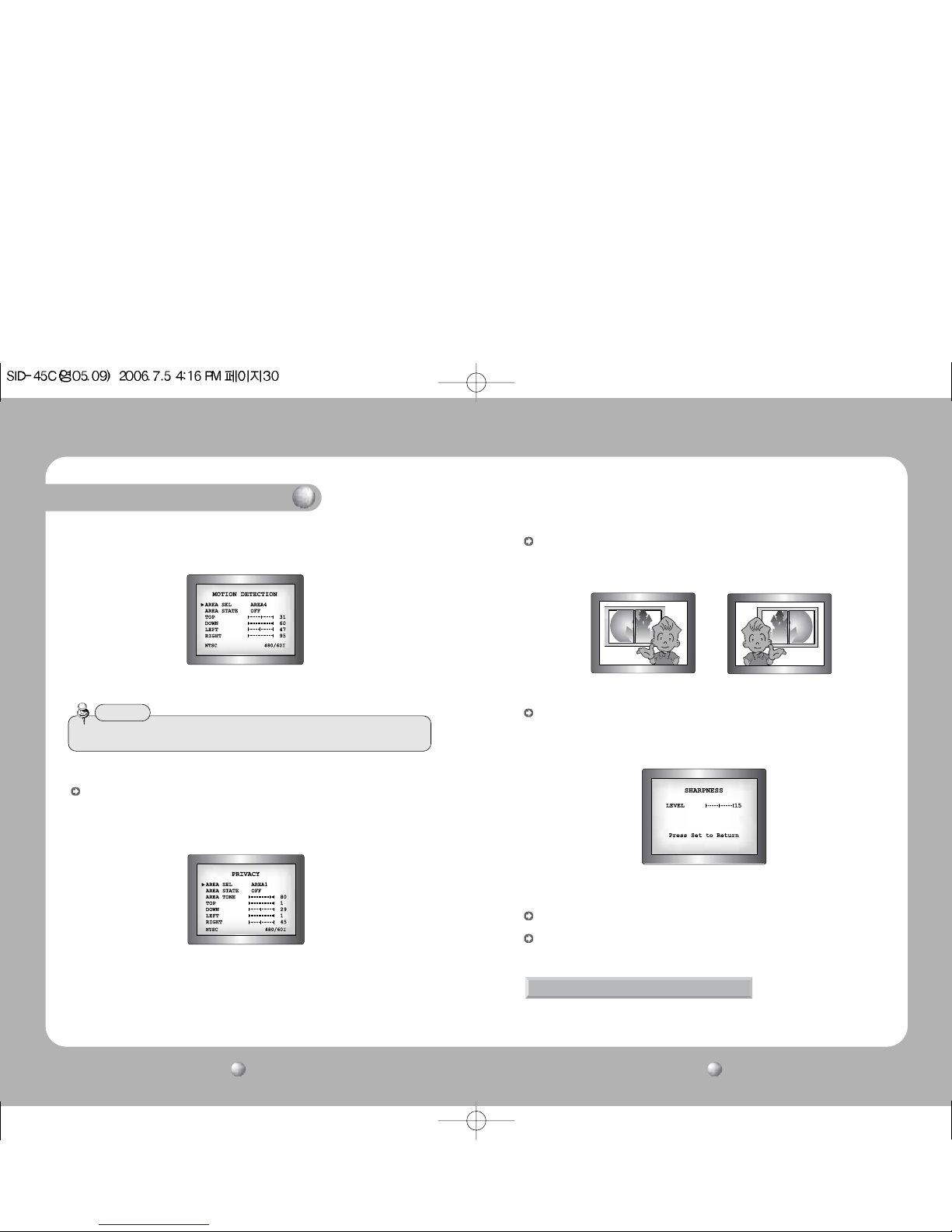

SENS-UP, MOTION DETECTION, MIRROR,
SHARPNESS and SYNC(INT/LL) functions
are also available.

Warnings & Cautions

This information is provided to ensure your safety and to prevent any losses, financial or
otherwise. Please read it carefully and use the product accordingly.

Warning/Attention/Special Mark Messages

Indicates “Never Allowed.”

Indicates “No Disassembling.”

Indicates

Must Observe.

Ignoring this information may result in material loss and/or serious
personal injuries including death.

Samsung Techwin cares for the environment at all product manufacturing
stages to preserve the environment, and is taking a number of steps to
provide customers with more environment-friendly products.The Eco mark
represents Samsung Techwin s will to create environment-friendly products,
and indicates that the product satisfies the EU RoHS Directive.

Front
Back

8

Installing Camera
Connecting To Monitor
Connecting To Power
Panning & Tilting Control

Precautions

10

Composition

11

14

13

15
16

12

11

Name and Function of Each Part

Menu
Setting

• SHUTTER (condition and speed control)

• WHITE BALANCE control

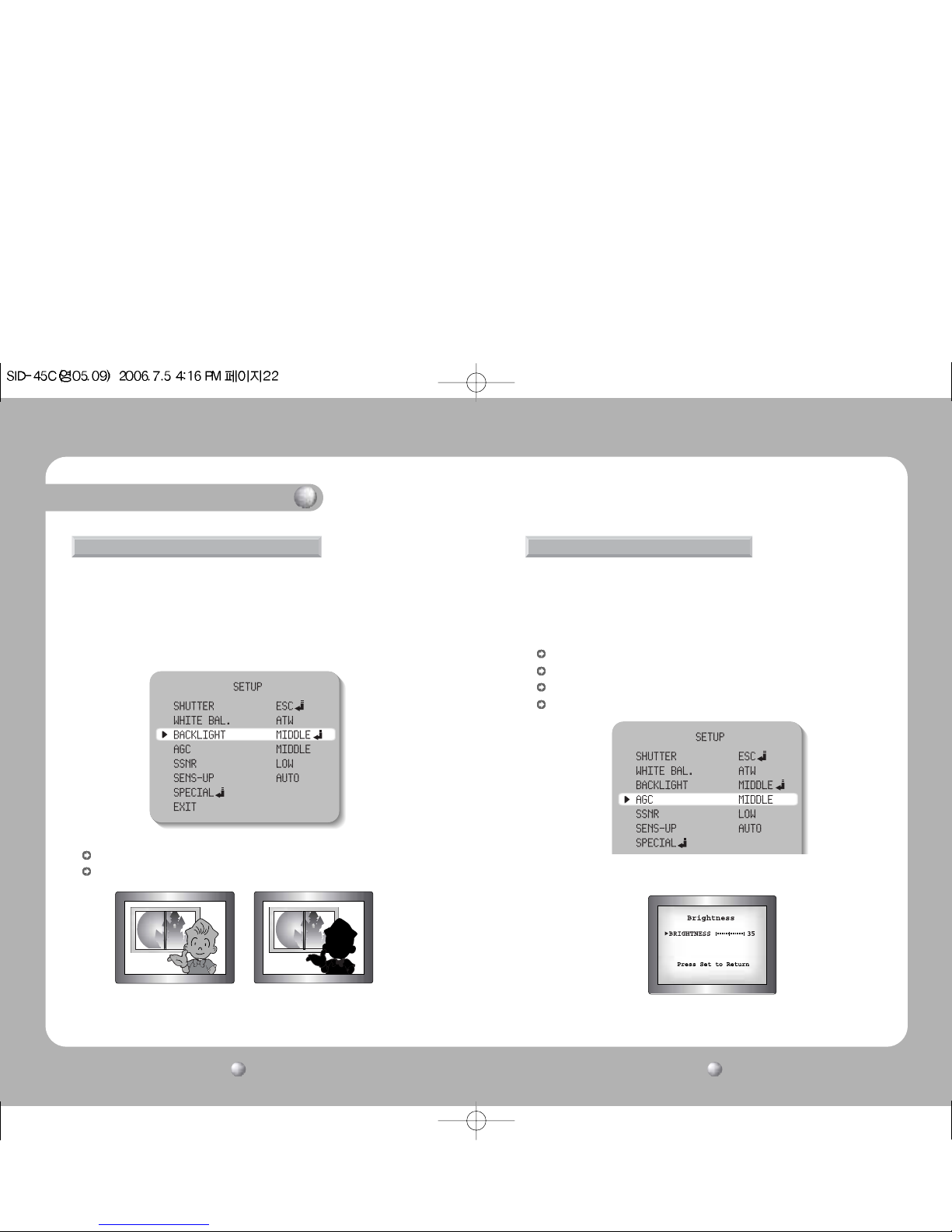

• BACKLIGHT (Backlight Compensation)

• AGC (Auto Gain Control)

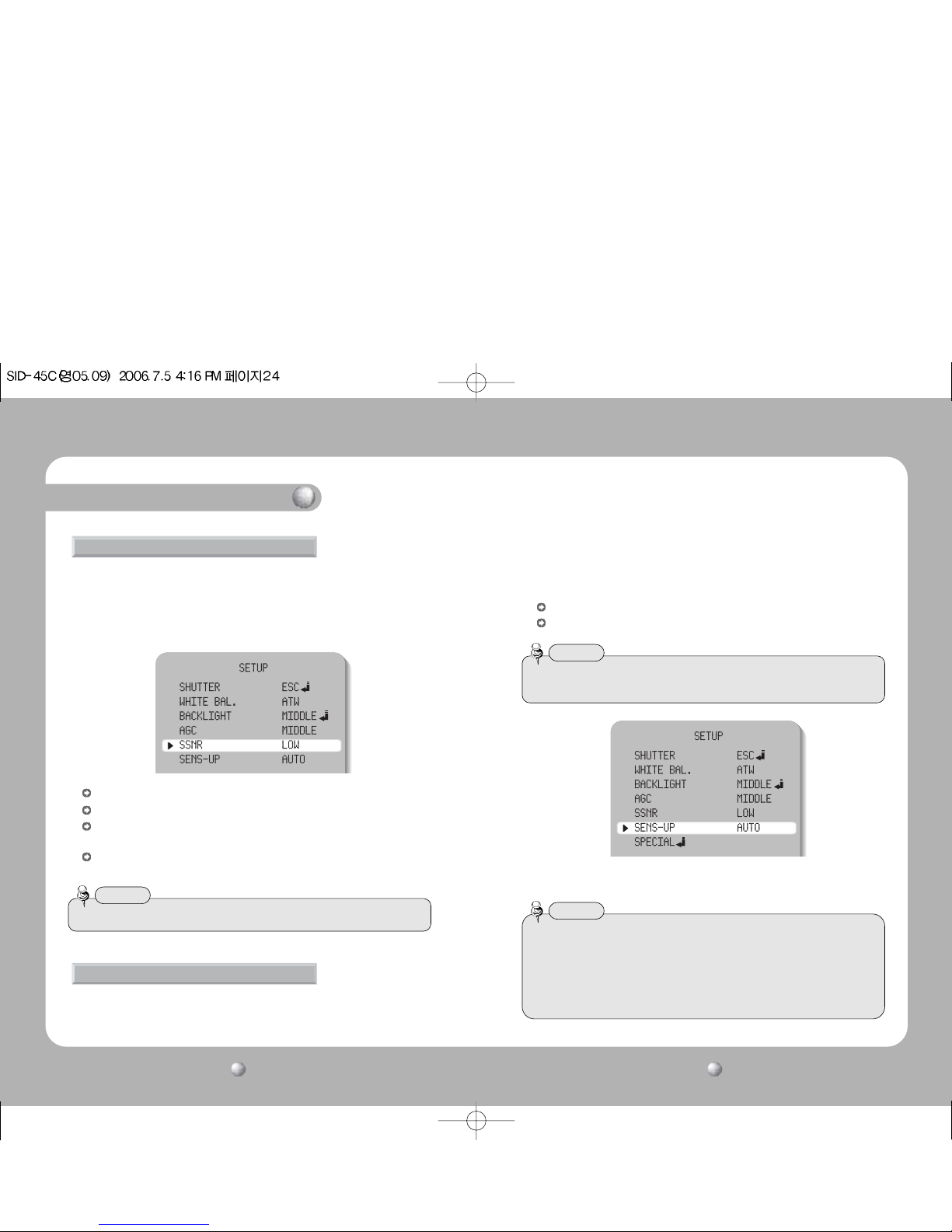

• SSNR (Samsung Super Noise reduction)

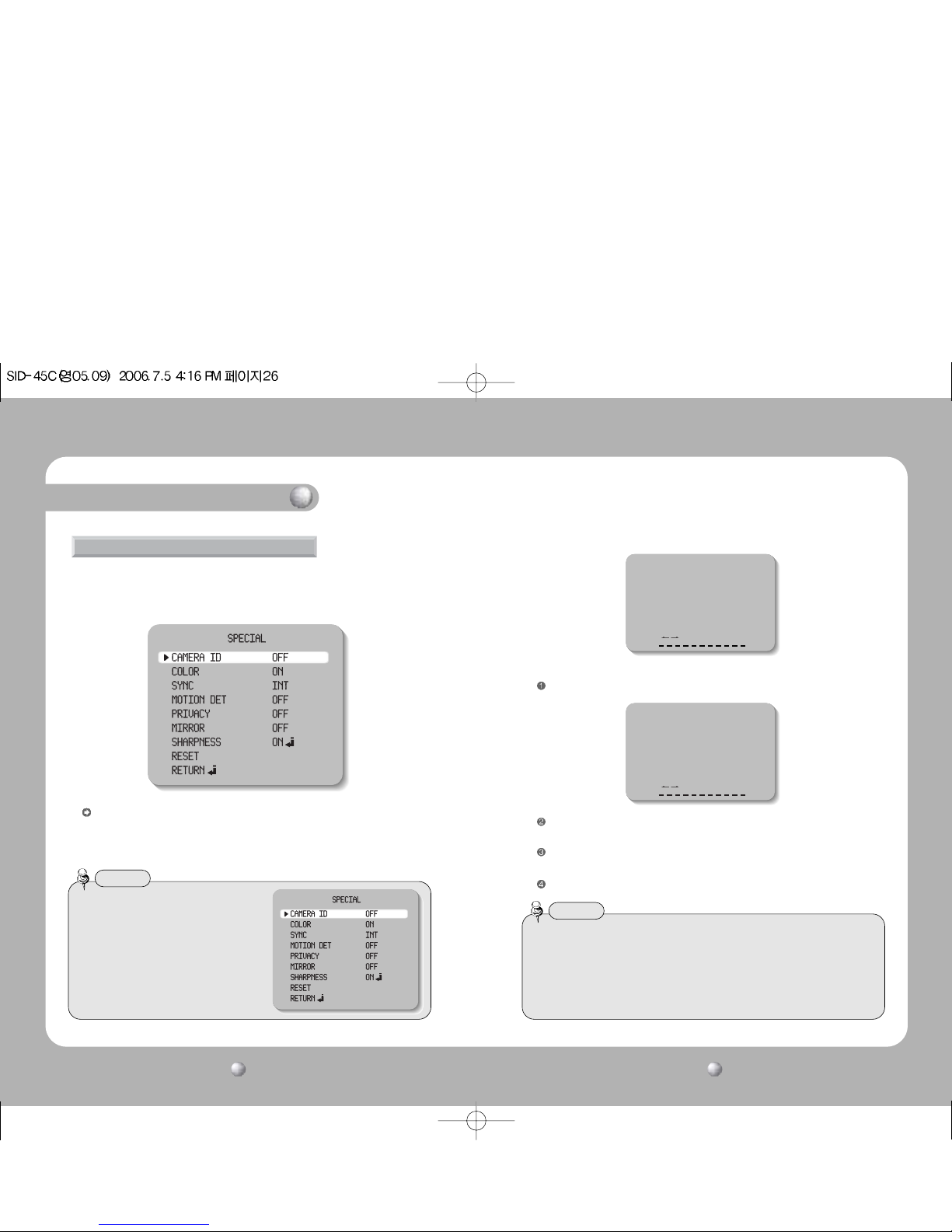

• SPECIAL

17

18

17

19
20
22
23
24

26

Camera Operation

13

Installation

32

Troubleshooting

34

Specification

35

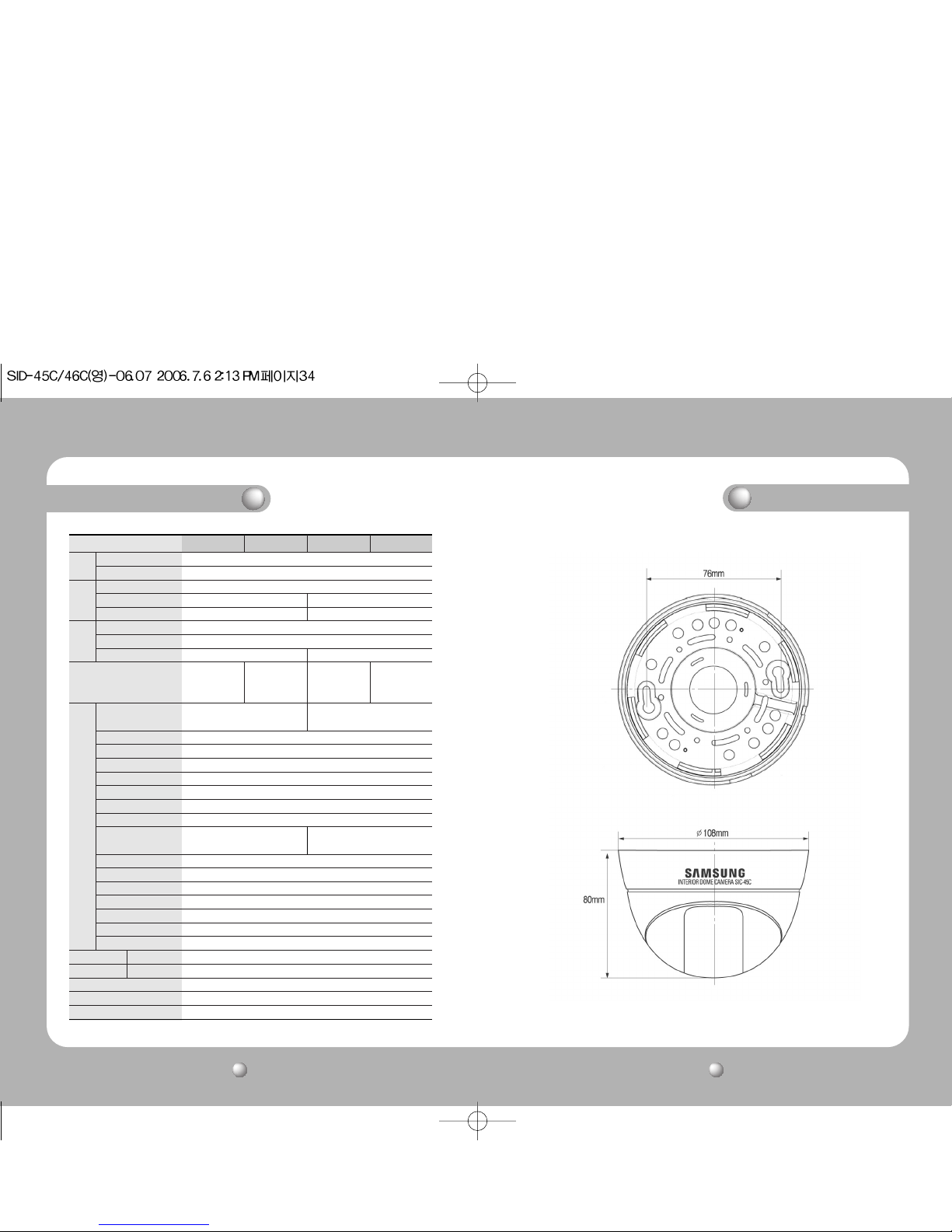

Dimension

Contents

COLOR DOME CAMERACOLOR DOME CAMERA User’s ManualUser’s Manual

98

Do not install the camera in
extreme temperature conditions.

Only use the camera under conditions
where temperatures are between -10˚C
and +50˚C. Be especially careful to provide
ventilation when operating under high
temperatures.

Do not install or use the camera in an
environment where the humidity is high.

It can cause the image quality to be poor.

Do not install the camera under
unstable lighting conditions.

Do not disassemble the camera.

Severe lighting change or flicker can
cause the camera to work improperly.

Never use the camera close to a
gas or oil leak.

It can cause malfunctions to occur.

There are no user-serviceable parts inside it.

Do not touch the front lens of
the camera.

It is one of the most important parts of
the camera. Be careful not to be stained
by fingerprint.

Never keep the camera face to
strong light directly.

It can damage the CCD.

Do not expose the camera to
rain or spill beverage on it.

If it gets wet, wipe it dry immediately.
Liquids can contain minerals that corrode
the electronic components.

Do not drop the camera or
subject them to physical shocks.

It can cause malfunctions to occur.

• If the camera is exposed to spotlight or object reflecting strong light, smear or
blooming may occur.

• Please check that the power satisfies the normal specification before connecting
the camera.

Notes

Precautions

COLOR DOME CAMERACOLOR DOME CAMERA User’s ManualUser’s Manual

1110

FRONT

Composition

Name and Function of Each Part

1. HIGH RESOLUTION DAY & NIGHT
DOME CAMERA SID-45C/46C

2. Instruction Manual

4. Bracket

3. M3 Tapping Screws 4EA

Pan Base

You can rotate the lens from 340˚

PCB Front Cover

Tilt Base

You can adjust up and down the camera(30°~90°).

Funtion Setting Button

SETUP button : Used for the menu display.

Conform the status of the selected function.
LEFT& RIGHT button: Used when changing item values, by moving the cursor

to the left or right on the menu screen.
UP& DOWN button: Used for selecting items by moving the cursor Up or

down on the menu screen.

COLOR DOME CAMERACOLOR DOME CAMERA User’s ManualUser’s Manual

1312

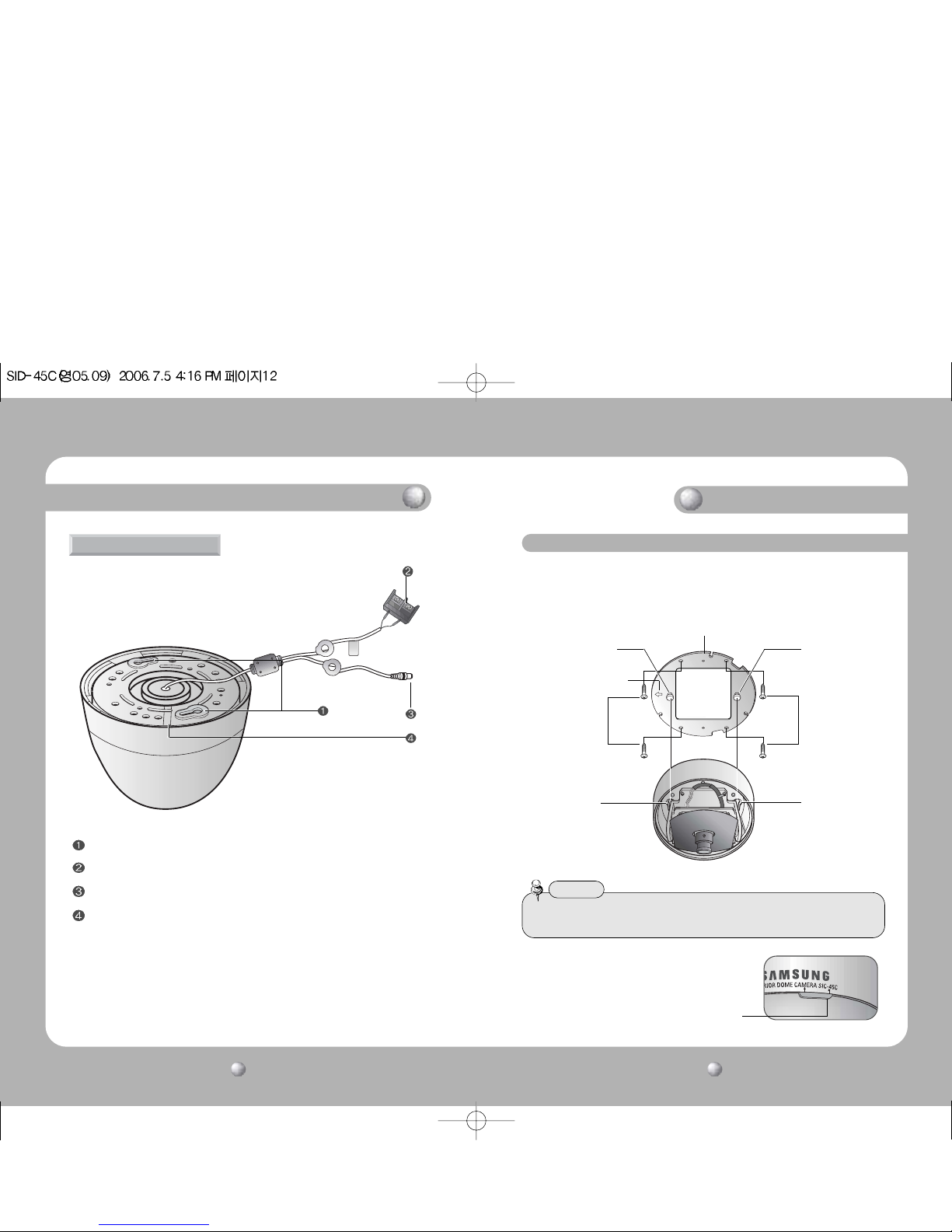

BACK

Name and Function of Each Part

Groove for fixing camera
Power input jack
BNC Jack
Cable guide hole

When the camera is installing on the ceiling, put the POWER & BNC JACK into
the cable guide hole.

Installation

Installing Camera

1. Fix the Bracket to suitable position where the camera will be installed.

2. After inserting the Bracket pin to camera hole, rotate the camera right.

3. After adjusting the camera, cover the Dome-Cover.

BRACKET

Screw

BRACKET PIN

An arrow for
installing direction

BRACKET PIN

Hole

Screw

Hole

•If you want to separate the Dome-Cover, Position
the Hook between printed characters ‘SSID-45C
/46C’ (model name) following the illustration.

HOOK

Please locate an arrow for installing direction that you wish to observe Area and then
fix four screws.

Notes

COLOR DOME CAMERA User’s Manual

15

COLOR DOME CAMERA User’s Manual

14

Installation

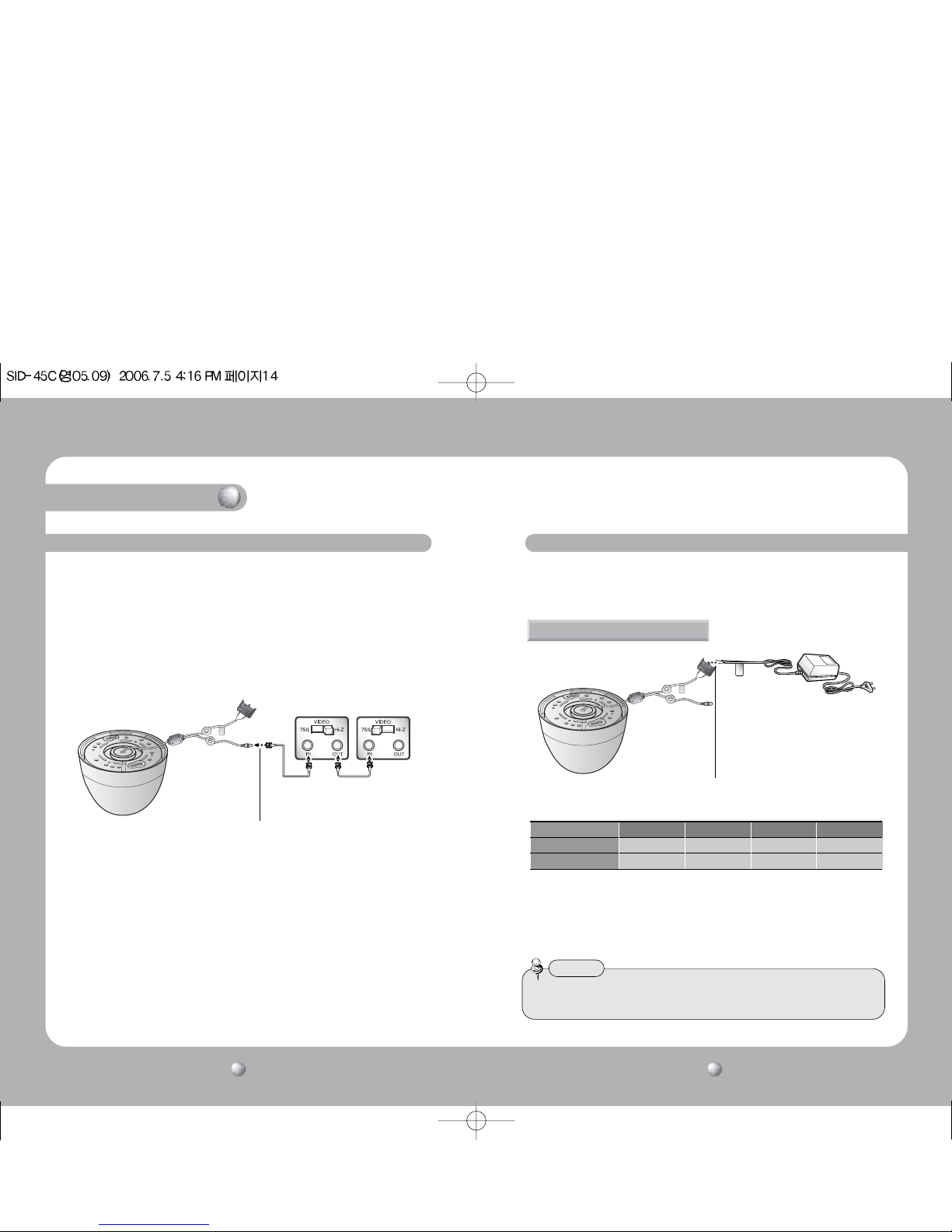

Please connect the video output terminal located on the back of the camera to the
monitor.

Connecting to a Monitor

•The connection method varies depending on the type of monitor and accessories.
Please refer to the user's manual for each instrument.

•Please turn off the power when connecting.

•Please select Hi-Z on the 75Ω/Hi-Z switch for the intermediate video TV set
and select 75Ω for the Intermediate device as shown in the picture below.

Connecting to Power

Connect the adaptor to the power input connector as shown in the figure below.
The recommended adaptor specification for SID-45CN/CP, SID-46CN/CP is DC 12V,
500mA .

DOME Camera

Intermediate Monitor

BNC

DC Power Type (DC 12V, 500mA)

DOME Camera

Adaptor

Power Input Connector

When the resistance value of copper wire is at [20°C(68°F)]

•As shown in the table above, voltage decreases as the wire gets longer.
Therefore use of an excessively long adaptor output line for connection to the
camera may affect the performance of the camera.

*Standard voltage for camera operation : DC 12V±10%
*There may be some deviation in voltage drop depending on the type of wire and the manufacturer.

Copper wire size (AWG)

#24(0.22mm

2

)#22(0.33mm2)#20(0.52mm2)#18(0.83mm2)

Resistance (Ω / m) 0.078 0.050 0.030 0.018
Voltage Drop (V/m) 0.028 0.018 0.011 0.006

• Adaptor isn’t offer to accessory.

• Please check the polarity of the DC power source before connecting to power.

Notes

COLOR DOME CAMERACOLOR DOME CAMERA User’s ManualUser’s Manual

1716

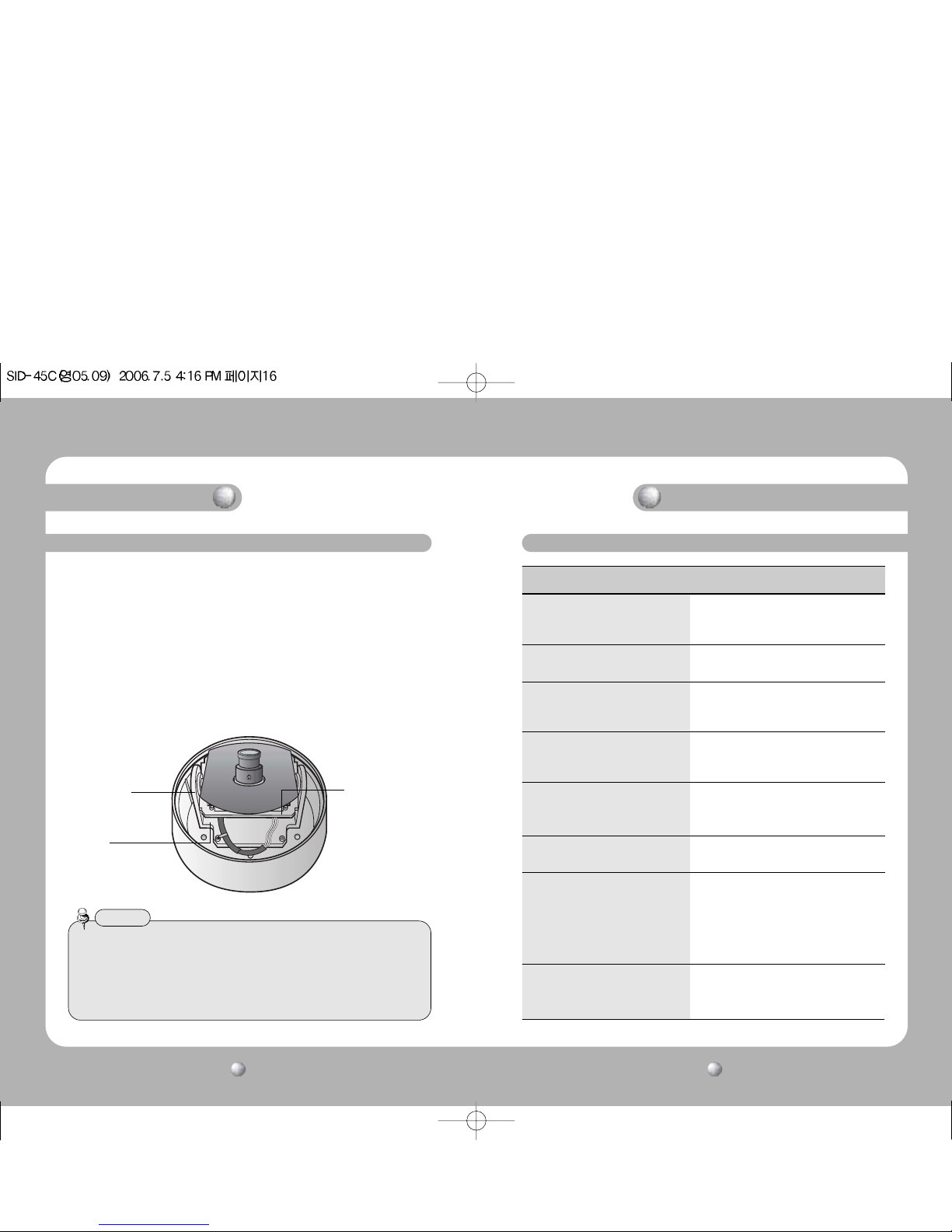

Panning & Tilting Control

You can adjust the Panning and Tilting angle freely. (Panning angle: 0˚ to 340˚,
Tilting angle: 30˚~90˚)

1. Adjustment Panning angle:

After attaching the dome camera to ceiling, adjust the panning angle for better
monitoring area by rotating the Pan Base.
The panning angle can be adjusted to 0˚ from 340˚ freely.

2. Adjustment Tilting angle:

After attaching the dome camera to ceiling, adjust the tilting angle for better
monitoring area by rotating the Tilt Base.
The tilting angle can be adjusted to 30˚ from 90˚ freely. (based the ceiling
surface)

•In case of adjusting the tilting, do not take the lens for preventing physical shocks.
Please take the Tilt Base.

•This dome camera is designed to installing on the cailing. In case of need to use
camera on the wall, because of the angel of attaching, the image can be turned
upside down. In this case, please installing the camera after manufacturing the
Bracket.

Notes

Installation

Tilt Base

You can adjust up and
down the camera.
(30˚~90˚)

Pan Adjustment

You can rotate the lens
from 0˚ to 340˚.

PAN BASE

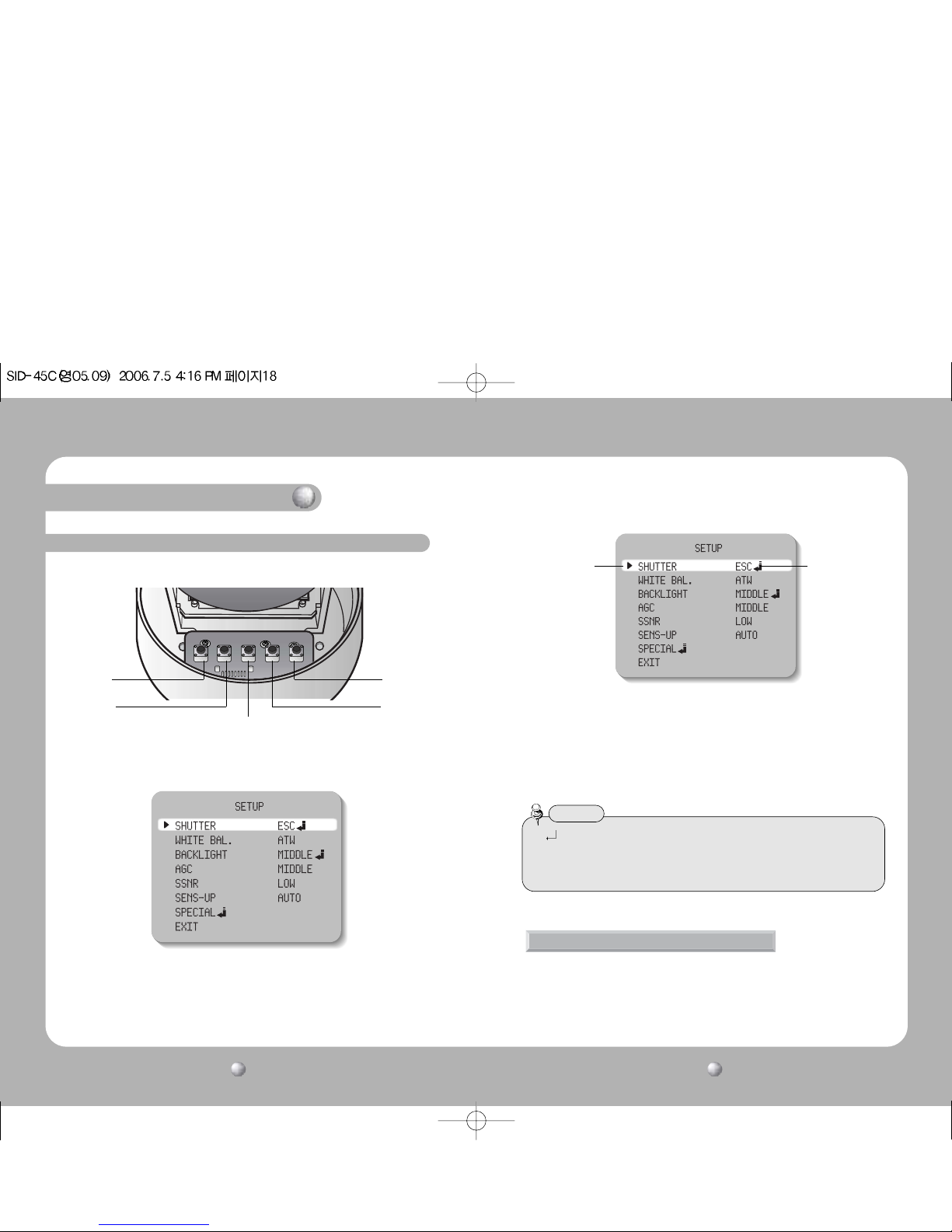

Camera Operation

Menu

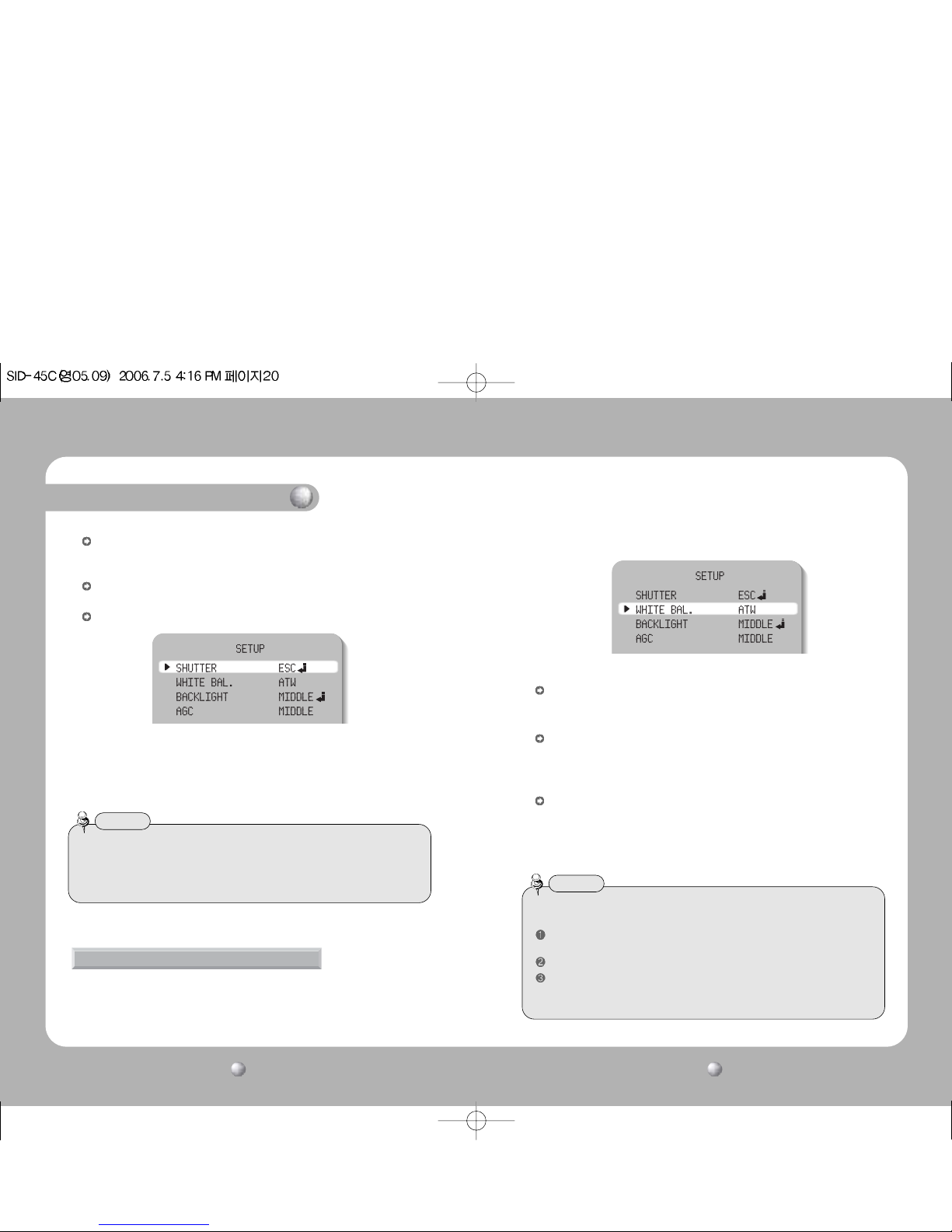

SETUP menu

SHUTTER • ESC • MANUAL • FLK
(condition and speed control)

WHITE BALANCE control

• ATW • AWC • MANUAL

BACKLIGHT

• OFF •

LOW • MIDDLE

(Backlight compensation)

• HIGH

AGC (Auto Gain control)

• OFF • LOW • MIDDLE

• HIGH

SSNR

• OFF • LOW • MIDDLE

(Samsung super noise reduction) • HIGH

SENS-UP (Low illuminance)

• OFF • AUTO

SPECIAL

• CAMERA ID • COLOR

• SYNC • MOTION DETECTION

• PRIVACY • MIRROR

• SHARPNESS • RESET

• RETURN

EXIT

COLOR DOME CAMERACOLOR DOME CAMERA User’s ManualUser’s Manual

1918

Settings

Camera Operation

SET button

LEFT button

RIGHT button

UP button

DOWN button

1. Please press the SETUP button

•Settings can now be made. The SETUP menu is displayed on the monitor.

2. Please select any function you wish to activate by using the UP and DOWN
buttons.

•The arrow can be moved up or down by using the UP and DOWN buttons.

Please position the arrow to point to the function you wish to operate.

Settings can be made using the 5 buttons located on the inside of the camera.

Select any function
you wish to operate
by using the UP and
DOWN buttons.

Modes can be
changed using the
LEFT and RIGHT
buttons.

3. Please press the LEFT or RIGHT button if you wish to change mode.

•When the LEFT or RIGHT button is pressed, available values and modes
are displayed in order. Please keep pressing the button until you get to the
mode you wish to operate.

4. Please select 'EXIT' and then press the SETUP button to finish the setting.

•If appears at the mode you wish to operate, it means that there is a sub-menu
which can be selected by pressing the SETUP button.

•If - - - appears at the mode item, it means that there is no mode available to be
selected.

Notes

Auto or manual control can be selected.

1. When the SETUP menu is on the screen, please position the arrow to point
to 'SHUTTER' by using the DOWN button.

2. Please select the shutter mode by pressing the LEFT or RIGHT button.

SHUTTER (condition and speed control)

COLOR DOME CAMERACOLOR DOME CAMERA User’s ManualUser’s Manual

2120

Camera Operation

FLK: Please select 'FLK' mode when flickering occurs on the screen, due to an

imbalance between illumination and frequency. NTSC Model:1/100, PAL
MODEL: 1/120

ESC: Auto control of the shutter speed can be achieved. When ESC mode is on, the

speed is controlled automatically according to the brightness of the screen.

MANUAL: The shutter speed can be controlled manually.

3. Please select 'MANUAL' mode if you wish to adjust the shutter manually.

•You can select speed from ‘1/60’ to ‘1/120,000’sec (NTSC Models), ‘1/50’
to ‘1/120,000’sec (PAL Models).

4. Please press the SETUP button when all the settings are complete.

2. Please select the mode you wish to operate by pressing the LEFT or RIGHT
button.

*Please select one of the 3 modes below.

ATW(Auto Tracking White Balance): This mode can be used within the color
temperature range 1,800°K ~ 10,500°K (Ex. fluorescent light, outdoor, sodium
vapor lamp or inside tunnels)

AWC(Auto White Balance Control): Please press the SETUP button while the
camera is directed at a piece of white paper to obtain the optimum state under
current illumination. If the environment including the light source is changed, you
have to adjust the white balance again.

MANUAL: The manual adjustment mode enables finer adjustment.
Please select ATW or AWC first. Please change to manual adjustment mode and
press the SETUP button. Please set the appropriate color temperature, and then
increase or decrease the red and blue color values while monitoring the color
changes on the object.

The screen color can be adjusted by using the WHITE BALANCE function.

1. Please position the arrow to point to 'WHITE BAL' on the SETUP menu by
using the UP and DOWN buttons.

WHITE BALANCE control

•While using the internal synchronous system, if the shutter setting is on 'ESC' and
the camera is directly facing a bright fluorescent light, the image on the screen can
be adversely affected. Therefore please choose the installation location with care.

•When 'MANUAL' mode is on, the SENS UP function does not operate.

Notes

•Under the following conditions the WHITE BALANCE function may not operate
properly. In such cases, please select the AWC mode.

When the object’s surroundings have a very high color temperature (Ex. a clear
sky and sunset)
When the object’s surroundings are dark
If the camera directly faces a fluorescent light or is installed in a place where
there are considerable changes in illumination, the WHITE BALANCE function
may become unstable.

Notes

Camera Operation

COLOR DOME CAMERA User’s Manual

23

COLOR DOME CAMERA User’s Manual

22

AGC (Auto Gain Control)

1. Please position the arrow to point to 'AGC' on the SETUP menu by using the
UP and DOWN buttons.

2. Please select the mode you wish to operate by pressing the LEFT or RIGHT
button. As the level of gain increases, the screen gets brighter and the level
of noise also increases.

HIGH: The gain increases or decreases within the range of 6dB ~ 34dB.
MIDDLE: The gain increases or decreases within the range of 6dB ~ 30dB.
LOW: The gain increases or decreases within the range of 6dB ~ 18dB.
OFF: The gain is fixed at 6dB.

3. Please press the SETUP button. The BRIGHTNESS can be adjusted within the
range of 1~70.

BACKLIGHT (Backlight Compensation)

When there is a strong backlight behind the object, clear images of the background
as well as the object can still be obtained by using the BACKLIGHT function.

1. Please position the arrow to point to 'BACKLIGHT' on the SETUP menu by
using the UP and DOWN buttons.

2. Please select the mode you wish to operate by pressing the LEFT or RIGHT
button.

HIGH/MIDDLE/LOW: You can adjust the sensitivity of Backlight Compensation.
OFF: BACKLIGHT function does not operate.

BACKLIGHT ON BACKLIGHT OFF

4. Please press the SETUP button when all the settings are complete.

COLOR DOME CAMERA User’s Manual

25

COLOR DOME CAMERA User’s Manual

24

The background noise in the low light level decreases automatically as the level
of gain changes.

1. Please position the arrow to point to 'SSNR' on the SETUP menu by using the
UP and DOWN buttons.

2. Please select the mode you wish to operate by pressing the LEFT or RIGHT button.

OFF: There is no reduction in noise level.
LOW: There is a small reduction in noise level with almost no ghost image.
MIDDLE: The most effective mode. There is a sufficient reduction in noise levels

without causing much ghost imaging.

HIGH: The level of noise is reduced greatly, however there is an increase in ghost

imaging.

SSNR (Samsung Super Noise reduction)

SENS UP helps maintain a bright, clear screen image by automatically detecting
changes in the level of light in low light level conditions.

SENS UP (Low illuminance)

1. Please position the arrow to point to 'SENS UP' on the SETUP menu by using
the UP and DOWN buttons.

2. Please select the mode you wish to operate by pressing the LEFT or RIGHT
button.

AUTO: Low light level auto mode
OFF: The function does not operate.

• When AGC is turned off, SSNR does not operate.

Notes

• When SHUTTER is in the manual mode, SENS UP does not operate.

• When AGC is turned off, SENS UP does not operate.

Notes

•The maximum storage magnification in low light level can be adjusted by pressing
the SETUP button in 'AUTO' mode.(X2~X128)

•As the magnification increases, the screen gets brighter; moving object gets more
afterimage.

•If storage magnification is increased while SENS UP is operating, it may cause noise,
and spots may appear; however this is normal.

Notes

3. Please press the SETUP button when all the settings are complete.

Camera Operation

COLOR DOME CAMERA User’s Manual

27

COLOR DOME CAMERA User’s Manual

26

3) Please press the SETUP button.

4) Up to 15 letters can be used for the ID.
Please move the cursor to the letter you wish to choose by using the UP and
DOWN button.

Select an ID from A, B~Y, Z, a, b~y, z, 0,1~8, 9 by using the UP, DOWN, LEFT
and RIGHT buttons.

Please lock in the letters by using the SETUP button.

•When the letter is locked in, the cursor moves to the next space.

Please repeat the above to input the ID.

1. Please position the arrow to point to 'SPECIAL' on the SETUP menu by using
the UP and DOWN buttons.

2. Please select the mode you wish to operate by pressing the UP or DOWN
button.

CAMERA ID: If the ID is input, the camera ID appears on the monitor.

1) Please position the arrow to point to 'CAMERA ID' by using the UP or DOWN
button.

2) Please select 'ON' by pressing the LEFT or RIGHT button.

SPECIAL

•If 'OFF' is selected, the ID does not appear
on the monitor even if it has been input.

Notes

Camera ID

ABCDEFGHIJKLM
NOPQRSTUVWXYZ
abcdefghijklm
nopqrstuvwxyz

-. 123456789
CLR POS END

Camera ID

ABCDEFGHIJKLM
NOPQRSTUVWXYZ
abcdefghijklm
nopqrstuvwxyz

-. 123456789
CLR POS END

•If the wrong name has been input.....

If you press the SETUP button after moving the cursor to CLR, all the letters will be
erased. If you want to correct a letter, please move the cursor to the arrow at the
bottom left of the screen and press 'SET'.

Please position the cursor above the letter
you wish to correct, and then move the cursor onto the letter you wish to choose
and press the SETUP button.

Notes

Camera Operation

COLOR DOME CAMERA User’s Manual

29

COLOR DOME CAMERA User’s Manual

28

SYNC : In LINE-LOCK mode, it synchronizes the video signal between cameras

without a synchronous generator.

- INT : Internal synchronization - LL : External line-lock synchronization

•If you choose ‘LL’, you can adjust the desired phase.
Press the SET button.

•You can adjust the desired phase from 0 to 359.

MOTION DETECTION:

This product has a feature that allows you to observe movements of objects in 4
different areas on the screen, and the words 'MOTION DETECTED' appear on the
screen when movement is detected; hence a single individual can conduct
supervision efficiently. The camera detects an object's movement by sensing disparity
of outline, and level of brightness and color.

•Please press the SETUP button.

- OFF : MOTION DETECTION mode is cancelled.

- ON : Any motion in the selected areas is observed.

•Please select the area you wish to observe from the 4 areas in AREA SEL mode.

•Please select ON mode for the chosen area.

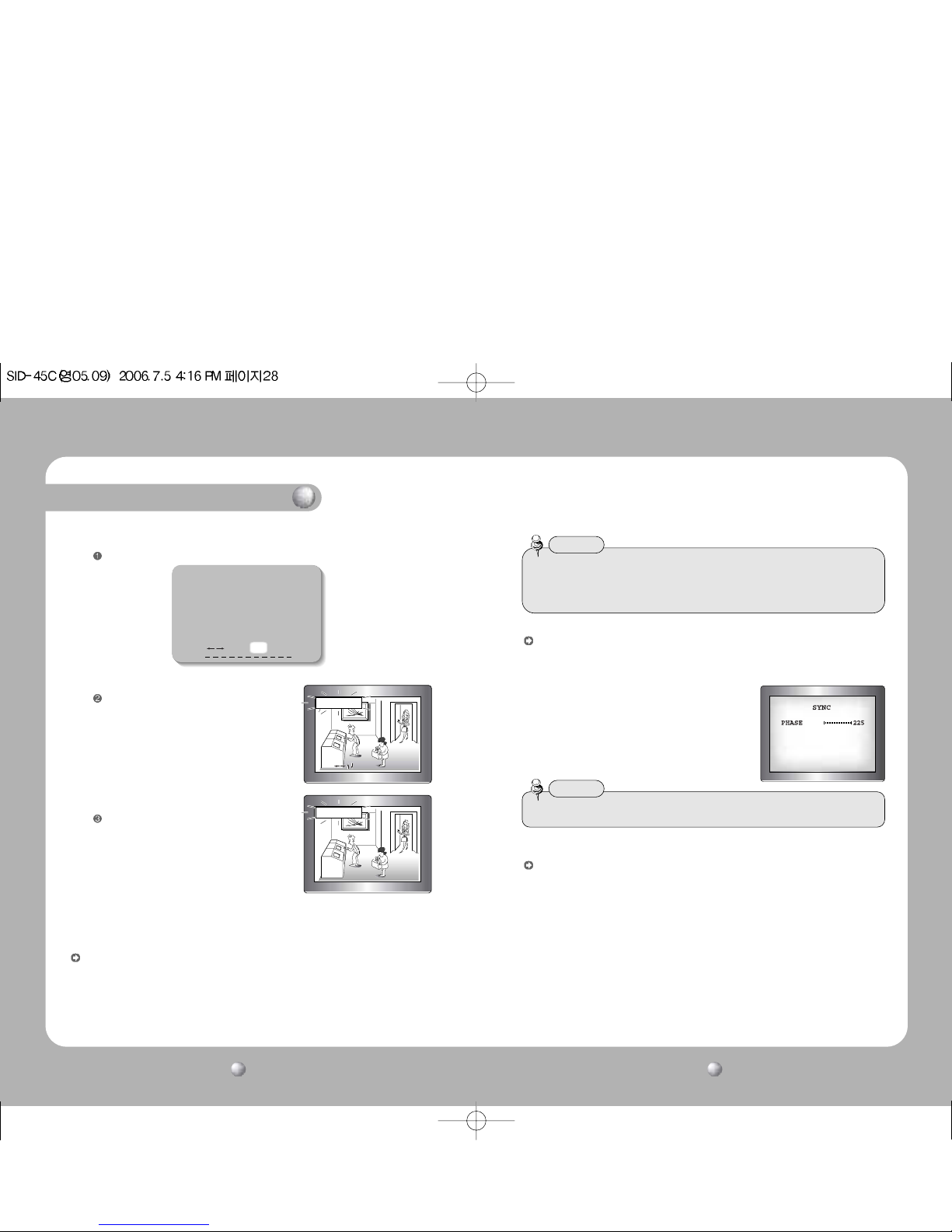

5) When a name has been chosen, please select a position for the name display.
Please move the cursor onto 'POS' and then press the SETUP button.

The name will appear at the top left hand
corner.

Please find the position you wish to display
the name by using the 4 directional buttons,
and then press the SETUP button.

6) Please select 'END' and then press the SETUP button to complete ID input.

to Locate, then SETto Locate, then SETto Locate, then SET

FRONT DOOR

Camera ID

ABCDEFGHIJKLM
NOPQRSTUVWXYZ
abcdefghijklm
nopqrstuvwxyz

-. 123456789
CLR POS END

FRONT DOOR

COLOR (Electronic DAY & NIGHT)

- AUTO: This camera has a function which electronically changes to the appropriate
mode for daytime or night-time. The COLOR mode is operated for daytime,
and it converts to BW mode for night-time.

- ON: The color mode is selected electronically.

•If AGC is OFF, you can’t select AUTO mode.

•When an infrared light is used, there may be a problem with focusing and COLOR
(DAY & NIGHT).

Notes

Camera Operation

•'Sync' mode is fixed ‘INT’ in DC 12V input power.

Notes

COLOR DOME CAMERA User’s Manual

31

COLOR DOME CAMERA User’s Manual

30

•Please adjust the size of the area to be observed by using the UP, DOWN, LEFT or
RIGHT button.

•Please press the SETUP button to save the changes and complete the setting.

•'MD' is on screen display only words.

Notes

PRIVACY: This modes conceals the areas you do not wish to appear on the screen.

- OFF : Cancels the PRIVACY mode.

- ON : Operates the PRIVACY mode.

•Please press the SETUP button.

MIRROR

- ON : Sets a horizontal image inversion.

- OFF : Cancels the inversion.

SHARPNESS: The outline of the video image becomes cleaner and more distinctive

as the level of SHARPNESS increases. If the level goes up excessively,
however, it may affect the video image and generate noise.

•Please press the SETUP button.

•The available range of level is 0 ~ 31.

RESET: Returns to the level which was set by the manufacturer for shipment.
RETURN: Returns to the SETUP menu.

•Please select the area you do not wish to appear from the 4 areas in AREA SEL mode.

•Please select ON mode for the chosen area.

•Please adjust the size of the area to be concealed by using the UP, DOWN, LEFT or
RIGHT button.

MIRROR ON MIRROR OFF

EXIT

Saves all the setting menus and then exits.

Camera Operation

Troubleshooting

COLOR DOME CAMERA User’s Manual

33

COLOR DOME CAMERA User’s Manual

32

If you have trouble operating your camera, refer to the following table. If the
guidelines do not enable you to solve the problem, contact an authorized
technician.

Nothing appears on
the screen.

The video image is
not clear.

The screen is dark.

There is a problem with
the camera operation.
The camera surface is
too hot and black
stripes appear on the
screen.

Problem

• Please check the power connection.

• Please check the video signal line connection.

• Please check the Brightness of Auto Iris lens.

• Please check if the lens is clean. Please clean the
lens with a clean cloth or brush.

• Please adjust the contrast feature of the monitor.

• Please make sure that the screen is not exposed
directly to a bright light. Please move the camera if
necessary.

• Please adjust the contrast feature of the monitor.

• If you have an intermediate device, set the 75Ω/
Hi-z properly, and check the terminals. (refer to
page 14)

• Please check if an appropriate power source to the
camera complies with the manufacturer's standard
requirement, or if the voltage keeps changing.

Solution

The MOTION
DETECTION function
is not working.

Colors are not quite
right.

The screen is flickering.

L/L mode isn't able to
be selected.

COLOR (DAY & NIGHT)
mode is not working.

SENS-UP function is
not working.

Problem

• Please check if 'MOTION DETECTION' mode is
turned on.

• Please check if the MD LEVEL is too low.

• Please check the setting of the MD AREA.

• Please check the 'WHITE BAL' setting. (Please refer
to page 20)

• Please check if the camera is facing directly into
sunlight or fluorescent light.

• When using DC 12V input power, ‘Sync’ mode is
fixed to ‘INT’.

• Please check if the AGC menu is set to the OFF
position.

• Please check if the AGC menu is set to the OFF
position.

• Please check if the SHUTTER menu is set to
MANUAL mode.

• Please check the limit of Sens-UP AUTO mode.

Solution

COLOR DOME CAMERA User’s Manual

35

COLOR DOME CAMERA User’s Manual

34

Specifications

Input Voltage
Power Consumption
Sensor
Total Pixels
Effective Pixels
Scanning System
Synchronization
Frequency

LENS(Built-in)

Video Output

Resolution
S/N (Y signal)
Min. Illumination
Back Light Compensation
COLOR (DAY&NIGHT)
Gain Control
White Balance
Electronic shutter speed

Sens-Up
O.S.D
Motion Detection
SSNR
Mirror
Privacy
Sharpness

Monitoring PAN
Angle TILT
Operating Temperature/Humidity
Dimension
Weight

DC 12V ± 10%

Max. 1.8W

1/3 inch, Sony Super HAD CCD
811(H) x 508(V) 795(H) x 596(V)
768(H) x 494(V) 752(H) x 582(V)

2:1 Interlace

Internal

H : 15.734KHz / V : 59.94 Hz H : 15.625KHz / V : 50.00 Hz

1.0Vp-p/75Ω 1.0Vp-p/75Ω

(Video 0.714Vp-p Sync 0.286Vp-p) (Video 0.7 Vp-p Sync 0.3 Vp-p)

530 Lines(Color)

50 dB

0.3 Lux @ F1.2, 0.002Lux(Sens-upX128)
LOW/MIDDLE/HIGH/OFF Selectable

ON/AUTO(Daytime : COLOR, Night time : B/W)

LOW/MIDDLEL/HIGH/OFF Selectable

ATW (1,800K~10,500K)/AWC/MANUAL

AUTO (1/60 ~ 1/120,000sec) / AUTO(1/50 ~ 1/120,000sec) /

MANUAL: (X128 ~ X2,1/60 ~ 1/120K) / Flickerless MANUAL : (X128 ~ X2,1/50 ~ 1/120K) / Flickerless

AUTO/OFF(selectable limit X2~X128)

Built-in

ON/OFF 4 Programmable Zone)

LOW/MIDDLE/HIGH/OFF Selectable

ON/OFF (Horizontal Image Inversion)

ON/OFF (4 Programmable Zone)

ON/OFF (Level Adjustable)

Manual 0˚ ~ 340˚

Manual 30˚ ~ 90˚

-10˚C to +50˚C / 30% to 80% RH
Ø108 x 80mm(H)

210g

C
C
D

POWER

S
y
n
c.

E
L
E
C
T
R

I
C
A
L

ITEM

SID-45CN SID-46CN SID-45CP SID-46CP

Dimension

Fixed Lens

f=3.7mm, F2.0,

92˚

Fixed Lens

f=8.0mm, F2.0,

40˚

Fixed Lens

f=3.7mm, F2.0,

92˚

Fixed Lens

f=8.0mm, F2.0,

40˚

DECLARATION OF CONFORMITY

Application of Council Directive(s) 89 / 336 / EEC
Manufacturer's Name SAMSUNG TECHWIN CO., LTD
Manufacturer's Address SAMSUNG TECHWIN CO., LTD

42, SUNGJU-DONG CHANGWON-CITY,

KYUNGNAM, KOREA, 641-120
European Representative Name
European Representative Address
Equipment Type/Environment CCTV Camera
Model Name SID-45CP
Beginning Serial NO. S6700001
Year of Manufacture 2006. 7. 1
Conformance to EN 50081-1 : 1992

EMC-Directive 89/336 EEC and 92/31/EEC

EN 50130-4 : 1996

We, the undersigned, hereby declare that the equipment specified above conforms
to the above Directive(s).

Manufacturer SAMSUNG TECHWIN CO., LTD

Legal Representative in Europe
Signature Signature
Full Name YOUNG TAEK SON Full Name
Position QUALITY CONTROL MANAGER Position
Place CHANGWON, KOREA Place
Date 2006. 7. 1 Date

MEMO

MEMO MEMO
