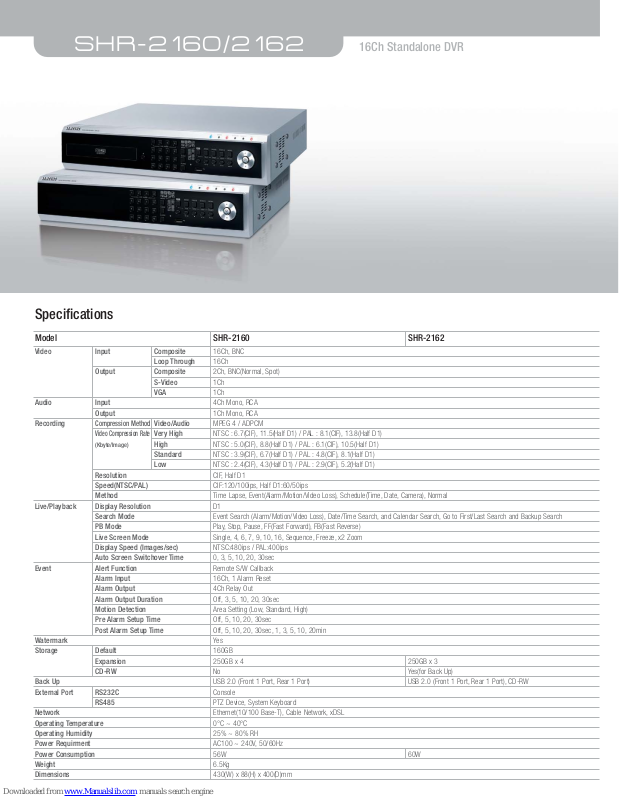

SHR-2160/2162
Specifications
Model SHR-2160 SHR-2162
Video Input Composite 16Ch, BNC
Loop Through 16Ch
Output Composite 2Ch, BNC(Normal, Spot)
S-Video 1Ch
VGA 1Ch
Audio Input 4Ch Mono, RCA
Output 1Ch Mono, RCA
Recording
Live/Playback Display Resolution D1
Event Alert Function Remote S/W Callback
Watermark Yes
Storage Default 160GB
Back Up USB 2.0 (Front 1 Port, Rear 1 Port) USB 2.0 (Front 1 Port, Rear 1 Port), CD-RW
External Port RS232C Console
Network Ethernet(10/100 Base-T), Cable Network, xDSL
Operating Temperature 0°C ~ 40°C
Operating Humidity 25% ~ 80% RH
Power Requirment AC100 ~ 240V, 50/60Hz
Power Consumption 56W 60W
Weight 6.5Kg
Dimensions 430(W) x 88(H) x 400(D)mm
Compression Method
Video Compression Rate
(Kbyte/Image)
Resolution CIF, Half D1
Speed(NTSC/PAL) CIF:120/100ips, Half D1:60/50ips
Method Time Lapse, Event(Alarm/Motion/Video Loss), Schedule(Time, Date, Camera), Normal
Search Mode Event Search (Alarm/Motion/Video Loss), Date/Time Search, and Calendar Search, Go to First/Last Search and Backup Search
PB Mode Play, Stop, Pause, FF(Fast Forward), FB(Fast Reverse)
Live Screen Mode Single, 4, 6, 7, 9, 10, 16, Sequence, Freeze, x2 Zoom
Display Speed (Images/sec) NTSC:480ips / PAL:400ips
Auto Screen Switchover Time 0, 3, 5, 10, 20, 30sec
Alarm Input 16Ch, 1 Alarm Reset
Alarm Output 4Ch Relay Out
Alarm Output Duration Off, 3, 5, 10, 20, 30sec
Motion Detection Area Setting (Low, Standard, High)
Pre Alarm Setup Time Off, 5, 10, 20, 30sec
Post Alarm Setup Time Off, 5, 10, 20, 30sec, 1, 3, 5, 10, 20min
Expansion 250GB x 4 250GB x 3
CD-RW No Yes(for Back Up)
RS485 PTZ Device, System Keyboard
Video/Audio MPEG 4 / ADPCM
Very High NTSC : 6.7(CIF), 11.5(Half D1) / PAL : 8.1(CIF), 13.8(Half D1)
High NTSC : 5.0(CIF), 8.8(Half D1) / PAL : 6.1(CIF), 10.5(Half D1)
Standard NTSC : 3.9(CIF), 6.7(Half D1) / PAL : 4.8(CIF), 8.1(Half D1)
Low NTSC : 2.4(CIF), 4.3(Half D1) / PAL : 2.9(CIF), 5.2(Half D1)
16Ch Standalone DVR
