4.

Array course control

4-1

This Document can not be used without Samsung's authorization

4-1.

Software Adjustments

1.

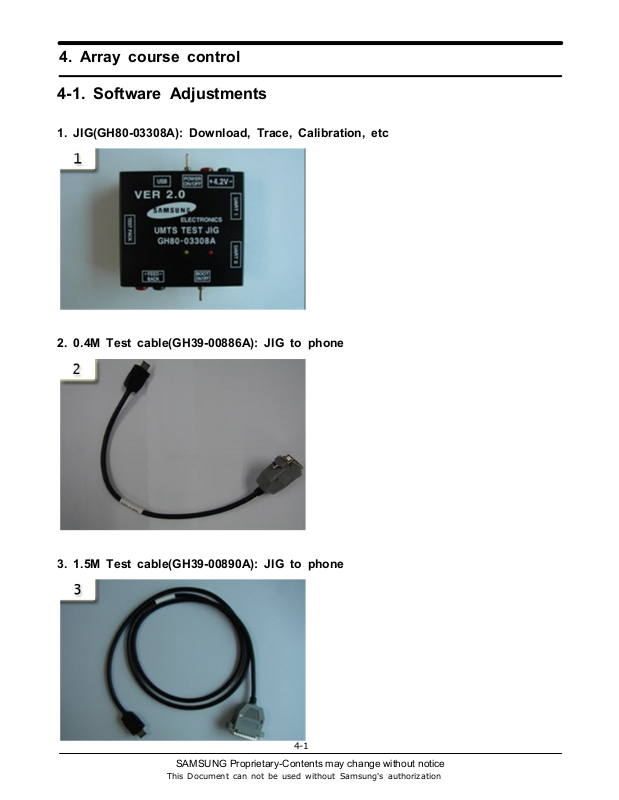

JIG(GH80-03308A): Download, Trace, Calibration, etc

2. 0.4M

Test cable(GH39-00

886A):

JIG to phone

3. 1.5M

Test cable(GH39-

00890

A): JIG to phone

SAMSUNG Proprietary-Contents may change without notice

Array course control

4-2

This Document can not be used without Samsung's authorization

4.

Travel Adaptor(GH44-01702A)

5.

Data Link Cable(GH39-00922A): USB cable

6.

Serial cable(LJ39-00013A)

:

PC to JIG

SAMSUNG Proprietary-Contents may change without notice

Array course control

4-3

This Document can not be used without Samsung's authorization

7.

RF test cable(GH39-00

985

A): RF test
