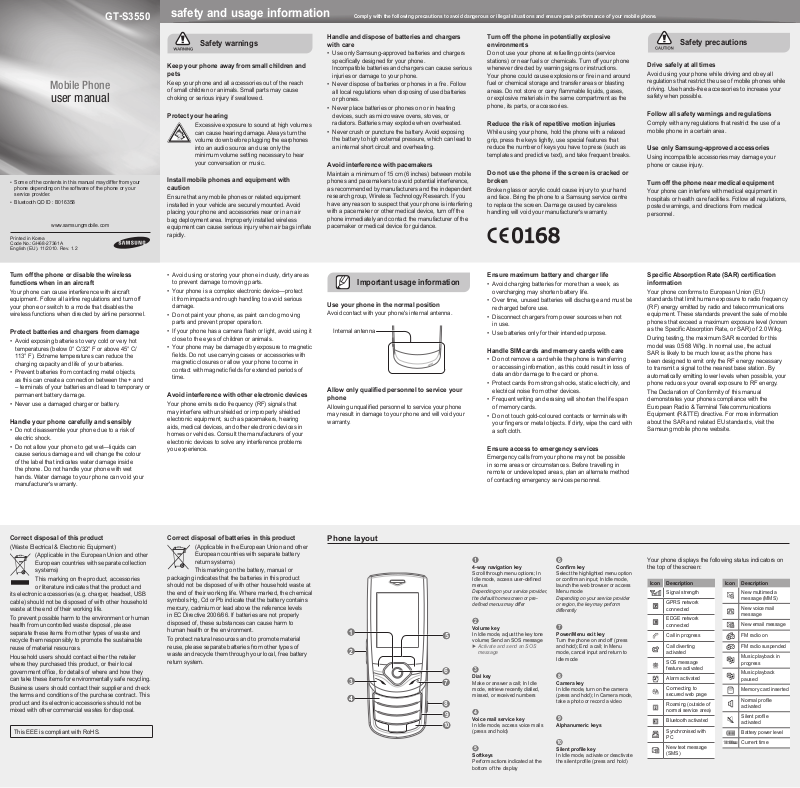

Samsung SGH-S3550 User Guide

GT-S3550

safety and usage information

Comply with the following precautions to avoid dangerous or illegal situations and ensure peak performance of your mobile phone.

Mobile Phone

user manual

Some of the contents in this manual may differ from your

•

phone depending on the software of the phone or your service provider.

Bluetooth QD ID : B016358

•

www.samsungmobile.com

Printed in Korea Code No.:GH68-27361A English (EU). 11/2010. Rev. 1.2

Turn off the phone or disable the wireless functions when in an aircraft

Your phone can cause interference with aircraft equipment. Follow all airline regulations and turn off your phone or switch to a mode that disables the wireless functions when directed by airline personnel.

Protect batteries and chargers from damage

Avoid exposing batteries to very cold or very hot

• temperatures (below 0° C/32° F or above 45° C/ 113° F). Extreme temperatures can reduce the charging capacity and life of your batteries.

Prevent batteries from contacting metal objects,

• as this can create a connection between the + and – terminals of your batteries and lead to temporary or permanent battery damage.

Never use a damaged charger or battery.

•

Handle your phone carefully and sensibly

Do not disassemble your phone due to a risk of

• electric shock.

Do not allow your phone to get wet—liquids can

• cause serious damage and will change the colour of the label that indicates water damage inside the phone. Do not handle your phone with wet hands. Water damage to your phone can void your manufacturer's warranty.

Safety warnings

Keep your phone away from small children and pets

Keep your phone and all accessories out of the reach of small children or animals. Small parts may cause choking or serious injury if swallowed.

Protect your hearing

Excessive exposure to sound at high volumes can cause hearing damage. Always turn the volume down before plugging the earphones into an audio source and use only the minimum volume setting necessary to hear your conversation or music.

Install mobile phones and equipment with caution

Ensure that any mobile phones or related equipment installed in your vehicle are securely mounted. Avoid placing your phone and accessories near or in an air bag deployment area. Improperly installed wireless

equipment can cause serious injury when air bags inate

rapidly.

Avoid using or storing your phone in dusty, dirty areas

• to prevent damage to moving parts.

Your phone is a complex electronic device—protect

• it from impacts and rough handling to avoid serious damage.

Do not paint your phone, as paint can clog moving

• parts and prevent proper operation.

If your phone has a camera ash or light, avoid using it

• close to the eyes of children or animals.

Your phone may be damaged by exposure to magnetic

• elds. Do not use carrying cases or accessories with magnetic closures or allow your phone to come in

contact with magnetic elds for extended periods of

time.

Avoid interference with other electronic devices

Your phone emits radio frequency (RF) signals that may interfere with unshielded or improperly shielded electronic equipment, such as pacemakers, hearing aids, medical devices, and other electronic devices in homes or vehicles. Consult the manufacturers of your electronic devices to solve any interference problems you experience.

Handle and dispose of batteries and chargers with care

Use only Samsung-approved batteries and chargers

• specically designed for your phone. Incompatible batteries and chargers can cause serious injuries or damage to your phone.

Never dispose of batteries or phones in a re. Follow

• all local regulations when disposing of used batteries or phones.

Never place batteries or phones on or in heating

• devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated.

Never crush or puncture the battery. Avoid exposing

• the battery to high external pressure, which can lead to an internal short circuit and overheating.

Avoid interference with pacemakers

Maintain a minimum of 15 cm (6 inches) between mobile phones and pacemakers to avoid potential interference, as recommended by manufacturers and the independent research group, Wireless Technology Research. If you have any reason to suspect that your phone is interfering with a pacemaker or other medical device, turn off the phone immediately and contact the manufacturer of the pacemaker or medical device for guidance.

Important usage information

Use your phone in the normal position

Avoid contact with your phone's internal antenna.

Internal antenna

Allow only qualied personnel to service your

phone

Allowing unqualied personnel to service your phone

may result in damage to your phone and will void your warranty.

Turn off the phone in potentially explosive environments

Do not use your phone at refuelling points (service stations) or near fuels or chemicals. Turn off your phone whenever directed by warning signs or instructions.

Your phone could cause explosions or re in and around

fuel or chemical storage and transfer areas or blasting

areas. Do not store or carry ammable liquids, gases,

or explosive materials in the same compartment as the phone, its parts, or accessories.

Reduce the risk of repetitive motion injuries

While using your phone, hold the phone with a relaxed grip, press the keys lightly, use special features that reduce the number of keys you have to press (such as templates and predictive text), and take frequent breaks.

Do not use the phone if the screen is cracked or broken

Broken glass or acrylic could cause injury to your hand and face. Bring the phone to a Samsung service centre to replace the screen. Damage caused by careless handling will void your manufacturer's warranty.

Ensure maximum battery and charger life

Avoid charging batteries for more than a week, as

• overcharging may shorten battery life.

Over time, unused batteries will discharge and must be

• recharged before use.

Disconnect chargers from power sources when not

• in use.

Use batteries only for their intended purpose.

•

Handle SIM cards and memory cards with care

Do not remove a card while the phone is transferring

• or accessing information, as this could result in loss of data and/or damage to the card or phone.

Protect cards from strong shocks, static electricity, and

• electrical noise from other devices.

Frequent writing and erasing will shorten the life span

• of memory cards.

Do not touch gold-coloured contacts or terminals with

•

your ngers or metal objects. If dirty, wipe the card with

a soft cloth.

Ensure access to emergency services

Emergency calls from your phone may not be possible in some areas or circumstances. Before travelling in remote or undeveloped areas, plan an alternate method of contacting emergency services personnel.

Safety precautions

Drive safely at all times

Avoid using your phone while driving and obey all regulations that restrict the use of mobile phones while driving. Use hands-free accessories to increase your safety when possible.

Follow all safety warnings and regulations

Comply with any regulations that restrict the use of a mobile phone in a certain area.

Use only Samsung-approved accessories

Using incompatible accessories may damage your phone or cause injury.

Turn off the phone near medical equipment

Your phone can interfere with medical equipment in hospitals or health care facilities. Follow all regulations, posted warnings, and directions from medical personnel.

Specic Absorption Rate (SAR) certication

information

Your phone conforms to European Union (EU) standards that limit human exposure to radio frequency (RF) energy emitted by radio and telecommunications equipment. These standards prevent the sale of mobile phones that exceed a maximum exposure level (known

as the Specic Absorption Rate, or SAR) of 2.0 W/kg.

During testing, the maximum SAR recorded for this model was 0.568 W/kg. In normal use, the actual SAR is likely to be much lower, as the phone has been designed to emit only the RF energy necessary to transmit a signal to the nearest base station. By automatically emitting lower levels when possible, your phone reduces your overall exposure to RF energy.

The Declaration of Conformity of this manual demonstrates your phones compliance with the European Radio & Terminal Telecommunications Equipment (R&TTE) directive. For more information about the SAR and related EU standards, visit the Samsung mobile phone website.

Correct disposal of this product

(Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems)

This marking on the product, accessories

or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life.

To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local

government ofce, for details of where and how they

can take these items for environmentally safe recycling. Business users should contact their supplier and check

the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

This EEE is compliant with RoHS.

Correct disposal of batteries in this product

(Applicable in the European Union and other European countries with separate battery return systems)

This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment.

To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.

Phone layout

4-way navigation key

Scroll through menu options; In

Idle mode, access user-dened

menus

Depending on your service provider, the default home screen or pre-

dened menus may differ

Volume key

In ldle mode, adjust the key tone volume; Send an SOS message

►

Activate and send an SOS

message

Dial key

Make or answer a call; In Idle mode, retrieve recently dialled, missed, or received numbers

Voice mail service key

In ldle mode, access voice mails (press and hold)

Softkeys

Perform actions indicated at the bottom of the display

Conrm key

Select the highlighted menu option

or conrm an input; In Idle mode,

launch the web browser or access Menu mode

Depending on your service provider or region, the key may perform differently

Power/Menu exit key

Turn the phone on and off (press and hold); End a call; In Menu mode, cancel input and return to Idle mode

Camera key

In Idle mode, turn on the camera (press and hold); In Camera mode, take a photo or record a video

Alphanumeric keys

Silent prole key

In Idle mode, activate or deactivate

the silent prole (press and hold)

Your phone displays the following status indicators on the top of the screen:

Icon Description

Signal strength

GPRS network connected

EDGE network connected

Call in progress

Call diverting activated

SOS message feature activated

Alarm activated

Connecting to secured web page

Roaming (outside of normal service area)

Bluetooth activated

Synchronised with PC

New text message (SMS)

Icon Description

New multimedia message (MMS)

New voice mail message

New email message

FM radio on

FM radio suspended

Music playback in progress

Music playback paused

Memory card inserted

Normal prole

activated

Silent prole

activated

Battery power level

Current time

Install the SIM card and battery

1. Remove the battery cover and insert the SIM card.

Battery cover

SIM card

2. Insert the battery and replace the battery cover.

Battery

Charge the battery

1. Plug the supplied travel adapter.

To AC power outlet

Do not remove the battery from the phone before

unplugging the travel adapter rst. Otherwise, the phone

may be damaged.

2. When charging is

nished, unplug the

travel adapter.

Insert a memory card (optional)

Your phone accepts microSD™ or microSDHC™ memory cards up to 8 GB (depending on memory card manufacturer and type).

Formatting the memory card on a PC may cause incompatibility with your phone. Format the memory card only on the phone.

1. Remove the battery cover and battery.

2. Unlock the memory card cover.

Memory card cover

3. Lift the memory card cover and insert a memory card with the label side facing up.

Memory card

4. Close and lock the memory card cover.

5. Replace the battery and battery cover.

Instructional icons

Note: notes, usage tips, or additional information

Followed by: the order of options or menus you

must select to perform a step; for example: In Menu mode, select Messages → Create message

→

(represents Messages, followed by Create message)

Square brackets: phone keys; for example: [ ]

[ ]

(represents the Power/Menu exit key)

Angled brackets: softkeys that control different functions at each screen; for example: <OK>

< >

(represents the OK softkey)

Turn your phone on or off

To turn your phone on,

1. Press and hold [

2. Enter your PIN and press <

3. When the setup wizard opens, customise your phone as desired by following the screen.

To turn your phone off, repeat step 1 above.

OK> (if necessary).

Access menus

To access your phone's menus,

1. In Idle mode, press <

You may need to press the Conrm key to access Menu

mode depending on your region or service provider. When you are using the smart home screen, you cannot

use the Conrm key to access Menu mode.

Menu> to access Menu mode.

2. Use the Navigation key to scroll to a menu or option.

Select>, <OK>, or the Conrm key to conrm

3. Press < the highlighted option.

Back> to move up one level; Press [ ] to

4. Press < return to Idle mode.

When you access a menu requiring the PIN2, you must

• enter the PIN2 supplied with the SIM card. For details, contact your service provider. Samsung is not responsible for any loss of passwords

• or private information or other damages caused by illegal software.

Make a call

1. In Idle mode, enter an area code and a phone number.

2. Press [

3. To end the call, press [

] to dial the number.

Answer a call

1. When a call comes in, press [ ].

2. To end the call, press [

Adjust the volume

To adjust the volume of the ringtone

1. In Menu mode, select Settings → Sound proles.

2. Scroll to the prole you are using.

If you are using the silent or ofine prole, you are not

allowed to adjust the volume of the ringtone.

3. Press <Edit> → Volume → Call alert.

4. Scroll left or right to adjust the volume level and press <Save>.

To adjust the volume of voice during a call

While a call is in progress, press [ / ] to adjust the volume.

In noisy environments, you may have difculty hearing

the calls while using the speakerphone feature. For better audio performance, use the normal phone mode.

Change your ringtone

1. In Menu mode, select Settings → Sound proles.

2. Scroll to the prole you are using.

If you are using the silent or ofine prole, you are not

allowed to change the ringtone.

3. Press <Edit> → Voice call ringtone.

4. Select a memory location → a ringtone.

To switch to another prole, select it from the list.

Call a recently dialled number

1. In Idle mode, press [ ].

2. Scroll left or right to a call type.

3. Scroll up or down to a number or name.

4. Press the Conrm key to view details of the call or

[ ] to dial the number.

Use the smart home screen

The smart home screen allows you to access your favourite applications and contacts and view upcoming events or tasks. You can customise the smart home

screen to t your preferences and needs.

When you are using the smart home screen, the Navigation key does not work as shortcuts.

Customise the smart home screen

1. In Menu mode, select Settings → Display → Smart home.

Edit>.

2. Press <

3. Select the items to display on the smart home screen.

Options> → <Save>.

4. Press <

5. Press the Conrm key.

You can change the idle screen to another style. In Menu mode, select Settings → Display → Smart home and scroll left or right to a style you want.

Access the smart home idle items

Press the Navigation key to scroll through the items on

the smart home screen and press the Conrm key to

select an item. The following items are available.

Available items may vary depending on your service provider.

Shortcuts toolbar: access your favourite

•

applications. You can customise the shortcut toolbar as desired.

My buddies: access contacts that are saved in the

•

favourite number list.

PIMs ticker: access upcoming calendar events and

•

tasks.

Monthly calendar: view the monthly calendar.

•

Single clock: view the current time and date.

•

Dual clock: view your home clock and a world clock.

•

Customise the shortcut toolbar

1. In Menu mode, select Settings → Display → Smart home.

Edit>.

2. Press <

3. Scroll to

Shortcuts toolbar and press <Options> →

Edit shortcuts.

4. Select a menu to change or an empty location and press <Edit>.

5. Select the menus you want. Press <Options> → Open to select submenus (if necessary).

Save>, or press <Options> → Save.

6. Press <

Enter text

To change the text input mode

Press and hold [ ] to switch between T9 and ABC

• modes. Depending on your region, you may be able

to access an input mode for your specic language.

Press [ ] to change case or switch to Number mode.

•

Press [ ] to switch to Symbol mode.

•

Press and hold [ ] to access writing options.

•

T9 mode

1. Press the appropriate alphanumeric keys to enter an entire word.

2. When the word displays correctly, press [0] to insert a space. If the correct word does not display, select an alternate word from the list that appears.

ABC mode

Press an appropriate alphanumeric key until the character you want appears on the display.

Number mode

Press an appropriate alphanumeric key to enter a number.

Symbol mode

Press an appropriate alphanumeric key to enter a symbol.

To move the cursor, press the Navigation key.

• To delete characters one by one, press <Clear>. To

• delete characters quickly, press and hold <Clear>. To insert a space between characters, press [0].

• To enter punctuation marks in English input modes,

• press [1].

Add a new contact

The memory location to save new contacts may be preset depending on your service provider. To change the memory location, in Menu mode, select Phonebook

→ <Options> → Settings → Save new contact to → a

memory location.

1. In Idle mode, enter a phone number and press <Options>.

Add to Phonebook → Create contact → a

2. Select memory location (if necessary).

3. Select a number type (if necessary).

4. Enter contact information.

Save> or press <Options> → Save to add

5. Press < the contact to memory.

Send and view messages

To send a text or multimedia message

1. In Menu mode, select Messages → Create message.

2. Enter a recipient number and scroll down.

►

3. Enter your message text. For sending as a text message, skip to step 5. For attaching multimedia, continue with step 4.

Options> → Add multimedia and add an

4. Press < item.

5. Press the Conrm key to send the message.

To view text or multimedia messages

1. In Menu mode, select Messages → Inbox.

2. Select a text or multimedia message.

Enter text

Make fake calls

You can simulate an incoming call when you want to get out of meetings or unwanted conversations.

You must set a shortcut key to make a fake call. In Menu mode, select Settings → Phone → Shortcuts and set a shortcut key for Fake call. To set and use a shortcut key, you must deactivate the smart home screen.

To make a fake call

In Idle mode, press and hold the shortcut key.

•

With the phone closed and the keys locked, press

• the shortcut key four times.

Activate the mobile tracker

When someone inserts a new SIM card in your phone, the mobile tracker feature will automatically send the contact number to two recipients to help you locate and recover your phone. To activate the mobile tracker,

1. In Menu mode, select Mobile tracker.

2. Enter your password and press <

The rst time you access Mobile tracker, you will be prompted to create and conrm a password.

3. Press the Conrm key to turn on the mobile tracker

feature.

Settings → Security →

OK>.

4. Scroll down and press the Conrm key to open the

recipient list.

Options> → Phonebook to open your

5. Press < contact list.

6. Select a contact.

7. Select a number (if necessary).

8. When you are nished selecting contacts, press

<Select>.

9. Press the Conrm key to save the recipients.

10. Scroll down and enter the sender's name.

11. Press <

Save> → <Accept>.

Activate and send an SOS message

In an emergency, you can send SOS messages to your family or friends for help.

To activate the SOS message

1. In Menu mode, select Messages → Settings → SOS messages → Sending options.

2. Press the Conrm key to turn on the SOS message.

3. Scroll down and press the Conrm key to open the

recipient list.

Options> → Search to open your contact

4. Press < list.

5. Select a contact.

6. Select a number (if necessary).

7. When you are nished selecting contacts, press the Conrm key to save the recipients.

8. Scroll down and set the number of times to repeat the SOS message.

Back> → <Yes>.

9. Press <

To send an SOS message

1. With the phone closed and the keys locked, press [ / ] four times to send an SOS message to preset numbers. The phone switches to SOS mode and sends the preset SOS message.

2. To exit SOS mode, press [

Use the camera

To capture photos

1. In Idle mode, press and hold [ ] to turn on the camera.

2. Rotate the phone anti-clockwise to landscape view.

3. Aim the lens at the subject and make any adjustments.

4. Press the Conrm key or [

photo is saved automatically.

To view photos

In Menu mode, select My les → Images → a photo le.

] to take a photo. The

To capture videos

1. In Idle mode, press and hold [ ] to turn on the camera.

2. Rotate the phone anti-clockwise to landscape view.

1] to switch to Recording mode.

3. Press [

4. Aim the lens at the subject and make any adjustments.

5. Press the Conrm key or [

6. Press <

> or [ ] to stop recording. The video is

] to start recording.

saved automatically.

To view videos

In Menu mode, select My les → Videos → a video le.

Listen to music

1. In Menu mode, select Music → Library.

2. Select a music category → a music le.

3. Control playback using the following keys:

Key Function

Conrm Pause or resume playback

Navigation

Adjust the volume

Left: Restart playback; Skip backward (press

•

within 2 seconds); Scan backward in a le

(press and hold)

Right: Skip forward; Scan forward in a le

• (press and hold) Up: Open the playlist

• Down: Change the repeat mode

•

Declaration of Conformity (R&TTE)

We,

Samsung Electronics

declare under our sole responsibility that the product

to which this declaration relates, is in conformity with the following standards and/or other normative documents.

We hereby declare that [all essential radio test suites have been carried out and that] the above named product is in conformity to all the essential requirements of Directive 1999/5/EC.

The conformity assessment procedure referred to in Article 10 and detailed in Annex[IV]

of Directive 1999/5/EC has been followed with the involvement of the following Notied

Body(ies):

Samsung Electronics QA Lab.

which will be made available upon request.

(Representative in the EU)

2010.11.16 Joong-Hoon Choi / Lab Manager

* It is not the address of Samsung Service Centre. For the address or the phone

number of Samsung Service Centre, see the warranty card or contact the retailer where you purchased your product.

GSM Mobile Phone : GT-S3550

SAFETY EN 60950-1 : 2006+A11:2009

EMC EN 301 489-01 V1.8.1 (04-2008) EN 301 489-07 V1.3.1 (11-2005) EN 301 489-17 V2.1.1 (05-2009)

SAR EN 50360 : 2001 EN 62209-1 : 2006

RADIO EN 301 511 V9.0.2 (03-2003) EN 300 328 V1.7.1 (10-2006)

BABT, Forsyth House, Churcheld Road, Walton-on-Thames, Surrey, KT12 2TD, UK*

Identication mark: 0168

The technical documentation kept at :

Samsung Electronics Euro QA Lab. Blackbushe Business Park, Saxony Way, Yateley, Hampshire, GU46 6GG, UK*

(place and date of issue) (name and signature of authorised person)

EN 50332-1 : 2000
