Samsung SGH-B2100, GT-B2100 Exploded View

Exploded View and Parts List

5.

5-1.

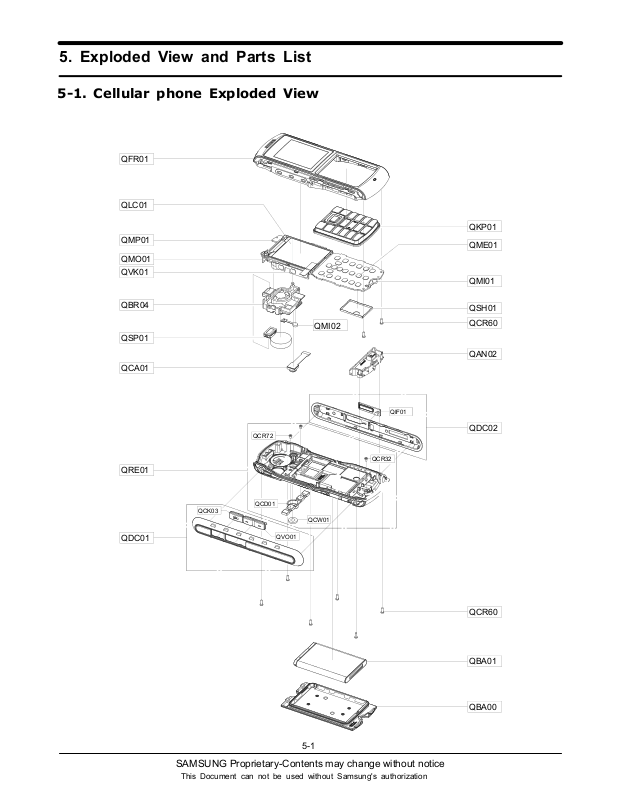

Cellular phone Exploded View

QFR01

QLC01

QMP01

QMO01

QVK01

QBR04

QSP01

QCA01

QMI02

QKP01

QME01

QMI01

QSH01

QCR60

QAN02

QRE01

QDC01

QCK03

QCR72

QCD01

QIF01

QDC02

QCR32

QCW01

QVO01

QCR60

QBA01

5-1

SAMSUNG Proprietary-Contents may change without notice

This Document can not be used without Samsung's authorization

QBA00

Exploded View and Parts List

5-2.

Cellular phone Parts list

Design LOC Description SEC CODE

QAN02 INTENNA-GT-B2100 GH42-01893A

QBA00 ASSY COVER-BATTERY GH98-11726A

QBA01 INNER BATTERY PACK-1000MAH,BLK,ENG,EU GH43-03184A

QBR04 ASSY BRACKET-SPEAKER GH98-11441A

QCA01 ASSY CAMERA-GT-B2100 GH96-03555A

QCR60 SCREW-MACHINE

6001-002005

QFR01 ASSY CASE-FRONT GH98-11436A

QKP01 ASSY KEYPAD-MAIN(EU/BLACK) GH98-11438A

QLC01 LCD-SGH M150MODULE GH07-01313A

QME01 DOME SHEET-GT-B2100 MAIN GH59-06781A

QMI01 MICROPHONE-ASSY-GT-B2100(MAIN) GH30-00562A

QMI02 MICROPHONE-ASSY-GT-B2100(SECOND) GH30-00563A

QMO01 ASSY ETC-FLASH/MOT FPCB ASS'Y GH59-06802A

QMP01 A/S ASSY-PBA MAIN(GT-B2100 SVC) GH82-03564A

QSH01 ICT SHIELD-CAN GH70-04666A

QSP01 MODULE-SPK/RCV MODULE(GT-B2100) GH59-07304A

QVK01 KEY FPCB-VOLUME KEY FPCB GH59-07012A

QRE01 ASSY CASE-REAR GH98-11437A

QCD01 NDC DECO-CAMERA GH71-08719A

QCR32 SCREW-MACHINE

QCR72 SCREW-MACHINE

6001-001700

6001-002051

QCW01 PCT WINDOW-CAMERA GH72-51803A

QDC01 ASSY DECO-SIDE

L

GH98-11439A

QVO01 PMO KEY-VOLUME GH72-51796A

QCK03 PMO KEY-TORCH GH72-51797A

QDC02 ASSY DECO-SIDE

R

GH98-11440A

QIF01 PMO COVER-IF GH72-51790A

5-2
