8-1SF700AT
8. Exploded Views and Parts Lists
8-1. Total Assembly
8-2 SF700AT
Total Assembly Parts Lists
Location No. Description SEC. Code Q'ty Remark
1 ELA HOU-HANDSET JF96-01279A 1
2 ELA-OPE COVER JF96-01228A 1
3 PMO-HOLDER HINGE JF72-41639A 1
4 ICT-SPRING HINGE(L) JF70-40573A 1
5 ELA-RX COVER JF96-01229A 1
6 ICT-SPRING HINGE(R) JF70-40574A 1
7 PMO-BUSHING WHITE JF72-41609A 1
8 ELA-WHITE ROLLER JF96-01225A 1
9 PMO-COVER REAR JF72-41602A 1
10 PMO-COVER TOP JF72-41603A 1
11 ELA HOU-BASE JF96-01282A 1 Boards Excluded
12 PMO-HOLDER ADF JF72-41598A 1
13 RMO-RUBBER ADF JF73-40518A 1
14 NPR-SPRING PS ADF JF71-10513A 1
S1 SCREW, TAPTITE, BH, +, B, M3. L8 6003-000015 3
S2 SCREW, TAPTITE, PH, +, B, M3, L10 6003-000159 6
Exploded Views and Parts Lists
SF700AT 8-3
Exploded Views and Parts Lists
8-2. Ass'y OPE Unit
Exploded Views and Parts Lists
8-4 SF700AT
Ass'y OPE Unit Parts Lists
Location No. Description SEC. Code Q'ty Remark
ELA-OPE COVER JF96-01228A 1
1 PMO-WINDOW LCD JF72-41586A 1
2 PMO-COVER OPE JF72-41585A 1
3 PMO-KEY BUTTON JF72-41595A 1
4 PMO-KEY ANSWER JF72-41589A 1
5 PMO-KEY PLAY JF72-41590A 1
6 MPR-SHEET COLOR(B) JF74-10514A 1
7 PMO-KEY REC JF72-41594A 1
8 PMO-KEY SET(B) JF72-41593A 1
9 PMO-KEY START JF72-41588A 1
10 MPR-SHEET COLOR(A) JF74-10513A 1
11 PMO-KEY SET(A) JF72-41592A 1
12 PMO-KEY ONE TOUCH JF72-41591A 1
13 PMO-KEY TEL JF72-41587A 1
14 RMO-RUBBER CON(B) JF73-40520A 1
15 RMO-ROBBER CON(A) JF73-40519A 1
16 PBA, SUB KBD-SF700AT JF92-00786B 1
17 RMO-RUBBER MIC JF73-40501A 1
18 PMO-FRAME FRONT JF72-41596A 1
19 MEC-PINCH ROLLER JF75-11005A 1
20 PMO-FRAME HINGE JF72-41597A 1
21 MEC-ANTI BRUSH JF75-11001A 1
22 IPR-PLATE HINGE JF70-10867A 1
S1 SCREW, TAPTITE, PWH, +, B, M2.5, L6 6003-000193 17
S2 SCREW, TAPTITE, BH, +, B, M3. L8 6003-000015 4
Exploded Views and Parts Lists
SF700AT 8-5

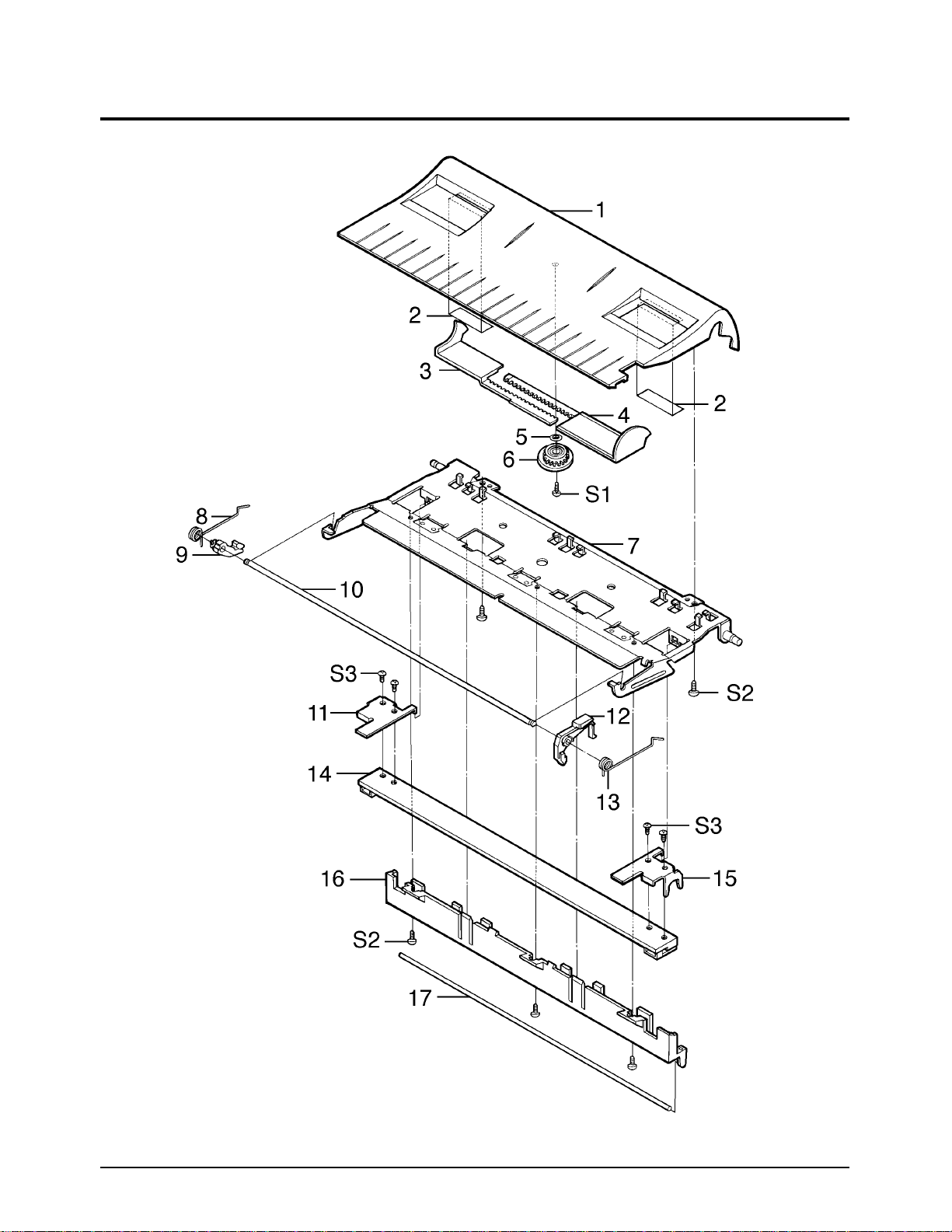

8-3. Ass'y RX COVER
Exploded Views and Parts Lists
8-6 SF700AT
Location No. Description SEC. Code Q'ty Remark
ELA-RX COVER JF96-01229A 1
1 PMO-COVER RX JF72-41605A 1
2 PPR-RX SHEET JF72-10623A 2
3 PMO-GUIDE DOC(L) JF72-41607A 1
4 PMO-GUIDE DOC(R) JF72-41606A 1
5 IPR-WASHER SPRING CU JF70-10616A 1
6 PMO-GEAR PINION JF72-41354A 1
7 IPR-FRAME RX COVER JF70-10875A 1
8 ICT-SPRING LOCK(L) JF70-40571A 1
9 PMO-BUTTON LOCK(L) JF72-41618A 1
10 ICT-SHAFT LOCKER JF70-40567A 1
11 IPR-GUIDE TPH(L) JF70-10876A 1
12 PMO-BUTTON LOCK(R) JF72-41619A 1
13 ICT-SPRING LOCK(R) JF70-40572A 1
14 PRINT HEAD-THERMAL JF47-30068A 1
15 IPR-GUIDE TPH(R) JF70-10877A 1
16 PMO-FRAME DECURL JF72-41608A 1
17 ICT-SHAFT DECURL JF70-40568A 1
S1 SCREW, TAPTITE, PWH, +, B, M3, L6 6003-000264 1
S2 SCREW, TAPTITE, PH, +, B, M3, L10 6003-000159 5
S3 SCREW, MACHINE, BH, +, M3, L4 6001-000125 4
Ass'y COVER TOP Parts Lists
Exploded Views and Parts Lists
SF700AT 8-7

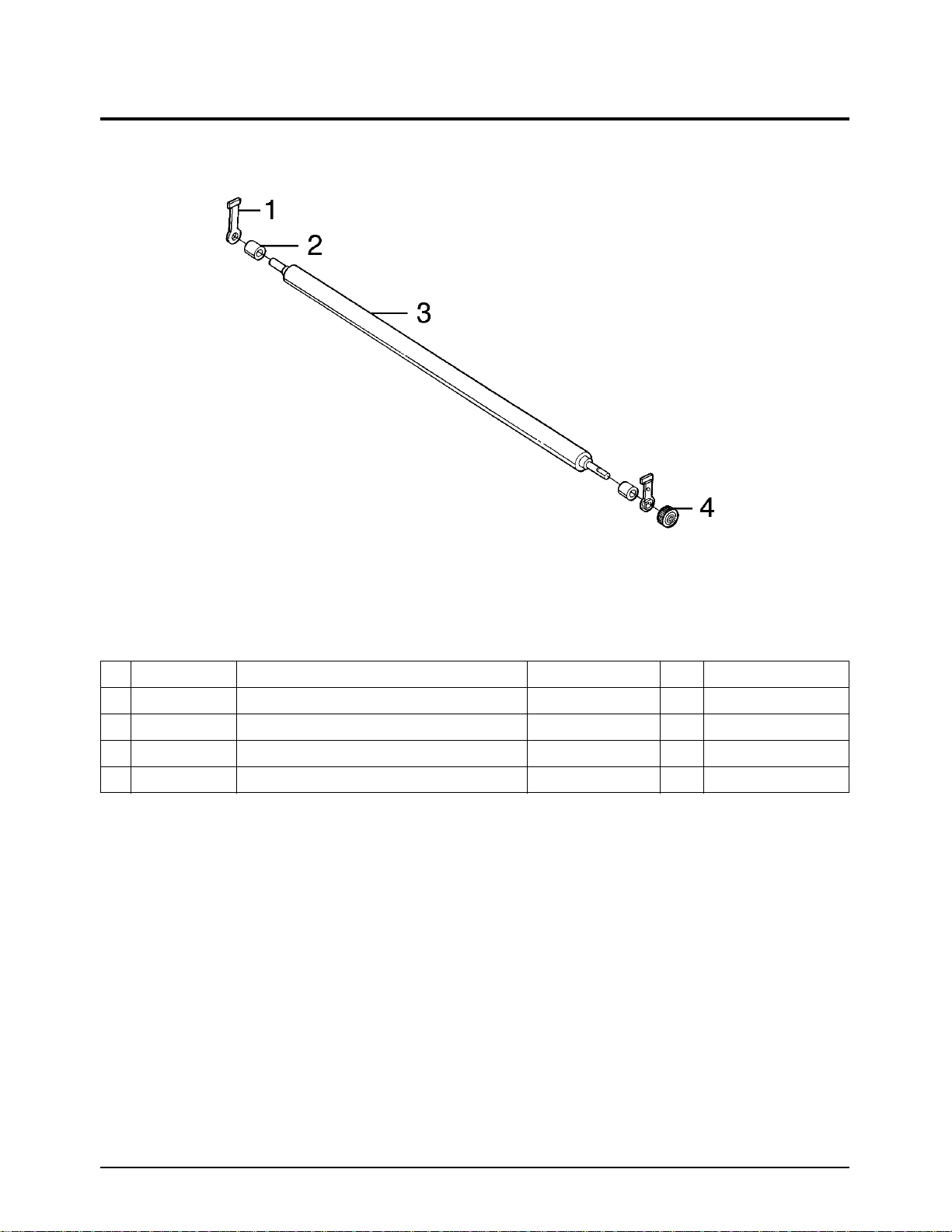

8-4. PLATEN ROLLER
Location No. Description SEC. Code Q'ty Remark
1 PMO-BUSHING WHITE JF72-41609A 2
2 NPM-BUSHING SHAFT(2) JF71-50514A 2
3 MEC-PLATEN ROLLER JF75-10779A 1
4 PMO-GEAR PLATEN JF72-41614A 1
Exploded Views and Parts Lists
8-8 SF700AT
8-5. ASS’Y WHITE ROLLER
Location No. Description SEC. Code Q'ty Remark
ELA-WHITE ROLLER JF96-01225A 1
1 PMO-BUSHING WHITE JF72-41609A 1
2 MEC-WHITE ROLLER JF75-10781A 1
3 PMO-GEAR WHITE JF72-41630A 1
Exploded Views and Parts Lists
SF700AT 8-9

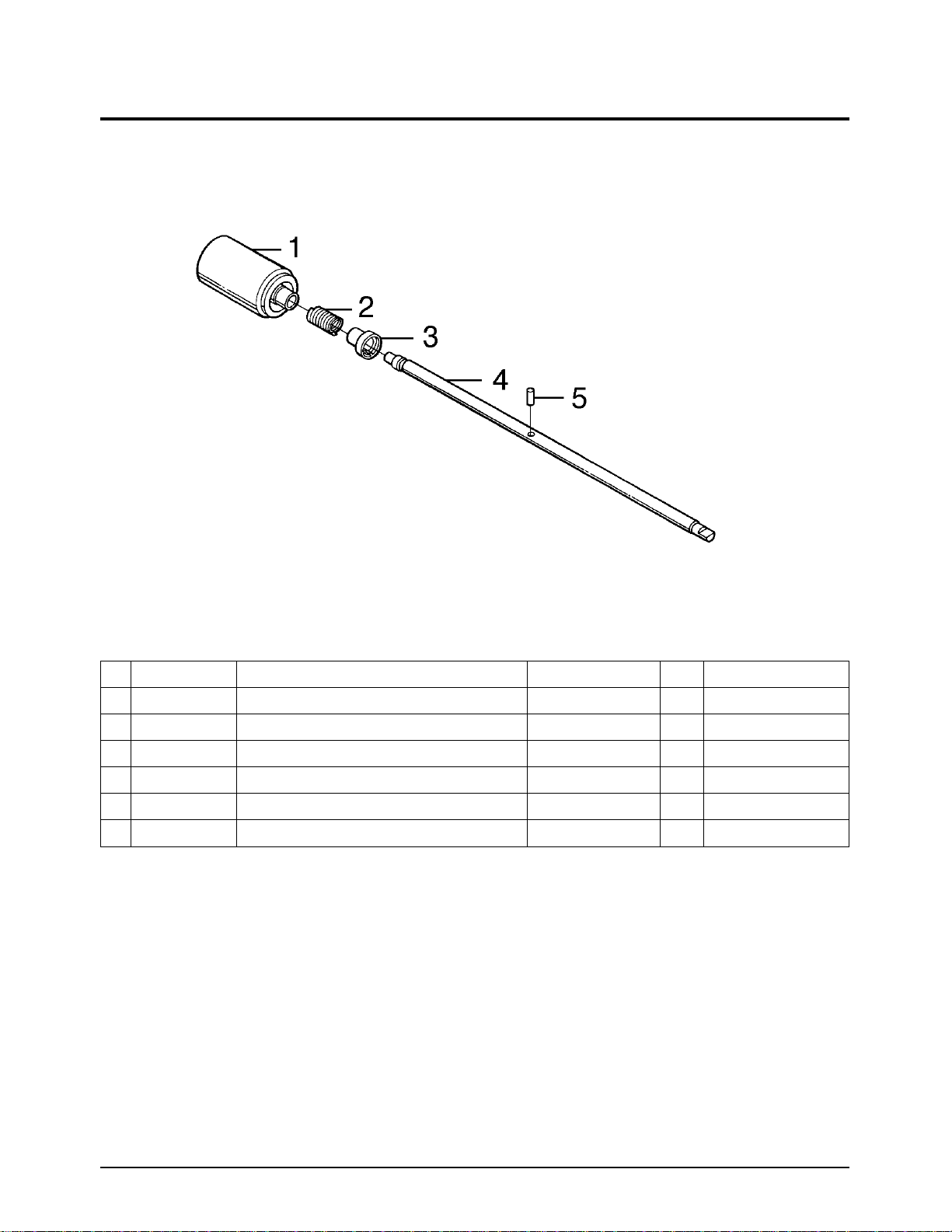

8-6. ASS’Y ADF ROLLER
Location No. Description SEC. Code Q'ty Remark
ELA-ADF ROLLER JF96-01224B 1
1 MEC-ADF ROLLER JF75-10780A 1
2 ICT-SPRING CLUTCH JF70-40561A 1
3 PMO-SLEEVE ADF(1) JF72-41616A 1
4 ICT-SHAFT ADF JF70-40569A 1
5 ICT-PIN JF70-40570A 1
Exploded Views and Parts Lists
8-10 SF700AT
8-7. Ass'y Base
Exploded Views and Parts Lists
SF700AT 8-11
Ass'y Base Parts Lists
Location No. Description SEC. Code Q'ty Remark
ELA HOU-BASE JF96-01282A 1
1 IPR-COVER CUTTER JF70-10870A 1
2 MEC-RX SIDE JF75-10782A 1
3 MEC-PLATEN ROLLER JF75-10779A 1
4 ELA-MOTOR PLATE RX JF96-01209A 1
5 ELA-AUTO CUTTER JF96-01230A 1
6 ELA-ADF ROLLER JF96-01224B 1
7 ELA-CIS UNIT JF96-01211A 1
8 NPR-SPRING PS CIS JF71-10515A 2
9 NPR-GROUND PLATE(A) JF71-10516A 1
10 ELA-MOTOR PLATE TX JF96-01210A 1
11 PMO-GUIDE ROLL JF72-41613A 1
12 PMO-HOLDER SPEAKER JF72-41604A 1
13 PMO-COVER BASE JF72-41601A 1
14 PMO-BOX BATT JF72-41624A 1
15 NPR-GROUND PLATE(B) JF71-10517A 1
16 PBA, SUB OPTIC-SF700AT JF92-00797B 1
17 SPEAKER 3001-001026 1
18 CBF-HARNESS, MAIN-SPK JF39-41047A 1
19 PMO-ACTUATOR P.SIZE JF72-41612A 2
20 PBA, SUB OPTIC-SF700AT JF92-00796B 1
21 SMPS, JUST-V2 JF44-10064A 1
22 CBF-POWER CORD, 1830 mm JF39-10056B 1
23 PBA, MAIN CUP-SF700AT JF92-00784B 1
24 PBA, SUB I/F-SF700AT JF92-00785B 1
25 MPR-SHEET INSULATION JF74-10517A 1
26 IPR-CHASSIS MAIN JF70-10874A 1
27 PMO-BUSHING WHITE JF72-41609A 2
28 PMO-GEAR ADF JF72-41629A 1
S1 SCREW, TAPTITE, BH, +, B, M3. L8 6003-000015 25
S2 SCREW, TAPTITE, PWH, +, S, M3, L6 6003-000266 2
Exploded Views and Parts Lists
8-12 SF700AT

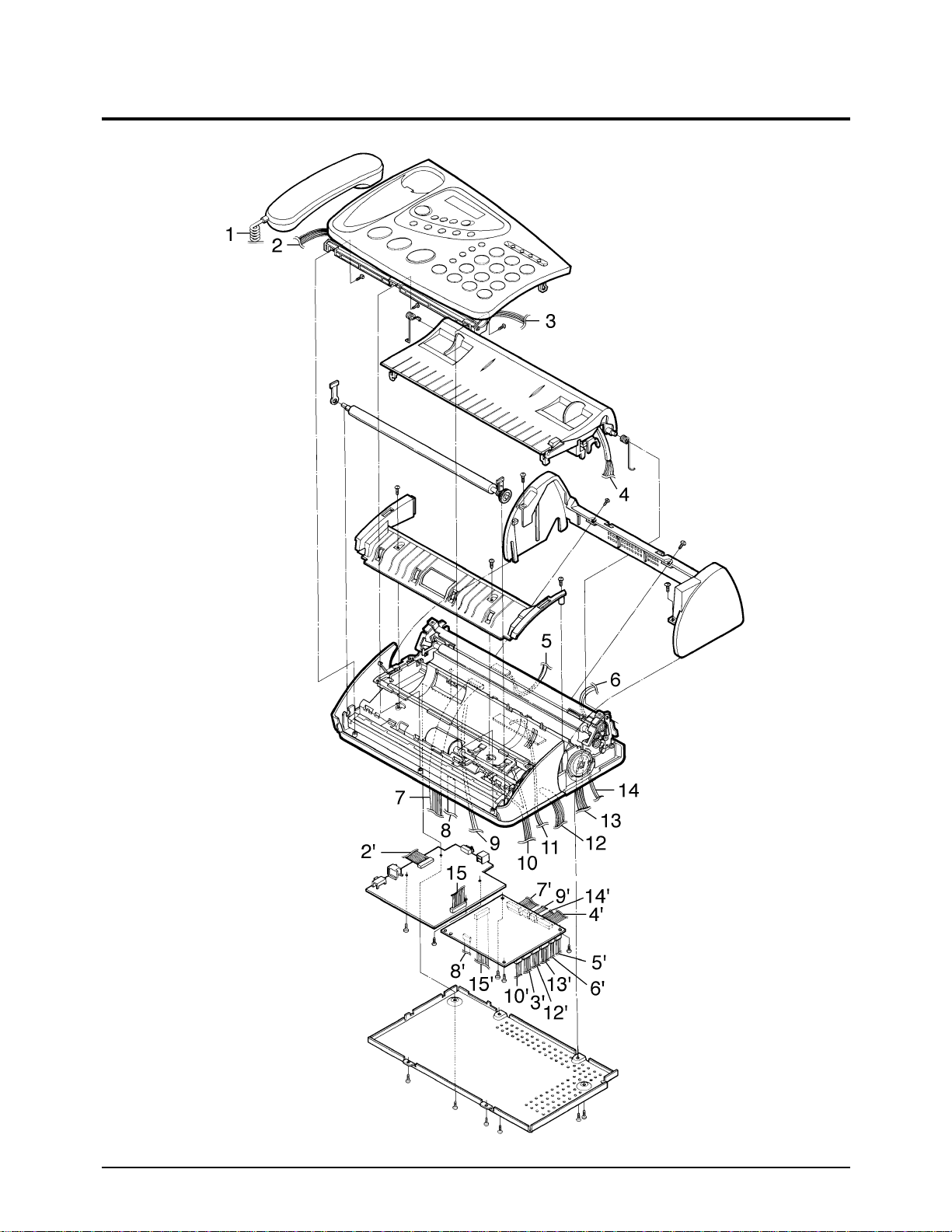

8-8. Harness
Exploded Views and Parts Lists
SF700AT 8-13
Harness Parts Lists
Location No. Description SEC. Code Q'ty Remark
1 CBF-CURL CORD, 4 P JF39-60531A
2 CBF-HARNESS, LIU-OPE JF39-41048A
3 CBF-HARNESS, MAIN-OPE JF39-41045A
4 CBF-HARNESS, MAIN-TPH JF39-41046A
5 CBF-HARNESS, PJAM JF39-41054A
6 MES-AUTO CUTTER JF75-10784A
7 SMPS, JUST-V2 JF44-10064A
8 CALBE-FLAT 3809-001042
9 CBF-HARNESS, MAIN-BAT JF39-41076A
10 CBF-HARNESS, SCAN/DOC JF39-41043A
11 CBF-HARNESS, P’EMPTY JF39-41044A
12 MOTOR-STEP 3101-001018
13 MOTOR-STEP 3101-001017
14 CBF-HARNESS, MAIN-SPK JF39-41047A
15 CBF-HARNESS, MAIN-LIU JF39-41075A
