Samsung SE-T084M User Manual

u

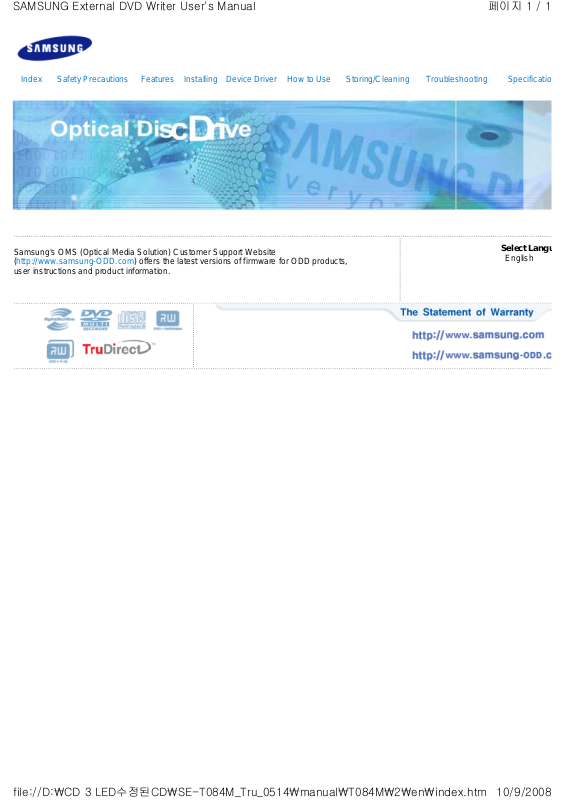

페이지 1 / 1SAMSUNG External DVD Writer User's Manual

Index Safety Precautions Features Installing Device Driver How to Use Storing/Cleaning Troubleshooting Specificatio

Samsung's OMS (Optical Media Solution) Customer Support Website
(http://www.samsung-ODD.com) offers the latest versions of firmware for ODD products,
user instructions and product information.

Select Lang

English

10/9/2008file://D:₩CD 3 LED수정된CD₩SE-T084M_Tru_0514₩manual₩T084M₩2₩en₩index.htm

페이지 1 / 1SAMSUNG DVD±R/RW Drive User's Manual

Main Page

Safety Precautions

Safety Precautions
During Installing
During Operating
Others
RoHS & WEEE

Install the External DVD Writer

Installing Drive
Removing USB Converter cable

Features

Device Driver

Select Languages

English

Exterior
System Requirements
Features

Checking USB 2.0 and Installing USB
Driver

Firmware Update
Confirming the Installation of Device Driver

How To Use External DVD Writer

How to Use the Drive
How to Use DVD±R/RW and Other Discs
How to use the TruDirect

Troubleshooting

Troubleshooting
Caution: Possible Errors

Storing/Cleaning

Storing the Disc
Cleaning the Disc
When the LED Blinks

Specifications

10/9/2008file://D:₩CD 3 LED수정된CD₩SE-T084M_Tru_0514₩manual₩T084M₩2₩en₩index₩i...

페이지 1 / 1SAMSUNG DVD±R/RW Drive User's Manual

Select Languages

English

This symbol indicates explanations about extremely dangerous matters. If users ignore this
symbol and handle the device the wrong way, serious injury or death could result.

This symbol indicates explanations about dangerous matters. If users ignore this symbol and
handle the device the wrong way, damage to home or property could result.

Important to read and understand at all times

Do not disassemble

Always make sure that the disc does not have a crack before use. If the disc has a crack (especially
around the center hole), it is recommended to make a copy immediately and use the copy instead.
When a cracked disc is used continuously, the size of the crack is likely to grow and this will
eventually result in irreparable damage to the disc.

10/9/2008file://D:₩CD 3 LED수정된CD₩SE-T084M_Tru_0514₩manual₩T084M₩2₩en₩safety...

A

A

페이지 1 / 1SAMSUNG DVD±R/RW Drive User's Manual

Select Languages

English

Do not drop the drive, and protect it from severe shocks.

- It can damage the drive or cause it to malfunction.

Do not place the drive in direct sunlight.

void low-or high-temperature environments.

void high-humidity environments.

10/9/2008file://D:₩CD 3 LED수정된CD₩SE-T084M_Tru_0514₩manual₩T084M₩2₩en₩safety...

페이지 1 / 2SAMSUNG DVD±R/RW Drive User's Manual

Select Languages

English

Handle with caution to prevent damage from an external shock.

Do not drop the drive, and protect it from severe shocks.

- It can damage the drive or cause it to malfunction.

Do not move the drive while in operation.
Make sure to close all working programs before attempting to open and
always use the open button.

Do not insert a pin into the emergency eject hole while in operation.

Do not use cracked, distorted or damaged discs.

In particular, a disc with a crack on the inner tracks may break
while in use.

Do not disconnect the power cord while the drive is working.

-This may result in an operational error.

Do not put any heavy things on the drive.

Always check to be sure the disc is not cracked before use. If you find a crack on the disc
(especially around the center hole), make a copy of the disc immediately and use the copy instead.
Continued use of a cracked disc will cause the crack to become bigger, resulting in irreparable damage
to the disc.

Do not use low-quality discs (illegal, scratched, damaged, etc.).

Samsung is not responsible for any loss resulting from the use of such discs.

10/9/2008file://D:₩CD 3 LED수정된CD₩SE-T084M_Tru_0514₩manual₩T084M₩2₩en₩safety...

페이지 1 / 1SAMSUNG DVD±R/RW Drive User's Manual

Select Languages

English

Never allow food particles or foreign substances to enter the drive
casing.

To protect against the risk of fire, do not spill such liquids as
alcohol and benzene on the drive.

Do not disassemble, attempt to repair or modify the device
without an express approval as directed in the manual.

- To reduce the risk of damage, electric shock and fire.

10/9/2008file://D:₩CD 3 LED수정된CD₩SE-T084M_Tru_0514₩manual₩T084M₩2₩en₩safety...

페이지 1 / 1SAMSUNG DVD±R/RW Drive User's Manual

Select Languages

English

Samsung Eco-mark
The Samsung’s own Eco mark helps
consumers to easily understand that
Samsung develops eco-friendly
products. This mark represents
Samsung’s continuous effort to develop
eco-friendly products.

(Restriction of the use of certain hazardous substances in electrical and electronic equipment)The

RoHS

RoHS, the environmental regulation announced by European Union, restricts the use of lead , mercury,
cadmium, hexavalent chromium, PBB, and PBDE in products put on the market in The European Union
after July 1, 2006.

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other Europ ean countries with separate collection systems)

This mark shown on the product or its literature, indicates that it should not be disposed
with other household wastes at the end of its working life. T o prevent possible harm to the
environment or human health from a uncontrolled waste disposal, plea se separate this
from other types of wastes and recycle it responsibly to promote the sustainable reuse of
material resources.

Household users should contact either the retailer where they purchased this product, or
their local government office, for details of where and how they can take this item for
environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the
purchase contract. This product should not be mixed with other commercial wastes for
disposal.

10/9/2008file://D:₩CD 3 LED수정된CD₩SE-T084M_Tru_0514₩manual₩T084M₩2₩en₩safety...

A

페이지 1 / 2SAMSUNG DVD±R/RW Drive User's Manual

Select Languages

English

LED

1.

Emergency Eject Hole

3.

Open Button

2.

z

Design and specifications are subject to change without prior notice.

USB Interface Port

1.

Setup guide

pplication software & User manual CD
(software: Nero Express 7 Essentials, InCD5, Nero Vision Essentials, Nero ShowTime Essentials, Nero
BackItUp Essentials, Nero Recode Essentials, TruDirect)
2 port Usb cable, Usb extension cable
Eject Pin, Pouch

z

The type of accessories varies depending on a product model.
and some accessories described herein are subject to change without notice.

10/9/2008file://D:₩CD 3 LED수정된CD₩SE-T084M_Tru_0514₩manual₩T084M₩2₩en₩feature...

y

페이지 1 / 1SAMSUNG DVD±R/RW Drive User's Manual

Select Languages

English

You need to have an IBM-compatible PC with the following specifications.

Item Description

OS

CPU

RAM

Interface

The drive's performance may not be able to achieve its ma ximum performance according to the PC
s

stem environment.

Microsoft Windows 2000(SP4)/XP(SP 1.0 or higher)/Vista
Pentium4 2.0GHz or above
512Mbytes or greater
USB 2.0 Interface connector

10/9/2008file://D:₩CD 3 LED수정된CD₩SE-T084M_Tru_0514₩manual₩T084M₩2₩en₩feature...

페이지 1 / 2SAMSUNG DVD±R/RW Drive User's Manual

Select Languages

English

Versatile Multimedia Features

DVD-R : Read / Write DVD-RW : Read / Write / Rewrite allowed
DVD+R : Read / Write DVD+RW : Read / Write / Rewrite allowed
DVD-ROM : Read DVD+R Dual : Read / Write
DVD-R Dual : Read / Write CD-R : Read / Write
CD-RW : Read / Write / Rewrite allowed
DVD-RAM : Read/ Write/ Rewrite allowed

See table below for details

Disc Type Writable Rewritable Read Labeling

CD-STAMP × × O ×

CD

DVD

Writable :

CD-R O × O ×
CD-RW O O O ×
Light Scribe Media O × O O
DVD-STAMP × × O ×
DVD±R O × O ×
DVD-RW O O O ×
DVD+R(Dual) O × O ×
DVD-R(Dual) O × O ×
DVD+RW O O
Light Scribe Media O × O O
DVD-RAM O O O ×

write once, read many times.

Supports Read (playback) for various types of
discs

O×

Rewritable :

DVD Recommended Disc Types

DVD-R Media

Taiyo-Yuden, TDK, MKM, Hitachi, Maxell, FujiFilm, PVC, Panasonic, RiTEK, CMC, UNIFINO

DVD-RW Media

TDK, MKM, JVC, PVC, RiTEK, CMC

DVD+R Media

RICOH, Taiyo-Yuden, MKM, RiTEK, CMC, Prodisc, Optdisc

DVD+RW Media

RICOH, MKM, RiTEK, CMC

DVD±R Dual

MKM

DVD-RAM

Maxell , Taiyo-Yuden

write data one or more times.

10/9/2008file://D:₩CD 3 LED수정된CD₩SE-T084M_Tru_0514₩manual₩T084M₩2₩en₩feature...

CD Recommended Disc Types

CD-R Media

Taiyo-Yuden, RICOH, MKM, Hitachi, Maxell, FujiFilm, RiTEK(Phtharo), CMC, Pioneer, Princo, TDK

CD-RW Media

RICOH, MKM, RiTEK, CMC

HS CD-RW Media

RICOH, MKM, CMC

US CD-RW Media

MKM

Light Scribe

CD: MKM, MBI, CMC
DVD: MKM

Buffer underrun free technology

What is " buffer underrun free technology "?
A technology to prevent

fast as the data writing speed when data is being recorded on a disc.

Reading / Recording Speed

"buffer underrun"

페이지 2 / 2SAMSUNG DVD±R/RW Drive User's Manual

errors in which the data transmission speed is not as

Format / Speed

DVD-RAM PCAV 5X PCAV 5X
DVD-R CAV 8X PCAV 8X
DVD-RW CAV 8X ZCLV 6X
DVD-R DL CAV 6X ZCLV 6X
DVD+R CAV 8X PCAV 8X
DVD+RW CAV 8X ZCLV 8X
DVD+R DL CAV 6X ZCLV 6X
DVD-ROM CAV 8X ­CD-R CAV 24X PCAV 24X
CD-RW CAV 24X ZCLV 24X
CD-ROM CAV 24X -

Read Write

10/9/2008file://D:₩CD 3 LED수정된CD₩SE-T084M_Tru_0514₩manual₩T084M₩2₩en₩feature...

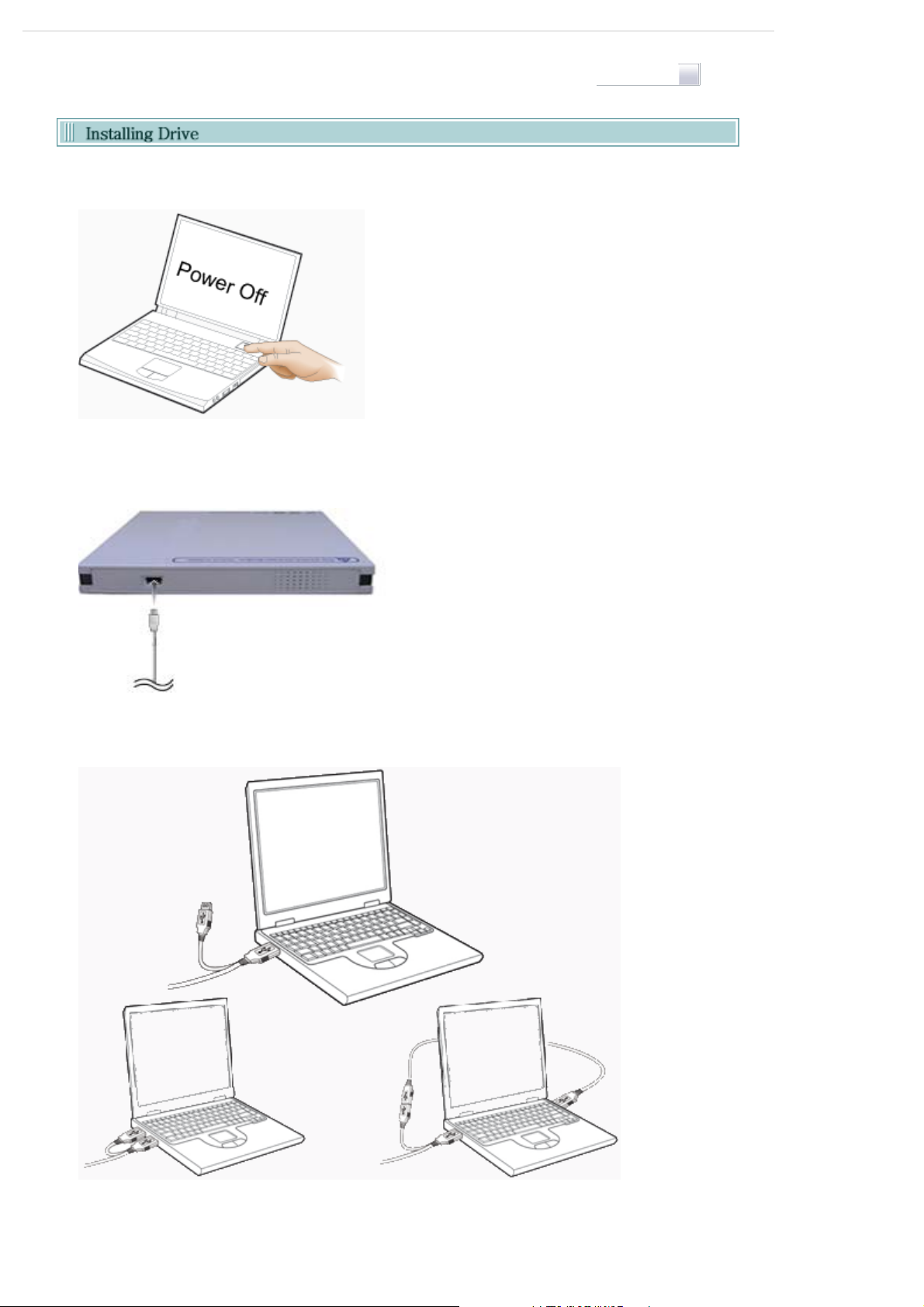

1. Turn the PC off.

2. Connect the necessary cables, then turn on the drive

- Connect the USB cable to the drive ' s USB connector.

Select Languages

English

페이지 1 / 2SAMSUNG DVD±R/RW Drive User's Manual

3. Connect the other end of the of the USB cable to your computer .

Normal operation is not guaranteed if using the USB HUB or unspecified cables.

4.

PCs with insufficient USB bus power may not work properly if using a single-port USB bus power.

5.

To avoid this, use two ports in conjunction for power enhancement.

10/9/2008file://D:₩CD 3 LED수정된CD₩SE-T084M_Tru_0514₩manual₩T084M₩2₩en₩install₩...

If your computer is not equipped with a USB connector, install a USB interface card.

페이지 2 / 2SAMSUNG DVD±R/RW Drive User's Manual

10/9/2008file://D:₩CD 3 LED수정된CD₩SE-T084M_Tru_0514₩manual₩T084M₩2₩en₩install₩...

페이지 1 / 1SAMSUNG DVD±R/RW Drive User's Manual

Select Languages

English

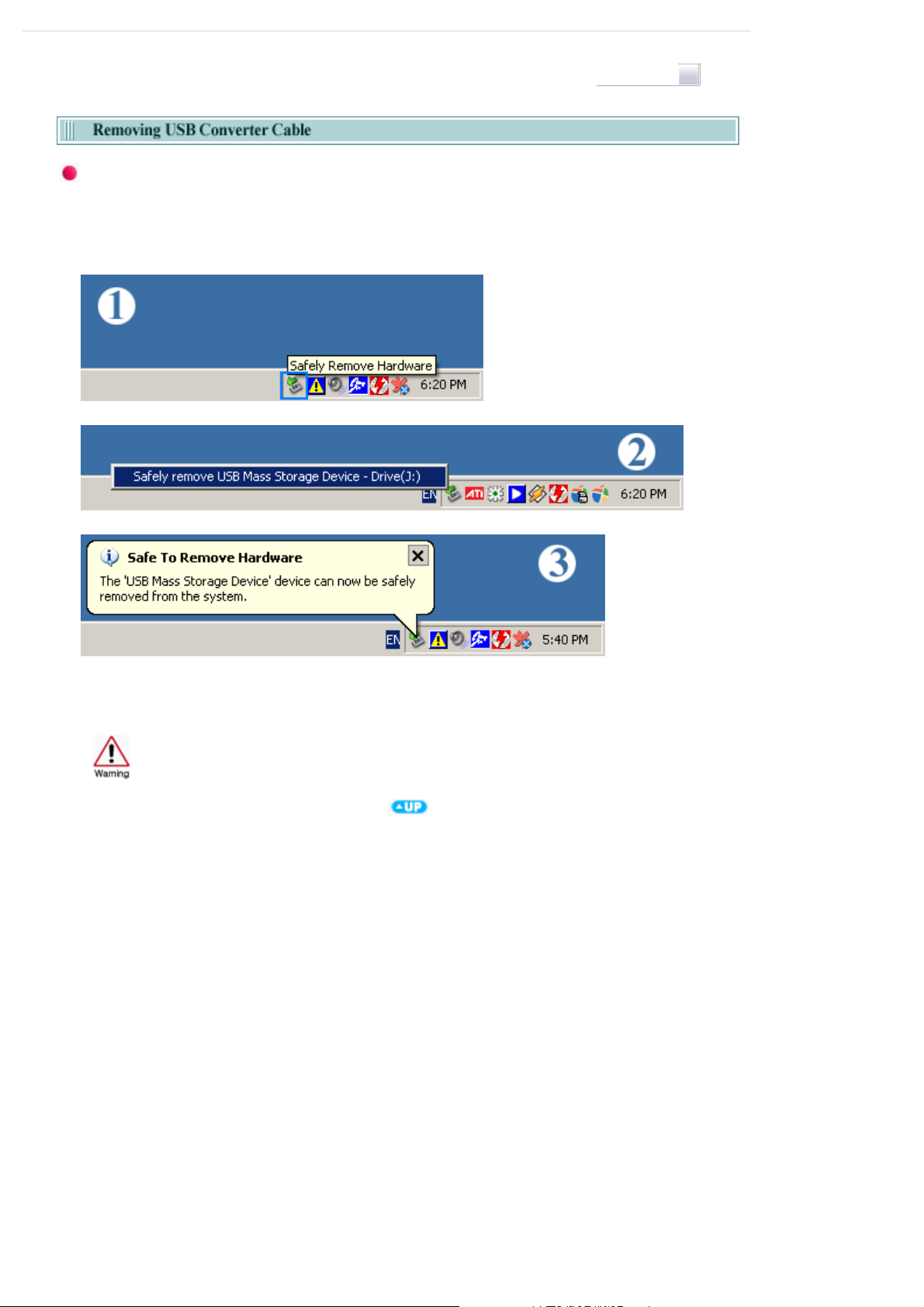

This drive uses Plug & Play function designed for Windows. Follow the procedures below to use a USB
converter cable.

1. Close all the software programs which are current l y bei n g use d.

2. Click the icon at the right bottom of the screen as shown in the picture.

3. Disconnect the USB converter cable.

Do not disconnect the USB converter cable while the drive is in operation or the computer is
getting started.

10/9/2008file://D:₩CD 3 LED수정된CD₩SE-T084M_Tru_0514₩manual₩T084M₩2₩en₩install₩...

페이지 1 / 1SAMSUNG DVD±R/RW Drive User's Manual

Select Languages

English

Checking USB 2.0

In order to use this drive at the speed of USB2.0 on PCs not supporting USB 2.0, you need to install
USB 2.0 adapter card. Otherwise, this drive will operate by connecting USB 1.1, but within the speed
range of USB 1.1. You can check the type of USB 2.0 adapter card for your PC as follows.

Windows 2000/XP/Vista

Right-click on My Computer icon on your desktop and select properties. Then, click on Hardware tab and
Device Manager Button in order, and then check the information. If a yellow "exclamation point" appears
next to Universal Serial Bus Controller, contact the card or PC manufacturer.

10/9/2008file://D:₩CD 3 LED수정된CD₩SE-T084M_Tru_0514₩manual₩T084M₩2₩en₩device...

페이지 1 / 1SAMSUNG DVD±R/RW Drive User's Manual

Go to http://www.samsung-ODD.com

1.

Click Firmware on the menu bar (in the upper right-hand corner).

2.

Click Firmware Downloads. Check for your drive model and start downloading.

3.

Select Languages

English

10/9/2008file://D:₩CD 3 LED수정된CD₩SE-T084M_Tru_0514₩manual₩T084M₩2₩en₩device...

페이지 1 / 2SAMSUNG DVD±R/RW Drive User's Manual

Windows 2000

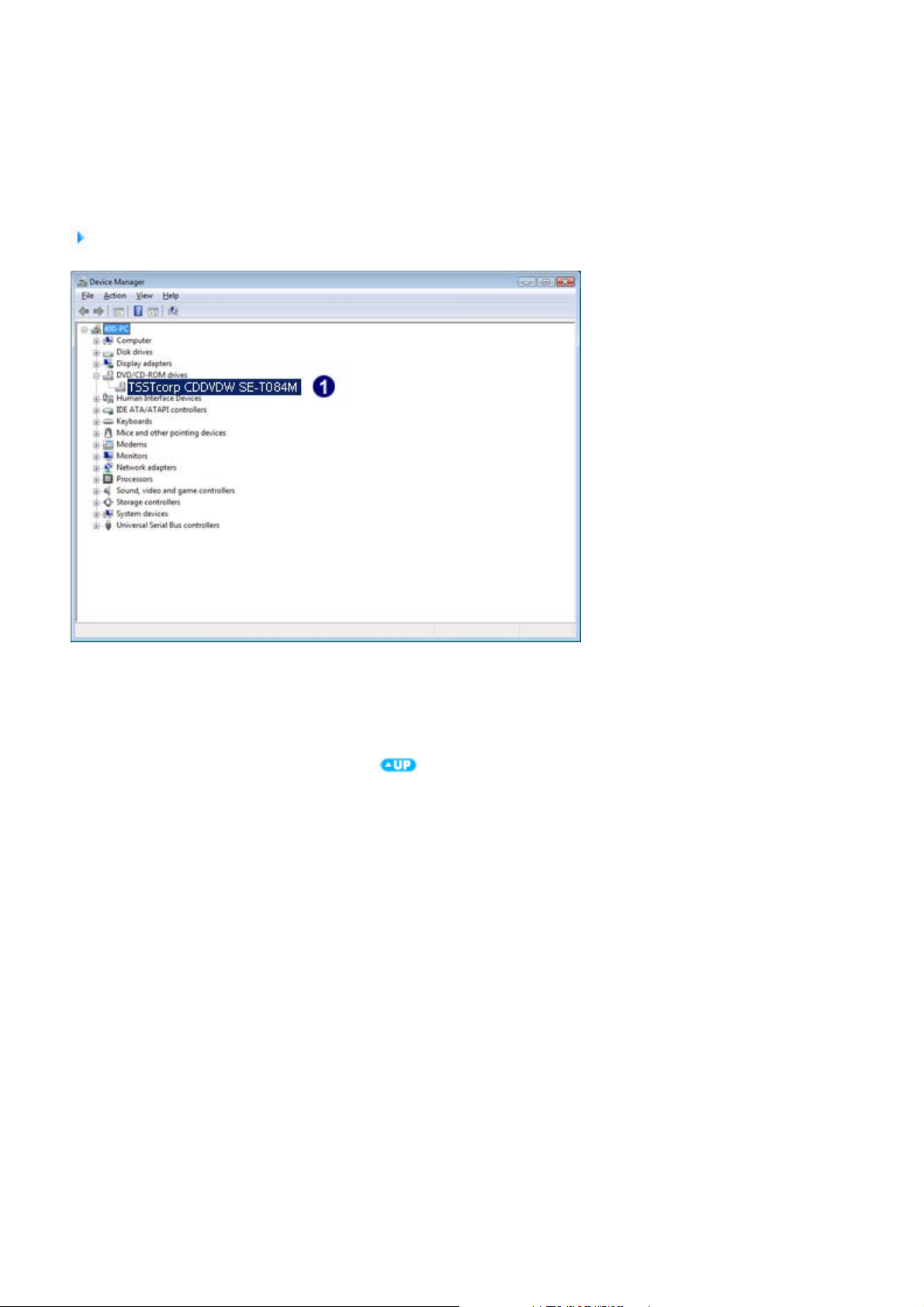

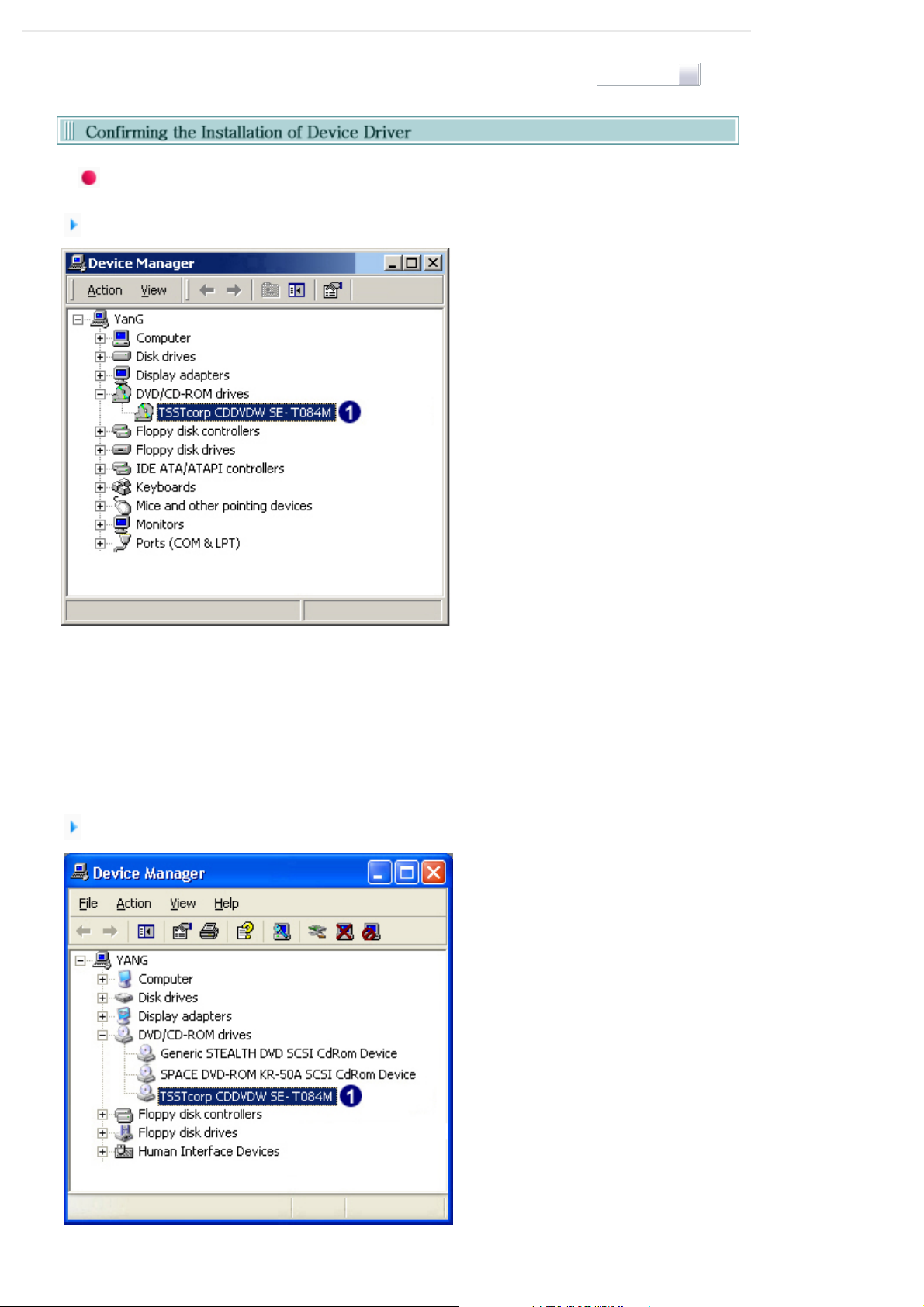

Confirming Using [Device Manager]

Select Languages

English

Click [Start] - [Settings] - [Control Panel] - [System]

1.

Click on the [Hardware] tab in the System Properties window and then click on the [Device

2.

Manager] tab.
Click DVD-W drive in the Device Manager window.

3.

1in the left picture appears if the driver is installed properly.

Windows XP

10/9/2008file://D:₩CD 3 LED수정된CD₩SE-T084M_Tru_0514₩manual₩T084M₩2₩en₩device...

Go to [Start] - [Settings] - [Control Panel] - [Performance and Maintenance]

1.

Click [System] icon in the Performance and Maintenance window.

2.

Click [Hardware] tab in the System Properties window.

3.

Click the [Device Manager] button.

4.

1in the left picture appears if the driver is installed properly.

Windows Vista

페이지 2 / 2SAMSUNG DVD±R/RW Drive User's Manual

Click [Start] - [Control Panel] - [System] - [Device Manager].

1.

Click DVD-W drive in the Device Manager window.

2.

1in the left picture appears if the driver is installed properly.

10/9/2008file://D:₩CD 3 LED수정된CD₩SE-T084M_Tru_0514₩manual₩T084M₩2₩en₩device...

페이지 1 / 1SAMSUNG DVD±R/RW Drive User's Manual

Select Languages

English

When the LED is Green, do not turn the PC off or remove the External DVD Writer as it may cause
damage in the drive.

How to Use a Horizontally Installed Drive

You can use

disc.

The drive cannot read the disc properly if any part of the
disc is placed outside the tray guiding line.

- Only standard round type disc(8cm,12cm) is available.

- Do not use the external drive vertically.

3.15 Inch or 4.72 Inch (8cm or 12cm)

10/9/2008file://D:₩CD 3 LED수정된CD₩SE-T084M_Tru_0514₩manual₩T084M₩2₩en₩howto...

페이지 1 / 2SAMSUNG DVD±R/RW Drive User's Manual

You can use the External DVD Writer to playback music CDs, CD-ROM, CD-R/RW, or DVD-ROM discs,
like a CD-ROM drive or a DVD-ROM drive. If your computer recognizes the [CD-ROM] icon designated to
the External DVD Writer as the 'E:' drive, insert a CD-ROM or a DVD-ROM disc and access the 'E:' drive.

To Playback a DVD Video Disc :

You need a DVD decoder board or the DVD decoder software program.
(Provided with Nero ShowTime Essentials)

Use Nero ShowTime Essentials to change the region code of the External DVD Writer.

Select Languages

English

The External DVD Writer allows writing DVD±RW discs using Nero Express and enables
"packet writing" (high-speed recording) using InCD.
The drive also allows writing DVD±R discs using Nero Express.

Unauthorized copying of DVD or software titles is ille ga l an d the individuals that make
illegal copies will be held responsible for any copyright infringement.
Using low-quality discs may lengthen the recording time or not supporting due to
reduction in double speed.

DVD Region Protection Coding (RPC):

The RPC feature is supported on DVD players and is used with DVD-video discs (such as movies).
Currently, the motion picture industry has divided the world into different regions or zones that
correspond to the regional markets into which the motion picture indu stry rele ases movies. Simp ly put,
RPC codes are placed on movies marketed throughout the world, based on the region of the world
inwhich they are being sold. These R PC codes help control and prevent pirating of new movies into
other motion picture regions prior to their true release dates within those markets.
The SE-T084M External DVD Writer supports RPCphase II. In the RPC-2 mode, the local code can be
changed by users. RPC-2is selected by default for the SE-T084M External DVD Writer.
You can change the region code up to five times via an MPEG applicatio n.

Please contact your dealer or local SAMSUNG representative if you w ish to change the local code
more than five times.

10/9/2008file://D:₩CD 3 LED수정된CD₩SE-T084M_Tru_0514₩manual₩T084M₩2₩en₩howto...

페이지 1 / 2

Connect the Video/Audio devices to your computer before you start TruDirect.

.

1

Camcoder, Digital Camera,
Webcam...

IEEE 1394

USB

Composite

Select Languages

English

Click the TruDirect Program Shortcut on your Desktop of Windows.

.

2

Make the DVD title from Live Video, Photo Files, Video Files.

.

3

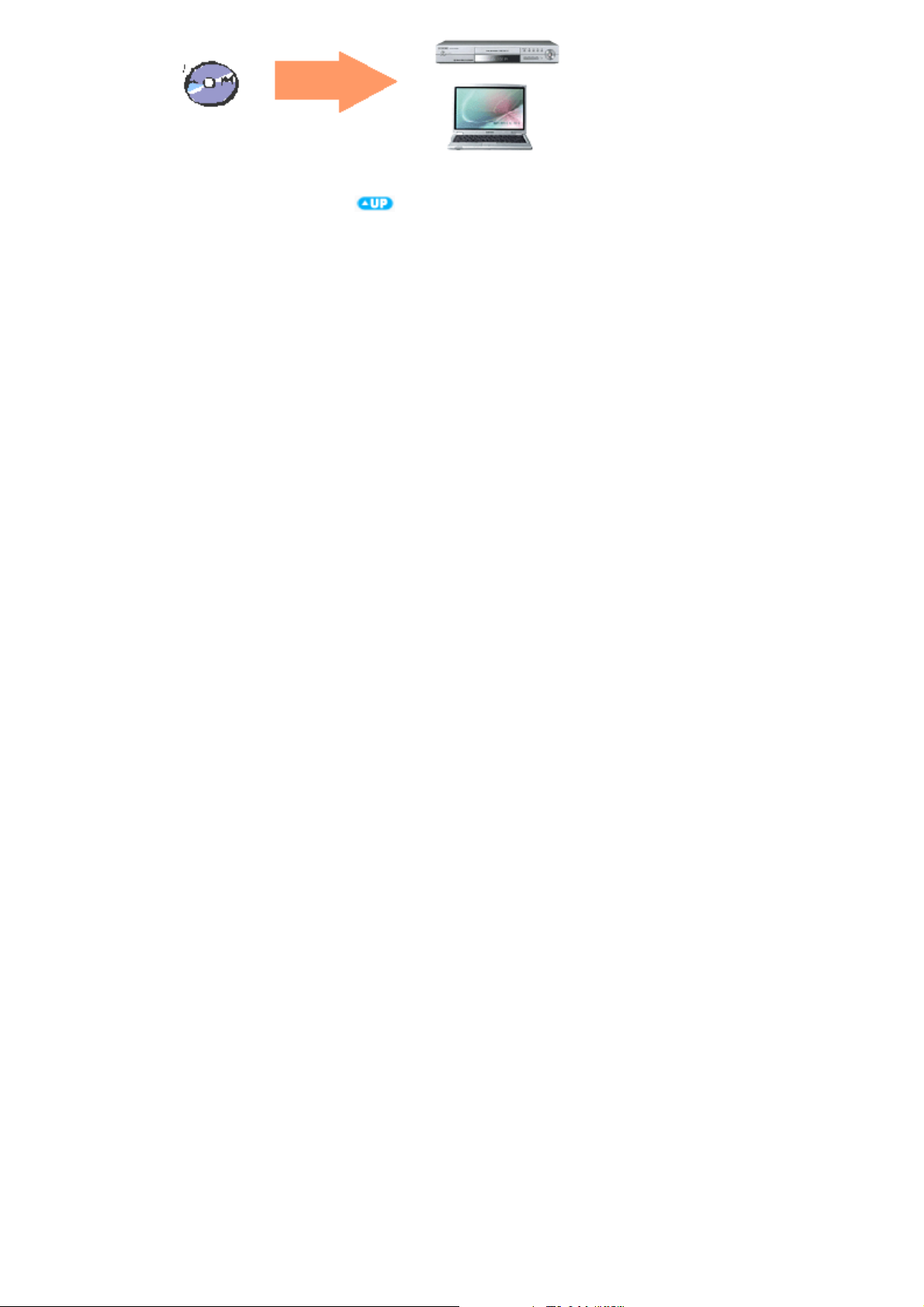

Play DVDs made with TruDirect on your DVD player or PC.

.

4

10/9/2008file://D:₩CD 3 LED수정된CD₩SE-T084M_Tru_0514₩manual₩T084M₩2₩en₩howto...

페이지 2 / 2

10/9/2008file://D:₩CD 3 LED수정된CD₩SE-T084M_Tru_0514₩manual₩T084M₩2₩en₩howto...

페이지 1 / 1SAMSUNG DVD±R/RW Drive User's Manual

This part of the manual is to prevent damages or data loss.
Read carefully and use the device properly.

Do not place it under the direct sunlight.
Place it so that it sits on its side on a flat surface.
Do not scratch or place a label on the disc.
Handle the disc with caution to prevent damage from external shock.
Do not expose it to severe temperature fluctuations.
(Exposure to such environment may cause congealing.)

Select Languages

English

10/9/2008file://D:₩CD 3 LED수정된CD₩SE-T084M_Tru_0514₩manual₩T084M₩2₩en₩clean₩...

페이지 1 / 1SAMSUNG DVD±R/RW Drive User's Manual

Select Languages

English

This part of the manual is to prevent damages or data loss.
Read carefully and use the device properly.

Do not touch the surface of the disc.
Place your fingers on the edge of the disc to hold.

Clean the disc lightly with soft cotton cloth, starting from the center and move to
the edge of the disc.

Use only disc-cleaning liquids. Do not use benzene, paint thinner, or any other solvents.

If the disc surface becomes dirty with fingerprints, foreign su bstances or dust, the disc may not
function properly.

10/9/2008file://D:₩CD 3 LED수정된CD₩SE-T084M_Tru_0514₩manual₩T084M₩2₩en₩clean₩...

페이지 1 / 1SAMSUNG DVD±R/RW Drive User's Manual

LED Meaning
Disc Lead-In
Writing
Reading
Audio Playback [Analog Mode]
Audio Playback [Digital Mode]
Standby
No Disc

The indicator light turns off when the drive is not in use (standby) after disc lead-in.

Green: Blinks every 0.3 seconds.
Green: Blinks every 0.3 seconds.
Green: Blinks every 0.3 seconds.
Green: Blinks every 0.3 seconds.
Green: Blinks every 0.3 seconds.
Off
Off

Select Languages

English

10/9/2008file://D:₩CD 3 LED수정된CD₩SE-T084M_Tru_0514₩manual₩T084M₩2₩en₩clean₩...

페이지 1 / 1SAMSUNG DVD±R/RW Drive User's Manual

Problem Meaning / Solution

The eject key is not working
properly.

The PC is not working properly.

The drive is not working properly.

No sound is heard from an audio
CD.

The computer doesn't recognize
the drive.

Select Languages

English

See if the Drive is on.
If the disc still won't eject with the power-on, remove USB cable,

Power cord and insert an eject pin into the emergency eject hole to
open.

See if the drive is properly connected to the PC.
See if the floppy disc remains in the PC.

See if the drive is connected properly to the PC.
See if the device drive program has been installed properly.
Check that the sound card is operational.
Check the condition of the CD and wipe the surface of the CD

clean before use.
USB cable is not connected properly between the computer USB port

and the drive .
Ensure that both connectors of the USB cable is properly connected

to the USB ports on the computer and the drive.
Can be an OS problem. Try to reinstall the Windows OS program.

The system dosen't read the disc.

You can confirm the use of software at the site of our customer support.
Address: www.samsung-ODD.com

- See “ Support > Download center > Operation Manual ”.

- See “ Information > Flash Manual > TruDirect Flash Manual ”.

See if the system detects the drive.
Make sure you use the types of discs that are supported by the drive.
See if the LED turns into green.
Make sure you inserted the disc with the label facing up.
Make sure you are using the right program for disc playback.
See if the disc is clean.
See if any congealing has occurred.
Make sure the region code of the drive matches the disc number.

10/9/2008file://D:₩CD 3 LED수정된CD₩SE-T084M_Tru_0514₩manual₩T084M₩2₩en₩trouble...

페이지 1 / 2SAMSUNG DVD±R/RW Drive User's Manual

Select Languages

English

External DVD Writer record data on the disc by applying laser light onto the surface of the disc, and
therefore writing errors may occur if you use a damaged disc, for example. Be sure to eliminate the following
error-causing elements before you start writing:
* The following settings are recommended for all External DVD Writer:

Avoid a situation that requires multitasking, and remove turn off the screen saver.

A buffer underrun may occur if the system multitasks while the External DVD Writer CD-RW
drive is writing/erasing.

Block any outside attempt to access the host PC during a writing session.

An error may occur if another user accesses the printer connected to his/her the system via the
network during a writing session.

Disable the CD auto-run feature of the CD.

Inserting an auto-run-enabled CD in to another drive connected to the same system during a
writing/erasing session may cause an error.

It is recommended that you use the image file format when you write a large number of small­sized files.

When there are a large number of small-sized files to write, the system's transfer rate drops and
the Superlink feature works at a more frequent rate, resulting in lower wri ti ng quality.

If you are doing a CD-to-CD write, it is not necessary to check to see if you have available space
on your hard disc beforehand.

However, in the case of image files, it is recommended that you be sure you have at least twice the
amount of space needed for the data on your hard disc, as image files are copied to the hard disc
before they are copied to the CD.

Do not use more than one type of writing software.

Before you install a writing program, be sure to first uninstall existing versions of the program or
other writing program(s) and reboot the system first .

(The Windows operating system may be damaged if you install the Korean version while the
English version remains on the system.)

Use only the writing software provided by Samsung.
You may experience writing errors if you use with other writing programs.

The disc has bad properties data, and or there are other discs with different properties
available under the same ID.

The drive's write strategy is set in a way that the drive examines to examine the disc properties and
determines the optimal write conditions for those properties.

For example, many disc makers do not bother to insert property information distinguishing 48X
discs from 32X discs. Since the two types of discs have the same properties data, although they
actually have different properties, it is often impossible to respond to the situation with a single write
strategy. In order to ensure stable writing, it is necessary to downgrade the write speed.

If discs from two different disc makers have the same write speed according to the labels, but
actually have different write speeds, it is necessary to downgrade the write speed to ensure stable
writing.

Samsung's Standards for Write Speed Restriction.

Write speed is downgraded for the sake of write stability, if high-speed discs

Standards 1

Standards 2

You may experience lower write quality in case if you use disc products by some disc makers
which that are not registered with the product's firmware.
Therefore, it is recommended that you use only discs by recommended companies. Even, and
even if the write session is completed successfully, check the write quality before you put the disc
in storage, especially in case of an important data backup.

available in the market have particularly bad properties data, or there are
low-speed discs available under the same ID.

Speed-restricted discs go through further examination and adjustments
later. If high-speed discs are available under the same ID with as low-speed
discs (speed restricted at present), the speed restriction is removed when
the low-speed counterparts become no longer unavailable in the market
under the same ID.

10/9/2008file://D:₩CD 3 LED수정된CD₩SE-T084M_Tru_0514₩manual₩T084M₩2₩en₩trouble...

페이지 2 / 2SAMSUNG DVD±R/RW Drive User's Manual

(Samsung is not responsible for any loss resulting from data backup failure.)
We update the list of supported media on a regular basis through our firmware upg r ades

10/9/2008file://D:₩CD 3 LED수정된CD₩SE-T084M_Tru_0514₩manual₩T084M₩2₩en₩trouble...

페이지 1 / 2SAMSUNG DVD±R/RW Drive User's Manual

Select Languages

English

Category

:DVD-R, DVD-RW, DVD+R, DVD+RW, DVD-ROM,

DVD

DVD-Video, DVD+R (Dual), DVD-R (Dual), Light
Scribe DVD±R , DVD-RAM

: CD-ROM, CD-R, CD-RW, CD-DA, CD+E(G)

DISC

Interface Support

ACCESS TIME

(Random)

Media

Disc

Labeling

Time

Transfer

Speed(Max)

Buffer Memory
Drive Installation

Operating
Environment

Size(Width x Height x
Length)

Weight

Type
CD Media Best
DVD Media Best

DVD-RAM
DVD-R
DVD-RW

Data

Note

Do not support DVD-R for Authoring.
Cannot playback or record on both sides of a dual layer disc simultaneously.
The read/write capacity of the supported discs depends on the condition of the disc

and the recording format of the drive. Therefore, the read/write quality may not be perfect.
Severe vibration or external impact may decrease the quality of printed im ages.
Please firmly place the product onto the PC before use.
In case of disc identification error message, thoroughly clean the surface of the disc
where the label is presented and then start printing.
The quality of the printed image cannot be ensured if printing an image on the area
which is already used for printing.
For more information on the writing and duplicating the Lightscri be disk label,

DVD-R DL
DVD+R
DVD+RW
DVD+R DL
DVD-ROM
CD-R
CD-RW
CD-ROM

Temperature 41°F ~ 104 °F (5°c ~ 40°C)
Humidity 10% ~ 80% (RH)

Usable Discs

Disc Diameter 4.72 Inch or 3.15 Inch (120mm or 80mm)
Interface Port USB 2.0
CD-ROM 160ms (Random)
DVD-ROM 160ms (Random)

Setting Titles only

Format/

Speed

2MB
Horizontal

141 X 19 X 157mm
370g

CD

CD-MIDI, CD-TEXT, CD-ROM XA, Mixed Mode CD
CD-I, CD-I Bridge (Photo-CD, Video-CD),
Multisession CD (Photo-CD, CD-EXTRA, Portforio),
Light Scribe CD-R

Less than 3:30 min Less than 28:00 min
Less than 3:30 min Less than 30:00 min

Read

PCAV 5X PCAV 5X

CAV 8X PCAV 8X
CAV 8X ZCLV 6X
CAV 6X ZCLV 6X
CAV 8X PCAV 8X
CAV 8X ZCLV 8X
CAV 6X ZCLV 6X

CAV 8X ­CAV 24X PCAV 24X
CAV 24X ZCLV 24X
CAV 24X -

SE-T084M

External DVD Writer

The entire label area
(including graphics)

Write

10/9/2008file://D:₩CD 3 LED수정된CD₩SE-T084M_Tru_0514₩manual₩T084M₩2₩en₩spec₩s...

install Nero software and refer to the HELP section.

FCC information to the user

This equipment has been tested and found to comply with the limits for a class B digital device. pursuant
to part 15 of the FCC rules.
These limits are designed to provide reasonable protection against harmful interference in a residential
installation. this equipment generates.
Uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception Which can be
determined by turning the equipment off and on. The user is encouraged to try to correct th e
interference by one or more of the following measures.

Reorient or relocate the receiving antenna.
Increase the separation between the equipment and rece iver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio TV technician fo r help.

CAUTION

Change or modifications not expressly approded by the manufacturer responsible for comliance could
void the user's authority to operate the equipment.

페이지 2 / 2SAMSUNG DVD±R/RW Drive User's Manual

Laser Standand

IEC 60825-1 : 1993 + A1 : 1997 + A2 : 2001

The product specifications above may be changed to improve device performance without prior
notice.

10/9/2008file://D:₩CD 3 LED수정된CD₩SE-T084M_Tru_0514₩manual₩T084M₩2₩en₩spec₩s...
