Page 1

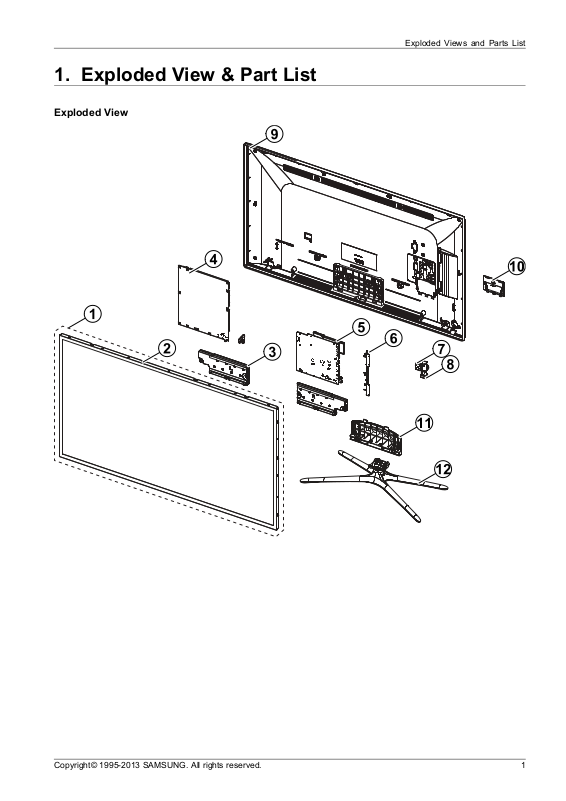

1.ExplodedView&PartList

ExplodedView

ExplodedViewsandPartsList

Page 2

ExplodedViewsandPartsList

PartsList

No.Lvl.Loc.MaterialCodeDescription&SpecicationSNAQty.

12PANELBN95-00893APRODUCTLCD-AMLCD;

LSF460HJ02,CY-HF460CSL

23TC01ABN96-25334AASSYMISCP-CHASSISTOP;Y13SF-LED46(6.SA1

32SP01ABN96-25565BASSYSPEAKERP;6ohm,10W,Enclosure_6000SA1

42P001ABN44-00623BDCVSS-LEDTVPDBD;

L46X1Q_DHS,L46X1Q_DH

52M0014BN94-06165XASSYPCBMAIN;F6100,46,XCSA1

63BN61-09059GHOLDER-SIDEA V;

F6100/6300,ABS+PC,WINERED

72BTBN96-25376AASSYBOARDP-RF-MODULE;Bluetooth

Module,

83FB01ABN96-26401NASSYBOARDP-JOGSWITCH&IR;

UE40F6100,F

92BN96-25526DASSYCOVERP-MIDDLE,REAR;UF6100

46,EUROP

102FC05BN63-10178FCOVER-JACK;UF6100/630040"-50"

EO,ABS+PC

112SG01ABN96-25543AASSYGUIDEP-STAND;UF610040,QUADSA1

122SB04ABN96-25365AASSYST ANDP-BASE;

UF5500,50,PC+ABS,V0,BK

SA1

SNA1

SA1

SNA1

SA1

Page 3

ExplodedViewsandPartsList

2.ElectricalPartsList

LevelLoc.PartCodeDescription&SpecicationQty.SA/SNA

UE46F6100AWXZG(TH01)

1BN90-04368KASSYCOVERMIDDLE;UF6K1SNA

.26001-002755SCREW-MACHINE;BH,+,M3,L6,ZPC(BLK),SWRCH114SA

.2SCREW6003-001782SCREW-T APTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR3SA

.2BN96-25526DASSYCOVERP-MIDDLE,REAR;UF610046,EUROP1SA

..30203-001598TAPE-FILAMENT;#8915,0.15,12,55000,CLR0SNA

..3SCREW6003-000115SCREW-T APTYPE;BH,+,B,M3,L6,ZPC(BLK),SWRC2SA

..3BN63-08608BCOVER-SHEET;Rhcm,PEVinyl,T0.04,80MM,203SNA

..3BN63-10189KCOVER-MIDDLEREAR;UF610046",PCV2/PC+AB1SNA

...40103-007268RESIN-PC;TN-1045M,70784,TP0010,0.8,3.0500SNA

..3BN63-10851ASHEET-COVER;UF5000,PET,0.1,45,16,BLACK2SNA

..3BN68-05188GLABEL-TERMINALSIDE;UF6100,EU/CIS,PET,T01SNA

..3FB01ABN96-26401NASSYBOARDP-JOGSWITCH&IR;UE40F6100,F1SA

...4EC13BN39-01771BLEADCONNECTOR;UE40F6100,CableConnector1SNA

...45WAYBN96-26401AASSYBOARDP-JOGSWITCH&IR;UE32F5000,F1SNA

1S001ABN90-04383WASSYSTAND;UF6500461SNA

.2SB04ABN96-25365AASSYSTANDP-BASE;UF5500,50,PC+ABS,V0,BK1SA

..36002-001294SCREW-T APPING;BH,+,,M4,L16,ZPC(BLK)4SA

..3SCREW6003-001425SCREW-T APTYPE;BH,+,B,M4,L25,ZPC(BLK),SWR4SNA

..3SCREW6003-001785SCREW-T APTYPE;FH,+,B,M4,L8,ZPC(BLK),SWRC4SA

..3SCREW6003-001832SCREW-T APTYPE;FH,+,B,M4,L30,ZPC(BLK),SWR1SNA

..3BN61-07159CHOLDER-SWIVEL,TOP;46/50/55QUADSTAND,AC1SNA

..3BN61-07739ABRACKET-SWIVEL,BOTTOM;UD800046/55QUAD,1SNA

..3BN61-07745ABRACKET-SWIVEL,TOP;UD800046"/55"QUAD,S1SNA

..3BN61-08737AHOLDER-SWIVEL,BOTTOM;46-55SLIMQUADSTA1SNA

...40103-009825RESIN-POM;TS-25A,DarkGray,GY0199,HB6SNA

..3BN61-08738AHOLDER-STAND,NECK;46-55SLIMQUADST AND,1SNA

..3BN61-08739ABRACKET-STAND,TOP;46-55SLIMQUADSTAND,1SNA

..3BN61-08740ABRACKET-STAND,BOTTOM;46-55SLIMQUADSTA1SNA

..3BN63-05135ECOVER-SHEET;4-LEG,RhcmPEVinyl,T0.05,W62SNA

..3BN63-10161ACOVER-STAND,BASE;46-55SLIMQUADST AND,A1SNA

..3BN63-10703DCOVER-STAND,TOP-FRONT;F5500,46,ABS+PC,-,1SNA

..3BN63-10706DCOVER-STAND,TOP-REAR,LEFT;F5500,46,ABS+1SNA

..3BN63-10709DCOVER-STAND,TOP-REAR,RIGHT;F5500,46,ABS+1SNA

...40103-005041RESIN-PC;FR3200TV ,901408,BK0008,1.2mmV-55SNA

..3BN67-00385DRUBBER-FOOT;RUBBER-FOOT ,SILICONE,ROUND,14SNA

.2SG01ABN96-25543AASSYGUIDEP-STAND;UF610040,QUAD1SA

..3SG03BN61-08823AGUIDE-ST AND;UF610055",PC+GF ,G/F20%1SNA

Page 4

ExplodedViewsandPartsList

LevelLoc.PartCodeDescription&SpecicationQty.SA/SNA

...40103-007285RESIN-PC;MW32020GFU,K032202GFV ,BK0007,V2250SNA

...4BN68-00513DLABEL-RESIN;resin,-,artpaper,-,10,25,-,1SNA

..3T0527BN68-00513ALABEL-E,P ASS;ALLMODEL,YUPO(110G),50X15,1SNA

..3BN69-08751AWRAPVINYL-SHRINK;STAND,PLASTICOTHERS,P0SNA

..3BN96-18013EASSYACCESSORY -SCREW;6003-001782,4EA,ALL2SNA

...4SCREW6003-001782SCREW-T APTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR8SA

...4BN69-08203EPACKING-BAG-SCREW;LDPE,0.05,70,90,TRP ,Vi2SNA

1BN90-04578FASSYW/I;UF6K1SNA

.2BN81-08159TPARTSET -MECHW/I;UF6M,U46FP*1SNA

.2BN81-08159ZPARTSET -ELECW/I;UF4*~UF8*ELEC1SNA

1BN91-07060EASSYSHIELD;F6100,46,EUROPE1SNA

.26001-003016SCREW-MACHINE;PWH,+,M3.0,L5.0,ZPC(WHT),S9SA

.2BN02-00102BT APEFILAMENT;UE7000,#893,0.15,25,50,WHI0SNA

.2EC13BN39-01475XLEADCONNECTOR;UN50F6400,FlatConnector,1SA

.2EC14BN39-01744ALEADCONNECTOR-LEDWIREHARNESS;DIRECTw1SA

.2P001ABN44-00623BDCVSS-LEDTVPDBD;L46X1Q_DHS,L46X1Q_DH1SA

.2FC05BN63-10178FCOVER-JACK;UF6100/630040"-50"EO,ABS+PC1SNA

..30103-009587RESIN-PCABS;NE-1010,431322,RD0071,1.5V20SNA

.2FL06BN96-24278LASSYCABLEP-FFC;UE46F6170,FFC,390mm,51P1SA

.2BTBN96-25376AASSYBOARDP-RF-MODULE;BluetoothModule,1SA

..3AS

BN81-08545AA/S-BT;BluetoothModuleSCREW1SNA

..3BN97-07275AASSYMICOM-BLUETOOTHF/W;BN81-08385A1SNA

...4BN81-08385AAS-BLUETOOTHF/W;BLUETOOTHF/W1SNA

.2SP01ABN96-25565BASSYSPEAKERP;6ohm,10W ,Enclosure_60001SA

1BN91-10239AASSYLCM-AMLCD;BN95-00893A1SNA

.2PANELBN95-00893APRODUCTLCD-AMLCD;LSF460HJ02,CY -HF460CSL1SA

..36001-002757SCREW-MACHINE;BH,+,M3,L4,ZPC(WHT),SWRCH16SA

..3BN02-00102BT APEFILAMENT;UE7000,#893,0.15,25,50,WHI1SNA

..3BN63-07229HCOVER-SHEET;rose70",SILICONE,T0.052,W25m3SNA

..3AS109BN63-11085ASHEET-SIDE;F6100,TAPE,0.125,25mm,130m,BL3SNA

..3BN68-02471ALABEL-STICKER;WW,ArtPaper,80,40,A V1SNA

..3BN90-04399AASSYMISC-BLU;SlimF-LED,6K3D1SNA

...4BN02-00152HTAPEETC-SHEETFIXING;Y13SlimF-LED,PET3SNA

...4BN61-08639ALGP-DIFFUSESRPLA TE;46"SlimFLED_Diffus1SNA

...4BN61-09304ASUPPORT -PLA TE;Y13SLIM/VNB,PC,WHT+CL10SNA

...4BN63-10449ASHEET-DIFFUSER;46inch,SFLED,OpticalSh1SNA

...4BN63-10450ASHEET-REFLECTOR;UXJP175,SHEET*,0.175,1041SNA

...4BN96-25100AASSYFRAMEP-MOLDMIDDLE(U);Y13F-LEDSl1SNA

....5BN61-08720AFRAME-MOLDMIDDLE(U);Y13F-LEDSlim46",1SNA

...4BN96-25101AASSYFRAMEP-MOLDMIDDLE(D);Y13F-LEDSl1SNA

Page 5

ExplodedViewsandPartsList

LevelLoc.PartCodeDescription&SpecicationQty.SA/SNA

....5BN02-00152ETAPEETC-SHEETFIXING;Y13SF-LED,PET,0.02SNA

....5BN60-00744ASPACER-RUBBER;Y13F-LEDSLIM,SH-0140U+A T1SNA

....5BN60-00748KSPACER-PANEL(UP/DOWN);13SF-LED46,SILI1SNA

....5BN61-08721AFRAME-MOLDMIDDLE(D);Y13F-LEDSlim46",1SNA

...4BN96-25102AASSYFRAMEP-MOLDMIDDLE(LR);Y13F-LEDS2SNA

....5BN60-00748LSPACER-PANEL(LR);13SF-LED46,SILICON+T2SNA

....5BN60-00748MSP ACER-P ANEL(CORNER);13SF-LED46,SILIC4SNA

....5BN61-08722AFRAME-MOLDMIDDLE(LR);Y13F-LEDSlim46"2SNA

.....60103-009559RESIN-PC;210GNH15,6919A,BK0007,PCABSGF60SNA

...4BN96-25308AASSYMISCP-LEDBAR;46inchSlimDirectL8SNA

...4BN96-25309AASSYMISCP-LEDBAR;46inchSlimDirectL8SNA

...4BN96-25333AASSYMISCP-CHASSISBOTTOM;Y13SF-LED461SNA

....56001-002759SCREW-MACHINE;CH,+,M3,L4,ZPC(BLK),SWRCH11SA

....56001-003005SCREW-MACHINE;BH,+,M3,L6,ZPC(WHT),SWRCH14SNA

....5BN02-00040CT APEDOUBLEFACE-D-PLA TE;F-LEDALL,MKT502SNA

....5BN02-00043DTAPEETC-SHEETFIXING;Y13slimF-LED,PET2SNA

....5BN02-00134ETAPEETC-SHEETFIXING;SFLED32/40/46/55/6SNA

....5BN61-08161AHOLDER-LED-PCB;Direct-LED,PC,white1SNA

.....60103-009493RESIN-PC;LH-1070W,W92853,WT0107,V-21SNA

....5BN61-08815AHOLDER-SOURCEPCB;SLIM-FLED,ABS+PC,BLK,V4SNA

.....60103-005041RESIN-PC;FR3200TV ,901408,BK0008,1.2mmV-6SNA

....5BN61-09049ABRACKET-WALLMOUNT;Y13ALLModel,SPCC,T14SNA

....5BN61-09101ASUPPORT -SOURCEPCB;SF-LED,ABS+PC,V0,GRAY8SNA

.....60103-009930RESIN-PCABS;NH-1017SG,GRA Y ,GY0275,V012SNA

....5BN62-00338EINSULATION-PDBOARD;Y13SF-LED39"~55",P1SNA

....5CC02BN64-02201ACHASSIS-BOTTOM;Y13SF-LED46,EGI-SECC,T01SNA

....5BN96-25337AASSYBOARDP-D-LEDINTERFACE;46inchSlim1SNA

....5GL63-00014ASHIELD-EMIGASKETDTB-H390V/XEE;DTB-H3902SNA

..3TCONBN95-00861AASSYTCON;LSF460HJ02,46FHD120NNB1SA

...4BN62-00366AHEATSINK-PS;F6000,A1050,ANODIZING,80*611SNA

...4BN97-06999AASSYSMD;BN95-00861A1SNA

....50202-001899SOLDER-CREAM;M705-GRN360-K2-VT,25-36um,S2SNA

....5DS01A0401-001192DIODE-SWITCHING;MMBD7000LT1,100V ,200mA,S2SA

....50403-001172DIODE-ZENER;UDZ6.8B,6.65-6.93V ,200MW ,SOD1SNA

....50404-001640DIODE-SCHOTTKY;SS1060HEWS,60V ,1000mA,SOD2SA

....50404-001643DIODE-SCHOTTKY;B360A,60V ,3000mA,SMA,TP1SA

....50406-001317DIODE-TVS;SMAJ14A,15.6/-/17.2V ,400W ,SMA1SNA

....50406-001324DIODE-TVS;RClamp1502B,16.7/-/-V ,200W ,SOT1SNA

....50406-001438DIODE-TVS;SMCJ14A,15.6/-/17.2V ,1500W ,DO-1SA

....50406-001445DIODE-TVS;RClamp7512N,2.7/2.8/2.9,300W,S2SA

Page 6

ExplodedViewsandPartsList

LevelLoc.PartCodeDescription&SpecicationQty.SA/SNA

....50406-001483DIODE-TVS;ESD5B5.0ST1G,5,8V/-/7.8V ,50W,2SA

....50406-001556DIODE-TVS;NUP4114UCW1,6/-/-V ,180W,SC-883SA

....50406-001578DIODE-TVS;P4SMAJ40A,44.4,51.1,400W,SMA1SA

....50501-000465TR-SMALLSIGNAL;MMBT3904,NPN,350mW ,SOT -21SA

....50502-001331TR-POWER;NSS30100LT1G,PNP ,310mW ,SOT -23,T2SA

....50502-001345TR-POWER;FCX491A,NPN,1000mW,SOT89,TR,9004SA

....50502-001346TR-POWER;FCX591A,PNP ,1000mW ,SOT89,TR,30/4SA

....50505-002826FET-SILICON;ZXMN6A07F,N,60V ,1A,0.4ohm,0.1SNA

....50505-003224FET-SILICON;AO6405,P ,-30V ,-5A,0.052ohm,21SA

....5EL020601-002037LED;SMD(TOPVIEW),BLUE,1.6x0.8mm,465/4703SA

....50801-003292IC-CMOSLOGIC;7WB66,BusSwitch,MAB08A,8P1SA

....51105-002227IC-DDR3SDRAM;K4B1G1646G-BCK0,DDR3SDRAM1SA

....51201-003130IC-OPAMP;iML2811SEC,TDFN-EP,TP,8P ,3x3mm1SA

....51203-006130IC-POSI.FIXEDREG.;S-1172B25-U5T1G,SOT-81SA

....51203-006138IC-POSI.ADJUSTREG.;AP1117DGZ-13-89,TO-21SA

....51203-007191IC-DC/DCCONVERTER;SM4152LA,QFN,48P ,7x7m1SNA

....51203-007447IC-VOL.GENERA TOR;RT6503GQW ,QFN,48Z30,7x1SNA

....51203-007552IC-DC/DCCONVERTER;TPS56921PWPR,HTSSOP ,21SA

....51204-003406IC-VIDEOPROCESS;SDP1203,HSFCBGA,756Z30,1SA

....5IS011209-002183IC-SENSOR;S-5851AAA-M6T1U,SOT,6Z30,2.9x11SA

....52007-000040R-CHIP;150ohm,1%,1/10W,TP ,16081SNA

....52007-000043R-CHIP;1Kohm,1%,1/10W,TP ,16082SA

....52007-000052R-CHIP;10Kohm,1%,1/10W,TP ,16083SA

....52007-000060R-CHIP;100Kohm,1%,1/10W,TP ,16081SNA

....52007-000063R-CHIP;150Kohm,1%,1/10W,TP ,16081SA

....52007-000066R-CHIP;20Kohm,1%,1/10W,TP ,16081SNA

....52007-000067R-CHIP;15Kohm,1%,1/10W,TP ,16081SNA

....52007-000070R-CHIP;0ohm,5%,1/10W,TP ,160816SA

....52007-000109R-CHIP;1Mohm,5%,1/10W,TP ,16081SA

....52007-000138R-CHIP;100ohm,5%,1/16W,TP ,100511SA

....52007-000140R-CHIP;1Kohm,5%,1/16W,TP ,10053SNA

....52007-000141R-CHIP;2.2Kohm,5%,1/16W,TP ,10051SNA

....52007-000143R-CHIP;4.7Kohm,5%,1/16W,TP ,100511SNA

....52007-000148R-CHIP;10Kohm,5%,1/16W,TP ,10059SA

....52007-000168R-CHIP;470Kohm,5%,1/16W,TP ,10051SNA

....52007-000170R-CHIP;1Mohm,5%,1/16W,TP ,10051SNA

....52007-000171R-CHIP;0ohm,5%,1/16W,TP ,10059SNA

....52007-000219R-CHIP;1.2Kohm,1%,1/10W,TP ,16082SA

....52007-000239R-CHIP;1.5Kohm,1%,1/10W,TP ,16081SA

....52007-000256R-CHIP;1.6Kohm,1%,1/10W,TP ,16081SA

Page 7

ExplodedViewsandPartsList

LevelLoc.PartCodeDescription&SpecicationQty.SA/SNA

....52007-000336R-CHIP;120Kohm,1%,1/10W,TP ,16083SA

....52007-000455R-CHIP;18Kohm,1%,1/10W,TP ,16083SA

....52007-000516R-CHIP;2.7Kohm,1%,1/10W,TP ,16083SNA

....52007-000536R-CHIP;200ohm,1%,1/10W,TP ,16081SA

....52007-000614R-CHIP;24Kohm,1%,1/10W,TP ,16081SNA

....52007-000640R-CHIP;270ohm,1%,1/10W,TP ,16081SA

....52007-000669R-CHIP;2Kohm,1%,1/10W,TP ,16081SNA

....52007-000726R-CHIP;300ohm,1%,1/10W,TP ,16081SA

....52007-000772R-CHIP;33Kohm,1%,1/10W,TP ,16081SA

....52007-000831R-CHIP;39Kohm,5%,1/16W,TP ,10052SA

....52007-000869R-CHIP;4.7Kohm,1%,1/10W,TP ,16081SA

....52007-000903R-CHIP;430ohm,1%,1/10W,TP ,16081SNA

....52007-000962R-CHIP;5.1Kohm,1%,1/10W,TP ,16082SA

....52007-000999R-CHIP;510ohm,1%,1/10W,TP ,16081SA

....52007-001038R-CHIP;56Kohm,1%,1/10W,TP ,16081SA

....52007-001042R-CHIP;56ohm,1%,1/10W,TP ,16086SNA

....52007-001068R-CHIP;6.8Kohm,1%,1/10W,TP ,16081SA

....52007-001153R-CHIP;750ohm,1%,1/10W,TP ,16082SA

....52007-001175R-CHIP;8.2Kohm,1%,1/10W,TP ,16082SA

....52007-001298R-CHIP;51ohm,5%,1/16W,TP ,10056SNA

....52007-001433R-CHIP;12Kohm,1%,1/10W,TP ,16082SA

....52007-002797R-CHIP;560ohm,5%,1/16W,TP ,10051SA

....52007-002900R-CHIP;11Kohm,1%,1/10W ,TP ,16081SNA

....52007-007107R-CHIP;100Kohm,1%,1/16W,TP ,10051SNA

....52007-007136R-CHIP;4.7Kohm,1%,1/16W,TP ,100510SNA

....52007-007156R-CHIP;1ohm,5%,1/16W,TP ,10052SNA

....52007-007306R-CHIP;100ohm,1%,1/16W,TP ,100518SNA

....52007-007309R-CHIP;12Kohm,1%,1/16W,TP ,1005,0.352SA

....52007-007312R-CHIP;20Kohm,1%,1/16W,TP ,10051SA

....52007-007316R-CHIP;3.3Kohm,1%,1/16W,TP ,10052SNA

....52007-007318R-CHIP;1Kohm,1%,1/16W,TP ,100511SNA

....52007-007517R-CHIP;240ohm,1%,1/16W,TP ,10053SNA

....52007-007651R-CHIP;9.1Kohm,1%,1/10W,TP ,16082SA

....52007-007698R-CHIP;5.1Kohm,1%,1/16W,TP ,10051SNA

....52007-007766R-CHIP;2Kohm,1%,1/16W,TP ,10055SNA

....52007-007798R-CHIP;10ohm,1%,1/16W,TP ,100532SA

....52007-008015R-CHIP;75ohm,1%,1/16W,TP ,100518SNA

....52007-008117R-CHIP;2.7Kohm,1%,1/16W,TP ,10051SA

....52007-008596R-CHIP;0.1ohm,1%,1/4W,TP ,32161SC

....5AD4802203-000257C-CER,CHIP;10nF,10%,50V ,X7R,TP ,16081SA

Page 8

ExplodedViewsandPartsList

LevelLoc.PartCodeDescription&SpecicationQty.SA/SNA

....5AD4802203-000489C-CER,CHIP;2.2nF,10%,50V ,X7R,TP ,10053SA

....5AD4802203-000995C-CER,CHIP;0.047nF,5%,50V ,C0G,TP ,10052SA

....5AD4802203-001126C-CER,CHIP;0.68nF,10%,50V ,X7R,TP ,16081SNA

....5AD4802203-001697C-CER,CHIP;0.082nF,5%,50V ,NP0,TP ,16082SA

....5AD4802203-001851C-CER,CHIP;0.016nF,5%,50V ,NP0,TP ,16082SNA

....5AD4802203-002711C-CER,CHIP;100nF,10%,25V ,X7R,TP ,16083SA

....5AD4802203-002982C-CER,CHIP;6.8nF,10%,50V ,X7R,TP ,10051SA

....5AD4802203-005138C-CER,CHIP;1.8nF,10%,50V ,X7R,TP ,10053SA

....5AD4802203-005249C-CER,CHIP;100nF,10%,50V ,X7R,TP ,160812SNA

....5AD4802203-005344C-CER,CHIP;22nF,10%,25V ,X7R,TP ,1005,0.5T3SNA

....5AD4802203-005918C-CER,CHIP;1000nF,10%,6.3V ,X7R,TP ,16082SNA

....5AD4802203-006048C-CER,CHIP;100nF,10%,10V ,X7R,TP ,10059SA

....5AD4802203-006158C-CER,CHIP;100nF,10%,16V ,X7R,TP ,1005,0.561SNA

....5AD4802203-006320C-CER,CHIP;2200nF,10%,16V ,X7R,TP ,20121SNA

....5AD4802203-006348C-CER,CHIP;1000nF,10%,25V ,X5R,TP ,1608,0.3SA

....5AD4802203-006427C-CER,CHIP;4700nF,10%,16V ,X5R,TP ,20121SA

....5AD4802203-006474C-CER,CHIP;22000nF,20%,6.3V ,X5R,TP ,20126SA

....5AD4802203-006562C-CER,CHIP;1000nF,10%,10V ,X5R,TP ,10052SNA

....5AD4802203-006698C-CER,CHIP;1000nF,10%,25V ,X7R,TP ,1608,0.12SNA

....5AD4802203-006890C-CER,CHIP;10000nF,20%,6.3V ,X5R,TP ,16088SNA

....5AD4802203-006960C-CER,CHIP;1000nF,10%,50V ,X7R,TP ,20121SNA

....5AD4802203-007240C-CER,CHIP;22000nF,20%,6.3V ,X5R,TP ,1608,3SA

....5AD4802203-007270C-CER,CHIP;10000nF,10%,10V ,X5R,TP ,1608,013SNA

....5AD4802203-007306C-CER,CHIP;10000nF,10%,25V ,X5R,TP ,2012,131SNA

....52409-001118C-POL YMER,CHIP;47uF ,20%,10V ,WT,TP ,3.5X21SA

....52409-001240C-ORGANIC,SMD;33uF,20%,25V ,LR,TP ,7343(1.1SA

....52703-003747INDUCTOR-SMD;22uH,20%,6060,0.135ohm,13002SA

....52703-003803INDUCTOR-SMD;4.7uH,20%,6060,0.031ohm,2701SA

....52703-003862INDUCTOR-SMD;10uH,20%,6060,0.065ohm,19001SA

....52703-003867INDUCTOR-SMD;22uH,20%,4040,1.8T,0.29Ohm,1SA

....52703-003937INDUCTOR-SMD;1uH,20%,7.0x6.47x3.0mm,0.001SA

....52703-004199INDUCTOR-SMD;10uH,20%,7066,2.2mm,0.101Oh1SNA

....52801-003954CRYST AL-SMD;27MHz,30ppm,28-AAN,16pF ,50oh1SA

....53301-002039BEAD-SMD;26ohm,1608,TP24SA

....53601-001386FUSE-SURFACEMOUNT;125V,5A,FAST-ACTING,C1SA

....53708-002157CONNECTOR-FPC/FFC/PIC;80P ,0.5mm,SMD-A,AU2SNA

....5EH013711-005601HEADER-BOARDTOCABLE;BOX,8P ,1R,2mm,SMD-1SA

....5EH013711-005925HEADER-BOARDTOCABLE;BOX,51P ,1R,0.5mm,S1SA

....56302-001290GASKET;SMR-TS-4-4.5-3,4.0mm,Ni+Au+SUS+Mg4SNA

....5BN41-01939BPCBMAIN;2013FHD120Hz/240Hz,FR-4,4,1.21SNA

Page 9

ExplodedViewsandPartsList

LevelLoc.PartCodeDescription&SpecicationQty.SA/SNA

....5BN97-07136AASSYMICOM;F46A1F004,2013.02.05,EEPROM1SNA

.....61107-002224IC-FLASHMEMORY;W25X40CLSSIG,4Mbit,SOP,81SNA

..3TC-OCBN96-24429AASSYCABLEP-FFC;E6K(3D),E7K(3D),FFC,572SNA

..3BN96-24845AASSYOPENCELL;LSF460HJ02-A,8bit,46INCH1SNA

...4BN81-07434AA/S-ADHESIVE-A.C.F(CP);ADHESIVE-A.C.F,1-1SNA

...4BN81-07883AA/S-ICDRIVERSOURCE;ICDRIVERSOURCE,131SNA

...4BN81-07893AA/S-POLARIZER-C/F;8-POLARIZER-C/F1SNA

...4BN81-07905AA/S-POLARIZER-TFT;POLARIZER-TFT1SNA

...4BN81-07927BA/S-ASSYPCB-SOURCELEFT;ASSYPCB-SOURCE1SNA

...4BN81-07928BA/S-ASSYPCB-SOURCERIGHT;ASSYPCB-SOURC1SNA

...4BN81-07943AA/S-ADHESIVE-A.C.F(TP500B);ADHESIVE-A.C.1SNA

...4BN81-07946AA/S-ICDRIVERGA TE;ICDRIVERGATE1SNA

..3TC01ABN96-25334AASSYMISCP-CHASSISTOP;Y13SF-LED46(6.1SA

...4BN60-00667BSP ACER-GASKET;Y13SF-LED,GASKET(FG200A),4SNA

...4BN60-00701ESPACER-TOP,UD;Y13SlimF-LED46,GASKET*,2SNA

...4BN60-00701FSPACER-TOP ,LR;Y13SlimF-LED46,GASKET,L2SNA

...4BN60-00715ASPACER-TOP ,CORNER;Y13SlimF-LED,GASKET*4SNA

...4BN63-07556UCOVER-SHEET;F-LED,urethane,T0.068,W18,101SNA

...4BN63-10945BCOVER-SHEET;Y13SF-LED,PO-SHEET,T0.068,W2SNA

...4AC157BN64-02195ACHASSIS-TOP;Y13F-LEDSlim46",PC+ABS+G/1SNA

....50103-009559RESIN-PC;210GNH15,6919A,BK0007,PCABSGF245SNA

..3BN96-26728AASSYMISCP-SHIELDSOURCE,PCB;Y13SF-LED1SNA

...4BN62-00379EINSULATION-SHILEDFHD;Y13SLIM46",PC-FI1SNA

..3BN96-26728BASSYMISCP-SHIELDSOURCE,PCBR;Y13SF-L1SNA

...4BN02-00152ATAPEETC-SHEETFIXING;Y13SlimF-LED,PET1SNA

...4BN02-00152FTAPEETC-SHEETFIXING;Y13SlimF-LED,PET2SNA

...4BN62-00379FINSULATION-SHILEDFHD;Y13SF-LED46,PC-F1SNA

...4BN63-10491ASHIELD-SOURCEPCB;Y13SF-LED46",EGI-SEC1SNA

1M0017BN91-10279XASSYCHASSIS;F6100,46,XC1SNA

.2M0014BN94-06165XASSYPCBMAIN;F6100,46,XC1SA

..3BN61-09059GHOLDER-SIDEA V ;F6100/6300,ABS+PC,WINERED1SNA

...40103-009587RESIN-PCABS;NE-1010,431322,RD0071,1.5V13SNA

..3BN62-00368APADGAP;F5000,SILICON,40*40mm,6.5,Light1SNA

..3BN97-07019FASSYSMD;F61001SNA

...40202-001899SOLDER-CREAM;M705-GRN360-K2-VT,25-36um,S8SNA

...4DS01A0401-001056DIODE-SWITCHING;MMBD4148SE,100V ,200mA,SO1SA

...40403-001783DIODE-ZENER;BZB84-C6V2,5.8/6.6V ,300mW ,SO4SNA

...40403-001785DIODE-ZENER;NZH5V1B,4.94/5.2V ,500mW ,SOD-1SA

...40403-001797DIODE-ZENER;NZH3V0B,2.85/3.15V ,500mW ,SOD1SNA

...40404-001404DIODE-SCHOTTKY;BA T721C,40V ,200mA,SOT -23,1SA

Page 10

ExplodedViewsandPartsList

LevelLoc.PartCodeDescription&SpecicationQty.SA/SNA

...40406-001200DIODE-TVS;RCLAMP0504F,6/-/-V ,150W ,SC-701SA

...40406-001271DIODE-TVS;RCLAMP0524P ,6/-/-V ,150W ,SLP2514SNA

...4DS01A0407-000114DIODE-SWITCHING;KDS184,80V,100mA,SOT-23,1SNA

...40501-000279TR-SMALLSIGNAL;KSA1182-Y,PNP ,150mW ,SOT -1SA

...40501-000445TR-SMALLSIGNAL;KTC3875S-Y ,NPN,150mW,SOT11SC

...40505-000110FET-SILICON;2N7002,N,60V ,115mA,7.5ohm,0.5SA

...40505-002560FET-SILICON;AO6415,P ,-20V ,-3.3A,0.15ohm,1SA

...40801-002630IC-CMOSLOGIC;74AHCT1G08,2-INPUTANDGAT1SA

...40801-002780IC-CMOSLOGIC;74L VC1G17,SCHMITT -TRIGGER2SA

...40801-003330IC-CMOSLOGIC;Octalbuffer,DQFN,20P ,4.5x4SA

...40802-001012IC-CMOSLOGIC;74LCX245,TRANSCEIVER,DQFN,1SNA

...41001-001545IC-ANALOGMUL TIPLEX;TS3USB221ERSER,R-PQF1SA

...41103-001531IC-EEPROM;S-24C256CI-J8T1U4,256Kbit,32Kx1SA

...41103-001561IC-EEPROM;S-24C02DI-J800,2Kbit,256X8bit,1SA

...41105-002227IC-DDR3SDRAM;K4B1G1646G-BCK0,DDR3SDRAM2SA

...41201-003183IC-AUDIOAMP;DR V612,HTSSOP ,14P ,5x4.4mm,D1SA

...41201-003333IC-POWERAMP;NTP-7412S,MLF ,48P ,7x7mm,DUA1SA

...41203-006109IC-POSI.FIXEDREG.;S-1206B33-M3T1G,SOT -21SA

...41203-006130IC-POSI.FIXEDREG.;S-1172B25-U5T1G,SOT-81SA

...41203-006135IC-POSI.FIXEDREG.;AP1117D-33-GZ-13-89,T1SA

...41203-006136IC-POSI.FIXEDREG.;AP1117D-18-GZ-13-89,T1SA

...41203-006138IC-POSI.ADJUSTREG.;AP1117DGZ-13-89,TO-21SA

...41203-006684IC-DC/DCCONVERTER;TPS54327DDAR,HSOP8,8P2SNA

...41203-007249IC-SWITCHCUR.REG.;TPS62561DDC,DDA,5P ,31SA

...41203-007680IC-DC/DCCONVERTER;BD86103AFJ,SOP-J8,8Q,1SA

...41203-007728IC-VOL.DETECTOR;R T9831GQW ,QW:WQFN-20L1SA

...41204-003443IC-DECODER;NT72569,LFBGA,620Z30,21x21mm,1SA

...41205-003201IC-BUSSWITCH;TC7WB125FK,SSOP ,8P ,2x2.3mm1SA

...41405-001271V ARISTOR;35V ,20Vdc,5A,1.0x0.5x0.6mm,TP ,123SA

...42007-000137R-CHIP;2Kohm,5%,1/16W,TP ,10052SNA

...42007-000138R-CHIP;100ohm,5%,1/16W,TP ,100530SA

...42007-000140R-CHIP;1Kohm,5%,1/16W,TP ,10051SNA

...42007-000142R-CHIP;2.7Kohm,5%,1/16W,TP ,10053SNA

...42007-000143R-CHIP;4.7Kohm,5%,1/16W,TP ,100570SNA

...42007-000148R-CHIP;10Kohm,5%,1/16W,TP ,100547SA

...42007-000149R-CHIP;12Kohm,5%,1/16W,TP ,10051SA

...42007-000153R-CHIP;22Kohm,5%,1/16W,TP ,10056SNA

...42007-000157R-CHIP;47Kohm,5%,1/16W,TP ,10058SNA

...42007-000162R-CHIP;100Kohm,5%,1/16W,TP ,10055SNA

...42007-000168R-CHIP;470Kohm,5%,1/16W,TP ,10051SNA

Page 11

ExplodedViewsandPartsList

LevelLoc.PartCodeDescription&SpecicationQty.SA/SNA

...42007-000170R-CHIP;1Mohm,5%,1/16W,TP ,10051SNA

...42007-000172R-CHIP;10ohm,5%,1/16W,TP ,10052SNA

...42007-000173R-CHIP;22ohm,5%,1/16W,TP ,10053SNA

...42007-000174R-CHIP;47ohm,5%,1/16W,TP ,10052SNA

...42007-000336R-CHIP;120Kohm,1%,1/10W,TP ,16081SA

...42007-000691R-CHIP;3.3Mohm,5%,1/10W,TP ,16081SA

...42007-000695R-CHIP;3.3ohm,5%,1/10W,TP ,16084SNA

...42007-000726R-CHIP;300ohm,1%,1/10W,TP ,16082SA

...42007-000775R-CHIP;33Kohm,5%,1/16W,TP ,10051SNA

...42007-000803R-CHIP;36Kohm,1%,1/10W,TP ,16081SA

...42007-000816R-CHIP;390Kohm,1%,1/10W,TP ,16081SNA

...42007-000857R-CHIP;4.3Kohm,1%,1/10W,TP ,16085SNA

...42007-000932R-CHIP;470ohm,5%,1/16W,TP ,10055SNA

...42007-000979R-CHIP;5.6Kohm,1%,1/10W,TP ,16081SA

...42007-001292R-CHIP;33ohm,5%,1/16W,TP ,100514SNA

...42007-001298R-CHIP;51ohm,5%,1/16W,TP ,10052SNA

...42007-001313R-CHIP;330ohm,5%,1/16W,TP ,10052SNA

...42007-001320R-CHIP;1.8Kohm,5%,1/16W,TP ,10052SA

...42007-001325R-CHIP;3.3Kohm,5%,1/16W,TP ,10051SNA

...42007-002912R-CHIP;33.2Kohm,1%,1/10W,TP ,16081SA

...42007-007009R-CHIP;75ohm,5%,1/16W,TP ,10052SA

...42007-007095R-CHIP;390ohm,5%,1/16W,TP ,10051SA

...42007-007135R-CHIP;18Kohm,1%,1/16W,TP ,10052SNA

...42007-007136R-CHIP;4.7Kohm,1%,1/16W,TP ,10053SNA

...42007-007142R-CHIP;10Kohm,1%,1/16W,TP ,10054SNA

...42007-007156R-CHIP;1ohm,5%,1/16W,TP ,100525SNA

...42007-007238R-CHIP;8.25Kohm,1%,1/10W,TP ,16081SA

...42007-007306R-CHIP;100ohm,1%,1/16W,TP ,10054SNA

...42007-007311R-CHIP;22Kohm,1%,1/16W,TP ,10052SA

...42007-007317R-CHIP;2.2Kohm,1%,1/16W,TP ,10051SA

...42007-007318R-CHIP;1Kohm,1%,1/16W,TP ,100522SNA

...42007-007331R-CHIP;90.9Kohm,1%,1/10W,TP ,16081SA

...42007-007463R-CHIP;1.1Kohm,1%,1/16W,TP ,10051SA

...42007-007517R-CHIP;240ohm,1%,1/16W,TP ,10053SNA

...42007-007528R-CHIP;1.5Kohm,1%,1/16W,TP ,10051SA

...42007-007538R-CHIP;56Kohm,1%,1/16W,TP ,10051SA

...42007-008015R-CHIP;75ohm,1%,1/16W,TP ,100512SNA

...42007-008133R-CHIP;56.2Kohm,1%,1/10W,TP ,16081SA

...42007-008137R-CHIP;24Kohm,1%,1/16W,TP ,10053SNA

...42007-008142R-CHIP;511Kohm,1%,1/10W ,TP ,16081SA

Page 12

ExplodedViewsandPartsList

LevelLoc.PartCodeDescription&SpecicationQty.SA/SNA

...42007-008332R-CHIP;11.5Kohm,1%,1/16W ,TP ,10051SA

...42007-008426R-CHIP;12.4Kohm,1%,1/10W,TP ,16081SA

...42007-008649R-CHIP;220ohm,1%,1/16W,TP ,10051SNA

...42007-008779R-CHIP;0ohm,1%,1/16W,TP ,10053SA

...42007-008807R-CHIP;53.6Kohm,1%,1/16W,TP ,10051SA

...42011-001261R-NETWORK;33ohm,5%,1/16W,L,CHIP ,8P ,TP ,2.6SA

...42011-001262R-NETWORK;22ohm,5%,1/16W,L,CHIP ,8P ,TP ,2.10SA

...42011-001264R-NETWORK;10ohm,5%,1/16W,L,CHIP ,8P ,TP ,2.4SNA

...42011-001344R-NETWORK;100ohm,5%,1/16W,L,CHIP ,8P ,TP ,23SA

...42011-001449R-NETWORK;22ohm,5%,1/16W,L,4P ,TP ,10105SA

...42011-001519R-NETWORK;33OHM,5%,1/16W,L,CHIP ,4P ,TP ,1.2SA

...4AD4802203-000233C-CER,CHIP;0.1nF,5%,50V ,C0G,TP ,10057SA

...4AD4802203-000254C-CER,CHIP;10nF,10%,16V ,X7R,TP ,10055SA

...4AD4802203-000278C-CER,CHIP;0.01nF,0.5pF,50V ,C0G,TP ,10054SA

...4AD4802203-000359C-CER,CHIP;0.15nF,5%,50V ,C0G,TP ,1005,0.52SNA

...4AD4802203-000438C-CER,CHIP;1nF,10%,50V ,X7R,TP ,100511SA

...4AD4802203-000575C-CER,CHIP;220nF,10%,25V ,X7R,TP ,20123SNA

...4AD4802203-000627C-CER,CHIP;0.022nF,5%,50V ,C0G,TP ,10052SNA

...4AD4802203-000679C-CER,CHIP;0.027nF,5%,50V ,C0G,TP ,10051SA

...4AD4802203-000696C-CER,CHIP;0.002nF,0.25pF,50V ,C0G,TP ,1002SA

...4AD4802203-000714C-CER,CHIP;3.3nF,10%,50V ,X7R,TP ,100510SA

...4AD4802203-000995C-CER,CHIP;0.047nF,5%,50V ,C0G,TP ,10052SA

...4AD4802203-001412C-CER,CHIP;0.03nF,5%,50V ,NP0,TP ,10056SNA

...4AD4802203-002285C-CER,CHIP;10nF,10%,50V ,X7R,TP ,100510SNA

...4AD4802203-002443C-CER,CHIP;0.33nF,10%,50V ,X7R,TP ,10052SA

...4AD4802203-005221C-CER,CHIP;15nF,10%,50V ,X7R,TP ,16081SNA

...4AD4802203-005249C-CER,CHIP;100nF,10%,50V ,X7R,TP ,160815SNA

...4AD4802203-005481C-CER,CHIP;47nF,10%,10V ,X7R,TP ,10056SA

...4AD4802203-005659C-CER,CHIP;0.18nF,5%,50V ,NP0,TP ,10051SNA

...4AD4802203-006048C-CER,CHIP;100nF,10%,10V ,X7R,TP ,1005108SA

...4AD4802203-006307C-CER,CHIP;1000nF,10%,25V ,X5R,TP ,20122SNA

...4AD4802203-006324C-CER,CHIP;2200nF,10%,10V ,X5R,TP ,16084SA

...4AD4802203-006361C-CER,CHIP;10000nF,10%,10V ,X5R,TP ,201215SC

...4AD4802203-006474C-CER,CHIP;22000nF,20%,6.3V ,X5R,TP ,201219SA

...4AD4802203-006562C-CER,CHIP;1000nF,10%,10V ,X5R,TP ,100513SNA

...4AD4802203-006838C-CER,CHIP;2200nF,10%,6.3V ,X5R,TP ,10053SA

...4AD4802203-006842C-CER,CHIP;0.47nF,5%,50V ,C0G,TP ,10055SNA

...4AD4802203-006890C-CER,CHIP;10000nF,20%,6.3V ,X5R,TP ,160826SNA

...4AD4802203-006992C-CER,CHIP;0.33nF,5%,50V ,C0G,TP ,10058SNA

...4AD4802203-007176C-CER,CHIP;10000nF,10%,16V ,X5R,TP ,2012,16SNA

Page 13

ExplodedViewsandPartsList

LevelLoc.PartCodeDescription&SpecicationQty.SA/SNA

...4AD4802203-007370C-CER,CHIP;10000nF,10%,10V ,X7R,TP ,20122SA

...4AD4802203-007513C-CER,CHIP;10000nF,10%,10V ,X5R,TP ,1608,015SA

...42703-000158INDUCTOR-SMD;1uH,10%,2012,.4Ohm,50mA,45,3SA

...42703-001209INDUCTOR-SMD;1.2uH,10%,1608,.8Ohm,25mA,33SA

...42703-002332INDUCTOR-SMD;330nH,5%,1608,3Ohm,100mA,321SA

...42703-003149INDUCTOR-SMD;2.2uH,20%,5050,0.055Ohm,3002SA

...42703-003343INDUCTOR-SMD;2.2uH,20%,2520,0.104Ohm,1301SNA

...42703-003407INDUCTOR-SMD;120nH,5%,1608,1.2Ohm,300mA,2SA

...42703-003930INDUCTOR-SMD;4.7uH,20%,5050,0.072Ohm,2455SA

...42801-003773CRYST AL-SMD;12MHz,30ppm,28-AAN,20pF ,50oh1SA

...43301-002039BEAD-SMD;26ohm,1608,TP53SA

...43701-001861CONNECTOR-HDMI;19P ,2ROW ,FEMALE,SMD-A,AU2SA

...43707-001106CONNECTOR-OPTICAL;STRAIGHTW/L,SPDIF1SA

...43708-003073CONNECTOR-FPC/FFC/PIC;51P ,0.5mm,SMD,AU,N1SNA

...43709-001712CONNECTOR-CARDSLOT;68P ,1.27mm,ANGLE,AU,1SA

...4EH013711-007742HEADER-BOARDTOCABLE;BOX,20P,2R,2mm,ANG2SA

...4EH013711-008131HEADER-BOARDTOCABLE;BOX,4P,1R,2.5mm,AN1SA

...43722-003457JACK-USB;4P/1C,NI,BLK,A1SA

...43722-003546JACK-PIN;5P+Screwhole,NI+SN,G,Y/BLU/RED1SA

...43722-003655JACK-SCART;21P ,SN,BLK1SA

...43722-003667JACK-PHONE;1P/7C,AU/NI,BLK,STRAIGHT1SA

...4ET01BN40-00256ATUNER;DTOS40EIH035A,DTOS40EIH035A,DVB-TC1SA

...4BN41-01954APCBMAIN;NT13ISDB-T ,FR-4,4,1.2T,158*1931SNA

...4BN97-06502FASSYMICOM-SUB;T-NVTF AEUS,NT13EU(F45001SNA

....51107-002226IC-NORFLASH;W25Q40CLSSIP ,4Mbit,SOIC,8P ,1SNA

...4BN97-06502KASSYMICOM;T -NVTF6DEUC,NT13EU4(F4500/F1SNA

....51107-002049IC-NANDFLASH;K9F1G08U0D-SCB0,1Gbit,128M1SNA

....5BN46-00316ES/W-E-MANUAL;NOV ATEK13,EU4,XC,XN,ZF,ZG,Z1SNA

....5BN46-00323AS/WMICOM;T-NVTF6DEUC-XXXX,2012.11.191SNA

..3BN97-07120AASSYDRM;EUROPE1SNA

...4BN46-00328AKEYCODE;KEYCODE-CERTIFI:CI+,TV ,NT13,eu1SNA

1BN92-11711MASSYBOX;UF6K1SNA

.2BH68-00662ALABELBOX-00;ALLMODEL,paper,60,110,WHT,1SNA

.2BN69-08559FBOX-01,SET;46UF6100-QS,CB,A-01,DW2,YEL,W1SNA

1BN92-11717AASSYP/MA TERIAL;UF6000401SNA

.26902-000379BAGAIR;LDPE,T0.2,W1000,L1800,TRP ,1260.01SNA

.26922-000003BANDPP;PP ,T0.8,W18,L1650M,TRP ,DA69-90141SNA

.2BN68-02422BLABEL-W ARNINGSHIPPING;ALLMODEL,A/P1001SNA

.2BN69-00257YPACKING-SHEETP ALLET;PACKINGSHEETP ALLE1SNA

.2BN69-03982LPADPACKING-EDGE;EDGE,PAPER,-,T5,W100,L21SNA

Page 14

ExplodedViewsandPartsList

LevelLoc.PartCodeDescription&SpecicationQty.SA/SNA

.2BN69-05418APACKING-BAGWRAPPING;-,LDPE,-,0,019,500,3SNA

.2BN69-06640BP ACKING-P AD;P AD,P APER,-,-,CB-SW4,910,1291SNA

.2BN69-06680APACKING-BAGSHEETROLL;-,CB,-,FOAM0,5mm2SNA

.2BN69-08095GPALLET;F55_F61-6546",WOOD,20mm,920,13401SNA

.2BN69-08268ACUSHION-FRONT;UF6100,50,EPS1SNA

.2BN69-08273ACUSHION-SET;UF6200,46,WW,EPS1SNA

.2BN74-00008DTAPE-OPPMASKING;OPP ,T0.05,W75,L800M,CLR3SNA

1BN92-12048KASSYLABEL;6100,ZK1SNA

.2T0527BP68-00052BLABEL-00,RA TING;FPTV ,PET,T0.02,93,731SNA

1ACCE1BN92-12245WASSYACCESSOR Y ;UF6M,F61001SNA

.2BN68-04776CLABEL-01,STICKER;UF6M,EDC,PET ,T0.1,60,121SNA

.2BN96-25434VASSYACCESSORYMANUAL/CABLE;UE46F6100AWX1SNA

..3T02683903-000849CBF-POWERCORD;DT,CEE,LP-21L,250V ,2.5A,B1SA

..34301-000121BA TTERY-MN;1.5V ,R03,10.5x44.5m,HOLDER,7.2SNA

..3REMO2AA59-00743AREMOCON;TM1240,44,3.0V ,F6100/EU1SA

..3BN61-08370AHOLDER-WIRESTAND;26UE4000GIUDEST AND,N1SNA

..3M9889BN63-01798BCLOTH-CLEAN;CLOTH,seablue,ToC1SNA

..3BN68-00514KMANUALFL YER-02,W ARRANTYCARD;comm,Samsu1SNA

..3BN68-04735ALABEL-E,PASS;ALLMODEL,ARTPAPER90G,50,1SNA

..3BN68-04898NLEAFLET-03,STANDGUIDE;UF6100,EUN.AFRIC1SNA

..3BN68-04906BMANUALUSERS-04;UF6100,ENG/DEU/FRA/IT A,Z1SNA

..3BN68-04972AMANUALFL YER-02,REGULA TORYGUI;ALL,SAMSU1SNA

..3BN68-05115HLEAFLET-02,FICHE(UF6100);UF6100,EUROPE,W1SNA

..3BN69-08226BBOX-01,ACCESSORY;E7000,PAPER,CCP400g,NO1SNA

..3BN69-08472APAD-02,TYPE;ACCESSORY ,CB,BlackPaper4001SNA

..3BN69-08751DWRAPVINYL-SHRINK;ACCESSORYBOX,PLASTIC0SNA

..3EH03ABN96-18153BASSYHOLDERP-RING;UF5000SERIES1SNA

...46902-001404BAGZIPPER;LDPE,T0.05,W80,L100,TRP1SNA

...4AH365BN61-07295AHOLDER-RING;40UD5500,ABS,BK0007,HB2SNA

.23DGLABN96-25614AASSYACCESSORY3DGLASSES;SSG-5100GB,In1SC
