Page 1

8 CHANNEL/ 16 CHANNEL DVR

User Manual

SDS-P5101/SDS-P5100/SDS-P4080

Page 2

8 Channel/ 16 Channel DVR

User Manual

Trademark

The name of this product is the registered trademark of Samsung Techwin Co., Ltd. Other trademarks mentioned in this manual are the registered trademark of their respective company.

Restriction

Samsung Techwin Co., Ltd shall reserve the copyright of this document. Under no circumstances, this document shall be reproduced, distributed or changed, partially or wholly, without formal authorization of Samsung Techwin.

Disclaimer

Samsung Techwin makes the best to verify the integrity and correctness of the contents in this document, but no formal guarantee shall be provided. Use of this document and the subsequent results shall be entirely on the user's own responsibility. Samsung Techwin reserves the right to change the contents of this document without prior notice.

Design and specifications are subject to change without prior notice.

The default password can be exposed to a hacking thread so it is recommended to change the password after installing the product.

Note that the security and other related issues caused by the unchanged pa ssword shall be responsible for the user.

is the registered logo of Samsung Techwin Co., Ltd.

Page 3

overview

IMPORTANT SAFETY INSTRUCTIONS

Read these operating instructions carefully before using the unit. Follow all the safety instructions listed below. Keep these operating instructions handy for future reference.

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings, Install in accordance with the manufacturer’s instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding- type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

! OVERVIEW

English _3

Page 4

overview

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN

CAUTION

: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER

SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol indicates that dangerous voltage consisting a risk of electric shock is present within this unit.

This exclamation point symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING

•

To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

•

To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instructions.

WARNING

1. Be sure to use only the standard adapter that is specified in the specification sheet.

Using any other adapter could cause fire, electrical shock, or damage to the product.

2. Incorrectly connecting the power supply or replacing battery may cause explosion, fire, electric shock, or

damage to the product.

3. Do not connect multiple cameras to a single adapter. Exceeding the capacity may cause abnormal heat

generation or fire.

4. Securely plug the power cord into the power receptacle. Insecure connection may cause fire.

5. When installing the camera, fasten it securely and firmly. The fall of camera may cause personal injury.

6. Do not place conductive objects (e.g. screwdrivers, coins, metal parts, etc.) or containers filled with water on

top of the camera. Doing so may cause personal injury due to fire, electric shock, or falling objects.

7. Do not install the unit in humid, dusty, or sooty locations. Doing so may cause fire or electric shock.

8. If any unusual smells or smoke come from the unit, stop using the product. In such case, immediately

disconnect the power source and contact the service center. Continued use in such a condition may cause fire or electric shock.

9. If this product fails to operate normally, contact the nearest service center. Never disassemble or modify this

product in any way. (SAMSUNG is not liable for problems caused by unauthorized modifications or attempted repair.)

10. When cleaning, do not spray water directly onto parts of the product. Doing so may cause fire or electric shock.

11. Do not expose the product to the direct airflow from an air conditioner.

Otherwise, it may cause moisture condensation inside the Clear Dome due to temperature difference between internal and external of the dome camera.

12. If you install this product in a low-temp area such as inside a cold store, you must seal up the wiring pipe with

silicon, so that the external air can not flow inside the housing. Otherwise, external high, humid air may flow inside the housing, pooling moisture or vapor inside the product due to a difference between internal and external temperature.

4_ overview

Page 5

BEFORE START

This user manual provides Information for using the DVR such as brief introduction, part names, functions, connection to other equipment, menu setup, etc. You have to keep in mind the following notices :

• SAMSUNG retains the copyright on this manual.

• This manual cannot be copied without SAMSUNG’s prior written approval.

• We are not liable for any or all losses to the product incurred by your use of non-standard product or violation

of instructions mentioned in this manual.

• Prior to opening the case, please consult a qualified technician first. Whenever this is needed power must be removed from the unit.

• Before installing an additional HDD or connecting an external storage device (USB HDD) to this DVR, check the compatibility. Consult your provider for the compatibility list.

Warning

❖ Battery

It is essential that when changing the battery in the unit, the replacement battery must be of the same type otherwise there may be a possibility of an explosion. The following are the specifications of the battery you are using now.

• Normal voltage : 3V

• Normal capacity : 170mAh

• Continuous standard load : 0.2mA

• Operating temperature : -20°C ~ +85°C

Caution

• Connect the power cord into a grounded outlet.

• The Mains plug is used as a disconnect device and shall stay readily operable at any time.

• Batteries shall not be exposed to excessive heat such as sunshine, fire or the like

• Risk of Explosion if Battery is replaced by an Incorrect Type. Dispose of Used Batteries According to the

Instructions.

(-4°F ~ +185°F)

CALIFORNIA USA ONLY

This Perchlorate warning applies only to primary CR (Manganese Dioxide) Lithium coin cells in the product sold or distributed ONLY in California USA.

“Perchlorate Material - special handling may apply, See www.dtsc.ca.gov/ hazardouswaste/perchlorate.”

! OVERVIEW

❖ System Shutdown

Turning off the power while the product is in operation, or undertaking improper actions may cause damage or malfunction to the hard drive or the product. Please turn off the power, please right-click to display the context sensitive menu and select <Shutdown>. After selecting <OK> in the pop-up menu, you can pull off the power cord. You may want to install a UPS system for safe operation in order to prevent damage caused by an unexpected power stoppage. (Any questions concerning UPS, consult your UPS retailer.)

❖ Operating Temperature

The guaranteed operating temperature range of this product is 0°C ~ 40°C (32°F ~ 104°F). This product may not work properly if you run right after a long period of storage at a temperature below the guaranteed one. Prior to using a device that has been stored for a long period in low temperatures, allow the product to stand at room temperature for a period. Especially for the built-in HDD in the product, its guaranteed temperature range is 5°C ~ 55°C (41°F ~ 131°F). Likewise, the hard drive may not work at a temperature below the guaranteed one.

❖ Ethernet Port

DVR is designed for indoor use only and all the communication wirings are limited to inside of the building.

English _5

Page 6

overview

CONTENTS

OVERVIEW

CONNECTING WITH OTHER DEVICE

LIVE

3 Important Safety Instructions 5 Before Start 6 Contents 8 Features 11 Part Names and Functions (Front) 12 Part Names and Functions (Rear) 13 Remote Control

15 installation 15 Checking the Installation Environment 16 Connecting the Video, Audio and Monitor 16 Connecting the USB 17 Connecting the Camera (SDC-5340BC) 19 Connecting the RS-485 Device 19 Connecting the Network

21 Getting Started 23 Live Screen Configuration 28 Live Mode 31 Zoom 31 Audio On/Off 31 Freeze 32 Event Monitoring

6_ overview

MAIN MENU

33 System Setup 45 Setting the Device 51 Setting the Recording 55 Setting the Event 57 Backup 58 Network Configuration 72 Controlling a PTZ Device

Page 7

SEARCH & PLAY

75 Search 78 Playback

! OVERVIEW

WEB VIEWER

BACKUP VIEWER

108

APPENDIX

111

80 Introducing Web Viewer 81 Connecting Web Viewer (Mac) 82 Using Live Viewer (Mac) 83 Connecting Web Viewer (Windows) 84 Using Live Viewer (Windows) 90 Using Search Viewer 94 Viewer Setup 105 About 106 Mobile Viewer

108 SEC Backup Viewer

111 Product Specification (Camera) 112 Product Specification(DVR) 118 Default Setting 121 Troubleshooting 124 Open Source License Report on the Product

English _7

Page 8

overview

FEATURES

The DVR employs H.264 video encoding for 8 or 16 channel inputs and G.711 audio encoding for 8 or 16 channels while simultaneously supports hard disc recording and playback. These DVRs also supports network connectivity, providing remote monitoring from a remote PC transferring video and audio data.

•

Provides a convenient User Interface

•

8/16 CH Composite Input Connectors

•

Supports CIF(S)/2CIF(M)/4CIF(L) recording formats

•

With the network specific codec, network transfer enabled regardless of the recording conditions

•

De-interlacing processor for better picture quality

•

Display of HDD information and status by using HDD SMART

•

Hard Disk overwrite function

•

Mass storage hard disk backup through high-speed USB 2.0

•

Simultaneous Record and Playback of 8/16-channel video data

•

Various Search Modes (Search by Time, Event, Backup and Motion Detection)

•

Various Recording Modes (Manual, Event, Scheduled Recording)

•

Alarm Interface

•

Remote Monitoring function by Network Viewer, Smart Viewer and Mobile Viewer

Standards Approvals

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the

FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

8_ overview

Page 9

Package Contents

Please unwrap the pr Please check the following contents are included in addition to the main unit.

oduct, and place the product on a flat place or in the place to be installed.

❖ SDS-P5101/P5100 Package

DVR (1SET) Ada

Remote Control (1EA) / Ba

Camera Power Cable (1EA) Network Cable (1EA)

ttery (2EA) SDC-5340BC (10SET) Camera Cable (10EA)

pter (1EA) / Power Cable (1EA) Mouse (1EA)

! OVER

VIEW

HDMI Cable(1EA)

* SDS-P5101 only

Expansion pipe and Screw (30EA) Manual CD (1EA) Quick Start Guide (1EA)

arranty Card (1EA)

English _9

Page 10

over

❖ SdS-p4080 package

view

DVR (1SET) Ada

Remote Control (1EA) / Ba

Camera Power Cable (1EA) Network Cable (1EA) Expansion pipe and Screw (24EA)

Manual CD (1EA) Quick Start Guide (1EA) W

ttery (2EA) SDC-5340BC (8SET) Camera Cable (8EA)

pter (1EA) / Power Cable (1EA) Mouse (1EA)

arranty Card (1EA)

10_ overview

Page 11

PART NAMES AND FUNCTIONS (FRONT)

SDR-5100/4100

a cb

Part Names Functions

USB Port Connects the USB devices.

a b

Remote Control Receiver

Input the remote control signal.

POWER : Displays the power ON/OFF status.

! OVERVIEW

LED Indicator

All functions are operable with mouse control, since there are no front buttons.

ALARM : Lights on when an event occurs.

REC : Lights on when recording is in progress.

English _11

Page 12

overview

PART NAMES AND FUNCTIONS (REAR)

SDR-4100

c d

VIDEO IN

CH1 CH2

CH3 CH4

AUDIO IN

VIDEO IN

AUDIO OUT

9 10 11 12 13 14 15 16

5 6 7 8

4321

87654321

RS 485

VIDEO OUT

+ -

SPOT

VGA OUT

SERIAL

HDMI

CONSOLE

NETWORK

DC 12 V

SDR-5100

a b c d

VIDEO IN

CH1 CH2

CH3 CH4

AUDIO IN

VIDEO IN

AUDIO OUT

9 10 11 12 13 14 15 16

8764321

Part Names Functions

AUDIO IN Input ports (RCA jack) for the audio signal.

VIDEO IN Input port for the composite video signal.

+ -

COM COM

2 1 2 3 4 5 6 7 891011 12

RS 485

ALARM

RS485

OUT

ALARM IN

1314

VGA OUT

1516

SERIAL

CONSOLE

NETWORK

DC 12 V

c d e f g h

12_ overview

RS-485 Used to establish RS-485 communications.

VGA OUT Output port for VGA video signal.

DC 12V DVR power input port.

NETWORK NETWORK connector port.

HDMI HDMI connector port.

AUDIO OUT Output port (RCA jack) for the audio signal.

[CONSOLE] is designed for the service repair purpose only.

Page 13

REMOTE CONTROL

Displays the search menu.

Changes the screen mode.

Displays the Exit pop up screen.

Used as the numeric input keys, or displays a single

Skip Backward (by unit time),

Slow Rewind, Slow Forward,

Skip Forward (by unit time)

Goes to the system menu screen.

Up/Down/Left/Right(

Moves the cursor up/down/left/right, and runs the

Freezes the screen temporarily.

Runs the digital zoom (x2) function.

Starts or ends the live recording.

MODE

POWER

NUMBER [0~+10]

channel.

T/W

Zooms in or out.

$%_ +

)/ENTER

Select Menu.

FREEZE

ZOOM

REC

BACKUP

Displays the Backup Menu.

DVR

Activates the DVR function.

Sets the ID of the system. Select 2 digits from 0 ~ 9 while pressing the ID Key.

Move Frame

While paused, moves to the previous/next frame.

FR, STOP, PLAY/PAUSE, FF

SCROLL

Moves the menu scroll.

RETURN

Returns to the previous screen.

AUDIO

Turns Audio on/off.

ALARM

Cancels the Alarm.

REC LOCK

Selects the recording lock function.

PIP

Selects or deselects the PIP function.

! OVERVIEW

Using the numeric buttons

CHANNEL 1–9 Press each button between 1 to 9. (8CH : 8)

CHANNEL 10 Press the [0/+10] button first, then press the [0/+10] within 1 second.

CHANNEL 11–16 Press the [0/+10] button first, then press any number between 1 to 6.

English _13

Page 14

overview

Changing the Remote Control ID

1. Press the ID button of the remote control and check the ID displayed on the DVR screen.

The factory default ID of the remote control is 00.

2. Enter 2 digits of your selection in order, while pressing the system [ID] button.

3. When ID input is done, press the system [ID] button again to check the setting.

If you want to change the remote control ID to 08: Press 0 and 8 in order while the system [ID] button is pressed.

Remote control's ID and DVR’s ID should be matched for proper operation. Refer to “Remote Devices”. (Page 49)

14_ overview

Page 15

connecting with other device

INSTALLATION

Please take note of the followings before using this product.

•

Do not use the product outdoor.

•

Do not spill water or liquid in the connection part of the product.

•

Do not impose the system to excessive shock or force.

•

Do not pull out the power plug forcefully.

•

Do not disassemble the product on your own.

•

Do not exceed the rated input/output range.

•

Use a certified power cord only.

•

For the product with an input ground, use a grounded power plug.

CHECKING THE INSTALLATION ENVIRONMENT

! CONNECTING WITH OTHER DEVICE

Samsung Digital Video Recorder (“DVR” hereinafter) is a stateof-art security device, and contains mass storage hard disk(s) and critical circuits inside.

When the temperature rises inside the product, the product may breakdown and the product life be shortened. Please pay attention to the following recommendations before installation.

The followings are the recommendations when Samsung DVR is installed on a rack.

1. Please ensure that the rack inside is not sealed.

2. Please ensure the air is circulated through the inlet/outlet as shown in the picture.

3. If the DVR or other devices on a rack is to be stacked as in the picture, provide a

suitable space or install a ventilating opening for air circulation.

4. For natural air convection, place the inlet at the bottom of the rack and the outlet on top.

5. It is strongly recommended that a fan motor is installed at the inlet and the outlet for air

circulation. (Please fit a filter at the inlet to screen dust or foreign substances.)

6. Please maintain the temperature inside the rack or surrounding areas between

0°C ~ 40°C (32°F ~ 104°F) as shown in the figure 1.

Rack Mount Instructions - The following or similar rack-mount instructions are included with the installation instructions :

A) Elevated Operating Ambient - If installed in a closed or multi-unit rack assembly, the

operating ambient temperature of the rack environment may be greater than room ambient. Therefore, consideration should be given to installing the equipment in an environment compatible with the maximum ambient temperature specified by the manufacturer.

B) Reduced Air Flow - Installation of the equipment in a rack should be such that the

amount of air flow required for safe operation of the equipment is not compromised.

C) Mechanical Loading - Mounting of the equipment in the rack should be such that a

hazardous condition is not achieved due to uneven mechanical loading.

D) Circuit Overloading - Consideration should be given to the connection of the equipment to the supply

circuit and the effect that overloading of the circuits might have on overcurrent protection and supply wiring. Appropriate consideration of equipment nameplate ratings should be used when addressing this concern.

E) Reliable Earthing - Reliable earthing of rack-mounted equipment should be maintained. Particular attention should

be given to supply connections other than direct connections to the branch circuit (e.g. use of power strips).

Temperature Unit: ºC

One Year: 24HR X 365 DAY =8,760 HR

Life (Unit: HOURS)

[Figure 1]

[Figure 2]

English _15

Page 16

connecting with other device

CONSOLE

AUDIO IN

CH1

CH2

VGA OUT

DC 12V

NETWORK

AUDIO IN

VIDEO IN

CH3

CH4

AUDIO OUT

CONNECTING THE VIDEO, AUDIO AND MONITOR

+ -

RS 485

CONNECTING THE USB

1. By factory default, a USB port is provided for external connection.

2. You can connect a USB HDD, USB memory or mouse to the USB port.

3. If a USB HDD is connected to the system, recognition and settings are available in “Main Menu > Setting the

Device > Storage Device”. (Page 47)

4. This product supports hot-plugging, which connects/removes the USB device during the system operation.

If you use the USB device for Backup purposes, format it with FAT32 on PC if it is not formatted on the DVR.

16_ connecting with other device

Page 17

CONNECTING THE CAMERA (SDC-5340BC)

Equipped with the IR LED and the illumination sensor, enables you to monitor at night as well as in daytime. The camera is suitable for both internal and external use.

Please make sure not to fully expose the camera to rain. The camera must be installed under a shelter to avoid exposure to excessive rain

or moisture.

b c

Name Description

IR LED These infrared LED's are controlled by the illumination sensor.

! CONNECTING WITH OTHER DEVICE

Lens

Illumination Sensor Detects incoming light to control the IR LED.

BNC Cable BNC terminal for video signal output.

Power Cable Used to plug the power cable.

Focal length of 3.6mm enables you to cover relatively longer range of monitoring.

English _17

Page 18

connecting with other device

CONSOLE

AUDIO IN

CH1

CH2

VGA OUT

DC 12V

NETWORK

AUDIO IN

VIDEO IN

CH3

CH4

AUDIO OUT

Connecting with DVR

The following figures are based on Model SDR-5100.

+ -

RS 485

Installing the camera

The camera can be installed on the wall, ceiling, shelf or a desired position using the provided bracket.

1. Select a position where you want to install the camera.

Make sure the selected position can sustain the weight of the camera.

2. Attach the camera bracket to the wall using the supplied screws.

• SDC-5340BC : (M4 X L20).

3. Adjust the camera to target the video location and tighten the camera bracket handle on the camera

bracket.

Handle

4. Connect the camera cable to the camera.

You should be careful when installing the camera outdoors because the cable connectors may be wet with moisture or pile

up with impurities.

The camera satisfies the IP66 standard, and direct exposure to water or moisture may cause problem such as

condensation.

18_ connecting with other device

M4 X L20

sized screws

wall or ceiling

Handle

Page 19

CONNECTING THE RS-485 DEVICE

CONSOLE

AUDIO IN

CH1

CH2

VGA OUT

DC 12V

NETWORK

AUDIO IN

VIDEO IN

CH3

CH4

AUDIO OUT

Connect the rear [RS-485 +, –] port to the PTZ camera or system keyboard.

You can connect and control the PTZ camera which supports the RS-485 communication.

Check if the RS-485 device is compatible with the product first.

Pay attention not to change the polarity (+/-) of the RS-485 device when connecting it.

Depending on camera’s type, connection polarity can be different. For further information,

+ -

RS 485

refer to the respective PTZ Camera’s documentation.

CONNECTING THE NETWORK

The following figures are based on Model SDR-5100.

Connecting to network through Ethernet (10/100BaseT)

! CONNECTING WITH OTHER DEVICE

+ -

RS 485

RJ-45 Ethernet Cable

Hub/Switcher

(Direct Cable)

Back Bone

NETWORK

Windows Network Viewer

Hub/Switcher

English _19

Page 20

connecting with other device

CONSOLE

AUDIO IN

CH1

CH2

VGA OUT

DC 12V

NETWORK

AUDIO IN

VIDEO IN

CH3

CH4

AUDIO OUT

CONSOLE

AUDIO IN

CH1

CH2

VGA OUT

DC 12V

NETWORK

AUDIO IN

VIDEO IN

CH3

CH4

AUDIO OUT

Connecting to the Network using the router

Broadband Router

External Remote PC

+ -

RS 485

xDSL or Cable Modem

NETWORK

Connecting to Network through ADSL

20_ connecting with other device

DDNS Server (Data Center)

+ -

RS 485

RJ-45 Ethernet Cable

ADSL MODEM

(Direct Cable)

Phone(ADSL) Line

NETWORK

Windows Network Viewer

Hub/Switcher

Page 21

live

GETTING STARTED

Starting the system

1. Connect the power cable of the DVR to the wall outlet.

It takes about 10 seconds to display the start screen after

booting.

2. You will see the initialization screen.

The initialization process will last about 1 minute. If a new HDD is installed, the initialization process may take longer.

3. The live screen appears with a beep.

Shutting Down the System

2012-01-01 01:10:25

! LIVE

REC

2012-01-01 01:10:25

You can shut down the system only if you have logged in to the DVR. You require permission to shut down the system if you are not logged in as admin.

1. Press the [POWER] button on the remote control, or

right-click to display the context sensitive menu and select

2012-01-01 01:10:25

<Shutdown>.

2. The “Shutdown” confirmation window appears.

Shutdown

3. Use the arrow keys on the remote control to move to <OK> and press the [ENTER] button or click <OK>. The system will shut down.

2012-01-01

For the permission management, refer to “Permission

Management > Setting Permissions”. (Page 40)

01:10:25

Are you sure to shutdown?

OK Cancel

English _21

Page 22

live

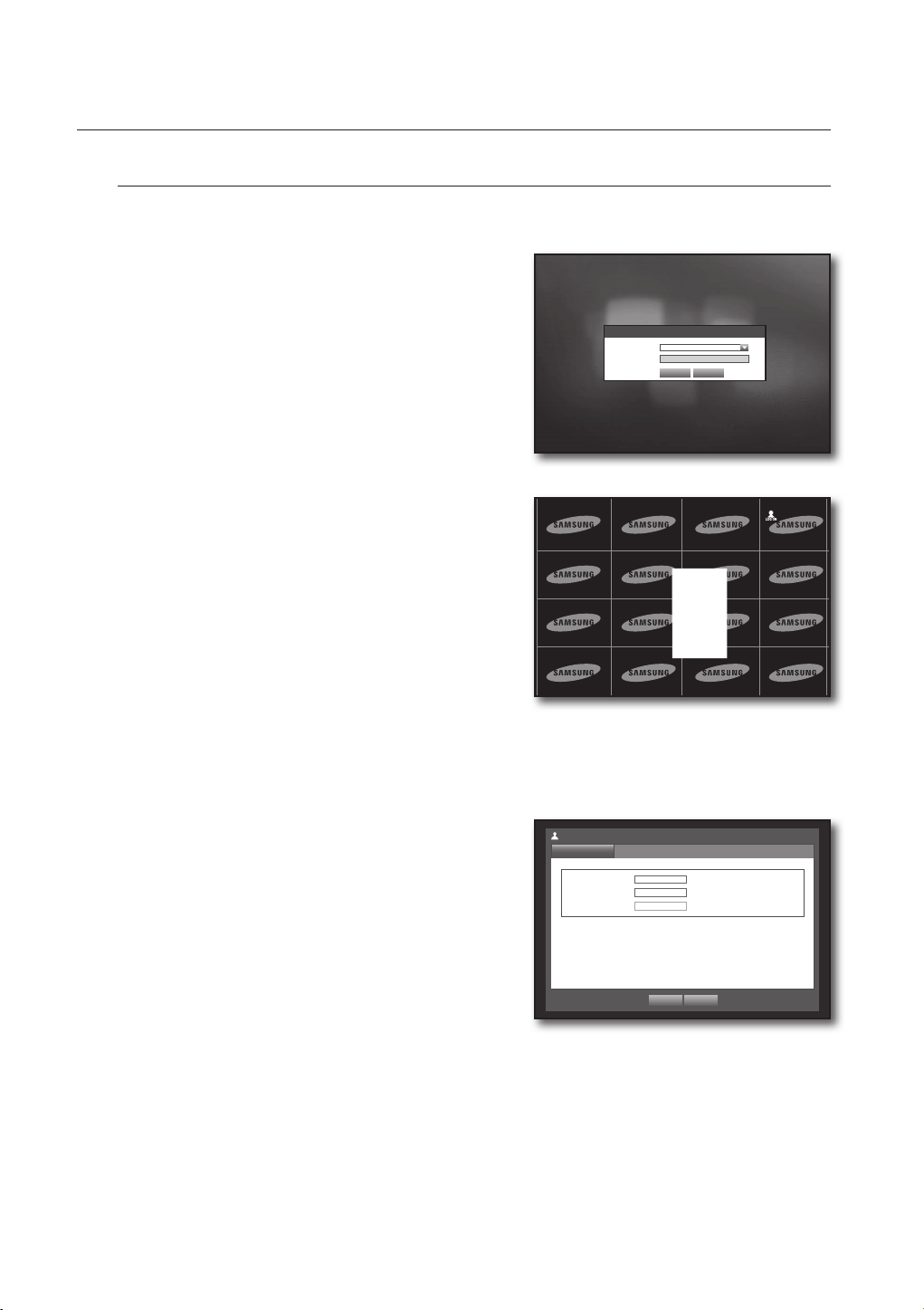

To access a DVR or restricted menu, you should have logged in to the DVR.

1. In live mode, right-click any area of the screen.

You will see the context sensitive menu as in the right figure.

2. Click <Login>.

The login dialog appears. You can also see the login dialog to access a desired menu by pressing the [MENU] button on the remote control.

The login dialog will also appear if you press a menu button on

the remote control when the corresponding menu requires logging in.

After logged in, press [RETURN] on the remote control to display

the logout dialog.

By default, initial ID and password are set to “admin”, and “4321”.

2012-01-01 01:10:25

ID admin



Password



OK Cancel

Scene Mode

Audio Off

Freeze

Stop Alarm

Record

Play

Backup

Main Menu

Shutdown

Hide Launcher



The default password can be exposed to a hacking thread so it is recommended to change the password after installing

the product. Note that the security and other related issues caused by the unchanged password shall be responsible for the user.

For the restricted permission, refer to “Permission Management > Setting Permissions”. (Page 40)

Locking All Buttons

This will restrict access to all buttons available in the DVR.

1. In Live mode, press buttons on the remote control in the

order of [STOP (@)] [MENU]. All buttons will be locked.

2. In the lock condition, press any button to display a dialog

where you are prompted to enter the password for unlocking the buttons. The button lock will be released if you enter the admin password.

[FREEZE][STOP (@)][FREEZE]



2012-01-01 01:10:25

Key Lock Password

ID admin



Password



OK Cancel

22_ live

Page 23

LIVE SCREEN CONFIGURATION

Icons on the Live Screen

You can check the status or operation of the DVR with the icons on the live screen.

2012-01-01 00:00:01

CAM 01

Name Description

a b

Current Date, Time Displays the current time and date.

Displayed if the zoom function is activated.

Freezes the screen temporarily.

Screen Mode

Displayed in Auto Sequence mode where all channels are switched at the specific time interval.

This icon is displayed if a user with restricted access to the Record button tries to make manual recording.

Only the user with the applicable permission can release (stop) the recording.

! LIVE

System Operation

Video Input Status

Displayed if the HDD is full and the DVR has an insufficient space to record.

Displayed if no HDD is installed or the existing HDD should be replaced.

Displayed if the HDD needs a technical examination.

This will be displayed if the backup operation is in process.

Displayed if a new firmware is found from the network.

Displayed if no input is entered in the condition that the camera is set to <ON>.

Nothing will be displayed on the screen if the camera is set to <OFF>.

English _23

Page 24

live

Name Description

Camera Name/ Channel Displays the camera name and the changed channel, if any.

Displays the resolution of the recording screen. (Page 53)

Displayed in PTZ setting, and highlighted yellow if PTZ is in operation.

Displays AUDIO ON/MUTE.

Camera Operation

Not displayed in video mode if deactivated.

Displayed if a motion detected in the condition that the motion detection is set to <ON>.

Displays the current record mode from Record/Event/Schedule.

Error Information

• If the internal HDD is not connected, the “NO HDD”( ) message will appear; if there occurs a problem, you will see the “HDD FAIL”(

) message in the top left corner. In this case, make sure you contact the

service center for assistance as this may cause a failure of recording, playback or backup.

If you see NO HDD, HDD FAIL icons on the screen, contact the service center for more details.

Live Screen Menu

In addition to the buttons on the remote control, you can access a desired menu by right-clicking the mouse any area in live mode. The context sensitive menu that appears by right-clicking the screen may differ, depending on the login/ logout, screen split mode and DVR operation mode.

24_ live

Menu items of Search, Record, Backup and Shutdown can be deactivated, depending on the user permission.

2012-01-01 01:10:25

Scene Mode

Audio Off

Freeze

Stop Alarm

Record

Play

Backup

Main Menu

Shutdown

Hide Launcher

Logout

< Split Mode Menu >



2012-01-01 01:10:25

Scene Mode

PTZ Control

Zoom In

Audio off

Freeze

Stop Alarm

Record

Play

Backup

Main Menu

Shutdown

Hide Launcher

Logout



< Single Mode Menu >

Page 25

Split Mode Menu

The context sensitive menu in split mode differs, depending on the login/logout status.

a b c d

Menu Description

Scene Mode Refer to “Live Mode”. (Page28)

Audio On/Off Refer to “Audio On/Off”. (Page 31)

Freeze Refer to “Freeze”. (Page 31)

Stop Alarm Stops the alarm output and the event monitoring. Refer to “Event Monitoring”.(Page 32)

Scene Mode

Audio Off

Freeze

Stop Alarm

Record

Play

Backup

Main Menu

Shutdown

Hide Launcher

Logout

2012-01-01 01:10:25



! LIVE

Record/Stop Starts/stops the standard recording.

Play Plays the search result (data). Refer to “Search & Play > Play”. (Page 78)

Search Refer to “Search & Play > Search”. (Page 75)

Backup Refer to “Main Menu > Setting the Backup”. (Page 57)

Main Menu Accesses the main menu. Refer to the Using the DVR section. (Page 33)

Shutdown

Show/Hide Launcher

Turns down the DVR.

Shows or hides the launcher. Refer to “View the Launcher Menu”. (Page 27)

English _25

Page 26

live

Single Mode Menu

The single mode menu is available only in Single Mode. The context sensitive menu for the One Channel mode, in Split mode is different from that of the Single mode.

Full Screen

PTZ Control

Zoom In

Audio On

Freeze

Stop Alarm

Record

Play

Shutdown

Hide Launcher

Logout

Menu Description

Full Screen

Zoom In Enlarges the selected image. (Page 31)

Select and click a desired channel in Split mode to switch to the full screen of the selected channel.

2012-01-01 01:10:25

Alarm Freeze

26_ live

Page 27

View the Launcher Menu

2012-01-01

The Launcher menu appears on the bottom of the live screen.

1. In Live mode, right-click to display the context menu and select <Show Launcher>.

2. Move the cursor to the bottom and click a desired item in the Launcher menu.

If no input is entered for 10 seconds, the menu will disappear.

The Launcher menu can be accessed only by using the mouse.

SDR-4100 does not support the 16-split screen mode.

2012-01-01 01:10:25

01:10:25

Menu Description

Date/Time

Screen Mode

b c d e i jg

Displays the current time and date. The indication of AM/PM is displayed if you set 12 hours for the time format in “System >

Date/Time/Language > Time”. (Page 33)

Press this button to switch the screen mode in sequence. The current mode is highlighted in white.

PTZ

2012-01-01 01:10:25

AlarmhFreeze

! LIVE

Menu Expansion Button Click to display the hidden menu to the right.

Audio Turns ON/OFF the sound of the selected channel.

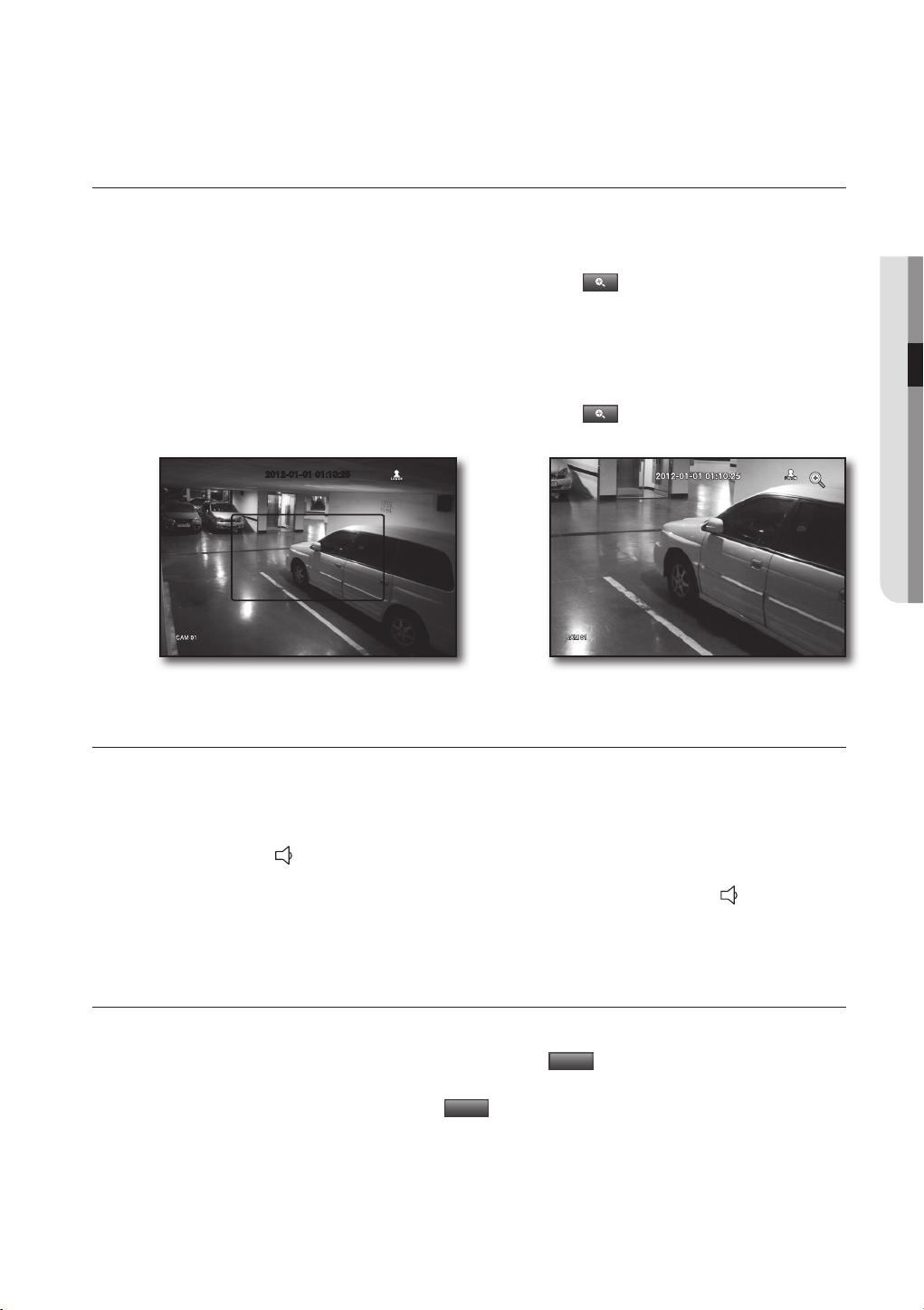

Zoom Enlarges the selected area. This is available only in Single Live mode.

PTZ

Alarm Stops the alarm if it's activated.

Freeze Freezes the Live screen temporarily.

Play Enters Play mode if a file to play exist, and if not, enters Search mode.

Record Start/End recording the Live screen.

Runs the PTZ Control launcher. The PTZ control launcher will be active on the Live screen after you select a single channel.

English _27

Page 28

live

CH1 CH2

CH3 CH4

CH4 CH5

CH2

CH6

CH1 CH3

CH7 CH8 CH9

CH1 CH3

CH2

CH4 CH5 CH6

CH15

CH11

CH16

CH12

CH7

CH3

CH8

CH4

CH13

CH9

CH14

CH10

CH5

CH1

CH6

CH2

CH1 CH3

CH2

CH4 CH5 CH6

CH1 CH3

CH2

CH4 CH5 CH6

CH1 CH3

CH2

CH4 CH5 CH6

CH1 CH3

CH2

CH4 CH5 CH6

CH1 CH3

CH2

CH4 CH5 CH6

CH1 CH3

CH2

CH4 CH5 CH6

CH1 CH3

CH2

CH4 CH5 CH6

CH1 CH3

CH2

CH4 CH5 CH6

CH1 CH3

CH2

CH4 CH5 CH6

CH1 CH3

CH2

CH4 CH5 CH6

CH1 CH3

CH2

CH4 CH5 CH6

CH1 CH3

CH2

CH4 CH5 CH6

CH1 CH3

CH2

CH4 CH5 CH6

CH1 CH3

CH2

CH4 CH5 CH6

CH1 CH3

CH2

CH4 CH5 CH6

CH1 CH3

CH2

CH4 CH5 CH6

CH1 CH3

CH2

CH4 CH5 CH6

CH1 CH2

CH3 CH4

CH1CH7 CH8

CH1 CH3

CH2

CH4 CH5 CH6

CH1

CH2

CH1 CH2

CH3 CH4

CH1CH7 CH8

CH1 CH3

CH2

CH4 CH5 CH6

CH1

CH2

CH1 CH2

CH3 CH4

CH1CH7 CH8

CH1 CH3

CH2

CH4 CH5 CH6

CH1

CH2

CH1 CH2

CH3 CH4

CH1CH7 CH8

CH1 CH3

CH2

CH4 CH5 CH6

CH1

CH2

CH1 CH2

CH3 CH4

CH1CH7 CH8

CH1

CH13

CH19

CH4

CH7

CH5

CH10

CH8

CH11

CH6

CH2 CH3

CH4 CH5

CH2

CH6

CH1 CH3

CH7 CH8 CH9

CH1 CH2

CH3 CH4

CH1 CH3

CH2

CH4 CH5 CH6

CH1

CH2

CH1 CH2

CH3 CH4

CH1CH7 CH8

CH1

CH13

CH19

CH4

CH7

CH5

CH10

CH8

CH11

CH6

CH2 CH3

CH4 CH5

CH2

CH6

CH1 CH3

CH7 CH8 CH9

CH1 CH2

CH3 CH4

CH1 CH3

CH2

CH4 CH5 CH6

CH1

CH2

LIVE MODE

SDR-5100 display Live images from 16 channels in a total of 8 layout of split screens.

Switching the screen mode

To switch the split mode, select a screen mode in the launcher menu, or right-click to select a screen mode in the context menu. Press the [MODE] button on the remote control to switch the mode in the sequence of the launcher menu items.

SDR-4100 does not support the 16-split screen mode.

CH3

CH7

CH11

CH15

CH4

CH8

CH12

CH16

CH2

CH1 CH3

CH4 CH5

CH6

CH7 CH8 CH9

CH1 CH2

CH3 CH4

CH1 CH3

CH4 CH5 CH6

CH1

CH2

CH5

CH6

CH9

CH10

CH13

CH14

16-split mode 9-split mode 4-split mode 6-split mode

CH2

CH3

CH1

CH5

CH6 CH12

CH4

CH2 CH3

CH6

CH8

CH10

CH1

CH11

CH4

CH5

CH7

CH19

CH13

CH1

CH2

8-split mode 13-split mode PIP

Switching the split mode

SDR-5100 display 16 Live images in the sequence of Single, 4-split and 9-split modes.

Auto Sequence

CH1

Single mode

CH1

CH1 CH2

CH3 CH4

CH1 CH2

CH3 CH4

4-split mode

CH1 CH2

CH3 CH4

1-4

13-16

9-12

5-8

CH1CH7 CH8

Auto Sequence

CH2

CH1 CH3

CH2

CH1 CH3

CH4 CH5

CH7 CH8 CH9

9-split mode

CH6

10-16

1-9

28_ live

Page 29

In Single mode, If you have set <SEQ-Dwell Time> in “Setting the Device > Camera”, Auto Sequence will be conducted

CH1 CH2

CH3 CH4

CH1 CH3

CH2

CH4 CH5 CH6

CH1 CH2

CH3 CH4

CH1

CH1CH7 CH8

CH4

CH3

CH2

CH5

CH1

CH6 CH12

CH1

CH13

CH19

CH4

CH7

CH5

CH10

CH8

CH11

CH6

CH2 CH3

CH4 CH5

CH2

CH6

CH1 CH3

CH7 CH8 CH9

CH1 CH2

CH3 CH4

CH1

CH4 CH5

CH2

CH6

CH1 CH3

CH7 CH8 CH9

CH1 CH3

CH2

CH4 CH5 CH6

CH1

CH2

CH1 CH2

CH3 CH4

CH1CH7 CH8

CH1

CH13

CH19

CH4

CH7

CH5

CH10

CH8

CH11

CH6

CH2 CH3

CH4 CH5

CH2

CH6

CH1 CH3

CH7 CH8 CH9

CH1 CH2

CH3 CH4

CH1 CH3

CH2

CH4 CH5 CH6

CH1

CH2

CH1 CH2

CH3 CH4

CH1CH7 CH8

CH1

CH13

CH19

CH4

CH7

CH5

CH10

CH8

CH11

CH6

CH2 CH3

CH4 CH5

CH2

CH6

CH1 CH3

CH7 CH8 CH9

CH1 CH2

CH3 CH4

CH1 CH3

CH2

CH4 CH5 CH6

CH1

CH2

CH1 CH3

CH2

CH4 CH5 CH6

CH1 CH2

CH3 CH4

CH1

CH1CH7 CH8

CH4

CH3

CH2

CH5

CH1

CH6 CH12

CH1

CH13

CH19

CH4

CH7

CH5

CH10

CH8

CH11

CH6

CH2 CH3

CH4 CH5

CH2

CH6

CH1 CH3

CH7 CH8 CH9

CH1 CH2

CH3 CH4

CH9 CH10

CH11 CH12

CH13 CH14

CH15 CH16

CH1

CH4 CH5

CH2

CH6

CH1 CH3

CH7 CH8 CH9

CH13 CH14

CH11

CH15

CH10 CH12

CH16

CH1 CH3

CH2

CH4 CH5 CH6

CH1

CH2

CH1 CH2

CH3 CH4

CH1CH7 CH8

CH1

CH13

CH19

CH4

CH7

CH5

CH2

CH6

CH1 CH2

CH3 CH4

CH13 CH14

CH15 CH16

CH2

CH6

CH1 CH3

CH2

CH4 CH5 CH6

CH1

CH2

CH1CH7 CH8

CH1 CH3

CH2

CH4 CH5 CH6

CH2

CH1 CH2

CH3 CH4

CH1CH7 CH8

CH1 CH3

CH2

CH4 CH5 CH6

CH1

CH2

CH1 CH2

CH3 CH4

CH1CH7 CH8

CH1 CH3

CH2

CH4 CH5 CH6

CH1

CH2

CH1 CH2

CH3 CH4

CH1CH7 CH8

CH1 CH3

CH2

CH4 CH5 CH6

CH1

CH2

CH1 CH2

CH3 CH4

CH1CH7 CH8

CH1 CH3

CH2

CH4 CH5 CH6

CH1

CH2

at the set interval. (Page 45) In a split mode, If you have set <Multi CH SEQ Time> in “Setting the Device > Monitor”, Auto Sequence will be

conducted at the set interval. (Page 50)

Manual Switching

Press the left/right button on the remote control, or click the arrow <_/+> key to move to the next split mode.

! LIVE

• If pressing the right [

9-split (CH 1~9) mode  9-split (CH 10~16) mode  Auto Sequence

CH1 CH3

CH4 CH5

CH7 CH8 CH9

• If pressing the right [

Channel (CH 1~4)  Channel (CH 5~8)  Channel (CH 9~12)  Channel (CH 13~16)  Auto Sequence

CH1 CH2

CH3 CH4

] button in 9-split mode :

CH2

CH6

; ;

] button in 4-split mode :

CH5 CH6

; ; ;

CH7 CH8

CH11

CH10 CH12

CH13 CH14

CH15

CH16

CH9 CH10

CH11 CH12

CH2

CH1 CH3

CH2

CH1 CH3

CH4 CH5

CH7 CH8 CH9

CH6

1-9

CH13 CH14

CH15 CH16

10-16

;

CH1 CH2

CH3 CH4

CH1 CH2

CH3 CH4

CH1 CH2

CH3 CH4

13-16

9-12

5-8

1-4

English _29

Page 30

live

CH1 CH2

CH3 CH4

CH1CH7 CH8

CH4

CH3

CH2

CH5

CH1

CH6 CH12

CH1

CH13

CH19

CH4

CH7

CH5

CH10

CH8

CH11

CH6

CH2 CH3

CH4 CH5

CH2

CH6

CH1 CH3

CH7 CH8 CH9

CH1 CH2

CH3 CH4

CH5 CH6

CH7 CH8

CH9 CH10

CH11 CH12

CH13 CH14

CH15 CH16

CH1

CH4 CH5

CH2

CH6

CH1 CH3

CH7 CH8 CH9

CH13 CH14

CH11

CH15

CH10 CH12

CH16

CH1 CH3

CH2

CH4 CH5 CH6

CH1

CH2

CH1 CH2

CH3 CH1

CH15

CH11

CH16

CH12

CH7

CH3

CH8

CH4

CH13

CH9

CH14

CH10

CH5

CH1

CH6

CH2

CH1 CH2

CH3 CH4

CH1CH7 CH8

CH4

CH3

CH2

CH5

CH1

CH6 CH12

CH1

CH13

CH19

CH4

CH7

CH5

CH10

CH8

CH11

CH6

CH2 CH3

CH4 CH5

CH2

CH6

CH1 CH3

CH7 CH8 CH9

CH1 CH2

CH3 CH4

CH5 CH6

CH7 CH8

CH9 CH10

CH11 CH12

CH13 CH14

CH15 CH16

CH1

CH4 CH5

CH2

CH6

CH1 CH3

CH7 CH8 CH9

CH13 CH14

CH11

CH15

CH10 CH12

CH16

CH1 CH3

CH2

CH4 CH5 CH6

CH1

CH2

CH1 CH2

CH3 CH1CH15

CH11

CH16

CH12

CH7

CH3

CH8

CH4

CH13

CH9

CH14

CH10

CH5

CH1

CH6

CH2

CH15

CH11

CH16

CH12

CH7

CH3

CH8

CH4

CH13

CH9

CH14

CH10

CH5

CH1

CH6

CH2

CH1 CH2

CH3 CH4

CH1CH7 CH8

CH4

CH3

CH2

CH5

CH1

CH6 CH12

CH1

CH13

CH19

CH4

CH7

CH5

CH10

CH8

CH11

CH6

CH2 CH3

CH4 CH5

CH2

CH6

CH1 CH3

CH7 CH8 CH9

CH1 CH2

CH3 CH4

CH5 CH6

CH7 CH8

CH9 CH10

CH11 CH12

CH13 CH14

CH15 CH16

CH1

CH4 CH5

CH2

CH6

CH1 CH3

CH7 CH8 CH9

CH13 CH14

CH11

CH15

CH10 CH12

CH16

CH1 CH3

CH2

CH4 CH5 CH6

CH1

CH2

CH1 CH2

CH3 CH1

CH15

CH11

CH16

CH12

CH7

CH3

CH8

CH4

CH13

CH9

CH14

CH10

CH5

CH1

CH6

CH2

CH1 CH2

CH3 CH4

CH1CH7 CH8

CH1

CH13

CH19

CH4

CH7

CH5

CH11

CH2

CH6

CH1 CH2

CH3 CH4

CH9 CH10

CH11 CH12

CH13 CH14

CH15 CH16

CH2

CH6

CH1 CH3

CH2

CH4 CH5 CH6

CH1

CH2

CH1 CH2

CH1CH15

Channel Setting

You can display the channel in a desired area of a split screen.

1. Place the cursor over the camera name of each channel to display the <

2. Click a camera name to display a channel list where you can select a different channel.

3. Select a desired channel and click it.

The current channel will be switched to the selected one. Use the cursor to select a channel to move, and drag and drop it to a desired channel; this can also change the channel position.

CH1

CH5

CH9

CH13

Switching to Single Mode

When in split mode, select and double-click a desired channel to switch to its Single mode. Press the number corresponding to a desired channel on the remote control to switch to its Single mode.

• CHANNEL 1–9 : Press each button between 1 to 9. (8CH : 8)

• CHANNEL 10 : Press the [0/+10] button.

• CHANNEL 11–16 : Press the [0/+10] button first, then press any number between 1 to 6 within 1 second.

Refer to “Remote Control > Using the numeric buttons”. (Page 13)

Ex : If double-clicking CH 3 or pressing the number “3” on the remote control.

Ex : if switching CH 1 to CH 7

CH2

CH6

CH10

CH14

CH3

CH4

CH7

CH8

CH12

CH16

CH11

CH15

CH7

;

CH5

CH9

CH13

> key to the right on the screen.

CH3

CH2

CH6

CH10

CH14

CH4

CH1

CH8

CH11

CH12

CH15

CH16

30_ live

CH1

CH2

CH5

CH6

CH9

CH10

CH13

CH14

CH3

CH4

CH7

CH8

CH11

CH12

CH15

CH16

;

CH3

Page 31

ZOOM

2012-01-01 01:10:25

This is available only in Single Live mode. In Single mode, select a desired area and use the Zoom function to enlarge it twice.

1. Select <Zoom In> in the right-click menu. Press the [ZOOM] button on the remote control, or simply click < box appears.

2. Use the direction keys, or drag and drop to specify an area to enlarge.

3. Press the [ENTER] button, or double-click the selected area to enlarge it twice.

In the enlarged image, use the direction buttons ($%_ +) on the remote control to move the enlarged area.

4. Press the [ZOOM] button on the remote control, or simply click < > in the launcher menu to release the zoom.

2012-01-01 01:10:25

> in the launcher menu. The zoom

;

! LIVE

AUDIO ON/OFF

You can turn the sound on/off corresponding to the channel in Live mode.

AUDIO On/Off in Single mode

Click the audio icon (

Only the channel where <Audio> is set to <ON> in “Device > Camera” displays the audio icon ( ) in Live mode that

you can use to turn the sound on/off.

) on the screen, or press the [AUDIO] button on the remote control to turn it on/off.

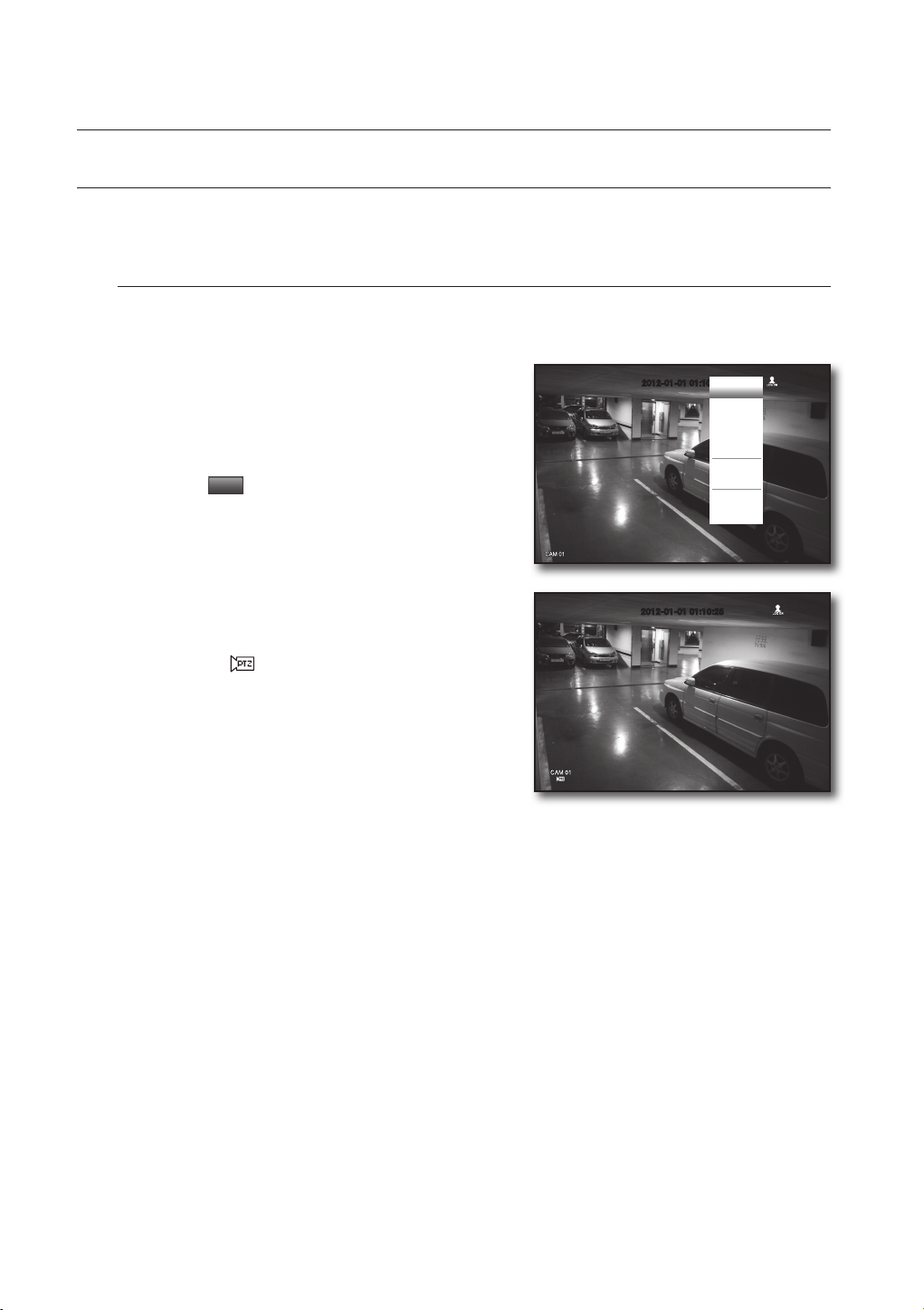

FREEZE

This is available only in Live mode, this pauses playing the Live image temporarily.

1. Press the [FREEZE] button on the remote control, or click < The playback of the image is stopped temporarily.

2. Press the [FREEZE] button again, or click < This will release the freeze.

Freeze

> in the launcher menu.

English _31

Page 32

live

CH1

CH2

CH1

CH2

CH1

CH2

EVENT MONITORING

This will display the channel in sync with a specific event (Motion/Video Loss) if it occurs. In “Monitor > Event Display”, set the event monitoring to ON/OFF and specify the event display time. (Page 50)

• If multiple events occur simultaneously, the screen will switch to a split mode.

- 2~4 events : 4-split mode

- 5~9 events : 9-split mode

- 10~16 events : 16-split mode

• If the second event occurs within the set time of <Event Display>, the first event will last until the second

one is terminated. (Page 50)

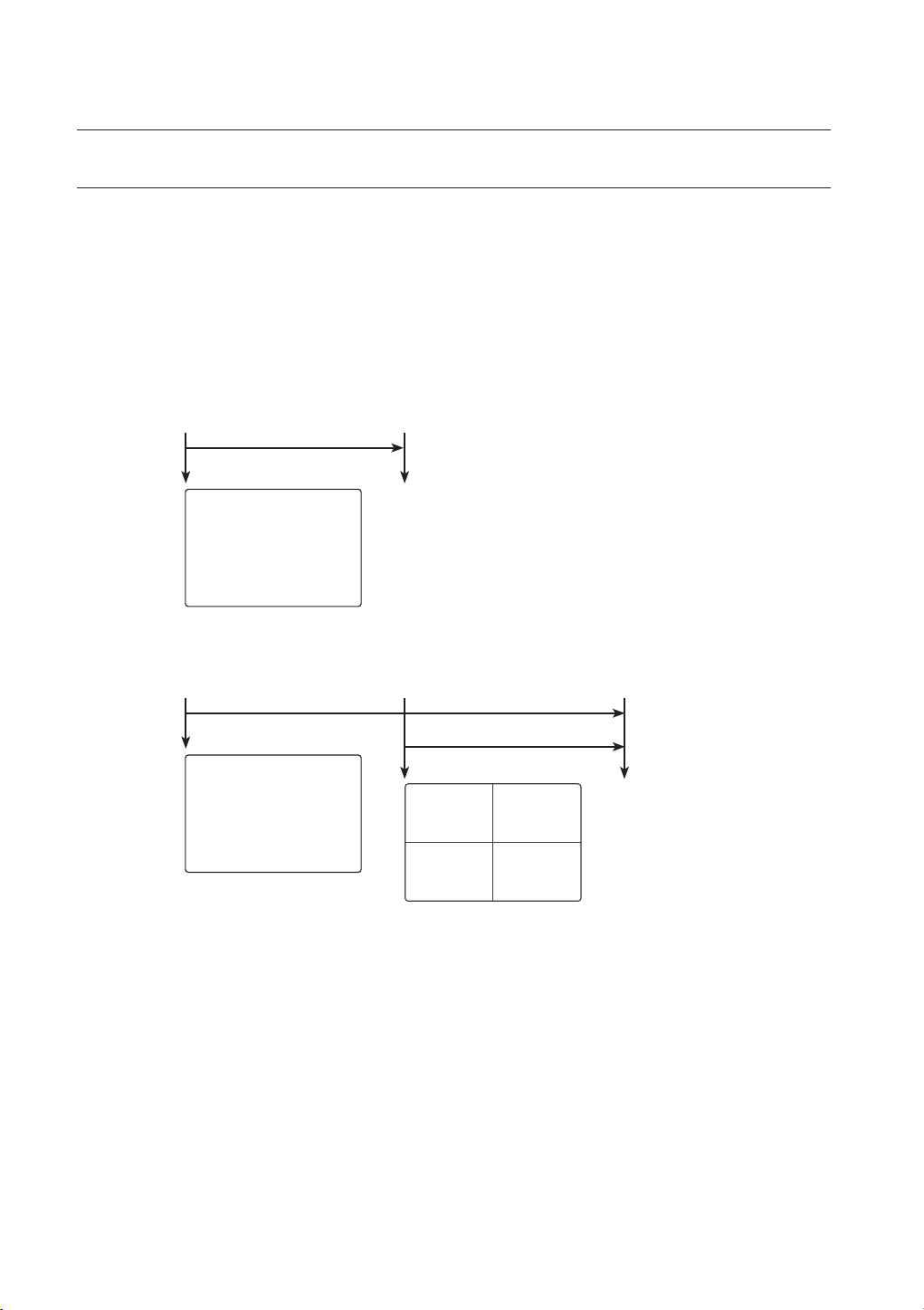

Ex : If you set <Event Display> to 5 seconds, and only one event occurs in CH 1.

Event occurrence 5 seconds

Stop alarm

CH1

Ex : If you set <Event Display> to 5 seconds, and the second event occurs in CH 2 within the set time after the first

event occurred in CH 1.

Event occurrence 4 seconds 9 seconds

Stop alarm

CH1 CH2

CH1

Press the [ALARM] button to reset the alarm settings and to release the event mode.

If an alarm activates in the condition you have set the event record, and pre/post alarm times, the event record will be

performed.

32_ live

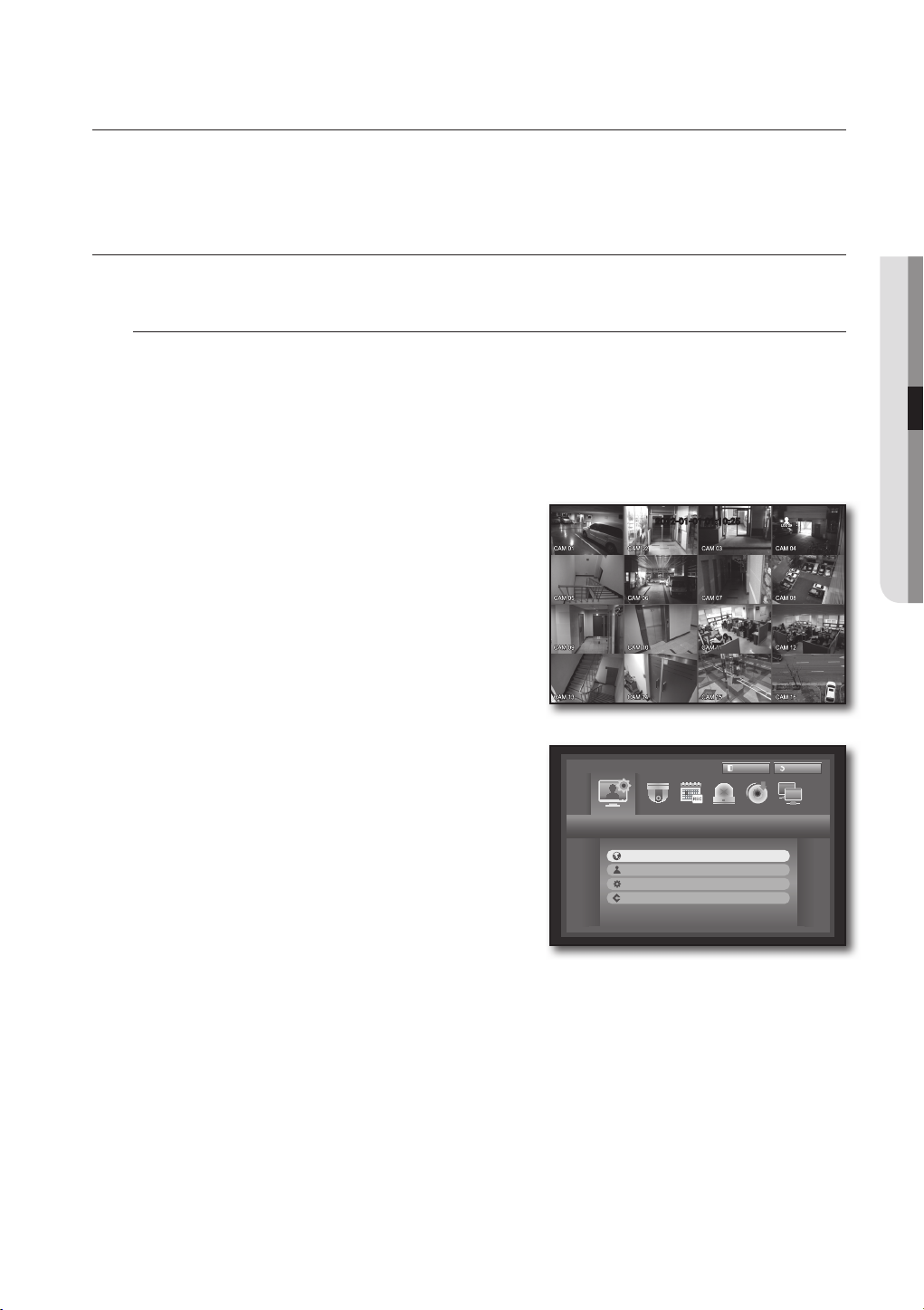

Page 33

main menu

You can setup the system properties, devices, and options for recording, event, backup and network.

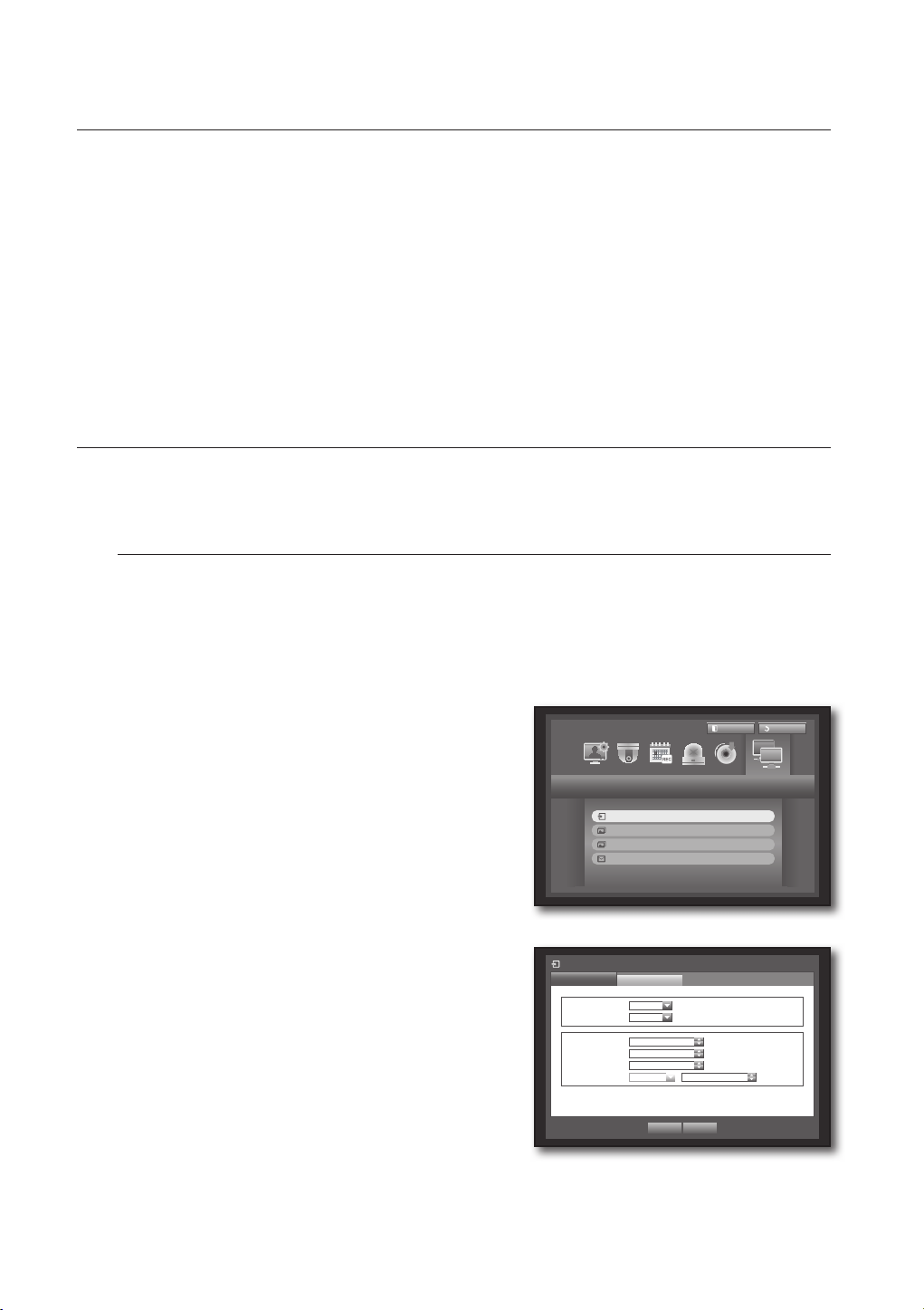

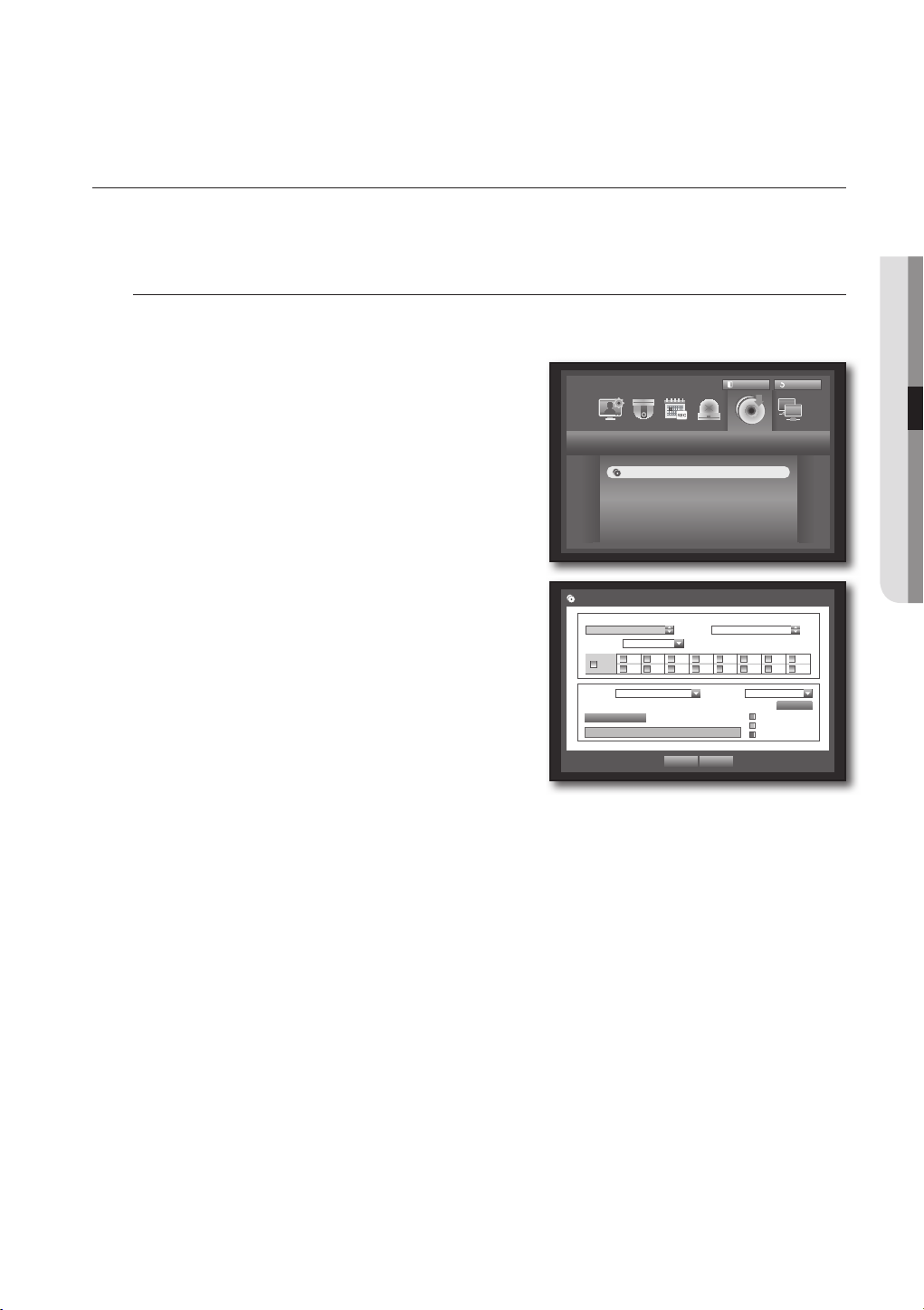

SYSTEM SETUP

You can setup Date/Time/Language, Permission, System Properties and Log.

Date/Time/Language

You can check and setup the current Date/Time and time related properties, as well as the language used for the interface on the screen.

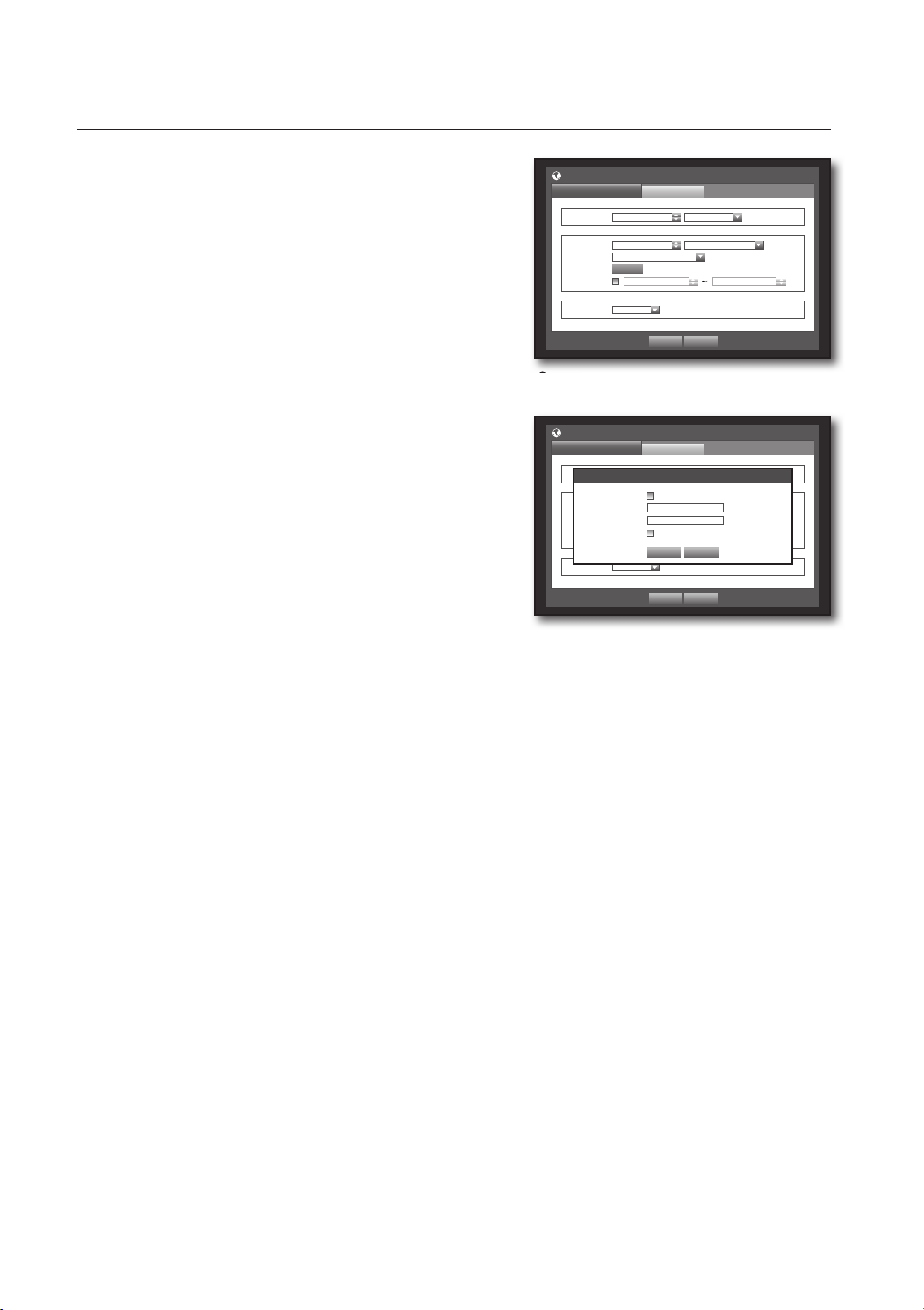

Setting the Date/Time/Language

Set the Date/Time/Language

Using the mouse may help make setup easier.

1. Press the [MENU] button on the remote control.

If not logged in, it prompts with login window. Refer to “Login”. (Page 22)

2012-01-01 01:10:25

! MAIN MENU

2. Use the left/right buttons ( System property setup menu is selected.

3. Use the up/down buttons ( Language> and press the [ENTER] button.

4. Select <Date/Time/Language>. A dialog to setup Date, Time and Language.

5. Use direction buttons ( and make your changes.

_ +

) to select the <System>.

) to select <Date/Time/

$%_ +

) to select an item to set

System

Date/Time/Language

Permission Management

System Management

Log Information

Logout

Return

English _33

Page 34

main menu

• Date : Sets the date that will appear on the screen. You can select the date format.

• Time : Sets the time and its format that will appear on the screen. Select either one from <24 Hours, 12 Hours (AM/PM)>.

• Time Zone : Sets the time zone of your area based on the Greenwich Mean Time (GMT).

GMT (Greenwich Mean Time) is standard World Time and the basis of world time zone.

•

Time Sync. : You can set the DVR’s current time synchronized to a selected <Time Server> regularly if you select to use <Time Server>.

Date/Time/Language

Date 2012-01-01 YYYY-MM-DD



Time 08:14:24 24 Hours



Time Zone GMT



Time Sync. Setup



DST Dec First (Sun) 0 Dec First (Sun) 0



Language English



Holiday

OK Cancel

In this case, <Date/Time/Language> setup does not allow time adjustment.

- Time Server : Enter an IP or URL address of the time server.

- Last Sync Time : Displays the most recent synchronization time from the selected time server.

- Activate as Server : Set to <Use> to allow the DVR to act as a Time Server for other DVRs.

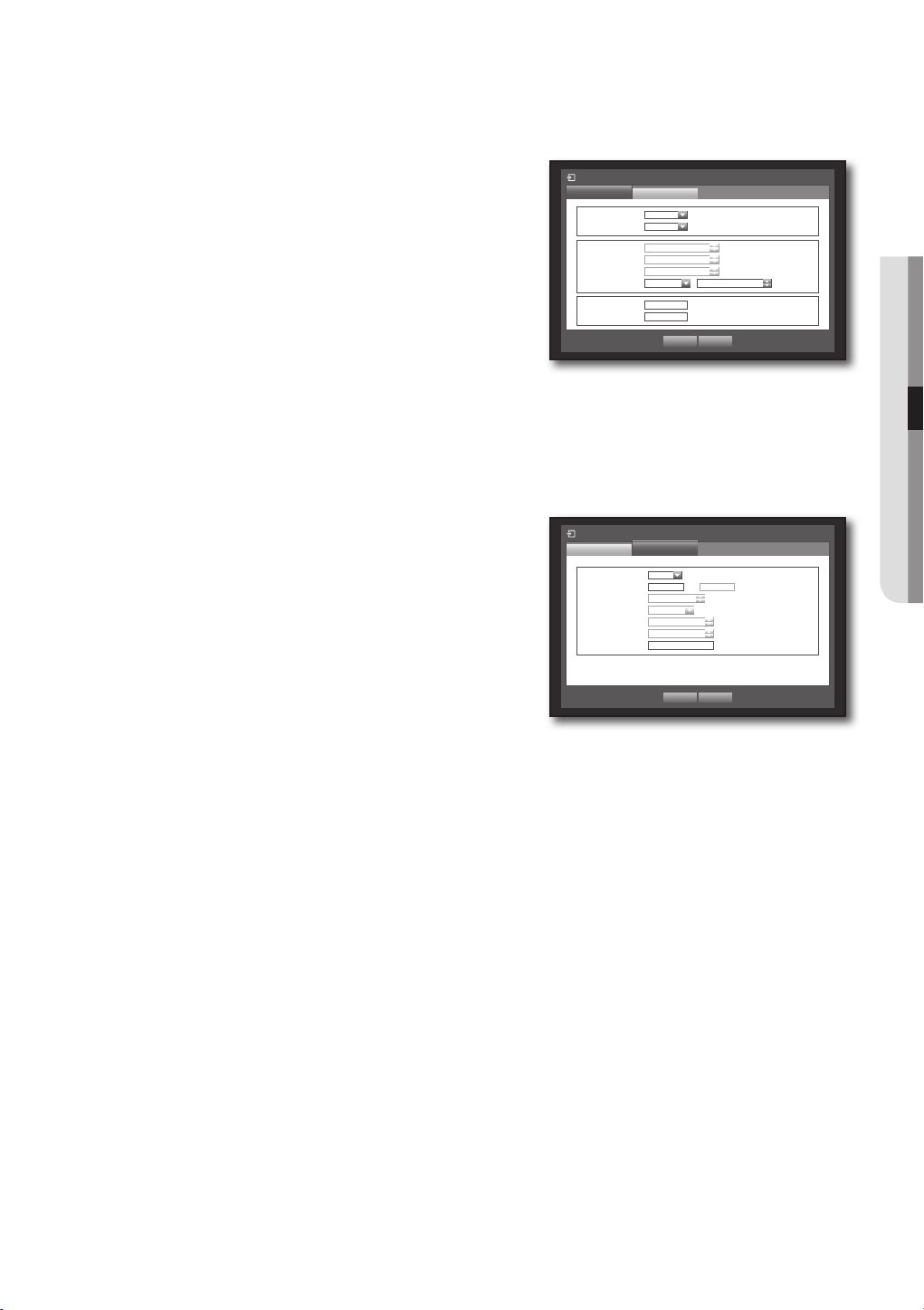

• DST : Set up Daylight Saving Time with its period to make the time earlier than the GMT of its time zone by 1 hour during the set period.

Date/Time/Language

Date 2012 -01-01 YYYY-MM-DD



Time Synchronization Setup

Synchronization Use



Time 08:14:24 24 Hours



Time Server 203.248.240.103



Time Zone GMT+08:00



Last Sync Time Fail



Time Sync. Setup Not Used



Activate as Server Use



DST Dec First (Sun) 0H Dec First (Sun) 0H



Language English



Holiday

OK Cancel

• Language : Select your language. Sets the language for the interface. English, French, German, Spanish, Italian, Chinese, Russian, Korean, Polish, Japanese, Dutch, Portuguese, Turkish, Czech, Danish, Swedish, Thai, Romanian, Serbian, Croatian, Hungarian and Greek are available.

6. When the Date/Time/Language setup is done, press <OK>.

You can also use numeric buttons on the remote control to enter values for Date, Time and other numeric fields.

34_ main menu

Page 35

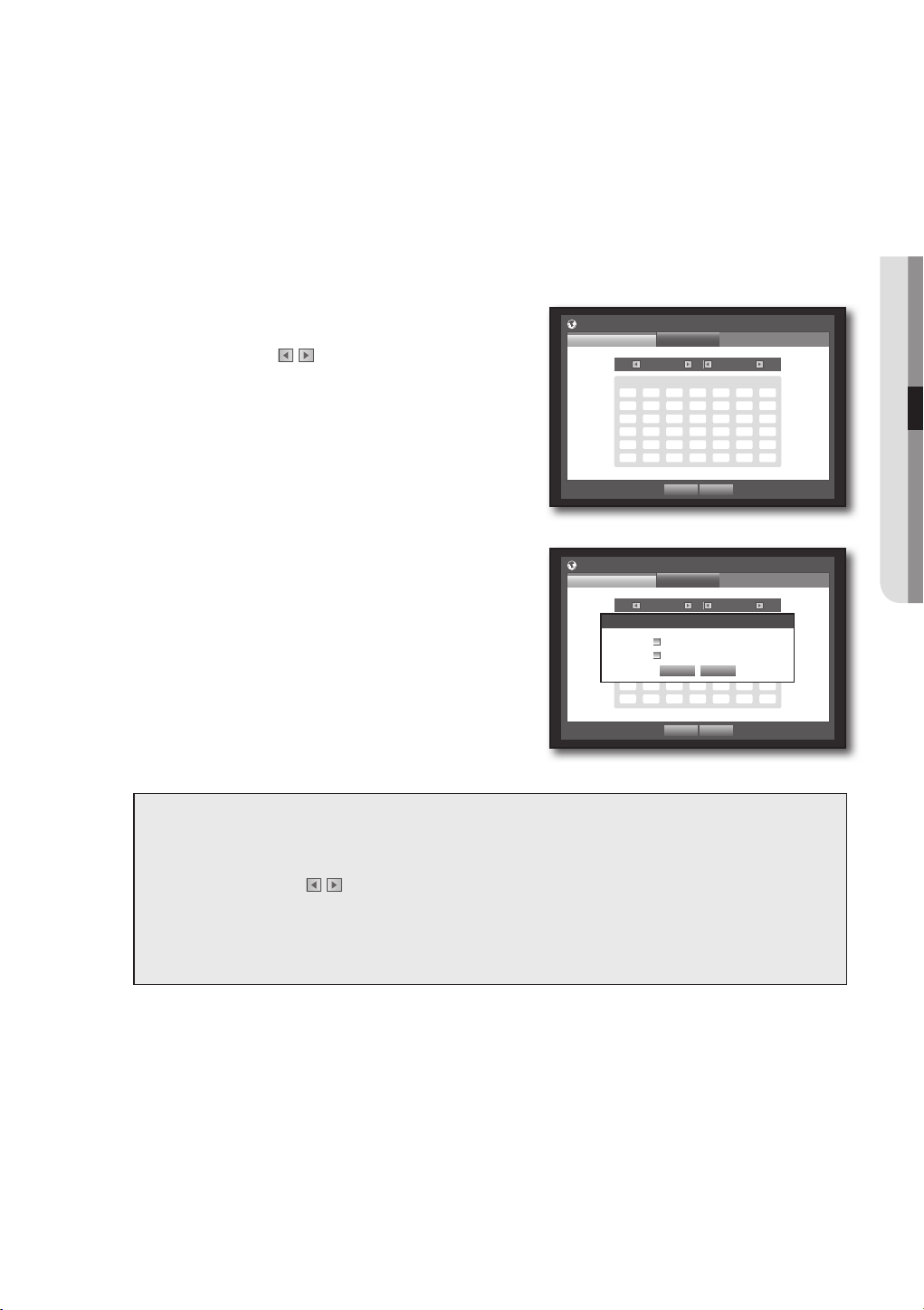

Setting Holiday

You can set specific dates to Holidays according to your preferences. Holidays are applied to <Recording Schedule> and <Alarm Schedule> too.

Using the mouse may help make setup easier.

1. Use the up/down buttons ($%) in <Date/Time/Language> window to select <Date/Time/Language>, and press the [ENTER] button.

2. Select <Holiday>. A calendar for Holiday setup appears.

3. Use the left/right <

> buttons to select year or month,

and press the [ENTER] button.

Date/Time/Language

2012 Jan

Sun Mon Tue Wed Thu Fri Sat 1 2 3 4 5 6 7

8 9 10 11 12 13 14

15 16 17 18 19 20 21

22 23 24 25 26 27 28

29 30 31

Holiday

OK Cancel

! MAIN MENU

4. Use direction buttons ( and press the [ENTER] button. You will see the “Setting Holiday” screen.

Ex : Select January 9th and check on <1/9> only to make every January 9th a holiday. Check both on <1/9> and <Jan 2nd Mon> to make every January 9th and 2nd Monday of January holidays.

$%_ +

) to select a desired date,

Date/Time/Language

2012 Jan

Setting Holiday

Sun Mon Tue Wed Thu Fri Sat 1 2 3 4 5 6 7

8 9 10 11 12 13 14

15 16 17 18 19 20 21

22 23 24 25 26 27 28

29 30 31

Holiday

1 / 9

Jan 2nd Mon

OK Cancel

5. When the Holiday setup is done, press <OK>.

OK Cancel

Using the Calendar

Using the mouse may help make setup easier.



Select year and month. Select the left/right < > key on the left/right side of year/month and press [ENTER] button to adjust by 1 year/month.



Use direction buttons to select a date and press [ENTER] button.

A date with recorded data to be searched will appear in yellow in the System Log, Event Log, Time Search and Event Search.

English _35

Page 36

main menu

Permission Management

You can set permissions of each user over the DVR's specific function and settings.

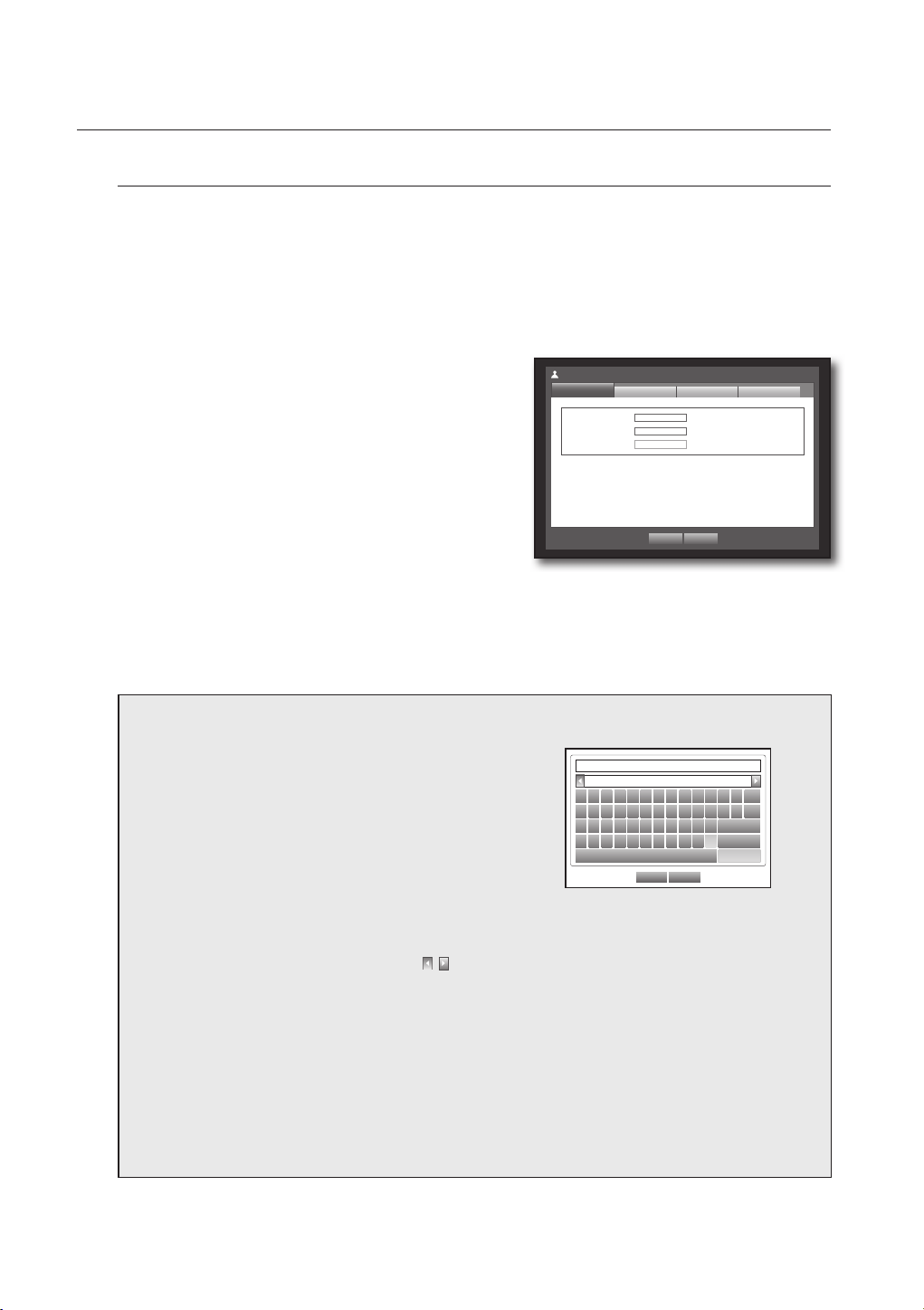

Setting the Administrator

You can set and change Administrator’s ID and password. The administrator can use and set all menu items and functions.

Using the mouse may help make setup easier.

1. Use the up/down buttons ($%) in <System> window to move to <Permission Management>, and press [ENTER] button.

2. Select <Admin>. A dialog for Admin ID and Password input appears.

3. Use direction buttons (

$%_ +

) to move to a desired

item, and set the ID and password.

Permission Management

Admin

ID admin



New Password



Conﬁ rm P/W



Group

************

User Setup

By default, initial ID and password are set to “admin”, and

“4321”.

The default password can be exposed to a hacking thread so it is recommended to change the password after installing the product. Note that the security and other related issues caused by the unchanged password shall be responsible for the user.

4. When the administrator setup is done, press <OK>.

Using Virtual Keyboard



For alphanumeric inputs, the virtual keyboard window

appears.



Use direction buttons (

character, and press the [ENTER] button.



In the upper text input box of the virtual keyboard, there

displays a list of candidate words containing the selected character.



Select a word from the list, or use the keyboard to enter the

whole word.

If there are many of candidate words, use < , > buttons to move between them forward and backward.

Select <OK>.



Entered word is applied.

For upper case letters, use <Caps Lock> button.

For special characters, use <Shift> button.

Using the virtual keyboard is the same to a normal keyboard use in your region.

You can enter only lower-case alphabets and numeric values for the user ID.

For the password, use alphabets and special characters excluding < \ > and <“>.

You can use number buttons on the remote control.

$%_ +

) to move to a desired

OK Cancel

` 1 2 3 4 5 6 7 8 9 0 - =

q w e r t y u i o p [ ] \

a s d f g h j k l ; ‘

z x c v b n m , . /

Space Ctrl

OK Cancel

Caps Lock

Shift



Del

36_ main menu

Page 37

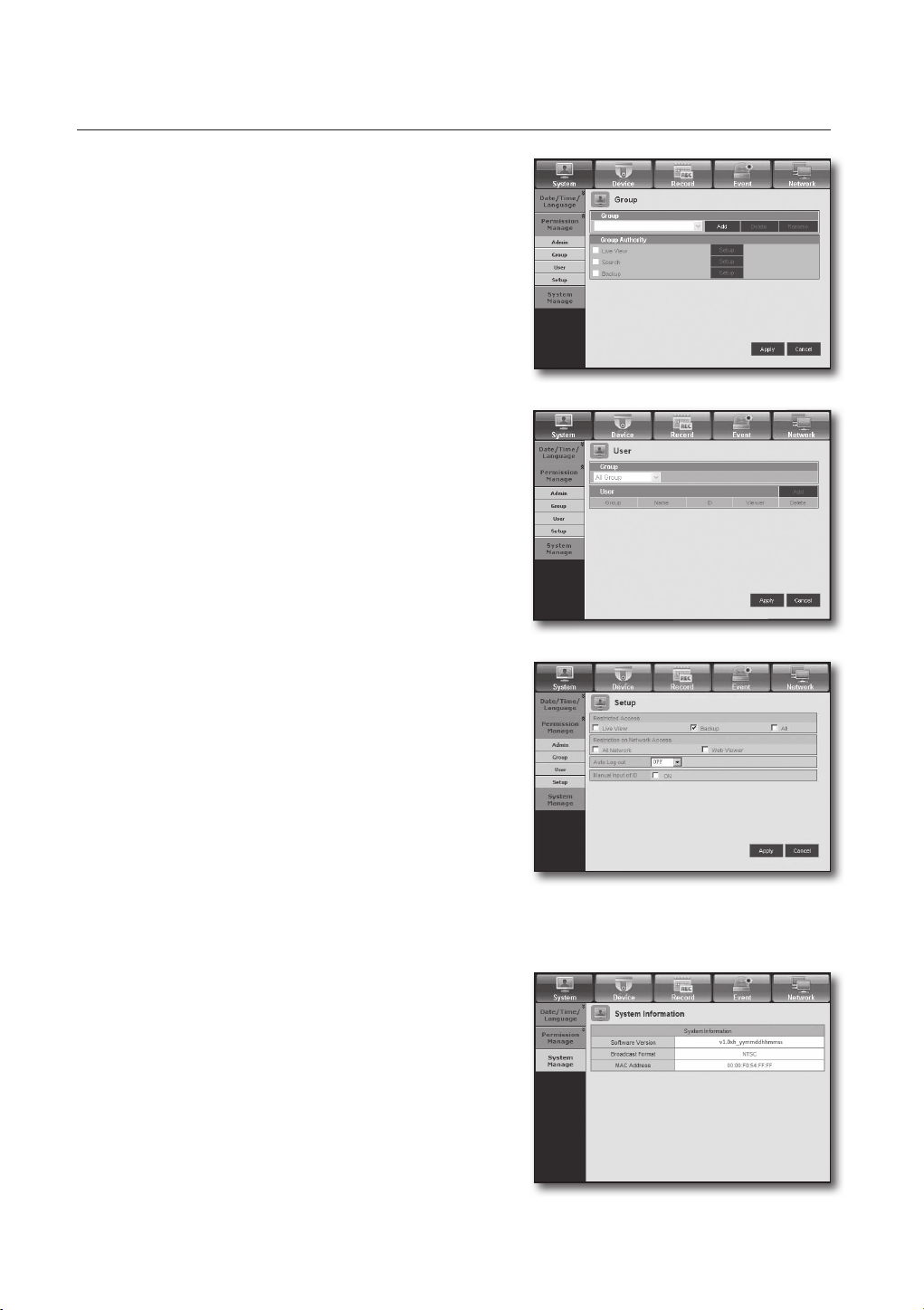

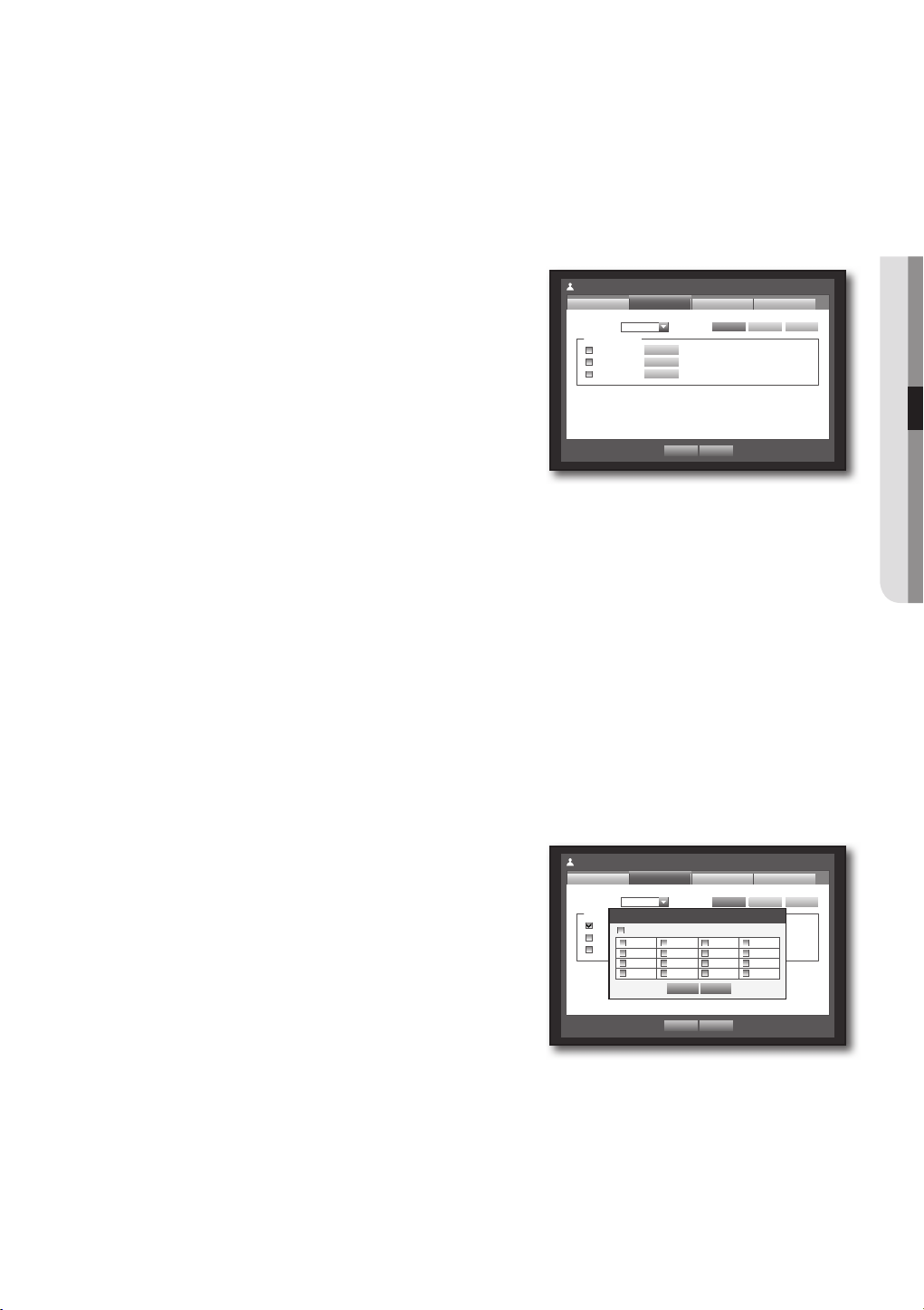

Setting the Group

You can create user groups and setup permissions for those user groups. You can register a user for each group in <User>.

Using the mouse may help make setup easier.

1. Use the up/down buttons ($%) in <System> window to move to <Permission Management>, and press [ENTER] button.

2. Select <Group>. A window for <Add>, <Delete>, <Rename>, and <Group Authority> setup appears.

3. Use direction buttons (

$%_ +

) to move to a desired

item, and set the value.

• Add, Delete, Rename : You can add, delete, rename a

group or modify the permissions given to the group. The virtual keyboard appears when <Add> or <Rename> was selected. You can add up to 10 groups.

- Add : When you first run the DVR with the admin account, only the admin account exists. Add has already

been deactivated. Select <Add> to display the virtual keyboard. Enter a group name. You can add up to 10 groups.

- Delete : Deletes a user group that is already registered. Selecting Delete will delete all user accounts belonging to that group.

- Rename : Renames a group that is already registered. Select <Rename> to display the virtual keyboard.

For entering a group name, refer to “Using Virtual Keyboard”. (Page 36)

• Group Authority : Sets permissions to access menu items of each group. Users of a group can access checked functions.

4. When the group setup is done, press <OK>.

Permission Management

Admin

Group



Group Authority

Live View

Backup

Group

Setup

OK Cancel

User

Add Delete Rename

Setup

! MAIN MENU

To set the group authority

You can set the permissions of the group users to access the menu according to the channel.

1. Select a menu to which the group permission is assigned.

The menu where the group permission is assigned will be displayed in the Live menu when a group user logs in.

• Live View : You can set the permission to access the Live screen according to the channel.

SDR-4100 shows a list of 8 channels in Channel Setup window.

• Search : You can set the permission to access the Search menu according to the channel.

• Backup : You can set the permission to access the Backup menu according to the channel.

2. Select <OK>.

Select and assign a group user so that the user can access the specified menu.

Permission Management

Admin

Group ABC



Group Authority

Group

Channel Setup

Live View

Backup

Setup

All

Setup

1 2 3 4

Setup

5 6 7 8

9 10 11 12

13 14 15 16

OK Cancel

User

Add Delete Rename

Setup

English _37

Page 38

main menu

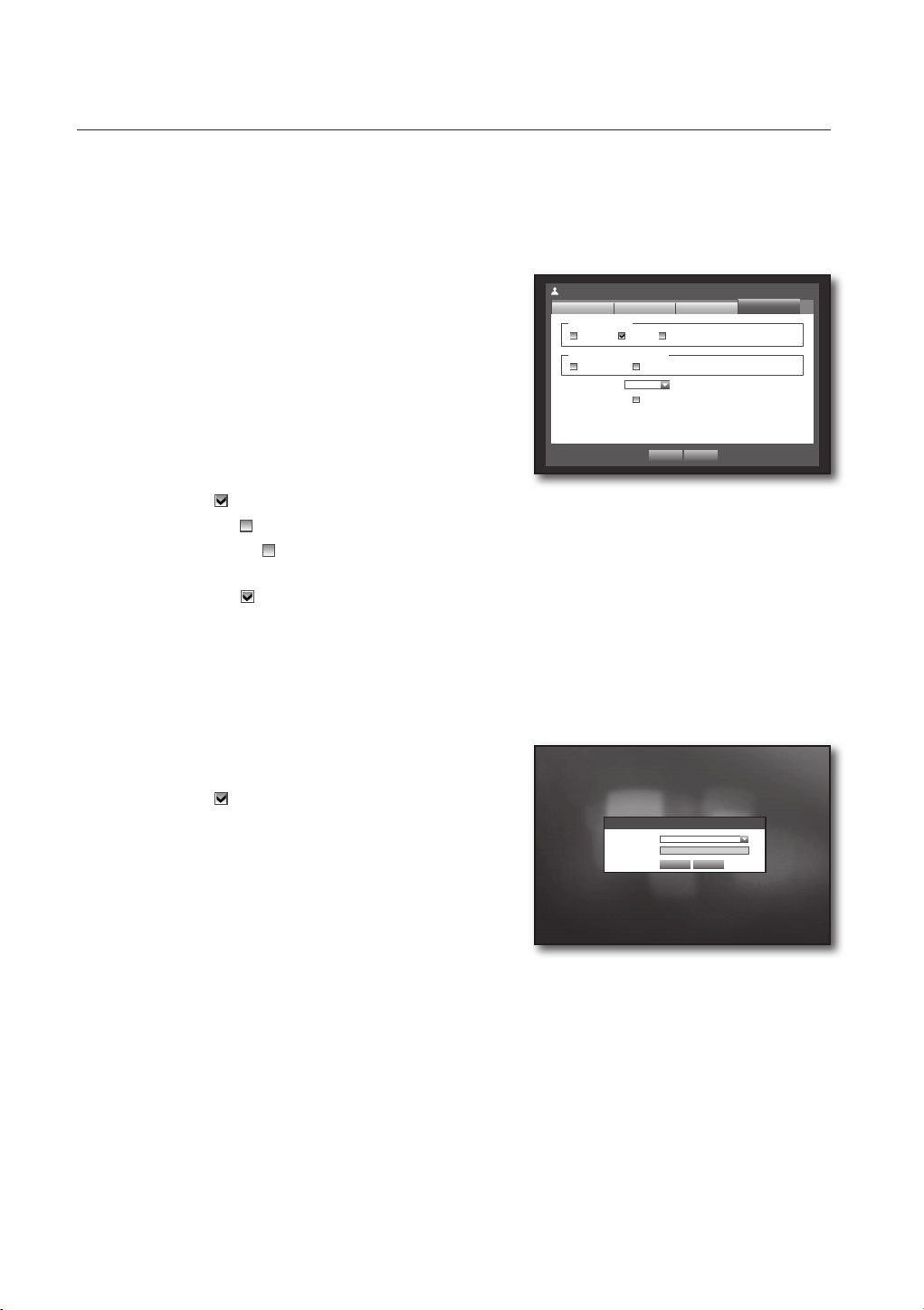

To restrict the user permissions

If the admin restricts all permissions of an added group, the users belonging to that group can access only the default minimum menus and can change the user’s own password only.

1. Start the DVR.

If all permissions are restricted, only the Login dialog should appear.

2. Log in with a registered user ID.

ID abc



Password



OK Cancel

3. Right-click any area on the screen.

If all permissions are restricted, only the accessible context

2012-01-01 01:10:25

menus should appear.

Scene Mode



Audio Off

Freeze

Stop Alarm

Record

User Menu

Hide Launcher

Logout

To change the user password

If you log in with a user account that is restricted to access the menu, you can change your own password only.

1. Log in with your account.

2. Select <User Menu>.

The Permission Management setup screen appears.

3. Select <Permission Management>.

The Password setup dialog appears.

4. Enter a new password.

5. Select <OK>.

You change to the password will be applied.

Permission Management

User

ID abc



New Password



Conﬁ rm P/W



************

OK Cancel

38_ main menu

Page 39

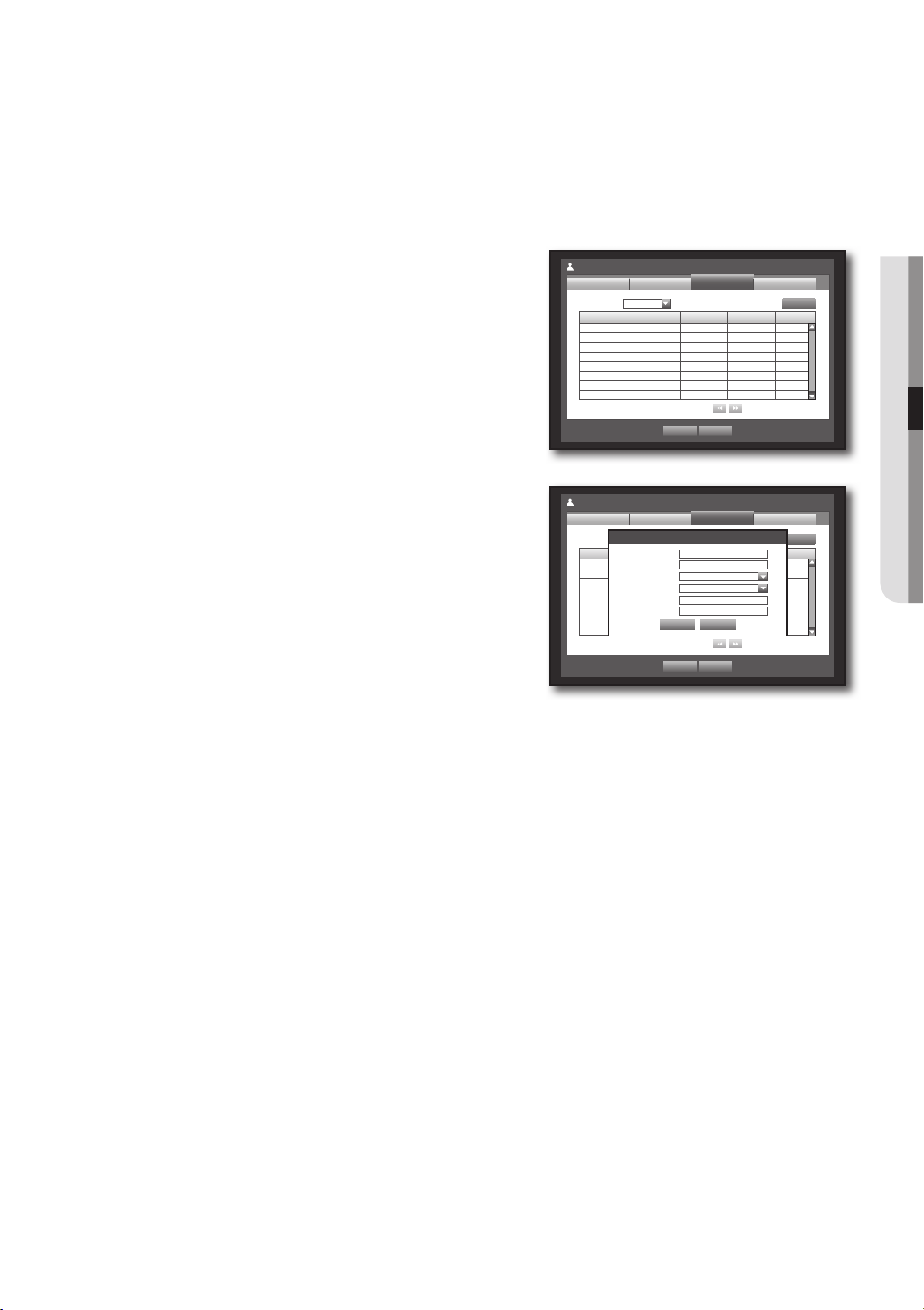

Setting the User

Users can be added only if a group was created in <Group> menu.

Using the mouse may help make setup easier.

1. Use the up/down buttons ($%) in <System> window to

move to <Permission Management>, and press [ENTER] button.

2. Select <User>.

A window for Add User appears.

3. Use direction buttons (

$%_ +

window. A window for “Add User” appears. You can configure the Network Viewer settings including name, ID, viewer, Select Group and password. Result of the user setup appears in the <User> window. To change the user property, use “Edit User”. The “Edit User” window appears when you select a desired item to be changed in the <User> window.

• Viewer : If you select <Use>, you will be given access to the Web Viewer and Network Viewer.

Refer to “Connecting Web Viewer”. (Page 81)

For more information about use of SmartViewer, refer to the SmartViewer's user guide.

4. When the user setup is done, press <OK>.

) to select <Add> from the

Permission Management

Admin

Group All Group



Group Name ID Viewer Del

Permission Management

Admin

Group All Group



Group Name ID Viewer Del

Group

Add User

Name



Viewer Not Used



Select Group ABC



Password



Conﬁ rm P/W



OK Cancel

User

Setup

Previous/Next Page

Setup

Previous/Next Page

! MAIN MENU

Add

English _39

Page 40

main menu

Setting Permissions

You can set restricted access for all general users. Items with restrictions will require logging in for use.

Using the mouse may help make setup easier.

1. Use the up/down buttons ( move to <Permission Management>, and press [ENTER] button.

2. Select <Setup>. The Restricted Access, Restriction on Network Access, Auto Log out, Manual Input of ID setup screen appear.

3. Use direction buttons (

$%_ +

item, and set the value.

• Restricted Access : All menu items allowed for a user can

be set with restricted access.

- Checked (

- Not checked (

If it is not checked ( ) in <Restricted Access>, any user can access the item no matter what the <Group Authority>

) : Restricted

) : Accessible

setting.

If it is checked ( ) in <Restricted Access>, a user can access the item only if the user has permission in <Group Authority> setting.

• Restriction on Network Access : Restricts remote access from a <Restricted Access> network.

- All Network : Restricts all access instances via Network Viewer and Web Viewer.

- Web Viewer : Restricts access via the Web Viewer.

• Auto Log out : A user will be automatically logged out if there is no operation on DVR for over set period of

time.

• Manual Input of ID : Prompts you to enter the user ID

manually for the login process.

- Checked (

) : Encloses the registered user IDs with the [] symbols. Use the virtual keyboard to enter the user ID.

4. When the permission setup is done, press <OK>.

) in <System> window to

) to move to a desired

Permission Management

Admin

Restricted Access

Live View Backup All

Restriction on Network Access

All Network Web Viewer

Auto Log out OFF



Manual Input of ID ON



Password



Group

OK Cancel

*****

OK Cancel

User

Setup

40_ main menu

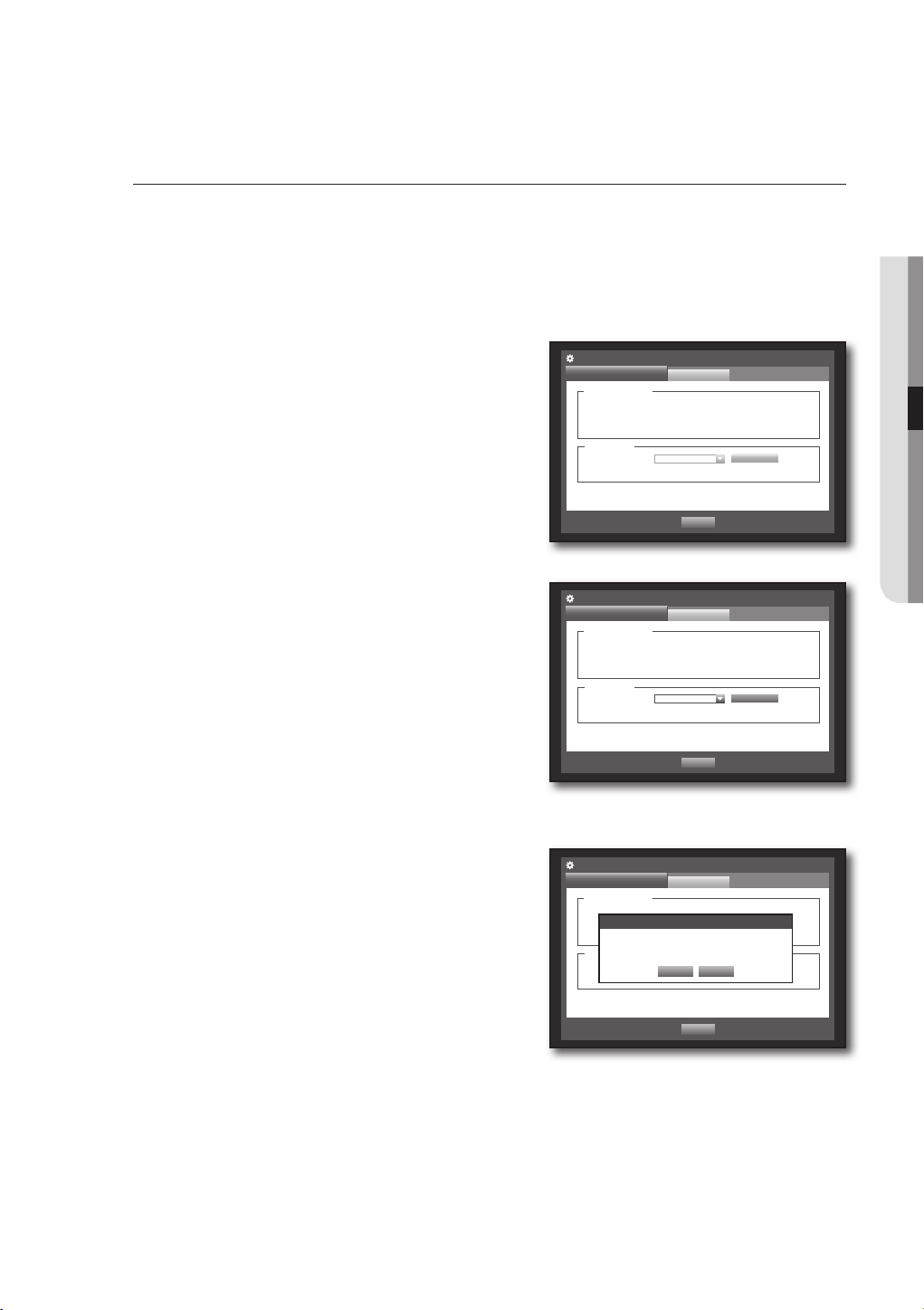

Page 41

System Management

You can check the system version, update to a newer version, as well as data backup and initialization.

Checking the System Information

You can check the current system version, broadcasting system, MAC address. You can update the system.

Using the mouse may help make setup easier.

1. Use the up/down buttons ( move to <System Management>, and press [ENTER] button.

2. Check the Software Version, Broadcast Format, and MAC Address.

• System Information : Shows the current system’s

information. The values can not be changed by a user.

• S/W Upgrade : Updates the DVR’s software up to date.

` Ex : If you connect to a storage device that has upgradable software

installed, and return to the <System Management> menu, the current software version will be displayed.

) in <System> window to

System Management

System Information

System Information

Software Version v1.0xh_yymmddhhmmss



Broadcast Format



MAC Address 00:00:F0:54:FF:FF



S/W Upgrade

Device Network



Version No S/W Data



Settings

NTSC

System Management

System Information

System Information

Software Version v1.0xh_yymmddhhmmss



Broadcast Format



MAC Address 00:00:F0:54:FF:FF



S/W Upgrade

Device USB2FlashStorage



Version v1.0xh_yymmddhhmmss



Settings

NTSC

Upgrade

! MAIN MENU

• Updating the Software

1. Connect a device storing the software to be updated. (It may take about 10 seconds to recognize the device.)

Upgradeable devices include USB memory and network device.

To update the network, the current DVR should have been connected to the network. Upgrade via the proxy server may not be enabled due to the restricted access.

2. Select <System Management> from <System> window.

System Management

System Information

System Information

Software Version V1.0xh_yymmddhhmmss



System Upgrade

Broadcast Format



MAC Address 00:00:F0:54:FF:FF



Current Version V1.0xh_yymmddhhmmss New Version V1.0xh_yymmddhhmmss

S/W Upgrade

Do you want to upgrade?

Device USB2FlashStorage



Version V1.0xh_yymmddhhmmss



Settings

NTSC

OK Cancel

3. Select <System Information>.

4. When the recognized device appears, select <Upgrade>.

The <Upgrade> button will be activated only if the current <Software Version> of the <System Information> is same to or older than that of <S/W Upgrade>.

Upgrade

English _41

Page 42

main menu

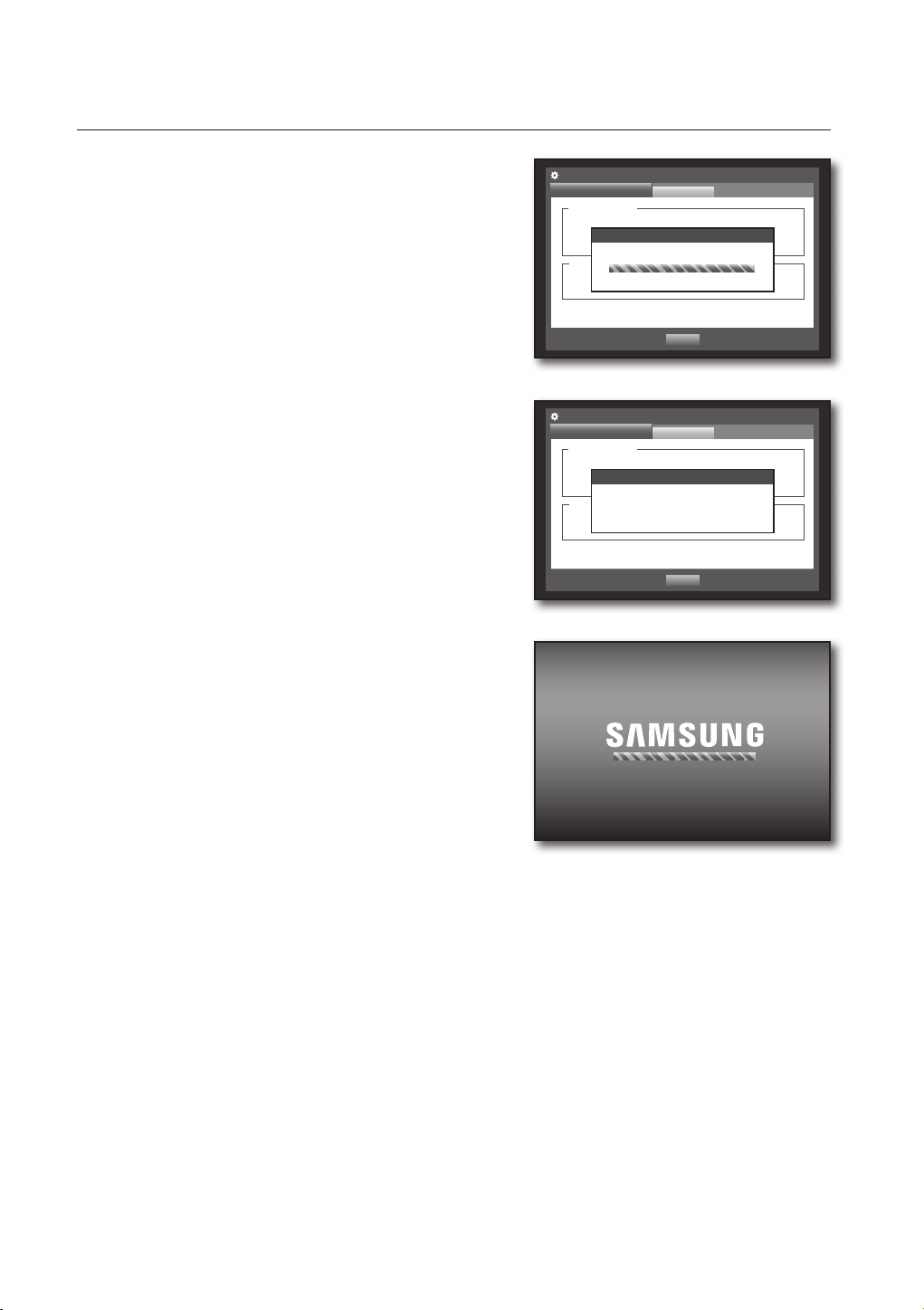

5. Press <OK> in the “System Upgrade” window.

While updating, it shows the progress.

• Updating progresses with 3 steps as shown in the figure.

6. When the updating is done, it automatically restarts.

Do not turn the power off until it finishes restarting.

System Management

System Information

System Information

Software Version V1.0xh_yymmddhhmmss



Broadcast Format



S/W Upgrade

MAC Address 00:00:F0:54:FF:FF



Software upgrading...

S/W Upgrade

Device USB2FlashStorage



Version V1.0xh_yymmddhhmmss



System Management

System Information

System Information

Software Version V1.0xh_yymmddhhmmss



Broadcast Format



S/W Upgrade

MAC Address 00:00:F0:54:FF:FF



Software upgrading...

S/W Upgrade

Device USB2FlashStorage



Version V1.0xh_yymmddhhmmss



Settings

NTSC

Settings

NTSC

Software upgrading...

Do not turn off during the upgrade.

Upgrade

If “Upgrade Failed” appears, retry from the step 4.

When you experience continued failure, consult the service center for assistance.

When you perform S/W update remotely using Smart Viewer, it may take a max of 3 minutes to complete the update since Smart Viewer popped up a confirmation message. This is to guarantee that the DVR set operates stably. For a faster update, use the USB cable to connect to the DVR set.

42_ main menu

Page 43

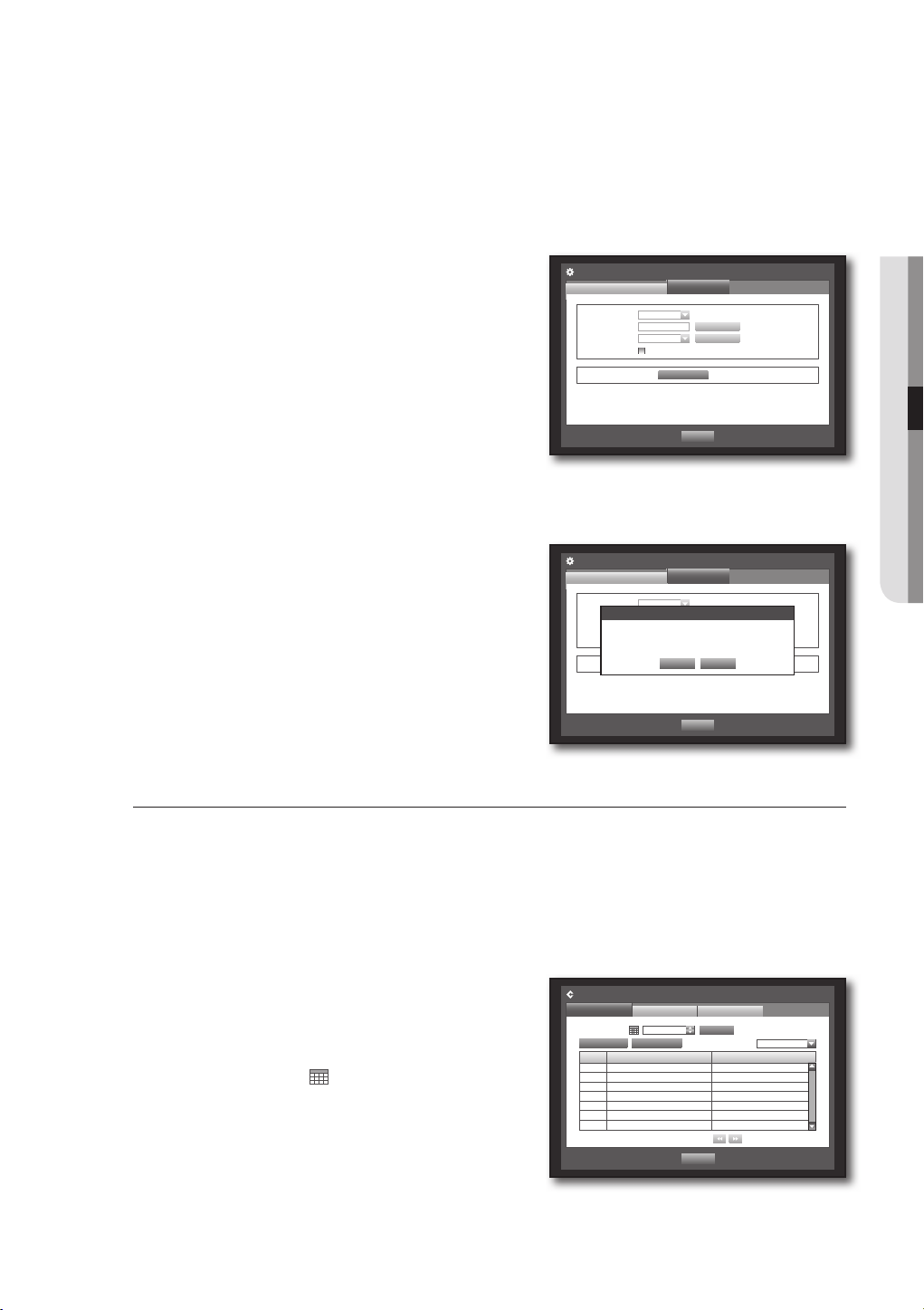

Settings

You can copy and import the DVR settings by using a storage media.

Using the mouse may help make setup easier.

1. Use the up/down buttons ( move to <System Management>, and press [ENTER] button.

2. Select <Settings>. A window of storage device and load factory default appears.

3. Use direction buttons (

$%_ +

item, and export or import settings data to a storage device.

• Storage Device : Shows the connected storage device.

• DVRUSB : Exports DVR settings to the connected storage device.

• USBDVR : Imports DVR settings from the storage device and applies to the DVR.

If <Include Network Settings> is checked, the network settings will be imported too.

• Load Factory Default : If <Default> is selected, a

confirmation dialog for “Load Factory Default” prompts. Press <OK> to initialize the system to the factory default.

4. To move to the previous menu, press <Previous>.

) in <System> window to

) to move to a desired

System Management

System Information

Storage Device 0 MB (Remained Capacity)



DVRUSB 38010100



USBDVR No data



Include Network Settings

Load Factory Default



System Management

System Information

Storage Device 0 MB (Remained Capacity)



DVRUSB 38010100



USBDVR No date



Include Network Settings

Load Factory Default



Settings

Default

Settings

Load Factory Default

Sure to Default Setting?

OK Cancel

Default

Export

Import

Export

Import

! MAIN MENU

Log Information

You can browse logs on the system and events.

System Log

System Log shows log and timestamp on every system start up, system shutdown, and changes on system settings.

Using the mouse may help make setup easier.

1. Use the up/down buttons ( move to <Log Information>, and press [ENTER] button.

2. Select <System Log>.

Refer to “Using the Calendar”. (Page 35) Click on the calendar < > to display the calendar window.

• Type : When there are too many logs, you can display logs

of the desired format by selecting the type.

3. Use direction buttons ($%_ +) to move to a desired item, and press <Search>.

) in <System> window to

Log Information

System Log

Search Day 2012-01-01

First Page

No. Log List Date/Time

Event Log

Last Page

Backup Log

Type View all

Previous/Next Page

English _43

Page 44

main menu

Event Log

Event log shows recorded events on alarms, motion detections and video loss. It also shows the log and its timestamp.

Using the mouse may help make setup easier.

1. Use the up/down buttons (

) in <System> window to

move to <Log Information>, and press [ENTER] button.

2. Select <Event Log>.

3. Use direction buttons (

$%_ +

) to move to the desired

item.

4. Set Search Day, Channel and Type and the press <Search>.

Refer to “Using the Calendar”. (Page 35) Click on the calendar < > to display the calendar window.

Backup Log

You can find out who backed up and the details (backup time, channel, device to use, file format, etc.).

Using the mouse may help make setup easier.

1. In the <System> window, press the up/down ( to move to <Log Information> and press the [ENTER] button.

2. Select <Backup Log>.

3. Use the four direction buttons (

$%_ +

) to move to a

desired item.

4. Specify a search term and select <Search> in the right corner. Backup details for the search term will be listed.

) button

Log Information

System Log

Search Day 2012-01-01

No. Log List Date/Time

7 Motion Detection [CH 7] 2012-01-01 00:02:18

6 Motion Detection [CH 6] 2012-01-01 00:02:18

5 Motion Detection [CH 5] 2012-01-01 00:02:18

4 Motion Detection [CH 4] 2012-01-01 00:02:18

3 Motion Detection [CH 3] 2012-01-01 00:02:18

2 Motion Detection [CH 2] 2012-01-01 00:02:18

1 Motion Detection [CH 1] 2012-01-01 00:02:18

Log Information

System Log

Search Day 2012-01-01 ~ 2012-01-02

No. User Date/Time

First Page

Event Log

Last Page

CH All CHs Type View all

Event Log

Last Page

Backup Log

Previous/Next Page

44_ main menu

Page 45

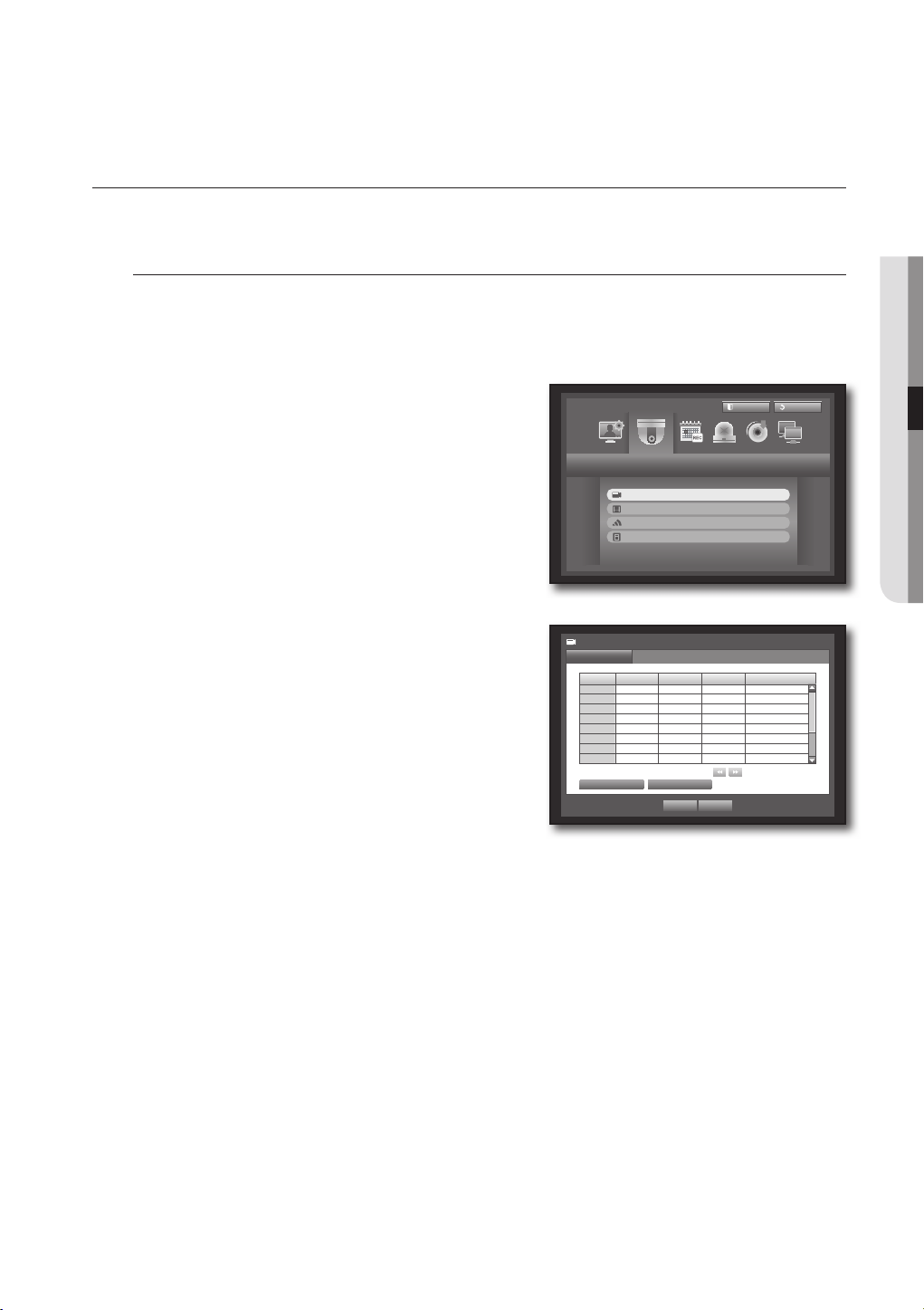

SETTING THE DEVICE

You can configure the settings of: Camera, Storage Device, Remote Device and Monitor.

Camera

Setting the Camera

You can set Video, Audio, Channel Name and Dwell Time of a Camera.

Using the mouse may help make setup easier.

1. Press the [MENU] button on the remote control.

_ +

2. Use the left/right button (

Device setting menu is selected.

3. Use the up/down buttons ( and press [ENTER] button.

4. Select <Camera>. You will see a window where you can configure the camera settings including Video, Audio, Channel Name, SEQ-Dwell Time and Privacy Region.

5. Use direction buttons ( item, and set the value.

• Video

- <ON/OFF> : You can turn ON/OFF the selected channel’s

camera.

- <Covert1> : Shows information other than the video of

the selected channel.

For privacy protection, it does not display the video while the recording continues.

- <Covert2> : Shows nothing but an empty screen while the recording continues.

• Audio

- If set to <ON>, you can turn the audio of the channel ON on the Live screen.

- If set to <OFF>, the channel’s audio is off on the Live screen and not recorded.

• CH Name : Up to 15 characters including blanks are allowed.

Refer to “Using Virtual Keyboard”. (Page 36)

• SEQ-Dwell Time : You can set the dwell time between channels for the Live screen.

If set to <OFF>, the channel is not listed in the Auto Sequence mode.

) to select <Device>.

) to move to <Camera>,

$%_ +

) to move to a desired

Camera

CH Video  Audio  CH Name SEQ-Dwell Time

1 ON  OFF  CAM 01 5 sec

2 ON  OFF  CAM 02 5 sec

3 ON  OFF  CAM 03 5 sec

4 ON  OFF  CAM 04 5 sec

5 ON  OFF  CAM 05 5 sec

6 ON  OFF  CAM 06 5 sec

7 ON  OFF  CAM 07 5 sec

8 ON  OFF  CAM 08 5 sec

Screen Setup

Device

Camera

Storage Device

Remote Device

Monitor

Privacy Region

OK Cancel

Logout

Previous/Next Page

Return

! MAIN MENU



English _45

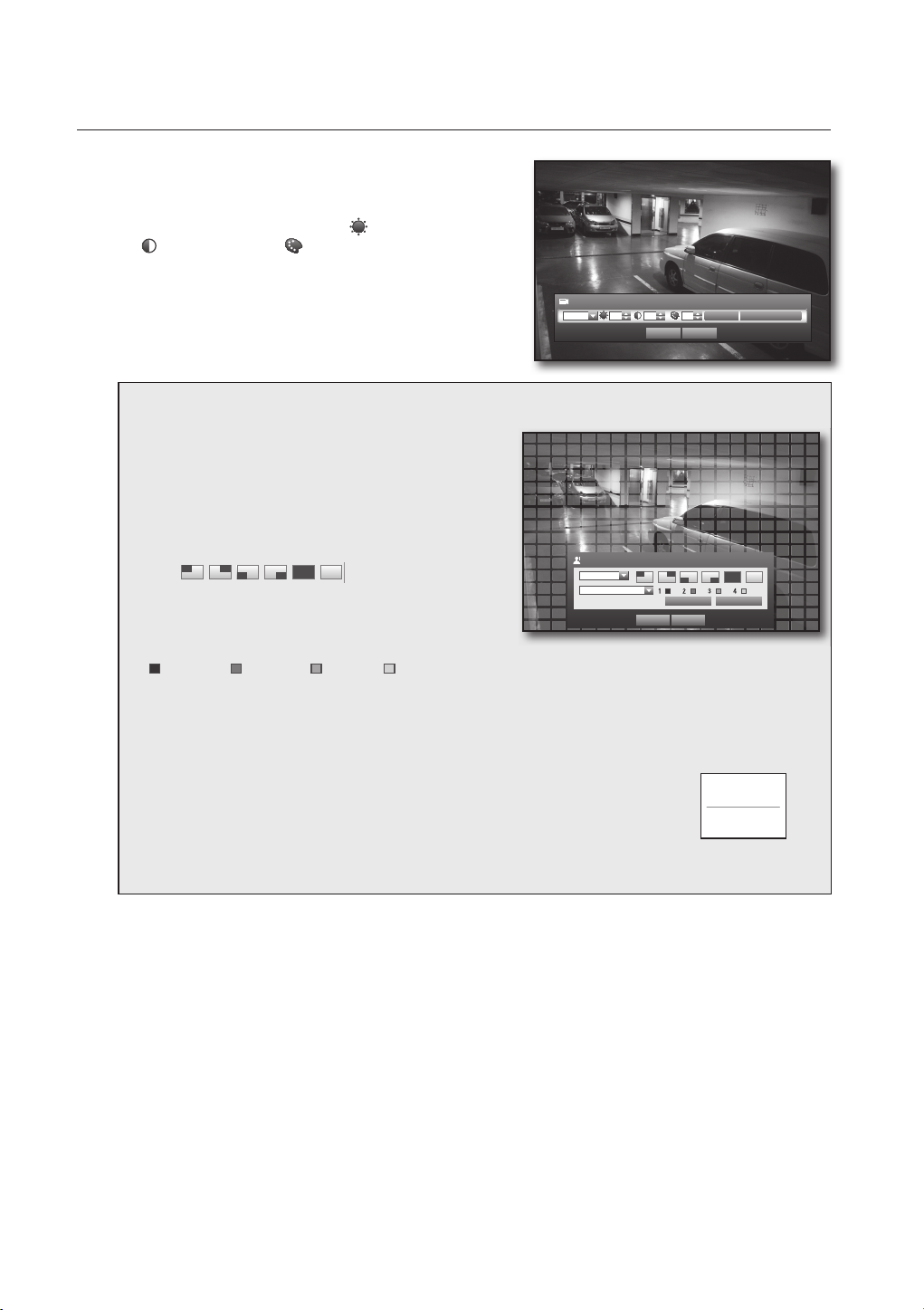

Page 46

main menu

• Screen Setup : The video appeared on the screen may vary depending on the channel’s camera, configure the DVR display to your preferences. Select a channel and adjust the <(Brightness)>, <

(Contrast)>, and <(Color)> of the selected channel.

Press the <Init> to initialize settings back to the default 50.

• Privacy Region : You can specify a certain area of the camera video to be protected for your privacy.

6. When the camera setup is done, press <OK>.

To set the privacy region



Select <Privacy Region>.



When “Privacy Region” window appears, select a

channel for detection and set the area of motion detection.

• To set the area in “Privacy Region” window

In the “Privacy Region” window, select desired region from <

• Privacy Region

You can specify up to 4 privacy zones for each channel, which can be identified by the color.

Purple 2 Green 3 Blue 4 Yellow

• To set the area using <Individual> selection

When selected <Individual>, “Privacy Region” window disappears and you can select cells one by one. When the motion area setup is done, Right-click to select <Menu> in the context menu or the [MENU]

button on the remote control to display the “Privacy Region” window again.

- Clear All : Selected cell is removed from the Privacy Region.

- Menu : After selecting individual motion areas, move to the “Privacy Region”

window.

If selected <Apply to All CH>, selected motion area is applied to all channels.

When completing the privacy zone settings, click <OK>.



Screen Setup

CH1 50 50 50

Privacy Region

CH1

Privacy Region1

OK Cancel

Individual

Init Apply to All CH

Apply to All CH

Clear All

46_ main menu

Page 47

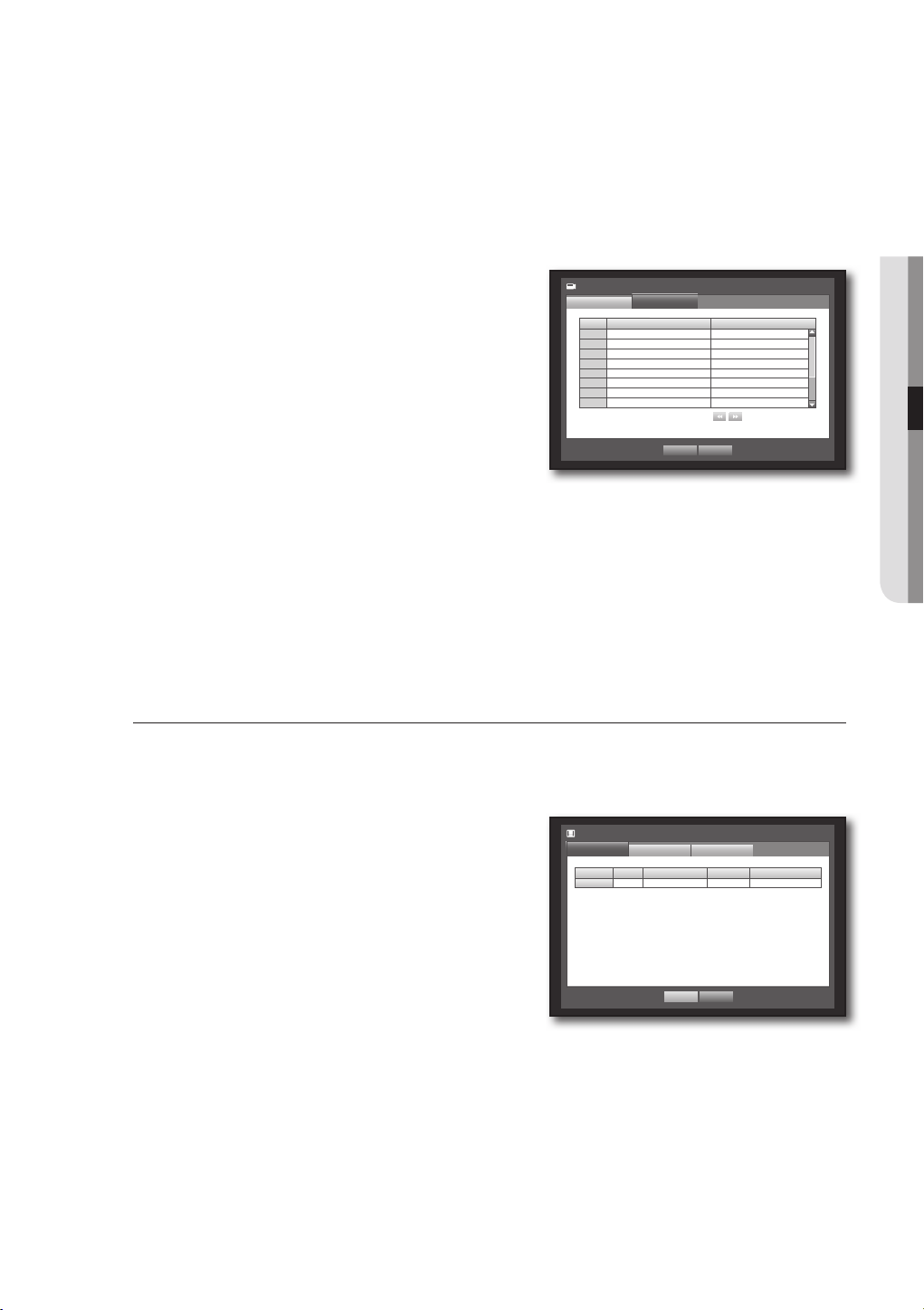

Setting the PTZ

To use Camera’s PTZ functions, ID and protocols of each camera and DVR should be matched. For other settings, refer to the “Remote Devices” settings. (Page 49)

Using the mouse may help make setup easier.

1. Use the up/down buttons ($%) in <Device> window to move to <Camera>, and press [ENTER] button.

2. Select <PTZ>. A window of PTZ settings appears.

3. Use direction buttons (

$%_ +

) to move to a desired

item, and select it.

• ID : Set the ID of the connected camera of each channel.

You can easily setup by using the numeric buttons on the remote control.

• Protocol : Set the protocol of the connected camera of each

channel.

You can check the camera’s ID and protocol if you turn the camera off and on after connecting it to the DVR.

4. When the PTZ setup is done, press <OK>.

Camera

CH ID Protocol

1 0 > None

2 1 > None

3 2 > None

4 3 > None

5 4 > None

6 5 > None

7 6 > None

8 7 > None

PTZ

Previous/Next Page

OK Cancel

! MAIN MENU



Storage Device

You can check information on storage devices.

Confirming Devices

You can check storage devices and their free space, usage as well as status. Devices available are HDD, and USB devices (Memory, HDD).

Using the mouse may help make setup easier.

1. Use the up/down buttons (

) in <Device> window to

move to <Storage Device>, and press [ENTER] button.

2. Select <Device>.

• No. : Shows the assigned number of the internal HDD.

• Used/Total : Shows the used/total capacity of the storage

device.

• Usage : Sets the storage device’s usage.

- USB memory is used only for backups.

• Status/Management : Shows the current status of the HDD, as in Normal/Check/Replace.

- Normal : Available to use

- Check : Available to use but recommended to replace

- Replace : Requires immediate replacement.

3. To move to the previous menu, press <OK>.

Storage Device

Device

Device No. Used/Total Usage Status/Management

HDD 1 3.95G/0.98T Internal Normal

Format

HDD Alarm

OK Cancel

English _47

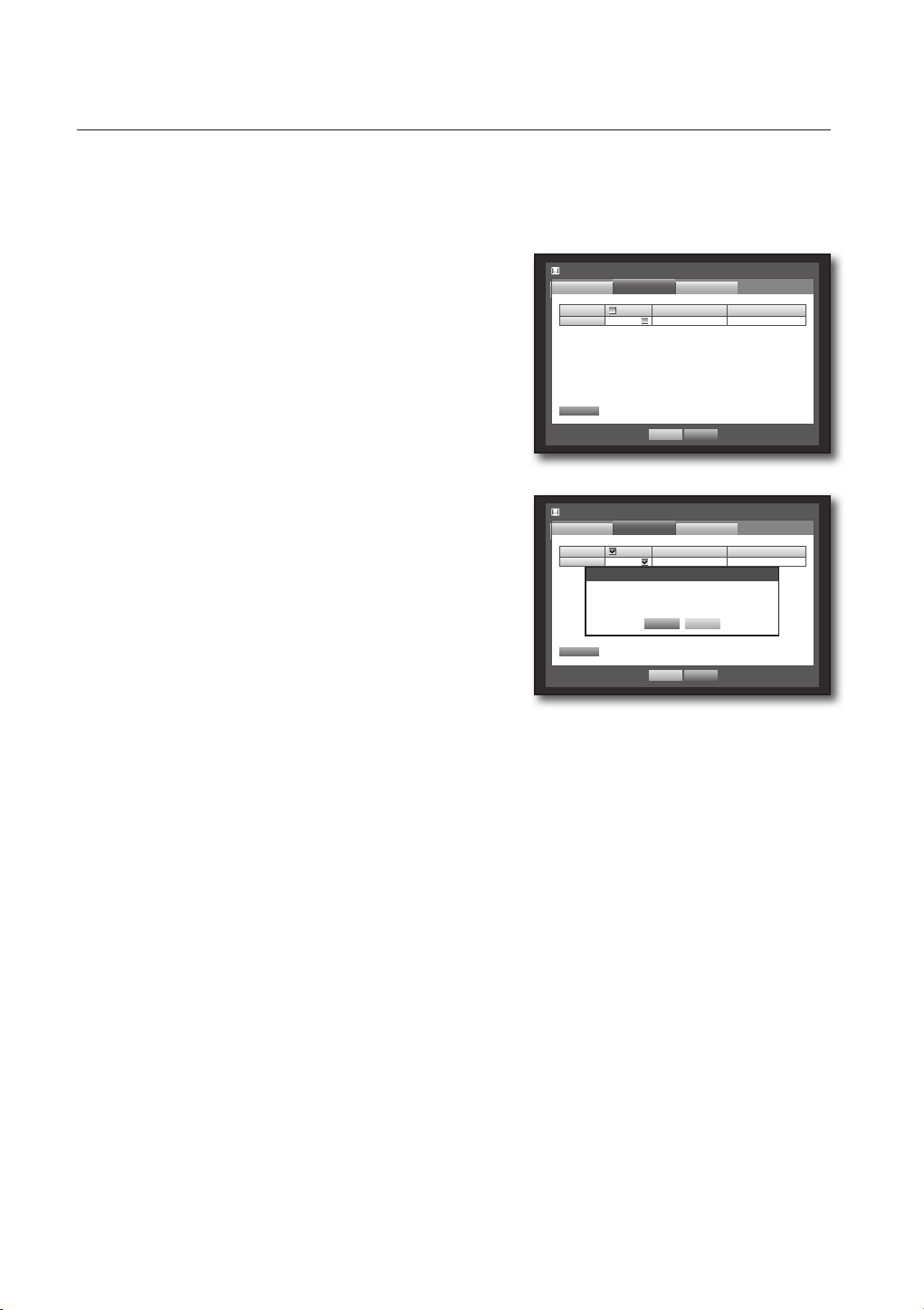

Page 48

main menu

Formatting

You can format a storage device.

Using the mouse may help make setup easier.

1. Use the up/down buttons ( move to <Storage Device>, and press [ENTER] button.

2. Select <Format>. A window for selection of device for formatting appears.

3. Use direction buttons (

$%_ +

formatted.

) in <Device> window to

) to select a device to be

Storage Device

Device

Device Select Used/Total Usage

HDD 1 3.95G/0.98T Internal

Format

OK Cancel

HDD Alarm

4. Select <Format> on the bottom of the screen. Press <OK> on the “Manage” confirmation window will start formatting the selected device.

5. When the formatting is done, press <OK>.

Even when formatted, used HDD space will not be 0 GB due

to the space reserved by the system required for operating.

Storage Device

Device

Device Select Used/Total Usage

HDD 1 3.95G/0.98T Internal

Format

Manage

Format

HDD Alarm

Formatting deletes all recordings.

Proceed formatting?

OK Cancel

48_ main menu

Page 49

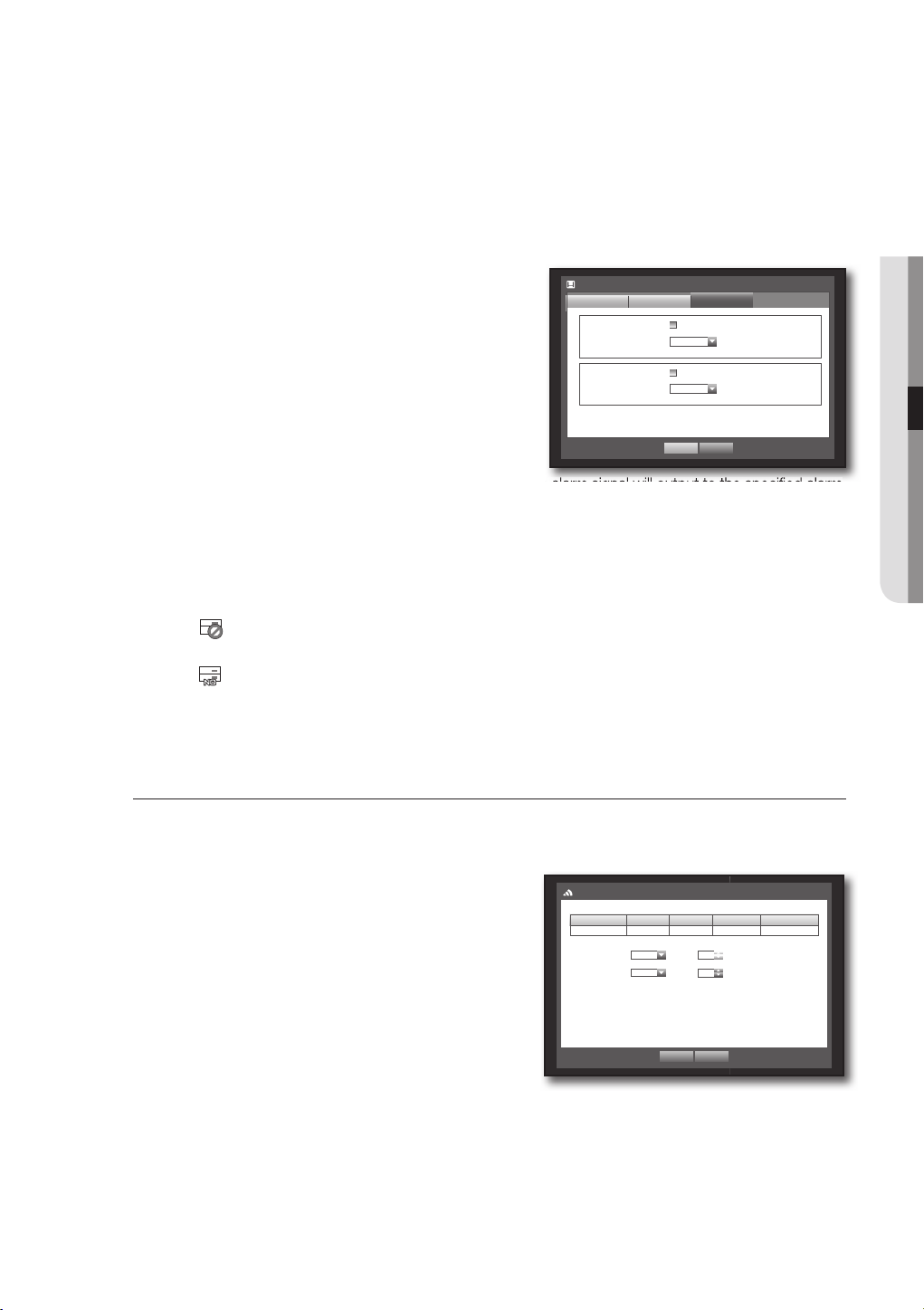

HDD Alarm

You can set alarm settings for HDD defects such as Check Alarm Output Port, Replace Alarm Output Port, and its duration.

Using the mouse may help make setup easier.

1. Use the up/down buttons ( move to <Storage Device>, and press [ENTER] button.

2. Select <HDD Alarm>. A window for setting HDD check and replace output ports and their durations appears.

3. Use direction buttons ( item.

• Alarm

- If <BEEP> was selected, a beep will sound.

• Check Alarm Output Port : If HDD generates check alarm, the alarm signal will output to the specified alarm

output port.

• Replace Alarm Output Port : If HDD generates replace alarm, the alarm signal will output to the specified

alarm output port.

• Duration : Sets the alarm duration for the alarm signal and beep sound.

<Check> status means that the HDD is operating but it has problems that require technical examination.

) appears on the Live screen.

(

<Replace> status means that the HDD has defect and requires immediate replacement. ( ) appears on the Live screen.

$%_ +

) in <Device> window to

) to move to the desired

Storage Device

Device

Check Alarm Output Port



Duration OFF



Replace Alarm Output Port



Duration OFF



Format

OK Cancel

HDD Alarm

BEEP

! MAIN MENU

4. When the HDD Alarm setup is done, press <OK>.

Remote Devices

You can set the RS-485 communication for use of PTZ Camera and system keyboard with the DVR.

Using the mouse may help make setup easier.

1. Use the up/down buttons ( move to <Remote Device>, and press [ENTER] button.

2. Use direction buttons (

$%_ +

item, and press [ENTER] button.

3. Set the values of each communication setup of the remote device.

• Baudrate : Baud rate settings of the DVR, PTZ camera and

system keyboard should be matched for proper operations.

4. Specify the system keyboard and remote control ID, and click <OK>.

For changing the remote control’s ID, refer to “Changing the Remote Control ID”. (Page 14)

) in <Device> window to

) to move to the desired

Remote Device

Baudrate Parity Data Stop Bit Transfer type

9600  None  8

System Keyboard OFF ID 1

Remote Control ON ID 0

OK Cancel



1  Half Duplex

English _49

Page 50

main menu

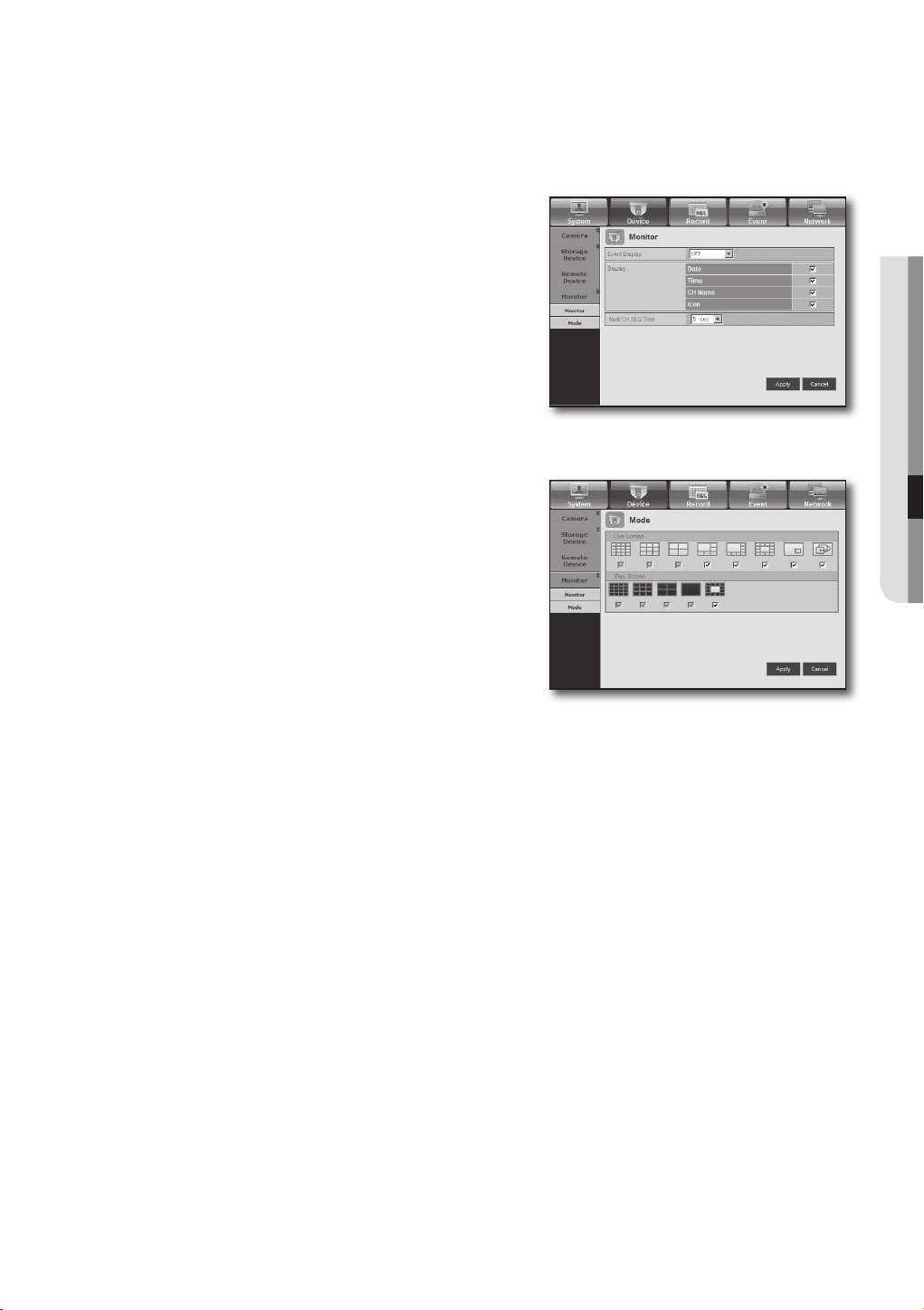

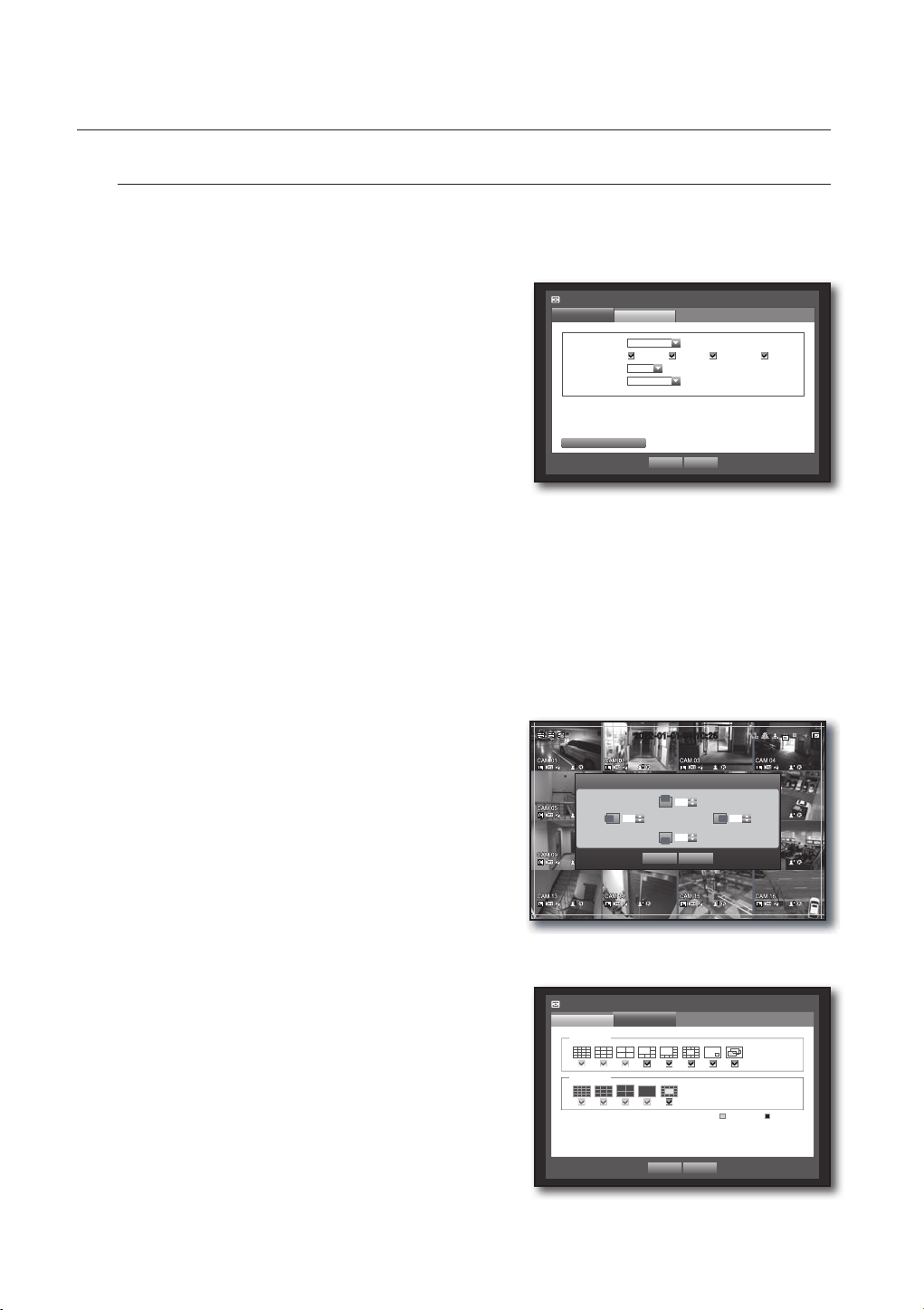

Monitor

You can configure information to be displayed.

Setting the Monitor

Using the mouse may help make setup easier.

1. Use the up/down buttons (

) in <Device> window to

move to <Monitor>, and press [ENTER] button.

2. Select <Monitor>.

3. Use direction buttons (

$%_ +

) to move to a desired

item, and set the value.

• Event Display : Sets the dwell time of the event channel display on the monitor when an event occurs. If selected <Continuous>, it displays the channel until you press [ALARM] button to release it.

• Display : Displays only checked items on the monitor screen.

• Multi CH SEQ Time : Sets the interval between automatic display switching in 4-split and 9-split mode of

the Live screen.

• VGA/HDMI : Set your preferred screen resolution to <VGA> or <HDMI If the monitor does not support selected resolution of <VGA> or <HDMI>, it may not display video properly. When the monitor setup is done, press <OK>.

Monitor

Event Display OFF



Display Date Time CH Name Icon



Multi CH SEQ Time



VGA/HDMI



Display Position Setup

Mode

5 sec

1280x1024

OK Cancel

Setting Display position

Some monitors many not display information (camera name, icon, time information, etc.) about the DVR, depending on the condition. Then, you can change the display position of the data.

1. In the <Device> window, press the up/down (

to move to <Monitor> and press the [ENTER] button.

2. Select the <Monitor> item.

3. Select <Display Position Setup> in the bottom.

You will move to the <Display Position Setup> window.

4. Use the four direction buttons or the number buttons on

the remote control to adjust the data position.

) button

2012-01-01 01:10:25

Display Position Setup

0303

OK Cancel

Setting the Screen Mode

You can configure the Live screen and Split Screens.

1. Use the up/down buttons (

move to <Monitor>, and press [ENTER] button.

2. Select <Mode>.

3. Use direction buttons (

item, and set the value.

• Live Screen : Select split modes for the Live screen. 16-, 9-, and 4-split screens are included by default. SDR-4100 doesn't support 16-split screen mode.

• Play Screen : Select split modes for the playback screen. Only the 13-split screen is optional. Black shows the playback while white shows the Live screen.

4. When the screen mode setup is done, press <OK>.

$%_ +

) in <Device> window to

) to move to a desired

Monitor

Live Screen

Play Screen

Mode

Live Play

OK Cancel

50_ main menu

Page 51

SETTING THE RECORDING

You can setup scheduled recording, event recording and other recording related settings.

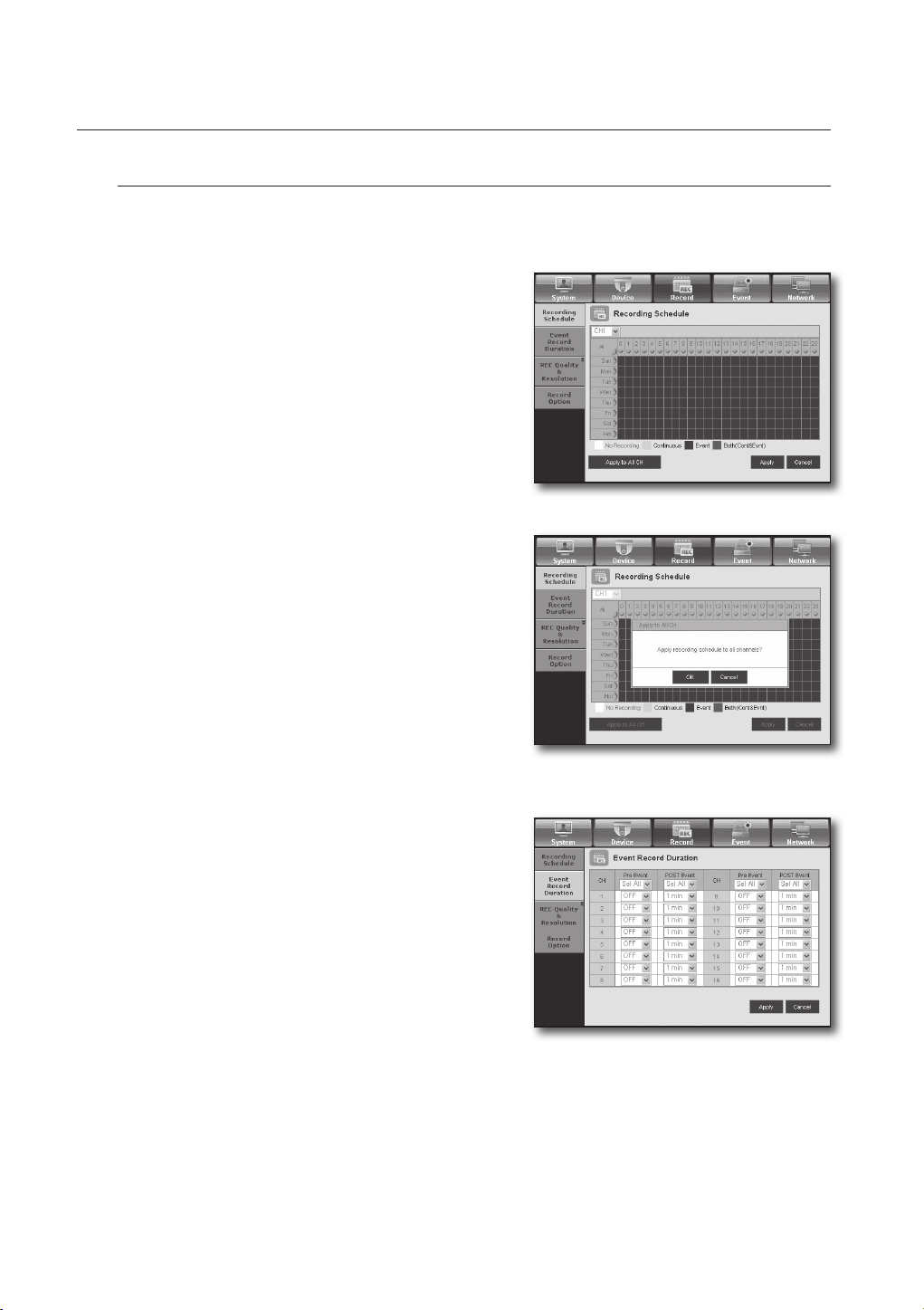

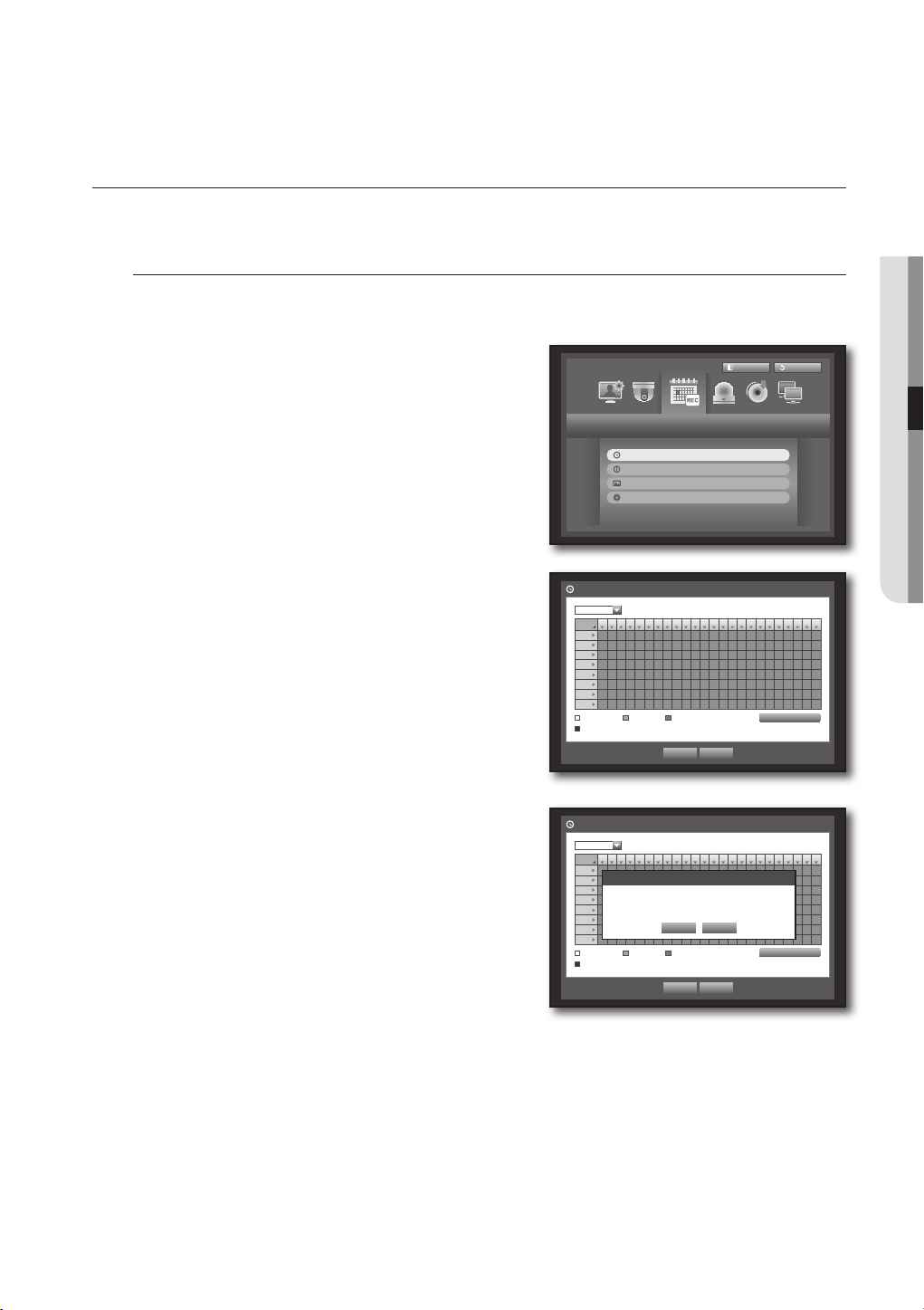

Recording Schedule

Make your reservation on a date and time to schedule the recording on specified time.

Using the mouse may help make setup easier.

1. Press the [MENU] button on the remote control.

_ +

2. Use the left/right button (

Record menu is selected.

3. Use the up/down buttons ( Schedule>, and press [ENTER] button.

4. Select <Recording Schedule>. A window of scheduled recording setup appears.

5. Use direction buttons ( item, and set the value.

) to select <Record>.

) to move to <Recording

$%_ +

) to move to a desired

Recording Schedule

CH1

00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23

All

Sun

Mon

Tue

Wed

Thu

Fri

Sat

Hol

No Recording Continuous Event

Both(Cont&Evnt)

Record

Recording Schedule

Event Record Duration

REC Quality & Resolution

Record Option

OK Cancel

Logout

! MAIN MENU

Return

Apply to All CH

• Apply to All CH : If selected <Apply to All CH>, “Apply to

All CH” window appears. Press <OK> to apply the setup to all channels.

6. When the recording schedule setup is done, press <OK>.

Event recording and scheduled recording starts about 3

seconds prior to the event/schedule for guaranteed recording.

Recording Schedule

CH1

00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23

All

Sun

Apply to All CH

Mon

Tue

Wed

Thu

Fri

Sat

Hol

No Recording Continuous Event

Both(Cont&Evnt)

Apply recording schedule to all channels?

OK Cancel

Apply to All CH

OK Cancel

English _51

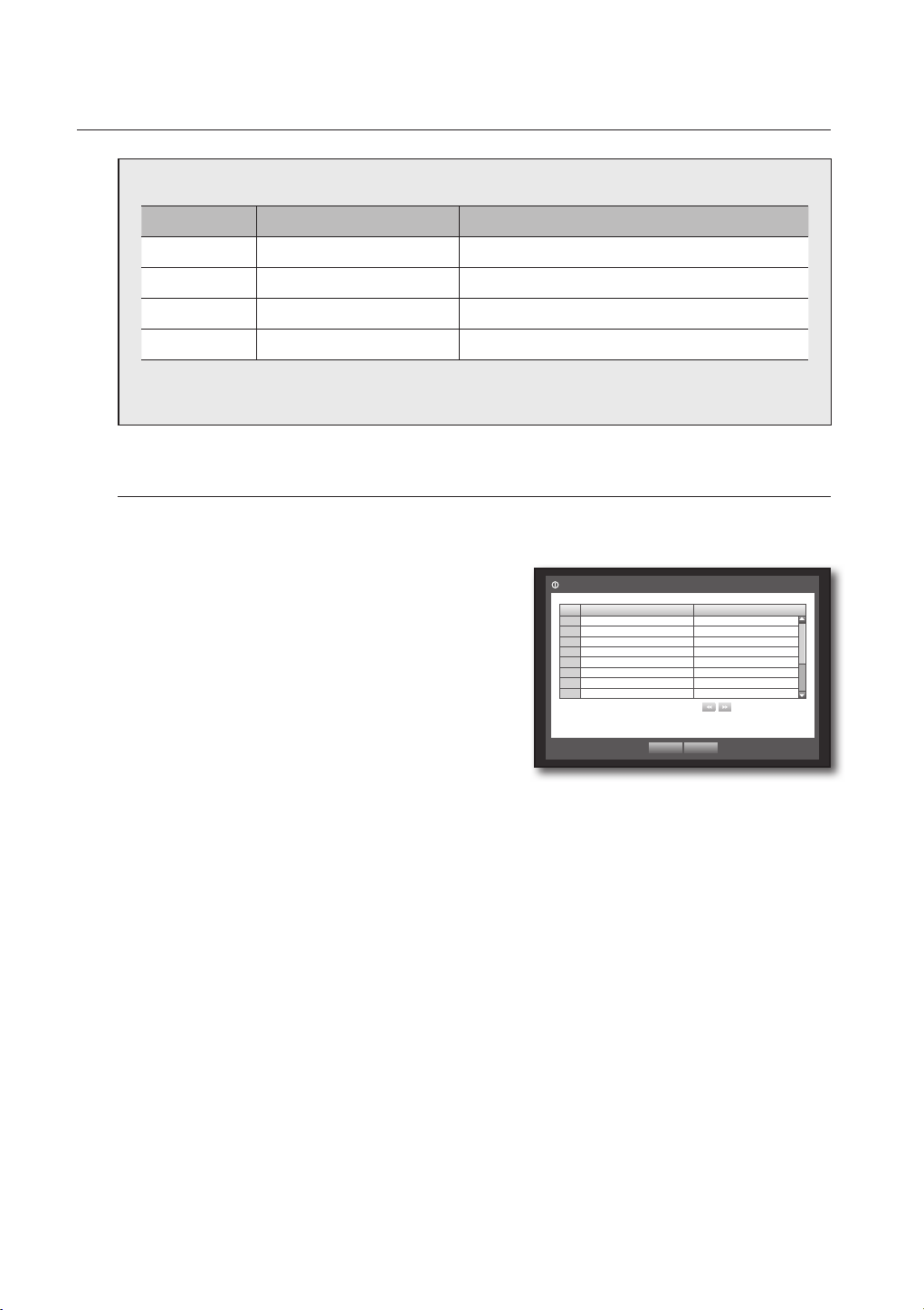

Page 52

main menu

Recording Color Tags

Color Function Description

White No Recording No schedule / event recording

Orange Continuous Scheduled recording only

Blue Event Event recording only

Green Both(Cont&Evnt) Both scheduled / event recordings

Each press of a selected cell will cycle through <No Recording>-<Continuous>-<Event><Both(Cont&Evnt)>.

Event Record Duration

You can set the beginning and ending point of a recording on an event.

Using the mouse may help make setup easier.

1. Use the up/down buttons ( move to <Event Record Duration>, and press [ENTER] button.

2. Use direction buttons (

$%_ +

item, and set the value.

• Pre Event :

The recording of an event will start at a pre-determined time prior to the actual occurrence of the event. If it is set to 5 seconds, the recording begins from 5 seconds before the event.

• POST Event : The recording will continue for a pre-determined time after the actual end of an event. If it is set to 5 seconds, the recording ends in 5 seconds after an event.

) in <Record> window to

) to move to a desired

Event Record Duration

CH Pre Event  POST Event

1 OFF

2 OFF

3 OFF

4 OFF

5 OFF

6 OFF

7 OFF

8 OFF

1 min



1 min



1 min



1 min



1 min



1 min



1 min



1 min



OK Cancel

Previous/Next Page



3. When the event recording duration setup is done, press <OK>.

52_ main menu

Page 53

REC Quality & Resolution

You can set resolution, FPS and quality of recordings by channel, and by recording type of standard / event.

Setting Standard Recording Properties

You can set each channel’s resolution, quality and fps for normal recordings.

Using the mouse may help make setup easier.

1. Use the up/down buttons (

) in <Record> window to move to <REC Quality & Resolution>, and press [ENTER] button.

2. Select <Standard>.

3. When the recording setup is done, press <OK>.

Setting Event Recording Properties

You can set each channel’s resolution, quality and fps for event recordings.

Using the mouse may help make setup easier.

1. Use the up/down buttons ( move to <REC Quality & Resolution>, and press [ENTER] button.

2. Select <Event>. Event recording setup window appears.

3. Use direction buttons (

$%_ +

item, and select it.

• Resolution : Sets the resolution of the recorded screen.

• Record Rate : Frames recorded per second.

• Record Quality : Sets the recording quality.

) in <Record> window to

) to move to a desired

REC Quality & Resolution

Standard

Remaining count : 4CIF(L) : 8 2CIF(M) : 16 CIF(S) : 32

CH Resolution  Record Rate  Record Quality

1 CIF(S)  7fps  Level4

2 CIF(S)  7fps  Level4

3 CIF(S)  7fps  Level4

4 CIF(S)  7fps  Level4

5 CIF(S)  7fps  Level4

6 CIF(S)  7fps  Level4

7 CIF(S)  7fps  Level4

8 CIF(S)  7fps  Level4

REC Quality & Resolution

Standard

Remaining count : 4CIF(L) : 8 2CIF(M) : 16 CIF(S) : 32

CH Resolution  Record Rate  Record Quality

1 4CIF(L)  7fps  Level4

2 4CIF(L)  7fps  Level4

3 4CIF(L)  7fps  Level4

4 4CIF(L)  7fps  Level4

5 4CIF(L)  7fps  Level4

6 4CIF(L)  7fps  Level4

7 4CIF(L)  7fps  Level4

8 4CIF(L)  7fps  Level4

Event

OK Cancel

Event

OK Cancel

Previous/Next Page



! MAIN MENU

The estimated total remaining count means the total number of remaining recordings for both standard and event

recordings.

You cannot increase the remaining count if the current remaining count has reached zero or there is no available remaining count from any other page. If this is the case, reduce the remaining count for the current page, or do so for the same channel on any other page.

4. When the Event recording setup is done, press <OK>.

English _53

Page 54

main menu

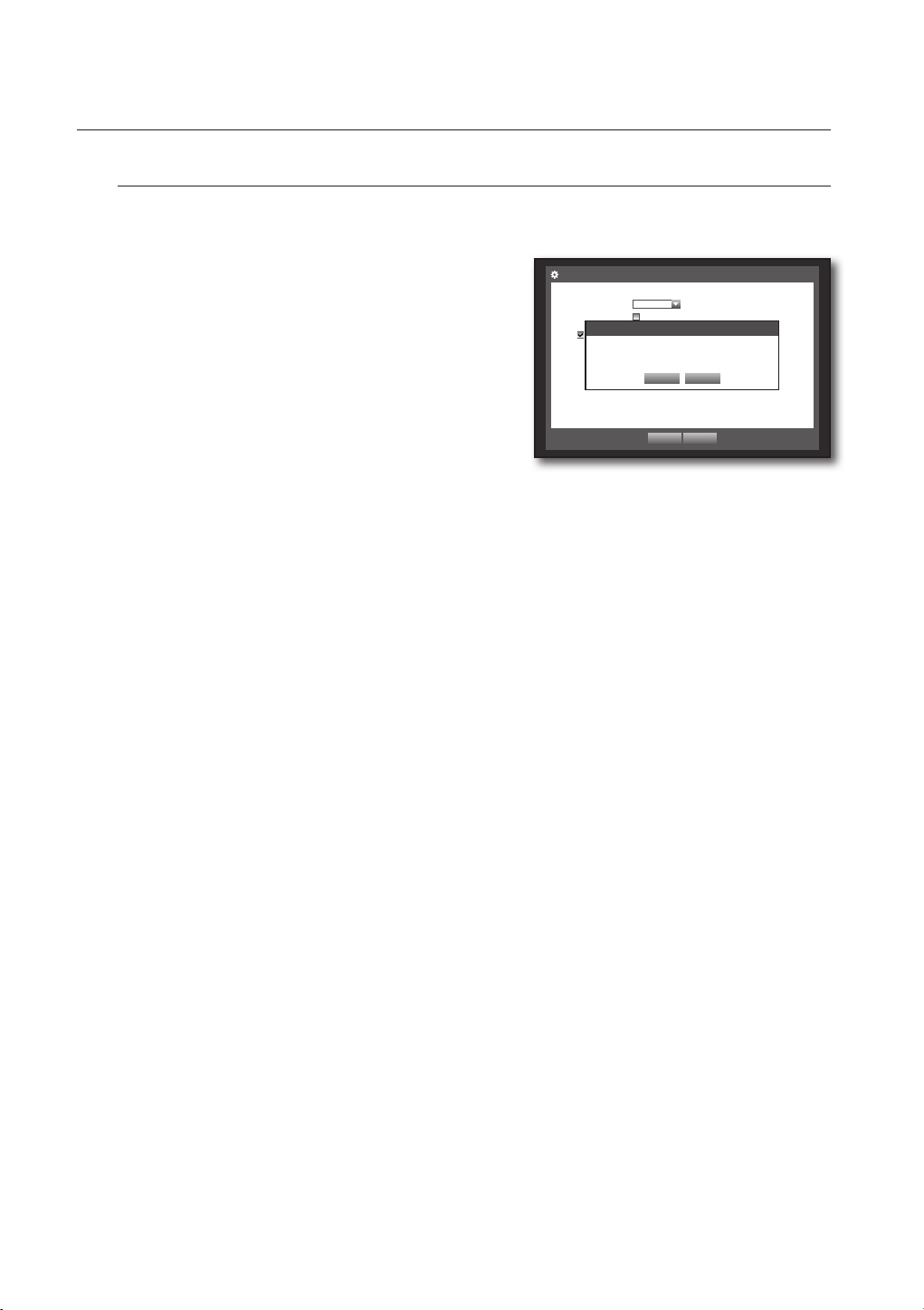

Record Option

You can set the recording to stop or overwrite when the HDD is full.

Using the mouse may help make setup easier.

1. Use the up/down buttons ($%) in <Record> window to move to <Record Option>, and press [ENTER] button.

2. Use direction buttons (

$%_ +

) to move to a desired

item, and set the value.

• Disk End Mode : If selected <Overwrite>, recording will

continue despite the HDD full while overwriting the oldest. If selected <Stop>, the recording will stop when the HDD is full.

• Disk End Beep : If selected <Stop>, the button is activated.

If you check it, the beep will sound on the disk full and the recording stops.

• Auto Delete : If you check it, Record Period setup is activated.

If you specify the auto deletion period, the recording data before the period will be deleted automatically.

This option will be enabled only if Disk End Mode is set to <Overwrite>.

3. When the recording option setup is done, press <OK>.

Record Option

Disk End Mode Overwrite



Disk End Beep

Auto Delete

Auto Delete 180 day



The recording information will be deleted.

Do you want to proceed?

OK Cancel

54_ main menu

Page 55

SETTING THE EVENT

You can set recording options for motion, and video loss event.

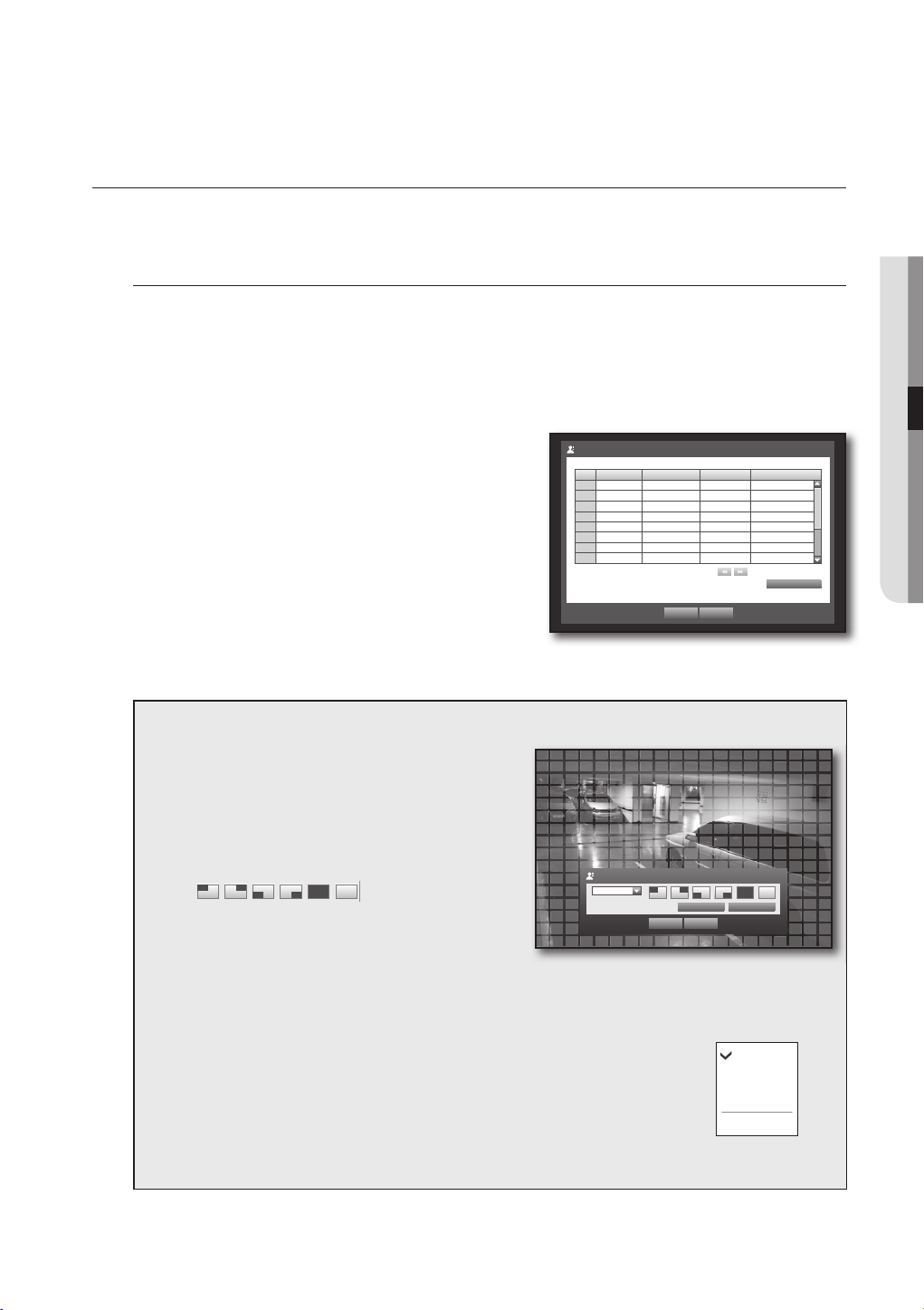

Motion Detection

You can set target detection region and motion, as well as the alarm signal output. When the motion detection region is set, it detects motion within the area.

Using the mouse may help make setup easier.

1. Press the [MENU] button on the remote control.

2. Use the left/right button (◄ ►) to select <Event>. Event setting menu is selected.

3. Use the up/down buttons ( move to <Motion Detection>, and press [ENTER] button. A window of motion detection area setup appears.

• Mode : Sets whether to activate motion detection.

• Sensitivity : Sets the sensitivity level of the motion detection.

• Alarm : Sets the alarm output method.

For further information on alarm output, refer to “HDD Alarm > Alarm”. (Page 49)

• Alarm Duration : Sets the duration of alarm signal and alarm

) in <Event> window to

Motion Detection

CH Mode  Sensitivity  Alarm  Alarm Duration

1 OFF  Level10[High]  None 10 sec

2 OFF  Level10[High]  None 10 sec

3 OFF  Level10[High]  None 10 sec

4 OFF  Level10[High]  None 10 sec

5 OFF  Level10[High]  None 10 sec

6 OFF  Level10[High]  None 10 sec

7 OFF  Level10[High]  None 10 sec

8 OFF  Level10[High]  None 10 sec

OK Cancel

Previous/Next Page

Motion Region

sound. A window of scheduled recording setup appears.

4. When the motion detection setup is done, press <OK>.

Setting the Motion Detection Area



Select <Motion Region>.



When “Motion Region” window appears, select a channel for detection and set the area of motion detection.

• To set the area in “Motion Region” window

In the “Motion Region” window, select desired region from <

• To set the area using <Individual> selection

In the “Motion Region” window, you can select cells individually by using <Individual>. When selected <Individual>, “Motion Region” window disappears and you can select cells one by one.

When the motion area setup is done, press the <Menu> on the screen or the [MENU] button on the remote control to display the “Motion Region” window again.

- Select : Selected cell is set to be a part of motion detection area.

- Unselect : Selected cell is removed from the motion detection area.

- Inverse : Unselected cells are set to be the motion detection area.

- Menu : After selecting individual motion areas, move to the “Motion Region” window.

If selected <Apply to All CH>, selected motion area is applied to all channels.



When the motion detection setup is done, press <OK>.

Motion Region

CH1

Individual

OK Cancel

Apply to All CH

Select

Unselect

Inverse

! MAIN MENU



English _55

Page 56

main menu

Video Loss Detection

You can set the alarm to be generated on a camera disconnection, which causes a video loss.

Using the mouse may help make setup easier.

1. Use the up/down buttons ($%) in <Event> window to move to <Video Loss Detection>, and press [ENTER] button. A window of video loss detection area setup appears.

2. Use direction buttons (

$%_ +

) to move to a desired

item, and set the value.

• Video Loss State : Sets whether to activate video loss

detection.

• Alarm : Sets the alarm output method.

For further information on alarm output, refer to “HDD Alarm > Alarm”. (Page 49)

• Alarm Duration : Sets the duration of alarm signal and alarm sound.

• Help : Displays a help message that will appear if a video loss event occurs.

3. When the video loss detection setup is done, press <OK>.

Alarm Schedule

Video Loss Detection

CH Video Loss State  Alarm  Alarm Duration

1 OFF  None 10 sec

2 OFF  None 10 sec

3 OFF  None 10 sec

Help

4 OFF  None 10 sec

5 OFF  None 10 sec

6 OFF  None 10 sec

7 OFF  None 10 sec

8 OFF  None 10 sec

If a video loss event occurs during the event

recording, the POST recording settings of the

applicable channel will be reset.

OK Cancel



Previous/Next Page



Help

You can set the conditions and operating hours for scheduled alarms.

Using the mouse may help make setup easier.

1. Use the up/down buttons ($%) in <Event> window to move to <Alarm Schedule>, and press [ENTER] button.

2. A window of <Alarm Schedule> settings appears.

• Alarm : Sets the alarm output method.

For further information on alarm output, refer to “HDD Alarm > Alarm”. (Page 49)

• <ON> : Marked in orange, and always generates alarm on

Alarm Schedule

BEEP

00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23

All

Sun

Mon

Tue

Wed

Thu

Fri

Sat

Hol

OFF ON Event Sync

scheduled time.

• <OFF> : Marked in white, no alarm is generated even if an

event occurs.

• Event Sync : Marked in Blue, generates alarm only when an event occurs.

When the alarm is generated on the scheduled time, you can stop the alarm by canceling the schedule.

3. When the Alarm Schedule setup is done, press <OK>.

Apply to All Alarm

OK Cancel

56_ main menu

Page 57

BACKUP

You can check the backup device and set the backup schedule by channel or by time. The product only supports external HDD of USB memory and USB type. (Page 112)

Setting the Backup

You can backup the desired data to a connected device.

Using the mouse may help make setup easier.

! MAIN MENU

1. Press the [MENU] button on the remote control.

_ +

2. Use the left/right button (

) to select <Backup>.

Logout

Return

Backup menu is selected.

Backup

3. Press the [ENTER] button.

A backup window appears. You can directly access it from the “Live screen menu”. (Page 24)

4. Use direction buttons (

$%_ +

) to move to a desired

item, and set the value.

• Backup Range : Sets the <Start> and <End> time for the

backup.

• Channel : Sets the channel to backup.

Backup

Start  End



2012-01-01 00:01:06 ~ 2012-01-01 08:25:45

Overlap List0



1 2 3 4 5 6 7 8

All

9 10 11 12 13 14 15 16

Device USB-Storage



Folder \20120101\



Check capacity

OK Cancel

Type DVR



Filename 0001



Backup

Used

Free

Change

You can select multiple channels.

• Device : Select a backup device from the recognized devices.

• Type : Sets the backup data format.

- DVR : Saved data can be played back only by the DVR.

- SEC : Saves data in the Samsung’s proprietary format with built-in viewer, which supports immediate playback on a PC.

• Filename : You can set the back file name.

Refer to “Using Virtual Keyboard”. (Page 36)

• Check capacity : Shows the size of the selected backup data, used and available capacity of the selected backup device.

• Overlap : Shows a list of overlapping data on a same time according to the number of data. It appears when one channel has multiple data on a certain time point due to changing of time or time zone settings, etc.

Refer to time and time zone of “Setting the Date/Time/Language”. (Page 33)

English _57

Page 58

main menu

5. When the backup setup is done, press <OK>.

If no available device is recognized for backup, <OK> button is not activated.

The application may slow down during the backup.

You can switch to the menu screen during the backup in operation, but playback of data is not available.

When a memory device is used for backup, it is not available to use the full capacity of the media because the system consumes a portion of its capacity.

Pressing the <Exit> during the backup will return to the previous menu, while the backup progresses.

NETWORK CONFIGURATION

It provides networked monitoring of Live screen from a remote place, and supports mail forwarding function with events. You can configure the network environment which enables such functions.

Connection Mode

You can set the network connection route and protocol.

Setting the Connection

Sets the protocol and environment of the network.

Using the mouse may help make setup easier.

1. Press the [MENU] button on the remote control.

_ +

2. Use the left/right button (

) to select <Network>.

Network menu is selected.

3. Use the up/down buttons (

) to move to <Connection

Mode>, and press [ENTER] button.

4. Select <Connection>.

A window of connection mode setup appears.

5. Use direction buttons (

$%_ +

) to move to a desired

item, and set the value.

• Connection Mode : Sets the network connection mode.

• Bandwidth : Sets the maximum data flow to be transferred.

(Upload speed) Options will vary depending on the selected connection mode.

- For <Static IP>, <Dynamic IP> : Select one from

50 kbps ~ 2Mbps, and Unlimited.

- For <ADSL>, select one from 50 kbps ~ 600 kbps.

Connection Mode

DDNS

Live Transfer

Mailing Service

Connection Mode

Connection

Connection Mode Static IP



Bandwidth 2Mbps



IP 192.168.1.200



Gateway 192.168.1.1



Subnet Mask 255.255.255.0



DNS Manual 168.126.63.1



Protocol

OK Cancel

Logout

Return

Network

58_ main menu

Page 59

• IP, Gateway, Subnet Mask, and DNS

- For <Static IP> : You can directly input IP address,

Gateway, Subnet Mask and DNS.

- For <Dynamic IP> : IP address, Gateway, and Subnet

Mask are set automatically.

- For <ADSL> : IP address, Gateway, and Subnet Mask are

set automatically.

• User ID, Password : In case you selected ADSL, provide the “User ID” and its “Password”.

DNS server for <Dynamic IP> and <ADSL> can be set by user only if you selected <Manual>.

6. When the connection setup is done, press <OK>.

Setting the Protocol

Connection Mode

Connection

Connection Mode ADSL



Bandwidth 600kbps



IP 192.168. 1. 200



Gateway 192.168.1.1



Subnet Mask 255.255.255.0



DNS Manual 168.126.63.1



User ID ID



Password



Protocol

************

OK Cancel

! MAIN MENU

1. Use the up/down buttons ($%) in <Network> window to

move to <Connection Mode>, and press [ENTER] button.

2. Select <Protocol>.

3. Use direction buttons (

$%_ +

) to move to a desired

item, and set the value.

• Protocol Type : Select the protocol type between TCP and UDP.

If selected UDP, selections of Port (TCP), Port (UDP), and Unicast/

Connection Mode

Connection

Protocol Type TCP



Port(TCP) 4520 ~ 4524



Port(UDP) 8000 ~ 8160



Unicast/Multicast Unicast



Multicast IP 224.126.63.1



TTL 5



Webviewer Port 80



* Multi Browser Support :

TCP Port 4505~4530, Webviewer Port 80

Protocol

OK Cancel

Multicast are activated.

• Port (TCP) : Initially, <4520~4524> is set. It increases / decreases by 5.

- TCP : It has better stability and lower speed when compared to UDP, and recommended for internet environments.

• Port (UDP) : Initially, <8000~8160> is set. It increases / decreases by 160.

- UDP : It has less stability and faster speed when compared to TCP, and recommended for local area network (LAN) environments.

• Unicast/Multicast : Select one between Unicast and Multicast. If selected Multicast, Multicast IP and TTL are activated.

- Unicast : Transfers data (UDP, TCP) individually to each connecting client.

- Multicast : Multiple client can receive the data (only in UDP) without putting additional traffic load to the network.

• Multicast IP : User can directly input.

• TTL : Select from 0 ~ 255. Initial value for the TTL is set to <5>.

• Webviewer Port : Enter the port number for the Web Viewer. Initially, it is set to <80>.

• Multi Browser Support : You can use a Silverlight-compliant web browser to connect to the Web Viewer.

Multi browsers are enabled only if the TCP port is set to between 4505 and 4530 with the Web Viewer port of 80. This is a security measure in order to enable Silverlight.

As UDP protocol may cause a packet loss on the network, it is recommended to use TCP protocols.

If you select UDP protocols and set port forwarding in the IP router, ending up with an unstable network connection, configure the DMZ settings in the IP router as necessary.

4. When the protocol setup is done, press <OK>.

English _59

Page 60

main menu

Notification

In a multi-browser environment, the web port should be set to 80 (private port).

Select one between 4505 and 4530 for RTSP

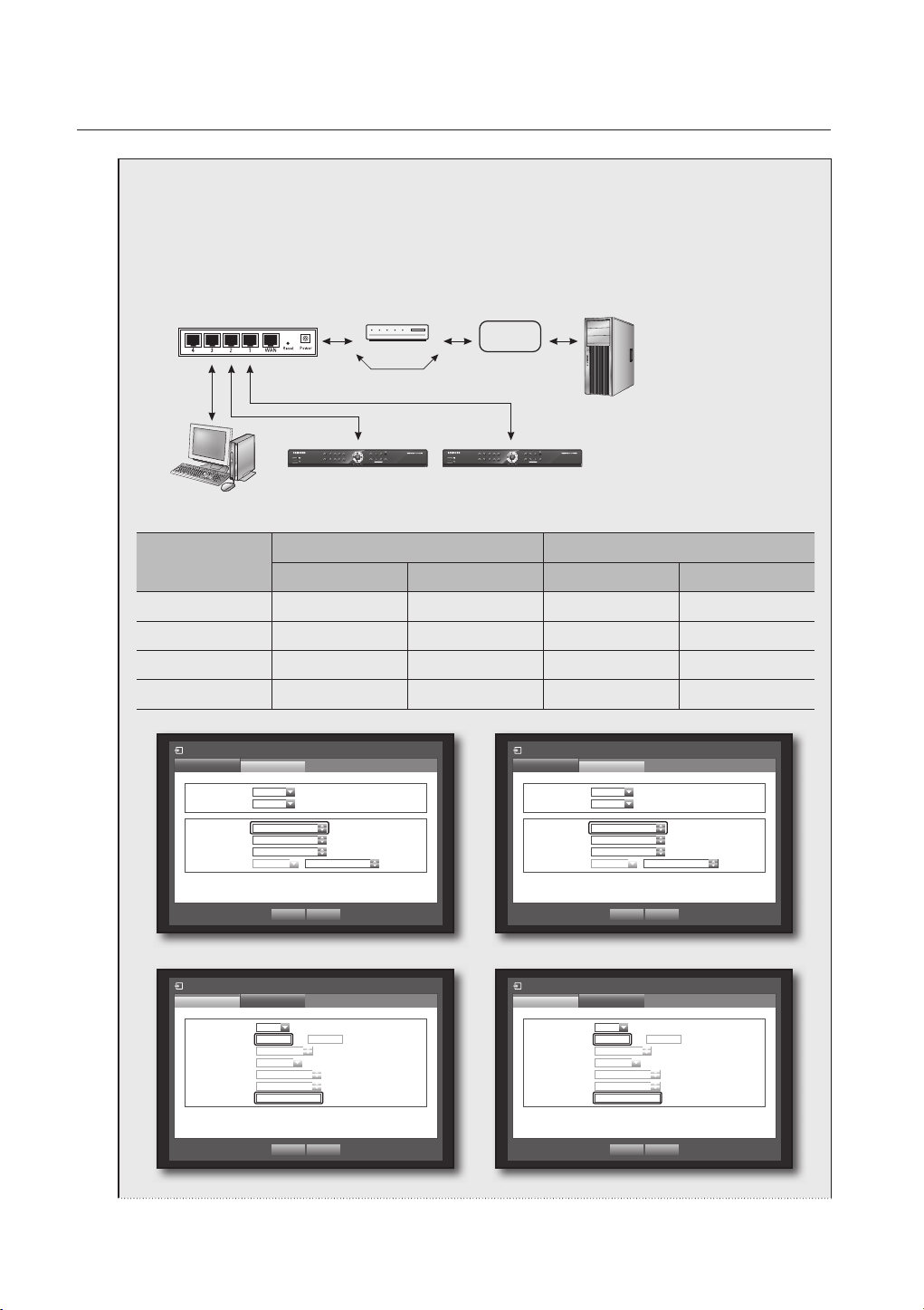

• Network Overview

Router (External IP: 109.112.92.133,

Local IP: 192.168.1.1

Cable/ADSL

Modem

Internet

DDNS Server (www.samsungipolis.com)

+/

REC

MODE

0/10

ALARM

HDD

POWER

ALARM

DVR 1

REC

+/

0/10

MODE

ALARM

HDD

ALARM

POWER

DVR 2

Local PC

DVR 1 DVR 2

System

WEB RTSP WEB RTSP

IP 192.168.1.200 192.168.1.200 192.168.1.202 192.168.1.202

Protocol TCP TCP TCP TCP

Private Port 80 4520~4524 81 4525~4529

Public Port 80 4520~4524 81 4525~4529

Connection Mode

Connection

Connection Mode Static IP



Bandwidth 2Mbps



IP 192.168.1.200



Gateway 192.168.1.1



Subnet Mask 255.255.255.0



DNS Manual 168.126.63.1



Protocol

OK Cancel

Connection Mode

Connection

Connection Mode Static IP



Bandwidth 2Mbps



IP 192.168.1.202



Gateway 192.168.1.1



Subnet Mask 255.255.255.0



DNS Manual 168.126.63.1



Protocol

OK Cancel

60_ main menu

Connection Mode

Connection

Protocol Type TCP



Port(TCP) 4520 ~ 4524



Port(UDP) 8000 ~ 8160



Unicast/Multicast Unicast



Multicast IP 224.126.63.1



TTL 5



Webviewer Port 80



* Multi Browser Support :

TCP Port 4505~4530, Webviewer Port 80

Protocol

OK Cancel

Connection Mode

Connection

Protocol Type TCP



Port(TCP) 4525 ~ 4529



Port(UDP) 8000 ~ 8160



Unicast/Multicast Unicast



Multicast IP 224.126.63.1



TTL 5



Webviewer Port 81



* Multi Browser Support :

TCP Port 4505~4530, Webviewer Port 80

Protocol

OK Cancel

Page 61

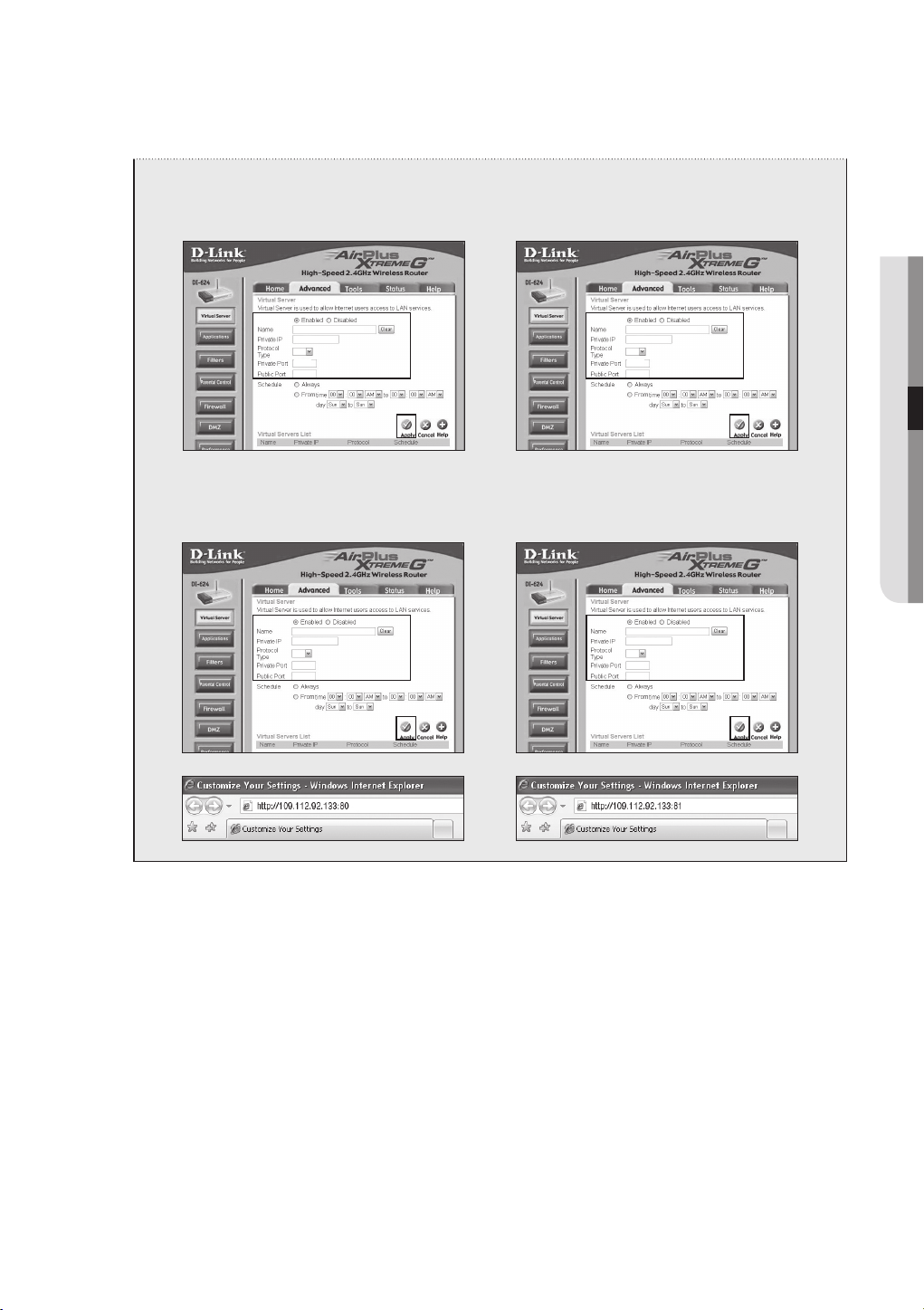

• 1st Set Port Forwarding Setting

Port Forwarding is 4520~4524

(4520, 4521, 4522, 4523, 4524)

Port Forwarding is 80

! MAIN MENU

SDR-5100

192. 168. 1. 200

TCP

4520

• 2nd Set Port Forwarding Setting

Port Forwarding is 4525~4529

(4525, 4526, 4527, 4528, 4529)

SDR-5100

192. 168. 1. 202

TCP

4525

SDR-5100

192. 168. 1. 200

TCP

Port Forwarding is 81

SDR-5100

192. 168. 1. 202

TCP

English _61

Page 62

main menu

Connecting and Setting the Network

Networking may differ from the connection method, check your environment before setting the connection mode.

When no router is used

• Static IP mode

- Internet connection : Static IP ADSL, leased line, and LAN environments allows connection between the DVR and remote user.

- DVR Network Settings : Set the <Connection Mode> in <Connection> menu of the connected DVR to <Static IP>.

Consult your network manager for IP, Gateway and Subnet Mask.

• Dynamic IP (DHCP) mode

- Internet connection : Connect the DVR directly to a cable modem, DHCP ADSL modem or FTTH network.

- DVR Network Settings : Set the <Connection Mode> in <Connection> menu of the connected DVR to <Dynamic IP>.

Connection Mode

Connection

Connection Mode Static IP



Bandwidth 2Mbps



IP 192.168.1.200



Gateway 192.168.1.1



Subnet Mask 255.255.255.0



DNS Manual 168.126.63.1



Protocol

OK Cancel

• ADSL (PPPoE: ID and password certification)

- Internet connection : An ADSL modem is directly connected to the DVR, where the ADSL connection requires user ID and password.

- DVR Network Settings : Set the <Connection Mode> in <Connection> menu of the connected DVR to <ADSL>.

<User ID> and <Password> should be the same to the ADSL user information. If you don’t know the ID and password, consult your ADSL service provider.

Connection Mode

Connection

Connection Mode ADSL



Bandwidth 600kbps



IP 192.168.1.200



Gateway 192.168.1.1



Subnet Mask 255.255.255.0



DNS Manual 168.126.63.1



User ID ID



Password



Protocol

************

OK Cancel

62_ main menu

Page 63

When a router is used

To avoid IP address conflict with the DVR's static IP, check followings :

• Setting the DVR with a static IP

- Internet connection : You can connect the DVR to a router which is connected to an ADSL/Cable modem or a router in a Local Area Network (LAN) environment.

• Setting the DVR Network

1. Set the <Connection Mode> in <Connection> menu of the connected DVR to <Static IP>.

2. Check whether the set IP address is in the static IP range provided by the IP router.

IP, Gateway, and Subnet Mask : Consult your network manager.

Check whether the set IP address is in the static IP range provided by the IP router.

If a DHCP server is configured with starting address (192.168.0.100) and end address (192.168.0.200), you should

set the IP address out of the configured DHCP range (192.168.0.2 ~ 192.168.0.99 and 192.168.0.201 ~

192.168.0.254).

3. Check the Gateway address and subnet mask are equal to those set in the IP router.

• Setting the DHCP IP Address of the IP router

1. To access the IP router’s configurations, open a web browser on the local PC that is connected to the IP

router and enter the router’s address (ex : http://192.168.1.1).

2. At this stage, make the local PC's windows network configurations to the below example :

Ex) IP : 192.168.1.2

Subnet Mask : 255.255.255.0 Gateway : 192.168.1.1

- Once connected to the IP router, it prompts with password. While entering nothing to the User Name field, enter “admin” into the password field and press <OK> to access the router configurations.

- Access the router’s DHCP configuration menu and set its DHCP server activation, and provide the start and end address. Set the start address (192.168.0.100) and end address (192.168.0.200).

! MAIN MENU

Above steps may differ from the router devices depending on the manufacturer.

English _63

Page 64

main menu

• Setting Router’s Port Forwarding

1. Set the protocol to <TCP>.

2. External Port Range : Enter the TCP Port set in the

<Port(TCP)> in <Protocol> menu of the connected DVR. If more than one DVRs are connected to the router, the TCP port can be different.

3. Internal PC IP Address : Enter the IP address set to the <IP> in <Connection> menu of the connected DVR.

4. Internal Port Range : Set the same to the “External Port Range”.

Above steps may differ from the router devices depending on the manufacturer.

Port forwarding is required when you want to access the DVR connected to the router from outside of the router’s network.

❖ In case of Port Forwarding Setting

1. Download the program. Install it in your PC. Run <Simple Port Forwarding>.

To download visit http://www.simpleportforwarding.com/ download

Connection Mode

Connection

Protocol Type TCP



Port(TCP) 4520 ~ 4524



Port(UDP) 8000 ~ 8160



Unicast/Multicast Unicast



Multicast IP 224.126.63.1



TTL 5



Webviewer Port 80



* Multi Browser Support :

TCP Port 4505~4530, Webviewer Port 80

Protocol

OK Cancel

2. 

Click <(2)Do it now> in Check List.



Type your router information. If you can’t find the exact router in the list, update the router list or choose a similar router in the same manufacturer.

3. 

Click the icon for checking your router IP address.





b c



64_ main menu

Page 65



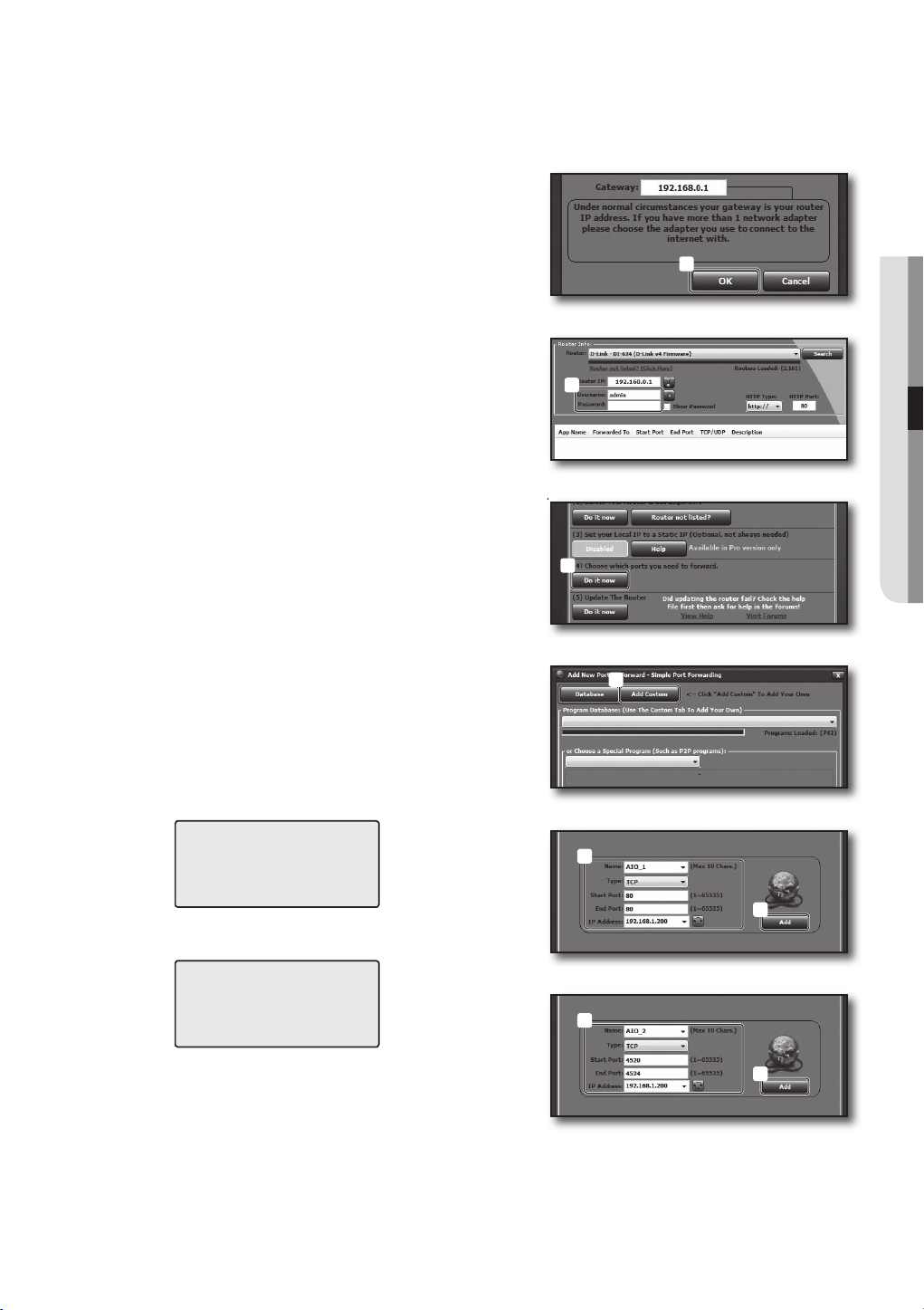

Click <OK> for updating your router IP address.



Type your router Username & Password. If you haven’t changed them, skip this procedure, for it provides default value.

4. 

Click <(4)Do it now> in Check List for choosing the ports.



! MAIN MENU

 Click <OK> for updating your router IP address.

IP Address : 192.168.1.200 Type : TCP Start Port : 80 End Port : 80

IP Address : 192.168.1.200 Type : TCP Start Port : 4520~4524 End Port : 4520~4524







English _65

Page 66

main menu

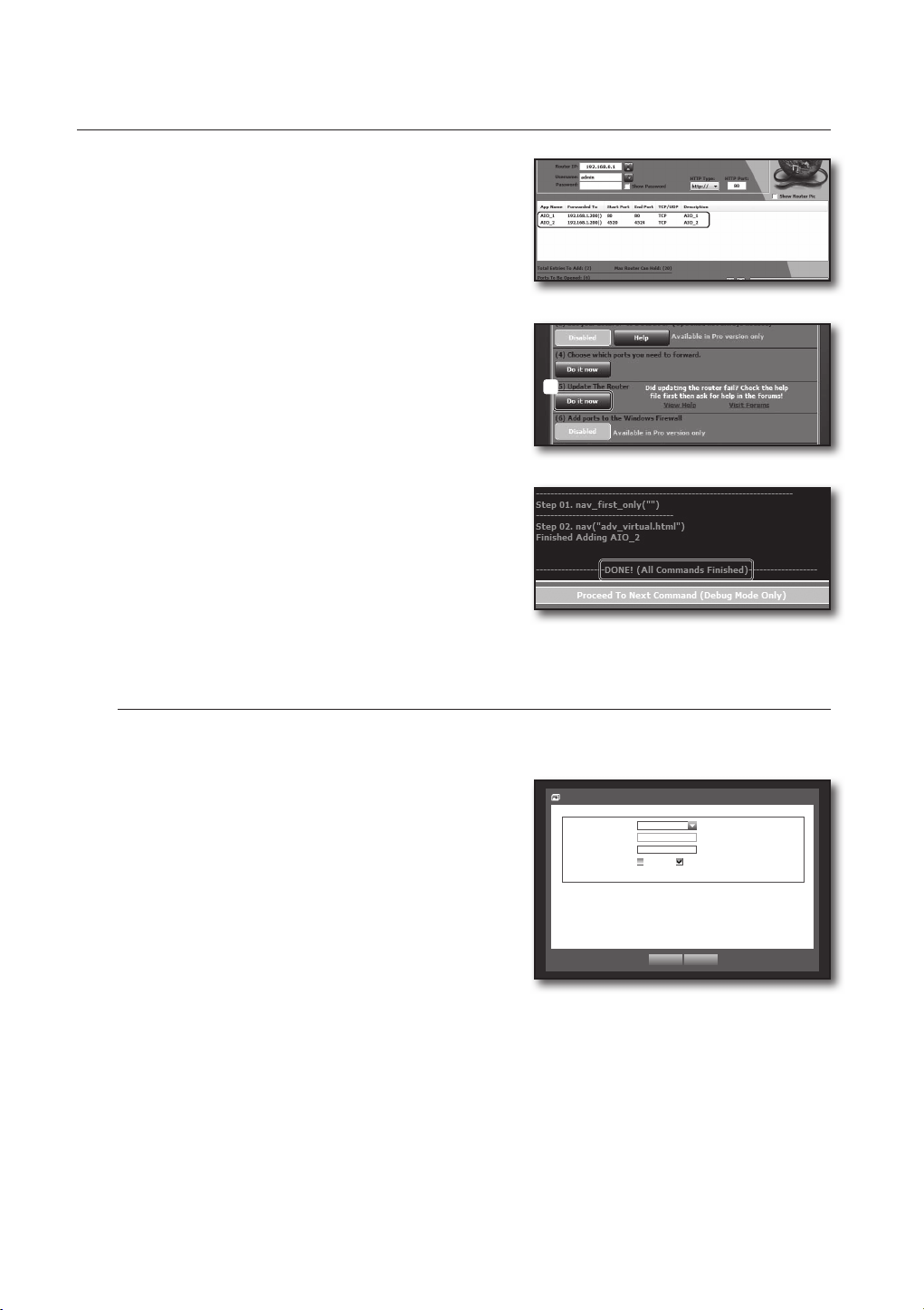

5. After checking if the list is right, click <(5)Do it now> for

updating your router.



DDNS

You can set the DDNS site for a remote user’s network connection.

Using the mouse may help make setup easier.

1. Use the up/down buttons ($%) in <Network> window to move to <DDNS>, and press [ENTER] button.

2. Use virtual keyboard to enter user inputs.

Refer to “Using Virtual Keyboard”. (Page 36)

• If selected <OFF> or <iPOLiS>, input fields are deactivated.

• If you select <iPOLiS>, the “DDNS Host Address” item will

be displayed.

- Type your set ID in <Product ID> field. More specific information is in “iPOLiS DDNS Setting”.

- Select <Use> in <Quick Connect> menu. After finishing “iPOLiS DDNS Setting”, you can connect your DVR set with the address <http://www.samsungipolis.com/ HOMEDVR>.

The router used should support uPNP Port Forwarding function.

Note that uPNP Port Forwarding does not support UDP protocol.

If the program fails to read uPNP Port Forwarding List, try again after restarting the computer and router.

3. When the DDNS setup is done, press <OK>.

DDNS

DDNS Site iPOLiS



Server Name www.samsungip...



Product ID HOMEDVR



Quick Connect Not Use Use



DDNS Host Address http://www.samsungipolis.com/HOMEDVR



OK Cancel

66_ main menu

Page 67

DDNS Setting

DDNS is a short form of Dynamic Domain Naming System. DNS (Domain Name System) is a service that routes a domain name consisting of user friendly characters (ex : www.google.com) to an IP address consisting of numbers (64.233.189.104). DDNS (Dynamic DNS) is a service that registers a domain name and the floating IP address with the DDNS server so that the domain name can be routed to the IP address even if the IP is changed in a dynamic IP system.

• Setting DDNS in the DVR

Set <Protocol Type> in the <Protocol> menu of the connected DVR to the following :

Ex) Protocol Type : TCP

Port (TCP) : 4520~4524 DDNS Site : iPOLiS

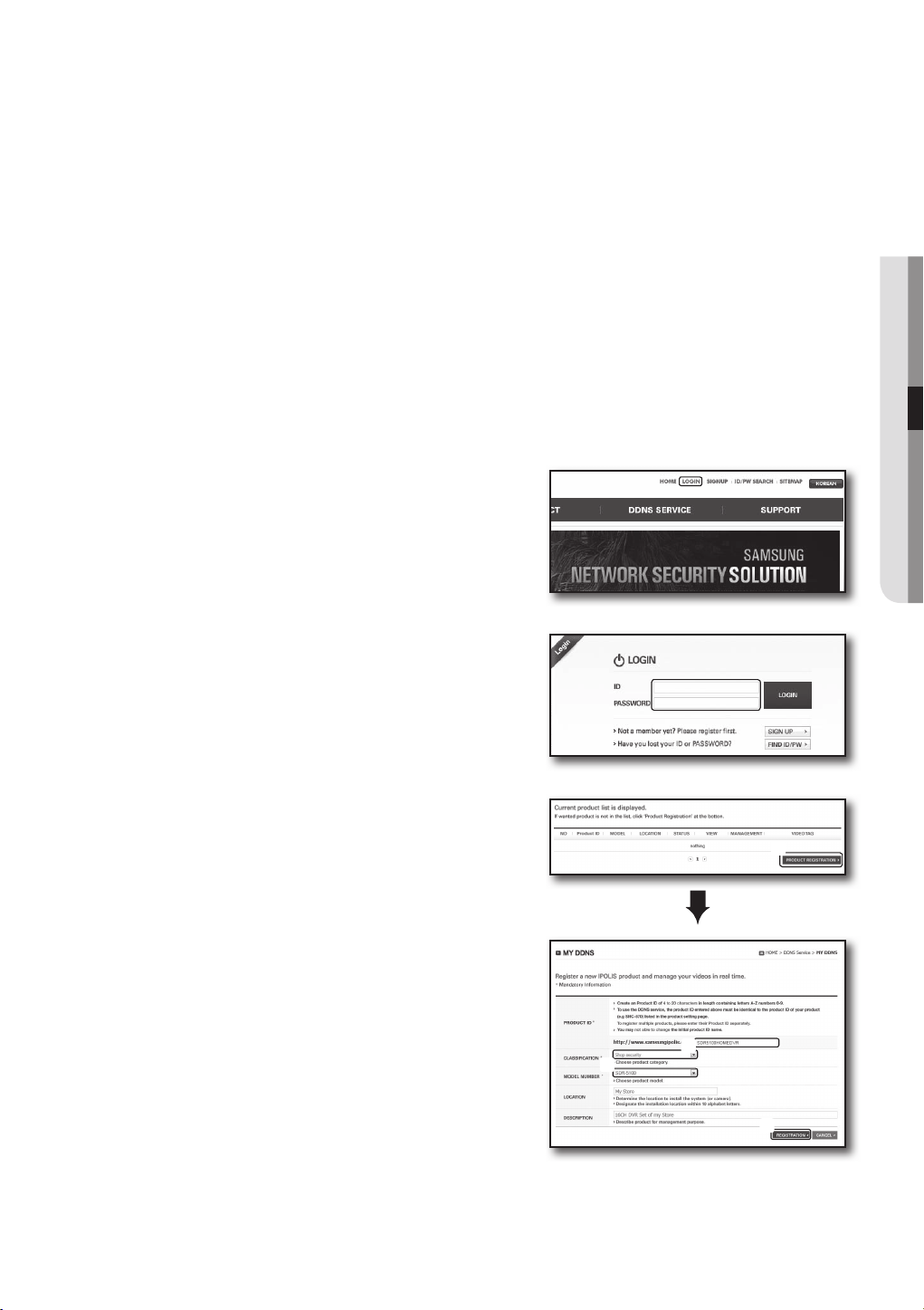

❖ iPOLiS DDNS Setting

1. Visit http://www.samsungipolis.com or http://www.samsungipolis.co.kr and click <LOGIN>.

2. If you have ID & PASSWORD, insert them. Otherwise, click <SIGN UP> for a new account.

! MAIN MENU

3. After log in, register your set with your information.



English _67

Page 68

main menu

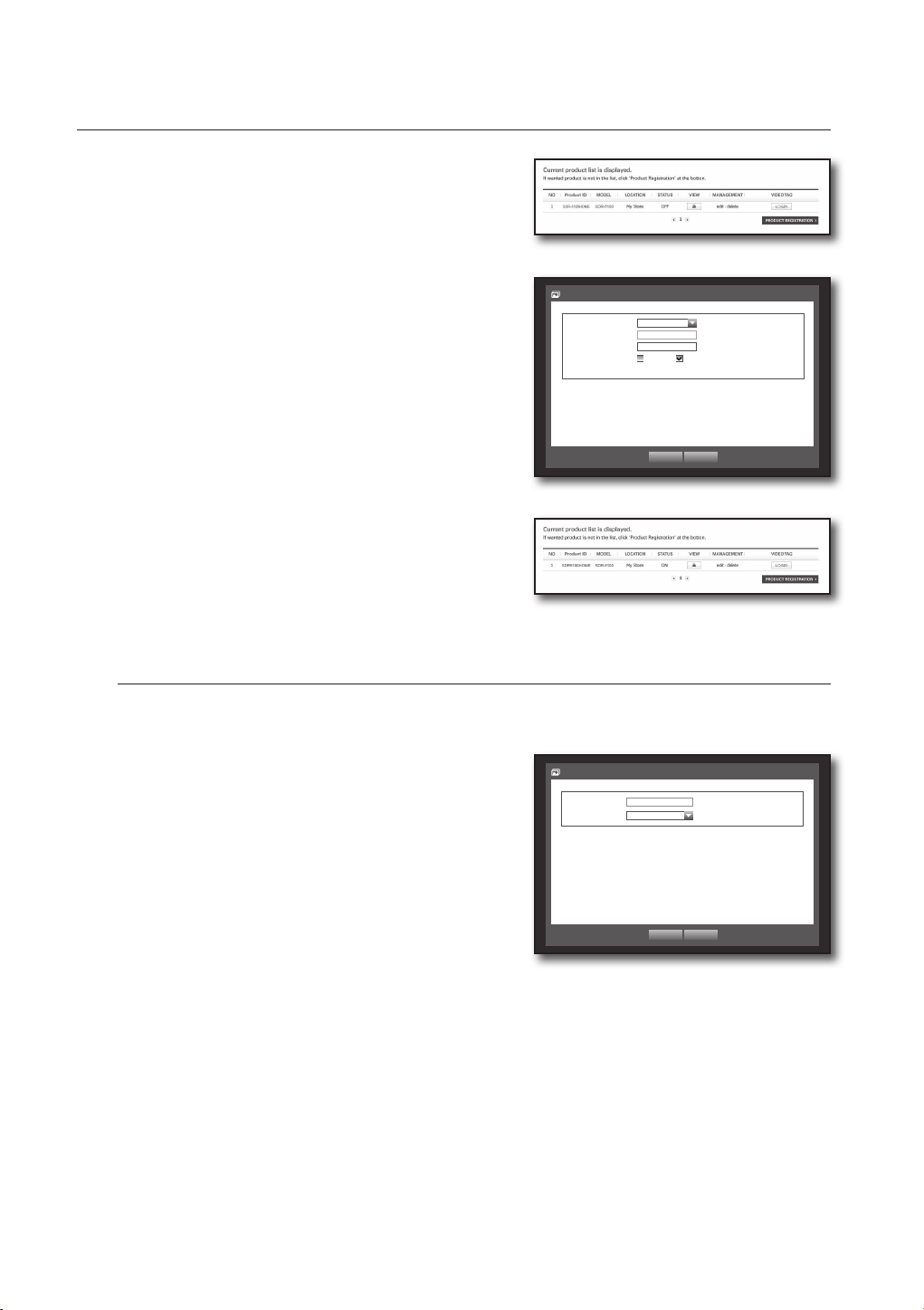

4. After registration, you can see the list as below.

5. Select <iPOLiS> and fill Server Name out with your

registration information.

DDNS

DDNS Site iPOLiS



Server Name www.samsungip...



Product ID SDR5100HOME



Quick Connect Not Use Use



DDNS Host Address http://www.samsungipolis.com/SDR5100HOME



6. You can see <STATUS> changed to <ON> in 10 minutes,

if all the network settings are right.

Live Transfer

Sets the quality of the image that is transferred from the DVR to the network.

Using the mouse may help make setup easier.

1. In the <Network> setting window, press the up/down

($%) button to move to <Live Transfer> and press the [ENTER] button. The Live Transfer window appears.

2. Use the direction buttons (

$%_ +

) to move to a desired

item and set the value.

3. When the live transfer is done, press <OK>.

The resolution for real-time (live) transfer will be set to CIF(S). (Page 53)

Live Transfer

Resolution CIF(S)



Quality Low



OK Cancel

68_ main menu

Page 69

Mailing Service

You can send an e-mail to a DVR-registered user at a specific time interval, or if an event occurs.

If an event occurs with a channel where the camera’s video is set to <OFF> or the remaining recording count is set

to <OFF>, only the text notification will be sent to the applicable email address.

The e-mail receivers are not able to adjust the attached image quality.

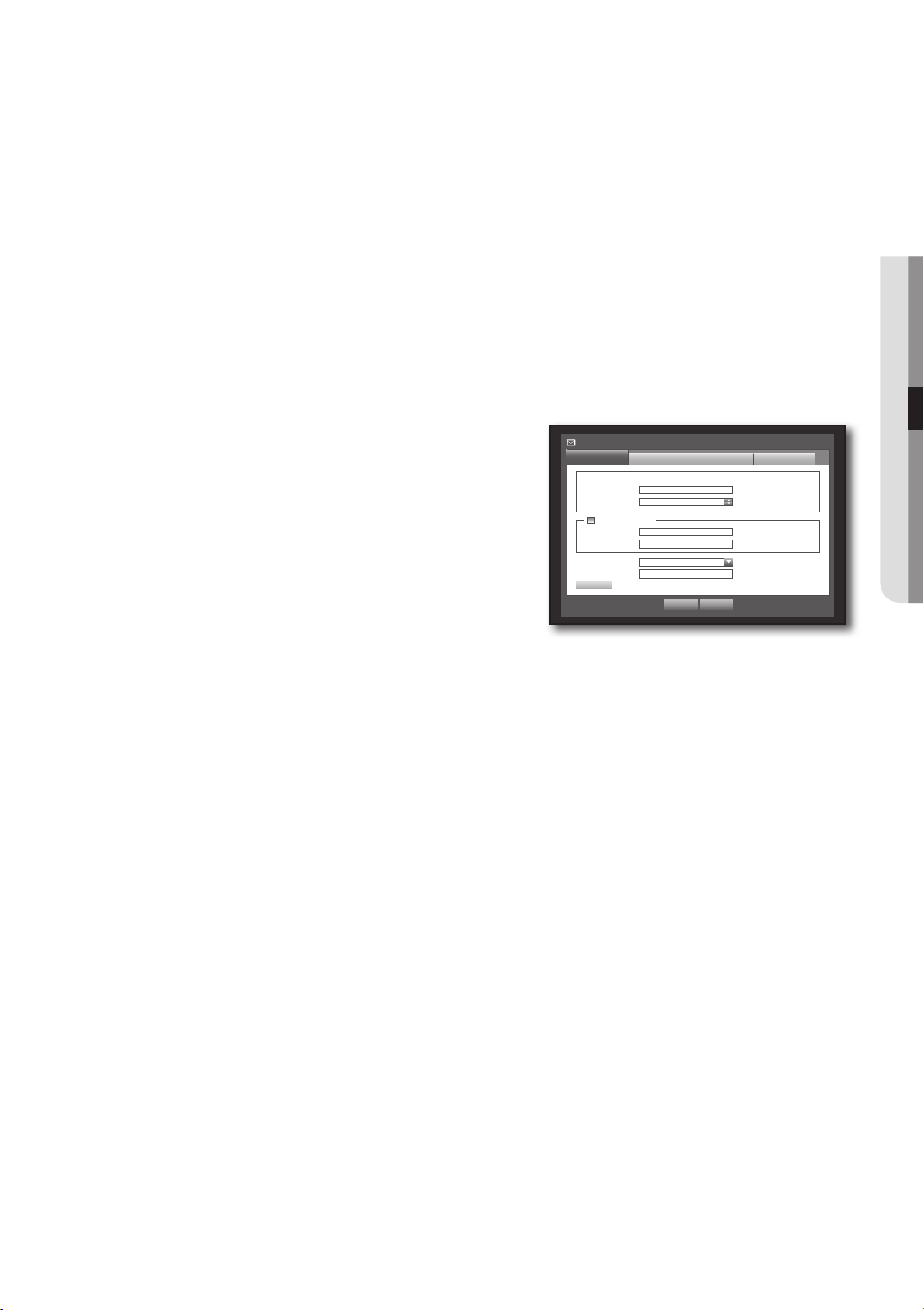

SMTP Setting

Sets the SMTP mail server.

Using the mouse may help make setup easier.

1. In the <Network> setting window, press the up/down (

) button to move to <Mailing Service> and press the

[ENTER] button.

2. Select <SMTP>. You will see the SMTP setting window.

3. Use direction buttons (

$%_ +

) to move to a desired item

and set the value.

• ServerType : Displays the connected server type.

• Server : Enter a server to connect to.

• Port : Sets the communication port.

• Use Authentication : Check this if the SMTP server uses user authentication.

The account input box will be activated.

• User : Enter a user to use authentication when connecting to the SMTP server.

• Password : Enter the password of the SMTP server user.

• Secure Transfer : Select one from <Never> and <TLS (if available)>.

• Sender : Use the virtual keyboard to enter the sender’s e-mail address.

Refer to “Using Virtual Keyboard”. (Page 36)

• TEST : Conducts the test on the server settings.

4. When the SMTP setting is done, press <OK>.

Mailing Service

SMTP

ServerType SMTP mail Server



Server



Port 25



User

Password

Secure Transfer Never



Sender ex. user@example.net



TEST

Event

Use Authentication

Group Recipient

OK Cancel

! MAIN MENU

English _69

Page 70

main menu

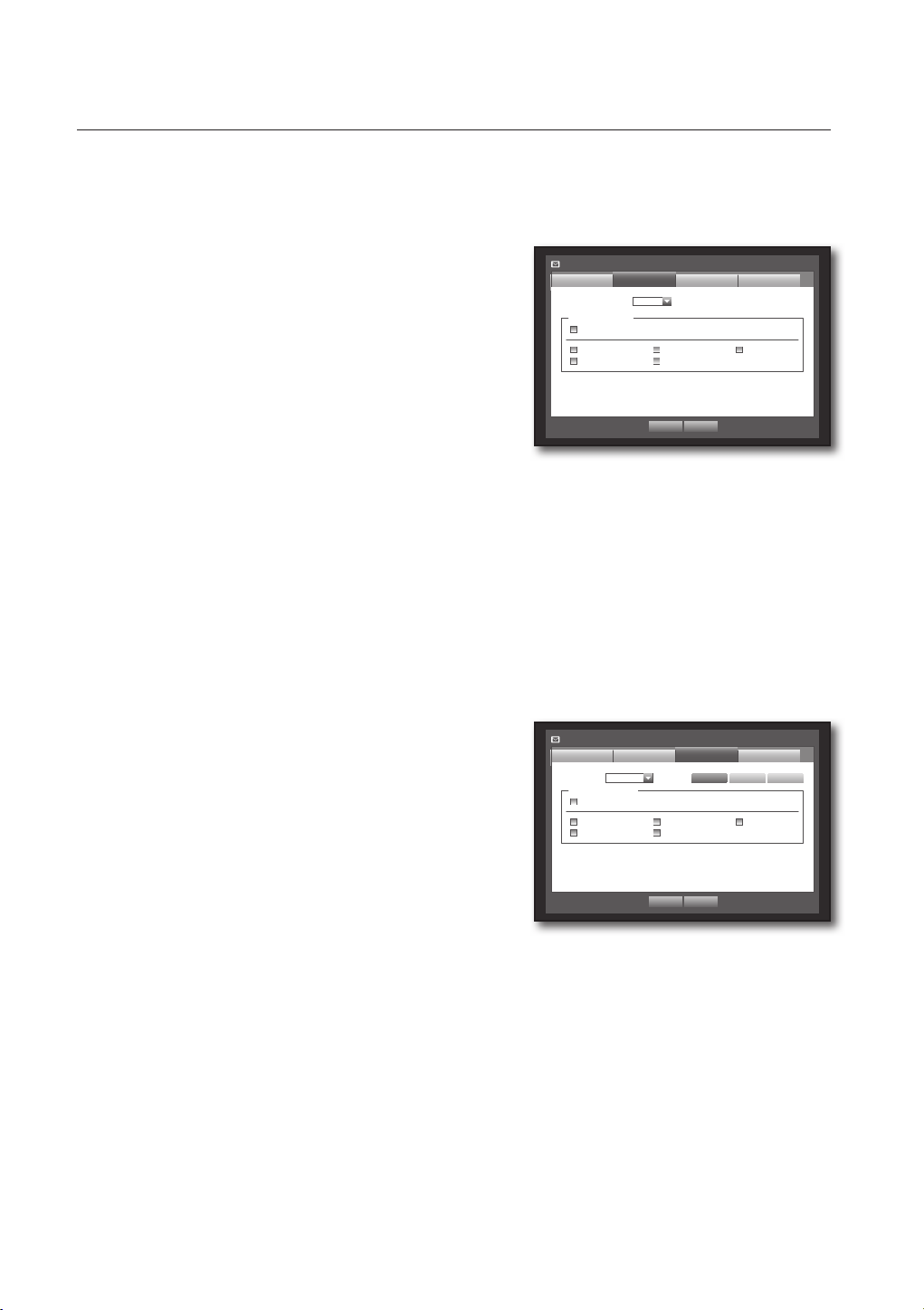

Event Setting

You can set the interval and type of the event that will be sent to the user.

Using the mouse may help make setup easier.

1. In the <Network> setting window, press the up/down

(

) button to move to <Mailing Service> and press the

[ENTER] button.

2. Select <Event>.

3. Use direction buttons (

$%_ +

) to move to a desired item

and set the value.

• Event Interval : Set the event interval.

If a series of events occurs, the e-mail will be sent at the specified interval, not on each event.

• Use Event Transfer : Select an event type to send if an event occurs. If the selected event occurs, the e-mail will be sent to the group that has the recipient authority.

4. When the event setting is done, press <OK>.

Group Setting

You can set the group to whom the e-mail is sent, and specify the permission for each group. You can add recipients for each group in the <Recipient> menu item. The recipient is set separately from the DVR user group.

Using the mouse may help make setup easier.

1. In the <Network> setting window, press the up/down ($%) button to move to <Mailing Service> and

press the [ENTER] button.

2. Select <Group>.

3. Use direction buttons (

$%_ +

and set the value.

• Add : Select <Add> and use the virtual keyboard to add a group.

Refer to “Using Virtual Keyboard”. (Page 36)

• Delete : Deletes the selected group.

• Rename : You can reset the recipient permission of an

existing group.

• Recipient Permission : Set the permission of the recipient group.

4. When the group setting is done, press <OK>.

) to move to a desired item

Mailing Service

SMTP

Event Interval 10 min



Use Event Transfer

Mailing Service

SMTP

Group



Recipient Permission



Event

Motion

Change P/W HDD Info Video Loss

Power On/Off Manual Record

Event

Motion

Change P/W HDD Info Video Loss

Power On/Off Manual Record

Group

OK Cancel

Group

Add Delete Rename

OK Cancel

Recipient

70_ main menu

Page 71

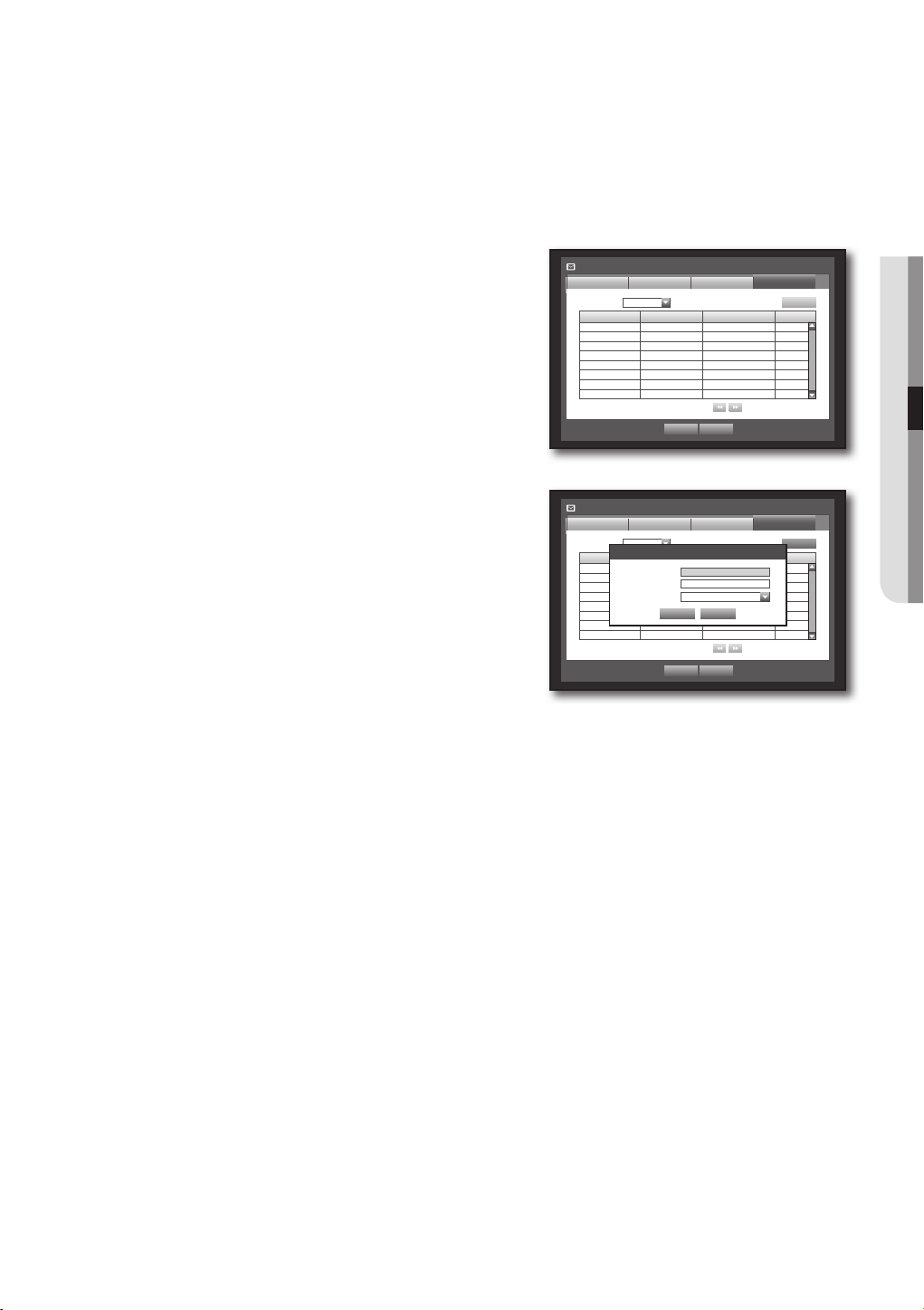

Recipient Setting

You can add/remove a recipient(s) to/from the specified group and edit the group if necessary.

Using the mouse may help make setup easier.

1. In the <Network> setting window, press the up/down

($%) button to move to <Mailing Service> and press the [ENTER] button.

2. Select <Recipient>.

3. Use direction buttons (

$%_ +

) to move to a desired item

and set the value.

Mailing Service

SMTP

Group All Group



Group Name e-Mail Address Del

Event Group

OK Cancel

Recipient

! MAIN MENU

Add

Previous/Next Page

• Add : You can select a recipient name, e-mail address or group. You should have created a group in the <Group> menu item before you can add a user to the group.

For inputting the recipient name and email address, refer to “Using Virtual Keyboard”. (Page 36)

4. When the recipient setting is done, press <OK>.

Mailing Service

SMTP

Group ABC



Group Name e-Mail Address Del

Event Group

Add recipient

Name



Select Group ABC



OK Cancel

Recipient

Previous/Next Page

Add

English _71

Page 72

main menu

2012-01-01 01:10:252012-01-01 01:10:25

2012-01-01 01:10:25

CONTROLLING A PTZ DEVICE

The DVR enables you to adjust the settings of a PTZ camera as well as an ordinary one to your preference.

PTZ Device

The PTZ device can be activated only if a channel in connection with the PTZ camera is selected.

Getting started with PTZ

The PTZ camera is available, only if a channel is selected, in the following way :

Using the remote control buttons Press the [PTZ] button on the remote control.

Using the launcher menu Click PTZ <

Using the right-click menu in Live mode

PTZ

> to display the live launcher.

Right-click any area on the screen to display the context menu, and select <PTZ Control>.

Using icons on the live screen Click the PTZ < > icon on the live screen.

Scene Mode

PTZ Control

Zoom In

Audio Off

Freeze

Stop Alarm

Record

Play

Backup

Main Menu

Shutdown

Hide Launcher

Logout



The PTZ function is available only if the PTZ camera is connected so that the PTZ icon is displayed on the screen.

72_ main menu

Page 73

Using the PTZ camera

2012-01-01 01:10:25

You can use one camera to perform all functions of PAN, TILT and ZOOM for monitoring multiple places and set the preset to your preference in a desired mode.

1. Launch the <PTZ Control> menu.

As the PTZ < yellow, you access the “PTZ Control” mode to display the “PTZ Control” menu.

Be sure to configure PTZ working environments before

operation, since the PTZ Working(Active) mark can be appeared to be activated even when PTZ is not operative.

2. Use the PTZ wheel in the launcher menu to adjust the

monitoring area, or use the direction buttons ( the remote control to move the camera to a desired place.

• PTZ Wheel : Clicking a nearer point to the center will move in that direction slowly; clicking a farther point from the center will move fast.

Keep clicking left to rotate the lens counter clockwise; keep clicking right to rotate the lens clockwise.

• Zoom ( ) : You can use the Zoom function of the PTZ camera.

• IRIS (

) : Adjusts the intensity of radiation incoming to the iris.

• Focus (

• Auto Pan : The camera automatically runs between the two points that you selected.

• Scan : The camera moves to the preset points in the specified sequence.

If multiple presets are specified, the PTZ camera will automatically move to all of the preset points one at a time.

• Pattern : Makes the PTZ camera remember and follow the past route.

The functions of Auto Pan, Scan and Pattern are supported in the protocols of Samsung, Panasonic and Pelco, and are different in terms of the name and setting, depending on the protocols of Samsung, Panasonic and Pelco. (Panasonic : Auto Pan, Sequence, Sort / Pelco : Auto Pan, Frame Scan (Scan), Pattern)

> icon on the bottom right corner turns

$%_ +

) : Enables you to adjust the focus manually.

) on

PTZ Control CAM01

Auto Pan

Scan

Pattern

Preset

Select

Exit

Camera Setup

Select Preset

Save Rename

Delete Delete All

! MAIN MENU

Before entering the PTZ device control mode, set the values of the PTZ device in the <Setting the PTZ> menu. (Page 47)

English _73

Page 74

main menu

2012-01-01 01:10:252012-01-01 01:10:25

Preset Setting

A preset is a set of specific target points of a PTZ camera, and up to 127 presets per a camera can be stored.

1. In PTZ Control mode, use the direction buttons to adjust the camera in a desired direction.

2. Select the <Save> key.

The virtual keyboard for inputting the preset will appear.

Refer to “Using Virtual Keyboard”. (Page 36)

• Save : You can save the preset settings.

• Rename : You can change the settings of the existing presets.

• Delete : Deletes the selected preset.

• Delete All : Deletes all existing presets.

If you replace the camera of the channel that stores the preset list with a new one, you should reset the preset

accordingly.

3. Press <OK>.

The preset will be saved as a name that you entered.

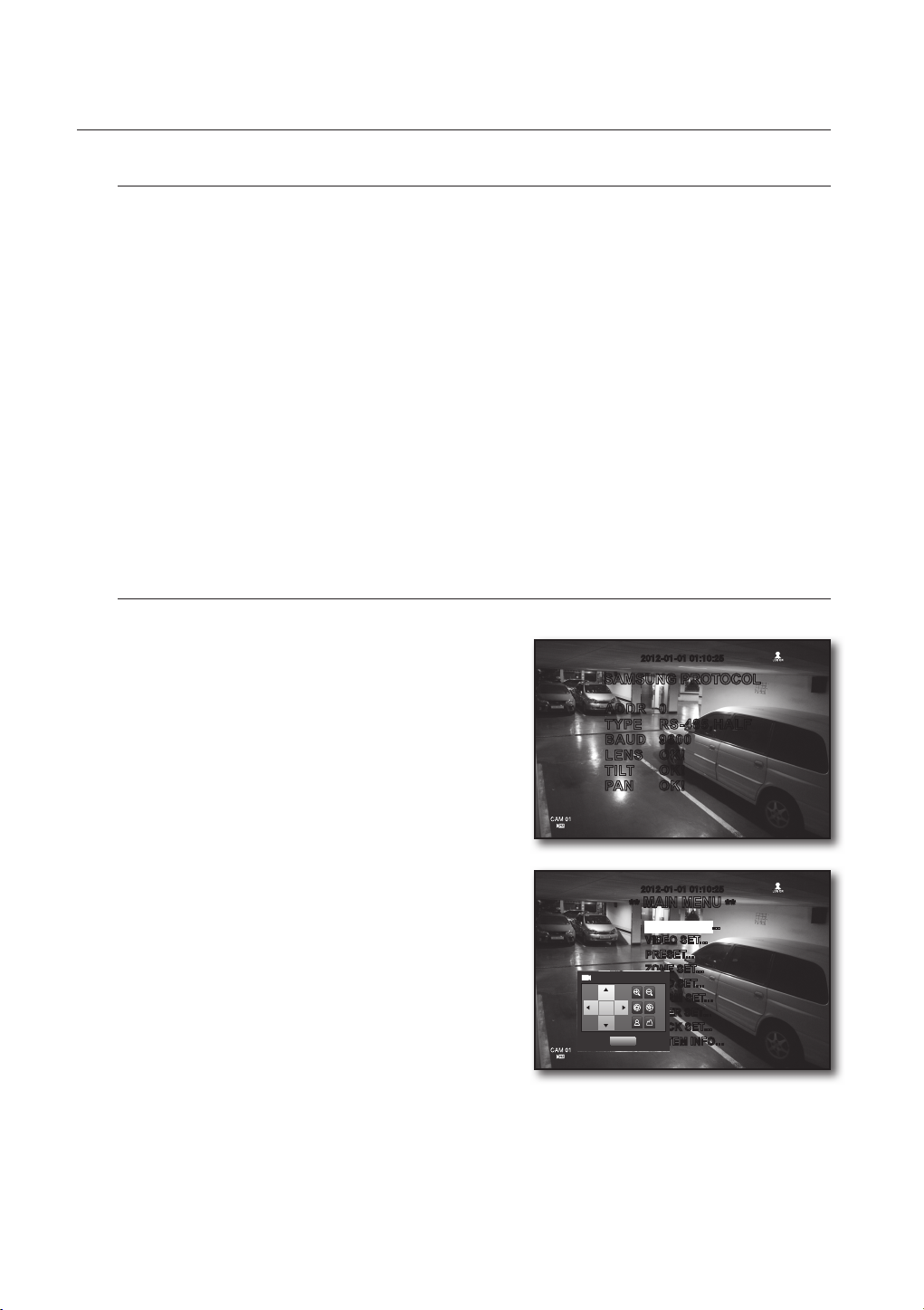

Camera Setting

A PTZ camera has its own menu system. Optimize the PTZ camera according to the DVR.

1. Connect the PTZ camera to the DVR and run the PTZ

camera again to display the camera’s protocol setting window.

2. Check the protocol ID of the camera.

In “Device > Setting the PTZ”, enter the PTZ camera ID in the ID input box of the channel that is connected to the PTZ camera. (Page 47)

SAMSUNG PROTOCOL

ADDR 0 TYPE RS-485,HALF BAUD 9600 LENS OK! TILT OK! PAN OK!

3. Select <Camera Setup> in the PTZ Control menu.

The camera-specific menu appears.

` You can configure the settings of only those cameras that support

the protocols of Samsung, Pelco D/P, AD and Panasonic.

` If you are setting Auto Pan or Pattern in the camera menu, press

and hold the appropriate button for a certain time so that the button operation can be different from that in normal PTZ setting.

74_ main menu

Camera Setup



Exit

MAIN MENU

CAMERA SET...

VIDEO SET... PRESET... ZONE SET... AUTO SET... ALARM SET... OTHER SET... CLOCK SET... SYSTEM INFO...

Page 75

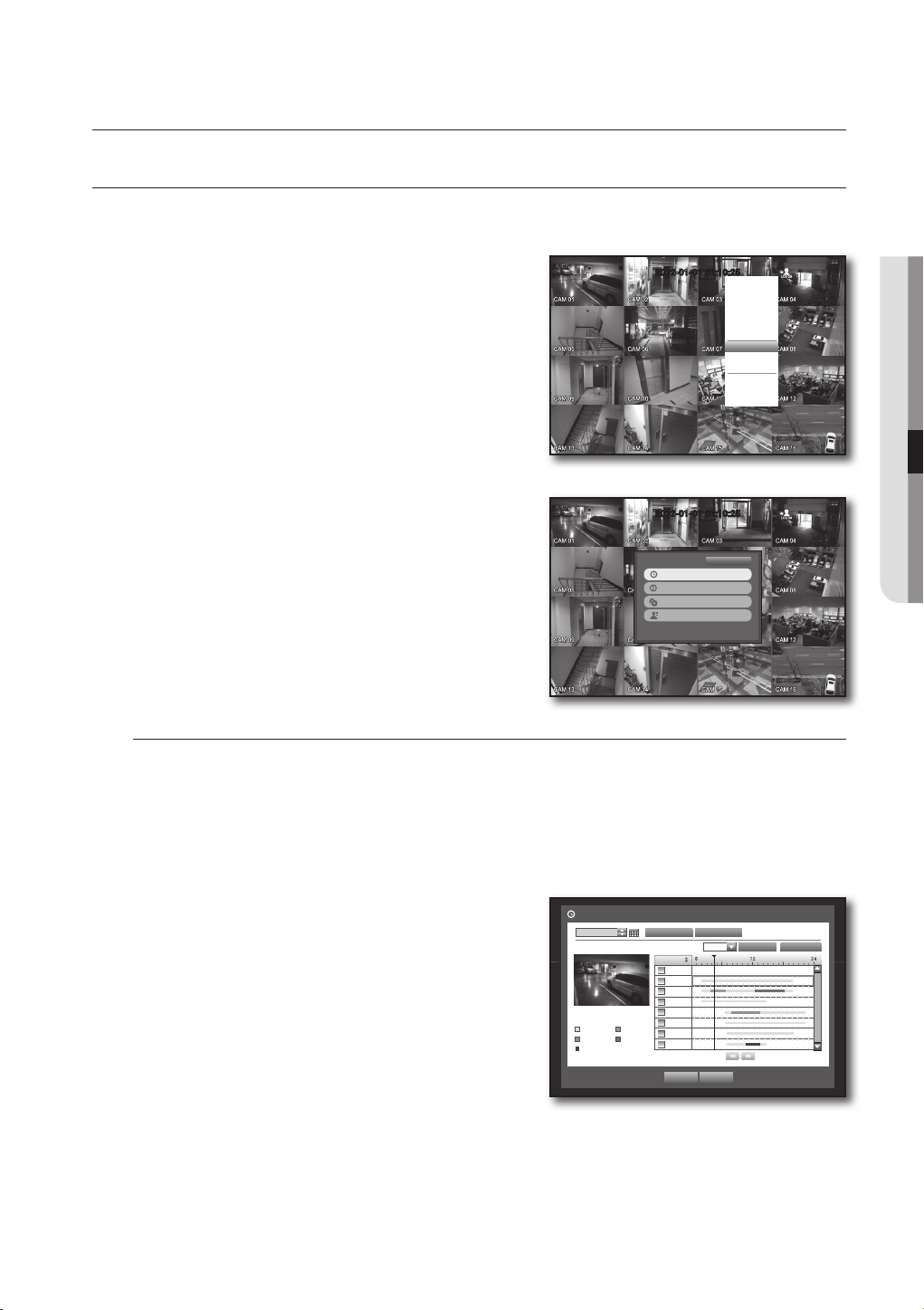

search & play

You can perform the search for recorded data by the time or by the search criteria such as an event. You can access the <Search> menu directly in Live mode.

1. In Live mode, right-click any area of the screen.

The Live menu appears.

2. Select <Search>. Or, press the [SEARCH] button on the remote control.

3. The Search menu appears.

4. The search can be restricted by the Auto Delete function.

Refer to “Setting the Recording > Record Option”. (Page 54)

Overlapped data : It only appears if there exists overlapped

data on a certain time, produced due to the change of DVR’s time setup. The latest data comes first, from <List0>. It does not appear in <Backup Search>.

2012-01-01 01:10:25

Time Search

Event Search

Backup Search

Motion Search

Return

Scene Mode

Audio Off

Freeze

Stop Alarm

Record

Play

Backup

Main Menu

Shutdown

Hide Launcher

Logout



! SEARCH & PLAY

Time Search

You can search for recorded data of a desired time. As the time to display may be different depending on the time zone and the DST standard time, the time of data recorded in the same time can be displayed differently depending on time zone and DST settings.

Using the mouse may help make setup easier.

1. Select <Time Search> in the <Search> menu.

2. Select a date to search.

Refer to “Using the Calendar”. (Page 35)

3. The record data on the specific date will be listed. The display bar is different according to the data type. So check the data type for the color in the left pane.

4. Use direction buttons (

$%_ +

) to set the search criteria

and press the [ENTER] button.

• Go to First : Moves to the earliest date.

• Go to Last : Moves to the most recent date.

• Time : Enter a time to perform the search or use the up/

down button <

> to select one.

Time Search

2012-01-01

2012/01/01 00:01:17

Standard Schedule

Motion Etc

V.Loss

Go to First Go to Last

Overlapped Data List1

00:01

All Data

CAM 01

CAM 02

CAM 03

CAM 04

CAM 05

CAM 06

CAM 07

Play Return

Zoom In Zoom Out

Previous/Next Page

English _75

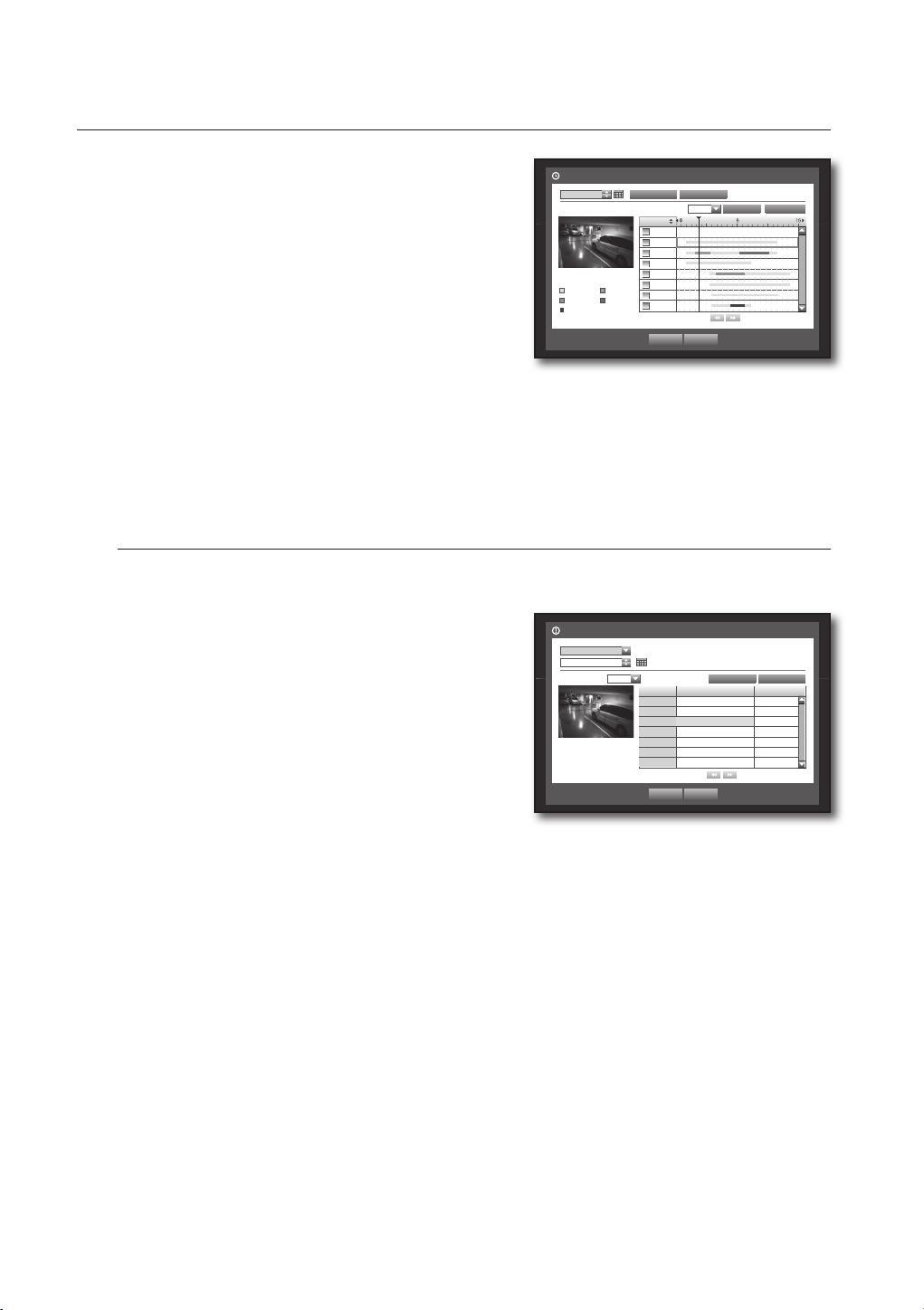

Page 76

search & play

• Zoom In : The map enlarges in detail. It will switch in the sequence of 24 hours - 16 hours - 8 hours

- 4 hours.

• Zoom Out : The map will switch in the reverse order of the

Time Search

2012-01-01

Go to First

Overlapped Data List1

All Data

detailed mode above. It will switch in the sequence of 4 hours - 8 hours - 16 hours

- 24 hours.

Double-click a desired time to zoom it in/out.

2012/01/01 00:01:17

Standard Schedule

Motion Etc

V.Loss

• Preview : Click <Channel> and select (click, drag) a time in <Duration> to display a still image for the portion.

- If the selected channel does not contain any recorded data, it will be marked black.

5. Select a data item and click <Play>.

The screen switches to the data playback mode.

Event Search

You can search for events by the channel and play them.

Using the mouse may help make setup easier.

1. Select <Event Search> in the <Search> menu.

2. Use direction buttons (

$%_ +

) to set the search criteria

and press the [ENTER] button.

All record events on a specific date will be found. (Normal/ Schedule recording included)

• Date/Time Preview : If you select a data item in the list, the still image of the selected data will be displayed in the left preview pane.

• Event : Displays the type of the event that occurred.

3. Select a data item and click <Play>.

The screen switches to the event data playback mode.

Event Search

CAM 01

2012-01-01

Overlapped Data List1

2012/01/01 00:01:22

No. Date/Time Preview Event

3 02:47:54 ~ 02:48:59 Motion

2 00:39:06 ~ 00:40:30 Motion

1 00:01:22 ~ 00:02:28 Motion

Go to Last

00:01

CAM 01

CAM 02

CAM 03

CAM 04

CAM 05

CAM 06

CAM 07

Play Return

Zoom In Zoom Out

Previous/Next Page

Go to First Go to Last

Previous/Next Page

76_ search & play

Page 77

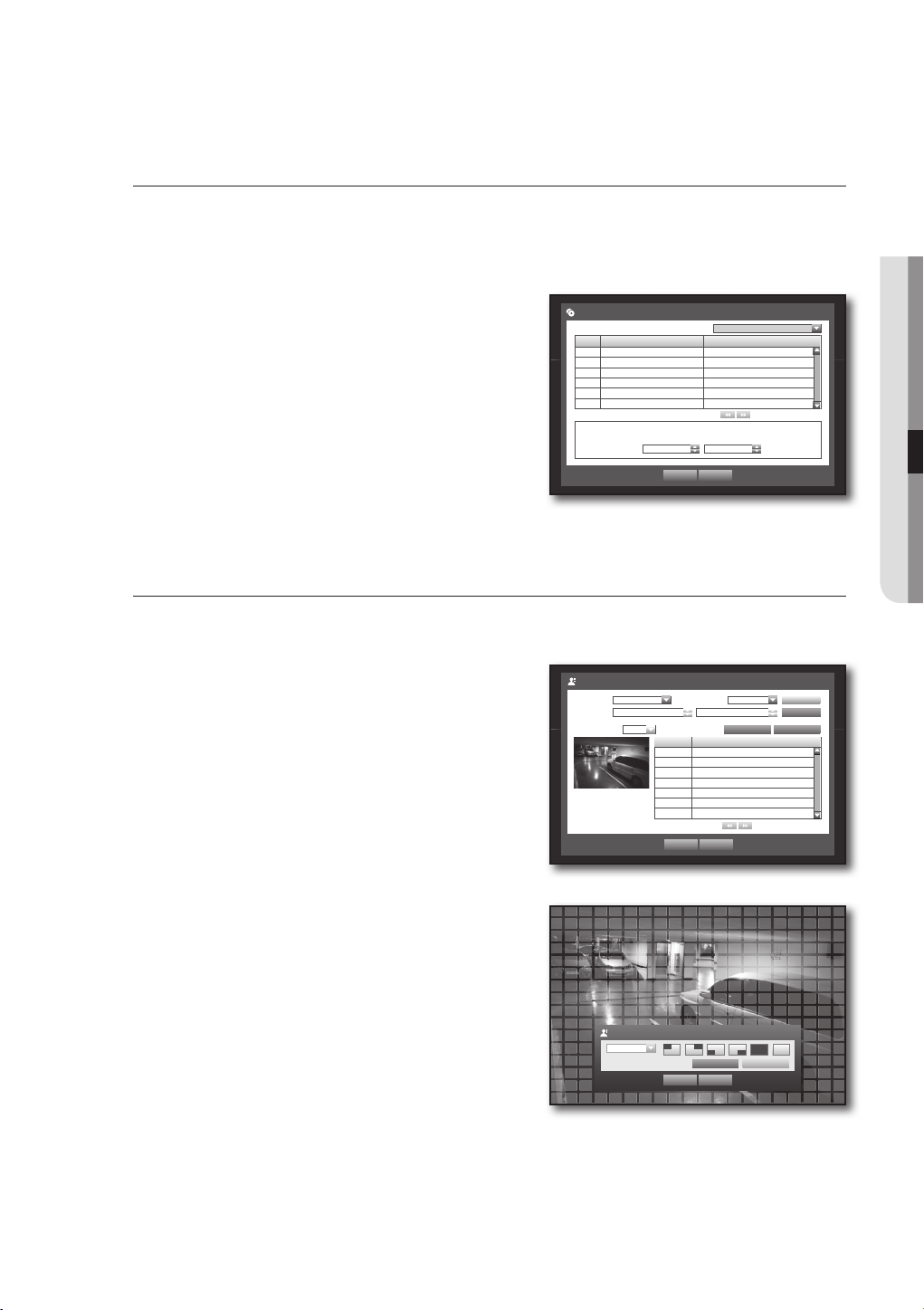

Backup Search

Searches for backup data in the connected backup device. Only data in the format of DVR is included in the search. Refer to <Type> in “Backup > Setting the Backup”. (Page 57)

Using the mouse may help make setup easier.

1. Select <Backup Search> in the <Search> menu.

2. Use direction buttons (

$%_ +

) to set the search criteria

and press the [ENTER] button.

Backup Search

No. Folder File Name

1 20120101 16190000

• Record Period : Displays the record period.

• Channel info : Displays the recorded channel.

• Play Start Time : Select a time that you start playing.

3. Select a data item and click <Play>.

The screen switches to the backup data playback mode.

File Name 16190000  Channel info 1



Record Period 2012-01-01 01:01:01 - 2012-01-01 01:01:10



Play Start Time 2012-01-01 01:01:01



Play Return

Motion Search

If a motion is detected in each channel, you can set a desired area to perform the search.

You can use the mouse to select the related items.

1. Select <Motion Search> in the <Search> menu.

2. Use direction buttons (

$%_ +

) to set the search criteria

and press the [ENTER] button.

If you set the motion area to <Manual Area>, the <Setup> button will be activated.

• Motion Region : Select an area to perform the search.

- All Area : Searches for all areas of the selected channel.

- Current Area : Searches for the motion area for each

channel specified in “Motion Detection > Setting the Motion Detection Area”. (Page 55)

- Manual Area : You can set the motion area manually.

• Setup : The Setup button will be activated only if you have set the motion area to Manual. Press this button to display the area setting window.

• Date/Time : The Date/Time will be automatically set by the hour, and the end time will be automatically set to one hour later than the start time if it is set.

• Preview : Select a data item in the list to display the still image of the item.

3. Select a data item and click <Play>.

The screen switches to the motion data playback mode.

Motion Search

Channel CAM 01 Motion Region All Area

Date/Time 2012-01-01 03:41:18 2012-01-01 05:11:44

No. Start Time

7 01:01:30

6 01:01:25

5 01:01:20

4 01:01:15

2012/01/01 01:01:30

3 01:01:10

2 01:01:05

1 01:01:01

Motion Region

CH1

Play Return

OK Cancel

USB:USB2FlashStorage

Go to First Go to LastOverlapped Data List1

Individual

Previous/Next Page

Apply to All CH

Setup

! SEARCH & PLAY

English _77

Page 78

search & play

2012-01-01 01:10:25

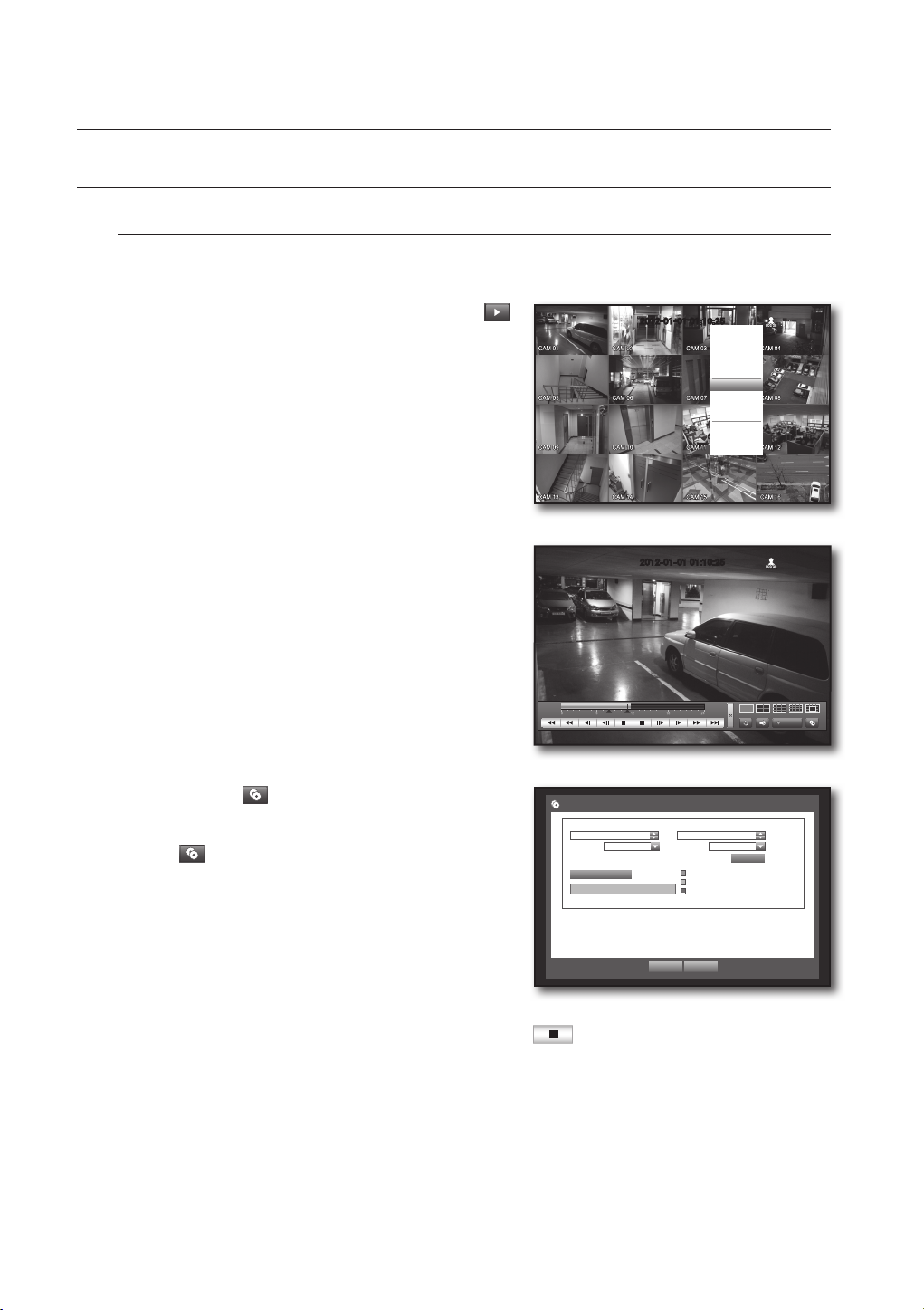

PLAYBACK

Play

You can play data stored in the HDD and backup a desired portion of the data.

Using the mouse may help make setup easier.

1. In Live mode, click <Play> in the right-click menu or < >

in the launcher menu, or press the Play button on the remote control.

2. Use the up/down button ($%) to select a menu.

For data search, refer to <Search>. (Page 75)

3. Select a data item and click <Play> in the Search menu.

The selected data is played and the play launcher appears on the screen.

If there is an existing data, <Play> will start immediately without performing the search.

• Playback Information : Displays the date and time of the current data in the top corner.

2012-01-01 01:10:25

Scene Mode

Audio Off

Freeze

Stop Alarm

Record

Play

Backup

Main Menu

Shutdown

Hide Launcher

Logout



• Backup : Click <

> to set the current time to the start time of backup; you can specify a backup area using the mouse (yellow triangle). Click <

> again to set the current time to the end time of

the backup and the “Backup Range” window appears.

- Type : Supports formats of DVR and SEC.

Refer to a list of formats in “Setting the Backup”. (Page 57)

- Device : Select a backup device.

- Check Capacity : Enables you to check the capacity of the selected storage device.

4. If you want to return to the Live screen in Play mode, click <

[@] button on the remote control.

Backup Range

Start  End



2012-01-01 00:01:06 2012-01-01 01:10:25

Device USB Storage  Type DVR



Folder \20120101\  Filename 0001



Check capacity

OK Cancel

> in the launcher menu or press the

Backup

Used

Free

Change

REC

78_ search & play

Page 79

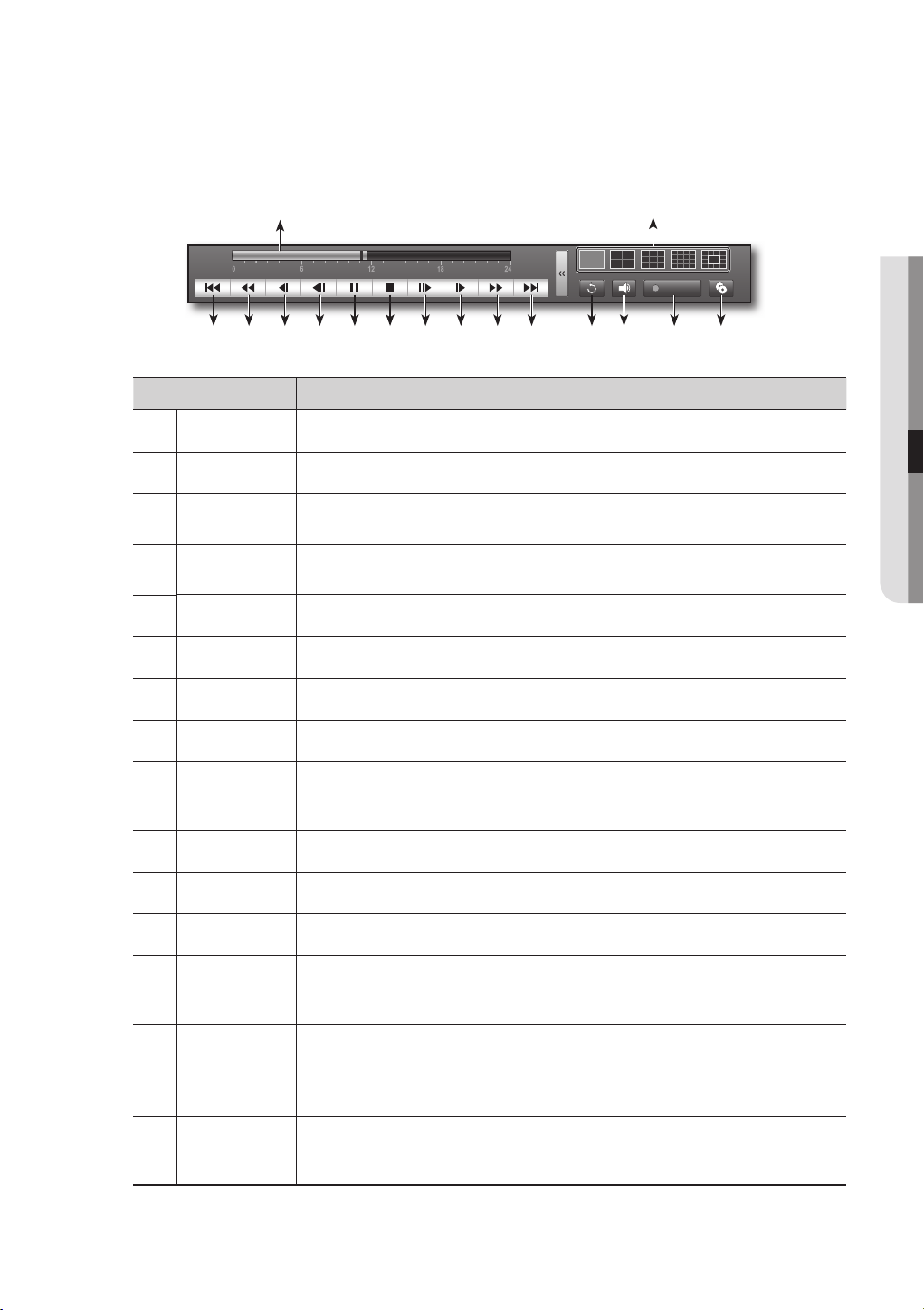

Using the Playback Button



b c          m n 

Part Names Functions

Play Timeline Indicates the current playback point, and can be used to move.



Skip Backward Moves backward by unit time.

Backward Fast

Play

Backward Slow



Play

Step Backward Moves backward by one frame at a time.



Pause Stops playing the current video temporarily.



Stop Stops playback and moves to the live screen.



Used for quick backward playback.

Used for backward frame-by-frame search while in PAUSE.



! SEARCH & PLAY

REC

Step Forward Moves forward by one frame at a time.



Forward Slow



Play

Forward Fast Play Used for quick forward playback.



Skip Forward Moves forward by unit time.



Return Return to the search setup screen.



Audio

REC Records all channels in Live mode.

Partial Backup



Mode Switch



Play forward up to 4 channels simultaneously at a low speed.

` In a split mode, the real time playback may not be supported, depending on the record quality,

resolution and number of channels. And some frame rates may be supported.

Sets Audio ON/OFF.

` If using both web view and DVR set simultaneously, the audio signal will be output from the DVR

set.

Begins backup of the selected section of the video being played, with the specified starting/ending point.

Click a desired playback mode or press [MODE] to switch the screen mode in sequence.

` The gray area in the center of the 13-split mode plays the Live channel.

The default channel of the Live mode is CH1, which can be changed later.

English _79

Page 80

Web Viewer

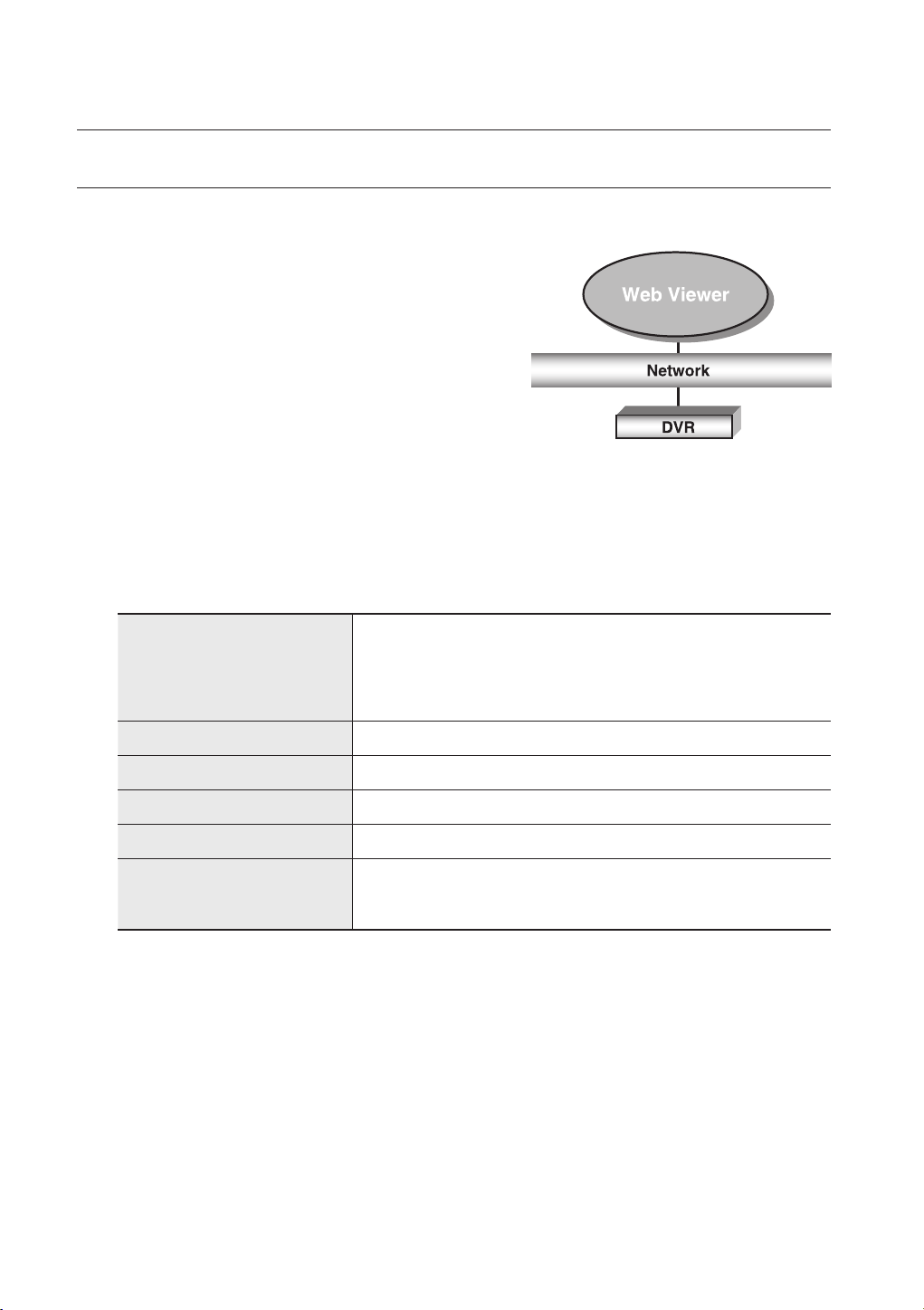

INTRODUCING WEB VIEWER

What is Web Viewer?

Web Viewer allows remote access to your DVRs. You have access to live video, archived video etc.

Product Features

• Remote access from a standard browser

• Supports 1, 4, 9, 16 camera viewing formats (maximum of

16 cameras in the list).

• Gets JPEG, BMP format images to print and save to “Print or Save JPEG, BMP format images”.

• Record video in AVI format-compatible with popular media players. (needed the H.264 codec)

System Requirements

The following lists the minimum suggested hardware and operating system requirements needed to run the Web Viewer.

Windows XP Professional

Windows 2000 Windows Vista Home Basic /Premium Windows 7 Safari 5.1.1 or later version

Web Browser Internet Explorer 6.0.2900.2180 or later

CPU Intel Pentium 4, 2GHz

Memory 512 MB

Monitor High Color 16-bit 1024 x 768

HDD

Even for computers of higher performance than recommended, you may experience frame skipping with the Web

Viewer if the computer is overloaded showing more than 80% of CPU usage.

50 MB(Installation space required) * Additional HDD space required for recording.

Recorded file size will vary depending on recording quality settings.

80_ Web Viewer

Page 81

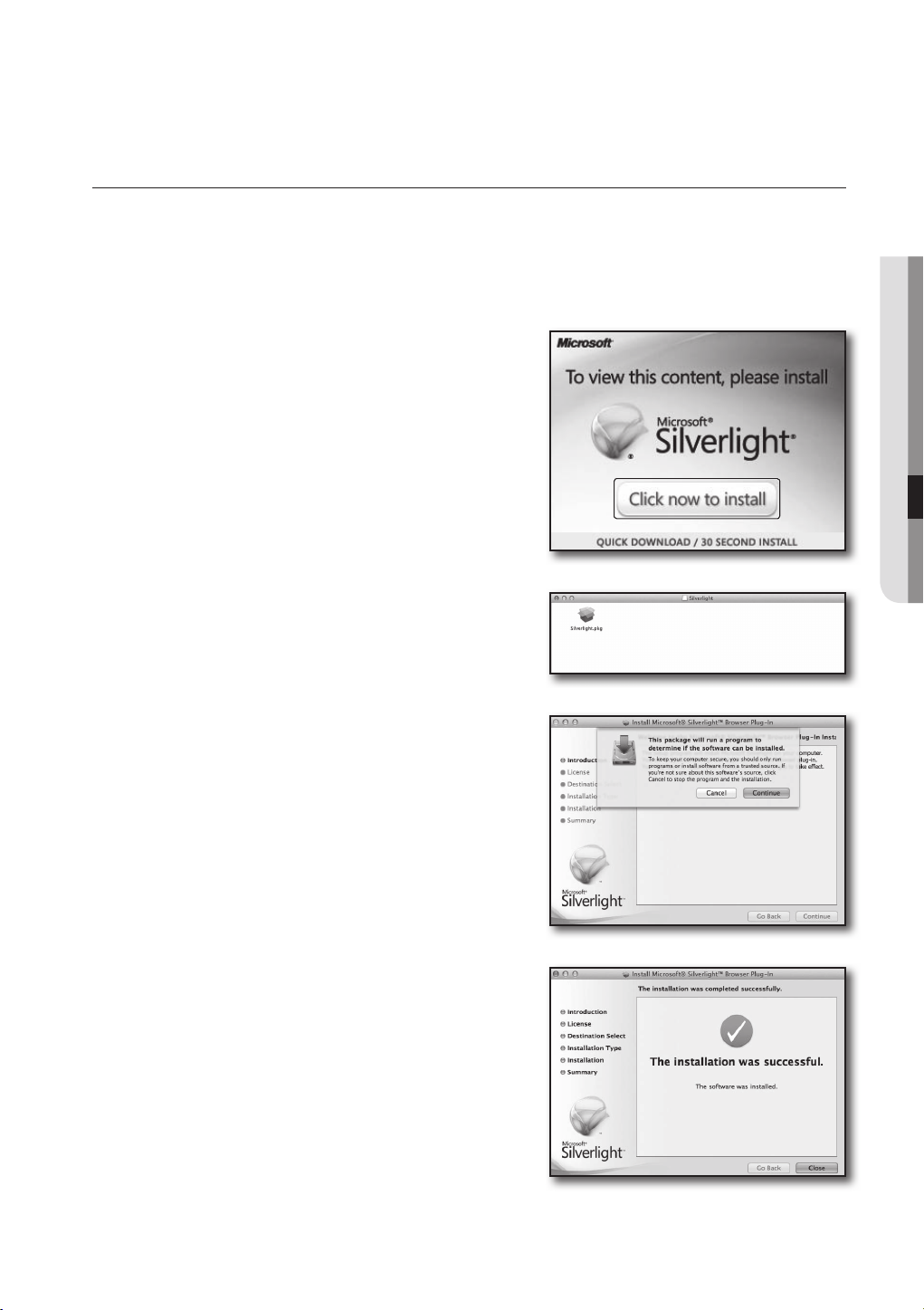

CONNECTING WEB VIEWER (MAC)

❖ Safari on MAC.

If you want to use DVR Web Viewer with Safari Browser on a Mac, please refer to this user guide and install Multi Viewer with firmware upgrade if necessary.

• Brower versions available: Safari 5.1.1 or later version

• Silverlight: 4.0.60831.0 or later

1. Click [Click now to Install] to display the installation

screen as shown.

2. Double-click the [Silverlight.pkg] icon to display the

Silverlight plug-in installation screen as shown.

! WEB VIEWER

3. Click [Continue] to start installing Silverlight plug-in.

When done, you will see the screen as below.

4. Click [Close] to exit from the Silverlight plug-in installation

screen.

English _81

Page 82

Web Viewer

• If Microsoft Silverlight plug-in is already installed

1. Use a web browser to connect to the DVR.

2. If Silverlight plug-in is already installed, you will see the

screen as shown.

3. If this is the case, perform Step 3 [TCP port & Web

Viewer port settings] below.

4. If the screen above does not appear, check if the DVR set is connected properly with a valid IP address.

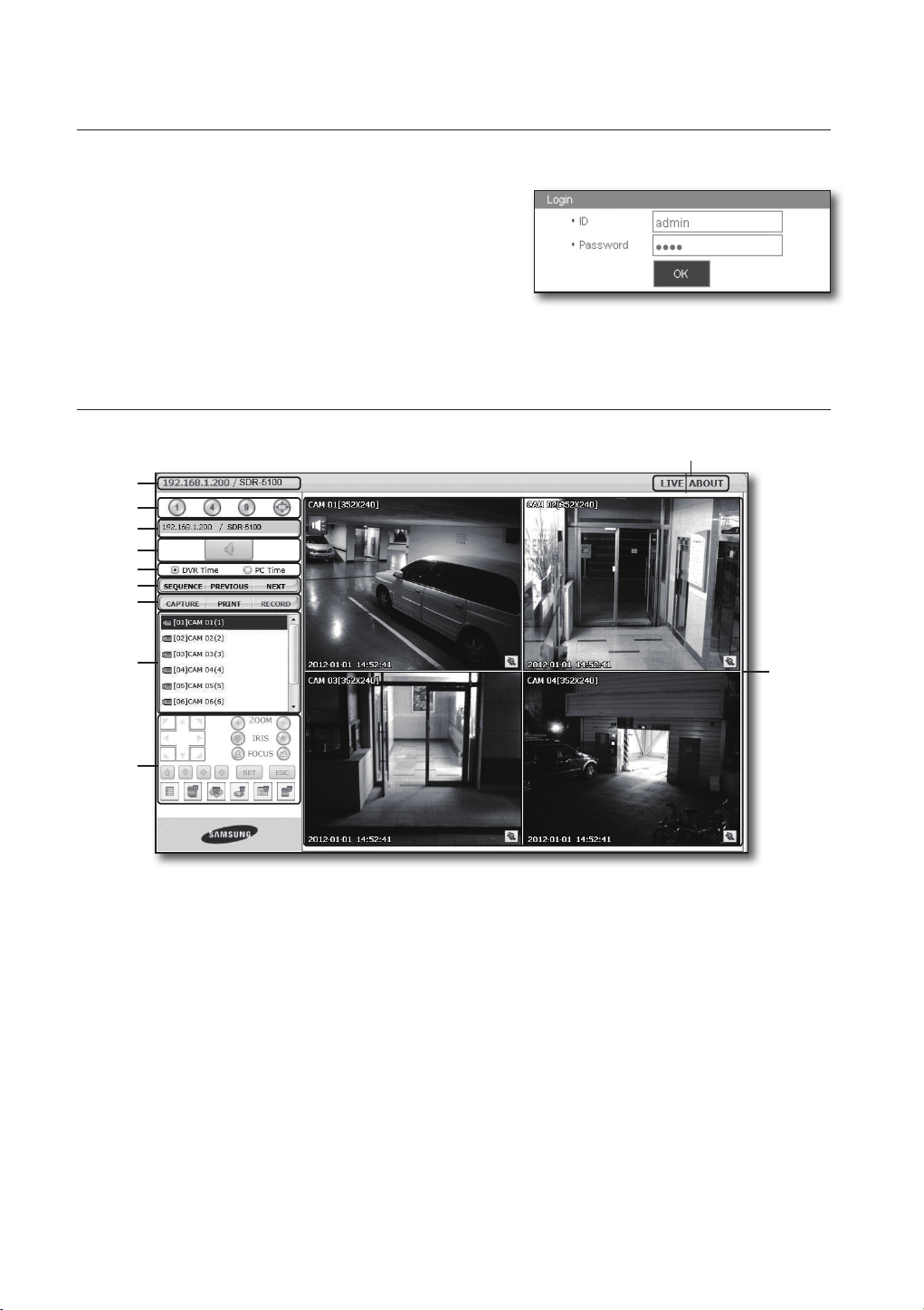

USING LIVE VIEWER (MAC)

The Live Viewer screen consists of following :

a c

d e

f g h

a This displays the IP address and the model name of the connected DVR. b These menus consist of <LIVE>, <ABOUT>. c These buttons are used for the screen split and full screen mode. (Max. : 9CH) d Shows the IP address and model name of the connected DVR. e Select to turn the sound on/off. f Select <DVR Time> or <PC Time> for the OSD time information display setting of the Live Viewer. g These buttons are used for sequence and changing the screen channel. h These buttons are used for capture, print, and save the image.

When you can’t play the file recorded in web, install the H.264 CODEC ex) MAC: perian_1.2.3.dmg (http://perian.org)

i Shows the channel of the connected DVR. j These buttons are used for PTZ related functions. k This displays the screen for connected camera with DVR.

82_ Web Viewer

Page 83

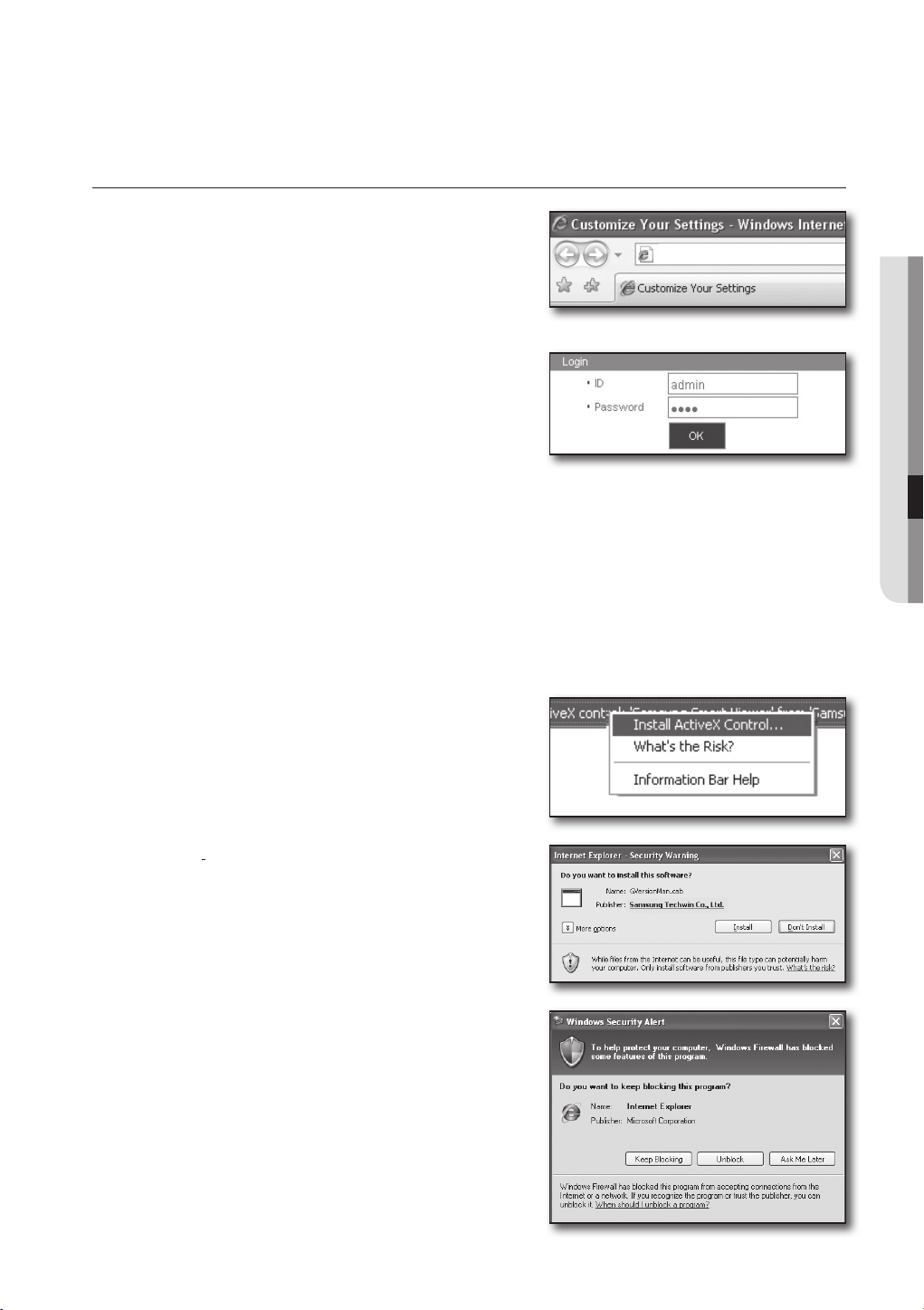

CONNECTING WEB VIEWER (WINDOWS)

1. Open your web browser and type the IP address or URL

of DVR into the URL address box.

The basic URL of the DVR is as following in case of MAC address :

http://www.samsungipolis.com/User ID

You can also use registered URL which setups up in the Setup menu of your DVR.

2. Set the Admin ID and password same to those of the DVR

Admin. For general users, enter the DVR user ID and password.

The default password can be exposed to a hacking thread so

it is recommended to change the password after installing the product. Note that the security and other related issues caused by the unchanged password shall be responsible for the user.

It allows up to 10 simultaneous access including the Admin and general users.

It does not allow multiple login of the Admin user.

Initial password of the Admin user is set to “4321”.

Password of the Admin and general users can be changed in <Permission Management> menu of the DVR.

Normal users should have set <Viewer> under <Permission Management> to “Use” before connecting to the Web Viewer. (Page 36)

All settings are applied by the DVR’s settings.

http://www.samsungipolis.com/HOMEDVR

! WEB VIEWER

3. Click <Install ActiveX Control…>.

Downloading Active-X control may take several minutes according to the security settings on your PC.

4. Click <Install>.

5. You may have “Windows Security Alert” that attempts to

block this with the Windows Firewall. In that case, click <Unblock> to start Web Viewer.

6. Installation is complete.

Now you can see the main screen of Live Viewer.

English _83

Page 84

Web Viewer

USING LIVE VIEWER (WINDOWS)

The Live Viewer screen consists of following :

a c

e f g

The Live Viewer screen consists of following :

Select <DVR Time> or <PC Time> for the OSD time information display setting of the Live Viewer.

f These buttons are used for sequence and changing the screen channel. g These buttons are used for capture, print, and save the image. h Shows the channel of the connected DVR. i These buttons are used for PTZ related functions. j This displays the screen for connected camera with DVR.

The initial split-screen mode is set according to the number of channels connected to DVR.

You can change the split-screen mode by clicking buttons for split-screen modes.

84_ Web Viewer

Page 85

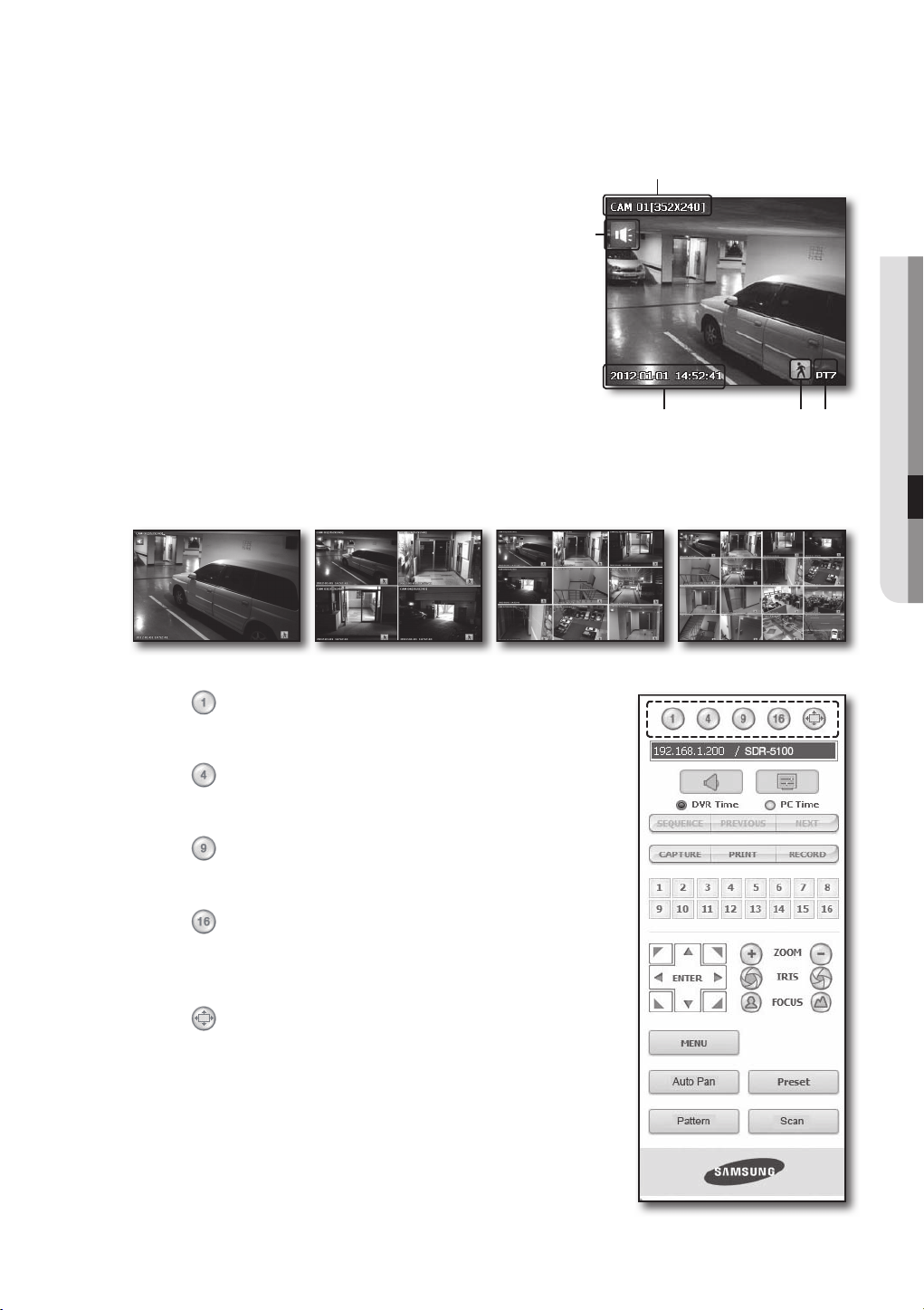

OSD Information Display

a The channel number, video size, and IP address of the

connected DVR are displayed.

b This icon will appear if the audio signal is currently being output. c The current date and time will be displayed according to the

selected time information display setting <DVR Time> or <PC Time>.

d Motion icon appears when motion is detected.

It disappears when pressed the [ALARM] button of the DVR.

e It displays whether the PTZ controls are active.

! WEB VIEWER

If you have set PTZ cameras for the DVR, “PTZ” is displayed on the

screen. Select a PTZ camera channel and use the [PTZ] button for camera control.

Split-Screen

You can change the split mode by clicking each number icon.

SINGLE MODE QUAD MODE

• Click < The screen displays the selected camera connected to the DVR in “SINGLE MODE”.

• Click < The screen displays the selected camera connected to the DVR in “QUAD MODE”.

• Click < The screen displays the selected camera connected to the DVR in “NINE MODE”.

• Click < The screen displays the selected camera connected to the DVR in “SIXTEEN MODE”. SDR-4100 doesn't support 16-split screen mode.

• Click < The screen displays the selected camera connected to the DVR in “FULL SCREEN MODE”. Double clicking on the screen or pressing any button of the keyboard returns to the previous mode.

> button.

NINE MODE SIXTEEN MODE

c ed

English _85

Page 86

Web Viewer

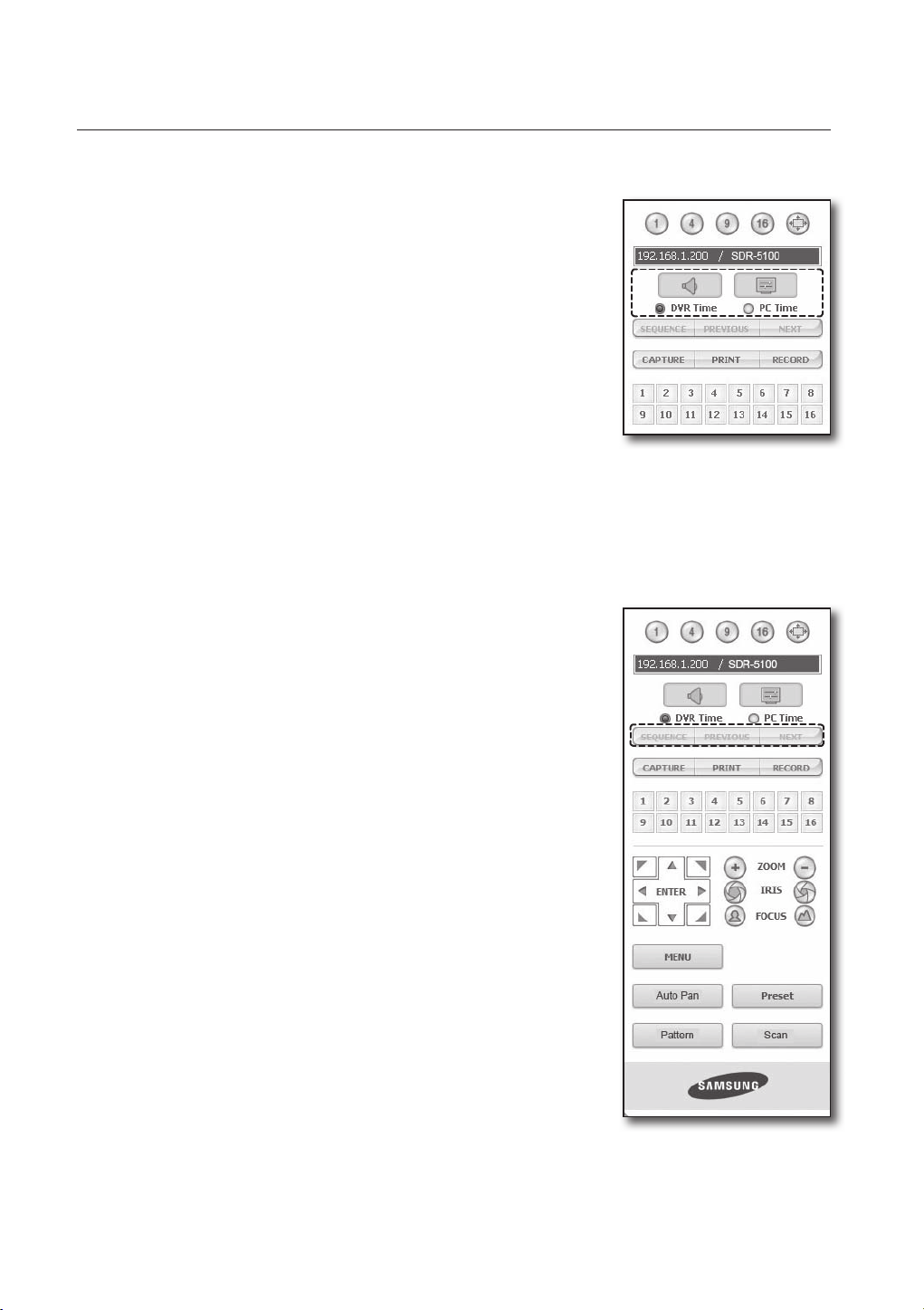

Connected DVR

This displays the IP address and the status of the connecting DVR.

Connection failure message

No Response : Appears when the DVR does not respond. Access Denied : Appears when the maximum number of users is exceeded.

The number of simultaneous connections are limited to 10.

Setting the display of the OSD time information

Select <DVR Time> or <PC Time> for the OSD time information display setting.

• DVR Time : Based on the time of the connected DVR

• PC Time : Based on the time of the PC currently running the Web Viewer.

• Audio : Sound On/Off

Changing The Live Screen Mode

16-split mode does not support “SEQUENCE”, “PREVIOUS” and “NEXT”.

• SEQUENCE : When this button is clicked, screens are switched at a

preset interval. In SINGLE MODE, the channel numbers are sequentially switched from 1 to 16. In QUAD MODE, the screens are changed like 1st 4 channels (1~4)  2nd 4 channels (5~8)  3rd 4 channels (9~12)  4th 4 channels (13~16). In NINE MODE, the screens are changed from 9 channels (1~9) to 7 channels (10~16).

Preset interval (10 seconds)

• PREVIOUS : When this button is clicked, the previous screen appears.

In SINGLE MODE, the channel numbers are switched in reverse order. In QUAD MODE, the screens are changed like 1st 4 channels (1~4)  2nd 4 channels (13~16)  3rd 4 channels (9~12)  4th 4 channels (5~8). In NINE MODE, the screens are changed from 9 channels (1~9) to 7 channels (10~16).

86_ Web Viewer

Page 87

• NEXT : When this button is clicked, the next screen appears. In SINGLE MODE, the channel numbers are sequentially switched from 1 to 16. In QUAD MODE, the screens are changed like 1st 4 channels (1~4)  2nd 4 channels (5~8)  3rd 4 channels (9~12)  4th 4 channels (13~16). In NINE MODE, the screens are changed from 9 channels (1~9) to 7 channels (10~16).

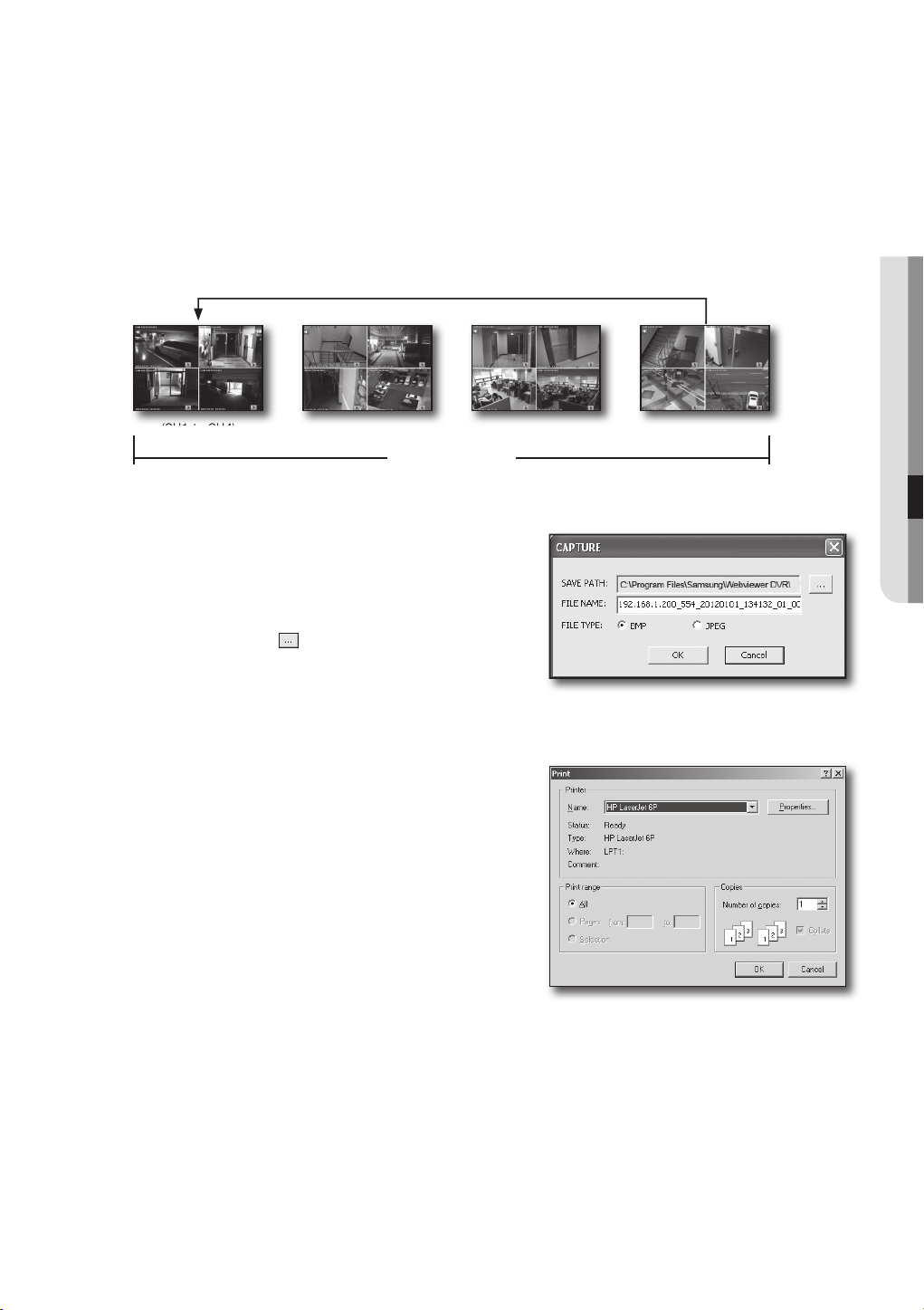

If 16-channel DVR is connected, clicking “NEXT” in QUAD MODE is to change the screen as shown in the picture.

! WEB VIEWER

(CH1 to CH4)



(CH5 to CH8) (CH9 to CH12) (CH13 to CH16)

 

16-channel DVR

Saving The Live Screen On The PC

• CAPTURE : Saves the current screen into a BMP or JPEG file.

The default saving path is “C:\Program Files\Samsung\DVR

Web Viewer\SnapShot\Live”. To change the saving path, click <SAVE PATH ( )> button and then select the path you want. For Windows Vista or 7, the saving path is “C:\users\ (user ID)\AppData\LocalLow\Samsung\Web Viewer DVR \ Snapshot\” by default.

The file is automatically named as following : “IP address_Port number_YYYYMMDD_camera number_index” Ex) 192.168.1.200_554_20120101_134132_01_00

• PRINT : Prints out the selected screen out of the currently displayed live screens. It also prints the IP address, time, camera number and the current event status together.

English _87

Page 88

Web Viewer

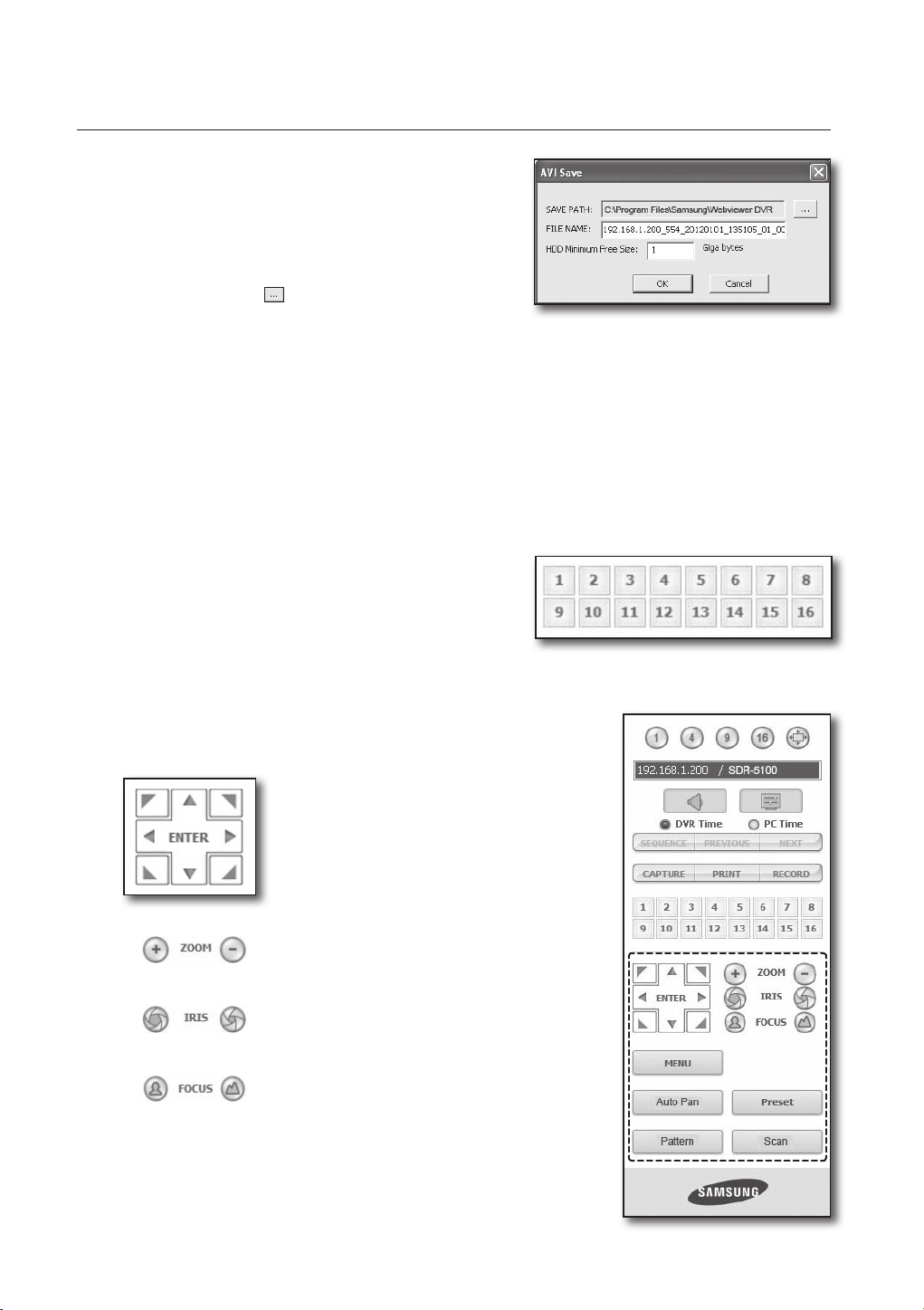

• RECORD : Saves the current image on the screen and

saves it as a avi video file.

To record it, it is required at least 1GB of available space.

The default saving path is “C:\Program Files\Samsung\DVR Web Viewer\VideoClip\Live”. To change the saving path, click <SAVE PATH ( )> button and then select the path you want. For Windows Vista or 7, the saving path is “C:\users\ (user ID)\AppData\Local-Low\Samsung\Web Viewer DVR\VideoClip\”.

The file is automatically named as following : “IP address_Port number_YYYYMMDD_camera number_index” Ex) 192.168.1.200_554_20120101_135105_01_00

For AVI Save, you need the Xvid codec for playing saved files.

HDD Minimum Free Size : During the recording, if there is no more capacity available in the HDD than set free space will prompt with a popup message : “Cannot record due to insufficient disc space in the HDD”.

Changing The Live Screen Channel

• Blue numbers : The channel connected to the current live screen

• Gray numbers : The channel not connected to the current live screen

Using PTZ Camera

Click the direction buttons to control the camera.

• <

You can zoom in or out an image by using the ZOOM button.

• <

You can adjust the entering light amount by using the IRIS button.

• <

You can adjust the focus by using the FOCUS button.

88_ Web Viewer

Page 89

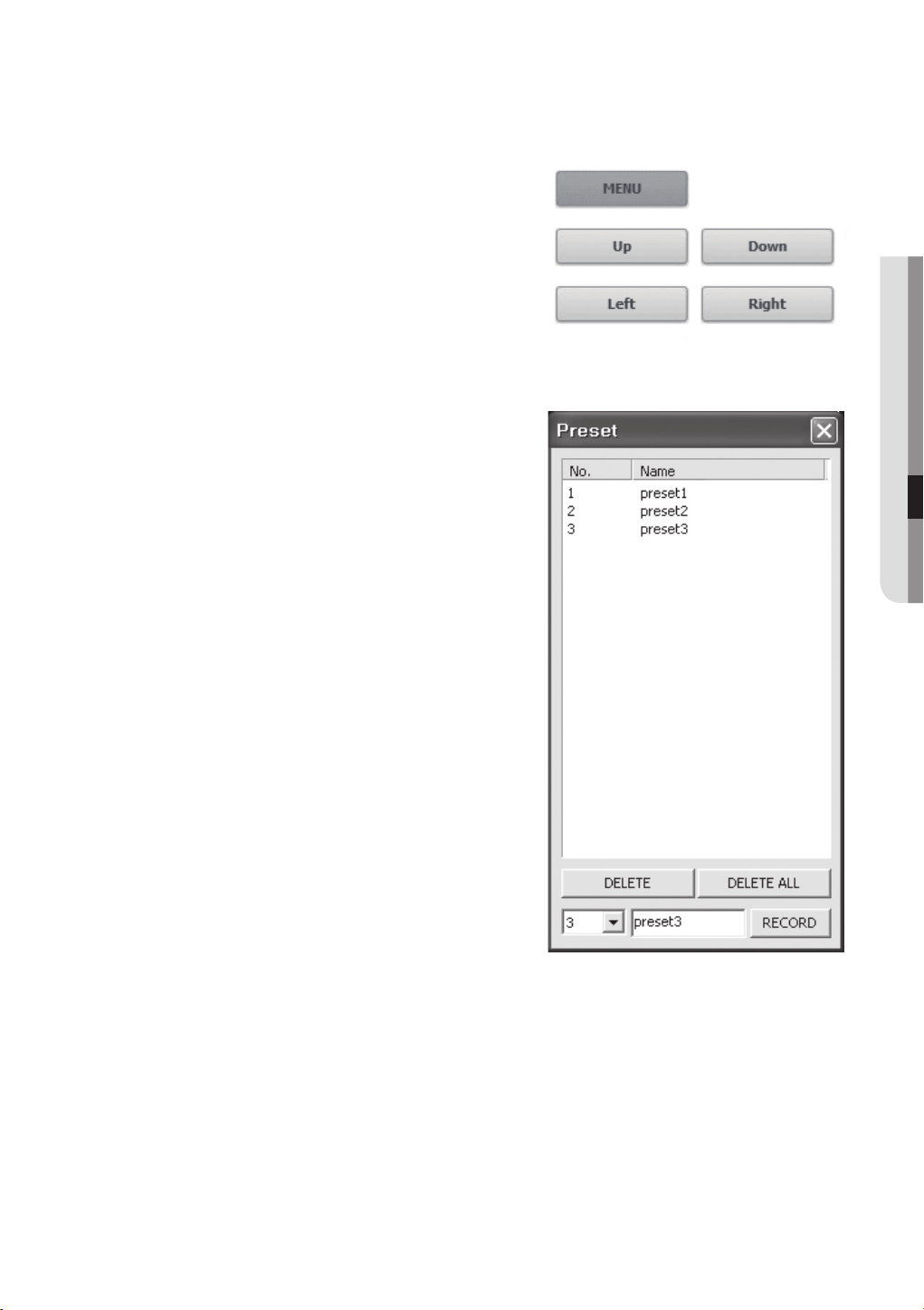

• MENU : Appears the camera menu screen.

• Preset : Moves the lens direction to a preset direction.

1. If you click a preset, the camera moves to the selected

preset's position.

2. You can delete the selected preset or all presets.

3. You can save a new preset number and name.

You can save presets up to 127.

• Auto Pan : Moves the camera lens direction between

2 points set for the camera.

• Scan : Moves the camera lens direction between 2 preset

points of the camera.

• Pattern : You can set camera various movement patterns

such as zoom, move, etc. so that a camera automatically moves according to the pattern.

! WEB VIEWER

While the DVR controls a PTZ camera, Web Viewer cannot

control the camera.

Camera menu setup is only available for camera supporting the function.

Each function of PTZ is same to that of the DVR.

Pan/Tilt of the Smart dome camera is manipulated automatically to center the camera to the mouse clicked point.

If you drag the mouse using the left button on a certain point, Pan/Tilt of the Smart dome camera is manipulated automatically to center the camera to the middle point between the dragging start and end position. Upward dragging will zoom out, while downward dragging will zoom in.

Tilt of Power PTZ operates properly within 45°.

Power and Pan Tilt functions are only available for camera supporting the functions. Ex : Samsung SCC-C6475

English _89

Page 90

Web Viewer

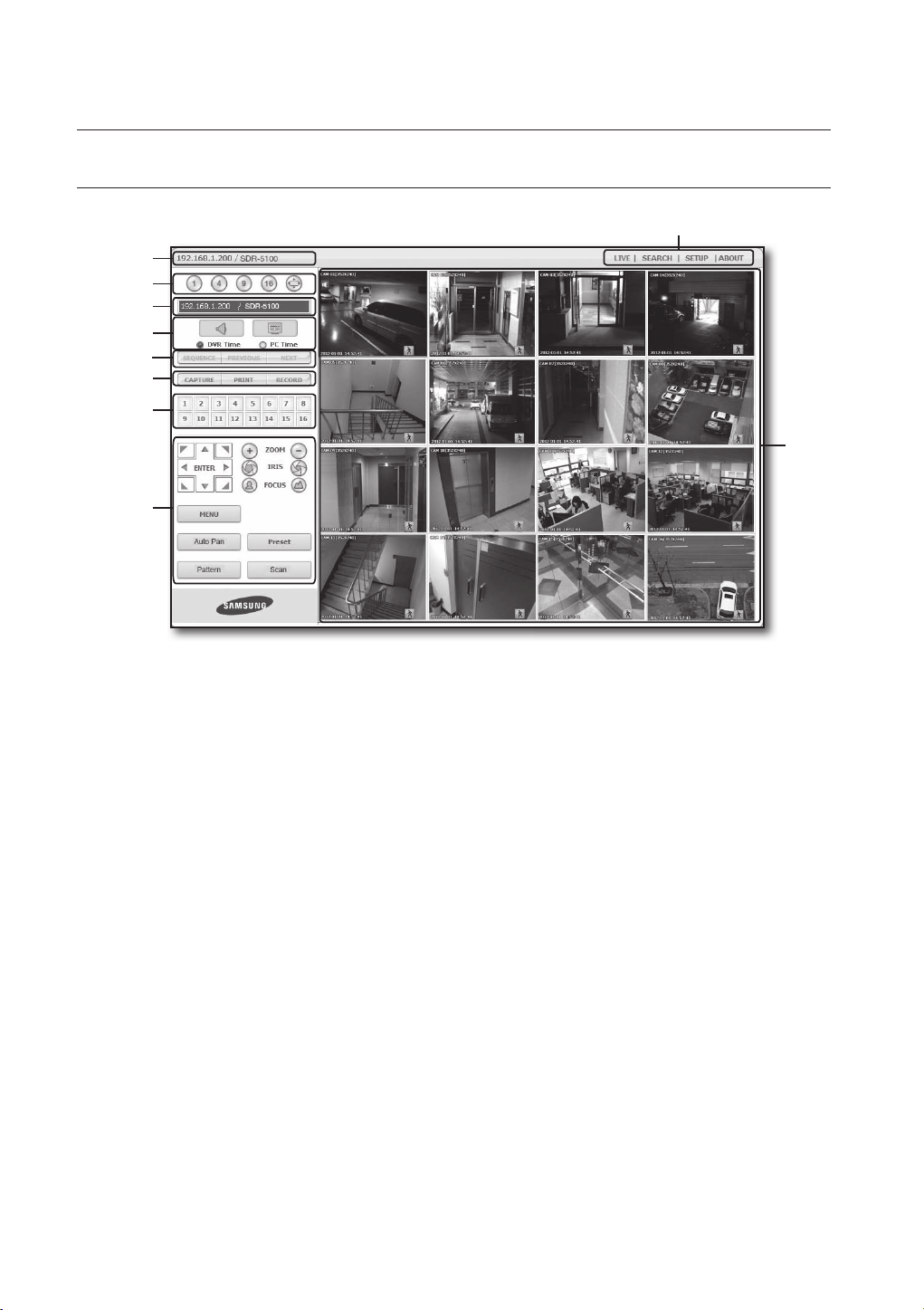

USING SEARCH VIEWER

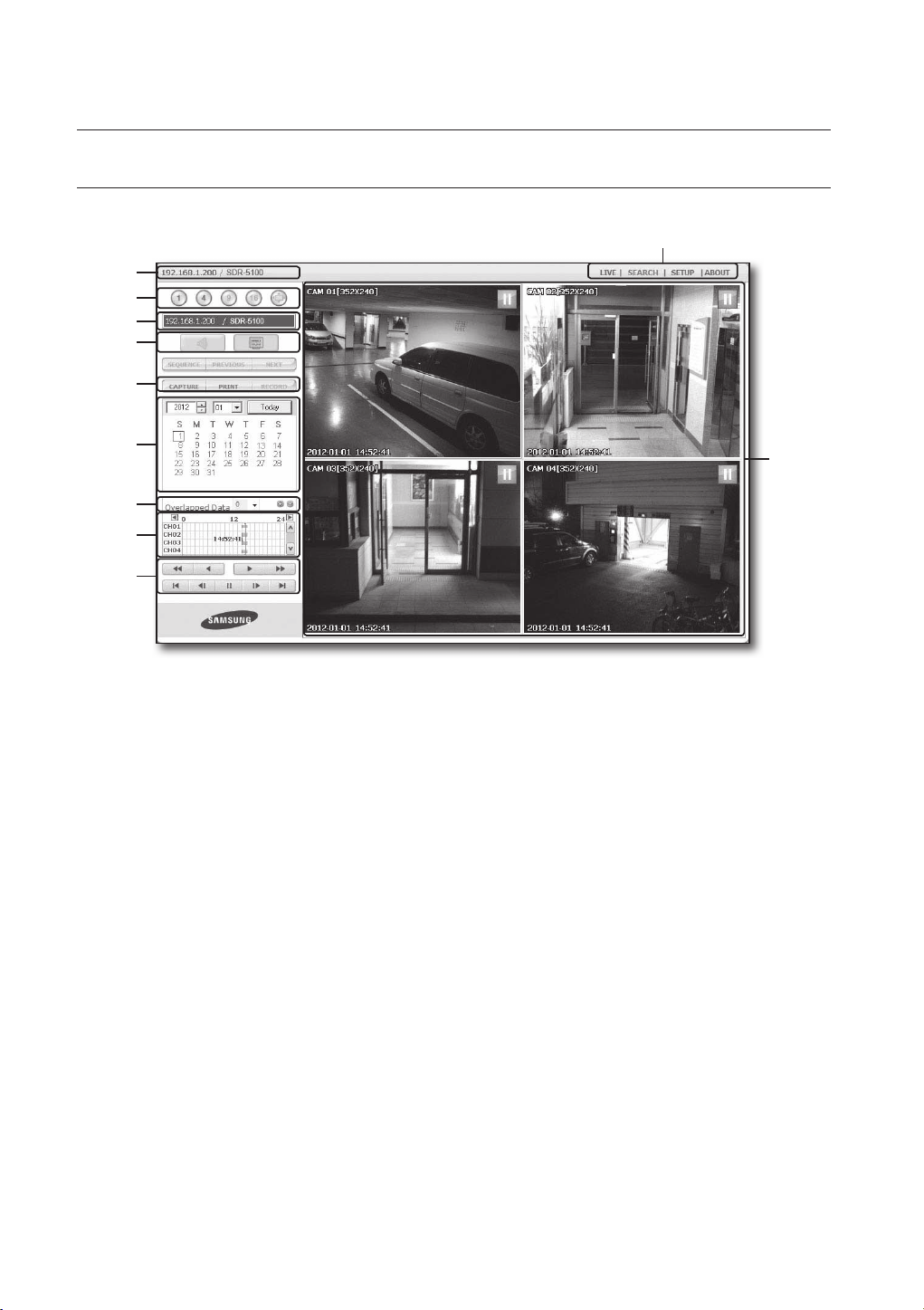

The Search Viewer screen consists of following :

a c

d e

a This displays the IP address and the model name of the connected DVR. b These menus consist of <LIVE>, <SEARCH>, <SETUP>, <ABOUT>. c These buttons are used for the screen split and full screen mode. d Shows the IP address and model name of the connected DVR. e Select the format of OSD information that will be displayed on Live Viewer. f These buttons are used for capture, print, and save the image. g This displays a calendar at which you can search the recorded video. h The duplicate check list will appear If there are found duplicates in the same timeline.

The duplicated items will be listed in latest-first order.

i This displays a timeline at which you can search the recorded video by the time. j These buttons are used for controlling playback. k This displays the screen for playback of recorded video.

<SEQUENCE>, <PREVIOUS>, <NEXT> buttons are not available in SEARCH menu.

During the DVR backup, you may have a trouble accessing CMS & Web Search.

Web Viewer on only Internet Explorer can support “Search” function.

90_ Web Viewer

Page 91

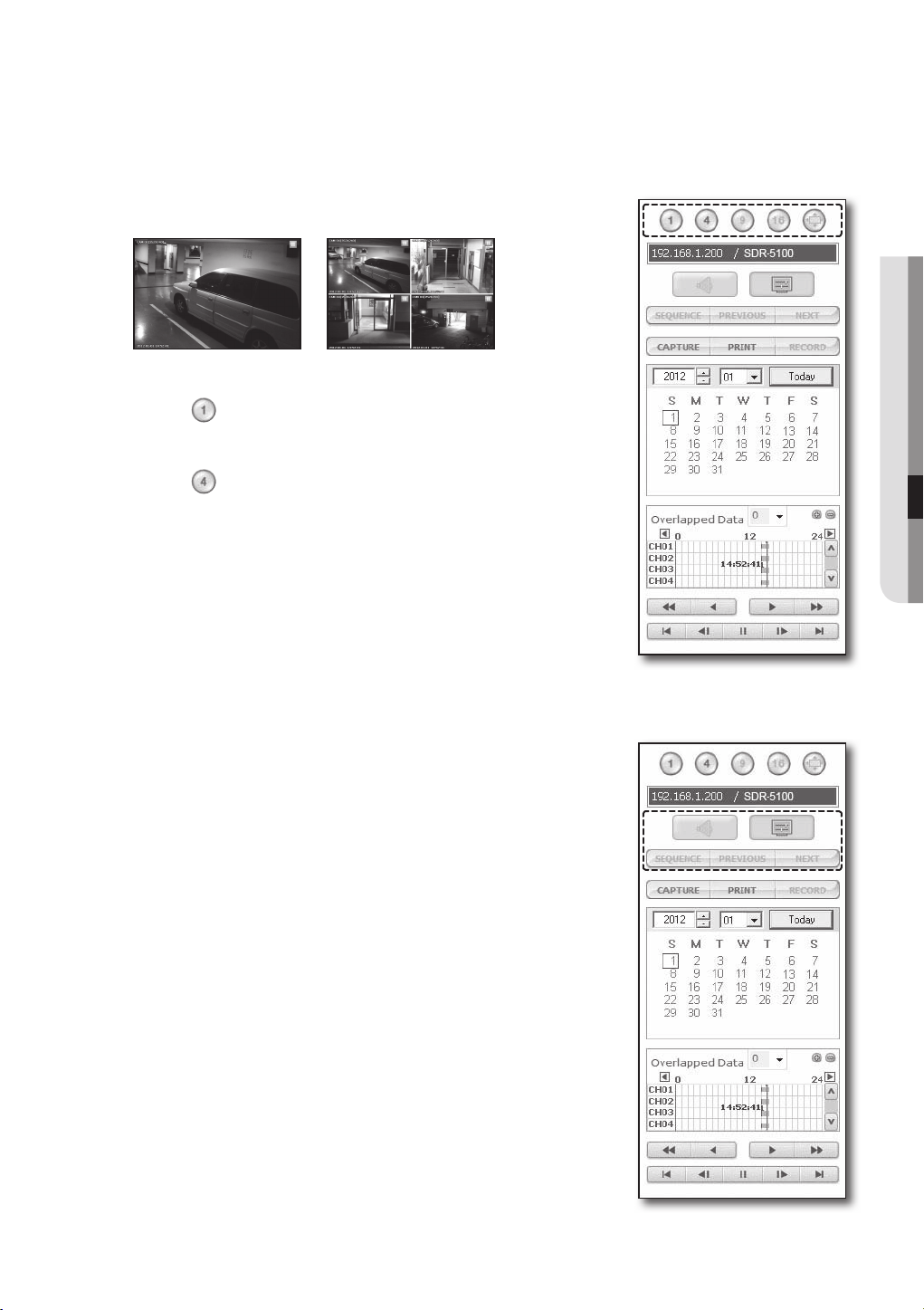

Split-Screen

You can change the split mode by clicking each number icon.

SINGLE MODE QUAD MODE

! WEB VIEWER

• Click < The screen displays the selected camera connected to the DVR in “SINGLE MODE”.

• Click < The screen displays the selected camera connected to the DVR in “QUAD MODE”.

> button.

Only SINGLE and QUAD MODE are available in SEARCH menu.

Connected DVR

This displays the IP address and the status of the connecting DVR.

Connection failure message

No Response : Appears when the DVR does not respond. Access Denied : Appears when the maximum number of users is exceeded.

The number of simultaneous connection is limited to 3.

English _91

Page 92

Web Viewer

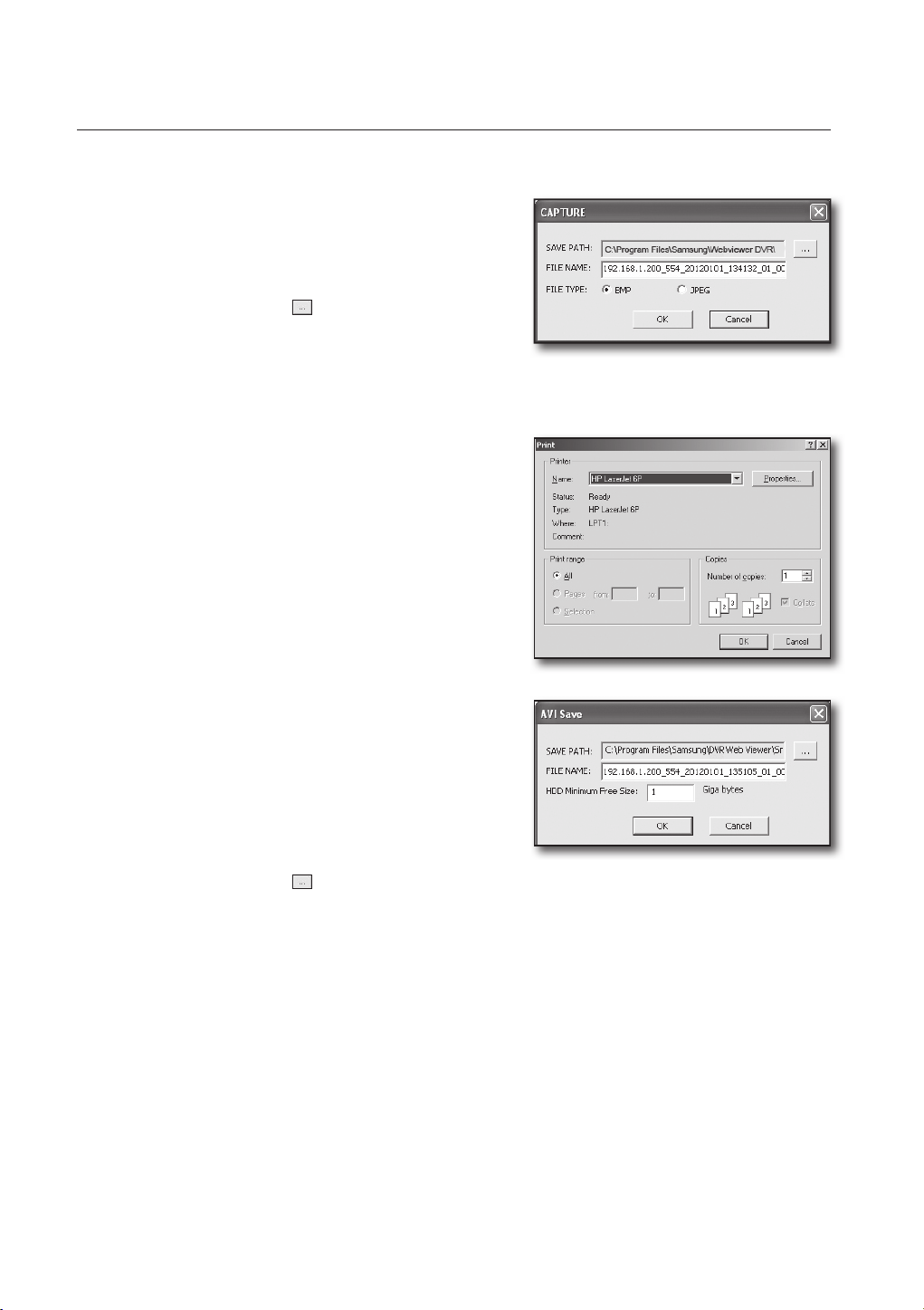

Saving The Live Screen On The PC

• CAPTURE : Saves the current screen into a BMP or JPEG

file.

The default saving path is “C:\Program Files\Samsung\DVR

Web Viewer\SnapShot\Search”. To change the saving path, click <SAVE PATH ( )> button and then select the path you want. For Windows Vista or 7, the saving path is “C:\ users\(user ID)\AppData\LocalLow\Samsung\DVR Web Viewer\Snapshot\”.

The file is automatically named as following : “IP address_Port number_YYYYMMDD_camera number_index” Ex) 192.168.1.200_554_20120101_134132_01_00

• PRINT : Print out the current screen. It also prints IP

address, time, camera number and current event state.

• RECORD : While in playback, press this button saves the

video data of the selected channel as an AVI file. (It is saved in the designated folder on your PC.) To stop recording, click this button again.

To record it, it is required at least 1GB of available space.

The default saving path is “C:\Program Files\Samsung\DVR Web Viewer\VideoClip\Search”. To change the saving path, click <SAVE PATH ( )> button and then select the path you want. For Windows Vista or 7, the saving path is “C:\users\(user ID)\AppData\LocalLow\Samsung\DVR Web Viewer\VideoClip\”.

The file is automatically named as following : “IP address_Port number_YYYYMMDD_camera number_index” Ex) 192.168.1.200_554_20120101_135105_01_00

For AVI save, you need the Xvid codec for playing saved files.

92_ Web Viewer

Page 93

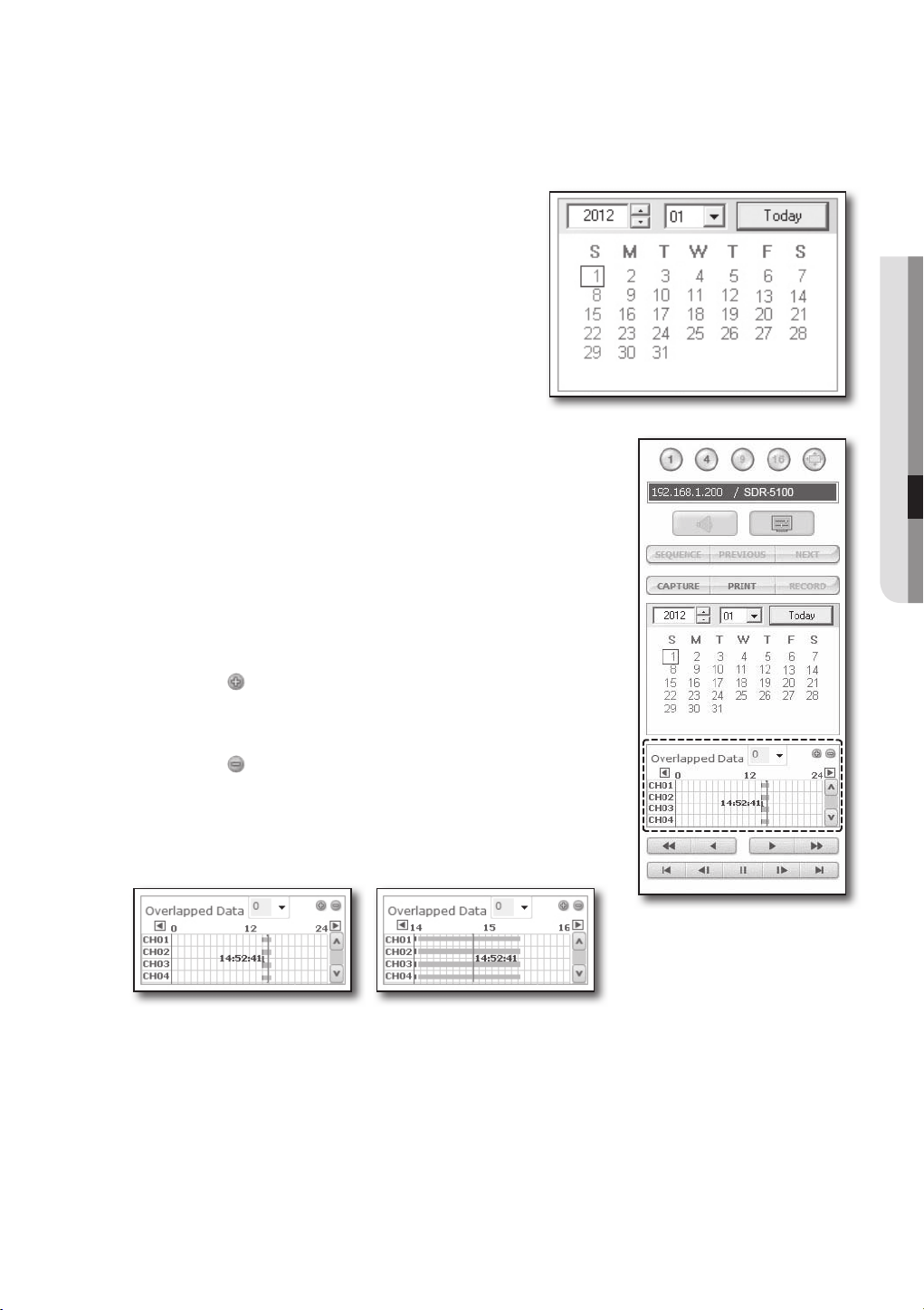

Searching The Recorded Video In The Calendar

If the video data has been recorded on a date, the date is distinguished in green. If you click the date, the recorded video information is displayed in the time line. When you click <Today>, it will be synchronized with the system time (date) of the current PC.

Check duplicates

If there are found duplicates in the same timeline after you changed the DVR time, those duplicates will be listed in the <0> order with the latest one on top.

Searching The Recorded Video In The Timeline

It displays the recorded video data status on the DVR after a date is selected. The normal mode displays the time ranging from 0 to 24 Hours while the extension mode displays the time every 2 hours.

[Normal Mode]

• If you click <

• Each time line represents 1 hour.

> button, it changes to the extension mode.

! WEB VIEWER

[Extension Mode]

• If you click <

• Each time line represents 5 minutes.

> button, it changes to the normal mode.

For SDR-5100, channels are ranging from CH01 to CH16. For SDR-4100, channels are ranging from CH01 to CH08.

English _93

Page 94

Web Viewer

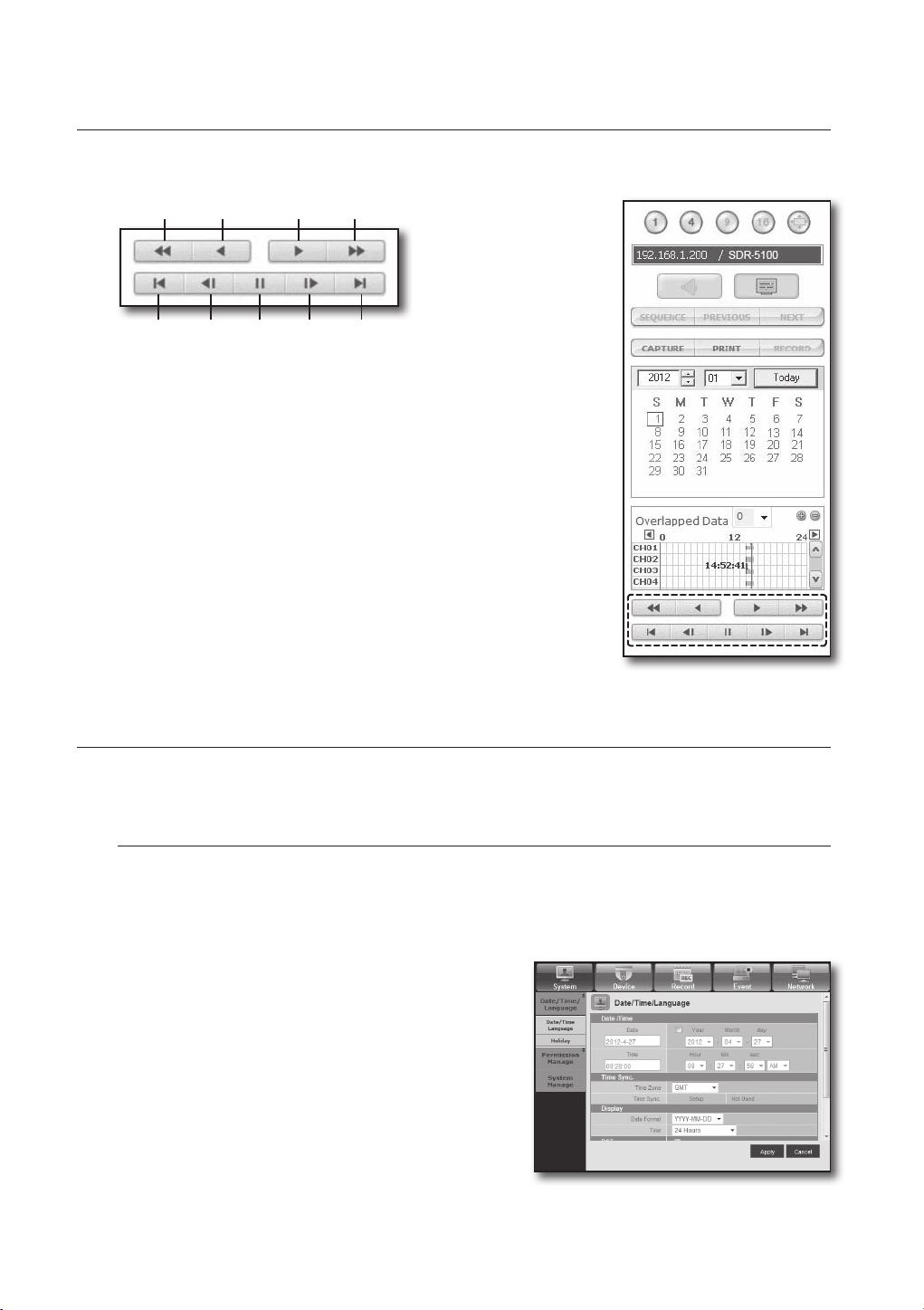

Controlling Playback

b c d

e f g h i

a Fast Backward : Reverse-plays faster(2x~64x). b Reverse Play : Performs Reverse Play. c Play : Performs playback. d Fast Forward : Plays faster(2x~64x). e Go to First : f Step Backward : Performs one step reverseplay by one frame. g Pause : Stops the playback temporarily. h Step Forward : Performs one step forward by one frame. i Go to Last : Moves the last time of recorded video in the time line.

Moves the beginning time of recorded video in the time line.

Only the admin account can play the audio signal during the playback. If using both web view and DVR set simultaneously, the audio signal will be output from the DVR set.

VIEWER SETUP

You can configure the DVR settings remotely on the network.

To configure the DVR settings, click <Setup>.

System

You can configure the various settings of the DVR system.

Date/Time/Language

For more information, refer to <Date/Time/Language> in the <System Setup> menu. (Page 33)

1. Select <Date/Time/Language> in the System menu.

2. Configure the DVR settings according to your system

environment.

• Date/Time

Set the date and time.

94_ Web Viewer

Page 95

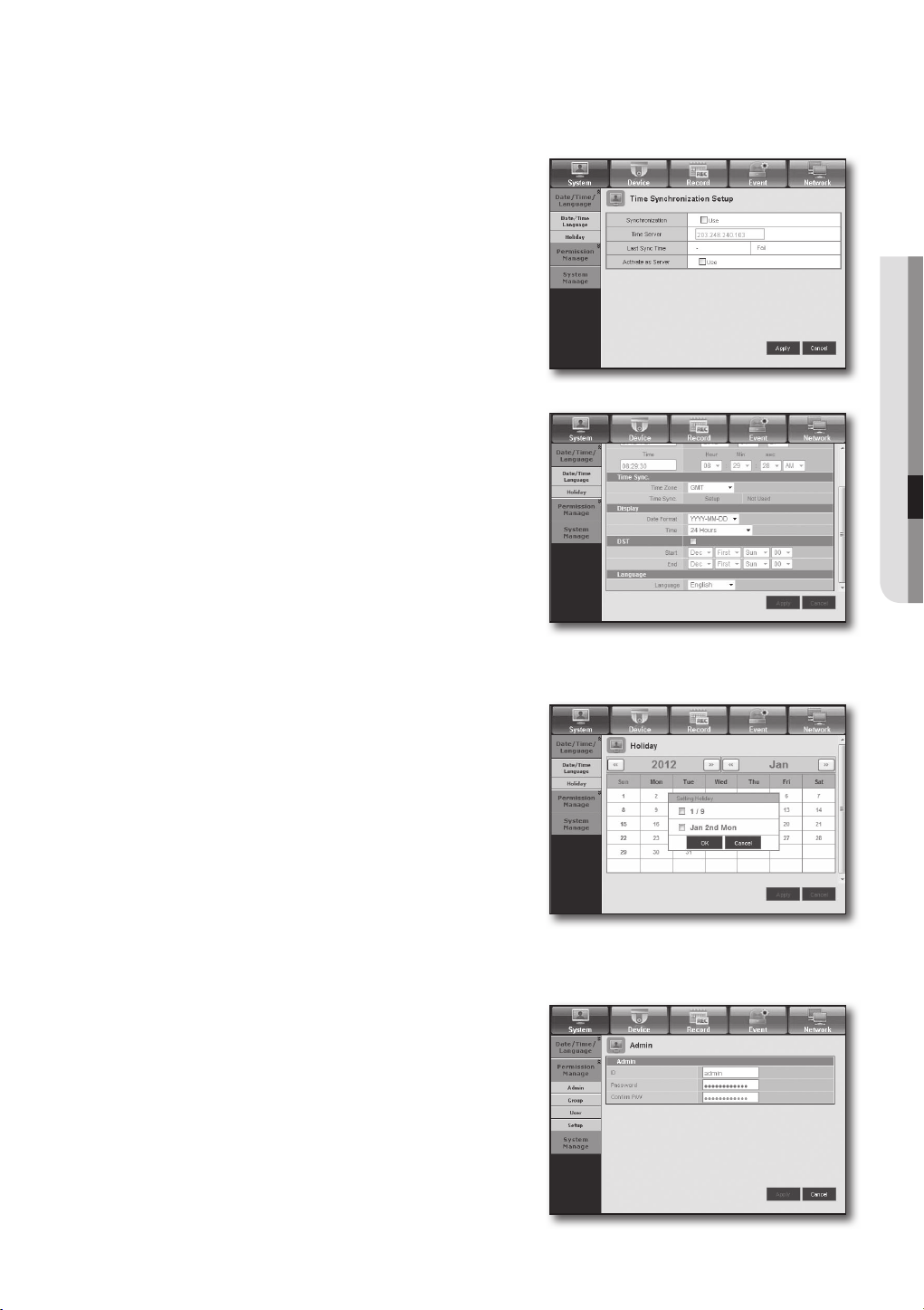

• Time Synchronization Setup

Set the time synchronization.

• Display

Date Format : Set the date type.

Time : Select a time format to display on the screen.

• DST (Daylight Saving Time)

DST is displayed an hour ahead of the standard time of the time zone.

• Language

Select a preferred language for the DVR.

Holiday

! WEB VIEWER

You can set specific dates to Holidays according to your preferences. For more information, refer to <Setting Holiday> in the <System Setup> menu. (Page 35)

Permission Management

For more information, refer to <Permission Management> in the <System Setup> menu. (Page 36)

• Admin

You can change the admin ID or the password.

English _95

Page 96

Web Viewer

• Group

Users are classified into groups and the permission can be set according to the group.

First of all, add a group.

• User

You can add, change or remove a user or users.

• Setup

You can set the user permission.

System Management

For more information, refer to <System Management> in the <System Setup> menu. (Page 41)

• System Information

You can see information of the current system. Check the Software Version, Broadcast Format and MAC Address.

96_ Web Viewer

Page 97

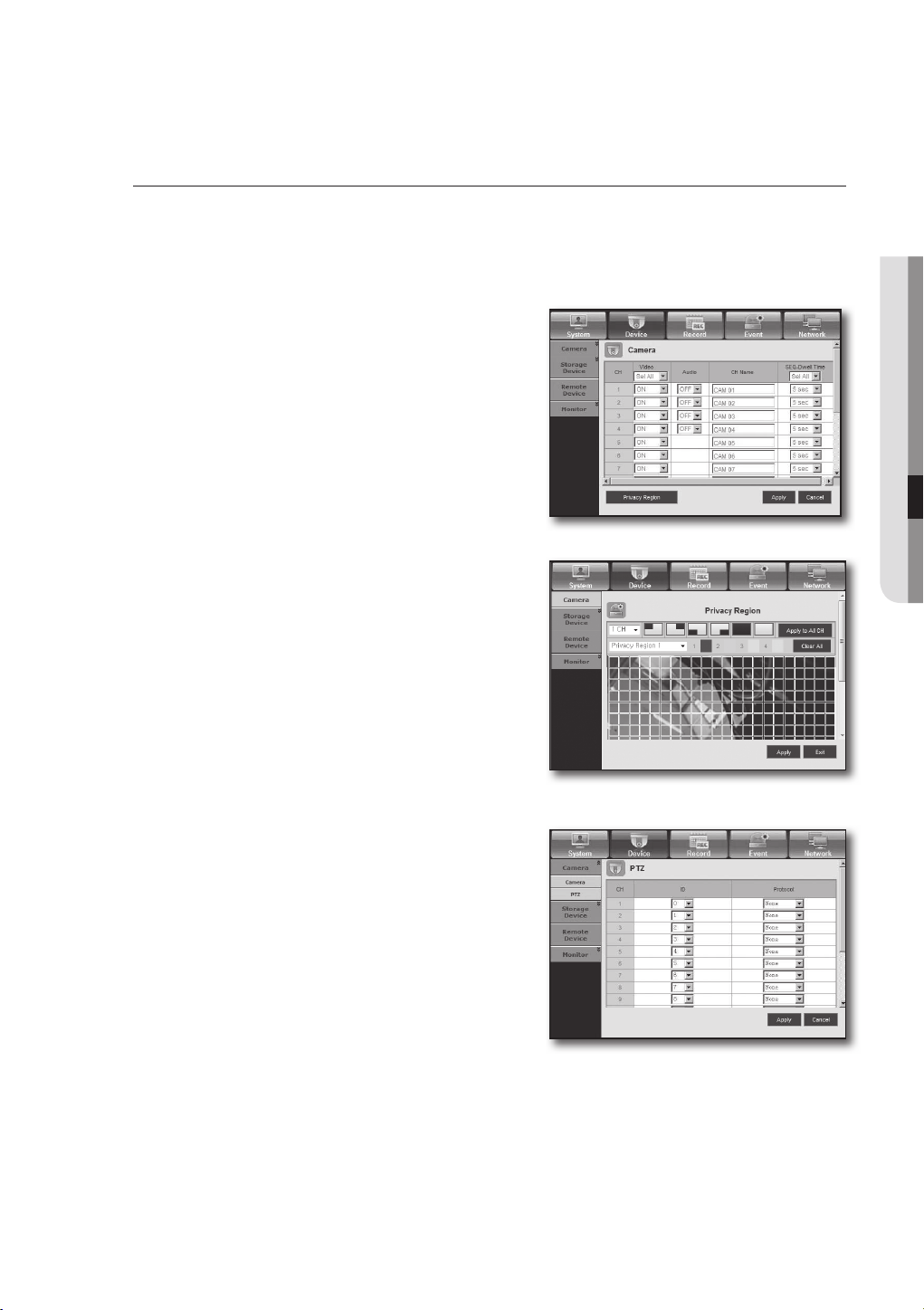

Device

You can check a list of devices that are connected to the DVR and configure the necessary settings. Click <Device> in the menu screen. For more information, refer to “Setting the Device”. (Page 45)

Camera

• Camera

You can configure the settings of the camera that is connected to the DVR.

• Privacy Region

You can specify a certain area of the camera video to be protected for your privacy.

! WEB VIEWER

• PTZ

You can configure the settings of the PTZ camera that is

connected to the DVR.

Set the ID and protocol.

English _97

Page 98

Web Viewer

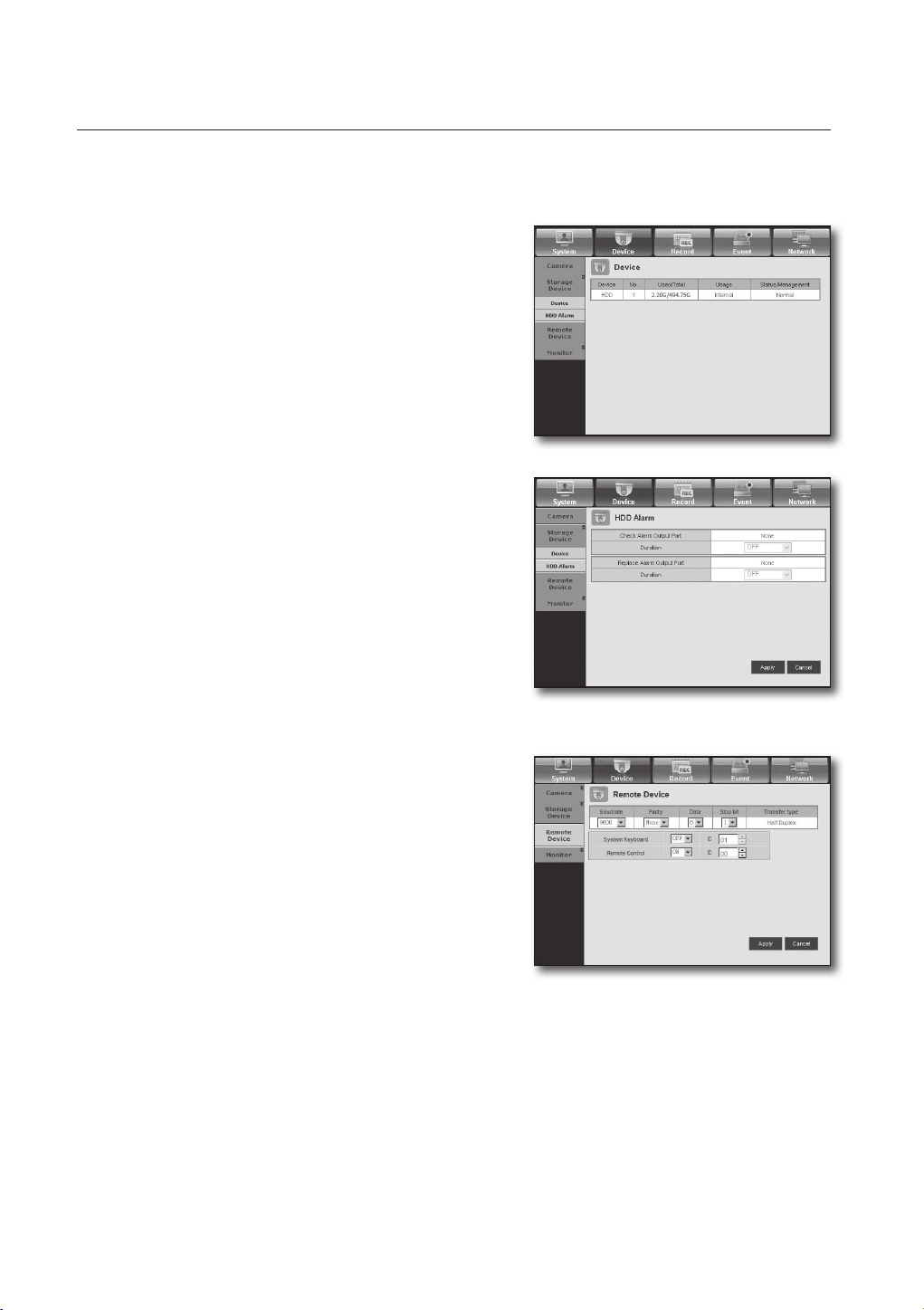

Storage Device

You can check and change the settings of the storage device.

• Device

You will see a list of storage devices that are connected to the DVR. You can check the type, used/total, usage and status of the device.

• HDD Alarm

You can set the alarm output channel and the alarm duration for an error.

Remote Device

You can see a list of remote devices including PTZ cameras

and system keyboards that are connected to the RS-485 port

of the DVR and configure the necessary settings.

98_ Web Viewer

Page 99

Monitor

• Monitor

You can configure the monitoring screen settings and set the output system.

• Mode

You can switch between live mode and play mode.

! WEB VIEWER

English _99

Page 100

Web Viewer

Record

For more information, refer to “Setting the Recording”. (Page 51)

Recording Schedule

If you set a recording schedule for a specific date and time, the recording will start at that specific time.

- Apply to All CH : Click <Apply to All CH> to display the

confirmation window.

Event Record Duration

You can set the start and end times of recording that will be activated if an event occurs.

100_ Web Viewer
