Samsung SCH4000 Users Manual

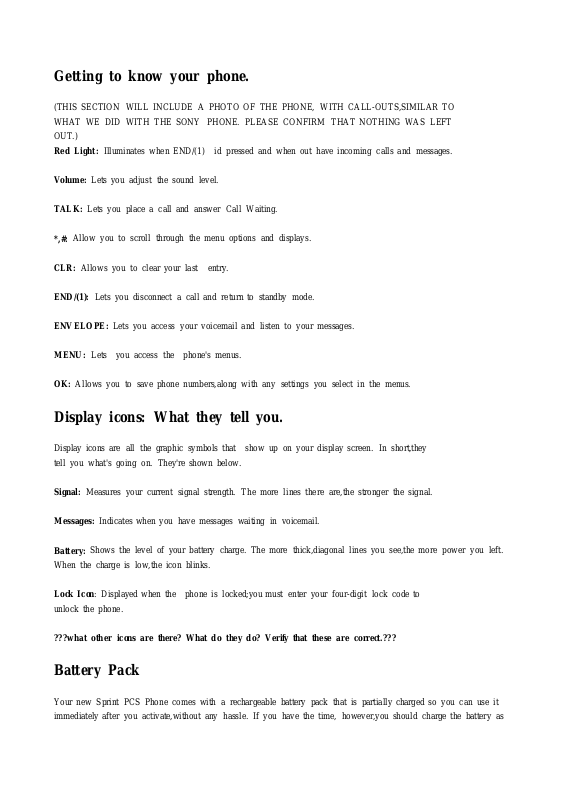

Getting to know your phone.

(THIS SECTION WILL INCLUDE A PHOTO OF THE PHONE, WITH CALL-OUTS,SIMILAR TO
WHAT WE DID WITH THE SONY PHONE. PLEASE CONFIRM THAT NOTHING WAS LEFT
OUT.)

Red Light:

Illuminates when END/(1) id pressed and when out have incoming calls and messages.

Volume:

TALK:

*,#:

CLR:

END/(1):

ENVELOPE:

MENU:

OK:

Lets you adjust the sound level.

Lets you place a call and answer Call Waiting.

Allow you to scroll through the menu options and displays.

Allows you to clear your last entry.

Lets you disconnect a call and return to standby mode.

Lets you access your voicemail and listen to your messages.

Lets you access the phone's menus.

Allows you to save phone numbers,along with any settings you select in the menus.

Display icons: What they tell you.

Display icons are all the graphic symbols that show up on your display screen. In short,they
tell you what's going on. They're shown below.

Signal:

Messages:

Battery:

When the charge is low,the icon blinks.

Lock Ic on

unlock the phone.

???what other ic ons are there? What do they do? Verify that these are correct.???

Measures your current signal strength. The more lines there are,the stronger the signal.

Indicates when you have messages waiting in voicemail.

Shows the level of your battery charge. The more thick,diagonal lines you see,the more power you left.

: Displayed when the phone is locked;you must enter your four-digit lock code to

Battery Pack

Your new Sprint PCS Phone comes with a rechargeable battery pack that is partially charged so you can use it
immediately after you activate,without any hassle. If you have the time, however,you should charge the battery as

soon as possible,to get the most out of it.

Installing your battery pack.

To install your battery,just follow these simple steps:

1. Hold the battery with the label facing down.

2. Lay it on the back of the phone with the top of the battery about a quarter of an inch from
the latch.(The connectors at the base of the battery should line up with the connectors on
the base of the phone.???I didn't know what to call those little metal things in the battery and
on the phone???)

3. Gently slide the battery until it clicks into place.

Turning your phone on and off

When you're ready to turn your Sprint PCS Phone on,check to see that the charged battery pack has been
installed in the back of the phone or that you have an external power source
(the cigarette lighter adapter or the hands-free car kit). Then, simply press END/(1) until the red light at the top
of the phone is lit. Now you're ready to make a call.

Turning off the phone is just as simple. Press END/(1) for a few seconds.The display will by blank when the
power is off.

.

Taking your battery pack out.

1. First,turn the power off to avoid losing stored numbers and messages.

2. Press the battery release latch on the back of the phone while sliding the battery out.

Charging your battery pack.

You can tell whether or not your battery needs to be recharged just by checking the???corner of your phone's
display,where the battery charge indicator is located. When the battery charge level is low,the battery icon will???
and the phone will sound a tone.

If you continue to use your phone without recharged and the battery level becomes too low,it will turn off
automatically. If this happens, unfortunately you'll lose whatever you were just doing. So,watch the indicator and
make sure your level is okay.

To charge your battery, you should use the Sprint PCS desktop charger, travel charger of cigarette lighter adapter

???What does the phone do if the charge is low???

???Is an y of this true for the Samsung phone???

from Samsung.(The desktop charger is described in the next section.
For more information on the travel charger and cigarette lighter adapter,see the product user guide for each.)

Using the desktop charger.

First of all,a few words of wisdom of warning:You should only use the Samsung-approved desktop charger and
AC adapter with this Sprint PCS Phone.Using the wrong one could cause damage.

1. Plug one end of the AC adapter into the charger and the other end into a wall outlet.

2. Insert either the battery pack alone or the phone with the battery pack installed into the slot.

A ???light??? on the charger will let you know the battery is being charged. A ???light???tells you when the
battery is at least 90 percent charged.

If your battery's charge is completely run down,it will take about ??? hours to fully recharge it.
With the Samsung-approved???name of battery type (like lithium ion was for Sony)
battery pack you don't have to completely discharge the battery before discharging it. If you leave your phone
turned on while's in the charger,your battery will take longer to charge.

Function keys:What they make happen.

:Press this key to place a call,to access a second incoming call or to initiate Three-Way Calling.

TALK

: This key lets you do lots of things:

CLR

- To erase one character from the display screen,briefly press it one.

- To erase all of the them,hold it down.

- To go back one level when you're accessing a menu,briefly press it once.

- To revert back to the standby display, hold it down. ???Is this true???

END/(1)

phone's standby display.

MENU

:Press this key to disconnect a call. You can also press it to exit out of a menu and return to the

: Press this key to display the phone's main menu.

:Press this key to store a number in the phone's internal phone book.

OK

ENVELOPE ICON

page ???.)

: Press this key to check your voicemail messages. (For more information on voicemail,see

Phone calls: How to make and receive them.

Whenever you make a call,follow these simple steps:

1. First,check to see that your Sprint PCS Phone is turned on. If you see the display indicators
on the screen,that means the power is on.

2. Enter the number you're calling.

3. Press TALK.

4. When you're finished with your call,just press END/(1) to disconnect.

Correcting a misdial

If you make a mistake while dialing a phone number,press CLR to erase the number one digit at a time. You
can delete the entire number at once by pressing CLR and holding it down for at least one second.

Remembering your phone number

You probably don't call your own Sprint PCS Phone number very often,so you may forget it. If you do,here's an
easy way to get it:Turn your phone on and your number will be displayed briefly.

If you miss it,press MENU,press2 to select "Phonebook"and then press2 to display your number.

.

.

Answering calls.

When your phone rings,simply press any key(other than
when you're through, press

END/(1)

.

END/(1)

or the volume keys)to answer. To disconnect

Using Caller ID.

This feature tells you who is calling you on your Sprint PCS Phone by displaying the caller's number when the

phone rings. (If the caller's name and number are stored in your internal phone book,the caller's name will be
displayed,too) If you call someone who has this feature,your Sprint PCS Phone Number will be displayed on their
phone.

To block your Sprint PCS Phone Number from being displayed for a particular outgoing call,just follow these steps
:

1. Press

2. Dial the outgoing phone number and press

To block your Sprint PCS Phone number from being displayed on all of your outgoing calls, just call Sprint PCS
Customer Care by pressing
Once you have permanently blocked your number,you can release the block for a particular call. To do that follow
these steps:

1. Press

2. Dial the phone number and press

* 6 7

* 8 2.

* 2 TALK

TALK

.

TALK

(in Southern California,press

.

* 6 1 1 TALK

)

Responding to Call Waiting.

If you're in the middle of a call and you here a beep,that means you have another calling coming in. If you don'
t answer the call within 10 seconds, you will be reminded of the incoming call with a second beep. To answer
the second call,press

TALK

. Press

TALK

again to switch back to the first call.

If you don't want to be interrupted during a particular call,you can temporarily disables Call Waiting. Just press

before dialing the number. If you don't want to be interrupted during any of your calls,before making any

* 7 0

more press
have Call Waiting deactivated.

* 2 TALK

Redialing calls

To redial the last call you made from your Sprint PCS Phone,press
calls that either made,missed,received of added,select a number from either your incoming or outgoing call log
(see page ???).

???Is this true???

Setting up a three-way call

Three-Way Calling lets you talk with two different people at the same time. Simply dial the first number and
press
second number and press

. When you have connected,press

TALK

(in Southern California, press

.

.

. When you're connected, press

TALK

TALK

* 6 7 1 1 TALK

to put the first caller on hold. Next,press

)to call Sprint PCS Customer Care and

TALK

TALK

twice. To redial any of the last 9

again to begin your three-way call.

CLR

,dial the

Using Call Forwarding.

With Call Forwarding,you can have all of your incoming calls forwarded to another phone number-even if your
Sprint PCS Phone is turned off. Even when Call Forwarding is activated,you still can make calls from your
Sprint PCS Phone. To activate Call Forwarding, follow these steps:

1. Press

2. Once you've decided where you want your calls forwarded, enter the area code and the seven-digit phone

number.

3. Then press

To deactivate Call Forwarding,press

* 7 2

.

TALK.

You will hear a tone that confirms you've activated Call Forwarding.

* 7 2 0 TALK

. Once again,you'll hear a tone to confirm the deactivation.

Saving or editing your own emergency numbers.

You can save up to three emergency phone numbers on your Sprint PCS Phone, in addition to 911. To save
those numbers,follow the steps below.

1. Press

MENU

.

2. Press5to select "Security".

3. The phone prompts, "Lock Code:" Enter your four-digit lock code (typically this code is the
last four digits of your Sprint PCS Phone Number). Once you've successfully entered your
lock code,the phone displays the security menu.

4. Press4to select "Emergency#". The phone displays your security numbers(if no security
numbers have been saved,"Empty"is displayed in each slot.

5. Select an emergency number slot by pressing the appropriate number.

6. Enter the 10-digit emergency number(area code +phone number)to be saved in that slot and
press OK.

7. The phone displays the number and "Saved"to confirm that the number was stored correctly.
The phone then redisplays the list of emergency numbers so you can make additional
changes.

8. When you have finished storing numbers,press and hold
standby display.

to exit and return to the

CLR

Dialing 911 or other emergency numbers.

If there's an emergency,you still can make calls even when your phone is locked. (For information on locking your
phone,see page ???) If your account is restricted,you still can call
911 but no other emergency numbers. To make a call,follow these simple steps:

1. Dial 911 or one of the other three emergency numbers stored in your emergency list.

2. Press

TALK

.

Dialing Sprint PCS Directory Assistance

Dial

4 1 1 TALK

distance calls;or to obtain movie listings,hotel,restaurant and shopping information,and major local event information.

to obtain residential,business and government listings; to get help completing local or long-

Dialing Sprint PCS Operator Services

Dial0to obtain assistance in placing collect call or call billed to a local telephone calling card or a third party.

Voicemail: The ins and outs.

Setting up your voicemail.

The first time you call your voicemail box,which you do by pressing and holding ENVELOPE for
at a second,enter "SPRINT"(777468)as your temporary pass coed. We suggest you do this soon after you activate
your Sprint PCS Account.

After entering that coed,the voicemail system will prompt you to do these things:

- Create your own personal pass code. Make sure you pick a number that you will remember.

- Create the greeting that people will hear when they call you.

- Initialize your name announcement.

- Choose whether to activate One-Touch Access.

After you've set up your voicemail,it will automatically record messages whenever someone calls and you don't

answer. Whenever you need to call your voicemail from your home or business phone,dial your Sprint PCS Phone
Number,press* and enter your pass code.

Finding out you have a message.

Your Sprint PCS Phone alerts you when you have new voicemail message in several ways:

- By displaying a message on the screen

- By sounding five short beeps(if the ringer is turned on)

- By flashing the red light at the top of the phone

- By displaying the ENVELOPE icon at the top of your screen

To acknowledge a new message,you can press any key. The red light will continue to flash and a reminder beep
will sound every two minutes until you do this.

Once you've acknowledged a message,your phone will then redisplay whatever was on the screen before the alert.
The phone will display ENVELOPE until you save or erase your new messages. You can save up to 30 messages
and each can be stored for up to 30 days.

Retrieving messages.

Whenever you access your voicemail,you'll be given the following options:

- To listen to new or saved messages, press1.

- To change your personal options, such as your personal greeting,press3.

When you listen to your messages,here are all the things you can do:

To hear the date and time of a message,press5.

To erase a messages,press7.

To return a call, press8. (You can do this only when a callback number is attached.) See page
???for more information on the callback feature.

To save a message,press9. (You can save up to 30 messages and each can be saved for up to 30 days.)

To skip to the next message, press#down arrow.

To go back 10 seconds, press1.

To advance 10 seconds, press3.

To replay the message, press4.

Using special Sprint PCS Phone Features.

Your new phone comes with several key features that make voicemail particularly easy to use.

One-Touch Access

press and hold ENVELOPE for at least a second(if One-Touch Access is

Hands-Free
Listening

Callback

Page Inte gration

To call your voicemail from your Sprint PCS Phone, all you have to do is

activated). You don't have to enter your pass code. This feature is
available only from your Sprint PCS Phone.

Your messages will be played continuously in the order they were

received. You can stop to save or erase any of them.

When you're listening to a message,you can return the call instantaneously

by pressing8. Callers can attach a callback number by pressing#4after
their messages. (You may want to give this instruction in your greeting.)

When you're finished returning the call, press

Sprint PCS offers several paging options to use with your Sprint PCS

Phone. This means if you choose to buys a Sprint PCS Pager, your pager,
voicemail and PCS phone will have one integrated number to help make
things easy.

* *

to get back to voicemail

Paging Link

If you own a Sprint pager (not Sprint PCS Paging), your Sprint PCS

Phone and voicemail may be integrated with that service. Just call Sprint
PCS Customer Care by pressing

* 6 1 1 TALK

)for more information.

* 2 TALK

(in Southern California, press

Internal phone book.

You get two types of phone books with your Sprint PCS Phone: the internal phone book and the call logs. To
make the most of them,you really need to understand all basic features and functions of your new phone.

Understanding your phone's memory.

Your Sprint PCS Phone had??? phone book memory locations -that is,???places to store phone number. You can

store up to 32 digits within each of these memory locations and use up to 12 characters to give each entry a
name.

Saving and storing a phone number.

When adding numbers to your internal phone book,keep in mind that memory locations 1 through 9 should be
used for One-Touch Dialing

dialing???

or your most commonly used phone numbers. To save numbers,simply follow the directions below.

???I couldn't find anything to su ggest that the Samsung interface offers one-touch

1. Enter the number that you want to save and press
using 10 digits (area code + number). The phone displays the next available memory location
along with your entry.

2. Press
a different memory location,enter that location number and then press

pauses,like on the Sony phone???

If that memory location already has a number stored in it, the phone prompts,"Replace?"
Press
location.

3. Next,enter the name that goes with the number.
Press the key of the first letter in the name,and continue until you've spelled the whole
name. Pressing a key repeatedly will change the letter or number in the cursor position on
the screen. (For example,press2once for "A". Press2twice for "B".)
As you press each key,the cursor will advance automatically. To enter a space, press#.
Press

again to save the number in the memory location. To instead save the number to

OK

to replace it with the new number,or press

OK

CLRor*or#

to correct any mistakes.

. We suggest that you save numbers

OK

OK.???can I e nter

to enter a different memory

CLR

???is there a way to enter punctuation???

4. When the name is entered correctly, press
"Saved" to confirm that the number is stored.

vice versa???

. The phone displays the name, number and

OK

???Can i change uppercase to lowercase, and

Checking all your stored numbers.

Several methods can be used for checking numbers stored in your phone. You can look up
a number using a name,digits from the phone number,or memory location. Each is described
separately below. Follow the steps described below to find stored numbers using the menu
options.

1. Press

2. Press2to select "Phone Book".

MENU

.

3. Press1to select "Find name" or press 4 to select "Find Entry".

Shortcuts for looking up numbers by memory location and name also are available,as described in the next
sections.

Finding a number using its memory location.

1. Press

2. Press 2 to select "Phonebook"

3. Press 4 to select "Find Entry"

4. Enter the two-digit memory location to display the number

5. To call that number, press

MENU

.

.

TALK

Finding a number using a person's name.

1. Press

2. Press 2 to select "Phonebook"

3. Press 1 to select "Find Name"

4. Enter as many consecutive letters of the name as you can remember(even if you remember

MENU

only the first letter)and press OK. The phone briefly displays the number of matches found
and then displays the name and number of the first match. If the number displayed is not
the one you want, press*or#to scroll through the list until the appropriate number is
displayed.

.

3. When you have found the correct number, press

???Do we offer speed dial on th e Samsung phone?

TALK

to dial it automatically.

Editing a phone number.

1. First,find the number that you want to edit,using one of the methods described in the
previous sections.

2.

???I couldn't figure out how to edit an existing stored number???

Erasing a phone number.

1. First, find the number that you want to erase

2. Press MENU.

3. Press 4 to select "Erase"

4. Press

???this seems a bit convoluted . Is there a faster,more efficient way???

to erase the number from the phone book.

OK

Keeping track of you calls.

Your Sprint PCS Phone keeps track of the last nine calls you made and the last nine calls you
received. To display a list of recently made calls, follow these steps.

1. Press

2. Press1to select "Call Logs".

3. To display information on your last nine outgoing calls, press1. To display information

4. The phone then displays the phone numbers of your calls, one at a time. To scroll through

MENU

on your last nine incoming calls, press2. To display information on your last nine missed
calls

the list, press*or#.

.

5. To dial a display number, simply press
and return to the standby display.

. Otherwise, press and hold

TALK

CLR

to exit

Dialing from your phone book to a different area code.

When you're traveling outside your home service, or when you're calling someone back
from within voicemail, you may need to add an area code to the number. To temporarily add
digits to the beginning of a phone number, follow these steps:

1. Find the number you want to call. This can be done in several ways. (See page ??? for
more information.)

2. Press MENU.

3. Press 3 to select "Prepend"

4. Enter the area code.

3. Press

TALK

to dial the modified number.

Main menu: Tailoring your phone's features to your needs.

You can access all of your phone's features and settings through the main menu. Here's how
to to about it.

Navigating through the menu.

To display the main menu, press

To scroll through menu items, press*or#.

To go back one step, press

MENU

CLR

.

briefly.

To select a menu item, press the number corresponding to it.

To scroll through possible setting, press*or#.

To save a setting, press

To exit the menu and return to the standby scre en, press
saved.

OK

.

END/(1)

or press and hold

.. No changes will be

CLR

Taking a menu shortcut.

If you're in a hurry, just press MENU and the numbers on the menu screen. For example, if
you press MENU, followed by 4 and 1, the phone will display the volume setting for the
ringer.

Understanding menu items: Managing your phone's settings.

Ke eping track of calls.

1: Call Logs. These options help you remember whom you called and who called you, along
with how much airtime you have used. Times are displayed in hours, minutes and seconds
(for example, 003h: 59m: 23s).

1:

Outgoing

scroll through the list.

. Lists, one at a time, the last nine numbers you called. Press*or#to

2:

Incoming

PCS Phone. Press * or#to scroll through the list.

3. Missed. Lists, one at a time, the last nine numbers you missed. Press * or # to
scroll through the list.

4:

Air Time

. Lists, one at a time, the numbers of the last nine callers to your Sprint

. Check to see how much air time you have used by selecting this option.

1:

Last Call

the call was made, and the duration of the call.

2:

Total

total amount of airtime used.

3:

Erase Total

the log, press

. Displays the phone number of your last call, the date and time

. Displays the total number of calls made and received, along with the

. To reset your air time log to zero, press

.

CLR

. To maintain

OK

Maintaining your internal phone book.

2:

Phone Book

phone book.

. These options lets you manage the numbers stored in your phone's internal

1:

Find Name

2:

My Phone#.

3:

Add Entry

the number to be stored and then press
available memory location, press
identify the number and press

4.

Find Entr y

5:

Services

. Lets you look up numbers stored in your internal phone book.
Enter as many consecutive letters of the name that you know and
then press
your search.) The phone indicates how many matches were found and then
displays the first number and name from the list of matches. To scroll through
the list, press*or#. To dial a displayed number, press

Displays your Sprint PCS Phone number.

. Lets you store a phone number in the phone's internal phone book. Enter

: Enter the two-digit memory location code that corresponds to the
number you want to find. To scroll through the entire list of stored numbers,
press*or#. To dial a displayed number, press

. When you need assistance making calls or if you have questions about your

Sprint PCS Phone or service, you can select this option.

. (Entering only the first letter of the name still helps narrow

OK

TALK

. To store the number in the next

OK

again. Next, enter the name that will be used to

OK

.

OK

.

TALK

.

1:

DirAssist.

calls.

2:

Cu stomer.

3: Prepaid

Lets you connect to

Dials Sprint PCS Customer Care.

Adjusting your phone's volume.

??? a Sprint operator

to get assistance in making

3:

Sounds.

Here's how to adjust the volume of your phone's ringer and key beep.

1:

Ring Vol.

Setting are "off," "low," "med" and "high." "1-beep" The default is ???.
Once you select the level you want, press OK to set it.

2: Ring Type. Determine the sounds your phone makes when you receive a call or

messages.
Press*or#to scroll through the possible settings. As you scroll through the list, you
will hear a sample of the ringer setting. When you find the ringer setting you want,
press

3:

MSG Rin g.

you can press either * or #, or the volume keys.
Setting are "off," "low," "med" and "high." "1-beep" The default is ???.
Once you select the level you want, press OK to set it.

4:

Ke y Vol.

option. Press*or#or the volume keys. Setting are OFF, LOW, MED and HIGH.
The default is ???. Once you select the level you want, press

To adjust the ringer, you can press either * or #, or the volume keys.

to save it.

OK

To adjust the message ringer,

To adjust the beep your phone makes when you press a key, select this

??? Is there a default setting???

OK

to set it.

5:

Tone Le ngth.

you press a key. Possible settings are "short" and "long". The default setting is
"short".

You can determine the length of the tone your phone makes when

Determining what is displayed.

4:

Display.

settings.

Determine some of the attributes of your phone's display by modifying these

1:

Backlight.

settings are OFF 10 SECONDS, 30 SECONDS, and "FLIP OPEN".
The default setting is ???.

You can manipulate the display and keypad backlighting. Possible

2:

Gr eeting.

screen just so long as it's no more than 12 characters. This banner will be displayed on
the top line whenever your phone is on. Enter text for your banner in the same way
you enter names with stored phone numbers (see page

This option lets you put whatever you want on your phone's display

).

???

3:

Version.

Phone.

Displays the version number of the software installed on your Sprint PCS

Maintaining Phone security.

5:

Security.

when you don't want them to. Locking your phone means that you can still receive incoming
calls or making emergency calls, but all other phone functions are disabled.

Your lock code typically consists of the last four digits of your Sprint PCS Phone Number. If
you choose to change it, however, and then forget it, you will have to call Sprint PCS
Customer Care for assistance. Press
press
To access the security menu and modify the settings, you must first enter your lock code.

You have the option to lock your Sprint PCS Phone to keep others from using it

* 2 TALK

* 6 1 1 TALK

1:

Lock.

settings are "off", "til unlock" and "on power-up". If you choose "on power up" your
phone will be locked when you turn it on. If you select "til unlock", your phone will
be locked

).

First, you should decide when you want your phone to be locked. Possible

??? I don't understand these options ??? Default setting???

to call Customer Care (in Southern California,

2:

Limit use.

Regardless of the restriction setting you will always be able to receive calls.

With restrict mode, you control what calls can be made from your phone.

1:

Outgoing.

Sprint PCS Phone with this option. Possible settings are "No Limit", "Phonebook"
and "Special #". The default setting is ???. Select an option by pressing

*or#

2:

Incoming.

Sprint PCS Phone. Possible settings are "No Limit" and "No Calls". Select an
option by pressing*or#and then press

3:

Phone Book.

Phone should be limited to numbers stored in the internal phone book.
Possible settings are "Full Access", "Read only"and "No Access".
The default setting is ???.
Select and option by pressing*or#and then press OK to save your selection.

4. Roaming. Determine whether your Sprint PCS Phone be limited in Roaming status.

Determine whether outgoing calls can be made from your

and then press

Determine whether incoming calls can be received on your

Determine whether outgoing calls from your Sprint PCS

to save your selection.

OK

to save your selection.

OK

Possible settings are "Full Access" ,"Incoming","Outgoing", and "No Access".
The default setting is ???.
Select and option by pressing*or#and then press OK to save your selection.

3:

Lock Code.

this option to enter your own new four-digit number. Be sure to pick a number that
easy for you to remember.

4:

Emergency #.

them, along with 911, even when your phone is locked. When you dial an emergency
number, it must exactly match the stored number in order to override the lock and
restriction settings.

5. Erase

1.Calls . Erase Select options is only outgoing, only incoming, only missed, and All logs.

2.Phonebook. Erase Whole Phonebook.

3.Message. Erase Page/Txt message.

6:

Reset Phone. ??? What does this reset ???

If you don't want to use your phone's original lock code, you can use

You can enter up to three emergency number and you can call all of

Choosing the right alerts.

6:

Your Sprint PCS Phone comes with different options to keep you aware of what's

Alert.

going on.

1:

Minute Be ep.

each minute is up during a call. Settings are "on" and "off". The default setting is ???.

2:

Service. What does this do???

This option is like a minute minder that beeps 10 seconds before

Settings are "on" and "off". The default setting is ???.

Customizing the way your phone works.

7:

Setup.

With the help of the following features, you can make your phone work more like

you do.

1:

An y Key Ans.

incoming calls. Possible settings are "yes" and "no". The default setting is "yes".

2:Talk Key. when you press TALK in standby status, You can determine whether list is

Accessed. Possible settings are "Calls" and "Phonebook"

You can determine whether you can press any key to answer
