Samsung SCD-6021 User Manual

HD-SDI CAMERA

User Manual

SCD-6021

HD-SDI Camera

User Manual

Copyright

©2013 Samsung Techwin Co., Ltd. All rights reserved.

Trademark

The name of thi s product is the reg istered tradema rk of Samsung Techwin C o., Ltd.
Other trad emarks mention ed in this manual are t he registered trad emark of their res pective company.

Restriction

Samsung Techwi n Co., Ltd shall reser ve the copyrigh t of this document. U nder no circumst ances, this docu ment shall
be reproduced, distributed or changed, partially or wholly, without formal authorization of Samsung Techwin.

Disclaimer

Samsung Techwi n makes the best to ve rify the integr ity and correc tness of the conte nts in this documen t, but no
formal guar antee shall be provi ded. Use of this do cument and the subs equent results sh all be entirely on the u ser’s own
responsib ility. Samsung Techwi n reserves the ri ght to change the con tents of this docu ment without pri or notice.

Warranty

If the produ ct does not opera te properly in nor mal conditions, p lease let us know. S amsung Techwin will reso lve the
problem for f ree of charge. The wa rranty perio d is 3 years. However, the f ollowings are exclu ded:

• If the syste m behaves abnorma lly because you run a p rogram irreleva nt to the system ope ration.

• Deterior ated performa nce or natural worn -out in process o f time

Design and specifications are subject to change without prior notice.

is the regist ered logo of Samsun g Techwin Co., Ltd.

overview

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings, Install in accordance with the manufacturer’s

instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized
plug has two blades with one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade or the third prong are provided for
your safety. If the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/ accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by

the manufacturer, or sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus combination to avoid
injury from tip-over.

13. Unplug this apparatus during lighting storms or when unused for
long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does not operate normally, or has been dropped.

● overview

English _3

overview

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC
OBJECT THROUGH THE VENTILATION GRILLS OR OTHER OPENNINGS
ON THE EQUIPMENT.

Apparatus shall not be exposed to dripping or splashing and that no objects
filled with liquids, such as vases, shall be placed on the apparatus.

CAUTION

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN

CAUTION

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

: TO REDUCE THE RISK OF ELECTRIC SHOCK.

DO NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE.

EXPLANATION OF GRAPHICAL SYMBOLS

The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of “dangerous voltage” within the product’s
enclosure that may be of sufficient magnitude to constitute a
risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended
to alert the user to the presence of important operating
and maintenance (servicing) instructions in the literature
accompanying the product.

4_ overview

Class construction

An apparatus with CLASS construction shall be connected to a MAINS
socket outlet with a protective earthing connection.

Battery

Batteries(battery pack or batteries installed) shall not be exposed to excessive
heat such as sunshine, fire or the like.

Disconnection Device

Disconnect the main plug from the apparatus, if it’s defected. And please call
a repair man in your location.

When used outside of the U.S., it may be used HAR code with fittings of
an approved agency is employed.

CAUTION

These servicing instructions are for use by qualified service personnel only.
To reduce the risk of electric shock do not perform any servicing other than
that contained in the operating instructions unless you are qualified to do so.

Please use the input power with just one camera and other devices must not
be connected.

● overview

English _5

overview

Please read the following recommend safety precautions carefully.

yDo not place this apparatus on an uneven surface.
yDo not install on a surface where it is exposed to direct sunlight, near

heating equipment or heavy cold area.
yDo not place this apparatus near conductive material.
yDo not attempt to service this apparatus yourself.
yDo not place a glass of water on the product.
yDo not install near any magnetic sources.
yDo not block any ventilation openings.
yDo not place heavy items on the product.
yDo not expose the camera to radioactivity.

User’s Manual is a guidance book for how to use the products.
The meaning of the symbols are shown below.

yReference : In case of providing information for helping of product’s usages
yNotice : If there’s any possibility to occur any damages for the goods and

human caused by not following the instruction



Please read this manual for the safety before using of goods and keep it in

the safe place.

6_ overview

CONTENTS

OVERVIEW

3

INSTALLATION &

CONNECTION

13

OPERATING YOUR CAMERA

20

APPENDIX

36

3 Important Safety Instructions
8 Product Features
9 What’s Included
10 At a Glance

13 Installation
16 Connecting with other Device

20 Menu Configuration
21 Menu Setup

36 Specification
38 Product Overview
39 Troubleshooting

● overview

English _7

overview

PRODUCT FEATURES

• Supports Full HD-SDI Video

By adopting a diagonal 6mm (1/3”) 2M pixel CMOS, the camera produces clear picture

quality.

• Excellent low-illumination image quality

By adopting high-sensitive colour CMOS, the camera provides clear image quality under a

severe low illumination condition of 0.008 Lux .

• SSNR3 (Samsung Super Noise Reduction) Function

The high-performance WN2 DSP chip effectively removes low-light gain noise and afterimage

to provide clear images even in dark environments.

• Electrical Day&Night

This camera has a function that automatically selects the mode that is appropriate for

daytime or night-time conditions. The COLOR mode operates in daytime conditions to

provide optimum colors, and B/W mode operates in night-time conditions to enhance the

definition of the image.

• INTELLIGENCE

Without assistance from an external sensor, this camera independently detects and traces

objects while examining stillness and movement to activate the alarm.

• SSDR (Samsung Super Dynamic Range)

For images with high contrast between bright and dark areas from difficult lighting conditions

such as backlighting, this camera selectively illuminates darker areas while retaining the same

light level for brighter areas to even out the overall brightness.

• Miscellaneous Functions

HLC(High Light Compensation), SENS-UP, FLIP (H/V-REV), D-ZOOM and PRIVACY

functions are provided.

• OSD

By providing multi-lingual user-friendly OSD (On-screen Display) menu, the camera provides

easy handling of the camera.

8_ overview

WHAT’S INCLUDED

b

3.MD_OU

4.RS_485+

5.RS_485-

S

A

M

S

U

N

G

Check if the main unit and all the following accessories are included in the product package.

Appearance Item Name Quantity Description

● OVERVIEW

S

G

A

N

M

U

S

Quick Guide 1

Iron Screw 2 Used for fixing to an iron plate

Camera 1

Cable for the testingmonitor 1

Used to test the camera connection to a

portable display device

Function cable 1

Template 1 Product installation guide

English _9

overview

AT A GLANCE

Appearance

Item Description

Top cover

a

Camera Case

b

10_ overview

Case cover used to protect the lens and the main unit.

Covers the lens and camera body.

Inside

● OVERVIEW

5.RS_485-

4.RS_485+

3.MD_OU

2.EXT_DN

1.GN

English _11

overview

Item Description

a
b

c

d

e

f

g

Internal Cover

Lens

SETUP Switch

I/O Port

VIDEO

Power Port

HD-SDI Video
Out terminal

It is a cover to protect the main body.

Lens for the camera.

The switch is used for setting and adjusting the camera’s functions and

properties.

_/+

$/%

▪

GREEN(485–) Signal port for RS-485

YELLOW(485+) Signal port for RS-485+ communication.

BLUE(MD_OUT) Output port that signals when a motion is detected.

GRAY(EXT_D/N) External signal input port for Day/Night mode setup.

BLACK(GND) Earth-grounding port for external signal.

Analogue video output terminal of Video.

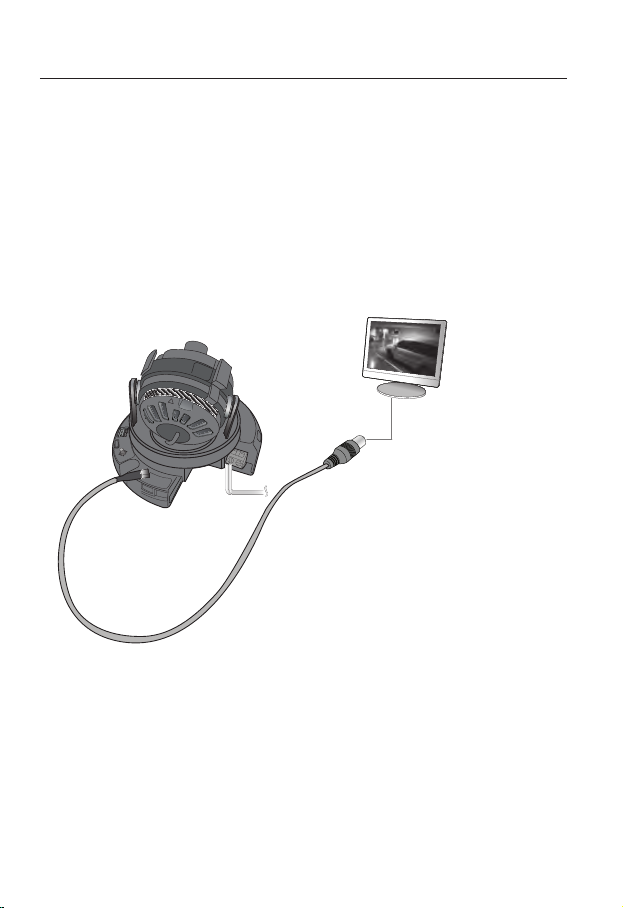

Use a monitor cable for testing the camera with a portable display.

(for installation)

Used to plug the power cable.

BNC terminal for HD-SDI video signal output.

Move this switch left or right to move the cursor or change

the value in the menu.

Move this switch up or down to move the cursor in the

menu.

Press the switch to set the function in menu. To move to a
sub-menu item in the menu, press this switch.

communication.

–

12_ overview

installation & connection

3.MD_OU

4.RS_485+

5.RS_485-

INSTALLATION

Precautions before installation

Ensure you read out the following instructions before installing the camera:

• It must be installed on the area (ceiling or wall) that can withstand 5 times the weight
of the camera including the installation bracket.

• Stuck-in or peeled-off cables can cause damage to the product or a fire.

• For safety purposes, keep anyone else away from the installation site. And put asid
personal belongings from the site, just in case.

Disassembling

1. Use one hand to hold the camera’s bottom part and turn the cover counterclockwise

with another hand to separate it.

2. Lift up the inner cover to separate it.

● INSTALLATION & CONNECTION

English _13

installation & connection

Locking direction
(Clockwise)

Unlocking direction
(Anti-clockwise)

Installation

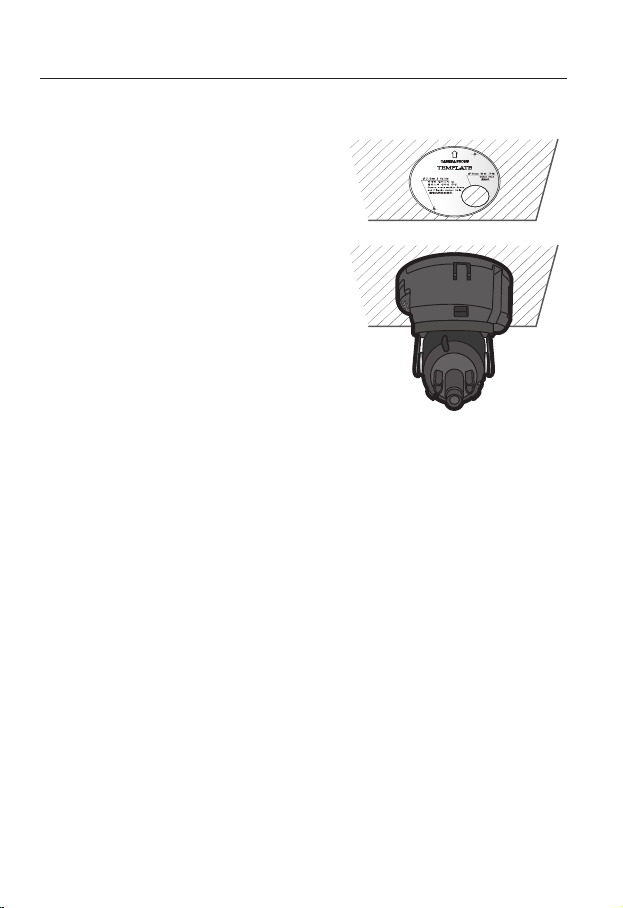

1. Attach the installation template to the selected

area and punch 2 holes as shown in the
figure.

2. Use the 2 supplied screws to fix the camera
to the 2 punched holes.

Set the <FRONT TOP> mark imprinted on the camera

`

to face the direction of camera monitoring.

3. Connect the camera internal terminal with the
corresponding cable.

4. Adjust the lens in a desired direction by
referring to the “Adjusting the monitoring
direction for the camera” section. (page 15)

5. Fasten the dome case (dome cover +camera case)
to the main body as shown in the figure.

Pay attention to the direction for assembly.

`

J

14_ installation & connection

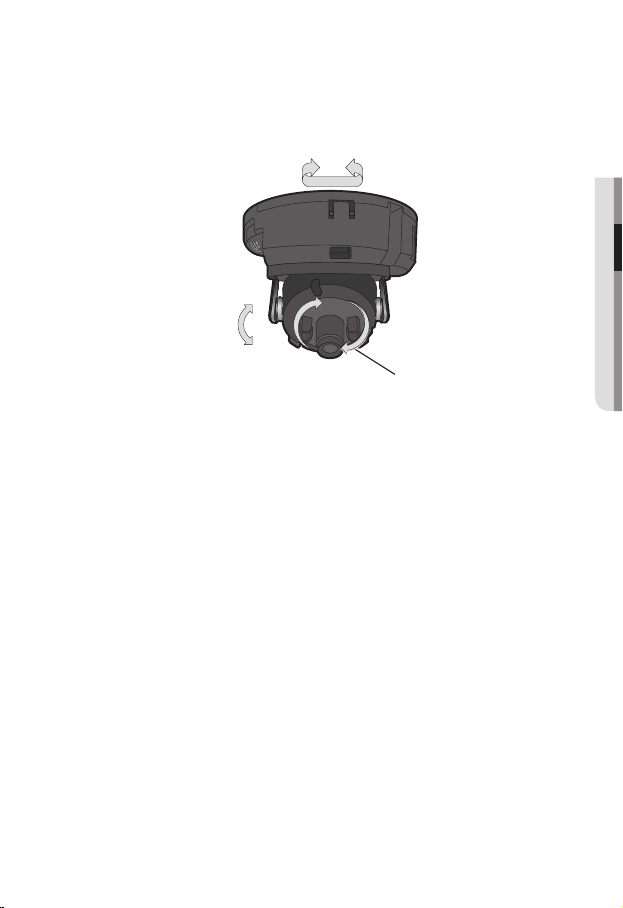

Adjusting the monitoring direction for the camera

Panning

Tilting

● installation & connection

❖Adjusting the monitoring direction

You can adjust the camera direction only when the camera is fixed on the ceiling.

Where, rotating the camera unit to the left or right is called Pan, adjusting the tilt is called

Tilt, and turning the lens on its axis is called Rotation.

- The effective range of pan is a total of 354 degrees.

- The effective range of rotation is a total of 355 degrees.

- The effective range of tilt is a total of 67 degrees.

In some angles, the top cover may cause cutting some part of the monitoring object.

`

J

Do not rotate the focus/zoom lens by force after removing the cover front.

`

Otherwise, it may cause an incorrect focus due to a motor failure.

❖Methods of adjustment

1. After installing the camera, adjust the panning angle in consideration of the

monitoring direction.

2. Set the horizontal angle so that the image is not reversed.

3. Adjust the tilt angle so that the camera faces toward the monitoring object.

Rotation

English _15

installation & connection

GREEN: 485-

YELLOW: 485+

BLUE: MD_OUT

GRAY: EXT_DN

BLACK: GND

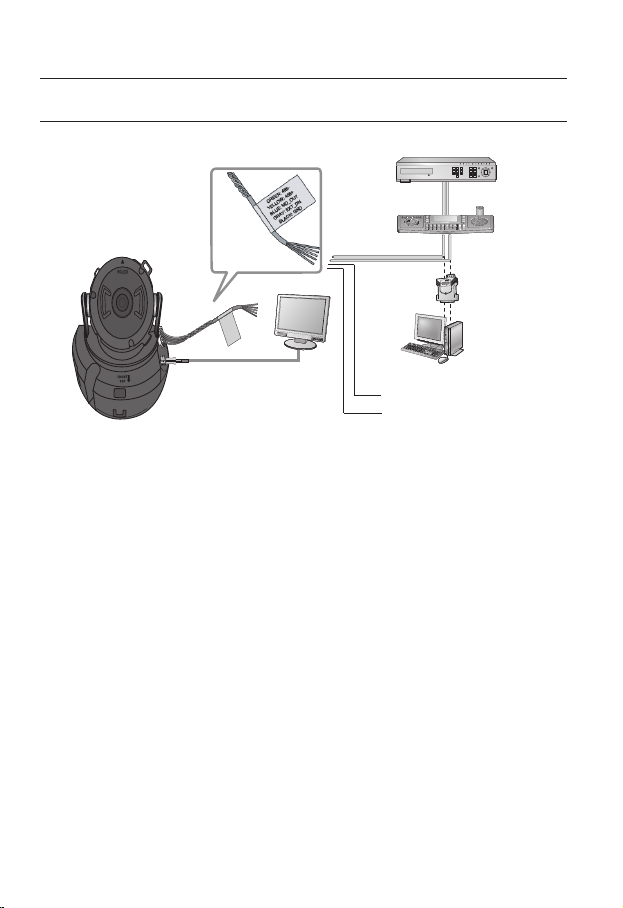

CONNECTING WITH OTHER DEVICE

T+ T- R- R+

C
ONVERTER

Test monitor for installation

5.RS_485-

4.RS_485+

3.MD_OU

Motion detection output device

Day/Night mode controller

Connecting to the monitor

Connect the video out port of the camera to the video input port of the monitor.

To check the display screen after installing the camera for the first time, you can use the C-Video

`

M

port to check the video screen.
You can set the video output type to either NTSC or PAL. (page31)

`

The C-Video source (4:3) will be displayed with either side truncated in comparison with the

`

HD-SDI video.
The video source from the HD-SDI port can be displayed on the dedicated monitor. To display the

`

source on a commercial monitor, you need a converter to convert the video signal as appropriate.

RS232C RS485, 422

PC

or

RS-485
Converter

DVR

System Controller

16_ installation & connection

Video Cable

The cable connecting the camera’s video output and a monitor is a BNC coaxial cable as
shown below.
If the distance between the camera and the monitor exceeds the recommended maximum,
please use an auxiliary video amp.

Maximum video transfer

RS-485 Communications

Using RS-485 communication, the camera menu can be accessed using Samsung
Techwin’s System Controller or the DVR.

• For accessing the camera from a computer

• For accessing the camera from a DVR or the System Controller

Default RS-485 communication settings

distance

100~140m 5C2V(75ohm)

200m

Use a RS-485 converter to connect the camera’s control port with the computer’s
serial cable.
Ex) Serial port (COM1) of computer  Serial Cable  RS-485 Converter  Camera’s

Connect the camera’s RS-485+ and RS-485– terminals to the RS-485 control
board’s terminals of desired device with a RS-485 cable (TRX+ and TRX–).

RS-485 control port

Control ports of RS-485 Controller RS-485 ports of the camera

(+) CONNECTION TERMINAL (TRX+) 485+

(–) CONNECTION TERMINAL (TRX–) 485–

Recommended cable

specification

L-6CHD(75ohm)

(SDI-specific Cable)

● installation & connection

Item Camera Number Transfer Rate

Default 1 9600 8-NONE-1 Not used

When constructing a proprietary controller for direct camera control, apply Pelco-D or Samsung-

`

J

Techwin protocol.

Use only a DVR model that supports HD-SDI saving.

`

Communication Mode

Return Data

English _17

installation & connection

External Day/Night Switching Input

Day/Night mode of the camera can be switched by signal from an external device.

To use this function, <DAY/NIGHT> setting of the camera should be set to the <EXTERN>.

`

M

(Page 28)

Motion Detection Signal Out

Upon a motion detection, the port outputs signal for an external device for display or operation.
When a motion is detected, the port outputs 3.3V signal.

To use this function, <ALARM OUT> setting of the camera should be set to <ON>. (Page 33)

`

M

HD-SDI Monitor

2.EXT_DN

1.GN

POWER

18_ installation & connection

Power Supply

Use the screwdriver to connect each line (+, –) of the power cable to the corresponding
power port of the camera.

Be careful not to reverse the polarity when you connect the power cable.

`

J

Be sure to turn the power off the device to be connected.

`

For DC Power Supply

You can use either one of DC 12V/2A~4A adaptor.

Resistance of copper wire [at 20°C (68°F)]

Wire specification (AWG) #24(0.22mm2) #22(0.33mm2) #20(0.52mm2) #18(0.83mm2)

Resistance (Ω/m)

Voltage Drop (V/m)

Recommended Distance (m)

• As shown in the table above, you may encounter a voltage-sag depending on the
wire length. If you use an excessively long wire for camera connection, the camera
may not work properly.

Voltage for proper camera operation: DC 12V±10%

`

Voltage drop shown in the table above may show difference from the actual depending on the

`

manufacturer and cable type.

0.078 0.050 0.030 0.018

0.028 0.018 0.011 0.006

Less than 20 Less than 30 Less than 30 Less than 30

● Operating YOur Camera

English _19

operating your camera

MENU CONFIGURATION

MAIN SETUP

EXPOSURE

WHITE BAL

SSDR •OFF •ON

BACKLIGHT

SSNR3 •ON •OFF

DAY/NIGHT

PROFILE

SPECIAL

EXIT •EXIT

•BRIGHTNESS •SHUTTER •AGC

•SENS-UP •DEFOG •RETURN

•ATW •OUTDOOR •INDOOR

•MANUAL •AWC

•OFF

•WDR

•AUTO •EXTERN •COLOR

•B/W

•BASIC •DAY/NIGHT •BACKLIGHT

•ITS •INDOOR •USER

•BANK

•CAM TITLE •IMAGE ADJ •INTELLIGENCE

•PRIVACY •COMM ADJ •LANGUAGE

•RESET •RETURN

➝

•BLC •HLC

SET

20_ Operating Your Camera

MENU SETUP

To configure the camera’s function settings, use the button on the inside of the product.

2.EXT_DN

1.GN

•$%

: Moves up/down in menu.

•_+

: Moves right/left in menu.

•• ▪ : Press the switch to set the function in camera menu.

To move to a sub-menu item in the menu, press this switch.

1. Press the SET button.

• Enters the function menu.
The selected function’s menu appears on the monitor.

MAIN SETUP

Use up/down buttons

to set the desired item.

►

1. EXPOSURE

2. WHITE BAL ATW

3. SSDR ON

4. BACKLIGHT OFF

5. SSNR3 ON

6. DAY/NIGHT AUTO

7. PROFILE BASIC

8. SPECIAL

9. EXIT

Use right/left buttons
to change the
selection.

● Operating YOur Camera

2. Use the Up/Down buttons to select a desired function.

• Move the button up or down to move the arrow up or down.
Set the arrow to indicate the desired item.

English _21

operating your camera

3. Use the Right/Left buttons to select a desired function.

• Move the button right or left to display available values or settings.
Set the desired setting value using the button.

4. To finish, select <EXIT> and press the SET button.

An item with the icon also has sub menus. To select a sub menu, select an item with the icon

`

M

and press the Function Setup switch.

An item with the --- icon is unavailable due to function settings.

`

EXPOSURE

1. When the SETUP menu screen is displayed,

select <EXPOSURE> by using the Function
Setup switch so that the arrow indicates
<EXPOSURE> .

2. Select a desired mode using the Function
Setup switch.

• BRIGHTNESS : Adjust the screen brightness.

• SHUTTER : You can select the shutter.

- ESC : Select this to control the shutter speed
automatically. If ESC is selected, the shutter
speed is automatically controlled depending on
the ambient illumination of the subject.

- MANUAL : You can control shutter speed
manually(

(1/30~1/16,000 、x2~x60)

- A.FLK : Select this when you experience
picture flicker, this happen when there is a
clash with the installed lighting frequency.

When the SHUTTER is set to MANUAL or A.FLK mode, SENS-UP will be disabled.

`

J

Carefully position the camera when installing, since produced image quality might be poor if

`

framing a bright light source while the shutter mode of EXPOSURE is set to AUTO.

22_ Operating Your Camera

MAIN SETUP

►

1. EXPOSURE

2. WHITE BAL ATW

3. SSDR ON

4. BACKLIGHT OFF

5. SSNR3 ON

6. DAY/NIGHT AUTO

7. PROFILE BASIC

8. SPECIAL

9. EXIT

EXPOSURE SETUP

.... ....

.... ....

►

1. BRIGHTNESS

2. SHUTTER ESC

3. AGC HIGH

4. SENS-UP AUTO

5. DEFOG ---

)

6. RETURN

50

*

• AGC(AUTO GAIN CONTROL) : The higher the gain level, the brighter the screen -

but the greater the noise.

- OFF : Not being used

- Low : Allows automatic gain control from 5.3dB to 20dB.

- Medium : Allows automatic gain control from 5.3dB to 26dB.

- High : Allows automatic gain control from 5.3dB to 32dB.

• SENS-UP : When it is night or dark, the camera automatically detects the light level

and maintains a clear picture if this mode is activated.

- OFF : Deactivates the SENS-UP function.

- AUTO : Activates the SENS-UP function.

• DEFOG : Through the defogging function,

camera can automatically recognize fog
concentration of the image, defog, self correct
in hazy, rainy, flue gas and other inclement
weather to get a clear image.

- AUTO : The camera will automatically correct
image according to the defogging level (low,
middle, high) set by the user.

- MANUAL : The camera will adjust the definition
of the image according to user’s preferences
through the defogging level (low, middle, high).

- OFF : Turn off defogging function.

• RETURN : Select this to save the changes in the EXPOSURE menu and return to
the SETUP menu.

Press the SET button while in AUTO mode to adjust the automatic scene accumulation multiplier

`

J

for low-illumination operation. (x2 ~ x60)

The greater the video accumulation factor is, the brighter the screen is, but the afterimage of a

`

moving object grows accordingly.

Although noise, spots, and whitish symptoms may occur in higher accumulation, this is normal.

`

If the gain control (AGC) of EXPOSURE mode is set to OFF, SENS-UP mode is accordingly set to

`

‘- - -‘.

►

DEFOG SETUP

LEVEL MIDDLE
RETURN

● Operating YOur Camera

English _23

operating your camera

WHITE BAL (WHITE BALANCE)

Use the White Balance function to adjust the screen color.

1. When the SETUP menu screen is displayed,
select <WHITE BAL> by using the Function
Setup switch so that the arrow indicates
<WHITE BAL>.

►

2. Select a desired mode using the Function
Setup switch.

Select one of the following 5 modes, as appropriate
for your purpose.

• AT W : Select this when the color temperature is between 2,400˚K and 11,000˚K.

• OUTDOOR : Select this when the color temperature is between 1,700˚K and
11,000˚K. (sodium light inclusion)

• INDOOR : Select this when the color
temperature is between 4,500˚K and 8,500˚K.

• MANUAL : Select this to fine-tune White

►

Balance manually. Set White Balance first by
using the ATW or AWC mode. After that switch
to MANUAL mode, fine-tune the White Balance
and the Function Setup switch.

• AWC

SET : To find the optimal luminance

➞

level for the current environment, point the
camera towards a sheet of white paper and press the Function Setup switch. If the
environment changes, readjust it.

White Balance may not work properly under the following conditions. In this case select the AWC

`

J

mode.

When the ambient illumination of the subject is dim.

-

If the camera is directed towards a fluorescent light or is installed in a place where illumination

-

changes dramatically, the White Balance operation may become unstable.

MAIN SETUP

1. EXPOSURE

2. WHITE BAL ATW
SSDR ON

3.

4. BACKLIGHT OFF
SSNR3 ON

5.

6. DAY/NIGHT AUTO

7. PROFILE BASIC

8. SPECIAL

9. EXIT

WHITE BAL MANUAL STEUP

RED
BLUE
RETURN

.... ....

.... ....

.... ....

*

.... ....

*

552

552

24_ Operating Your Camera

SSDR (SAMSUNG SUPER DYNAMIC RANGE)

SSDR illuminates darker areas of an image while
retaining the same light level for brighter areas to
even out the overall brightness of images with high
contrast between bright and dark areas.

1. When the SETUP menu screen is displayed,
select <SSDR> by using the Function Setup
switch so that the arrow indicates <SSDR>.

2. Use the Function Setup switch to change the
SSDR level in the sub menu according to the
contrast between bright and dark areas.

• SSDR : Adjust the dynamic range level.

SSDR ON SSDR OFF

1. EXPOSURE

2. WHITE BAL ATW

►

SSDR ON

3.

4. BACKLIGHT OFF
SSNR3 ON

5.

6. DAY/NIGHT AUTO

7. PROFILE BASIC

8. SPECIAL

9. EXIT

►

LEVEL

RETURN

MAIN SETUP

SSDR SETUP

.... .... .... * ....

● OPERATING YOUR CAMERA

8

English _25

operating your camera

BACKLIGHT

This camera is designed so that it delivers a distinctive subject and background at the
same time, even when the subject is in backlight, by adopting a function of the proprietary
WN2 DSP chip.

1. When the SETUP menu screen is displayed,
select <BACKLIGHT> by using the Function
Setup switch so that the arrow indicates
<BACKLIGHT>.

2. Select a desired mode using the Function Setup
switch depending on the camera purpose.

• BLC : Enables a user to select a desired area
on a picture and view that area more clearly.

- LEVEL : Adjust level of the BLC function.

- TOP/BOTTOM/LEFT/RIGHT : Adjust the area
to be enhanced.

• HLC (High Light Compensation) : If the scene
contains extremely bright light areas such as:
from car headlight, the light can mask out much
of the on-screen detail.

- LEVEL : Adjust level of the HLC function.

- MASK COLOR : Change the color of the
masking area.

- MASK TONE : Change the brightness of the
masking area.

- TOP/BOTTOM/LEFT/RIGHT : Adjust the area
to be enhanced.

• WDR (wide Dynamic range) : It displays a
sharp image of the objects in a scene where
both bright and dark areas exist.

- LEVEL : Select a sensitivity level of WDR.

• OFF : Not being used

3. Select a desired mode using the Function
Setup switch.

►

►

►

►

MAIN SETUP

1. EXPOSURE

2. WHITE BAL ATW
SSDR ON

3.

4. BACKLIGHT OFF
SSNR3 ON

5.

6. DAY/NIGHT AUTO

7. PROFILE BASIC

8. SPECIAL

9. EXIT

BLC SETUP

1. LEVEL MIDDLE

2. TOP

3. BOTTOM

4. LEFT

5. RIGHT

6. RETURN

1. LEVEL MIDDLE

2. MASK COLOR BLACK

3. MASK TONE

4. TOP

5. BOTTOM

6. LEFT

7. RIGHT

8. RETURN

LEVEL MIDDLE
RETURN

.... * .... .... ....

.... .... ....

.... * .... .... ....

.... .... ....

HLC SETUP

.... ....

*

.... * .... .... ....

.... .... ....

.... * .... .... ....

.... .... ....

WDR SETUP MODE

.... ....

....

*

....

*

....

*

....

*

30
75
30
75

5
30
75
30
70

26_ Operating Your Camera

Because there can be a difference in the effectiveness of HLC according to the amount of light

J

`

area in the screen, optimize the installation angle for the best HLC performance.

When dark, the HLC is only activated when a bright light exceeding a specific size.

`

The HLC is not activated in day light or when bright light is not present at night.

`

SSNR3

This function reduces the background noise in a low luminance environment.

1. When the SETUP menu screen is displayed,
select <SSNR3> by using the Function Setup
switch so that the arrow indicates <SSNR3>.

2. Select a desired mode using the Function
Setup switch.

• ON : Activates SSNR3 so that noise is reduced.

• OFF : Deactivates SSNR3. Noise is not
reduced.

►

MAIN SETUP

1. EXPOSURE

2. WHITE BAL ATW
SSDR ON

3.

4. BACKLIGHT OFF
SSNR3 ON

5.

6. DAY/NIGHT AUTO

7. PROFILE BASIC

8. SPECIAL

9. EXIT

3. Set the SSNR3 mode to <ON> and press the
Function Setup switch. Then you can adjust the noise reduction level.

You cannot set the SSNR3 to ‘ON’ or ‘OFF’ when the AGC mode of the ‘EXPOSURE’ menu is ‘OFF’.

`

J

When adjusting the noise reduction level in the SSNR3 mode, remember that the higher the level

`

set, the more the noise level will be reduced, as will the brightness of the image.

DAY/NIGHT

You can display pictures in color or in black and white.

1. When the SETUP menu screen is displayed,
select <DAY/NIGHT> by using the Function
Setup switch so that the arrow indicates <DAY/

NIGHT>.

2. Select a desired mode using the Function

Setup switch according to the picture display
you want.

• COLOR : The picture is always displayed in
color.

►

MAIN SETUP

1. EXPOSURE

2. WHITE BAL ATW
SSDR ON

3.

4. BACKLIGHT OFF
SSNR3 ON

5.

6. DAY/NIGHT AUTO

7. PROFILE BASIC

8. SPECIAL

9. EXIT

● Operating YOur Camera

English _27

operating your camera

• B/W : The picture is always displayed in black
and white.

• AUTO : The mode is switched to <COLOR> in
a normal environment, but switches to <B/W>
mode when ambient illumination is low. To set
up the switching time for AUTO mode, press
the Function Setup switch.

DAY/NIGHT AUTO SETUP

►

1. COLOR  B/W
DWELL TIME 5 SEC
DURATION SLOW

2. B/W  COLOR
DWELL TIME 10 SEC
DURATION SLOW

3. RETURN

- DWELL TIME : You can select day/night
switching delay time from.

➝

5s, 7s, 10s, 15s, 20s, 30s, 40s, 60s

- DURATION : Adjust the brightness of the lighting where the mode switch occurs.

• EXTERN : Control the image modes of Color and B/W when an external controller is
synchronized via the Alarm In port.

When AGC in the EXPOSURE menu is ‘OFF’, ‘---’ mode operates as selecting ‘AUTO’ mode cannot

`

J

be selected.

PROFILE

1. When the SETUP menu screen is displayed,

select <PROFILE> by using the Function
Setup switch so that the arrow indicates
<PROFILEL>.

2. Select a desired mode using the Function
Setup switch.

• BASIC : The most common environment is set

►

to meet.

• DAY/NIGHT : It will be set automatically so it
optimizes to the day or night conditions,respectively.

• BACKLIGHT : It will be set automatically so you can distinguish the object from the
background in a severe backlighting scene.

• ITS : It will be set automatically so you can easily check the traffic conditions.

• INDOOR : It will be set automatically to help you take a picture in a regular indoor
lighting condition.

• USER : Automatically configures the camera to your custom settings.

1) Select Custom for Simple Setup mode.

2) Configure the menu options to your custom settings.

3) The settings are automatically saved as Custom mode.

4) Profile user mode don’t initialize when menu resets.

MAIN SETUP

1. EXPOSURE

2. WHITE BAL ATW
SSDR ON

3.

4. BACKLIGHT OFF
SSNR3 ON

5.

6. DAY/NIGHT AUTO

7. PROFILE BASIC

8. SPECIAL

9. EXIT

28_ Operating Your Camera

• BANK : The system will automatically set if dark and bright area are all exist at same
time, sothat you can recognize the object in bank easily.

In the PROFILE menu, you can configure the following camera settings at once.

*

BASIC DAY/NIGHT BACKLIGHT ITS INDOOR USER BANK

SHUTTER ESC ESC ESC ESC ESC ESC ---

AGC HIGH HIGH HIGH HIGH HIGH HIGH HIGH

WHITE BAL ATW ATW ATW OUTDOOR INDOOR AT W ATW

T

BACKLIGH

OFF OFF BLC OFF OFF OFF WDR

SSNR3 ON ON ON ON ON ON ON

DAY/NIGHT AUTO AUTO AUTO AUTO AUTO AUTO AUTO

SPECIAL

1. When the SETUP menu screen is displayed,

select <SPECIAL> by using the Function Setup
switch so that the arrow indicates <SPECIAL>.

2. Select a desired mode using the Function
Setup switch.

►

►

MAIN SETUP

1. EXPOSURE

2. WHITE BAL ATW
SSDR ON

3.

4. BACKLIGHT OFF
SSNR3 ON

5.

6. DAY/NIGHT AUTO

7. PROFILE BASIC

8. SPECIAL

9. EXIT

SPECIAL SETUP

1. CAM TITLE OFF

2. IMAGE ADJ

3. INTELLIGENCE OFF

4. PRIVACY

5. COMM ADJ

6. LANGUAGE ENGLISH

7. RESET

8. RETURN

● Operating YOur Camera

English _29

operating your camera

• CAM TITLE : If you enter a title, the title will
appear on the monitor.

1) If the SPECIAL menu screen is displayed, use

the Function Setup switch so that the arrow
indicates <CAM TITLE>.

2) Set it to <ON> by using the Function Setup

switch.

3) Press the Function Setup switch.

4) Use the Function Setup switch to move to a

desired letter and select the letter by pressing the Function Setup switch. Repeat this
to enter multiple letters. You can enter up to 15 letters.

5) Enter a title, move the cursor to <POS>

and press the Function Setup switch. The
entered title appears on the screen. Select
the position to display the title on the screen
by using the Function Setup switch and press
the Function Setup switch. When the position
is determined, select <END> and press
the Function Setup switch to return to the
SPECIAL menu.

When the CAM TITLE menu is ‘OFF’, no title will be displayed on the monitor screen even if you

`

J

enter one.

Only English is available in this mode.

`

If you move the cursor to CLR and press the Function Setup switch, all the letters are deleted.

`

To edit a letter, change the cursor to the bottom left arrow and press the Function Setup switch.
Move the cursor over the letter to be edited, move the cursor to the letter to be inserted and then
press the Function Setup switch.

CAM TITLE SETUP

A BCDEFGHIJKLM
NOPQRSTUVWXYZ
abcdefghijklm
nopqrstuvwxyz
–.0123456789

←→

CLR POS END

— — — — — — — — — — — — — —

ABCD

←→↑↓

to Locate, then SET

30_ Operating Your Camera

• IMAGE ADJ :

1) When the SPECIAL menu screen is displayed,
select <IMAGE ADJ> by using the Function
Setup switch so that the arrow indicates
<IMAGE ADJ>.

►

SPECIAL SETUP

1. CAM TITLE OFF

2. IMAGE ADJ

3. INTELLIGENCE OFF

4. PRIVACY

5. COMM ADJ

6. LANGUAGE ENGLISH

7. RESET

8. RETURN

2) Select a desired mode using the Function Setup switch.

- MONITOR : Please change the settings value
of video appropriate to your monitor.

• LCD : Please select this menu item when
using a LCD monitor.

• USER : Please use this menu item when
using a monitor other than standard ones.
You can change the gamma, color level and
reset in the sub menus.

►

IMAGE SETUP

MONTIOR LCD

1.

2. H-REV OFF

3. V-REV OFF

4. D-ZOOM OFF

5. DIS OFF
SHARPNESS ON

6.

7. OSD COLOR WHITE

8. VIDEO OUT FORMAT

9. RETURN

- H-REV : You can flip the picture horizontally on
the screen.

- V-REV : You can flip the picture vertically on the screen.

- D-ZOOM : You can use a digital zoom of x2 ~ x16.

- DIS : Compensates the image automatically when it is seen to shake for stable image
output.

- SHARPNESS : As you increase this value, the picture outline becomes stronger and
clearer. Adjust this value appropriately depending on the sharpness of the picture.

- FONT COLOR :

- VIDEO OUT FORMAT

• VIDEO SIZE

You can change the OSD font color. (White, Yellow, Green, Red, Blue)

: Sets the video size and video fmt.

: Sets the image resolution of the HD-SDI output of the camera.
Select the desired setting and press the SET button. (NTSC : 1080i 60, 1080p 30,
720p 60 ; PAL : 1080i 50, 1080p 25, 720p 50)

• VIDEO FMT

:Sets the video output format of the Video port on the camera provided

for test and installation.(NTSC, PAL)

- RETURN : Select this to save the settings for the IMAGE ADJ menu and to return to
the SPECIAL menu.

● Operating YOur Camera

If you increase the sharpness level excessively, the image may be displayed abnormally or it can

`

J

cause a noise.

English _31

operating your camera

• INTELLIGENCE : Commands the camera to
motion-detect and trace an object.

- DETECTION

: Since the camera detects
motion without any additional external
sensor,you can monitor activity more effcient.

- TRACKING : Commands the camera to detect
and trace a moving object.

►TYPE : Two types, line and area, of fences

►

INTELLIGENCE

1. DETECTION OFF

2. TRACKING OFF

3. FIXED/MOVED OFF

4. TAMPERING OFF

5. DETECT BOX OFF

6. ALARM OUT OFF

7. SETUP CONFIG OFF

8. RETURN

are available.

►COUNT : Displays the number of times

that an object enters or leaves a fenced area.

►DISPLAY : Determines whether to use the

fence selected in the FENCE.

►FILL : Fill or remove color from the FENCE.

►

TRACKING

1. TYPE LINE

2. COUNT OFF

3. DISPLAY ON

4. FILL OFF

5. POSITION

6. RETURN

►POSITION : Defines the position and

detection direction of a line or fenced area

1) LINE FENCE

- SEL POS : Selects a position from POS1,POS2.

- X POS / Y POS : Adjust the size and position of the selected line fence.

- DIRECTION
: Detects objects moving right to left on the fence line.

•DIR1
: Detects objects moving left to right on the fence line.

•DIR2

• DIR1/2 : Detects all objects moving crosswise on the fence line.

- RETURN : Select this to save the POSITION menu settings and return to the
TRACKING menu.

2) AREA FENCE

- SEL POS : Selects a position from POS1 ~ POS4.

- X POS / Y POS : Adjust the size and position of the selected area fence.

- DIRECTION

: Detects objects entering the fenced area.

•IN

• OUT : Detects objects exiting the fenced area.

• IN/OUT : Detects all objects entering and exiting the fenced area.

- RETURN : Select this to save the POSITION menu settings and return to the
TRACKING menu.

►RETURN :Select this to save the TRACKING menu settings and return to the

INTELLIGENCE menu.

32_ Operating Your Camera

SEL POS POS1

►

X POS ... ... ... *... ...

Y POS * ... ... ... ... ...

DIRECTION
RETURN

TRACKING

106
1 2

DIR1

SEL POS POS1

►

X POS ... ... ... *... ...

Y POS * ... ... ... ... ...

DIRECTION
RETURN

TRACKING

IN

- FIXED/MOVED : De tects an object that emerges or disappears from the screen, or
stays onscreen without movement.

A detection (FIXED/MOVED) error may occur if :

`

J

• multiple motions occur continuously in random directions

• a fixed object moves in one position continuously

• a second object screens the first moving o bjec t

- TAMPERING

: You can set to detect tampering attempts and trigger events, such as

blocked lens.

- DETECT BOX : Outlines an object on the screen in a box when its movement
matches a custom Motion Type.

- ALARM OUT

: Releases a signal from the MD Output Terminal of the camera when an

object’s movement matches a custom Motion Type.

- SETUP CONFIG :

►DETECT AREA : Defines the Motion Detection

area.

• AREA SEL: You can select up to 4 areas.

►

SETUP CONFIG

1. DETECT AREA

2. SENSI TIVITY 3

3. DET.SIZE 3

4. RETURN

• MODE : Determines whether to use the area
selected in the AREA.

• DETECT ALARM: Determines whether to
use the detect alarm selected in the AREA.

• TOP / BOTTOM / LEFT / RIGHT : Adjust the
size and position of the selected area.

• RETURN : Select this to save the DETECT
AREA menu settings and return to the
SETUP CONFIG menu.

►SENSITIVITY : Set the sensitivity of the motion

►

DETECT AREA

AREA SEL AREA1
MODE OFF
DETECT ALARM OFF

TOP
BOTTOM
LEFT
RIGHT
RETURN

70

30

... ... ... ... ...

*

... ... ... ... ...

... ... ... ... ...

*

... ... ... ... ...

32

1048

*

64

1888

*

● Operating YOur Camera

English _33

operating your camera

►DET. SIZE : Selects an object size to detect on the screen. When adjusting the

detection size, note that the higher the level means the bigger detection size.

►RETURN : Select this to save the SETUP CONFIG menu settings and return to the

INTELLIGENCE menu.

- RETURN

: Select this to save the INTELLIGENCE menu settings and return to the

SPECIAL menu.

• PRIVACY : Mask an area you want to hide on
the screen.

1) When the SPECIAL menu screen is displayed,

press the Function Setup switch so that the

1. TYPE 1 OFF

►

2. TYPE 2 OFF

3. RETURN

PRIVACY

arrow indicates <PRIVACY>.

2) Set up the mode using the Function Setup

switch.

- TYPE 1 (In this type , the shape of selected

area is rectangular)

►AREA SEL: You can select up to 16 PRIVACY

areas.

►AREA MODE : Determines whether to use the

area selected in the AREA SEL.

►MASK COLOR : Determine area color. You can

►

1. AREA SEL AREA1

2. AREA MODE OFF

3. MASK COLOR GRAY

4. TOP

5. BOTTOM

6. LEFT

7. RIGHT

8. RETURN

TYPE 1

*

... ... ...* ... ...

*

... ... ...* ... ...

... ... ... ... ...

... ... ... ... ...

23
59
35
67

select Green, Red, Blue, Black, White, Gray.

►TOP / BOTTOM / LEFT / RIGHT : Adjust the

size and position of the selected area.

►RETURN : Select this to save the TYPE 1 menu

settings and return to the PRIVACY menu.

- TYPE 2 ( In this type , the shape of selected

area is polygonal)

►

1. AREA SEL AREA1

2. AREA MODE OFF

3. MASK COLOR GRAY

4. SEL POS L_TOP

5. X POS

6. Y POS

7. RETURN

TYPE 2

... ... ...* ... ...

*

... ... ... ... ...

30
10

►AREA SEL: You can select up to 4 PRIVACY

areas.

►AREA MODE : Determines whether to use the area selected in the AREA SEL.

►MASK COLOR : Determine area color. You can select Green, Red, Blue, Black,

White, Gray.

►SEL POS/XPOS/YPOS : Adjust the size and position of the selected area.

34_ Operating Your Camera

►RETURN : Select this to save the TYPE 2 menu settings and return to the

PRIVACYmenu.

- RETURN

: Select this to save the PRIVACY menu settings and return to the SPECIAL

menu.

• COMM ADJ (Communication Adjustment) :
This function sets up the camera
communication status when controlling the
camera through an external control device.

1) When the SPECIAL menu screen is displayed,

press the Function Setup switch so that the
arrow indicates <COMM ADJ>.

COMMUNICATION SETUP

►

1. PROTOCOL SAMSUNG-T

2. CAM ID

3. BAUD RATE 9600

4. UART MODE 8-N-1

5. DISP ID OFF

6. RET PKT ENABLE

7. RETURN

.... .... .... ....

*

2) Set up the mode using the Function Setup

switch.

- PROTOCOL : Select the communication PROTOCOL. (SAMSUNG-T, SAMSUNG-E,
Pelco-D, Pelco-P, Bosch, Honeywell, Vicon, Panasonic, GE, AD)

- CAM ID : Determines the camera’s identification number (between 0 and 255).

- BAUD RATE : You can select 2400/4800/9600/19200/38400/57600 bps.

- UART MODE : You can select NONE, EVEN or ODD for the parity bits.

- DISP ID : Display camera title on top left corner of the screen.

- RET PKT : Specify whether to return the same command to the controlling device when
a control command is delivered to the camera.

- RETURN :

Select this to save the COMM ADJ menu settings and return to the

SPECIAL menu.

• LANGUAGE : You can select the menu language according to your requirements.

• RESET : Resets the camera settings to the factory defaults. Communication,
Language, Video Format and Monitor settings are not initialized.

• RETURN : Select this to save the SPECIAL menu settings and return to the MAIN
SETUP menu.

EXIT

Save the current settings and exit the MAIN SETUP menu.

● Operating YOur Camera

1

English _35

appendix

SPECIFICATION

Items Description

Video 1/3" Progressive Scan CMOS

Total Pixels 2,010(H) x 1,108(V), 2.2M Pixels

Video

Lens Type

pan / Tilt /
Rotate

Operational

Effective Pixels 1,944(H) x 1,092(V), 2.1M Pixels

Scanning System Progressive Scan

Min. Illumination Color : 0.5Lux (F2.0, 50IRE), 0.008Lux (F2.0 Sen-up x60, 50IRE)

Video Output SMPTE292M ( HD-SDI )

Lens Type Board-in type

Mount Type -

Max. Aperture Ratio F2.0

Focal Length 3.8mm Fixed

Focus Control Fixed

Angular Field of View H: 84.5°, V: 45.8°, D: 98.8°

Pan Range 0° ~ 354°

Tilt Range 0° ~ 67°

Rotate Range 0° ~ 355°

On Screen Display

Camera Title Off / On (Displayed 15 characters)

Day &Night Auto (ICR), Color, B/W , External

Backlight Compensation

Contrast Enhancement SSDR ( Off / On )

Digital Noise Reduction SSNR

Multi-language Support
English, Korean, Japanese, Spanish, French, Portuguese, Chinese,
German, Italian, Russian, Czech, Polish, Rumanian, Serbian, Swedish,
Denish, Turkish

Off / BLC / HLC / WDR

Ⅲ

( Off / On )

36_ appendix

Items Description

Privacy Masking Off / On (16 Rect-angle zones)

Sens-up
(Frame Integration)

Gain Control Off / Low / Middle / High

White Balance

Electronic Shutter

Operational

Environmental

Electrical

Mechanical

HD-SDI
Transmission
Distance

`

`

Speed

Digital Zoom Off / On (x2 ~ x16)

Reverse Off / H-Rev / V-Rev / HV-Rev

Intelligent Video Tampering, Detection,Tracking,Fixed/Moved

Communication RS-485

Protocol

Operating Temperature
/ Humidity

Input Voltage 12VDC

Current 0.3A

Color / Material Body : Ivory / Plastic

Dimension (ØxH) Ø120.0 x H102.0mm (Ø4.72" X H4.02")

Weight

5C2V ( 75ohm ) Max. 100~140m

L-6CHD ( 75 ohm ) Max. 200m

The maximum transferrable distance of HD-SDI video signal depends on the cable manufacturer or installation
conditions.

When a BNC cable adaptor is used to combine two or more BNC cables for distributed HD-SDI video transfer,
make sure the impedance of the adaptor is 75Ω. Otherwise, the adaptor may cause shorter transfer distance or
broken video transfer due to loss of transferred signal.

Auto/Off (2x ~ 60x)

ATW / Outdoor / Indoor / Manual / AWC (1,700K° ~ 11,000K°)

Esc / A.FLK / Manual

RS-485 : SAMSUNG-T, SAMSUNG-E, Pelco-D, Pelco-P, Bosch,
Honeywell, Vicon, Panasonic, GE, AD

-10°C~ +55°C (14°F~131°F) / ~90% RH

435g

● appendix

※

For enhanced performance, the product specification is subject to change without prior notice.

English _37

appendix

PRODUCT OVERVIEW

Ø 120 (4.72")

R44.5 (1.75")

Unit : mm (inch)

56.3 (2.22")

38_ appendix

102 (4.02")

TROUBLESHOOTING

PROBLEM SOLUTION

Nothing appears on the screen.

The image on the screen is dim.

The image on the screen is dark.

The camera is not working
properly, and the surface of the
camera is hot.

The SENS-UP function does not
work.

Color is not correct.

The screen flickers continually.

RS-485 communication is not
available.

yCheck that the power cord and line connection between the camera and

monitor are properly connected.

yWhen the camera’s HD-SDI BNC output is directly connected to the

monitor’s BNC terminal:
Make sure the monitor supports HD-SDI signal input.

yWhen the camera’s HD-SDI BNC output is connected to the DVR: Make

sure the DVR supports HD-SDI signal input.

yHD-SDI output is converted into other format such as DVI and VGA by

using video converter: Make sure the converter’s HD-SDI input format
supports the product’s output video format.

yIs lens stained with dirt? Clean your lens with soft, clean cloth.

ySet the monitor to the proper condition.

yIf the camera is exposed to very strong light, change the camera position.

yAdjust the contrast feature of the monitor.

yCheck that you have properly connected the camera to an appropriate

power source.

yCheck that AGC of EXPOSURE SETUP menu is ‘OFF’.

yCheck the setting of WHITE BAL SETUP menu .

yEnsure the camera is not pointing towards the sun.

yIs the camera framing the sun or other bright light source?

yHD-SDI video may not appear to be normal if distance exceeds the

maximum transferrable distance.

yWhen a BNC cable adaptor is used to combine two or more BNC cables

for distributed HD-SDI video transfer, make sure the impedance of the
adaptor is 75Ω. Otherwise, it may cause shorter transfer distance or
broken video transfer.

yCheck RS-485 communication settings.

● appendix

English _39

This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and,
if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in which case the user will
be required to correct the interference at his own expense.

Samsung Techwin cares for the environment at all product manufacturing stages, and is
taking measures to provide customers with more environmentally friendly products.
The Eco mark represents Samsung Techwin’s devotion to creating environmentally friendly
products, and indicates that the product satisfies the EU RoHS Directive.

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its
electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other
household waste at the end of their working life. To prevent possible harm to the environment or
human health from uncontrolled waste disposal, please separate these items from other types
of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or
their local government office, for details of where and how they can take these items for
environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the
purchase contract. This product and its electronic accessories should not be mixed with other
commercial wastes for disposal.

Correct disposal of batteries in this product

(Applicable in the European Union and other European countries with separate battery return systems.)

This marking on the battery, manual or packaging indicates that the batteries in this product should
not be disposed of with other household waste at the end of their working life. Where marked, the
chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the
reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances
can cause harm to human health or the environment.

To protect natural resources and to promote material reuse, please separate batteries from other types
of waste and recycle them through your local, free battery return system.

SALES NETWORK

SAMSUNG TECHWIN CO., LTD.

Samsung Techwin R&D Center, 6, Pangyo-ro 319beon-gil, Bundang-gu, Songnam-si, Gyeonggi-do 463-400, Korea
TEL : [phone]~60 FAX : [phone]

SAMSUNG TECHWIN AMERICA Inc.

100 Challenger Rd. Suite 700 Ridgefield Park, NJ 07660
Toll Free : [phone] Direct : [phone]
Fax : [phone]
www.samsungcctvusa.com

www.samsungtechwin.com
www.samsungsecurity.com

SAMSUNG TECHWIN EUROPE LTD.

Samsung House, 1000 Hillswood Drive, Hillswood Business
Park Chertsey, Surrey, UNITED KINGDOM KT16 OPS
TEL : [phone] FAX : [phone]
