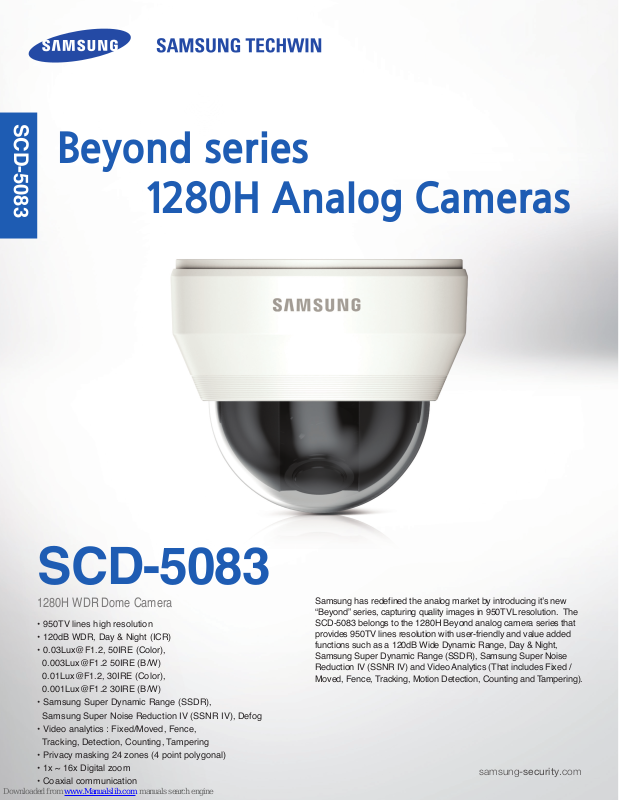

Page 1
SCD-5083
Beyond series
1280H Analog Cameras
SCD-5083
1280H WDR Dome Camera
• 950TV lines high resolution
• 120dB WDR, Day & Night (ICR)
• [email protected], 50IRE (Color),
[email protected] 50IRE (B/W)
[email protected], 30IRE (Color),
[email protected] 30IRE (B/W)
• Samsung Super Dynamic Range (SSDR),
Samsung Super Noise Reduction IV (SSNR IV), Defog
• Video analytics : Fixed/Moved, Fence,
Tracking, Detection, Counting, Tampering
• Privacy masking 24 zones (4 point polygonal)
• 1x ~ 16x Digital zoom
• Coaxial communication
Samsung has redefined the analog market by introducing it’s new
“Beyond” series, capturing quality images in 950TVL resolution. The
SCD-5083 belongs to the 1280H Beyond analog camera series that
provides 950TV lines resolution with user-friendly and value added
functions such as a 120dB Wide Dynamic Range, Day & Night,
Samsung Super Dynamic Range (SSDR), Samsung Super Noise
Reduction IV (SSNR IV) and Video Analytics (That includes Fixed /
Moved, Fence, Tracking, Motion Detection, Counting and Tampering).
samsung-security.com
Page 2
1280H WDR Dome Camera
SCD-5083
Key Features
• 950TV lines high resolution
• 120dB WDR, Day & Night (ICR)
• [email protected], 50IRE (Color),
[email protected] 50IRE (B/W)
[email protected], 30IRE (Color),
[email protected] 30IRE (B/W)
• SSDR, SSNR IV, Defog
• Video analytics : Fixed/Moved, Fence,
Tracking, Detection, Counting, Tampering
• Privacy masking 24 zones (4 point polygonal)
• 1x ~ 16x Digital zoom
• Coaxial communication
Dimensions
56.9 (2.24")
56.9 (2.24")
101.8 (4.01")
101.8 (4.01")
Accessory (Optional)
SBP-300LMSBP-301HM6
SBP-300CM SBP-300WM1 SBP-300WM
Unit : mm (inch)
Ø119.8 (4.72")
Ø119.8 (4.72")
VIDEO
Imaging Device
Total Pixels
Effective Pixels
Scanning System
Synchronization
Frequency
Horizontal Resolution
Min. Illumination
S / N Ratio
Video Output
LENS
Focal Length (Zoom Ratio)
Max. Aperture Ratio
Angular Field of View
Min. Object Distance
Focus Control
Lens Type
Mount Type
OPERATIONAL
On Screen Display
Camera Title
Day & Night
Backlight Compensation
Wide Dynamic Range
Contrast Enhancement
Digital Noise Reduction
Defog
Purple Fringe Reduction
Digital Image Stabilization
Motion Detection
Privacy Masking
Sens-up (Frame Integration)
Gain Control
White Balance
Electronic Shutter Speed
Digital Zoom
Reverse
Profile
Intelligent Video Analytics
Alarm
Communication
Protocol
ENVIRONMENTAL
Operating Temperature / Humidity
ELECTRICAL
Input Voltage / Current
Power Consumption
MECHANICAL
Color / Material
Dimensions (WxH)
Weight
SCD-5083N SCD-5083P
1/3" 1.3M CMOS
1,312(H) x 1,069(V)
1,280(H) x 1,024(V)
Progressive scan
Internal / Line lock (TBD)
H : 15.734KHz / V : 59.94Hz H : 15.625KHz / V : 50Hz
Color : 950TV lines (TBD)
B/W : 850TV lines (TBD)
Color : 0.03Lux (F1.2, 50IRE), 0.01Lux (F1.2, 30IRE) (TBD)
B/W : 0.003Lux (F1.2, 50IRE), 0.001Lux (F1.2, 30IRE) (TBD)
52dB (AGC off, Weight on) (TBD)
CVBS : 1.0 Vp-p / 75Ω composite
2.8 ~ 10mm
F1.2
H : 94.6°(Wide) ~ 28.8°(Tele) / V : 68.4°(Wide) ~ 21.6°(Tele) (TBD)
0.5m (1.64ft)
Manual
DC auto iris
Board type
English, Japanese, Spanish,
French, Portuguese, Korean
Off / On (Displayed 15 characters)
Auto (ICR) / Color / B/W
Off / User BLC / HLC / WDR
120dB (TBD)
SSDR (Off / On)
SSNR IV (Off / On)
Off / Auto / Manual
Off / On
Off / On
Off / On
Off / On (24 programmable zones with 4 points polygonal masking)
2x ~ 60x
Off / Low / Middle / High
ATW / Outdoor / Indoor / Manual / AWC (1,800°K ~ 10,500°K)
1/60 ~ 1/120,000sec (TBD) 1/50 ~ 1/120,000sec (TBD)
Off / On (1x ~ 16x)
Off / H-Rev / V-Rev / HV-Rev
Basic, Day & Night, Backlight, Indoor, User
Fixed / Moved, Fence, Tracking, Detection, Counting, Tampering
1 Out
Coaxial control (SPC-300 compatible)
Coax : Pelco-C (Coaxitron)
-10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
Dual (24V AC & 12V DC ±10%)
Max. 4W (TBD)
Ivory / Plastic
Ø119.8 x 101.8mm (Ø4.72" x 4.01")
395g (0.87 lb) (TBD)
English, French, German, Spanish, Italian, Chinese,
Russian, Polish, Czech, Romanian, Serbian, Swedish,
Danish, Turkish, Portuguese
SBP-300B SBP-300PM SBP-300KM
