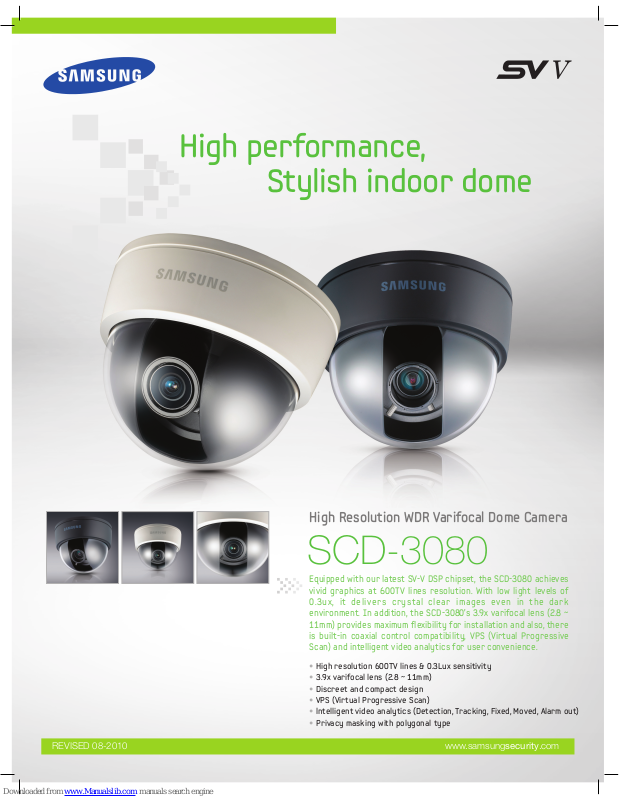

Samsung SCD-3080N, SCD-3080P Specifications

SCD-3080

• High resolution 600TV lines & 0.3Lux sensitivity

• 3.9x varifocal lens (2.8 ~ 11mm)

• Discreet and compact design

• VPS (Virtual Progressive Scan)

• lntelligent video analytics (Detection, Tracking, Fixed, Moved, Alarm out)

• Privacy masking with polygonal type

Equipped with our latest SV-V DSP chipset, the SCD-3080 achieves
vivid graphics at 600TV lines resolution. With low light levels of

0.3ux, it delivers crystal clear images even in the dark
environment. In addition, the SCD-3080's 3.9x varifocal lens (2.8 ~
11mm) provides maximum flexibility for installation and also, there
is built-in coaxial control compatibility, VPS (Virtual Progressive
Scan) and intelligent video analytics for user convenience.

High Resolution WDR Varifocal Dome Camera

High performance,
Stylish indoor dome

www.samsungsecurity.comREVISED 08-2010

The Eco mark represents
Samsung Techwin’s will to create
environment-friendly products,and indicates
that the product satisfies the EU RoHS Directive.

Digital Image Stabilization

3.9X

V/F Lens

3-Axis

52dB

3.7mm 3mm

12VDC

Driver Tx

0.3Lux

600TVL

High Resolution WDR Varifocal Dome Camera

SCD-3080

Specifications

Dimensions

* Derivative products : SCD-3080B

Unit : mm (inch)

Design and specifications are subject to change without notice.

SCD-3080N SCD-3080P

Dual (12V DC/ 24V AC)
Max. 3.5W

1/3" Vertical double density interline CCD
811(H) x 508(V) 795(H) x 596(V)
768(H) x 494(V) 752(H) x 582(V)
2 : 1 Interlace
Internal / Line lock
H :15.734KHz / V : 59.94Hz H : 15.625KHz / V : 50Hz
Color : 600TV lines (Min.) / B/W : 700TV lines (Min.)
Color : 0.3Lux ([email protected]), 0.0006Lux (Sens-up, 512x)
B/W : 0.01Lux ([email protected]), 0.00002Lux (Sens-up 512x)
52dB (AGC off, Weight on)
CVBS : 1.0Vp-p / 75Ω composite

3.9x (Manual)

2.8 ~ 11mm (F1.2)
1 : 1.2(Wide) ~ 2.8(Tele)
H : 94.4°(Wide) ~ 28°(Tele) / V : 69.2°(Wide) ~ 21°(Tele)

0° ~ 352°
0° ~ 73°
0° ~ 348°

English, Japanese, Spanish,

English, French, German, Spanish, Italian, Chinese, Russian,

French, Portuguese, Taiwanese, Korean

Polish, Czech, Romanian, Serbian, Swedish, Danish, Turkish, Portuguese
On / Off (Displayed 15 characters)
Auto (ICR) / Color / B/W
On / Off (Level adjustable)
WDR / User BLC / HLC / SSDR / Off
128x 160x
On / Off (8 programmable zones)
On / Off
Detection / Tracking / Fixed / Moved / Alarm out
On / Off (12 programmable zones, Polygonal type)
On / Off (Level adjustable)
Auto / Off (Selectable 2x ~ 512x)
Low / High / Off
AWC / Manual / Indoor / Outdoor / ATW (1,700°K ~ 11,000°K)
1/60 ~ 1/120K sec 1/50 ~ 1/120K sec
Off / H-REV / V-REV / HV-REV
Coaxial control

-10°C ~ +50°C (+14°F ~ +122°F) / Less than 90% RH

Ø115.8 x 92.7mm (Ø4.56" x 3.65")
365g (0.8 lb)
FCC (Class A), UL/cUL listed CE (Class A), UL/cUL listed

ELECTRICAL
Input Voltage
Power Consumption
VIDEO
Imaging Device
Total Pixels
Effective Pixels
Scanning System
Synchronization
Frequency
Horizontal Resolution

Min. Illumination

S / N (Y signal)
Video Output
LENS
Zoom Ratio
Focal Length
Max. Aperture Ratio
Angular Field of View
PAN / TILT / ROTATE
Pan Range
Tilt Range
Rotate Range
OPERATIONAL

On Screen Display

Camera Title
Day & Night
SSDR
Backlight Compensation
Wide Dynamic Range
Motion Detection
Digital Image Stabilization
Intelligent Video Analytics
Privacy Masking
2D+3D Noise Filter (SSNRIII)
Sens-up (Frame Integration)
Gain Control
White Balance
Electronic Shutter Speed
Reverse
Communication
ENVIRONMENTAL
Operating Temperature / Humidity
MECHANICAL
Dimension (WxH)
Weight
Certifications

I.E-1008

DISTRIBUTED BY

SAMSUNG TECHWIN CO., LTD.

701, Sampyeong-dong, Bundang-gu, Seongnam-si, Gyeonggi-do Korea 463-400

Tel : [phone]~8749, 8752~8760 Fax : [phone]

www.samsungsecurity.com www.samsungcctv.com

SAMSUNG TECHWIN AMERICA Inc.

1480 Charles Willard St, Carson, CA 90746, UNITED STATES
Tol Free : [phone] Fax : [phone]
www.samsungcctvusa.com

SAMSUNG TECHWIN EUROPE LTD.

Samsung House, 1000 Hillswood Drive, Hillswood Business Park
Chertsey, Surrey, UNITED KINGDOM KT16 OPS
Tel : [phone] Fax : [phone]

TIANJIN SAMSUNG TECHWIN OPTO-ELECTRONICS CO., LTD.

No.11 Wei 6 Street. Micro-Electronic Industrial Park
Jingang Road, Tianjin, P.R. CHINA 300385
Tel : [phone] Fax : [phone]

92.7 (3.65")

92.7 (3.65")

Ø115.8 (4.56")
