SCD-3080 SERIES
• NTSC MODELS • PAL MODELS
SCD-3080N
SCD-3080P
MODEL DESCRIPTION
• SCD-3080X
_
SIGNAL SYSTEM
• SIGNAL SYSTEM
N Ą NTSC MODEL
P Ą PAL MODEL
Page 3
The lightning flash with an arrowhead symbol, within an equilateral triangle
is intended to alert the user to the presence of uninsulated “dangerous
voltage” within the product's enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the
user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
INFORMATION -
for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio
communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his
own expense.
WARNING -
WARNING -
Do NOT use power sources other than that specified.
Do NOT expose this appliance to rain or moisture.
This equipment has been tested and found to comply with limits
Changes or modifications not expressly approved by the
manufacturer could void the user’s authority to operate the
equipment.
To prevent electric shock and risk of fire hazards:
This installation should be made by a qualified service person and
should conform to all local codes.
Page 4
Contents
Contents
•
Features
ДДДДДДДДДДДДДДДДДДДДДДДДДД
Precautions
•
Components and Accessories
•
•
Overview
•
Installation
■
ДДДДДДДДДДДДДДДДДДДДДДДДД
ДДДДДДДДДДДДДДДДД
ДДДДДДДДДДДДДДДДДДДДДДДДД
ДДДДДДДДДДДДДДДДДДДДДДДДД
Installation
ДДДДДДДДДДДДДДДДДДДДДДДДДДДДДДДДДДД
■ Adjust the panning and tilting, rotating while watching the monitor
■
Connecting to Monitor
■ Connecting to Power
■ Using Coaxial Communications
By adopting a double-speed 410,000 pixel Sony CCD,
the camera produces clear picture quality with a
horizontal resolution of 600 TV lines for color, and 700
TV lines for B/W.
Excellent Sensitivity
The built-in high sensitivity COLOR CCD produces a
clear image.
- Color : 0.3 Lux (50IRE, @F1.2),
0.0006LUX (SENS-UP, x512)
- B/W : 0.01 Lux (50IRE, @F1.2),
0.00002 LUX (SENS-UP, x512)
Intelligence
Without assistance from an external sensor, this
camera independently detects and traces objects
while examining stillness and movement to activate
the alarm.
SSNR3 (Samsung Super Noise
Reduction) Function
The high-performance SV-V DSP chip effectively
removes low-light gain noise and afterimage to
provide clear images even in dark environments.
Day&Night (ICR)
This camera has a function that automatically selects the
mode that is appropriate for daytime or night-time
conditions.
The COLOR mode operates in daytime conditions to
provide optimum colors, and B/W mode operates in nighttime conditions to enhance the definition of the image.
SSDR
(Samsung Super Dynamic Range)
For images with high contrast between bright and
dark areas from difficult lighting conditions such as
backlighting, this camera selectively illuminates
darker areas while retaining the same light level for
brighter areas to even out the overall brightness.
PROFILE
You can set a mode according to the camera
installation conditions.
- BASIC, DAY/NIGHT, BACKLIGHT, ITS, INDOOR, USER
PIP
Displays a full-size image along with the thumbnail.
WDR
By adopting a proprietary SV-V DSP chip, the camera
delivers clear, high quality pictures even when the
scene is backlight, by increasing exposure in dark
areas while decreasing it in bright areas; a corrected
image with clear details results.
VPS(Virtual Progressive Scan)
Adopting Samsung’s unique development, the VPS
(Virtual Progressive Scan) enhances the sharpness of
moving subject’s outline. The VPS enables elective
output in progressive mode using the existing
interlaced input and effectively enhances the
sharpness of captured pictures from video and still
images. The function effectively removes blurred
outline problems resulting in excellent road
monitoring and improved license plate recognition.
COLOR DOME CAMERASCD-3080
5
Page 6
Features
Contents
DIS (Digital Image Stabilizer)
The DIS function compensates for any camera
movement, to produce more stable pictures.
Miscellaneous Functions
HLC(High Light Compensation), SENS-UP, REVERSE ,
D-ZOOM, SHARPNESS and PRIVACY functions are
provided.
Samsung Techwin cares for the environment at all product manufacturing
stages to preserve the environment, and is taking a number of steps to provide
customers with more environment-friendly products. The Eco mark represents
Samsung Techwin's will to create environment-friendly products, and
indicates that the product satisfies the EU RoHS Directive.
Warnings & Cautions
This information is provided to ensure your safety and to prevent any losses, financial or
otherwise. Please read it carefully and use the product accordingly.
* For product inquiries, please contact the retail shop where you bought the camera. The use of equipment such as
an aerial ladder while providing after-sales service shall be at your expense.
* Separate the power plug during a thunder storm.
* This product is support equipment for surveillance system. Therefore, we can't compensate for material loss and/or
personal injuries by robbery, fire, natural disaster or other such events.
Warning/Attention/Special Mark Messages
Ignoring this information may
result in material loss and/or
serious personal injuries including
death.
Indicates "Never Allowed."
COLOR DOME CAMERASCD-3080
Ignoring this information may
result in material loss and/or a
slight injuries.
Indicates "No Disassembling."
7
Page 8
Precautions
Do not install under extreme
temperature conditions.
-10ºC and +50ºC. Provide good ventilation
when using in high temperature conditions.
Do not install under unstable lighting
conditions.
Severe lighting changes or flickering may hinder
normal camera operation.
Do not drop the camera or subject it
to physical shock.
Do not install in high humidity
environment.
May lower image quality.Use only under temperature conditions between
Avoid touching the camera lens.
The lens is the most important component of
the camera. Be careful not to smear it with
fingerprints.
Never keep the camera face to strong
light directly.
May damage the CCD.May cause a product malfunction.
COLOR DOME CAMERASCD-3080
8
Page 9
Do not expose the camera to
radioactivity.
Do not expose the camera to rain or
other types of liquids.
If exposed to radioactivity, the CCD will fail.
May cause a product malfunction.Wipe dry any
liquids. Liquids may contain minerals that are
corrosive to electronic components.
Notes
• Exposure to a spotlight or an object emitting strong light may cause smear or blooming.
• Ensure that the power source complies with normal specifications before supplying it to
the camera.
Components and Accessories
❶
➍
➋➌
High Resolution WDR Dome Camera SCD-3080 User Guide
Before installing and operating this product,
Before installing and operating this product,
please read this manual thoroughly.
please read this manual thoroughly.
ENGLISH
❶
High Resolution WDR Dome Camera SCD-3080
➋
Instruction Manual
➌
M4 Tapping Screw 3EA
➍
Installation Video Output Cable
COLOR DOME CAMERASCD-3080
9
Page 10
Overview
⓬
❶
➌
⓫
R
E
W
➏
➑
➒
❿
➐
❶
Pan Base : Control panning angle of camera.
➋
Rotate Base : Control rotating angle of camera.
➌
x3.9 Vari-focal Lens Module 2.8 ~ 11mm (F1.2)
➍
Video Output Terminal to Monitor
➎
Function Setup switch : Display the menu on the screen and move the cursor to four
➏
Video Output Jack
➑
MD Output Terminal : Motion detection signals are output through this terminal.
➒
D & N Input Terminal : You can switch to Day & Night Mode by connecting an external
❿
Ground Terminal
D
H
B
(M
L
IT
A
D
E
C
(
_
K
E
O
X
(G
U
T
T
_
N
D
D
N
)
)
directions to confirm status or changing a selected item.
➐
Power Input Terminal
signal to this terminal.
⓫
Dome Cover
➍➎➋
⓬
Shield Case
Notes
•
Be sure to connect the Day & Night input terminal to GND when using an external input.
COLOR DOME CAMERASCD-3080
10
Page 11
Installation
1) Separate the dome cover by turning anti-clockwise.
2) Separate the shield case by pulling from the camera body.
* To install the dome cover on the camera
body, turn the latches in locking direction
Latch
as shown in the figure-1.
Locking direction
[Figure-1]
Installation
Main Body
(Camera)
Shield Case
Unlocking direction
(Anti-clockwise)
Notes
• The installation should be done by qualified
service personnel or system installers.
• If the ceiling material is not strong enough to
hold the installation screws, the camera
may fall off. Reinforce the ceiling as needed.
• To change the position of the cable, take
away the Hole Cover and pass the cable
through.
COLOR DOME CAMERASCD-3080
11
Locking direction
(Clockwise)
Dome cover
Original position of
the cable
Hole Cover
Page 12
Installation
When using the Ceiling bracket
Ceiling bracket
M4 tapping
screw (provided)
CAMERA
Unlocking
direction
Dome cover
An arrow for installing
1) Hold the ceiling bracket (located where the arrow
points to) and separate it from the main body of the
directions
camera by rotating it anti-clockwise.
(refer to the picture in 'Notes' on page 11)
2) Place the separated ceiling bracket so that the
“Front” side faces the area to be monitored and
install it with the M4 tapping screws.
3) To combine the main body with the ceiling bracket,
make sure that the pan base fixation screw face the
opposite side of the “Front” side of the ceiling
bracket and rotate it clockwise.
4) Adjust the camera lens to face the area to be
monitored and fix the main body and the dome cover
by aligning the grooves and rotating the body
clockwise.
Locking
direction
M4 tapping
screw
[Figure-2]
Notes
•
If you want to install the camera with the ceiling bracket combined, fix it using two M4
screws at the side of the main body (refer to the [Figure-2] on page 12).
tapping
COLOR DOME CAMERASCD-3080
12
Pan Base
fixation
screw
Page 13
Adjust the panning and tilting, rotating while watching the monitor
73˚
Rotate Base
Tilt Base
Pan Base
174˚
174˚
176˚
176˚
1) You can adjust the camera to any direction by using Pan, Tilt, Rotate mechanism.
• Pan Base moves by 176˚ to each side direction and 352˚ on the whole.
• Tilt Base covers total 73˚ angle(0˚ ~ 73˚).
• Rotate Base moves by 174° to each side direction and 348° on the whole.
2) Methods of adjustment
• Mounting on a wall
➊
After mounting the camera on a wall, adjusting the panning angle so that the camera can face the direction
to monitor when tilted.
➋
Adjust the tilting angle by rotating the tilt base.
➌
Loosen the rotate base hold screw and adjust rotate base for the best view.
➍
Tighten the rotate base hold screw.
• Mounting on a ceiling
➊
After mounting the camera on a ceiling, adjusting the panning angle to the correct viewing position by rotating
the pan base.
➋
Adjust the tilting angle by rotating the tilt base.
➌
Loosen the rotate base hold screw and adjust rotate base for the best view.
➍
Tighten the rotate base hold screw.
COLOR DOME CAMERASCD-3080
13
Page 14
Connection
Connecting to Monitor
Connect the Video Output jack to the VIDEO-IN jack of monitor.
CCTV CameraMonitor
•
As the connecting method varies with the instruments, refer to the manual supplied with the instrument.
•
If necessary, you can connect the monitor to the REMOTE jack on the back of your camera.
• Only connect the cable when the power is turned off.
Connecting to Power
Connect the adaptor to the power input terminal as shown in the figure below.
The recommended adaptor specification for SCD-3080N/SCD-3080P is DC 12V / 500mA or AC
24V / 500mA.
For AC / DC power
• Since the power specification supports both AC
and DC, connect AC 24V, 500mA Adaptor or DC
12V, 500mA Adaptor.
When the resistance value of copper wire is at [20˚C(68˚F)]
Copper wire size (AWG)
Resistance (Ω/m)
Voltage Drop (V/m)
• As shown in the table above, voltage decreases as the wire gets longer. Therefore use of
an excessively long adaptor output line for connection to the camera may affect the
performance of the camera.
* Standard voltage for camera operation : DC 12V ± 10%, AC 24V ±10%
* There may be some deviation in voltage drop depending on the type of wire and the manufacturer.
#24(0.22mm2)#22(0.33mm2)#20(0.52mm2)#18(0.83mm2)
0.0780.0500.0300.018
0.0280.0180.0110.006
---- Power Input
Terminal
COLOR DOME CAMERASCD-3080
14
Page 15
Notes
• Be sure to connect power only after all the installation is complete.
• Note that AC / DC adaptor is not supplied with camera.
• Ground should be connected to the GND terminal.
Using Coaxial Communications
• Coaxial Communications System
• OSD Control method
DVD
CAMERADVRCONTROLLER
SETMENU/ENTEROSD KEY
UPUP KEYJOYSTICK UP
DOWNDOWN KEYJOYSTICK DOWN
LEFTLEFT KEYJOYSTICK LEFT
RIGHTRIGHT KEYJOYSTICK RIGHT
DVR
: BNC
•
---- : RS-485
•
• Video Cable
The camera's video output port is connected to the monitor with a BNC coaxial
cable, shown below : If the distance between the camera and the monitor exceeds
the recommended maximum, please use an auxiliary video amp.
• It is recommended that pure copper coax cable is used and not copper coated
steel, as this will cause issues with the communication over the coaxial cable.
COLOR DOME CAMERASCD-3080
15
Page 16
Operating Your Camera
Menu Configuration
MAIN SETUP
úDC
LENS
EXPOSURE
WHITE BAL
BACKLIGHT
SSNR3
DAY/NIGHT
PROFILE
SPECIAL
EXIT
úBRIGHTNESSúSHUTTER
úSENS-UP úRETURN
úATW
úMANUAL
ú
OFF
ú
SSDR
úON
ú
AUTO
ú
B/W
ú
BASIC
ú
ITS
ú
IMAGE ADJ
ú
INTELLIGENCE
ú
LANGUAGE
ú
SAVE
úOUTDOORúINDOOR
úAWC→SET
ú
ú
ú
ú
ú
ú
ú
ú
ú
ú
USER BLC
WDR
OFF
EXTERN
DAY/NIGHT
INDOOR
CAM TITLE
PRIVACY
RETURN
NOT SAVE
úAGC
ú
HLC
ú
COLOR
ú
BACKLIGHT
ú
USER
ú
SYNC
ú
DIS
ú
RESET
COLOR DOME CAMERASCD-3080
16
Page 17
Menu Setup

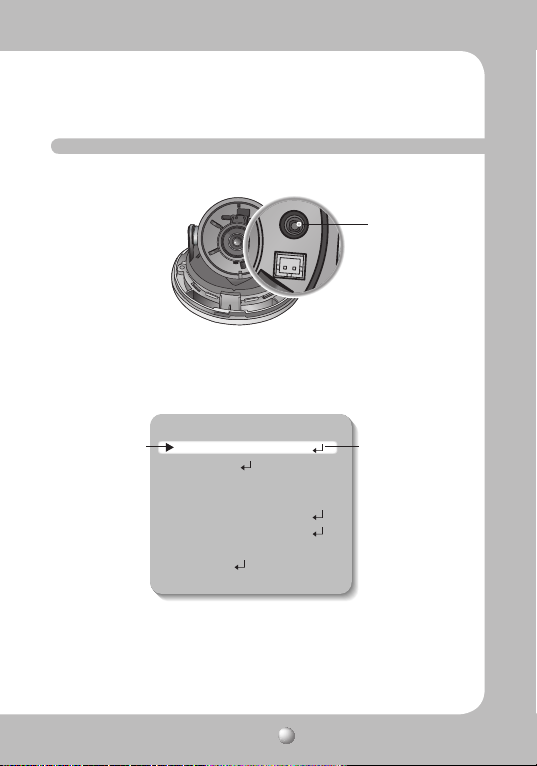

Use the Function Setup switch within the camera.
1. Press the Function Setup switch.
• Main SETUP menu is displayed on the monitor screen.
Function Setup switch
Select the function using
the Function Setup switch.
1.LENS DC
2.EXPOSURE
3.WHITE BAL ATW
MAIN SETUP
4.BACKLIGHT OFF
5.SSNR3 ON
6.DAY/NIGHT AUTO
7.PROFILE
8.SPECIAL
BASIC
9.EXIT SAVE
2. Select a desired function using the Function Setup switch.
• Place the cursor over a desired item.
3. Set up a selected item by using the Function Setup switch.
4. To finish the setting, select ‘EXIT’ and press the Function Setup switch .
COLOR DOME CAMERASCD-3080
17
Change the status using
the Function Setup switch.
Page 18
Operating Your Camera
Notes
• An item with the
with the icon and press the Function Setup switch.
•
An item with the --- icon is unavailable due to function settings.
LENS
Using this function, you can control the screen brightness.
1. When the SETUP menu screen is displayed, select ‘LENS’ by using the Function Setup
switch so that the arrow indicates ‘LENS’.
2.
The Lens mode has sub menu site as listed below.
- BRIGHTNESS : Adjusts the video brightness.
- FOCUS ADJ :
To activate the Focus Settings mode, adjust the lens focus, and then deactivate the settings mode.
You can adjust the shutter value of ESC shutter mode.
icon also has sub menus. To select a sub menu, select an item
To adjust the lens focus correctly, you must activate the Focus Settings mode.
MAIN SETUP
1.LENS DC
2.EXPOSURE
Notes
•
Set the shutter mode to --- if color rolling occurs.
EXPOSURE
MAIN SETUP
1.LENS DC
2.EXPOSURE
1. When the SETUP menu screen is displayed, select ‘EXPOSURE’ by using the Function
Setup switch so that the arrow indicates ‘EXPOSURE’.
2. Select a desired mode using the Function Setup switch.
COLOR DOME CAMERASCD-3080
18
Page 19
EXPOSURE SETUP
1.BRIGHTNESS 25
2.SHUTTER ---
3.AGC HIGH
4.SENS-UP OFF
5.RETURN
BRIGHTNESS : Adjusts the video brightness.
SHUTTER : You can select the shutter.
- --- : Shutter speed is fixed at 1/60 sec (1/50 sec).
- ESC : Select this to control the shutter speed automatically. If ESC is selected,
- MANUAL : You can control shutter speed manually.
- A.FLK : Select this when you experience picture flicker, this happen when there
the shutter speed is automatically controlled depending on the ambient
illumination of the subject.
(NTSC MODEL - 1/60sec~1/120,000sec, PAL MODEL - 1/50sec~1/120,000sec)
is a clash with the installed lighting frequency.
Notes
• Set the shutter mode to --- if color rolling occurs.
• When the SHUTTER is set to ESC after selecting the Internal Synchronization Type, the
picture may become unstable if the camera faces a bright fluorescent light. Therefore,
take care when choosing the installation position.
• When the SHUTTER is set to MANUAL or A.FLK mode, SENS-UP will be disabled.
AGC(AUTO GAIN CONTROL) : The higher the gain level, the brighter the screen - but
the greater the noise.
- OFF : Deactivates the AGC function.
- LOW : Allows automatic gain control from 5.3dB to 32dB.
- HIGH : Allows automatic gain control from 5.3dB to 37dB.
SENS-UP : When it is night or dark, the camera automatically detects the light level
and maintains a clear picture if this mode is activated.
- OFF : Deactivates the SENS-UP function.
- AUTO : Activates the SENS-UP function.
COLOR DOME CAMERASCD-3080
19
Page 20
Operating Your Camera
Notes
• If you set the Function Setup switch to ‘AUTO’ mode, You can adjust the brightness by
increasing or decreasing the shutter speed. (x2 ~ x512)
• Note that the higher the zoom level, the brighter the screen, but the more likely it is that
an after-image will appear.
• Although Noise, Spots and Whitish symptoms may occur in SENS-UP operation when
the zoom level is increased, this is normal.
RETURN : Select this to save the changes in the EXPOSURE menu and return to the
SETUP menu.
WHITE BAL (White Balance)
Use the White Balance function to adjust the screen color.
1. When the SETUP menu screen is displayed, select ‘WHITE BAL’ by using the Function
Setup switch so that the arrow indicates ‘WHITE BAL’.
2. Select a desired mode using the Function Setup switch.
MAIN SETUP
1.LENS DC
2.EXPOSURE
3.WHITE BAL ATW
ö Select one of the following 5 modes, as appropriate for your purpose.
ATW : Select this when the color temperature is between 1,700˚K and
OUTDOOR : Select this when the color temperature is between 1,700˚K and
INDOOR :
MANUAL :
11,000˚K.
11,000˚K. (sodium light inclusion)
Select this when the color temperature is between 4,500˚K and 8,500˚K.
Select this to fine-tune White Balance manually. Set White Balance first by
using the ATW or AWC mode. After that switch to MANUAL mode, finetune the White Balance and the Function Setup switch.
COLOR DOME CAMERASCD-3080
20
Page 21
AWC ĄSET :
To find the optimal luminance level for the current environment, point the
camera towards a sheet of white paper and press the Function Setup switch.
If the environment changes, readjust it.
Notes
• White Balance may not work properly under the following conditions. In this case select
the OUTDOOR mode.
❶ When the color temperature of the environment surrounding the subject is out of
the control range (e.g. clear sky or sunset).
➋
When the ambient illumination of the subject is dim.
➌
If the camera is directed towards a fluorescent light or is installed in a place where
illumination changes dramatically, the White Balance operation may become unstable.
BACKLIGHT
The SCD-3080 is designed so that it delivers a distinctive subject and background at the
same time, even when the subject is in backlight, by adopting a function of the proprietary
SV-V DSP chip.
1. When the SETUP menu screen is displayed, select ‘BACKLIGHT’ by using the Function
Setup switch so that the arrow indicates ‘BACKLIGHT’.
MAIN SETUP
1.LENS DC
2.EXPOSURE
3.WHITE BAL ATW
4.BACKLIGHT OFF
2.
Select a desired mode using the Function Setup switch depending on the camera purpose.
OFF : Not being used
BLC :

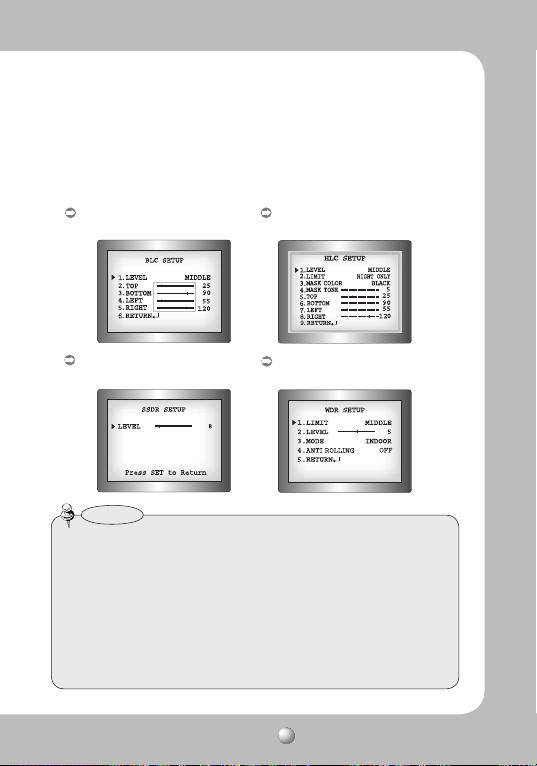

Enables a user to select a desired area on a picture and view that area more clearly.
- LEVEL : Adjusts the brightness level of a monitoring area.
- TOP/BOTTOM/LEFT/RIGHT : Adjust the area to be enhanced.
COLOR DOME CAMERASCD-3080
21
Page 22
Operating Your Camera
HLC (High Light Compensation) :
If the scene contains extremely bright light areas such as; from car headlight, the
light can mask out much of the on-screen detail.
- LEVEL : Adjusts the brightness level of a monitoring area.
- LIMIT : Enable to change the operating condition.
- MASK COLOR/TONE : Change the color / brightness of the masking area.
- TOP/BOTTOM/LEFT/RIGHT : Adjust the area to be enhanced.

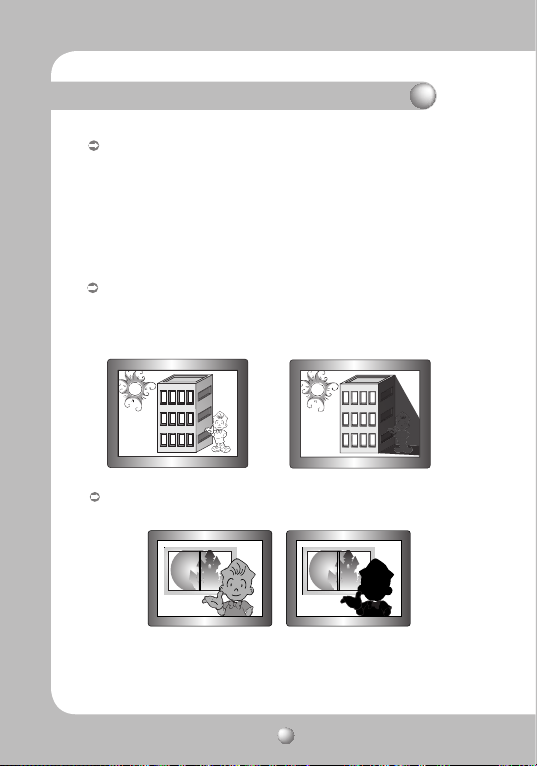

SSDR (Samsung Super Dynamic Range) : SSDR illuminates darker areas of an image
while retaining the same light level for brighter areas to even out the overall
brightness of images with high contrast between bright and dark areas.
Use the Function Setup switch to change the SSDR level in the sub menu according to
the contrast between bright and dark areas.
(Black, Red, Blue, Cyan, Magenta)
SSDR ON
WDR : When there are both bright and dark areas at the same time, this mode
SSDR OFF
makes both areas distinctive.
< WDR >
< OFF >
Select ’WDR‘ to adjust the WDR LIMIT and LEVEL.
- LIMIT : Adjust the WDR Sensitivity by selecting LOW, MIDDLE or HIGH.
COLOR DOME CAMERASCD-3080
22
Page 23
- LEVEL : Adjust the WDR Brightness by controlling the bar from 1 to 10.
- MODE : Indoor and outdoor backlight conditions are appropriately selected.
- ANTI ROLLING : Rolling caused around a fluorescent lamp is improved.
3. Select a desired mode using the Function Setup switch.
BLC : Adjust the area to be enhanced
then adjust the level.
SSDR : Enable the user to change the
level.
HLC : Enable the user to change the level,
limit, mask color/tone and area.
WDR : Enable the user to change the
limit and level.
Notes
• Because there can be a difference in the effectiveness of HLC according to the amount of
light area in the screen, optimize the installation angle for the best HLC performance.
• When dark, the HLC is only activated when a bright light exceeding a specific size. (In NIGHT
ONLY mode).
The HLC is not activated in day light or when bright light is not present at night. (In NIGHT ONLY mode).
•
• When using the WDR function, the shutter is only available with the fixed(---) mode.
• Since the performance of the WDR function may be affected by the area of the bright part of
the screen, optimize the installation angle for the best WDR performance.
• If you increase LIMIT, the screen display may be distorted.
•
If you use the VPS (Virtual Progressive Scan) function, the CCD reads differently so you can not
use WDR simultaneously. If you set VPS to ON, WDR will be automatically set to FIXED Mode.
COLOR DOME CAMERASCD-3080
23
Page 24
Operating Your Camera
SSNR3
This function reduces the background noise in a low luminance environment.
1. When the SETUP menu screen is displayed, select ‘SSNR3’ by using the Function Setup
switch
so that the arrow indicates ‘SSNR3’.
MAIN SETUP
1.LENS DC
2.EXPOSURE
3.WHITE BAL ATW
4.BACKLIGHT OFF
5.SSNR3 ON
2. Select a desired mode using the Function Setup
ON : Activates SSNR3 so that noise is reduced.
OFF : Deactivates SSNR3. Noise is not reduced.
3.
Set the
SSNR3
noise
• You cannot set the SSNR3 to ‘ON’ or ‘OFF’ when the AGC mode of the 'EXPOSURE' menu
•
mode to ‘ON’ and press the Function Setup switch. Then you can adjust the
reduction level.
Notes
is ‘OFF’.
When adjusting the noise reduction level in the SSNR3 mode, remember that the higher
the level set, the more the noise level will be reduced, as will the brightness of the image.
switch
.
DAY/NIGHT
You can display pictures in color or in black and white.
1. When the SETUP menu screen is displayed, select ‘DAY/NIGHT’ by using the Function
Setup switch so that the arrow indicates ‘DAY/NIGHT’.
COLOR DOME CAMERASCD-3080
24
Page 25
MAIN SETUP
1.LENS DC
2.EXPOSURE
3.WHITE BAL ATW
4.BACKLIGHT OFF
5.SSNR3 ON
6.DAY/NIGHT AUTO

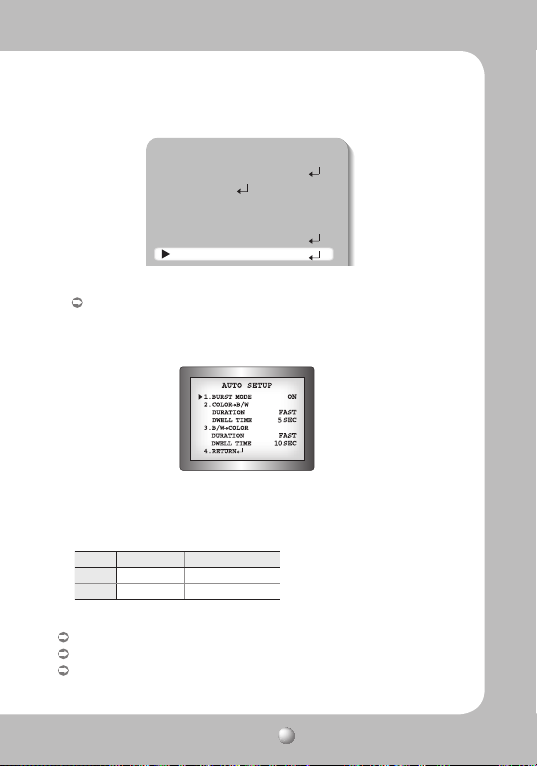

2. Select a desired mode using the Function Setup
AUTO :
The mode is switched to ’Color‘ in a normal environment, but switches to ’B/W‘
mode when ambient illumination is low. To set up the switching time for AUTO
mode, press the Function Setup
on B/W mode.
switch
according to the picture display you want.
switch
. You can turn on or off the burst signal
- BURST MODE : You can turn on or off the burst signal on B/W mode.
- DURATION : You can select the day/night switching point.
- DWELL TIME : You can select day/night switching delay time from.
EXTERN : This mode allows you to apply a desired filter to external signals.
COLOR : The picture is always displayed in color.
B/W : The picture is always displayed in black and white.
Ą3s, 5s, 7s, 10s, 15s, 20s, 30s, 40, 60s
Color ➞ B/WB/W ➞ Color
2.5 lux5 lux
Early
1 lux7 lux
Late
* The day/night switching point of the camera can be adjusted.
You can turn on or off the burst signal on B/W mode.
COLOR DOME CAMERASCD-3080
25
Page 26
Operating Your Camera
Notes
• When AGC in the EXPOSURE menu is 'OFF', '---' mode operates as selecting 'COLOR'
mode and 'AUTO' mode cannot be selected.
• Be sure to connect the Day & Night input terminal to GND when using an external input.
PROFILE
1. When the SETUP menu screen is displayed, select ‘PROFILE’ by using the Function
Setup switch so that the arrow indicates ‘PROFILE’.
MAIN SETUP
1.LENS DC
2.EXPOSURE
3.WHITE BAL ATW
4.BACKLIGHT OFF
5.SSNR3 ON
6.DAY/NIGHT AUTO
7.PROFILE
8.SPECIAL
BASIC
9.EXIT SAVE
2. Select a desired mode using the Function Setup switch according to the picture display
you want.
BASIC : The most common environment is set to meet.
DAY/NIGHT : It will be set automatically so it optimizes to the day or night conditions,
respectively.
BACKLIGHT : It will be set automatically so you can distinguish the object from the
background in a severe backlighting scene.
ITS : It will be set automatically so you can easily check the traffic conditions.
COLOR DOME CAMERASCD-3080
26
Page 27
INDOOR : It will be set automatically to help you take a picture in a regular indoor
❶ Select Custom for Simple Setup mode.
❷ Configure the menu options to your custom settings.
➌ The settings are automatically saved as Custom mode.
➍ Profile user mode don't initialize when menu resets.
3. In the PROFILE menu, you can configure the following camera settings at once.
SHUTTER-------- GAINHIGHHIGHHIGHHIGHHIGH WHITE BALATWATWATWOUTDOORINDOOR BACKLIGHTOFFOFFUSER BLCOFFOFF SSNR3ONONONONON DAY/NIGHTAUTOAUTOAUTOAUTOAUTO-
lighting condition.
USER : Automatically configures the camera to your custom settings.
BASIC DAY/NIGHT
BACKLIGHT
ITSINDOORUSER
MANUAL(1/250)
A.FLK-
SPECIAL
1. When the SETUP menu screen is displayed, select ‘SPECIAL’ by using the Function Setup
switch so that the arrow indicates ‘SPECIAL’.
MAIN SETUP
1.LENS DC
2.EXPOSURE
3.WHITE BAL ATW
4.BACKLIGHT OFF
5.SSNR3 ON
6.DAY/NIGHT AUTO
7.PROFILE
8.SPECIAL
BASIC
9.EXIT SAVE
COLOR DOME CAMERASCD-3080
27
Page 28
Operating Your Camera
2. Select a desired mode using the Function Setup switch.
1. IMAGE ADJ
2. CAM TITLE OFF
3. SYNC INT
4. INTELLIGENCE OFF
5. PRIVACY OFF
6. DIS OFF
7. LANGUAGE ENGLISH
8. RETURN
IMAGE ADJ :
1) When the SPECIAL menu screen is displayed, select ‘IMAGE ADJ’ by using the
Function Setup switch so that the arrow indicates ’IMAGE ADJ‘.
2) Select a desired mode using the Function Setup switch.

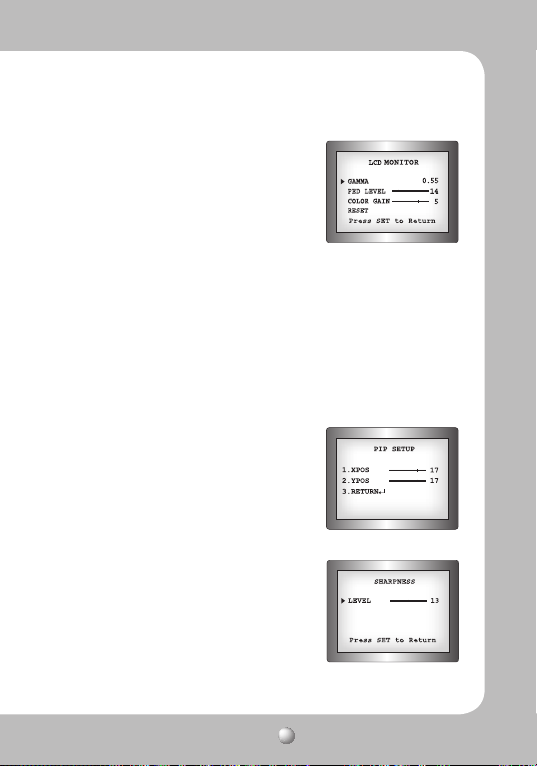

IMAGE SETUP
SPECIAL
1.MONITOR LCD
2.VPS OFF
3.REVERSE OFF
4.PIP OFF
D-ZOOM
5.
7.
8.
ú Monitor : Please change the settings value of video appropriate to your monitor.
·LCD : Please select this menu item when using an LCD monitor.
You can change the gamma, PED level and color gain in the sub menus.
COLOR DOME CAMERASCD-3080
6.
FONT COLOR BLUE
SHARPNESS
RETURN
28
OFF
ON
Page 29
·CRT :
·USER :
·
Please select this menu item when using a CRT
monitor. You can change the PED level, color
gain in the sub menus.
Please use this menu item when using a
monitor other than standard ones. You can
change the gamma, PED level and color gain
in the sub menus.
ú
VPS(Virtual Progressive Scan) : This is an advanced technology that reproduces a sharp
progressive image. This is appropriate to high quality recording and file transfer via the
Internet.
·
OFF : Selects 2:1 Interlaced Scan as the Imaging Method.
·
ON : Selects Progressive Scan as the Imaging Method.
ú
REVERSE : You can reverse the picture.
·
OFF : You don’t reverse the picture.
·
H-REV : You can flip the picture horizontally on the screen.
·
V-REV : You can flip the picture vertically on the screen.
HV-REV : You can flip the picture horizontally and vertically on the screen.
ú
PIP(Picture in Picture) : Displays a full-size image along
with the thumbnail to provide more detailed
information. The position of the thumbnail is
adjustable.
ú
D-ZOOM : You can use a digital zoom of x1 ~ x16.
ú
FONT COLOR : You can change the OSD font color.
(White, Yellow, Green, Red, Blue)
ú
SHARPNESS :
ú
RETURN : Select this to save the settings for the
As you increase this value, the picture
outline becomes stronger and clearer.
Adjust this value appropriately depending
on the sharpness of the picture.
IMAGE ADJ menu and to return to the
SPECIAL menu.
COLOR DOME CAMERASCD-3080
29
Page 30
Operating Your Camera
Notes
• When the V-REV or H-REV mode is enabled, the text on the screen does not flip.
• If you increase the SHARPNESS level too high, the picture may become distorted or
noise may appear.

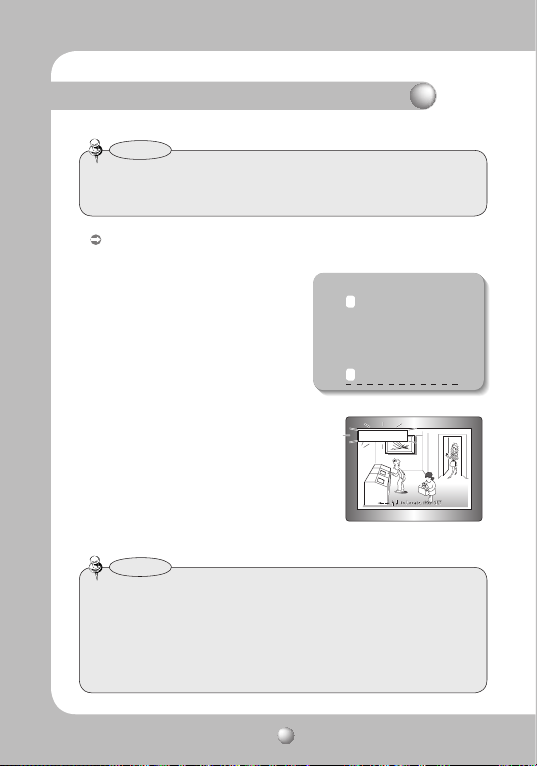

CAM TITLE : If you enter a title, the title will appear on the monitor.
1) If the SPECIAL menu screen is displayed, use the Function Setup switch so that the
arrow indicates ‘CAM TITLE’.
2) Set it to ‘ON’ by using the Function Setup
switch.
Press the Function Setup switch.
3)
4) Use the Function Setup switch to move to
a desired letter and select the letter by
pressing the Function Setup switch.
Repeat this to enter multiple letters. You
can enter up to 15 letters.
5) Enter a title, move the cursor to ‘POS’ and press
the Function Setup switch. The entered title
appears on the screen. Select the position to
display the title on the screen by using the
Function Setup switch and press the Function
Setup switch. When the position is determined,
select ‘END’ and press the Function Setup
switch to return to the SPECIAL menu.
Notes
• When the CAM TITLE menu is ‘OFF’, no title will be displayed on the monitor screen
even if you enter one.
• English and Numbers are available in this mode.
• If you move the cursor to CLR and press the Function Setup switch, all the letters are
deleted. To edit a letter, change the cursor to the bottom left arrow and press the
Function Setup switch. Move the cursor over the letter to be edited, move the cursor to
the letter to be inserted and then press the Function Setup switch.
SYNC : In areas where the supply is at 60Hz(NTSC),
50Hz(PAL) frequency, you can synchronize the
output phase of multiple cameras using the power
synchronization function (Line-Lock) without using
a synchronization signal generator.
·
INT : Internal Synchronization Type
·L/L : Power Synchronization Type, Line-lock
❶
Press the Function Setup switch.

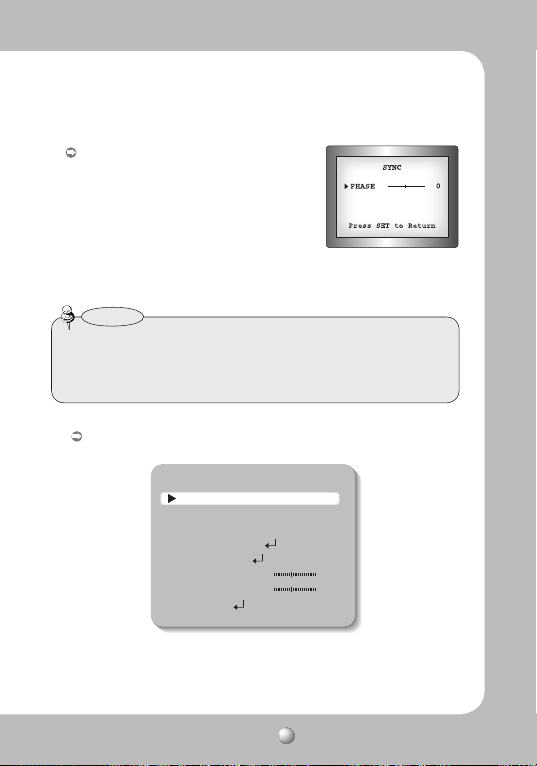

❷ You can select a desired phase from 0 to 359 when select 'phase'.
Notes
•
When using AC power at 60Hz(NTSC), 50Hz(PAL) frequency, you can use the L/L type
synchronization.
• When the power is DC 12V, the SYNC menu is fixed to the ‘INT’ mode.
• If the VPS is set to ON, synchronization is fixed to INT.
INTELLIGENCE : Commands the camera to motion-detect and trace an object.
INTELLIGENCE
1. MOTION OFF
2. DETECT BOX ON
3. ALARM OUT OFF
4. DETECT AREA
5. MASK AREA
6. SENSITIVITY 3
7. DET. SIZE 3
8. RETURN
COLOR DOME CAMERASCD-3080
31
Page 32
Operating Your Camera
úMOTION : Select motion types to detect.
·
OFF : Not being used.
·
DETECTION : Since the camera detects motion without any additional external
·
TRACKING : Commands the camera to detect and
Ķ
ĶMODE : Determines whether to use the fence
Ķ
Ķ
Ķ
Ķ

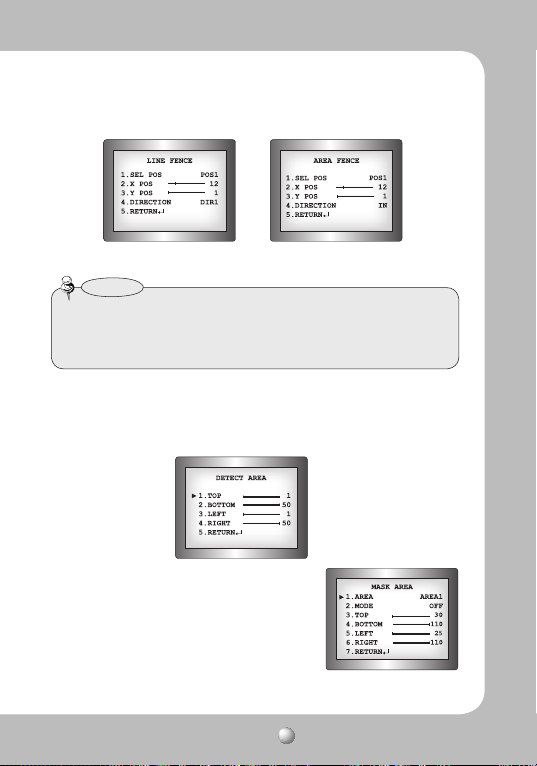

1) LINE FENCE
-
- X POS / Y POS : Adjust the size and position of the selected line fence.
- DIRECTION
·DIR2 :
·DIR1/2 : Detects all objects moving crosswise on the fence line.
-
2) AREA FENCE
- SEL POS :
- X POS / Y POS : Adjust the size and position of the selected area fence.
- DIRECTION
·OUT : Detects objects exiting the fenced area
- RETURN : Select this to save the POSITION menu settings and return to the
Ķ
sensor, you can monitor activity more efficient.
trace a moving object.

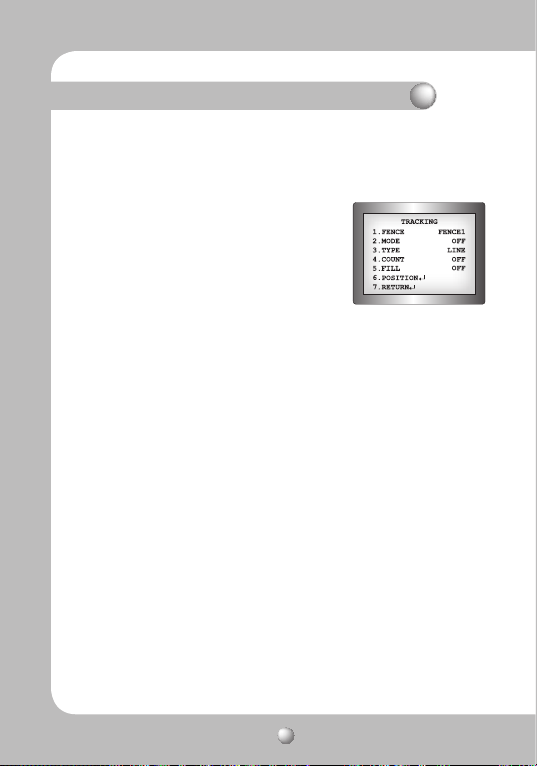

FENCE : You can select up to 4 FENCE.
selected in the FENCE.
TYPE : Two types, line and area, of fences are
available.
COUNT : Displays the number of times that an
object enters or leaves a fenced area.
FILL : Fill or remove color from the FENCE.
POSITION : Defines the position and detection direction of a line or fenced area.
SEL POS : Selects a position from POS1,POS2.
·
DIR1 : Detects objects moving left to right on the fence line.
Detects objects moving right to left on the fence line.
RETURN : Select this to save the POSITION menu settings and return to the
TRACKING menu.
Selects a position from POS1 ~ POS4.
·
IN : Detects objects entering the fenced area.
·
IN/OUT : Detects all objects entering and exiting the fenced area.
TRACKING menu.
RETURN : Select this to save the TRACKING menu settings and return to the
INTELLIGENCE menu.
COLOR DOME CAMERASCD-3080
32
Page 33
·
FIXED/MOVED : Detects an object that emerges or disappears from the screen, or
stays onscreen without movement
.
Notes
•A detection (FIXED/MOVED) error may occur if :
· multiple motions occur continuously in random directions
· a fixed object moves in one position continuously
· a second object screens the first moving object
ú DETECT BOX : Outlines an object on the screen in a box when its movement
ú
ALARM OUT : Releases a signal from the MD Output Terminal of the camera
ú DETECT AREA : Defines the Motion Detection area.
matches a custom Motion Type.
when an object’s movement matches a custom Motion Type.
ú MASK AREA : Specify a detection exception area to
Ķ
Ķ
Ķ
mask.
Select a mask area number and specify
the size and position.
AREA : You can select up to 4 areas.
MODE : Determines whether to use the area
selected in the AREA.
TOP / BOTTOM / LEFT / RIGHT : Adjust the size and position of the selected area.
COLOR DOME CAMERASCD-3080
33
Page 34
Operating Your Camera
ĶRETURN : Select this to save the MASK AREA menu settings and return to the
ú SENSITIVITY : Set the sensitivity of the motion detection. When adjusting the
ú DETECT SIZE :
ú RETURN : Select this to save the INTELLIGENCE menu settings and return to the
PRIVACY : Mask an area you want to hide on the screen.
INTELLIGENCE menu.
sensitivity, note that the lower the level means the higher sensitivity.
Selects an object size to detect on the screen. When adjusting the detection
size, note that the higher the level means the bigger detection size.
SPECIAL menu.
PRIVACY AREA SETUP
1.AREA AREA1
2.MODE OFF
3.MASK COLOR GREEN
TRANSPARENCY
4.
5.SEL POS
6.XPOS 10
7.YPOS 10
8.RETURN
1) When the SPECIAL menu screen is displayed, press the Function Setup
the arrow indicates ‘PRIVACY’.
2) Set up the mode using the Function Setup
ú AREA : You can select up to 12 PRIVACY areas.
ú MODE : Determines whether to use the area selected in the AREA.
ú MASK COLOR : Determine area color. You can select Green, Red, Blue, Black, White, Gray.
ú TRANSPARENCY : Adds or removes transparency from the masking area.
ú SEL POS/ XPOS/ YPOS : Adjust the size and position of the selected area.
ú RETURN : Select this to save the PRIVACY menu settings and return to the SPECIAL menu.
DIS (Digital Image Stabilizer) : This function mitigates any picture movement due to external
OFF
switch
factors such as wind.
L_TOP
.
switch
so that
COLOR DOME CAMERASCD-3080
34
Page 35
Notes
• As the DIS function uses the digital zoom, the camera's resolution will decrease.
• DIS doesn’t operate when background illumination is too low.
• DIS doesn’t operate when object pattern is monotonic as like sky or white wall.
LANGUAGE : You can select the menu language according to your requirements.
RETURN : Select this to save the SPECIAL menu settings and return to the MAIN
SETUP menu.
EXIT
Select a desired EXIT mode using the Function Setup switch depending on the camera purpose.
SAVE : Save the current settings and exit the MAIN SETUP menu.
NOT SAVE : Do not save the current settings and exit the MAIN SETUP menu.
RESET : Resets the camera settings to the factory defaults. Language and Monitor
settings are not initialized.
COLOR DOME CAMERASCD-3080
35
Page 36
Troubleshooting
If you have trouble operating your camera, refer to the following table.
If the guidelines do not enable you to solve the problem, contact an authorized technician.
ú
Nothing appears on the screen.
Ķ
Check that the power cord and line connection between the camera and monitor are properly connected.
Ķ Check that you have properly connected BNC cable to the camera.
ú
The image on the screen is dim.
Ķ Is lens stained with dirt? Clean your lens with soft, clean cloth.
Ķ
Set the monitor or DVR to the proper condition.
Ķ
If the camera is exposed to very strong light, change the camera position.
ú
The image on the screen is dark.
Ķ Adjust the contrast feature of the monitor or DVR.
Ķ If you have an intermediate device, set the 75Ω / Hi-z properly.
ú
The camera is not working properly, and the surface of the camera is hot.
Ķ Check that you have properly connected the camera to an appropriate power source.
ú
The DAY/NIGHT menu does not work.
Ķ Check that AGC of EXPOSURE SETUP menu is ‘OFF’.
ú
The SENS-UP function does not work.
Ķ Check that AGC of EXPOSURE SETUP menu is ‘OFF’.
Ķ Check that SHUTTER of EXPOSURE SETUP menu is ‘A.FLK’ or ‘MANUAL’.
ú
The INTELLIGENCE function does not work.
Ķ Check that INTELLIGENCE of menu is ‘OFF’.
ú
Color is not correct.
Ķ Check the setting of WHITE BAL SETUP menu .
ú
The screen flickers continually.
Ķ Ensure the camera is not pointing towards the sun.
ú
When coaxial communication is not available:
Ķ Make sure that the camera and monitor are installed within the recommended distance.
Ķ
Use the video amplifier equivalent to coaxitron if the recommended installation distance is exceeded.
ú
The camera is out of focus.
Ķ Check that you have properly adjusted the zoom / focus adjustment lever of lens.
COLOR DOME CAMERASCD-3080
36
Page 37
Specifications
ELECTRICAL
Input VoltageAC 24V±10% / DC 12V±10%
Power ConsumptionMax 3.5W
VIDEO
Imaging Device
Total Pixels /
Effective Pixels
Scanning System2:1 Interlace / Progressive
SynchronizationInternal / Line-Lock
Frequency
Horizontal Resolution COLOR : 600TVL / B/W : 700 TVL
