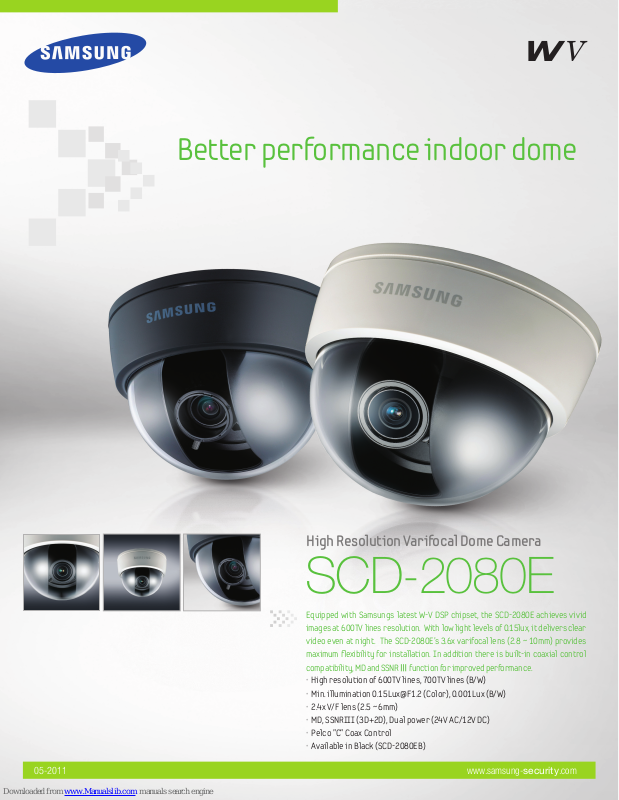

Better performance indoor dome
High Resolution Varifocal Dome Camera
SCD-2080E
Equipped with Samsungs latest W-V DSP chipset, the SCD-2080E achieves vivid
images at 600TV lines resolution. With low light levels of 0.15lux, it delivers clear
video even at night. The SCD-2080E's 3.6x varifocal lens (2.8 ~ 10mm) provides
maximum flexibility for installation. In addition there is built-in coaxial control
compatibility, MD and SSNRⅢ function for improved performance.
• High resolution of 600TV lines, 700TV lines (B/W)
• Min. illumination 0.15Lux@F1.2 (Color), 0.001Lux (B/W)
• 2.4x V/F lens (2.5 ~ 6mm)
• MD, SSNRIII (3D+2D), Dual power (24V AC/12V DC)
• Pelco "C" Coax Control
• Available in Black (SCD-2080EB)
www.samsung-security.com05-2011
Dimensions
SCD-2080E
SCD-2080EB
Ø115.8 (4.56")
Unit : mm (inch)
92.7 (3.65")
High Resolution Varifocal Dome Camera
SCD-2080E
Specifications
SCD-2080EN SCD-2080EP
VIDEO
Imaging Device
Total Pixels
Effective Pixels
Scanning System
Synchronization
Frequency
Horizontal Resolution
Min. Illumination
S / N Ratio
Video Output
LENS
Focal Length (Zoom Ratio)
Max. Aperture Ratio
Angular Field of View
Lens Type
Mount Type
PAN / TILT
Pan Range
Tilt Range
Rotate Range
OPERATIONAL
On Screen Display
Camera Title
Day & Night
Backlight Compensation
Contrast Enhancement
Digital Noise
Digital Image
Motion Detection
Privacy Masking
Sens-up (Frame Integration)
Gain Control
White Balance
Electronic Shutter Speed
Digital Zoom
Flip
Communication
Protocol
ENVIRONMENTAL
Operating Temperature / Humidity
ELECTRICAL
Input Voltage
Power Consumption
MECHANICAL
Color / Material
Dome COver
Dimensions (WxH)
Weight
Also available in black : SCD-2080EB/2060EB
Reduction
Stabilization
1/3" Super HAD CCD
811(H) x 508(V) 795(H) x 596(V)
768(H) x 494(V) 752(H) x 582(V)
2 : 1 Interlace
Internal / Line lock
H : 15.734KHz / V : 59.94Hz H : 15.625KHz / V : 50Hz
Color : 600TV lines, B/W : 700TV lines
Color : 0.15Lux@F1.2 (50IRE), 0.0003Lux (Sens-up, 512x)
52dB (AGC off, Weight on)
CVBS : 1.0 Vp-p / 75Ω composite
2.8 ~ 10mm (3.6x) : SCD-2080E
1 : 1.2(Wide) ~ 2.8(Tele)
H : 94.4°(Wide) ~ 28°(Tele) / V : 69.2°(Wide) ~ 21°(Tele) : SCD-2080E
DC auto iris
Board type
0° ~ 352°
0° ~ 73°
0° ~ 348°
English, Japanese, Spanish, French,
Portuguese, Taiwanese, Korean
Off / On (Displayed 15 characters)
Auto (Electrical ) / Color / B/W
BLC / HLC / Off
SSDR (Off / On)
SSNR
III
(Off / On)
Off / On
Off / On (8 programmable zones)
Off / On (12 programmable zones)
2x ~ 512x
Off / Low / High
ATW / Outdoor / Indoor / Manual / AWC (1,700K° ~ 11,000K°)
1/60 ~ 1/120,000sec 1/50 ~ 1/120,000sec
Off / On (1x ~ 16x)
Vertical / Horizontal
Coaxial control
Coax : Pelco-C (Coaxitron)
-10°C ~ +50°C (+14°F ~ +122°F) / Less than 90% RH
Dual (24V AC & 12V DC ±10%)
Max. 3.5W
Ivory or Black / Plastic
Clear
Ø115.8 x 92.7mm (Ø4.56" x 3.65")
345g (0.76 lb)
English, French, German, Spanish, Italian,
Chinese, Russian, Polish, Czech, Romanian,
Serbian, Swedish, Danish, Turkish, Portuguese
SAMSUNG TECHWIN AMERICA Inc.
100 Challenger Road, Suite 700, Ridgefield Park, NJ 07660, UNITED STATES
Tol Free : 1-877-213-1222 Fax : 1-201-373-0124
www.samsungsecurityusa.com
The Eco mark represents
Samsung Techwin’s will to create
environment-friendly products,and indicates
Design and specifications are subject to change without notice.
that the product satisfies the EU RoHS Directive.
