Before operating the camera, confirm the camera model and correct input power voltage. To help you understand this manual thoroughly, we’ll introduce our model description.

■ SCD-2080E SERIES

• NTSC MODEL • PAL MODEL SCD-2080EN SCD-2080EP

■ MODEL DESCRIPTION

• SCD-2080EX

SIGNAL SYSTEM

• SIGNAL SYSTEM N → NTSC MODEL P → PAL MODEL

Page 4

safety information

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN

CAUTION:

WARNING

To prevent damage which may result in ﬁ re or electric shock hazard, do not expose this

• appliance to rain or moisture.

To prevent injury, this apparatus must be securely attached to the ﬂ oor/wall in accordance

• with the installation instructions.

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol indicates that dangerous voltage consisting a risk of electric shock is present within this unit.

This exclamation point symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING

Be sure to use only the standard adapter that is speciﬁ ed in the speciﬁ cation sheet. Using any other adapter could cause ﬁ re, electrical shock, or damage to the product.

Incorrectly connecting the power supply or replacing battery may cause explosion, ﬁ re, electric shock, or damage to the product.

Do not connect multiple cameras to a single adapter. Exceeding the capacity may cause abnormal heat generation or ﬁ re.

Securely plug the power cord into the power receptacle. insecure connection may cause ﬁ re.

When installing the camera, fasten it securely and ﬁ rmly. The fall of camera may cause personal injury.

4_ safety information

Page 5

Do not place conductive objects (e.g. screwdrivers, coins, metal parts, etc.) or containers ﬁ lled with water on top of the camera. doing so may cause personal injury due to ﬁ re, electric shock, or falling objects.

Do not install the unit in humid, dusty, or sooty locations. doing so may cause ﬁ re or electric shock.

If any unusual smells or smoke come from the unit, stop using the product. in such case, immediately disconnect the power source and contact the service center. continued use in such a condition may cause ﬁ re or electric shock.

e e

If this product fails to operate normally, contact the nearest service center. never disassemble or modify this product in any way. (samsung is not liable for problems caused by unauthorized modiﬁ cations or attempted repair.)

10.

When cleaning, do not spray water directly onto parts of the product. doing so may cause

ﬁ re or electric shock.

● SAFETY INFORMATION

CAUTION

Do not drop objects on the product or apply strong shock to it. Keep away from a location

subject to excessive vibrationor magnetic interference.

Do not install in a location subject to high temperature (over 50°C), low temperature (below

-10°C), or high humidity. Doing so may cause ﬁ re or electric shock.

If you want to relocate the already installed product, be sure to turn off the power and then

move or reinstall it.

Remove the power plug from the outlet when then there is a lightning. Neglecting to do so

may cause ﬁ re or damage to the product.

Keep out of direct sunlight and heat radiation sources. It may cause ﬁ re.

Install it in a place with good ventilation.

Avoid aiming the camera directly towards extremely bright objects such as sun, as this

may damage the CCD image sensor.

Apparatus shall not be exposed to dripping or splashing and no objects ﬁ lled with liquids,

such as vases, shall be placed on the apparatus.

The Mains plug is used as a disconnect device and shall stay readily operable at any time.

Do not expose the camera to radioactivity. Radioactivity exposure may damage the CCD.

10.

English_5

Page 6

safety information

FCC STATEMENT

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions :

This device may not cause harmful interference, and

1) This device must accept any interference received including interference that may cause

2) undesired operation.

CAUTION

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

IC Compliance Notice

This Class A digital apparatus meets all requirements of the Canadian Interference.-Causing Equipment Regulations of ICES-003.

Correct Disposal of This Product

(Applicable in the European Union and other European countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

Correct disposal of batteries in this product

(Applicable in the European Union and other European countries with separate battery return systems.)

This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment.

To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.

(Waste Electrical & Electronic Equipment)

6_ safety information

Page 7

important safety instructions

Read these instructions.

Keep these instructions.

Heed all warnings.

Follow all instructions.

Do not use this apparatus near water.

Clean only with dry cloth.

Do not block any ventilation openings. Install in accordance with the manufacturer’s

instructions.

Do not install near any heat sources such as radiators, heat registers, or other apparatus

(including ampliﬁ ers) that produce heat.

Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug

has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not ﬁ t into your outlet, consult an electrician for replacement of the obsolete outlet.

Protect the power cord from being walked on or pinched particularly at plugs,

10.

convenience receptacles, and the point where they exit from the apparatus.

Only use attachments/accessories speciﬁ ed by the manufacturer.

11.

Use only with cart, stand, tripod, bracket, or table speciﬁ ed by the

12.

manufacturer, or sold with the apparatus.

Unplug this apparatus when a card is used. Use caution when moving

13.

the cart/ apparatus combination to avoid injury from tip-over.

Refer all servicing to qualiﬁ ed service personnel. Servicing is required when the apparatus

14.

has been damaged in any way, such as powersupply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Apparatus shall not be exposed to dripping or splashing and no objects ﬁ lled with liquids, such as vases, shall be placed on the apparatus

● SAFETY INFORMATION

7_ important safety instructions

English_7

Page 8

contents

INTRODUCTION

TROUBLESHOOTING

INSTALLATION

CONNECTION

SETUP

Features

What’s included

Component names and functions

Installation

Adjust the panning and tilting

while watching the monitor

Connecting to Monitor

Connecting to Power

Using Coaxial Communications

Menu Conﬁ gration

Menu Setup

Troubleshooting

8_ contents

SPECIFICATIONS

Speciﬁ cations

Dimension

Page 9

introduction

FEATURES

High Resolution

By adopting a diagonal 6mm(1/3”) 410,000 (NTSC) pixel, 470,000(PAL) pixel SONY CCD, the camera produces clear picture quality with a horizontal resolution of 600 TV lines in color mode.

Excellent Sensitivity

The built-in high sensitivity COLOR CCD produces a clear image.

- Color : 0.15Lux(50IRE, @F1.2), 0.0003LUX (SENS-UP, x512)

SSNR3 (Samsung Super Noise Reduction) Function

The high-performance W-V DSP chip effectively removes low-light gain noise and afterimage to provide clear images even in dark environments.

Electrical Day & Night

This camera has a function that automatically selects the mode that is appropriate for daytime or night-time conditions.

Motion Detection

Since the camera detects motion without any additional external sensor, you can monitor activity more efﬁ cient.

SSDR (Samsung Super Dynamic Range)

For images with high contrast between bright and dark areas from difﬁ cult lighting conditions such as backlighting, this camera selectively illuminates darker areas while retaining the same light level for brighter areas to even out the overall brightness.

DIS (Digital Image Stabilizer)

The DIS function compensates for any camera movement, to produce more stable pictures.

Communication

Coaxial communication methods are supported.

- Protocol : Pelco Coaxitron

Miscellaneous Functions

HLC(High Light Compensation), SENS-UP, FLIP (H/V-REV), D-ZOOM, SHARPNESS and PRIVACY functions are provided.

OSD

The camera control is convenient by using 17 different foreign language O.S.D.

- NTSC : English, Japanese, Spanish, French, Portuguese, Korean

- PAL : English, French, German, Spanish, Italian, Chinese, Russian, Polish, Czech, Romanian, Serbian, Swedish, Danish, Turkish, Portuguese

English_9

● INTRODUCTION

Page 10

introduction

WHAT’S INCLUDED

Check if the following items are included in the product package.

High Resolution Varifocal Dome Camera SCD-2080E

User Manual

SCD-2080E

SCD-2080E User Manual Quick Set-up Guide

M4 Tapping Screw 3EA

Installation Video

Output Cable

High Resolution Varifocal Dome Camera

Quick Set-up Guide

SCD-2080E

10_ introduction

Page 11

COMPONENT NAMES AND FUNCTIONS

FRONT

❶

➒

➑

➏

➐

❶

Pan Base : Control panning angle of camera.

➋

Rotate Base : Control rotating angle of camera.

➌

x3.6 Vari-focal Lens Module 2.8 ~ 10.0mm (F1.2)

➍

Video Output Terminal to Monitor

➎

Function Setup switch : Display the menu on the screen and move the cursor to four

➏

Video Output Jack

➐

Power Input Terminal

➑

Dome Cover

➒

Shield Case

directions to confirm status or after changing a selected item.

➎

➋

➍

● INTRODUCTION

➌

English_11

Page 12

installation

INSTALLATION

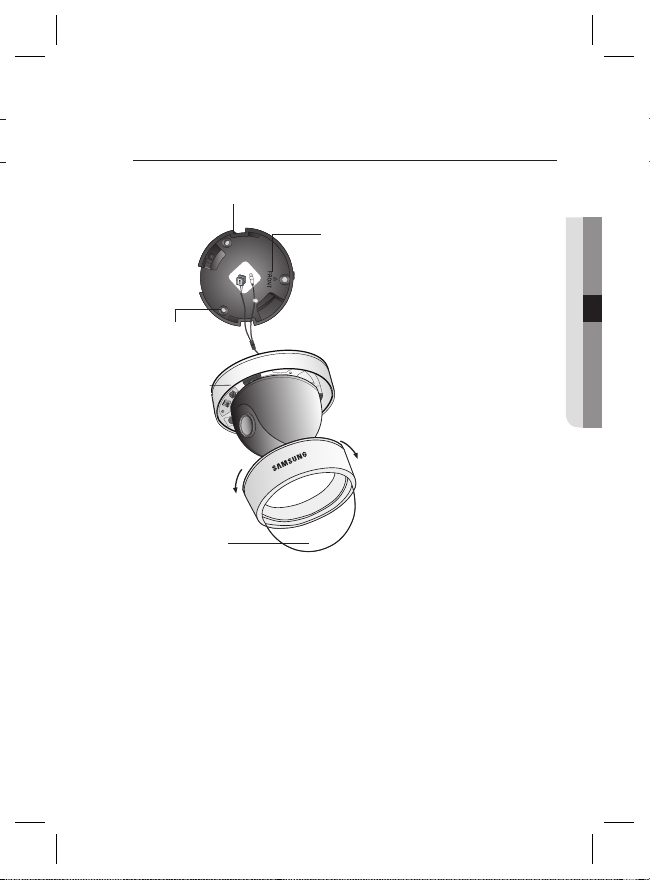

Separate the dome cover by turning anti-clockwise.

Separate the shield case by pulling from the camera body.

* To install the dome cover on the camera

body, turn the latches in locking direction as

Latch

shown in the [Figure-1].

Locking direction

[Figure-1]

Main Body (Camera)

Shield Case



12_ installation

Unlocking direction (Anti-clockwise)

The installation should be done by qualiﬁ ed service personnel or system installers.

If the ceiling material is not strong enough to hold the installation screws, the camera may fall off. Reinforce the ceiling as needed.

To change the position of the cable, take away the Hole Cover and pass the cable through.

Locking direction (Clockwise)

Dome cover

Original position of the cable

Hole Cover

Page 13

WHEN USING THE CEILING BRACKET

Ceiling bracket

M4 tapping screw (provided)

CAMERA

Unlocking

direction

Dome cover

Hold the ceiling bracket (located where the arrow points to) and separate it

from the main body of the camera by rotating it anti-clockwise. (refer to the picture in 'Notes' on page 13)

Place the separated ceiling bracket so that the “Front” side faces the area to be

monitored and install it with the M4 tapping screws.

To combine the main body with the ceiling bracket, make sure that the Pan

Base ﬁ xing screw face the opposite side of the “Front” side of the ceiling bracket and rotate it clockwise.

Adjust the camera lens to face the area to be monitored and ﬁ x the main body

and the dome cover by aligning the grooves and rotating the body clockwise.

An arrow for installing

directions

Locking direction

● INSTALLATION

English_13

Page 14

installation

A W

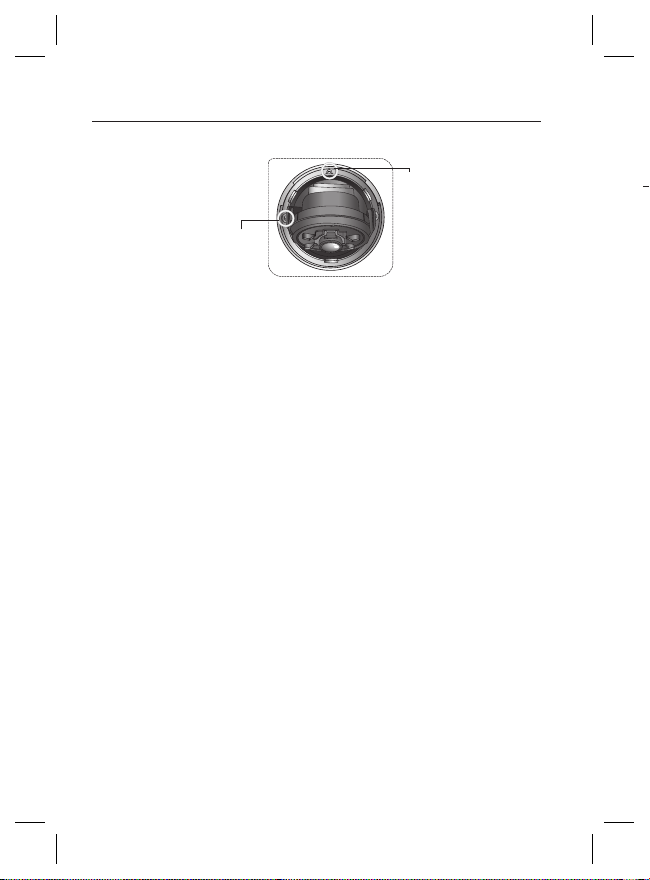

If you want to install the camera with the ceiling bracket together, ﬁ x them using two M4 tapping



screws at the side of the main body (refer to the [Figure-2] on page 14)

M4 tapping screw

[Figure-2]

Pan Base fixation screw

14_ installation

Page 15

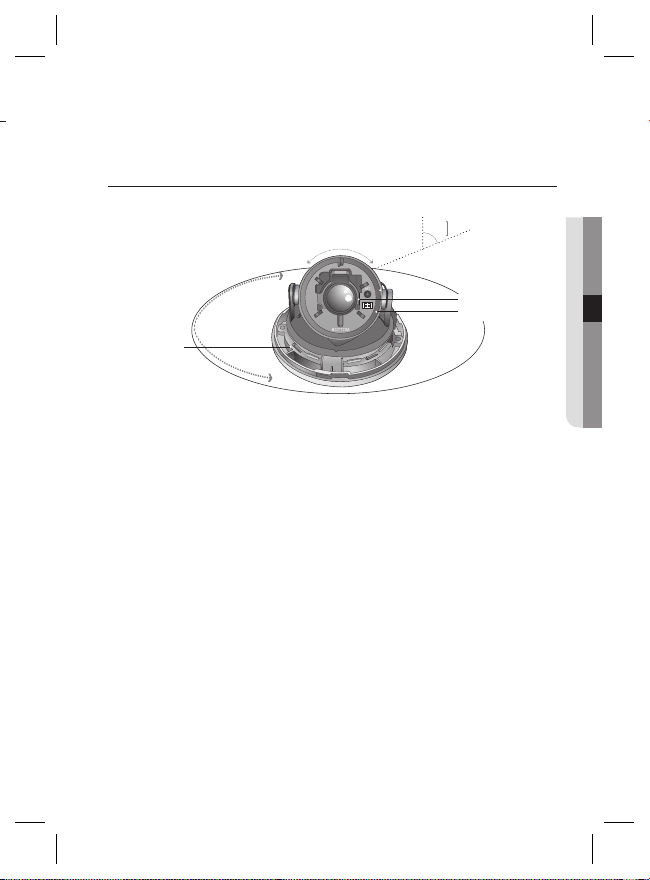

ADJUST THE PANNING AND TILTING WHILE WATCHING THE MONITOR

174˚

176˚

Pan Base

You can adjust camera to any direction by using Pan, Tilt, Rotate mechanism.

Pan Base moves by 176˚ to each side direction and 352˚ on the whole.

Tilt Base covers total 73˚ angle(0˚ ~ 73˚).

Change to read, “Rotate Base moves by 174° to each side direction and 348° in total.

Methods of adjustment

Installing the dome on a wall

➊

After mounting the camera on a wall, adjust the panning angle so that the

camera faces the direction that is to be monitored.

➋

Adjust the tilting angle by rotating the tilt base.

➌

Loosen the rotate base hold screw and adjust rotate base for the best view.

➍

Tighten the rotate base hold screw.

Installing the dome on a ceiling

➊

After mounting the camera on a ceiling, adjusting the panning angle to the

correct viewing position by rotating the pan base.

➋

Adjust the tilting angle by rotating the tilt base.

➌

Loosen the rotate base hold screw and adjust rotate base for the best view.

➍

Tighten the rotate base hold screw.

73˚

Rotate Base Tilt Base

● INSTALLATION

English_15

Page 16

connection

y y

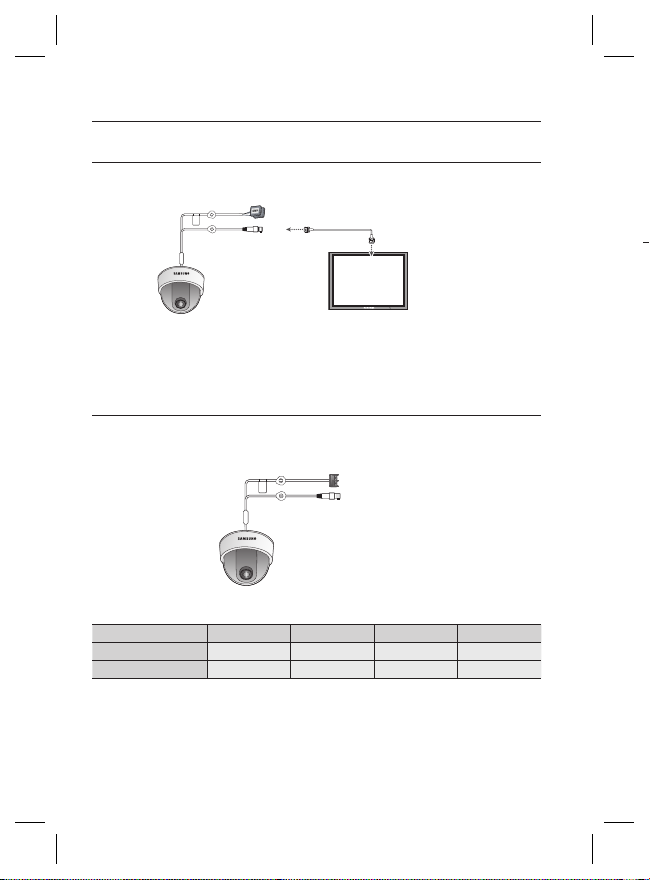

CONNECTING TO MONITOR

Connect the VIDEO-OUT jack to the VIDEO-IN jack of the monitor.

CCTV Camera

As the connecting method varies with the instruments, refer to the manual supplied with the instrument.

If necessary, you can connect the monitor to the REMOTE jack on the back of your camera.

Only connect the cable when the power is turned off.

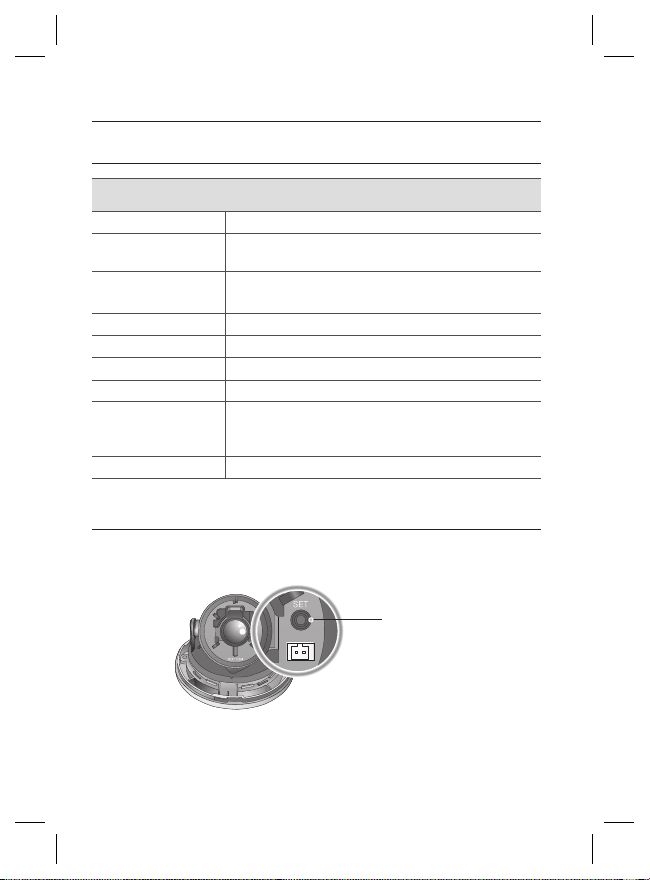

CONNECTING TO POWER

Connect the adaptor to the power input terminal as shown in the ﬁ gure below. The recommended adaptor speciﬁ cation for SCD-2080EN/SCD-2080EP is DC 12V / 500mA or AC 24V / 300mA.

When the resistance value of copper wire is at [20°C(68°F)]

Copper wire size (AWG) #24 (0.22mm2) #22 (0.33mm2) #20 (0.52mm2) #18 (0.83mm2)

Voltage Drop (V/m) 0.028 0.018 0.011 0.006

As shown in the table above, voltage decreases as the wire gets longer. Therefore use of an excessively long adaptor output line for connection to the camera may affect the performance of the camera.

* Standard voltage for camera operation : DC 12V ±10%

There may be some deviation in voltage drop depending on the type of wire and the manufacturer.

/m) 0.078 0.050 0.030 0.018

Resistance (

---- Power Input Terminal

Monitor

16_ connection

Page 17

Be sure to connect power only after all the installation is complete.

 

Note that DC adaptor is not supplied with camera.



Ground should be connected to the GND terminal.

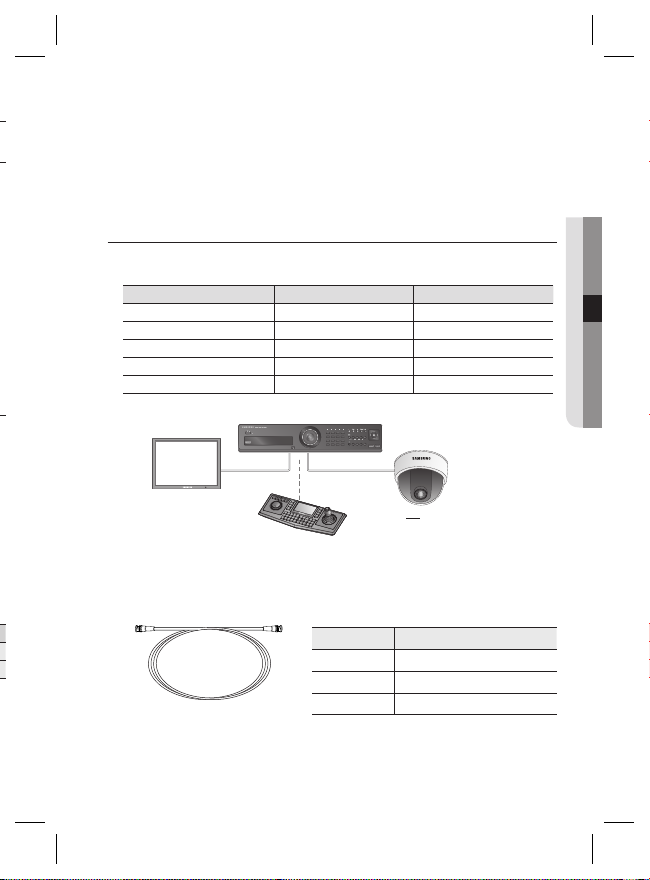

USING COAXIAL COMMUNICATIONS

Coaxial Communications System

OSD Control method

● CONNECTION

CAMERA DVR CONTROLLER

SET MENU/ENTER OSD KEY

UP UP KEY JOYSTICK UP

DOWN DOWN KEY JOYSTICK DOWN

LEFT LEFT KEY JOYSTICK LEFT

RIGHT RIGHT KEY JOYSTICK RIGHT

DVR

ALARM HDD NETWORK BACKUP REC

REC

1234

ZOOM

FREEZE

BACKUP

5678

9101112

TELE WIDE VIEWPRESET

MODE

AUDIO

ALRAM

DVD RECORDER

13 14 15 16

OPEN/CLOSE

M E N U

S E A R C

U L T I

R E C

A M

M ON

P T Z

T X

S E

T U P

FU NC

E N T

C L OS

O P E N

N EA R

F A R

W ID E

T EL

USB

RETURN

ME N U

P R E S E

G R OU

T RA C K

: BNC

•

---- : RS-485

•

- Video Cable The camera’s video output port is connected to the monitor with a BNC coaxial

cable, shown below : If the distance between the camera and the monitor exceeds the recommended maximum, please use an auxiliary video amp.

Distance Recommended Cable Speciﬁ cation

300m 3C2V(RG-59/U)



If the camera is controlled through coaxial communication, please use a video amp intended for coaxial communications. Regular video amps do not transfer coaxial signals.

450m 5C2V(RG-6/U)

600m 7C2V(RG-11/U)

English_17

Page 18

setup

S u S

MENU CONFIGRATION

MAIN SETUP

●

LENS

EXPOSURE

WHITE BAL

SSDR

BACKLIGHT

SSNR3

DAY/NIGHT

SPECIAL

EXIT

MENU SETUP

Use the Function Setup switch within the camera.

●

BRIGHTNESS

●

SENS-UP

●

ATW

●

MANUAL

●

OFF

●

OFF

●

AUTO

●

IMAGE ADJ

●

SYNC

●

DIS

●

SAVE

●

SHUTTER

●

RETURN

●

OUTDOOR

●

AWC→SET

●

BLC

●

OFF

●

COLOR

●

MONITOR

●

MOTION DET

●

LANGUAGE

●

NOT SAVE

Function Setup switch

●

AGC

●

INDOOR

●

HLC

●

B/W

●

CAM TITLE

●

PRIVACY

●

RETURN

●

RESET

Press the Function Setup switch.

Main setup menu is displayed on the monitor screen.

18_ setup

Page 19

Select the function using the Function Setup switch.

䯝 1.LENS DC

2.EXPOSURE

3.WHITE BAL ATW

4.SSDR OFF

5.BACKLIGHT OFF

6.SSNR3 ON

7.DAY/NIGHT AUTO

8.SPECIAL

9.EXIT SAVE

MAIN SETUP

Select a desired function using the Function Setup switch.

Place the cursor over a desired item.

Set up a selected item by using the Function Setup switch.

To ﬁ nish the setting, select ‘EXIT’ and press the Function Setup switch.

An item with the icon also has sub menus. To select a sub menu, select an item with the icon



and press the Function Setup switch.



An item with the - - - icon is unavailable due to function settings.

LENS

Using this function, you can control the screen brightness.

When the SETUP menu screen is displayed, select ‘LENS’ by using the Function Setup switch so that the arrow indicates ‘LENS’.

The Lens mode has a sub menu, shown below.

BRIGHTNESS : Adjusts the video brightness.

FOCUS ADJ : To adjust the lens focus correctly, you must activate the Focus Settings mode. To activate the Focus Settings mode, adjust the lens focus, and then deactivate the settings mode.

You can adjust the shutter value of ESC shutter mode.

If color rolling occurs, set Shutter to ---.



䯝 1.LENS DC

2.EXPOSURE

EXPOSURE

When the SETUP menu screen is displayed,

select EXPOSURE by using the Function Setup switch so that the arrow indicates 'EXPOSURE'.

Select a desired mode using the Function

Setup switch.

1.LENS DC 䯝 2.EXPOSURE

3.WHITE BAL ATW

Change the status using the Function Setup switch.

MAIN SETUP

English_19

● SETUP

Page 20

setup

BRIGHTNESS :

SHUTTER : You can select the shutter.

A.FLK : Select this when you

experience picture ﬂ icker, which can happen when there is a clash with the frequency of the installed lighting.

ESC :

MANUAL : You can control shutter speed manually.

--- : Shutter speed is ﬁ xed at 1/60sec(1/50sec).

 



AGC (AUTO GAIN CONTROL)

The higher the gain level, the brighter the screen- but the higher the noise.

OFF : Deactivates the AGC function.

LOW : Allows automatic gain control from 5.3dB to 32dB.

HIGH : Allows automatic gain control from 5.3dB to 37dB.

SENS-UP

OFF : Deactivates the SENS-UP function.

AUTO : Activates the SENS-UP function.

RETURN



Adjusts the video brightness.

Select this to control the shutter speed automatically. If ESC is selected, the shutter speed is automatically controlled depending on the ambient illumination of the subject.

(NTSC MODEL : 1/60~1/120,000 sec, PAL MODEL : 1/50~1/120,000 sec)

Set the shutter mode to --- if color rolling occurs. When the SHUTTER is set to ESC after selecting the Internal Synchronization Type, the picture may become unstable if the camera faces a bright ﬂ uorescent light. Therefore, take care when choosing the installation position.

When the SHUTTER is set to MANUAL or A.FLK mode, SENS-UP will be disabled.

: When it is night or dark, the

camera automatically detects the light level and maintains a clear picture if this mode is activated.

: Select this to save the changes in the EXPOSURE menu and return to

the SETUP menu.

If you press the Function Setup switch in ‘AUTO’ mode, You can adjust brightness by adjusting the SENS-UP level. (x2 ~ x512)

Note that the higher the SENS-UP level, the brighter the screen, but the more likely it is that an after-image will appear.

Although Noise, Spots, and Whitish symptoms may occur in SENS-UP operation when the sens-up level is increased, this is normal.

If GAIN of EXPOSURE is not in use, the SENS-UP (Sensitivity-Up) is set to “---“.

EXPOSURE SETUP

䯝 1.

BRIGHTNESS

2.SHUTTER ---

3.AGC HIGH

4.SENS-UP OFF

5.RETURN

䯝 AUTO x2

Press SET to Return

20_ setup

IIIIIÂIIIIIIIIIIIIIIII

LIMIT

Page 21

WHITE BAL (WHITE BALANCE)

Use the White Balance function to adjust the screen color.

When the SETUP menu screen is displayed,

select ‘White Bal’ by using the Function Setup switch so that the arrow indicates ‘White Bal’.

Select a desired mode using the Function Setup switch.

※ Select one of the following 5 modes, as appropriate for your purpose.

: Select this when the color temperature is between 1,700°K and 11,000°K.

ATW

OUTDOOR

: Select this when the color temperature is between 1,700°K and

11,000°K.(sodium light inclusion)

INDOOR

MANUAL : Select this to ﬁ ne-tune White

AWC→SET



Select this when the color temperature of environment surrounding the subject is out of the control range (e.g. clear sky, or sunset).

: Select this when the color temperature is between 4,500°K and 8,500°K.

Balance manually. Set White Balance ﬁ rst by using the ATW or AWC mode. After that switch to MANUAL mode, ﬁ ne-tune the White Balance and then press the Function Setup switch.

: To ﬁ nd the optimal luminance level for the current environment,

point the camera towards a sheet of white paper and press the Function Setup switch. If the environment changes, readjust it.

White Balance may not work properly under the following conditions.

➊

When the ambient illumination of the subject is dim.

➋ If the camera is directed towards a ﬂ uorescent light or is installed in a

place where illumination changes dramatically, the White Balance operation may become unstable.

MAIN SETUP

1.LENS DC

2.EXPOSURE 䯝 3.WHITE BAL ATW

4.SSDR OFF

WB MANUAL

䯝 RGAIN BGAIN

Press SET to Return

IIIIIIIIIIIIIIIIÂIIIIIIIIIIIIII

529 532

● SETUP

English_21

Page 22

setup

SSDR (SAMSUNG SUPER DYNAMIC RANGE)

SSDR illuminates darker areas of an image while retaining the same light level for brighter areas to even out the overall brightness of images with high contrast between bright and dark areas.

When the SETUP menu screen is displayed,

select ‘SSDR’ by using the Function Setup switch so that the arrow indicates ‘SSDR’.

Use the Function Setup switch to change the SSDR level in the sub menu according to the contrast between bright and dark areas.

MAIN SETUP

1.LENS DC

2.EXPOSURE

3.WHITE BAL ATW 䯝 4.SSDR OFF

5.BACKLIGHT OFF

SSDR ON

SSDR OFF

BACKLIGHT

The SCD-2080E is designed so that it delivers a distinctive subject and background at the same time, even when the subject is in backlight, by adopting a function of the proprietary W-V DSP chip.

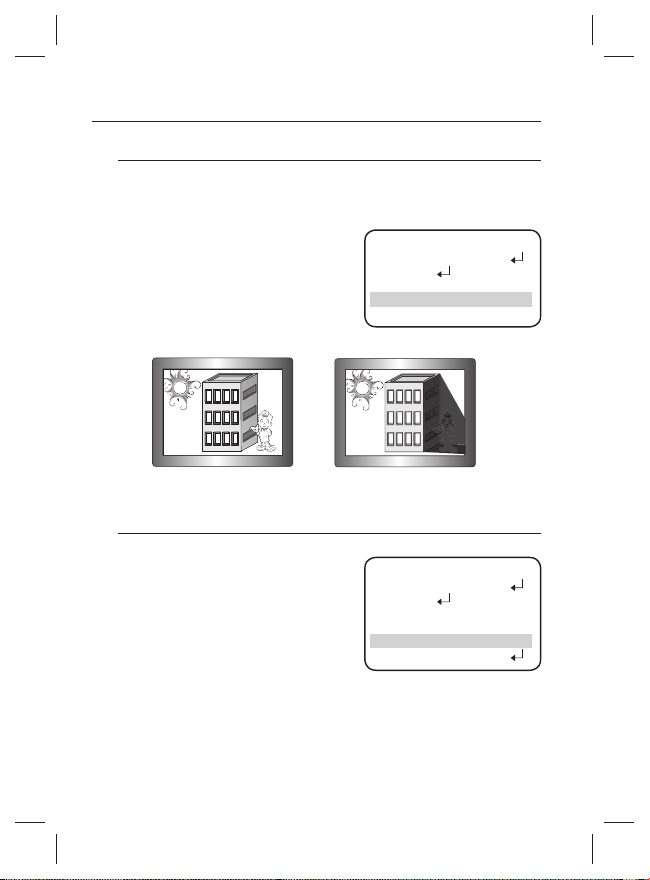

When the SETUP menu screen is displayed, select ‘BACKLIGHT’ by using the Function Setup switch so that the arrow indicates BACKLIGHT .

Select a desired mode using the Function Setup switch depending on the camera

purpose.

MAIN SETUP

1.LENS DC

2.EXPOSURE

3.WHITE BAL ATW

4.SSDR OFF 䯝 5.BACKLIGHT OFF

6.SSNR3 ON

22_ setup

Page 23

BLC

: Enables a user to directly select a

desired area from a picture and to

view the area more clearly.

LEVEL : Adjusts the brightness level of a

monitoring area.

TOP/BOTTOM/LEFT/RIGHT : Adjust the area to be enhanced.

HLC (High Light Compensation) :

This function masks any areas of peak white light, this minimizes whiteout due to over exposure and thus preserve much of the onscreen details that are within the camera view.

LEVEL : Adjusts the brightness level of a

monitoring area.

LIMIT : Enable to change the operating

condition.

MASK COLOR/TONE : Change the color / brightness of the masking area. (Black, Red, Blue, Cyan, Magenta)

TOP/BOTTOM/LEFT/RIGHT : Adjust the area to be enhanced.

OFF

: Not being used

Select a desired mode using the Function Setup switch and press the switch.

Because there can be a difference in the effectiveness of HLC according to the amount of light



area in the screen, optimize the installation angle for the best HLC performance.



When dark, the HLC is only activated when a bright light exceeding a speciﬁ c size. (In NIGHT ONLY mode.)



The HLC is not activated in day light or when bright light is not present at night. (In NIGHT ONLY mode.)



When HLC function is used, D-ZOOM and DIS functions are not activated.

BLC SETUP

䯝 LEVEL TOP BOTTOM LEFT RIGHT

IIIIIÂIIIIIIIIIIIIIIII

IIIIIIIIIIIIIIIIIIÂIII

IIIIIIÂIIIIIIIIIIIIIII

IIIIIIIIIIIIIIIIÂIIIII

MIDDLE

109

121

Press SET to Return

HLC SETUP

䯝 LEVEL LIMIT MASK COLOR BLACK MASK TONE TOP BOTTOM LEFT RIGHT

NIGHT ONLY

IIIIIIIIIIIIIIIIIIIII

IIIIIIIIIIIIIIIIIIIIÂI

MIDDLE

100

166

Press SET to Return

● SETUP

1 0

English_23

Page 24

setup

SSNR3

This function reduces the background noise in a low luminance environment.

When the SETUP menu screen is displayed,

select 'SSNR3' by using the Function Setup switch so that the arrow indicates 'SSNR3' .

Select a desired mode using the Function

Setup switch.

: Deactivates SSNR3. Noise is not

OFF

reduced.

: Activates SSNR3 so that noise is

reduced.

Set the SSNR3 mode to 'ON' and press the

Function Setup switch. Then you can adjust the noise reduction level.

You cannot set the SSNR3 to 'ON' or 'OFF' when the AGC mode of the EXPOSURE menu is 'OFF'.



When adjusting the noise reduction level of the SSNR3 mode, remember that the higher the level



set, the more the noise level will be reduced but that after image may also occur.

DAY/NIGHT

You can display pictures in color or black and white.

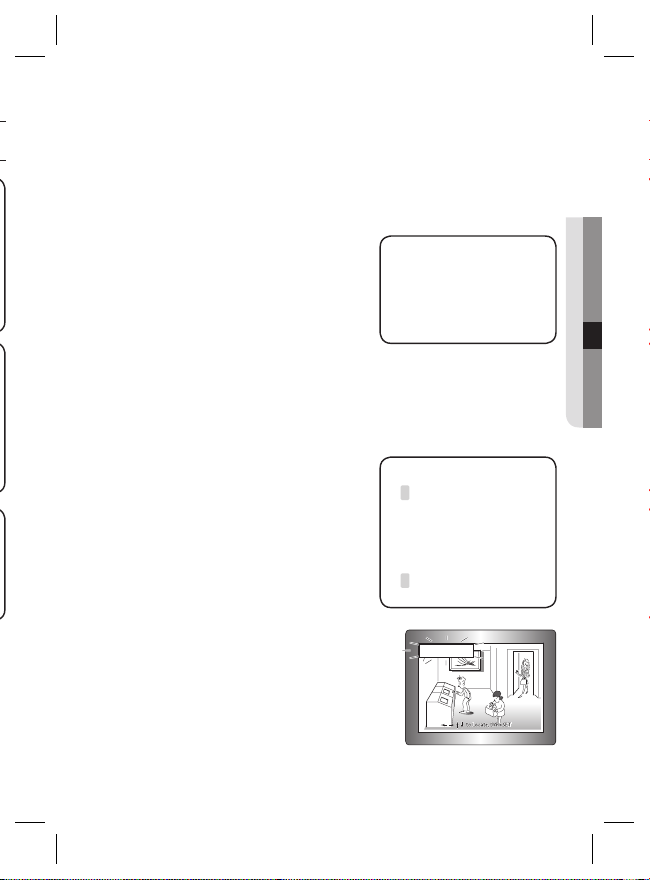

When the SETUP menu screen is displayed, select ‘DAY/NIGHT’ by using the Up and Down buttons so that the arrow indicates ‘DAY/NIGHT’.

Select a desired mode using the Left and Right buttons according to the picture display you want.

MAIN SETUP

1.LENS DC

2.EXPOSURE

3.WHITE BAL ATW

4.SSDR OFF

5.BACKLIGHT OFF 䯝 6.SSNR3 ON

7.DAY/NIGHT AUTO

SSNR3

䯝 LEVEL

1.LENS DC

2.EXPOSURE

3.WHITE BAL ATW

4.SSDR OFF

5.BACKLIGHT OFF

6.SSNR3 ON 䯝 7.DAY/NIGHT AUTO

8.SPECIAL

IIIIÂIIIIIIIIIIIIIIIII

Press SET to Return

MAIN SETUP

24_ setup

Page 25

COLOR

: The picture is always displayed in color.

B/W

: The picture is always displayed in black and white.

You can turn on or off the burst signal on B/W mode.

AUTO

: The mode is switched to ’Color

‘ in a normal environment, but switches to ’B/W‘ mode when ambient illumination is low. To set up the switching time for AUTO mode, press the Function Setup switch. You can turn on or off the burst signal on B/W mode.

DURATION : You can select the

DWELL TIME : You can select the duration time about changing the day/

※ The day/night switching point of the camera can be adjusted.

When AGC in the EXPOSURE menu is ‘OFF’, AUTO mode is not available to select.



day/night switching point.

night mode.

→

3s, 5s, 7s, 10s, 15s, 20s, 30s, 40s, 60s

Early 2.5 lux 5 lux

Late 1 lux 10 lux

Color → B/W B/W → Color

AUTO SETUP

▶ 1.BURST MODE ON

2.COLOR→B/W DURATION FAST DWELL TIME 3 SEC

3.B/W→COLOR DURATION FAST DWELL TIME 10 SEC

4.RETURN

● SETUP

English_25

Page 26

setup

SPECIAL

When the SETUP menu screen is displayed,

select ‘SPECIAL’ by using the Function Setup switch so that the arrow indicates ‘SPECIAL’.

Select a desired mode using the Function

Setup switch.

IMAGE ADJ :

1) When the SPECIAL menu screen is displayed, select ‘IMAGE ADJ’ by using the Function Setup switch so that the arrow indicates ’IMAGE ADJ‘.

2) Select a desired mode using the Function

Setup switch. V-REV : You can flip the picture verti-

cally on the screen. H-REV : You can flip the picture horizontally on the screen.

D-ZOOM : You can use a digital zoom of x1 ~ x16.

FONT COLOR : You can change the OSD font color.

26_ setup

SHARPNESS : As you increase this value, the picture outline becomes stronger and

RETURN : Select this to save the settings for the IMAGE ADJ menu and to

(White, Yellow, Green, Red, Blue)

clearer. Adjust this value appropriately depending on the sharpness of the picture.

return to the SPECIAL menu.

MAIN SETUP

1.LENS DC

2.EXPOSURE

3.WHITE BAL ATW

4.SSDR OFF

5.BACKLIGHT OFF

6.SSNR3 ON

7.DAY/NIGHT AUTO 䯝 8.SPECIAL

9.EXIT SAVE

#䯝 1.IMAGE ADJ

2.MONITOR LCD

3.CAM TITLE OFF

4.SYNC INT

5.MOTION DET OFF

6.PRIVACY OFF

7.DIS OFF

8.LANGUAGE ENGLISH

9.RETURN

䯝 1.V-REV OFF

2.H-REV OFF

3.D-ZOOM OFF

4.FONT COLOR WHITE

5.SHARPNESS ON

6.RETURN

SPECIAL

IMAGE SETUP

Page 27

When the V-REV or H-REV mode is enabled, the text on the screen does not flip.



If you increase the SHARPNESS level too high, the picture may become distorted or noise



may appear.

Monitor

: Please change the settings value of video appropriate to your monitor.

LCD : Please select this menu item when

using an LCD monitor. You can change the gamma, PED level and color gain in the sub menus.

CRT : Please select this menu item when

using a CRT monitor.

Please use this menu item when

USER :

using a monitor other than standard ones. You can change the gamma, PED level and color gain in the sub menus.

CAM TITLE

If you enter a title, the title will appear on the monitor.

➊

If the SPECIAL menu screen is displayed, use the Function Setup switch so that the arrow indicates ‘CAM TITLE’.

➋

Set it to ‘ON’ by using the Function Setup switch.

➌

Press the Function Setup switch.

➍

Use the Function Setup switch to move to a desired letter and select the letter by pressing the switch. Repeat this to enter multiple letters. You can enter up to 15 letters.

➎

Enter a title, move the cursor to ’ POS’ and press the Function Setup switch. The entered title appears on the screen. Select the position to display the title on the screen by using the Function Setup switch and press. When the position is determined, select ’END’ and press the Function Setup switch to return to the SPECIAL menu.

LCD MONITOR

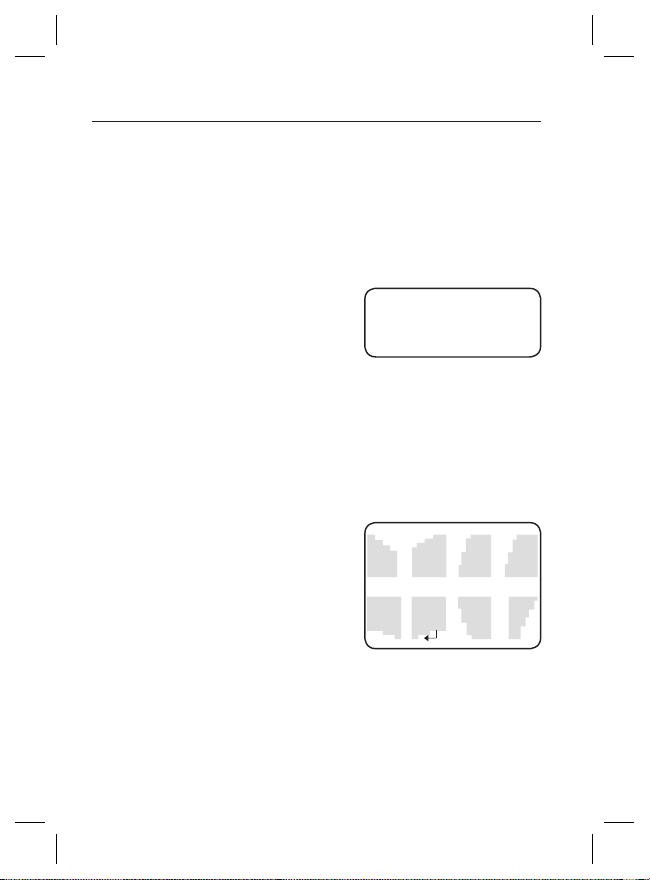

▶ GAMMA 0.55 PED LEVEL COLOR GAIN RESET

CAMERA TITLE SETUP

ABCDEFGHIJKLM NOPQRSTUVWXYZ abcdefghijklm nopqrstuvwxyz

-.0123456789 ←→ CLR PO S END

_______________

IIIIIÂIIIIIIIIIIIIIIII

IIIIIIIIIIIIIIIÂIIIIII

Press SET to Return

FRONT DOOR

● SETUP

17 50

English_27

Page 28

setup

When the CAM TITLE menu is ‘OFF’, no title will be displayed on the monitor screen even if you



enter one.

English and Numbers are available in the mode.



If you move the cursor to CLR and press the Function Setup switch, all the letters are deleted.



To edit a letter, change the cursor to the bottom left arrow and press the Function Setup switch. Move the cursor over the letter to be edited, move the cursor to the letter to be inserted and then press the Function Setup switch.

SYNC

: In areas where the supply is at

60Hz(NTSC), 50Hz(PAL), you can synchronize the output phase of multiple cameras using the power synchronization function (Line-Lock) without using a synchronization signal generator.

INT : Internal Synchronization Type

L/L : Power Synchronization Type, Line-lock

• Press the Function Setup switch.

• You can select a desired phase from 0 to 359 when select ‘phase’.

When using AC power at 60Hz(NTSC), 50Hz(PAL) frequency, you can use the L/L type



synchronization.

When the power is DC 12V, the SYNC menu is ﬁ xed to the ‘INT’ mode.



MOTION DET

This product has a feature that allows you to observe movement of objects in 8 different areas on the screen, and the words 'MOTION DETECTED' appear on the screen when movement is detected. You can monitor activity more efﬁ cient.

➊

➋

28_ setup

When the SPECIAL menu screen is displayed, press the Function Setup switch so that the arrow indicates 'MOTION DET'.

Set up the mode using the Function Setup switch.

SENSITIVITY : You can select up to 8 MD areas. When SENSITIVITY number is high, motion detection sensitivity is increased to recognize even small movement.

▶ PHASE

䯝 1.SENSITIVITY AREA1

2.AREA MODE ON

3.SEL POS L-TOP

4.XPOS

5.YPOS

6.FILL → SET

7.RETURN

SYNC

Press SET to Return

MOTION DET

IIIIIIIIIIIIIIIIIIIII

IIIÂIIIIIIIIIIIIIIIIII

3 4

Page 29

AREA MODE : Determines whether to use the MD area selected in SENSITIVITY.

SEL POS :

Determines which of the 4 vertices of each MD area is to be

PRIVACY

➊

➋ Set up the mode using the Function

DIS (Digital Image Stabilizer)

This function mitigates any picture movement due to external factors such as wind.

   

used.

XPOS : Determines the coordinate of the horizontal axis for SEL POS. YPOS : Determines the coordinate of the vertical axis for SEL POS.

FILL → SET : Fills in a selected MD area. The color of ﬁ lling is sequentially

RETURN : Select this to save the MOTION DET menu settings and return

selected as brown, orange, blue, cyan, yellowish green, yellow, magenta and red.

to the SPECIAL menu.

: Mask an area you want to hide on the screen,

When the SPECIAL menu screen is displayed, press the Function Setup switch so that the arrow indicates ‘PRIVACY’.

Setup switch.

AREA : You can select up to 12

PRIVACY areas.

MODE : Determines whether to use

the area selected.

MASK COLOR : Determine area color. You can select GREEN, RED, BLUE, BLACK, WHITE and GRAY.

PRIVACY AREA SETUP

䯝 1.AREA AREA1

2.MODE OFF

3.MASK COLOR GREEN

4.MASK TONE

5.TOP

6.BOTTOM

7.LEFT

8.RIGHT

9.RETURN

IIIIIIIIIIIIIIIIIIIII

IIÂIIIIIIIIIIIIIIIIIII

IIIIIÂIIIIIIIIIIIIIIII

IIIIIIIIIIIIIIIIIIIII

IIIÂIIIIIIIIIIIIIIIIII

39 79 13 52

MASK TONE : Adjust the brightness of MASK COLOR.

TOP/BOTTOM/LEFT/RIGHT : Adjust the size and position of the selected area. RETURN : Select this to save the PRIVACY menu settings and return to

the SPECIAL menu.

As the DIS function uses the digital zoom the camera's resolution will decrease. DIS doesn’t operate when background illumination is too low. DIS doesn’t operate when object pattern is monotonic as like sky or white wall. If DIS is enabled, the digital zoom is not conﬁ gured to less than 46 level.

● SETUP

English_29

Page 30

setup

LANGUAGE

RETURN

EXIT

Select a desired EXIT mode using the Function Setup switch depending on the camera purpose.

SAVE : Save the current settings and exit the MAIN SETUP menu.

NOT SAVE : Do not save the current settings and exit the MAIN SETUP menu.

RESET: Resets the camera settings to the factory defaults.

: You can select the menu language according to your requirements.

: Select this to save the SPECIAL menu settings and return to the MAIN

SETUP menu.

Language and Monitor settings are not initialized.

30_ setup

Page 31

troubleshooting

TROUBLESHOOTING

If you have trouble operating your camera, refer to the following table. If the guidelines do not enable you to solve the problem, contact an authorized technician.

PROBLEM SOLUTION

Nothing appears on the screen.

The image on the screen is dim.

The image on the screen is dark.

The camera is not working properly, and the surface of the camera is hot.

The SENS-UP function does not work.

The Motion Detection function does not work.

Color is not correct.

The screen ﬂ ickers continually.

When coaxial communication is not available

▶ Check that the power cord and line connection between the camera

and monitor are ﬁ xed properly.

▶ Check that you have properly connected VIDEO cable to the camera

VIDEO output jack.

Is the lens stained with dirt? Clean your lens with a soft, clean cloth.

▶ ▶

Check the monitor and DVR settings.

▶

If the camera is exposed to very strong light, change the camera position.

▶ Adjust the contrast feature of the monitor or DVR. ▶ If you have an intermediate device, set the 75Ω / Hi-z properly.

▶ Check that you have properly connected the camera to an appropriate

power source.

▶ Check that AGC of EXPOSURE SETUP menu is ‘OFF’. ▶ Check that SHUTTER of EXPOSURE SETUP menu is ‘A.FLK’ or

‘MANUAL’.

▶

Check that MOTION DEF of SPECIAL SETUP menu is ‘OFF’.

▶ Check the setting of WHITE BAL SETUP menu .

▶ Check that the camera is not pointing at the sun.

▶ Make sure that the camera and monitor are installed within the

recommended distance.

▶

Use the video amplifier equivalent to coaxitron if the recommended installation distance is exceeded.

● TROUBLESHOOTING

English_31

Page 32

specifications

D S

O H

S H

※

SPECIFICATIONS

SCD-2080EN SCD-2080EP

ELECTRICAL

Input Voltage DC 12V / AC 24V

Power Consumption Max 3.5W

VIDEO

Imaging Device 1/3 inch, Diagonal 6mm Super HAD CCD

Total Pixels 811(H) x 508(V)

Effective Pixels 768(H) x 494(V) 752(H) x 582(V)

Scanning System 2:1 Interlace

Synchronization Internal / Line-Lock

Frequency H : 15.734KHz V:59.94Hz H: 15.625KHz V: 50.00Hz

Horizontal Resolution COLOR : 600TVL

Min. Illumination COLOR : 0.15 Lux (50IRE, @F1.2), 0.0003Lux (SENS-UP, x512)

S/N (Y Signal) 52dB (Weight On, AGC Off)

Video Output CVBS : 1.0Vp-p, 75Ω composite

LENS

Zoom Ratio 3.6x (Manual)

Focus Length 2.8 ~ 10.0mm (F1.2)

Angular Field of View Tele : 28°(H) x 21°(V), Wide : 94.4°(H) x 69.2°(V)

PAN / TILT / ROTATE

Pan / Tilt / Rotate Range 0°~352° / 0°~73° / 0°~348°

OPERATIONAL

Electronic Shutter Speed 1/60 ~ 1/120k sec 1/50 ~ 1/120k sec

NTSC : Korean, English, Japanese, Spanish, French, Portuguese

ON Screen Display

SSDR On / Off (Level adjustable)

Backlight Compensation BLC / HLC / OFF

PAL : English, Chinese, German, Italian, French, Spanish, Russian,

Czech, Polish, Romanian, Serbian, Swedish, Danish, Turkish, Portuguese

795(H) x 596(V)

32_ speciﬁ cations

Page 33

SCD-2080EN SCD-2080EP

Day & Night COLOR / BW / AUTO (S/W Type)

Gain Control Low / High / Off

White Balance ATW / Outdoor / Indoor / Manual / AWC (1,700°K ~ 11,000°K)

SENS-UP (frame Integration) Auto / Off (Selectable x2 ~ x512)

Motion Detection On / Off (8 Programmable zones)

Privacy Masking On / Off (12 Programmable zones)

3D Noise Filter (SSNRIII) On / Off (Level adjustable)

Digital Zoom On / Off (x1 ~ x16)

Digital Image Stabilization(DIS)

On / Off

Camera Title On / Off (Displayed 15 Characters)

Sharpness On / Off (Level adjustable)

Flip / Mirror On / Off

Communication Coaxial(Pelco Coaxitron)

ENVIRONMENTAL

Operating Temperature / Humidity

Storage Temperature / Humidity

-10°C ~ +50°C / 30% ~ 80% RH

-20°C ~ +60°C / 20% ~ 90% RH

MECHANICAL

Dimension / Weight Ø115.8 x 92.7(H)mm / 0.34kg

※

This speciﬁ cation can be changed without notice for performance improvement of product.

● TROUBLESHOOTING● ● SPECIFICATIONS

English_33

Page 34

specifications

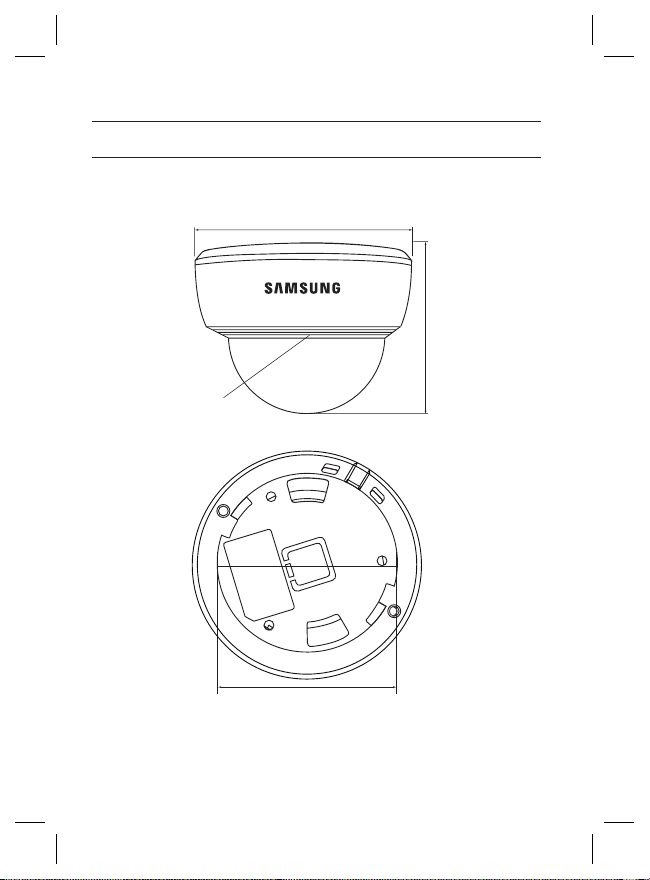

DIMENSION

R45

Ø107.6

83.7mm

34_ speciﬁ cations

81.6mm

Page 35

DECLARATION OF CONFORMITY

Application of Council Directive(s) 2004 / 108 / EC

Manufacturer's Name SAMSUNG TECHWIN CO., LTD

Manufacturer's Address SAMSUNG TECHWIN CO., LTD

42, SUNGJU-DONG CHANGWON-CITY,

KYUNGNAM, KOREA, 641-716

European Representative Name

European Representative Address

Equipment Type/Environment CCTV Camera

Model Name SCD-2080EP

Beginning Serial NO. C64A6V2Z700001Z

Conformance to EN 55022 : 2006

EN 50130-4 : 2003

We, the undersigned, hereby declare that the equipment specified above conforms

to the above Directive(s).

Manufacturer SAMSUNG TECHWIN CO., LTD Legal Representative in Europe

Signature Signature

Full Name BONJENG GU Full Name

Position QUALITY CONTROL MANAGER Position

Place CHANGWON, KOREA Place

Page 36

MEMO

Page 37

MEMO

Page 38

MEMO

Page 39

MEMO

Page 40

SALES NETWORK

SAMSUNG TECHWIN CO., LTD.

Samsungtechwin R&D Center, 701, Sampyeong-dong, Bundang-gu, Seongnam-si, Gyeonggi-do, Korea, 463-400 TEL : +82-70-7147-8740~60, FAX : +82-31-8018-3745

SAMSUNG TECHWIN AMERICA Inc.

1480 Charles Willard St, Carson, CA 90746, UNITED STATES Tol Free : +1-877-213-1222, FAX : +1-310-632-2195 www.samsungcctvusa.com

www.samsungtechwin.com www.samsungsecurity.com

SAMSUNG TECHWIN EUROPE LTD.

Samsung House, 1000 Hillswood Drive, Hillswood Business Park Chertsey, Surrey, UNITED KINGDOM KT16 OPS

TEL : +44-1932-45-5300, FAX : +44-1932-45-5325

P/NO. : Z680 6153601A
