Samsung SCD-2080B Specsheet

SCD-2080

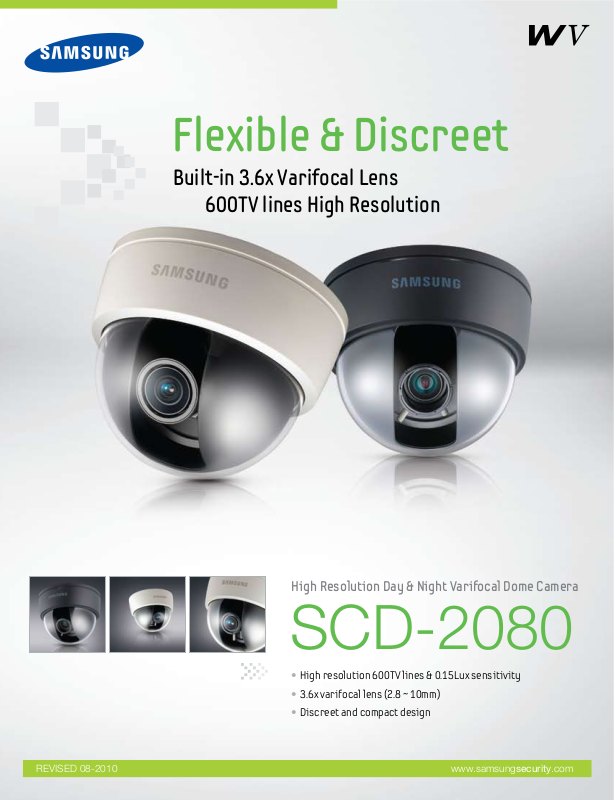

• High resolution 600TV lines & 0.15Lux sensitivity

• 3.6x varifocal lens (2.8 ~ 10mm)

• Discreet and compact design

High Resolution Day & Night Varifocal Dome Camera

www.samsungsecurity.comREVISED 08-2010

Flexible & Discreet

Built-in 3.6x Varifocal Lens

600TV lines High Resolution

Design and specifications are subject to change without notice.

The

Eco mark represents

Samsung Techwin’s will to create
environment-friendly products,and indicates
that the product satisfies the EU RoHS Directive.

High Resolution Day & Night Varifocal Dome Camera

SCD-2080

Digital Image Stabilization

0.15

600TVL

52dB

COAX

3.6x

Design

Specifications

ELECTRICAL
Input Voltage
Power Consumption
VIDEO
Imaging Device
Total Pixels
Effective Pixels
Scanning System
Synchronization
Frequency
Horizontal Resolution

Min. Illumination

S / N (Y signal)
Video Output
LENS
Zoom Ratio
Focal Length
Max. Aperture Ratio
Angular Field of View
PAN / TILT / ROTATE
Pan Range
Tilt Range
Rotate Range
OPERATIONAL

On Screen Display

Camera Title
Day & Night
SSDR
Backlight Compensation
Motion Detection
Digital Image Stabilization
Privacy Masking
2D+3D Noise Filter (SSNRIII)
Sens-up (Frame Integration)
Gain Control
White Balance
Electronic Shutter Speed
Flip / Mirror
Communication
ENVIRONMENTAL
Operating Temperature / Humidity
Storage Temperature / Humidity
MECHANICAL
Dimension (WxH)
Weight
Certifications

SCD-2080N (NTSC) SCD-2080P (PAL)

Dual (12V DC/ 24V AC)
Max. 3.5W

1/3" Super HAD CCD
811(H) x 508(V) 795(H) x 596(V)
768(H) x 494(V) 752(H) x 582(V)
2 : 1 Interlace
Internal / Line lock
H :15.734KHz / V : 59.94Hz H : 15.625KHz / V : 50Hz
Color : 600TV lines (Min.) / B/W : 700TV lines (Min.)
Color : 0.15Lux (50IRE@F1.2), 0.0003Lux (Sens-up, 512x)
B/W : 0.001Lux (50IRE@F1.2)
52dB (AGC off, Weight on)
CVBS : 1.0Vp-p / 75

3.6x (Manual)

2.8 ~ 10mm (F1.2)
1 : 1.2(Wide) ~ 2.8(Tele)
H : 94.4°(Wide) ~ 28°(Tele) / V : 69.2°(Wide) ~ 21°(Tele)

0° ~ 352°
0° ~ 73°
0° ~ 348°

Korean, English, Japanese,

English, French, German, Spanish, Italian, Chinese, Russian,

Spanish, French, Portuguese, Taiwanese

Polish, Czech, Romanian, Serbian, Swedish, Danish, Turkish, Portuguese
On / Off (Displayed 15 characters)
Auto (ICR) / Color / B/W
On / Off (Level adjustable)
BLC / HLC / Off
On / Off (8 Programmable zones)
On / Off
On / Off (12 Programmable zones)
On / Off (Level adjustable)
Auto / Off (Selectable 2x ~ 512x)
Low / High / Off
AWC / Manual / Indoor / Outdoor / ATW (1,700°K ~ 11,000°K)
1/60 ~ 1/120K sec 1/50 ~ 1/120K sec
On / Off
Coaxial (Protocol : Pelco Coaxitron)

-10°C ~ +50°C

(+14°F ~ +122°F)

/ 30% ~ 80% RH

-20°C ~ +60°C

(-4°F ~ +140°F)

/ 20% ~ 90% RH

Ø115.8 x 92.7mm (Ø4.56" x 3.65")
345g (0.76 lb)
FCC (Class A), UL/cUL listed CE (Class A), UL/cUL listed

Dimensions

* Derivative products : SCD-2080B

Unit : mm (inch)

92.7 (3.65")

Ø115.8 (4.56")

I.E-1008
