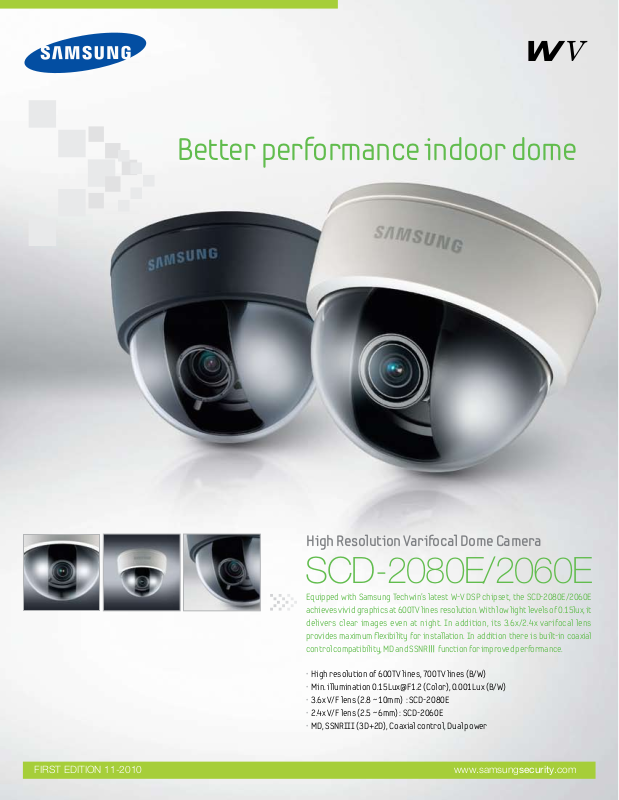

Samsung SCD-2060E, SCD-2060EB, SCD-2080E Specsheet
Better performance indoor dome
FIRST EDITION 11-2010
High Resolution Varifocal Dome Camera
SCD-2080E/2060E
Equipped with Samsung Techwin's latest W-V DSP chipset, the SCD-2080E/2060E
achieves vivid graphics at 600TV lines resolution. With low light levels of 0.15lux, it
delivers clear images even at night. In addition, its 3.6x/2.4x varifocal lens
provides maximum flexibility for installation. In addition there is built-in coaxial
control compatibility, MD and SSNRⅢ function for improved performance.
• High resolution of 600TV lines, 700TV lines (B/W)
• Min. illumination 0.15Lux@F1.2 (Color), 0.001Lux (B/W)
• 3.6x V/F lens (2.8 ~ 10mm) : SCD-2080E
• 2.4x V/F lens (2.5 ~ 6mm) : SCD-2060E
• MD, SSNRIII (3D+2D), Coaxial control, Dual power
www.samsungsecurity.com
SCD-2080E/2060E
SCD-2080EB/2060EB
High Resolution Varifocal Dome Camera
SCD-2080E/2060E
Specifications
VIDEO
Imaging Device
Total Pixels
Effective Pixels
Scanning System
Synchronization
Frequency
Horizontal Resolution
Min. Illumination
S / N Ratio
Video Output
LENS
Focal Length (Zoom Ratio)
Max. Aperture Ratio
Angular Field of View
Lens Type
Mount Type
PAN / TILT
Pan Range
Tilt Range
Rotate Range
OPERATIONAL
On Screen Display
Camera Title
Day & Night
Backlight Compensation
Contrast Enhancement
Digital Noise Reduction
Digital Image Stabilization
Motion Detection
Privacy Masking
Sens-up (Frame Integration)
Gain Control
White Balance
Electronic Shutter Speed
Digital Zoom
Reverse
Communication
Protocol
ENVIRONMENTAL
Operating Temperature/Humidity
ELECTRICAL
Input Voltage / Current
Power Consumption
MECHANICAL
Color / Material
Dimensions (WxH)
Weight
* Derivative products : SCD-2080EB/2060EB
SCD-2080EN/2060EN SCD-2080EP/2060EP
1/3" Super HAD CCD
811(H) x 508(V) 795(H) x 596(V)
768(H) x 494(V) 752(H) x 582(V)
2 : 1 Interlace
Internal / Line lock
H : 15.734KHz / V : 59.94Hz H : 15.625KHz / V : 50Hz
Color : 600TV lines, B/W : 700TV lines
Color : 0.15Lux@F1.2 (50IRE), 0.0003Lux (Sens-up, 512x)
52dB (AGC off, Weight on)
CVBS : 1.0 Vp-p / 75 composite
2.8 ~ 10mm(3.6x) : SCD-2080E, 2.5 ~ 6mm(2.4x) : SCD-2060E
1 : 1.2(Wide) ~ 2.8(Tele)
H : 94.4˚(Wide) ~ 28˚(Tele) / V : 69.2˚(Wide) ~ 21˚(Tele) : SCD-2080E
H : 103.4˚(Wide) ~ 46.6˚(Tele) / V : 77.6˚(Wide) ~ 35.1˚(Tele) : SCD-2060E
DC auto iris
Board type
0° ~ 352°
0° ~ 73°
0° ~ 348°
Multi-language support by coaxial cable Multi-language support by coaxial cable
English, Japanese, Spanish, French, English, French, German, Spanish, Italian,
Portuguese, Taiwanese, Korean Chinese, Russian, Polish, Czech, Romanian,
Serbian, Swedish, Danish, Turkish, Portuguese
Off / On (Displayed 15 characters)
Auto (Electrical ) / Color / B/W
BLC / HLC / Off
SSDR (Off / On)
SSNRIII (Off / On)
Off / On
Off / On (8 programmable zones)
Off / On (12 programmable zones)
2x ~ 512x
Off / Low / High
ATW / Outdoor / Indoor / Manual / AWC (1,700K° ~ 11,000K°)
1/60 ~ 1/120,000sec 1/50 ~ 1/120,000sec
Off / On (1x ~ 16x)
H-Rev (Off / On) / V-Rev (Off / On)
Coaxial control (SPC-300 compatible)
Coax : Pelco-C (Coaxitron)
-10°C ~ +50°C (+14°F ~ +122°F) / Less than 90% RH
Dual (24V AC & 12V DC ±10%)
Max. 3.5W
Ivory / Plastic (Dome cover : Clear)
Ø115.8 x 92.7mm (4.56" x 3.65")
345g (0.76 lb)
The Eco mark represents
Samsung Techwin’s will to create
environment-friendly products,and indicates
that the product satisfies the EU RoHS Directive.
SAMSUNG TECHWIN CO., LTD.
701, Sampyeong-dong, Bundang-gu, Seongnam-si, Gyeonggi-do Korea 463-400
Tel : +82-70-7147-8741~8749, 8752~8760 Fax : +82-31-8018-3745
www.samsungsecurity.com www.samsungcctv.com
SAMSUNG TECHWIN AMERICA Inc.
1480 Charles Willard St, Carson, CA 90746, UNITED STATES
Tol Free : +1-877-213-1222 Fax : +1-310-632-2195
www.samsungcctvusa.com
Dimensions
SAMSUNG TECHWIN EUROPE LTD.
Samsung House, 1000 Hillswood Drive, Hillswood Business Park
Chertsey, Surrey, UNITED KINGDOM KT16 OPS
Tel : +44-1932-45-5300 Fax : +44-1932-45-5325
Unit : mm (inch)
92.7 (3.65")
Ø115.8 (4.56")
TIANJIN SAMSUNG TECHWIN OPTO-ELECTRONICS CO., LTD.
No.11 Wei 6 Street. Micro-Electronic Industrial Park
Jingang Road, Tianjin, P.R. CHINA 300385
Tel : +86-22-23887788 Fax : +86-22-23887788
Design and specifications are subject to change without notice.
