Samsung SCD-2022R, SCD-2042R User Manual

High Resolution IR

Dome Camera

User Manual

SCD-2022R SCD-2042R

High Resolution IR Dome Camera

User Manual

Copyright

© Samsung Techwin Co., Ltd. All rights reserved.

Trademark

is the registered logo of Samsung Techwin Co., Ltd.

The name of this product is the registered trademark of Samsung Techwin Co., Ltd.

Other trademarks mentioned in this manual are the registered trademark of their respective company.

Restriction

Samsung Techwin Co., Ltd shall reserve the copyright of this document. Under no circumstances, this document shall be reproduced, distributed or changed, partially or wholly, without formal authorization of Samsung Techwin.

Disclaimer

Samsung Techwin makes the best to verify the integrity and correctness of the contents in this document, but no formal guarantee shall be provided. Use of this document and the subsequent results shall be entirely on the user’s own responsibility. Samsung Techwin reserves the right to change the contents of this document without prior notice.

Warranty

If the product does not operate properly in normal conditions, please let us know. Samsung Techwin will resolve the problem for free of charge. The warranty period is 3 years. However, the followings are excluded:

•If the system behaves abnormally because you run a program irrelevant to the system operation.

•Deteriorated performance or natural worn-out in process of time

Design and specifications are subject to change without prior notice.

Before operating the camera, confirm the camera model and correct input power voltage. To help you understand this manual thoroughly, we’ll introduce our model description.

■SCD-2022R/2042R SERIES

•NTSC MODEL

SCD-2022RN SCD-2042RN

•PAL MODEL

SCD-2022RP SCD-2042RP

•POWER SOURCE

SCD-2022RN / SCD-2022RP : DC12V SCD-2042RN / SCD-2042RP : DC12V

Safety information

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER

SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol indicates that dangerous voltage consisting a risk of electric shock is present within this unit.

This exclamation point symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING

•To prevent damage which may result in fire or electric shock hazard, do not expose this appliance to rain or moisture.

•To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instructions.

WARNING

1.Be sure to use only the standard adapter that is specified in the specification sheet. Using any other adapter could cause fire, electrical shock, or damage to the product.

2.Incorrectly connecting the power supply or replacing battery may cause explosion, fire, electric shock, or damage to the product.

3.Do not connect multiple cameras to a single adapter. Exceeding the capacity may cause abnormal heat generation or fire.

4.Securely plug the power cord into the power receptacle. insecure connection may cause fire.

5.When installing the camera, fasten it securely and firmly. The fall of camera may cause personal injury.

4_ Safety information

6.Do not place conductive objects (e.g. screwdrivers, coins, metal parts, etc.) or containers filled with water on top of the camera. doing so may cause personal injury due to fire, electric shock, or falling objects.

7.Do not install the unit in humid, dusty, or sooty locations. doing so may cause fi re or electric shock.

8.If any unusual smells or smoke come from the unit, stop using the product. in such case, immediately disconnect the power source and contact the service center. continued use in such a condition may cause fire or electric shock.

9.If this product fails to operate normally, contact the nearest service center. never disassemble or modify this product in any way. (samsung is not liable for problems caused by unauthorized modifications or attempted repair.)

10.When cleaning, do not spray water directly onto parts of the product. doing so may cause fire or electric shock.

CAUTION

1.Do not drop objects on the product or apply strong shock to it. Keep away from a location subject to excessive vibrationor magnetic interference.

2.Do not install in a location subject to high temperature (over 55°C), low temperature (below -10°C), or high humidity. Doing so may cause fire or electric shock.

3.If you want to relocate the already installed product, be sure to turn off the power and then move or reinstall it.

4.Remove the power plug from the outlet when then there is a lightning. Neglecting to do so may cause fire or damage to the product.

5.Keep out of direct sunlight and heat radiation sources. It may cause fire.

6.Install it in a place with good ventilation.

7.Avoid aiming the camera directly towards extremely bright objects such as sun, as this may damage the CCD image sensor.

8.Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.

9.The Mains plug is used as a disconnect device and shall stay readily operable at any time.

10.Do not expose the camera to radioactivity. Radioactivity exposure may damage the CCD.

INFORMATION SAFETY ●

English_5

Safety information

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

Correct disposal of batteries in this product

(Applicable in the European Union and other European countries with separate battery return systems.)

This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment.

To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.

Samsung Techwin cares for the environment at all product manufacturing stages to preserve the environment, and is taking a number of steps to provide customers with more environment-friendly products.The Eco mark represents Samsung Techwin’s will to create environment-friendly products, and indicates that the product satisfies the EU RoHS Directive.

6_ Safety information

1.	Read these instructions.
2.	Keep these instructions.
3.	Heed all warnings.
4.	Follow all instructions.
5.	Do not use this apparatus near water.	●
6.	Clean only with dry cloth.	SAFETY
7.	Do not block any ventilation openings. Install in accordance with the manufacturer’s
	instructions.
8.	Do not install near any heat sources such as radiators, heat registers, or other apparatus	INFORMATION
	(including amplifi ers) that produce heat.
9.	Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug
	has two blades with one wider than the other. A grounding type plug has two blades and
	a third grounding prong. The wide blade or the third prong is provided for your safety. If
	the provided plug does not fi t into your outlet, consult an electrician for replacement of the
	obsolete outlet.
10.Protect the power cord from being walked on or pinched particularly at plugs,
	convenience receptacles, and the point where they exit from the apparatus.
11.Only use attachments/accessories specifi ed by the manufacturer.
12.Use only with cart, stand, tripod, bracket, or table specifi ed by the
	manufacturer, or sold with the apparatus.
13.Unplug this apparatus when a card is used. Use caution when moving the
	cart/ apparatus combination to avoid injury from tip-over.
14.Refer all servicing to qualifi ed service personnel. Servicing is required when the apparatus
	has been damaged in any way, such as powersupply cord or plug is damaged, liquid has
	been spilled or objects have fallen into the apparatus, the apparatus has been exposed to
	rain or moisture, does not operate normally, or has been dropped.
	Apparatus shall not be exposed to dripping or splashing and no objects

filled with liquids, such as vases, shall be placed on the apparatus

15.This product is intended to be supplied by a Listed Power Supply Unit marked "Class2" and rated from 12VDC, min.0.3A .

English_7

Contents

INTRODUCTION

9

INSTALLATION

12

CONNECTION

15

SETUP

18

9Features

10What’s included

11Component names and Functions

12Before Installation

12 Installation

14Adjust the panning and tilting rotating while watching the monitor

15Connecting to Monitor

15Connecting to Power

16Using coaxial communications

18 Menu Confi gration

18 Menu Setup

TROUBLESHOOTING	27	Troubleshooting
27

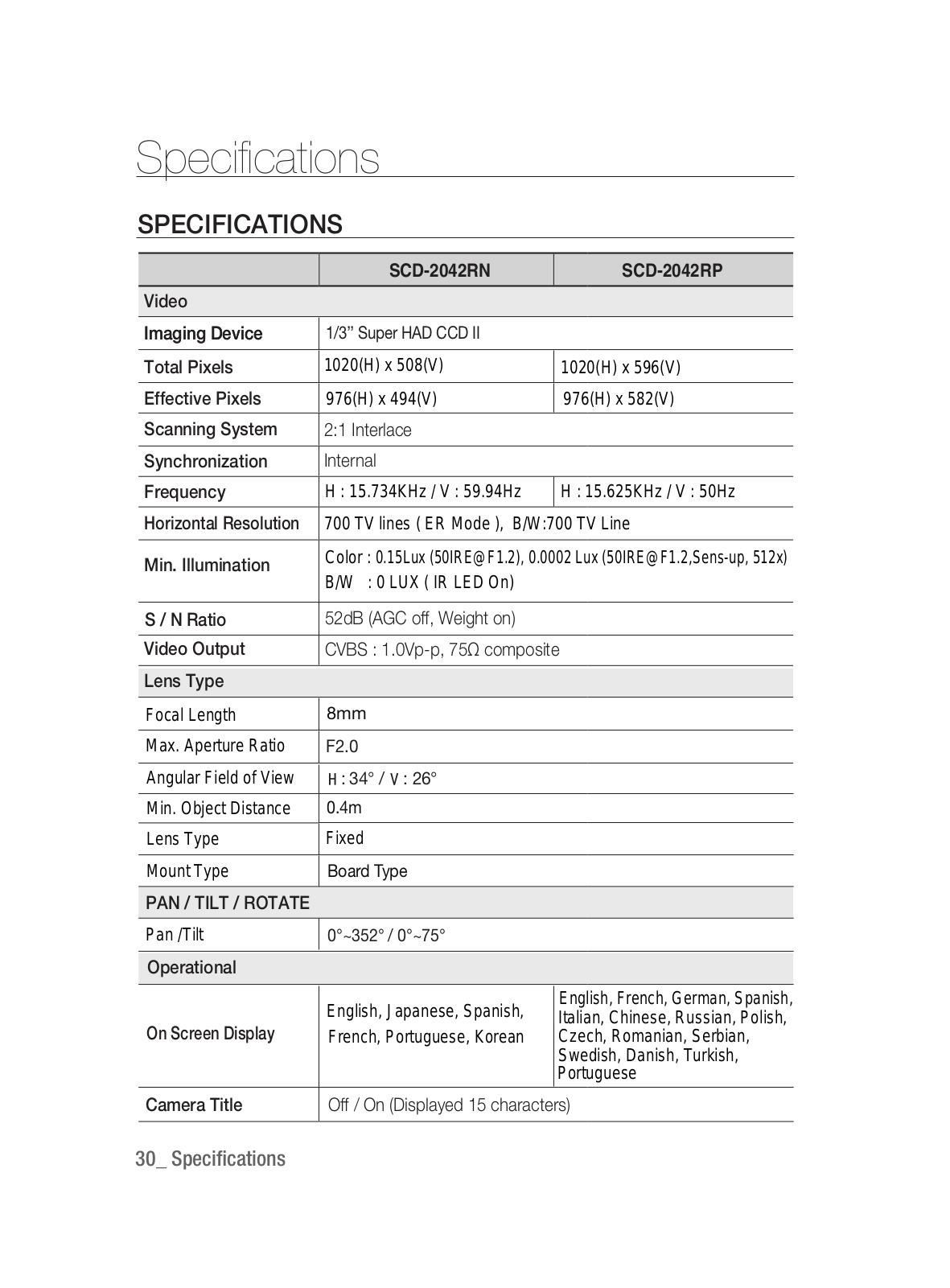

SPECIFICATIONS	28	Specifi cations
28 32		Dimension

8_ Contents

Introduction

FEATURES

 excellent sensitivity

The built-in high sensitivity COLOR CCD produces a clear image.

Color : 0.15Lux (50IRE@F1.2), 0.0002 Lux (50IRE@F1.2,Sens-up, 512x)

B/W : 0 LUX ( IR LED On)	●
	INTRODUCTION
 high Resolution
By adopting a diagonal 6mm (1/3”) 520,000 pixel (NTSC), 610,000 pixel (PAL)
SONY CCD, the camera produces clear picture quality with a horizontal resolution
of 700TV lines in ER mode and 700TV lines for BW .
 6615 (samsung super Noise Reduction) function
The high-performance W6 DSP chip effectively removes low-light gain noise and
afterimage to provide clear images even in dark environments.
 day & Night
This camera has a function that automatically selects the mode that is appropriate
for daytime or night-time conditions. The COLOR mode operates in daytime
conditions to provide optimum colors, and B/W mode operates in night-time conditions
to enhance the definition of the image.
 defog
The camera is able to recognize the concerntration of fog in the image, and automatically
defog, correct image of the bad weather such as fog, rain, mist, fumes, etc to make it clear.
 ssdR (samsung super dynamic Range)
For images with high contrast between bright and dark areas from difficult lighting
conditions such as backlighting, this camera selectively illuminates darker areas while
retaining the same light level for brighter areas to even out the overall brightness.

miscellaneous functions

HLC(High Light Compensation),SENS-UP, H-REVERSE , SHARPNESS, PRIVACY and MOTION DET. functions are provided.

IR mOde function

Adjusting the intensity of IR-LEDs depends upon the closeness of the object, which in order to prevent saturation.

Indoor Visibility range 7m

In B/W mode, the IR-LEDs are illuminated, the indoor visibility range at 0 Lux is 7M.

English_9

Introduction

Communication

Coaxial communication methods are supported.

-Protocol : Pelco Coaxitron

Osd

The camera control is convenient by using 17 different foreign language O.S.D.

-NTSC : English, Japanese, Spanish, French, Portuguese,Korean

-PAL : English, French, German, Spanish, Italian, Chinese, Russian, Polish, Czech, Romanian, Serbian, Swedish, Danish, Turkish, Portuguese

WHAT’S INCLUDED

Check if the following items are included in the product package.

HighResolutionIR

DomeCamera

SCD-2022R

SCD-2042R

CAMERA

Quick Manual

Tapping Screw 3EA

Installation Video

Output Cable

* The illustration above may not be exactly same as the real parts, for reference only.

10_ Introduction

COMPONENT NAMES AND FUNCTIONS

	●
	INTRODUCTION

GRAY BLACK(EXT _ (GND)DN)

Pan Base : Control panning angle of camera.

Tilt Base : Control tilting angle of camera.

Lens Module : SCD-2022R - f=3.8mm, F2.0 (IR LENS) SCD-2042R - f=8.0mm, F2.0 (IR LENS)

Power input terminal : Connect the Power(DC 12V)

Ground Terminal

D & N Input Terminal : You can switch to Day & Night Mode by connecting an external signal to this terminal.

Video Output Jack : Video signals are output through this port. Connect this port to the Video IN port of a monitor.

Function Setup switch : Display the menu on the screen and move the cursor to four directions to confirm status or after changing a selected item.

Video Output Terminal to Monitor

Dome Cover

English_11
