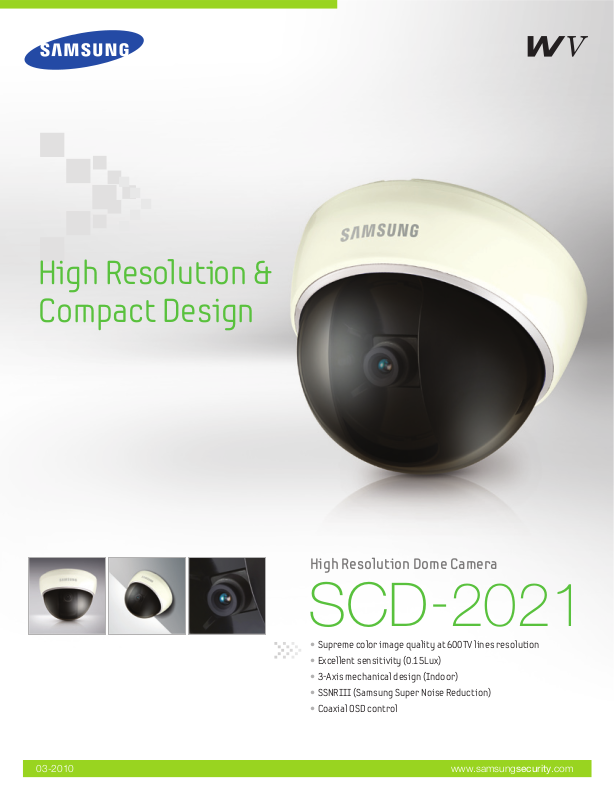

Samsung SCD-2021 Specsheet

High Resolution &
Compact Design

www.samsungsecurity.com03-2010

SCD

-

2021

• Supreme color image quality at 600TV lines resolution

• Excellent sensitivity (0.15Lux)

• 3-Axis mechanical design (Indoor)

• SSNRIII (Samsung Super Noise Reduction)

• Coaxial OSD control

High Resolution Dome Camera

Design and specifications are subject to change without notice.

I.E-1003

DISTRIBUTED BY

The

Eco mark represents

Samsung Techwin’s will to create
environment-friendly products,and indicates
that the product satisfies the EU RoHS Directive.

High Resolution Dome Camera

SCD-2021

Dimensions

Unit : mm (inch)

83.7 (3.3")

Ø107.6 (4.24")

Specifications

ELECTRICAL
Input Voltage
Power Consumption
VIDEO
Imaging Device
Total Pixels
Effective Pixels
Scanning System
Synchronization
Frequency
Horizontal Resolution
Min. Illumination
S / N (Y signal)
Video Output
LENS
Zoom Ratio
Focal Length
Max. Aperture Ratio
Min. Object Distance
Angular Field of View
PAN / TILT / ROTATE
Pan Range
Tilt Range
Rotate Range
OPERATIONAL

On Screen Display

Camera Title
Day & Night
SSDR
Backlight Compensation
Motion Detection
Digital Image Stabilization
Privacy Masking
2D+3D Noise Filter (SSNRIII)
Sens-up (Frame Integration)
Gain Control
White Balance
Electronic Shutter Speed
Communication
Flip / Mirror
ENVIRONMENTAL
Operating Temperature
Operating Humidity
MECHANICAL
Dimension (WxH)
Weight
Certifications

SCD-2021N SCD-2021P

Dual (12V DC/ 24V AC)
Max. 3.5W

1/3” Super HAD CCD
811(H) x 508(V)795(H) x 596(V)
768(H) x 494(V) 752(H) x 582(V)
2 : 1 Interlace
Internal / Line lock
H :15.734KHz / V : 59.94Hz H : 15.625KHz / V : 50Hz
600TV lines (Min.)
Color : 0.15Lux (50 IRE@F1.2), 0.0003Lux (Sens-up, 512x)
52dB
CVBS : 1.0Vp-p / 75Ω composite

Fixed

3.7mm, 8mm

F2.0

0.4m (1.31ft)
H : 71°, V : 52°H : 33°, V : 25°

0° ~ 352°
0° ~ 75°
0° ~ 348°

English, Japanese, Spanish, English, French, German, Spanish, Italian, Chinese,
French, Portuguese, Taiwanese, Korean Russian, Polish, Czech, Romanian, Serbian, Swedish,

Danish, Turkish, Portuguese
On / Off (Displayed 15 characters)
Auto (Electrical) / Color / B/W
On / Off (Level adjustable)
BLC / HLC / Off
On / Off (8 programmable zones)
On / Off
On / Off (12 Programmable zones)
On / Off
Auto / Off (Selectable 2x ~ 512x)
Low / High / Off
ATW / AWC / Manual / Indoor / Outdoor
ATW / Outdoor / Indoor / Manual / AWC (1,700K°~ 11,000K°)
Coaxial Control
On / Off

-10°C ~ +50°C (+14°F ~ +122°F)
30% ~ 90% RH

Ø107.6 x 83.7mm (Ø4.24” x 3.3”)
285g (0.63 lb)
FCC (Class A), UL/cUL listed CE (Class A), UL/cUL listed

0.15

600TVL

3.7mm 8mm
