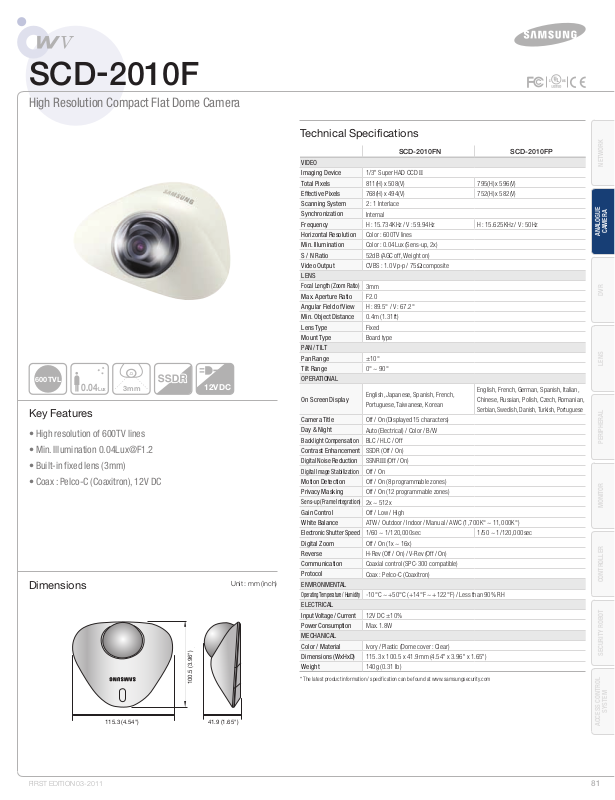

Samsung SCD-2010FP User Manual

SCD-2010F

100.5 (3.96")

115.3 (4.54") 41.9 (1.65")

High Resolution Compact Flat Dome Camera

600TVL

0.04Lux

3mm

Key Features

• High resolution of 600TV lines

• Min. Illumination 0.04Lux@F1.2

• Built-in fixed lens (3mm)

• Coax : Pelco-C (Coaxitron), 12V DC

Dimensions

12VDC

Unit : mm (inch)

100.5 (3.96")

Technical Specifications

SCD-2010FN SCD-2010FP

VIDEO
Imaging Device

Total Pixels

Effective Pixels

Scanning System

Synchronization

Frequency

Horizontal Resolution

Min. Illumination

S / N Ratio

Video Output

LENS

Focal Length (Zoom Ratio)

Max. Aperture Ratio

Angular Field of View

Min. Object Distance

Lens Type

Mount Type

PAN / TILT

Pan Range

Tilt Range

OPERATIONAL

On Screen Display

Camera Title

Day & Night

Backlight Compensation

Contrast Enhancement

Digital Noise

Digital Image

Motion Detection

Privacy Masking

Sens-up (Frame Integration)

Gain Control

White Balance

Electronic Shutter Speed

Digital Zoom

Reverse

Communication

Protocol

ENVIRONMENTAL

Operating Temperature / Humidity

ELECTRICAL

Input Voltage / Current

Power Consumption

MECHANICAL

Color / Material

Dimensions (WxHxD)

Weight

* The latest product information / specification can be found at www.samsungsecurity.com

Reduction

Stabilization

1/3" Super HAD CCD
811(H) x 508(V) 795(H) x 596(V)
768(H) x 494(V) 752(H) x 582(V)
2 : 1 Interlace
Internal
H : 15.734KHz / V : 59.94Hz H : 15.625KHz / V : 50Hz
Color : 600TV lines
Color : 0.04Lux (Sens-up, 2x)
52dB (AGC off, Weight on)
CVBS : 1.0 Vp-p / 75Ω composite

3mm
F2.0
H : 89.5° / V : 67.2°

0.4m (1.31ft)
Fixed
Board type

±10°
0° ~ 90°

English, Japanese, Spanish, French,
Portuguese, Taiwanese, Korean

Off / On (Displayed 15 characters)
Auto (Electrical) / Color / B/W
BLC / HLC / Off
SSDR (Off / On)
SSNR

III

(Off / On)
Off / On
Off / On (8 programmable zones)
Off / On (12 programmable zones)
2x ~ 512x
Off / Low / High
ATW / Outdoor / Indoor / Manual / AWC (1,700K° ~ 11,000K°)
1/60 ~ 1/120,000sec 1/50 ~ 1/120,000sec
Off / On (1x ~ 16x)
H-Rev (Off / On) / V-Rev (Off / On)
Coaxial control (SPC-300 compatible)
Coax : Pelco-C (Coaxitron)

-10°C ~ +50°C (+14°F ~ +122°F) / Less than 90% RH

12V DC ±10%
Max. 1.8W

Ivory / Plastic (Dome cover : Clear)

115.3 x 100.5 x 41.9mm (4.54" x 3.96" x 1.65")
140g (0.31 Ib)

II

English, French, German, Spanish, Italian,
Chinese, Russian, Polish, Czech, Romanian,
Serbian, Swedish, Danish, Turkish, Portuguese
