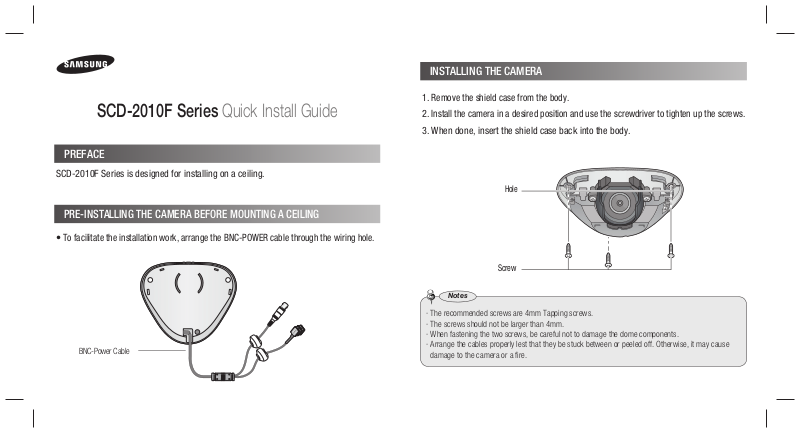

SCD-2010F Series Quick Install Guide

PREFACE

SCD-2010F Series is designed for installing on a ceiling.

PRE-INSTALLING THE CAMERA BEFORE MOUNTING A CEILING

•

To facilitate the installation work, arrange the BNC-POWER cable through the wiring hole.

BNC-Power Cable

INSTALLING THE CAMERA

Remove the shield case from the body.

Install the camera in a desired position and use the screwdriver to tighten up the screws.

3. When done, insert the shield case back into the body.

Hole

Screw

Notes

· The recommended screws are 4mm Tapping screws.

· The screws should not be larger than 4mm.

· When fastening the two screws, be careful not to damage the dome components.

· Arrange the cables properly lest that they be stuck between or peeled off. Otherwise, it may cause damage to the camera or a fire.

CLOSING THE SHIELD CASE PANNING & TILTING CONTROL

Determine a desired monitoring area and close the shield case. Then, tighten up the screw as shown to fix the case.

You can adjust the Panning and Tilting angle freely. (Panning angle: ±10º, Tilting angle: 0º~90º)

Tilt Base

You can adjust up and down

the camera (0º~90º).

Pan Base You can rotate the lens from ±10º

1. Adjustment Panning angle: After attaching the dome camera to a ceiling, adjust the panning angle for better monitoring area by rotating the Pan Base. The panning angle can be adjusted ±10º freely.

2. Adjustment Tilting angle: After attaching the dome camera to a ceiling, adjust the tilting angle for better monitoring area by rotating the Tilt Base. The tilting angle can be adjusted to 0º from 90º freely. (based the ceiling surface)

P/No. : Z6806142201A/01
