Samsung SCC-C7439P User Manual

SCC-C7439P

imagine the possibilities

Thanks you for purchasing this Samsung product.
To receive a more complete service, please visit
our website
www.samsungsecurity.com

(Outdoor Type)

Smart Dome Camera

User Manual

2_ overview

overview

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER

SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol indicates that dangerous voltage consisting a risk of
electric shock is present within this unit.

This symbol indicates that there are important operating and
maintenance instructions in the literature accompanying this unit.

WARNING

To reduce the risk of fire or electric shock, do not expose this appliance to rain or
moisture.
To prevent injury, this apparatus must be securely attached to the floor/wall in
accordance with the installation instructions.

WARNING

Be sure to use only the standard adapter that is specified in the specification sheet.
Using any other adapter could cause fire, electrical shock, or damage to the
product.
Incorrectly connecting the power supply or replacing battery may cause explosion,
fire, electric shock, or damage to the product.
Do not connect multiple cameras to a single adapter. Exceeding the capacity may
cause abnormal heat generation or fire.
Securely plug the power cord into the power receptacle. Insecure connection may
cause fire.
When installing the camera, fasten it securely and firmly. The fall of camera may
cause personal injury.
Do not place conductive objects (e.g. screwdrivers, coins, metal parts, etc.) or
containers filled with water on top of the camera. Doing so may cause personal
injury due to fire, electric shock, or falling objects.

Do not install the unit in humid, dusty, or sooty locations. Doing so may cause fire
or electric shock.





1.

2.

3.

4.

5.

6.

7.

English _3

English

If any unusual smells or smoke come from the unit, stop using the product. In such
case, immediately disconnect the power source and contact the service center.
Continued use in such a condition may cause fire or electric shock.

If this product fails to operate normally, contact the nearest service center. Never
disassemble or modify this product in any way. (SAMSUNG is not liable for
problems caused by unauthorized modifications or attempted repair.)

When cleaning, do not spray water directly onto parts of the product. Doing so may
cause fire or electric shock

Do not expose the product to the direct airflow from an air conditioner.
Otherwise, it may cause moisture condensation inside the Clear Dome due to
temperature difference between internal and external of the dome camera.

If you install this product in a low-temp area such as inside a cold store, you must
seal up the wiring pipe with silicon, so that the external air can not flow inside the
housing. Otherwise, external high, humid air may flow inside the housing, pooling
moisture or vapor inside the product due to a difference between internal and
external temperature.

CAUTION

Do not drop objects on the product or apply strong blows to it. Keep away from a
location subject to excessive vibration or magnetic interference.

Do not install in a location subject to high temperature (over 50°C), low temperature
(below -50°C), or high humidity. Doing so may cause fire or electric shock.

If you want to relocate the already installed product, be sure to turn off the power
and then move or reinstall it.

Remove the power plug from the outlet when there is a lighting storm. Neglecting
to do so may cause fire or damage to the product.

Keep out of direct sunlight and heat radiation sources. It may cause fire.

Install it in a place with good ventilation.

Avoid aiming the camera directly towards extremely bright objects such as sun, as
this may damage the CCD image sensor.

Apparatus shall not be exposed to dripping or splashing and no objects filled with
liquids, such as vases, shall be placed on the apparatus.

The Mains plug is used as a disconnect device and shall stay readily operable at
any time.

When the unit is stored in high humidity environment, moisture may occur inside
the cover dome of the Housing. Before installation, please open the cover dome
and wipe off all moisture with a soft dry cloth.

8.

9.

10.

11.

12.

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

overview

4_ overview

IMPORTANT SAFETY INSTRUCTIONS

Read these instructions.

Keep these instructions.

Heed all warnings.

Follow all instructions.

Do not use this apparatus near water.

Clean only with dry cloth.

Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.

Do not install near any heat sources such as radiators, heat registers, or other
apparatus (including amplifiers) that produce heat.

Do not defeat the safety purpose of the polarized or grounding-type plug.
A polarized plug has two blades with one wider than the other. A grounding type
plug has two blades and a third grounding prong. The wide blade or the third prong
is provided for your safety. If the provided plug does not fit into your outlet, consult
an electrician for replacement of the obsolete outlet.

Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.

Only use attachments/accessories specified by the manufacturer.

Use only with the cart, stand, tripod, bracket, or table specified
by the manufacturer, or sold with the apparatus. When a
cart is used, use caution when moving the cart/apparatus
combination to avoid injury from tip-over.

Unplug this apparatus during lightning storms or when unused
for long periods of time.

Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as powersupply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or has
been dropped.

Apparatus shall not be exposed to dripping or splashing and no objects
filled with liquids, such as vases, shall be placed on the apparatus

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

13.

14.

English _5

English

CONTENTS

OVERVIEW

2

4 Important Safety Instructions
5 Contents
6 Features
6 What’s Included
7 At a Glance

INSTALLATION &

CONNECTION

8

8 Optional Accessories for

Installation

10 Precautions
10 Preparation
11 Installation
14 Initial Setup
17 Connecting with other Device

SETUP

20

20 How to use the Keyboard

Controller

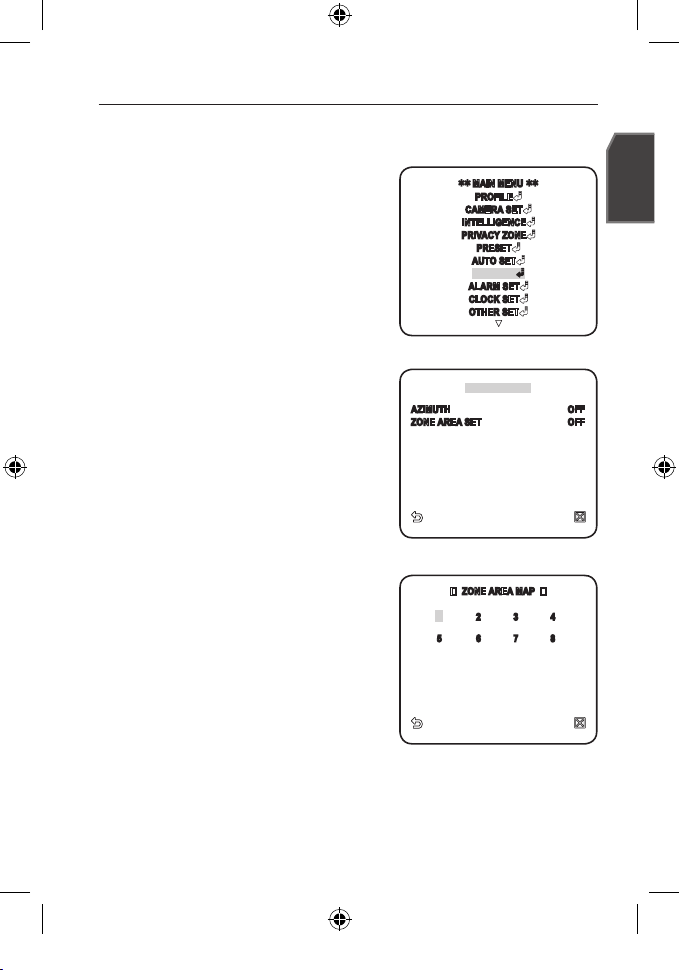

21 Main Menu
22 Profile

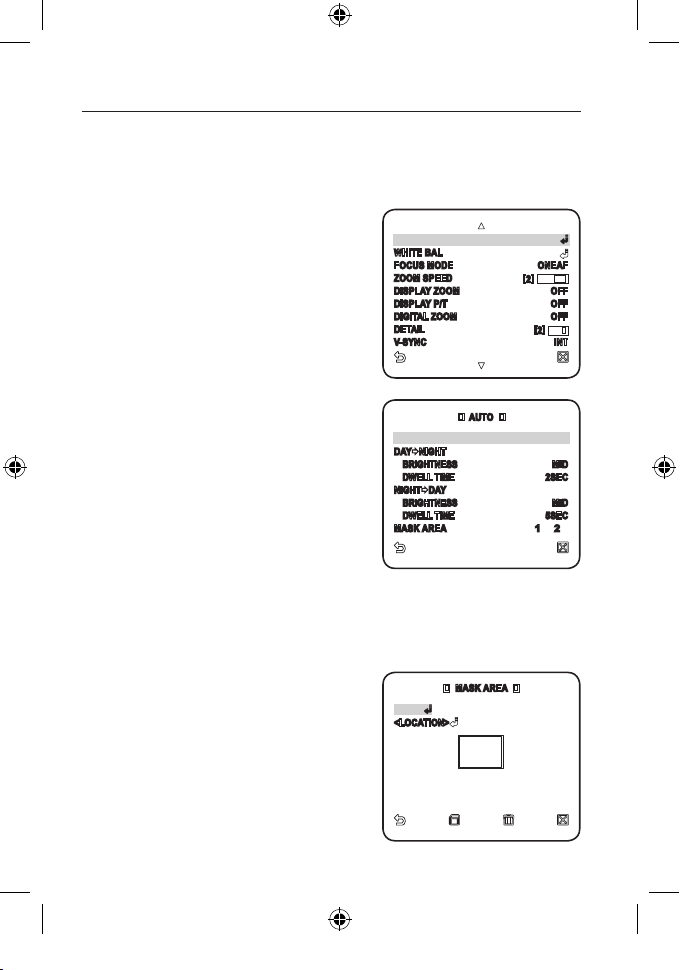

24 Camera Set

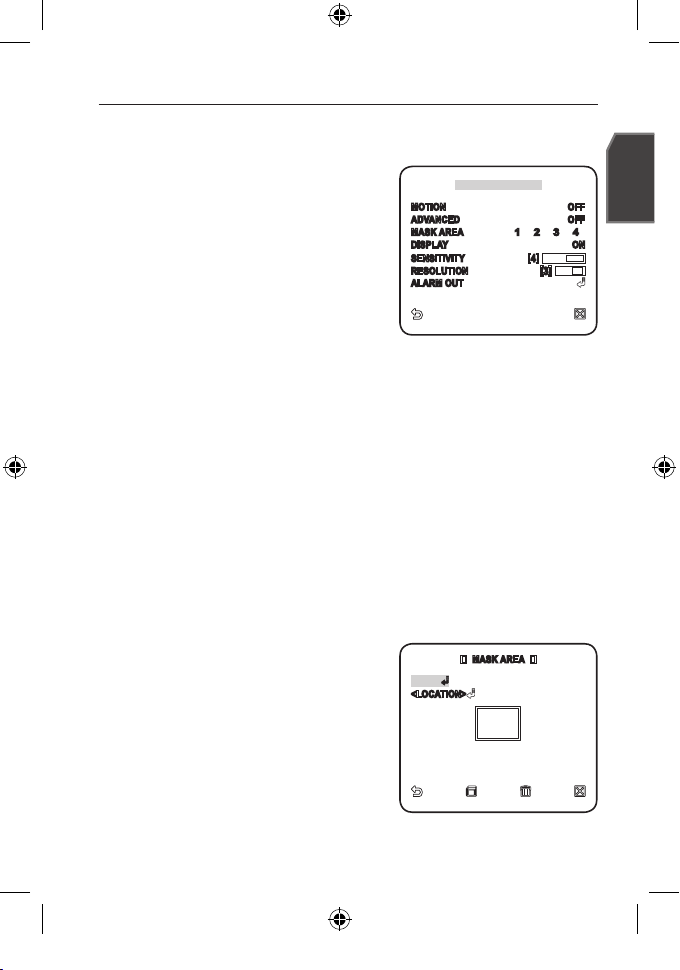

33 Intelligent Video
34 Privacy Zone
35 Preset

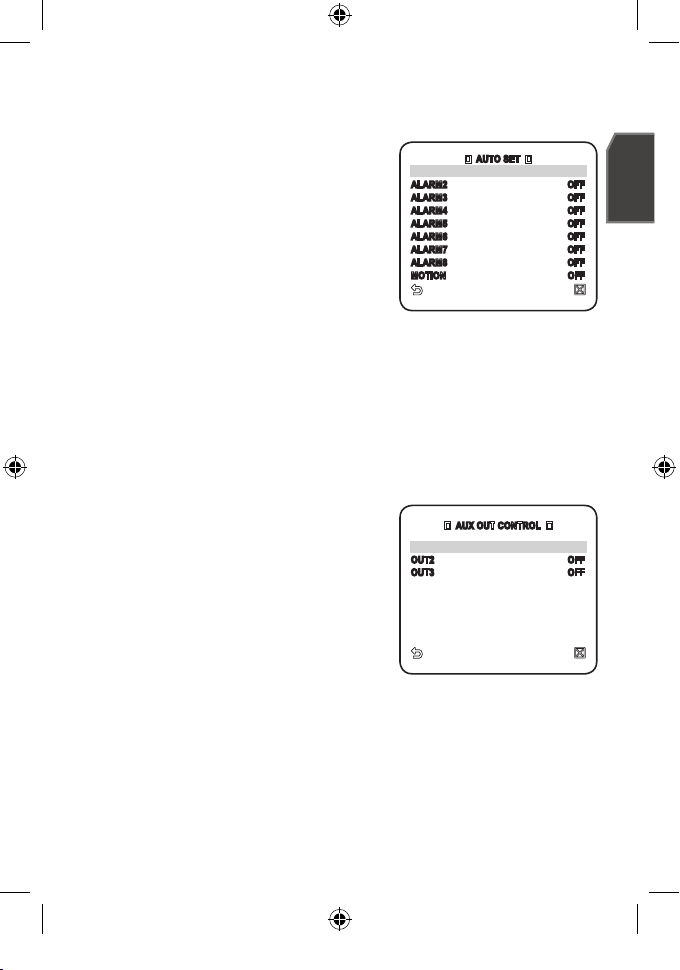

37 Auto Set
41 Zone Set
42 Alarm Set
44 Clock Set
44 Other Set
46 Communication
46 System Info

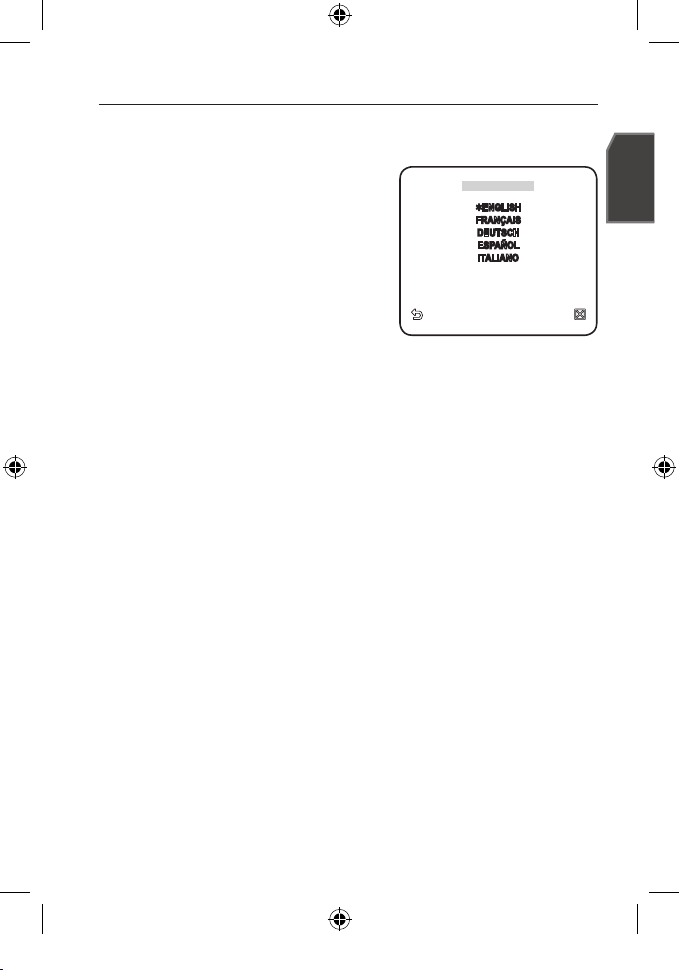

47 Language

APPENDIX

48

48 Shortcut Keys
49 Specifications
51 Product Appearance

overview

6_ overview

FEATURES

With the state-of-the-art digital signal processing technology, full digital image
processing and special algorithm of 600-line high resolution implemented

High performance surveillance camera, equipped with x34 zoom lens and digital
zoom IC, enabling monitoring up to 544 times

WDR to cover the full screen irregardless of its brightness
DAY/NIGHT to improve the sensitivity by automatic conversion into the black and

white mode at night or in the environment with low illumination

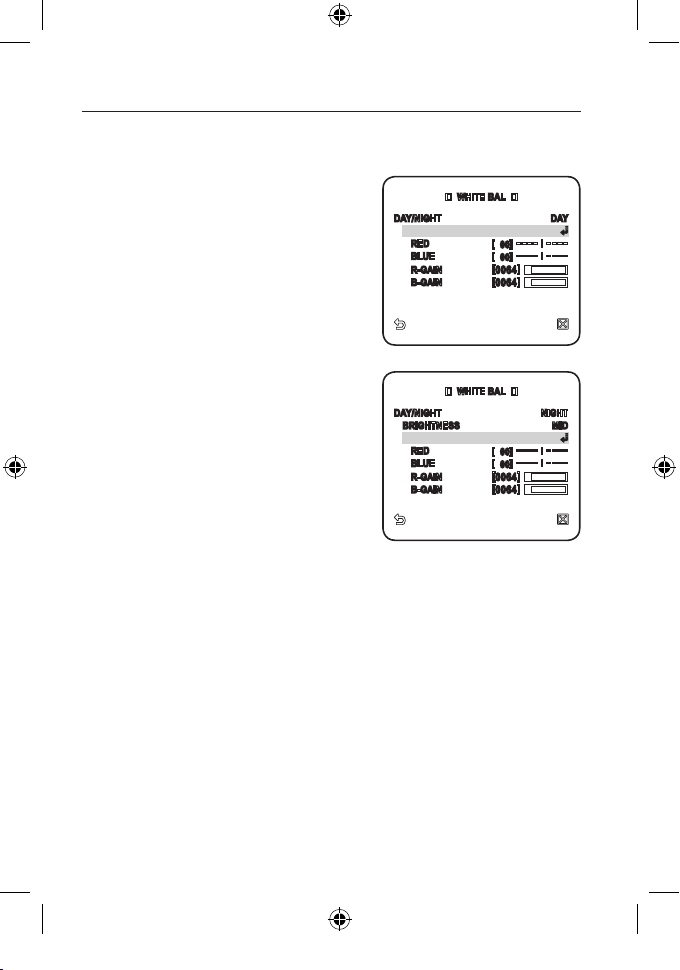

White Balance to control the brightness to the illumination
Backlight Compensation under spotlight or utmost bright illumination
Auto Focus to automatically adjust the focus to the subject movement
Privacy zone to hide a specific area for personal privacy
PAN/TILT for precise control at high speed

WHAT’S INCLUDED

Please check if your camera and accessories are all included in the product package.

Camera Housing Connectors

User Manual

User Manual Grease Pin & Bush














English _7

English

AT A GLANCE

CAMERA

FRAME SET

Wipe out a dirty surface of the lens softly with a lens tissue or cloth to which you
have applied ethanol.

M



LENS

HOOK

HOOK

ALARM IN

ALARM OUT

RS-485

POWER
INPUT

8_ installation & connection

installation & connection

OPTIONAL ACCESSORIES FOR INSTALLATION

For your easier installation, you can purchase appropriate optional accessories available.

WALL MOUNT ADAPTOR (SCX-300WM)
This is a wall mount adaptor, used for wall­mounted installation of SMART DOME
CAMEA units.

CEILING MOUNT ADAPTOR (SCX-300CM)
This is a ceiling mount adaptor, used for
installation of SMART DOME CAMEA units on
a concrete ceiling.

POLE MOUNT ADAPTOR (SCX-300PM)
This is an adaptor for WALL MOUNT
ADAPTOR (SCX-300WM) installation on a
pole whose diameter is bigger than 80mm.

1.

2.

3.

English _9

English

CORNER MOUNT ADAPTOR (SCX-300KM)
This is an adaptor for WALL MOUNT
ADAPTOR (SCX-300WM) installation on the
corner of wall joint.

PARAPET (LONG) MOUNT (SCX-300LM)
This is a mounting kit used for installation of
SMART DOME CAMEA units on a parapet.

4.

5.

installation & connection

10_ installation & connection

PRECAUTIONS

Select an installation spot which can endure more than 4 times of the product
weight.

When installing, prevent peoples approaching to avoid personal injury.
Move valuables to a safer place before installing.

PREPARATION

Run all the external cables through the bracket adaptor’s PIPE or MOUNT hole.
Wrap around the HOUSING’s screw hole with the Teflon Tape.

1.

2.

PIPE OR

MOUNT

1.5" PT

EXTERNAL

CABLE

1.5" PT

TEFLON TAPE

HOUSING

English _11

English

INSTALLATION

Press the SNAP FIT of the ADAPTOR in the HOUSING to open the ADAPTOR
part, and then insert all external cables into the HOUSING. Secure the HOUSING
on the PIPE or MOUNT by turning it clockwise.
(Secure two components tightly, to avoid loosened HOUSING.)

Connect external cables to the CONNECTORS(ALARM IN, POWER, RS-485,
ALARM OUT) and connect the CONNECTOR to the ADAPTOR.
Insert the cable into the FRAME SET, and close the ADAPTOR.

Then, wrap the BNC JACK with the INSULATION TUBE, and use an insulation tape
to seal up the end of the INSULATION TUBE so that the BNC JACK does not
protrude outside of the INSULATION TUBE coating.
For more information about cable connection, refer to Connecting the adaptor
cable. (page 19)

1.

2.

M



PIPE OR

MOUNT

HOUSING

EXTERNAL

CABLE

ADAPTOR

SNAP-FIT

PIPE OR

MOUNT

HOUSING

HOUSING

EXTERNAL

CABLE

ADAPTOR

BNC JACK

INSULATION
TUBE

ALARM OUT

ALARM IN

RS-485

POWER INPUT

installation & connection

12_ installation & connection

Note that BUSHINGs are provided for outdoor installations where exposed to a
moisture condition through the PIPE or MOUNT, install the HOUSING using the
BUSHING to prevent moisture entering.

- Apply grease of proper dose on the BUSHING before assembling, and run
cables through each hole of the bushings. Use PINS to stop up empty holes
having no cable running.

- Assemble the

BUSHING to the top side of HOUSING’s inside as shown in the
diagram below. At the moment, apply pressure evenly on the BUSHING to
secure it tightly to the HOUSING as shown in the diagram.

BUSH

BUSH

ETC CABLE

POWER
(24V) CABLE

BNC CABLE

BUSH

BUSH

PIN



BUSH

HOUSING

PIPE OR
MOUNT

BUSH

HOUSING

English _13

English

Tie up the SAFETY WIRE of the CAMERA on the BRACKET WIRE of the FRAME
SET.

Arrange the 22P CONNECTOR of the CAMERA in line with that of the ADAPTOR,
push the HOOKs on either end of the CAMERA in the RACK direction of the
FRAME SET to secure the two.
Then, ensure that all of the two HOOKs clicks to fix to the RACK properly.

When the installation is completed, remove the PROTECTIVE COVER and
PRETOECTIVE TAPE from the lens.

Align each of the 3 SCREWS of COVER DOME and 3 SCREW HOLEs of the
HOUSING respectively, and assemble the COVER DOME and HOUSING. During

the assembling, note on the followings.

Insert and arrange SAFETY WIRE into the HOUSING while not disturbing the
camera operation.

Ensure that the GASKET DOME component does not separate from the

COVER DOME

. (If the GASKET DOME is not properly assembled, it damages

the waterproofness.)

3.

M



4.





22P CONNECTOR

HOUSING

RACK

RACK

BRACKET WIRE

FRAME SET

SAFETY WIRE

HOOK

HOOK

CAMERA

PROTECTIVE

COVER

PROTECTIVE

TAPE

SCREWS

HOUSING

COVER DOME

COVER DOME

GASKET DOME

CAMERA

HOUSING

SAFETY WIRE

installation & connection

14_ installation & connection

INITIAL SETUP

Camera Address Setup

Use SW606, SW605, and SW604 to specify the camera address.
You can specify between 0 and 255 for the address, where the hundreds digit is
with SW606, the tens digit with SW605, and the ones digit with SW604.
ex) Camera address: If the address is 1, follow the steps in the figure below.

Communication Protocol Setup

Use pins #1~#4 of SW603 to specify the communication protocol.

PIN

Comp

PIN1 PIN2 PIN3 PIN4

A OFF OFF OFF OFF

B ON OFF OFF OFF
C OFF ON OFF OFF
D ON ON OFF OFF
E OFF OFF ON OFF
F ON OFF ON OFF
G OFF ON ON OFF
H ON ON ON OFF

I OFF OFF OFF ON
J ON OFF OFF ON
K OFF ON OFF ON
L ON ON OFF ON
M OFF OFF ON ON
N ON OFF ON ON
O OFF ON ON ON
P ON ON ON ON

A : SAMSUNG HALF
B : SAMSUNG FULL

<Bottom of the camera holder>

SW606

(x100)

SW605

(x10)

SW604

(x1)

English _15

English

Baud Rate Setup

Use pins #5, #6 of SW603 to set the baud rate.

BAUD RATE PIN 5 PIN 6

4800 BPS ON ON

9600 BPS OFF ON

19200 BPS ON OFF

38400 BPS OFF OFF

The factory default is 9600 BPS.

Setting RS-422A/RS-485 Termination

As it is shown in the structure map, when Controller and RS-422A/RS-485 is
connected, it should be terminated according to the Cable feature of impedance
on the each end of the transmitting line to transfer the signals in long distance by
controlling the reflection of the signals to the lowest.

Termination : Using numbers 1 and 2 PIN, turn to <ON> and it will be terminated.

Controller

Termination

n < 32

Termination
SW1-ON

CAM n

CAM n-1

CAM 2

CAM 1

TX+(DATA+)
TX-(DATA-)

RX-

RX+

RX+ RX- RX+ RX- RX+ RX-

<RS-485 Half Duplex Organization>

installation & connection

16_ installation & connection

A communication error may occur if you connect multiple cameras that are assigned
the same address in the network.

M



Controller

Termination

n < 32

Termination
SW1-ON
SW2-ON

CAM n

CAM n-1

CAM 2CAM 1

<RS-422A/RS-485 Full Duplex Organization>
