Samsung SCC-C4303A, SCC-C4203A User Manual

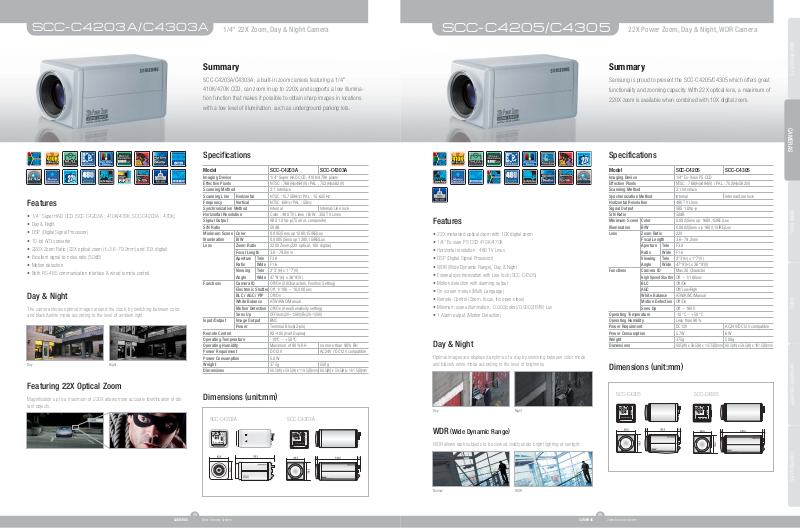

Specifications

Model SCC-C4203A SCC-C4303A

Imaging Device 1/4" Super HAD CCD, 410K/470K pixels
Effective Pixels NTSC : 768(H)x494(V) / PAL : 752(H)x582(V)
Scanning Method 2:1 Interlace
Scanning Line Horizontal NTSC :15.750KHz / PAL : 15.625Hz
Frequency Vertical NTSC :60Hz / PAL : 50Hz
Synchronization Method Internal Internal/Line lock
Horizontal Resolution Color : 480 TV Lines / B/W : 350 TV Lines
Signal Output VBS 1.0Vp-p(75 ohm, composite)
S/N Ratio 50dB
Minimum Scene Color 0.005(Sens up 128X,15IRE)Lux
Illumination B/W 0.0005(Sens up 128X,15IRE)Lux
Lens Zoom Ratio 220X Zoom(22X optical, 10X digital)

Functions Camera ID Off/On (20Characters, Position Setting)

Input/Output Image Output BNC

Remote Control RS-485 (Half Duplex)
Operating Temperature -10ºC ~ +50ºC
Operating Humidity Maximum of 90% RH no more than 90% RH
Power Requirment DC12V AC24V / DC12V compatible
Power Consumption 5.0W
Weight 375g 550g
Dimensions

Focal Length 3.6~79.2mm
Aperture Tele F3.8
Ratio Wide F1.6
Viewing Tele 2°3'(H) x 1°7'(V)
Angle Wide 47°9'(H) x 36°9'(V)

Electronic Shutter Off, 1/100 ~ 10,000 sec
BLC / AGC / PIP Off/On
White Balance ATW/AWC/Manual
Motion Detection Off/On (Area/Sensitivity setting)
Sens Up

Power Terminal Block(2-pin)

OFF/Auto(2X~128X)/Fix(2X~128X)

60.5(W) x 59.5(H) x 119.5(D)mm 60.5(W) x 59.5(H) x 161.5(D)mm
