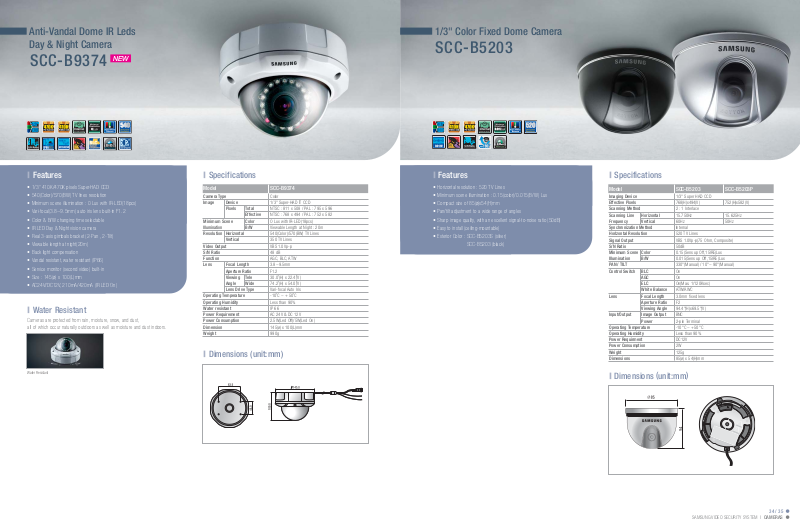

Samsung SCC-B9374 User Manual

|

Specifications

Model SCC-B9374

Camera Type Color
Image Device 1/3" Super-HAD IT CCD

Minimum Scene Color O Lux with IR-LED(18pcs)
Illumination
Resolution Horizontal 540(Color)/570(BW) TV Lines

Video Output VBS 1.0Vp-p
S/N Ratio 48 dB
Function AGC, BLC, ATW
Lens Focal Length 3.8~9.5mm

Operating Temperature -10˚C ~ + 50˚C
Operating Humidity Less than 90%
Water resistant IP 66
Power Requirement AC 24V & DC 12V
Power Consumption 2.5W(Led Off)/5W(Led On)
Dimension 145(ø) x 100(L)mm
Weight 990g

Pixels Total NTSC : 811 x 508 / PAL : 795 x 596

Effective NTSC : 768 x 494 / PAL : 752 x 582

B/W Viewable Length at Night : 20m

Vertical 350 TV Lines

Aperture Ratio F1.2
Viewing Tele 30.0˚(H) x 22.4˚(V)
Angle Wide 74.2˚(H) x 54.0˚(V)
Lens Drive Type Vari-focal Auto Iris
