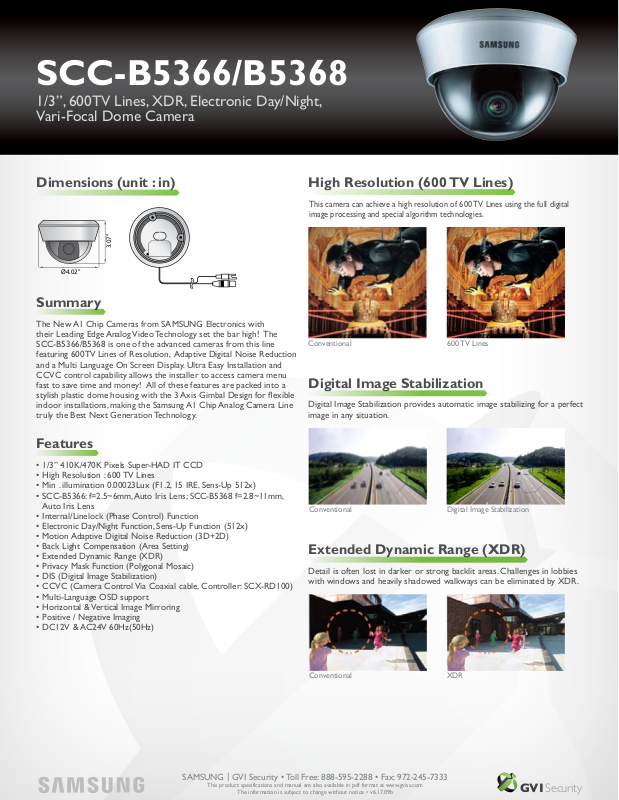

SCC-B5366/B5368

Ø4.02”

3.07”

1/3”, 600TV Lines, XDR, Electronic Day/Night,
Vari-Focal Dome Camera

Dimensions (unit : in)

Summary

The New A1 Chip Cameras from SAMSUNG Electronics with
their Leading Edge Analog Video Technology set the bar high! The
SCC-B5366/B5368 is one of the advanced cameras from this line
featuring 600TV Lines of Resolution, Adaptive Digital Noise Reduction
and a Multi Language On Screen Display. Ultra Easy Installation and
CCVC control capability allows the installer to access camera menu
fast to save time and money! All of these features are packed into a

stylish plastic dome housing with the 3 Axis Gimbal Design for exible

indoor installations, making the Samsung A1 Chip Analog Camera Line
truly the Best Next Generation Technology.

Features

• 1/3” 410K/470K Pixels Super-HAD IT CCD

• High Resolution : 600 TV Lines

• Min . illumination 0.00023Lux (F1.2, 15 IRE, Sens-Up 512x)

• SCC-B5366: f=2.5~6mm, Auto Iris Lens; SCC-B5368 f=2.8~11mm,

Auto Iris Lens

• Internal/Linelock (Phase Control) Function

• Electronic Day/Night Function, Sens-Up Function (512x)

• Motion Adaptive Digital Noise Reduction (3D+2D)

• Back Light Compensation (Area Setting)

• Extended Dynamic Range (XDR)

• Privacy Mask Function (Polygonal Mosaic)

• DIS (Digital Image Stabilization)

• CCVC (Camera Control Via Coaxial cable, Controller: SCX-RD100)

• Multi-Language OSD support

• Horizontal & Vertical Image Mirroring

• Positive / Negative Imaging

• DC12V & AC24V 60Hz(50Hz)

High Resolution (600 TV Lines)

This camera can achieve a high resolution of 600 TV Lines using the full digital
image processing and special algorithm technologies.

Conventional 600 TV Lines

Digital Image Stabilization

Digital Image Stabilization provides automatic image stabilizing for a perfect

image in any situation.

Conventional Digital Image Stabilization

Extended Dynamic Range (XDR)

Detail is often lost in darker or strong backlit areas. Challenges in lobbies

with windows and heavily shadowed walkways can be eliminated by XDR.

Conventional XDR

SAMSUNG | GVI Security • Toll Free: 888-595-2288 • Fax: [phone]

This product specifications and manual are also available in pdf format at www.gviss.com

The information is subject to change without notice • v6.17.09b

GVI Security

SCC-B5366/B5368

1/3”, 600TV Lines, XDR, Electronic Day/Night,
Vari-Focal Dome Camera

Specications

Model SCC-B5366 SCC-B5368
Camera Type Color/BW Color
Image Device 1/3” SONY Super-HAD IT CCD

Scanning System Interlace

Resolution Horizontal 600 TV Lines
Min. Scene

Illumination

Functions Number of Privacy Zone 12 (Polygonal Method)

Video Output VBS 1.0Vp-p VBS 1.0Vp-p
S/N Ratio 52 dB
Lens Focal Length 2.5~6mm 2.8~11mm

Remote
Control

Environmental
Conditions

Power Power Requirement 24 VAC ± 10% / 12 VDC ± 10%
Physical

Specification

Pixels Effective 768 x 494

Horizontal
Frequency

Vertical
Frequency

Sens-Up off 0.12 Lux (15 IRE), 0.2 Lux (30 IRE),

Sens-Up 0.00023 Lux (15 IRE), 0.0005 Lux (30 IRE),

Electronic Day/Night Color/BW/AUTO (Soft)
D-Zoom 1x ~ 16x (0.1x STEP)
High Speed Shutter 1/100 ~ 1/10K /sec. (OSD)
Sens-Up 2x ~ 512x
BLC Off/On
AGC Off/On (Max. 42dB, 16 Possible Levels)
Line-Lock Off/On (Phase Control)
Camera ID Off/On (Max. 54ea/2 Lines)
White Balance ATW1/ATW2/AWC/3200K/5600K
Extended Dynamic Range Off/Low/Mid/High
Digital Noise Reduction Off/On
Digital Image Stabilization Off/On
PIP Off/On
Etc. Function Detail, Mirror (H/V), Posi/Nega

Aperture Ratio F1.2
Viewing

Angle
Lens Drive Type AI(DC)

Mount Type Board Type
CCVC Yes (with SCX-RD100)

Operating Temperature Absolute: -10°C~+50°C

Operating Humidity Less than 90%

Dimensions 102(Ø) x 78(H) mm
Weight 330g
Color Body White

Internal
Mode

Line-Lock
Mode

Internal
Mode

Line-Lock
Mode

Tele 44.1°(H)x33.2°(V) 24.7°(H)x18.6°(V)
Wide 93.9°(H)x70.6°(H) 87.7°(H)x65.9°(V)

15,734 Hz

15,750 Hz

59.94 Hz

60 Hz

0.4 Lux (50 IRE) @ F1.2

0.0008 Lux (50 IRE) @ F1.2

Sustained: -20°C~+60°C
