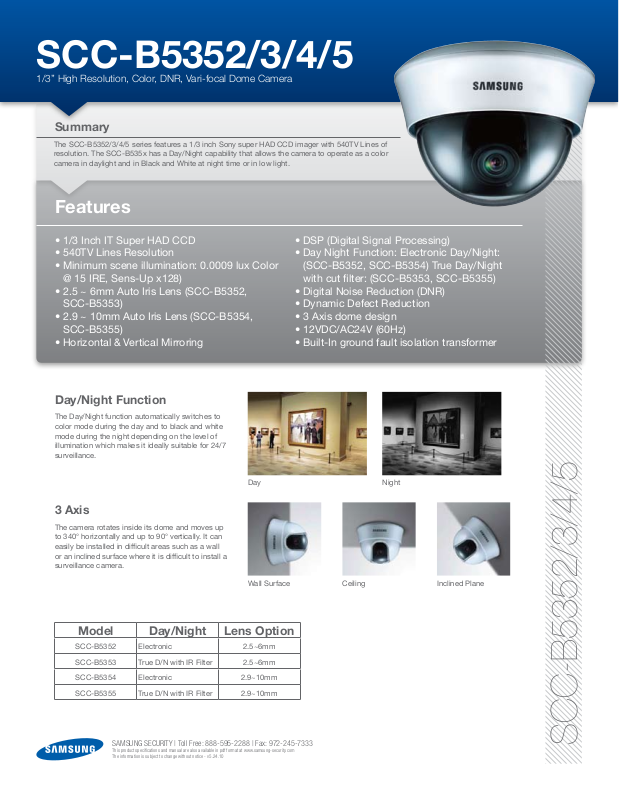

SCC-B5352/3/4/5
1/3” High Resolution, Color, DNR, Vari-focal Dome Camera
Summary
The SCC-B5352/3/4/5 series features a 1/3 inch Sony super HAD CCD imager with 540TV Lines of resolution. The SCC-B535x has a Day/Night capability that allows the camera to operate as a color camera in daylight and in Black and White at night time or in low light.
Features
•1/3 Inch IT Super HAD CCD
•540TV Lines Resolution
•Minimum scene illumination: 0.0009 lux Color @ 15 IRE, Sens-Up x128)
•2.5 ~ 6mm Auto Iris Lens (SCC-B5352, SCC-B5353)
•2.9 ~ 10mm Auto Iris Lens (SCC-B5354, SCC-B5355)
•Horizontal & Vertical Mirroring
•DSP (Digital Signal Processing)
•Day Night Function: Electronic Day/Night: (SCC-B5352, SCC-B5354) True Day/Night with cut filter: (SCC-B5353, SCC-B5355)
•Digital Noise Reduction (DNR)
•Dynamic Defect Reduction
•3 Axis dome design
•12VDC/AC24V (60Hz)
•Built-In ground fault isolation transformer
Day/Night Function
The Day/Night function automatically switches to color mode during the day and to black and white mode during the night depending on the level of illumination which makes it ideally suitable for 24/7 surveillance.
Day |
Night |
3 Axis
The camera rotates inside its dome and moves up to 340° horizontally and up to 90° vertically. It can easily be installed in difficult areas such as a wall or an inclined surface where it is difficult to install a surveillance camera.
Wall Surface Ceiling Inclined Plane
Model |
Day/Night |
Lens Option |
SCC-B5352 |
Electronic |
2.5~6mm |
|
|
|
SCC-B5353 |
True D/N with IR Filter |
2.5~6mm |
|
|
|
SCC-B5354 |
Electronic |
2.9~10mm |
|
|
|
SCC-B5355 |
True D/N with IR Filter |
2.9~10mm |
|
|
|
SAMSUNG SECURITY | Toll Free: 888-595-2288 | Fax: 972-245-7333
SCC-B5352/3/4/5
This product specifications and manual are also available in pdf format at www.samsung-security.com The information is subject to change without notice - v5.24.10
SCC-B5352/3/4/5
1/3” High Resolution, Color, DNR, Vari-focal Dome Camera
Specifications
Image |
Device |
Super-HAD CCD |
|
Size |
1/3” |
|
Pixels |
Effective: 768x494 |
Scanning |
System |
525 Lines, 2:1 Interlace |
Min. Scene Illumination |
Color |
0.0009 Lux @ 15IRE, Sens-Up x128 (F2.0) |
|
|
0.4 Lux @ 50 IRE (F2.0) |
|
B/W |
0.00009 Lux @ 15IRE, Sens-Up x128 (F2.0) |
|
|
0.04 Lux @ 50 IRE (F2.0) |
Functions |
Day/Night |
Yes (Moving Filter: SCC-B5353, SCC-B5355) |
|
|
Yes (Electronic: SCC-B5352, SCC-B5354) |
|
Sense Up (LSS) |
Off, AUTO x128 |
|
Digital Noise Reduction (DNR) |
On/Off |
|
LINE LOCK |
On/Off |
|
LSS |
On/Off |
|
H/V Reverse |
On/Off |
|
BLC |
On/Off |
|
Flickerless |
On/Off |
|
D/N |
On/Off |
|
AWB |
On/Off |
|
Sync Mode |
Internal/Line Lock |
Resolution |
Horizontal |
540TV Lines |
Video Output |
|
VBS 1.0Vp-p |
Lens |
Lens Drive Type |
Auto Iris (DC) |
|
Focal Length |
2.5 ~ 6.0mm: SCC-B5352, SCC-B5353 |
|
|
2.9 ~ 10mm: SCC-B5354, SCC-B5355 |
Environmental Conditions |
Operating Temperature |
14ºF ~ 122ºF (-10° ~ 50°C) |
|
Humidity |
Within 90% RH |
Power |
Power Requirement |
AC24V (60Hz), DC12V Dual |
|
Power Consumption |
1.7 Watts |
Physical Specification |
Dimensions (ø x H) |
5 x 3.5 in / 127 x 91 mm |
|
Weight |
0.72lbs / 327g |
Dimensions (unit : in) Front/Rear Panel
3.5
Ø5
Certifications
SAMSUNG SECURITY | Toll Free: 888-595-2288 | Fax: 972-245-7333
SCC-B5352/3/4/5
This product specifications and manual are also available in pdf format at www.samsung-security.com The information is subject to change without notice - v5.24.10
