Samsung SCC-B5331, SCC-B5333, SCC-B5335 User Manual

SCC-B5331
SCC-B5333
SCC-B5335

DIGITAL COLOR DOME

CAMERA

user manual

ENG FRC

ENG

SPA-M

JAP

imagine the possibilities

Thank you for purchasing this Samsung product.
To receive more complete service,
please register your product at

www.samsungsecurity.com

POR-B

Safety information

A

.

.

.

.

0

.

.

.

.

.

.

.

.

.

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS

INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol indicates that dangerous voltage consisting a risk of electric shock is
present within this unit.

This exclamation point symbol is intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the literature accompanying the
appliance.

WARNING

To reduce the risk of fi re or electric shock, do not expose this appliance to rain or moisture.

•

To prevent injury, this apparatus must be securely attached to the fl oor/wall in accordance with the

•

installation instructions.

If this power supply is used at 240V ac, a suitable plug adapter should be used.

•

WARNING

Be sure to use only the standard adapter that is specifi ed in the specifi cation sheet.

1.
Using any other adapter could cause fi re, electrical shock, or damage to the product.

Incorrectly connecting the power supply or replacing battery may cause explosion, fi re, electric shock, or

2.
damage to the product.

Do not connect multiple cameras to a single adapter. Exceeding the capacity may cause abnormal heat

3.
generation or fi re.

Securely plug the power cord into the power receptacle. Insecure connection may cause fi re.

4.

5.

When installing the camera, fasten it securely and fi rmly. The fall of camera may cause personal injury.

2 – DIGITAL COLOR DOME CAMERA

6

7

8

9

1

C

1

2

3

4

5

6

7

8

9

Safety information

Do not place conductive objects (e.g. screwdrivers, coins, metal parts, etc.) or containers fi lled with water on

6.
top of the camera. Doing so may cause personal injury due to fi re, electric shock, or falling objects.

Do not install the unit in humid, dusty, or sooty locations. Doing so may cause fi re or electric shock.

7.

If any unusual smells or smoke come from the unit, stop using the product. In such case, immediately

8.

t

disconnect the power source and contact the service center. Continued use in such a condition may cause
fi re or electric shock.

9.

If this product fails to operate normally, contact the nearest service center. Never disassemble or modify
this product in any way. (SAMSUNG is not liable for problems caused by unauthorized modifi cations or
attempted repair.)

10.

When cleaning, do not spray water directly onto parts of the product. Doing so may cause fi re or electric shock.

CAUTION

1.

Do not drop objects on the product or apply strong blows to it. Keep away from a location subject to
excessive vibration or magnetic interference.

2.

Do not install in a location subject to high temperature (over 140°F), low temperature (below -14°F), or high
humidity. Doing so may cause fi re or electric shock.

If you want to relocate the already installed product, be sure to turn off the power and then move or reinstall

3.
it.

Remove the power plug from the outlet when there is a lighting storm. Neglecting to do so may cause fi re or

4.
damage to the product.

Keep out of direct sunlight and heat radiation sources. It may cause fi re.

5.

Install it in a place with good ventilation.

6.

Avoid aiming the camera directly towards extremely bright objects such as sun, as this may damage the

7.
CCD image sensor.

Apparatus shall not be exposed to dripping or splashing and no objects fi lled with liquids, such as vases,

8.
shall be placed on the apparatus.

The Mains plug is used as a disconnect device and shall stay readily operable at any time.

9.

English – 3

ENG

W

.

.

.

.

.

.

.

.

.

0

1

2

3

4

Safety information

FCC Statement

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions :

1) This device may not cause harmful interference, and

2) This device must accept any interference received including interference that may cause undesired operation.

Caution

This equipment has been tested and found to comply with the limits for a Class A digital device, pursu­ant to part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used
in accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own expense.

IC Compliance Notice

This Class A digital apparatus meets all requirements of the Canadian Interference.­Causing Equipment Regulations of ICES-003.

4 – DIGITAL COLOR DOME CAMERA

1

2

3

4

5

6

7

8

9

1

1

1

1

1

n

Important Safety Instructions

e

WARNING

Read these instructions.

1.

Keep these instructions.

.

l

2.

Heed all warnings.

3.

Follow all instructions.

4.

Do not use this apparatus near water.

5.

Clean only with dry cloth.

6.

Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

7.

Do not install near any heat sources such as radiators, heat registers, or other apparatus (including

8.

amplifi ers) that produce heat.

Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades

9.

with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide
blade or the third prong is provided for your safety. If the provided plug does not fi t into your outlet, consult
an electrician for replacement of the obsolete outlet.

Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles,

10.

and the point where they exit from the apparatus.

Only use attachments/accessories specifi ed by the manufacturer.

11.

Use only with cart, stand, tripod, bracket, or table specifi ed by the manufacturer, or

12.

sold with the apparatus.

Unplug this apparatus when a card is used. Use caution when moving the cart/

13.

apparatus combination to avoid injury from tip-over.

Refer all servicing to qualifi ed service personnel. Servicing is required when the

14.

apparatus has been damaged in any way, such as powersupply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does
not operate normally, or has been dropped.

Apparatus shall not be exposed to dripping or splashing and no objects fi lled with
liquids, such as vases, shall be placed on the apparatus

English – 5

ENG

Contents

❖

❖

❖

❖

❖

❖

❖

❖

❖

❖

Introduction

Features 7

Product & Accessories 8

Part Names and Functions 9

Installation

Before installation 11ssss

Installation procedure 11

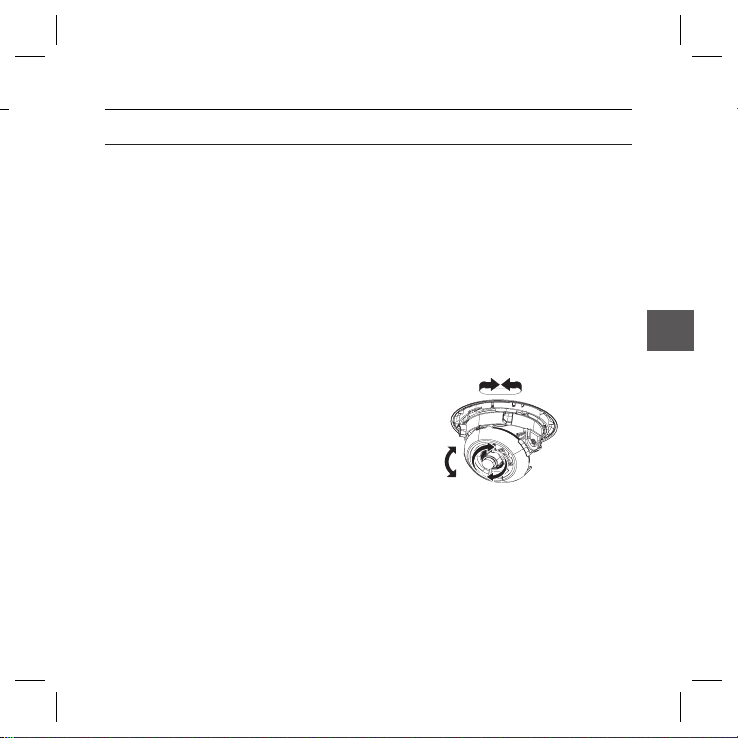

Adjusting the camera direction 13

How to use OSD Menu

Main Menu 14

Profi le 15

Camera Setup 17

Intelligence 24

Privacy Zone Setup

Other Set 28

System Information 28

Language 28

Specifi cations

Specifi cations 30

6 – DIGITAL COLOR DOME CAMERA

26

F

Introduction

FEATURES

High Resolution

❖

•

This camera has realized high resolution of 600 lines using the top-notch full digital image processing and
special algorithm technologies.

❖

Intelligent Motion Detection & Tracking

•

This is an intelligent function that automatically detects a motion of an object. You can set a virtual fence so it
displays an alert if an object passes / enters /exits the virtual fence or virtual area.

❖

XDR (eXtended Dynamic Range)

•

Actively controls the gamma compensation in the way it operates the ambient luminance contrast in a
certain pixel unit to determine the optimal visibility.

❖

DAY/NIGHT

•

This function can make the IR Cut fi ltering function inactive under the illumination below the normal value.

❖

High Sensitivity

•

It implements images of high sensitivity using the up-to-date SONY Super-HAD Progressive CCD.

❖

Low Illumination

•

It uses the digital signal technologies such as low illumination and Day/Night functions that make your camera
identify objects even in the worst environment.

❖

Superior Backlight Adjustment

•

When an object has a bright illumination or sunlight behind it, this camera automatically improves the
shaded object picture quality.

❖

Digital Power Synchronization

•

The full digital Line Lock function directly adjusts the vertical camera synchronization to enhance the
operationability and reliability of this camera.

❖

Output Signal Setting

•

You can set the following Video output signals: Image reversion (Horizontal, Vertical, or both), Privacy,
Horizontal/Vertical profi ling, and digital zooming.

❖

OSD(On Screen Display) Menu

•

OSD menu is provided to display the status of camera and to confi gure the functions interactively.

English – 7

ENG

Introduction

P

❖

3

Coaxial Cable Communication

❖

•

This is a remote control function that overlaps the coaxial cable (for a transfer of the video signal) with the control
signal. In installation or repair, this helps you control the communication controller (optional) without additional cabling.

PRODUCT & ACCESSORIES

❖

Product & Accessories

•

Accessories

Main Product

•

Camera

Test Monitor Cable

Note :



The test monitor cable is used to test the camera by connecting to a portable display. If you really want to connect the camera

–

to a monitoring display, use the BNC cable.

8 – DIGITAL COLOR DOME CAMERA

Tab screw

User’s Manual

Introduction

a

PART NAMES AND FUNCTIONS

.

Components of your camera ❖

1

3

2

LENS

4

5

6

7

1.Cover dome: Covers the lens and main
body to protect them.

2.Main body: Includes a lens, a switch
board, a PCB board, screws, and such.

3.Locker: Used to open or close the Cover
dome. To open the cover dome, press the
locker.

4.Tilt fixing screw: Using this screw, the
slope of the lens can be adjusted and
fi xed.

5.Switch board: Includes two kinds of
control switches such as function switches
and phase-control switches. The board
has eight function switches in the middle
and two phase-control buttons on each
side of the function switch area.
6Lock releaser: Push it outward and rotate
the main body in UNLOCK direction when
you want to remove the mount bracket
from the main body.

7.Ceiling mount opener: Remove it for
line connection to the ceiling when it is
installed on the ceiling.

ENG

English – 9

Introduction

n

B

e

N

Setting switches❖

SETUP Switch

•

This switch is used to set the function or property. When this switch is pressed for at least 2 seconds, the
MAIN MENU appears.

ef

(Left/Right)

: By pressing this switch left or right, you can move left or right on the menu or change the

cd

(Up/Down) :

 : When you press this switch in the menu, the selected function is confi rmed. To enter a submenu, press

this button.

10 – DIGITAL COLOR DOME CAMERA

displayed value.

By pressing this switch up or down, you can move up or down on the menu.

I

B

I

the

ss

Installation

BEFORE INSTALLATION

Before installing your camera, you have to read the following cautions.

You have to check whether the location (ceiling or wall) can bear fi ve times the weight of your camera.

•

Don’t let the cable to be caught in improper place or the electric line cover to be damaged. Otherwise it

•

may cause a breakdown or fi re.

When installing your camera, don’t allow any person to approach the installation site. If you have any

•

valuable things under the place, move them away.

INSTALLATION PROCEDURE

ENG

English – 11
