Samsung SCB-2002 Series, SCB-3003N, SCB-3003P User Manual

Supreme Resolution
WDR Camera

User Manual

SCB-3003

Supreme Resolution WDR Camera

User Manual

Copyright
©2013 Samsung Techwin Co., Ltd. All rights reser ved.

Trademark

is the registered logo of Samsung Techwin Co., Ltd.
The name of this product is the registered trademark of Samsung Techwin Co., Ltd.
Other trademarks mentioned in this manual are the registered trademark of their respective company.

Restriction

Samsung Techwin Co., Ltd shall reserve the copyright of this document. Under no circumstances, this document
shall be reproduced, distributed or changed, partially or wholly, without formal authorization of Samsung Techwin.

Disclaimer

Samsung Techwin makes the best to verify the integrity and correctness of the contents in this document, but
no formal guarantee shall be provided. Use of this document and the subsequent results shall be entirely on
the user’s own responsibility. Samsung Techwin reserves the right to change the contents of this document
without prior notice.

Warranty

If the product does not operate properly in normal conditions, please let us know. Samsung Techwin will resolve
the problem for free of charge. The warranty period is 3 years. However, the followings are excluded:

If the system behaves abnormally because you run a program irrelevant to the system operation.
Deteriorated performance or natural worn-out in process of time

 Design and specifi cations are subject to change without prior notice.

•

•

B
h

■

■

Before operating the camera, confirm the camera model and correct input power voltage. To
help you understand this manual thoroughly, we'll introduce our model description.

■ SCB-2002 SERIES

• NTSC MODEL • PAL MODEL
SCB-3003N SCB-3003P

■ MODEL DESCRIPTION

• SCB-3003X

_

• SIGNAL SYSTEM
N → NTSC MODEL
P → PAL MODEL

SIGNAL SYSTEM

4_ safety information

safety information

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE

COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER

SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol indicates that dangerous voltage consisting a risk of electric

shock is present within this unit.

This exclamation point symbol is intended to alert the user to the presence

of important operating and maintenance (servicing) instructions in the

literature accompanying the appliance.

WARNING

To prevent damage which may result in fi re or electric shock hazard, do not expose this
appliance to rain or moisture.

To prevent injury, this apparatus must be securely attached to the fl oor/wall in accordance with
the installation instructions.

WARNING

Be sure to use only the standard adapter that is specifi ed in the specifi cation sheet.
Using any other adapter could cause fi re, electrical shock, or damage to the product.

Incorrectly connecting the power supply or replacing battery may cause explosion, fi re,
electric shock, or damage to the product.

Do not connect multiple cameras to a single adapter. Exceeding the capacity may cause
abnormal heat generation or fi re.

Securely plug the power cord into the power receptacle. insecure connection may cause
fi re.

When installing the camera, fasten it securely and fi rmly. The fall of camera may cause
personal injury.

•

•

1.

2.

3.

4.

5.

C

6

7

8

9

1

1

2

3

4

5

6

7

8

9

1

English_5

● SAFETY INFORMATION

c

e
e

s

h

.

,

Do not place conductive objects (e.g. screwdrivers, coins, metal parts, etc.) or containers
fi lled with water on top of the camera. doing so may cause personal injury due to fi re, electric
shock, or falling objects.

Do not install the unit in humid, dusty, or sooty locations. doing so may cause fi re or electric
shock.

If any unusual smells or smoke come from the unit, stop using the product. in such case,
immediately disconnect the power source and contact the service center. continued use in
such a condition may cause fi re or electric shock.

If this product fails to operate normally, contact the nearest service center. never disassemble
or modify this product in any way. (samsung is not liable for problems caused by unauthorized
modifi cations or attempted repair.)

When cleaning, do not spray water directly onto parts of the product. doing so may cause

fi re or electric shock.

CAUTION

Do not drop objects on the product or apply strong shock to it. Keep away from a location
subject to excessive vibrationor magnetic interference.

Do not install in a location subject to high temperature (over 55°C), low temperature (below

-10°C), or high humidity. Doing so may cause fi re or electric shock.

If you want to relocate the already installed product, be sure to turn off the power and then
move or reinstall it.

Remove the power plug from the outlet when then there is a lightning. Neglecting to do so
may cause fi re or damage to the product.

Keep out of direct sunlight and heat radiation sources. It may cause fi re.

Install it in a place with good ventilation.

Avoid aiming the camera directly towards extremely bright objects such as sun, as this may
damage the CCD image sensor.

Apparatus shall not be exposed to dripping or splashing and no objects fi lled with liquids,
such as vases, shall be placed on the apparatus.

The Mains plug is used as a disconnect device and shall stay readily operable at any time.

Do not expose the camera to radioactivity. Radioactivity exposure may damage the CCD.

6.

7.

8.

9.

10.

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

6_ safety information

safety information

FCC Statement

This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions :

This device may not cause harmful interference, and
This device must accept any interference received including interference that may cause
undesired operation.

CAUTION

This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instruction manual, may cause harmful interference to
radio communications. Operation of this equipment in a residential area is likely to cause
harmful interference in which case the user will be required to correct the interference at
his own expense.

IC Compliance Notice

This Class A digital apparatus meets all requirements of the Canadian
Interference.-Causing Equipment Regulations of ICES-003.

1)

2)

Correct disposal of batteries in this product

(Applicable in the European Union and other European countries with separate battery return systems.)

This marking on the battery, manual or packaging indicates that the batteries in this product should not be
disposed of with other household waste at the end of their working life. Where marked, the chemical symbols
Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC
Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health
or the environment.

To protect natural resources and to promote material reuse, please separate batteries from other types of waste
and recycle them through your local, free battery return system.

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories
(e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their
working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal,
please separate these items from other types of waste and recycle them responsibly to promote the sustainable
reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government
office, for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract.
This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

i

m

1

2
3
4
5
6
7

8

9

1

1
1

1

1

English_7

● SAFETY INFORMATION

important safety instructions

Read these instructions.

Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings. Install in accordance with the manufacturer’s

instructions.
Do not install near any heat sources such as radiators, heat registers, or other apparatus

(including amplifi ers) that produce heat.
Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug

has two blades with one wider than the other. A grounding type plug has two blades and
a third grounding prong. The wide blade or the third prong is provided for your safety. If
the provided plug does not fi t into your outlet, consult an electrician for replacement of the
obsolete outlet.

Protect the power cord from being walked on or pinched particularly at plugs, convenience

receptacles, and the point where they exit from the apparatus.
Only use attachments/accessories specifi ed by the manufacturer.
Use only with cart, stand, tripod, bracket, or table specifi ed by the

manufacturer, or sold with the apparatus.
Unplug this apparatus when a card is used. Use caution when moving the

cart/ apparatus combination to avoid injury from tip-over.
Refer all servicing to qualifi ed service personnel. Servicing is required when the apparatus

has been damaged in any way, such as powersupply cord or plug is damaged, liquid has

been spilled or objects have fallen into the apparatus, the apparatus has been exposed to

rain or moisture, does not operate normally, or has been dropped.

Apparatus shall not be exposed to dripping or splashing and no objects
fi lled with liquids, such as vases, shall be placed on the apparatus

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

13.

14.

Samsung Techwin cares for the environment at all product manufacturing
stages to preserve the environment, and is taking a number of steps to provide
customers with more environment-friendly products.The Eco mark represents
Samsung Techwin’s will to create environment-friendly products, and indicates
that the product satisfi es the EU RoHS Directive.

8_ contents

contents

INTRODUCTION

9

9

Features

11

Components and Accessories

11

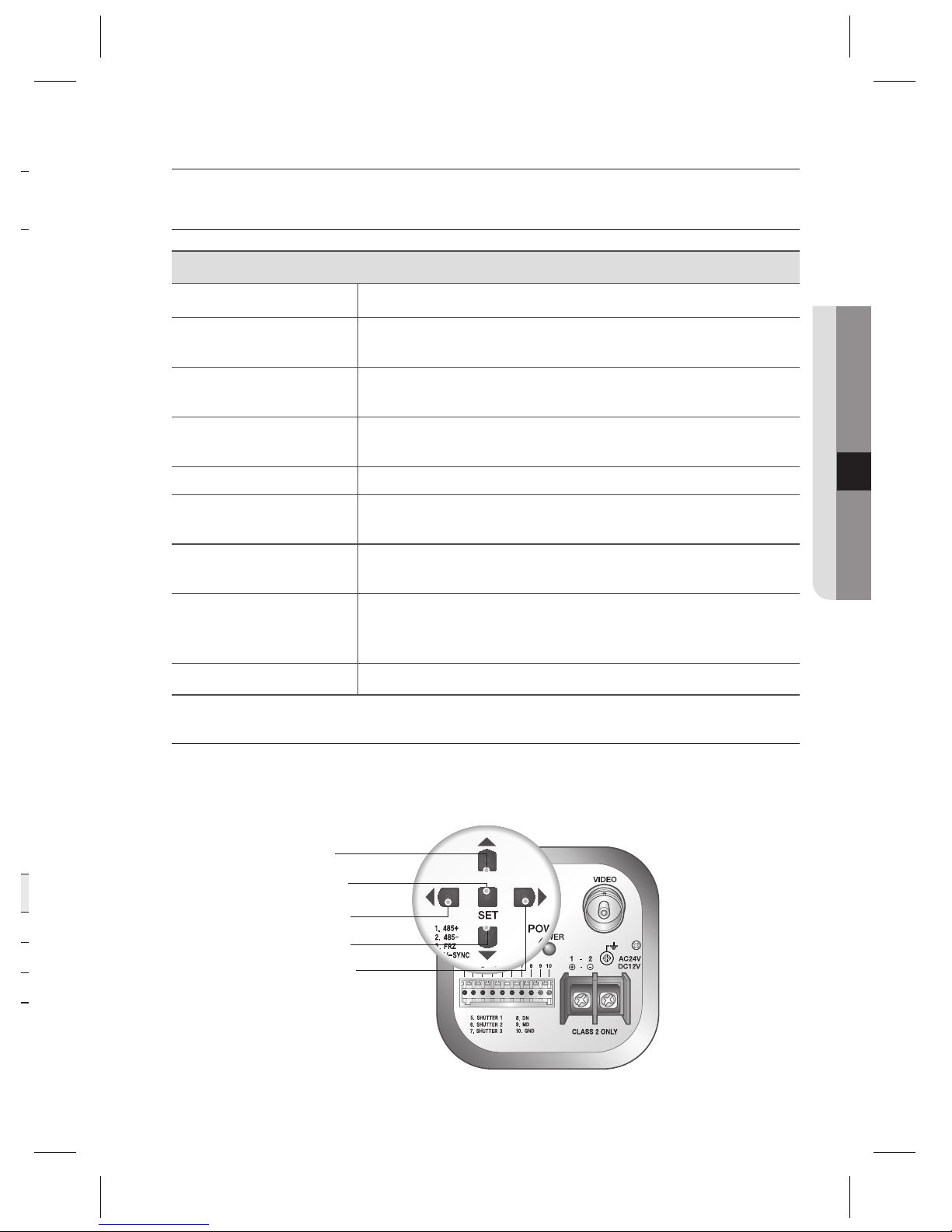

Overview

15

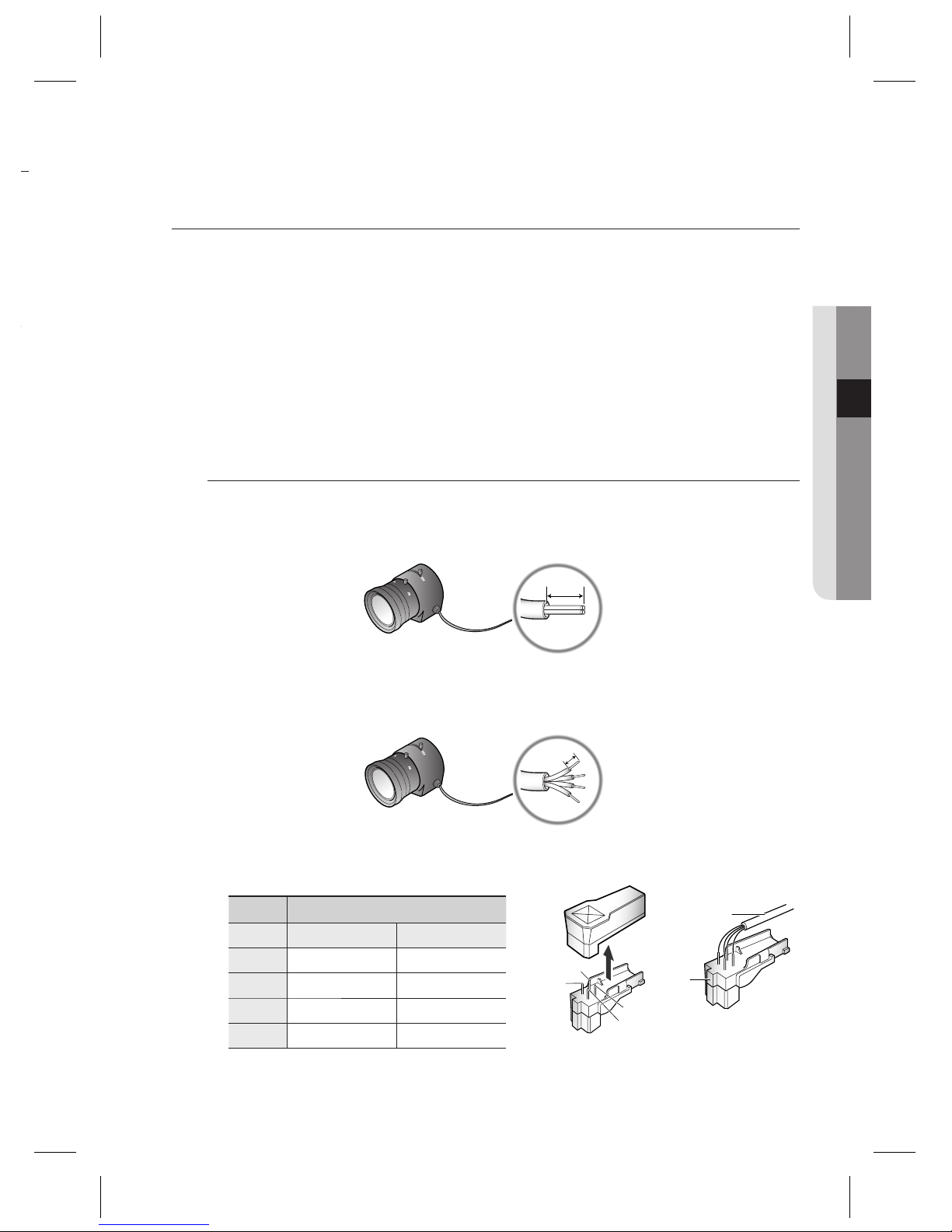

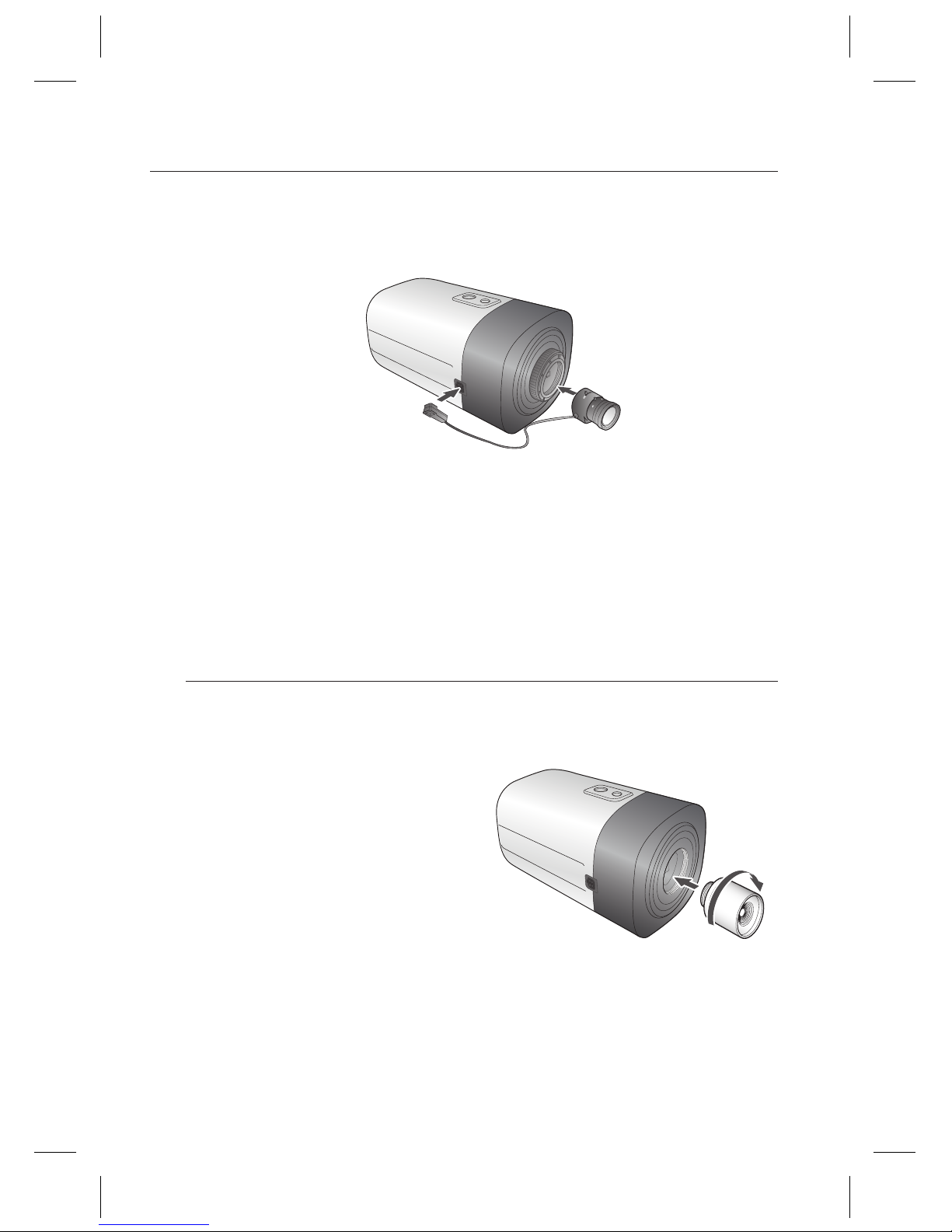

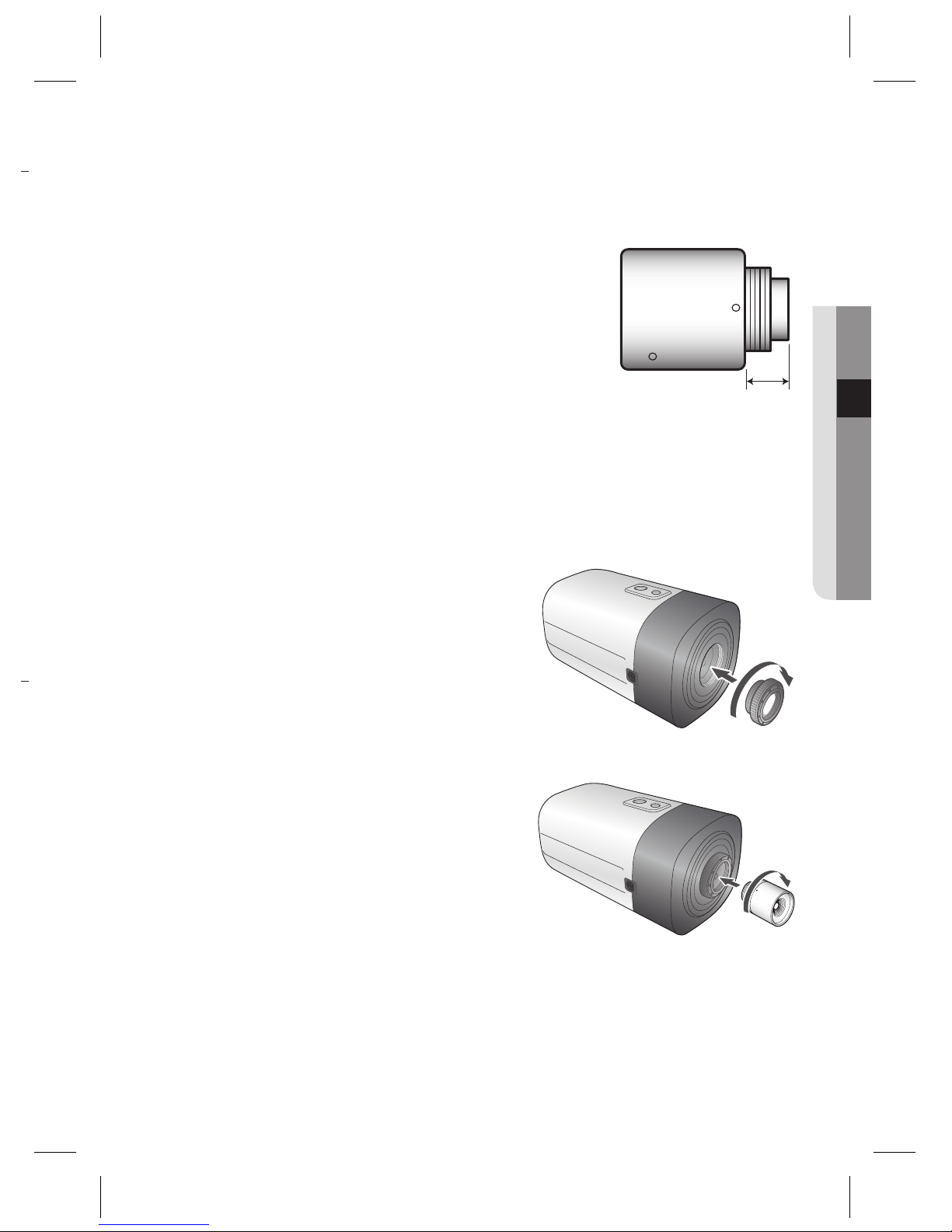

Lens

CONNECTION

18

18

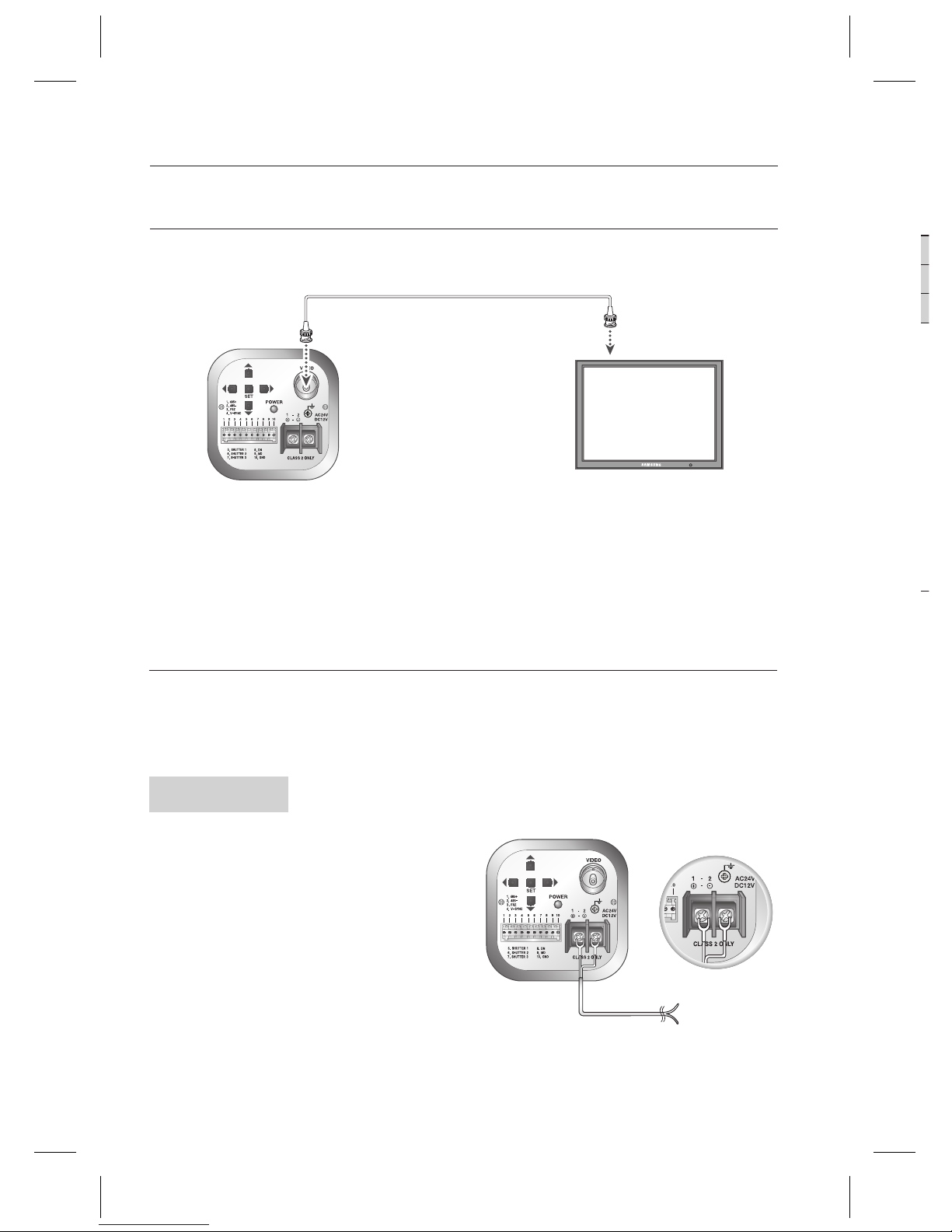

Connecting to Monitor

18

Connecting to Power

19

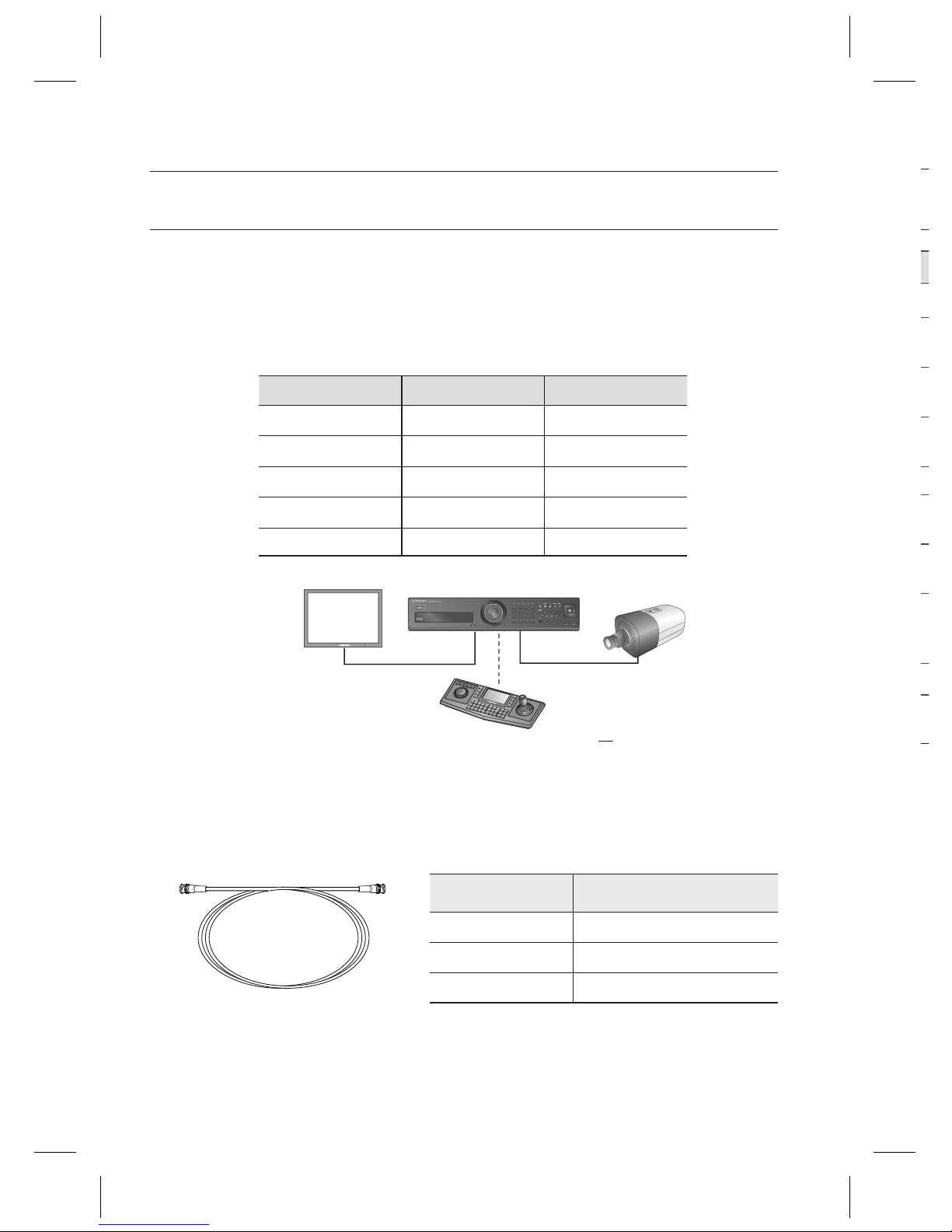

Control via RS-485 Interface

20

Using Coaxial Communications

CAMERA OPERATION

21

21

Menu Confi guration

21

Menu Setup

TROUBLESHOOTING

39

39

Troubleshooting

SPECIFICATIONS

40

40

Specifi cations

42

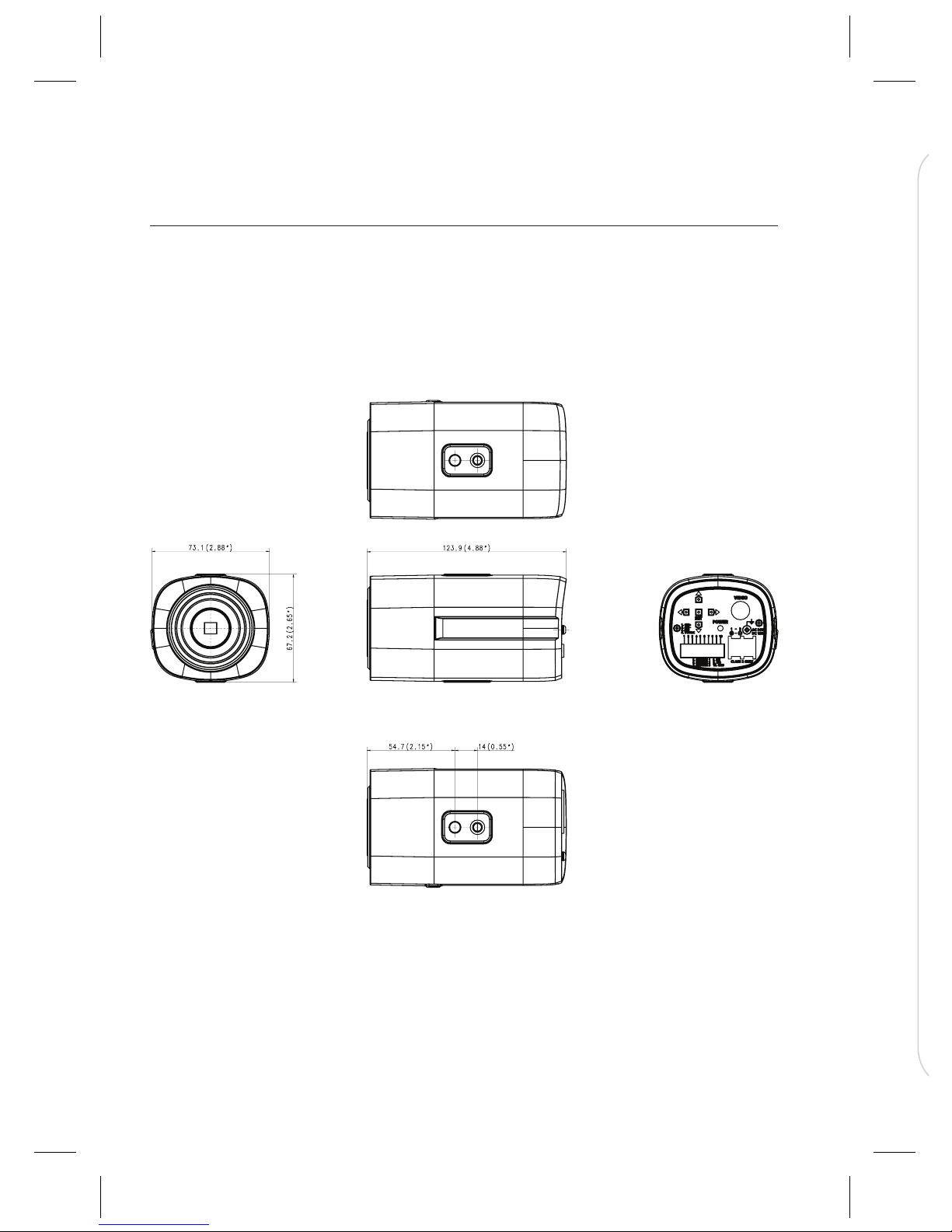

Dimension

i

n

F

y

y

y

y

y

y

y

y

y

English_9

● INTRODUCTION

introduction

Features

High Resolution

By adopting a diagonal 6mm (1/3”) 520,000 pixel (NTSC), 610,000 pixel (PAL) Super HAD
CCD II, the camera produces clear picture quality with a horizontal resolution of Max 700TVL
in ER mode and

700TVL

for BW .

Excellent Sensitivity

The built-in high sensitivity COLOR CCD produces a clear image.

- Color : 0.1Lux @ F1.2, 0.0002 Lux (Sens-up, 512x)
B/W : 0.01 Lux @ F1.2, 0.00002 Lux ( Sens-up, 512x )

Intelligence

Without assistance from an external sensor, this camera independently detects and
traces objects while examining stillness and movement to activate the alarm.

SSNR3 (Samsung Super Noise Reduction) Function

High performance SV-V DSP Chip removes noises of GAIN resulting from the low light
level and shows a vivid, high defi nition video even in the dark place.

Day&Night (ICR)

This camera has a function that automatically selects the mode that is appropriate
for daytime or night-time conditions. The COLOR mode operates in daytime condi­tions to provide optimum colors, and B/W mode operates in night-time conditions to
enhance the defi nition of the image.

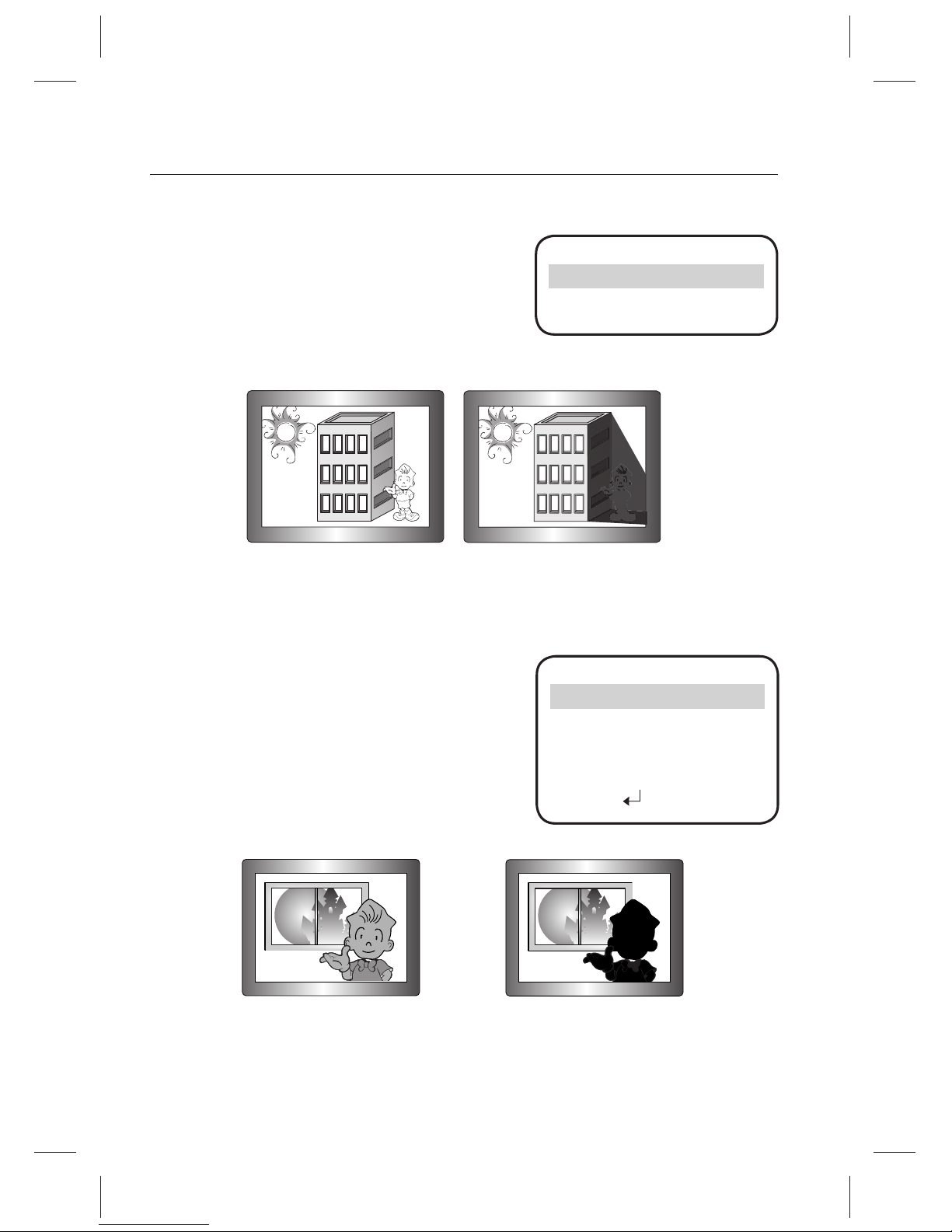

SSDR (Samsung Super Dynamic Range)

For images with high contrast between bright and dark areas from diffi cult lighting
conditions such as backlighting, this camera selectively illuminates darker areas while
retaining the same light level for brighter areas to even out the overall brightness.

PROFILE

You can set a mode according to the camera installation conditions.

- BASIC, DAYNIGHT, BACKLIGHT, ITS, INDOOR, USER,

PIP

Displays a full-size image along with the thumbnail.

WDR

By adopting a proprietary SV-V DSP chip, the camera delivers clear, high quality
pictures even in backlight, by increasing exposure in dark areas while decreasing it in
bright areas; a corrected image with clear details results.

y

y

y

y

y

y

y

y

y

10_ introduction

introduction

C

C

O

VPS(Virtual Progressive Scan)

By adopting a proprietary SV-V DSP chip, the camera delivers clear, high quality
pictures even in backlight, by increasing exposure in dark areas while decreasing it in
bright areas; a corrected image with clear details results.

Video/DC Drive Lens Support

You can select Video or DC Drive Lens from the menu.

DIS (Digital Image Stabilizer)

The DIS function compensates for any camera movement, to produce more stable
pictures.

SIMPLE FOCUS

Using SIMPLE FOCUS, you can easily adjust the focus.

Miscellaneous Functions

HLC(High Light Compensation), SENS-UP, REVERSE , D-ZOOM, SHARPNESS and
PRIVACY functions are provided.

Communication

Coaxial and RS-485 communication methods are supported.

- Coaxial Communications : Pelco Coaxitron

- RS-485 Communications : Samsung-T, Samsung-E, PELCO-D, PELCO-P,
BOSCH, HONEYWELL, VICON, PANASONIC, GE, AD

OSD

The camera’s OSD is complimented by 19 languages.

- NTSC : English, Korean, Japanese, Spanish, French, Portuguese

- PAL : English, Chinese, German, Italian, French, Spanish, Russian, Czech, Polish,

Romanian, Serbian, Swedish, Danish, Turkish, Portuguese

y

y

y

y

y

y

y

English_11

● INTRODUCTION

Components and Accessories

Check if the following items are included in the product package.

SCB-3003

Auto Iris Lens

Connector Plug

C-Mount Adapter

Supreme Resolution
WDR Camera

Quick Guide

SCB-3003

Quick Manual 10 level terminal block

Overview

Front View

❶

Tripod Mounting Bracket Screw Hole :

Used to fi x the Tripod Mounting Bracket to the top of the camera.

➋

C-Mount Lens Adapter : Install this adapter to use a C-Mount Lens.

➊

➋

12_ introduction

introduction

Side View



➌

Auto Iris Lens Connector :

Used to connect Auto Iris Lens plug.

Bottom View

➍

➍

Tripod Mounting Bracket Screw Hole :

Used to fi x the camera on a bracket or tripod.
The screw sizes for this hole are as follows.

Tripod is not supplied with the camera. Please check the installed documentation of tripod for
the installation of cameras.

M



1/4"-20 UNC (20 THREAD)
L:4.5mm±0.2mm (ISO standard),
or 0.197" (ASA standard)

L

English_13

● INTRODUCTION

Rear View

➎

➐

➏

➑
➒

❿

⓫

⓬

⓰

⓯

⓮

⓭

➎

Function Setup Button

SET button : (Short press) The SIMPLE FOCUS operates.

(Long press) The menu screen is displayed.

Use it to go the lower menu on the menu screen.
Up & Down button : Used to move the cursor up or down in the menu screen.
Left x right button : Move the cursor left and right on the menu screen.

If the menu screen is not desired, move the focus to Near or Far.

➏

RS-485 Control Port : You can control SETUP MENU through this port by using

external controllers like a Remote controller that RS-485 Communication is supported.

➐

FREEZE Mode Setting Terminal : Turns on or off FREEZE function.

➑

V-SYNC Input Terminal : Enables External Sync.

➒

Shutter Speed Select Terminal : Selects external sync shutter speed.

y

y
y

SHUTTER 1 SHUTTER 2 SHUTTER 3

1/60 OFF OFF OFF

1/120 ON OFF OFF
1/250 OFF ON OFF
1/500 ON ON OFF
1/700 OFF OFF ON

1/1000 ON OFF ON
1/1600 OFF ON ON

1/2500 ON ON ON

[Interlace mode]

14_ introduction

introduction

❿

D & N Input Port : You can switch to Day & Night Mode by connecting an external

signal to this port.

⓫

MD Output Port : Motion detection signals are output through this port.

⓬

GND

⓭

Video OUT Terminal : Sends video signal and connects to the video input terminal of the monitor.

⓮

Power LED : This lamp is lit when the camera is receiving power normally.

⓯

Power input terminal : Connects to the power appropriate to each model.

⓰

Ground terminal

ö

External I / O port configuration

Num Name I/O Direction

1 RS-485+ I/O
2 RS-485- I/O
3 Freeze I
4 V-SYNC I

5-7 Shutter I

8DN I
9MD O

10 GND -

When using the FREEZE Mode Setting Terminal, the Shutter Speed Select Terminal and the D & N
Input Port, Connect each of the terminals to the Ground Terminal.

M



L

T
T
