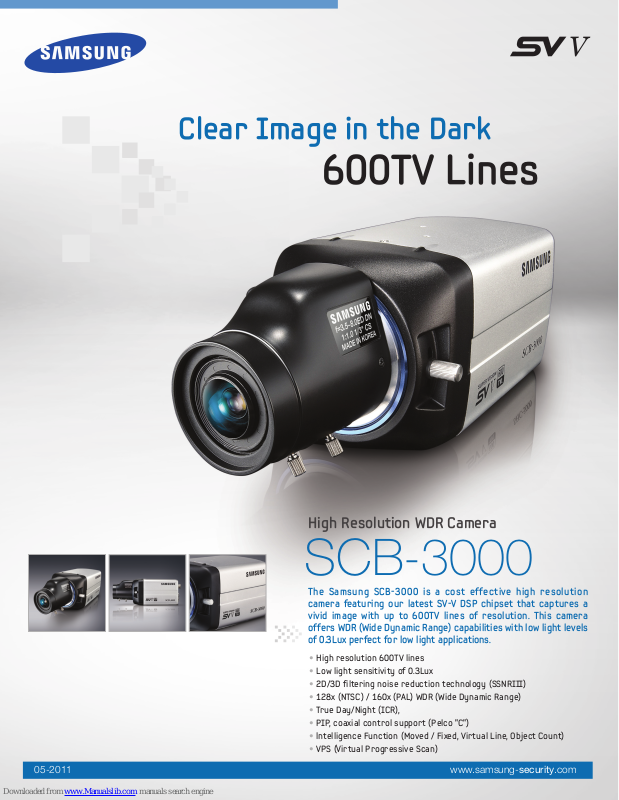

Page 1
Clear Image in the Dark
600TV Lines
05-2011
High Resolution WDR Camera
SCB-3000
The Samsung SCB-3000 is a cost effective high resolution
camera featuring our latest SV-V DSP chipset that captures a
vivid image with up to 600TV lines of resolution. This camera
offers WDR (Wide Dynamic Range) capabilities with low light levels
of 0.3Lux perfect for low light applications.
• High resolution 600TV lines
• Low light sensitivity of 0.3Lux
• 2D/3D filtering noise reduction technology (SSNRIII)
• 128x (NTSC) / 160x (PAL) WDR (Wide Dynamic Range)
• True Day/Night (ICR),
• PIP, coaxial control support (Pelco "C")
• lntelligence Function (Moved / Fixed, Virtual Line, Object Count)
• VPS (Virtual Progressive Scan)
www.samsung-security.com
Page 2
Dimensions
61 (2.4")
113 (4.45")
102 (4.02")
66 (2.6")
Unit : mm (inch)
102 (4.02")
113 (4.45")
Available Lenses /
Accessories (optional):
SLA-2810D
STB-400 STH-500 STH-200
STB-4150V
SLA-2985D
SHB-4300H1
USE
WITH
SLA-3580DN
SHB-4200/SHB-4200H
OR
SLA-550DA
High Resolution WDR Camera
SCB-3000
0.3
Lux
Specifications
SCB-3000N SCB-3000P SCB-3000PH
VIDEO
Imaging Device
Total Pixels
Effective Pixels
Scanning System
Synchronization
Frequency
Horizontal Resolution
Min. Illumination
S / N Ratio
Video Output
LENS
Lens Type
Mount Type
OPERATIONAL
On Screen Display
61 (2.4")
Camera Title
Day & Night
Backlight Compensation
Wide Dynamic Range
Contrast Enhancement
Digital Noise Reduction
Digital Image
Stabilization
Motion Detection
Privacy Masking
Sens-up (Frame Integration)
Gain Control
White Balance
Electronic Shutter Speed
Digital Zoom
Flip
Profile
VPS
PIP
Alarm
Communication
Protocol
ENVIRONMENTAL
Operating Temperature / Humidity
ELECTRICAL
Input Voltage
Power Consumption
MECHANICAL
Color / Material
Dimensions (WxHxD)
Weight
1/3" Super HAD CCD (Double scan)
811(H) x 508(V) 795(H) x 596(V)
768(H) x 494(V) 752(H) x 582(V)
2 : 1 Interlace
Internal / Line lock / Extern
H : 15.734KHz / V : 59.94Hz H : 15.625KHz / V : 50Hz
Color : 600TV lines, B/W : 700TV lines
Color : [email protected] (50IRE), 0.0006Lux (Sens-up, 512x)
B/W : [email protected] (50IRE), 0.00002Lux (Sens-up, 512x)
52dB (AGC off, Weight on)
CVBS : 1.0 Vp-p / 75Ω composite
Manual / Auto iris (Video / DC)
C / CS
English, Japanese, Spanish,
French, Portuguese,
Taiwanese, Korean
Off / On (Displayed 15 characters)
Auto (ICR) / External / Color / B/W
Off / User BLC / HLC / SSDR / WDR
128x (52dB) 160x (52dB)
SSDR
SSNR
III
(Off / On)
Off / On
Built-in
Off / On (12 programmable zones with polygonal masking)
2x ~ 512x
Off / Low / High
ATW / Outdoor / Indoor / Manual / AWC (1,700K° ~ 11,000K°)
1/60 ~ 1/120,000sec 1/50 ~ 1/120,000sec
Off / On (1x ~ 16x)
Vertical / Horizontal
Basic / Day & Night / Backlight / ITS / Indoor / User
Off / On
Off / On
1 Out
Coaxial control, RS-485
Coax : Pelco-C (Coaxitron)
RS-485 : Samsung-T/E, Pelco-D/P, Panasonic, Bosch, Honeywell, Vicon
-10°C ~ +50°C (+14°F ~ +122°F) / Less than 90% RH
Dual (24V AC & 12V DC ±10%) 230V AC ±10%
Max. 4.0W Max. 4.2W
Black, Silver / Aluminum, Steel
66.0 x 61.0 x 102.0mm (2.6" x 2.4" x 4.02")
310g (0.68 lb) 540g (1.19 lb)
English, French, German, Spanish, Italian, Chinese,
Russian, Polish, Czech, Romanian, Serbian, Swedish,
Danish, Turkish, Portuguese
66.0 x 61.0 x 115.0mm (2.6" x 2.4" x 4.53")
SAMSUNG TECHWIN AMERICA Inc.
100 Challenger Road, Suite 700, Ridgefield Park, NJ 07660, UNITED STATES
Tol Free : 1-877-213-1222 Fax : 1-201-373-0124
www.samsungsecurityusa.com
The Eco mark represents
Samsung Techwin’s will to create
environment-friendly products,and indicates
Design and specifications are subject to change without notice.
that the product satisfies the EU RoHS Directive.
DISTRIBUTED BY
I.E-1004
