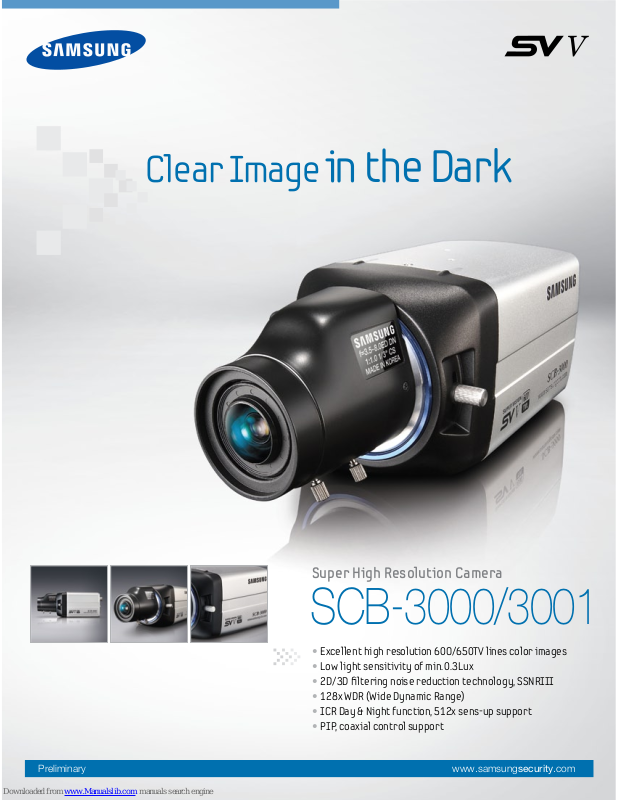

Page 1
Clear Image
in the Dark
SCB-3000/3001
• Excellent high resolution 60O/650TV lines color images
• Low light sensitivity of min. 0.3Lux
• 2D/3D filtering noise reduction technology, SSNRIII
• 128x WDR (Wide Dynamic Range)
• ICR Day & Night function, 512x sens-up support
• PIP, coaxial control support
Super High Resolution Camera
www.samsungsecurity.comPreliminary
Page 2
The
Eco mark represents
Samsung Techwin’s will to create
environment-friendly products,and indicates
that the product satisfies the EU RoHS Directive.
Design and specifications are subject to change without notice.
I.E-1001
DISTRIBUTED BY
52dB
Digital Image Stabilization
16X
0.3
COAX
Super High Resolution Camera
SCB-3000/3001
Dimensions
Unit : mm (inch)
61 (2.4")
66 (2.6")
113 (4.45")
102 (4.02")
Specifications
ELECTRICAL
Input Voltage
Power Consumption
VIDEO
Imaging Device
Total Pixels
Effective Pixels
Scanning System
Synchronization
Frequency
Horizontal Resolution
Min. Illumination
S / N (Y signal)
Video Output
OPERATIONAL
On Screen Display
Camera Title
Day & Night
SSDR
Backlight Compensation
Dynamic Range
Digital Image Stabilization
Privacy Masking
2D+3D Noise Filter (SSNRIII)
Sens-up (Frame Integration)
Gain Control
White Balance
Electronic Shutter Speed
Digital Zoom
Sharpness
Flip / Mirror
Communication
Protocol
Smear Reduction
ENVIRONMENTAL
Operating Temperature / Humidity
Storage Temperature / Humidity
MECHANICAL
Dimension (WxHxD)
Weight
Lens Mount
Certifications
SCB-3000N/3001N SCB-3000P/3001P
Dual (12V DC / 24V AC)
Max. 4.0W
1/3” Vertical double density interline CCD
811(H) x 508(V) 795(H) x 596(V)
768(H) x 494(V) 752(H) x 582(V)
2 : 1 Interlace
Internal / Line lock
H : 15.734KHz / V : 59.94HzH : 15.625KHz / V : 50Hz
SCB-3000 : Color : 600TV lines (Min.) / B/W : 700TV lines (Min.) / SCB-3001 : Color : 650TV lines (Min.) / B/W : 700TV lines (Min.)
Color : 0.3Lux ([email protected]), 0.0006Lux (Sens-up, 512x)
B/W : 0.01Lux ([email protected])
52dB (AGC off, Weight on)
CVBS : 1.0 Vp-p / 75 composite
Korean, English, Japanese, Spanish, French, Portuguese
English, French, German, Spanish, Italian, Chinese, Russian, Polish, Czech
On / Off
Auto (ICR) / Color / B/W
On / Off (Level adjustable)
WDR / BLC / HLC / Off
52dB
On / Off
On / Off (12 Programmable zones)
On / Off
On / Off (Selectable limit ~ 512x)
Low / High / Off
AWC / Manual / Outdoor / Indoor / ATW (1700K°~ 11000K°)
Auto (NTSC : 1/60 ~ 1/120,000sec, PAL : 1/50 ~ 1/120,000) / Manual / A.FLK
On / Off (2x ~ 16x)
On / Off
On / Off
RS-485, Coaxial Control
Samsung Techwin, Pelco-D, Pelco-P, Bosch, Panasonic, Honeywell, AD, Vicon, Samsung Electronics
On / Off
-10°C ~ +50°C / 30% ~ 80% RH
-20°C ~ +60°C / 30% ~ 90% RH
66 x 61 x 102mm (2.6” x 2.4” x 4.02”)
260g (0.57 lb)
C / CS
FCC (Class A), UL (External power supply) CE (Class A), UL (External power supply)
SAMSUNG SECURITY | Toll Free: 888-595-2288 | Fax: 972-245-7333
This product specifications and manual are also available in pdf format at www.samsung-security.com
The information is subject to change without notice - v6.2.10
