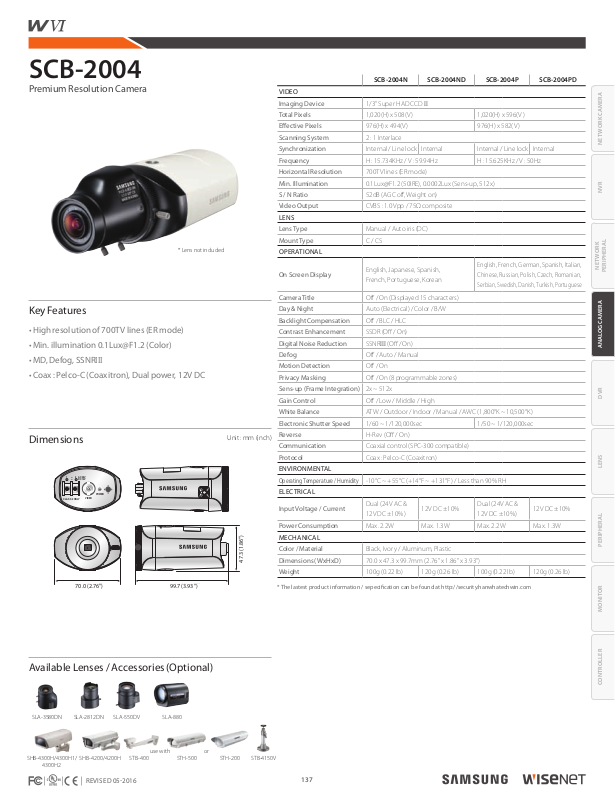

Samsung SCB-2004N Specsheet
SCB-2004
PremiumResolutionCamera
* Lens not included
KeyFeatures
•Highresolutionof700TVlines(ERmode)
•Min.illumination0.1Lux@F1.2(Color)
•MD,Defog,SSNRIII
•Coax:Pelco-C(Coaxitron),Dualpower,12VDC
Dimensions |
Unit : mm (inch) |
||
1 |
--- |
2 AC24V |
|
+ |
--- |
-- DC12V |
|
|
|
|
POWER |
CLASS 2 ONLY |
VIDEO |
||
|
|
|
(18.6")6") |
|
47..3 |
70.0.0((276". ) |
99..77(33.93")"). |
|
SCB-2004N |
|
SCB-2004ND |
SCB-2004P |
|
SCB-2004PD |
|
Video |
|
|
|
|
|
|
|
ImagingDevice |
1/3" Super HAD CCD II |
|
|
|
|||
TotalPixels |
1,020(H) x 508(V) |
|
1,020(H) x 596(V) |
|
|||
EffectivePixels |
976(H) x 494(V) |
|
976(H) x 582(V) |
|
|||
ScanningSystem |
2 : 1 Interlace |
|
|
|
|
||
|
|
|
|
|
|||
Synchronization |
Internal / Line lock |
|
Internal |
Internal / Line lock |
|
Internal |
|
|
|
|
|
|
|||
Frequency |
H : 15.734KHz / V : 59.94Hz |
H : 15.625KHz / V : 50Hz |
|||||
|
|
|
|
|
|||
HorizontalResolution |
700TV lines (ER mode) |
|
|
|
|||
|
|
|
|||||
Min.Illumination |
0.1Lux@F1.2 (50IRE), 0.0002Lux (Sens-up, 512x) |
|
|||||
|
|
|
|
|
|||
S/NRatio |
52dB (AGC off, Weight on) |
|
|
|
|||
VideoOutput |
CVBS : 1.0 Vpp / 75Ω composite |
|
|
|
|||
Lens |
|
|
|
|
|
|
|
LensType |
Manual / Auto iris (DC) |
|
|
|
|||
MountType |
C / CS |
|
|
|
|
||
Operational |
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
English, Japanese, Spanish, |
English, French, German, Spanish, Italian, |
|||||
OnScreenDisplay |
Chinese, Russian, Polish, Czech, Romanian, |
||||||
French, Portuguese, Korean |
|||||||
|
Serbian, Swedish, Danish, Turkish, Portuguese |
||||||
|
|
|
|
||||
|
|
|
|
|
|||
CameraTitle |
Off / On (Displayed 15 characters) |
|
|
|
|||
Day&Night |
Auto (Electrical) / Color / B/W |
|
|
|
|||
BacklightCompensation |
Off / BLC / HLC |
|
|
|
|
||
ContrastEnhancement |
SSDR (Off / On) |
|
|
|
|
||
|
|
|
|
|
|
||
DigitalNoiseReduction |
SSNRIII (Off / On) |
|
|
|
|
||
Defog |
Off / Auto / Manual |
|
|
|
|
||
|
|
|
|
|
|
||
MotionDetection |
Off / On |
|
|
|
|
||
|
|
|
|
|
|||
PrivacyMasking |
Off / On (8 programmable zones) |
|
|
|
|||
|
|
|
|
|
|
||
Sens-up(FrameIntegration) |
2x ~ 512x |
|
|
|
|
||
GainControl |
Off / Low / Middle / High |
|
|
|
|||
WhiteBalance |
ATW / Outdoor / Indoor / Manual / AWC (1,800°K ~ 10,500°K) |
|
|||||
ElectronicShutterSpeed |
1/60 ~ 1/120,000sec |
1/50 ~ 1/120,000sec |
|||||
Reverse |
H-Rev (Off / On) |
|
|
|
|
||
|
|
|
|
|
|||
Communication |
Coaxial control (SPC-300 compatible) |
|
|
|
|||
|
|
|
|
|
|||
Protocol |
Coax : Pelco-C (Coaxitron) |
|
|
|
|||
Environmental |
|
|
|
|
|
|
|
|
|
|
|
||||
OperatingTemperature/Humidity |
-10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH |
|
|||||
Electrical |
|
|
|
|
|
|
|
InputVoltage/Current |
Dual (24V AC & |
|
12V DC ±10% |
Dual (24V AC & |
|
12V DC ±10% |
|
12V DC ±10%) |
|
12V DC ±10%) |
|
||||
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
PowerConsumption |
Max. 2.2W |
|
Max. 1.3W |
Max. 2.2W |
|
Max. 1.3W |
|
Mechanical |
|
|
|
|
|
|
|
|
|
|
|
|
|||
Color/Material |
Black, Ivory / Aluminum, Plastic |
|
|
|
|||
|
|
|
|||||
Dimensions(WxHxD) |
70.0 x 47.3 x 99.7mm (2.76" x 1.86" x 3.93") |
|
|||||
|
|
|
|
|
|||
Weight |
100g (0.22 lb) |
|
120g (0.26 lb) |
100g (0.22 lb) |
|
120g (0.26 lb) |
|
|
|
|
|
|
|
|
|
*The lastest product information / sepecification can be found at http://security.hanwhatechwin.com
NVR NETWORK Camera
PERIPHERAL
DVR Analog Camera NETWORK
LENS
MONITOR PERIPHERAL
AvailableLenses/Accessories(Optional)
SLA-3580DN |
SLA-2812DN SLA-550DV |
SLA-880 |
|
|
|
|
use with |
or |
|
SHB-4300H/4300H1/ SHB-4200/4200H STB-400 |
STH-500 |
STH-200 |
STB-4150V |
|
4300H2 |
|
|
|
|
CONTROLLER
REVISED05-2016 |
