Before operating the camera, confirm the camera model and correct input power voltage. To help you understand this manual thoroughly, we’ll introduce our model description.

■ SCB-2004 SERIES

• NTSC MODEL

SCB-2004N / 2004ND

• PAL MODEL

SCB-2004P/2004PD

• POWER SOURCE

SCB-2004N, SCB-2004P : DC12V,AC24V SCB-2004ND, SCB-2004PD : DC12V

Page 4

Safety information

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN

O REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE

CAUTION:

ARNING

To prevent damage which may result in ﬁre or electric shock hazard, do not expose this

• appliance to rain or moisture.

To prevent injury, this apparatus must be securely attached to the ﬂoor/wall in accordance

• with the installation instructions.

WARNING

e sure to use only the standard adapter that is speciﬁed in the speciﬁcation sheet.

Using any other adapter could cause ﬁre, electrical shock, or damage to the product.

Incorrectly connecting the power supply or replacing battery may cause explosion, ﬁre, electric shock, or damage to the product.

Do not connect multiple cameras to a single adapter. Exceeding the capacity may cause abnormal heat generation or ﬁre.

Securely plug the power cord into the power receptacle. insecure connection may cause ﬁre.

When installing the camera, fasten it securely and ﬁrmly. The fall of camera may cause personal injury.

T COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

his symbol indicates that dangerous voltage consisting a risk of electric

shock is present within this unit.

his exclamation point symbol is intended to alert the user to the

T presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

4_ Safety information

Page 5

o not place conductive objects (e.g. screwdrivers, coins, metal parts, etc.) or containers ﬁlled with water on top of the camera. doing so may cause personal injury due to ﬁre, electric shock, or falling objects.

Do not install the unit in humid, dusty, or sooty locations. doing so may cause ﬁ re or

electric shock.

If any unusual smells or smoke come from the unit, stop using the product. in such case, immediately disconnect the power source and contact the service center. continued use in such a condition may cause ﬁre or electric shock.

If this product fails to operate normally, contact the nearest service center. never disassemble or modify this product in any way. (samsung is not liable for problems caused by unauthorized modiﬁcations or attempted repair.)

10.

hen cleaning, do not spray water directly onto parts of the product. doing so may cause

ﬁre or electric shock.

CAUTION

o not drop objects on the product or apply strong shock to it. Keep away from a location subject to excessive vibrationor magnetic interference.

Do not install in a location subject to high temperature (over 55°C), low temperature (below

-10°C), or high humidity. Doing so may cause ﬁre or electric shock.

If you want to relocate the already installed product, be sure to turn off the power and then move or reinstall it.

Remove the power plug from the outlet when then there is a lightning. Neglecting to do so may cause ﬁre or damage to the product.

Keep out of direct sunlight and heat radiation sources. It may cause ﬁre.

Install it in a place with good ventilation.

Avoid aiming the camera directly towards extremely bright objects such as sun, as this may damage the CCD image sensor.

Apparatus shall not be exposed to dripping or splashing and no objects ﬁlled with liquids, such as vases, shall be placed on the apparatus.

The Mains plug is used as a disconnect device and shall stay readily operable at any time.

10.

o not expose the camera to radioactivity. Radioactivity exposure may damage the CCD.

●

SAFETY INFORMATION

English_5

Page 6

Safety information

Correct Disposal of This Product

(Applicable in the European Union and other European countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

(Waste Electrical & Electronic Equipment)

Correct disposal of batteries in this product

(Applicable in the European Union and other European countries with separate battery return systems.)

This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment.

To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.

Samsung Techwin cares for the environment at all product manufacturing stages to preserve the environment, and is taking a number of steps to provide customers with more environment-friendly products.The Eco mark represents Samsung Techwin’s will to create environment-friendly products, and indicates that the product satisfies the EU RoHS Directive.

6_ Safety information

Page 7

Read these instructions.

Keep these instructions.

Heed all warnings.

Follow all instructions.

Do not use this apparatus near water.

Clean only with dry cloth.

Do not block any ventilation openings. Install in accordance with the manufacturer’s

instructions. Do not install near any heat sources such as radiators, heat registers, or other apparatus

(including ampliﬁ ers) that produce heat.

Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not ﬁ t into your outlet, consult an electrician for replacement of the obsolete outlet.

10.

Protect the power cord from being walked on or pinched particularly at plugs,

convenience receptacles, and the point where they exit from the apparatus.

11.

Only use attachments/accessories speciﬁ ed by the manufacturer.

12.

Use only with cart, stand, tripod, bracket, or table speciﬁ ed by the

manufacturer, or sold with the apparatus.

13.

Unplug this apparatus when a card is used. Use caution when moving the

cart/ apparatus combination to avoid injury from tip-over.

14.

Refer all servicing to qualiﬁ ed service personnel. Servicing is required when the apparatus

has been damaged in any way, such as powersupply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Apparatus shall not be exposed to dripping or splashing and no objects ﬁ lled with liquids, such as vases, shall be placed on the apparatus

●

SAFETY INFORMATION

English_7

Page 8

Contents

INTRODUCTION

TROUBLESHOOTING

SPECIFICATIONS

CONNECTION

SETUP

Features

What’s included

Component names and Functions

Lens Connecting to Monitor

Connecting to Power

15 16

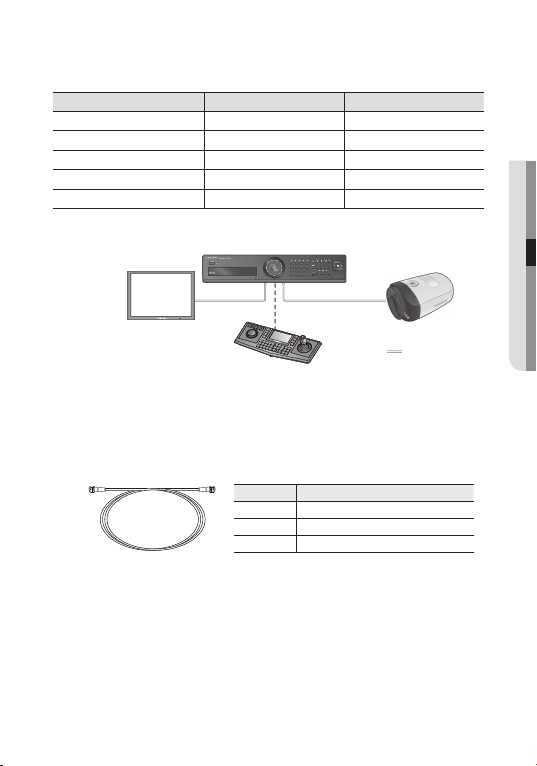

Using coaxial communications

Menu Conﬁ gration

Menu Setup

Troubleshooting

Speciﬁ cations

Dimension

8_ Contents

Page 9

Introduction

FEATURES

High Resolution

By adopting a diagonal 6mm (1/3”) 520,000 pixel (NTSC), 610,000 pixel (PAL)

SONY CCD, the camera produces clear picture quality with a horizontal resolution

of 700TV lines(ER mode).

Excellent Sensitivity

The built-in high sensitivity COLOR CCD produces a clear image.

0.1Lux ([email protected]) / 0.0002Lux ([email protected], SENS-UP x512)



Samsung Super Noise Reduction) Function

(

6615

The high-performance W6 DSP chip effectively removes low-light gain noise and

afterimage to provide clear images even in dark environments.

Day & Night

This camera has a function that automatically selects the mode that is appropriate

for daytime or night-time conditions.

conditions to provide optimum colors, and B/W mode operates in night-time conditions to enhance the definition of the image.

Defog

The camera is able to recognize the concerntration of fog in the image, and automatically

defog, correct image of the bad weather such as fog, rain, mist, fumes, etc to make it clear.

SSDR (Samsung Super Dynamic Range)

For images with high contrast between bright and dark areas from difficult lighting

conditions such as backlighting, this camera selectively illuminates darker areas while

retaining the same light level for brighter areas to even out the overall brightness.

Miscellaneous Functions

HLC(High Light Compensation),SENS-UP, H-REVERSE , SHARPNESS, PRIVACY and MOTION DET. functions

Communication

Coaxial communication methods are supported.

- Protocol : Pelco Coaxitron

Osd

The camera control is convenient by using 17 different foreign language O.S.D.

- NTSC : English, Japanese, Spanish, French, Portuguese, Korean

- PAL : English, French, German, Spanish, Italian, Chinese, Russian, Polish, Czech, Romanian, Serbian, Swedish, Danish, Turkish, Portuguese

The COLOR mode operates in daytime

are provided.

English_9

●

INTRODUCTION

Page 10

Introduction

WHAT’S INCLUDED

Check if the following items are included in the product package.

High Resolution Camera

Quick Manual

SCB-2004



SCB-2004

Quick Manual

10_ Introduction

Page 11

COMPONENT NAMES AND FUNCTIONS

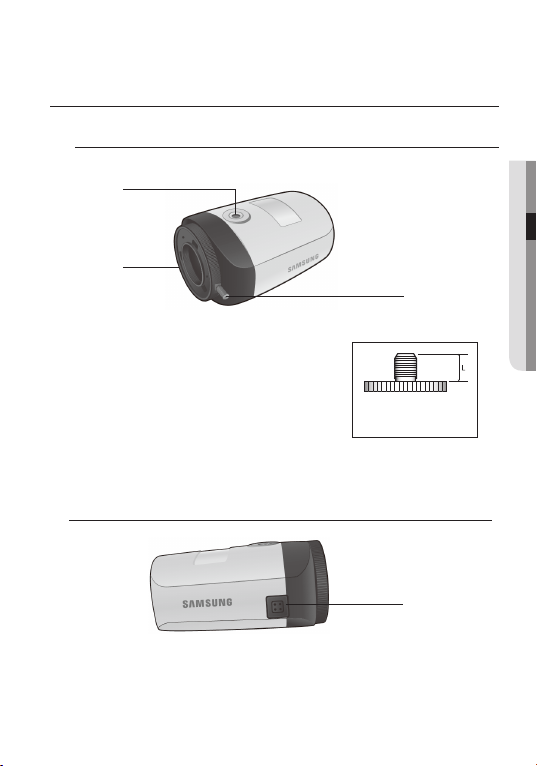

Front

❶

➋

❶

Tripod Mounting Bracket Screw Hole :

Tripod Mounting Bracket .

The camera have two hole at the top and bottom,

＊

please according to condition to install.

The screw sizes for this hole are as follows:

➋

Mount Lens Adapter :

CS-Mount Lens.

➌

Back Focus Control Lever :

Install this adapter to use a

Used to fix the

1/4"-20 UNC (20 THREAD) L:4.5mm±0.2mm (ISO standard), or 0.197" (ASA standard)

Adjust focus by this Back Focus Control Lever.

Side

●

INTRODUCTION

➌

➍

Auto Iris Lens Connector :

Tripod is not supplied with the camera. Please check the installed documentation of



tripod for the installation of cameras.

Used to connect Auto Iris Lens plug.

English_11

Page 12

Introduction

Back

➎

POWER

VIDEO

➎

POWER

CLASS 2 ONLY

➎

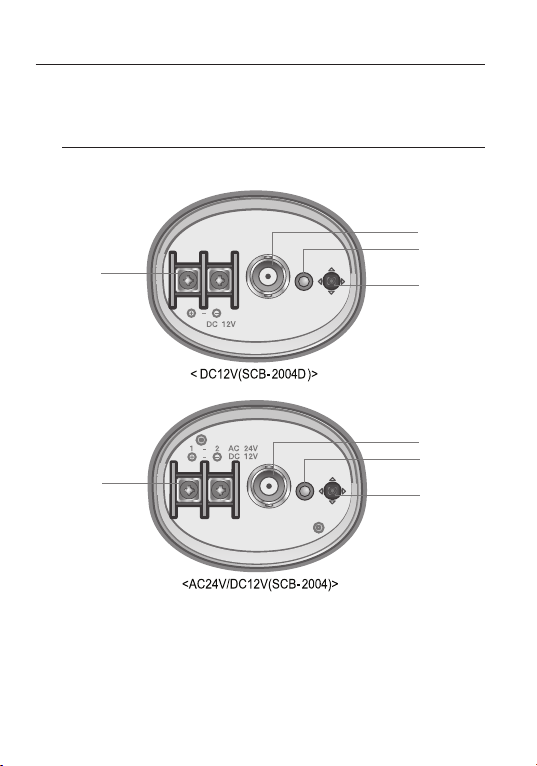

Power input terminal : Connects to the power appropriate to each model.

➏

Video OUT Terminal :

the monitor.

➐

Power LED : This lamp is lit when the camera is receiving power normally.

➑

Function Setup Button

directions to confirm ststus or after changing a selected item.

Sends video signal and connects to the video input terminal of

Display the menu on the screen and move the cursor to four

12_ Introduction

VIDEO

➏ ➐

➑

➏ ➐

➑

Page 13

Connection

Lens

The lens is not supplied with this camera. Purchase a lens suitable for your environment. This camera accepts the auto iris lens and both C-and CS-mount lens.

To use the functions of this camera effectively it is recommended that a DC type Auto Iris



lens is used. Keep the lens surface clean, if it becomes contaminated with dirt or fingerprints the



picture quality suffers.

When Using Auto Iris Lens

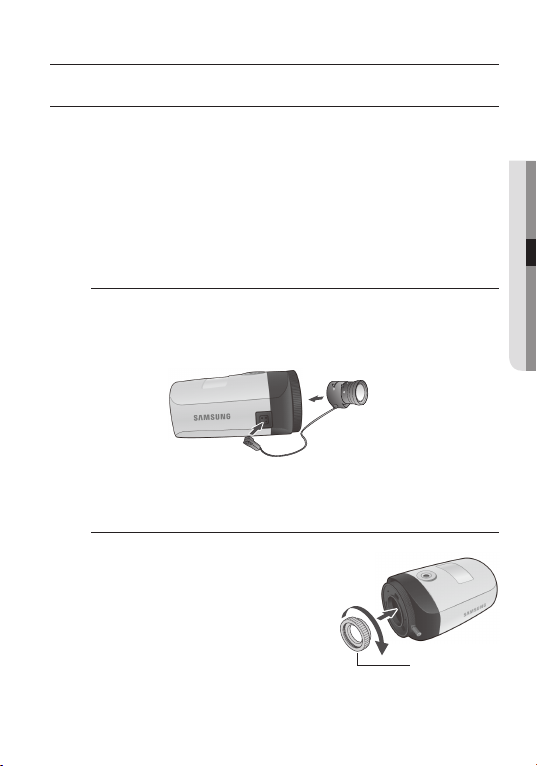

Remove the protective cover from the front of the camera, and fasten the auto iris lens by turning it clockwise.

Put the cover of the auto iris lens connector plug in the auto iris lens connector.

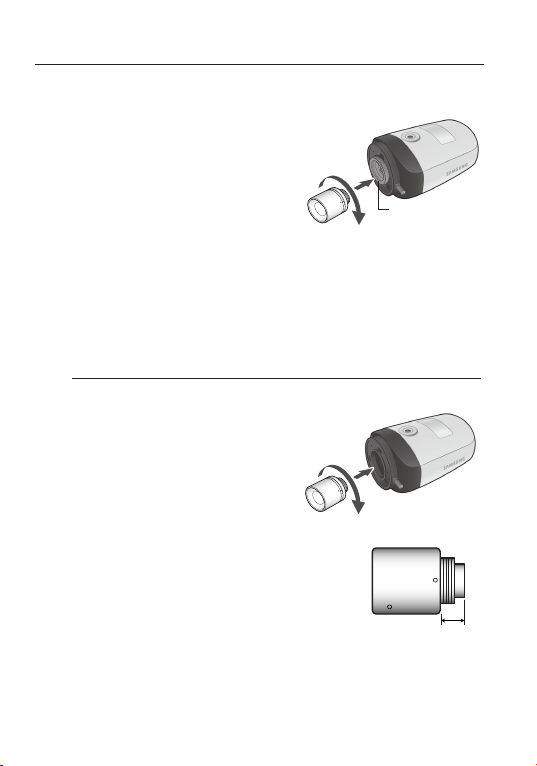

When Install a C-Mount lens

Remove the protective cover from the front of the camera, and turn the C-Mount adapter clockwise to install it.

●

CONNECTION

C-Mount Adapter

English_13

Page 14

Connection

Turn the C-Mount lens clockwise to install it.

Set focus of camera using Back Focus Control Lever of camera side after combining

C-Mount lens.

Note that C-Mount adaptor is not supplied with camera.



When Install a CS-Mount lens

Remove the protective cover from the front of the camera, and turn the CS-Mount lens

clockwise to install it. And set focus of camera

using Back Focus Control Lever of camera side after combining CS-Mount lens.



Use the lens connector shown in the following

figure. If the dimensions of the

not correct, it may damage the camera, or the lens may not be installed firmly.

If the lens is too heavy, the camera becomes



unbalanced and there may be problems. Use

a lens that weighs less than 450g.

connector are

C-Mount Adapter

C-Mount Lens: 10mm or less CS-Mount Lens: 5mm or less

14_ Connection

Page 15

CONNECTING TO MONITOR

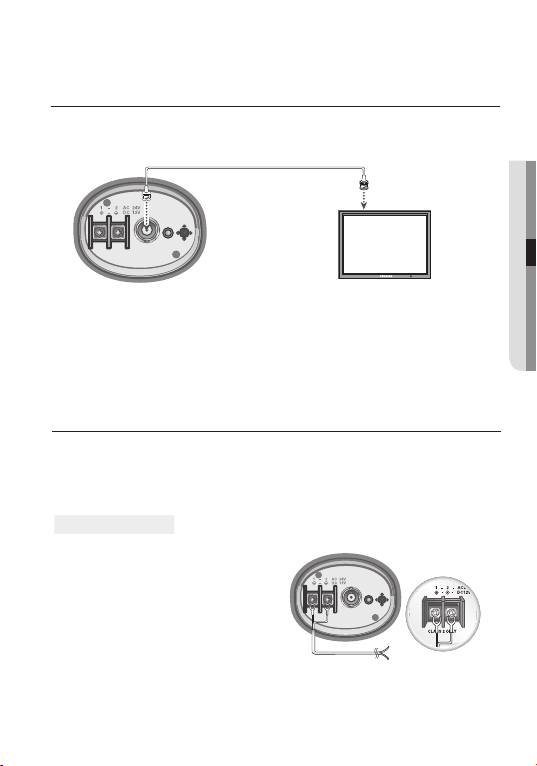

Connect the Video OUT port on the rear panel of the camera to a monitor.

POWER

VIDEO

CLASS 2 ONLY

●

CONNECTION

SCB-2004

As the connecting method varies with the instruments, refer to the manual supplied



with the instrument. Only connect the cable when the power is turned off.



Monitor

CONNECTING TO POWER

Since power specifications differ depending on the model, make sure to check your model name

and specifications before connecting power.

You can connect power as shown in the following figure.

For AC / DC power

• Since SCB-2004 the power specification supports both AC and DC, connect AC 24V,

500mA Adaptor or DC 12V, 500mA Adaptor.

CLASS 2 ONLY

SCB-2004

VIDEO

POWER

English_15

Page 16

Connection

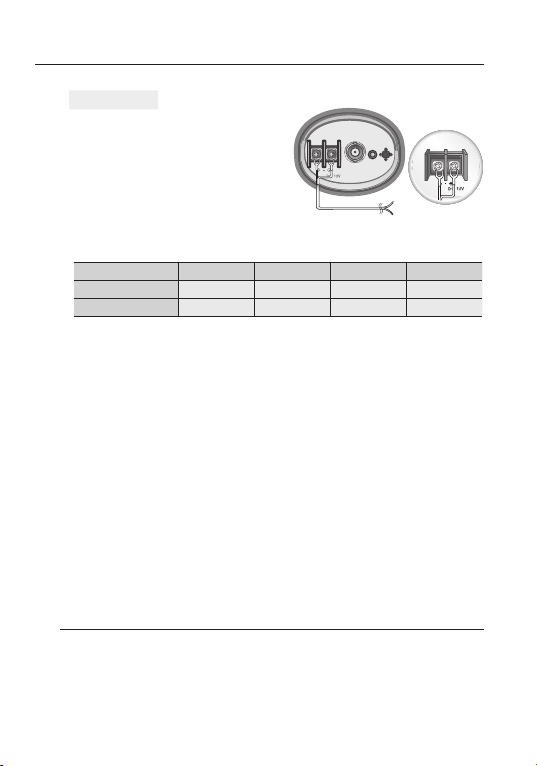

For DC power

SCB-2004D

• Since SCB-2004D the power specification support DC, connect DC 12V, 500mA

Adaptor.

When the resistance value of copper wire is at [20°C(68°F)]

Copper wire size (AWG)

Resistance (Ω/m)

Voltage Drop (V/m)

• As shown in the table above, voltage decreases as the wire gets longer. Therefore use of an excessively long adaptor output line for connection to the camera may affect the performance of the camera.



Standard voltage for camera operation : SCB-2004N / SCB-2004P : DC 12V±10%, AC 24V±10% SCB-2004ND / SCB-2004PD : DC 12V±10%



There may be some deviation in voltage drop depending on the type of wire and the manufacturer.

Be sure to connect power only after all the installation is complete.



Note that AC / DC adaptor is not supplied with camera.



Ground should be connected to the GND terminal.



#24(0.22mm2) #22(0.33mm2) #20(0.52mm2) #18(0.83mm2)

0.078 0.050 0.030 0.018

0.028 0.018 0.011 0.006

VIDEO

Using coaxial communications

• Coaxial Communications System

• OSD Control method

POWER

16_ Connection

Page 17

CAMERA DVR CONTROLLER

SET MENU/ENTER OSD KEY

UP UP KEY JOYSTICK UP

DOWN DOWN KEY JOYSTICK DOWN

LEFT LEFT KEY JOYSTICK LEFT

RIGHT RIGHT KEY JOYSTICK RIGHT

DVR

ALARM HDD NETWORK BACKUP REC

REC

1234

ZOOM

FREEZE

BACKUP

5678

9101112

TELE WIDE VIEWPRESET

MODE

AUDIO

ALRAM

DVD RECORDER

13 14 15 16

OPEN/CLOSE

M E NU

S E A R C

M U

L T I

R E C

C A M

M O N

P T Z

V R

T X

S E T U P

E S C

USB

RETURN

ME N U

P R E S E

G R O U

T R A C

F U N

E N T E R

C L O S

O P E

N N E A R

F A R

W I D E

T E L E

%1&



 56



- Video Cable

The camera's video output port is connected to the monitor with a BNC coaxial cable,

shown below : If the distance between the camera and the monitor exceeds the recommended maximum, please use an auxiliary video amp.

Distance Recommended Cable Specification

300m 3C2V(RG-59/U) 450m 5C2V(RG-6/U) 600m 7C2V(RG-11/U)

It is recommended that pure copper coax cable is used and not copper coated



steel, as this will cause issues with the communication over the coaxial cable.

To ensure picture quality, only single-channel video output connector can be



used while camera connected to other video equipments.

●

CONNECTION

English_17

Page 18

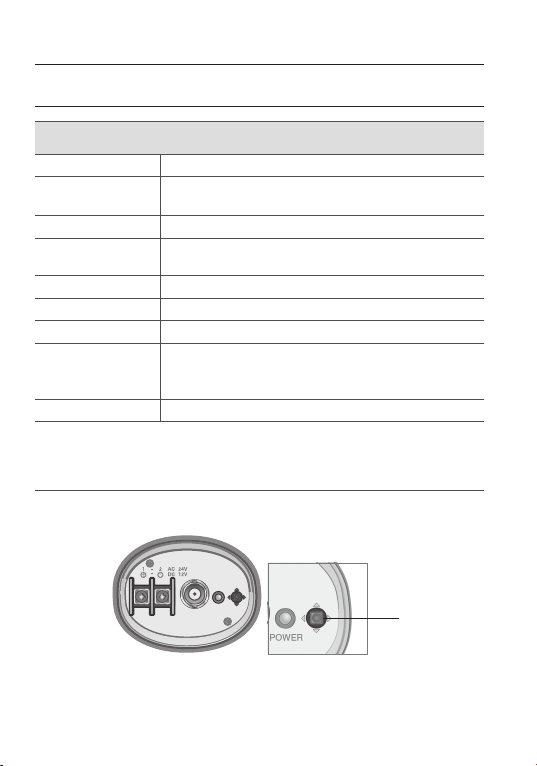

Setup

MENU CONFIGRATION

mAIN seTUp

leNs

expOsURe

defOG

WhITe bAl

bACKlIGhT

SSNR3

dAy/NIGhT

speCIAl

exIT

●

BRIGHTNESS SHUTTER

●

SENS-UP RETURN

●

AUTO MANUAL

AT W

● ●

●

MANUAL

●

Off

USER BLC

●

AUTO

●

IMAGE ADJ

●

MOTION DET

SSDR

●

SAVE

● ●

meNU seTUp

Use the Function Setup switch within the camera.

POWER

VIDEO

CLASS 2 ONLY

MANUAL

●

OUTDOOR INDOOR AWC

●

OFF

●

COLOR

●

CAM TITLE

●

SYNC

●

RETURN

NOT SAVE

→

SET

●

AGC

●

OFF

●

HLC

●

B/W

●

PRIVACY

●

COAX

RESET

●

Function Setup switch

Press the Function Setup switch.

Main setup menu is displayed on the monitor screen.

18_ Setup

Page 19

䯝

Select the function using the Function Setup switch.

1.LENS DC

2.EXPOSURE

DEFOG

WHITE BAL ATW

BACKLIGHT OFF

SSNR3 ON DAY/NIGHT AUTO

---

8.SPECIAL

9.EXIT SAVE

MAIN SETUP

Select a desired function using the Function Setup switch.

Place the cursor over a desired item.

Set up a selected item by using the Function Setup switch.

To ﬁ nish the setting, select ‘EXIT’ and press the Function Setup switch.

An item with the icon also has sub menus. To select a sub menu, select an item with the icon



and press the Function Setup switch.



An item with the - - - icon is unavailable due to function settings.

LENS

Using this function, you can choose lens type.

When the SETUP menu screen is displayed, select ‘LENS’ by using the Function

Setup switch so that the arrow indicates ‘LENS’.

Select the connected lens type by using the Function Setup switch.

DC : Select Auto Iris Lens.

Manual : Select Manual Lens.

- Brightness (DC, Manual) : Adjusts the video

- FOCUS ADJ (DC) : To adjust the DC lens focus

- RETURN (

DC, MANUAL) : Select this to save the menu settings and return the MAIN

brightness.

correctly, you must activate the Focus ADJ mode under each lens menu. To setting the Focus ADJ mode on, and according to your

need to adjust the shutter mode.

(MANUAL, A.FLK)

SETUP menu.

BRIGHTNESS

１．

▶

２．

FOCUS ADJ

３．

RETURN

１．

▶

MODE

２．

SHUTTER RETURN

３．

DC LENS

FOCUS ADJ

Change the status using the Function Setup switch.

IIIIIIIII*IIIIIIII

ESC

English_19

●

SETUP

Page 20

Setup

EXPOSURE

When the SETUP menu screen is displayed, select EXPOSURE by using the Function Setup switch so that the arrow indicates 'EXPOSURE'.

Select a desired mode using the Function

Setup switch.

BRIGHTNESS : Adjusts the video brightness.



SHUTTER :



You can select the shutter.

A.FLK :

-Select this when you experience picture ﬂ icker, which can happen when there is a clash with the frequency of the installed lighting.

MANUAL : You can control shutter speed manually.

( NTSC MODEL : 1/60~1/120,000 , PAL MODEL : 1/50~1/120,000)

--- :-Shutter speed is fixed.

ESC :

Select this to control the shutter speed automatically.If ESC is selected, the shutter speed is automatically controlled depending on the ambient illumination of the subject.

AGC (AUTO GAIN CONTROL) (OFF/ LOW/ MIIDDLE/ HIGH) :



the brighter screen but the higher noise.

SENS-UP : When it is night or dark,the camera



automatically detects the light level and maintains a clear picture if this model is activated.

- OFF : Deactivates the SENS-UP function.

- AUTO : Activates the SENS-UP function.

RETURN ： Select this to save the changes in the EXPOSURE menu and return to the SETUP menu.



When the AGC is set to OFF, SENS-UP will be disabled.



When the SENS-UP is set to OFF, the SHUTTER optional mode is A.FLK,MANUAL or ---.



（ｘ２ｘ５１２）

defOG

Through the defogging function, camera can automatically recognize fog concentration of the image, defog,

self correct in hazy, rainy, flue gas and other inclement weather to get a clear image.

1. When the SETUP menu screen is displayed, select ‘DEFOG’ by using the Function Setup switch.

2. Select a desired mode. AUTO :

The camera will automatically correct image

according to the defogging level (low, middle,

high) set by the user.



Manual : The camera will adjust the definition of the

image according to user's preferences

through the defogging level

OFF: Turn off Defogging function.

20_ Setup

(low, middle, high).

EXPOSURE SETUP

䯝 1.

BRIGHTNESS

2.SHUTTER

3.AGC

4.SENS-UP

5.RETURN

The higher gain level,



AUTO

Press SET to Return

 1.

LEVEL

2.RETURN

IIIIIIIII*IIIIIIII

LIMIT

DEFOG SETUP

MIDDLE

AUTO

－－－

MIDDLE

Page 21

Defogging and SSDR function cannot be run simultaneously. When defogging function is set



to AUTO or MANUAL mode, SSDR function is not available. When SSDR functions is turned

on, defogging would become inactive

WHITE BAL (WHITE BALANCE)

Use the White Balance function to adjust the screen color.

When the SETUP menu screen is displayed, select ‘White Bal’ by using the Function

Setup switch so that the arrow indicates ‘White Bal’.

Select a desired mode using the Function Setup switch.

Select one of the following 5 modes, as appropriate for your purpose.

※

ATW : Select this when the color temperature is between 1,800°K and 10,500°K.

OUTDOOR : Select this when the color temperature is between 1,800°K and

INDOOR

MANUAL : Select this to ﬁ ne-tune White

AWC→SET

10,500°K.(sodium light inclusion)

: Select this when the color temperature is between 4,500°K and 8,500°K.

Balance manually. Set White Balance ﬁ rst by using the ATW or AWC mode. After that switch to MANUAL mode, ﬁ ne-tune the White Balance and then press the Function Setup switch.

: To ﬁ nd the optimal luminance level for the current environment,

point the camera towards a sheet of white paper and press the Function Setup switch. If the environment changes, readjust it.



mode.

When the color temperature of the environment surrounding the subject is out of

the control range (e.g. clear sky or sunset).

When the ambient illumination of the subject is dim.

➌

If the camera is directed towards a ﬂuorescent light or is installed in a place where illumination changes dramatically, the White Balance operation may become unstable.

WB MANUAL

䯝 RED GAIN BLUE GAIN

IIIIII*IIIIIIIIIIIIIIIIIIII

IIIIIIIIIIIIIIIII*IIIIIIIIII

Press SET to Return

White Balance may not work properly under the following conditions.In this case select the AWC

106

259

●

SETUP

English_21

Page 22

Setup

MASK COLOR :

Off

: Not being used



Change the color of the masking area. (Black, Red, Blue, Gray,

Magenta)

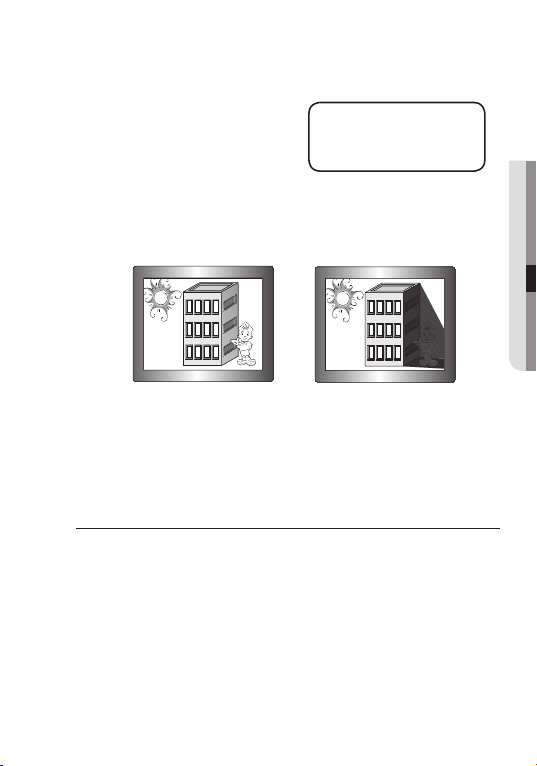

BACKLIGHT

The SCB-2004 is designed to deliver a distinctive subject and background at the same time, even when the subject is backlight, by adopting W6 DSP chip.

When the SETUP menu screen is displayed, select ‘BACKLIGHT’ by using the

Function Setup switch so that the arrow indicates BACKLIGHT .

Select a desired mode using the Function Setup switch depending on the camera

purpose.

UseR blC



: Enables a user to directly

select a desired area from a picture, and to view the area more clearly.

LEVEL : Adjust level of the BLC function.

TOP/BOTTOM/LEFT/RIGHT : Adjust the area to be enhanced.

HlC (High light Compensation) :

This function masks the strong light to minimize white out due to over exposure and preserve much of the on-screen details when the camera aims a strong light source.

LEVEL : Adjusts the brightness level of a

monitoring area.

LIMIT :

Enable to change the operating condition.

6615

This function reduces the background noise in a low luminance environment.

When the SETUP menu screen is displayed, select 'SSNR3' by using the Function Setup switch so that the arrow indicates 'SSNR3'.

Select a desired mode using the Function Setup

switch.

Off : Deactivates SSNR3. Noise is not reduced.



ON : Activates SSNR3 so that noise is reduced.



3. Set the SSNR3 mode to 'ON' and press the Function Setup switch.

4. Then you can adjust the noise reduction level.

22_ Setup

a function of the proprietary

BLC SETUP

4.LEFT

IIIIIIIIIIIIIIIIIIIII

IIIIIIIIIIIIIIIIIIIII

IIIIIIIIIIIIIIIIIIIII

IIIIIIIIIIII IIII

HLC SETUP



NIGHT ONLY

▶ 1.LEVEL

2.TOP

3.BOTTOM

5. RIGHT

6. RETURN

▶ 1. LEVEL

2. LIMIT

3. MASK COLOR BLACK

4. RETURN

SSNR3



IIIIIIIIIII

▶ LEVEL

RETURN

IIIIIIII IIIIII

MIDDLE

23 40

IIIII

MIDDLE

Page 23

You cannot set the SSNR3 to 'ON' or 'OFF' when the AGC mode of the EXPOSURE



menu is 'OFF'.

When adjusting the noise reduction level of the SSNR3 mode, remember that the higher



the level set, the more the noise level will be reduced but that after image may also occur.

DAY/ NIGHT

ou can display pictures in color or black and white.

1. When the SETUP menu screen is displayed, select ‘DAY/NIGHT’ by using the Up

and Down buttons so that the arrow indicates ‘DAY/NIGHT’.

2. Select a desired mode using the Left and Right buttons according to the picture display you want.

 AUTO

: The mode is switched to ’Color‘ in a

normal environment,but switches to ’B/W‘

mode when ambient illumination is low. To set

up the switching time for AUTO mode, press the Function Setup switch. You can turn on or off the burst signal on B/W mode.

- DWELL TIME : Y ↑ 3s, 5s, 7s, 10s, 15s, 20s, 30s, 40s, 60s

- BURST



COlOR : The picture is always displayed in color.



b/W : The picture is always displayed in black and white. You can turn on or off the burst mode on B/W mode.

ou can select the duration time about changing the day/night mode.

MODE : You can turn on or off the burst mode on B/W mode.

AUTO SETUP

▶ DWELL TIME 5 SEC

BURST MODE ON

Press SET to Return

SPECIAL

1. When the SETUP menu scr

switch so that the arrow indicates ‘SPECIAL’.

Select a desir

ed mode using the Function Setup

switch.

een is displayed, select ‘SPECIAL’ by using the Function

IMAGE ADJ

▶ 1.

CAM TITLE

PRIVACY

ＭＯＴＩＯＮ　ＤＥＴ

SYNC

COAX

SSDR

RETURN

SPECIAL

Setup

ＯＦＦＯＦＦＯＦＦＩＮＴＯＦＦＯＮ

●

SETUP

English_23

Page 24

Setup

IMAGE ADJ



1) When the SPECIAL menu screen is displayed, select ‘IMAGE ADJ’ by using the Function Setup

2) Select a desired mode using the Function Setup

switch.

switch so that the arrow indicates ’IMAGE ADJ‘.

monitor : Please change the settings value

of video appropriate to your monitor.



LCD: Please select this menu item when using an LCD monitor. You can change

the gamma, PED level and color gain in

the sub menus.



USER : Please use this menu item when using a monitor other than standard ones. You can change the gamma, PED level and color gain in the sub menus.

ReVeRse : You can reverse the picture.



OFF : You don’t reverse the picture.



H-REV : You can flip the picture horizontally on the screen.

shARpNess

picture outline becomes stronger and clearer. Adjust this value appropriately depending on

the sharpness of the picture.



lANGUAGe

RUTURN

: As you increase this value, the

OFF: Turn off Sharpness function.

ON : The higher the level is,the sharper and

clearer the outline of the image becomes.

ER (Enhanced Resolution) : Choosing this mode can increase the sharpness of the picture

: You can select the menu language according to your requirements.

Select this to save the menu.

under the colour mode.

IMAGE ADJ

▶ GAMMA PED LEVEL COLOR GAIN RESET

IMAGE SETUP

▶ 1.

MONITOR

LEVEL

▶

LCD

REVERSE SHARPNESS ON

LANGUAGE

RETURN

LCD MONITOR

IIIIIIIII*IIIIIIIIIIII

Press SET to Return

SHARPNESS

IIIIIIIIIIIIIIIIII III



Press SET to Return

OFF

ENGLISH

0.55 34

III*IIIIIIIIIIIIIIIIII

menu settings and return to the SPECIAL

24_ Setup

Page 25



CAm TITle : If you enter a title, the title will appear on the monitor.

1 If the SPECIAL menu scr

that the arrow indicates ‘CAM TITLE’.

Set it to ‘ON’ by using the Function

Setup switch.

ess the Function Setup switch.

3 Pr 4

Use the Function Setup switch to move to a

desired letter and select the letter by pressing the switch. Repeat this to enter multiple letters. You can enter up to 15 letters. Move the

cursor to

↑

for entering a space, then press

Setup switch, the cursor will skip

the Function

to the next.

Enter a title, move the cursor to ’POS’ and press

the Function Setup switch. The entered title appears on the screen. Select the position to display the title on the screen by using the Function Setup switch and press. When the position is determined, select ’END’ and press the Function Setup switch to

return to the SPECIAL menu.

een is displayed, use the Function Setup switch so

CAMERA TITLE SETUP

ABCDEFGHIJKLM NOPQRSTUVWXYZ abcdefghijklm nopqrstuvwxyz

→ CLR POS END

←

_______________

FRONT DOOR

0123456789

●

SETUP





WhentheCAMTITLEmenuis‘OFF’,notitlewillbedisplayed

if you enter one.



OnlyEnglishisavailableinthismode.





IfyoumovethecursortoCLRandpresstheFunctionSetupswitch,allthelettersare



deleted. To edit a letter, change the cursor to the bottom left arrow and press the

FunctionSetupswitch.Movethecursoroverthelettertobeedited,movethecursorto thelettertobeinsertedandthenpresstheFunctionSetupswitch.



pRIVACy : Mask an area you want to hide on the screen.

When the SPECIAL menu scr ayed, press the Function Setup switch so

that the arrow indicates ‘PRIVACY’.

Set up the mode using the Function Setup

switch.

AREA : Y

ou can select up to 8 PRIVACY areas.

- MODE : Determines whether to use the ar selected.

MASK COLOR : Determine area color. You can select GREEN, RED, BLUE, BLACK,

- SEL POS/POS

- RETURN : Select this to save the PRIV

: Adjust the size and position of the selected ar

menu.

een is displ-

WHITE and GRAY.

ACY menu settings and return to the SPECIAL

on

PRIVACY AREA SETUP

▶ 1.AREA

2.MODE

3.MASK COLOR

4.SEL POS

5.POS

6.RETURN

themonitorscreeneven

ea.

IIIIIIIIIIIIIIIIIIIIIIIIII

AREA1

OFF

GREEN

LEFT

English_25



Page 26

Setup

MOTION DET :



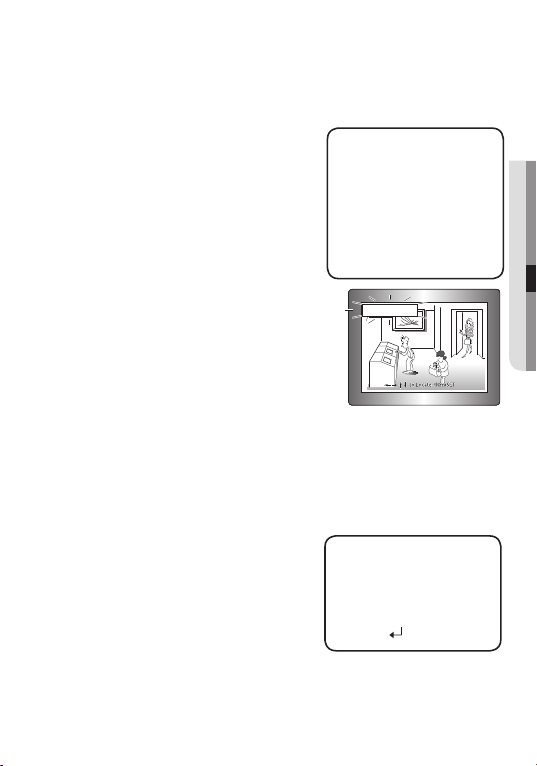

This product has a feature that allows

you to observe movement of objects

in 4 different areas on the screen, and the words 'MOTION DETECTED' appear on the screen when movement

is detected. You can monitor activity

more efficient.

When the SPECIAL menu screen is displayed, press the Function Setup switch so

arrow indicates 'MOTION DET'.

Set up the mode using the Function Setup switch.



Youcanselectupto 4 MD areas.

ＡＲＥＡ：



ＭＯＤＥ：

DetermineswhethertousetheMDareaselectedinAREA.



ＴＯＰ／ＢＯＴＴＯＭ／ＬＥＦＴ／ＲＩＧＨＴ：



ＳＥＮＳＩＴＩＶＩＴＹ：



ＲＥＴＵＲＮ　：

MOTIONDETareasshowonlyMOTION DET menu.Therefore, MOTIONDETareas don’t 



display on the monitor screen.

syNC : In ar

Adjust the sensitivity of MD. the lower level, the higher sensitivity.

Select this to save the MOTION DET menu settings and return to the SPECIAL

menu.

eas where the supply is at

that the

        

Adjust the area to be enhanced.

60Hz(NTSC), 50Hz(PAL), you can synchronize the output phase of multiple cameras using the power synchronization

ＭＯＴＩＯＮ　ＤＥＴ

 1.AREA AREA1

2.MODE

3.TOP

4.BOTTOM

5.LEFT

6.RIGHT

7.SENSITIVITY

8.RETURN

▶ PHASE

SYNC

Press SET to Return

function (Line-Lock) without using a synchronization signal generator.

- INT: Internal Synchronization Type

- L/L : Power Synchronization Type, Line-lock Press the Function Setup switch.

You can select a desired phase from 0 to 359 when select ‘phase’.



When using AC power at 60Hz(NTSC), 50Hz(PAL) frequency, you can use the L/L type synchronization.

When the power is DC 12V, the SYNC menu is fixed to the ‘INT’ mode.



IIIIIIIIIIIIIIIIIIIII



IIIIIIIIIIIIIII IIIIII



IIIIIIIIIIIIIIIIIIIII



IIIIIIIIIIIIIII IIIIII



IIIIIIIIIIIIIIIIII III

IIIIIIIIIIIIIIIIIIIII



COaX : COAX option is set to "On" will specify the use of coaxial communication.



26_ Setup

Page 27

▶ LEVEL

SSDR SETUP

IIIIIIIIII*IIIIIIIIIII

Press SET to Return

 SSDR(Samsung Super Dynamic Range)

SSDR illuminates darker areas of an image while retaining the same light level for brighter areas to

even out the overall brightness of images with high contrast between bright and dark areas.

When the SETUP menu screen is displayed, select ‘SSDR’ by using the

Function Setup switch so that the arrow indicates ‘SSDR’.

2. Use the Function Setup switch to change the SSDR level in the sub menu according to the contrast between bright and dark areas.

●

SETUP

SSDR ON

RETURN : Select this to save the SPECIAL menu settings and return to the MAIN SETUP

menu.

SSDR OFF

EXIT

Select a desired EXIT mode using the Function Setup switch depending on the camera purpose.

sAVe : Save the current settings and exit the MAIN SETUP menu.



NOT sAVe : Do not save the current settings and exit the MAIN SETUP menu.



: Resets the camera settings to the factory defaults. Monitor, Language

ReseT



and COAX settings are not initialized.

English_27

Page 28

Troubleshooting

TROUBLESHOOTING

If you have trouble operating your camera, refer to the following table. If the guidelines do not enable

you to solve the problem, contact an authorized technician.

PROBLEM

Nothing appears on the screen.

The image on the screen is dim.

The image on the screen is dark.

The camera is not working

properly, and the surface of the camera is hot.

The DAY/NIGHT function does not work.

Color is not correct.

The screen ﬂ ickers continually.

When coaxial communication is not available

▶ Check that the power cord and line connection between the

camera and monitor are ﬁ xed properly.

▶ Check that you have properly connected VIDEO cable to the

camera VIDEO output jack.

▶ Is the lens stained with dirt? Clean your lens with a soft, clean cloth. ▶

Check the monitor and DVR settings.

▶

If the camera is exposed to very strong light, change the camera position.

▶ Adjust the contrast feature of the monitor or DVR. ▶ If you have an intermediate device, set the 75Ω / Hi-z properly.

▶ Check that you have properly connected the camera to an

appropriate power source.

▶

Check that AGC of EXPOSURE SETUP menu is ‘OFF’.

▶ Check the setting of WHITE BAL SETUP menu .

▶ Check that the camera is not pointing at the sun.

▶ Make sure that the camera and monitor are installed within

the recommended distance.

▶ Use the video ampliﬁ er equivalent to coaxitron if the

recommended installation distance is exceeded.

SOLUTION

28_ Troubleshooting

Page 29

Specifications

SPECIFICATIONS

Video

Imaging Device

Total Pixels

Effective Pixels

Scanning System

Synchronization

Frequency

Horizontal Resolution

Min. Illumination

s / N Ratio

Video Output

Lens Type

Mount Type

Operational

On Screen Display

Camera Title

Day & Night

Backlight Compensation

Contrast Enhancement

Digital Noise Reduction

Defog

Motion Detection

Privacy Masking

6&%1' 6&%3'

1/3’’ Super HAD CCD II (Double Scan)

1020(H) x 508(V)

976(H) x 494(V)

2:1 Interlace

Internal

H : 15.734KHz / V : 59.94Hz 700 TV lines(ER Mode)

0.1Lux ([email protected]) / 0.0002Lux ([email protected], SENS-UP x512)

52dB (AGC off, Weight on)

CVBS : 1.0Vp-p, 75Ω composite

Manual / Auto Iris (DC)

C / CS

English, Japanese, Spanish, French, Portuguese, Korean

Off / On (Displayed 15 characters)

Auto (Electrical) / Color / B/W

OFF / USER BLC / HLC

SSDR ( Off/On ) 3D DNR ( Off/On )

Off / Auto / Manual

Off / On

Off / On (8 programmable zones)

6&%1 6&%3

1020(H) x 596(V)

976(H) x 582(V)

Internal

H : 15.625KHz / V : 50Hz

English, French, German, Spanish,

Italian, Chinese, Russian, Polish,

Czech, Romanian, Serbian, Swedish, Danish, Turkish, Portuguese

Internal / Line LockInternal / Line Lock

●

SPECIFICATIONS

English_29

Page 30

Specifications

6&%1' 6&%1 6&%36&%3'

Gain Control

Electronic Shutter Speed

White Balance

Reverse

Communication

Protocol

Environmental

Operating Temperature / Humidity

Electrical

Input Voltage

Current

Mechanical

Dimension(WxHxD)

Weight

※

This speciﬁ cation can be changed without notice for performance improvement of product.

Off / Low / Middle / High

1/60 ~ 1/120,000

ATW / Outdoor / Indoor / Manual / AWC SET (1,800K° ~ 10,500K°)

OFF / H-REV

Coaxial Control ( SPC-300 Compatible )

Coax : Pelco-C ( Coaxitron )

-10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH

DC 12V±10%

0.11A

99.7 x 70 x 47.3mm

117g

sec

1/50 ~ 1/120,000

→

AC 24V ± 10% , DC 12V±10%

0.2A 0.11A 0.2A

117g

DC 12V±10%

117g

sec

AC 24V ± 10% , DC 12V±10%

117g

30_ Speciﬁ cations

Page 31

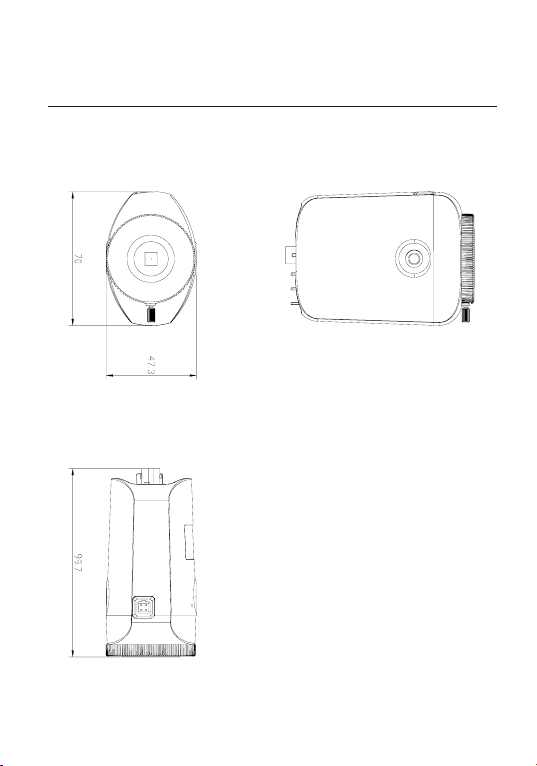

DIMENSION

Unit: mm

English_31

Page 32

SALES NETWORK

SAMSUNG TECHWIN CO., LTD.

Samsung Techwin R&D Center, 6, Pangyo-ro 319beon-gil, Bundang-gu, Songnam-si, Gyeonggi-do 463-400, Korea TEL : +82-70-7147-8740~60, FAX : +82-31-8018-3745

SAMSUNG TECHWIN AMERICA Inc.

100 Challenger Rd. Suite 700 Ridgefield Park, NJ 07660 Toll Free : +1-877-213-1222 Direct : +1-201-325-6920 Fax : +1-201-373-0124 www.samsungcctvusa.com

www.samsungtechwin.com www.samsungsecurity.com

SAMSUNG TECHWIN EUROPE LTD.

Samsung House, 1000 Hillswood Drive, Hillswood Business Park Chertsey, Surrey, UNITED KINGDOM KT16 OPS

+44-1932-45-5300, FAX : +44-1932-45-5325

TEL :

P/NO. :

PT01-001708A
