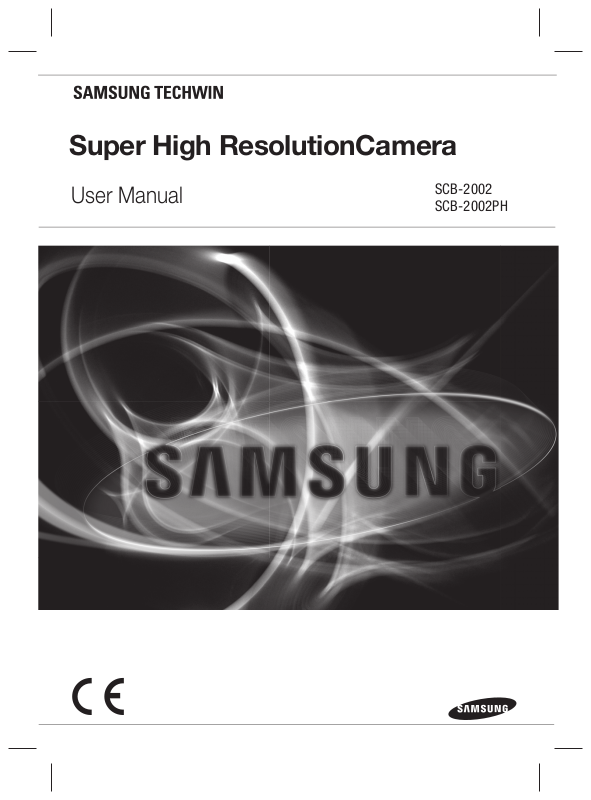

Samsung SCB-2002 User Manual

Super High ResolutionCamera

User Manual

SCB-2002
SCB-2002PH

Super High ResolutionCamera

User Manual

Copyright
©2011 Samsu ng Techwin C o., Ltd. A ll righ ts rese rved.

Tra dem ark

The name of t his product is the re gistered tradem ark of Samsung Techwin C o., Ltd.
Other tr ademarks mentio ned in this manual are t he registered tr ademark of their res pective compan y.

Restriction

Samsung Tech win Co., Ltd shall rese rve the copyrig ht of this document . Under no circumst ances, this docum ent
shall be rep roduced, distr ibuted or changed, p artially or who lly, without formal a uthorization o f Samsung Techwin.

Disclaimer

Samsung Tech win makes the best to v erify the integr ity and correc tness of the conte nts in this documen t, but
no formal gu arantee shall be pr ovided. Use of this d ocument and the sub sequent results s hall be entirely on
the user’s ow n responsibilit y. Samsung Techwin rese rves the right to c hange the content s of this document
without p rior notice.

Warra nty

If the pro duct does not oper ate properly in no rmal conditions , please let us know. S amsung Techwin will res olve
the probl em for free of charge. T he warranty pe riod is 3 years. How ever, the followings ar e excluded:

•

If the sys tem behaves abnorm ally because you r un a program irrelev ant to the system ope ration.

•

Deterio rated perform ance or natural wor n-out in proces s of time

 Design and s pecifi cation s are subject to cha nge without prio r notice.

is the regis tered logo of Sams ung Techwin Co., Ltd.

Before operating the camera, confirm the camera model and correct input power voltage.
To help you understand this manual thoroughly, we’ll introduce our model description.

■ SCB-2002 SERIES

• NTSC MODEL • PAL MODEL
SCB-2002N SCB-2002P
SCB-2002PH

■ MODEL DESCRIPTION

• SCB-2002/2002X X

_ _

POWER SOURCE

SIGNAL SYSTEM

• SIGNAL SYSTEM
N → NTSC MODEL
P → PAL MODEL

• POWER SOURCE
→ DC12V/AC24V
H → AC 230V~

safety information

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN

CAUTION:

WARNING

To prevent damage which may result in fi re or electric shock hazard, do not expose this

•
appliance to rain or moisture.

To prevent injury, this apparatus must be securely attached to the fl oor/wall in accordance

•
with the installation instructions.

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol indicates that dangerous voltage consisting a risk of electric
shock is present within this unit.

This exclamation point symbol is intended to alert the user to the presence
of important operating and maintenance (servicing) instructions in the
literature accompanying the appliance.

WARNING

1.

Be sure to use only the standard adapter that is specifi ed in the specifi cation sheet.
Using any other adapter could cause fi re, electrical shock, or damage to the product.

2.

Incorrectly connecting the power supply or replacing battery may cause explosion, fi re,
electric shock, or damage to the product.

3.

Do not connect multiple cameras to a single adapter. Exceeding the capacity may cause
abnormal heat generation or fi re.

4.

Securely plug the power cord into the power receptacle. insecure connection may cause
fi re.

5.

When installing the camera, fasten it securely and fi rmly. The fall of camera may cause
personal injury.

4_ safety information

6.

Do not place conductive objects (e.g. screwdrivers, coins, metal parts, etc.) or containers
fi lled with water on top of the camera. doing so may cause personal injury due to fi re,
electric shock, or falling objects.

7.

Do not install the unit in humid, dusty, or sooty locations. doing so may cause fi re or
electric shock.

8.

If any unusual smells or smoke come from the unit, stop using the product. in such case,
immediately disconnect the power source and contact the service center. continued use in
such a condition may cause fi re or electric shock.

9.

If this product fails to operate normally, contact the nearest service center. never
disassemble or modify this product in any way. (samsung is not liable for problems caused
by unauthorized modifi cations or attempted repair.)

10.

When cleaning, do not spray water directly onto parts of the product. doing so may cause

fi re or electric shock.

CAUTION

Do not drop objects on the product or apply strong shock to it. Keep away from a location

1.

subject to excessive vibrationor magnetic interference.

Do not install in a location subject to high temperature (over 50°C), low temperature (below

2.

-10°C), or high humidity. Doing so may cause fi re or electric shock.

If you want to relocate the already installed product, be sure to turn off the power and then

3.

move or reinstall it.

Remove the power plug from the outlet when then there is a lightning. Neglecting to do so

4.

may cause fi re or damage to the product.

Keep out of direct sunlight and heat radiation sources. It may cause fi re.

5.

Install it in a place with good ventilation.

6.

Avoid aiming the camera directly towards extremely bright objects such as sun, as this

7.

may damage the CCD image sensor.

Apparatus shall not be exposed to dripping or splashing and no objects fi lled with liquids,

8.

such as vases, shall be placed on the apparatus.

The Mains plug is used as a disconnect device and shall stay readily operable at any time.

9.

Do not expose the camera to radioactivity. Radioactivity exposure may damage the CCD.

10.

● SAFETY INFORMATION

English_5

safety information

FCC STATEMENT

This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions :

This device may not cause harmful interference, and

1)
This device must accept any interference received including interference that may cause

2)
undesired operation.

CAUTION

This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to part 15 of FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is
likely to cause harmful interference in which case the user will be required to correct the
interference at his own expense.

IC Compliance Notice

This Class A digital apparatus meets all requirements of the Canadian
Interference.-Causing Equipment Regulations of ICES-003.

Correct Disposal of This Product

(Applicable in the European Union and other European countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories
(e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their
working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal,
please separate these items from other types of waste and recycle them responsibly to promote the sustainable
reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government
office, for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract.
This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

Correct disposal of batteries in this product

(Applicable in the European Union and other European countries with separate battery return systems.)

This marking on the battery, manual or packaging indicates that the batteries in this product should not be
disposed of with other household waste at the end of their working life. Where marked, the chemical symbols
Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC
Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health
or the environment.

To protect natural resources and to promote material reuse, please separate batteries from other types of waste
and recycle them through your local, free battery return system.

6_ safety information

(Waste Electrical & Electronic Equipment)

important safety instructions

Read these instructions.

1.

Keep these instructions.

2.

Heed all warnings.

3.

Follow all instructions.

4.

Do not use this apparatus near water.

5.

Clean only with dry cloth.

6.

Do not block any ventilation openings. Install in accordance with the manufacturer’s

7.

instructions.
Do not install near any heat sources such as radiators, heat registers, or other apparatus

8.

(including amplifi ers) that produce heat.
Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug

9.

has two blades with one wider than the other. A grounding type plug has two blades and
a third grounding prong. The wide blade or the third prong is provided for your safety. If
the provided plug does not fi t into your outlet, consult an electrician for replacement of the
obsolete outlet.

10.

Protect the power cord from being walked on or pinched particularly at plugs,

convenience receptacles, and the point where they exit from the apparatus.

11.

Only use attachments/accessories specifi ed by the manufacturer.

12.

Use only with cart, stand, tripod, bracket, or table specifi ed by the

manufacturer, or sold with the apparatus.

13.

Unplug this apparatus when a card is used. Use caution when moving

the cart/ apparatus combination to avoid injury from tip-over.

14.

Refer all servicing to qualifi ed service personnel. Servicing is required when the apparatus

has been damaged in any way, such as powersupply cord or plug is damaged, liquid has
been spilled or objects have fallen into the apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or has been dropped.

Apparatus shall not be exposed to dripping or splashing and no objects
fi lled with liquids, such as vases, shall be placed on the apparatus

Samsung Techwin cares for the environment at all product manufacturing
stages to preserve the environment, and is taking a number of steps to provide
customers with more environment-friendly products.The Eco mark represents
Samsung Techwin’s will to create environment-friendly products, and indicates
that the product satisfies the EU RoHS Directive.

● SAFETY INFORMATION

English_7

contents

INTRODUCTION

CONNECTION

CAMERA OPERATION

TROUBLESHOOTING

SPECIFICATIONS

9

18

22

38

39

9

Features

10

What’s included

11

Component names and functions

15

Lens

18

Connecting to a monitor

18

Connecting to power

20

Control via RS-485 Interface

20

Using coaxial communications

22

Menu Confi guration

22

Menu Setup

38

Troubleshooting

39

Specifi cations

8_ contents

introduction

FEATURES

y

High Resolution

By Super HAD CCD II (1/3”) 520K pixel (NTSC), 610K pixel (PAL) Color Double
Density CCD, the camera produces clear picture quality with a horizontal resolution
of 650 TV lines for color and 700 TV lines for BW.

y

Excellent Sensitivity

The built-in high sensitivity COLOR CCD produces a clear image.

- SCB-2002 COLOR : 0.1 Lux(50IRE,@F1.2), B/W : 0.01 Lux(50IRE,@F1.2)

- SCB-2002H COLOR : 0.1 Lux(50IRE,@F1.2), B/W : 0.01 Lux(50IRE,@F1.2)

y

Motion Detection

Without assistance from an external sensor, this camera independently detects and
traces objects while examining movement to activate the alarm.

y

SSNR3 (Samsung Super Noise Reduction) Function

The high-performance SV-V DSP chip effectively removes low-light gain noise and
afterimage to provide clear images even in dark environments.

y

Day&Night

This camera has a function that automatically selects the mode that is appropriate
for daytime or night-time conditions.
The COLOR mode operates in daytime conditions to provide optimum colors, and
B/W mode operates in nighttime conditions to enhance the defi nition of the image.

y

SSDR (Samsung Super Dynamic Range)

For images with high contrast between bright and dark areas from diffi cult lighting
conditions such as backlighting, this camera selectively illuminates darker areas while
retaining the same light level for brighter areas to even out the overall brightness.

y

PROFILE

You can set a mode according to the camera installation conditions.

- BASIC, DAYNIGHT, BACKLIGHT, ITS, INDOOR, USER.

y

PIP

Displays a full-size image along with the thumbnail.

y

Video/DC Drive Lens Support

You can select Video or DC Drive Lens from the menu.

y

DIS (Digital Image Stabilizer)

The DIS function compensates for any camera movement, to produce more
stable pictures.

English_9

● INTRODUCTION

introduction

y

Miscellaneous Functions

HLC(High Light Compensation), SENS-UP, REVERSE , D-ZOOM, SHARPNESS
and PRIVACY functions are provided.

y

Communication

Coaxial and RS-485 communication methods are supported.

- Coaxial Communications : Pelco Coaxitron
RS-485 Communications : Samsung-T, Samsung-E, PELCO-D, PELCO-P,

-

y

OSD

The camera’s OSD is complimented by 18 languages.

- NTSC : English, Korean, Japanese, Spanish, French, Portuguese, Taiwanese

- PAL : English, Chinese, German, Italian, French, Spanish, Russian, Czech,

Polish, Romanian, Serbian, Swedish, Danish, Turkish, Portuguese

WHAT’S INCLUDED

Check if the following items are included in the product package.

BOSCH, HONEYWELL, VICON, PANASONIC, GE, AD

SCB-2002/2002H User Manual

Auto iris lens connection plug

C-Mount adaptor

10_ introduction

Super High ResolutionCamera

User Manual

Super High ResolutionCamera

SCB-2002

SCB-2002PH

Quick Set-up Guide

SCB-2002

SCB-2002PH

Quick Set-up Guide

COMPONENT NAMES AND FUNCTIONS

FRONT VIEW





❶

Tripod Mounting Bracket Screw Hole

Used to fix the Tripod Mounting Bracket to the top of the camera.

➋

C-Mount Lens Adapter

Install this adapter to use a C-Mount Lens.

➌

Back Focus Control Lever

Adjust focus by this Back Focus Lever.

SIDE VIEW

➍

Auto Iris Lens Connector

Used to connect Auto Iris Lens
plug.

˜

● INTRODUCTION



English_11

introduction

BOTTOM VIEW



※

Cannot fasten screws here.

※

When fastening the screw,





make the screw fastening part
head to the camera module.

➎

Tripod Mounting Bracket Screw Hole

Used to fix the camera on a bracket or tripod.
The screw sizes for this hole are as follows:

* You can separate the Tripod Mounting Bracket and install it

on the top or bottom of the camera. Make sure to use the
Tripod Mounting Bracket when fixing the camera to a bracket
or tripod. Otherwise the camera may not be secure, or the
internal circuitry of the camera may be damaged.

Tripod is not supplied with the camera. Please check the installed documentation of tripod for



M

the installation of cameras.

L

1/4”-20 UNC (20 THREAD)
L:4.5mm±0.2mm (ISO standard),
or 0.197” (ASA standard)

12_ introduction

REAR VIEW

⓬

⓫

⓭

● INTRODUCTION

➏

➐

➑
➒

❿

➏

Function Setup Button:

• SET button : Displays the menu on the screen and uses enter sub menu.

• Up&Down button : Used to move the cursor up or down in the menu screen.

• Left&Right button :Used to move the cursor left or right in the menu screen.

➐

RS-485 Control Port : You can control SETUP MENU through this port by using

➑

FREEZE Mode Setting Terminal : Turns on or off FREEZE function.

❾

V-SYNC Input Terminal : Enables External Sync.

❿

Shutter Speed Select Terminal : Selects external sync shutter speed.

1/60(1/50) OFF OFF OFF

1/120(1/100) ON OFF OFF

1/250 OFF ON OFF
1/500 ON ON OFF

1/700 OFF OFF ON
1/1000 ON OFF ON
1/1600 OFF ON ON
1/2500 ON ON ON

external controllers like a Remote controller that RS-485
Communication is supported.

SHUTTER 1 SHUTTER 2 SHUTTER 3

[Interlace mode]

⓮

⓯

⓰

* High Voltage Type

(SCB-2002PH)

English_13

introduction

⓫

D & N Input Port : You can switch to Day & Night Mode by connecting an external

⓬

MD Output Port : Motion detection signals are output through this port.

⓭

Ground Terminal

⓮

Video OUT Terminal : Sends video signal and connects to the video input terminal of

⓯

Power LED : This lamp is lit when the camera is receiving power normally.

⓰

Power input terminal : Connects to the power appropriate to each model.

※

External I / O por t configuration



M

signal to this port.

the monitor.

Num Name I/O Direction

1 RS-485+ I/O
2 RS-485- I/O
3 Freeze I
4 V-SYNC I

5-7 Shutter I

8DN I
9MD O

10 GND -

When using the FREEZE Mode Setting Terminal, the Shutter Speed Select Terminal and the
D & N Input Port, Connect each of the terminals to the Ground Terminal.

14_ introduction

LENS

The lens is not supplied with this camera. Purchase a lens suitable for your environment. This
camera accepts the auto iris lens and both C-and CS-mount lens.



To use the functions of this camera effectively it is recommended that a DC type Auto Iris lens is

M

used.

Keep the lens surface clean, if it becomes contaminated with dirt or fi ngerprints the picture



quality suffers.

WHEN USING AUTO IRIS LENS

Strip the insulation of the auto iris lens cable 8mm from the end.

1.

approx. 8mm

Strip the insulation of the core of the auto iris lens cable to expose a 2mm length.

2.

approx. 2mm

Remove the cover of the auto iris lens connector plug and solder the lens cable

3.

to the connector pin of the plug.

LENS

Pin No. DC VIDEO

No.1 Pin Damping - Red (power)

No.2 Pin Damping + NC

No.3 Pin Drive + White (video signal)

No.4 Pin Drive - Black (GND)

No.3 Pin

No.1 Pin

Connector

No.4 Pin

No.2 Pin

Lens cable

● INTRODUCTION

English_15

introduction

Fit the cover of the auto iris lens connector plug, remove

4.

the protective glass cover from the front of the camera,
and fasten the auto iris lens by turning it clockwise.

5.

Set focus of camera using Back
Focus Control Lever of camera side
after combining Auto Iris lens.

Back Focus Control Lever

WHEN USING A C/CS-MOUNT LENS

Before installing a lens, identify whether the lens to be installed is a C-Mount or
CS-Mount.
This camera is set for a CS-Mount Lens by default. To install a C-Mount Lens, a
simple modification is required.

y

When Using a CS Mount Lens

Remove the protective glass cover at the
front of this product and turn the CS-Mount
Lens clockwise to install it. And set focus of
camera using Back Focus Control Lever of
camera side after combining CS-Mount lens.

y

When Using a C Mount Lens

1.

Remove the protective glass cover at the
front of this product and turn the C-Mount
Adapter clockwise to install it.

16_ introduction

C-MOUNT ADAPTER

Turn the C-Mount lens clockwise to install it.

2.

C-MOUNT ADAPTER

Set focus of camera using Back Focus Control Lever of camera side after

3.

combining C-Mount lens.

Use the lens connector shown in the following fi gure. If the



M

dimensions of the connector are not correct, it may damage the
camera, or the lens may not be installed fi rmly.



If the lens is too heavy, the camera becomes unbalanced and
there may be problems. Use a lens that weighs less than 450g.



When adjusting the Automatic Level Control (ALC) of an auto iris
lens, use Av mode if available. If you use the Pk mode, the
picture brightness may change continuously.

C-mount lens : 10 mm or less

CS-mount lens : 5 mm or less

● INTRODUCTION

English_17

connection

CONNECTING TO A MONITOR

Connect the Video OUT port on the rear panel of the camera to a monitor.

CCD Camera

y

As the connecting method varies with the instruments, refer to the manual supplied
with the instrument.

y

Only connect the cable when the power is turned off.

Monitor

CONNECTING TO POWER

Since power specifications differ depending on the model, make sure to check your model
name and specifications before connecting power.
You can connect power as shown in the following figure.

For AC / DC power

y

Since the power specifi cation supports
both AC and DC, connect AC 24V,
500mA Adaptor or DC 12V, 500mA
Adaptor.

18_ connection

High Voltage Type (AC230V, 50Hz)

y

Use AC230V, 50Hz power source For
SCB-2002PH.

When the resistance value of copper wire is at [20°C(68°F)]

Copper wire size (AWG) #24 (0.22mm2) #22 (0.33mm2) #20 (0.52mm2) #18 (0.83mm2)

Resistance value(/m) 0.078 0.050 0.030 0.018

Voltage Drop (V/m) 0.028 0.018 0.011 0.006

y

As shown in the table above, voltage decreases as the wire gets longer.
Therefore use of an excessively long adaptor output line for connection to the

camera may affect the performance of the camera.
* Standard voltage for camera operation : DC 12V±10%, AC 24V±10%
* There may be some deviation in voltage drop depending on the type of wire and the

manufacturer.

Be sure to connect power only after all the installation is complete.



M



Note that AC / DC adaptor is not supplied with camera.



Ground should be connected to the GND terminal.

● CONNECTION

English_19

connection

CONTROL VIA RS-485 INTERFACE

The camera can be controlled by using external controllers like a Remote controller.
(RS-485 Communication)

(1) To control by PC
Connect the RS-485 control port of the camera and the serial cable through an

RS-485 converter.

Example) PC Serial Port (COM1)  Serial Cable  RS-485 Converter  Camera

(2) To control using a DVR or System Controller
Connect the RS-485 cable (TRX+, TRX-) to the connection port of the 485 control

½ RS-485 Communication establishment initial value.

USING COAXIAL COMMUNICATIONS

y
y
y

RS-485Control Port.

board that is connected to the DVR or System Controller.

485 Control Board Connection Port RS-485 Control Port

(+) CONNECTION TERMINAL (TRX+) 485+

(- ) CONNECTION TERMINAL (TRX-) 485-

Item

Initial value

M

Coaxial Communications System
OSD Control method
If you set the sensitivity level of the sub menu item (of COAX) to “Low”, you have to press
the MENU/ENTER (OSD KEY) button twice in a row to access the OSD menu.
(To prevent an error by noise from the DVR)

Camera ID BAUD RATE UART MODE RET PKT

1 9600 8-NONE-1 ENABLE

To control the camera by constructing an additional controller, use the SAMSUNG-T, SAMSUNG-E,



PELCO-D, PELCO-P, BOSCH, HONEYWELL, VICON and PANASONIC, GE, AD protocol.

CAMERA DVR CONTROLLER

SET MENU/ENTER OSD KEY

UP UP KEY JOYSTICK UP

DOWN DOWN KEY JOYSTICK DOWN

LEFT LEFT KEY JOYSTICK LEFT

RIGHT RIGHT KEY JOYSTICK RIGHT

20_ connection

DVR

ALARM HDD NETWORK BACKUP REC

REC

1234

ZOOM

FREEZE

BACKUP

SEARCH

5678

9101112

TELE WIDE VIEW PRESET

MODE

AUDIO

ALRAM

MENU

DVD RECORDER

13 14 15 16

OPEN/CLOSE

M
E
N
U

S
E
A
R

C
H

M

U
L
T
I

R
E
C

C
A
M

M
O
N

P
T

Z

D

1

V
R

M

2

T
X

3

S
E
T
U

P

6

4

F
U
N
C

7

5

E
N

T

8

E

E

R
S
C

9

0

USB

RETURN

M
E
N

U

P
R
E
S

E
T

G
R
O

U
P

T
R
A
C

K

C
L
O
S
E

O
P
E

N
N
E
A

R

FA
R

W
I
D
E

T
E
L
E

: BNC

•

---- : RS-485

•

- Video Cable
The camera’s video output port is connected to the monitor with a BNC coaxial

cable, shown below : If the distance between the camera and the monitor exceeds
the recommended maximum, please use an auxiliary video amp.

● CONNECTION

Distance

300m 3C2V(RG-59/U)
450m 5C2V(RG-6/U)
600m 7C2V(RG-11/U)

It is recommended that pure copper coax cable is used and not copper coated steel, as this will



M

cause issues with the communication over the coaxial cable.

Recommended Cable Specification

English_21

camera operation

MENU CONFIGURATION

MAIN SETUP

●

LENS

EXPOSURE

SSDR

WHITE BAL

BACKLIGHT

SSNR3

DAY/NIGHT

SPECIAL

EXIT

MENU SETUP

Use the Function Setup button within the camera.

DC

●

BRIGHTNESS

●

SENS-UP

●

ON

●

ATW

●

MANUAL

●

OFF

●

ON

●

AUTO

●

B/W

●

IMAGE ADJ

●

MOTION DET ● PRIVACY

●

PROFILE

●

SAVE

●

VIDEO

●

SHUTTER

●

RETURN

●

OFF

●

OUTDOOR

●

AWC→SET

●

USER BLC

●

OFF

●

EXTERN

●

CAM TITLE ● SYNC

●

COMM ADJ ● RETURN

●

NOT SAVE ● RESET

●

MANUAL

●

AGC

●

INDOOR

●

HLC

●

COLOR

●

DIS

1.

UP button
SET button

LEFT button

DOWN button

RIGHT button

Press the set button.

y

Main SETUP menu is displayed on the monitor screen.

22_ camera operation

Select the function
by moving up or
down direction of
function setup switch.

Select a desired function using the Function Setup button.

2.

y

3.

Set up a selected item by using The Function Setup button.

4.

To fi nish the setting, select ‘EXIT’ and press The set button.

M

䯝 1. LENS DC

2. EXPOSURE

3. SSDR OFF

4. WHITE BAL ATW

5. BACKLIGHT OFF

6. SSNR3 ON

7. DAY/NIGHT AUTO

8. SPECIAL

9. EXIT SAVE

Place the cursor over a desired item.

An item with the icon also has sub menus. To select a sub menu, select an item with the icon



and press the set button.



An item with the --- icon is unavailable due to function settings.

MAIN SETUP

LENS

Using this function, you can control the screen brightness.

When the SETUP menu screen is displayed,

1.

select ‘LENS’ by using the Function Setup
button so that the arrow indicates ‘LENS’.

Select the connected lens type by using the

2.

Function Setup button.

DC/VIDEO : Select Auto Iris Lens.

y

y

Each Lens mode has sub menu site as listed below.

3.

Brightness (DC, Manual) : Adjusts the video brightness.

-

You can adjust the minimum shutter and maximum value of ESC
shutter mode when DC Lens mode is selected.

Manual : Select Manual Lens.

Change the status
by moving the
setup switch left or
right.

MAIN SETUP

䯝 1. LENS DC

2. EXPOSURE

● CAMERA OPERATION

English_23

camera operation

FOCUS ADJ (DC, VIDEO) : To adjust the DC and VIDEO lens focus correctly,

-

you must activate the Focus Settings mode under each lens menu. To activate
the Focus Settings mode, adjust the lens focus, and then deactivate the settings
mode. (The VIDEO lens requires an extra step: go to the sub menu of the Focus
Settings mode and change the shutter speed to adjust the lens brightness.)

IRIS SPEED (DC) : Adjusts the Iris control speed of the DC lens. If the control speed

-

is too slow or fast, please use this menu to adjust the speed.

When using VIDEO lens, adjust the lens VR explained below fi rst and set the focus using



M

‘FOCUS ADJ’ menu.



If color rolling occurs when using a DC lens, set Shutter to ---.



Some lenses may not work properly, depending on the setting of the BRIGHTNESS LEVEL.



When Using a Video-Type Auto Iris Lens

➊ Adjust the ALC adjustment terminal on the lens appropriately. In general, set it to AV

(Average).

➋ It may not work properly depending on the installed lens. Set the Level VR of the lens to the

optimal value.

➌ Set AGC to OFF and adjust the Lens VR to an appropriate brightness.

➍ Adjust the Lens VR, adjust the BRIGHTNESS, and then check if the screen brightness

changes properly. Otherwise, adjust the Lens VR again.

EXPOSURE

When the SETUP menu screen is displayed,

1.

select ‘EXPOSURE’ by using the Function
Setup button so that the arrow indicates
‘EXPOSURE’.

Select a desired mode using the Function

2.

Setup button.

BRIGHTNESS : Adjusts the video

y

SHUTTER : You can select the shutter.

y

ESC : Select this to control the shutter

-

speed automatically. If ESC is selected,
the shutter speed is automatically controlled depending on the ambient
illumination of the subject.

brightness.

MAIN SETUP

1. LENS DC
䯝 2. EXPOSURE

3. SSDR OFF

EXPOSURE SETUP

BRIGHTNESS

䯝 1.

2.SHUTTER

3.AGC HIGH

4.SENS-UP OFF

5.RETURN

IIIIIÂIIIIIIIIIIIIIIII

25

---

24_ camera operation

MANUAL : You can control shutter speed manually.

-

(NTSC MODEL - 1/60sec~1/120,000sec, PAL MODEL - 1/50sec~1/
120,000sec)

-

A.FLK : Select this when you experience picture fl icker, this happen when
there is a clash with the installed lighting frequency.

-

EXTERN : Use the Shutter Speed Select Terminal on the back of the
camera to control the shutter speed via an external input. You can control
the desired speed as shown in the table below by connecting the terminal
to the Ground Terminal.

1/60(1/50) OFF OFF OFF

1/120(1/100) ON OFF OFF

1/250 OFF ON OFF

1/500 ON ON OFF

1/700 OFF OFF ON

1/1000 ON OFF ON

1/1600 OFF ON ON

1/2500 ON ON ON

-

--- : Shutter speed is fi xed at 1/60 sec (1/50 sec).

When you use a DC lens, set the shutter mode to --- if color rolling occurs.



M



When the SHUTTER is set to ESC after selecting the Internal Synchronization Type, the picture
may become unstable if the camera faces a bright fl uorescent light. Therefore, take care when
choosing the installation position.



When the SHUTTER is set to MANUAL or A.FLK mode, SENS-UP will be disabled.



When using an external input, Connect the Shutter Speed Select Terminal to the Ground
Terminal.

y

AGC(AUTO GAIN CONTROL) : The higher the gain level, the brighter the screen

-

OFF : Deactivates the AGC function.

-

LOW : Allows automatic gain control from 5.3dB to 32dB.

-

HIGH : Allows automatic gain control from 5.3dB to 37dB.

SHUTTER 1 SHUTTER 2 SHUTTER 3

[ Interlace Mode]

- but the greater the noise.

● CAMERA OPERATION

English_25

camera operation

SENS-UP : When it is night or dark, the camera automatically detects the light

y

M

y

SSDR(SAMSUNG SUPER DYNAMIC RANGE)

SSDR illuminates darker areas of an image to
even out the overall brightness while retaining
the same light level for brighter areas of
images with high contrast between bright and
dark areas. Use the Function Setup button
to change the SSDR level in the sub menu
according to the contrast between bright and dark areas.

level and maintains a clear picture if this mode is activated.

OFF : Deactivates the SENS-UP function.

-

AUTO : Activates the SENS-UP function.

-

If you set the Function Setup switch to ‘AUTO’ mode, You can adjust the brightness by



increasing or decreasing the limit value. (x2~x512)
Note that the higher the SENS-UP level, the brighter the screen, but the more likely it is that an



after-image will appear.
Although Noise, Spots, and Whitish symptoms may occur in SENS-UP operation when the



sens-up level is increased, this is normal.
If GAIN of EXPOSURE is not in use, the SENS-UP (Sensitivity-Up) is set to “---“.



RETURN : Select this to save the changes in the EXPOSURE menu and return to

the SETUP menu.

MAIN SETUP

1. LENS DC

2. EXPOSURE
䯝 3. SSDR OFF

4. WHITE BAL ATW

26_ camera operation

SSDR ON

SSDR OFF

WHITE BAL (WHITE BALANCE)

Use the White Balance function to adjust the screen color.

When the SETUP menu screen is displayed,

1.

select ‘White Bal’ by using the Function
Setup button so that the arrow indicates
‘White Bal’.

Select a desired mode using the Function Setup

2.

button.

※

Select one of the following 5 modes, as appropriate for your purpose.

ATW

: Select this when the color temperature is between 1,700°K and 11,000°K.

y

OUTDOOR

y

y
y

y

M

: Select this when the color temperature is between 1,700°K and

11,000°K. (sodium light inclusion)
Select this When the color temperature of environment surrounding

INDOOR
MANUAL

AWC SET



the subject is out of the control range (e.g. clear sky, or sunset)

:

Select this when the color temperature is between 4,500°K and 8,500°K.

:

Select this to fi ne-tune White Balance manually. Set White Balance fi rst
by using the ATW or AWC mode. After that button to MANUAL mode,
fi ne-tune the White Balance and the Function Setup button.

:

To fi nd the optimal luminance level for the current environment,
point the camera towards a sheet of white paper and press the set
button. If the environment changes, readjust it.

White Balance may not work properly under the following conditions. In this case select the
OUTDOOR mode.

➊ When the ambient illumination of the subject is dim.

➋ If the camera is directed towards a fl uorescent light or is installed in a place where

illumination changes dramatically, the White Balance operation may become unstable.

MAIN SETUP

1. LENS DC

2. EXPOSURE

3. SSDR OFF
䯝 4. WHITE BAL ATW

5. BACKLIGHT OFF

BACKLIGHT

The SCB-2002/2002H is designed so that it delivers a
distinctive subject and background at the same time,
even when the subject is in backlight, by adopting a
function of the proprietary SV-V DSP chip.

When the SETUP menu screen is displayed,

1.

select ‘BACKLIGHT’ by using the Function Setup
button. so that the arrow indicates ‘BACKLIGHT’.

MAIN SETUP

1. LENS DC

2. EXPOSURE

3. SSDR OFF

4. WHITE BAL ATW
䯝 5. BACKLIGHT OFF

6. SSNR3 ON

● CAMERA OPERATION

English_27

camera operation

Select a desired mode using the Function Setup button depending on the camera

2.

purpose.

OFF :

Not being used.

y

USER BLC : Enables a user to select a desired area on a picture and view that

y

-

-

HlC (High light Compensation) :

y

This function masks the strong light to
minimize white out due to over exposure
and preserve much of the on-screen details
when the camera aims a strong light source.

-

-

-

-

SSNR3

This function reduces the background noise in a low luminance environment.

1.

When the SETUP menu screen is displayed,
select ‘SSNR3’ by using the Function Setup
button so that the arrow indicates ‘SSNR3’.

2.

Select a desired mode using the Function
Setup button.

y

ON : Activates SSNR3 so that noise is reduced.

y

OFF : Deactivates SSNR3. Noise is not reduced.

3.

Set the SSNR3 mode to ‘ON’ and press the set
button. Then you can adjust the noise reduction level.



M



28_ camera operation

area more clearly.
LEVEL : Adjusts the brightness level of a monitoring area.
TOP/BOTTOM/LEFT/RIGHT : Adjust the area to be enhanced.

HLC SETUP

MASK COLOR BLACK

Â

IIIIIIIIIIIIIIIIIIIII

IÂIIIIIIIIIIIIIIIIIIII

IIIIIIIIIIIIIIIIIIÂIII

IÂIIIIIIIIIIIIIIIIIIII

IIIIIIIIIIIIIIIIIIIII

LEVEL : Adjusts the brightness level of a
monitoring area.

LIMIT : Enable to change the operating
condition.

MASK COLOR/TONE : Change the color
/ brightness of the masking area. (Black,
Red, Blue, Cyan, Magenta)

䯝 1. LEVEL

2. LIMIT

3.

4. MASK TONE

5. TOP

6. BOTTOM

7. LEFT

8. RIGHT

9. RETURN

TOP/BOTTOM/LEFT/RIGHT : Adjust the area to be enhanced.

MAIN SETUP

䯝 1. LENS DC

2. EXPOSURE

3. SSDR OFF

4. WHITE BAL ATW

5. BACKLIGHT OFF

6. SSNR3 ON

7. DAY/NIGHT AUTO

You cannot set the SSNR3 to ‘ON’ or ‘OFF’ when the AGC mode of the ‘EXPOSURE’ menu is ‘OFF’.
When adjusting the noise reduction level in the SSNR3 mode, remember that the higher the
level set, the more the noise level will be reduced, as will the brightness of the image.

MIDDLE

NIGHT ONLY

105

Â

210

5

10

10

DAY/NIGHT

You can display pictures in color or in black and white.

1.

When the SETUP menu screen is displayed,
select ‘DAY/NIGHT’ by using the Function
Setup button so that the arrow indicates
‘DAY/NIGHT’.

2.

Select a desired mode using the Function
Setup button according to the picture display
you want.

y

AUTO : The mode is switched to ’Color‘ in a

normal environment, but switches to
’B/W‘ mode when ambient illumination
is low. To set up the switching
time for AUTO mode, press the set
button. You can turn on or off the
burst signal on B/W mode.

BURST MODE : You can turn on or

-

-

DURATION : You can select the day/

-

DWELL TIME : You can select day/

off the burst signal
on B/W mode.

night switching point.

night switching delay time from.

→

3s, 5s, 7s, 10s, 15s, 20s, 30s, 40s, 60s

(PAL MODEL)

Color → B/W B/W → Color

Fast 2 lux 5.5 lux

Slow 1 lux 7 lux

※ The day/night switching point of the camera can be adjusted.

: Ground to the grounding terminal to allow automatic switching

y

EXTERN

between COLOR and B/W (Black/White).

COLOR

: The picture is always displayed in color.

y

y

B/W

: The picture is always displayed in black and white.

You can turn on or off the burst signal on B/W mode.

1. LENS DC

2. EXPOSURE

3. SSDR OFF

4. WHITE BAL ATW

5. BACKLIGHT OFF

6. SSNR3 ON
䯝 7. DAY/NIGHT AUTO

8. SPECIAL

9. EXIT SAVE

▶ 1.BURST MODE ON

2.COLOR→B/W
DURATION FAST
DWELL TIME 5 SEC

3.B/W→COLOR
DURATION FAST
DWELL TIME 10 SEC

4.RETURN

(NTSC MODEL)

Fast 2 lux 5 lux

Slow 1 lux 5.5 lux

MAIN SETUP

AUTO SETUP

Color → B/W B/W → Color

● CAMERA OPERATION

English_29

camera operation

When using a Video Auto Iris Lens, if you set the lens level to low, automatic switching between Color



M

and Black & White may not occur.
If the GAIN of EXPOSURE menu is set to OFF, AUTO mode is not available to select.



When using an external input, Connect the D & N Input Port to the Ground Terminal.



SPECIAL

When the SETUP menu screen is displayed,

1.

select ‘SPECIAL’ by using the Function
Setup switch so that the arrow indicates
‘SPECIAL’.

Select a desired mode using the Function

2.

Setup switch.

IMAGE ADJ :

y

1) When the SPECIAL menu screen is
displayed, select ‘IMAGE ADJ’ by using
the Function Setup switch so that the
arrow indicates ’IMAGE ADJ‘.

2) Select a desired mode using the
Function Setup switch.

Monitor : Please change the settings value of

y

video appropriate to your monitor.

-

LCD : Please select this menu item when

using an LCD monitor.
You can change the gamma, PED
level and color gain in the sub menus.

MAIN SETUP

1. LENS DC

2. EXPOSURE

3. SSDR OFF

4. WHITE BAL ATW

5. BACKLIGHT OFF

6. SSNR3 ON

7. DAY/NIGHT AUTO
䯝 8. SPECIAL

9. EXIT SAVE

䯝 1. IMAGE ADJ

2. CAM TITLE OFF

3. SYNC INT

4. MOTION DET OFF

5. PRIVACY OFF

6. DIS OFF

7. PROFILE BASIC

8. COMM ADJ

9. RETURN

䯝 1.MONITOR LCD

2.REVERSE OFF

3.PIP OFF

4.D-ZOOM OFF

5.FONT COLOR BLUE

6.SHARPNESS ON

7.LANGUAGE ENGLISH

8.RETURN

SPECIAL

IMAGE SETUP

30_ camera operation

-

CRT : Please select this menu item when
using a CRT monitor. You can change the
PED level, color gain in the sub menus.

-

USER : Please use this menu item when
using a monitor other than stan dard ones.
You can change the gamma, PED level and
color gain in the sub menus.

Reverse

:You can reverse the picture.

y

-

OFF : You don’t reverse the picture.

-

H-REV : You can fl ip the picture horizontally on the screen.

-

V-REV : You can fl ip the picture vertically on the screen.

-

HV-REV : You can fl ip the picture horizontally and vertically on the screen.

y

PIP (Picture in Picture)

image along with the thumbnail to provide
more detailed information. The position of
the thumbnail is adjustable.

y

D-ZOOm : You can use a digital zoom of

x1 ~ x16.

y

FONT COLOR: You can change the OSD font color. (White, Yellow, Green, Red, Blue)

y

SHARPNESS: As you increase this value,

y

LANGUAGE: You can select the menu language according to your requirements.

-

NTSC : Korean, English, French, Spanish, Japanese, Portuguese, Taiwanese

-

PAL : English, Chinese, German, Italian, French, Spanish, Russian, Czech, Polish,

Romanian, Serbian, Swedish, Danish, Turkish, Portuguese

y

RETURN: Select this to save the settings for the IMAGE ADJ menu and to return to

When the V-REV or H-REV mode is enabled, the text on the screen does not fl ip.



M



If you increase the SHARPNESS level too high, the picture may become distorted or noise may apper.

:Displays a fullsize

the picture outline becomes
stronger and clearer. Adjust
this value appropriately
depending on the sharpness
of the picture.

the SPECIAL menu.

LCD MONITOR

▶ GAMMA 0.55
PED LEVEL
COLOR GAIN
RESET

Press SET to Return

PIP SETUP

IIIIIIIIIIIIIIIÂIIIIIIIIIIIIII

1. X POS

2. Y POS

3. RETURN

Level

I

IIIIIIIIIIIIIIIÂIIIIIIIIIIIIII

I

SHARPNESS

IIIIIIIIIIIIIIIÂIIIIIIIIIIIIII

I

Press SET to Return

IIIIIÂIIIIIIIIIIIIIIII

IIIIIIIIIIIIIIIÂIIIIII

14

5

I

17

I

17

I

15

● CAMERA OPERATION

English_31

camera operation

CAM TITLE

y

M

y

: If you enter a title, the title will appear on the monitor.

➊

If the SPECIAL menu screen is
displayed, use the Function Setup
switch so that the arrow indicates
‘CAM TITLE’.

➋

Set it to ‘ON’ by using the Function
Setup switch.

➌

Press the Function Setup switch.

➍

Use the Function Setup switch to
move to a desired letter and select the
letter by pressing the switch. Repeat
this to enter multiple letters. You can
enter up to 15 letters.

➎

Enter a title, move the cursor to ’POS’
and press the Function Setup switch. The
entered title appears on the screen. Select
the position to display the title on the screen
by using the Function Setup switch and
press. When the position is determined,
select ’END’ and press the Function Setup
switch to return to the SPECIAL menu.

When the CAM TITLE menu is ‘OFF’, no title will be displayed on the monitor screen even if you



enter one.



Only English is available in the mode.



If you move the cursor to CLR and press the Function Setup switch, all the letters are
deleted. To edit a letter, change the cursor to the bottom left arrow and press the Function
Setup switch. Move the cursor over the letter to be edited, move the cursor to the letter to
be inserted and then press the Function Setup switch.

SYNC : In areas where the supply is at

60Hz(NTSC), 50Hz(PAL), you can
synchronize the output phase of
multiple cameras using the power
synchronization function (Line-Lock)
without using a synchronization
signal generator.

INT : Internal Synchronization Type

-

LL : Power Synchronization Type, Line-lock

-

CAMERA TITLE SETUP

ABCDEFGHIJKLM
NOPQRSTUVWXYZ
abcdefghijklm
nopqrstuvwxyz

-.0123456789
←→ C LR POS E ND

_______________

FRONT DOOR

SYNC

IIIIIIIIIIIIIIIIIIIIIIIIIIIIII

PHASE

Â

Press SET to Return

I

0

32_ camera operation

➊

Press the Function Setup switch.

➋

You can select a desired phase from 0 to 359 when select ‘phase’.

EXTERN : The camera can use the external power source frequency for the

-

synchronization. Regardless of the input voltage the EXTERN MODE is available
only when an external trigger signal input into camera.

When using AC power at 60Hz(NTSC), 50Hz(PAL) frequency, you can use the LL type



M

synchronization.



When the power is DC 12V, the SYNC menu is fixed to the ‘INT’ mode.

MOTION DET : Commands the camera to motion-detect and trace an object.

y

If the SPECIAL menu screen is displayed, use the

1.
Function Setup switch so that the arrow indicates
‘MOTION DET’.

2.

Set it to ‘ON’ by using the Function Setup switch.

DETECT BOX : Outlines an object on the

-

ALARM OUT : Releases a signal from the MD Output Terminal of the camera

-

DETECT AREA : Defines the Motion

-

MASK AREA : Specify a detection exception

-

screen in a box when its
movement matches a
custom Motion Type.

when an object’s movement matches a custom Motion Type.

Detection area.

area to mask.
Select a mask area number and
specify the size and position.

MOTION DET

䯝 1. DETECT BOX ON

2. ALARM OUT OFF

3. DETECT AREA

4. MASK AREA
SENSITIVITY

5.
DET.SIZE

6.

7. RETURN

䯝 1.TOP

2.BOTTOM

3.LEFT

4.RIGHT

5.RETURN

IIIIIIIIIIIIÂIIII

I

IIIIIIIIIIIIÂIIII

I

DETECT AREA

Â

IIIIIIIIIIIIIIIIIIIII

IIIIIIIIIIIIIIIIIIIII

Â

IIIIIIIIIIIIIIIIIIIII

IIIIIIIIIIIIIIIIIIIII

Â

Â

● CAMERA OPERATION

I

3

I

3

1

50

1

50

English_33

camera operation

AREA : You can select up to 4 areas.

►

MODE : Determines whether to use

►

the area selected in the AREA.

TOP / BOTTOM / LEFT / RIGHT :

►

Adjust the size and position of the
selected area.

RETURN : Select this to save the

►

MASK AREA menu settings and
return to the MOTION DET menu.

SENSITIVITY : Set the sensitivity of the motion detection. When adjusting the

-

DET. SIZE : Selects an object size to detect on the screen. When adjusting

-

RETURN : Select this to save the MOTION DET menu settings and return to the

-

PRIVACY

y

➊

When the SPECIAL menu screen is
displayed, press the Function Setup
switch so that the arrow indicates
‘PRIVACY’.

➋

Set up the mode using the Function
Setup switch.

AREA: You can select up to 12 PRIVACY

-

areas.

MODE : Determines whether to use the

-

area selected in the AREA SEL.

MASK COLOR : Determine area color. You can select GREEN, RED, BLUE,

-

TRANSPARENCY : Adds or removes transparency from the masking area.

-

SEL POS/XPOS/YPOS : Adjust the size and position of the selected area.

-

RETURN : Select this to save the PRIVACY menu settings and return to the

-

sensitivity, note that the lower the level means the higher sensitivity.

the detection size, note that the higher the level means the bigger
detection size.

SPECIAL menu.

: Mask an area you want to hide on the screen.

BLACK, WHITE and GRAY.

SPECIAL menu.

MASK AREA

䯝 1.AREA

2.MODE

3.TOP

4.BOTTOM

5.LEFT

6.RIGHT

7.RETURN

䯝 1. AREA AREA1

2. MODE OFF

3. MASK COLOR GREEN

4. TRANSPARENCY OFF

5. SEL POS

6. X POS

7. Y POS

8. RETURN

IIIIIÂIIIIIIIIIIIIIIII

IIIIIIIIIIIIÂIIIIIIIII

Â

IIIIIIIIIIIIIIIIIIIII

IIIIIIIIIIIIÂIIIIIIIII

PRIVACY AREA SETUP

Â

IIIIIIIIIIIIIIIIIIIII

Â

IIIIIIIIIIIIIIIIIIIII

AREA1

OFF

110

110

L_TOP

30

25

10
10

34_ camera operation

DIS (Digital Image Stabilizer)

y

As the DIS function uses the digital zoom the camera’s resolution will decrease.



M

DIS doesn’t operate when background illumination is too low.



DIS doesn’t operate when object pattern is monotonic as like sky or white wall.



PROFILE

:

y

➊

When the SETUP menu screen is
displayed, select ‘PROFILE’ by using
the Functfon Setup button so that the
arrow fndicates ‘PROFILE’.

➋

Select a desired mode using the
Function Setup button according to the
picture display you want.

-

BASIC : The most common environment is

set to meet.

-

DAYNIGHT : It will be set automatically so

-

BACKLIGHT : It will be set automatically so you can distinguish the object from

-

ITS : It will be set automatically so you can easily check the traffic conditions.

-

INDOOR : It will be set automatically to help you take a picture in a regular indoor

-

USER : Automatically configures the camera to your custom settings.

➊
➋
➌
➍

➌

SHUTTER ESC ESC ESC
GAIN HIGH HIGH HIGH HIGH HIGH ­ WHITE BAL ATW ATW ATW OUTDOOR INDOOR ­ BACKLIGHT OFF OFF USER BLC OFF OFF ­ SSNR3 ON ON ON ON ON ­ DAY/NIGHT AUTO AUTO AUTO AUTO AUTO -

it optimizes to the day or night conditions, respectively.

the background in a severe backlighting scene.

lighting condition.

Select Custom for Simple Setup mode.
Configure the menu options to your custom settings.
The settings are automatically saved as Custom mode.
Profile user mode don’t initialize when menu resets.

In the PROFILE menu, you can configure the following camera settings at once.

: This function mitigates any picture movement due

to external factors such as wind.

1. IMAGE ADJ

2. CAM TITLE OFF

3. SYNC INT

4. MOTION DET OFF

5. PRIVACY OFF

6. DIS OFF

䯝 7. PROFILE BASIC

8. COMM ADJ

9. RETURN

BASIC DAYNIGHT

BACKLIGHT

ITS INDOOR USER

MANUAL(1/250)

SPECIAL

A.FLK -

● CAMERA OPERATION

English_35

camera operation

COMM ADJ (Communication Adjustment) : This function sets up the camera

y

communication status when controlling the camera through an external control device.

➊

When the SPECIAL menu screen is
displayed, press the set button so that
the arrow indicates ‘COMM ADJ’.

➋

Set up the mode using the Function
Setup button.

CAM ID : Determines the camera’s identification

-

number (between 0 and 255).

BAUD RATE : You can select 2400/4800/

-

UART MODE : You can select NONE, EVEN or ODD for the parity bits.

-

RET PKT : Determines whether to send a command back to the controller device

-

DISP ID : Display camera title on top left corner of the screen.

-

PROTOCOL : Select the communication PROTOCOL. (SAMSUNG-T, SAMSUNG-E ,

-

COAX : Specify the use of coaxial communications.

-

If you encounter an error due to noise from the DVR, you can set the sensitivity

y

level of the sub menu item to “Low “ in an attempt to prevent the error. Then,
you must press the MENU/ENTER (OSD KEY) button twice in a row to access
the OSD menu.

RETURN : Select this to save the PRIVACY menu settings and return to the

-

9600/19200/38400/57600
bps.

when a communication control command is sent to the camera.

PELCO-D, PELCO-P, BOSCH, HONEYWELL, VICON PANA., GE and AD)

SPECIAL menu.

* Initial value of communication adjustment

Camera ID BAUD RATE UART MODE PET PKT

Item

Initial value

RETURN : Select this to save the SPECIAL menu settings and return to the MAIN

y

1 9600 8-NONE-1 ENABLE

SETUP menu.

COMM SETUP

䯝 1. CAM ID

2. BAUD RATE 9600

3. UART MODE 8-N-1

4. RET PKT ENABLE

5. DISP ID

6. PROTOCOL

7. COAX

8. RETURN

Â

IIIIIIIIIIIIIIIIIIIII

SAMSUNG-T

1

OFF

ON

36_ camera operation

EXIT

Select a desired EXIT mode using the Function Setup switch depending on the camera
purpose.

SAVE : Save the current settings and exit the MAIN SETUP menu.

y

NOT SAVE : Do not save the current settings and exit the MAIN SETUP menu.

y

RESET: Resets the camera settings to the factory defaults.

y

Language and Monitor settings are not initialized.

● CAMERA OPERATION

English_37

troubleshooting

TROUBLESHOOTING

If there are problems in operation, please refer to the items below. If the problem persists,
please contact the agent you purchased this product from.

Problems Troubleshooting

Nothing appears on the screen.

The image on the screen is dim.

The image on the screen is dark.

The camera is not working properly,
and the surface of the camera is hot.

The DAY/NIGHT menu does not
work.

The SENS-UP function does not
work.

Color is not correct.

The screen fl ickers continually.

When coaxial communication is not
available:

y

Check that the power cord and line connection between the
camera and monitor are properly connected.

y

Check that you have properly connected BNC cable to the camera.

y

Check the type of lens.

y

Is lens stained with dirt? Clean your lens with soft, clean cloth.

y

Set the monitor or DVR to the proper condition.

y

If the camera is exposed to very strong light, change the
camera position.

y

Adjust the contrast feature of the monitor or DVR.

y

If you have an intermediate device, set the 75Ω / Hi-z properly.

y

Check that you have properly connected the camera to an
appropriate power source.

y

Check that AGC of EXPOSURE SETUP menu is ‘OFF’.

y

Check that AGC of EXPOSURE SETUP menu is ‘OFF’.

y

Check that SHUTTER of EXPOSURE SETUP menu is ‘A.FLK’ or
‘MANUAL’.

y

Check the setting of WHITE BAL SETUP menu .

y

Ensure the camera is not pointing towards the sun.

Make sure that the camera and monitor are installed within

y

the recommended distance.

Use the video amplifi er equivalent to coaxitron if the recom-

y

mended installation distance is exceeded.

38_ troubleshooting

specifications

SPECIFICATIONS

Item

Video

Imaging Device

Total Pixels

Effective Pixels

Scanning System

Synchronization

Frequency

Horizontal
Resolution

Min. Illumination

S / N Ratio

Video Output

Lens Type

Lens Type

Mount Type

Operational

On Screen Display

Camera Title

Day & Night

Backlight Compensation

Contrast Enhancement

Digital Noise Reduction

III)

SSNR

(

Digital Image
Stabilization

SCB-2002N SCB-2002P SCB-2002PH

1/3” Super HAD CCD

1020(H) x 508(V) 1020(H) X 596(V)

976(H) x 494(V)

2:1 Interlace / Progressive

Internal / Line lock / Extern

H:15.734KHz / V:59.94Hz

Color : 650 TV lines. B/W : 700 TV lines

Color : 0.1Lux @ F1.2, 0.0002 Lux (Sens-up, 512x)

B/W : 0.01 Lux @ F1.2, 0.00002 Lux ( Sens-up, 512x )

52dB (AGC off, Weight on)

CVBS : 1.0 Vp-p / 75Ω composite

-

C/CS MOUNT

NTSC : Multi-language Support

English, Japanese, Spanish, French, Portuguese, Korean , Taiwanese

PAL : Multi-language Support

English, French, German, Spanish, Italian, Chinese, Russian, Polish, Czech,
Romanian, Serbian, Swedish, Danish, Turkish, Portuguese

Off / On (Displayed 15 characters)

Auto(ICR) / External / Color / B/W

Off / User BLC / HLC / SSDR

SSDR

(Off / On)

Off / On

II

976(H) x 582(V)

H : 15.625KHz / V : 50Hz

● SPECIFICATIONS

English_39

Item

Motion Detection

Privacy Masking

Sens-up (Frame
Integration)

Gain Control

White Balance

Electronic Shutter
Speed

Digital Zoom

Reverse

Profile

PIP

Alarm

Communication

Protocol

Environmental

Operating
Temperature /
Humidity

Electrical

Input Voltage/Current

Power Consumption

Mechanical

Dimension (WxHxD)

Weight

※

The specifi cation for this product may change without prior notice for product improvement.

SCB-2002N SCB-2002P SCB-2002PH

Built-in

Off / On (12 programmable zones)

2x ~ 512x

Off / Low / High

ATW / Outdoor / Indoor / Manual / AWC (1,700°K ~ 11,000°K)

1/60 ~ 1/120,000 sec 1/50 ~ 1/120,000 sec

Off / On (1x ~ 16x)

Off / H-Rev / V-Rev / HV-Rev

Basic, Day & Night, Backlight, ITS, Indoor, User

Off / On

NONE

Coaxial Control ( SPC-300 Compatible ), RS-485

Coax : Pelco-C (Coaxitron)
RS-485: Samsung-T, Samsung-E, Pelco-D, Pelco-P, Panasonic, Bosch, Honeywell,

Vicon, GE, AD

-10°C ~ +50°C (+14°F ~ +122°F) / Less than 90% RH

Dual ( 24V AC±10% & 12V DC±10%

Max. 4.2W Max. 4.5W

66 x 61 x 102mm 66 x 61 x 115mm

310g 540g

230V AC ± 10%

40_ specifi cations

MEMO

MEMO

MEMO

MEMO

MEMO

MEMO

MEMO

SALES NETWORK

SAMSUNG TECHWIN CO., LTD.

Samsungtechwin R&D Center, 701, Sampyeong-dong, Bundang-gu, Seongnam-si, Gyeonggi-do, Korea, 463-400
TEL : [phone]~60, FAX : [phone]

SAMSUNG TECHWIN AMERICA Inc.

100 Challenger Rd. Suite 700 Ridgefield Park, NJ 07660
Toll Free : [phone] Direct : [phone]
Fax : [phone]
www.samsungcctvusa.com

www.samsungtechwin.com
www.samsungsecurity.com

SAMSUNG TECHWIN EUROPE LTD.

Samsung House, 1000 Hillswood Drive, Hillswood Business Park
Chertsey, Surrey, UNITED KINGDOM KT16 OPS

TEL : [phone], FAX : [phone]

PT01-000771B
