Vacuum Cleaner
user manual
Before operating this unit, please read the instructions carefully.
✻
For indoor use only.
✻
imagine the possibilities
English
Thank you for purchasing a Samsung product.
To receive a more complete service,
please register your product at
www.samsung.com/register
safety information
SAFETY INFORMATION
• Before operating the appliance, please read this manual thoroughly and
WARNING
WARNING
CAUTION/WARNING SYMBOLS USED
WARNING
CAUTION
retain it for your reference.
• Because these following operating instructions cover various models,
the characteristics of your vacuum cleaner may differ slightly from those
described in this manual.
Indicates that a danger of death or serious injury exists.
Indicates that a risk of personal injury or material damage exists.
OTHER SYMBOLS USED
Represents something you must NOT do.
Represents something you must follow.
Indicates that you must disconnect the power plug from the socket.
02_ safety information
safety information
IMPORTANT SAFEGUARDS
1. Read all instructions carefully. Before switching on, make sure that the voltage
of your electricity supply is the same as that indicated on the rating plate on the
bottom of the cleaner.
2. WARNING : Do not use the vacuum cleaner when rug or fl oor is wet.
Do not use to suck up water.
3. Do not use the vacuum cleaner without a dust bin.
Empty the dust bin before it is full in order to maintain the best effi ciency.
4. Slide to the Stop(or Min)position before inserting a plug into the electrical outlet.
5. Do not use the vacuum cleaner to pick up matches, live ashes or cigarette butts.
Keep the vacuum cleaner away from stoves and other heat sources. Heat can
deform and discolour the plastic parts of the unit.
6. Avoid picking up hard, sharp objects with the vacuum cleaner as they may
damage the cleaner parts. Do not stand on the hose assembly. Do not put
weight on the hose.
Do not block the suction or the exhaust port.
7. Switch the vacuum cleaner off on the body of the machine before unplugging
from the electrical outlet. Disconnect the plug from the electrical outlet before
changing the dust bag or dust container. To avoid damage, please remove the
plug by grasping the plug itself, not by pulling on the cord.
8. This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
9. Children should be supervised to ensure that they do not play with the appliance.
10. The plug must be removed from the socket outlet before cleaning or maintaining
the appliance.
11. The use of an extension cord is not recommended.
12. If your vacuum cleaner is not operating correctly, switch off the power supply and
consult an authorized service agent.
13. If the supply cord is damaged, it must be replaced by the manufacturer or its
service agent or a similarly qualifi ed person in order to avoid a hazard.
14. Don’t carry the vacuum cleaner by holding the hose.
Use the handle on the vacuum cleaner set.
15. Unplug the cleaner when not in use. Turn off the power switch before unplugging.
safety information _03
contents
ASSEMBLING THE CLEANER
05
OPERATING THE CLEANER
06
MAINTAIN TOOLS AND FILTER
08
TROUBLESHOOTING
16
06 ON/OFF Switch
06 Power Cord
07 Power-Control
08 Using accessory
09 Maintain fl oor tools
11 Emptying the dust bin
12 When to clean the dust pack
13 Cleaning the dust pack
14 Cleaning the motor protection fi lter
14 Cleaning the outlet fi lter
15 Change the battery (option)
04_ contents
assembling the cleaner
OPTION
OPTION
01 ASSEMBLING
• Features may vary according to model.
• Please do not press the button
of dust bin handle when carrying
machine.
• For storage, park the fl oor nozzle.
assembling _05
operating the cleaner
ON/OFF SWITCH
1) BODY CONTROL
TYPE
• When removing the plug from the electrical outlet, grasp
CAUTION
the plug, not the cord.
POWER CORD
2) ON/OFF TYPE 3) HANDLE CONTROL
TYPE
06_ operating
POWER-CONTROL
sender
BODY-CONTROL TYPE / ON/OFF TYPE
• HOSE

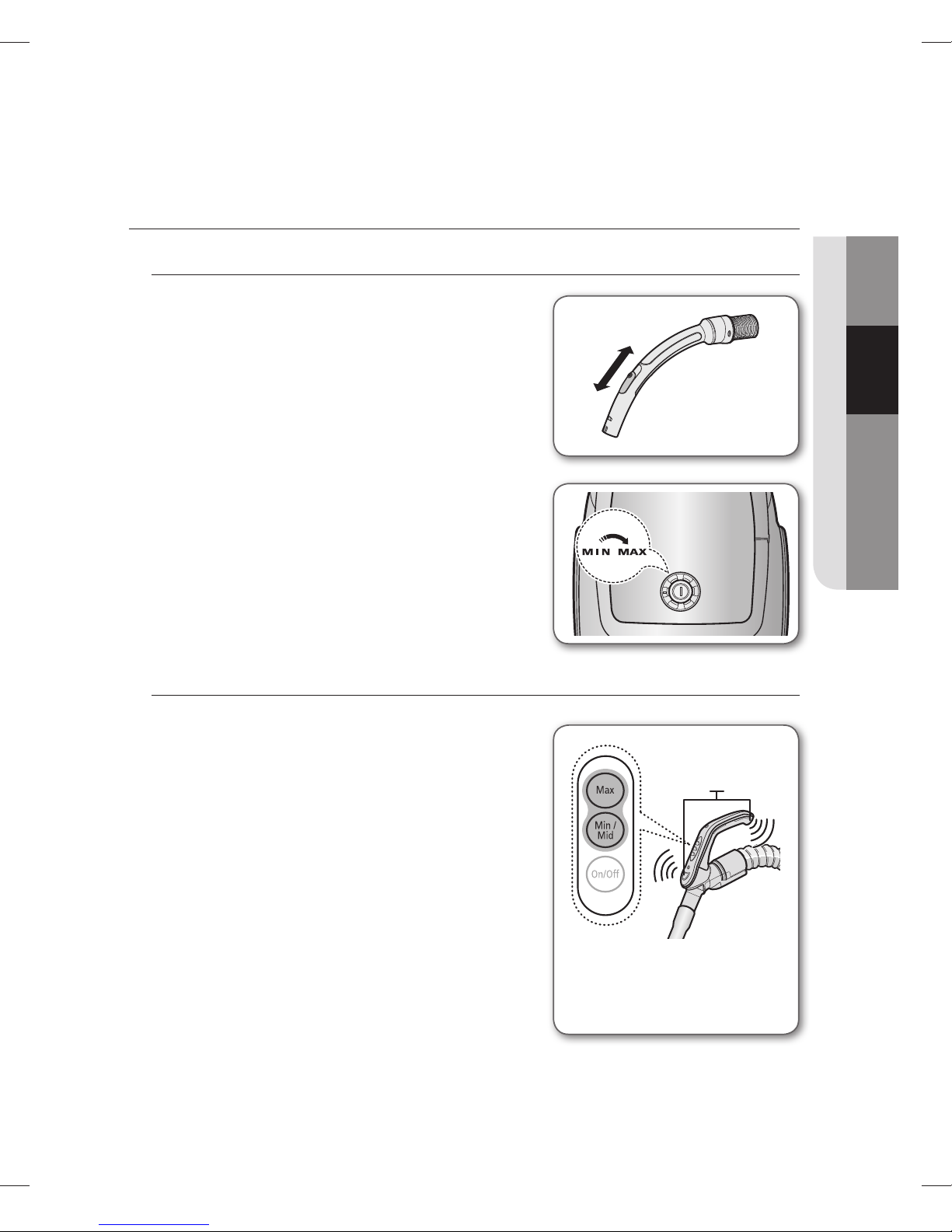

To reduce suction for cleaning draperies,
small rugs, and other light fabrics, pull
the tap air until the hole is open.
• BODY (BODY-CONTROL TYPE ONLY)
MIN = For delicate surface e.g. net
curtains.
MAX = For hard fl oors and heavily soiled
carpets.
HANDLE CONTROL TYPE
02 OPERATING
• HOSE
Vacuum cleaner MODE (MIN/MID,MAX)
sender
Press the MODE button repeatedly
to select the correct mode.
(ON) MIN → MID → MAX
Handle Control
The cleaner is controlled by
using infrared signals.
operating _07
maintain tools and fi lter
USING ACCESSORY
Pipe (Option)

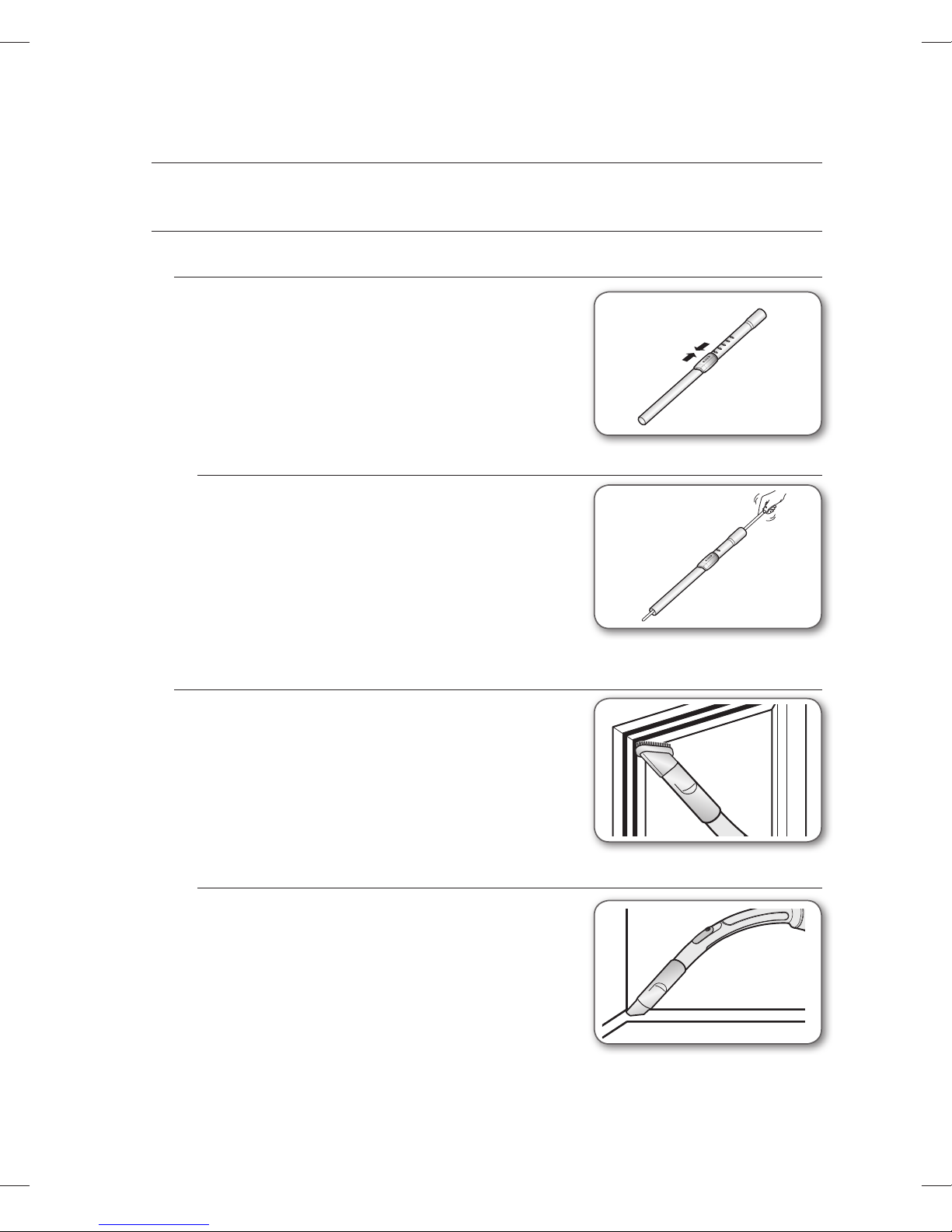

• Adjust the length of the telescopic pipe by
sliding the length control button located in the
center of the telescopic pipe back and forth.
• To check for blockages, separate the
telescopic pipe and adjust to shorten. This
allows for easier removal of waste clogging the
tube.
Accessory
• Dusting brush for furniture. shelves, books,
etc.
• Crevice tool for radiators, crevices, corners,
between cushions.
08_ maintain
MAINTAIN FLOOR TOOLS
Carpet Cleaning
Floor Cleaning
Turbine
Brush
2-Step Brush (Option)
• Adjust the inlet lever according to the fl oor
surface.
• Remove waste matter
completely if the inlet is
blocked.
Carpet Cleaning
Floor Cleaning
Pet Brush (Option)
For improved pick-up of pet hair and fi bre on carpets.
Frequent vacuuming of hair or pet fur may cause a falling-off of the rotation due to
matters tangled around the drum. In this case, clean the drum with care.
Blanket brush (Option)
03 MAINTAIN
Clogs on turbine keep brush from turning, thus need to be unclogged
as follows. For picking up pet hair and fi bre on upholstery and bed
linen.
Remove waste matter completely when inlet is blocked.
Turn the lock button to ‘UNLOCK’, and remove waste
matter.
Turbine
To reassemble, align the cover to the front of the main
body and close. After closing the cover, ensure that the
lock button is turned to the ‘LOCK’ position.

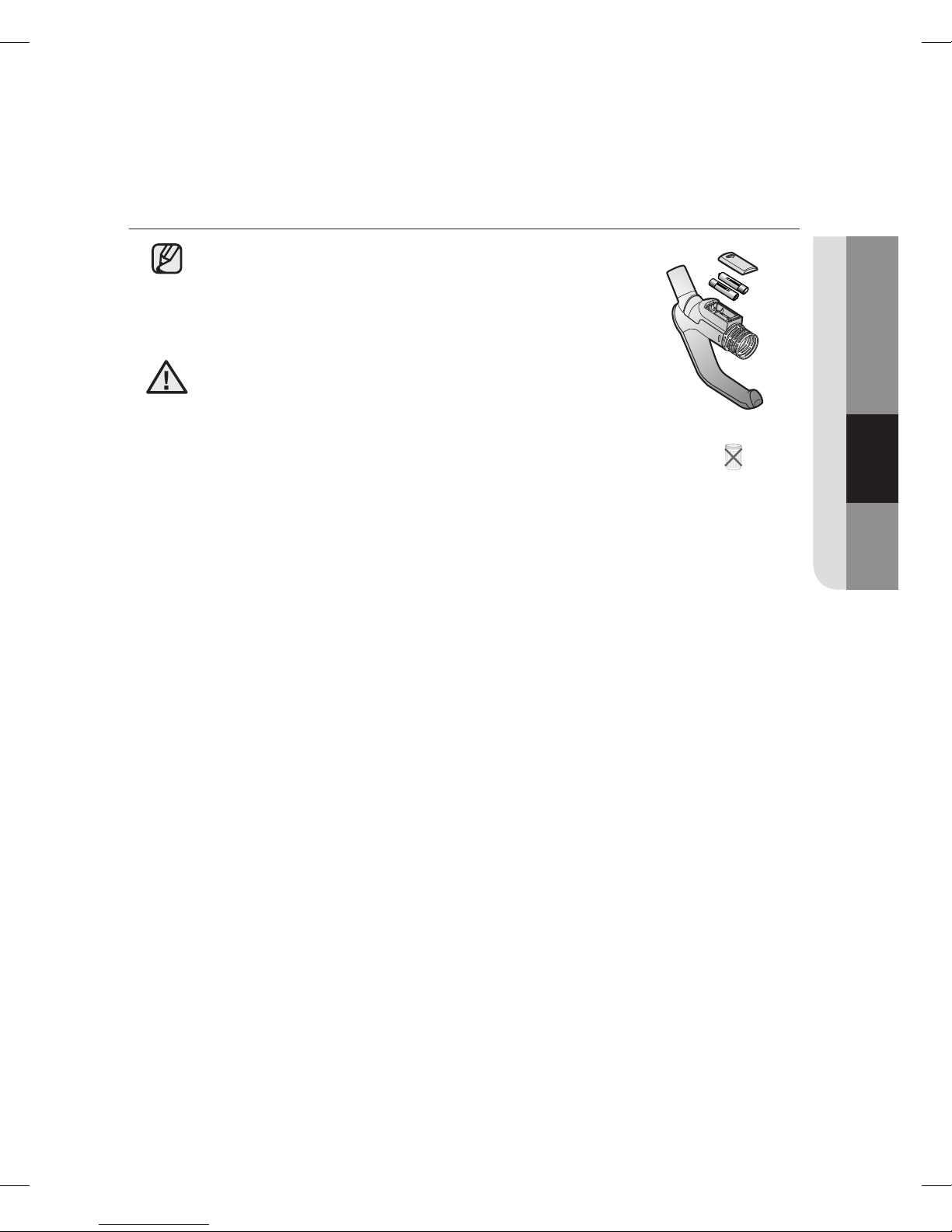

Use for bedclothes only. Be cautious not to damage brush during
unclogging.
WARNING
Brush
maintain _09
maintain tools and fi lter
Mini turbo brush (Optional)
- TO REPLACE BRUSHROLL
1. If a clog is present or debris is visible, unscrew the
two screws on the back of the Mini turbo brush to
remove the faceplate and clear any obstructions.
2. Inspect condition of brushroll.
Replace brushroll if brushes are worn down.
To remove brushroll, pull up and out of end slots in
nozzle housing.
Insert ends of brushroll into same slots to replace.
Inspect belt to ensure that it is in good
condition.
If belt is broken or cracked, replace belt
according to To Replace Belt instructions.
3. Using at MAX.
Press the MAX button to operate the vacuum at
maximum intake.
- TO REPLACE BELT
1. Remove bottom plate.
See fi gure in To Replace Brushroll instructions.
2. Loop one end of new belt around shaft of pulley.
3. Loop other end of belt around designated area for
it on brushroll. Insert brushroll into slots in nozzle
housing.
See fi gure in To Replace Brushroll instructions.
4. Fit Mini turbo brush back together as described in
To Replace Brushroll instructions.
10_ maintain
EMPTYING THE DUST BIN
03 MAINTAIN

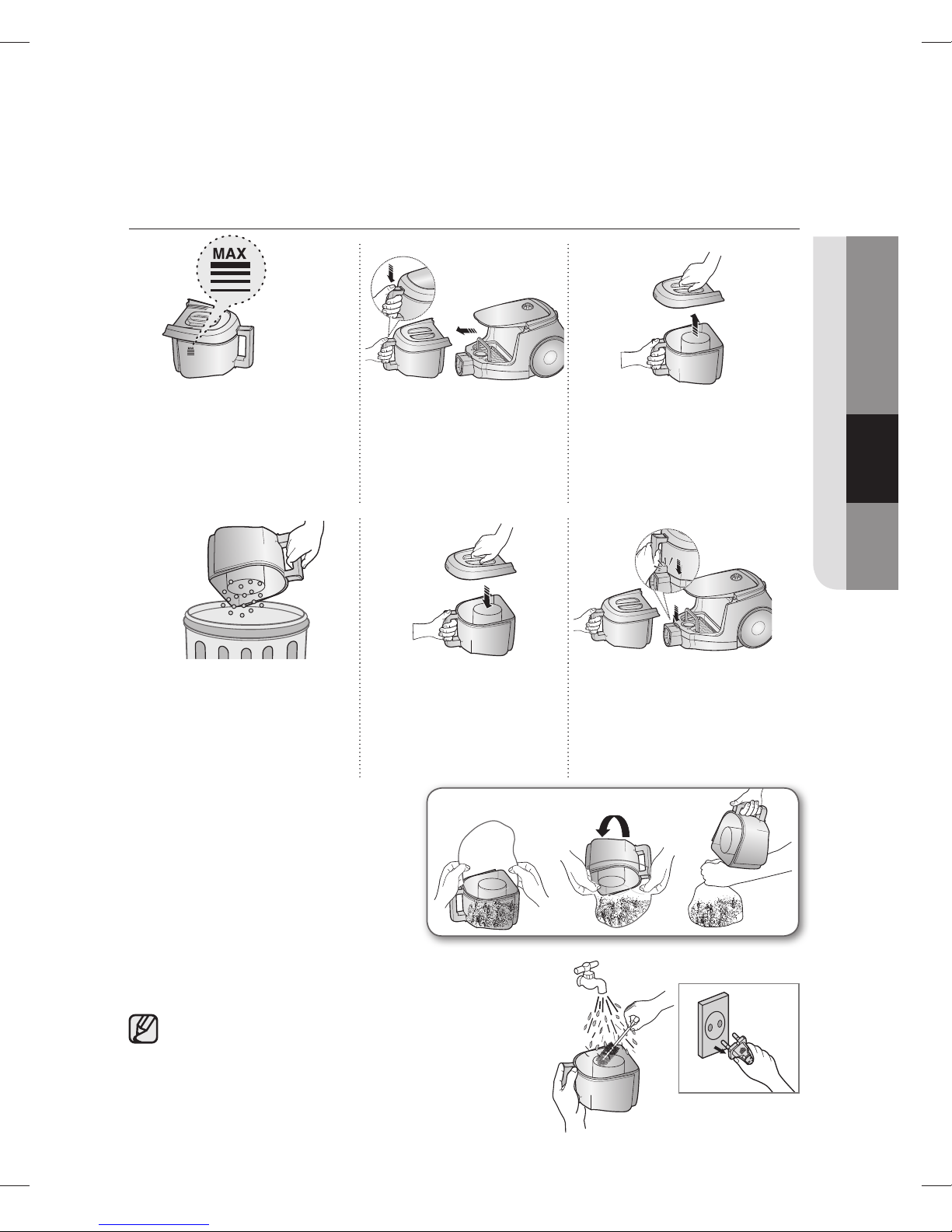

1. Once dust reaches the
dust full mark, or sution
is noticeably reduced
during cleaning, empty
the dust bin.
4. Throw away dust into
the bin.
- Empty into a plastic bag
(recommended for asthma/
allergy sufferers)
2. Take the dust bin out
by pressing the button.
5. Close the dust bin
cover.
3. Separate the dust bin
cover.
6. Before use, push the
dust bin into the main
body of the vacuum
cleaner until you hear
the “click” sound.
You may rinse the dust bin with cold water.
maintain _11
maintain tools and fi lter
HANDLE CONTROL TYPE
BODY CONTROL TYPE
WHEN TO CLEAN THE DUST PACK
- If suction is noticeably reduced during cleaning, please check the dust pack as
indicated below.
Turn the
vacuum power
to ‘MAX’.
HANDLE CONTROL TYPE
If suction is noticeably reduced with the inlet fl oating 10cm
above fl at fl oor, clean it.
When suction is noticeably reduced continuously, please cleaning the Dust Pack as
shown in the following illustration.
BODY CONTROL TYPE
12_ maintain
CLEANING THE DUST PACK
1. Remove the dust bin and dust pack as
shown.
2. Remove the sponge and fi lter from the dust pack.
3. Wash the sponge and the fi lter of the dust pack with
water.
03 MAINTAIN
4. Let the sponge and fi lter dry in the shade for more
than 12 hours.
5. Put the sponge and fi lter into the dust pack.
6. Put the assembled dust pack into the main
body.
Make sure the fi lter is completely dry
before putting it back into the vacuum
cleaner. Allow 12 hours for it to dry.
maintain _13
maintain tools and fi lter
CLEANING THE MOTOR PROTECTION FILTER
Take out both the dust bin and the dust
pack.
Remove the motor protection fi lter from the
vacuum cleaner.
Shake and tap the dust from it and put back in
machine.
CLEANING THE OUTLET FILTER
OPTION - MICRO FILTER
Press the fi xed frame part at
the back of the main body to
remove.
Replacement fi lters are available at your local
Samsung distributor.
Remove and replace the blocked
outlet fi lter.
OPTION
14_ maintain
CHANGE THE BATTERY (OPTION)
BATTERY TYPE : AA
Size
WARNING
1. When the vacuum cleaner dows not work, replace
the batteries. If the problem persists, please contact
our authorized dealer.
2. Use 2 batteries of size AA.
1. Never disassemble or recharge the batteries.
2. Never heat up the batteries or throw them into fi re.
3. Do not reverse (+), (-) poles
4. Dispose of the batteries property.
03 MAINTAIN
BATTERY TYPE : AA
Size
maintain _15
troubleshooting
PROBLEM SOLUTION
Motor dows not start.
Suction force is gradually
decreasing.
Cord does not rewind fully.
Vacuum cleaner dows not pick
up dirt.
Low or decreasing suction
Body overheating
Static electicity discharge • Please decrease power suction.
• Check cable, pulg and socket.
• Leave to cool.
• Check for blockage and remove.
• Pull the cord out 2-3m and push down the cord
rewind button.
• Check hose and replace if required.
• Please check fi lter and, if required, clean as
illustrated in the instructions. if fi lters are out of
condition change them to new ones.
• Please check fi lters, If required clean as
illustrated in the instruction.
This Vacuum cleaner is approved the following.
EMC Directive : 2004/108/EEC
Low Voltage Directive : 2006/95/EC
If you have any questions or comments relating to Samsung products, please contact the
SAMSUNG customer care center.
COUNTRY CUSTOMER CARE CENTER WEB SITE
U.K 0330 SAMSUNG (7267864) www.samsung.com
SOUTH AFRICA 0860 7267864 (SAMSUNG) www.samsung.com
Code No. DJ68-00532U REV(0.1)
