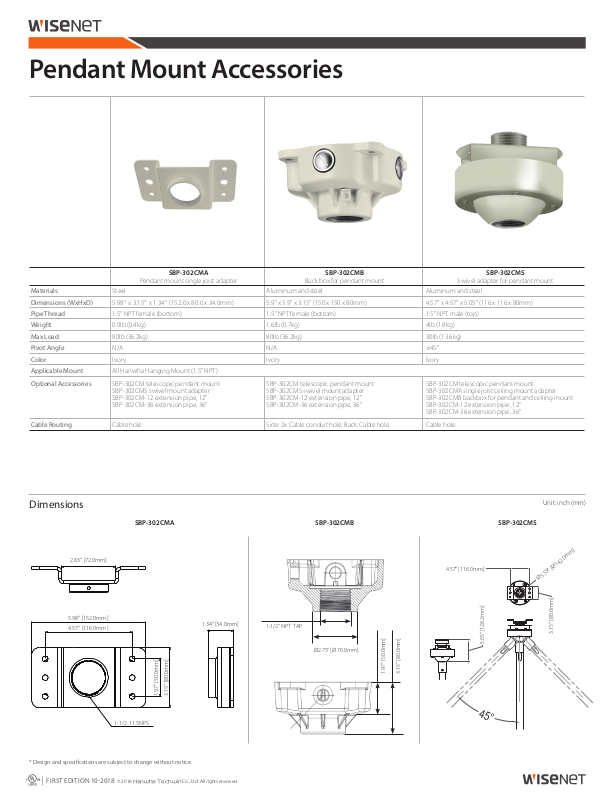

Samsung SBP-302CMB, SBP-302CMS Specsheet

Pendant Mount Accessories

3.15" [80.0mm]

1.97" [50.0mm]

SBP-302CMA SBP-302CMB SBP-302CMS

Pendant mount single joist adapter Back box for pendant mount Swivel adapter for pendant mount

Materials Steel Aluminum and steel Aluminum and steel

Dimensions (WxHxD) 5.98" x 3.15" x 1.34" (152.0 x 80.0 x 34.0mm) 5.9" x 5.9" x 3.15" (150 x 150 x 80mm) 4.57" x 4.57" x 5.05" (116 x 116 x 80mm)

Pipe Thread 1.5" NPT female (bottom) 1.5" NPT female (bottom) 1.5" NPT male (top)

Weight 0.9lb (0.4kg) 1.6lb (0.7kg) 4lb (1.8kg)

Max Load 80lb (36.2kg) 80lb (36.2kg) 30lb (13.6kg)

Pivot Angle N/A N/A ±45°

Color Ivory Ivory Ivory

Applicable Mount All Hanwha Hanging Mount (1.5" NPT)

Optional Accessories

Cable Routing Cable hole Side: 2x Cable conduit hole, Back: Cable hole Cable hole

SBP-302CM telescopic pendant mount SBP-302CMS swivel mount adapter SBP-302CM-12 extension pipe, 12" SBP-302CM-36 extension pipe, 36"

SBP-302CM telescopic pendant mount SBP-302CMA single joist ceiling mount adapter SBP-302CMB backbox for pendant and ceiling mount SBP-302CM-12 extension pipe, 12" SBP-302CM-36 extension pipe, 36"

Dimensions

SBP-302CMA SBP-302CMB SBP-302CMS

2.83" [72.0mm]

5.98" [152.0mm]

4.57" [116.0mm]

1-1/2-11.5NPS

* Design and specications are subject to change without notice.

1.34" [34.0mm]

1-1/2" NPT TAP

Ø2.75" [Ø 70.0mm]

1.97" [50.0mm]

3.15" [80.0mm]

Unit: inch (mm)

4.57" [116.0mm]

Ø5.59" [Ø142.0mm]

3.15" [80.0mm]

5.05" [128.2mm]
