Refrigerator
User manual
Free Standing Appliance
Untitled-8 1 2016-03-30 1:29:13
Contents
Contents
Safety information 4
Important safety symbols and precautions: 4
State of California Proposition 65 Warning (US only) 4
Critical installation warnings 5
Installation cautions 7
Critical usage warnings 7
Usage cautions 11
Cleaning cautions 12
Critical disposal warnings 13
1. Regulatory Notice 14
Installation 16
Refrigerator at a glance 16
Door removal for entrance 18
Step-by-step installation 26
Operations 34
Feature panel 34

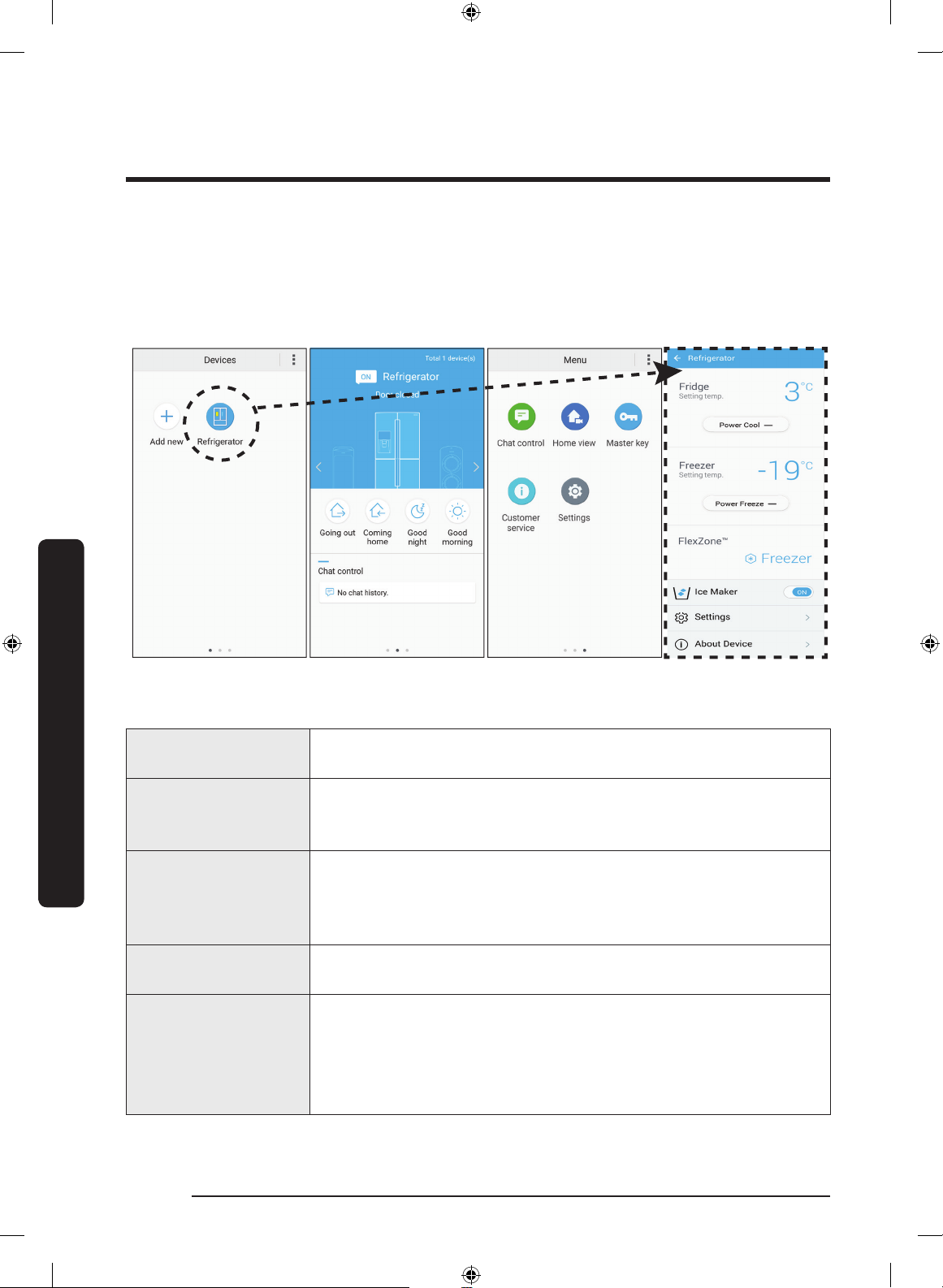

Samsung Smart Home 41
SMART GRID Function (Demand Response) 45
Special features 50
Maintenance 54
Handle and care 54
Cleaning 58
Replacement 58
Troubleshooting 62
General 62
Samsung Smart Home 65
Smart Grid 66
Warranty (USA) 67
WARRANTY ON SAMSUNG REFRIGERATOR 67
English2
Untitled-8 2 2016-03-30 1:29:13
Warranty Information (CANADA) 70
If your refrigerator needs service 70
Limited Warranty for Original Purchaser 70
Obligation to the Original Owner 70
Exclusions of the Warranty 71
Open Source Announcement 72
Contents
English 3
Untitled-8 3 2016-03-30 1:29:13
Safety information
• Before using your new Samsung Refrigerator, please read this manual thoroughly
to ensure that you know how to operate the features and functions that your new
appliance offers safely and efciently.
• This appliance is not intended for use by persons (including children) with reduced
physical, sensory, or mental capabilities, or those who lack experience and knowledge,
unless they have been given supervision or instruction concerning the use of the
appliance by a person responsible for their safety.
• Because the following instructions cover various models, the characteristics of your
Safety information
refrigerator may differ slightly from the refrigerator described in this manual.
• If you have any question, contact us at 1-800-SAMSUNG or nd help and information
online at www.samsung.com.
• R-600a or R-134a is used as a refrigerant. Check the compressor label on the rear of
the appliance or the rating label inside the fridge to see which refrigerant is used for
your refrigerator. If this product contains ammable gas (Refrigerant R-600a), contact
your local authority in regard to safe disposal of this product.
• It is hazardous for anyone other than an Authorised Service Person to service this
appliance.
Important safety symbols and precautions:
Please follow all safety instructions in this manual. This manual uses the following safety
symbols.
WARNING
Hazards or unsafe practices that may result in severe personal injury, property damage,
and/or death.
CAUTION
Hazards or unsafe practices that may result in severe personal injury and/or property
damage.
NOTE
Useful information that helps users understand or benet from the refrigerator.
These warning signs are here to prevent injury to you and others.
Please follow them carefully.
After reading this section, keep it in a safe place for future reference.
State of California Proposition 65 Warning (US only)
WARNING : This product contains chemicals known to the State of California to cause
cancer and birth defects or other reproductive harm.
English4
Untitled-8 4 2016-03-30 1:29:14
Critical installation warnings
WARNING
• Do not install the refrigerator in a damp location or place where it may come in contact
with water.
- Deteriorated insulation on electrical parts may cause an electric shock or re.
• Do not place this refrigerator in direct sunlight or expose it to the heat from stoves,
room heaters, or other appliances.
• Do not plug several appliances into the same multiple power strip. The refrigerator
should always be plugged into its own individual electrical outlet which has a voltage
rating that matches the voltage listed on the refrigerator’s rating plate.
- This provides the best performance and also prevents overloading of house wiring
circuits, which could overheat the wires and cause a re hazard.
• If the wall socket is loose, do not insert the power plug.
- There is a risk of electric shock of re.
• Do not use a power cord that has cracks or abrasion damage along its length or at
either end.
• Do not bend the power cord excessively or place heavy objects on it.
• Do not pull or excessively bend the power cord.
• Do not twist or tie the power cord.
• Do not hook the power cord over a metal object, place a heavy object on the power
cord, insert the power cord between objects, or push the power cord into the space
behind the appliance.
• When moving the refrigerator, be careful not to roll over or damage the power cord.
- This may result in an electric shock or re.
• Never unplug your refrigerator by pulling on the power cord. Always grip the plug
rmly and pull straight out from the outlet.
- Damage to the cord may cause a short-circuit, re, and/or electric shock.
• Do not store explosive substances such as aerosol cans with a ammable propellant in
this appliance.
• Do not install this appliance near a heater or ammable material.
• Do not install this appliance in a location where gas may leak.
- This may result in an electric shock or re.
• This refrigerator must be properly located and installed in accordance with the
instructions in this manual before you use it.
• Connect the power plug in the proper position with the cord hanging down.
- If you connect the power plug upside down, the wire can get cut off and cause a re
or electric shock.
Safety information
English 5
Untitled-8 5 2016-03-30 1:29:14
Safety information
• Make sure that the power plug is not crushed or damaged by the back of the
refrigerator.
• Keep the packing materials out of reach of children.
- There is a risk of death from suffocation if a child puts the packing materials on his
or her head.
• The appliance must be positioned so that the plug is accessible after installation.
- Failing to do so may result in an electric shock or re due to electric leakage.
Safety information
• Do not install this appliance in a humid, oily or dusty location, or in a location exposed
to direct sunlight or to water (rain drops).
- Deteriorated insulation on electrical parts may cause an electric shock or re.
• If large amounts of dust or water enter the refrigerator, disconnect the power plug and
contact your Samsung Electronics service center.
- Otherwise there is a risk of re.
• Do not stand on top of the appliance or place objects (such as laundry, lighted candles,
lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance.
- This may result in an electric shock, re, problems with the product, or injury.
• You need to remove all the protective plastic lm before you initially plug the product
in.
• Children should be supervised to ensure that they do not play with the snap rings used
for door adjustment or the water tube clips.
- There is risk of death by suffocation if a child swallows a snap ring or water tube
clip. Keep the snap rings and water tube clips out of children's reach.
• The refrigerator must be safely grounded.
- Always make sure that you have grounded the refrigerator before attempting to
investigate or repair any part of the appliance. Power leakages can cause severe
electric shock.
• Never use gas pipes, telephone lines, or other potential lightning attractors as an
electrical ground.
- You must ground the refrigerator to prevent any power leakages or electric shocks
caused by current leakage from the refrigerator.
- This may result in an electric shock, re, explosion, or problems with the product.
- Improper use of the grounding plug can result in a risk of electric shock. If it is
necessary to use an extension cord, use only a 3-wire extension cord that has a
3-blade grounding plug and a 3-slot receptacle that will accept the plug on the
appliance. The marked rating of the extension cord should be AC 115-120 V, 10
A, or more. If a grounding adapter is used, make sure the receptacle box is fully
grounded.
English6
Untitled-8 6 2016-03-30 1:29:14
• Plug the power plug into the wall socket rmly. Do not use a damaged power plug,
damaged power cord, or loose wall socket.
- This may result in an electric shock or re.
• If the power cord is damaged, have it replaced immediately by the manufacturer or
one of its service agents.
• Only a qualied technician or service company should be allowed to change the fuse in
the refrigerator.
- Failing to do so may result in an electric shock or personal injury.
Installation cautions
CAUTION
• Allow sufcient space around the refrigerator and install it on a at surface.
- Keep the ventilation space in the appliance enclosure or mounting structure clear of
obstructions.
• After you have installed the refrigerator and turned it on, allow the appliance to stand
for 2 hours before loading it with food.
• We strongly recommend you have a qualied technician or service company install the
refrigerator.
- Failing to do so may result in an electric shock, re, explosion, problems with the
product, or injury.
• Overloading one door may make the refrigerator fall, causing physical injury.
Safety information
Critical usage warnings
WARNING
• Do not insert the power plug into a wall socket with wet hands.
- This may result in an electric shock.
• Do not store articles on the top of the appliance.
- When you open or close the door, the articles may fall and cause personal injury
and/or material damage.
• Do not insert hands, feet or metal objects (such as chopsticks, etc.) into the bottom or
the back of the refrigerator.
- This may result in an electric shock or injury.
- Any sharp edges may cause a personal injury.
English 7
Untitled-8 7 2016-03-30 1:29:14
Safety information
• Do not touch the inside walls of the freezer or products stored in the freezer with wet
hands.
- This may cause frostbite.
• Do not put a container lled with water on the refrigerator.
- If spilled, there is a risk of re or electric shock.
• Do not keep volatile or ammable objects or substances (benzene, thinner, propane
gas, alcohol, ether, LP gas, and other such products) in the refrigerator.
Safety information
- This refrigerator is for storing food only.
- This may result in re or explosion.
• Children should be supervised to ensure that they do not play with the appliance.
- Keep ngers out of “pinch point” areas. Clearances between the doors and cabinet
are necessarily small. Be careful when you open the doors if children are in the area.
• Do not let children hang on the door or door bins. A serious injury may occur.
• Do not let children go inside the refrigerator. They could become trapped.
• Do not insert your hands into the area under the appliance.
- Any sharp edges may cause personal injury.
• Do not store pharmaceutical products, scientic materials, or temperature sensitive
products in the refrigerator.
- Products that require strict temperature controls must not be stored in the
refrigerator.
• Do not place or use electrical appliances inside the refrigerator/freezer, unless they are
of a type recommended by the manufacturer.
• If you smell smoke, pull out the power plug immediately, and then contact your
Samsung Electronics service center.
• If large amounts of dust or water enter the refrigerator, disconnect the power plug and
contact your Samsung Electronics service center.
- Otherwise there is a risk of re.
• Do not let children step on a drawer.
- The drawer may break and cause them to slip.
• Do not leave the doors of the refrigerator open while the refrigerator is unattended
and do not let children enter the refrigerator.
• Do not allow babies or children go into a drawer.
- It can cause death from suffocation by entrapment or personal injury.
• Do not overll the refrigerator with food.
- When you open the door, an item may fall out and cause personal injury or material
damage.
• Do not spray volatile material such as insecticide onto the surface of the appliance.
- As well as being harmful to humans, it may also result in an electric shock, re, or
problems with the product.
English8
Untitled-8 8 2016-03-30 1:29:14
• Never put ngers or any objects into the water dispenser outlet, ice chute, or ice maker
bucket.
- It may cause a personal injury or material damage.
• Do not use or place any substances sensitive to temperature such as ammable sprays,
ammable objects, dry ice, medicine, or chemicals near or inside the refrigerator.
• Do not use a hair dryer to dry the inside of the refrigerator. Do not place a lighted
candle in the refrigerator to remove bad odors.
- This may result in an electric shock or re.
• Fill the water tank, ice tray, and water cubes with potable water only (tap water,
mineral water, or puried water).
- Do not ll the tank with tea, juice, or a sports drink. They can damage the
refrigerator.
• Do not stand on top of the appliance or place objects (such as laundry, lighted candles,
lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance. This may
result in an electric shock, re, problems with the product, or injury. Do not put a
container lled with water on the appliance.
- If spilled, there is a risk of re or electric shock.
• Do not use mechanical devices or any other means to accelerate the defrosting process,
other than those recommended by the manufacturer.
• Do not damage the refrigerant circuit.
• Never stare directly at the UV LED lamp for long periods of time.
- This may result in eye strain due to the ultraviolet rays.
• Do not put a fridge shelf into the refrigerator upside down. The shelf stopper will not
work.
- The glass shelf could fall and cause personal injury.
• Keep ngers out of “pinch point” areas. Clearances between the doors and cabinet are
necessarily small. Be careful when you open the doors if children are in the area.
• If a gas leak is detected, avoid any naked ames or potential sources of ignition, and
air the room in which the appliance is standing for several minutes.
- Do not touch the appliance or power cord.
- Do not use a ventilating fan.
- A spark may result in an explosion or re.
• Use only the LED Lamps provided by the manufacturer or its service agents.
• Bottles should be stored tightly together so that they do not fall over or out.
• This product is intended only for the storage of food in a domestic environment.
• Never put ngers or any objects into the water dispenser outlet, ice chute, or ice maker
bucket.
- This can cause a personal injury or material damage.
Safety information
English 9
Untitled-8 9 2016-03-30 1:29:14
Safety information
• Do not attempt to repair, disassemble, or modify the refrigerator yourself.
- Unauthorized modications can cause safety problems. To reverse an unauthorized
modication, we will charge the full cost of parts and labor.
• Do not use any fuse (such as cooper, steel wire, etc.) other than a standard fuse.
• If your refrigerator needs to be repaired or reinstalled, contact your nearest service
center.
- Failing to do so may result in an electric shock, re, problems with the product, or
Safety information
injury.
• If the interior or exterior LED lamp has gone out, contact your nearest Samsung service
center.
• If the refrigerator emits a burning smell or smoke, unplug the refrigerator immediately
and contact a Samsung service center.
- Failing to do so may result in an electric or re hazards.
• Pull the power plug out of the socket before changing the interior lamps of the
refrigerator.
- Otherwise, there is a risk of electric shock.
• If you experience difculty changing a non-LED light, contact a Samsung service
center.
• If the product is equipped with LED lamps, do not disassemble the Lamp Covers and
LED lamps yourself.
- Contact a Samsung service center.
• Plug the power plug into the wall socket rmly.
• Do not use a damaged power plug, damaged power cord, or loose wall socket.
- This may result in an electric shock or re.
English10
Untitled-8 10 2016-03-30 1:29:14
Usage cautions
CAUTION
• Do not re-freeze frozen foods that have thawed completely. Do not place carbonated
or zzy drinks in the freezer compartment. Do not put bottles or glass containers in the
freezer.
- When the contents freeze, the glass may break and cause personal injury.
• Use only the ice maker provided with the refrigerator.
• To get the best performance from the product:
- Do not place food too close to the vents at the rear of the refrigerator as this can
obstruct free air circulation in the refrigerator compartment.
- Wrap food up properly or place it in airtight containers before putting it into the
refrigerator.
- Do not put glass bottles or carbonated beverages into the freezer. They can freeze
and break. Broken beverage containers can cause injury.
- Please observe maximum storage times and expiration dates of frozen goods.
• Do not put glass containers or bottles or carbonated beverages into the freezer.
- The container may freeze and break, and this may result in injury.
• Service Warranty and Modication.
- Any changes or modications performed by a 3rd party on this nished appliance
are not covered under Samsung warranty service, nor is Samsung responsible for
safety issues that result from 3rd party modications.
• Do not block the air vents inside the refrigerator.
- If the air vents are blocked, especially with a plastic bag, the refrigerator can be
over cooled. If a cooling period lasts too long, the water lter may break and cause
water leakage.
• If the refrigerator is disconnected from the power supply, you should wait for at least
ve minutes before plugging it back in.
• If large amounts of water enter the refrigerator, pull out the power plug and contact a
Samsung service center.
• Do not strike or apply excessive force to any glass surface.
- Broken glass may result in a personal injury and/or property damage.
• Fill the water tank and ice cube trays with potable water only (tap water, mineral
water, or puried water).
- Do not ll the tank with tea, juice, or a sports drink. They can damage the
refrigerator.
• If the refrigerator is ooded, shut off the power to the refrigerator and contact your
nearest Samsung service center.
- There is a risk of electric shock or re.
Safety information
English 11
Untitled-8 11 2016-03-30 1:29:14
Safety information
Cleaning cautions
CAUTION
• Do not spray water directly on the inside or outside the refrigerator.
- There is a risk of re or electric shock.
• Do not use a hair dryer to dry the inside of the refrigerator.
• Do not place a lighted candle in the refrigerator to remove bad odors.
Safety information
- This may result in an electric shock or re.
• Do not spray cleaning products directly on the display.
- Printed letters on the display may come off.
• If any foreign substance such as water has entered the appliance, unplug the power
plug and contact your nearest service center.
- Failing to do so may result in an electric shock or re.
• Use a clean, dry cloth to remove any foreign matter or dust from the power plug
blades. Do not use a wet or damp cloth when cleaning the plug.
- Otherwise, there is a risk of re or electric shock.
• Do not clean the appliance by spraying water directly onto it.
• Do not use benzene, thinner, or Clorox (bleach) to clean the refrigerator.
- They may damage the surface of the appliance and may cause a re.
• Never put ngers or any objects into the dispenser outlet.
- This can cause a personal injury or material damage.
• Before cleaning or performing maintenance, unplug the appliance from the wall socket.
- Failing to do so may result in an electric shock or re.
English12
Untitled-8 12 2016-03-30 1:29:14
Critical disposal warnings
WARNING
• DANGER : Risk of child entrapment. Before you throw away your old refrigerator or
freezer:
- Take off the doors and door latch.
- Leave the shelves in place so that children cannot easily climb inside.
- Children trapped inside a refrigerator can hurt themselves or suffocate to death.
• Please dispose of the packaging material from this product in an environmentally
friendly manner.
• Ensure that none of the pipes on the back of the refrigerator are damaged prior to
disposal.
• R-600a or R-134a is used as a refrigerant. Check the compressor label on the rear of
the appliance or the rating label inside the fridge to see which refrigerant is used for
your refrigerator. If this refrigerator contains ammable gas (Refrigerant R-600a),
contact your local authority in regard to the safe disposal of this product.
• When disposing of this refrigerator, remove the door/door seals and door latch so that
small children or animals cannot become trapped inside. Children should be supervised
to ensure that they do not play with the appliance.
- If trapped inside, the child could be injured or suffocate to death.
• Cyclopentane is used in the insulation. The gases in the insulation material require
a special disposal procedure. Please contact your local authorities in regard to the
environmentally safe disposal of this product.
• Keep all packaging materials well out of the reach of children, as packaging materials
can be dangerous to children.
- If a child places a bag over his or her head, the child could suffocate.
Safety information
English 13
Untitled-8 13 2016-03-30 1:29:14
Safety information
1. Regulatory Notice
1.1 FCC Notice
FCC CAUTION:
Any changes or modications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
Safety information
Contains Transmitter Module FCC ID: A3LSWL-CQ52
This device complies with Part 15 of FCC Rules. Operation is Subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received including interference that cause
undesired operation.
For products available in the US and Canadian markets, only channels 1~11 are available.
You cannot select other channels.
FCC STATEMENT:
This equipment has been tested and found to comply within the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment to an outlet that is on a different circuit than the receiver.
• Consult the dealer or an experienced radio/TV technician for help.
FCC RADIATION EXPOSURE STATEMENT:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment.
This equipment should be installed and operated so there is at least 8 inches (20 cm)
between the radiator and your body. This device and it’s antennas must not be co-located
or operated in conjunction with any other antenna or transmitter except in accordance
with FCC multi-transmitter product procedures.
English14
Untitled-8 14 2016-03-30 1:29:14
1.2 IC Notice
Contains Transmitter Module IC: 649E-SWLCQ52
The term “IC” before the radio certication number only signies that Industry Canada
technical specications were met. Operation is subject to the following two conditions : (1)
this device may not cause interference, and (2) this device must accept any interference,
including interference that may cause undesired operation of the device.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme á la norme NMB-003 du Canada.
For products available in the US and Canadian markets, only channels 1~11 are available.
You cannot select other channels.
IC RADIATION EXPOSURE STATEMENT:
This equipment complies with IC RSS-102 radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated so there is at
least 8 inches (20 cm) between the radiator and your body. This device and it’s antennas
must not be co-located or operated in conjunction with any other antenna or transmitter
except in accordance with FCC multi-transmitter product procedures.
SAVE THESE INSTRUCTIONS
Safety information
English 15
Untitled-8 15 2016-03-30 1:29:14
Installation
A
B
C D
07
08
09
10
01
02
03
04
05
06
Follow these instructions carefully to prevent accidents and to ensure the proper
installation of this refrigerator.
• Use the refrigerator only for its intended purpose as described in this manual.
• Any servicing must be performed by a qualied technician.
• Dispose of the product packaging material in compliance with the local regulations.
• To prevent electric shock, unplug the power cord before servicing.
Refrigerator at a glance
The images of parts in this manual and the actual provided component parts of the
refrigerator may differ, depending on the model and your country.
Installation
WARNING
NOTE
English16
Untitled-8 16 2016-03-30 1:29:14
01 Auto Ice Maker
02 EZ Fresh Vegetable & Fruit Drawers
03 Fridge Multi-Purpose Guard
04 Easy Slide-Shelf
A. Fridge
B. Showcase Door
C. Freezer
D. FlexZone
05 Dry Food and Meat Storage Drawers
06 Freezer door Bins
07 Fixed Shelf
08 Quick Space Shelf
09 Water lter
10 Wine Rack
* applicable models only
CAUTION
• When the inner case is open, do not open the show case. The show case is likely to be
pushed back and may be damaged.
• When closing the show case, make sure the show case is closed properly. If you close
the show case properly, you will hear a clicking sound.
NOTE
• For energy efciency, keep all shelves, drawers, and baskets in their original positions.
• When closing the door, make sure the vertical hinged section is in the correct position
to avoid scratching the other door.
• If the vertical hinged section is reversed, put it back into the correct position, and then
close the door.
• Moisture may form at times on the vertical hinged section.
• If you close a door by force, the other door may open.
• When the door opens, the interlock switch automatically disables the auger motor of
the ice maker for safety reasons.
• If the internal or external LED lamp is out of order, contact a local Samsung service
center.
Installation
English 17
Untitled-8 17 2016-03-30 1:29:14
Installation
Door removal for entrance
If the refrigerator cannot pass through the entrance to your home or kitchen due to its
size, follow these instructions to remove and then re-install the refrigerator's doors. If you
do not need to remove the doors, go to page 26 for the installation instructions.
Tools required (not provided)
Installation
Detaching the fridge doors
Philips screwdriver Flat-heat screwdriver Socket wrench (10 mm)
Pliers Allen wrench (4 mm) Allen wrench (5 mm)
1. With the door closed, use a Philips
screwdriver to remove the screws (x3)
from the top cover. Pull up and remove
the top cover with the connectors.
English18
Untitled-8 18 2016-03-30 1:29:15
2. Disconnect the two wire connectors
on the left door. The position of the
connectors differs with the model.
CAUTION
• Do not remove both doors
simultaneously. Make sure to remove
one door at a time. Otherwise, any of
the doors may fall and cause physical
injury.
• Make sure the refrigerator is off before
disconnecting the connectors.
3. Disconnect the water tube from the
coupler on the left door as shown.
4. Gently draw up the clamp in several
steps. To prevent nger injuries, do not
apply a sudden force to the clamp.
Installation
5. Pull up the clamp to remove.
English 19
Untitled-8 19 2016-03-30 1:29:15
Installation
Installation
6. Open the door 90 degrees. While
holding the door, pull up and remove
the top hinge. Be careful not to damage
the connector wires when you remove
the hinge.
7. Gently pull up the door vertically to
remove. Do not apply excessive force
to the door. The door may fall, causing
physical injury.
8. Lay the door down on a at surface.
9. Repeat the steps above for the other
door, except for Step 3. There is no
water tube on the right side door.
English20
Untitled-8 20 2016-03-30 1:29:15
Detaching the freezer doors
A
CAUTION
• Be sure to remove the fridge doors before removing the freezer doors.
• Use caution when disconnecting the bottom connectors.
1. With the freezer door open, use a
Philips screwdriver to remove the
screw holding the cover (A) of the
adjustable leg.
2. Disconnect the wire connectors.
Installation
3. Locate the hinge shaft. While holding
the door with one hand, use a at-head
screwdriver or wrench to press the
shaft down. Make sure to hold the door
to prevent the door from falling.
English 21
Untitled-8 21 2016-03-30 1:29:16
Installation
Installation
Re-attaching the freezer doors
4. To prevent contact with the middle
hinge, slightly tilt the door to the front,
and then lift it up to remove.
5. Repeat the steps above for the other
door.
CAUTION
• Before re-attaching the doors, make sure all the electrical connectors are properly
connected.
• The freezer doors must be re-attached before the fridge doors.
• Be careful not to damage or step on the wires during this process.
1. Insert the freezer door into the bottom
hinge while pushing the freezer door in
the direction of the arrow.
CAUTION
• Be careful not to damage or step on the
wires during this process.
English22
Untitled-8 22 2016-03-30 1:29:16
2. While pressing the hinge shaft down,
position the door so that the hinge shaft
is below the shaft hole in the middle
hinge. Release the hinge shaft so that it
enters the shaft hole.
3. With the door open, connect the bottom
connectors in the direction of the
arrows.
4. Attach the levelling foot cover using a
Philips screwdriver. Be careful not to
damage or step on the connectors.
5. Repeat the steps above for the other
door.
Installation
English 23
Untitled-8 23 2016-03-30 1:29:16
Installation
Re-attaching the fridge doors
Installation
1. While holding the door open by more
than 90 degrees, insert the shaft on
the middle hinge into the hole on the
bottom of the door.
2. Put the top hinge into position on the
top of the refrigerator, and then insert
the hinge shaft into the top hole of the
door. Make sure the wires from the
door pass through the hole in the hinge
shaft.
3. Insert the clamp in the direction of the
arrow.
4. Push back the clamp as shown.
English24
Untitled-8 24 2016-03-30 1:29:17
5. Connect the wire connectors.
CAUTION
• Make sure the wire connectors are
connected properly. Otherwise, the
display will not operate.
6. Connect the water tube.
CAUTION
• To prevent water leaks, make sure the
red clips tighten the coupler properly.
• Keep the clips out of children’s reach.
7. Repeat the above steps for the other
door, except for Step 6. The right door
does not have a water tube.
8. Attach the top cover with the front side
rst, and then press down on its back
to get it into position. Then, tighten the
screws (x3).
Installation
English 25
Untitled-8 25 2016-03-30 1:29:17
Installation
B
C
D
A
Step-by-step installation
STEP 1 Select a site
The site must:
• Have a solid level surface without carpeting or ooring that may obstruct ventilation
• Be out of direct sunlight
• Have adequate room for opening and closing the door
• Be away from any heat source
• Provide room for maintenance and servicing
• Have a temperature range between 50 °F (10 °C) and 110 °F (43 °C)
Clearance
See the pictures and table below and on the next page for installation space requirements.
Installation
Model RF22K938*
Depth “A” 28
Width “B” 35
Height “C” 70
Overall Height “D” 71
7
/8" (733 mm)
3
/4" (908 mm)
3
/4" (1797 mm)
7
/8" (1825 mm)
English26
Untitled-8 26 2016-03-30 1:29:17
01
02 02
04 04
05
03
06
08
0907
10
01 2" (50 mm)
02 125°
03 59 5/8" (1515 mm)
04 11 7/8" (303 mm)
05 12" (305 mm)
06 35 3/4" (908 mm)
07 24" (610 mm)
08 2 3/4" (70 mm)
09 1 3/4" (43 mm)
10 42 1/4" (1075 mm)
Installation
NOTE
The measurements of your refrigerator may differ from those listed above, depending on
the measuring method.
English 27
Untitled-8 27 2016-03-30 1:29:17
Installation
STEP 2 Flooring
Installation
If the refrigerator cannot pass through entrance to your home or kitchen due to its size,
see Door removal for entrance on page 18.
• The surface of the installation location
must support a fully loaded refrigerator.
• To protect the oor, put a large piece
of cardboard under each leg of the
refrigerator when you move it for
installation.
• To protect the oor once the
refrigerator is in its nal position, do
not move it unless necessary. If you
have to move it, place thick paper or
cloth such as an old carpet, along the
movement path.
NOTE
English28
Untitled-8 28 2016-03-30 1:29:17
STEP 3 Adjust the levelling feet
CAUTION
• When installed, the refrigerator must be level on a at, solid oor. Not leveling the
refrigerator can cause damage to the refrigerator or physical injury.
• Levelling must be performed with the refrigerator empty. Make sure no food items are
inside the refrigerator.
• For safety reasons, adjust the front side a little higher than the rear side.
You can level the refrigerator using the rear legs. The rear legs have a special screw
(leveller) for levelling purposes. Use a at-head screwdriver for levelling.
• To adjust the height of the freezer side:
Insert a at-head screwdriver into the
leveller of the freezer-side rear leg.
Turn the leveller clockwise to raise the
refrigerator. Turn it counterclockwise to
lower.
• To adjust the height of the fridge side:
Insert a at-head screwdriver into the
leveller of the fridge-side rear leg.
Turn the leveller clockwise to raise the
refrigerator. Turn it counterclockwise to
lower.
Installation
English 29
Untitled-8 29 2016-03-30 1:29:17
Installation
A
STEP 4 Adjust the door height as well as the door gap
To adjust the height of a door
Installation
Snap ring
The height of a door can be adjusted using the provided snap
rings, which come in 4 different sizes (1 mm, 1.5 mm, 2 mm,
and 2.5 mm).
1. Check the height difference between
the doors, and then raise and hold the
lower door.
2. Insert a suitable-sized snap ring (A)
between the door and the hinge as
shown.
CAUTION
• Insert only one snap ring for this purpose. If you insert two or more snap rings, the
rings may slip out or make a rubbing noise.
• Keep the snap rings out of children’s reach, and keep them for future use.
• Do not raise the door too much. The door can contact and damage the top cover.
English30
Untitled-8 30 2016-03-30 1:29:18
STEP 5 Connect the water dispenser line
A
B
C
A
B
A water dispenser with a lter is one of the helpful features on your new refrigerator. To
help promote better health, the water lter removes unwanted particles from your water.
However, it does not sterilize or destroy microorganisms. You may need to purchase a
water purifying system to do that.
The water line also connects to the ice maker. For the ice maker to operate properly, a
water pressure of 20-125 psi is required.
If the refrigerator is installed in an area with low water pressure (below 20 psi), you can
install a booster pump to compensate for the low pressure.
After you have connected the water line, make sure the water storage tank inside the
refrigerator is properly lled. To do this, press the water dispenser lever until the water
runs from the water outlet.
NOTE
• Water line installation kits are available at extra cost from your retailer. We
recommend using a water line installation kit that contains copper tubing and a 6 mm
1
(
/4”) compression nut.
• Use the new hose-sets supplied with the appliance only. Do not re-use an old hose set.
1. Shut off the main water source.
2. Insert the pipe clamp (B) and the shut
off valve (C) into the cold water line (A).
3. Connect the water line installation kit
(A) to the shut off valve (B).
Installation
Untitled-8 31 2016-03-30 1:29:18
English 31
Installation
A
01
02
03 08
04
05
06
07
B
Connect the water supply line to the refrigerator
There are several items you must purchase to complete this connection. You may nd
these items sold as a kit at your local hardware store.
Copper Tubing
Plastic Tubing
Installation
• 1/4” copper tubing
• 1/4” compression nut (1 pc)
• Ferrule (2 pc)
1
•
/4” plastic tubing Molded end (Bulb)
• 1/4” compression nut (1pc)
A. Refrigerator
B. Household water supply line
01 Compression Nut (
02 Ferrule (Not supplied)
03 Copper tubing (Not supplied)
04 Plastic Tubing (Assembled)
05 Compression Fitting (Assembled)
06 Molded end (Bulb)
07 Compression nut (B) (1/4”) (Not
supplied)
08 Plastic Tubing (A) (Not supplied)
1
/4”) (Assembled)
1. Connect the household water line to the assembled compression tting.
- If you are using copper tubing, slip the compression nut (B) (not supplied) and
ferrule (not supplied) on the copper tubing (not supplied) as shown.
- If you are using plastic tubing (A), insert the molded end (Bulb) of the plastic tubing
(A) into the compression tting.
CAUTION
If you use plastic tubing, (A) do not use it without the molded end (Bulb).
2. Tighten the compression nut (B) onto the compression tting. Do not over-tighten the
compression nut (B).
3. Turn the water on and check for any leakage. If you nd water drops or leakage in
the connection areas, turn off the main water supply. Check the connections and, if
necessary, tighten.
English32
Untitled-8 32 2016-03-30 1:29:18
4. Flush 1 gallon of water through the lter before drinking or using the water from
the refrigerator. (Flush approximately 6 minutes.) To ush, press a large glass or cup
against the water dispenser lever. Fill the glass, empty it, and then repeat.
5. After you turn on the refrigerator, let the ice maker make ice for 1 to 2 days. Over that
period of time, throw out the rst 1 or 2 buckets of ice the ice maker makes to ensure
all impurities have been removed from the water line.
NOTE
Only connect the water line to a potable water source.
• If you have to repair or disassemble the water line, cut off
1
/4“ of the plastic tubing to
make sure you get a snug, leak-free connection.
• You can test the water line quickly using a paper cup. Under normal conditions, the
water dispenser can ll a 5 3/4 oz. (170 cc) cup in about 10 seconds.
STEP 6 Initial settings
After you complete the following steps, the refrigerator should be fully functional.
1. Plug the power cord into the wall socket to turn the refrigerator on.
2. Open the door, and check if the interior light lights up.
3. Set the temperature to the coldest setting, and then wait for about an hour. Then, the
freezer will be slightly chilled, and the motor should be running smoothly.
4. Wait until the refrigerator reaches the set temperature. Now the refrigerator is ready
to use.
STEP 7 Final check
When installation is complete, conrm that:
• The refrigerator is plugged into an electrical outlet and grounded properly.
• The refrigerator is installed on a at, level surface with appropriate clearance between
it and any walls or cabinets.
• The refrigerator is level and is sitting rmly on the oor.
• The door opens and closes freely, and the interior light turns on automatically when
you open the door.
Installation
English 33
Untitled-8 33 2016-03-30 1:29:18
Operations
01 02
03 04
05
07 08
06
09
Feature panel
Operations
01 Freezer / Power Freeze 02 Fridge / Power Cool 03 Door Alarm
04 FlexZone 05 Lighting / Control Lock 06 Ice Maker Off
07 Cubed Ice / Override 08 Crushed Ice / Filter
09 Network connection
Reset
NOTE
When you change the temperature on the panel, the panel displays the actual temperature
inside the refrigerator until the temperature matches the temperature you set. Then, the
panel displays the new set temperature. Note that it will take time for the refrigerator
to reach the new temperature. This is normal. During this time, you need not set the
temperature again.
English34
Untitled-8 34 2016-03-30 1:29:18
01 Freezer / Power Freeze (3 sec)
You can use the Freezer button to set the freezer temperature or to
Freezer
activate/deactivate Power Freeze. To set the freezer temperature,
press Freezer repeatedly. Available temperatures are between 5 °F
(-15 °C) and -8 °F (-23 °C).
Power Freeze lowers the freezer temperature and speeds up the
freezing process. In Power Freeze mode, the freezer runs at full
power for several hours and then returns to normal operation and the
previous temperature setting.
• To activate Power Freeze, press and hold Freezer for 3 seconds.
The corresponding indicator (
speeds up the freezing process for you.
• To deactivate, press and hold Freezer for 3 seconds again.
Power Freeze
Power Freeze shuts off and the freezer returns to the previous
temperature setting.
• To freeze large amounts of food, activate Power Freeze at least 20
hours before putting food in the freezer.
NOTE
Using Power Freeze increases power consumption. If you do not
need the Power Freeze function on, make sure you turn it off so that
the refrigerator can return to normal operation and the previous
temperature setting.
) lights up, and the refrigerator
Operations
02 Fridge / Power Cool (3 sec)
You can use the Fridge button to set the fridge temperature or to
activate/deactivate Power Cool.
Fridge
To set the fridge temperature, press Fridge repeatedly to select
a desired temperature between 34 °F (1 °C) and 44 °F (7 °C).
The temperature indicator displays the currently set or selected
temperature.
English 35
Untitled-8 35 2016-03-30 1:29:19
Operations
The Power Cool function lowers the fridge temperature and speeds
up the cooling process. In the Power Cool mode, the fridge runs at full
power for several hours and then returns to normal operation and the
previous temperature setting. Use Power Cool to rapidly cool food
that spoils quickly or to rapidly cool the refrigerator after the door has
been left open for some time.
To start Power Cool, press and hold Fridge for 3 seconds. The Power
Cool icon lights and the refrigerator speeds up the cooling process.
Power Cool
To deactivate, press and hold Fridge for 3 seconds again. Power Cool
turns off and the refrigerator returns to the previous temperature
setting.
Using Power Cool increases power consumption. If you do not need
the Power Cool function on, make sure you turn it off so that the
refrigerator can return to normal operation and the previous set
temperature.
NOTE
03 Door Alarm / °C °F (3 sec)
Operations
Door Alarm
°C °F
You can enable or disable the door alarm by pressing Door Alarm.
When Door Alarm is enabled and a door is left open for more than 2
minutes, the alarm will sound and the alarm indicator will blink. The
Door Alarm function is enabled by factory default.
You can use the Door Alarm button to switch the temperature scale
between Celsius and Fahrenheit.
To switch the temperature scale, press and hold Door Alarm for
3 seconds.
English36
Untitled-8 36 2016-03-30 1:29:19
04 FlexZone
With the FlexZone function, you can select an appropriate temperature for the food you
have stored in the FlexZone compartment. The FlexZone compartment is located on the
bottom right of the refrigerator. To initiate the FlexZone function, press and hold FlexZone
for 3 seconds, and then press FlexZone repeatedly to cycle through the modes. When a
desired mode is selected, release the button. The FlexZone function has the following four
modes:
Select Freezer to set the FlexZone compartment to the same
Freezer
temperature as the freezer.
Use to keep frozen food fresh.
Soft Freezing
Select Soft Freezing to set the FlexZone compartment to 23 °F (-5 °C).
Use to keep meat and sh fresh for an extended time.
Select Chill / Meat to set the FlexZone compartment to 30 °F (-1 °C).
Chill / Meat
Use when storing deli food such as steak, cold cuts, sh, bacon, and
cheese.
Select Cool to set the FlexZone compartment to 41°F (5 °C).
Cool
Use when storing beverages that you will use fairly quickly or
beverages you want to keep cold such as water, juice, soft drinks, and
beer.
Operations
CAUTION
• When you switch or turn off this function, blood in meat or moisture in food may come
out due to the temperature change.
• Do not store meat or food in the FlexZone compartment at the Cool setting. The meat
or food may spoil.
NOTE
If the FlexZone button does not activate the function, make sure the button is unlocked.
Press and hold Lighting/Control Lock for more than 3 seconds until the lock icon turns off.
Then, press and hold FlexZone for more than 3 seconds to change the mode.
English 37
Untitled-8 37 2016-03-30 1:29:19
Operations
05 Lighting / Control Lock (3 sec)
Lighting
Control Lock
06 Ice Maker Off (3 sec)
Ice Maker Off
Operations
07 Cubed Ice / Override (3 sec)
By default, the dispenser lamp turns on only when the dispenser is
used. If you want to keep the dispenser lamp turned on (continuous
mode), press Lighting. The lighting indicator also turns on. To restore
the default settings, press Lighting again.
To prevent accidental setting changes, press and hold Control Lock for
3 seconds. All controls will be disabled and the Lock indicator (
turn on.
When Control Lock is on, the refrigerator does not dispense ice or
water, even if the Dispenser Lever is pressed.
To deactivate, press and hold again for 3 seconds. The Lock indicator
turns off and the controls are re-enabled.
To disable ice making, press and hold Ice Maker Off for 3 seconds.
In this mode, ice making is disabled even if you press Cubed Ice or
Crushed Ice. To turn ice making back on, press and hold Ice Maker Off
again for 3 seconds.
) will
Cubed Ice
Override
English38
You can select an ice type.
Press Cubed Ice to dispense cubed ice. The corresponding indicator
turns on.
The Override function activates/deactivates Smart Grid (See page 45).
Press Cubed Ice/Override for 3 seconds to set/clear the Override
function.
Untitled-8 38 2016-03-30 1:29:19
08 Crushed Ice / Filter Reset (3 sec)
You can select an ice type.
Crushed Ice
Press Crushed Ice to dispense Crushed Ice. The corresponding indicator
turns on.
After about 6 months of using the original water lter (which typically
amounts to about 320 gallons (1200 liters) of water), the Filter
indicator blinks red to remind you that the lter needs to be replaced.
When this happens, replace the lter, and then press and hold Crushed
Ice for 3 seconds. This resets the lter lifecycle detector and turns off
the Filter indicator.
Filter Reset
NOTE
• Some areas have relatively large amounts of lime in their water.
This may reduce the lifecycle of the lter. In these areas, you will
have to replace the water lter more often than specied above.
• If water is not dispensing properly, the water lter is most likely
clogged. Even if the Filter indicator is not blinking, replace the
water lter.
Cooling Off mode (also called Shop mode), is designed for use by
retailers when they are displaying refrigerators on the shop oor.
In Cooling Off mode, the refrigerator’s fan motor and lights operate
normally, but the compressors do not run so that neither the
Cooling Off
refrigerator or the freezer run the cooling process.
To enter Cooling Off mode, press and hold Fridge, Freezer, and Door
Alarm for 5 seconds. The refrigerator chime sounds with the message
of "OFF" on the temperature panel.
To exit, press and hold again for 5 seconds.
Operations
English 39
Untitled-8 39 2016-03-30 1:29:19
Operations
09 Network connection
You can control and monitor your refrigerator through the Samsung Smart Home app. For
more information, see the Samsung Smart Home section.
• Recommended encryption systems include WPA/TKIP and WPA2/AES. Any newer or
• Wireless networks may be affected by the surrounding wireless communication
• If your Internet service provider has registered the MAC address of your PC or modem
• The rewall settings of your network system may prevent your Samsung Smart
• To congure the wireless access point (AP) settings, see the user manual of the AP.
• Samsung Smart Refrigerators support both Wi-Fi 2.4 GHz with IEEE 802.11 b/g/n and
Operations
• Unauthorized Wi-Fi wireless routers may fail to connect to applicable Samsung Smart
NOTE
unstandardized Wi-Fi authentication protocols are not supported.
environment.
for identication, your Samsung Smart Refrigerator may fail to connect to the Internet.
If this happens, contact your Internet service provider for technical assistance.
Refrigerator from accessing the Internet. Contact your Internet service provider for
technical assistance. If this symptom continues, contact a local Samsung service center
or retailer.
Soft-AP protocols (IEEE 802.11 n is recommended).
Refrigerators.
English40
Untitled-8 40 2016-03-30 1:29:19
Samsung Smart Home
Installation
Visit the Google Play Store, Galaxy Apps, or Apple App Store and search for “Samsung
Smart Home”. Download and install the Samsung Smart Home app provided by Samsung
Electronics to your smart device.
NOTE
• The Samsung Smart Home app is designed for Android 4.0 (ICS) or higher, or iOS 7.0 or
higher, and is optimized for Samsung smartphones (Galaxy S and Galaxy Note series).
• For improved performance, the Samsung Smart Home app is subject to change without
notice, or discontinued support according to the manufacturer’s policy.
Samsung account
You are required to register your Samsung account to use the app. If you don’t have a
Samsung account, follow the app’s onscreen instructions to create a free Samsung account.
Getting started
1. Run the Samsung Smart Home app and log in with your Samsung account. iPhone users
are required to provide the login information each time they access the app.
2. Select Device > the + icon, and then tap Refrigerator.
3. Follow the onscreen instructions to provide the necessary information about the
router, and then tap Next.
4. Press and hold Fridge for more than 5 seconds until the "AP" message appears on the
freezer display. Your refrigerator will be registered with the app.
5. When device registration is complete, the refrigerator icon will appear on the Samsung
Smart Home app.
6. Tap the refrigerator icon to open the refrigerator page.
7. When a network connection is established, the Wi-Fi icon lights up on your refrigerator.
Operations
Refrigerator app
Integrated control
You can monitor and control your refrigerator at home and on the go.
• Tap the refrigerator icon in the Samsung Smart Home to open the refrigerator page.
• Check the operation status or notications related to your refrigerator, and change
options or settings if necessary.
NOTE
Some options or settings of the refrigerator may not be available for remote control.
English 41
Untitled-8 41 2016-03-30 1:29:19
Operations
Key features
Register Samsung Smart Home appliances to the Samsung Smart Home server for remote
access.
Menu overview
Operations
• Tap Refrigerator to open the settings page of the refrigerator.
• Swipe to move to the next page.
Chat control
Home view
(applicable models
only)
Master key
Customer service
Settings
You can control your Samsung Smart Home appliances remotely,
or check the operating status.
By using the built-in camera of a Samsung Smart Home
appliance, you can monitor your living room. This is available
only with applicable models.
The master key is designed to control the locking system for
different user activities such as going out, coming home, going
to bed at night, and waking up in the morning. This is available
only with applicable models.
The user manual is downloadable, and the contact information
for customer support is also provided.
You can check the connected device as well as the software
information (version and open-source licenses), and add devices
or select a country.
You can simulate the operation of the current device for
demonstration purposes.
English42
Untitled-8 42 2016-03-30 1:29:20
Refrigerator settings
01
A
B
02
03
04
05
06
08
07
A: Disabled (black)
B: Enabled (blue)
Operations
01 Displays the currently set fridge temperature.
Fridge
02 You can turn on or off Power Cool, and check the current
settings.
03 Displays the currently set freezer temperature.
Freezer
04 You can turn on or off Power Freeze, and check the current
settings.
06 You can turn on or off Ice Maker, and check the current
settings as well as the ice making status.
FlexZone™ 05 Displays the current mode setting.
Ice Maker
English 43
Untitled-8 43 2016-03-30 1:29:21
Operations
Operations
Settings
About Device
07 On the Settings screen, you can monitor the energy usage
status of your refrigerator in a preferred format. Supported
formats are daily, weekly, or monthly cumulative energy
consumption reports covering a max of the last 180 days.
08 Displays the product information including the current
version, tutorial, Self Check, and Help Desk. The user
manual is downloadable, and the contact information for
customer support is also provided.
Self Check
By referencing Self Check, you can check the diagnostic results
of your refrigerator. If the refrigerator detects an issue to check,
it displays detailed information about the issue that can be used
for customer service.
English44
Untitled-8 44 2016-03-30 1:29:21
SMART GRID Function (Demand Response)
When the refrigerator operates in SMART GRID (Demand Response) mode, the Energy
Management Refrigerator function can control energy usage or delay the operation of
some functions to save money when energy prices or demand are the highest.
NOTE
• You can deactivate the SMART GRID (Demand Response) function at any time using the
Override On/Off function.)
• To use the SMART GRID (Demand Response) function, you need a separate contract with
your electric utility company.
In addition, to use the Smart Grid (Demand Response) function, you must register for the
service with your electric company. The company must have an EMS (Energy Management
System) that supports SEP (Smart Energy prole).
Using the SMART GRID (Demand Response) Function
This feature monitors energy prices and demand information from your utility company
and sends notications to the refrigerator to run high energy consuming tasks during offpeak times when electricity costs and demand are lower.
If the refrigerator receives a control signal from the utility company, the refrigerator will
display the DAL (L3) ~ TALR (L4) levels on the refrigerator display and control the power
consumption according to the level.
[Exception condition] The DAL and TALR control signals from a utility company work as
long as product performance is maintained.
If the refrigerator receives the SMART GRID (Demand Response) signal (DAL or TALR), the
refrigerator will operate in Delay Appliance Load (Display:L3) or Temporary Appliance
Load Reduction (Display:L4) mode.
• Delay Appliance Load (L3): The refrigerator responds to a DAL signal by providing a
moderate load reduction for the duration of the delay period. This function controls
functions that consume a lot of energy such as adjusting the Cooling system, running
the defrost cycle, and making ice.
- When the refrigerator operates in DAL (L3) mode, “L3” is displayed on the
refrigerator display.
- DAL mode is automatically deactivated after it lasts for the amount of time
stipulated by the DAL signal (max. 4.5 hours) or when the Override key is pressed.
Operations
English 45
Untitled-8 45 2016-03-30 1:29:21
Operations
• Temporary Appliance Load Reduction (L4): The refrigerator responds to a TALR signal
To check the MAC address
Operations
by aggressively reducing the load for a short time period. This function reduces energy
consumption by stopping the compressor and controlling the functions that consume a
lot of energy such as the defrost cycle and making ice.
- When the refrigerator operates in TALR (L4) mode, “L4” is displayed on the
refrigerator display.
- TALR (L4) mode is automatically deactivated after it lasts for the received duration
(max. 15 minutes), or when the Override key is pressed. The mode is immediately
deactivated and the refrigerator returns to the normal state when the door is
opened or closed, or the dispenser is used.
1. In this mode, the MAC address appears
on the temperature panel (on both the
freezer and the fridge sections of the
panel) sequentially for 1 minute.
Press and hold both Freezer and Fridge
for 6 seconds. The temperature panel
blinks. Then, press Freezer again to
display the MAC address. The fridge
beeps.
2. For example, if the MAC address is
"11-22-33-44-55-66", the temperature
panel displays the address for 1 minute
in this sequence: "-- / --" "11 / 22"
"33 / 44" "55 / 66" "-- / --".
After the 1 minute, the MAC address
disappears and the temperature panel
returns to the normal state.
NOTE
The temperature panel displays “"-- / --"
for an unknown MAC address or if a Wi-Fi
connection is not established or is lost.
Override Mode
When you want the refrigerator to ignore the SMART GRID (Demand Response) signal
from the utility company, you can activate OVERRIDE mode.
When you activate OVERRIDE mode, the refrigerator ignores the SMART GRID (Demand
Response) signal and is not controlled by the utility company.
English46
Untitled-8 46 2016-03-30 1:29:22
Activating and deactivating Override mode
1. Press and hold Cubed Ice for 3 seconds.
2. A buzzer sounds and `Or’ and `on’ is
displayed in the freezer and fridge
temperature displays for 5 seconds.
3. If the refrigerator receives a SMART
GRID (Demand Response) signal from
the utility company, `Or’ is displayed in
the freezer temperature display.
4. To deactivate OVERRIDE mode, press
and hold Cubed Ice for 3 seconds.
5. A Buzzer sounds and ‘Or’ and ‘oF’ is
displayed on the fridge and freezer
temperature displays for 5 seconds.
NOTE
• Alternatively, you can activate or
deactivate OVERRIDE mode using the
Samsung Smart Home app and the
Energy Management function. See the
next page.
Operations
English 47
Untitled-8 47 2016-03-30 1:29:22
Operations
Using the Energy Management Function
The Energy Management function enables you to control and monitor your Energy
Management refrigerator using the Smart Home app for your convenience.
• To use the Energy Management refrigerator functions, you have to install the
1. Operational Status
2. Energy Consumption Reporting
The energy consumption report may differ from the power consumption specications of
the product depending on the operating environment and the stored food.
3. Delay Defrost Capability
Operations
NOTE
corresponding app rst.
- You can check the DR and Override status.
- Shows the accumulated power consumption. Power consumption data is updated
every 1 hour.
NOTE
- The Delay Defrost Capability function saves energy by delaying the defrost
operation to a time specied by the user. You can congure the time. and this
function will save energy during the specied period in a 24 hour cycle. If the
time is not set, the function works with the default time settings. The default time
settings are below:
- 6 am to 10 am: 1st. November ~ 30th. April
- 3 pm to 7 pm: 1st. May ~ 31th. October
To change the time setting for the Delay Defrost Capability
You can change the time setting for the Delay Defrost Capability on the app.
English48
Untitled-8 48 2016-03-30 1:29:22
Provision for Open Access to the Connected Product Requirements
1. SGIP Open Standards (Smart Energy Prole 2.0 - http://www.csep.org/)
- Energy Consumption Reporting
- Demand Response
2. Samsung OPEN API
- Operational Status, User Settings & Messages
- ICE Maker Status: GET /external/icestatus?icegetstatus=opt (relevant to the energy
consumption of the product 1)
- Door Open Alarm: GET /devices/0/Door?type=opt (relevant to the energy
consumption of the product 2)
- DR Status: GET /external/drlc?drgetstatus=opt
- Delay Defrost Capability
- Set Schedule of the Defrost Delay: POST /devices/0/defrost/addSchedule
- Get Schedule of the Defrost Delay : GET /devices/0/defrost/getSchedule
- Delete Schedule of the Defrost Delay: POST /devices/0/defrost/delSchedule
- Defrost Delay On/OFF: PUT /devices/0/defrost/delayevent
Operations
English 49
Untitled-8 49 2016-03-30 1:29:22
Operations
A
B
Special features
The refrigerator has many convenient features.
Water dispenser
With the water dispenser, you can dispense water without opening the fridge door.
The water dispenser offers 3 options:
chilled water, cubed ice, and crushed ice.
If you do not want to dispense ice, simply
press the water lever (B).
With the Ice Maker enabled,
1. Press to select an ice type.
2. Put a water glass on the ice lever (A)
and push it. Ice is dispensed from the
dispenser.
3. Then, put the glass on the water lever
(B) and push it. Water is dispensed from
the dispenser.
Operations
• To get ice and water, push the ice lever (A) rst for ice, then move your glass down and
• If you push both levers at once, only the rst pushed lever operates.
• To prevent spills, wait 1 second before removing the glass after dispensing.
• Make sure the glass is in line with the dispenser to prevent the dispensed water from
• If you do not use the water dispenser for 2-3 days, the dispensed water may have an
NOTE
press the water lever (B) for water.
spilling out.
abnormal smell or taste. This is not a system failure. Discard the rst 1-2 glasses of
water.
English50
Untitled-8 50 2016-03-30 1:29:22
Ice maker
The refrigerator has a built-in ice maker that automatically dispenses ice so that you can
enjoy ltered water with cubed or crushed ice to your preference.
Ice making
After you have installed your refrigerator and plugged it in, follow these instructions to
ensure proper ice making and to keep the ice bucket full of ice:
1. Let the refrigerator operate for at least 24 hours to ensure optimal performance.
2. Dispense the rst 4 to 6 ice cubes into a glass.
3. Wait another 8 hours and dispense another 4 to 6 ice cubes.
4. Then, wait another 16 hours and dispense the rst glass-full of ice.
NOTE
• If you consume all the ice at once, you must wait 8 hours before dispensing the rst 4
to 6 cubes. This ensures that the ice bucket is lled with ice properly.
• Ice cubes generated rapidly may look white, which is normal.
Diagnosis
If ice does not dispense, rst check the ice
maker.
To check the ice maker
1. Press Test on the side of the ice maker.
You will hear a chime (ding-dong) when
you press the button.
2. You will hear another chime if the ice
maker is operating properly.
Operations
CAUTION
• If the ice making chime rings repeatedly, contact the waterline installer or a local
Samsung service center.
• Do not press Test repeatedly after the ice tray is lled with ice or water. Water may
overow or ice may jam.
• Do not put food in the ice bucket. The frozen food may damage the ice maker,
especially when you open or close the door.
• When the refrigerator recovers power after a power failure, the ice bucket may
contain a mix of melted and jammed ice cubes, which can prevent the ice maker from
working properly. To prevent this, make sure to empty the ice bucket before using the
refrigerator.
• Do not put ngers or any objects into the dispenser outlet or the ice maker. This can
cause physical injury or property damage.
English 51
Untitled-8 51 2016-03-30 1:29:22
Operations
• When reinserting the ice maker tray, make sure that the tray is properly centered at
the entrance. Otherwise, the tray can get stuck.
Ice Maker Off
If you press Ice Maker to turn the ice maker off, make sure to remove all ice cubes from
the ice bucket. Remaining ice cubes may clump together, making it difcult to remove
them.
To remove the ice bucket
1. Hold the bottom of the ice bucket with
one hand and hold the side with the
other hand.
2. Gently lift it up and pull out.
3. Remove the remaining ice cubes and
put the ice bucket back into place.
Operations
• Removal of the ice bucket does not affect the thermal and mechanical performance of
If the ice bucket is not rmly inserted, turn
the ice screw 90 degrees, and then try
again.
NOTE
the refrigerator.
English52
Untitled-8 52 2016-03-30 1:29:22
Water clouding
Water supplied to the refrigerator ows through a core alkaline lter. During this ltering
process, the water pressure of the water increases and the water becomes saturated with
oxygen and nitrogen. This causes the water to look misty or cloudy temporarily when
dispensed. This is normal and the water will look clear after a few seconds.
Wine Rack
Insert the wine rack on top of the sliding
shelf of the FlexZone, normally below the
partition guide.
CAUTION
• To remove or insert the wine rack, make sure that the wine rack is empty.
• Do not store wine bottles in the freezer. The bottles freeze and break, causing physical
injury.
• Do not store wine bottles in two rows. The bottles may fall, causing physical injury.
• Do not store the wine bottles taller than 330 mm in height. The bottles may break
when you close the door, causing physical injury.
Operations
English 53
Untitled-8 53 2016-03-30 1:29:23
Maintenance
Handle and care
Icemaker bucket
If you do not dispense ice for an extended period, ice may form clumps inside the bucket.
If this happens, remove and empty the icemaker bucket.
1. To remove the ice maker bucket, gently
lift it up, and then pull it out slowly
while holding the bottom of the bucket
with one hand and the side with the
other hand.
2. Lift up and pull the bucket out. Empty
the bucket.
3. When done, put the bucket back into
position. If the bucket does not t in,
turn the helix screw 90 degrees, and
then try again.
Maintenance
• Do not apply excessive force to the bucket cover. The cover may break.
• Do not forcefully close the door. Water may spill over the ice maker.
• To prevent injury, make sure to clean up any ice or water that has fallen on the oor.
• To prevent accidents or injury, do not let children play with the water dispenser or the
ice maker.
• Do not put your hand or an object into the ice chute. This may cause physical injury or
product damage.
• Use only the provided ice bucket. Third-party ice buckets may cause a system failure.
• Use only potable water that is connected to the water supply line.
• The water pressure required for ice making is between 20 psi and 125 psi.
• If the Ice Off indicator blinks, remove and reinsert the ice bucket. Make sure it is
reinserted properly.
• Noise from the the ice maker as it produces ice during the ice making process is
normal.
• While the door is open, neither the ice maker nor the water dispenser operates.
English54
CAUTION
NOTE
Untitled-8 54 2016-03-30 1:29:23
Tempered glass shelves (fridge)
• To remove a shelf, fully open the
corresponding door. Hold the front of
the shelf, and then gently lift up and
slide out.
• To reinsert, hold the shelf at an angle
so the front is higher than the back, and
then insert the top hook into the top
shelf notch. Then, lower the shelf and
insert the bottom shelf hook into the
bottom shelf notch.
CAUTION
• The tempered glass shelves are heavy.
Use caution when removing them.
• The shelf must be inserted correctly. Do
not insert upside down.
• Glass containers may scratch the
surface of glass shelves.
Maintenance
English 55
Untitled-8 55 2016-03-30 1:29:23
Maintenance
Door bins
The top door bin section has a marked line to ensure easy removal and proper reinsertion.
Lift up the door bin, and then pull out
straight.
CAUTION
Do not allow children to play with the bins. Sharp-edged corners may cause injury.
Vegetable & fruit drawers (EZ fresh zone)
Gently lift up the front of the drawer and
slide out.
We recommend that you remove the door
bins before removing the drawer. This is to
prevent damage to the door bins.
Maintenance
English56
Untitled-8 56 2016-03-30 1:29:23
Vegetable shelf
1. Slide out the left-side vegetable drawer.
2. Slide in the right-side foldable shelf.
3. While supporting the vegetable shelf
with one hand, slide it out with the
other hand.
4. To use the space that is opened up after
removing the foldable shelf, take out
the vegetable shelf.
Maintenance
NOTE
To reinsert, follow the steps above in the
reverse order.
Ice bucket
To remove the ice bucket, see the Maintenance section on page 52.
English 57
Untitled-8 57 2016-03-30 1:29:23
Maintenance
Cleaning
Interior and exterior
WARNING
• Do not use benzene, thinner, or home/car detergent such as Clorox™ for cleaning. They
may damage the surface of the refrigerator and cause a re.
• Do not spray water onto the refrigerator. This may cause electric shock.
• Do not put ngers or any objects into the dispenser outlet.
Regularly use a dry cloth to remove all foreign substances such as dust or water from the
power plug terminals and contact points.
1. Unplug the power cord.
2. Use a moistened, soft, lint-free cloth or paper towel to clean the refrigerator’s interior
and exterior.
3. When done, use a dry cloth or paper towel to dry well.
4. Plug in the power cord.
Replacement
Water lter
• Do not use third-party water lters. Use only Samsung-provided or -approved lters.
Maintenance
• Unapproved lters may leak and damage the refrigerator, causing electric shock.
Samsung is not responsible for any damage that may occur from use of third-party
water lters.
The lter indicator (
Before replacing the lter, make sure the water supply line is shut off.
WARNING
) turns red to let you know it is time to replace the water lter.
English58
Untitled-8 58 2016-03-30 1:29:24
1. Turn the knob of the lter cartridge
counter clockwise 90 degrees (1/4
turn). The lter cartridge unlocks.
2. Pull out to remove the cartridge.
- If the water lter is severely
contaminated, the cartridge may not
be easy to remove. If that is the case,
use force to remove the cartridge.
- To prevent water leaks from the
lter opening, keep the cartridge
straight while removing it.
NOTE
To prevent overow, empty and dry the
water lter tray.
3. Insert a new lter cartridge. Use only
Samsung-provided or approved lters.
English 59
Maintenance
Untitled-8 59 2016-03-30 1:29:24
Maintenance
4. Turn the cartridge knob clockwise to
lock into place.
5. Press and hold Crushed Ice on the
feature panel for 3 seconds to reset the
life cycle detector.
The lter indicator (
6. When you are done replacing the lter,
open the water valve and run water
through the dispenser for about 7
minutes. This is to remove impurities
and air from the water line.
NOTE
• A newly installed lter may cause the water dispenser to spurt water briey. This is
because air has entered the waterline.
• The replacement process may cause the water dispenser to drip for a short period of
time. If it drips, simply wipe up any water on the oor with a dry towel.
) turns off.
Maintenance
English60
Untitled-8 60 2016-03-30 1:29:24
Reverse osmosis water ltration system
The water pressure of the water supply system to a reverse osmosis water ltration
system must be between 35 psi and 120 psi (241 kPa and 827 kPa).
The water pressure of the reverse osmosis water ltration system to the refrigerator’s
cold water line must be at least 40 psi (276 kPa). If the water pressure is below these
specications:
• Check if the sediment lter in the reverse osmosis system is blocked. Replace the lter
if necessary.
• Rell the water tank in the reverse osmosis system with water.
• If your refrigerator has a water lter, it may further reduce the water pressure when
used in conjunction with a reverse osmosis system. Remove the water lter.
For more information or servicing, contact a licensed plumbing professional.
Ordering a new lter
To purchase a new water lter, contact a local Samsung service center or visit www.
samsungparts.com on the web.
LED Lights
To replace the LED lights on the refrigerator, contact a local Samsung service center.
WARNING
The LED lights are not user-serviceable. Do not attempt to replace an LED light yourself.
This can cause electric shock.
English 61
Maintenance
Untitled-8 61 2016-03-30 1:29:24
Troubleshooting
If you encounter a problem with the refrigerator, rst check the tables starting below, and
then try the suggested actions.
General
The refrigerator does
not operate or cool.
Food in the fridge
freezes.
Troubleshooting
You hear unusual
noises or sounds.
Symptom Action
• Make sure the power cord is connected properly.
• Make sure the temperature control is set correctly. Try
setting to a lower temperature.
• Make sure the refrigerator is not being exposed to direct
sunlight and is not near a heat source. Failing to do so may
affect the cooling performance.
• Make sure the refrigerator is far enough away from rear
walls, side walls, or cabinets to allow proper ventilation.
Failing to do so may affect the cooling performance.
• Too much food can block the internal ventilation of the
refrigerator. To keep the refrigerator operating normally, do
not put too much food inside.
• Check if the temperature control is set to the lowest
temperature. If so, change to a higher temperature.
• This can happen if the ambient room temperature is too low.
Set the room temperature higher.
• Check if food containing a high proportion of water has been
put in the coldest area of the fridge or near the cooling vent.
If so, move the food to other shelves in the fridge.
• Make sure the refrigerator is installed on a stable, at
surface.
• Make sure the refrigerator is far enough away from rear
walls, side walls, and cabinets to allow proper ventilation.
• Make sure that there are no foreign objects (coins, keys,
cutlery, etc.) inside or underneath the refrigerator.
• The refrigerator may produce a ticking sound from inside.
This occurs when the various accessories contract or expand
as the temperature inside changes. This is normal.
English62
Untitled-8 62 2016-03-30 1:29:24
Symptom Action
The front corners
and sides become
warm and form
condensation.
The ice maker does
not make ice.
The water dispenser
is not functioning.
You hear a bubbling
sound.
A bad smell comes
from inside the
refrigerator.
Frost forms on the
interior walls.
• To prevent condensation from forming, the refrigerator
has heat-proof piping in the front corners. If the ambient
temperature rises, this equipment may not work effectively.
This is not a system failure.
• Make sure the door is closed properly. Condensation may
form if you leave the door open for an extended period of
time.
• Condensation may form on the exterior surface of the
refrigerator if humid air comes into contact with the cool
surface of the refrigerator.
• If you have used all the ice in the ice bucket, you must wait
for 12 hours for the refrigerator to make more ice.
• See if the Ice Maker Off icon is lit. If it is, press and hold Ice
Maker Off for 3 seconds.
• Make sure the freezer is set below 32 °F (0 °C) (or 23 °F (-5
°C) in warm ambient air).
• Make sure the water tank is lled with water.
• Check if the ice bucket contains ice clumps. If it does, empty
the ice bucket and try again.
• Check if the water tank is frozen. If so, select a higher fridge
temperature.
• Make sure the water tank is lled with water.
• Make sure the water tank is installed properly.
• Make sure the water lter is installed properly.
• This is normal. The bubbling sound comes from refrigerant
circulating through the refrigerator.
• Check for any spoiled food. We recommend cleaning the
refrigerator on a regular basis and removing any spoiled or
suspect food items.
• Make sure strong smelling food is wrapped tightly or stored
in air tight containers.
• Make sure no food blocks the vents of the refrigerator. It is
also important to arrange food items evenly for ventilation.
• Make sure the door is closed properly.
Troubleshooting
English 63
Untitled-8 63 2016-03-30 1:29:24
Troubleshooting
Symptom Action
Condensation forms
on the interior walls
or around vegetables.
The freezer door does
not close.
• This happens when food containing a high proportion of
water is stored uncovered, or the door has been left open for
an extended period of time.
• Make sure food is covered or put in sealed containers.
• Push the water dispenser lever to check the water supply.
• Push the ice dispenser lever to check the operation of the
auger motor in the ice maker assembly.
• Check if there are any objects obstructing the auger motor
and preventing it from running. If found, remove the objects
and clear the motor area.
• If the ice maker has not been used for an extended time, the
ice bucket may contain ice chunks that obstruct the auger
motor and prevent it from running properly. If this is the
case, remove and empty the ice bucket.
Troubleshooting
English64
Untitled-8 64 2016-03-30 1:29:24
Samsung Smart Home
Symptom Action
Could not nd
“Samsung Smart
Home” in the app
market.
The Samsung Smart
Home app fails to
operate.
The Samsung Smart
Home app is installed
but is not connected
to my refrigerator.
Could not log into the
app.
An error message
appears when I
try to register my
refrigerator.
The Samsung
Smart Home app
is successfully
connected to my
refrigerator but does
not run.
• The Samsung Smart Home app is available for smartphones
that run Android 4.0 (ICS) or higher, or iOS 7.0 or higher.
• The Samsung Smart Home app is available on applicable
models only.
• The old Samsung Smart Refrigerator app cannot connect with
Samsung Smart Home models.
• You must log into your Samsung account to use the app.
• Make sure that your router is operating normally.
• If the Wi-Fi icon on the refrigerator’s display is off, this
indicates that no network connection has been established
yet. In this case, use the Samsung Smart Home app to
connect and register your refrigerator to the access point
(AP) of your house.
• You must log into your Samsung account to use the app.
• If you don’t have a Samsung account, follow the app’s
onscreen instructions to create one.
• Easy Connection may fail due to the distance from your
access point (AP) or electrical interference from the
surrounding environment. Wait a moment and try again.
• Exit and restart the Samsung Smart Home app, or disconnect
and reconnect the router.
• Unplug the power cord of the refrigerator, and plug it again
after 1 minute.
Troubleshooting
English 65
Untitled-8 65 2016-03-30 1:29:24
Troubleshooting
Smart Grid
What Do I Need
to use the Energy
Management and
Smart Grid functions?
Why isn’t the Energy
Management function
working normally?
Troubleshooting
Why isn’t the Delay
Defrost Capability
working normally?
Symptom Action
To use the Smart Grid (Demand Response) and Energy
Management functions on your refrigerator, you need the
following:
Devices
• Wireless access point (router)
• Samsung Energy Management-supported refrigerator
• Smartphone
Registration
• Connect your refrigerator to your home Wi-Fi network.
• Register for the EMS service with your electric company that
has an EMS (Energy Management System) supporting SEP
(Smart Energy prole).
Application
• Download the Samsung Smart Home app from the Google
Play Store, Apple App Store, or Samsung Galaxy Apps.
• Install and run the Samsung Smart Home app on your
smartphone.
• Make sure that your home router is operating normally with
proper Internet service and connection.
• Make sure that the refrigerator is connected to the AP.
Checkpoints
• Connect your smartphone to the router (AP, Access Point),
and then check if you can browse the Internet on the
smartphone.
• Check if the Wi-Fi icon on the refrigerator’s display is on. If
not, connect the refrigerator to the AP.
• Make sure that your home router is operating normally with
proper Internet service and connection.
• Make sure that the refrigerator does not display L3 or L4 on
the display panel.
English66
Untitled-8 66 2016-03-30 1:29:24
Warranty (USA)
WARRANTY ON SAMSUNG REFRIGERATOR
LIMITED WARRANTY TO ORIGINAL PURCHASER
This Samsung brand product, as supplied and distributed by Samsung Electronics
America, Inc. (Samsung) and delivered new, in the original carton to the original consumer
purchaser, is warranted by Samsung against manufacturing defects in materials and
workmanship for a limited warranty period of:
One (1) year Parts and Labor on Refrigerator
Five (5) years Parts and Labor on sealed Refrigeration system only*
Ten (10) years Parts and Five (5) years Labor on Digital Inverter Compressor
(*Compressor, evaporator, condenser, drier, connecting tubing)
This limited warranty begins on the original date of purchase, and is valid only on
products purchased and used in the United States. To receive warranty service, the
purchaser must contact Samsung for problem determination and service procedures.
Warranty service can only be performed by a Samsung authorized service center.
The original dated bill of sale must be presented upon request as proof of purchase to
Samsung or Samsung authorized service center.
Samsung will repair or replace any part found to be defective, at our option and at no
charge as stipulated herein, with new or reconditioned parts during the limited warranty
period specied above. All replaced parts and products become the property of Samsung
and must be returned to Samsung. Replacement parts and products assume the remaining
original warranty, or ninety (90) days, whichever is longer.
In-home service will be provided during the warranty labor period subject to availability
within the contiguous United States. In-home service is not available in all areas. To
receive in-home service, the product must be unobstructed and accessible from oor
level to service personnel. If during in-home service repair cannot be completed, it may
be necessary to remove, repair and return the product. If in-home service is unavailable,
Samsung may elect, at our option, to provide for transportation of our choice to and from
a Samsung authorized service center. Otherwise, transportation to and from the Samsung
authorized service center is the responsibility of the purchaser.
English 67
Untitled-8 67 2016-03-30 1:29:24
Warranty (USA)
This limited warranty covers manufacturing defects in materials and workmanship
encountered in normal, noncommercial use of this product, and shall not apply to the
following, including, but not limited to: damage which occurs in shipment; delivery
and installation; applications and uses for which this product was not intended; altered
product or serial numbers; cosmetic damage or exterior nish; accidents, abuse, neglect,
re, water, lightning or other acts of nature; use of products, equipment, systems,
utilities, services, parts, supplies, accessories, applications, installations, repairs, external
plumbing and leaks, external wiring, circuit breakers, fuses or connectors not supplied
and authorized by Samsung, or which damage this product or result in service problems;
incorrect electrical line voltage, uctuations and surges; customer adjustments and failure
to follow operating instructions, cleaning, maintenance and environmental instructions
that are covered and prescribed in the instruction book; loss of food due to spoilage;
consumable items including lters and light.
THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE LISTED AND DESCRIBED
ABOVE, AND NO WARRANTIES WHETHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT
LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE, SHALL APPLY AFTER THE EXPRESS WARRANTY PERIODS STATED
ABOVE, AND NO OTHER EXPRESS WARRANTY OR GUARANTY GIVEN BY ANY PERSON,
FIRM OR CORPORATION WITH RESPECT TO THIS PRODUCT SHALL BE BINDING ON
SAMSUNG. SAMSUNG SHALL NOT BE LIABLE FOR LOSS OF REVENUE OR PROFITS, FAILURE
TO REALIZE SAVINGS OR OTHER BENEFITS, OR ANY OTHER SPECIAL, INCIDENTAL OR
CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE OR INABILITY TO USE THIS
PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND
EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NOR
SHALL RECOVERY OF ANY KIND AGAINST SAMSUNG BE GREATER IN AMOUNT THAN THE
PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG AND CAUSING THE ALLEGED
DAMAGE. WITHOUT LIMITING THE FOREGOING, PURCHASER ASSUMES ALL RISK AND
LIABILITY FOR LOSS, DAMAGE OR INJURY TO PURCHASER AND PURCHASER’S PROPERTY
AND TO OTHERS AND THEIR PROPERTY ARISING OUT OF THE USE, MISUSE OR INABILITY
TO USE THIS PRODUCT SOLD BY SAMSUNG NOT CAUSED DIRECTLY BY THE NEGLIGENCE
OF SAMSUNG. THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN
THE ORIGINAL PURCHASER OF THIS PRODUCT, IS NONTRANSFERABLE AND STATES YOUR
EXCLUSIVE REMEDY.
Some states do not allow limitations on how long an implied warranty lasts, or the
exclusion or limitation of incidental or consequential damages, so the above limitations
or exclusions may not apply to you. This warranty gives you specic legal rights, and you
may also have other rights, which vary from state to state. To obtain warranty service,
please contact Samsung at:
English68
Untitled-8 68 2016-03-30 1:29:24
SAMSUNG CUSTOMER CARE CENTER
Samsung Electronics America, Inc. 85 Challenger Road Ridgeeld Park, NJ 07660
1-800-SAMSUNG (726-7864)
www.samsung.com/us/support
English 69
Untitled-8 69 2016-03-30 1:29:24
Warranty Information (CANADA)
If your refrigerator needs service
Do not hesitate to call any Samsung Authorized Service Center nearby giving them your
name, address and telephone number when your product is not functioning properly.
Limited Warranty for Original Purchaser
This Samsung product is warranted by Samsung Electronics Canada Inc. (hereafter referred
to as SECA) against manufacturing defects in material or workmanship for the following
periods:
Labor : 1 year (in-home)
Parts : 1 year
Inverter Compressor : 10 years (Part only)
SECA further warrants that if this product fails to operate properly within the specied
warranty period and the failure is due to improper workmanship or defective material,
SECA will repair or replace the product at its option. In-home service is not available in all
areas. Contact us to nd out if in-home service is currently available in your area by using
the contact information at the back of this warranty.
All warranty repairs or part replacements must be performed by a SECA Authorized
Service Center. (To nd the nearest SECA Service Center, call 1-800-SAMSUNG (7267864)
or visit our web site at www.samsung.com/ca)
Obligation to the Original Owner
The original dated sales receipt must be retained by the customer and is the only
acceptable proof of purchase. It must be presented to a SECA Authorized Service Center
at the time service is requested before warranty services are rendered. On all carry-in
models, transportation to and from the Authorized Service Center is the responsibility of
the customer.
English70
Untitled-8 70 2016-03-30 1:29:24
Exclusions of the Warranty
This warranty does not cover damage due to accident, re, ood, and/or other Acts of
God, misuse, incorrect line voltage, improper installation, improper or unauthorized
repairs, commercial use, or damage that occurs during shipping. Customer adjustments
which are explained in this owners manual are not covered under the terms of this
warranty. This warranty will automatically be voided for any unit found with a missing or
altered serial number. This warranty is valid only on products purchased and used in the
Canada.
SAMSUNG CUSTOMER CARE CENTER
Samsung Electronics Canada Inc. 2050 Derry Road West, Mississauga, Ontario L5N 0B9
Canada
1-800-SAMSUNG (726-7864)
www.samsung.com/ca/support (English)
www.samsung.com/ca_fr/support (French)
English 71
Untitled-8 71 2016-03-30 1:29:24
Open Source Announcement
The software included in this product contains open source software. You may obtain the
complete corresponding source code for a period of three years after the last shipment of
this product by sending an email to mailto:oss.request@samsung.com.
It is also possible to obtain the complete corresponding source code in a physical medium
such as a CD-ROM; a minimal charge will be required.
The following URL http://opensource.samsung.com/opensource/SimpleConnectTP/seq/0
leads to the download page of the source code made available and open source license
information as related to this product. This offer is valid to anyone in receipt of this
information.
English72
Untitled-8 72 2016-03-30 1:29:25
Memo
Untitled-8 73 2016-03-30 1:29:25
Memo
Untitled-8 74 2016-03-30 1:29:25
Memo
Untitled-8 75 2016-03-30 1:29:25
Scan the QR code* or visit
www.samsung.com/spsn
s
to view our helpful
How-to Videos and Live Show
* Requires reader to be installed on your
smartphone
Contact SAMSUNG WORLD WIDE
If you have any questions or comments relating to Samsung products, please contact the
SAMSUNG customer care center.
Country Contact Center Web Site
U.S.A
CANADA
1-800-SAMSUNG
(726-7864)
1-800-SAMSUNG
(726-7864)
www.samsung.com/us/support
www.samsung.com/ca/support (English)
www.samsung.com/ca_fr/support (French)
Untitled-8 76 2016-03-30 1:29:25
DA68-03194N-02
Refrigerador
Manual del usuario
Electrodoméstico independiente
Untitled-9 1 2016-03-30 1:30:44
Contenido
Información sobre seguridad 3
Símbolos y advertencias de seguridad importantes: 3
Advertencia sobre la State of California Proposition 65 (solo EE.UU.) 3
Contenido
Advertencias muy importantes para la instalación 4
Precauciones para la instalación 6
Advertencias muy importantes para el uso 6
Precauciones de uso 10
Precauciones para la limpieza 11
Advertencias muy importantes para la eliminación de residuos 12
1. Aviso regulatorio 13
Instalación 15
Descripción breve del refrigerador 15
Extracción de la puerta para la entrada 17
Instalación paso a paso 25
Funcionamiento 33
Panel de funciones 33
Samsung Smart Home 40
Función SMART GRID(respuesta a la demanda) 44
Funciones especiales 49
Mantenimiento 53
Manipulación y cuidado 53
Limpieza 57
Reemplazo 57
Solución de problemas 61
General 61
Samsung Smart Home 64
Smart Grid 65
Garantía (USA) 66
GARANTÍA DEL REFRIGERADOR SAMSUNG 66
Español2
Untitled-9 2 2016-03-30 1:30:44
Información sobre seguridad
• Antes de utilizar su nuevo refrigerador Samsung, lea detenidamente este manual a n de aprender a
usar las funciones que ofrece de manera segura y eciente.
• Este electrodoméstico no debe ser utilizado por personas (incluidos niños) con capacidades mentales,
sensoriales o físicas reducidas o por personas que carezcan de experiencia y conocimientos, a menos
que se encuentren bajo la supervisión o hayan recibido instrucciones de un responsable de su
seguridad sobre el uso del refrigerador.
• Debido a que las siguientes instrucciones corresponden a diversos modelos, es posible que las
características de su refrigerador dieran ligeramente de las que se describen en este manual.
• Si tiene alguna duda, comuníquese al 1-800-SAMSUNG o encuentre ayuda e información en línea en
www.samsung.com.
• Se utiliza R-600a o R-134a como refrigerante. Mire la etiqueta del compresor en la parte posterior
del electrodoméstico o la etiqueta de voltaje dentro del refrigerador para constatar qué refrigerante
fue utilizado en su refrigerador. Si este producto contiene gas inamable (Refrigerante R-600a),
comuníquese con las autoridades locales para desechar este producto en forma segura.
• Es peligroso que una persona que no sea un técnico de servicio autorizado realice tareas de reparación
en este aparato.
Símbolos y advertencias de seguridad importantes:
Información sobre seguridad
Sírvase seguir todas las instrucciones de seguridad del presente manual. En el presente manual se utilizan
los siguientes símbolos de seguridad.
ADVERTENCIA
Riesgos o prácticas inseguras que pueden causar graves lesiones personales, daños a la propiedad y/o
incluso la muerte.
PRECAUCIÓN
Riesgos o prácticas inseguras que pueden causar lesiones personales leves y/o daños materiales.
NOTA
Información útil que ayuda a los usuarios a comprender u obtener benecios del refrigerador.
Estas señales de advertencia se incluyen aquí para evitar que usted o terceros sufran lesiones.
Sígalas atentamente.
Después de leer esta sección, consérvela en un lugar seguro para referencia futura.
Advertencia sobre la State of California Proposition 65 (solo EE.UU.)
ADVERTENCIA : Este producto contiene productos químicos reconocidos en el estado de California como
capaces de provocar cáncer y defectos de nacimiento u otras afecciones reproductivas.
Español 3
Untitled-9 3 2016-03-30 1:30:45
Información sobre seguridad
Advertencias muy importantes para la instalación
ADVERTENCIA
• No instale el refrigerador en un lugar húmedo o donde pueda entrar en contacto con agua.
- El aislamiento deciente de las piezas eléctricas puede provocar una descarga eléctrica o un
incendio.
Información sobre seguridad
• No exponga este refrigerador a la luz solar directa ni al calor de estufas, calefactores u otros
electrodomésticos.
• No enchufe varios electrodomésticos en la misma toma múltiple. El refrigerador debe conectarse
siempre a un tomacorriente individual cuyo voltaje nominal coincida con el que se especica en la
placa de voltaje del refrigerador.
- De esta manera se obtiene el mejor desempeño y también se evita que se sobrecarguen los
circuitos del cableado de la casa, lo que podría sobrecalentar los cables y provocar un riesgo de
incendio.
• Si el tomacorriente está ojo, no conecte el enchufe.
- Existe el riesgo de que se produzca una descarga eléctrica o un incendio.
• No utilice un cable de alimentación que esté dañado o gastado en su extensión o en cualquiera de los
extremos.
• No doble excesivamente el cable de alimentación ni coloque objetos pesados sobre él.
• No tire del cable de alimentación ni lo doble excesivamente.
• No retuerza ni amarre el cable de alimentación.
• No coloque el cable de alimentación sobre un objeto metálico; no coloque sobre él ningún objeto
pesado; no lo coloque entre objetos ni lo empuje hacia el espacio que hay detrás del electrodoméstico.
• Al mover el refrigerador, tenga cuidado de no enroscar ni dañar el cable de alimentación.
- Esto podría causar una descarga eléctrica o un incendio.
• Nunca desenchufe el refrigerador jalando el cable de alimentación. Siempre sostenga el enchufe con
rmeza y jale para extraerlo del tomacorriente.
- Los daños al cable pueden provocar un cortocircuito, un incendio o una descarga eléctrica.
• No almacene sustancias explosivas como latas de aerosoles con gases propelentes inamables en este
electrodoméstico.
• No instale este electrodoméstico cerca de calefactores o materiales inamables.
• No instale este electrodoméstico en un lugar donde pueda haber fugas de gas.
- Esto podría causar una descarga eléctrica o un incendio.
• Antes de usarse, el refrigerador debe ubicarse e instalarse de manera apropiada de acuerdo con las
instrucciones de este manual.
• Conecte el enchufe en la posición correcta con el cable colgando hacia abajo.
- Si conecta el enchufe al revés, el cable puede cortarse y provocar un incendio o una descarga
eléctrica.
Español4
Untitled-9 4 2016-03-30 1:30:45
• Asegúrese de que el enchufe no esté aplastado ni haya sido dañado por la parte posterior del
refrigerador.
• Mantenga los materiales de empaque fuera del alcance de los niños.
- Existe el riesgo de muerte por asxia si un niño se coloca los materiales de empaque en la cabeza.
• El electrodoméstico debe colocarse de manera tal que se pueda acceder al enchufe después de la
instalación.
- No seguir esta recomendación puede causar una descarga eléctrica o un incendio debido a una fuga
Información sobre seguridad
de electricidad.
• No instale este electrodoméstico en un lugar húmedo, engrasado o sucio, o en un sitio con exposición
directa al sol o al agua (lluvia).
- El aislamiento deciente de las piezas eléctricas puede provocar una descarga eléctrica o un
incendio.
• Si ingresaran grandes cantidades de polvo o agua al refrigerador, desenchufe el cable de alimentación
y comuníquese con el Centro de Servicio de Samsung Electronics.
- Si no lo hace, existe el riesgo de que se produzca un incendio.
• No se pare sobre el electrodoméstico ni le coloque objetos encima (tales como ropa, velas o cigarrillos
encendidos, platos, productos químicos, objetos metálicos, etc.).
- Esto podría causar una descarga eléctrica, un incendio, problemas con el producto o lesiones.
• Es necesario quitar toda la película plástica protectora antes de enchufar el producto por primera vez.
• Se deberá vigilar a los niños para asegurarse de que no jueguen con los anillos elásticos utilizados para
el ajuste de la puerta o con las grapas del tubo de agua.
- Existe riesgo de muerte por asxia si un niño se traga un anillo elástico o una grapa del tubo de
agua. Mantenga los anillos elásticos y las grapas del tubo de agua fuera del alcance de los niños.
• El refrigerador debe estar conectado a tierra de manera segura.
- Siempre asegúrese de haber conectado el refrigerador a tierra antes de intentar examinar o reparar
alguna pieza. Las fugas de energía pueden provocar una descarga eléctrica grave.
• Nunca utilice como conexión a tierra tubos de gas, líneas telefónicas ni otras posibles fuentes de
atracción de rayos.
- El refrigerador debe estar conectado a tierra para evitar cualquier fuga de energía o descarga
eléctrica provocada por fugas de corriente del refrigerador.
- Esto podría causar descargas eléctricas, incendios, explosiones o problemas con el producto.
- El uso inapropiado de la conexión a tierra puede traer como consecuencia un riesgo de descarga
eléctrica. Si necesita usar un cable de extensión, use solo uno de tres hilos con un enchufe que
tenga una tercera punta para el polo a tierra; la toma de corriente deberá tener 3 ranuras para
adaptarse al enchufe del electrodoméstico. La potencia indicada en el cable de extensión debe ser
CA 115-120 V, 10 A o superior. Si se utiliza un adaptador de tierra, asegúrese de que el receptáculo
esté conectado correctamente a tierra.
Español 5
Untitled-9 5 2016-03-30 1:30:45
Información sobre seguridad
• Conecte bien el enchufe a la toma de pared. No utilice enchufes o cables de alimentación dañados ni
enchufes de pared ojos.
- Esto podría causar una descarga eléctrica o un incendio.
• Si el cable de alimentación está dañado, solicite su reemplazo de inmediato al fabricante o a uno de los
agentes de servicio técnico.
• Únicamente un técnico calicado o compañía de reparaciones debe estar autorizado para cambiar el
Información sobre seguridad
fusible del refrigerador.
- No seguir esta recomendación, podría causar una descarga eléctrica o lesiones.
Precauciones para la instalación
PRECAUCIÓN
• Deje espacio suciente alrededor del refrigerador e instálelo sobre una supercie plana.
- Mantenga libre de obstáculos el espacio de ventilación en el gabinete o la estructura de montaje
del electrodoméstico.
• Una vez que haya instalado el refrigerador y lo haya encendido, permita que funcione durante 2 horas
antes de cargarlo con alimentos.
• Recomendamos que el refrigerador sea instalado por un técnico calicado o una compañía de servicios.
- No seguir esta recomendación puede causar descargas eléctricas, incendios, explosiones, problemas
con el producto o lesiones.
• Sobrecargar una de las puertas puede ocasionar la caída del refrigerador y provocar lesiones
personales.
Advertencias muy importantes para el uso
ADVERTENCIA
• No conecte el enchufe en un tomacorriente con las manos mojadas.
- Esto podría causar una descarga eléctrica.
• No coloque objetos en la parte superior de la unidad.
- Cada vez que abra o cierre la puerta, estos podrían caerse y provocar lesiones personales o daños
materiales.
• No coloque las manos, los pies ni objetos metálicos (como palillos chinos, etc.) en la parte inferior o
posterior del refrigerador.
- Esto podría causar una descarga eléctrica o lesiones personales.
- Algunos bordes losos podrían provocar lesiones personales.
Español6
Untitled-9 6 2016-03-30 1:30:45
• No toque las paredes internas del congelador ni los productos almacenados en este con las manos
mojadas.
- Esto puede provocar quemaduras por frío.
• No coloque un recipiente con agua sobre el refrigerador.
- Si se derrama, existe el riesgo de que se produzca un incendio o una descarga eléctrica.
• No almacene sustancias u objetos volátiles o inamables (benceno, solvente, gas propano, alcohol, éter,
gas LP ni cualquier otro producto de este tipo) en el refrigerador.
- Este refrigerador se debe utilizar solo para almacenar alimentos.
- Esto podría causar un incendio o una explosión.
• Se deberá vigilar a los niños para asegurarse de que no jueguen con el electrodoméstico.
- Aleje los dedos de los puntos de agarre. Los espacios entre las puertas y el gabinete son
inevitablemente pequeños. Abra las puertas con cuidado si hay niños cerca.
• No permita que los niños se cuelguen de la puerta ni de los compartimientos de la puerta. Pueden
producirse lesiones graves.
• No permita que los niños ingresen al refrigerador. Podrían quedar atrapados.
• No coloque las manos debajo del electrodoméstico.
- Es posible que algunas puntas losas le provoquen lesiones.
• No almacene en el refrigerador productos farmacéuticos, materiales cientícos ni productos sensibles a
la temperatura.
- No se deben almacenar productos que requieran controles estrictos de temperatura.
• No coloque ni utilice aparatos eléctricos dentro del refrigerador/congelador, a menos que sean del tipo
recomendado por el fabricante.
• En caso de sentir olor a humo, desconecte el enchufe de inmediato y comuníquese con el Centro de
Servicio de Samsung Electronics.
• Si ingresaran grandes cantidades de polvo o agua al refrigerador, desenchufe el cable de alimentación
y comuníquese con el Centro de Servicio de Samsung Electronics.
- Si no lo hace, existe el riesgo de que se produzca un incendio.
• No permita que los niños se paren sobre un cajón.
- El cajón se puede romper y los niños pueden caerse.
• No deje las puertas del refrigerador abiertas si el refrigerador no está siendo vigilado y no permita
que los niños ingresen en el refrigerador.
• No permita que los bebés ni los niños ingresen al cajón.
- Esto puede provocar muerte por asxia debido al encierro o lesiones personales.
• No sobrecargue el refrigerador con comida.
- Cuando abra la puerta, algún elemento podría caerse y provocar lesiones personales o daños
materiales.
• No pulverice material volátil, tal como un insecticida, sobre la supercie del electrodoméstico.
- Además de ser perjudicial para los seres humanos, puede causar una descarga eléctrica, un incendio
o problemas con el producto.
Información sobre seguridad
Español 7
Untitled-9 7 2016-03-30 1:30:45
Información sobre seguridad
• Nunca coloque los dedos ni otros objetos en el oricio del dispensador de agua, en el recipiente de
hielo o en la cubeta de la fábrica de hielo.
- Esto puede provocar lesiones personales o daños materiales.
• No utilice ni coloque ninguna sustancia sensible a la temperatura, tales como pulverizadores
inamables, objetos inamables, hielo seco, medicamentos o productos químicos, cerca o dentro del
refrigerador.
Información sobre seguridad
• No utilice un secador de cabello para secar el interior del refrigerador. No coloque velas encendidas en
el refrigerador para eliminar los malos olores.
- Esto podría causar una descarga eléctrica o un incendio.
• Llene el tanque de agua, la charola para el hielo solamente con agua potable (agua de la llave, agua
mineral o agua puricada).
- No llene el tanque con té, jugo ni bebidas isotónicas. Pueden dañar el refrigerador.
• No se pare sobre el electrodoméstico ni le coloque objetos encima (tales como ropa, velas o cigarrillos
encendidos, platos, productos químicos, objetos metálicos, etc.). Esto podría causar una descarga
eléctrica, un incendio, problemas con el producto o lesiones. No coloque un recipiente con agua sobre
el electrodoméstico.
- Si se derrama, existe el riesgo de que se produzca un incendio o una descarga eléctrica.
• No utilice dispositivos mecánicos ni cualquier otro medio para acelerar el proceso de descongelamiento
que no sean aquellos recomendados por el fabricante.
• No dañe el circuito del refrigerante.
• No mire jamente la lámpara LED UV durante mucho tiempo.
- Los rayos ultravioletas podrían dañarle la visión.
• No coloque el estante del refrigerador al revés. El tope del estante no funcionará.
- El estante de vidrio puede caerse y provocar lesiones.
• Aleje los dedos de los puntos de agarre. Los espacios entre las puertas y el gabinete son
inevitablemente pequeños. Abra las puertas con cuidado si hay niños cerca.
• Si se detecta una fuga de gas, evite las llamas o posibles fuentes de ignición y ventile durante varios
minutos la habitación en la que se encuentra el electrodoméstico.
- No toque el electrodoméstico ni el cable de alimentación.
- No utilice un ventilador.
- Una chispa puede provocar una explosión o un incendio.
• Utilice solamente lámparas LED proporcionadas por el fabricante o sus agentes de servicio técnico.
• Las botellas se deben almacenar una junto a otra de manera tal que no se tumben ni se caigan.
• Este producto se debe utilizar solo para almacenar alimentos en un entorno doméstico.
• Nunca coloque los dedos ni otros objetos en el oricio del dispensador de agua, en el recipiente de
hielo o en la cubeta de la fábrica de hielo.
- Puede provocar lesiones personales o daños materiales.
Español8
Untitled-9 8 2016-03-30 1:30:45
• No intente reparar, desensamblar ni modicar el refrigerador por su cuenta.
- Las modicaciones que no han sido autorizadas pueden provocar problemas de seguridad. Para
revertir una modicación no autorizada, cobraremos el costo completo de las piezas y mano de
obra.
• No utilice ningún fusible (tales como los de alambres de acero, de cobre, etc.) que no sea un fusible
estándar.
• Si es necesario reparar o volver a instalar el refrigerador, comuníquese con su Centro de Servicio más
cercano.
- No seguir esta recomendación puede causar una descarga eléctrica, un incendio, problemas con el
producto o lesiones.
• Si la lámpara LED interior o exterior se ha apagado, comuníquese con el Centro de Servicio más
cercano.
• En caso de sentir olor a quemado o a humo en el refrigerador, desenchúfelo de inmediato y
comuníquese con un Centro de Servicio Samsung.
- No seguir esta recomendación podría causar una descarga eléctrica o un incendio.
• Desenchufe el refrigerador antes de cambiar las lámparas internas.
- Si no lo hace, existe el riesgo de que se produzca una descarga eléctrica.
• Si le resulta difícil cambiar una luz que no sea de LED, comuníquese con un Centro de Servicio de
Samsung.
• Si el producto cuenta con lámparas LED, no desensamble las cubiertas de la lámpara y las lámparas
LED usted mismo.
- Comuníquese con un Centro de Servicio de Samsung.
• Conecte bien el enchufe a la toma de pared.
• No utilice enchufes o cables de alimentación dañados ni enchufes de pared ojos.
- Esto podría causar una descarga eléctrica o un incendio.
Información sobre seguridad
Español 9
Untitled-9 9 2016-03-30 1:30:45
Información sobre seguridad
Precauciones de uso
PRECAUCIÓN
• No vuelva a congelar alimentos que se hayan descongelado completamente. No coloque bebidas
carbonatadas o con gas en el compartimiento del congelador. No coloque botellas ni recipientes de
vidrio en el congelador.
Información sobre seguridad
- Cuando el contenido se congela, el vidrio puede romperse y provocar lesiones personales.
• Utilice solamente la fábrica de hielo del refrigerador.
• Para obtener el mejor desempeño del producto:
- No coloque alimentos muy cerca de las rejillas de ventilación en la parte posterior del refrigerador,
ya que pueden obstruir la libre circulación del aire en el compartimiento del refrigerador.
- Envuelva los alimentos adecuadamente o colóquelos en recipientes herméticos antes de
almacenarlos en el refrigerador.
- No coloque botellas de vidrio ni bebidas carbonatadas en el congelador. Si se congelan, pueden
romperse. Los recipientes de bebidas rotos pueden provocar lesiones personales.
- Cumpla con los tiempos máximos de almacenamiento y las fechas de vencimiento de los alimentos
congelados.
• No coloque recipientes ni botellas de vidrio ni bebidas carbonatadas en el congelador.
- El recipiente puede congelarse y romperse, y esto puede ocasionar lesiones.
• Garantía de servicio y modicación.
- El servicio de garantía de Samsung no cubre los cambios o las modicaciones realizadas por un
tercero a este electrodoméstico; Samsung tampoco es responsable de los problemas relacionados
con la seguridad que puedan surgir a causa de modicaciones hechas por terceros.
• No obstruya las rejillas de ventilación dentro del refrigerador.
- Si las rejillas de ventilación están tapadas, en particular con una bolsa de plástico, el refrigerador
se puede sobrecongelar. Si el período de enfriamiento es demasiado prolongado, el ltro de agua
puede romperse y provocar fugas de agua.
• Si se desconecta el refrigerador del suministro de energía, espere al menos cinco minutos antes de
volver a enchufarlo.
• Si entraran grandes cantidades de agua al refrigerador, desenchúfelo y comuníquese con un Centro de
Servicio Samsung.
• No golpee ni aplique una fuerza excesiva sobre ninguna supercie de vidrio.
- Un vidrio roto puede causar lesiones personales o daños materiales.
• Llene el tanque de agua y la charola para el hielo solamente con agua potable (agua de la llave, agua
mineral o agua puricada).
- No llene el tanque con té, jugo ni bebidas isotónicas. Pueden dañar el refrigerador.
• Si el refrigerador se inunda, desconecte la alimentación del refrigerador y comuníquese con el centro
de servicios Samsung más cercano.
- Existe el riesgo de que se produzca una descarga eléctrica o un incendio.
Español10
Untitled-9 10 2016-03-30 1:30:45
Precauciones para la limpieza
PRECAUCIÓN
• No pulverice con agua directamente dentro o fuera del refrigerador.
- Existe el riesgo de que se produzca un incendio o una descarga eléctrica.
• No utilice un secador de cabello para secar el interior del refrigerador.
• No coloque velas encendidas en el refrigerador para eliminar los malos olores.
- Esto podría causar una descarga eléctrica o un incendio.
• No rocíe productos de limpieza directamente sobre el visor.
- Las letras impresas en el visor pueden borrarse.
• Si cualquier sustancia extraña, tal como agua, ingresa en el refrigerador, desenchúfelo y comuníquese
con su Centro de Servicio más cercano.
- No seguir esta recomendación podría causar una descarga eléctrica o un incendio.
• Use un paño seco y limpio para retirar cualquier sustancia extraña o polvo de las clavijas del enchufe.
No utilice un paño mojado ni húmedo para limpiar el enchufe.
- De lo contrario, existe el riesgo de que se produzca un incendio o una descarga eléctrica.
• No limpie el refrigerador rociando agua directamente sobre él.
• No limpie el refrigerador con benceno, disolvente o Clorox (blanqueador).
- Pueden dañar la supercie del refrigerador y provocar un incendio.
• Nunca coloque los dedos ni otros objetos en la salida del dispensador.
- Puede provocar lesiones personales o daños materiales.
• Antes de limpiar o realizar el mantenimiento, desenchufe el refrigerador del enchufe de pared.
- No seguir esta recomendación podría causar una descarga eléctrica o un incendio.
Información sobre seguridad
Español 11
Untitled-9 11 2016-03-30 1:30:45
Información sobre seguridad
Advertencias muy importantes para la eliminación de residuos
ADVERTENCIA
• PELIGRO : Existe el riesgo de que los niños queden encerrados. Antes de desechar su antiguo
refrigerador o congelador:
- Retire las puertas y los pestillos.
Información sobre seguridad
- Deje los estantes en su lugar de manera tal que los niños no puedan trepar fácilmente en el interior.
- Si algún niño queda atrapado dentro del refrigerador, puede lastimarse o asxiarse hasta morir.
• Deseche el material de empaque de este producto de forma tal que no resulte nocivo para el medio
ambiente.
• Asegúrese de que ninguno de los tubos que se encuentran en la parte trasera del refrigerador estén
dañados antes de desecharlos.
• Se utiliza R-600a o R-134a como refrigerante. Mire la etiqueta del compresor en la parte posterior
del electrodoméstico o la etiqueta de voltaje dentro del refrigerador para constatar qué refrigerante
fue utilizado en su refrigerador. Si este refrigerador contiene gas inamable (Refrigerante R-600a),
comuníquese con las autoridades locales para desechar este producto en forma segura.
• Cuando deseche este refrigerador, retire los burletes y los pestillos de las puertas de manera tal que
los niños pequeños o los animales no puedan quedar atrapados en el interior. Se deberá vigilar a los
niños para asegurarse de que no jueguen con el electrodoméstico.
- Si quedan atrapados dentro, los niños pueden lesionarse o sofocarse hasta morir.
• Se utiliza ciclopentano como aislante. Los gases del material de aislamiento requieren un
procedimiento especial para desecharlos. Comuníquese con las autoridades locales para desechar este
producto de manera que no resulte nocivo para el medio ambiente.
• Mantenga los materiales de empaque fuera del alcance de los niños, ya que pueden ser peligrosos para
ellos.
- Si un niño se coloca una bolsa en la cabeza, puede asxiarse.
Español12
Untitled-9 12 2016-03-30 1:30:45
1. Aviso regulatorio
1.1 Aviso de la FCC (Federal Communications Commission)
PRECAUCIÓN de la FCC:
Todos los cambios y modicaciones que no cuenten con la aprobación expresa de la parte responsable del
cumplimiento pueden invalidar la autoridad del usuario para operar el equipo.
Contiene módulo transmisor FCC ID: A3LSWL-CQ52
Este aparato cumple con la sección 15 de las Normas de la FCC. El funcionamiento se encuentra sujeto a
las siguientes dos condiciones:
(1) Este aparato no puede causar interferencia dañina y
(2) Este aparato debe aceptar la recepción de cualquier interferencia, incluidas aquellas que causen un
funcionamiento indeseado.
En los productos disponibles en los mercados de los Estados Unidos y Canadá, solo están disponibles los
canales 1 a 11.
No es posible seleccionar otros canales.
DECLARACIÓN DE LA FCC:
Este equipo ha sido sometido a pruebas y se ha determinado que se encuentra dentro de los límites para
los dispositivos digitales clase B, de acuerdo con la parte 15 de las Normas de la FCC. Dichos límites
han sido diseñados para proporcionar una protección razonable contra la interferencia dañina en una
instalación residencial.
Este equipo genera, utiliza y puede irradiar energía de frecuencias de radio y, si no se lo instala y utiliza
de acuerdo con las instrucciones, pueden producirse interferencias en las comunicaciones de radio. Sin
embargo, no existe garantía alguna de que no habrá interferencia en una instalación determinada. Si
el equipo provoca interferencia dañina a la recepción de radio o televisión, que puede determinarse al
encender y apagar el equipo, se sugiere que el usuario trate de corregir la interferencia mediante una o
más de las siguientes medidas:
• Reorientar o reubicar la antena receptora
• Aumentar la distancia entre el equipo y el receptor
• Conectar el equipo en un tomacorriente que está en un circuito diferente que el receptor.
• Consultar a su distribuidor o a un técnico experimentado en radio/TV para obtener ayuda.
Información sobre seguridad
DECLARACIÓN DE LA FCC SOBRE LA EXPOSICIÓN A LA RADIACIÓN:
Este equipo cumple con los límites de exposición a la radiación establecidos por la FCC para un entorno no
controlado.
Este equipo debe instalarse y utilizarse con una distancia mínima de 8 pulgadas (20 cm) entre el radiador
y su cuerpo. Este aparato y sus antenas no deben ubicarse ni utilizarse junto con ninguna otra antena o
transmisor excepto si se cumplen los procedimientos de la FCC para productos transmisores múltiples.
Español 13
Untitled-9 13 2016-03-30 1:30:45
Información sobre seguridad
1.2 Aviso de la IC
Contiene módulo de transmisor IC: 649E-SWLCQ52
El término “IC” antes del número de certicación de radio solo signica que cumple con las
especicaciones técnicas de la Industria de Canadá. El funcionamiento se encuentra sujeto a las siguientes
dos condiciones: (1) Este aparato no puede causar interferencia dañina, y (2) este aparato debe aceptar la
Información sobre seguridad
recepción de cualquier interferencia, incluidas aquellas que puedan causar un funcionamiento indeseado.
Este aparato digital Clase B cumple con el ICES-003 de Canadá.
Cet appareil numérique de la classe B est conforme á la norme NMB-003 du Canada.
En los productos disponibles en los mercados de los Estados Unidos y Canadá, solo están disponibles los
canales 1 a 11. No es posible seleccionar otros canales.
DECLARACIÓN IC SOBRE LA EXPOSICIÓN A LA RADIACIÓN:
Este equipo cumple con los límites de exposición a la radiación establecidos por la IC RSS-102 para un
entorno no controlado. Este equipo debe instalarse y utilizarse con una distancia mínima de 8 pulgadas
(20 cm) entre el radiador y su cuerpo. Este aparato y sus antenas no deben ubicarse ni utilizarse junto
con ninguna otra antena o transmisor excepto si se cumplen los procedimientos de la FCC para productos
transmisores múltiples.
GUARDE ESTAS INSTRUCCIONES
Español14
Untitled-9 14 2016-03-30 1:30:45
Instalación
A
B
C D
07
08
09
10
01
02
03
04
05
06
Siga estas instrucciones cuidadosamente para evitar accidentes y garantizar la instalación adecuada del
refrigerador.
ADVERTENCIA
• Utilice el refrigerador solamente para su uso previsto como se describe en este manual.
• Todas las reparaciones deben estar a cargo de un técnico calicado.
• Descarte el material de empaque del producto de acuerdo con la normativa local.
• A n de evitar descargas eléctricas, desenchufe el cable de alimentación antes de realizar trabajos de
mantenimiento.
Descripción breve del refrigerador
NOTA
Las imágenes de piezas del presente manual y componentes provistos del refrigerador pueden diferir,
dependiendo del modelo y del país.
Instalación
Español 15
Untitled-9 15 2016-03-30 1:30:45
Instalación
01 Fábrica de hielo automática
02 Cajones de verduras y frutas frescas EZ
03 Guarda multiusos del refrigerador
04 Estante corredizo accesible
05 Cajones de almacenamiento de carne y
06 Compartimientos de la puerta del congelador
07 Estante jo
08 Estante espacio rápido
09 Filtro de agua
10 Estante para vinos
* solo para los modelos correspondientes
Instalación
• Si la caja interior está abierta, no abra el panel. El panel puede desplazarse hacia atrás y resultar
• Asegúrese de cerrar el panel correctamente. Cuando se cierra el panel correctamente se oye un clic.
• Para una mayor eciencia energética, asegúrese de que todos los estantes, cajones y canastos estén en
• Al cerrar la puerta, asegúrese de que la sección de la bisagra vertical se encuentre en la posición
• Si la sección de la bisagra vertical está invertida, colóquela en la posición correcta y cierre la puerta.
• Algunas veces puede aparecer humedad en esta sección de la bisagra vertical.
• Si cierra una puerta por la fuerza, la otra puerta puede abrirse.
• Cuando se abre la puerta, el disyuntor desactiva automáticamente el motor sinfín de la fábrica de hielo
• Si la lámpara LED interna o externa no funcionan, comuníquese con un centro de servicio Samsung.
A. Refrigerador
B. Puerta del panel
C. Congelador
D. Cajón FlexZone
alimentos secos
PRECAUCIÓN
dañado.
NOTA
su posición original.
correcta para impedir que se raye con la otra puerta.
por razones de seguridad.
Español16
Untitled-9 16 2016-03-30 1:30:45
Extracción de la puerta para la entrada
Si el refrigerador no pasa por la entrada de su casa o de la cocina por una cuestión de tamaño, siga estas
instrucciones para extraer y colocar nuevamente las puertas del refrigerador. Si no necesita retirar las
puertas, vaya a la página 25 para obtener las instrucciones de instalación.
Herramientas necesarias (no provistas)
Destornillador Philips Destornillador plano Llave de tubo (10 mm)
Pinzas Llave Allen (4 mm) Llave Allen (5 mm)
Cómo retirar las puertas del refrigerador
1. Con las puertas cerradas, utilice un
destornillador Philips para extraer los tornillos
(x3) de la cubierta superior. Levante y retire la
cubierta superior con los conectores.
Instalación
Español 17
Untitled-9 17 2016-03-30 1:30:46
Instalación
Instalación
2. Desconecte los dos conectores de cables de la
puerta izquierda. La posición de los conectores
varía entre modelos.
PRECAUCIÓN
• No estriga ambas puertas simultáneamente.
Asegúrese de retirar una puerta por vez. De
lo contrario, alguna podría caerse y provocar
lesiones.
• Asegúrese de que el refrigerador esté apagado
antes de desconectar los conectores.
3. Desconecte la tubería de agua del acoplador de
la puerta izquierda como se ilustra.
4. Levante suavemente la abrazadera en varios
pasos. A n de evitar lesiones en los dedos,
no aplique fuerza repentinamente sobre la
abrazadera.
5. Tire hacia arriba de la abrazadera para
retirarla.
Español18
Untitled-9 18 2016-03-30 1:30:46
6. Abra la puerta a 90 grados. Mientras sostiene
la puerta, levante y retire la bisagra superior.
Tenga cuidado de no dañar los cables de los
conectores al retirar la bisagra.
7. Suavemente levante la puerta en sentido
vertical para retirarla. No use fuerza excesiva.
La puerta puede caerse y provocarle lesiones.
8. Coloque la puerta en una supercie plana.
9. Repita los pasos anteriores para la otra puerta
(excepto el paso 3). La puerta del lado derecho
no tiene tubo de agua.
Instalación
Español 19
Untitled-9 19 2016-03-30 1:30:46
Instalación
A
Cómo retirar las puertas del congelador
PRECAUCIÓN
• Asegúrese de retirar las puertas del refrigerador antes de retirar las puertas del congelador.
• Tenga cuidado al desconectar los conectores inferiores.
1. Con la puerta del congelador abierta, use un
destornillador Philips para retirar el tornillo
sosteniendo la cubierta (A) de la pata ajustable.
Instalación
2. Desconecte los conectores de cables.
3. Ubique el eje de la bisagra. Mientras
sostiene la puerta con una mano, utilice un
destornillador plano o llave para presionar
el eje hacia abajo. Asegúrese de sostener la
puerta para evitar que se caiga.
Español20
Untitled-9 20 2016-03-30 1:30:47
4. Para evitar el contacto con la bisagra central,
incline levemente la puerta hacia el frente y
luego levántela para retirarla.
5. Repita los pasos anteriores para la otra puerta.
Cómo colocar nuevamente las puertas del congelador
PRECAUCIÓN
• Antes de colocar nuevamente las puertas, asegúrese de que todos los conectores eléctricos estén
conectados adecuadamente.
• La puerta del congelador debe colocarse nuevamente antes la puerta del refrigerador.
• Tenga cuidado de no dañar ni pisar los cables durante este proceso.
Instalación
1. Inserte la puerta del congelador en la bisagra
inferior mientras empuja la puerta del
congelador en la dirección de la echa.
PRECAUCIÓN
• Tenga cuidado de no dañar ni pisar los cables
durante este proceso.
Español 21
Untitled-9 21 2016-03-30 1:30:47
Instalación
Instalación
2. Mientras mantiene presionado el eje de la
bisagra, coloque la puerta de manera que el eje
de la bisagra quede por debajo del oricio del
eje de la bisagra del medio. Suelte el eje de la
bisagra para que entre en el oricio.
3. Con la puerta abierta, conecte los conectores
inferiores en las direcciones de las echas.
4. Coloque la cubierta de la pata de nivelación
con un destornillador Phillips. Tenga cuidado
de no dañar ni pisar los conectores.
5. Repita los pasos anteriores para la otra puerta.
Español22
Untitled-9 22 2016-03-30 1:30:47
Cómo colocar nuevamente las puertas del refrigerador
1. Mientras sostiene la puerta abierta a más
de 90 grados, inserte el eje de la bisagra del
medio en el oricio de la parte inferior de la
puerta.
2. Coloque la bisagra superior en su posición
en la parte superior del refrigerador y luego
inserte el eje de la bisagra en el oricio
superior de la puerta. Asegúrese de que los
cables de la puerta pasen a través del oricio
del eje de la bisagra.
3. Inserte la abrazadera en la dirección de la
echa.
Instalación
4. Lleve la abrazadera hacia atrás como se ilustra.
Español 23
Untitled-9 23 2016-03-30 1:30:48
Instalación
Instalación
5. Conecte los conectores de cables.
PRECAUCIÓN
• Asegúrese de que los conectores de cables
estén conectados adecuadamente. De lo
contrario, el visor no funcionará.
6. Conecte el tubo de agua.
PRECAUCIÓN
• Para evitar pérdidas de agua, asegúrese de
que las grapas rojas ajusten el acoplador
adecuadamente.
• Mantenga las grapas fuera del alcance de los
niños.
7. Repita los pasos anteriores para la otra puerta,
excepto el paso 6. En la puerta del lado
derecho no hay tubo de agua.
8. Coloque la cubierta superior con el lado frontal
primero y luego presione la parte posterior
hasta alcanzar su posición. Luego, ajuste los
tornillos (x3).
Español24
Untitled-9 24 2016-03-30 1:30:48
Loading...
